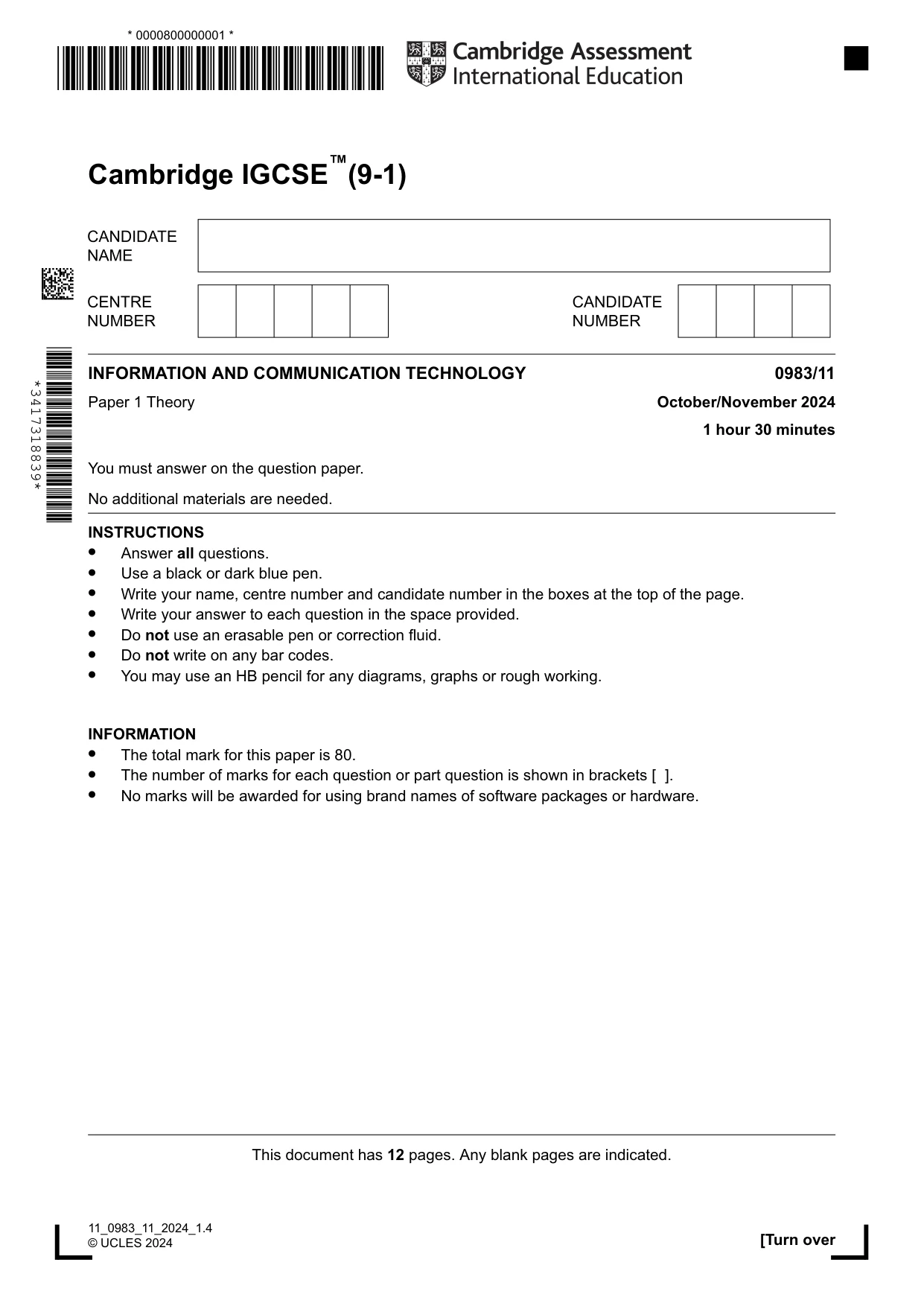

Cambridge IGCSE™(9-1) 0983/11 October/November 2024 1 hour 30 minutes INFORMATION AND COMMUNICATION TECHNOLOGY Paper 1 Theory You must answer on the question paper. No additional materials are needed. INSTRUCTIONS • Answer all questions. • Use a black or dark blue pen. • Write your name, centre number and candidate number in the boxes at the top of the page. • Write your answer to each question in the space provided. • Do not use an erasable pen or correction fluid. • Do not write on any bar codes. • You may use an HB pencil for any diagrams, graphs or rough working. INFORMATION • The total mark for this paper is 80. • The number of marks for each question or part question is shown in brackets [ ]. • No marks will be awarded for using brand names of software packages or hardware. This document has 12 pages. Any blank pages are indicated. [Turn over 11_0983_11_2024_1.4 © UCLES 2024 *3417318839* ,










, * 0000800000001 * ¬Wz> 4mHuOªEŠ^{5€W ¬©8rWªv›M„qXAC={‚‚ ¥eE•uUeU • E 5E55U

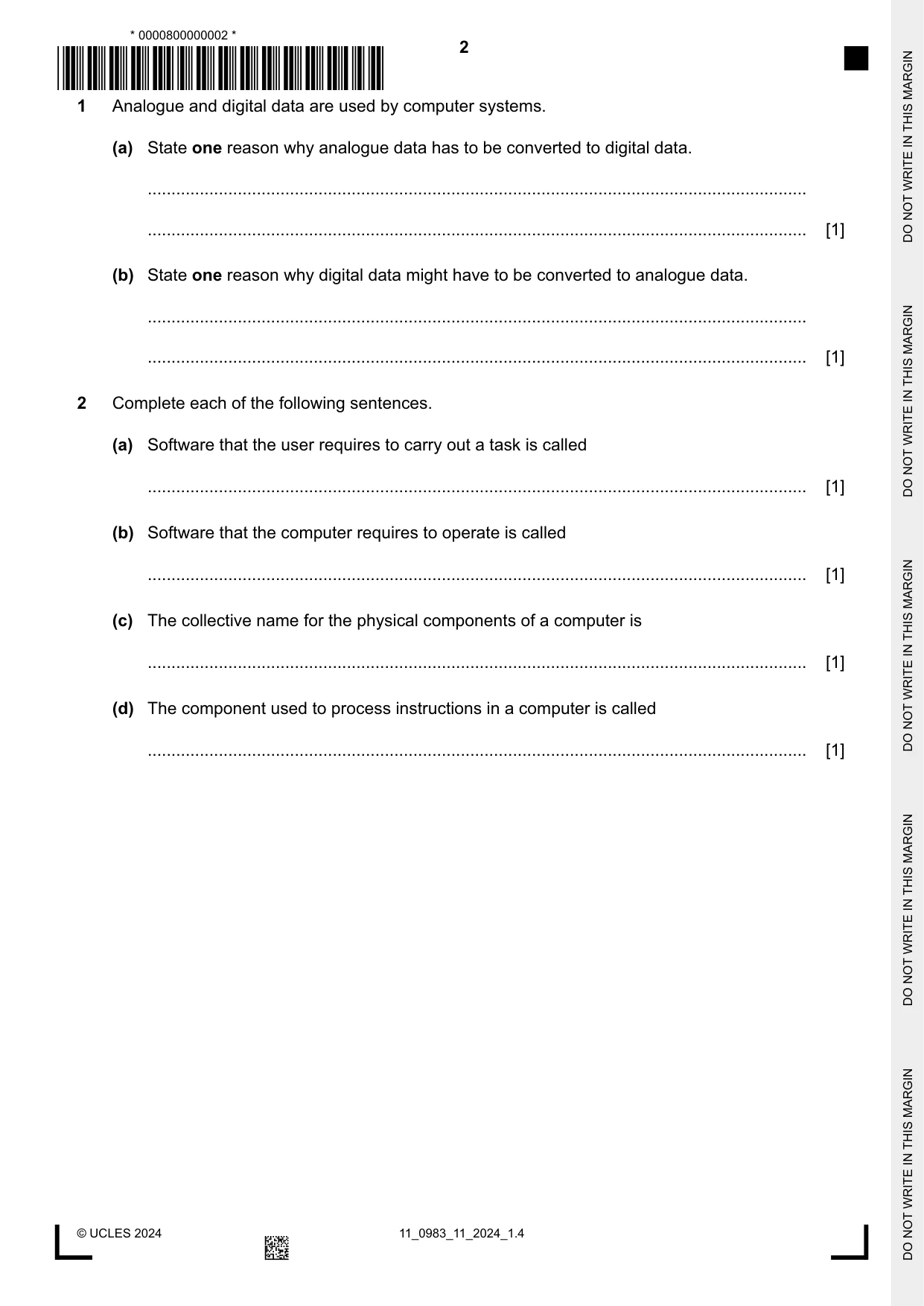

Analogue and digital data are used by computer systems. 1 State one reason why analogue data has to be converted to digital data. (a) … … [1] State one reason why digital data might have to be converted to analogue data. (b) … … [1] Complete each of the following sentences. 2 Software that the user requires to carry out a task is called (a) … [1] Software that the computer requires to operate is called (b) … [1] The collective name for the physical components of a computer is (c) … [1] The component used to process instructions in a computer is called (d) … [1] 11_0983_11_2024_1.4 © UCLES 2024 2 * 0000800000002 * ,










, ĬÕú¾Ġ´íÈõÏĪÅĊßù·þ× Ĭĩ¶ñÖĞòíæíć»ù¹íÃĊĂ ĥõÕĕµµĥµµÕÕąąõåõĕÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

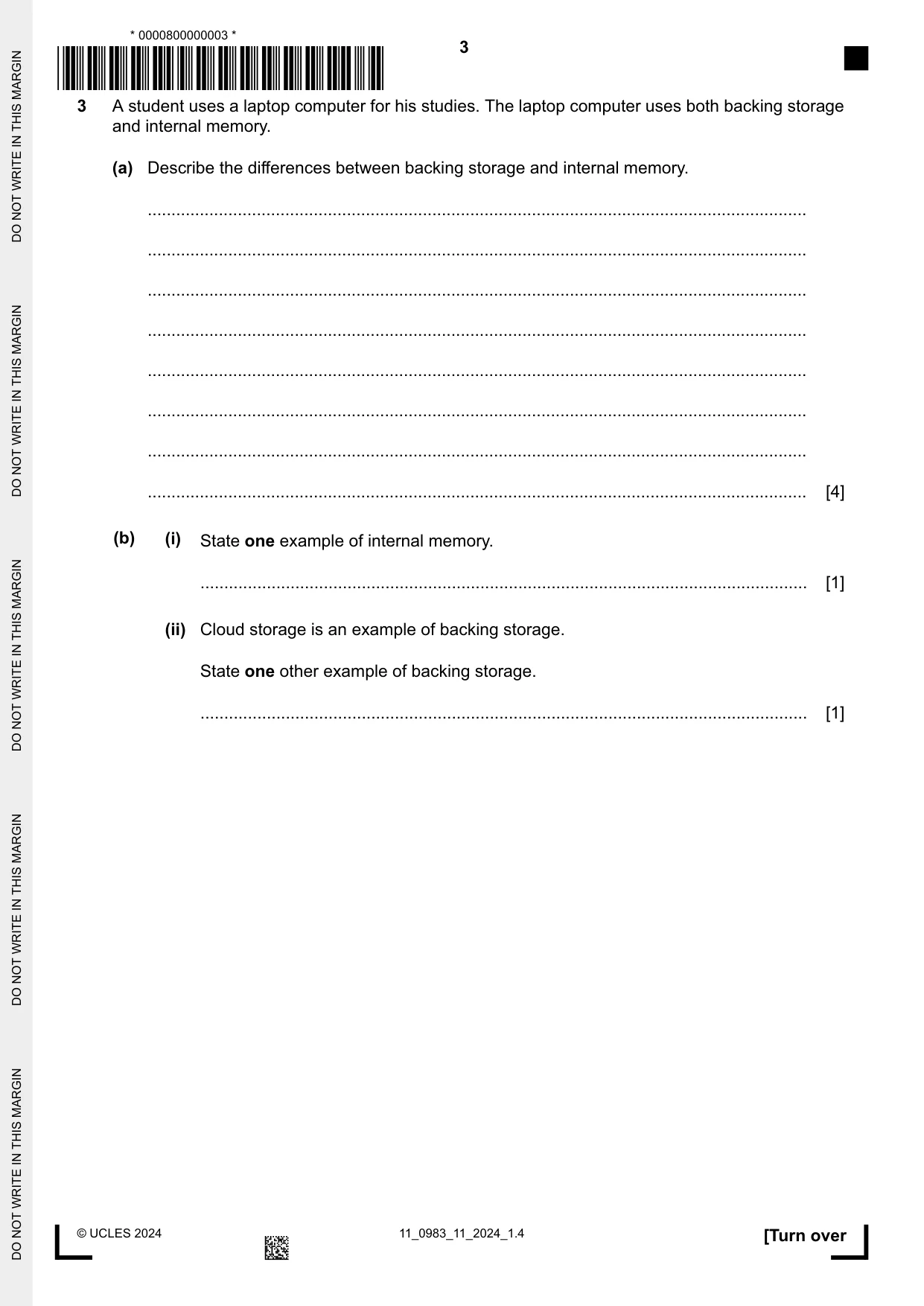

A student uses a laptop computer for his studies. The laptop computer uses both backing storage and internal memory. 3 Describe the differences between backing storage and internal memory. (a) … … … … … … … … [4] (b) State one example of internal memory. (i) … [1] Cloud storage is an example of backing storage. State one other example of backing storage. (ii) … [1] [Turn over 11_0983_11_2024_1.4 © UCLES 2024 3 * 0000800000003 * ,










, Ĭ×ú¾Ġ´íÈõÏĪÅĊßû·þ× ĬĩµòÎĬîýÓċúîÝÁéÃúĂ ĥõåÕõÕąÕååąąąĕŵąÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

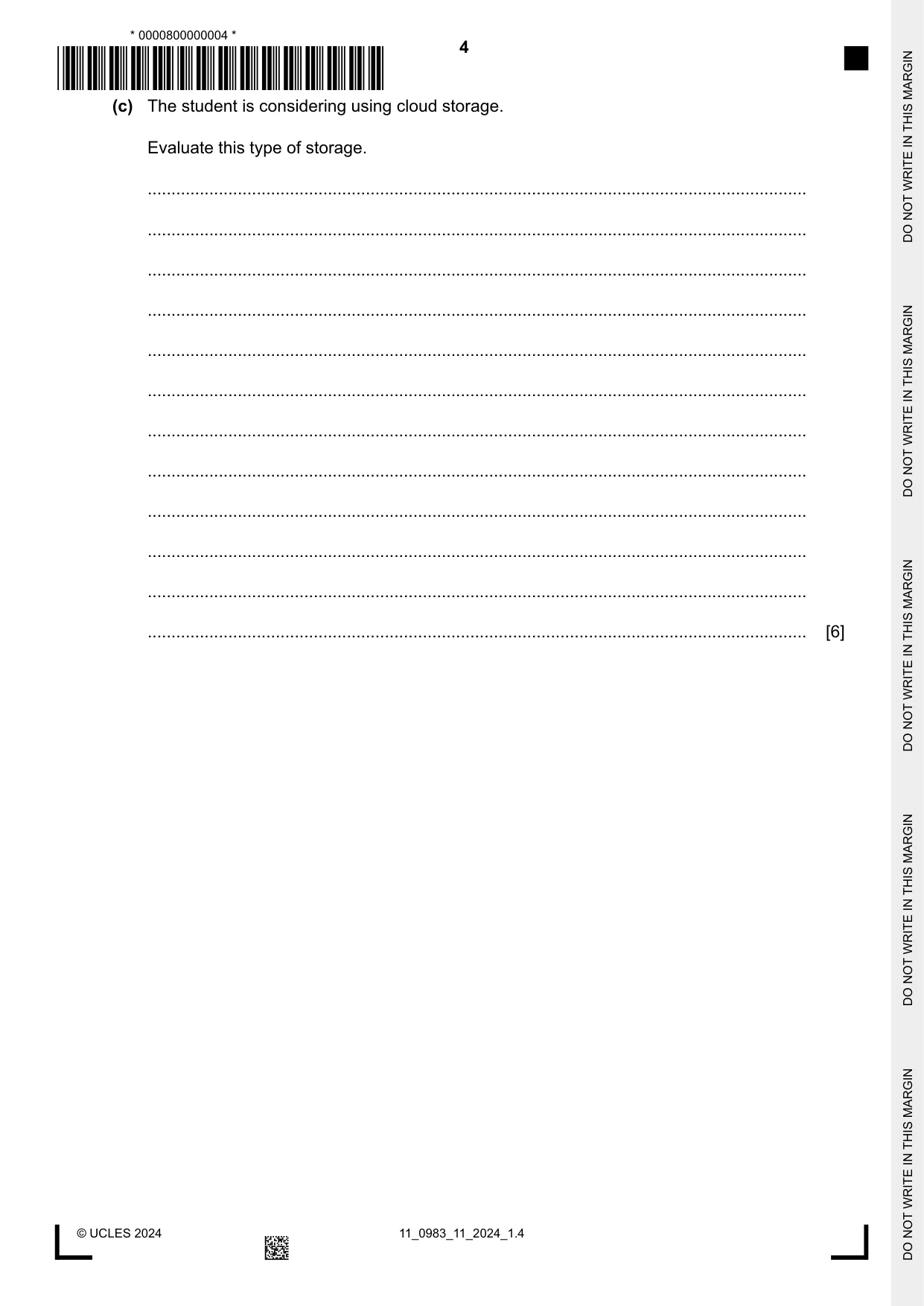

The student is considering using cloud storage. Evaluate this type of storage. (c) … … … … … … … … … … … … [6] 11_0983_11_2024_1.4 © UCLES 2024 4 * 0000800000004 * ,










, ĬÕú¾Ġ´íÈõÏĪÅĊÝù·Ā× ĬĩµóÎĢĀČèąñõÿĝċÓĂĂ ĥÅõÕµÕąõÅąõąÅĕĥµĕÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

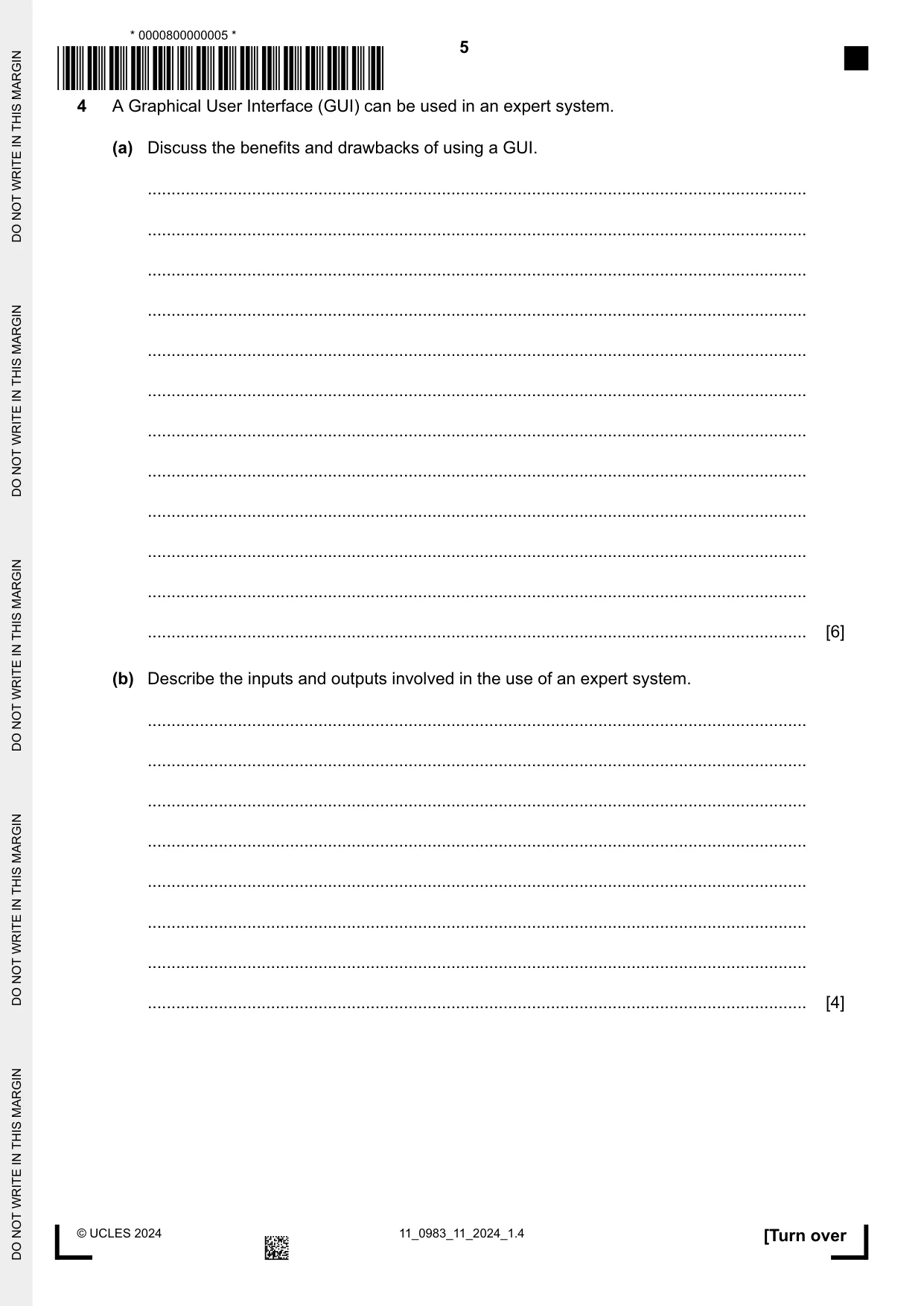

A Graphical User Interface (GUI) can be used in an expert system. 4 Discuss the benefits and drawbacks of using a GUI. (a) … … … … … … … … … … … … [6] Describe the inputs and outputs involved in the use of an expert system. (b) … … … … … … … … [4] [Turn over 11_0983_11_2024_1.4 © UCLES 2024 5 * 0000800000005 * ,










, Ĭ×ú¾Ġ´íÈõÏĪÅĊÝû·Ā× Ĭĩ¶ôÖĨĄüÑóĀ´ÛĕÏÓòĂ ĥÅąĕõµĥĕÕõåąÅõąõąÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

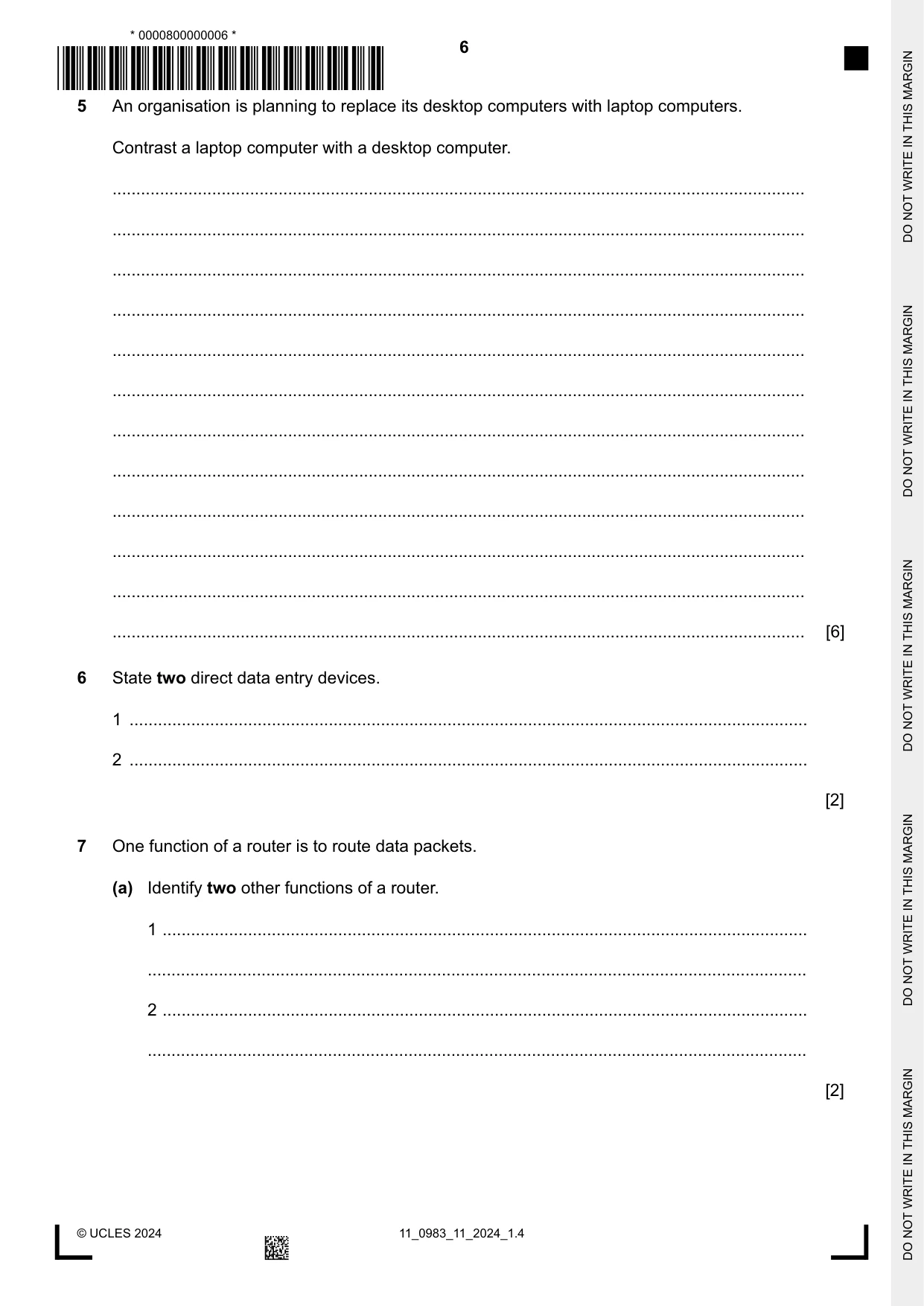

An organisation is planning to replace its desktop computers with laptop computers. Contrast a laptop computer with a desktop computer. 5 … … … … … … … … … … … … [6] State two direct data entry devices. 6 1 … 2 … [2] One function of a router is to route data packets. 7 Identify two other functions of a router. (a) 1 … … 2 … … [2] 11_0983_11_2024_1.4 © UCLES 2024 6 * 0000800000006 * ,










, ĬÙú¾Ġ´íÈõÏĪÅĊàû¶þ× ĬĩµôÙĞĬòÙøíÉ»ĝ®ûĂĂ ĥĕåĕõĕĥµĕĕąąąõåµÕÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

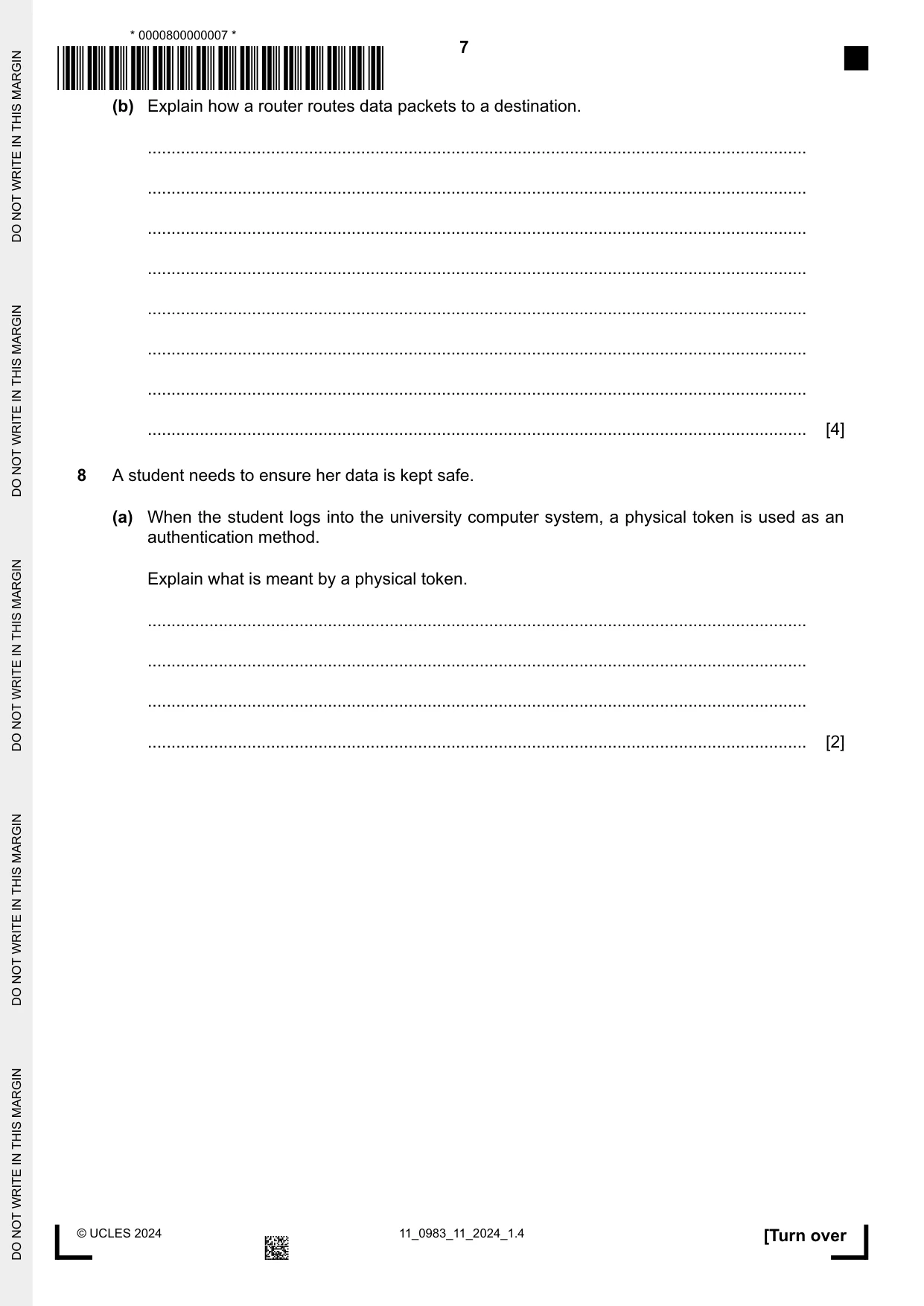

Explain how a router routes data packets to a destination. (b) … … … … … … … … [4] A student needs to ensure her data is kept safe. 8 When the student logs into the university computer system, a physical token is used as an authentication method. Explain what is meant by a physical token. (a) … … … … [2] [Turn over 11_0983_11_2024_1.4 © UCLES 2024 7 * 0000800000007 * ,










, ĬÛú¾Ġ´íÈõÏĪÅĊàù¶þ× Ĭĩ¶óÑĬĨĂàĂĄĀğĕĪûòĂ ĥĕÕÕµõąÕąĥÕąąĕÅõÅÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

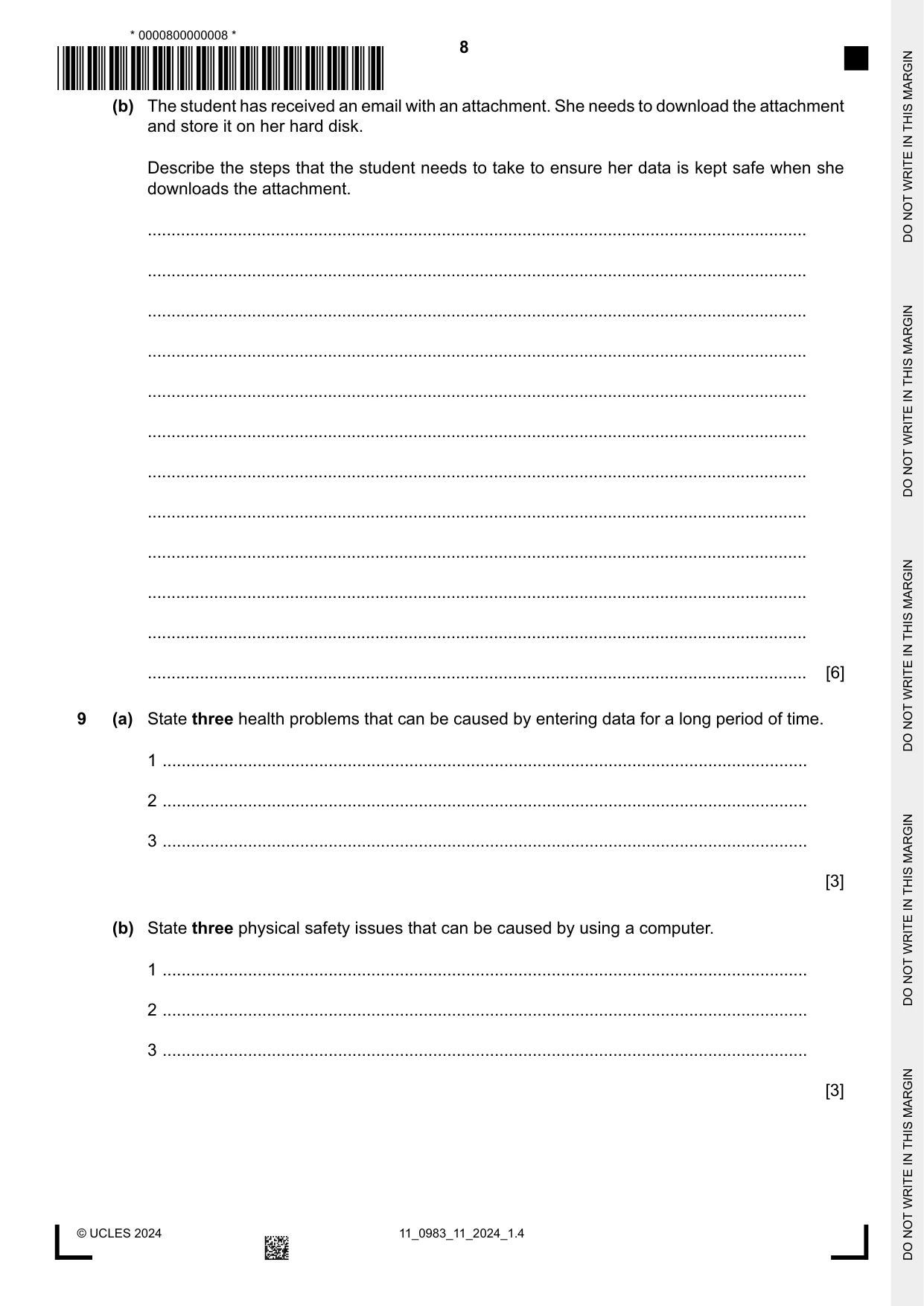

The student has received an email with an attachment. She needs to download the attachment and store it on her hard disk. Describe the steps that the student needs to take to ensure her data is kept safe when she downloads the attachment. (b) … … … … … … … … … … … … [6] State three health problems that can be caused by entering data for a long period of time. (a) 9 1 … 2 … 3 … [3] State three physical safety issues that can be caused by using a computer. (b) 1 … 2 … 3 … [3] 11_0983_11_2024_1.4 © UCLES 2024 8 * 0000800000008 * ,










, ĬÙú¾Ġ´íÈõÏĪÅĊÞû¶Ā× Ĭĩ¶òÑĢĖćÛĀċć½¹ÌīĊĂ ĥåąÕõõąõĥÅåąÅĕĥõÕÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

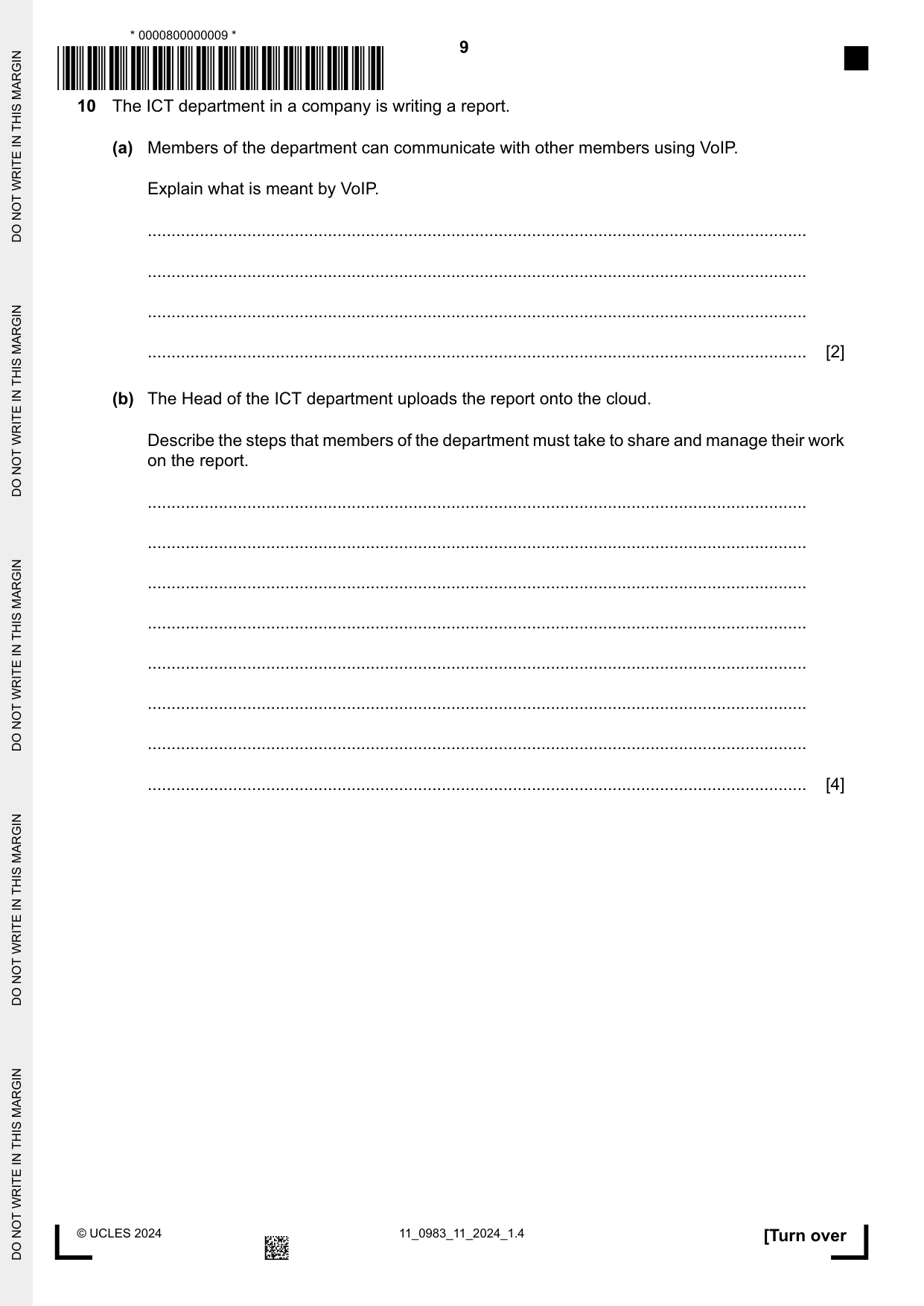

The ICT department in a company is writing a report. 10 Members of the department can communicate with other members using VoIP. Explain what is meant by VoIP. (a) … … … … [2] The Head of the ICT department uploads the report onto the cloud. Describe the steps that members of the department must take to share and manage their work on the report. (b) … … … … … … … … [4] [Turn over 11_0983_11_2024_1.4 © UCLES 2024 9 * 0000800000009 * ,










, ĬÛú¾Ġ´íÈõÏĪÅĊÞù¶Ā× ĬĩµñÙĨĚ÷ÞúöÂęÁĐīúĂ ĥåõĕµĕĥĕõµõąÅõąµÅÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

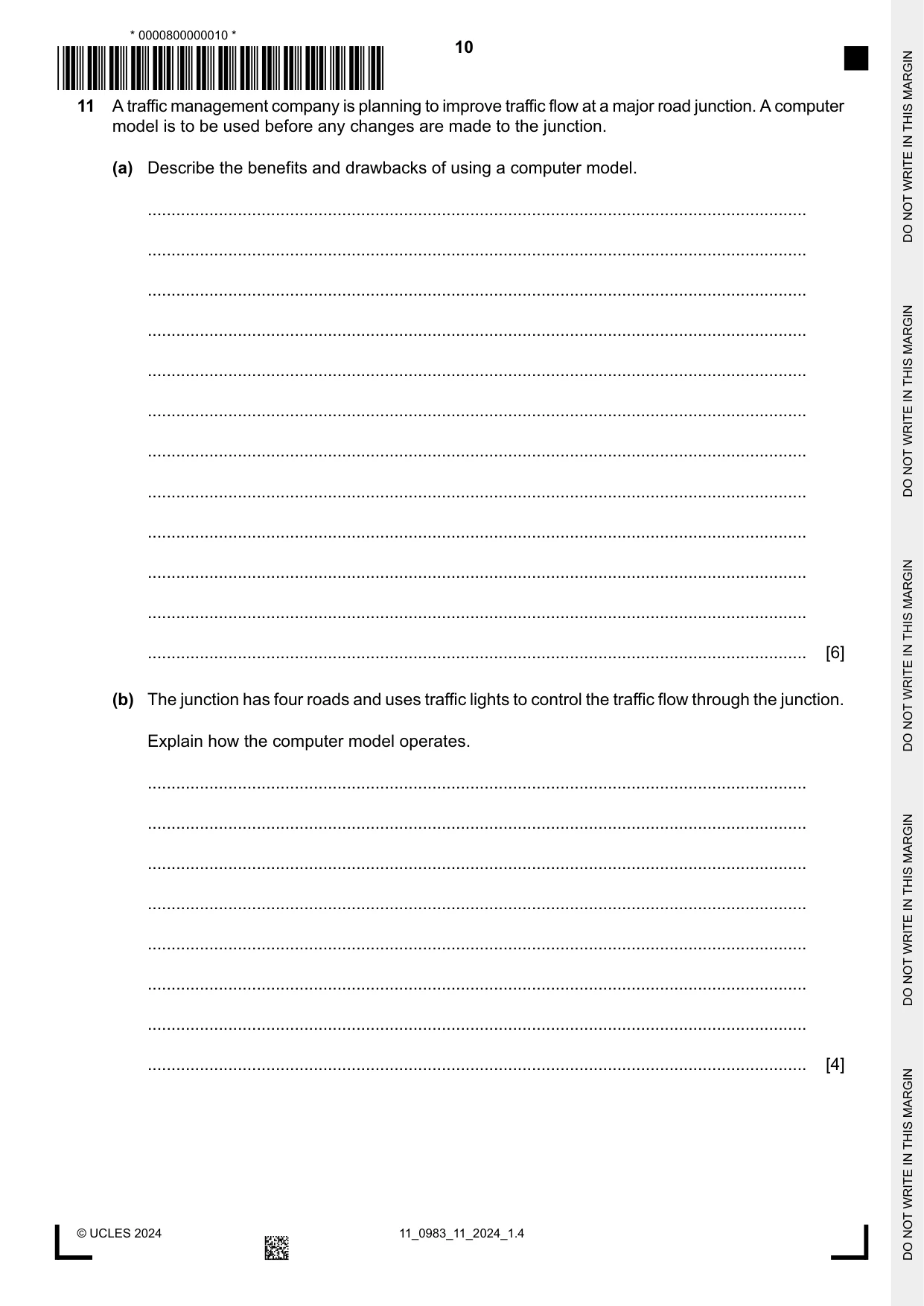

A traffic management company is planning to improve traffic flow at a major road junction. A computer model is to be used before any changes are made to the junction. 11 Describe the benefits and drawbacks of using a computer model. (a) … … … … … … … … … … … … [6] The junction has four roads and uses traffic lights to control the traffic flow through the junction. Explain how the computer model operates. (b) … … … … … … … … [4] 11_0983_11_2024_1.4 © UCLES 2024 10 * 0000800000010 * ,










, ĬÙú¾Ġ´íÈõÏĪÅĊßû¸þ× Ĭĩ·òÜĤĎđÕćĄÝá»àÓòĂ ĥõĥĕõõåõÅõåÅŵĥõĥÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

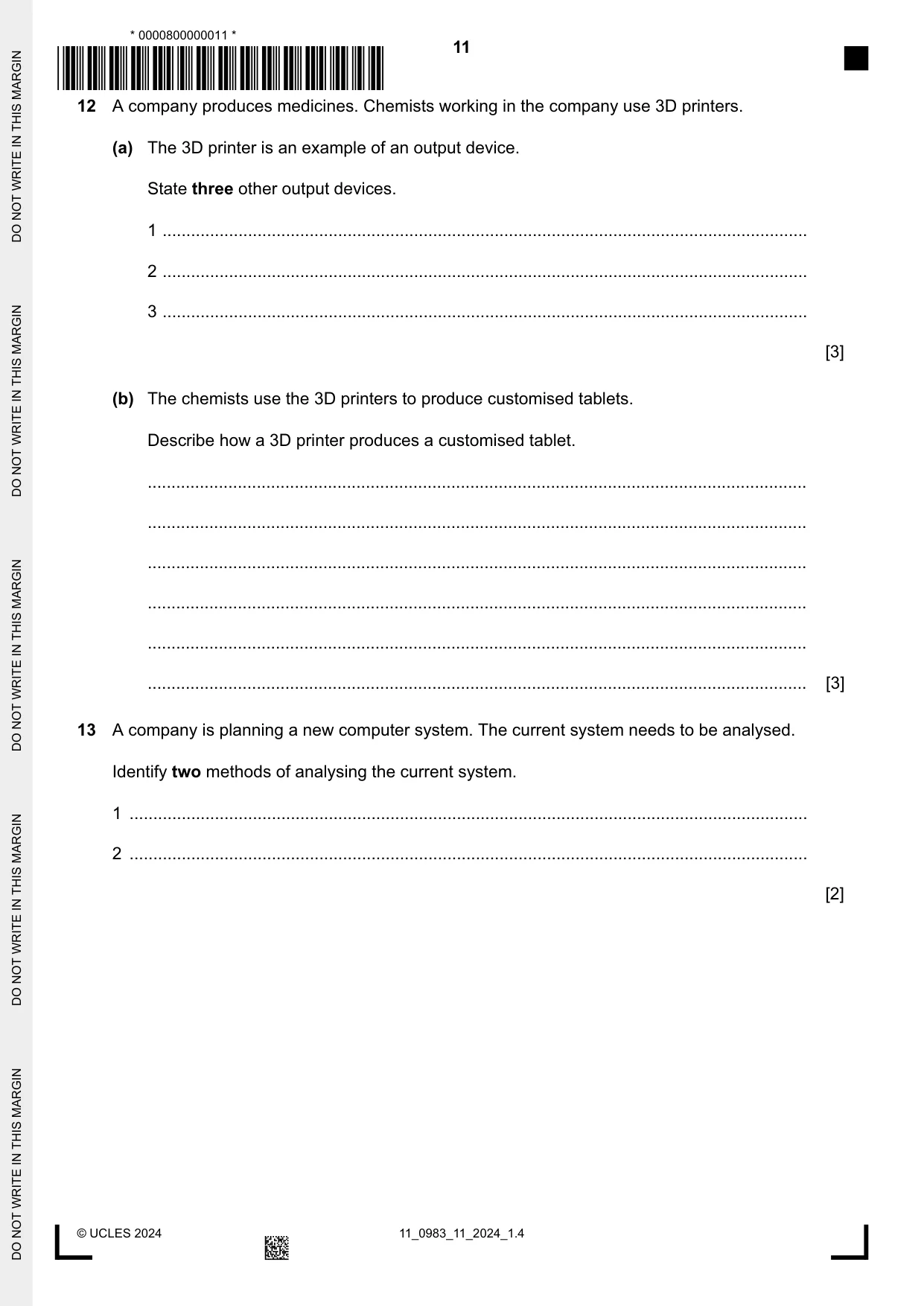

A company produces medicines. Chemists working in the company use 3D printers. 12 The 3D printer is an example of an output device. State three other output devices. (a) 1 … 2 … 3 … [3] The chemists use the 3D printers to produce customised tablets. Describe how a 3D printer produces a customised tablet. (b) … … … … … … [3] A company is planning a new computer system. The current system needs to be analysed. Identify two methods of analysing the current system. 13 1 … 2 … [2] 11_0983_11_2024_1.4 © UCLES 2024 11 * 0000800000011 * ,









, ĬÛú¾Ġ´íÈõÏĪÅĊßù¸þ× Ĭĩ¸ñÔĦĒġäñíĬõÃüÓĂĂ ĥõĕÕµĕÅĕÕąõÅÅÕąµõÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

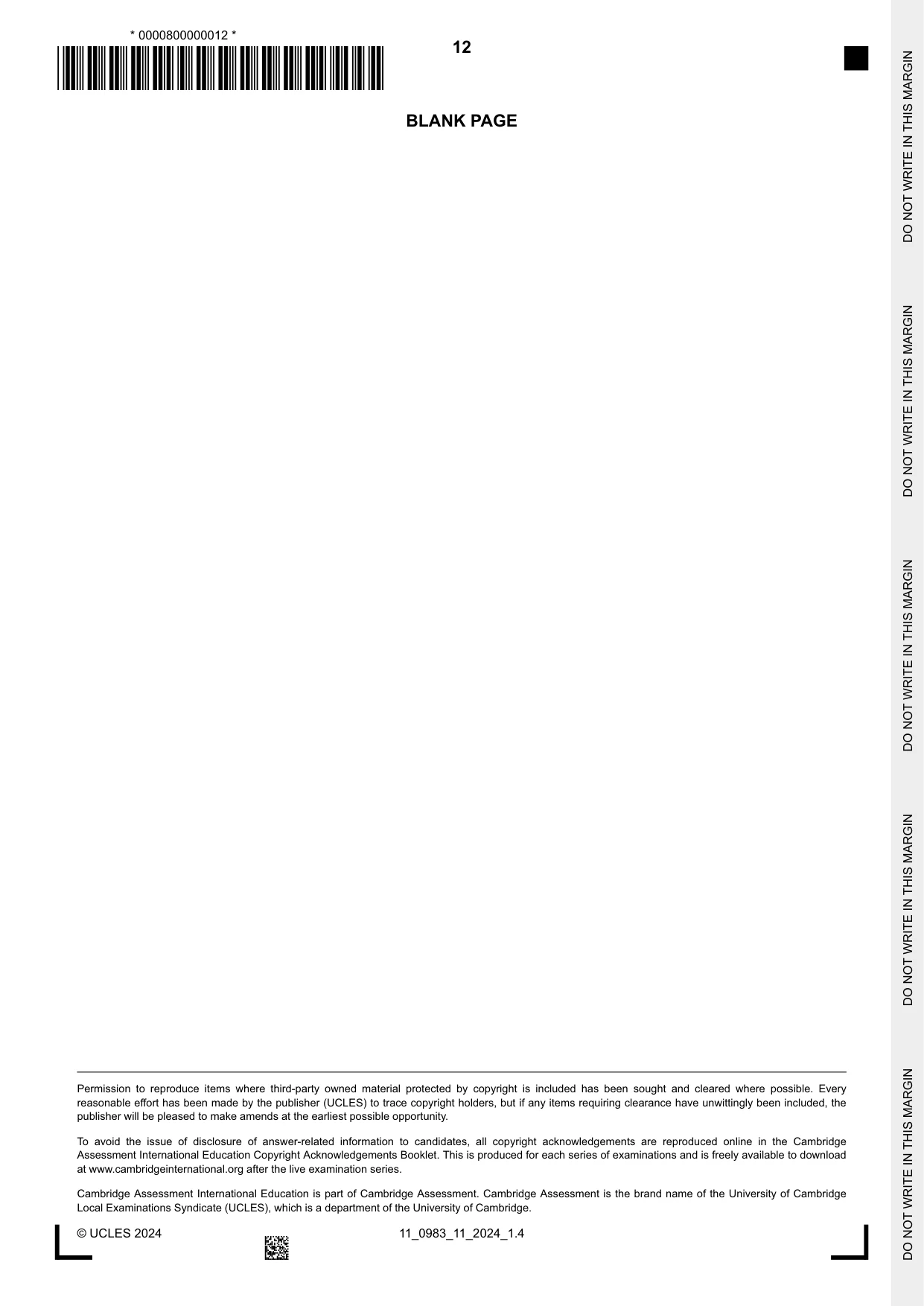

BLANK PAGE Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. 11_0983_11_2024_1.4 © UCLES 2024 12 * 0000800000012 * ,









, ĬÙú¾Ġ´íÈõÏĪÅĊÝû¸Ā× Ĭĩ¸ôÔĠĤĨ×ïöģ×ğÚÃúĂ ĥÅÅÕõĕŵµåąÅąÕåµĥÕ DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN DO NOT WRITE IN THIS MARGIN

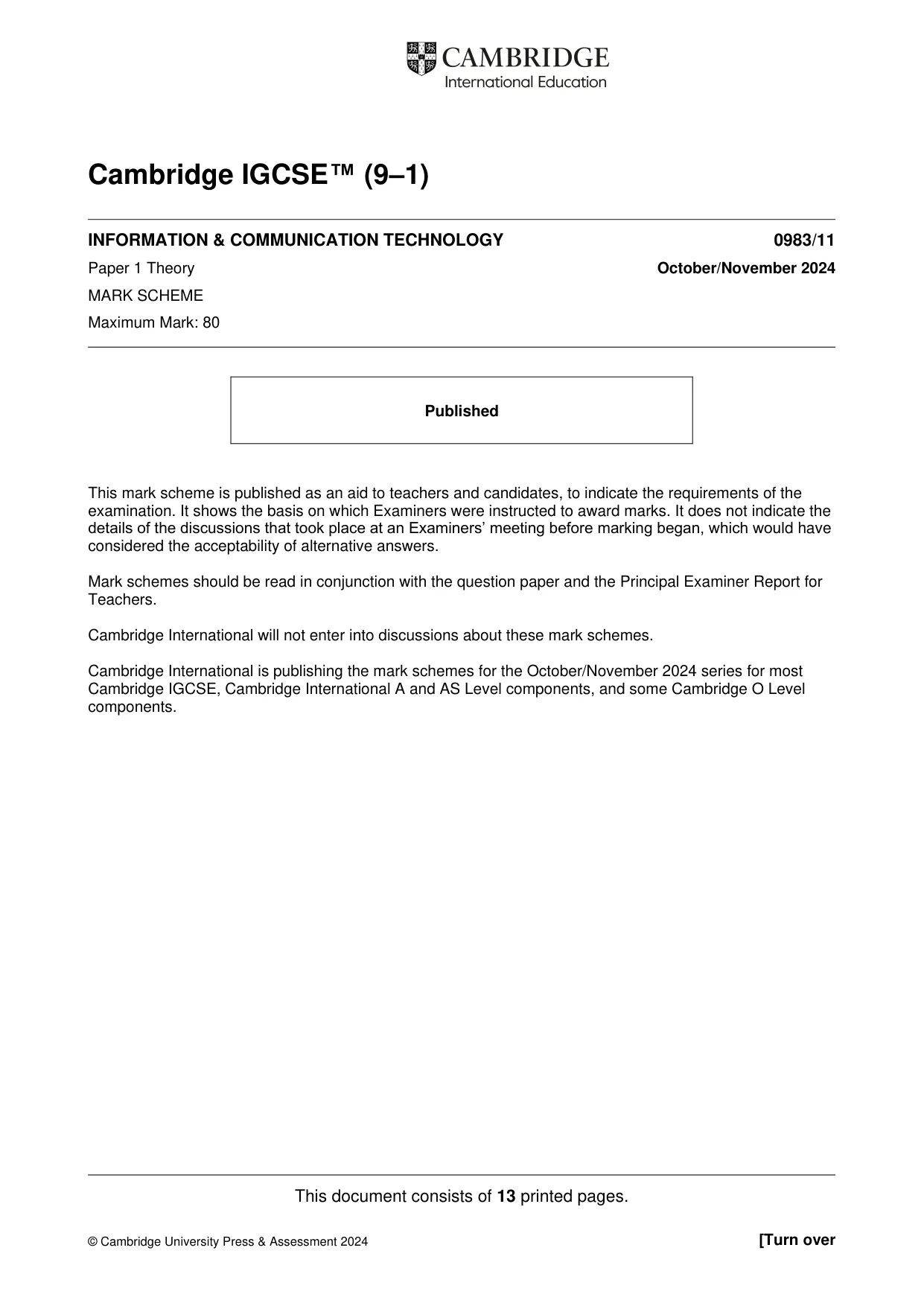

This document consists of 13 printed pages. © Cambridge University Press & Assessment 2024 [Turn over Cambridge IGCSE™ (9–1) INFORMATION & COMMUNICATION TECHNOLOGY 0983/11 Paper 1 Theory October/November 2024 MARK SCHEME Maximum Mark: 80 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2024 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

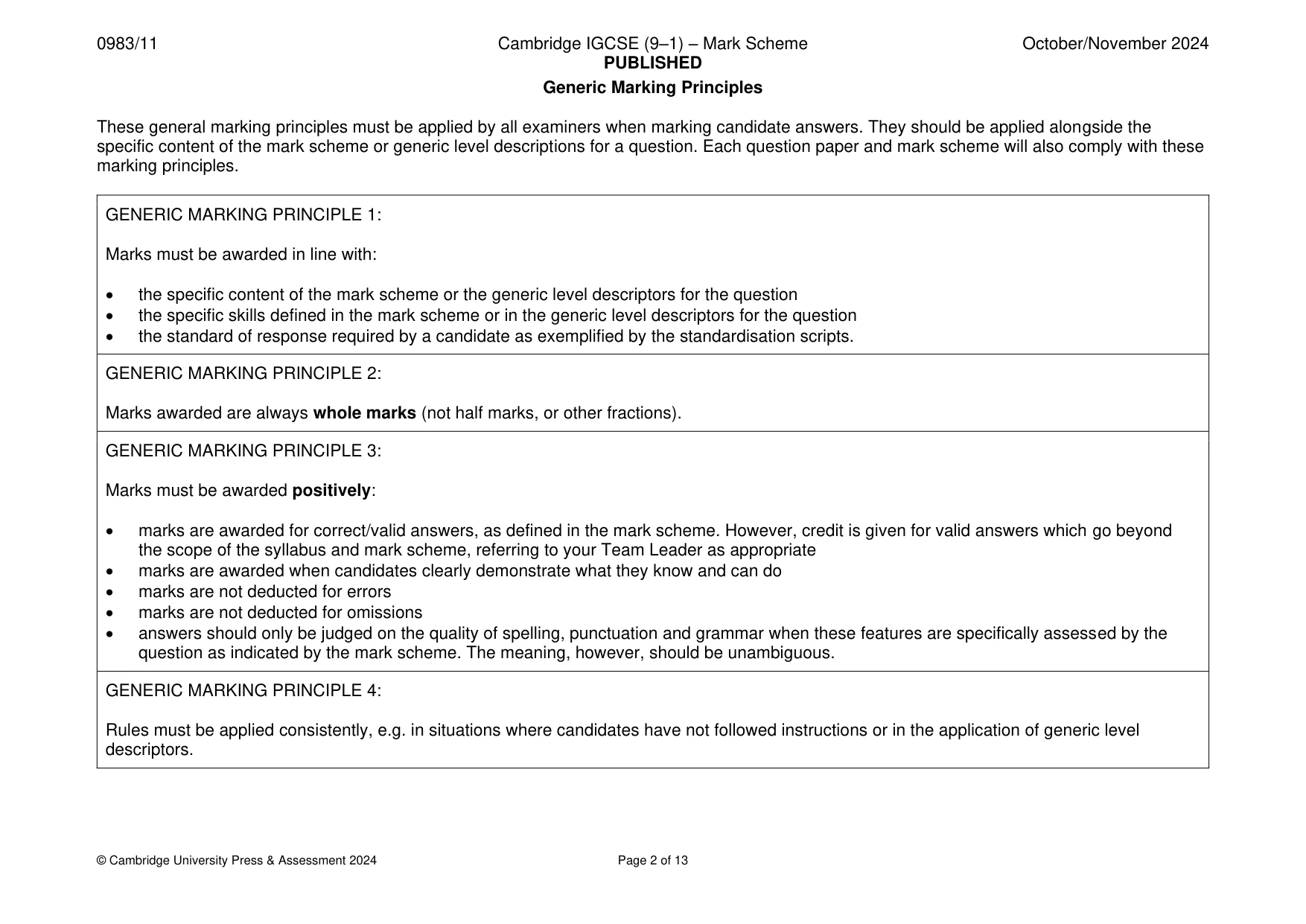

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 2 of 13 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptions for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

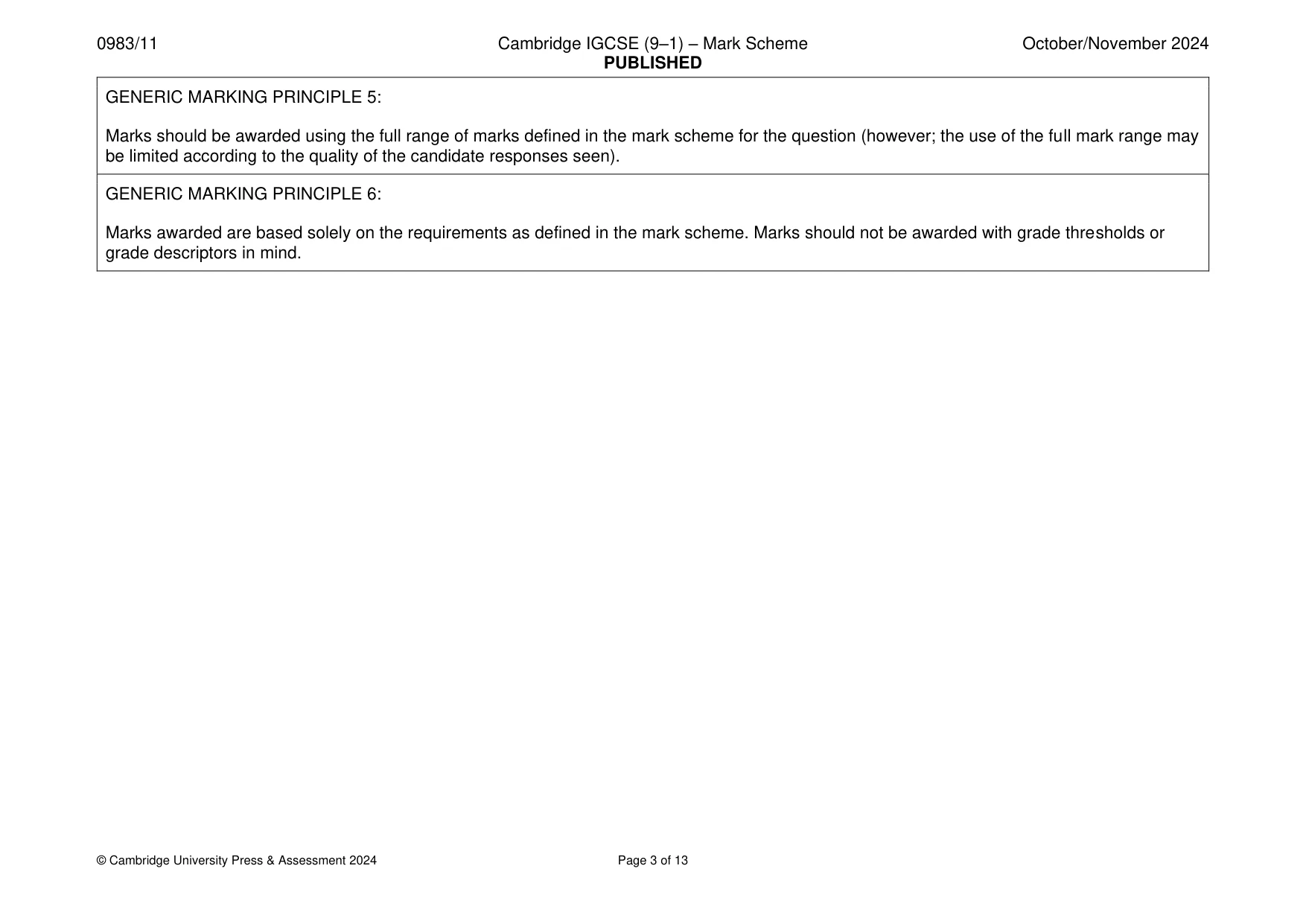

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 3 of 13 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

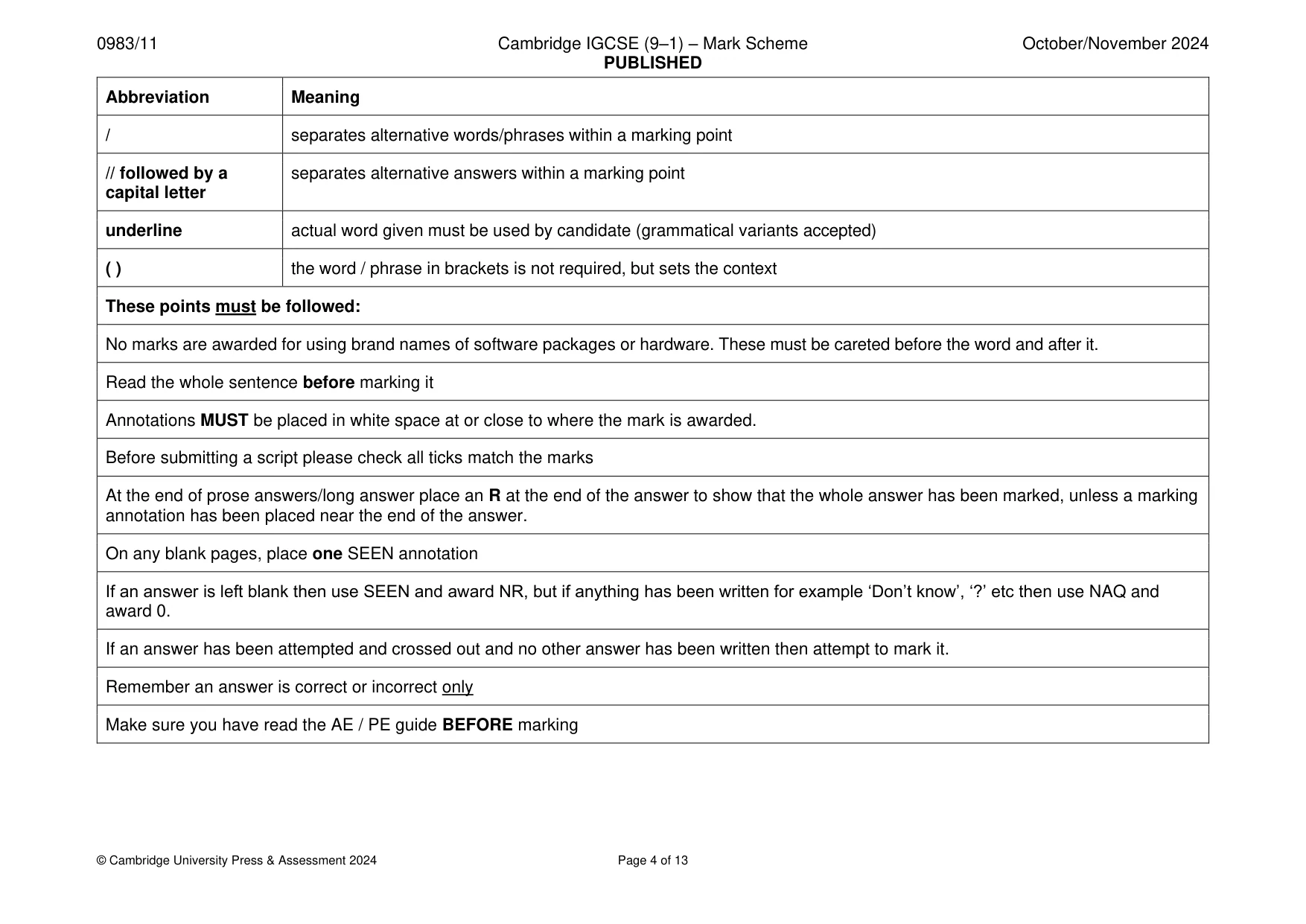

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 4 of 13 Abbreviation Meaning / separates alternative words/phrases within a marking point // followed by a capital letter separates alternative answers within a marking point underline actual word given must be used by candidate (grammatical variants accepted) ( ) the word / phrase in brackets is not required, but sets the context These points must be followed: No marks are awarded for using brand names of software packages or hardware. These must be careted before the word and after it. Read the whole sentence before marking it Annotations MUST be placed in white space at or close to where the mark is awarded. Before submitting a script please check all ticks match the marks At the end of prose answers/long answer place an R at the end of the answer to show that the whole answer has been marked, unless a marking annotation has been placed near the end of the answer. On any blank pages, place one SEEN annotation If an answer is left blank then use SEEN and award NR, but if anything has been written for example ‘Don’t know’, ‘?’ etc then use NAQ and award 0. If an answer has been attempted and crossed out and no other answer has been written then attempt to mark it. Remember an answer is correct or incorrect only Make sure you have read the AE / PE guide BEFORE marking

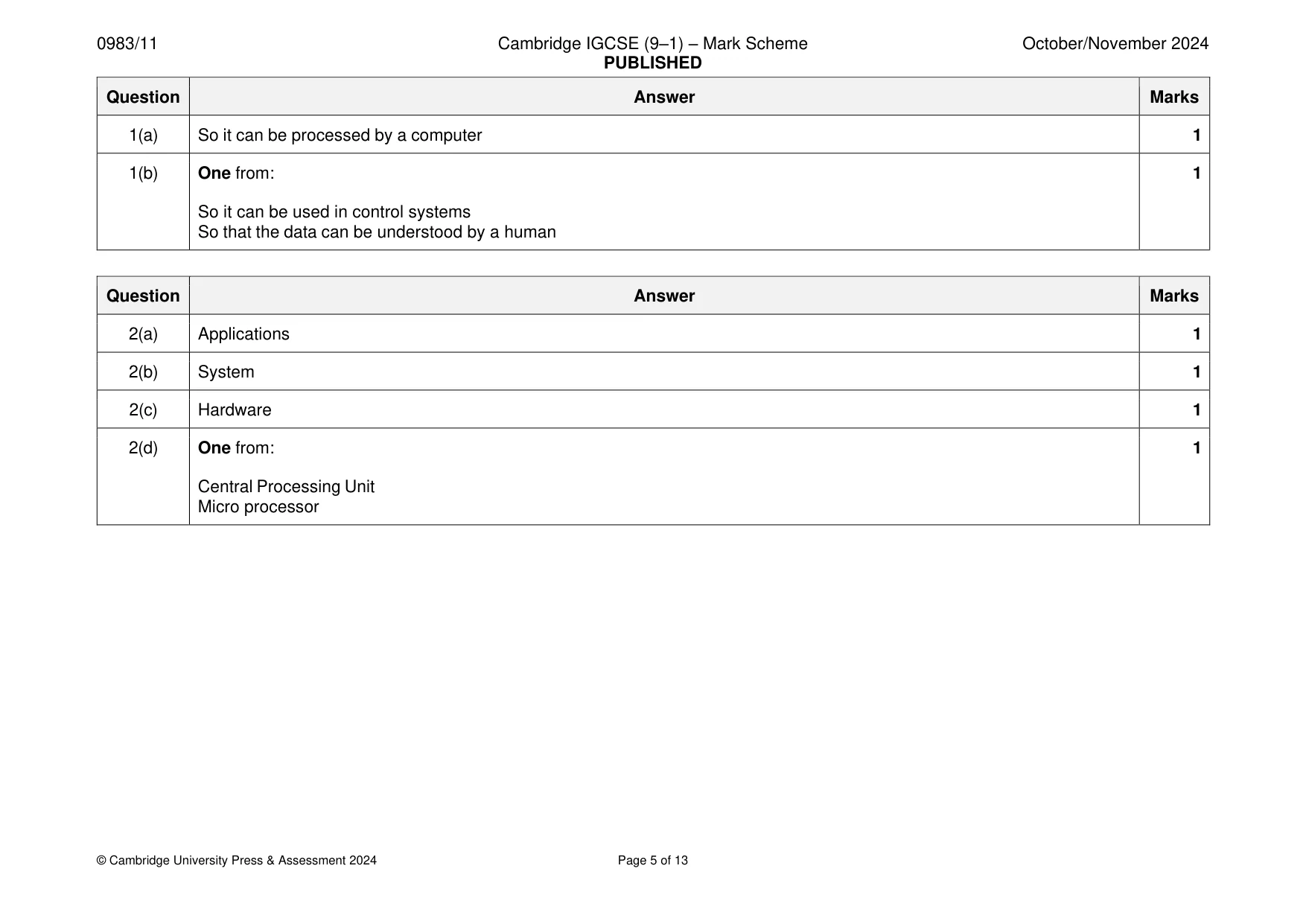

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 5 of 13 Question Answer Marks 1(a) So it can be processed by a computer 1 1(b) One from: So it can be used in control systems So that the data can be understood by a human 1 Question Answer Marks 2(a) Applications 1 2(b) System 1 2(c) Hardware 1 2(d) One from: Central Processing Unit Micro processor 1

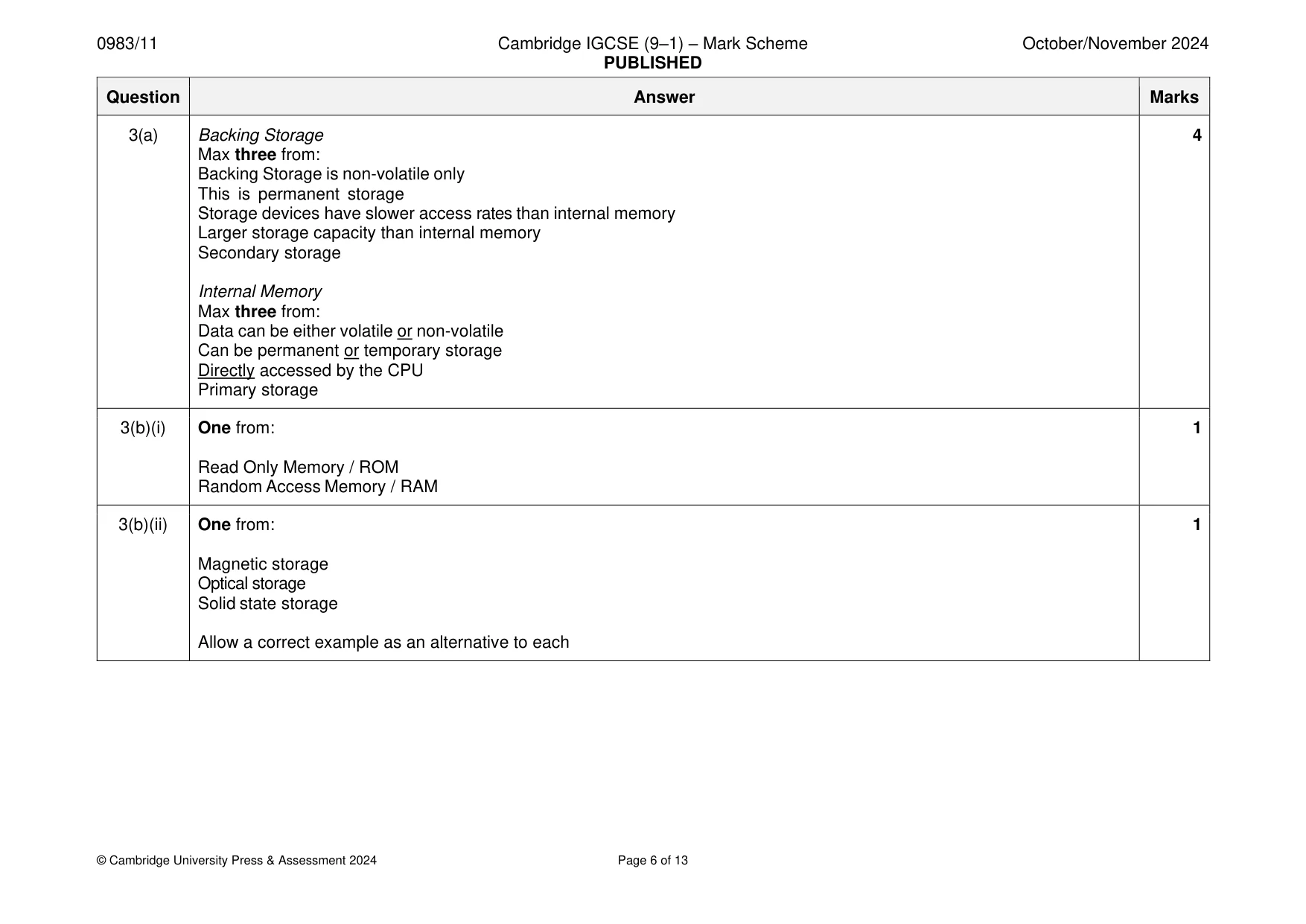

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 6 of 13 Question Answer Marks 3(a) Backing Storage Max three from: Backing Storage is non-volatile only This is permanent storage Storage devices have slower access rates than internal memory Larger storage capacity than internal memory Secondary storage Internal Memory Max three from: Data can be either volatile or non-volatile Can be permanent or temporary storage Directly accessed by the CPU Primary storage 4 3(b)(i) One from: Read Only Memory / ROM Random Access Memory / RAM 1 3(b)(ii) One from: Magnetic storage Optical storage Solid state storage Allow a correct example as an alternative to each 1

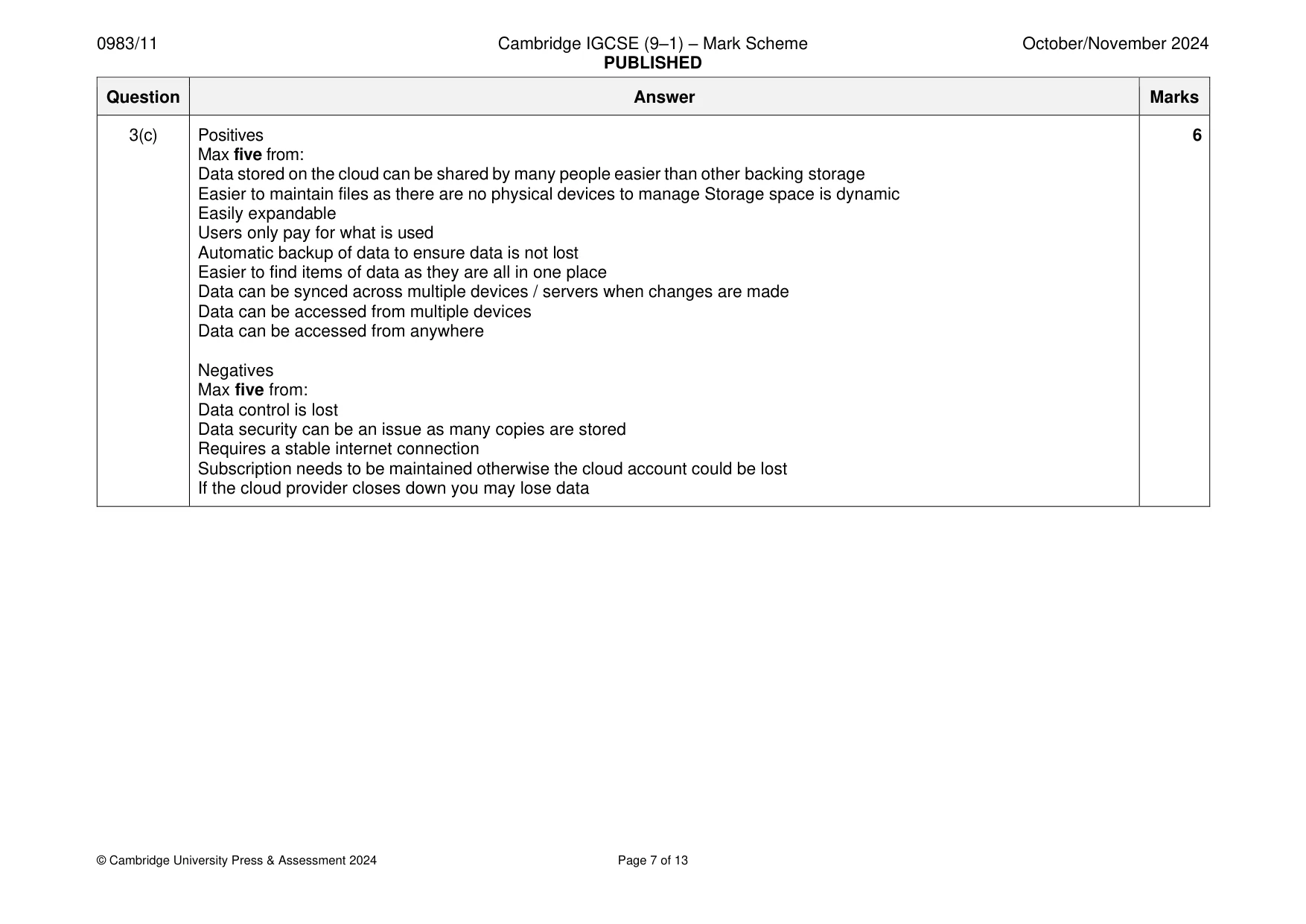

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 7 of 13 Question Answer Marks 3(c) Positives Max five from: Data stored on the cloud can be shared by many people easier than other backing storage Easier to maintain files as there are no physical devices to manage Storage space is dynamic Easily expandable Users only pay for what is used Automatic backup of data to ensure data is not lost Easier to find items of data as they are all in one place Data can be synced across multiple devices / servers when changes are made Data can be accessed from multiple devices Data can be accessed from anywhere Negatives Max five from: Data control is lost Data security can be an issue as many copies are stored Requires a stable internet connection Subscription needs to be maintained otherwise the cloud account could be lost If the cloud provider closes down you may lose data 6

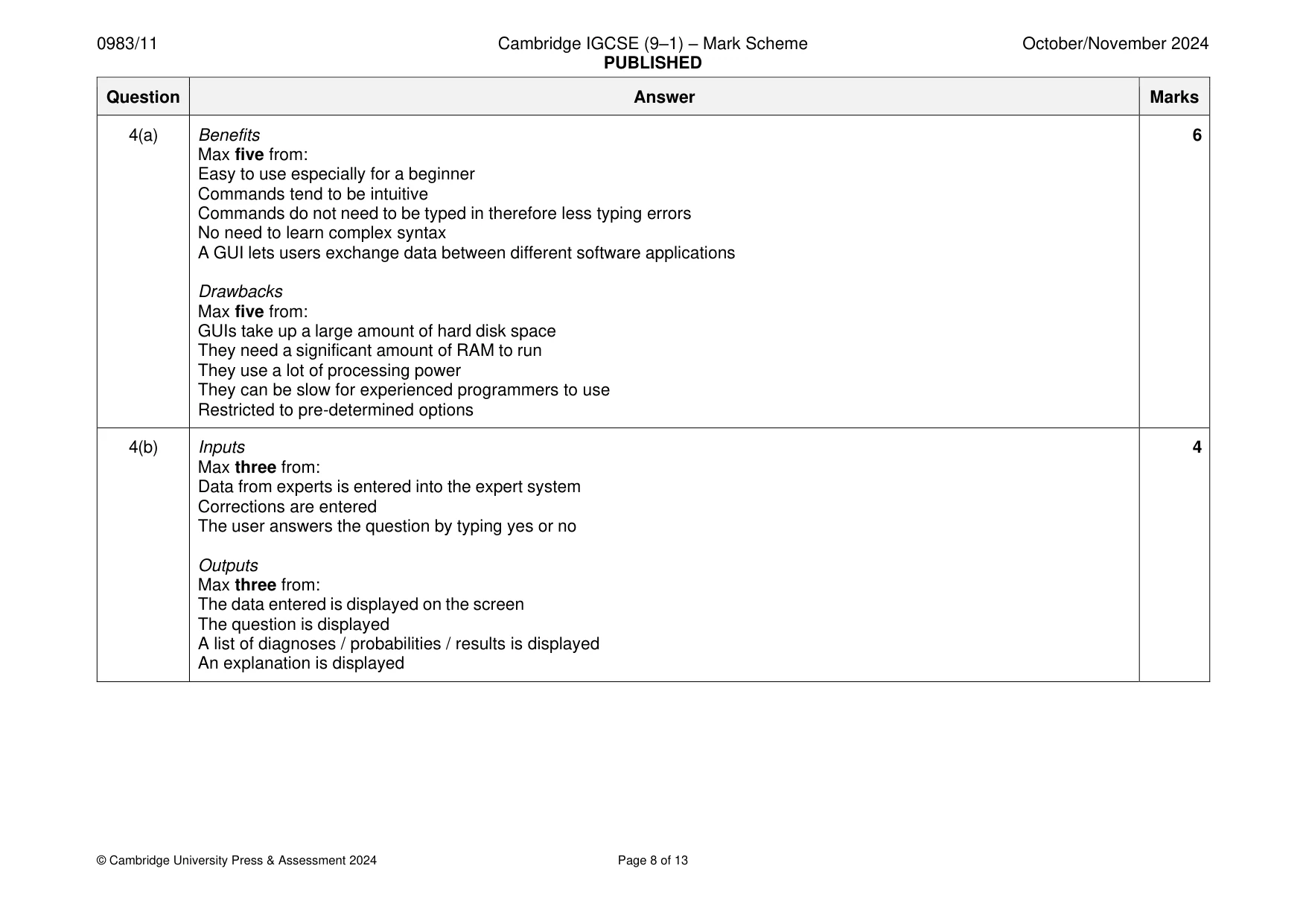

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 8 of 13 Question Answer Marks 4(a) Benefits Max five from: Easy to use especially for a beginner Commands tend to be intuitive Commands do not need to be typed in therefore less typing errors No need to learn complex syntax A GUI lets users exchange data between different software applications Drawbacks Max five from: GUIs take up a large amount of hard disk space They need a significant amount of RAM to run They use a lot of processing power They can be slow for experienced programmers to use Restricted to pre-determined options 6 4(b) Inputs Max three from: Data from experts is entered into the expert system Corrections are entered The user answers the question by typing yes or no Outputs Max three from: The data entered is displayed on the screen The question is displayed A list of diagnoses / probabilities / results is displayed An explanation is displayed 4

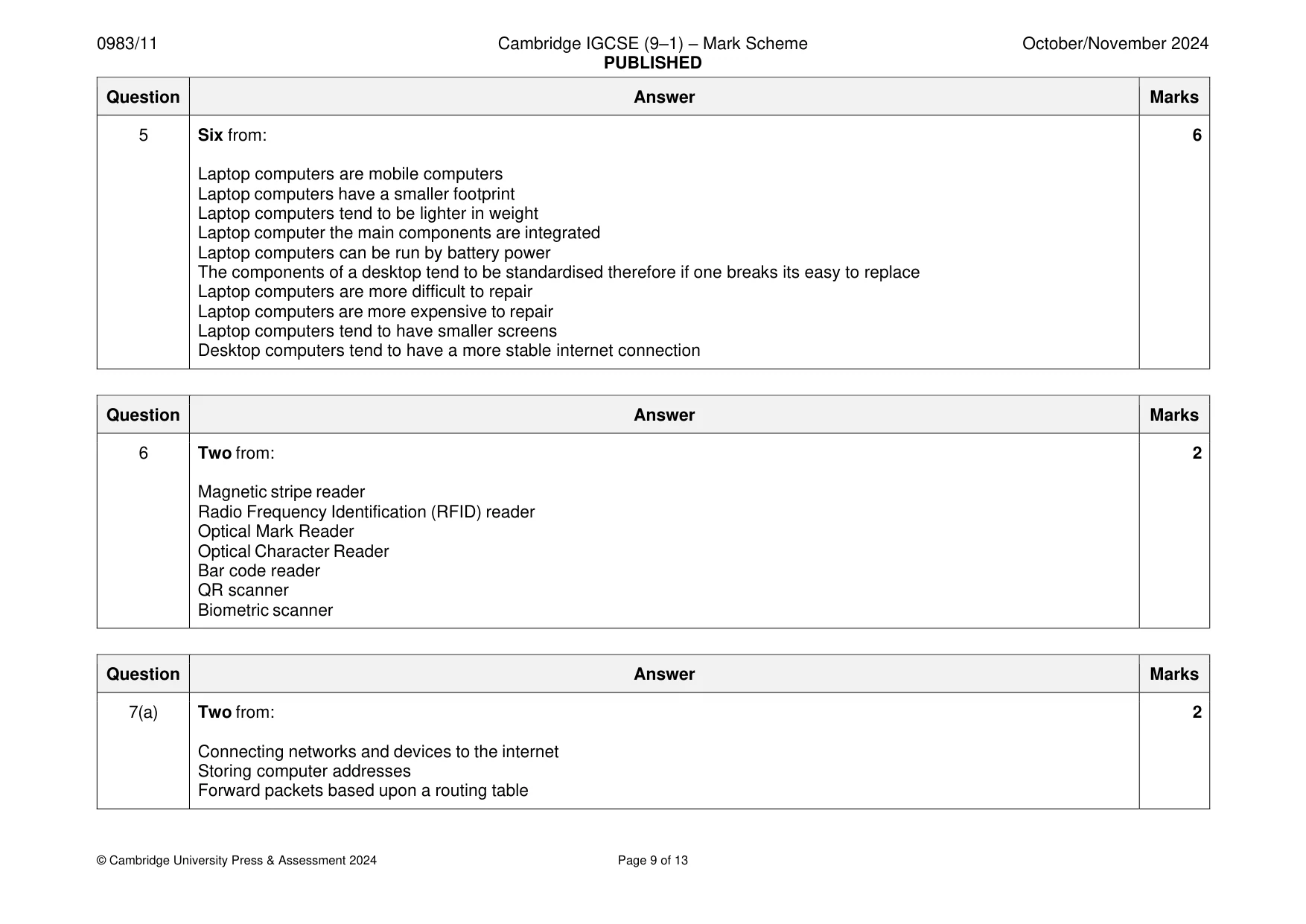

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 9 of 13 Question Answer Marks 5 Six from: Laptop computers are mobile computers Laptop computers have a smaller footprint Laptop computers tend to be lighter in weight Laptop computer the main components are integrated Laptop computers can be run by battery power The components of a desktop tend to be standardised therefore if one breaks its easy to replace Laptop computers are more difficult to repair Laptop computers are more expensive to repair Laptop computers tend to have smaller screens Desktop computers tend to have a more stable internet connection 6 Question Answer Marks 6 Two from: Magnetic stripe reader Radio Frequency Identification (RFID) reader Optical Mark Reader Optical Character Reader Bar code reader QR scanner Biometric scanner 2 Question Answer Marks 7(a) Two from: Connecting networks and devices to the internet Storing computer addresses Forward packets based upon a routing table 2

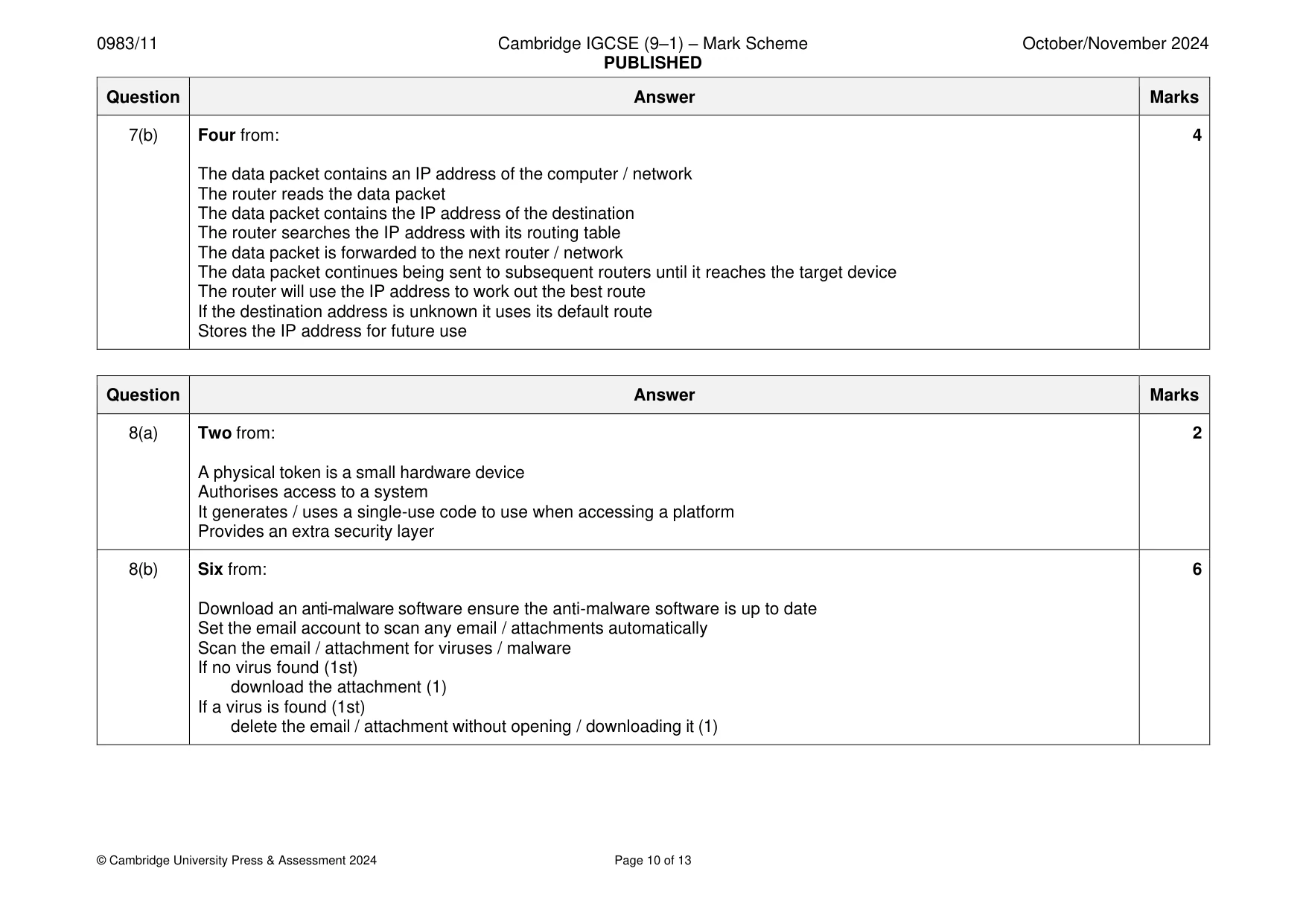

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 10 of 13 Question Answer Marks 7(b) Four from: The data packet contains an IP address of the computer / network The router reads the data packet The data packet contains the IP address of the destination The router searches the IP address with its routing table The data packet is forwarded to the next router / network The data packet continues being sent to subsequent routers until it reaches the target device The router will use the IP address to work out the best route If the destination address is unknown it uses its default route Stores the IP address for future use 4 Question Answer Marks 8(a) Two from: A physical token is a small hardware device Authorises access to a system It generates / uses a single-use code to use when accessing a platform Provides an extra security layer 2 8(b) Six from: Download an anti-malware software ensure the anti-malware software is up to date Set the email account to scan any email / attachments automatically Scan the email / attachment for viruses / malware If no virus found (1st) download the attachment (1) If a virus is found (1st) delete the email / attachment without opening / downloading it (1) 6

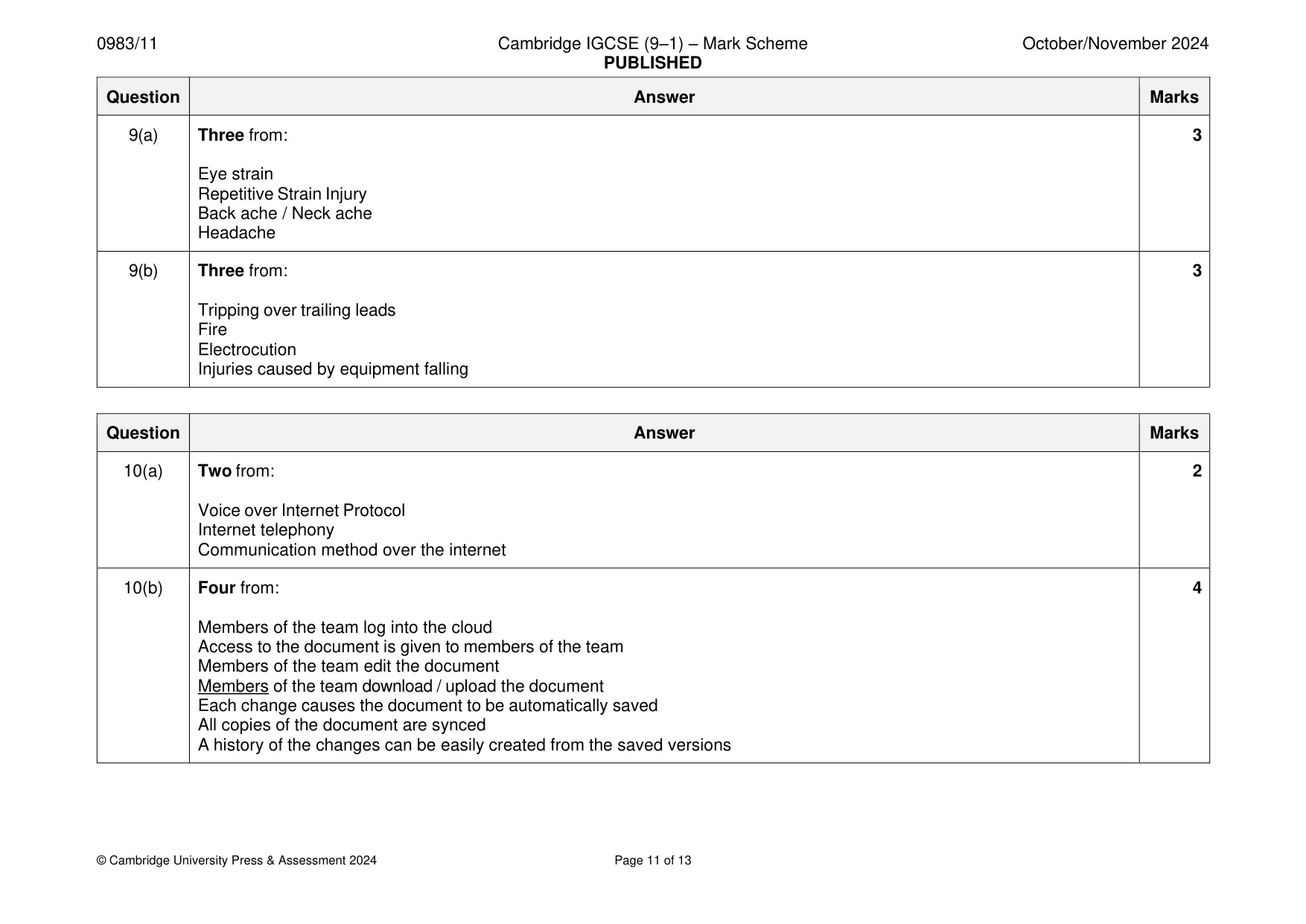

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 11 of 13 Question Answer Marks 9(a) Three from: Eye strain Repetitive Strain Injury Back ache / Neck ache Headache 3 9(b) Three from: Tripping over trailing leads Fire Electrocution Injuries caused by equipment falling 3 Question Answer Marks 10(a) Two from: Voice over Internet Protocol Internet telephony Communication method over the internet 2 10(b) Four from: Members of the team log into the cloud Access to the document is given to members of the team Members of the team edit the document Members of the team download / upload the document Each change causes the document to be automatically saved All copies of the document are synced A history of the changes can be easily created from the saved versions 4

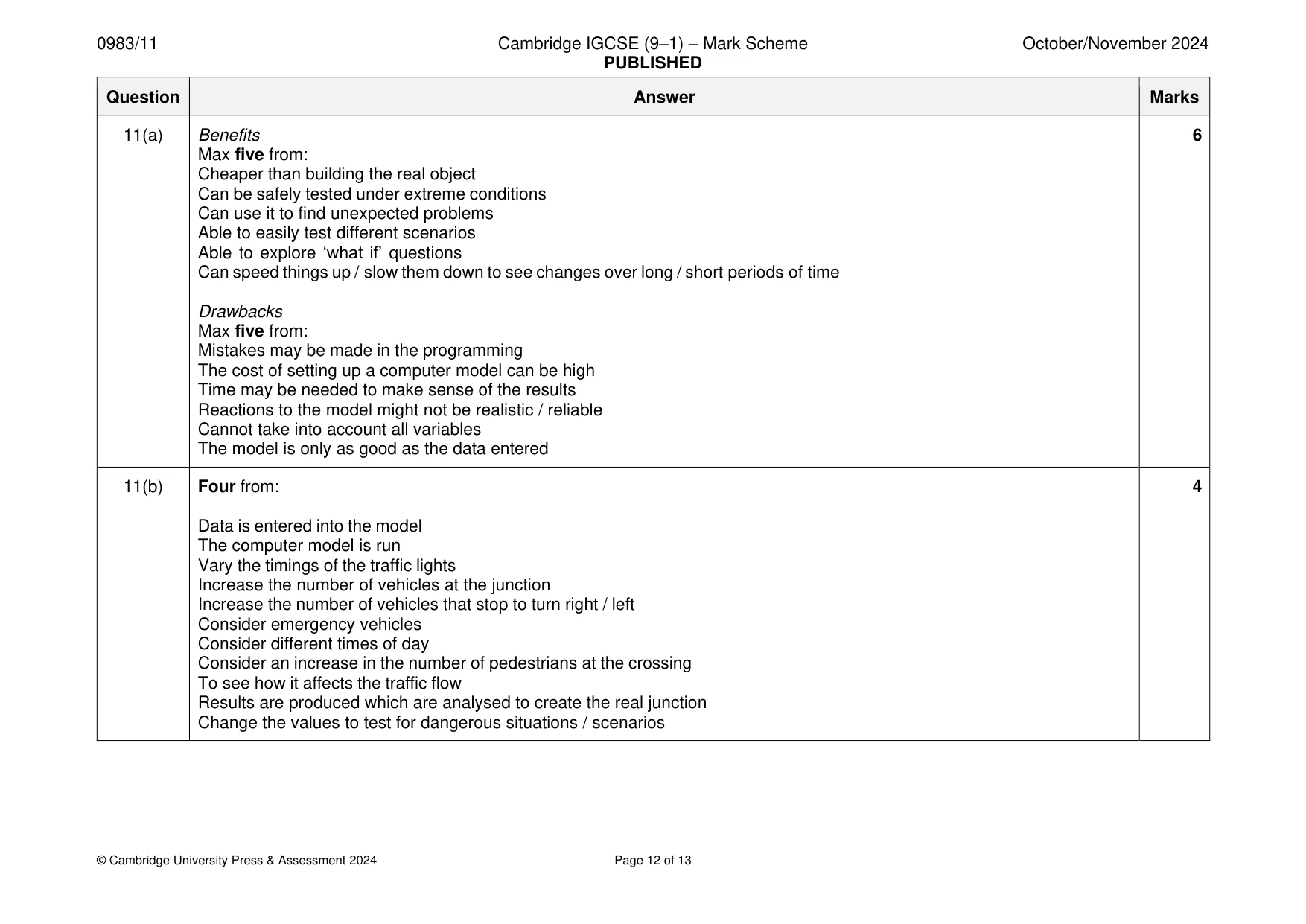

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 12 of 13 Question Answer Marks 11(a) Benefits Max five from: Cheaper than building the real object Can be safely tested under extreme conditions Can use it to find unexpected problems Able to easily test different scenarios Able to explore ‘what if’ questions Can speed things up / slow them down to see changes over long / short periods of time Drawbacks Max five from: Mistakes may be made in the programming The cost of setting up a computer model can be high Time may be needed to make sense of the results Reactions to the model might not be realistic / reliable Cannot take into account all variables The model is only as good as the data entered 6 11(b) Four from: Data is entered into the model The computer model is run Vary the timings of the traffic lights Increase the number of vehicles at the junction Increase the number of vehicles that stop to turn right / left Consider emergency vehicles Consider different times of day Consider an increase in the number of pedestrians at the crossing To see how it affects the traffic flow Results are produced which are analysed to create the real junction Change the values to test for dangerous situations / scenarios 4

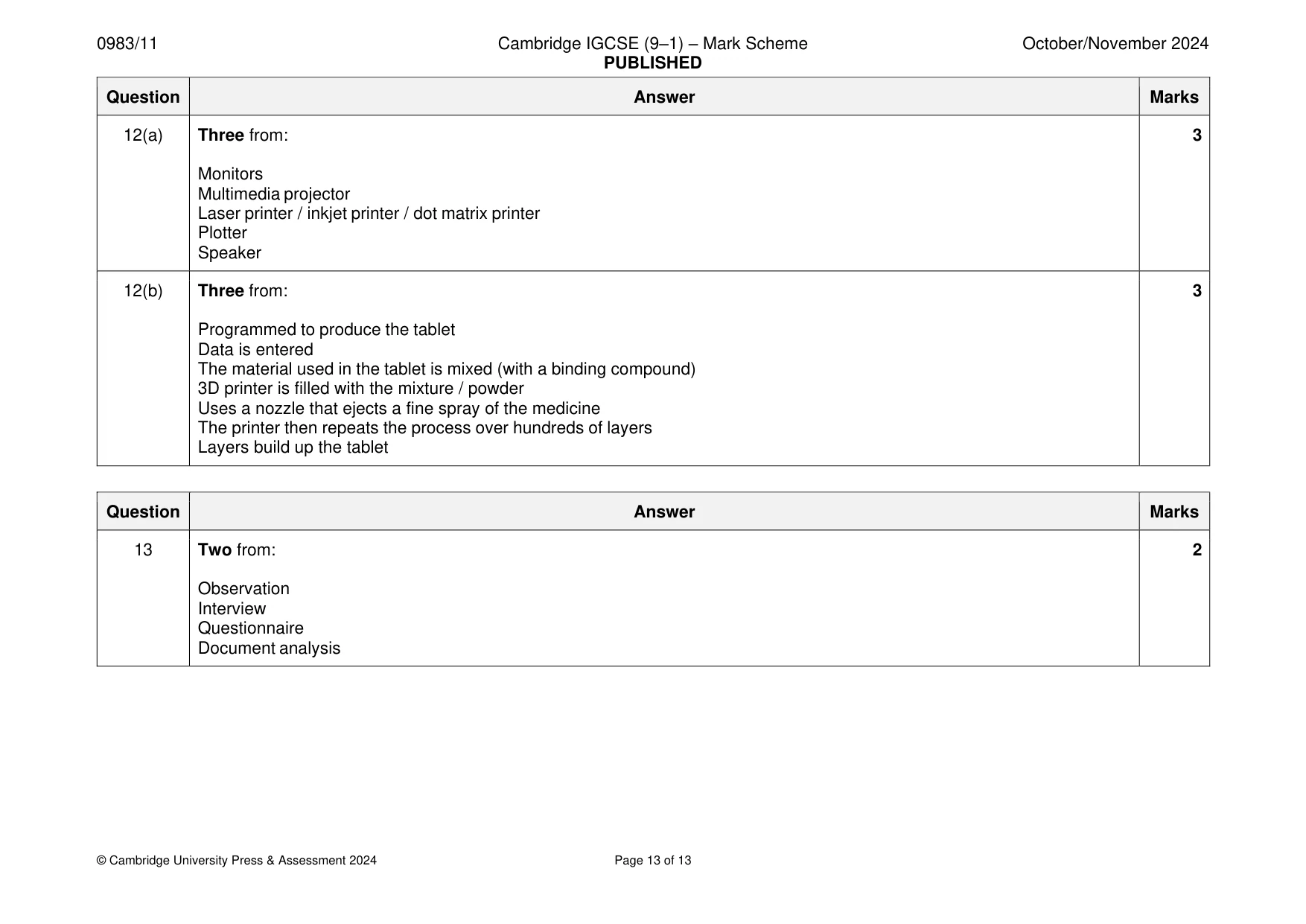

0983/11 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED October/November 2024 © Cambridge University Press & Assessment 2024 Page 13 of 13 Question Answer Marks 12(a) Three from: Monitors Multimedia projector Laser printer / inkjet printer / dot matrix printer Plotter Speaker 3 12(b) Three from: Programmed to produce the tablet Data is entered The material used in the tablet is mixed (with a binding compound) 3D printer is filled with the mixture / powder Uses a nozzle that ejects a fine spray of the medicine The printer then repeats the process over hundreds of layers Layers build up the tablet 3 Question Answer Marks 13 Two from: Observation Interview Questionnaire Document analysis 2
