Cambridge IGCSE Information and Communication Technology (9-1) 0983 — 2021 May/June Paper 3 · Variant 1

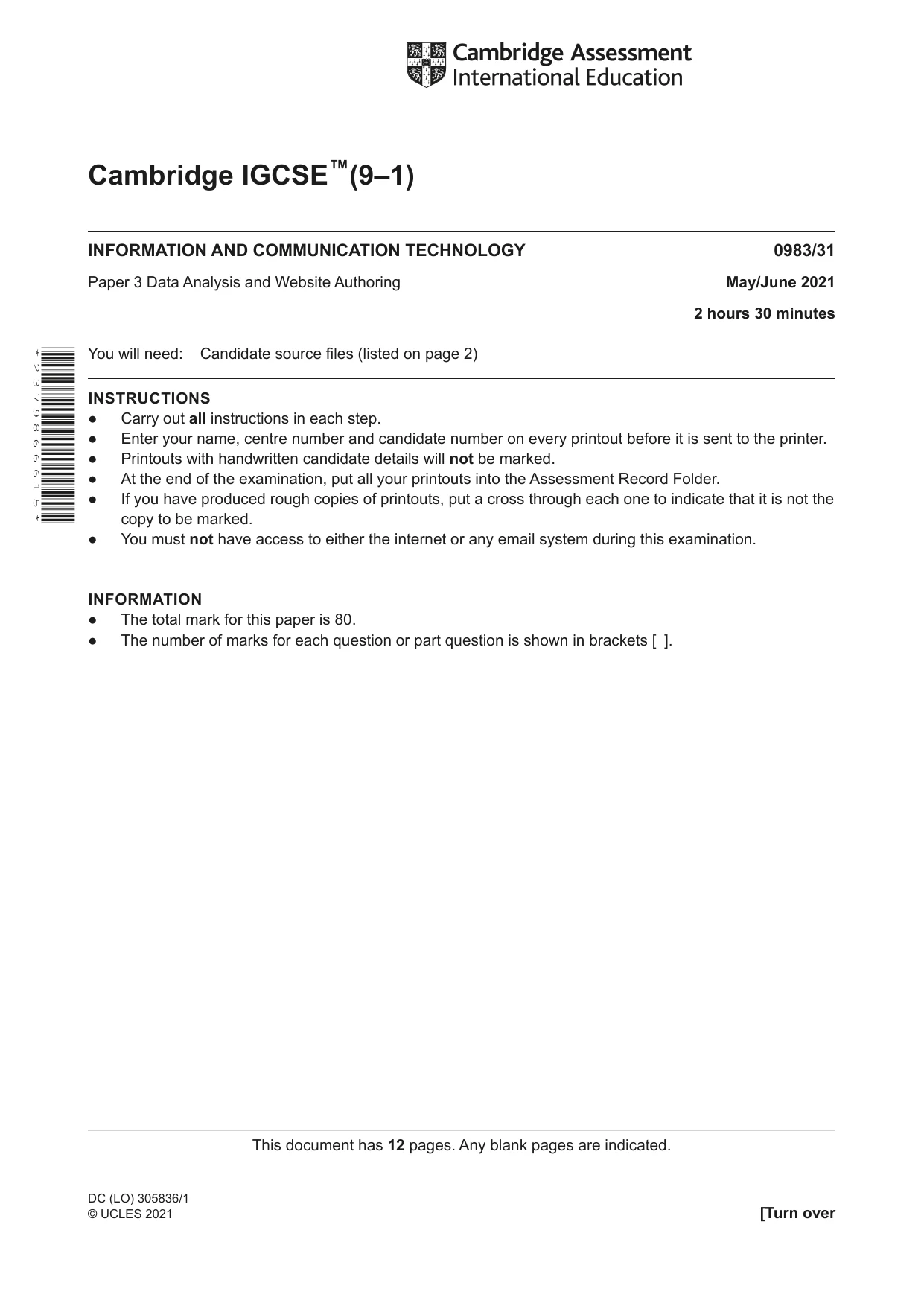

This document has 12 pages. Any blank pages are indicated. Cambridge IGCSE™(9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/31 Paper 3 Data Analysis and Website Authoring May/June 2021 2 hours 30 minutes You will need: Candidate source files (listed on page 2) INSTRUCTIONS ● Carry out all instructions in each step. ● Enter your name, centre number and candidate number on every printout before it is sent to the printer. ● Printouts with handwritten candidate details will not be marked. ● At the end of the examination, put all your printouts into the Assessment Record Folder. ● If you have produced rough copies of printouts, put a cross through each one to indicate that it is not the copy to be marked. ● You must not have access to either the internet or any email system during this examination. INFORMATION ● The total mark for this paper is 80. ● The number of marks for each question or part question is shown in brackets [ ]. DC (LO) 305836/1 © UCLES 2021 [Turn over * 2 3 7 9 8 6 6 6 1 5 *

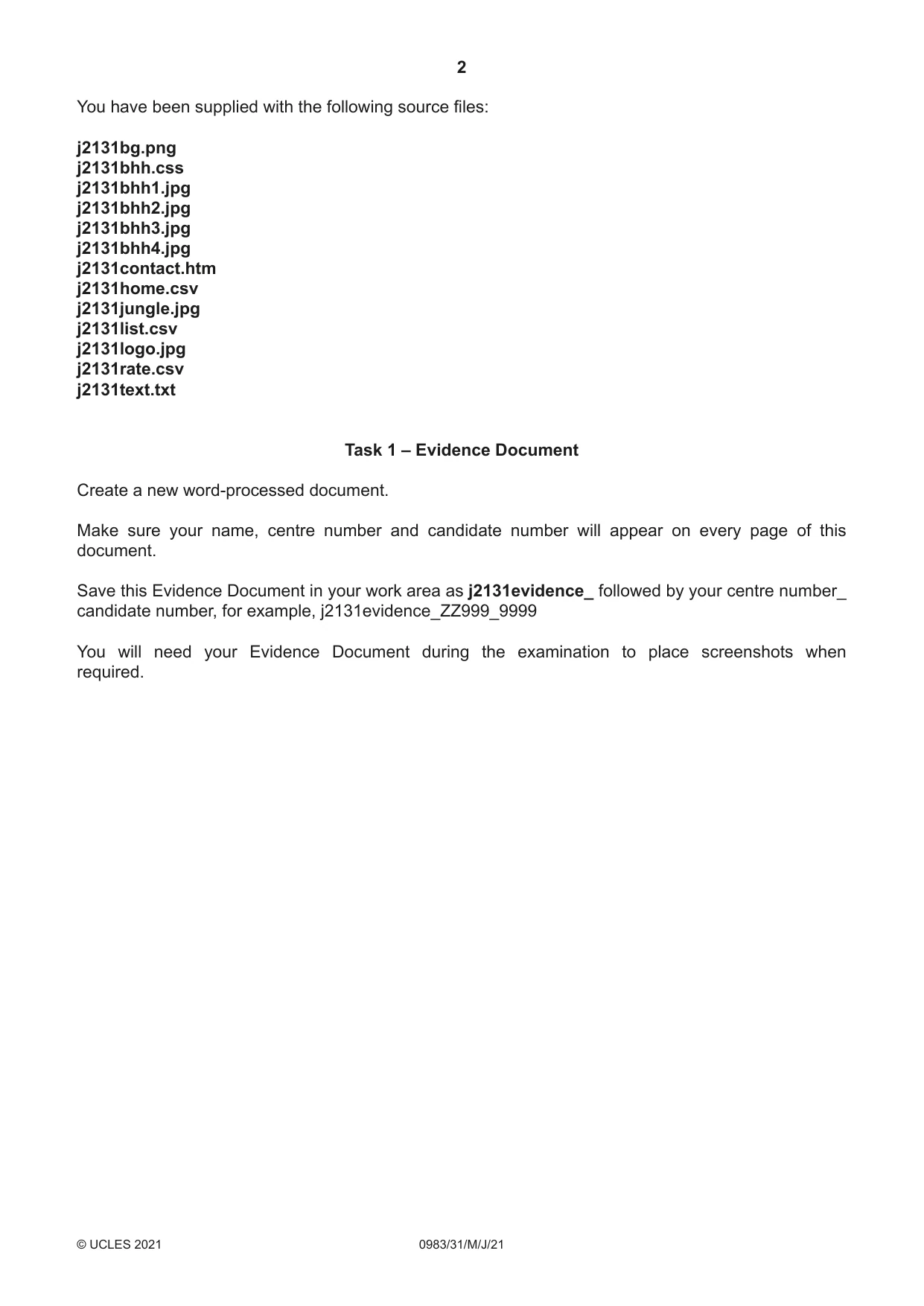

2 0983/31/M/J/21 © UCLES 2021 You have been supplied with the following source files: j2131bg.png j2131bhh.css j2131bhh1.jpg j2131bhh2.jpg j2131bhh3.jpg j2131bhh4.jpg j2131contact.htm j2131home.csv j2131jungle.jpg j2131list.csv j2131logo.jpg j2131rate.csv j2131text.txt Task 1 – Evidence Document Create a new word-processed document. Make sure your name, centre number and candidate number will appear on every page of this document. Save this Evidence Document in your work area as j2131evidence_ followed by your centre number_ candidate number, for example, j2131evidence_ZZ999_9999 You will need your Evidence Document during the examination to place screenshots when required.

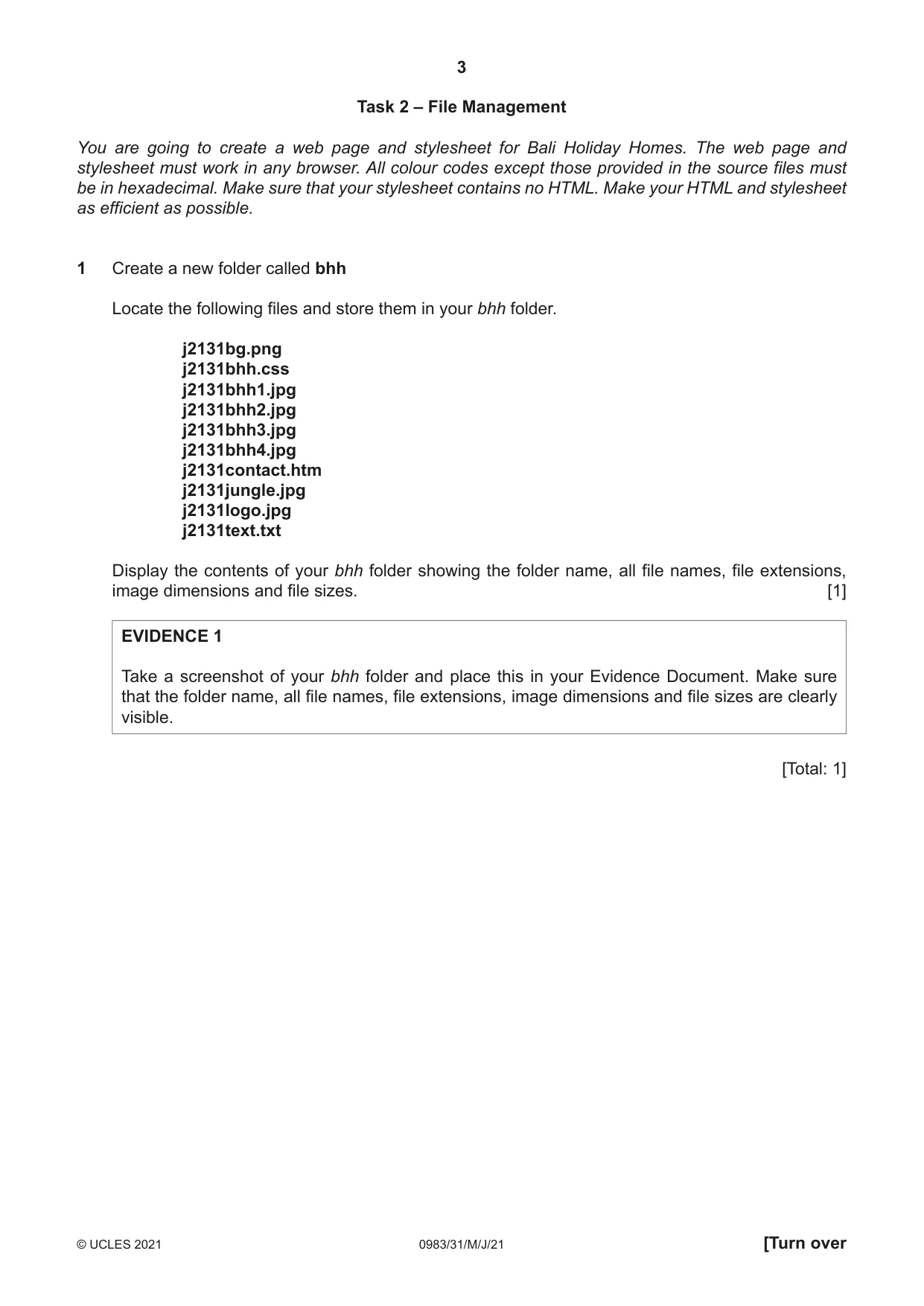

3 0983/31/M/J/21 © UCLES 2021 [Turn over Task 2 – File Management You are going to create a web page and stylesheet for Bali Holiday Homes. The web page and stylesheet must work in any browser. All colour codes except those provided in the source files must be in hexadecimal. Make sure that your stylesheet contains no HTML. Make your HTML and stylesheet as efficient as possible. 1 Create a new folder called bhh Locate the following files and store them in your bhh folder. j2131bg.png j2131bhh.css j2131bhh1.jpg j2131bhh2.jpg j2131bhh3.jpg j2131bhh4.jpg j2131contact.htm j2131jungle.jpg j2131logo.jpg j2131text.txt Display the contents of your bhh folder showing the folder name, all file names, file extensions, image dimensions and file sizes. [1] EVIDENCE 1 Take a screenshot of your bhh folder and place this in your Evidence Document. Make sure that the folder name, all file names, file extensions, image dimensions and file sizes are clearly visible. [Total: 1]

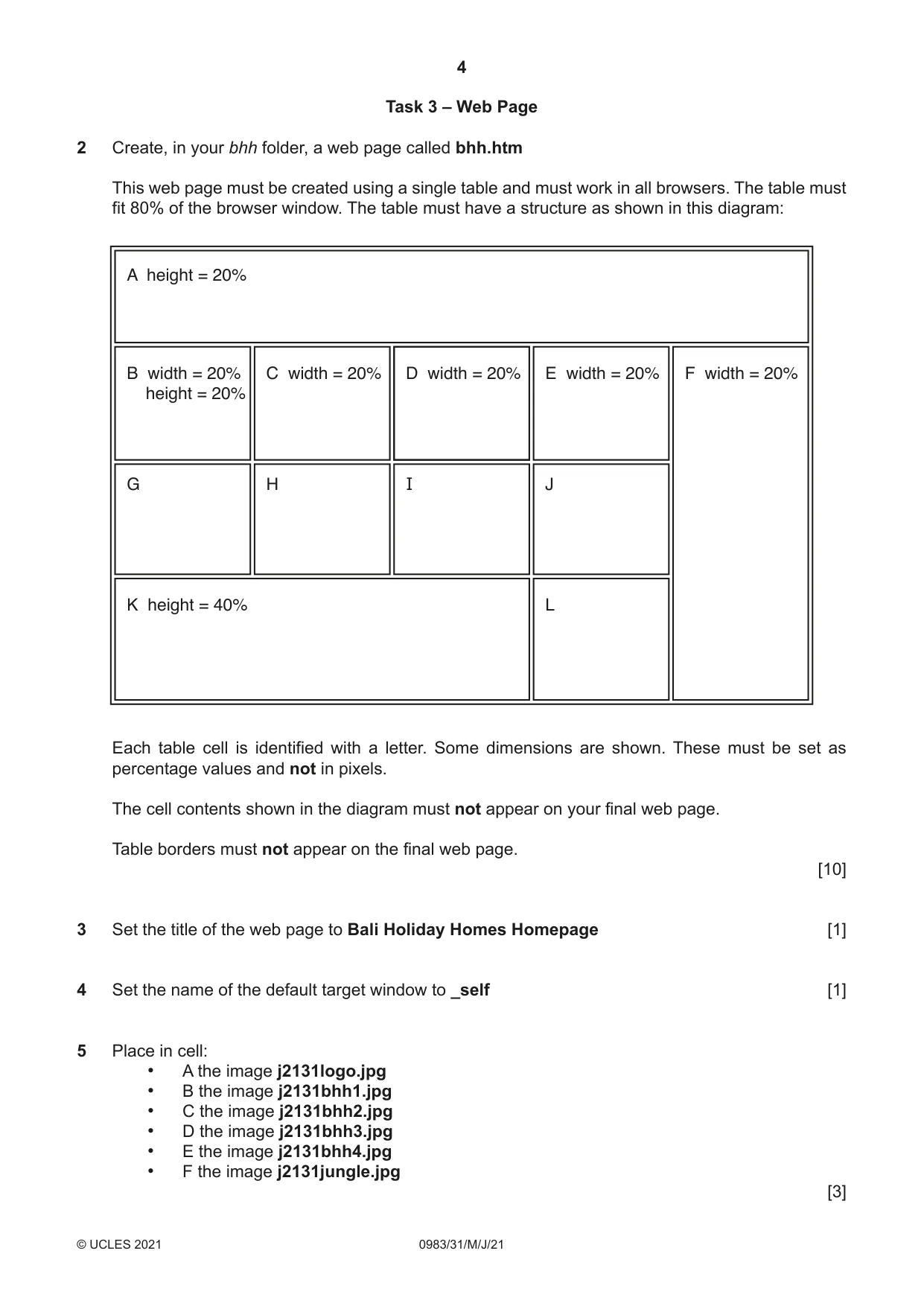

4 0983/31/M/J/21 © UCLES 2021 Task 3 – Web Page 2 Create, in your bhh folder, a web page called bhh.htm This web page must be created using a single table and must work in all browsers. The table must fit 80% of the browser window. The table must have a structure as shown in this diagram: A height = 20% B width = 20% height = 20% C width = 20% D width = 20% E width = 20% G H I J F width = 20% K height = 40% L Each table cell is identified with a letter. Some dimensions are shown. These must be set as percentage values and not in pixels. The cell contents shown in the diagram must not appear on your final web page. Table borders must not appear on the final web page. [10] 3 Set the title of the web page to Bali Holiday Homes Homepage [1] 4 Set the name of the default target window to _self [1] 5 Place in cell: • A the image j2131logo.jpg • B the image j2131bhh1.jpg • C the image j2131bhh2.jpg • D the image j2131bhh3.jpg • E the image j2131bhh4.jpg • F the image j2131jungle.jpg [3]

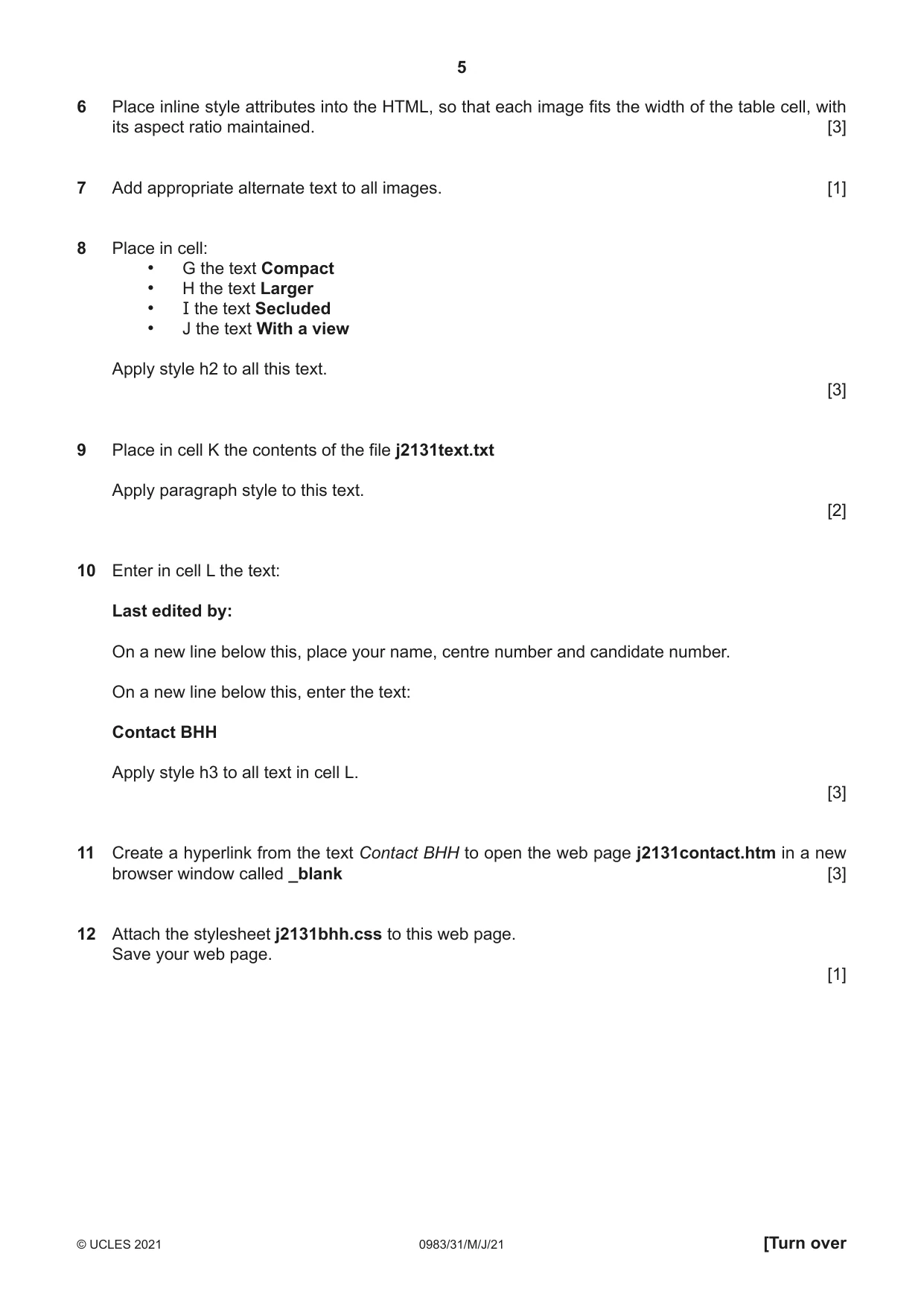

5 0983/31/M/J/21 © UCLES 2021 [Turn over 6 Place inline style attributes into the HTML, so that each image fits the width of the table cell, with its aspect ratio maintained. [3] 7 Add appropriate alternate text to all images. [1] 8 Place in cell: • G the text Compact • H the text Larger • I the text Secluded • J the text With a view Apply style h2 to all this text. [3] 9 Place in cell K the contents of the file j2131text.txt Apply paragraph style to this text. [2] 10 Enter in cell L the text: Last edited by: On a new line below this, place your name, centre number and candidate number. On a new line below this, enter the text: Contact BHH Apply style h3 to all text in cell L. [3] 11 Create a hyperlink from the text Contact BHH to open the web page j2131contact.htm in a new browser window called _blank [3] 12 Attach the stylesheet j2131bhh.css to this web page. Save your web page. [1]

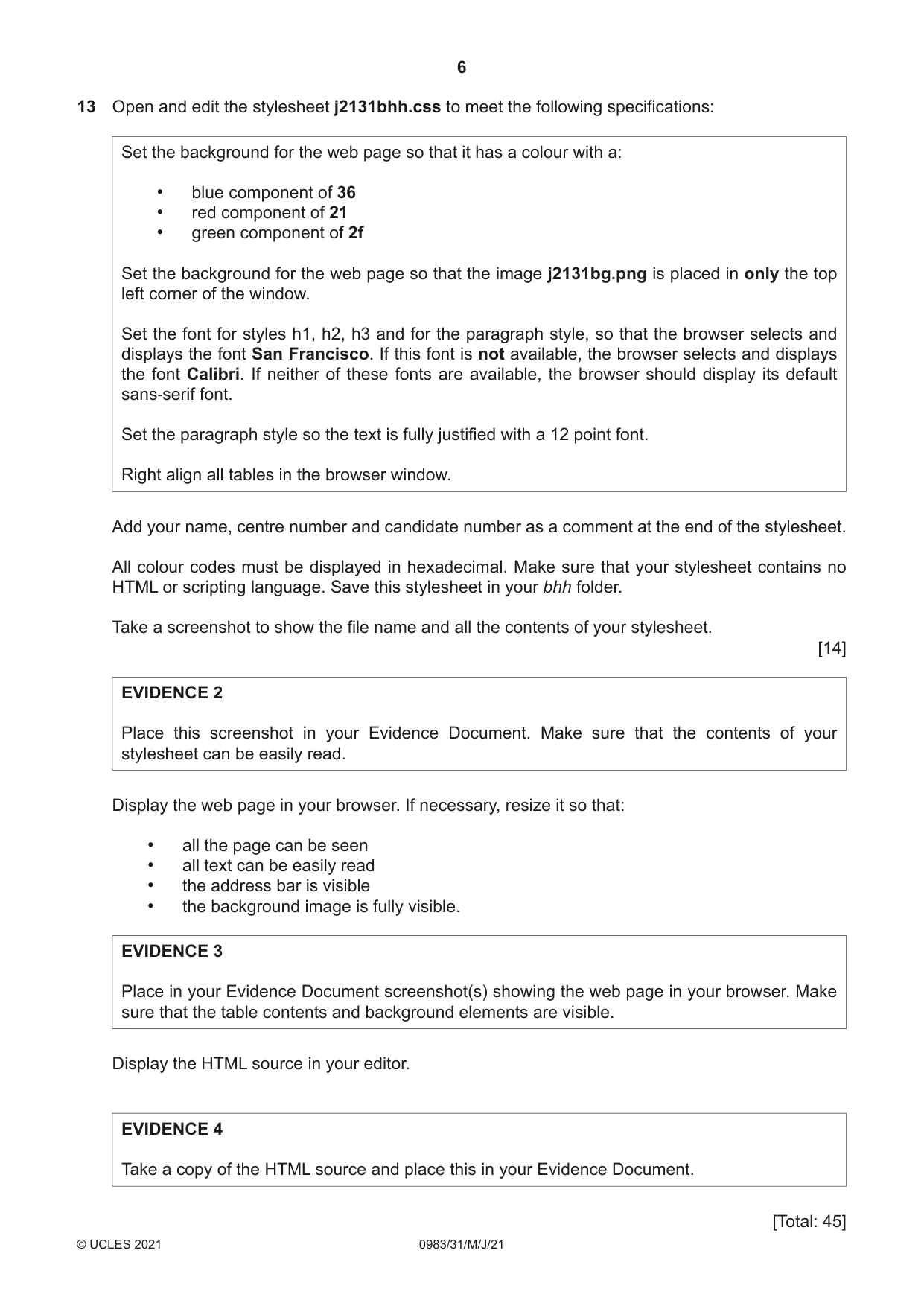

6 0983/31/M/J/21 © UCLES 2021 13 Open and edit the stylesheet j2131bhh.css to meet the following specifications: Set the background for the web page so that it has a colour with a: • blue component of 36 • red component of 21 • green component of 2f Set the background for the web page so that the image j2131bg.png is placed in only the top left corner of the window. Set the font for styles h1, h2, h3 and for the paragraph style, so that the browser selects and displays the font San Francisco. If this font is not available, the browser selects and displays the font Calibri. If neither of these fonts are available, the browser should display its default sans-serif font. Set the paragraph style so the text is fully justified with a 12 point font. Right align all tables in the browser window. Add your name, centre number and candidate number as a comment at the end of the stylesheet. All colour codes must be displayed in hexadecimal. Make sure that your stylesheet contains no HTML or scripting language. Save this stylesheet in your bhh folder. Take a screenshot to show the file name and all the contents of your stylesheet. [14] EVIDENCE 2 Place this screenshot in your Evidence Document. Make sure that the contents of your stylesheet can be easily read. Display the web page in your browser. If necessary, resize it so that: • all the page can be seen • all text can be easily read • the address bar is visible • the background image is fully visible. EVIDENCE 3 Place in your Evidence Document screenshot(s) showing the web page in your browser. Make sure that the table contents and background elements are visible. Display the HTML source in your editor. EVIDENCE 4 Take a copy of the HTML source and place this in your Evidence Document. [Total: 45]

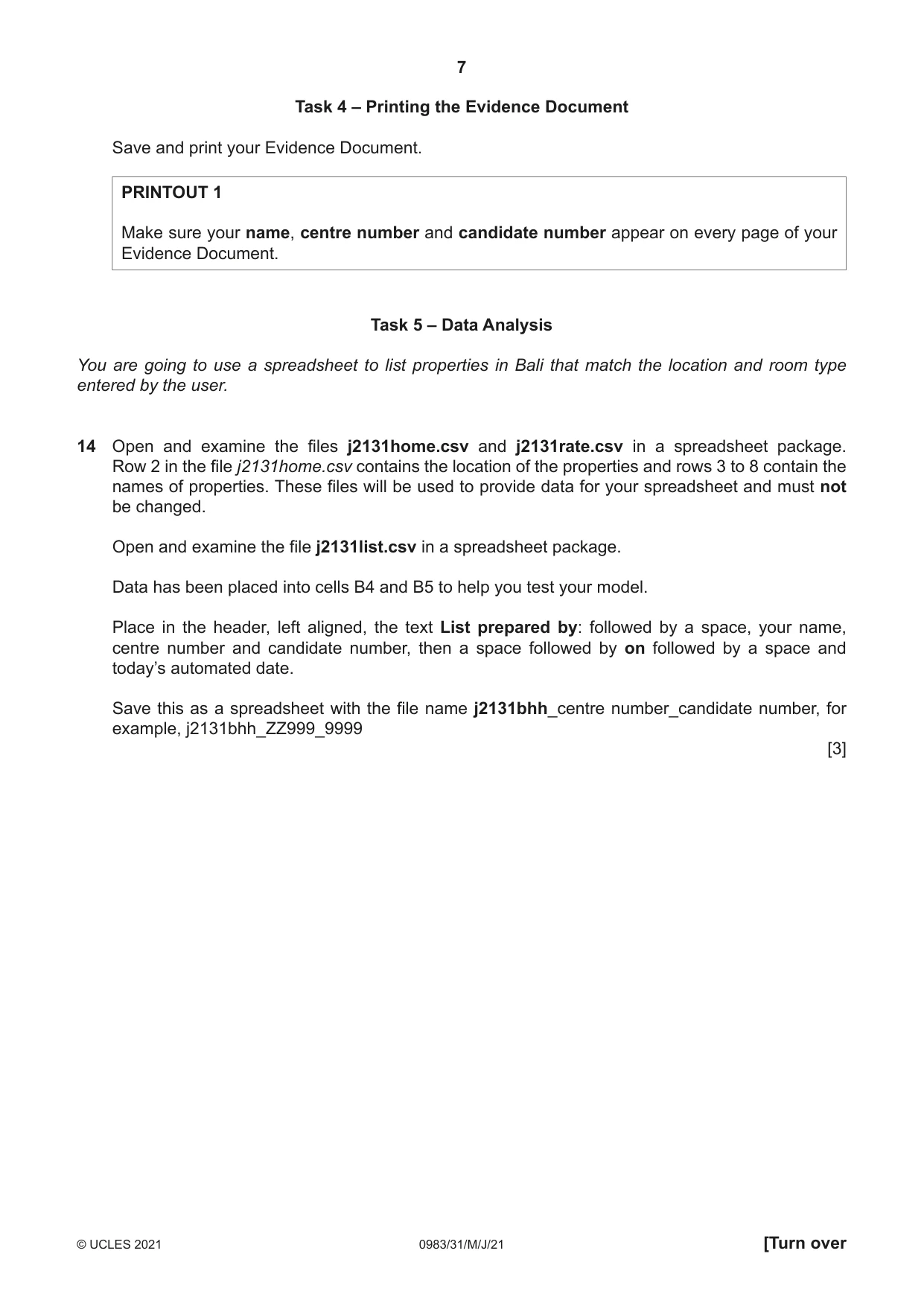

7 0983/31/M/J/21 © UCLES 2021 [Turn over Task 4 – Printing the Evidence Document Save and print your Evidence Document. PRINTOUT 1 Make sure your name, centre number and candidate number appear on every page of your Evidence Document. Task 5 – Data Analysis You are going to use a spreadsheet to list properties in Bali that match the location and room type entered by the user. 14 Open and examine the files j2131home.csv and j2131rate.csv in a spreadsheet package. Row 2 in the file j2131home.csv contains the location of the properties and rows 3 to 8 contain the names of properties. These files will be used to provide data for your spreadsheet and must not be changed. Open and examine the file j2131list.csv in a spreadsheet package. Data has been placed into cells B4 and B5 to help you test your model. Place in the header, left aligned, the text List prepared by: followed by a space, your name, centre number and candidate number, then a space followed by on followed by a space and today’s automated date. Save this as a spreadsheet with the file name j2131bhh_centre number_candidate number, for example, j2131bhh_ZZ999_9999 [3]

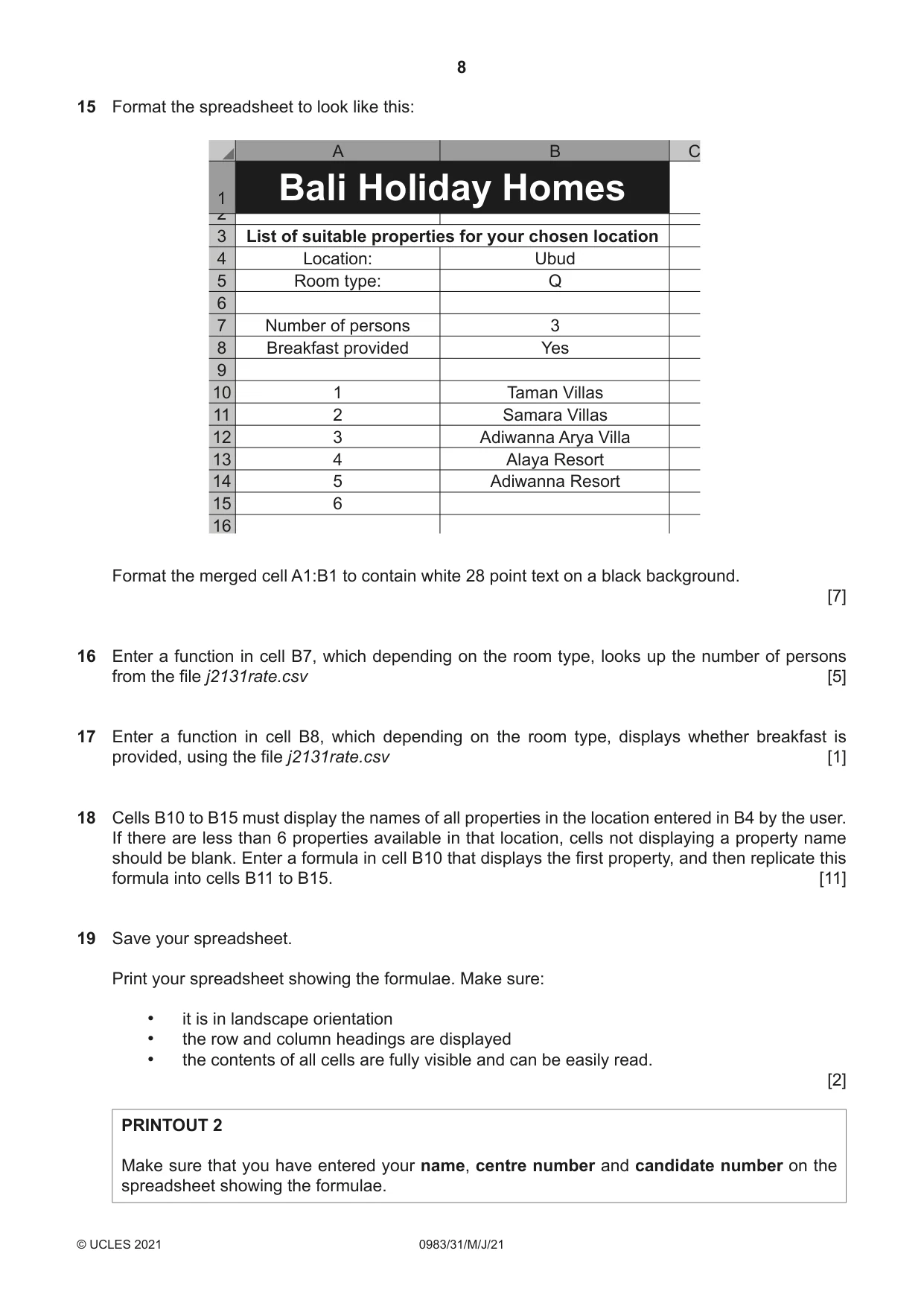

8 0983/31/M/J/21 © UCLES 2021 15 Format the spreadsheet to look like this: 3 1 2 A B C List of suitable properties for your chosen location Bali Holiday Homes 4 Location: Ubud 5 Room type: Q 6 7 Number of persons 3 8 Breakfast provided Yes 9 10 1 Taman Villas 11 2 Samara Villas 12 3 Adiwanna Arya Villa 13 4 Alaya Resort 14 5 Adiwanna Resort 15 6 16 Format the merged cell A1:B1 to contain white 28 point text on a black background. [7] 16 Enter a function in cell B7, which depending on the room type, looks up the number of persons from the file j2131rate.csv [5] 17 Enter a function in cell B8, which depending on the room type, displays whether breakfast is provided, using the file j2131rate.csv [1] 18 Cells B10 to B15 must display the names of all properties in the location entered in B4 by the user. If there are less than 6 properties available in that location, cells not displaying a property name should be blank. Enter a formula in cell B10 that displays the first property, and then replicate this formula into cells B11 to B15. [11] 19 Save your spreadsheet. Print your spreadsheet showing the formulae. Make sure: • it is in landscape orientation • the row and column headings are displayed • the contents of all cells are fully visible and can be easily read. [2] PRINTOUT 2 Make sure that you have entered your name, centre number and candidate number on the spreadsheet showing the formulae.

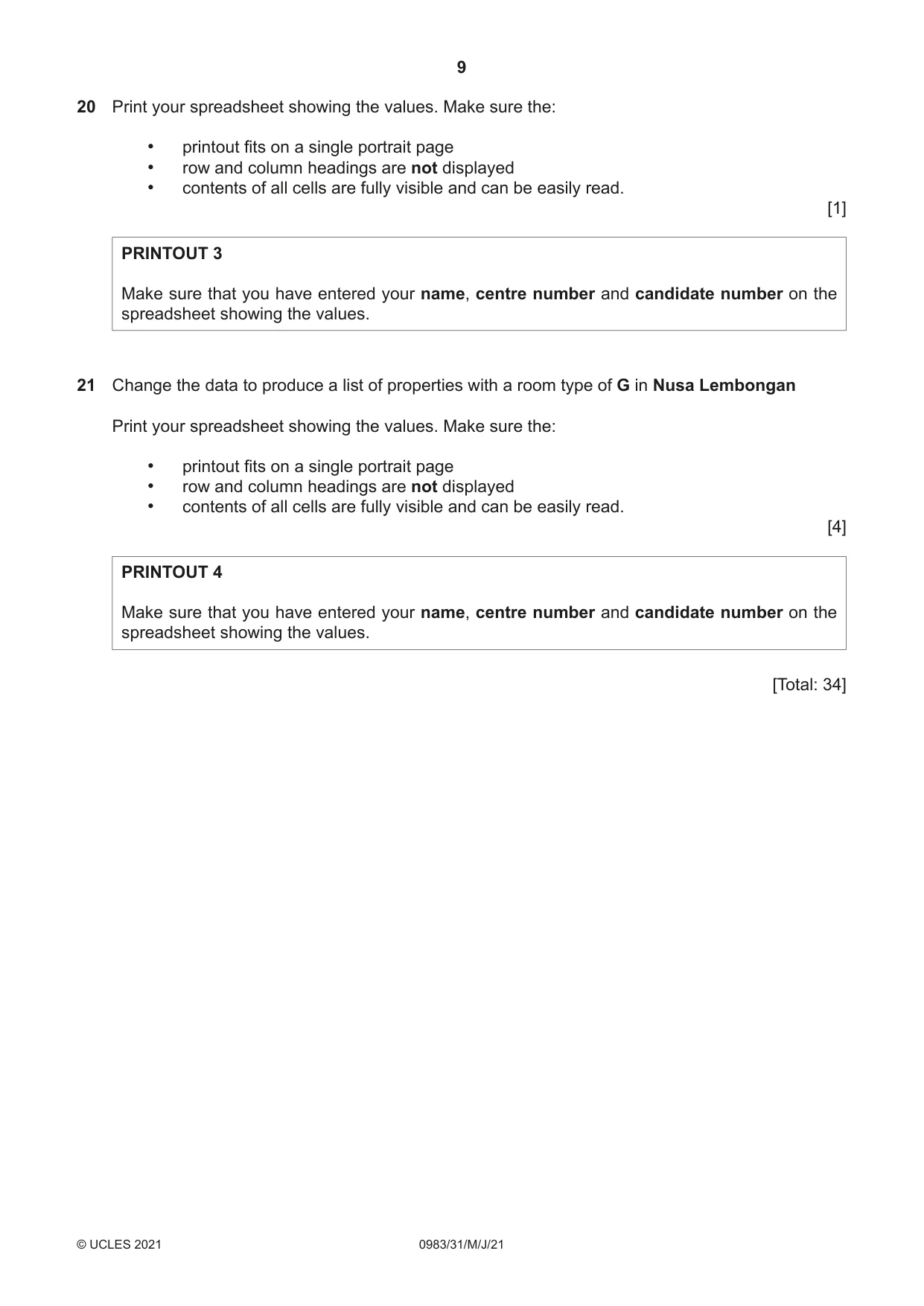

9 0983/31/M/J/21 © UCLES 2021 20 Print your spreadsheet showing the values. Make sure the: • printout fits on a single portrait page • row and column headings are not displayed • contents of all cells are fully visible and can be easily read. [1] PRINTOUT 3 Make sure that you have entered your name, centre number and candidate number on the spreadsheet showing the values. 21 Change the data to produce a list of properties with a room type of G in Nusa Lembongan Print your spreadsheet showing the values. Make sure the: • printout fits on a single portrait page • row and column headings are not displayed • contents of all cells are fully visible and can be easily read. [4] PRINTOUT 4 Make sure that you have entered your name, centre number and candidate number on the spreadsheet showing the values. [Total: 34]

10 0983/31/M/J/21 © UCLES 2021 BLANK PAGE

11 0983/31/M/J/21 © UCLES 2021 BLANK PAGE

12 0983/31/M/J/21 © UCLES 2021 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. BLANK PAGE

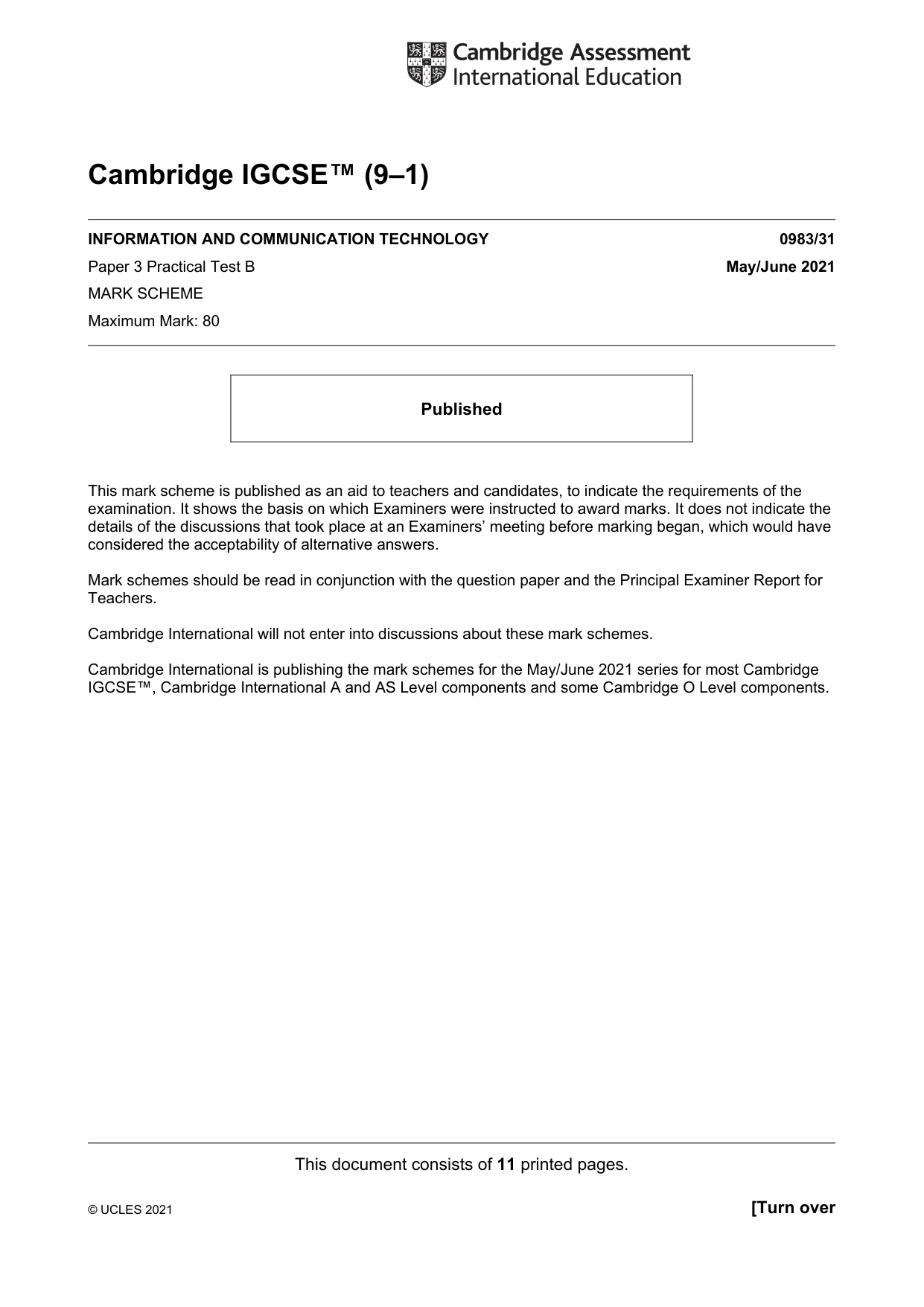

This document consists of 11 printed pages. © UCLES 2021 [Turn over Cambridge IGCSE™ (9–1) INFORMATION AND COMMUNICATION TECHNOLOGY 0983/31 Paper 3 Practical Test B May/June 2021 MARK SCHEME Maximum Mark: 80 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2021 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

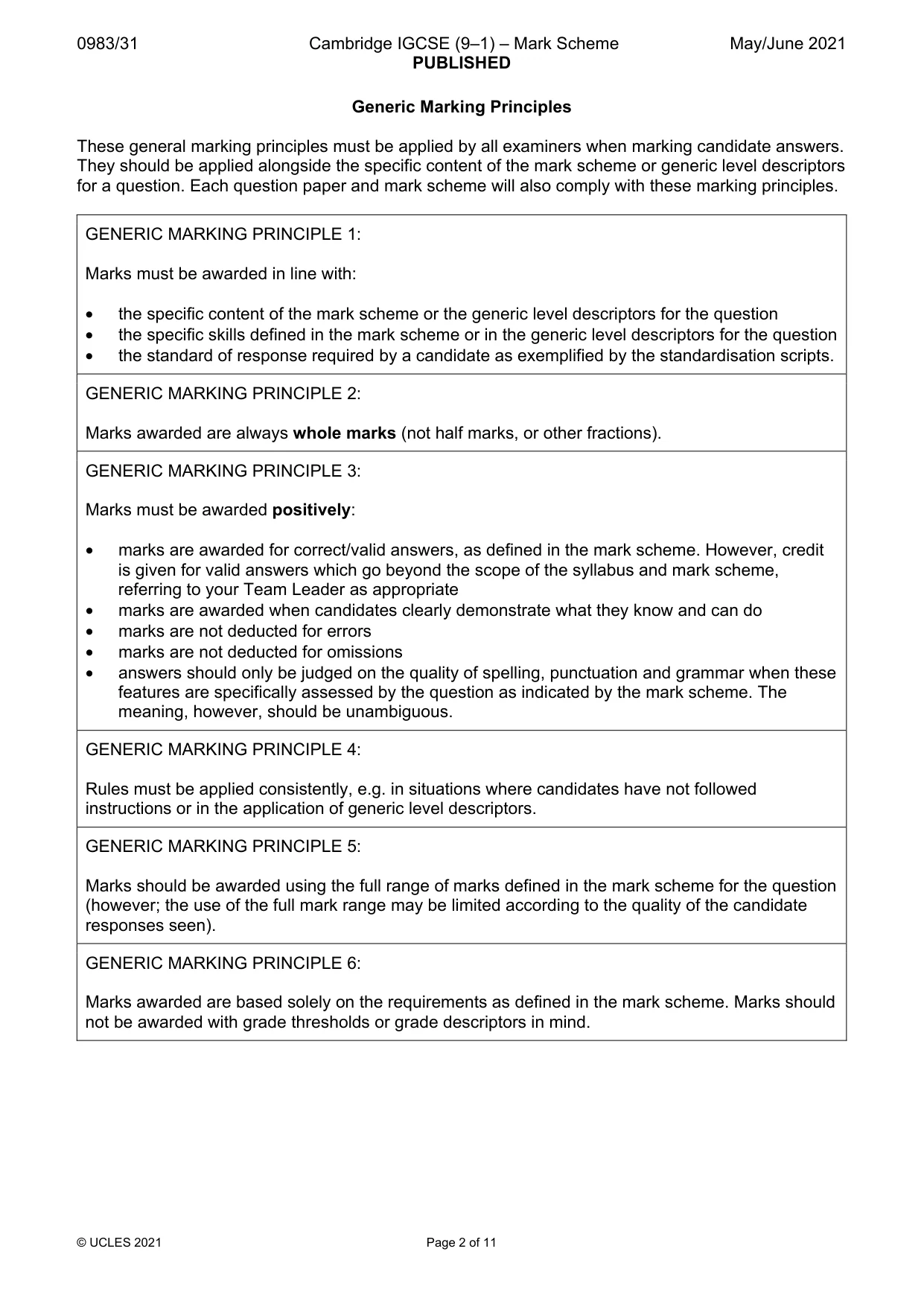

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 2 of 11 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

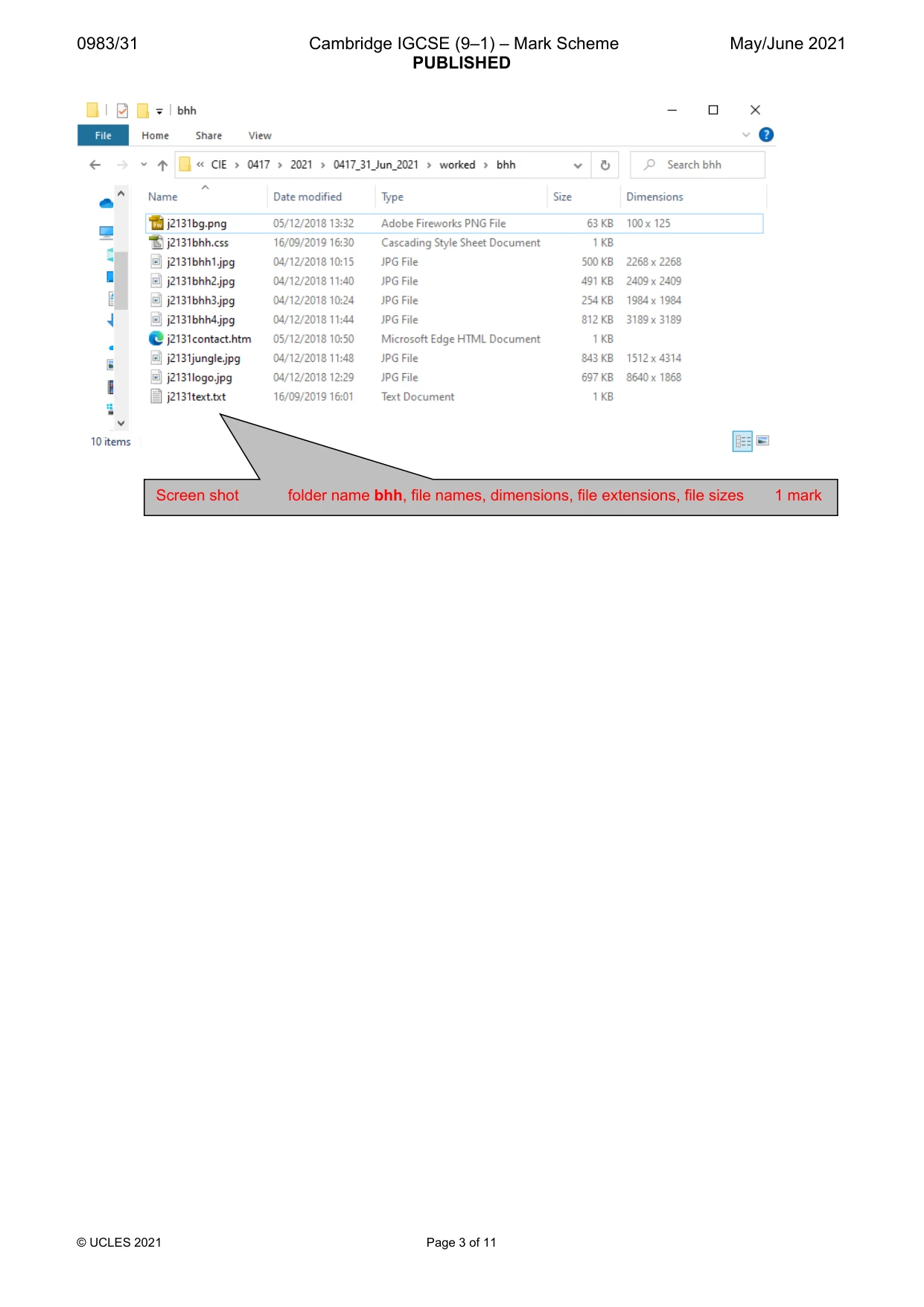

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 3 of 11 Screen shot folder name bhh, file names, dimensions, file extensions, file sizes 1 mark

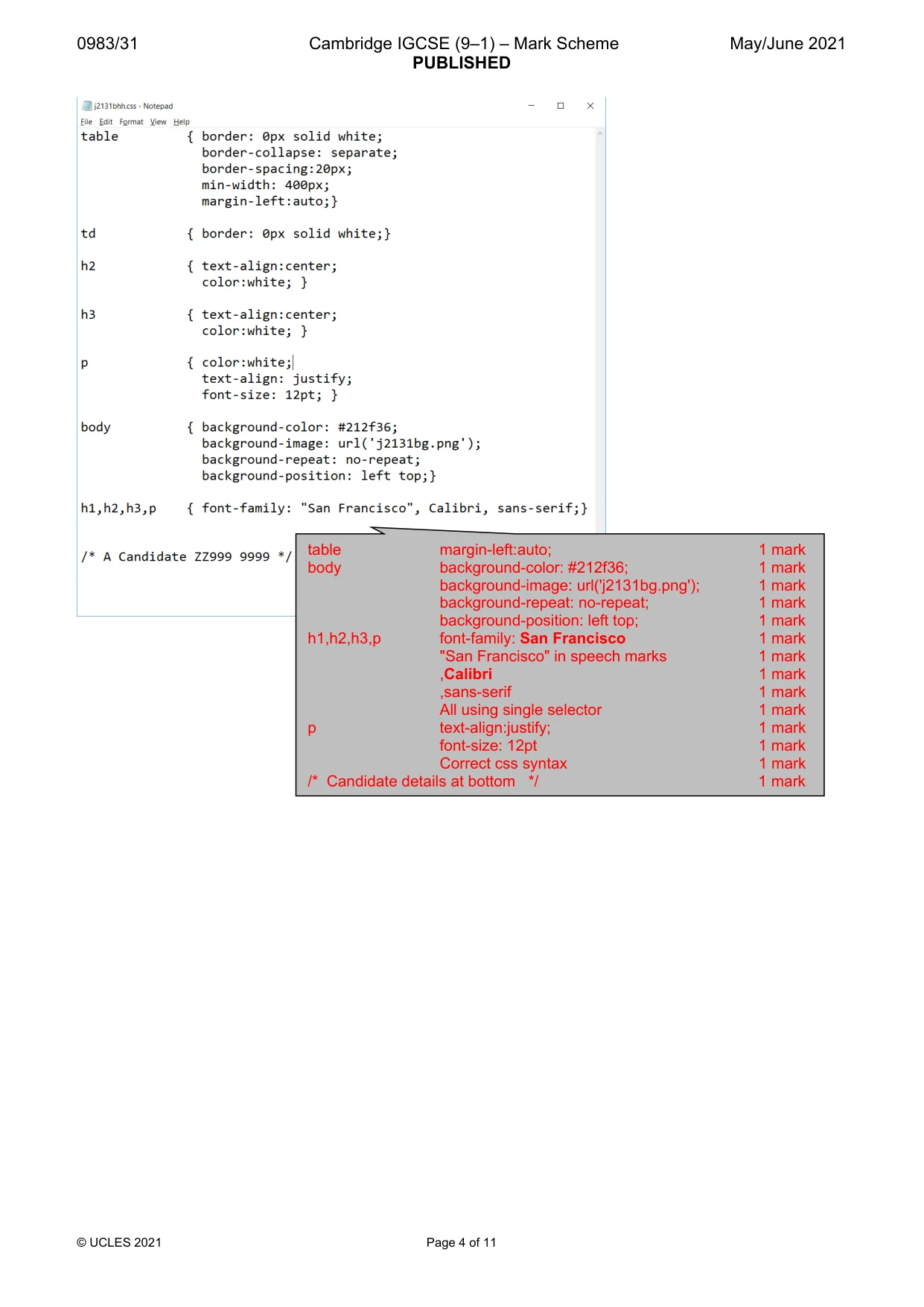

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 4 of 11 table margin-left:auto; 1 mark body background-color: #212f36; 1 mark background-image: url('j2131bg.png'); 1 mark background-repeat: no-repeat; 1 mark background-position: left top; 1 mark h1,h2,h3,p font-family: San Francisco 1 mark "San Francisco" in speech marks 1 mark ,Calibri 1 mark ,sans-serif 1 mark All using single selector 1 mark p text-align:justify; 1 mark font-size: 12pt 1 mark Correct css syntax 1 mark /* Candidate details at bottom */ 1 mark

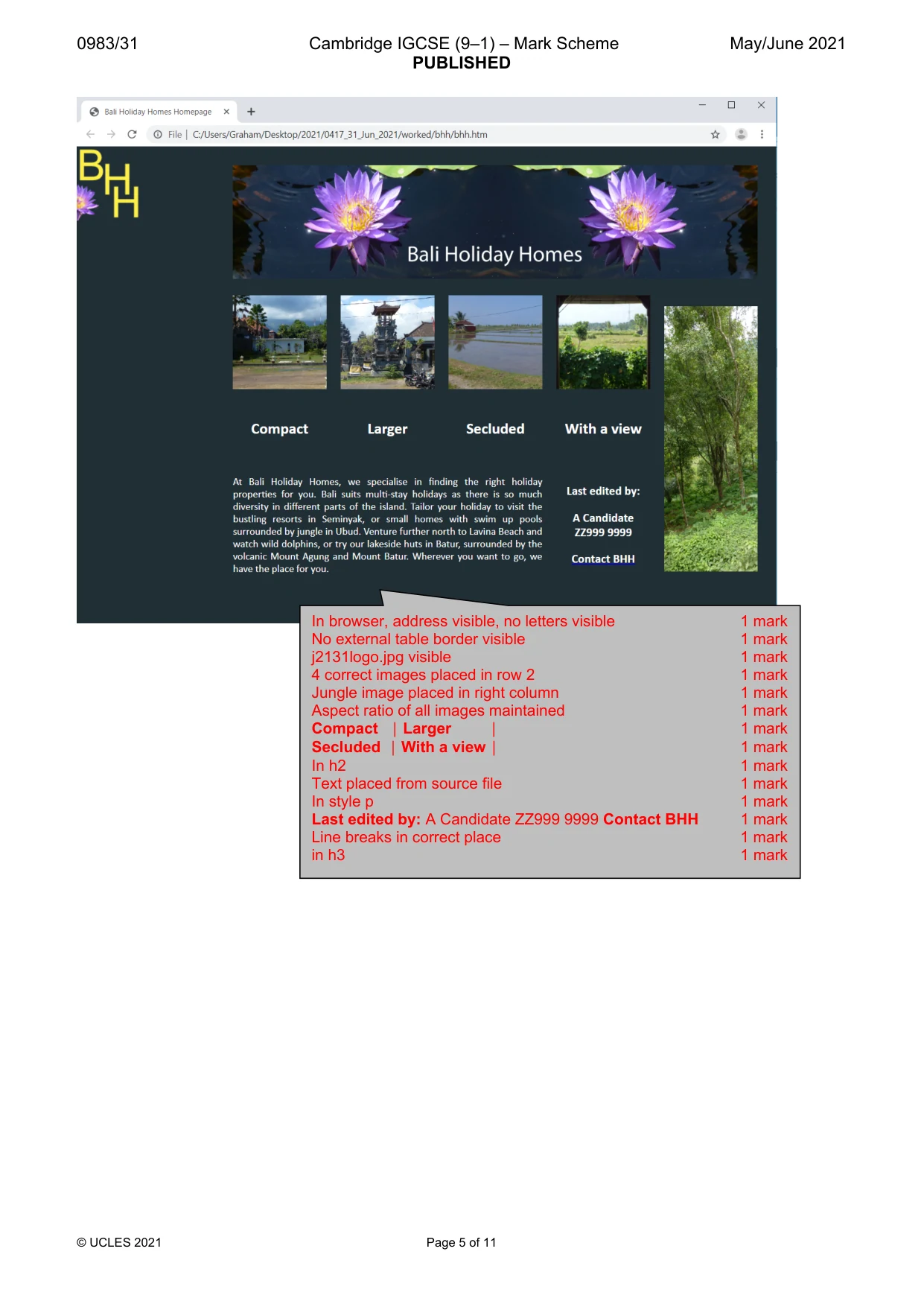

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 5 of 11 In browser, address visible, no letters visible 1 mark No external table border visible 1 mark j2131logo.jpg visible 1 mark 4 correct images placed in row 2 1 mark Jungle image placed in right column 1 mark Aspect ratio of all images maintained 1 mark Compact │ Larger │ 1 mark Secluded │ With a view │ 1 mark In h2 1 mark Text placed from source file 1 mark In style p 1 mark Last edited by: A Candidate ZZ999 9999 Contact BHH 1 mark Line breaks in correct place 1 mark in h3 1 mark

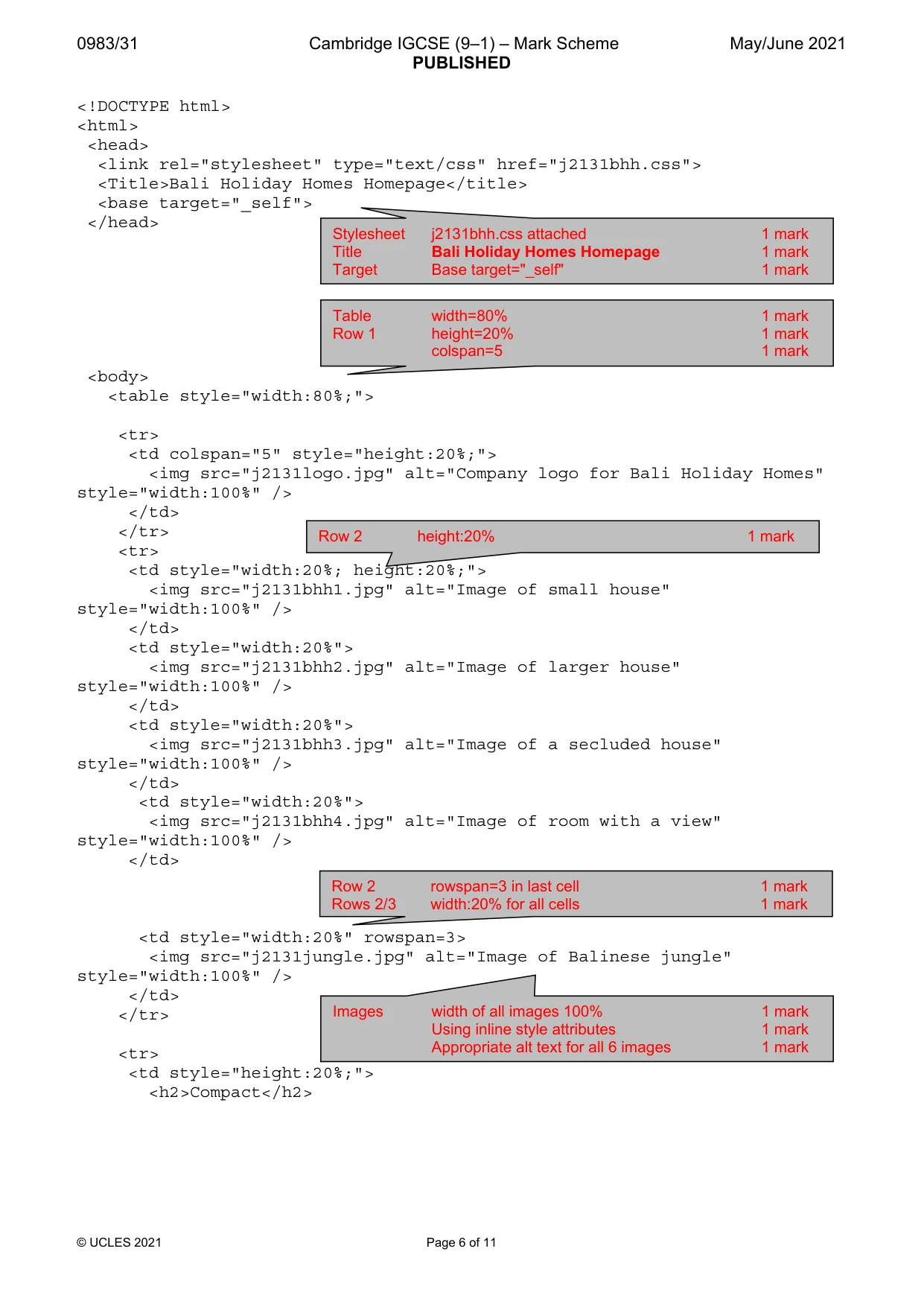

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 6 of 11 <!DOCTYPE html> <html> <head> <link rel="stylesheet" type="text/css" href="j2131bhh.css"> <Title>Bali Holiday Homes Homepage</title> <base target="_self"> </head> <body> <table style="width:80%;"> <tr> <td colspan="5" style="height:20%;"> <img src="j2131logo.jpg" alt="Company logo for Bali Holiday Homes" style="width:100%" /> </td> </tr> <tr> <td style="width:20%; height:20%;"> <img src="j2131bhh1.jpg" alt="Image of small house" style="width:100%" /> </td> <td style="width:20%"> <img src="j2131bhh2.jpg" alt="Image of larger house" style="width:100%" /> </td> <td style="width:20%"> <img src="j2131bhh3.jpg" alt="Image of a secluded house" style="width:100%" /> </td> <td style="width:20%"> <img src="j2131bhh4.jpg" alt="Image of room with a view" style="width:100%" /> </td> <td style="width:20%" rowspan=3> <img src="j2131jungle.jpg" alt="Image of Balinese jungle" style="width:100%" /> </td> </tr> <tr> <td style="height:20%;"> <h2>Compact</h2> Stylesheet j2131bhh.css attached 1 mark Title Bali Holiday Homes Homepage 1 mark Target Base target="_self" 1 mark Table width=80% 1 mark Row 1 height=20% 1 mark colspan=5 1 mark Row 2 height:20% 1 mark Row 2 rowspan=3 in last cell 1 mark Rows 2/3 width:20% for all cells 1 mark Images width of all images 100% 1 mark Using inline style attributes 1 mark Appropriate alt text for all 6 images 1 mark

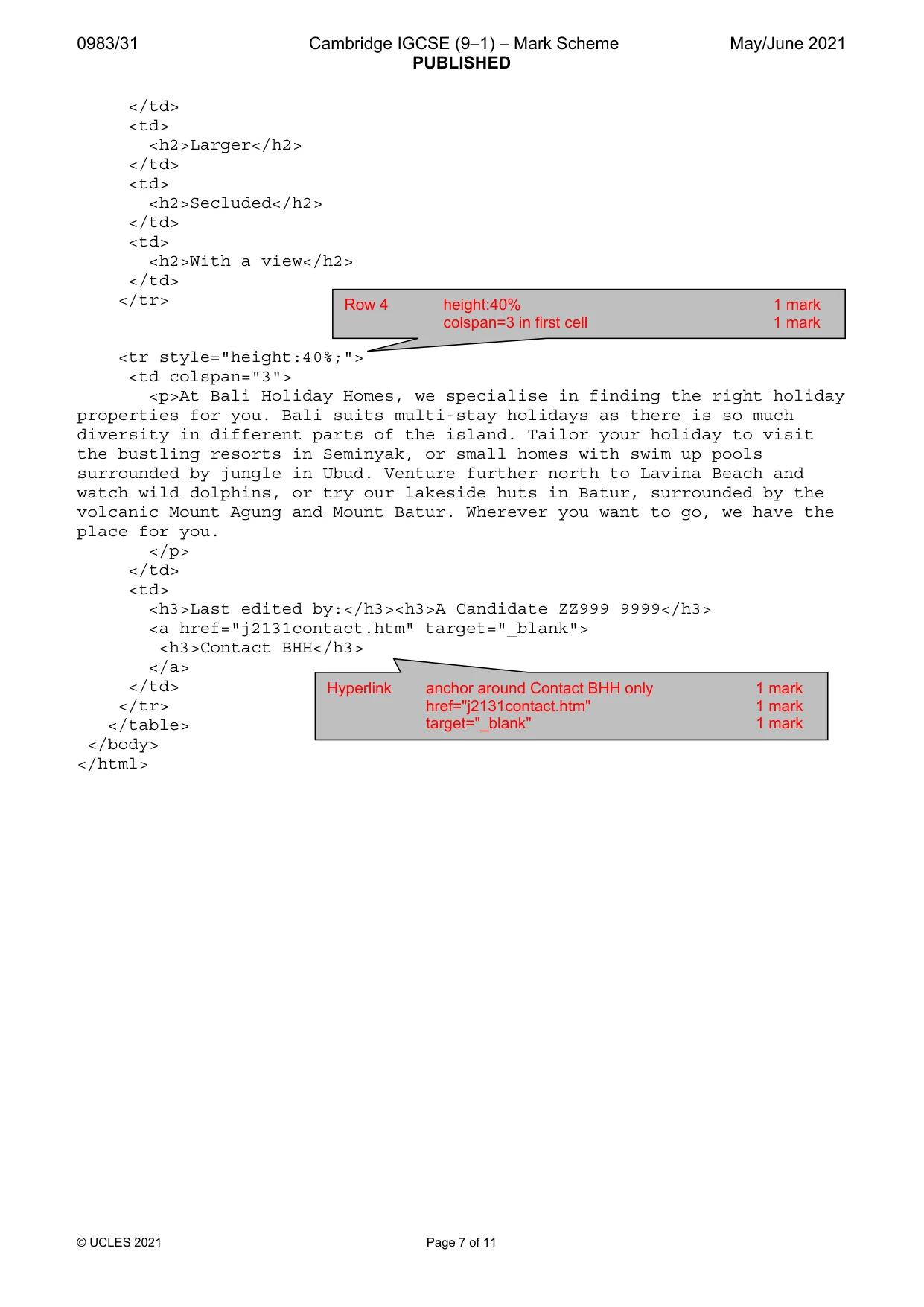

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 7 of 11 </td> <td> <h2>Larger</h2> </td> <td> <h2>Secluded</h2> </td> <td> <h2>With a view</h2> </td> </tr> <tr style="height:40%;"> <td colspan="3"> <p>At Bali Holiday Homes, we specialise in finding the right holiday properties for you. Bali suits multi-stay holidays as there is so much diversity in different parts of the island. Tailor your holiday to visit the bustling resorts in Seminyak, or small homes with swim up pools surrounded by jungle in Ubud. Venture further north to Lavina Beach and watch wild dolphins, or try our lakeside huts in Batur, surrounded by the volcanic Mount Agung and Mount Batur. Wherever you want to go, we have the place for you. </p> </td> <td> <h3>Last edited by:</h3><h3>A Candidate ZZ999 9999</h3> <a href="j2131contact.htm" target="_blank"> <h3>Contact BHH</h3> </a> </td> </tr> </table> </body> </html> Hyperlink anchor around Contact BHH only 1 mark href="j2131contact.htm" 1 mark target="_blank" 1 mark Row 4 height:40% 1 mark colspan=3 in first cell 1 mark

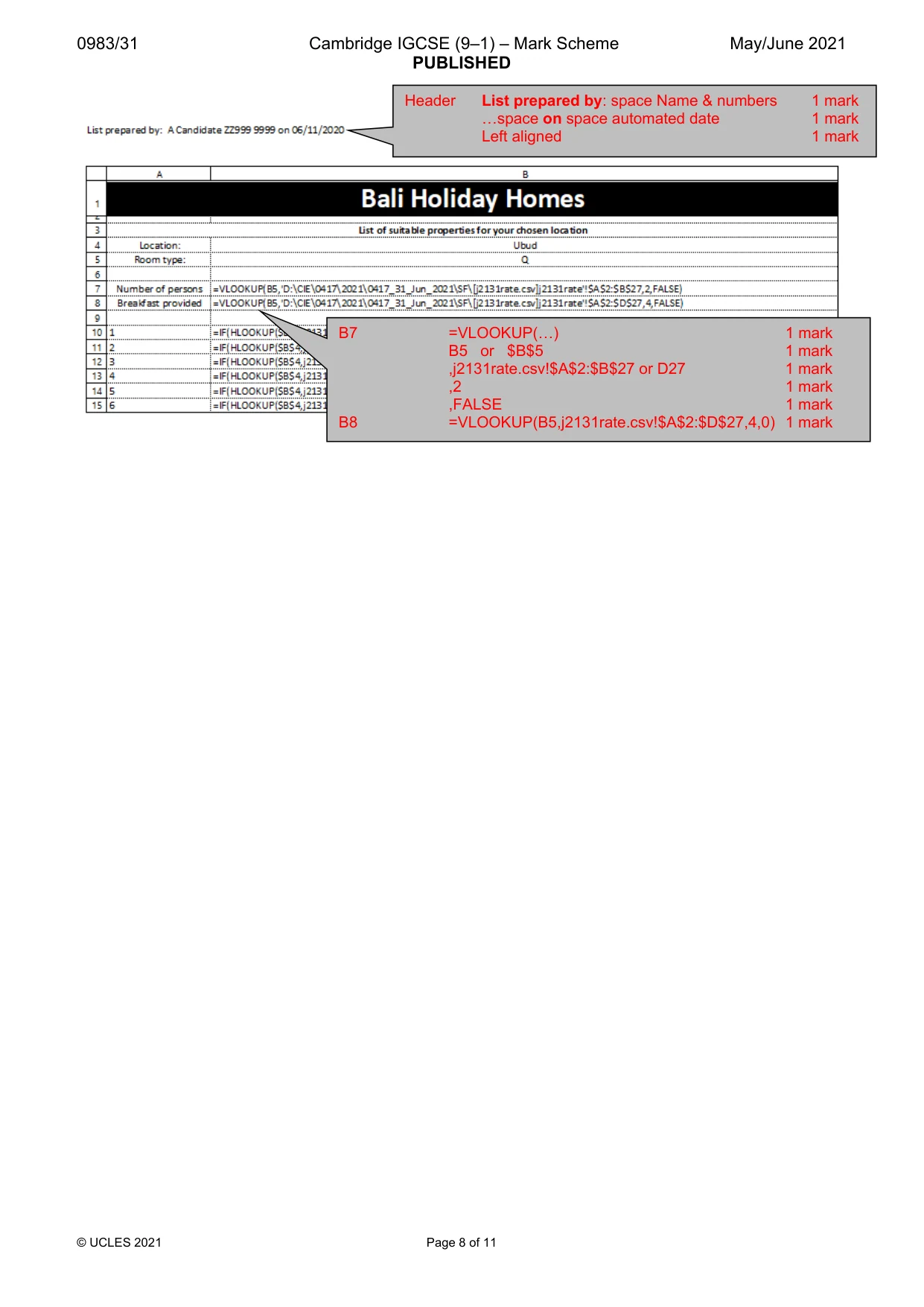

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 8 of 11 Header List prepared by: space Name & numbers 1 mark …space on space automated date 1 mark Left aligned 1 mark B7 =VLOOKUP(…) 1 mark B5 or $B$5 1 mark ,j2131rate.csv!$A$2:$B$27 or D27 1 mark ,2 1 mark ,FALSE 1 mark B8 =VLOOKUP(B5,j2131rate.csv!$A$2:$D$27,4,0) 1 mark

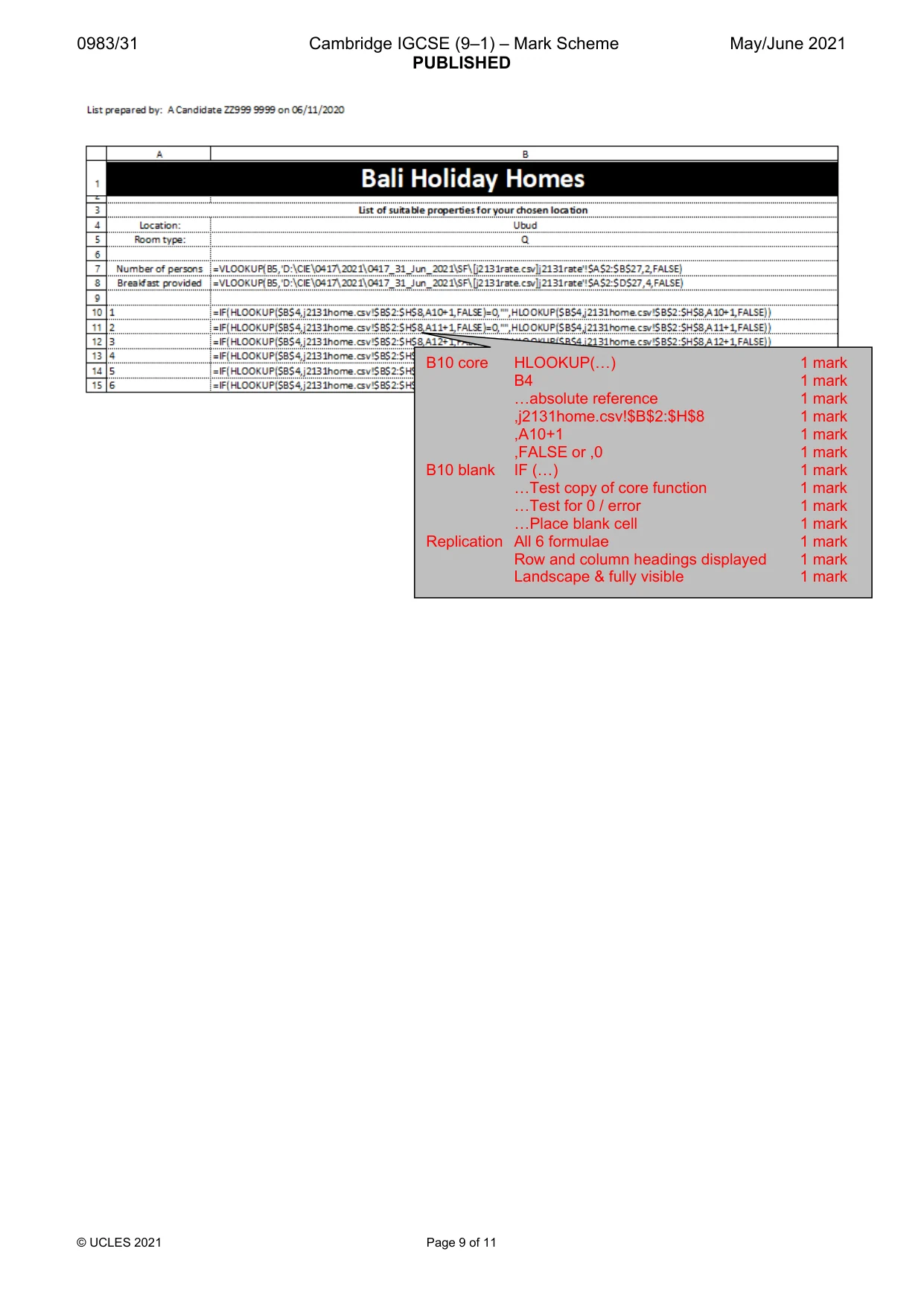

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 9 of 11 B10 core HLOOKUP(…) 1 mark B4 1 mark …absolute reference 1 mark ,j2131home.csv!$B$2:$H$8 1 mark ,A10+1 1 mark ,FALSE or ,0 1 mark B10 blank IF (…) 1 mark …Test copy of core function 1 mark …Test for 0 / error 1 mark …Place blank cell 1 mark Replication All 6 formulae 1 mark Row and column headings displayed 1 mark Landscape & fully visible 1 mark

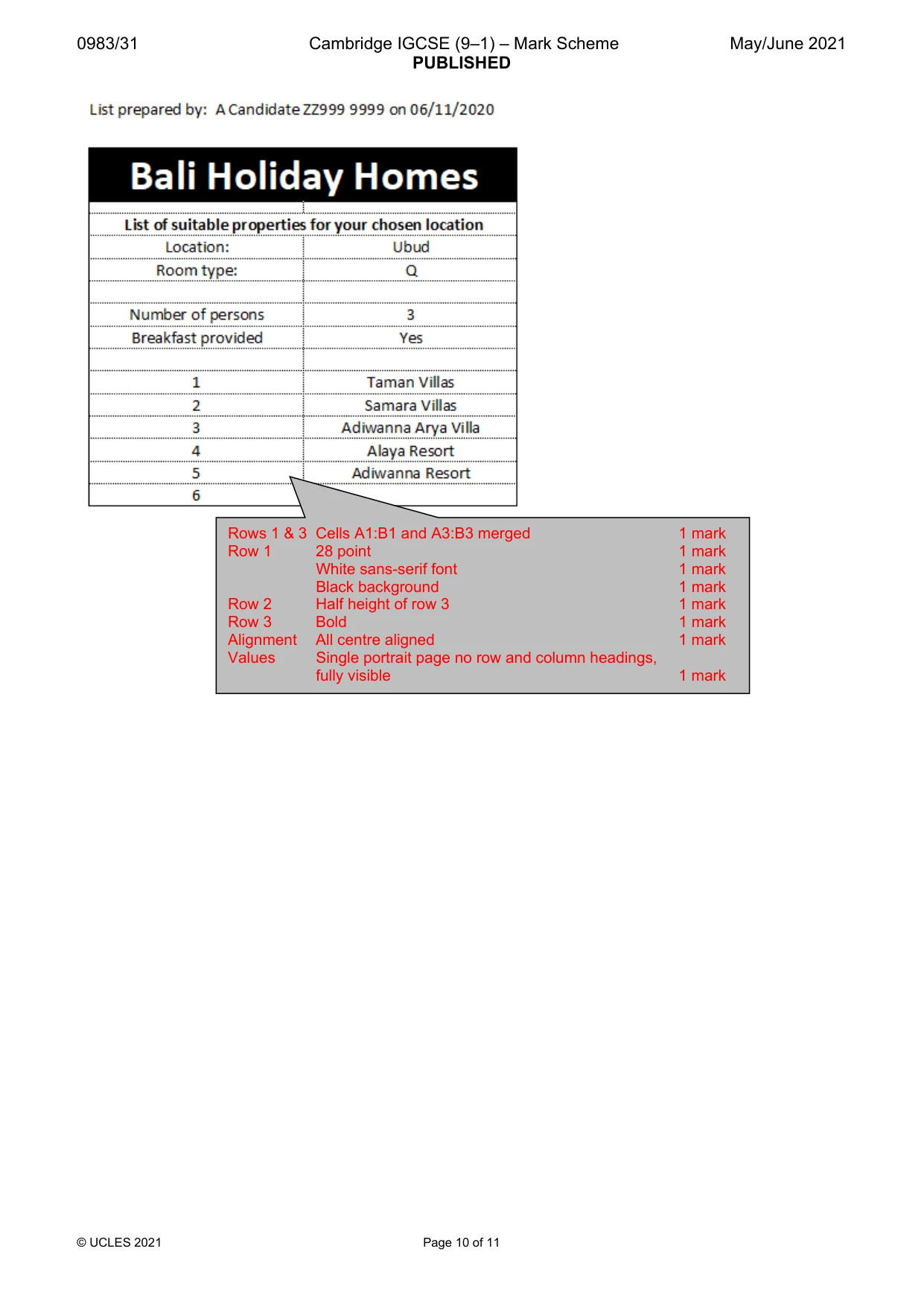

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 10 of 11 Rows 1 & 3 Cells A1:B1 and A3:B3 merged 1 mark Row 1 28 point 1 mark White sans-serif font 1 mark Black background 1 mark Row 2 Half height of row 3 1 mark Row 3 Bold 1 mark Alignment All centre aligned 1 mark Values Single portrait page no row and column headings, fully visible 1 mark

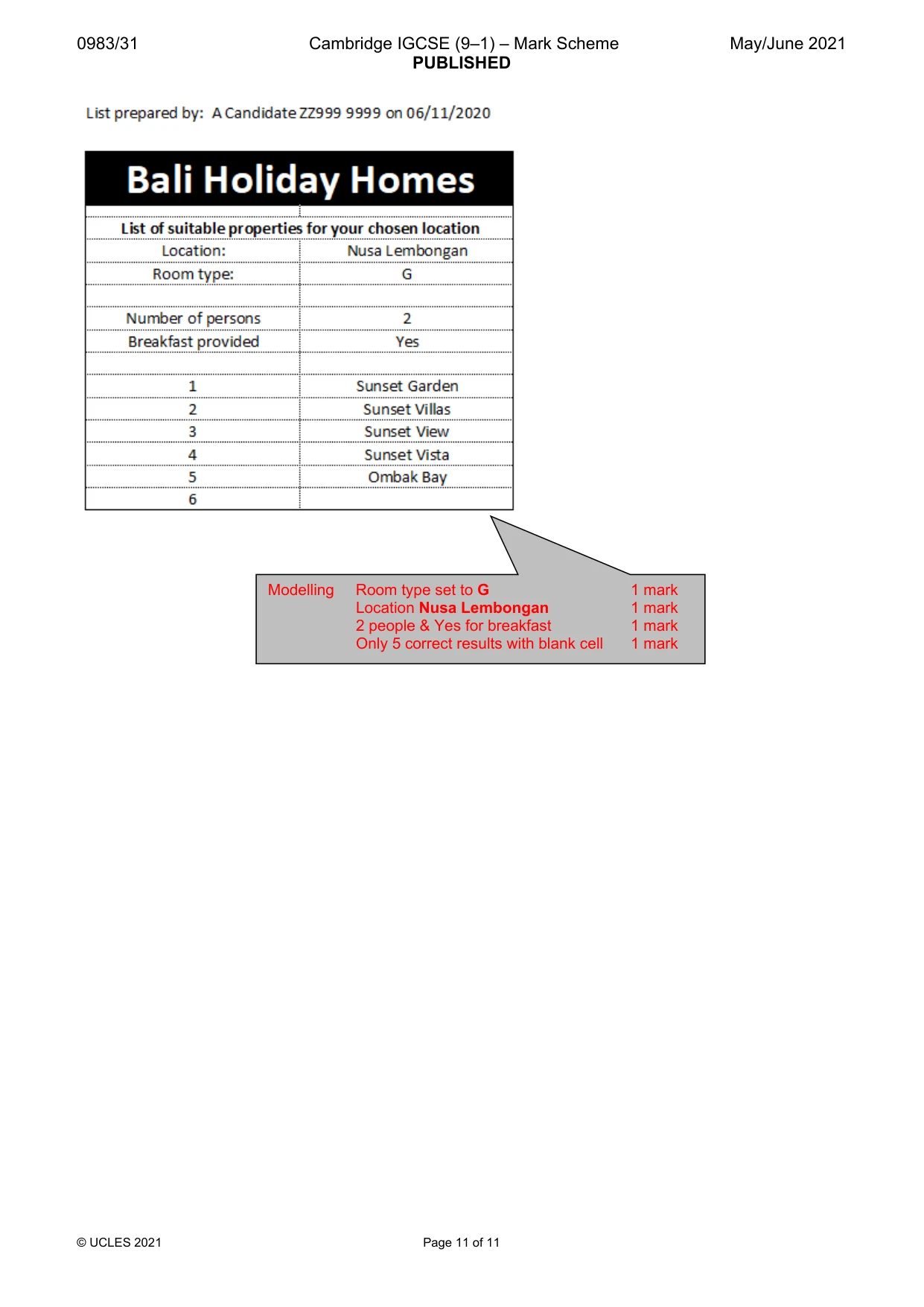

0983/31 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2021 © UCLES 2021 Page 11 of 11 Modelling Room type set to G 1 mark Location Nusa Lembongan 1 mark 2 people & Yes for breakfast 1 mark Only 5 correct results with blank cell 1 mark
