Cambridge IGCSE Design and Technology 0445 — 2017 May/June Paper 2 · Variant 3

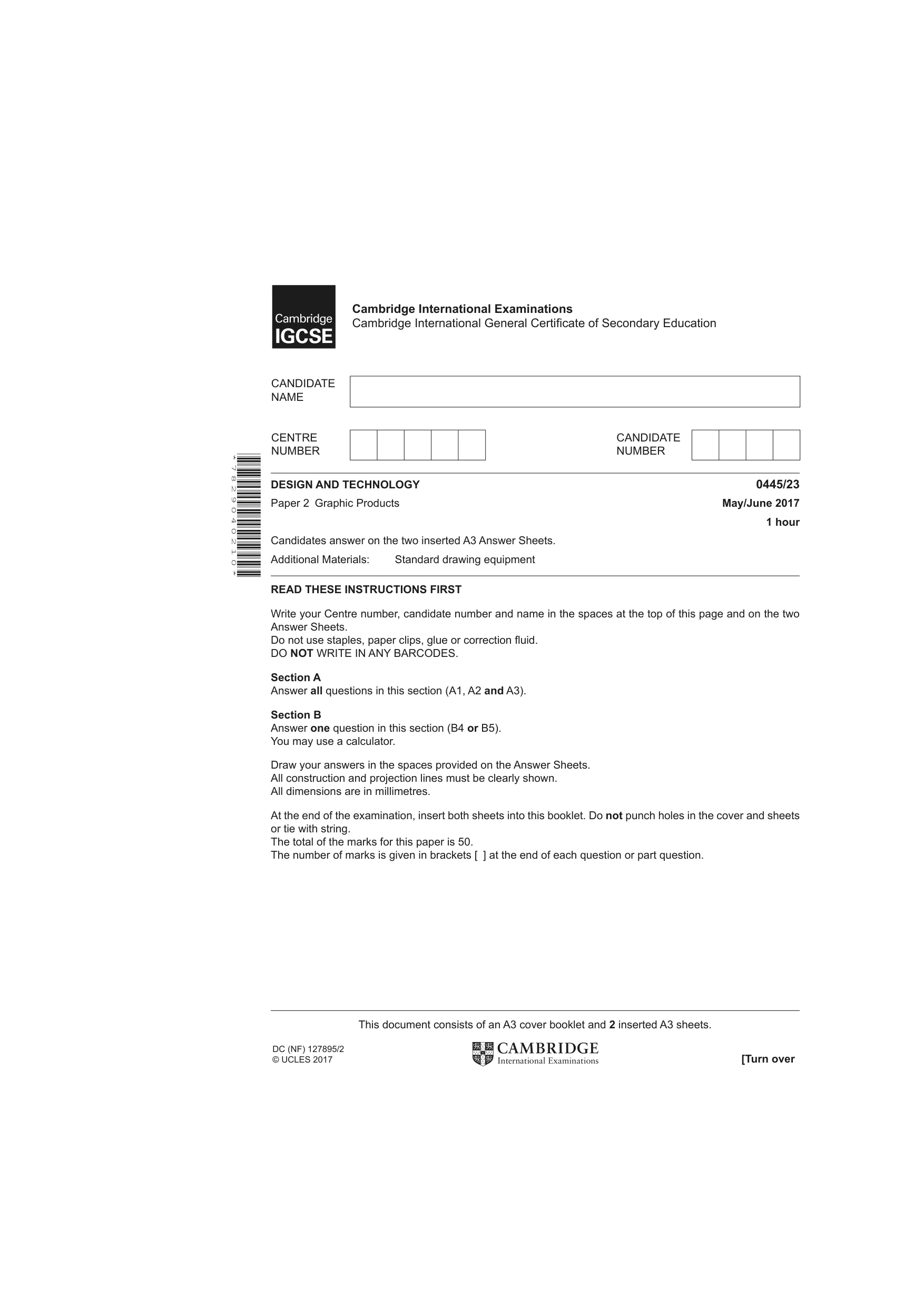

Cambridge International Examinations Cambridge International General Certificate of Secondary Education This document consists of an A3 cover booklet and 2 inserted A3 sheets. [Turn over DC (NF) 127895/2 © UCLES 2017 CANDIDATE NAME CENTRE NUMBER CANDIDATE NUMBER * 7 8 2 9 0 4 0 2 1 0 * DESIGN AND TECHNOLOGY 0445/23 Paper 2 Graphic Products May/June 2017 1 hour Candidates answer on the two inserted A3 Answer Sheets. Additional Materials: Standard drawing equipment READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name in the spaces at the top of this page and on the two Answer Sheets. Do not use staples, paper clips, glue or correction fluid. DO NOT WRITE IN ANY BARCODES. Section A Answer all questions in this section (A1, A2 and A3). Section B Answer one question in this section (B4 or B5). You may use a calculator. Draw your answers in the spaces provided on the Answer Sheets. All construction and projection lines must be clearly shown. All dimensions are in millimetres. At the end of the examination, insert both sheets into this booklet. Do not punch holes in the cover and sheets or tie with string. The total of the marks for this paper is 50. The number of marks is given in brackets [ ] at the end of each question or part question.

Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge International Examinations Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cie.org.uk after the live examination series. Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge.

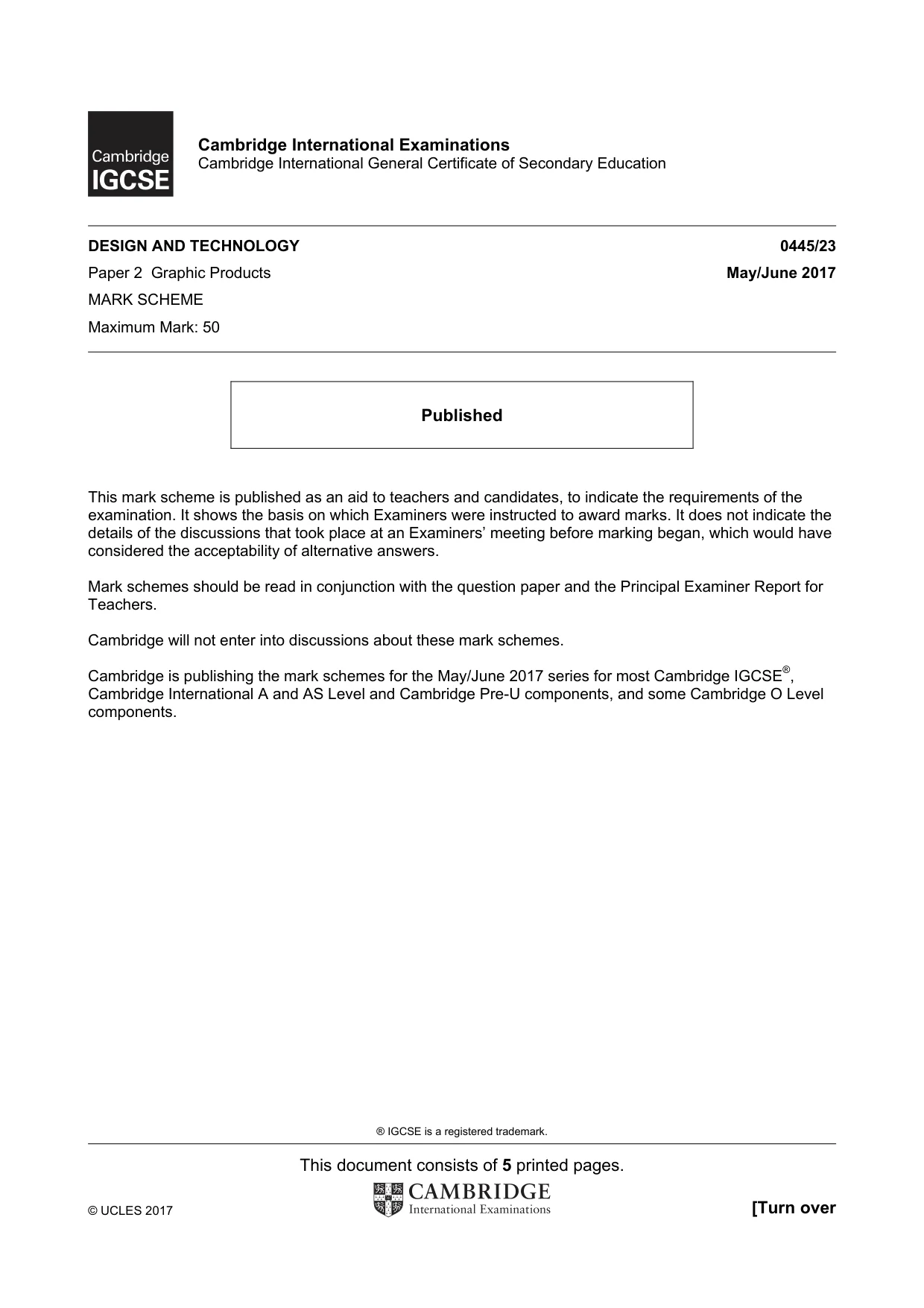

® IGCSE is a registered trademark. This document consists of 5 printed pages. © UCLES 2017 [Turn over Cambridge International Examinations Cambridge International General Certificate of Secondary Education DESIGN AND TECHNOLOGY 0445/23 Paper 2 Graphic Products May/June 2017 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge will not enter into discussions about these mark schemes. Cambridge is publishing the mark schemes for the May/June 2017 series for most Cambridge IGCSE®, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

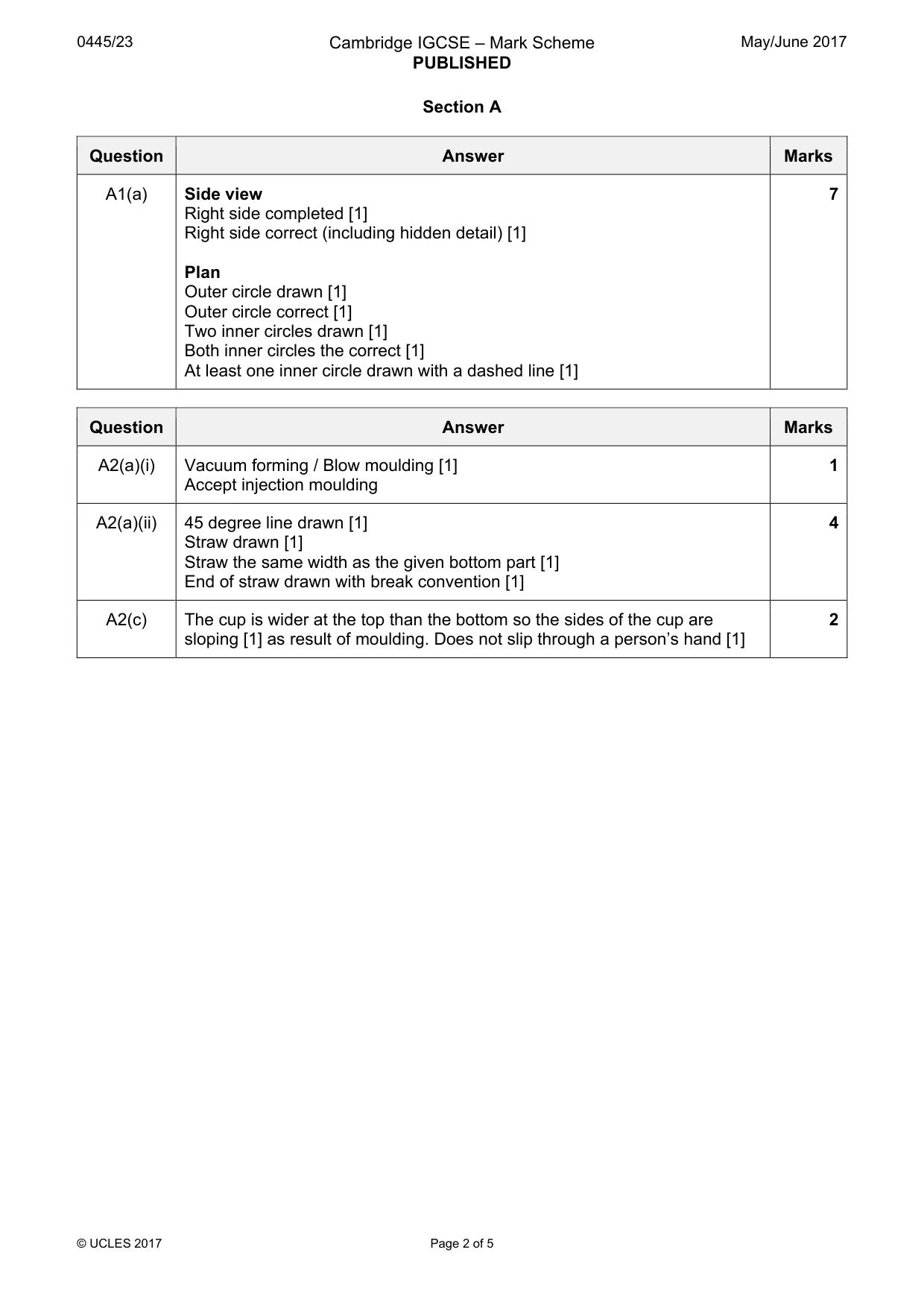

0445/23 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2017 © UCLES 2017 Page 2 of 5 Section A Question Answer Marks A1(a) Side view Right side completed [1] Right side correct (including hidden detail) [1] Plan Outer circle drawn [1] Outer circle correct [1] Two inner circles drawn [1] Both inner circles the correct [1] At least one inner circle drawn with a dashed line [1] 7 Question Answer Marks A2(a)(i) Vacuum forming / Blow moulding [1] Accept injection moulding 1 A2(a)(ii) 45 degree line drawn [1] Straw drawn [1] Straw the same width as the given bottom part [1] End of straw drawn with break convention [1] 4 A2(c) The cup is wider at the top than the bottom so the sides of the cup are sloping [1] as result of moulding. Does not slip through a person’s hand [1] 2

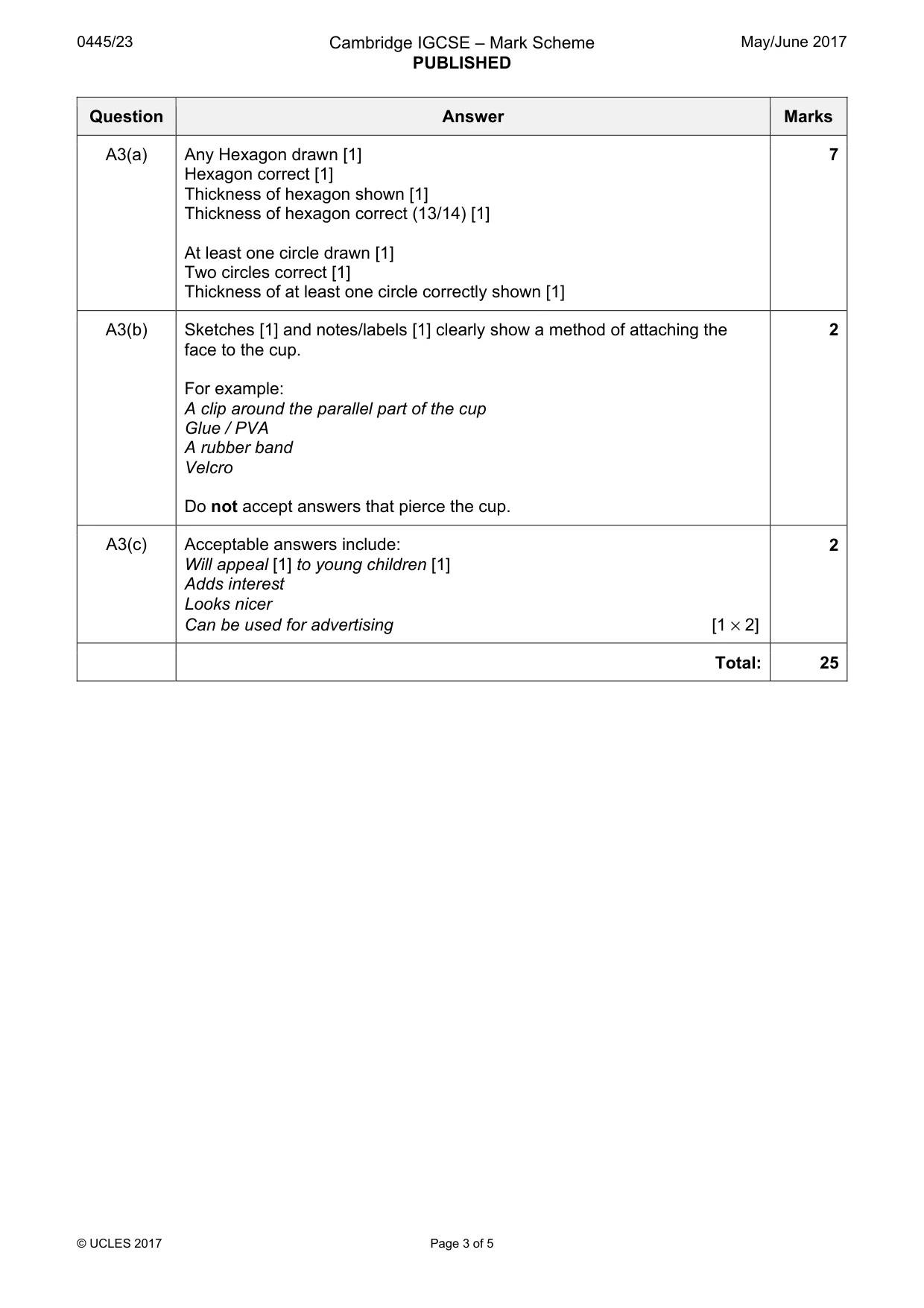

0445/23 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2017 © UCLES 2017 Page 3 of 5 Question Answer Marks A3(a) Any Hexagon drawn [1] Hexagon correct [1] Thickness of hexagon shown [1] Thickness of hexagon correct (13/14) [1] At least one circle drawn [1] Two circles correct [1] Thickness of at least one circle correctly shown [1] 7 A3(b) Sketches [1] and notes/labels [1] clearly show a method of attaching the face to the cup. For example: A clip around the parallel part of the cup Glue / PVA A rubber band Velcro Do not accept answers that pierce the cup. 2 A3(c) Acceptable answers include: Will appeal [1] to young children [1] Adds interest Looks nicer Can be used for advertising [1 × 2] 2 Total: 25

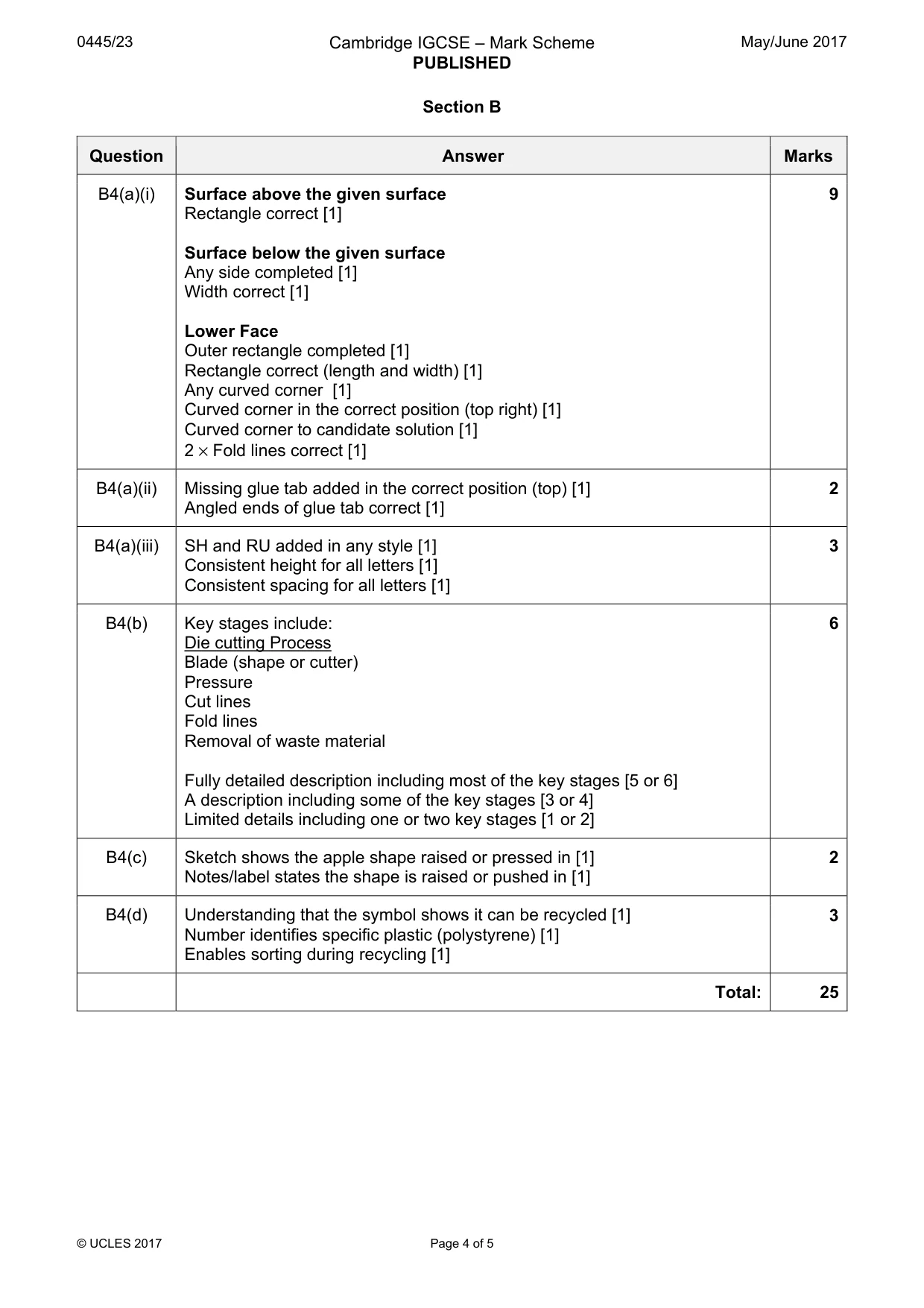

0445/23 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2017 © UCLES 2017 Page 4 of 5 Section B Question Answer Marks B4(a)(i) Surface above the given surface Rectangle correct [1] Surface below the given surface Any side completed [1] Width correct [1] Lower Face Outer rectangle completed [1] Rectangle correct (length and width) [1] Any curved corner [1] Curved corner in the correct position (top right) [1] Curved corner to candidate solution [1] 2 × Fold lines correct [1] 9 B4(a)(ii) Missing glue tab added in the correct position (top) [1] Angled ends of glue tab correct [1] 2 B4(a)(iii) SH and RU added in any style [1] Consistent height for all letters [1] Consistent spacing for all letters [1] 3 B4(b) Key stages include: Die cutting Process Blade (shape or cutter) Pressure Cut lines Fold lines Removal of waste material Fully detailed description including most of the key stages [5 or 6] A description including some of the key stages [3 or 4] Limited details including one or two key stages [1 or 2] 6 B4(c) Sketch shows the apple shape raised or pressed in [1] Notes/label states the shape is raised or pushed in [1] 2 B4(d) Understanding that the symbol shows it can be recycled [1] Number identifies specific plastic (polystyrene) [1] Enables sorting during recycling [1] 3 Total: 25

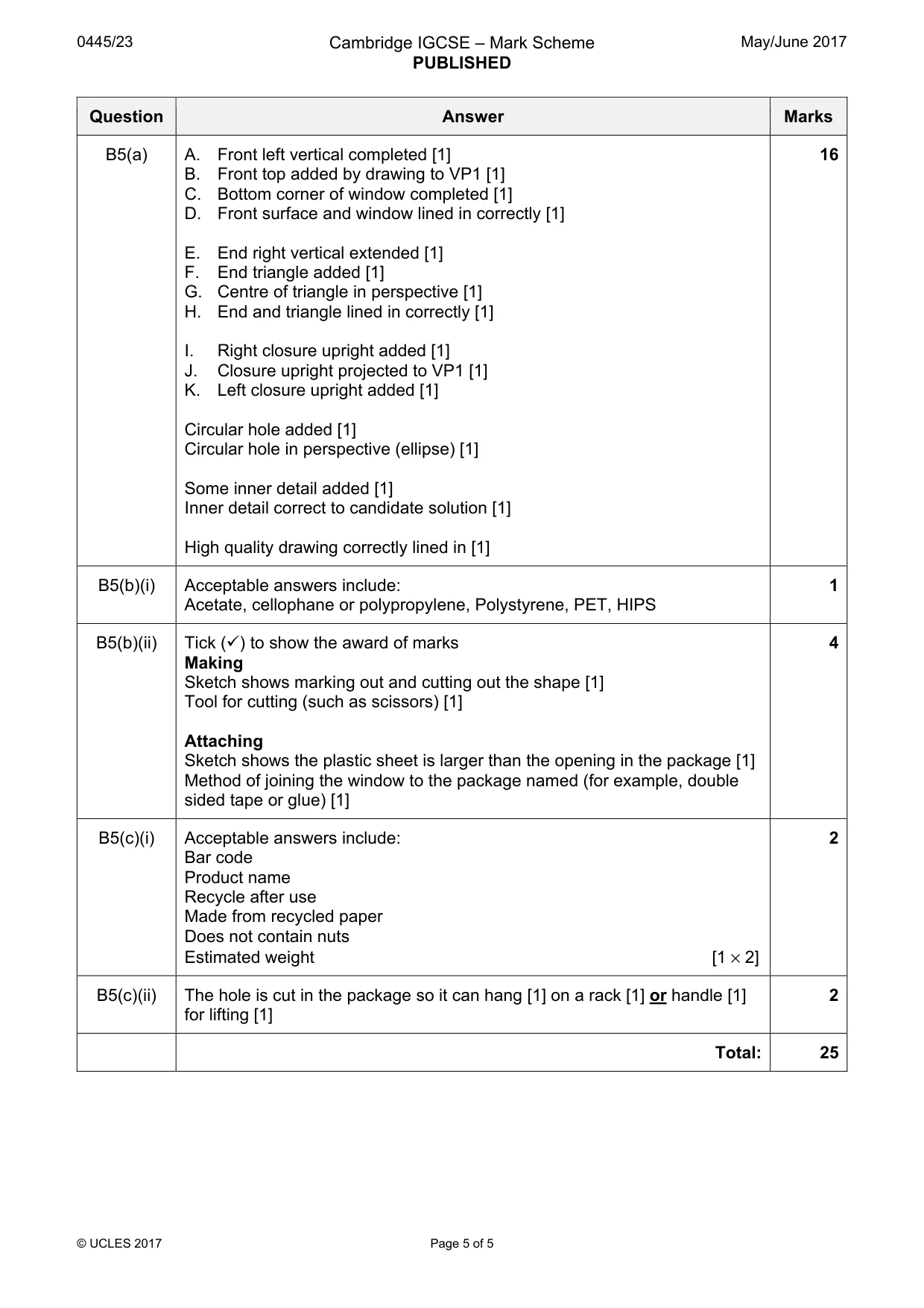

0445/23 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2017 © UCLES 2017 Page 5 of 5 Question Answer Marks B5(a) A. Front left vertical completed [1] B. Front top added by drawing to VP1 [1] C. Bottom corner of window completed [1] D. Front surface and window lined in correctly [1] E. End right vertical extended [1] F. End triangle added [1] G. Centre of triangle in perspective [1] H. End and triangle lined in correctly [1] I. Right closure upright added [1] J. Closure upright projected to VP1 [1] K. Left closure upright added [1] Circular hole added [1] Circular hole in perspective (ellipse) [1] Some inner detail added [1] Inner detail correct to candidate solution [1] High quality drawing correctly lined in [1] 16 B5(b)(i) Acceptable answers include: Acetate, cellophane or polypropylene, Polystyrene, PET, HIPS 1 B5(b)(ii) Tick (9) to show the award of marks Making Sketch shows marking out and cutting out the shape [1] Tool for cutting (such as scissors) [1] Attaching Sketch shows the plastic sheet is larger than the opening in the package [1] Method of joining the window to the package named (for example, double sided tape or glue) [1] 4 B5(c)(i) Acceptable answers include: Bar code Product name Recycle after use Made from recycled paper Does not contain nuts Estimated weight [1 × 2] 2 B5(c)(ii) The hole is cut in the package so it can hang [1] on a rack [1] or handle [1] for lifting [1] 2 Total: 25
