Cambridge IGCSE Design and Technology 0445 — 2015 May/June Paper 2 · Variant 3

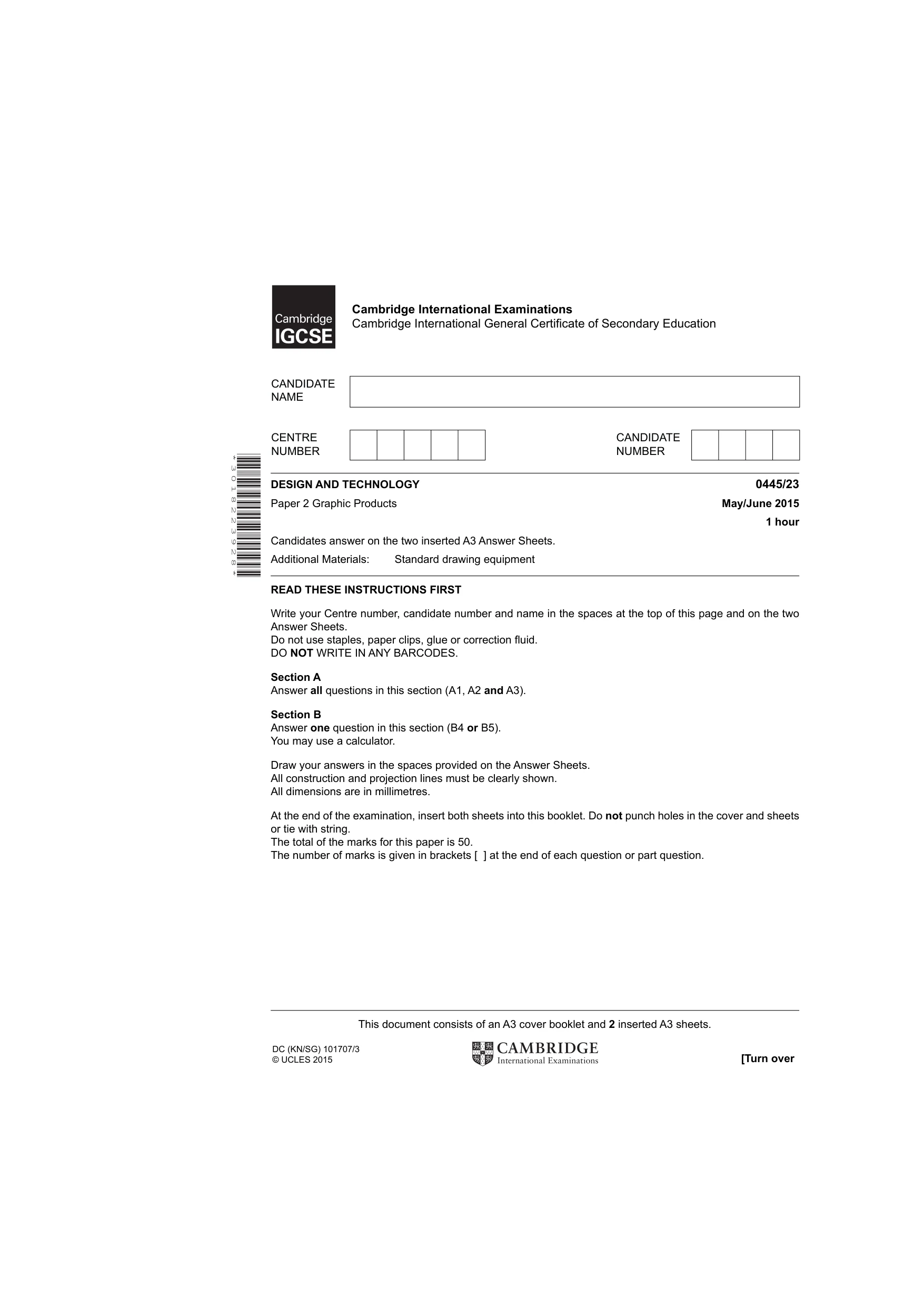

Cambridge International Examinations Cambridge International General Certifi cate of Secondary Education This document consists of an A3 cover booklet and 2 inserted A3 sheets. [Turn over CANDIDATE NAME CENTRE NUMBER CANDIDATE NUMBER DESIGN AND TECHNOLOGY 0445/23 Paper 2 Graphic Products May/June 2015 1 hour Candidates answer on the two inserted A3 Answer Sheets. Additional Materials: Standard drawing equipment READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name in the spaces at the top of this page and on the two Answer Sheets. Do not use staples, paper clips, glue or correction fl uid. DO NOT WRITE IN ANY BARCODES. Section A Answer all questions in this section (A1, A2 and A3). Section B Answer one question in this section (B4 or B5). You may use a calculator. Draw your answers in the spaces provided on the Answer Sheets. All construction and projection lines must be clearly shown. All dimensions are in millimetres. At the end of the examination, insert both sheets into this booklet. Do not punch holes in the cover and sheets or tie with string. The total of the marks for this paper is 50. The number of marks is given in brackets [ ] at the end of each question or part question. DC (KN/SG) 101707/3 © UCLES 2015 * 3 0 1 8 2 2 3 9 2 8 *

Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge International Examinations Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cie.org.uk after the live examination series. Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge.

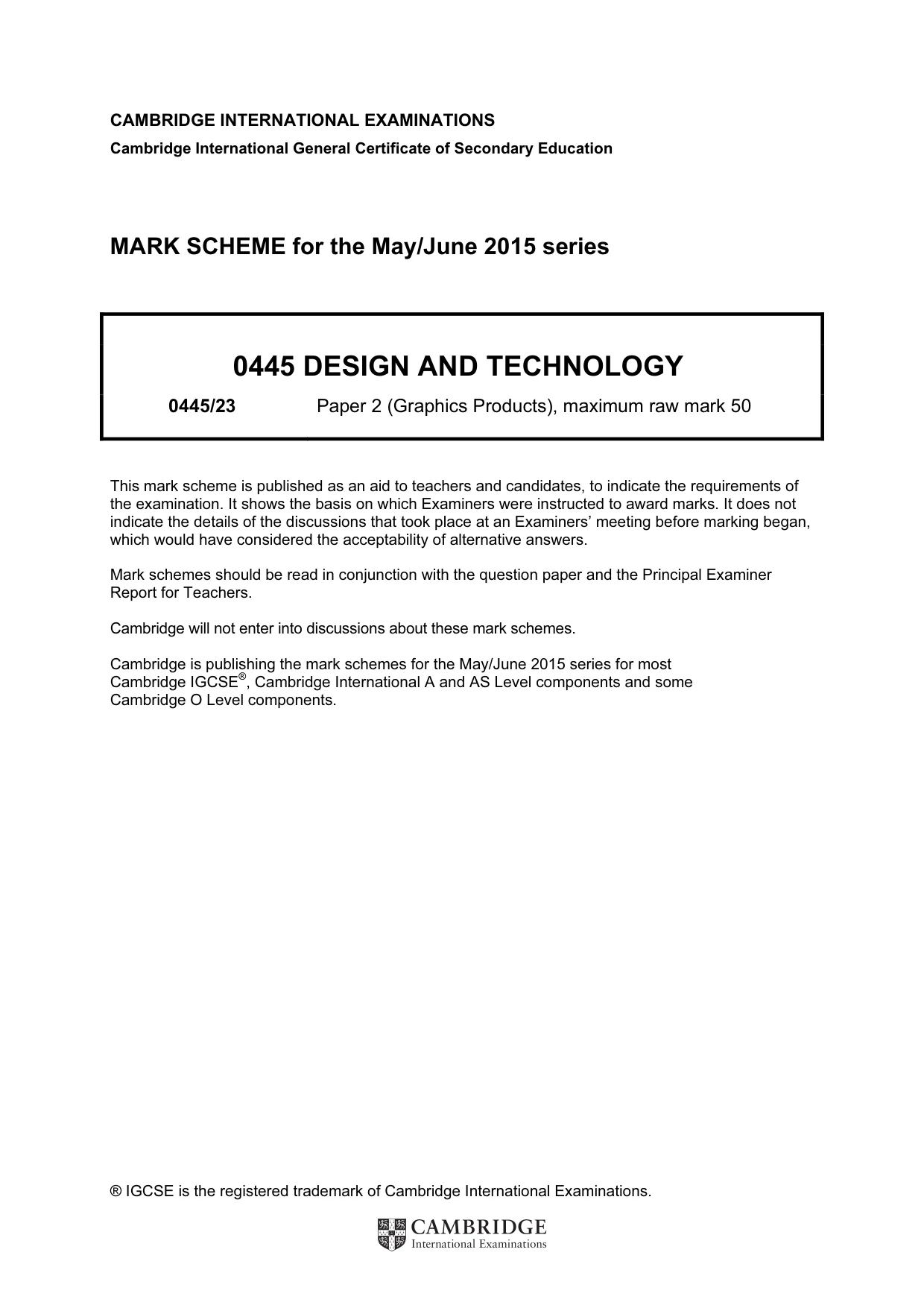

® IGCSE is the registered trademark of Cambridge International Examinations. CAMBRIDGE INTERNATIONAL EXAMINATIONS Cambridge International General Certificate of Secondary Education MARK SCHEME for the May/June 2015 series 0445 DESIGN AND TECHNOLOGY 0445/23 Paper 2 (Graphics Products), maximum raw mark 50 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge will not enter into discussions about these mark schemes. Cambridge is publishing the mark schemes for the May/June 2015 series for most Cambridge IGCSE®, Cambridge International A and AS Level components and some Cambridge O Level components.

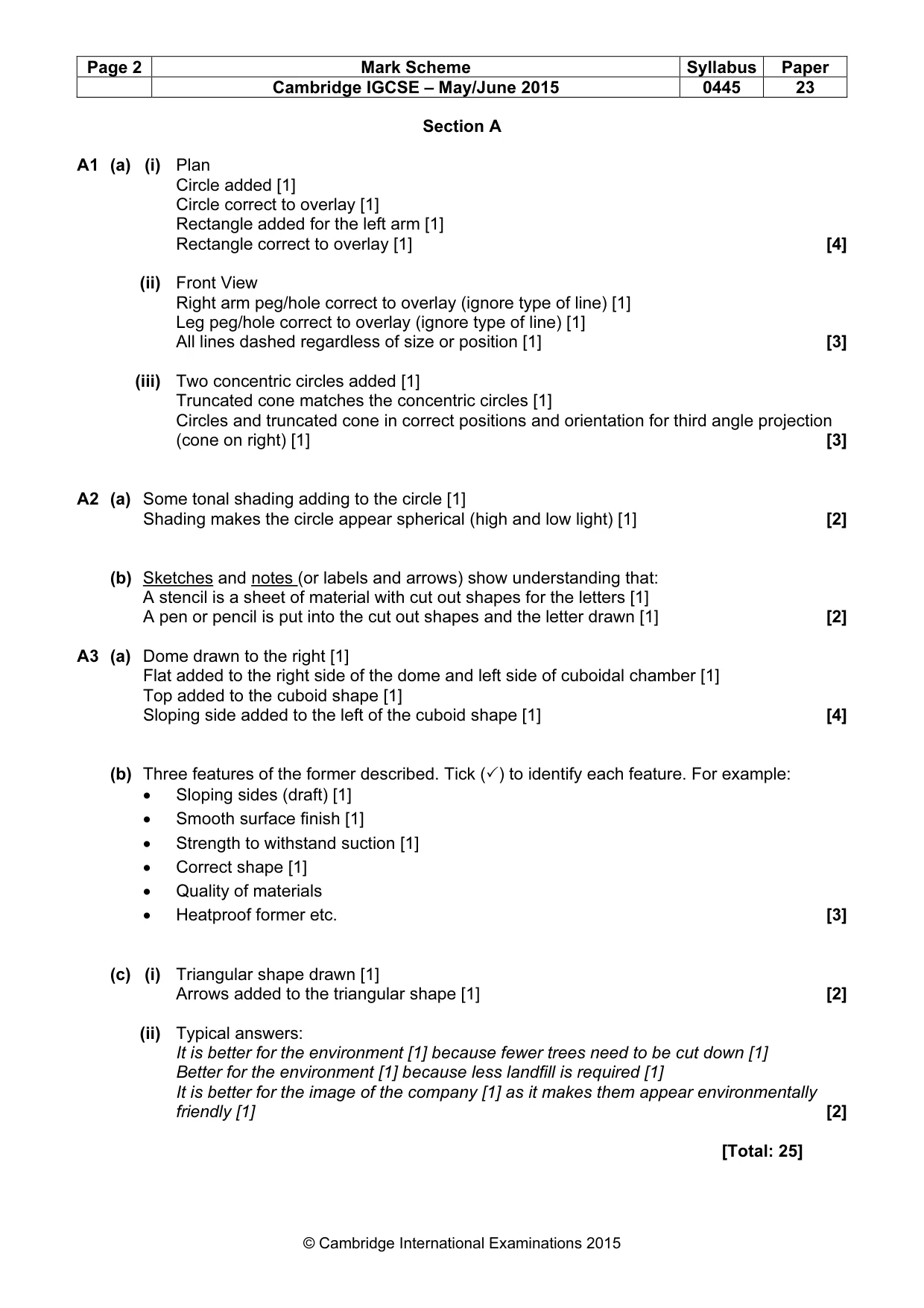

Page 2 Mark Scheme Syllabus Paper Cambridge IGCSE – May/June 2015 0445 23 © Cambridge International Examinations 2015 Section A A1 (a) (i) Plan Circle added [1] Circle correct to overlay [1] Rectangle added for the left arm [1] Rectangle correct to overlay [1] [4] (ii) Front View Right arm peg/hole correct to overlay (ignore type of line) [1] Leg peg/hole correct to overlay (ignore type of line) [1] All lines dashed regardless of size or position [1] [3] (iii) Two concentric circles added [1] Truncated cone matches the concentric circles [1] Circles and truncated cone in correct positions and orientation for third angle projection (cone on right) [1] [3] A2 (a) Some tonal shading adding to the circle [1] Shading makes the circle appear spherical (high and low light) [1] [2] (b) Sketches and notes (or labels and arrows) show understanding that: A stencil is a sheet of material with cut out shapes for the letters [1] A pen or pencil is put into the cut out shapes and the letter drawn [1] [2] A3 (a) Dome drawn to the right [1] Flat added to the right side of the dome and left side of cuboidal chamber [1] Top added to the cuboid shape [1] Sloping side added to the left of the cuboid shape [1] [4] (b) Three features of the former described. Tick (✓) to identify each feature. For example: • Sloping sides (draft) [1] • Smooth surface finish [1] • Strength to withstand suction [1] • Correct shape [1] • Quality of materials • Heatproof former etc. [3] (c) (i) Triangular shape drawn [1] Arrows added to the triangular shape [1] [2] (ii) Typical answers: It is better for the environment [1] because fewer trees need to be cut down [1] Better for the environment [1] because less landfill is required [1] It is better for the image of the company [1] as it makes them appear environmentally friendly [1] [2] [Total: 25]

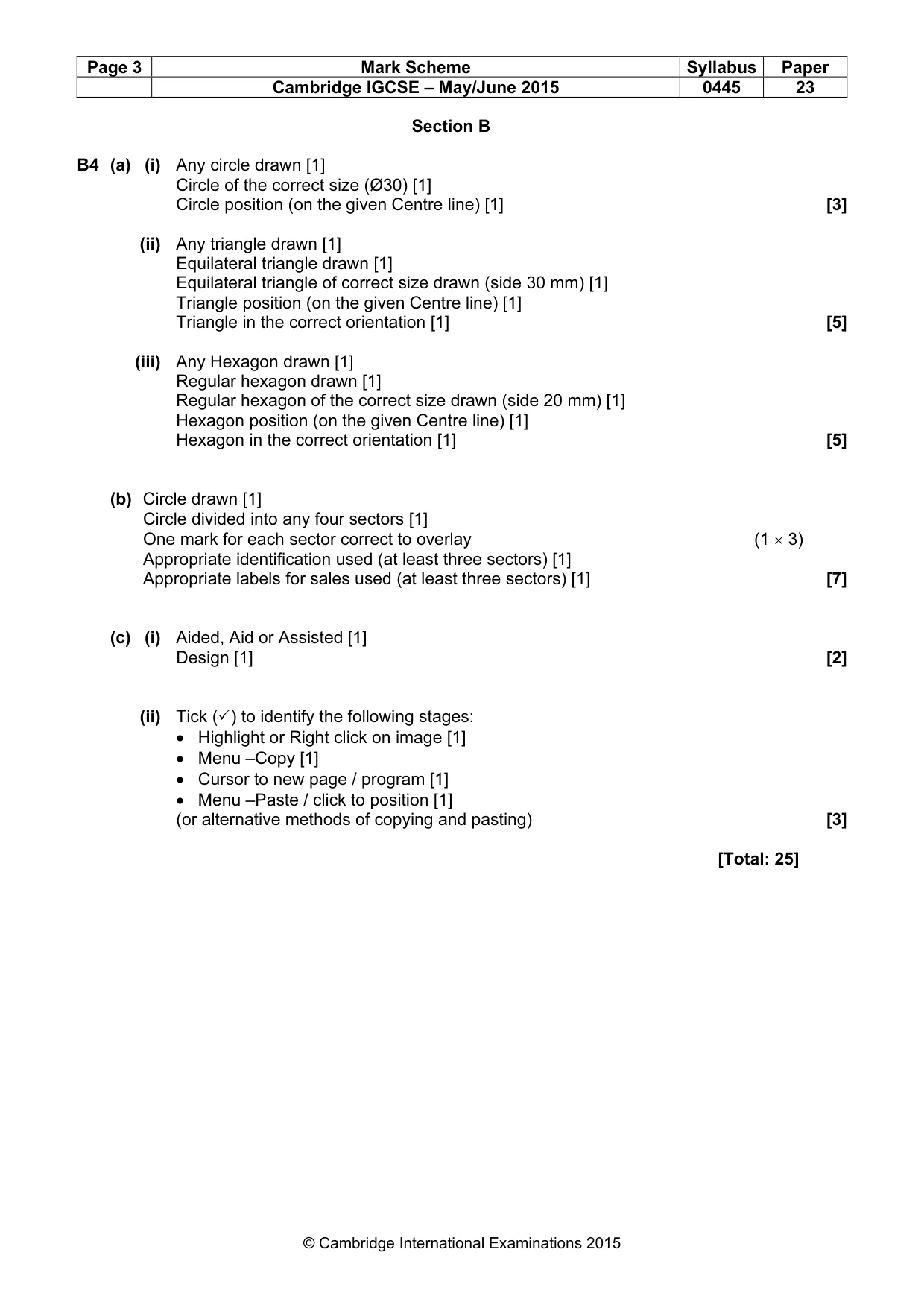

Page 3 Mark Scheme Syllabus Paper Cambridge IGCSE – May/June 2015 0445 23 © Cambridge International Examinations 2015 Section B B4 (a) (i) Any circle drawn [1] Circle of the correct size (Ø30) [1] Circle position (on the given Centre line) [1] [3] (ii) Any triangle drawn [1] Equilateral triangle drawn [1] Equilateral triangle of correct size drawn (side 30 mm) [1] Triangle position (on the given Centre line) [1] Triangle in the correct orientation [1] [5] (iii) Any Hexagon drawn [1] Regular hexagon drawn [1] Regular hexagon of the correct size drawn (side 20 mm) [1] Hexagon position (on the given Centre line) [1] Hexagon in the correct orientation [1] [5] (b) Circle drawn [1] Circle divided into any four sectors [1] One mark for each sector correct to overlay (1 × 3) Appropriate identification used (at least three sectors) [1] Appropriate labels for sales used (at least three sectors) [1] [7] (c) (i) Aided, Aid or Assisted [1] Design [1] [2] (ii) Tick (✓) to identify the following stages: • Highlight or Right click on image [1] • Menu –Copy [1] • Cursor to new page / program [1] • Menu –Paste / click to position [1] (or alternative methods of copying and pasting) [3] [Total: 25]

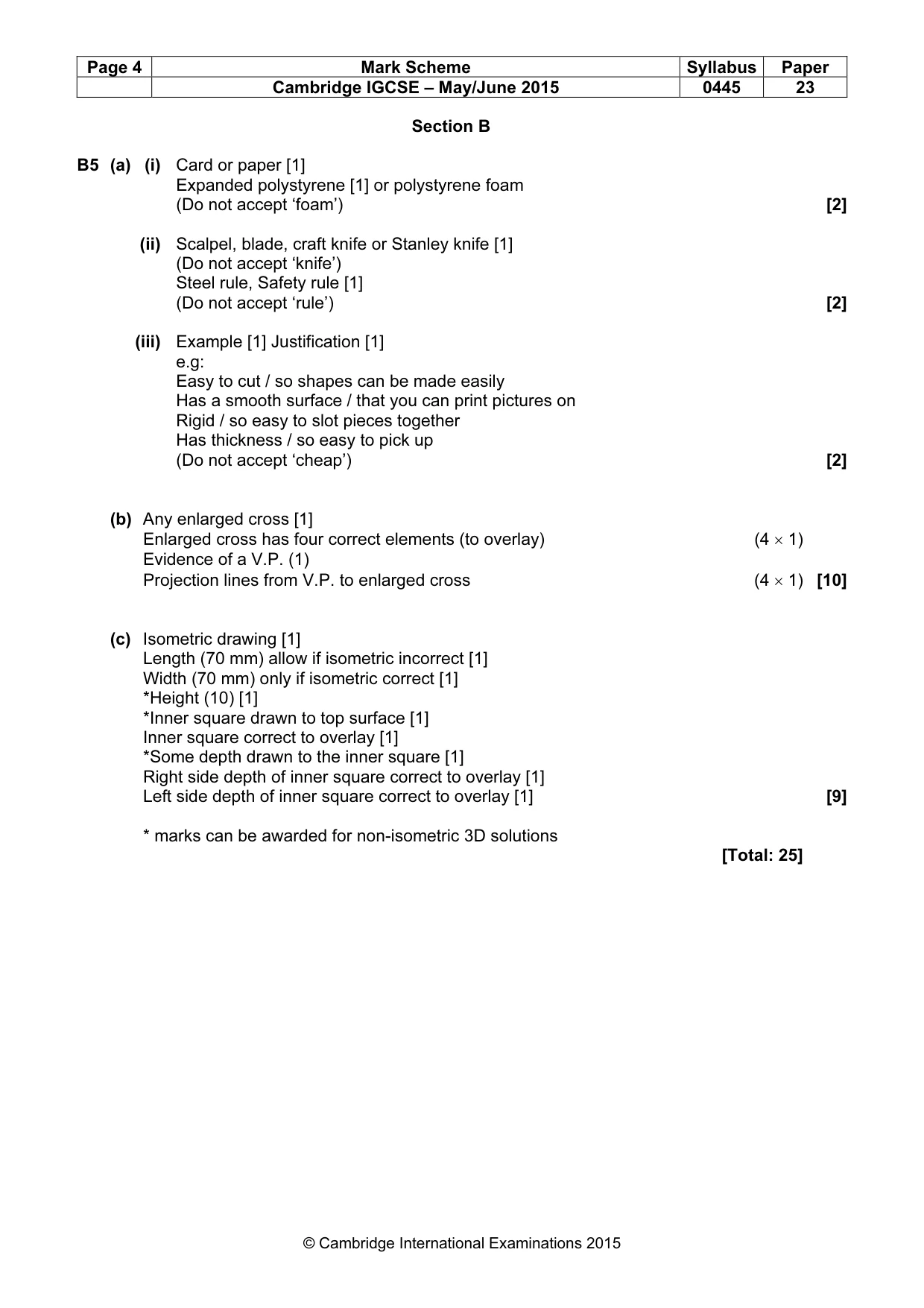

Page 4 Mark Scheme Syllabus Paper Cambridge IGCSE – May/June 2015 0445 23 © Cambridge International Examinations 2015 Section B B5 (a) (i) Card or paper [1] Expanded polystyrene [1] or polystyrene foam (Do not accept ‘foam’) [2] (ii) Scalpel, blade, craft knife or Stanley knife [1] (Do not accept ‘knife’) Steel rule, Safety rule [1] (Do not accept ‘rule’) [2] (iii) Example [1] Justification [1] e.g: Easy to cut / so shapes can be made easily Has a smooth surface / that you can print pictures on Rigid / so easy to slot pieces together Has thickness / so easy to pick up (Do not accept ‘cheap’) [2] (b) Any enlarged cross [1] Enlarged cross has four correct elements (to overlay) (4 × 1) Evidence of a V.P. (1) Projection lines from V.P. to enlarged cross (4 × 1) [10] (c) Isometric drawing [1] Length (70 mm) allow if isometric incorrect [1] Width (70 mm) only if isometric correct [1] *Height (10) [1] *Inner square drawn to top surface [1] Inner square correct to overlay [1] *Some depth drawn to the inner square [1] Right side depth of inner square correct to overlay [1] Left side depth of inner square correct to overlay [1] [9] * marks can be awarded for non-isometric 3D solutions [Total: 25]
