Cambridge IGCSE Design and Technology 0445 — 2006 Oct/Nov Paper 1 · Variant 1

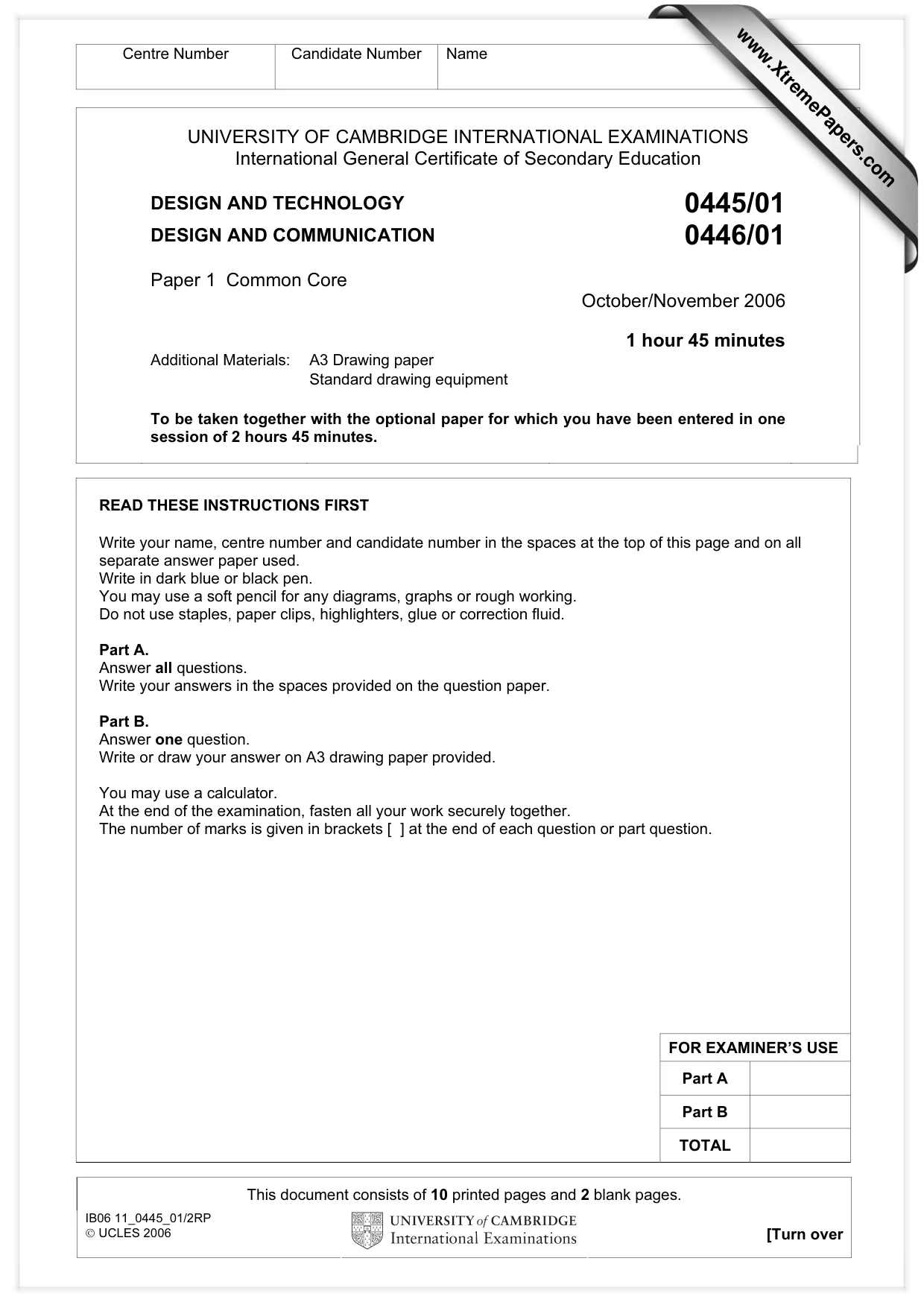

Centre Number Candidate Number Name UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education DESIGN AND TECHNOLOGY 0445/01 DESIGN AND COMMUNICATION 0446/01 Paper 1 Common Core October/November 2006 1 hour 45 minutes Additional Materials: A3 Drawing paper Standard drawing equipment To be taken together with the optional paper for which you have been entered in one session of 2 hours 45 minutes. READ THESE INSTRUCTIONS FIRST Write your name, centre number and candidate number in the spaces at the top of this page and on all separate answer paper used. Write in dark blue or black pen. You may use a soft pencil for any diagrams, graphs or rough working. Do not use staples, paper clips, highlighters, glue or correction fluid. Part A. Answer all questions. Write your answers in the spaces provided on the question paper. Part B. Answer one question. Write or draw your answer on A3 drawing paper provided. You may use a calculator. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. FOR EXAMINER’S USE Part A Part B TOTAL This document consists of 10 printed pages and 2 blank pages. IB06 11_0445_01/2RP  UCLES 2006 [Turn over www.XtremePapers.com

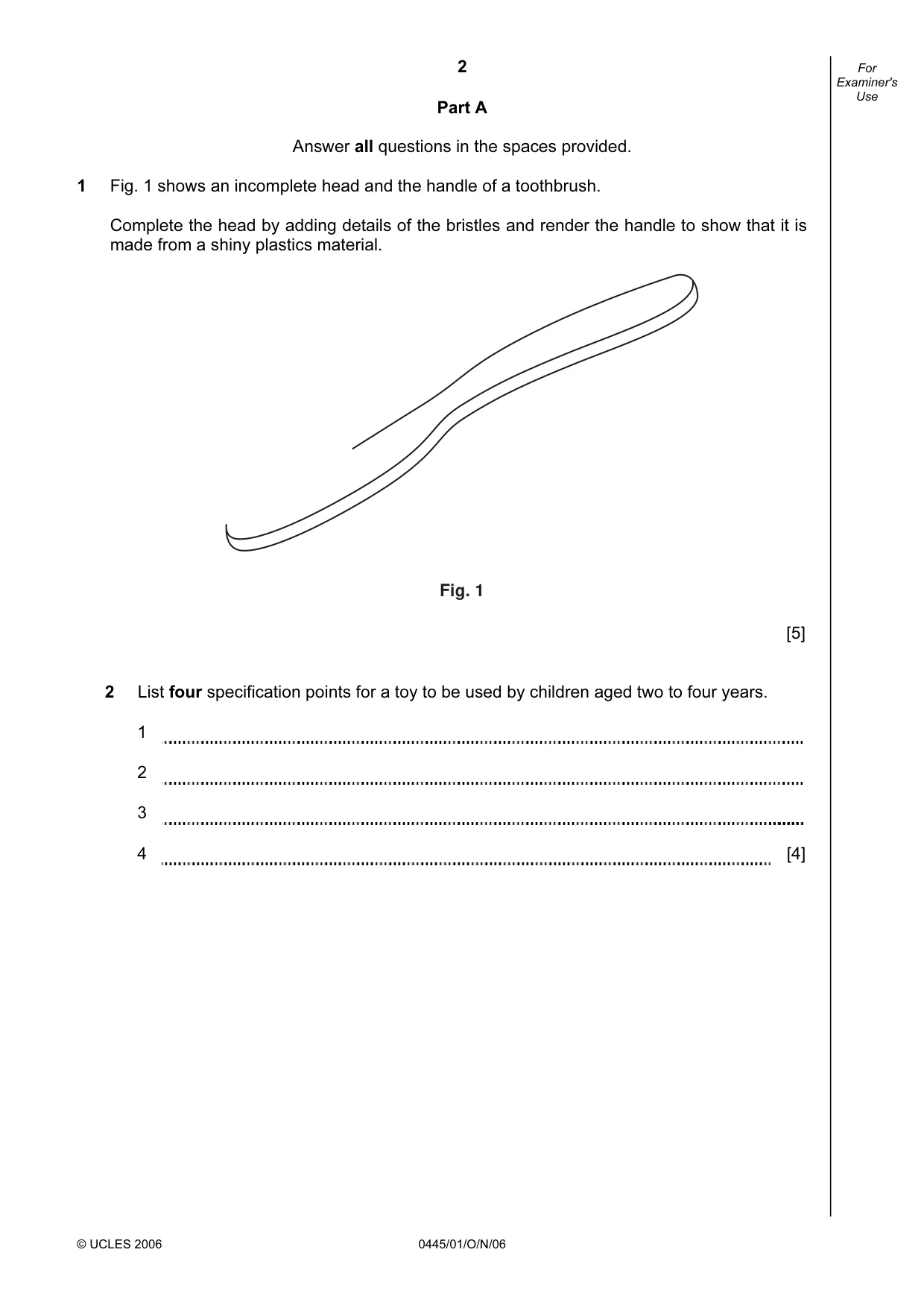

2 © UCLES 2006 0445/01/O/N/06 For Examiner's Use Part A Answer all questions in the spaces provided. 1 Fig. 1 shows an incomplete head and the handle of a toothbrush. Complete the head by adding details of the bristles and render the handle to show that it is made from a shiny plastics material. Fig. 1 [5] 2 List four specification points for a toy to be used by children aged two to four years. 1 2 3 4 [4]

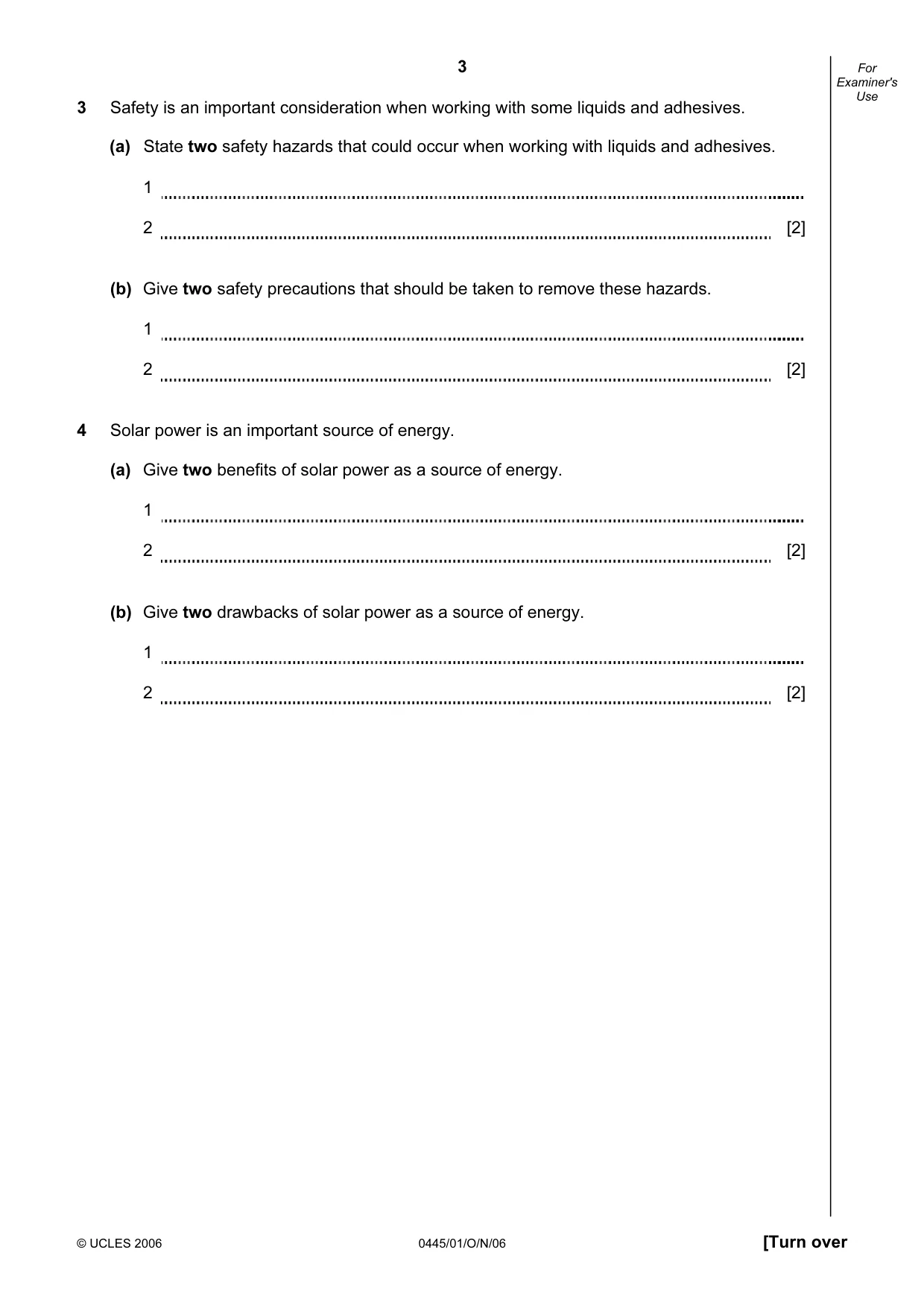

3 © UCLES 2006 0445/01/O/N/06 [Turn over For Examiner's Use 3 Safety is an important consideration when working with some liquids and adhesives. (a) State two safety hazards that could occur when working with liquids and adhesives. 1 2 [2] (b) Give two safety precautions that should be taken to remove these hazards. 1 2 [2] 4 Solar power is an important source of energy. (a) Give two benefits of solar power as a source of energy. 1 2 [2] (b) Give two drawbacks of solar power as a source of energy. 1 2 [2]

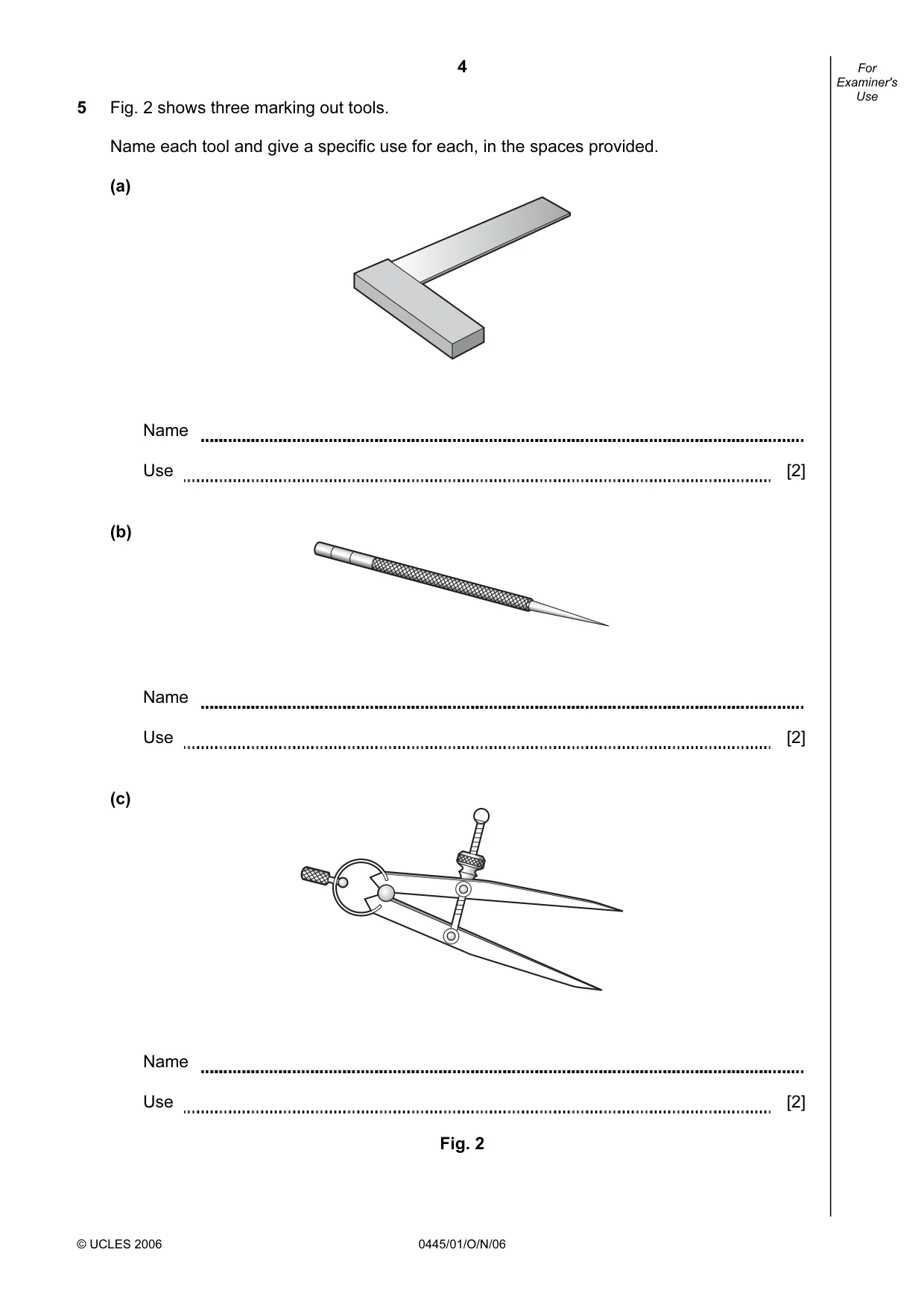

4 © UCLES 2006 0445/01/O/N/06 For Examiner's Use 5 Fig. 2 shows three marking out tools. Name each tool and give a specific use for each, in the spaces provided. (a) Name Use [2] (b) Name Use [2] (c) Name Use [2] Fig. 2

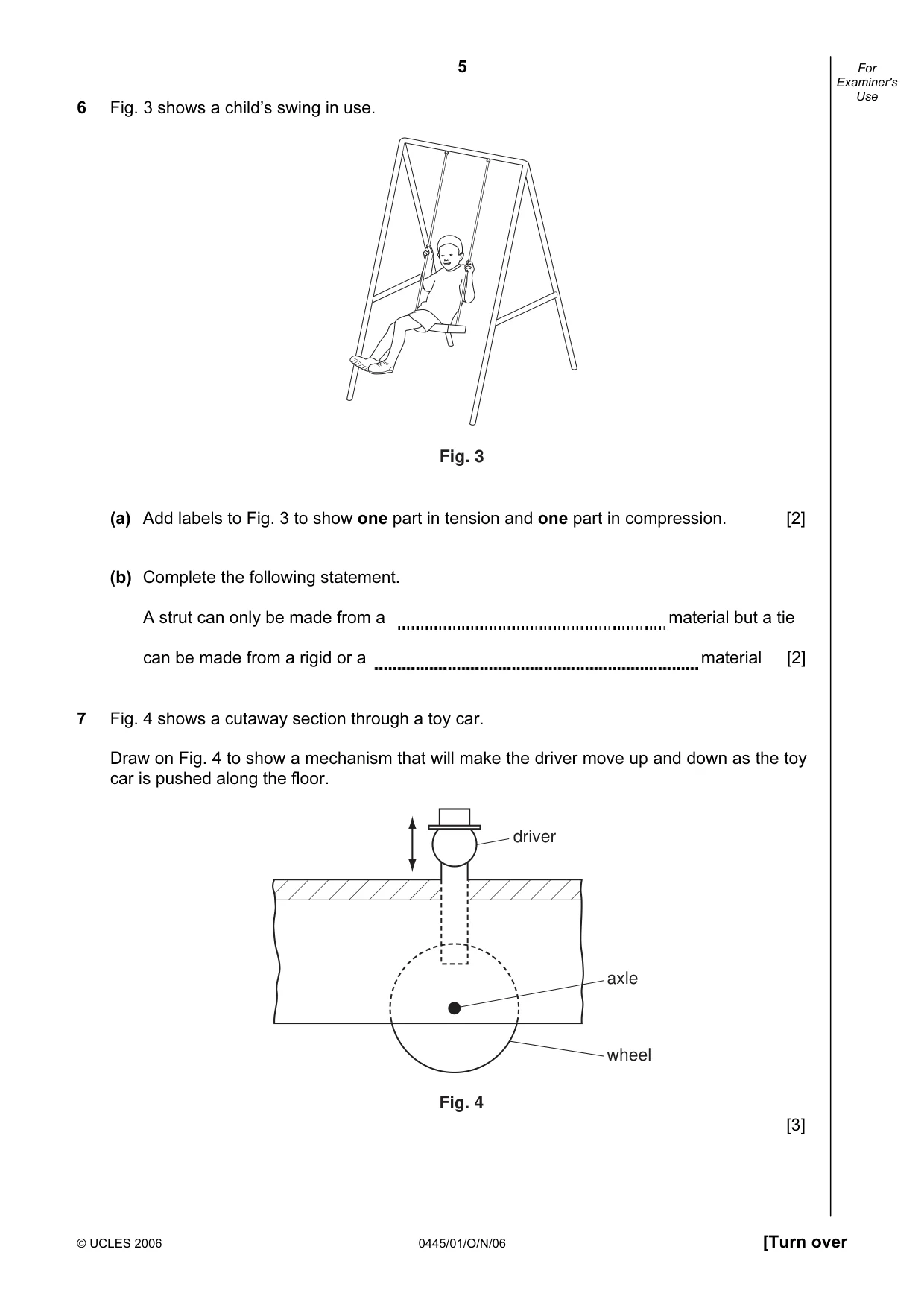

5 © UCLES 2006 0445/01/O/N/06 [Turn over For Examiner's Use 6 Fig. 3 shows a child’s swing in use. Fig. 3 (a) Add labels to Fig. 3 to show one part in tension and one part in compression. [2] (b) Complete the following statement. A strut can only be made from a material but a tie can be made from a rigid or a material [2] 7 Fig. 4 shows a cutaway section through a toy car. Draw on Fig. 4 to show a mechanism that will make the driver move up and down as the toy car is pushed along the floor. Fig. 4 driver axle wheel [3]

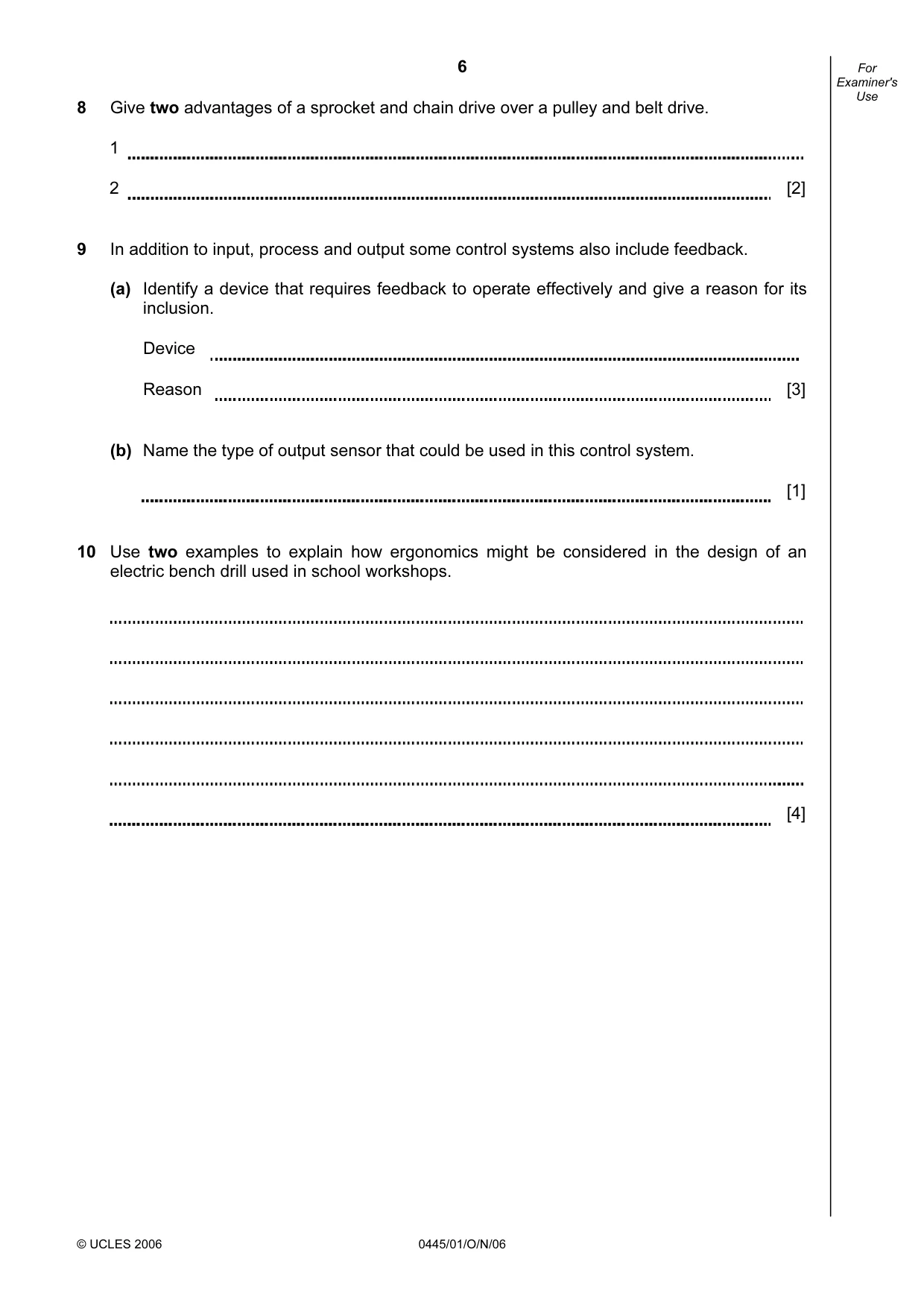

6 © UCLES 2006 0445/01/O/N/06 For Examiner's Use 8 Give two advantages of a sprocket and chain drive over a pulley and belt drive. 1 2 [2] 9 In addition to input, process and output some control systems also include feedback. (a) Identify a device that requires feedback to operate effectively and give a reason for its inclusion. Device Reason [3] (b) Name the type of output sensor that could be used in this control system. [1] 10 Use two examples to explain how ergonomics might be considered in the design of an electric bench drill used in school workshops. [4]

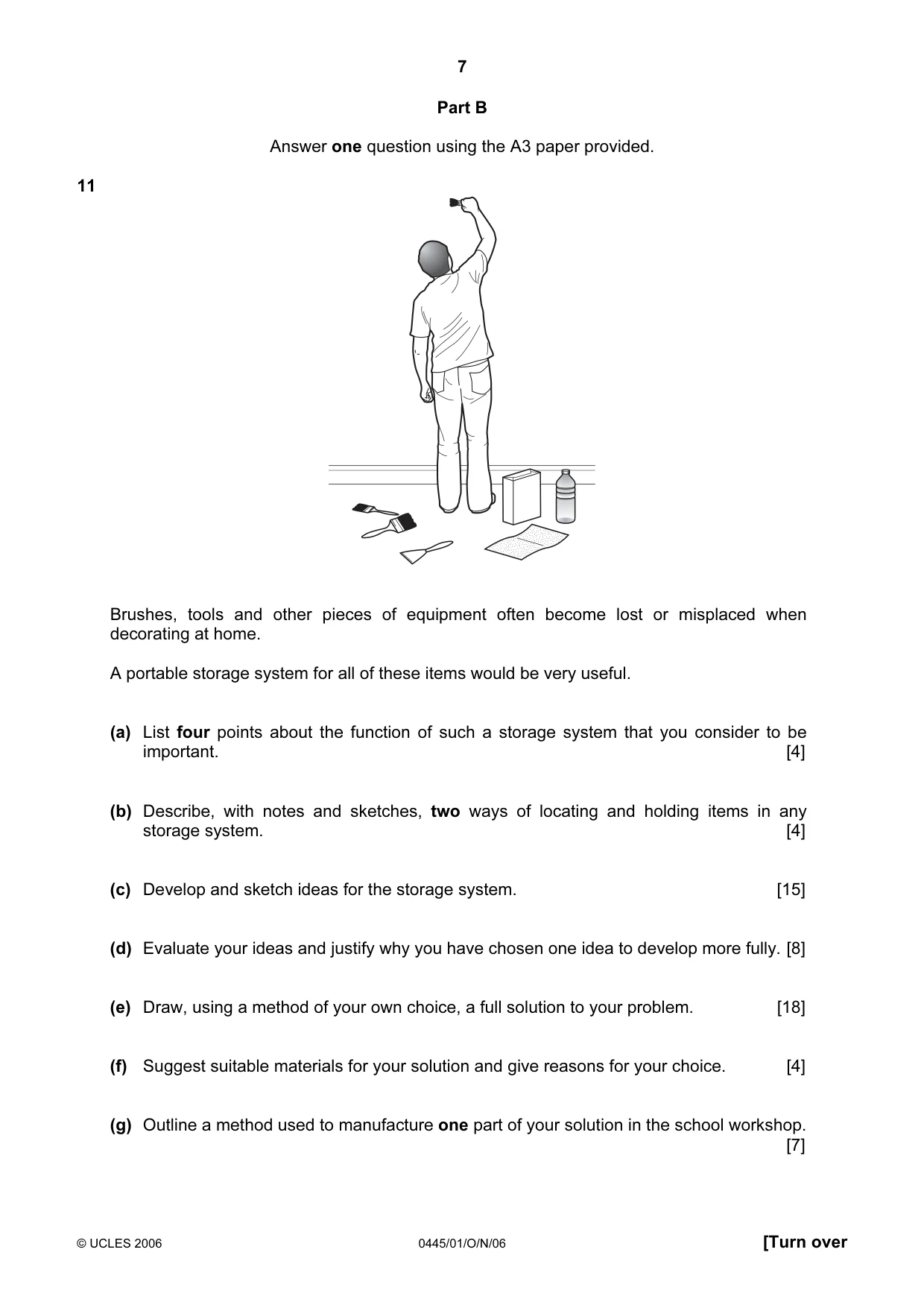

7 © UCLES 2006 0445/01/O/N/06 [Turn over Part B Answer one question using the A3 paper provided. 11 Brushes, tools and other pieces of equipment often become lost or misplaced when decorating at home. A portable storage system for all of these items would be very useful. (a) List four points about the function of such a storage system that you consider to be important. [4] (b) Describe, with notes and sketches, two ways of locating and holding items in any storage system. [4] (c) Develop and sketch ideas for the storage system. [15] (d) Evaluate your ideas and justify why you have chosen one idea to develop more fully. [8] (e) Draw, using a method of your own choice, a full solution to your problem. [18] (f) Suggest suitable materials for your solution and give reasons for your choice. [4] (g) Outline a method used to manufacture one part of your solution in the school workshop. [7]

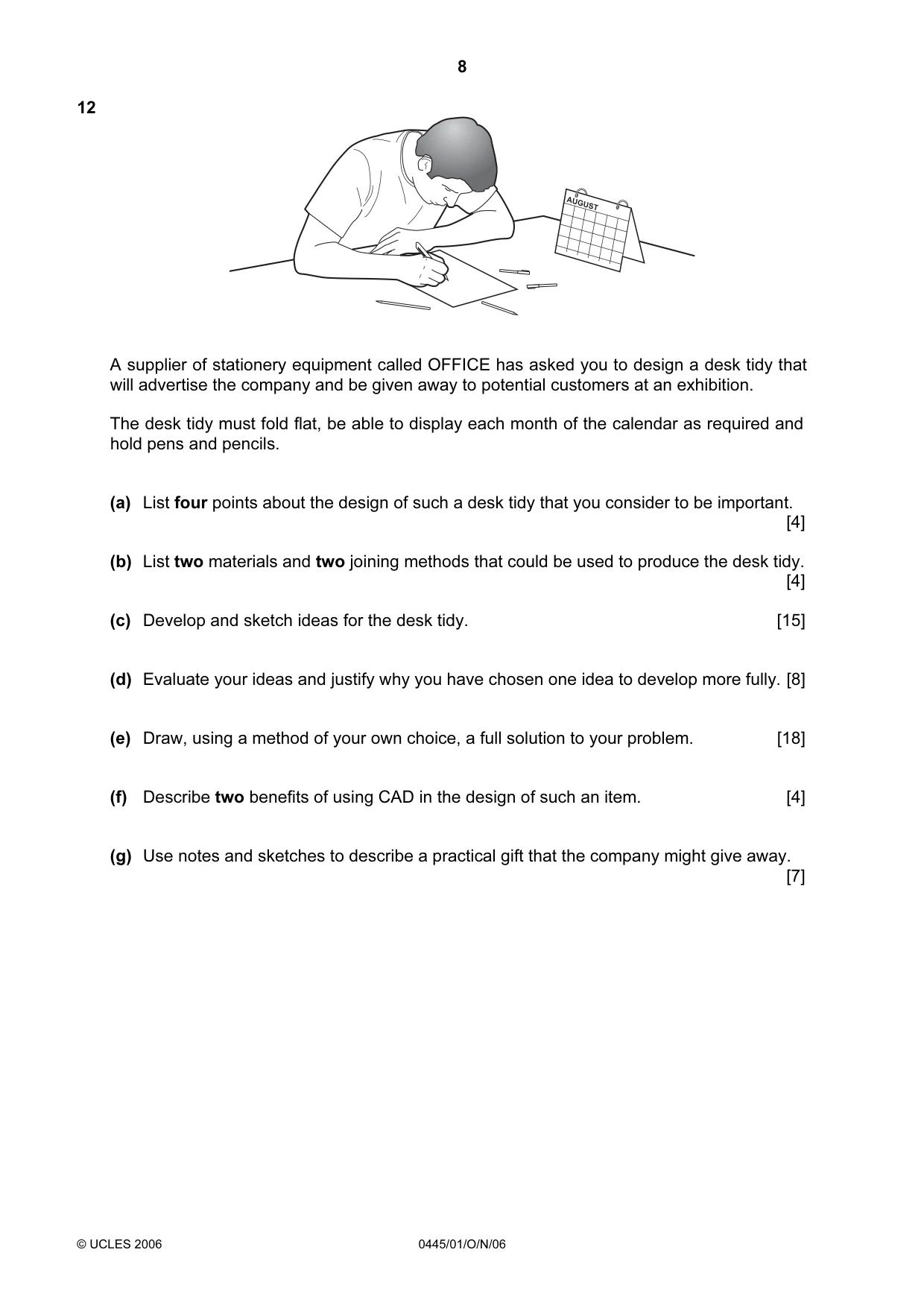

8 © UCLES 2006 0445/01/O/N/06 12 A supplier of stationery equipment called OFFICE has asked you to design a desk tidy that will advertise the company and be given away to potential customers at an exhibition. The desk tidy must fold flat, be able to display each month of the calendar as required and hold pens and pencils. (a) List four points about the design of such a desk tidy that you consider to be important. [4] (b) List two materials and two joining methods that could be used to produce the desk tidy. [4] (c) Develop and sketch ideas for the desk tidy. [15] (d) Evaluate your ideas and justify why you have chosen one idea to develop more fully. [8] (e) Draw, using a method of your own choice, a full solution to your problem. [18] (f) Describe two benefits of using CAD in the design of such an item. [4] (g) Use notes and sketches to describe a practical gift that the company might give away. [7]

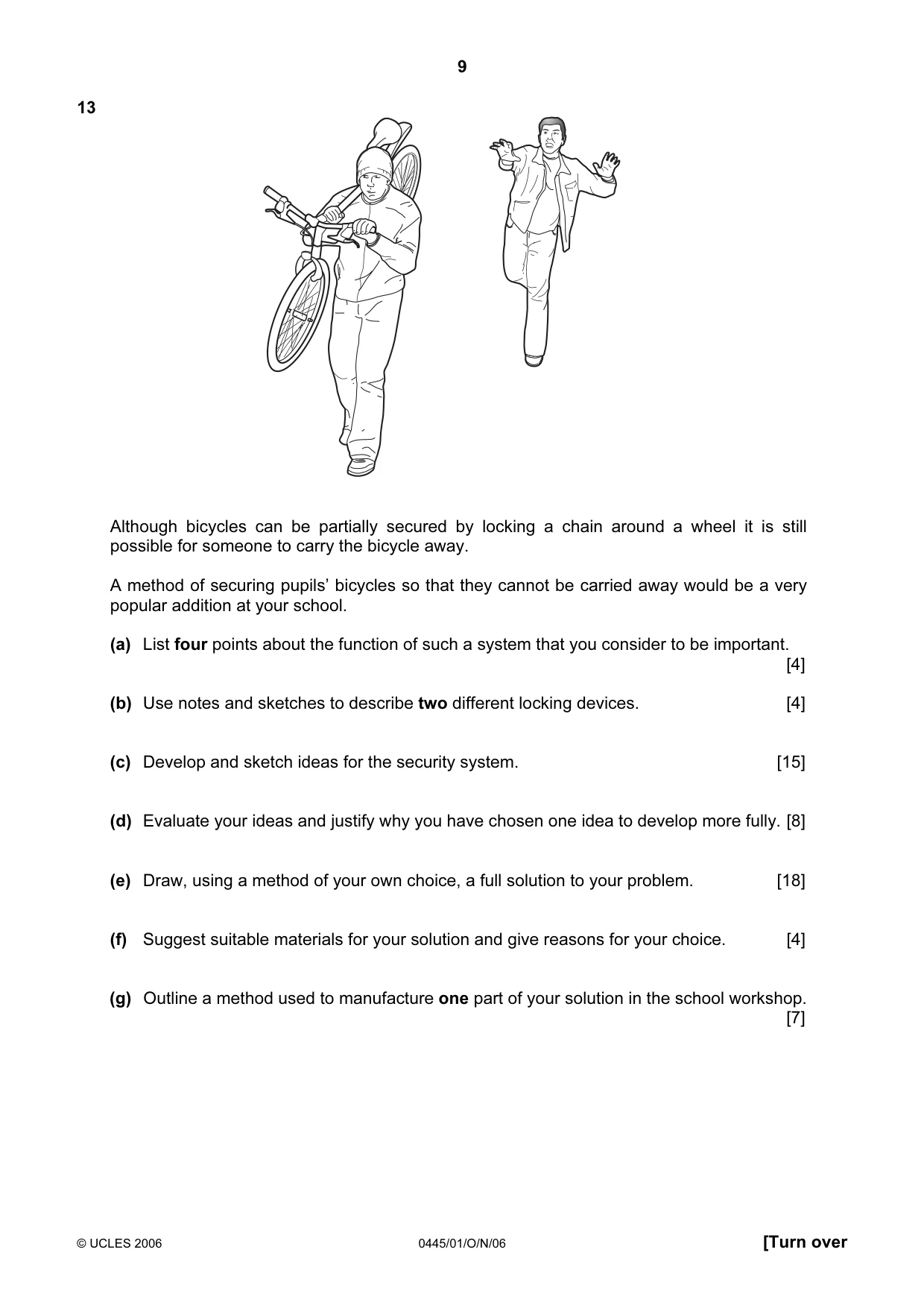

9 © UCLES 2006 0445/01/O/N/06 [Turn over 13 Although bicycles can be partially secured by locking a chain around a wheel it is still possible for someone to carry the bicycle away. A method of securing pupils’ bicycles so that they cannot be carried away would be a very popular addition at your school. (a) List four points about the function of such a system that you consider to be important. [4] (b) Use notes and sketches to describe two different locking devices. [4] (c) Develop and sketch ideas for the security system. [15] (d) Evaluate your ideas and justify why you have chosen one idea to develop more fully. [8] (e) Draw, using a method of your own choice, a full solution to your problem. [18] (f) Suggest suitable materials for your solution and give reasons for your choice. [4] (g) Outline a method used to manufacture one part of your solution in the school workshop. [7]

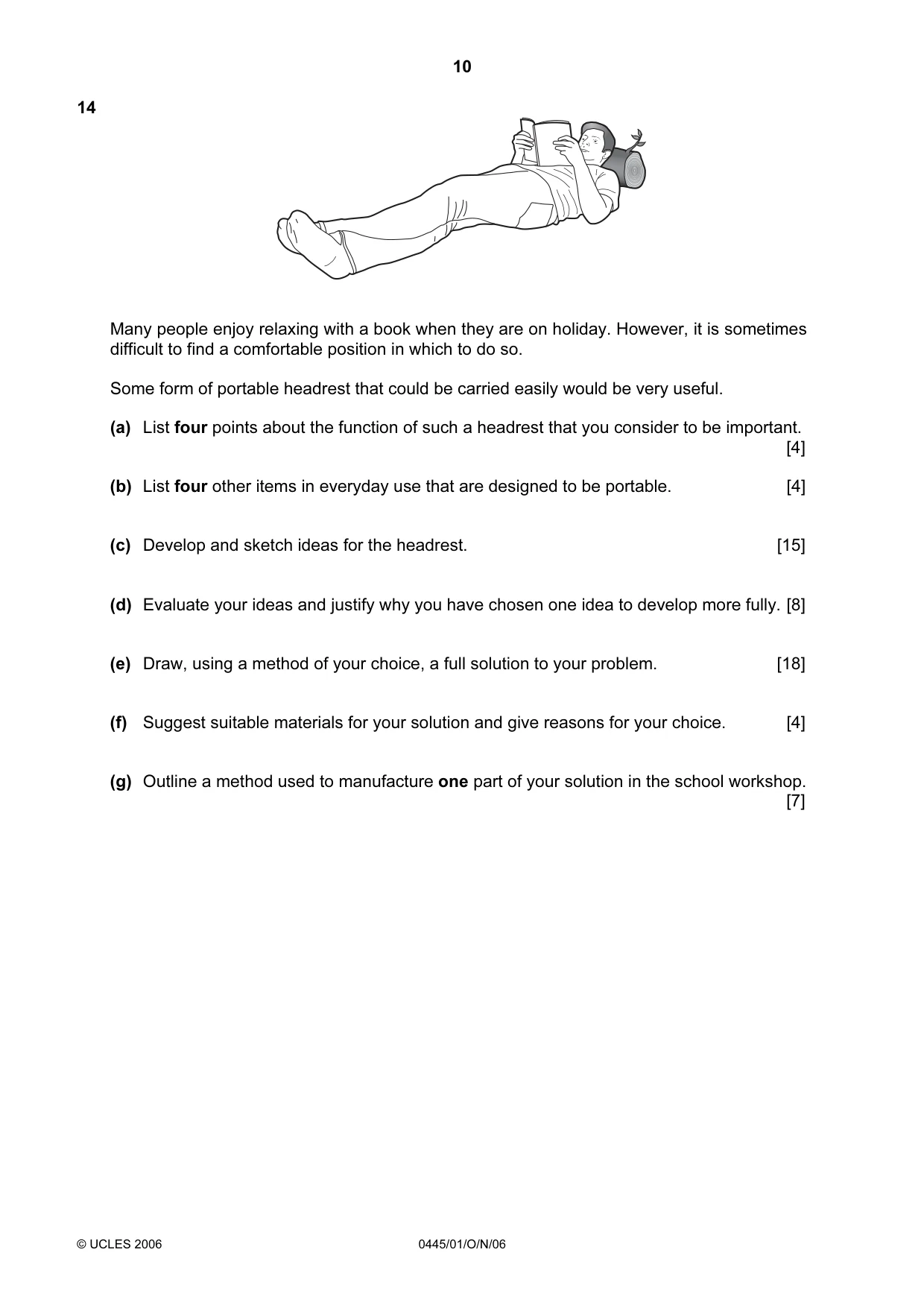

10 © UCLES 2006 0445/01/O/N/06 14 Many people enjoy relaxing with a book when they are on holiday. However, it is sometimes difficult to find a comfortable position in which to do so. Some form of portable headrest that could be carried easily would be very useful. (a) List four points about the function of such a headrest that you consider to be important. [4] (b) List four other items in everyday use that are designed to be portable. [4] (c) Develop and sketch ideas for the headrest. [15] (d) Evaluate your ideas and justify why you have chosen one idea to develop more fully. [8] (e) Draw, using a method of your choice, a full solution to your problem. [18] (f) Suggest suitable materials for your solution and give reasons for your choice. [4] (g) Outline a method used to manufacture one part of your solution in the school workshop. [7]

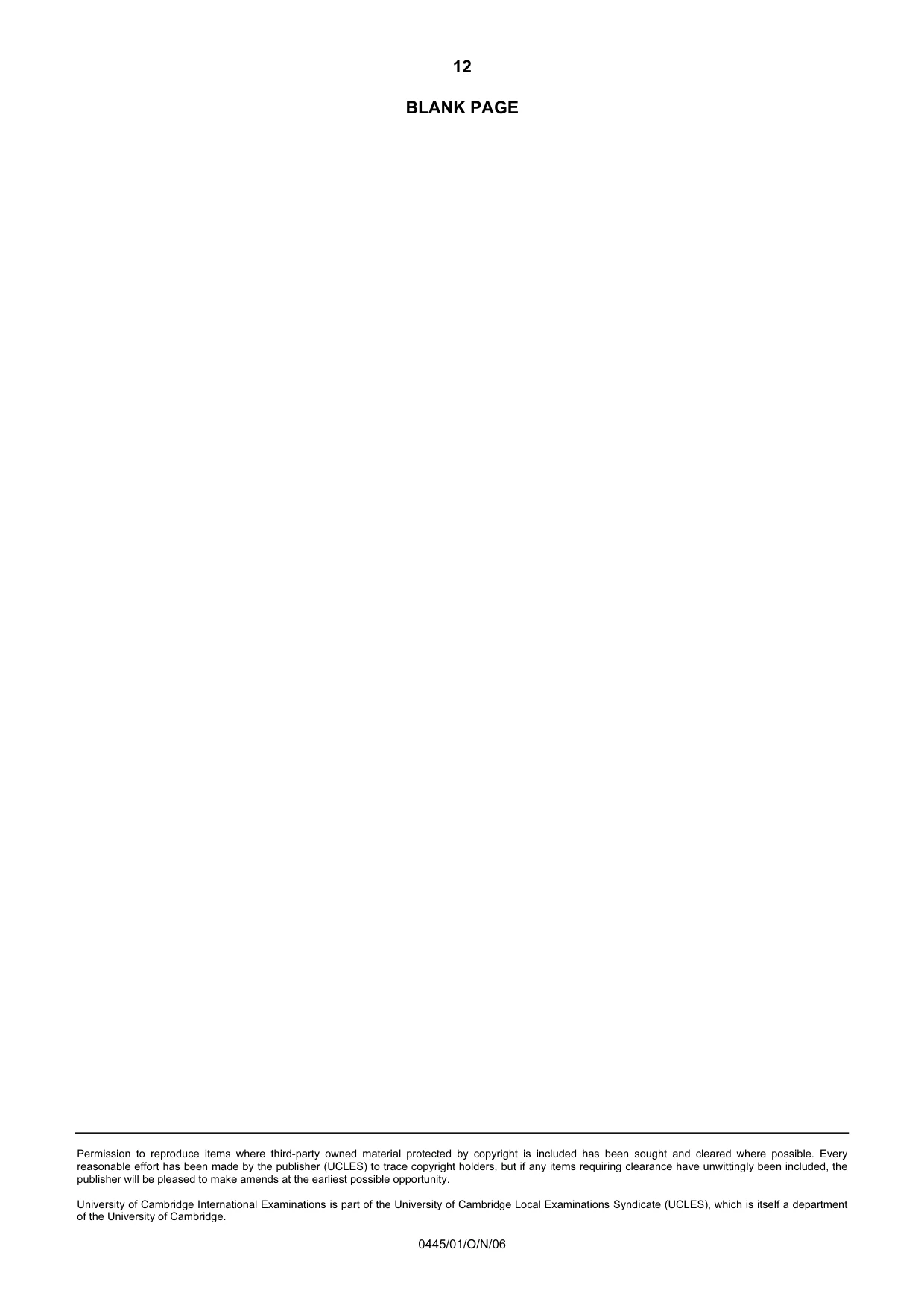

12 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. 0445/01/O/N/06 BLANK PAGE

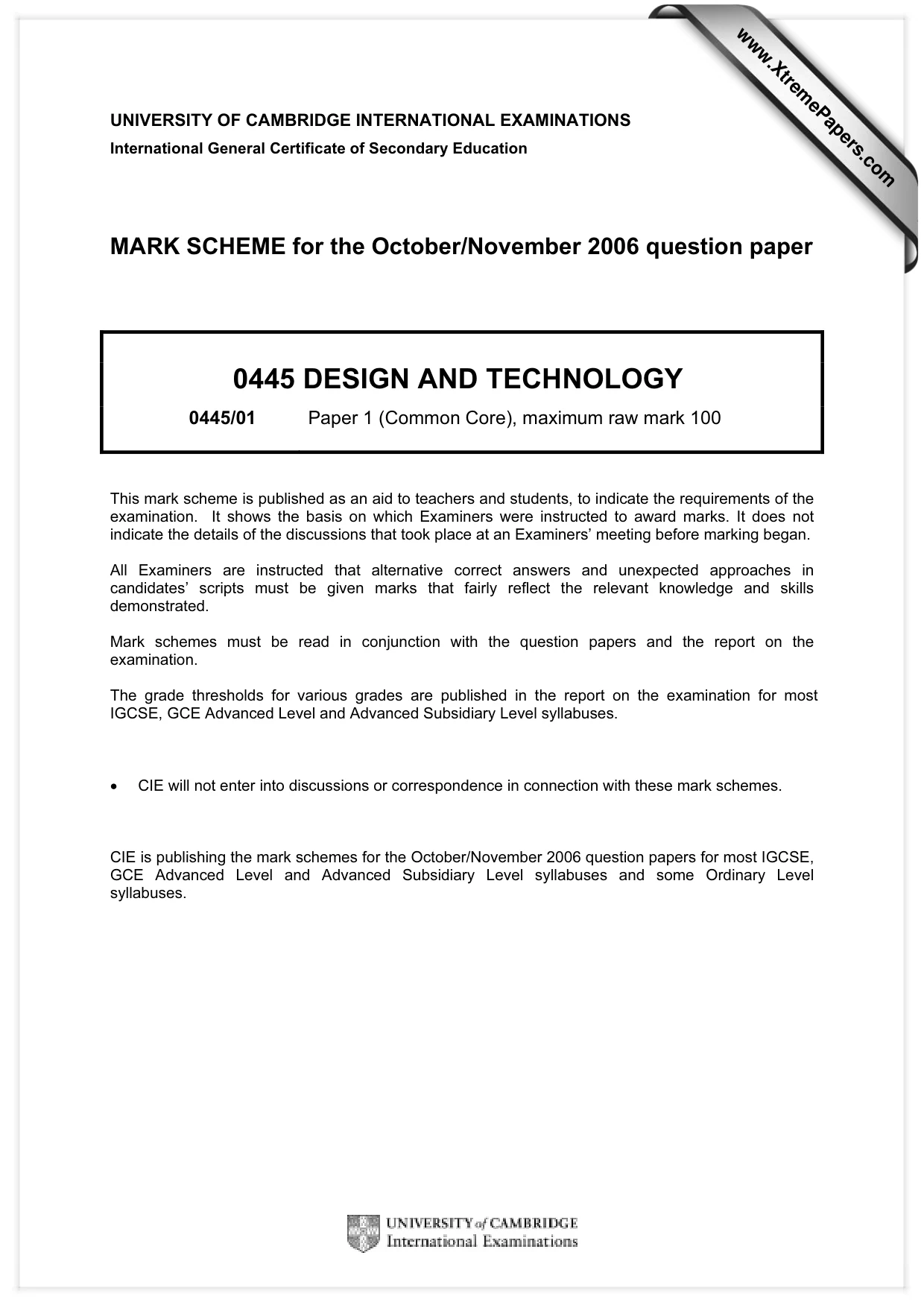

UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education MARK SCHEME for the October/November 2006 question paper 0445 DESIGN AND TECHNOLOGY 0445/01 Paper 1 (Common Core), maximum raw mark 100 This mark scheme is published as an aid to teachers and students, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began. All Examiners are instructed that alternative correct answers and unexpected approaches in candidates’ scripts must be given marks that fairly reflect the relevant knowledge and skills demonstrated. Mark schemes must be read in conjunction with the question papers and the report on the examination. The grade thresholds for various grades are published in the report on the examination for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses. • CIE will not enter into discussions or correspondence in connection with these mark schemes. CIE is publishing the mark schemes for the October/November 2006 question papers for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses. www.XtremePapers.com

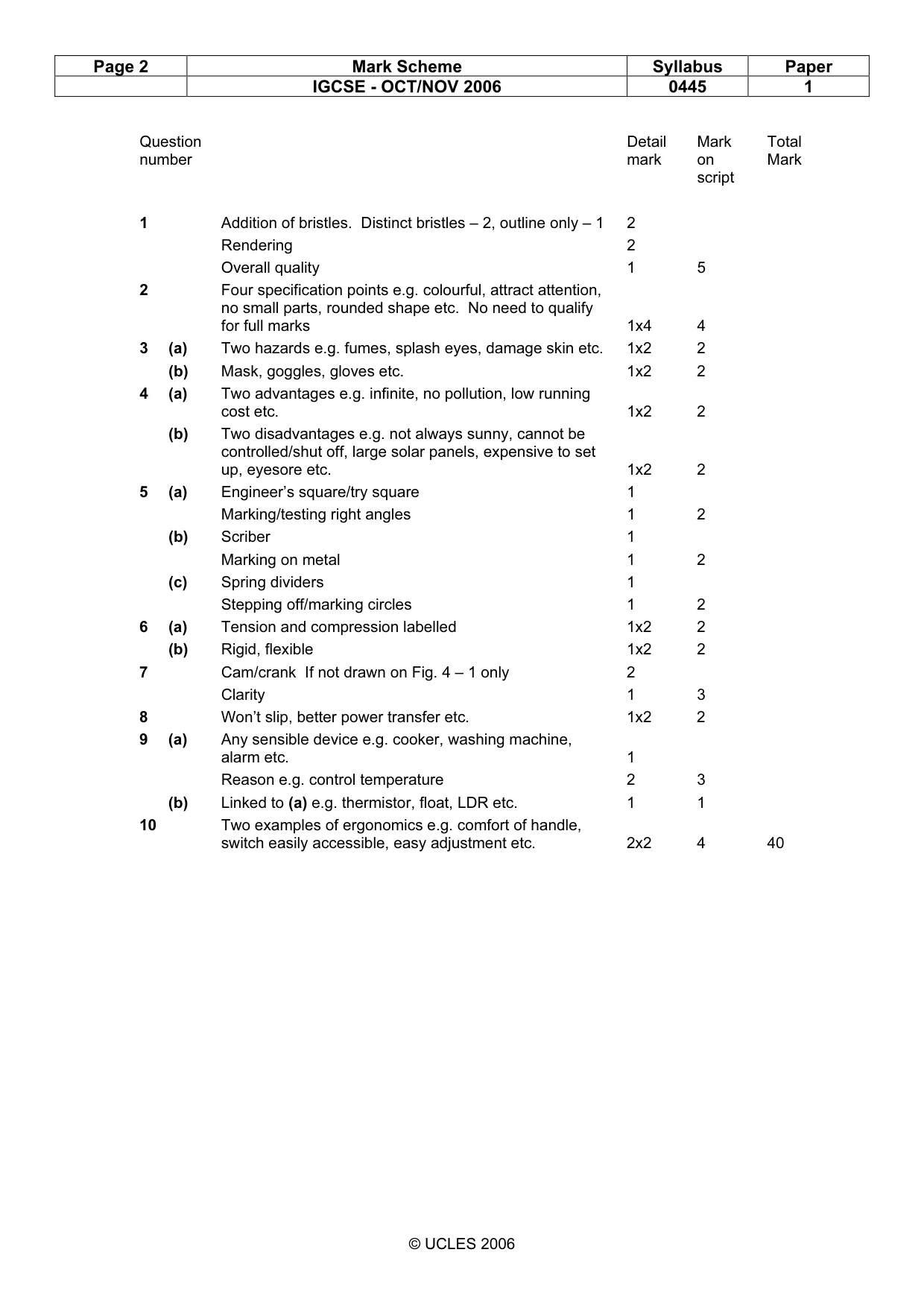

Page 2 Mark Scheme Syllabus Paper IGCSE - OCT/NOV 2006 0445 1 © UCLES 2006 Question number Detail mark Mark on script Total Mark 1 Addition of bristles. Distinct bristles – 2, outline only – 1 Rendering Overall quality 2 2 1 5 2 Four specification points e.g. colourful, attract attention, no small parts, rounded shape etc. No need to qualify for full marks 1x4 4 3 (a) Two hazards e.g. fumes, splash eyes, damage skin etc. 1x2 2 (b) Mask, goggles, gloves etc. 1x2 2 4 (a) Two advantages e.g. infinite, no pollution, low running cost etc. 1x2 2 (b) Two disadvantages e.g. not always sunny, cannot be controlled/shut off, large solar panels, expensive to set up, eyesore etc. 1x2 2 5 (a) Engineer’s square/try square Marking/testing right angles 1 1 2 (b) Scriber Marking on metal 1 1 2 (c) Spring dividers Stepping off/marking circles 1 1 2 6 (a) Tension and compression labelled 1x2 2 (b) Rigid, flexible 1x2 2 7 Cam/crank If not drawn on Fig. 4 – 1 only Clarity 2 1 3 8 Won’t slip, better power transfer etc. 1x2 2 9 (a) Any sensible device e.g. cooker, washing machine, alarm etc. Reason e.g. control temperature 1 2 3 (b) Linked to (a) e.g. thermistor, float, LDR etc. 1 1 10 Two examples of ergonomics e.g. comfort of handle, switch easily accessible, easy adjustment etc. 2x2 4 40

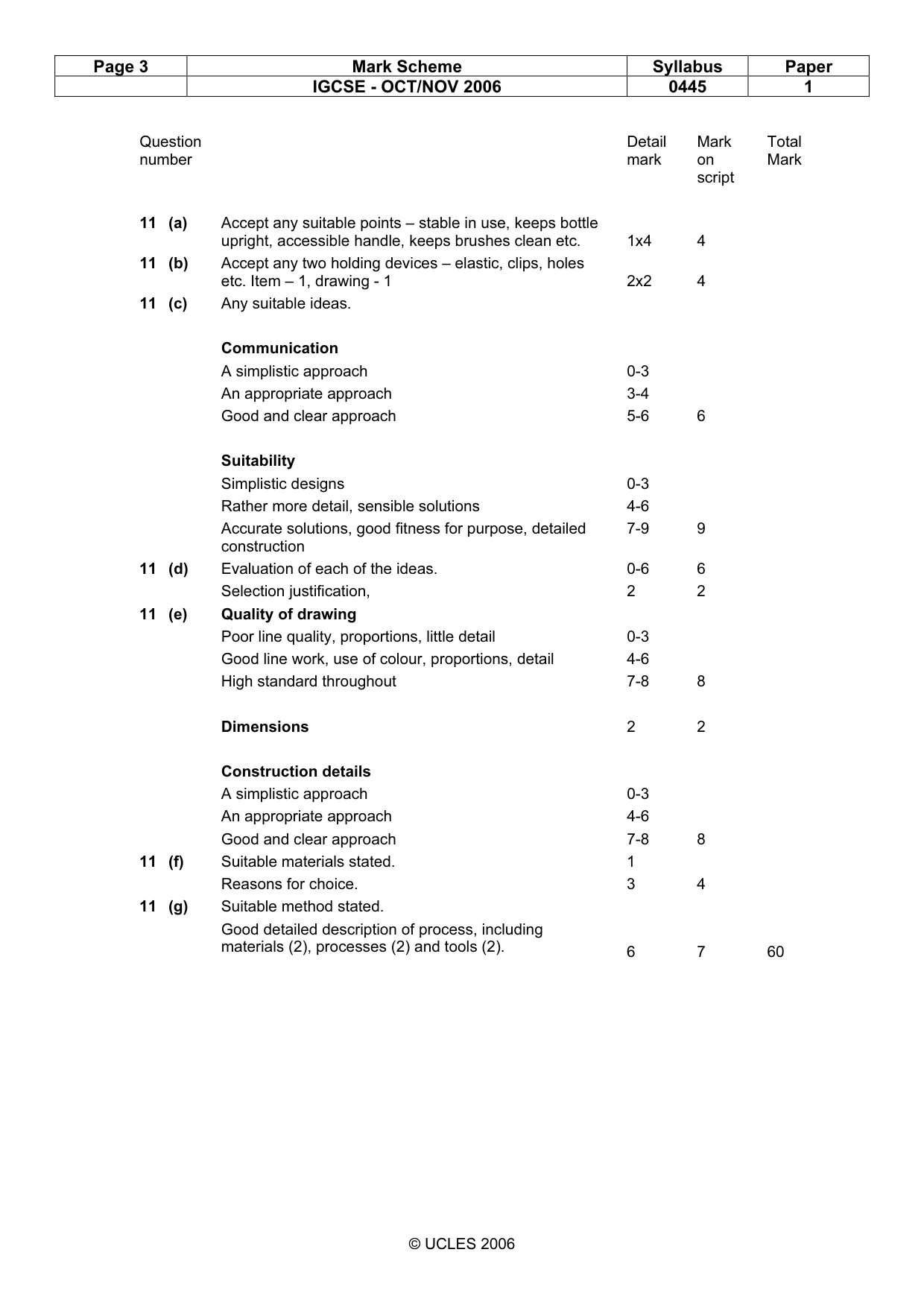

Page 3 Mark Scheme Syllabus Paper IGCSE - OCT/NOV 2006 0445 1 © UCLES 2006 Question number Detail mark Mark on script Total Mark 11 (a) Accept any suitable points – stable in use, keeps bottle upright, accessible handle, keeps brushes clean etc. 1x4 4 11 (b) Accept any two holding devices – elastic, clips, holes etc. Item – 1, drawing - 1 2x2 4 11 (c) Any suitable ideas. Communication A simplistic approach An appropriate approach Good and clear approach Suitability Simplistic designs Rather more detail, sensible solutions Accurate solutions, good fitness for purpose, detailed construction 0-3 3-4 5-6 0-3 4-6 7-9 6 9 11 (d) Evaluation of each of the ideas. Selection justification, 0-6 2 6 2 11 (e) Quality of drawing Poor line quality, proportions, little detail Good line work, use of colour, proportions, detail High standard throughout Dimensions Construction details A simplistic approach An appropriate approach Good and clear approach 0-3 4-6 7-8 2 0-3 4-6 7-8 8 2 8 11 (f) Suitable materials stated. Reasons for choice. 1 3 4 11 (g) Suitable method stated. Good detailed description of process, including materials (2), processes (2) and tools (2). 6 7 60

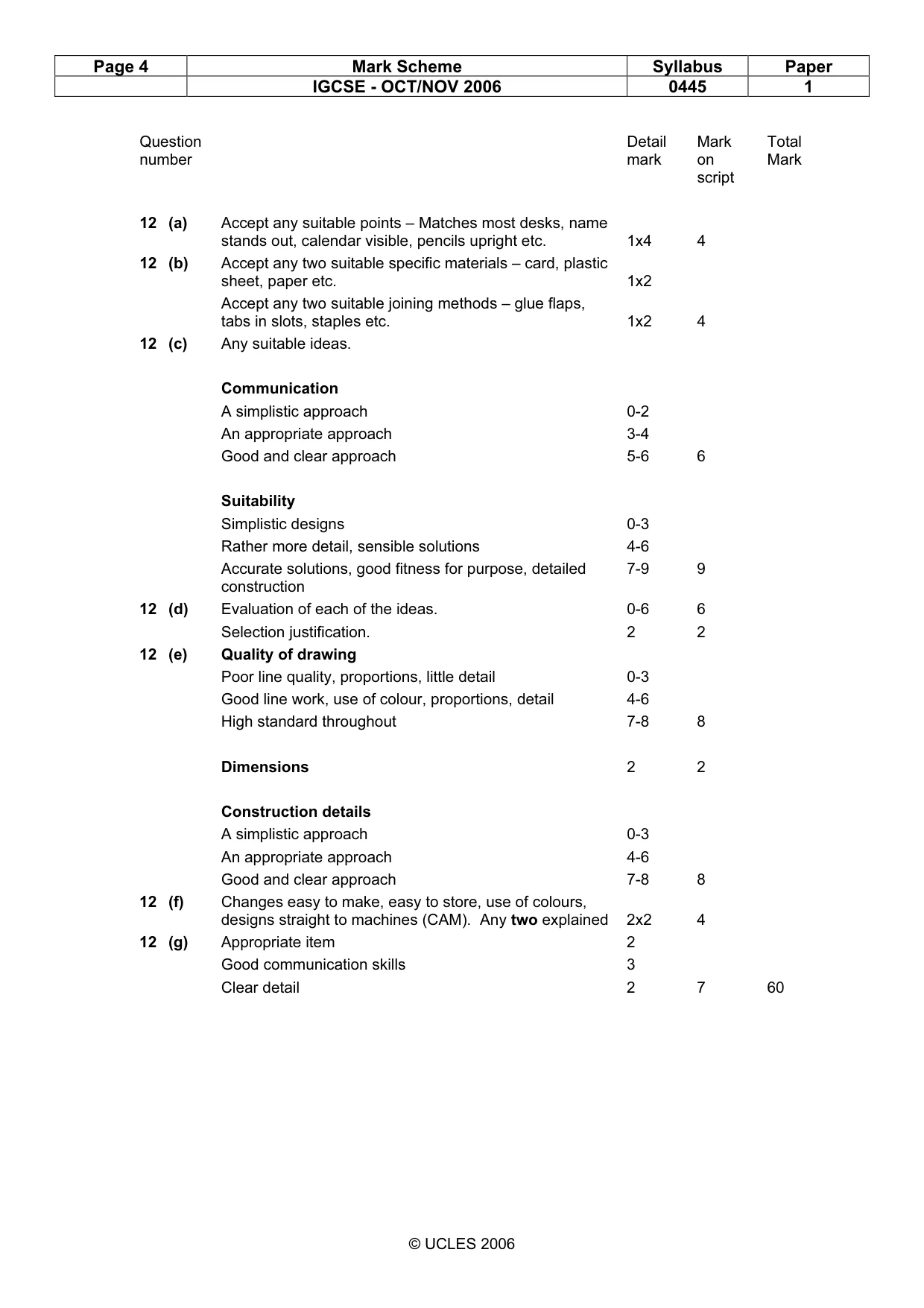

Page 4 Mark Scheme Syllabus Paper IGCSE - OCT/NOV 2006 0445 1 © UCLES 2006 Question number Detail mark Mark on script Total Mark 12 (a) Accept any suitable points – Matches most desks, name stands out, calendar visible, pencils upright etc. 1x4 4 12 (b) Accept any two suitable specific materials – card, plastic sheet, paper etc. Accept any two suitable joining methods – glue flaps, tabs in slots, staples etc. 1x2 1x2 4 12 (c) Any suitable ideas. Communication A simplistic approach An appropriate approach Good and clear approach Suitability Simplistic designs Rather more detail, sensible solutions Accurate solutions, good fitness for purpose, detailed construction 0-2 3-4 5-6 0-3 4-6 7-9 6 9 12 (d) Evaluation of each of the ideas. Selection justification. 0-6 2 6 2 12 (e) Quality of drawing Poor line quality, proportions, little detail Good line work, use of colour, proportions, detail High standard throughout Dimensions Construction details A simplistic approach An appropriate approach Good and clear approach 0-3 4-6 7-8 2 0-3 4-6 7-8 8 2 8 12 (f) Changes easy to make, easy to store, use of colours, designs straight to machines (CAM). Any two explained 2x2 4 12 (g) Appropriate item Good communication skills Clear detail 2 3 2 7 60

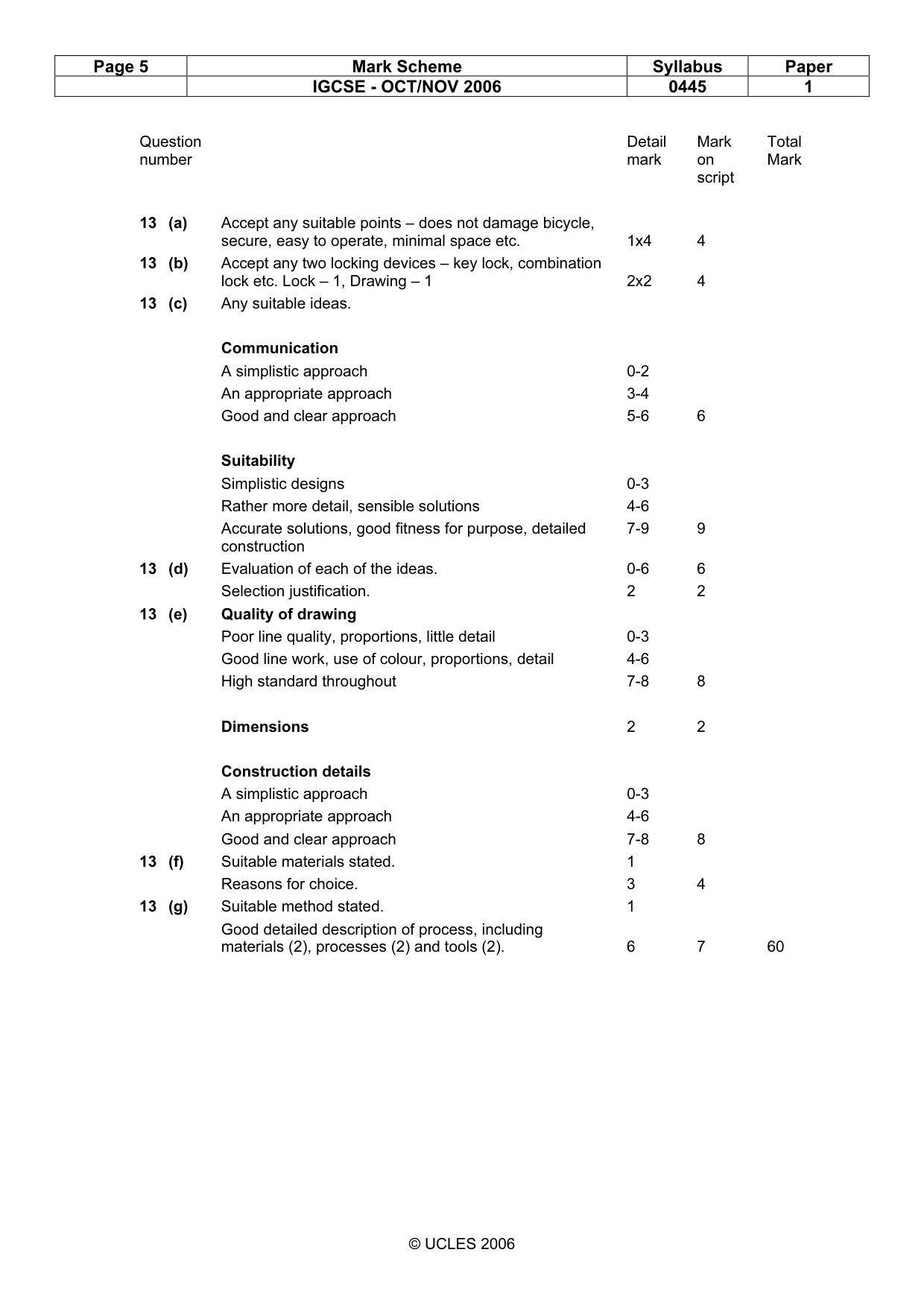

Page 5 Mark Scheme Syllabus Paper IGCSE - OCT/NOV 2006 0445 1 © UCLES 2006 Question number Detail mark Mark on script Total Mark 13 (a) Accept any suitable points – does not damage bicycle, secure, easy to operate, minimal space etc. 1x4 4 13 (b) Accept any two locking devices – key lock, combination lock etc. Lock – 1, Drawing – 1 2x2 4 13 (c) Any suitable ideas. Communication A simplistic approach An appropriate approach Good and clear approach Suitability Simplistic designs Rather more detail, sensible solutions Accurate solutions, good fitness for purpose, detailed construction 0-2 3-4 5-6 0-3 4-6 7-9 6 9 13 (d) Evaluation of each of the ideas. Selection justification. 0-6 2 6 2 13 (e) Quality of drawing Poor line quality, proportions, little detail Good line work, use of colour, proportions, detail High standard throughout Dimensions Construction details A simplistic approach An appropriate approach Good and clear approach 0-3 4-6 7-8 2 0-3 4-6 7-8 8 2 8 13 (f) Suitable materials stated. Reasons for choice. 1 3 4 13 (g) Suitable method stated. Good detailed description of process, including materials (2), processes (2) and tools (2). 1 6 7 60

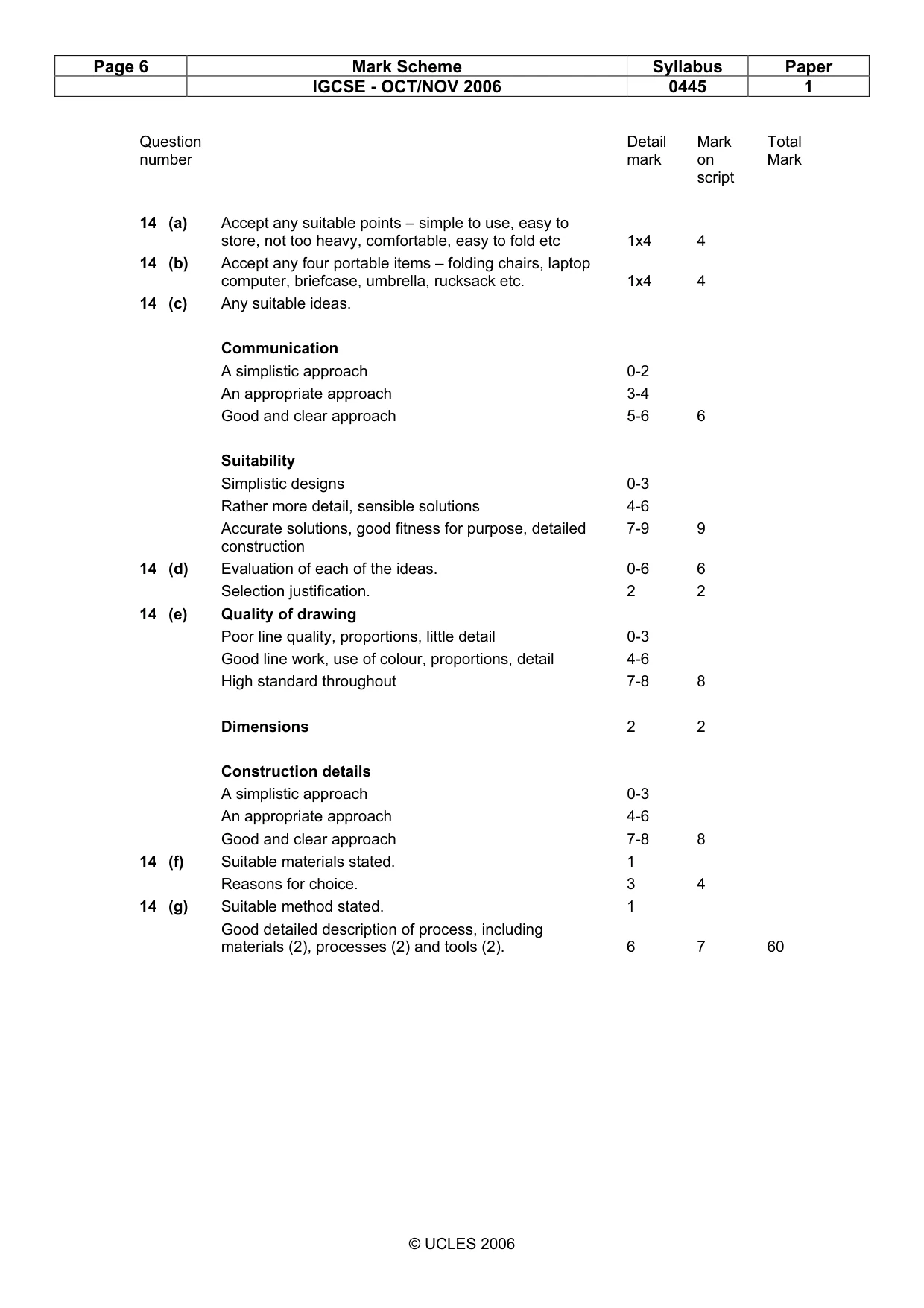

Page 6 Mark Scheme Syllabus Paper IGCSE - OCT/NOV 2006 0445 1 © UCLES 2006 Question number Detail mark Mark on script Total Mark 14 (a) Accept any suitable points – simple to use, easy to store, not too heavy, comfortable, easy to fold etc 1x4 4 14 (b) Accept any four portable items – folding chairs, laptop computer, briefcase, umbrella, rucksack etc. 1x4 4 14 (c) Any suitable ideas. Communication A simplistic approach An appropriate approach Good and clear approach Suitability Simplistic designs Rather more detail, sensible solutions Accurate solutions, good fitness for purpose, detailed construction 0-2 3-4 5-6 0-3 4-6 7-9 6 9 14 (d) Evaluation of each of the ideas. Selection justification. 0-6 2 6 2 14 (e) Quality of drawing Poor line quality, proportions, little detail Good line work, use of colour, proportions, detail High standard throughout Dimensions Construction details A simplistic approach An appropriate approach Good and clear approach 0-3 4-6 7-8 2 0-3 4-6 7-8 8 2 8 14 (f) Suitable materials stated. Reasons for choice. 1 3 4 14 (g) Suitable method stated. Good detailed description of process, including materials (2), processes (2) and tools (2). 1 6 7 60
