Cambridge IGCSE Design and Technology 0445 — 2025 May/June Paper 1 · Variant 1

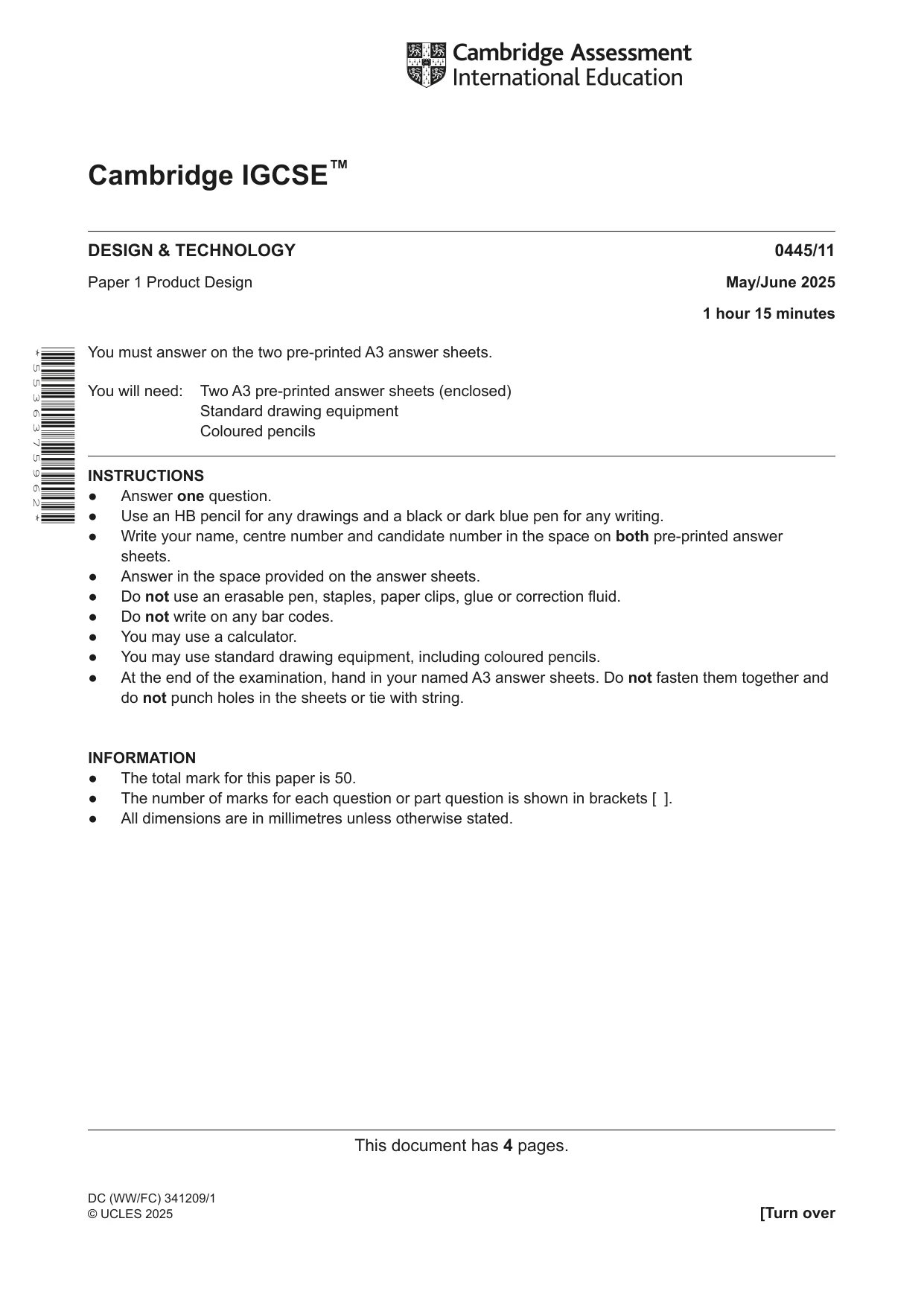

This document has 4 pages. [Turn over Cambridge IGCSE™ DC (WW/FC) 341209/1 © UCLES 2025 DESIGN & TECHNOLOGY 0445/11 Paper 1 Product Design May/June 2025 1 hour 15 minutes You must answer on the two pre-printed A3 answer sheets. You will need: Two A3 pre-printed answer sheets (enclosed) Standard drawing equipment Coloured pencils INSTRUCTIONS ● Answer one question. ● Use an HB pencil for any drawings and a black or dark blue pen for any writing. ● Write your name, centre number and candidate number in the space on both pre-printed answer sheets. ● Answer in the space provided on the answer sheets. ● Do not use an erasable pen, staples, paper clips, glue or correction fluid. ● Do not write on any bar codes. ● You may use a calculator. ● You may use standard drawing equipment, including coloured pencils. ● At the end of the examination, hand in your named A3 answer sheets. Do not fasten them together and do not punch holes in the sheets or tie with string. INFORMATION ● The total mark for this paper is 50. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres unless otherwise stated. * 5 5 3 6 3 7 5 9 6 2 *

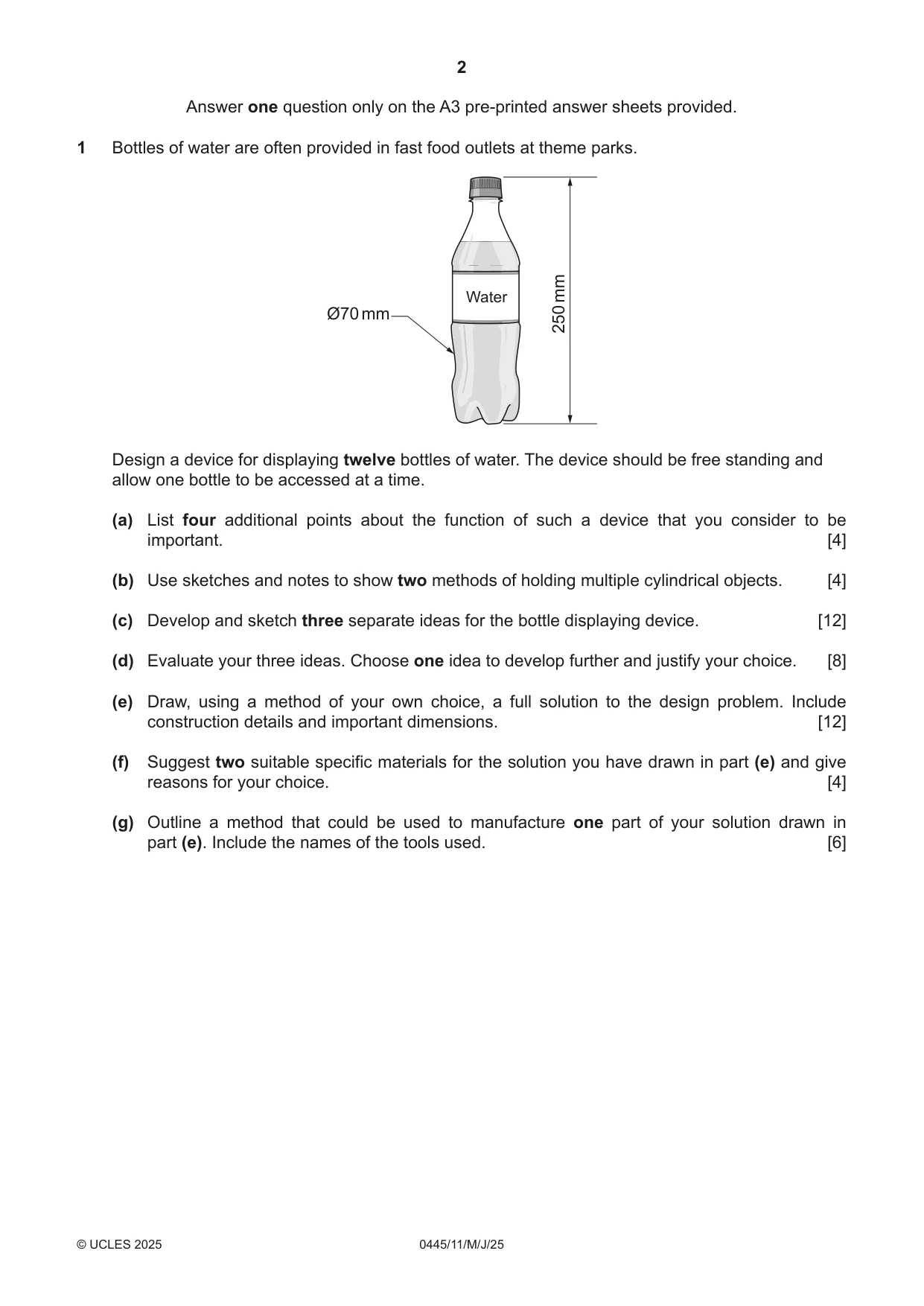

2 0445/11/ M/J/25 © UCLES 2025 Answer one question only on the A3 pre-printed answer sheets provided. 1 Bottles of water are often provided in fast food outlets at theme parks. 250mm Ø70mm Water Design a device for displaying twelve bottles of water. The device should be free standing and allow one bottle to be accessed at a time. (a) List four additional points about the function of such a device that you consider to be important. [4] (b) Use sketches and notes to show two methods of holding multiple cylindrical objects. [4] (c) Develop and sketch three separate ideas for the bottle displaying device. [12] (d) Evaluate your three ideas. Choose one idea to develop further and justify your choice. [8] (e) Draw, using a method of your own choice, a full solution to the design problem. Include construction details and important dimensions. [12] (f) Suggest two suitable specific materials for the solution you have drawn in part (e) and give reasons for your choice. [4] (g) Outline a method that could be used to manufacture one part of your solution drawn in part (e). Include the names of the tools used. [6]

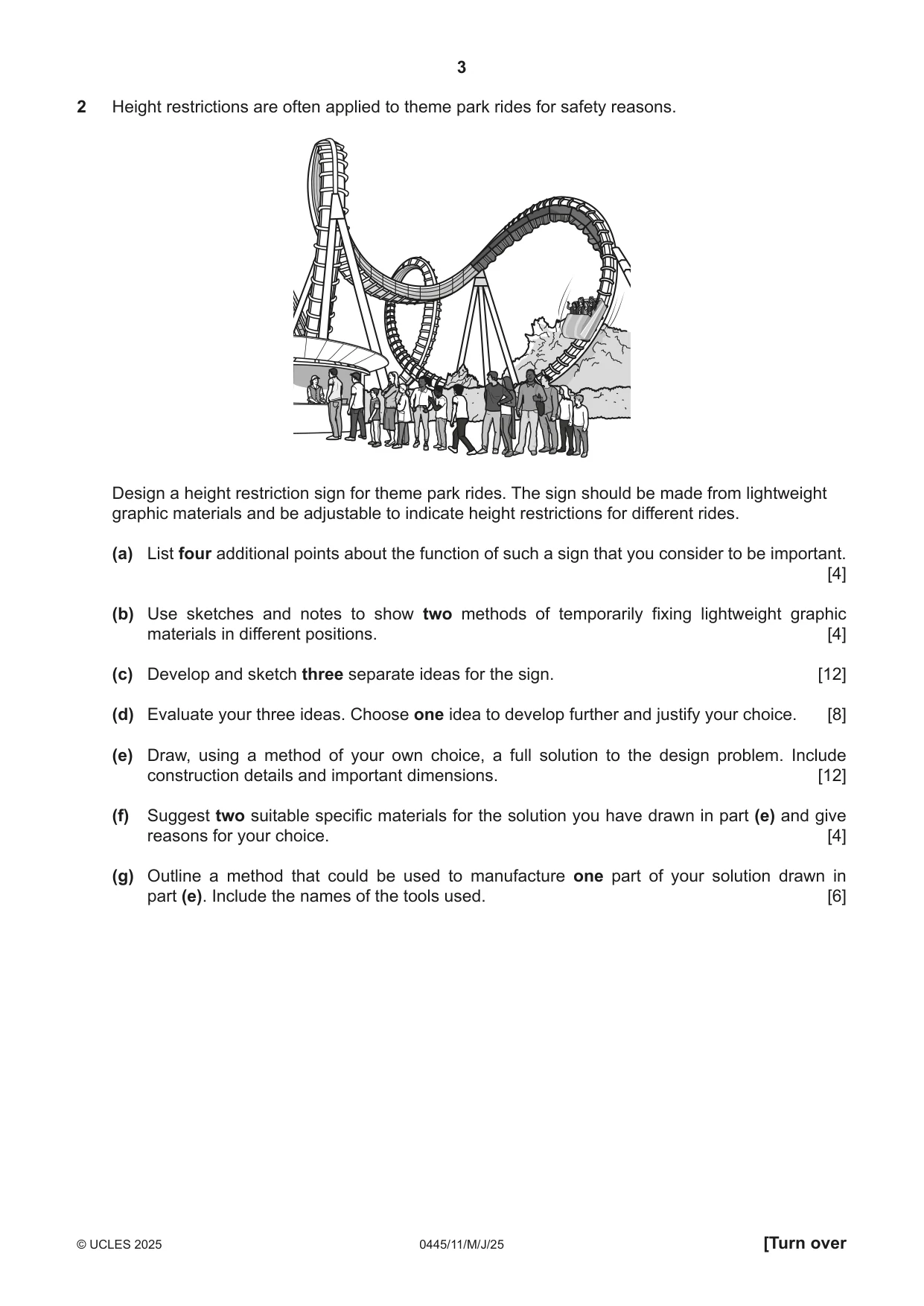

3 0445/11/ M/J/25 © UCLES 2025 [Turn over 2 Height restrictions are often applied to theme park rides for safety reasons. Design a height restriction sign for theme park rides. The sign should be made from lightweight graphic materials and be adjustable to indicate height restrictions for different rides. (a) List four additional points about the function of such a sign that you consider to be important. [4] (b) Use sketches and notes to show two methods of temporarily fixing lightweight graphic materials in different positions. [4] (c) Develop and sketch three separate ideas for the sign. [12] (d) Evaluate your three ideas. Choose one idea to develop further and justify your choice. [8] (e) Draw, using a method of your own choice, a full solution to the design problem. Include construction details and important dimensions. [12] (f) Suggest two suitable specific materials for the solution you have drawn in part (e) and give reasons for your choice. [4] (g) Outline a method that could be used to manufacture one part of your solution drawn in part (e). Include the names of the tools used. [6]

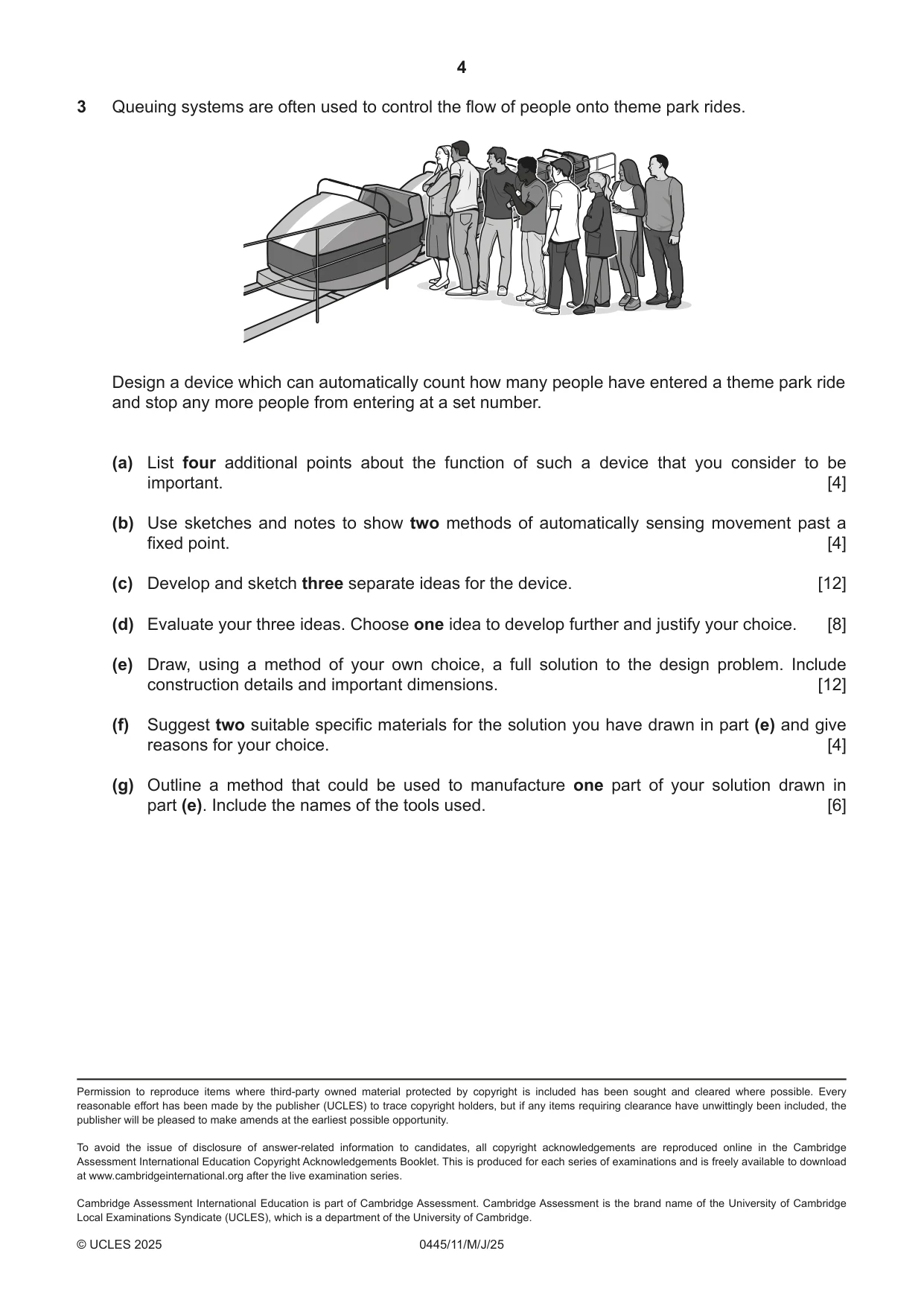

4 0445/11/ M/J/25 © UCLES 2025 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. 3 Queuing systems are often used to control the flow of people onto theme park rides. Design a device which can automatically count how many people have entered a theme park ride and stop any more people from entering at a set number. (a) List four additional points about the function of such a device that you consider to be important. [4] (b) Use sketches and notes to show two methods of automatically sensing movement past a fixed point. [4] (c) Develop and sketch three separate ideas for the device. [12] (d) Evaluate your three ideas. Choose one idea to develop further and justify your choice. [8] (e) Draw, using a method of your own choice, a full solution to the design problem. Include construction details and important dimensions. [12] (f) Suggest two suitable specific materials for the solution you have drawn in part (e) and give reasons for your choice. [4] (g) Outline a method that could be used to manufacture one part of your solution drawn in part (e). Include the names of the tools used. [6]

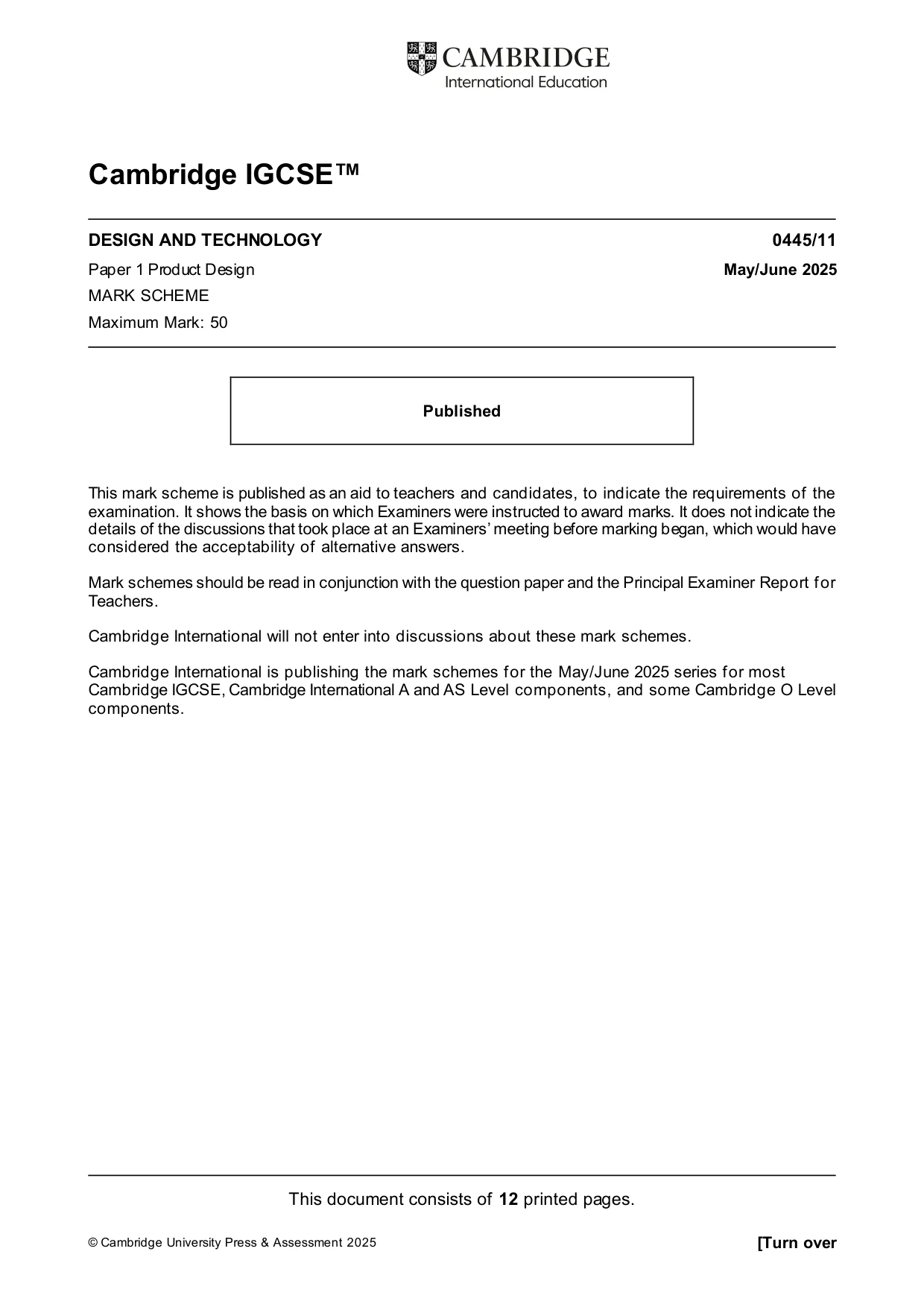

This document consists of 12 printed pages. © Cambridge University Press & Assessment 2025 [Turn over Cambridge IGCSE™ DESIGN AND TECHNOLOGY 0445/11 Paper 1 Product Design May/June 2025 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2025 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

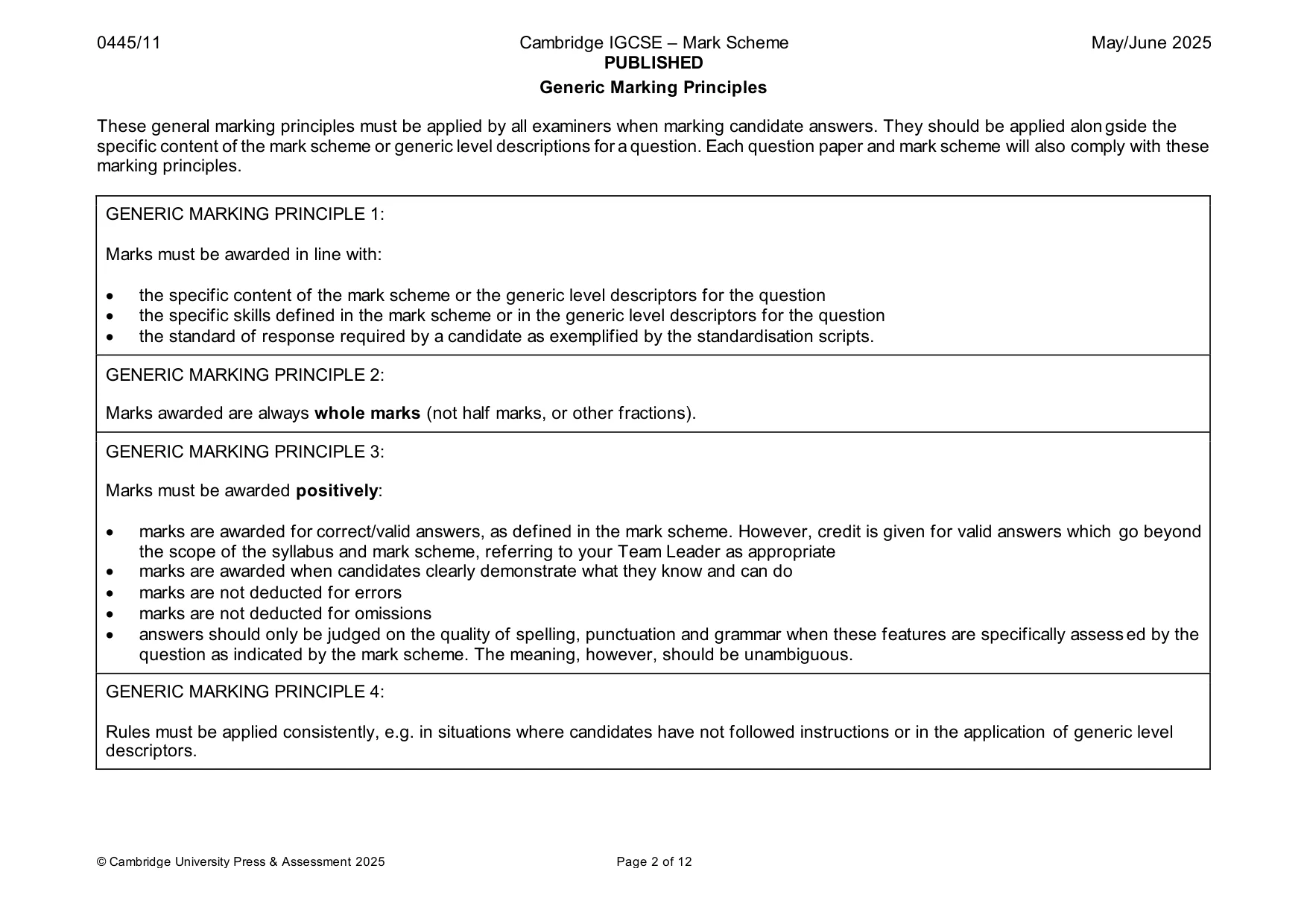

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 2 of 12 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alon gside the specific content of the mark scheme or generic level descriptions for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors.

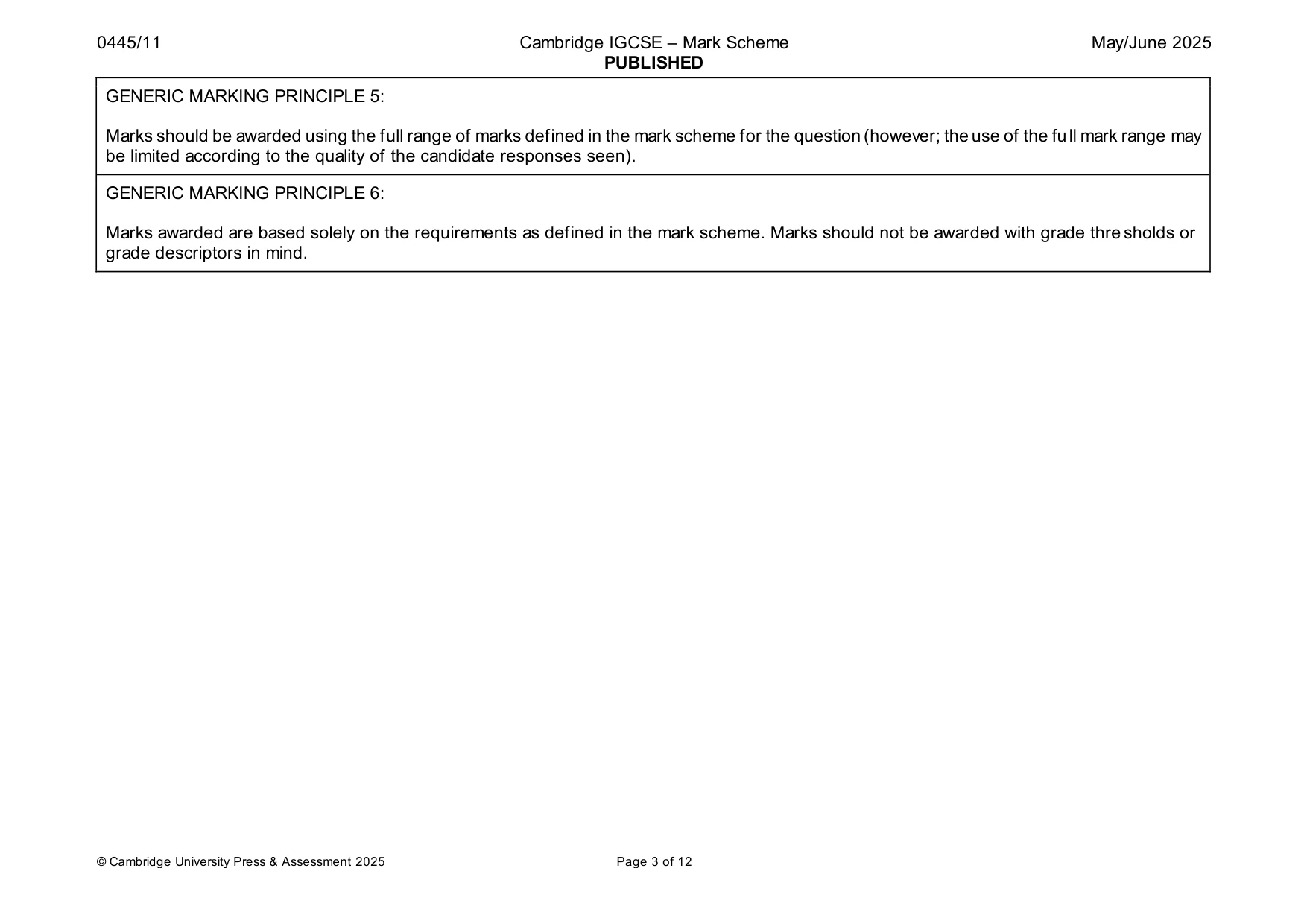

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 3 of 12 GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thre sholds or grade descriptors in mind.

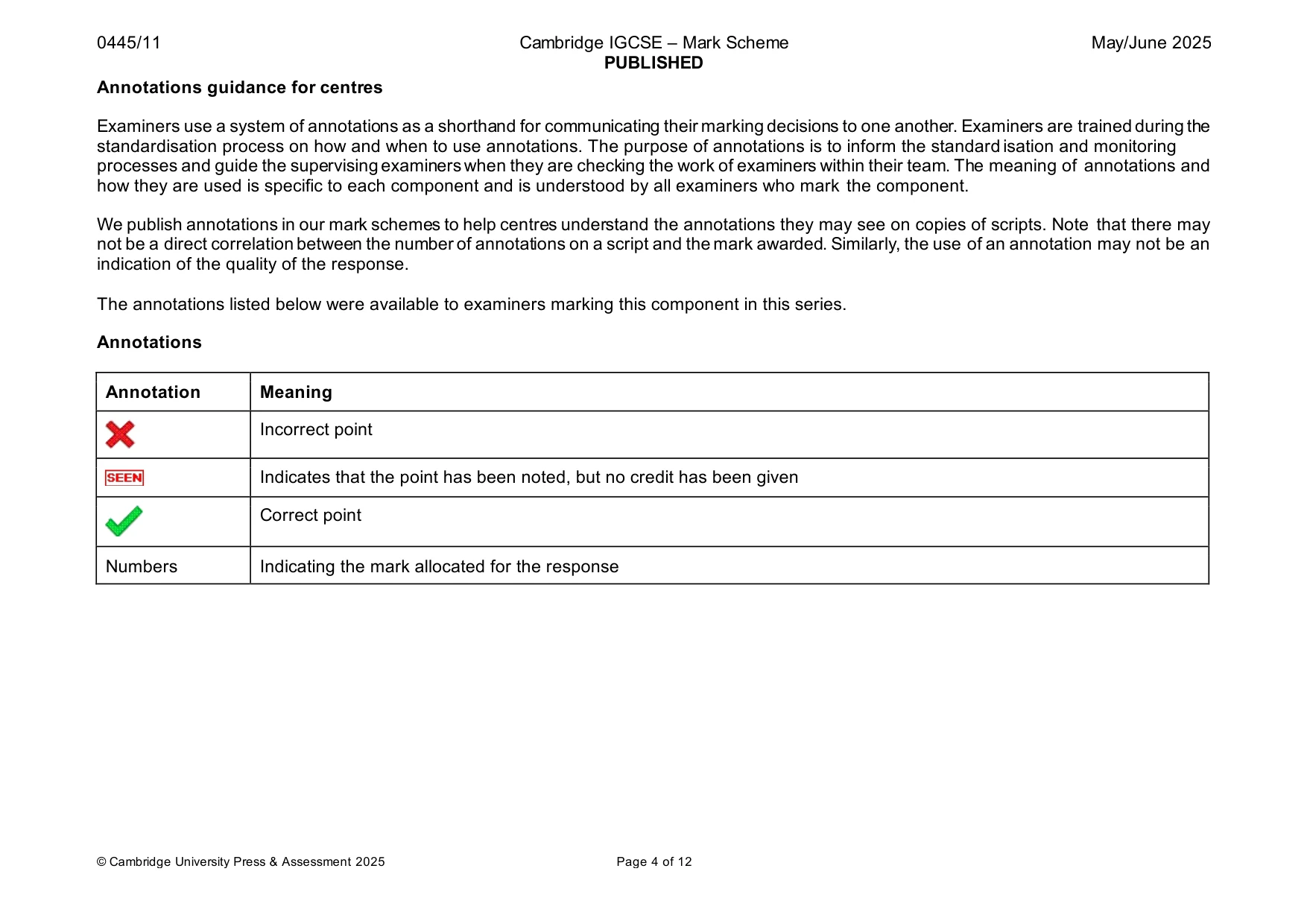

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 4 of 12 Annotations guidance for centres Examiners use a system of annotations as a shorthand for communicating their marking decisions to one another. Examiners are trained during the standardisation process on how and when to use annotations. The purpose of annotations is to inform the standard isation and monitoring processes and guide the supervising examiners when they are checking the work of examiners within their team. The meaning of annotations and how they are used is specific to each component and is understood by all examiners who mark the component. We publish annotations in our mark schemes to help centres understand the annotations they may see on copies of scripts. Note that there may not be a direct correlation between the number of annotations on a script and the mark awarded. Similarly, the use of an annotation may not be an indication of the quality of the response. The annotations listed below were available to examiners marking this component in this series. Annotations Annotation Meaning Incorrect point Indicates that the point has been noted, but no credit has been given Correct point Numbers Indicating the mark allocated for the response

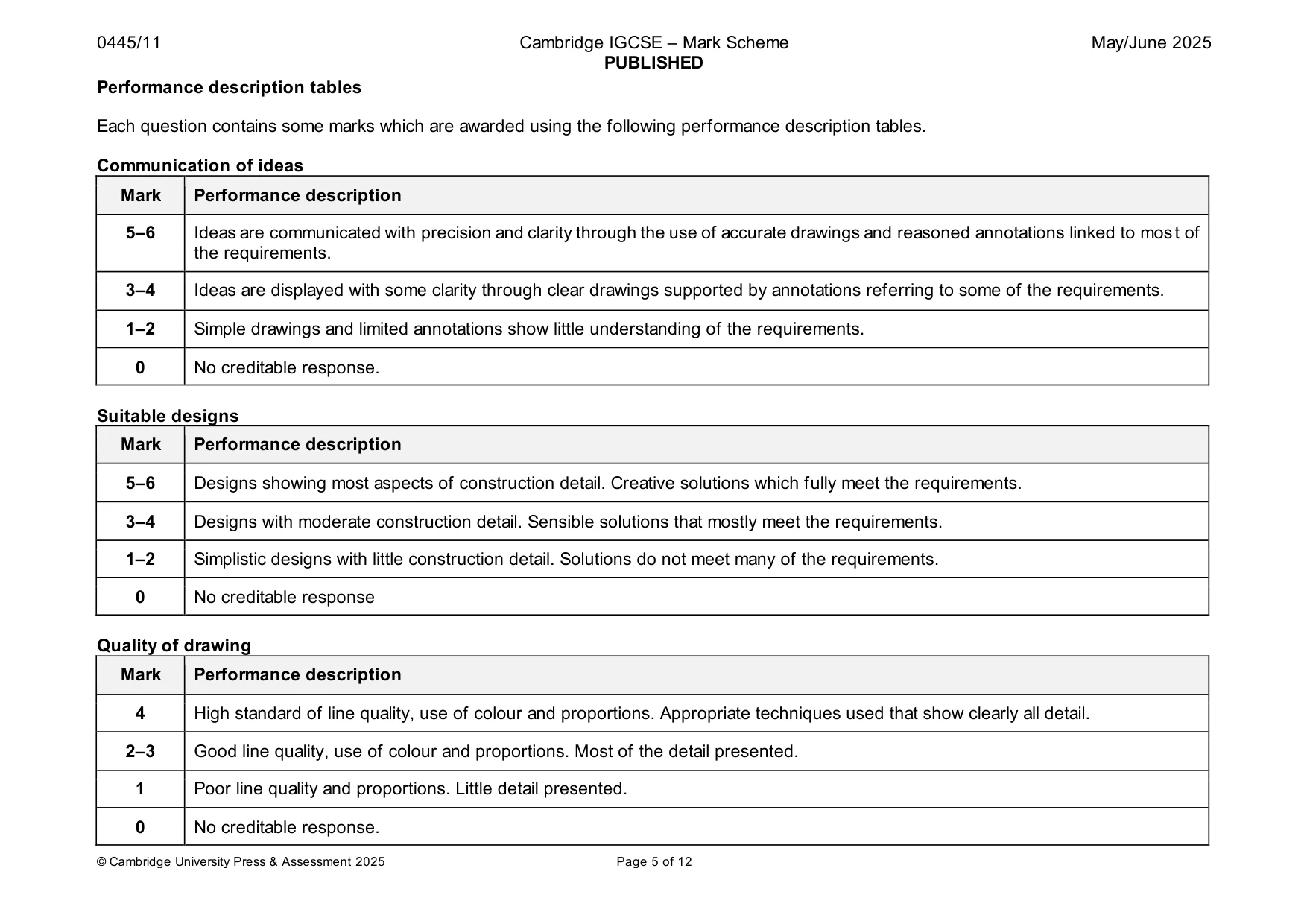

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 5 of 12 Performance description tables Each question contains some marks which are awarded using the following performance description tables. Communication of ideas Mark Performance description 5–6 Ideas are communicated with precision and clarity through the use of accurate drawings and reasoned annotations linked to most of the requirements. 3–4 Ideas are displayed with some clarity through clear drawings supported by annotations referring to some of the requirements. 1–2 Simple drawings and limited annotations show little understanding of the requirements. 0 No creditable response. Suitable designs Mark Performance description 5–6 Designs showing most aspects of construction detail. Creative solutions which fully meet the requirements. 3–4 Designs with moderate construction detail. Sensible solutions that mostly meet the requirements. 1–2 Simplistic designs with little construction detail. Solutions do not meet many of the requirements. 0 No creditable response Quality of drawing Mark Performance description 4 High standard of line quality, use of colour and proportions. Appropriate techniques used that show clearly all detail. 2–3 Good line quality, use of colour and proportions. Most of the detail presented. 1 Poor line quality and proportions. Little detail presented. 0 No creditable response.

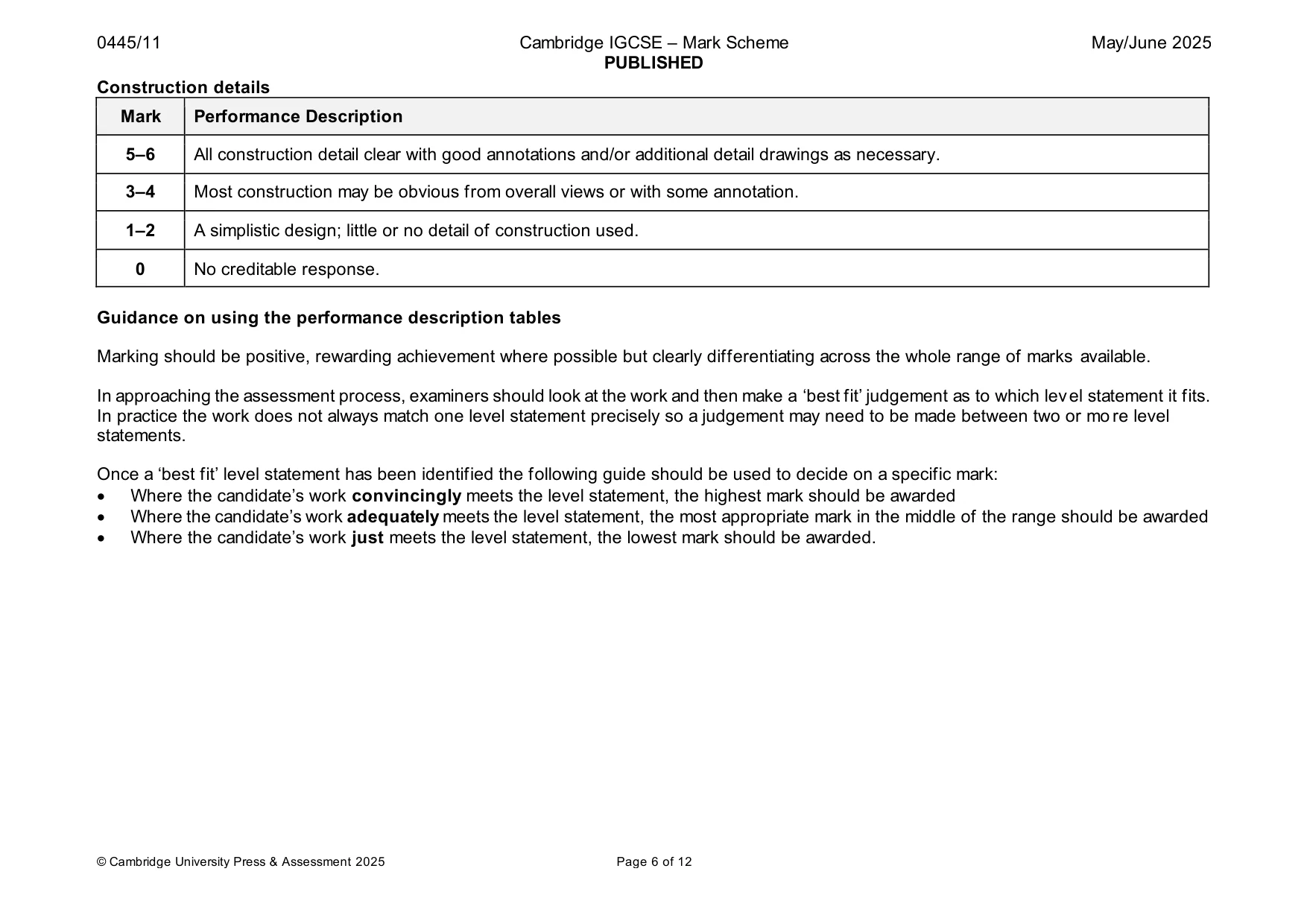

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 6 of 12 Construction details Mark Performance Description 5–6 All construction detail clear with good annotations and/or additional detail drawings as necessary. 3–4 Most construction may be obvious from overall views or with some annotation. 1–2 A simplistic design; little or no detail of construction used. 0 No creditable response. Guidance on using the performance description tables Marking should be positive, rewarding achievement where possible but clearly differentiating across the whole range of marks available. In approaching the assessment process, examiners should look at the work and then make a ‘best fit’ judgement as to which level statement it fits. In practice the work does not always match one level statement precisely so a judgement may need to be made between two or mo re level statements. Once a ‘best fit’ level statement has been identified the following guide should be used to decide on a specific mark: • Where the candidate’s work convincingly meets the level statement, the highest mark should be awarded • Where the candidate’s work adequately meets the level statement, the most appropriate mark in the middle of the range should be awarded • Where the candidate’s work just meets the level statement, the lowest mark should be awarded.

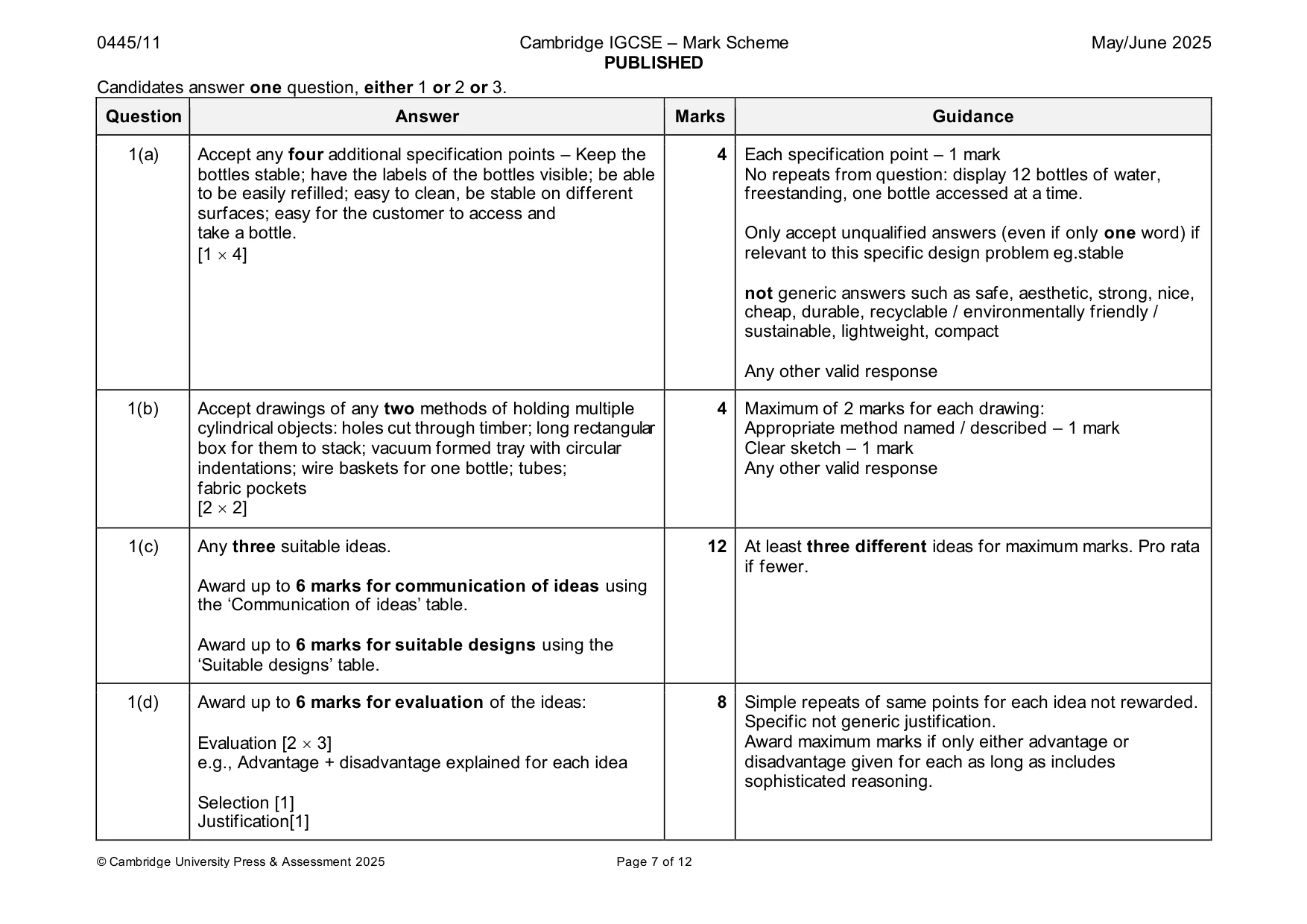

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 7 of 12 Candidates answer one question, either 1 or 2 or 3. Question Answer Marks Guidance 1(a) Accept any four additional specification points – Keep the bottles stable; have the labels of the bottles visible; be able to be easily refilled; easy to clean, be stable on different surfaces; easy for the customer to access and take a bottle. [1  4] 4 Each specification point – 1 mark No repeats from question: display 12 bottles of water, freestanding, one bottle accessed at a time. Only accept unqualified answers (even if only one word) if relevant to this specific design problem eg.stable not generic answers such as safe, aesthetic, strong, nice, cheap, durable, recyclable / environmentally friendly / sustainable, lightweight, compact Any other valid response 1(b) Accept drawings of any two methods of holding multiple cylindrical objects: holes cut through timber; long rectangular box for them to stack; vacuum formed tray with circular indentations; wire baskets for one bottle; tubes; fabric pockets [2  2] 4 Maximum of 2 marks for each drawing: Appropriate method named / described – 1 mark Clear sketch – 1 mark Any other valid response 1(c) Any three suitable ideas. Award up to 6 marks for communication of ideas using the ‘Communication of ideas’ table. Award up to 6 marks for suitable designs using the ‘Suitable designs’ table. 12 At least three different ideas for maximum marks. Pro rata if fewer. 1(d) Award up to 6 marks for evaluation of the ideas: Evaluation [2  3] e.g., Advantage + disadvantage explained for each idea Selection [1] Justification[1] 8 Simple repeats of same points for each idea not rewarded. Specific not generic justification. Award maximum marks if only either advantage or disadvantage given for each as long as includes sophisticated reasoning.

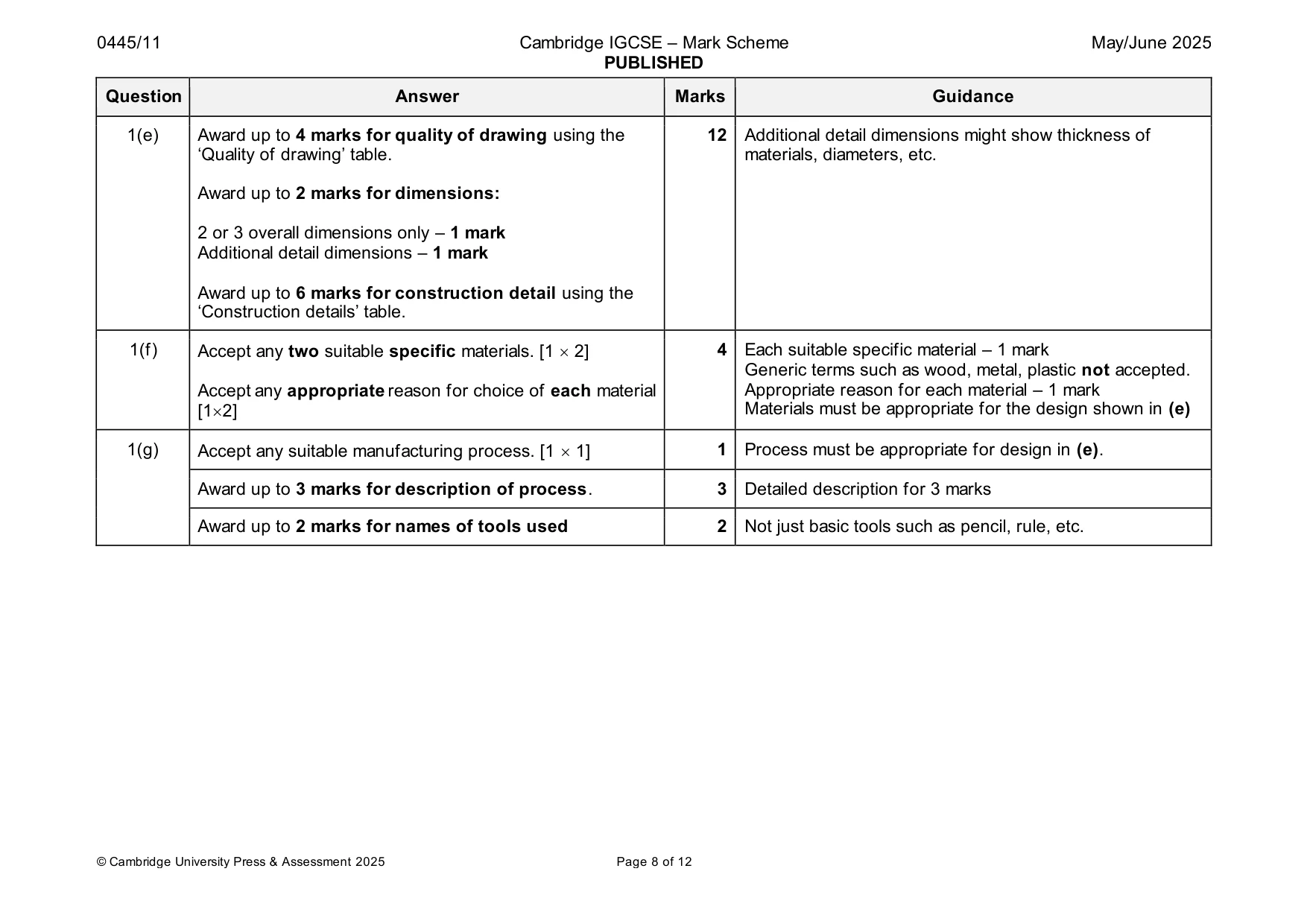

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 8 of 12 Question Answer Marks Guidance 1(e) Award up to 4 marks for quality of drawing using the ‘Quality of drawing’ table. Award up to 2 marks for dimensions: 2 or 3 overall dimensions only – 1 mark Additional detail dimensions – 1 mark Award up to 6 marks for construction detail using the ‘Construction details’ table. 12 Additional detail dimensions might show thickness of materials, diameters, etc. 1(f) Accept any two suitable specific materials. [1  2] Accept any appropriate reason for choice of each material [12] 4 Each suitable specific material – 1 mark Generic terms such as wood, metal, plastic not accepted. Appropriate reason for each material – 1 mark Materials must be appropriate for the design shown in (e) 1(g) Accept any suitable manufacturing process. [1  1] 1 Process must be appropriate for design in (e). Award up to 3 marks for description of process. 3 Detailed description for 3 marks Award up to 2 marks for names of tools used 2 Not just basic tools such as pencil, rule, etc.

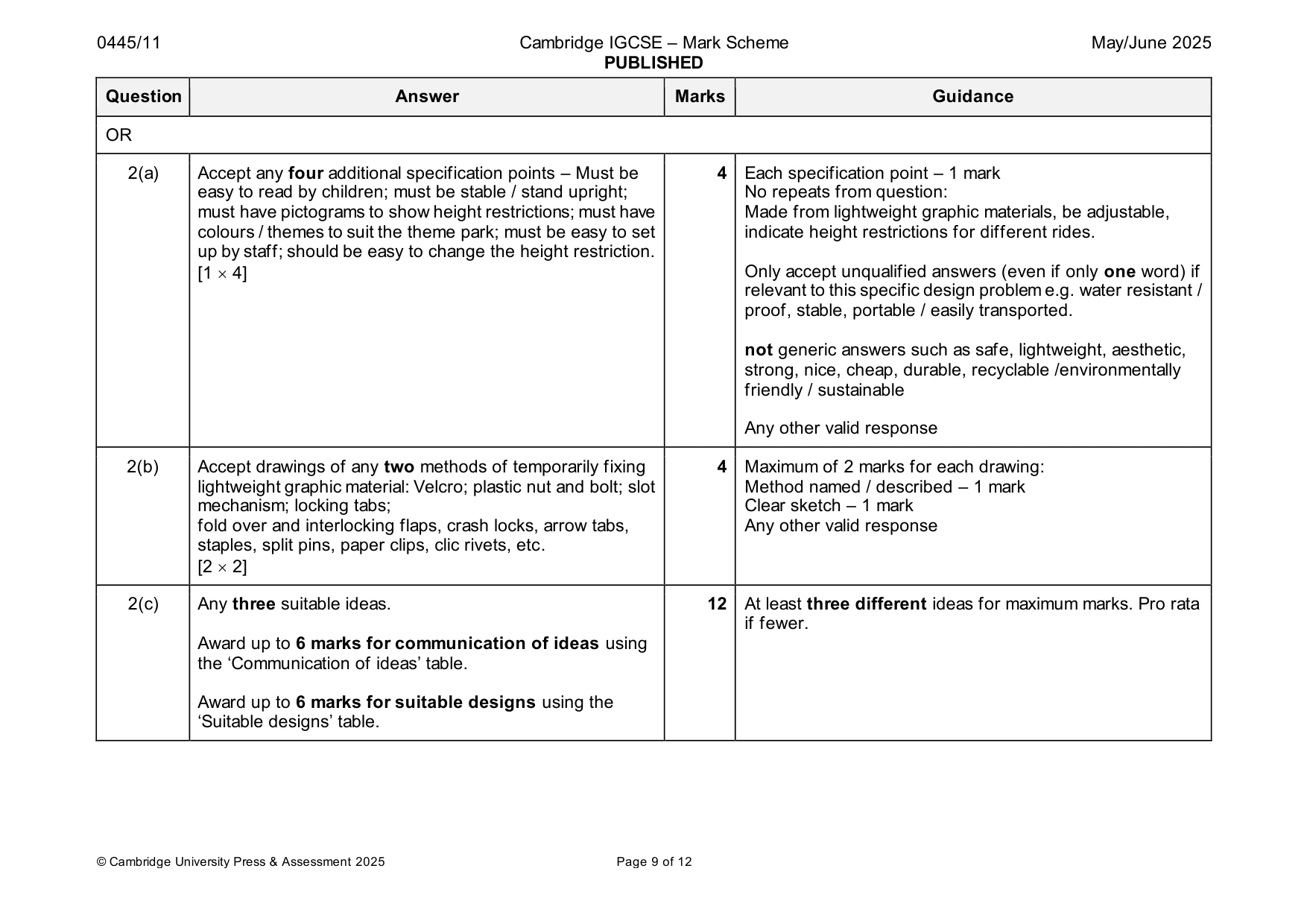

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 9 of 12 Question Answer Marks Guidance OR 2(a) Accept any four additional specification points – Must be easy to read by children; must be stable / stand upright; must have pictograms to show height restrictions; must have colours / themes to suit the theme park; must be easy to set up by staff; should be easy to change the height restriction. [1  4] 4 Each specification point – 1 mark No repeats from question: Made from lightweight graphic materials, be adjustable, indicate height restrictions for different rides. Only accept unqualified answers (even if only one word) if relevant to this specific design problem e.g. water resistant / proof, stable, portable / easily transported. not generic answers such as safe, lightweight, aesthetic, strong, nice, cheap, durable, recyclable /environmentally friendly / sustainable Any other valid response 2(b) Accept drawings of any two methods of temporarily fixing lightweight graphic material: Velcro; plastic nut and bolt; slot mechanism; locking tabs; fold over and interlocking flaps, crash locks, arrow tabs, staples, split pins, paper clips, clic rivets, etc. [2  2] 4 Maximum of 2 marks for each drawing: Method named / described – 1 mark Clear sketch – 1 mark Any other valid response 2(c) Any three suitable ideas. Award up to 6 marks for communication of ideas using the ‘Communication of ideas’ table. Award up to 6 marks for suitable designs using the ‘Suitable designs’ table. 12 At least three different ideas for maximum marks. Pro rata if fewer.

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 10 of 12 Question Answer Marks Guidance 2(d) Award up to 6 marks for evaluation of the ideas: Evaluation [2  3] e.g. Advantage + disadvantage explained for each idea Selection [1] Justification[1] 8 Simple repeats of same points for each idea not rewarded. Specific not generic justification. Award maximum marks if only either advantage or disadvantage given for each as long as includes sophisticated reasoning. 2(e) Award up to 4 marks for quality of drawing using the ‘Quality of drawing’ table. Award up to 2 marks for dimensions: 2 or 3 overall dimensions only – 1 mark Additional detail dimensions – 1 mark Award up to 6 marks for construction detail using the ‘Construction details’ table. 12 Additional detail dimensions might show thickness of materials, diameters, etc. 2(f) Accept any two suitable specific materials. [1  2] Accept any appropriate reason for choice of each material [1  2] 4 Each suitable specific material – 1 mark Generic terms such as wood, metal, plastic not accepted. Appropriate reason for each material – 1 mark Materials must be appropriate for the design shown in (e) 2(g) Accept any suitable manufacturing process. [1  1] 1 Process must be appropriate for design in (e). Award up to 3 marks for description of process. 3 Detailed description for 3 marks Award up to 2 marks for names of tools used. 2 Not just basic tools such as pencil, rule, etc.

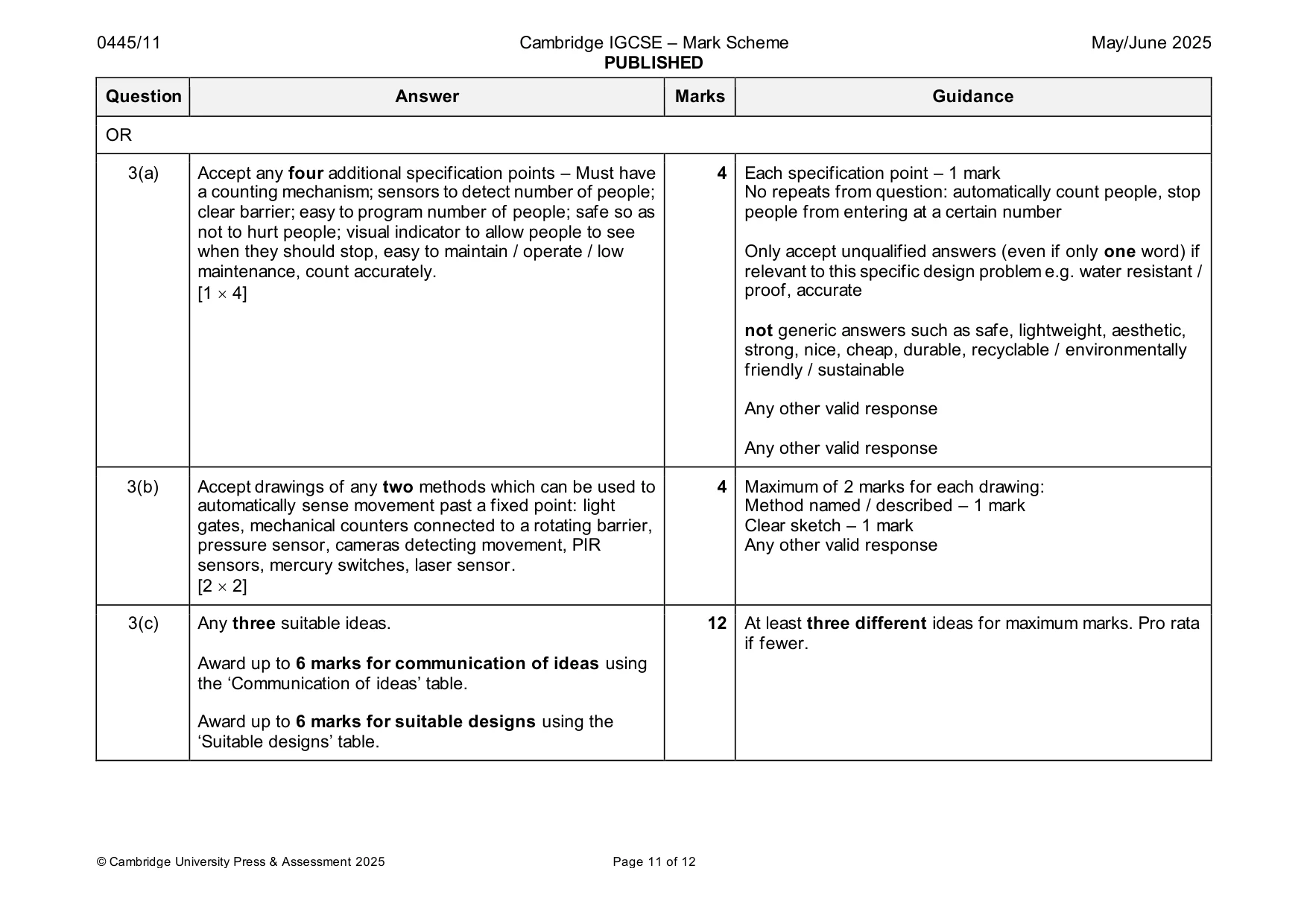

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 11 of 12 Question Answer Marks Guidance OR 3(a) Accept any four additional specification points – Must have a counting mechanism; sensors to detect number of people; clear barrier; easy to program number of people; safe so as not to hurt people; visual indicator to allow people to see when they should stop, easy to maintain / operate / low maintenance, count accurately. [1  4] 4 Each specification point – 1 mark No repeats from question: automatically count people, stop people from entering at a certain number Only accept unqualified answers (even if only one word) if relevant to this specific design problem e.g. water resistant / proof, accurate not generic answers such as safe, lightweight, aesthetic, strong, nice, cheap, durable, recyclable / environmentally friendly / sustainable Any other valid response Any other valid response 3(b) Accept drawings of any two methods which can be used to automatically sense movement past a fixed point: light gates, mechanical counters connected to a rotating barrier, pressure sensor, cameras detecting movement, PIR sensors, mercury switches, laser sensor. [2  2] 4 Maximum of 2 marks for each drawing: Method named / described – 1 mark Clear sketch – 1 mark Any other valid response 3(c) Any three suitable ideas. Award up to 6 marks for communication of ideas using the ‘Communication of ideas’ table. Award up to 6 marks for suitable designs using the ‘Suitable designs’ table. 12 At least three different ideas for maximum marks. Pro rata if fewer.

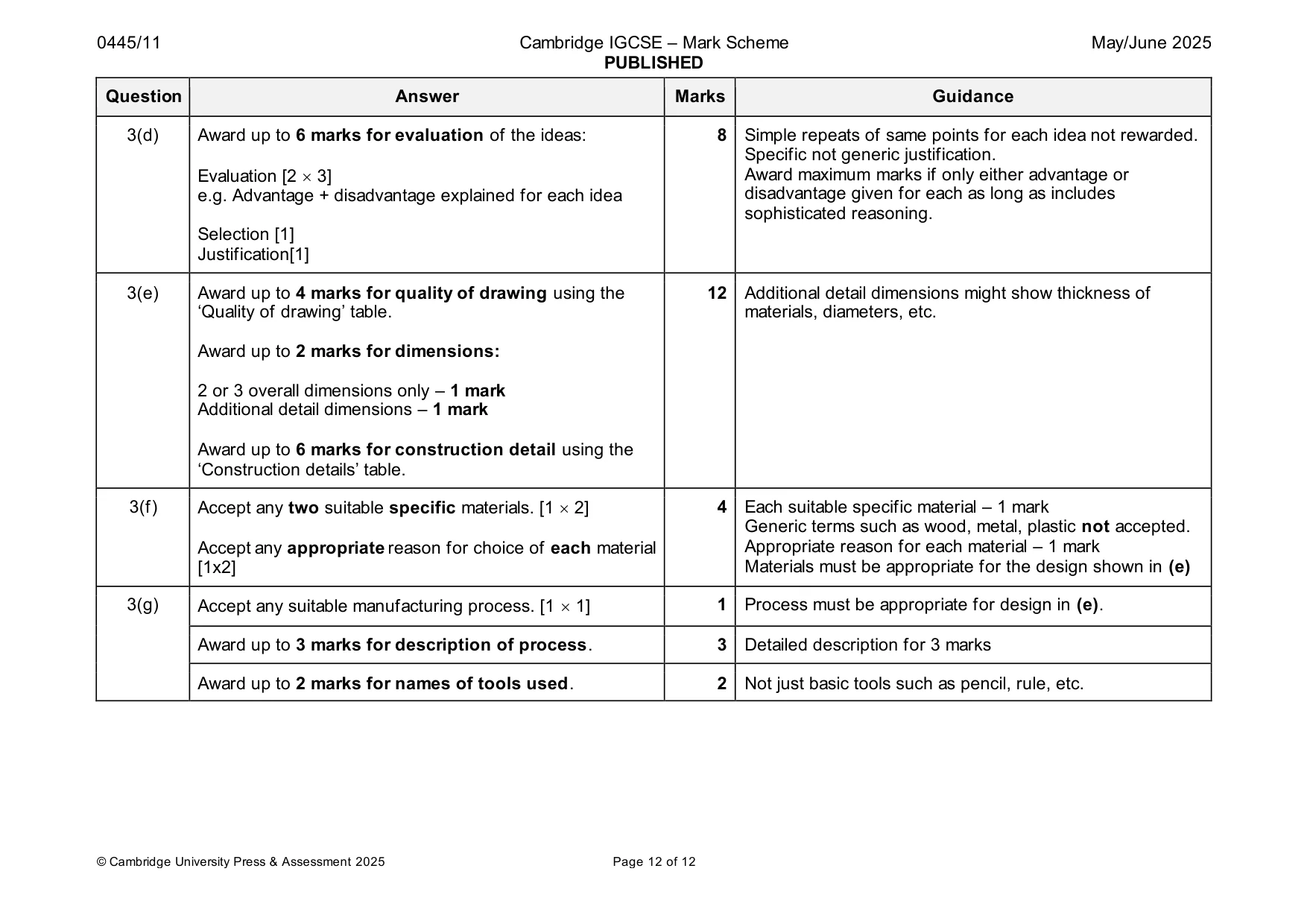

0445/11 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2025 © Cambridge University Press & Assessment 2025 Page 12 of 12 Question Answer Marks Guidance 3(d) Award up to 6 marks for evaluation of the ideas: Evaluation [2  3] e.g. Advantage + disadvantage explained for each idea Selection [1] Justification[1] 8 Simple repeats of same points for each idea not rewarded. Specific not generic justification. Award maximum marks if only either advantage or disadvantage given for each as long as includes sophisticated reasoning. 3(e) Award up to 4 marks for quality of drawing using the ‘Quality of drawing’ table. Award up to 2 marks for dimensions: 2 or 3 overall dimensions only – 1 mark Additional detail dimensions – 1 mark Award up to 6 marks for construction detail using the ‘Construction details’ table. 12 Additional detail dimensions might show thickness of materials, diameters, etc. 3(f) Accept any two suitable specific materials. [1  2] Accept any appropriate reason for choice of each material [1x2] 4 Each suitable specific material – 1 mark Generic terms such as wood, metal, plastic not accepted. Appropriate reason for each material – 1 mark Materials must be appropriate for the design shown in (e) 3(g) Accept any suitable manufacturing process. [1  1] 1 Process must be appropriate for design in (e). Award up to 3 marks for description of process. 3 Detailed description for 3 marks Award up to 2 marks for names of tools used. 2 Not just basic tools such as pencil, rule, etc.
