Cambridge IGCSE Computer Science (9-1) 0984 — 2019 May/June Paper 2 · Variant 1

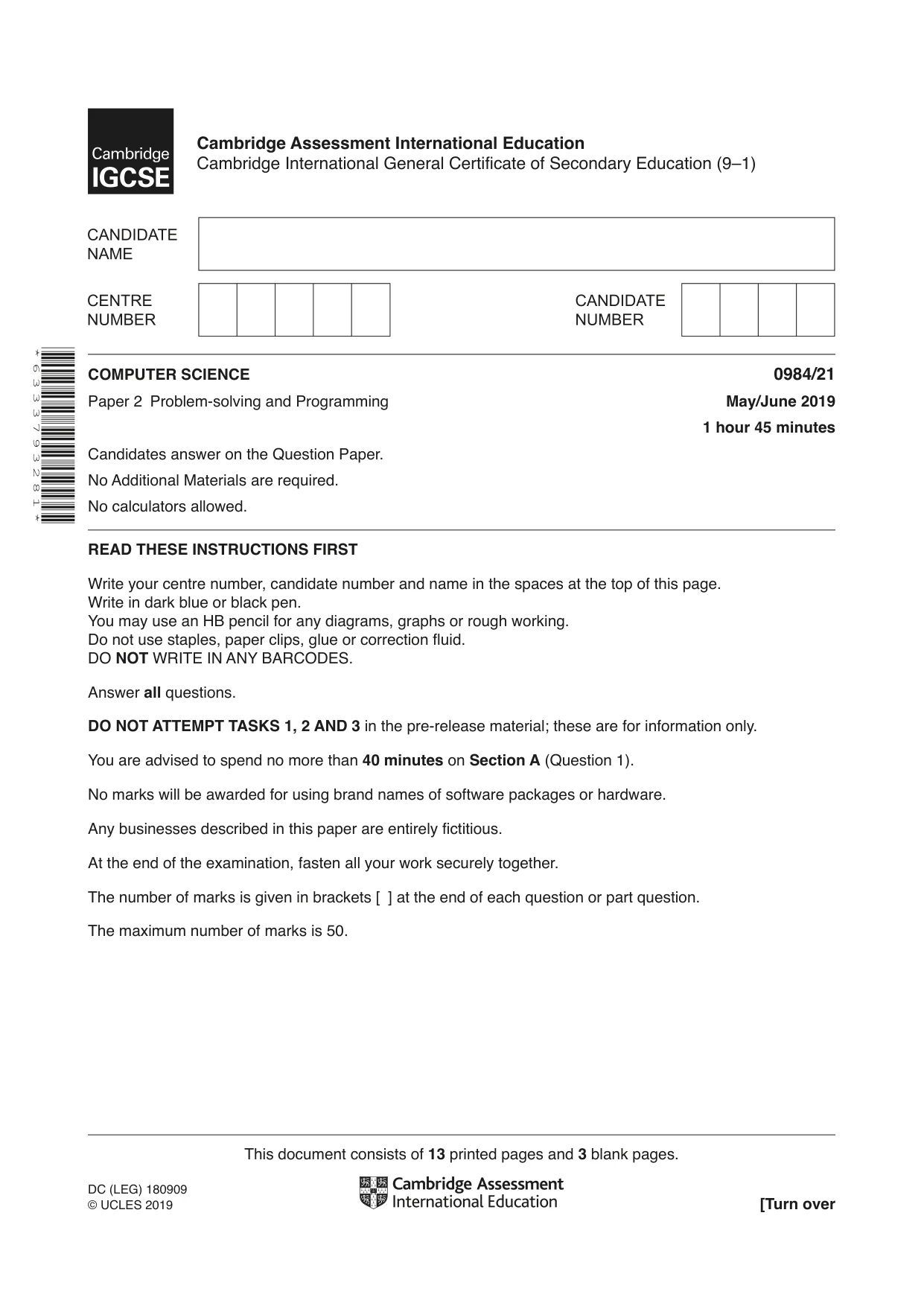

This document consists of 13 printed pages and 3 blank pages. DC (LEG) 180909 © UCLES 2019 [Turn over Cambridge Assessment International Education Cambridge International General Certificate of Secondary Education (9–1) * 6 3 3 3 7 9 3 2 8 1 * COMPUTER SCIENCE 0984/21 Paper 2 Problem-solving and Programming May/June 2019 1 hour 45 minutes Candidates answer on the Question Paper. No Additional Materials are required. No calculators allowed. READ THESE INSTRUCTIONS FIRST Write your centre number, candidate number and name in the spaces at the top of this page. Write in dark blue or black pen. You may use an HB pencil for any diagrams, graphs or rough working. Do not use staples, paper clips, glue or correction fluid. DO NOT WRITE IN ANY BARCODES. Answer all questions. DO NOT ATTEMPT TASKS 1, 2 AND 3 in the pre-release material; these are for information only. You are advised to spend no more than 40 minutes on Section A (Question 1). No marks will be awarded for using brand names of software packages or hardware. Any businesses described in this paper are entirely fictitious. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. The maximum number of marks is 50.

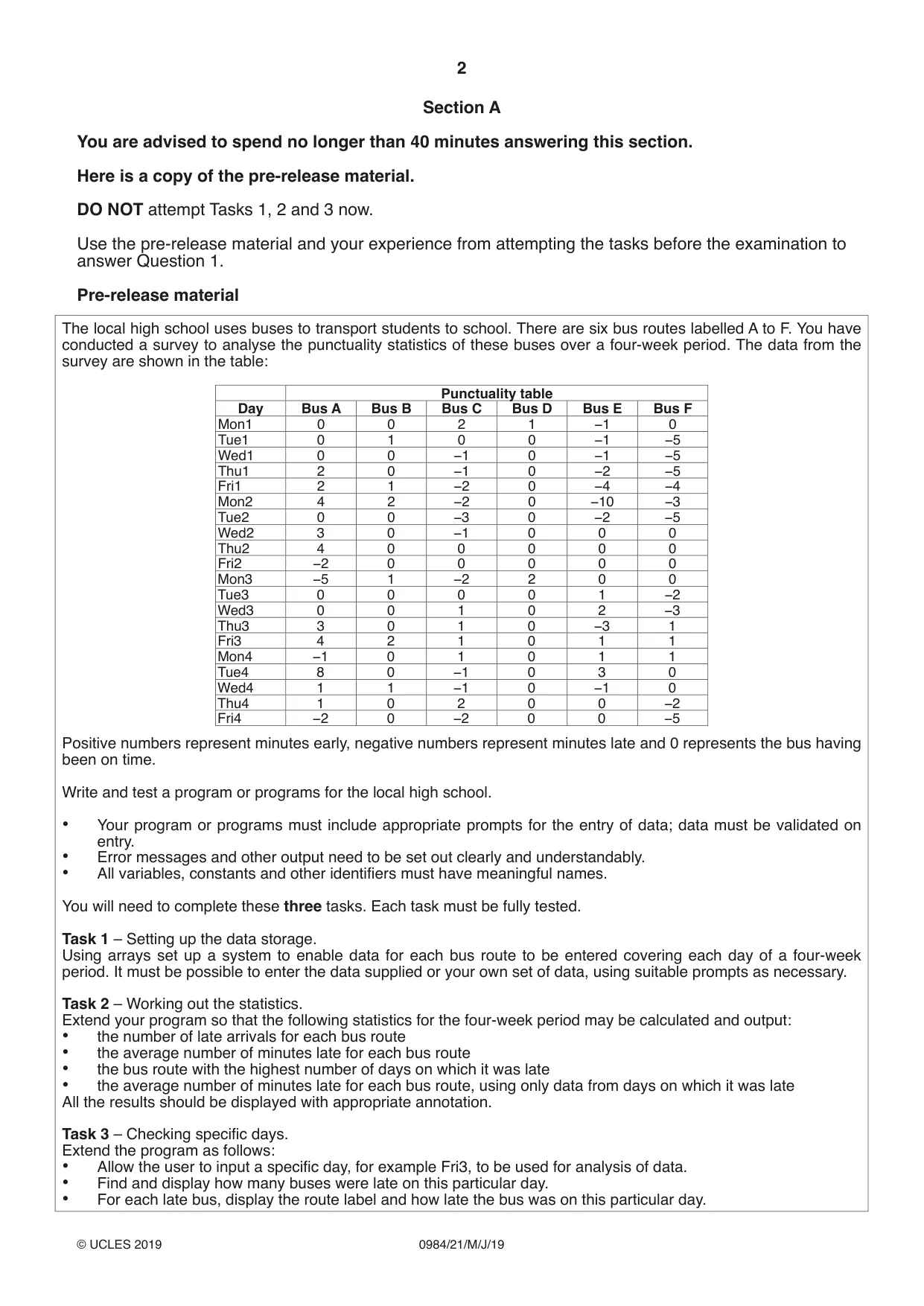

2 0984/21/M/J/19 © UCLES 2019 Section A You are advised to spend no longer than 40 minutes answering this section. Here is a copy of the pre-release material. DO NOT attempt Tasks 1, 2 and 3 now. Use the pre-release material and your experience from attempting the tasks before the examination to answer Question 1. Pre-release material The local high school uses buses to transport students to school. There are six bus routes labelled A to F. You have conducted a survey to analyse the punctuality statistics of these buses over a four-week period. The data from the survey are shown in the table: Punctuality table Day Bus A Bus B Bus C Bus D Bus E Bus F Mon1 0 0 2 1 −1 0 Tue1 0 1 0 0 −1 −5 Wed1 0 0 −1 0 −1 −5 Thu1 2 0 −1 0 −2 −5 Fri1 2 1 −2 0 −4 −4 Mon2 4 2 −2 0 −10 −3 Tue2 0 0 −3 0 −2 −5 Wed2 3 0 −1 0 0 0 Thu2 4 0 0 0 0 0 Fri2 −2 0 0 0 0 0 Mon3 −5 1 −2 2 0 0 Tue3 0 0 0 0 1 −2 Wed3 0 0 1 0 2 −3 Thu3 3 0 1 0 −3 1 Fri3 4 2 1 0 1 1 Mon4 −1 0 1 0 1 1 Tue4 8 0 −1 0 3 0 Wed4 1 1 −1 0 −1 0 Thu4 1 0 2 0 0 −2 Fri4 −2 0 −2 0 0 −5 Positive numbers represent minutes early, negative numbers represent minutes late and 0 represents the bus having been on time. Write and test a program or programs for the local high school. • Your program or programs must include appropriate prompts for the entry of data; data must be validated on entry. • Error messages and other output need to be set out clearly and understandably. • All variables, constants and other identifiers must have meaningful names. You will need to complete these three tasks. Each task must be fully tested. Task 1 – Setting up the data storage. Using arrays set up a system to enable data for each bus route to be entered covering each day of a four-week period. It must be possible to enter the data supplied or your own set of data, using suitable prompts as necessary. Task 2 – Working out the statistics. Extend your program so that the following statistics for the four-week period may be calculated and output: • the number of late arrivals for each bus route • the average number of minutes late for each bus route • the bus route with the highest number of days on which it was late • the average number of minutes late for each bus route, using only data from days on which it was late All the results should be displayed with appropriate annotation. Task 3 – Checking specific days. Extend the program as follows: • Allow the user to input a specific day, for example Fri3, to be used for analysis of data. • Find and display how many buses were late on this particular day. • For each late bus, display the route label and how late the bus was on this particular day.

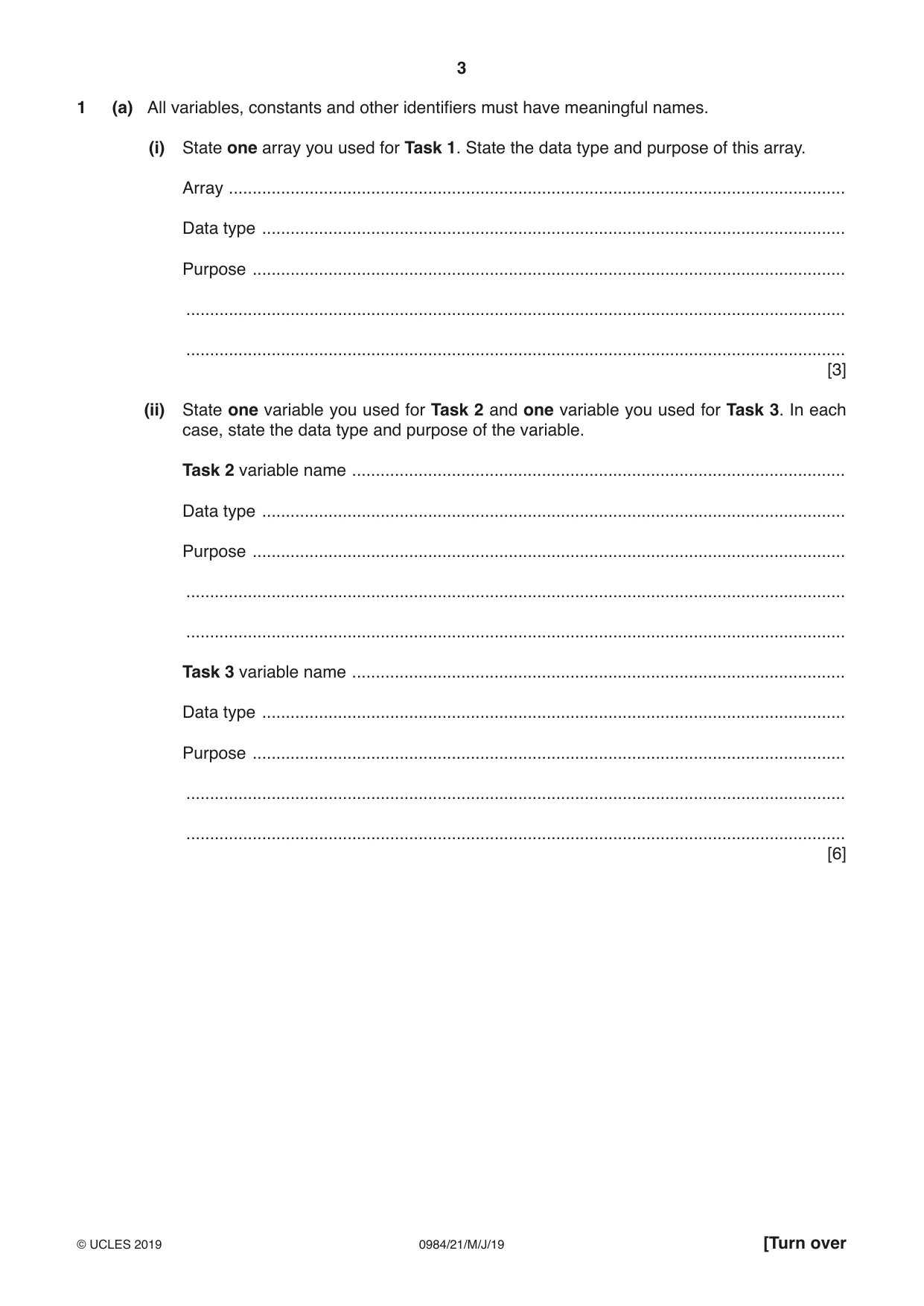

3 0984/21/M/J/19 © UCLES 2019 [Turn over 1 (a) All variables, constants and other identifiers must have meaningful names. (i) State one array you used for Task 1. State the data type and purpose of this array. Array … Data type … Purpose … … … [3] (ii) State one variable you used for Task 2 and one variable you used for Task 3. In each case, state the data type and purpose of the variable. Task 2 variable name … Data type … Purpose … … … Task 3 variable name … Data type … Purpose … … … [6]

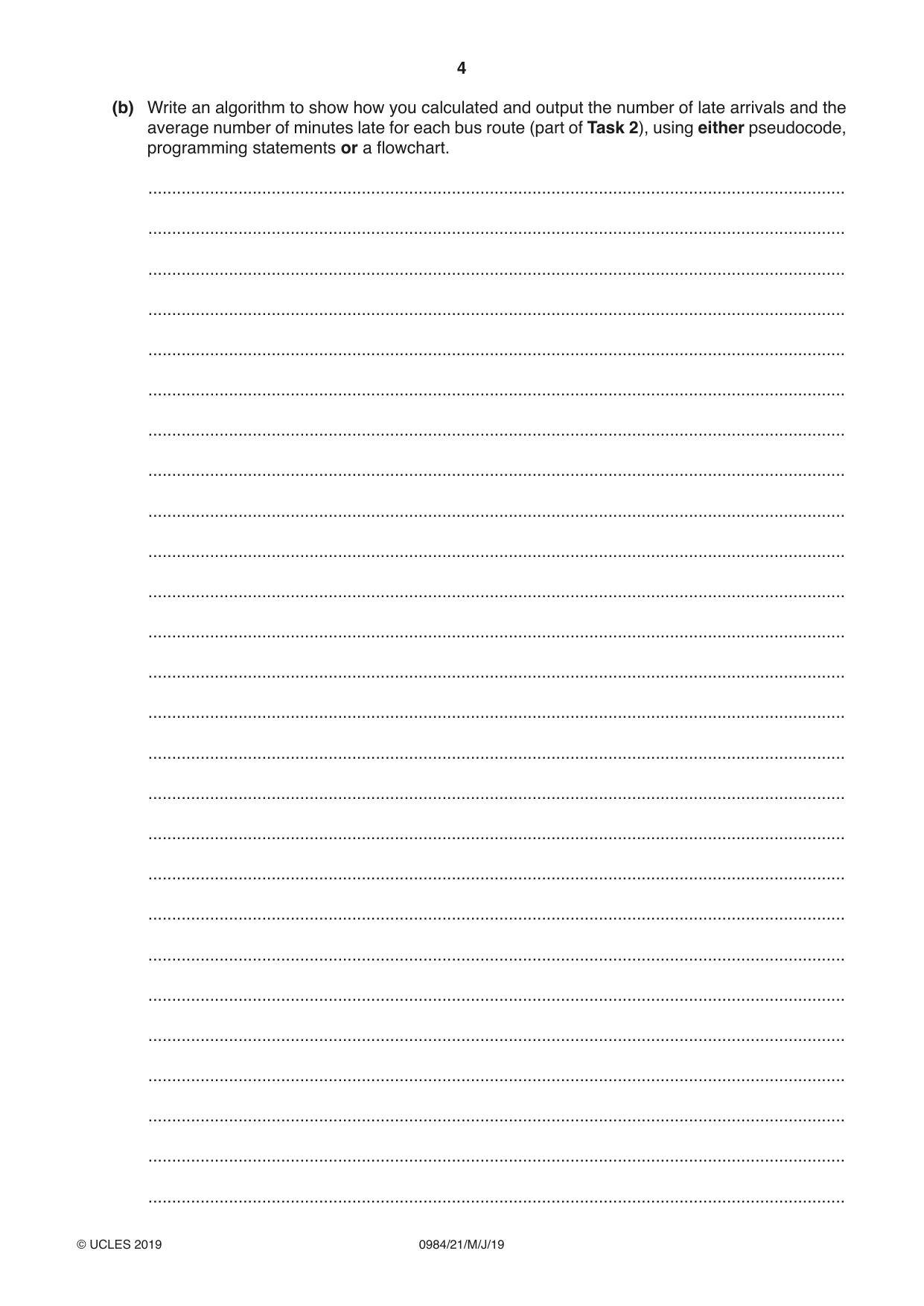

4 0984/21/M/J/19 © UCLES 2019 (b) Write an algorithm to show how you calculated and output the number of late arrivals and the average number of minutes late for each bus route (part of Task 2), using either pseudocode, programming statements or a flowchart. … … … … … … … … … … … … … … … … … … … … … … … … … …

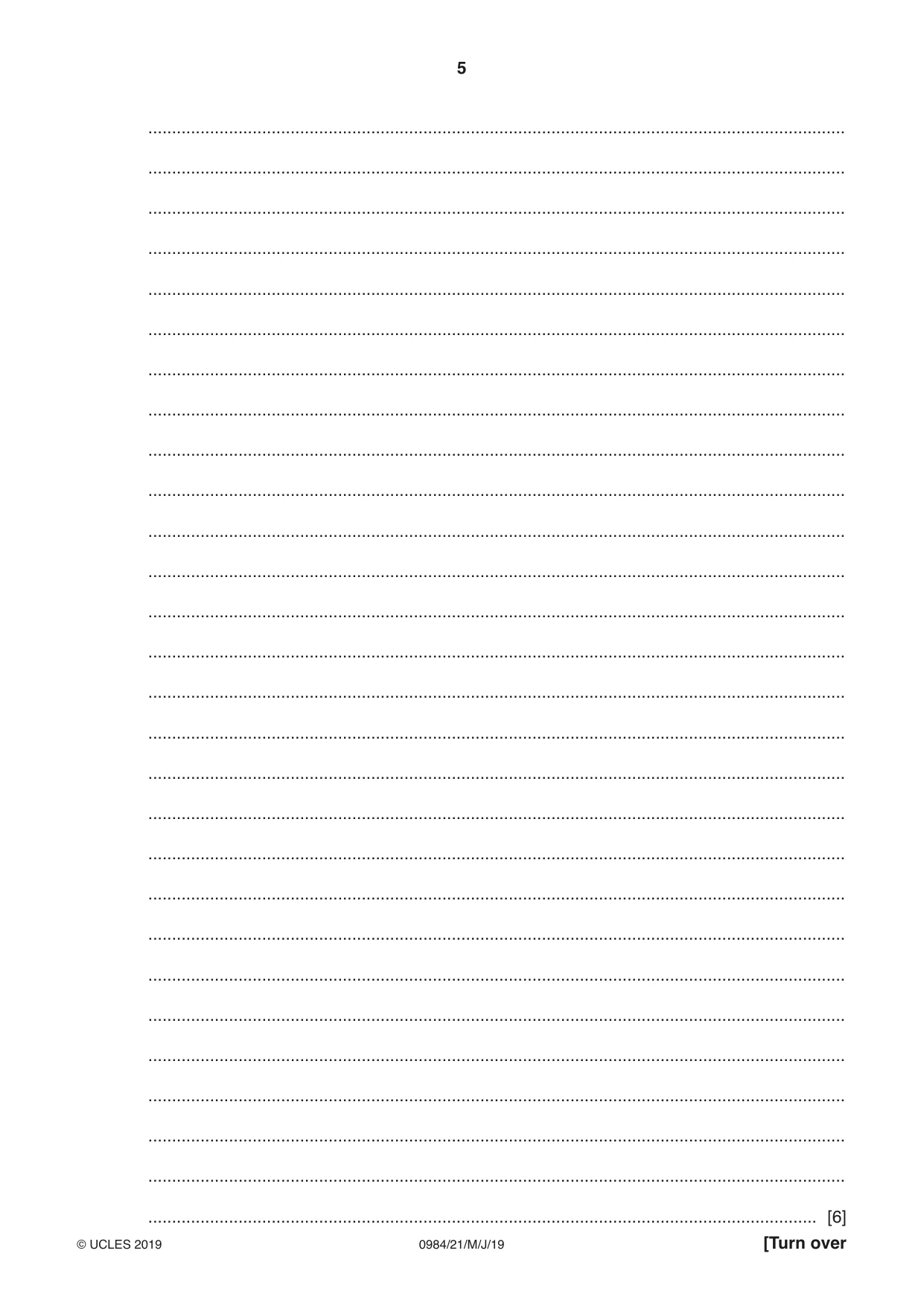

5 0984/21/M/J/19 © UCLES 2019 [Turn over … … … … … … … … … … … … … … … … … … … … … … … … … … … … [6]

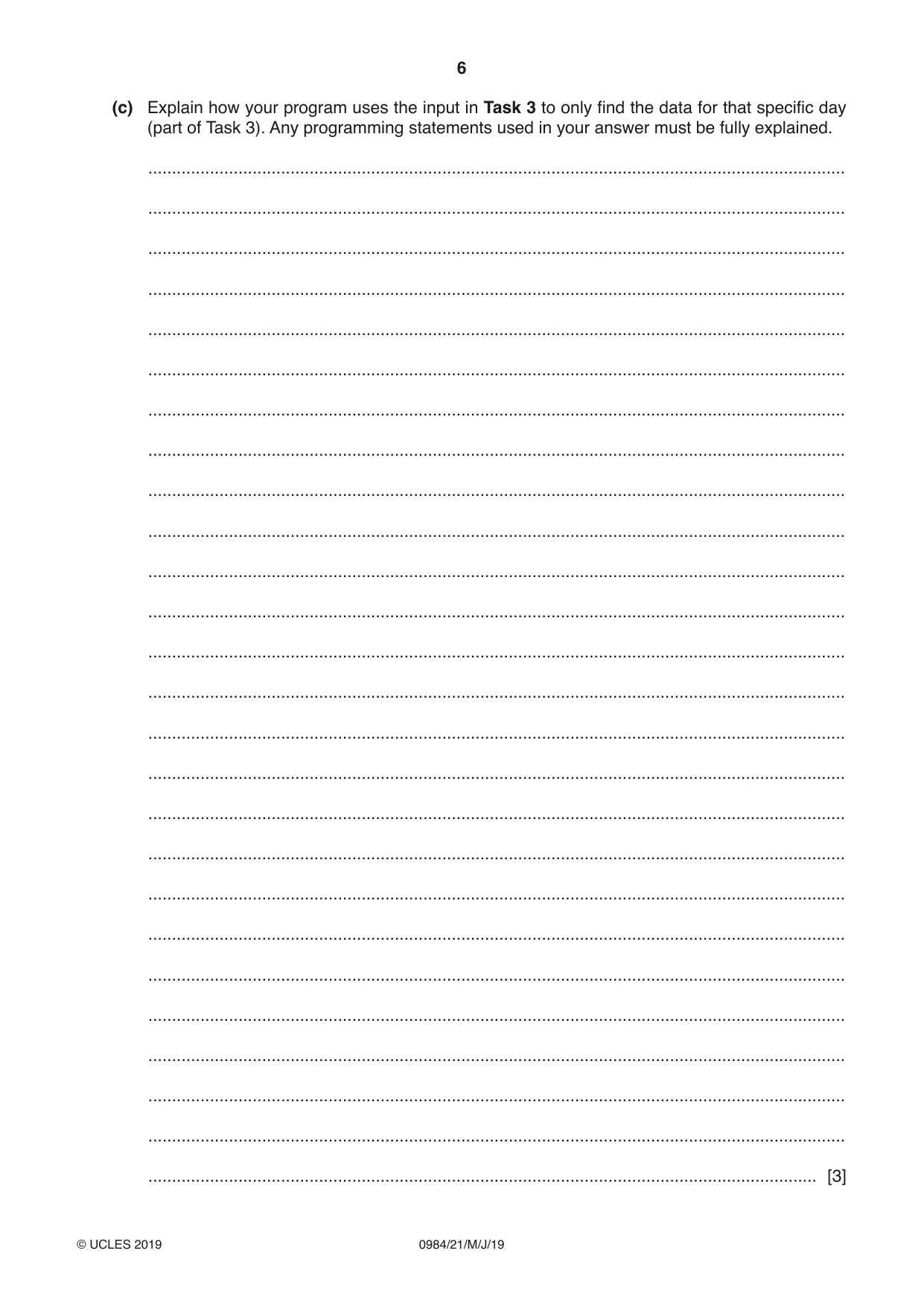

6 0984/21/M/J/19 © UCLES 2019 (c) Explain how your program uses the input in Task 3 to only find the data for that specific day (part of Task 3). Any programming statements used in your answer must be fully explained. … … … … … … … … … … … … … … … … … … … … … … … … … … [3]

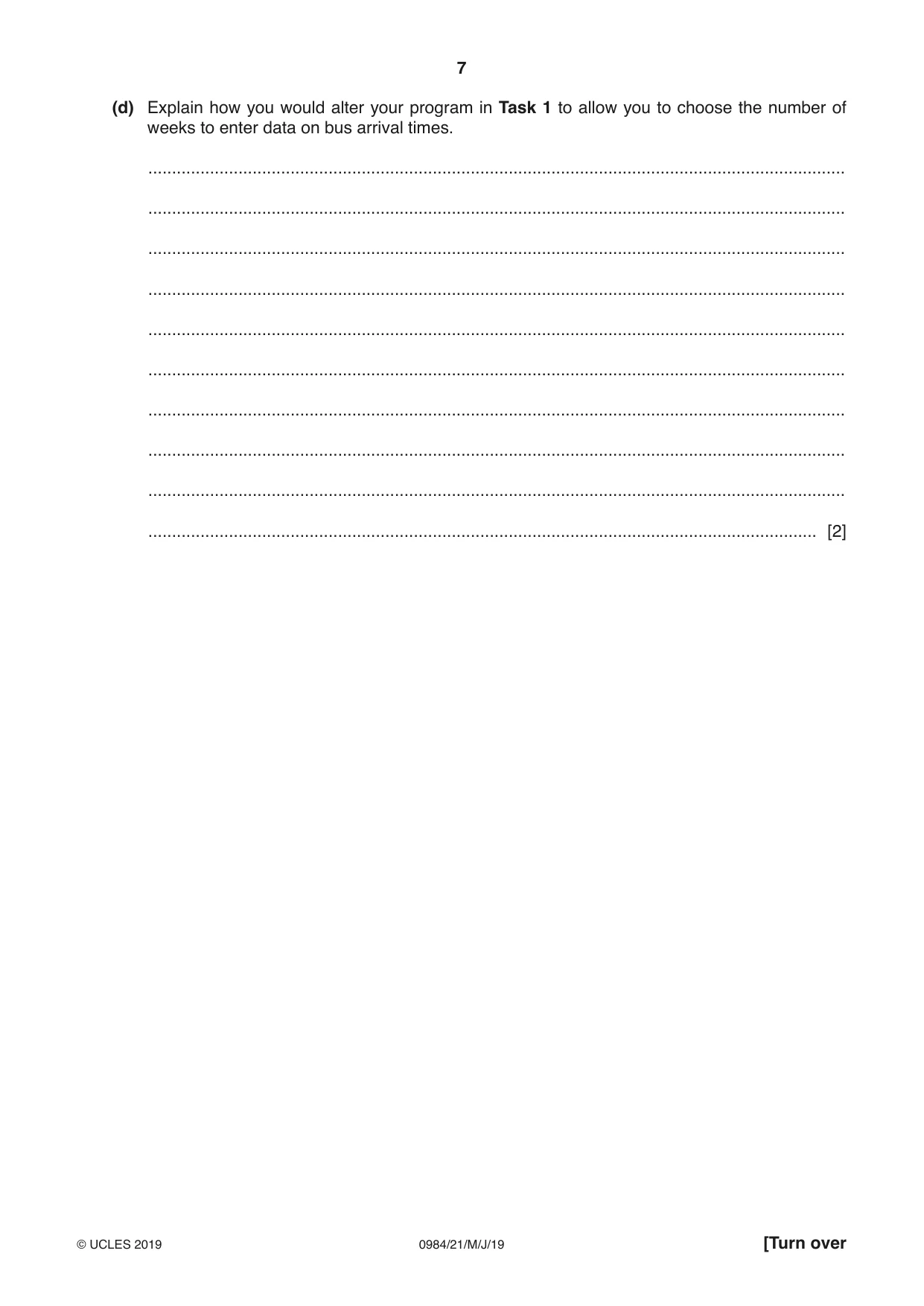

7 0984/21/M/J/19 © UCLES 2019 [Turn over (d) Explain how you would alter your program in Task 1 to allow you to choose the number of weeks to enter data on bus arrival times. … … … … … … … … … … [2]

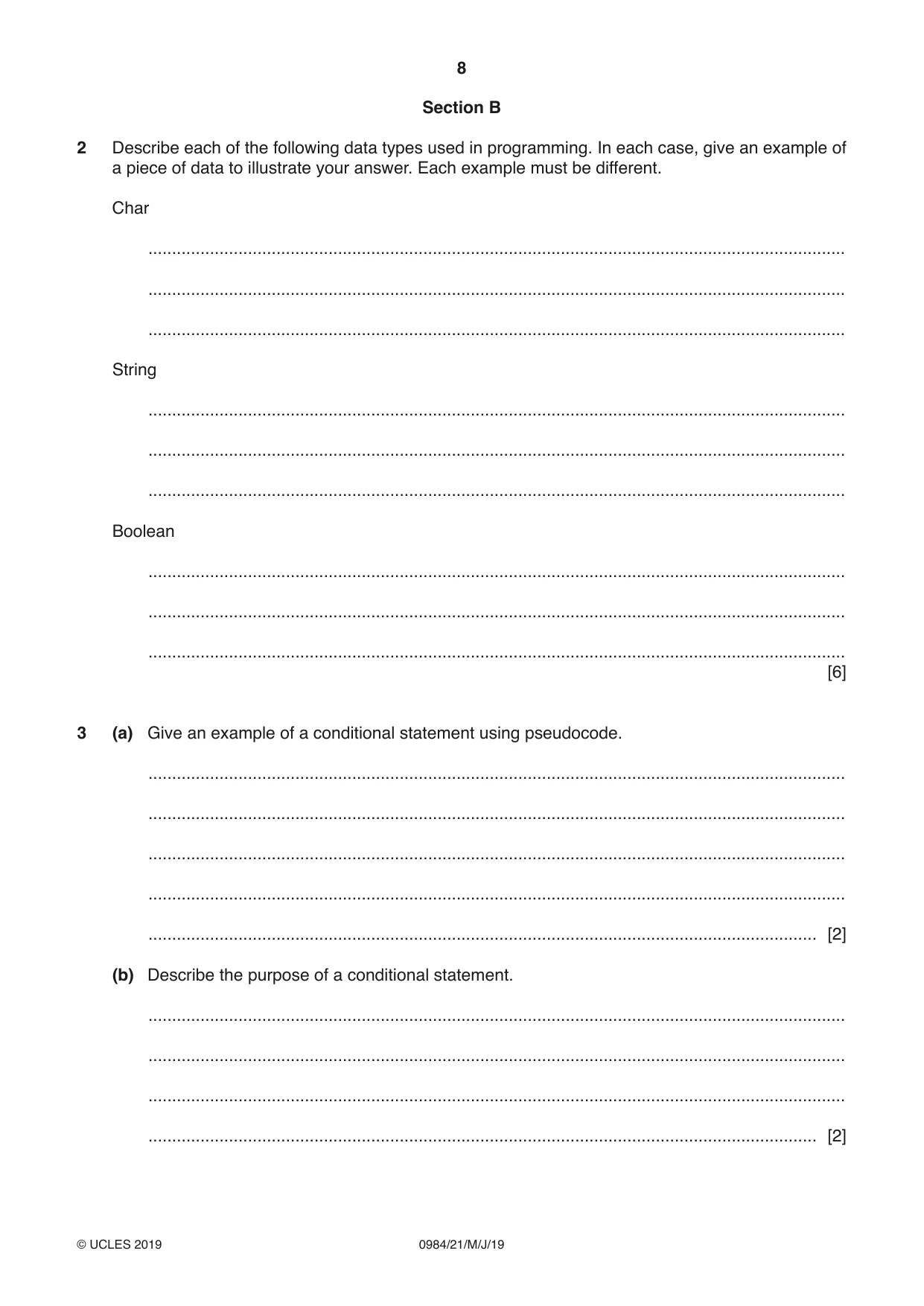

8 0984/21/M/J/19 © UCLES 2019 Section B 2 Describe each of the following data types used in programming. In each case, give an example of a piece of data to illustrate your answer. Each example must be different. Char … … … String … … … Boolean … … … [6] 3 (a) Give an example of a conditional statement using pseudocode. … … … … … [2] (b) Describe the purpose of a conditional statement. … … … … [2]

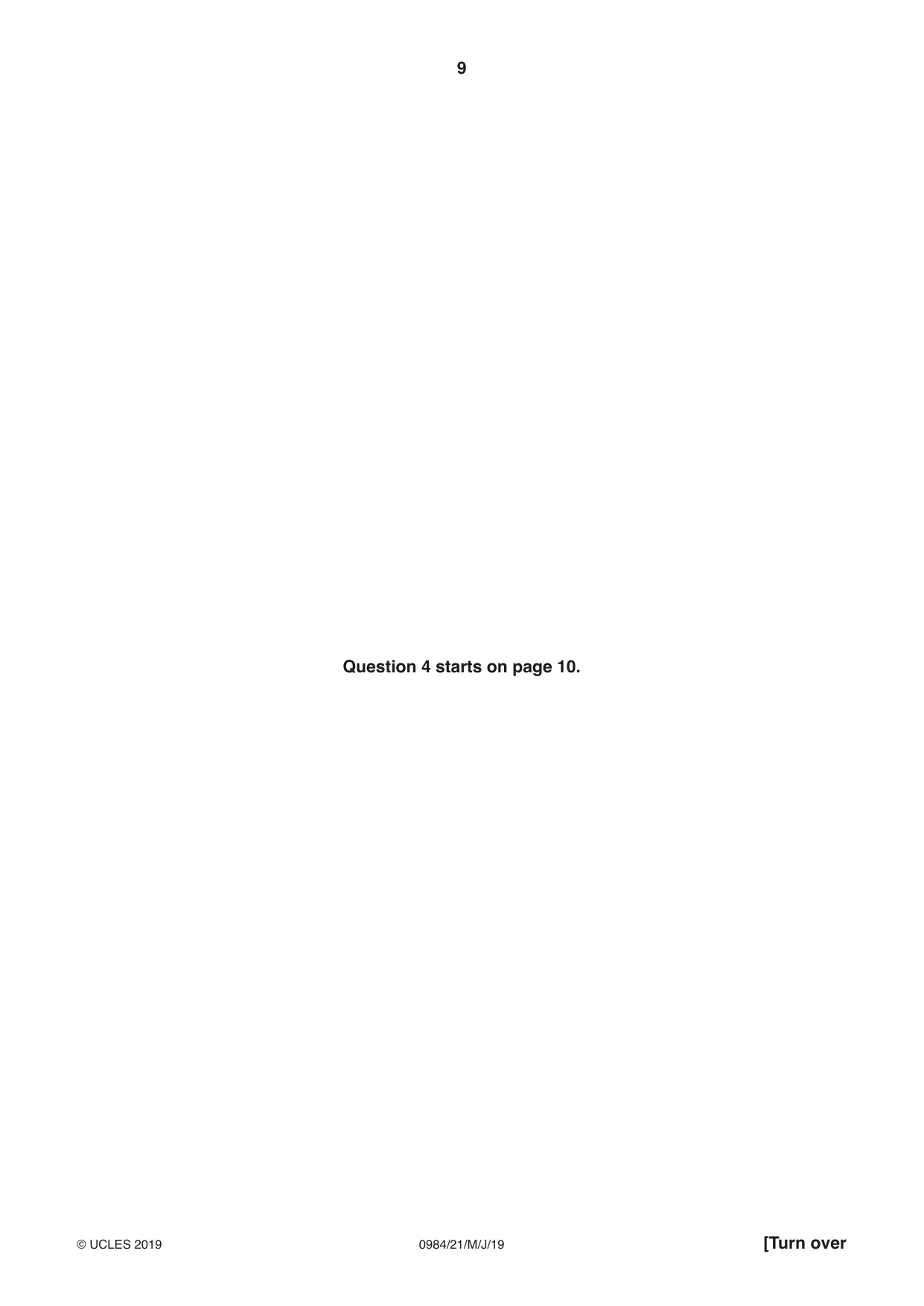

9 0984/21/M/J/19 © UCLES 2019 [Turn over Question 4 starts on page 10.

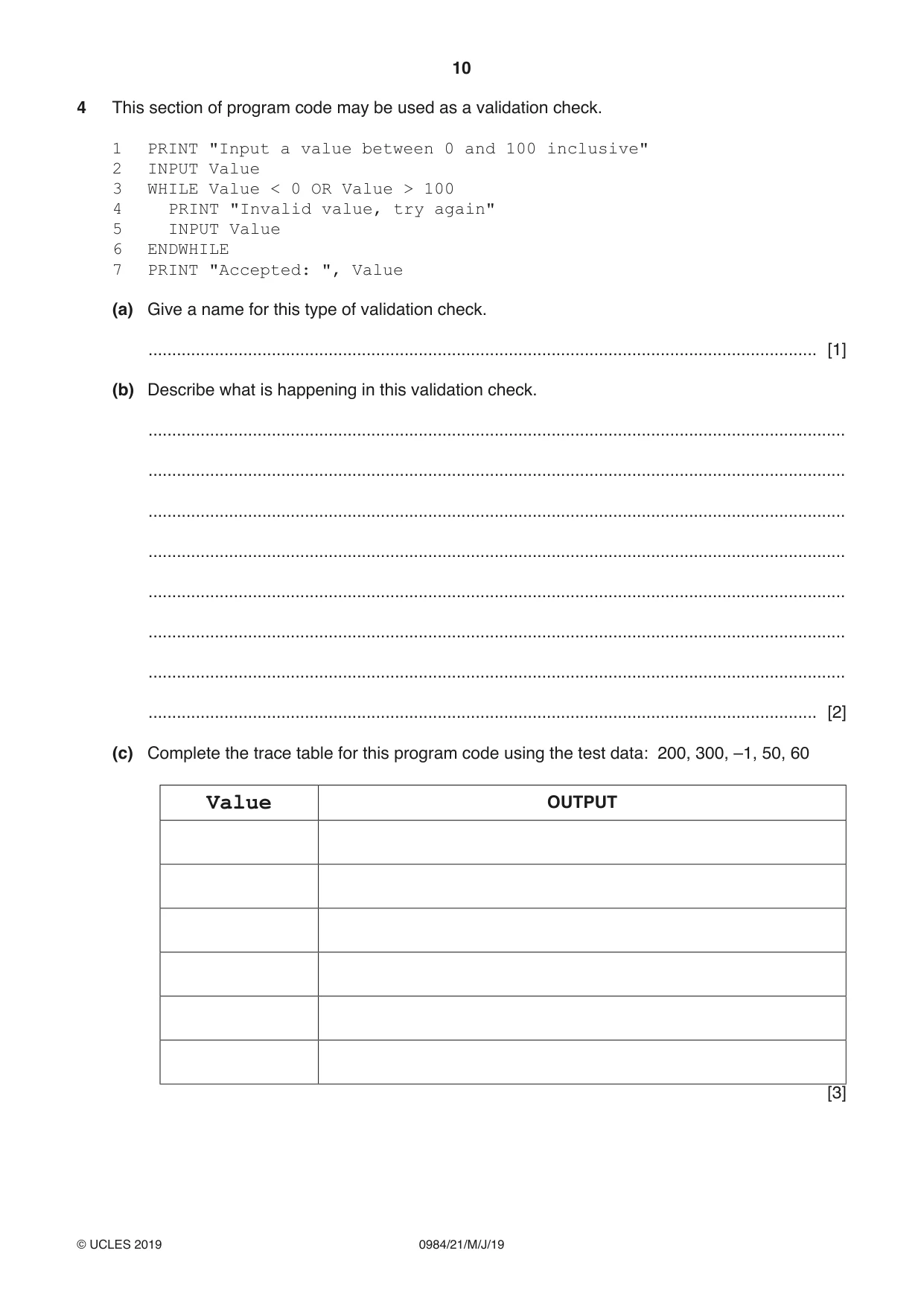

10 0984/21/M/J/19 © UCLES 2019 4 This section of program code may be used as a validation check. 1 PRINT "Input a value between 0 and 100 inclusive" 2 INPUT Value 3 WHILE Value < 0 OR Value > 100 4 PRINT "Invalid value, try again" 5 INPUT Value 6 ENDWHILE 7 PRINT "Accepted: ", Value (a) Give a name for this type of validation check. … [1] (b) Describe what is happening in this validation check. … … … … … … … … [2] (c) Complete the trace table for this program code using the test data: 200, 300, –1, 50, 60 Value OUTPUT [3]

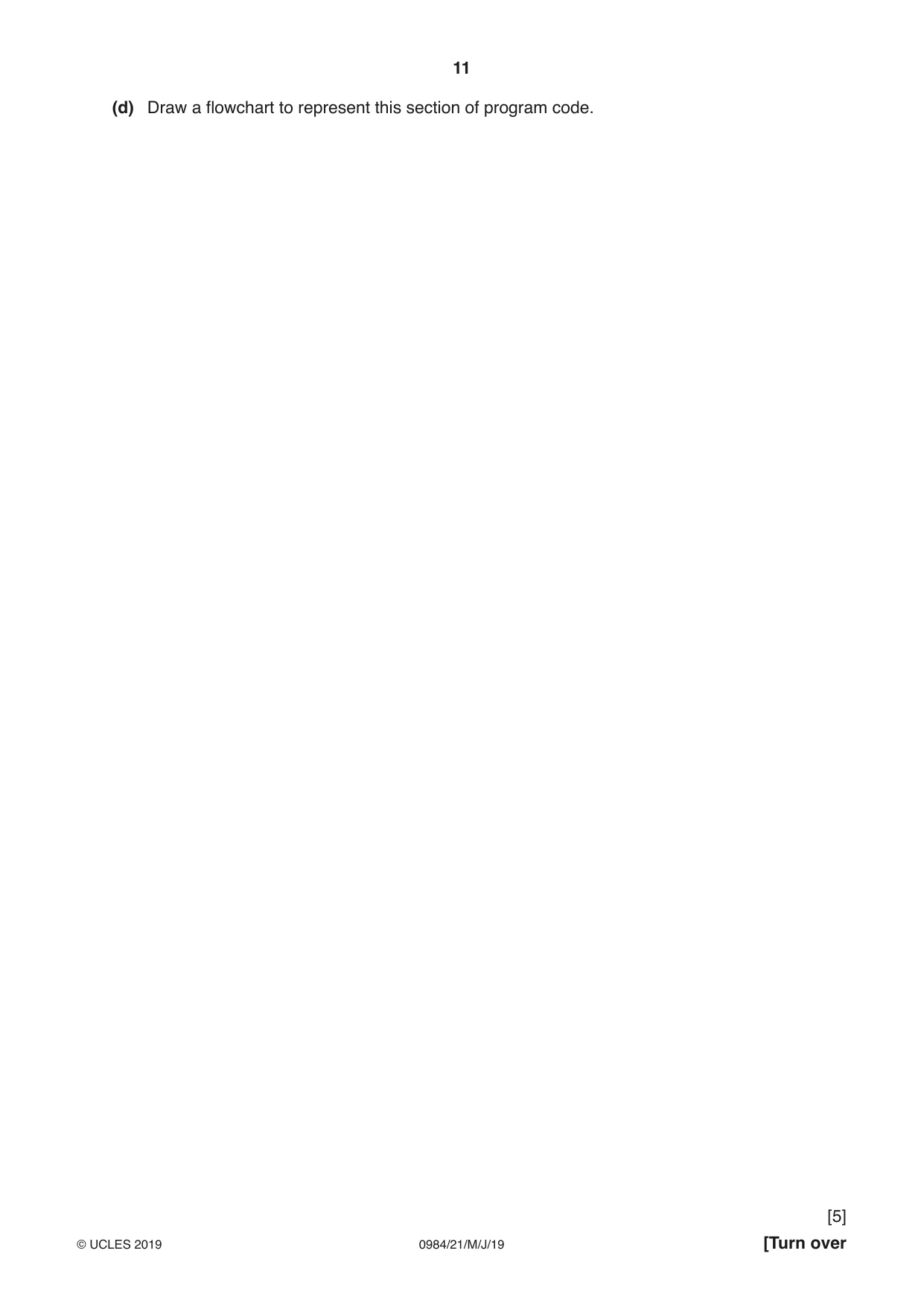

11 0984/21/M/J/19 © UCLES 2019 [Turn over (d) Draw a flowchart to represent this section of program code. [5]

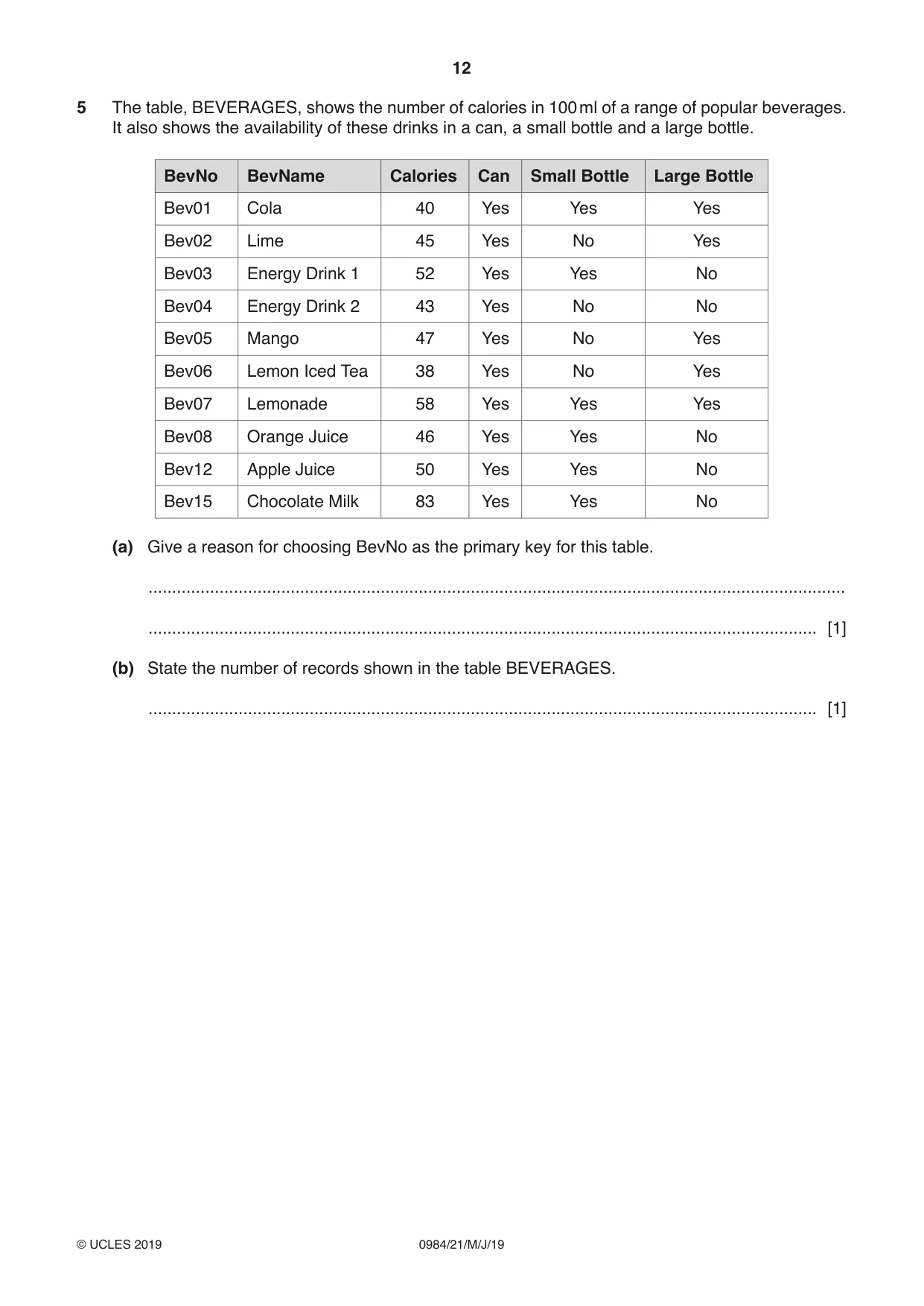

12 0984/21/M/J/19 © UCLES 2019 5 The table, BEVERAGES, shows the number of calories in 100 ml of a range of popular beverages. It also shows the availability of these drinks in a can, a small bottle and a large bottle. BevNo BevName Calories Can Small Bottle Large Bottle Bev01 Cola 40 Yes Yes Yes Bev02 Lime 45 Yes No Yes Bev03 Energy Drink 1 52 Yes Yes No Bev04 Energy Drink 2 43 Yes No No Bev05 Mango 47 Yes No Yes Bev06 Lemon Iced Tea 38 Yes No Yes Bev07 Lemonade 58 Yes Yes Yes Bev08 Orange Juice 46 Yes Yes No Bev12 Apple Juice 50 Yes Yes No Bev15 Chocolate Milk 83 Yes Yes No (a) Give a reason for choosing BevNo as the primary key for this table. … … [1] (b) State the number of records shown in the table BEVERAGES. … [1]

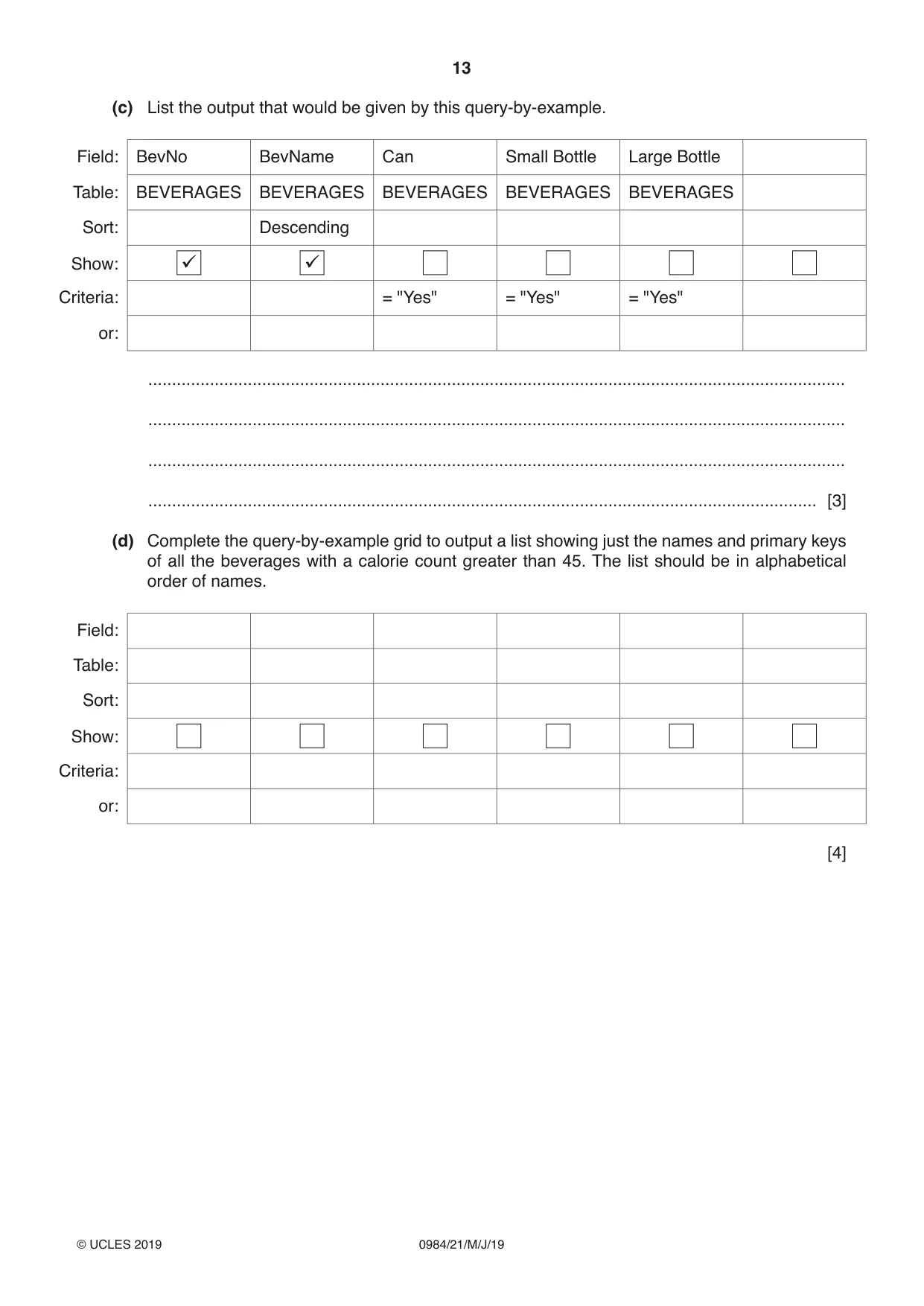

13 0984/21/M/J/19 © UCLES 2019 (c) List the output that would be given by this query-by-example. Field: BevNo BevName Can Small Bottle Large Bottle Table: BEVERAGES BEVERAGES BEVERAGES BEVERAGES BEVERAGES Sort: Descending Show: ü ü Criteria: = "Yes" = "Yes" = "Yes" or: … … … … [3] (d) Complete the query-by-example grid to output a list showing just the names and primary keys of all the beverages with a calorie count greater than 45. The list should be in alphabetical order of names. Field: Table: Sort: Show: Criteria: or: [4]

14 0984/21/M/J/19 © UCLES 2019 BLANK PAGE

15 0984/21/M/J/19 © UCLES 2019 BLANK PAGE

16 0984/21/M/J/19 © UCLES 2019 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. BLANK PAGE

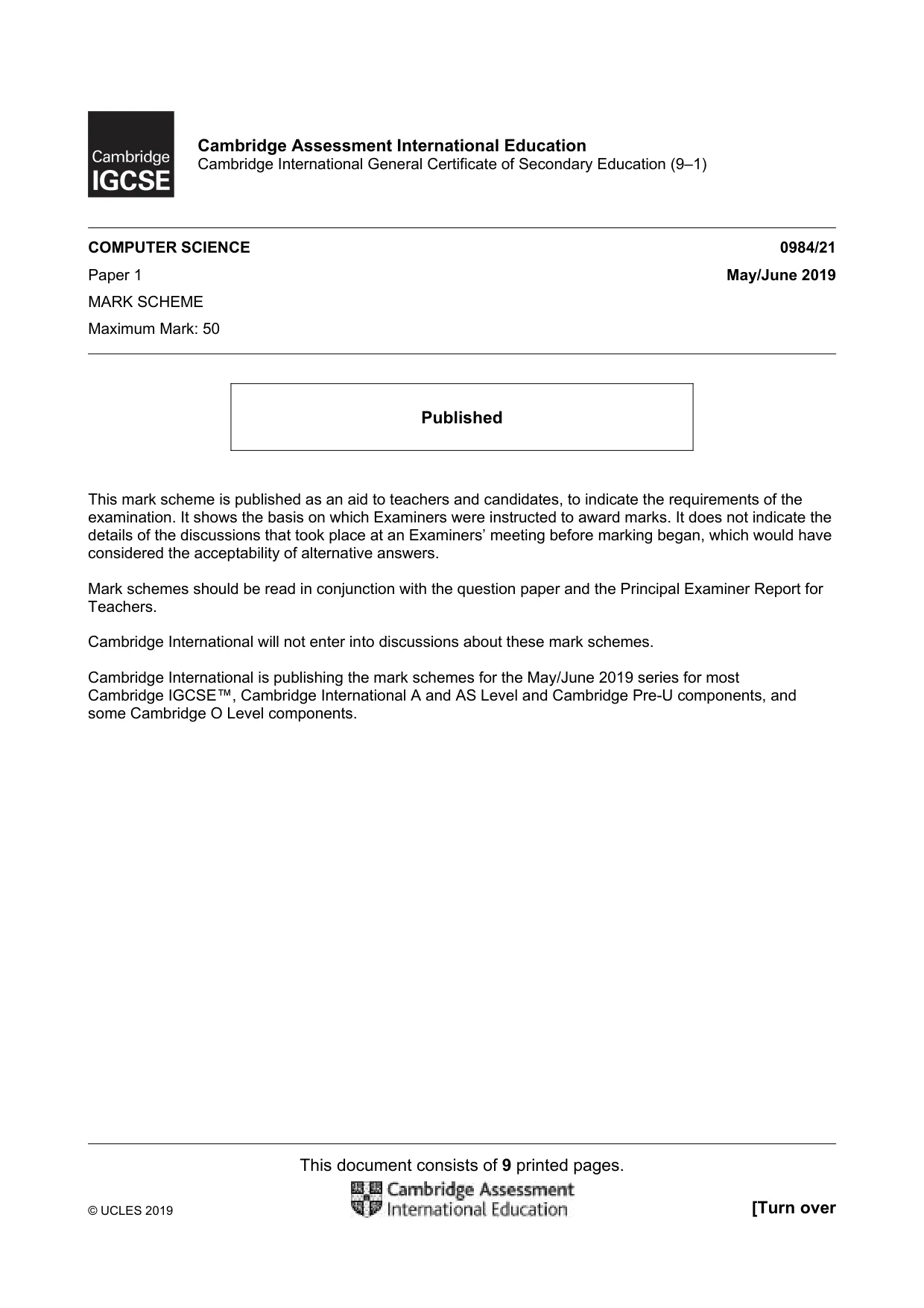

This document consists of 9 printed pages. © UCLES 2019 [Turn over Cambridge Assessment International Education Cambridge International General Certificate of Secondary Education (9–1) COMPUTER SCIENCE 0984/21 Paper 1 May/June 2019 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2019 series for most Cambridge IGCSE™, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 2 of 9 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

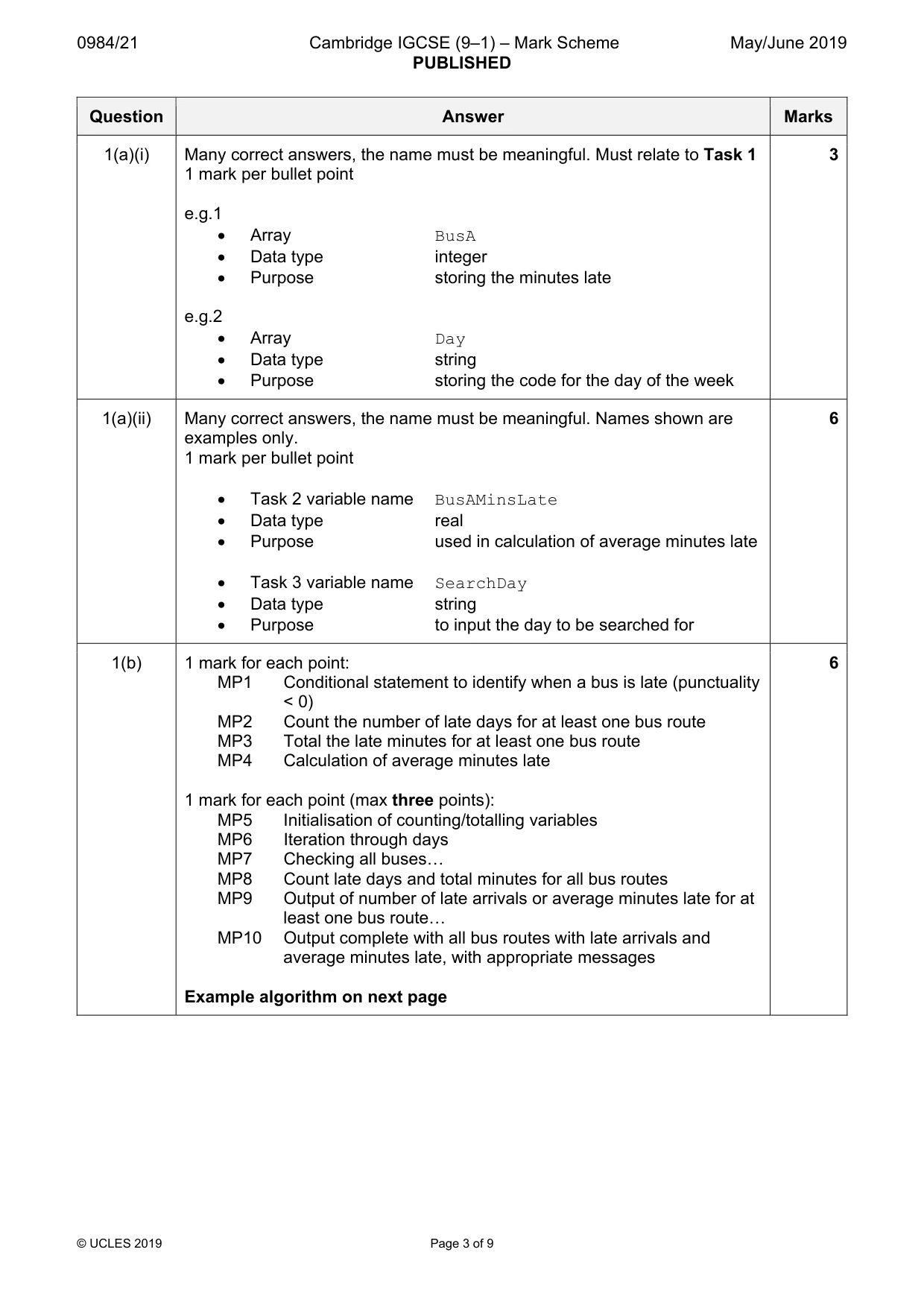

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 3 of 9 Question Answer Marks 1(a)(i) Many correct answers, the name must be meaningful. Must relate to Task 1 1 mark per bullet point e.g.1 • Array BusA • Data type integer • Purpose storing the minutes late e.g.2 • Array Day • Data type string • Purpose storing the code for the day of the week 3 1(a)(ii) Many correct answers, the name must be meaningful. Names shown are examples only. 1 mark per bullet point • Task 2 variable name BusAMinsLate • Data type real • Purpose used in calculation of average minutes late • Task 3 variable name SearchDay • Data type string • Purpose to input the day to be searched for 6 1(b) 1 mark for each point: MP1 Conditional statement to identify when a bus is late (punctuality < 0) MP2 Count the number of late days for at least one bus route MP3 Total the late minutes for at least one bus route MP4 Calculation of average minutes late 1 mark for each point (max three points): MP5 Initialisation of counting/totalling variables MP6 Iteration through days MP7 Checking all buses« MP8 Count late days and total minutes for all bus routes MP9 Output of number of late arrivals or average minutes late for at least one bus route« MP10 Output complete with all bus routes with late arrivals and average minutes late, with appropriate messages Example algorithm on next page 6

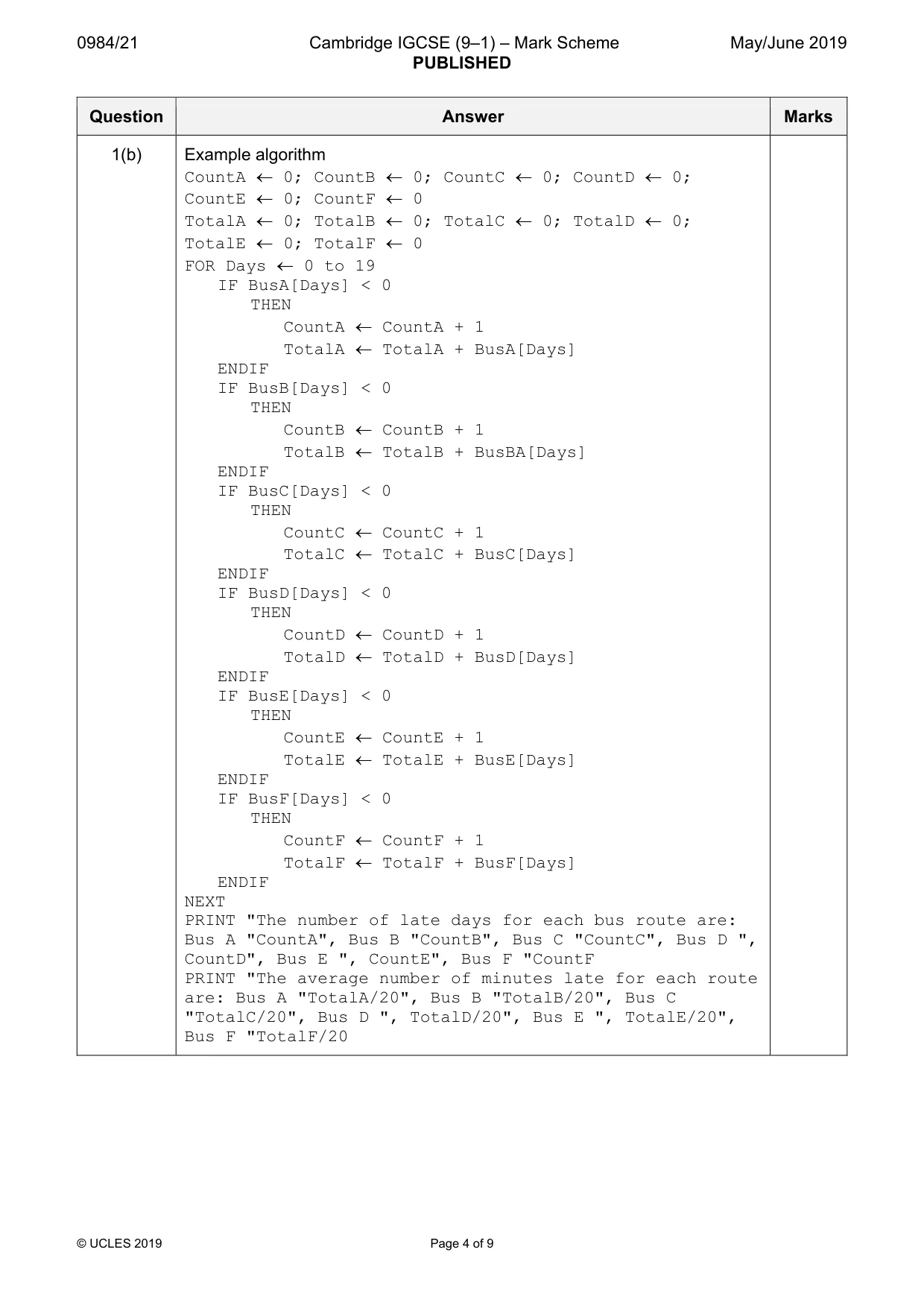

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 4 of 9 Question Answer Marks 1(b) Example algorithm CountA ← 0; CountB ← 0; CountC ← 0; CountD ← 0; CountE ← 0; CountF ← 0 TotalA ← 0; TotalB ← 0; TotalC ← 0; TotalD ← 0; TotalE ← 0; TotalF ← 0 FOR Days ← 0 to 19 IF BusA[Days] < 0 THEN CountA ← CountA + 1 TotalA ← TotalA + BusA[Days] ENDIF IF BusB[Days] < 0 THEN CountB ← CountB + 1 TotalB ← TotalB + BusBA[Days] ENDIF IF BusC[Days] < 0 THEN CountC ← CountC + 1 TotalC ← TotalC + BusC[Days] ENDIF IF BusD[Days] < 0 THEN CountD ← CountD + 1 TotalD ← TotalD + BusD[Days] ENDIF IF BusE[Days] < 0 THEN CountE ← CountE + 1 TotalE ← TotalE + BusE[Days] ENDIF IF BusF[Days] < 0 THEN CountF ← CountF + 1 TotalF ← TotalF + BusF[Days] ENDIF NEXT PRINT "The number of late days for each bus route are: Bus A "CountA", Bus B "CountB", Bus C "CountC", Bus D ", CountD", Bus E ", CountE", Bus F "CountF PRINT "The average number of minutes late for each route are: Bus A "TotalA/20", Bus B "TotalB/20", Bus C "TotalC/20", Bus D ", TotalD/20", Bus E ", TotalE/20", Bus F "TotalF/20

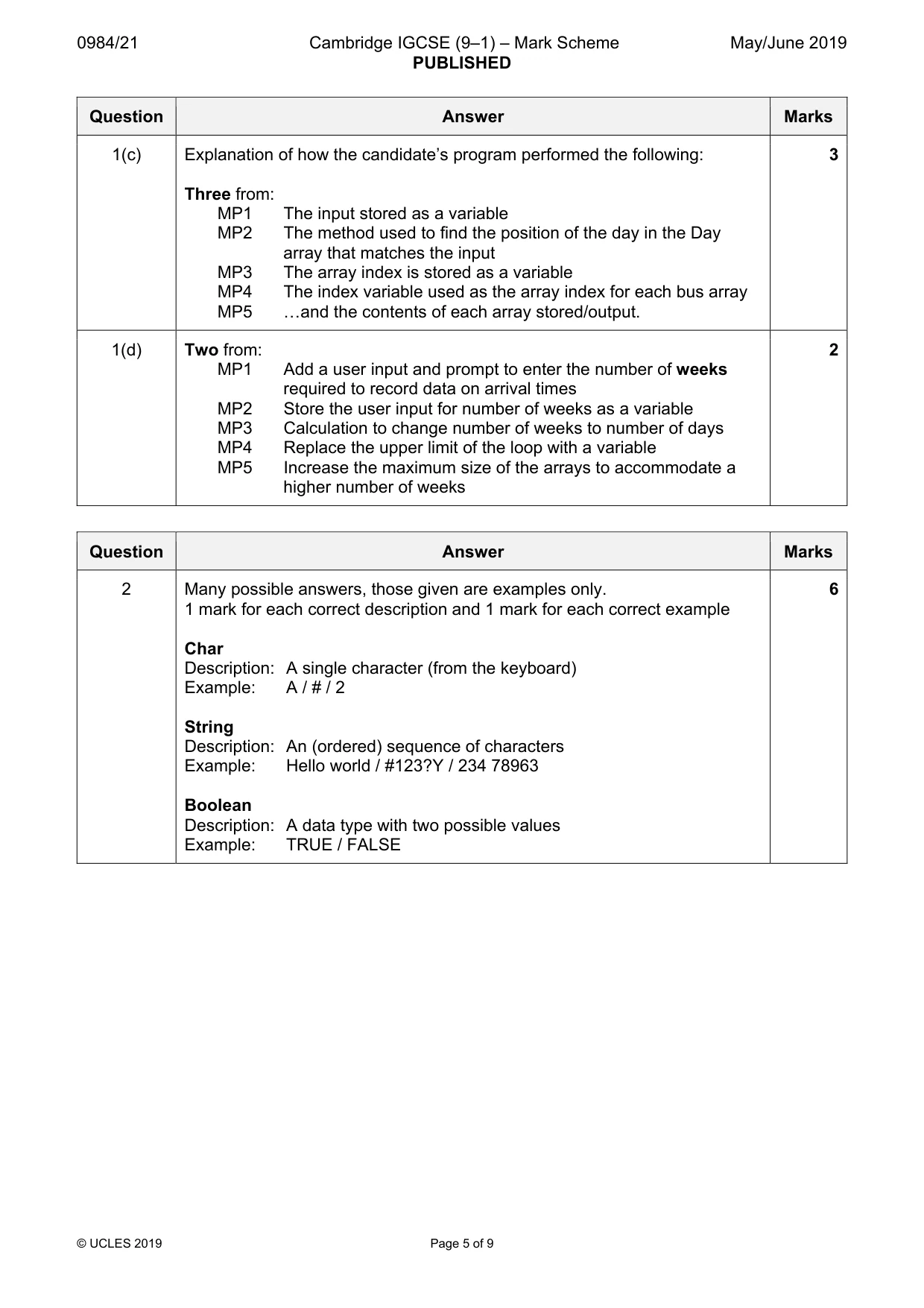

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 5 of 9 Question Answer Marks 1(c) Explanation of how the candidate’s program performed the following: Three from: MP1 The input stored as a variable MP2 The method used to find the position of the day in the Day array that matches the input MP3 The array index is stored as a variable MP4 The index variable used as the array index for each bus array MP5 «and the contents of each array stored/output. 3 1(d) Two from: MP1 Add a user input and prompt to enter the number of weeks required to record data on arrival times MP2 Store the user input for number of weeks as a variable MP3 Calculation to change number of weeks to number of days MP4 Replace the upper limit of the loop with a variable MP5 Increase the maximum size of the arrays to accommodate a higher number of weeks 2 Question Answer Marks 2 Many possible answers, those given are examples only. 1 mark for each correct description and 1 mark for each correct example Char Description: A single character (from the keyboard) Example: A / # / 2 String Description: An (ordered) sequence of characters Example: Hello world / #123?Y / 234 78963 Boolean Description: A data type with two possible values Example: TRUE / FALSE 6

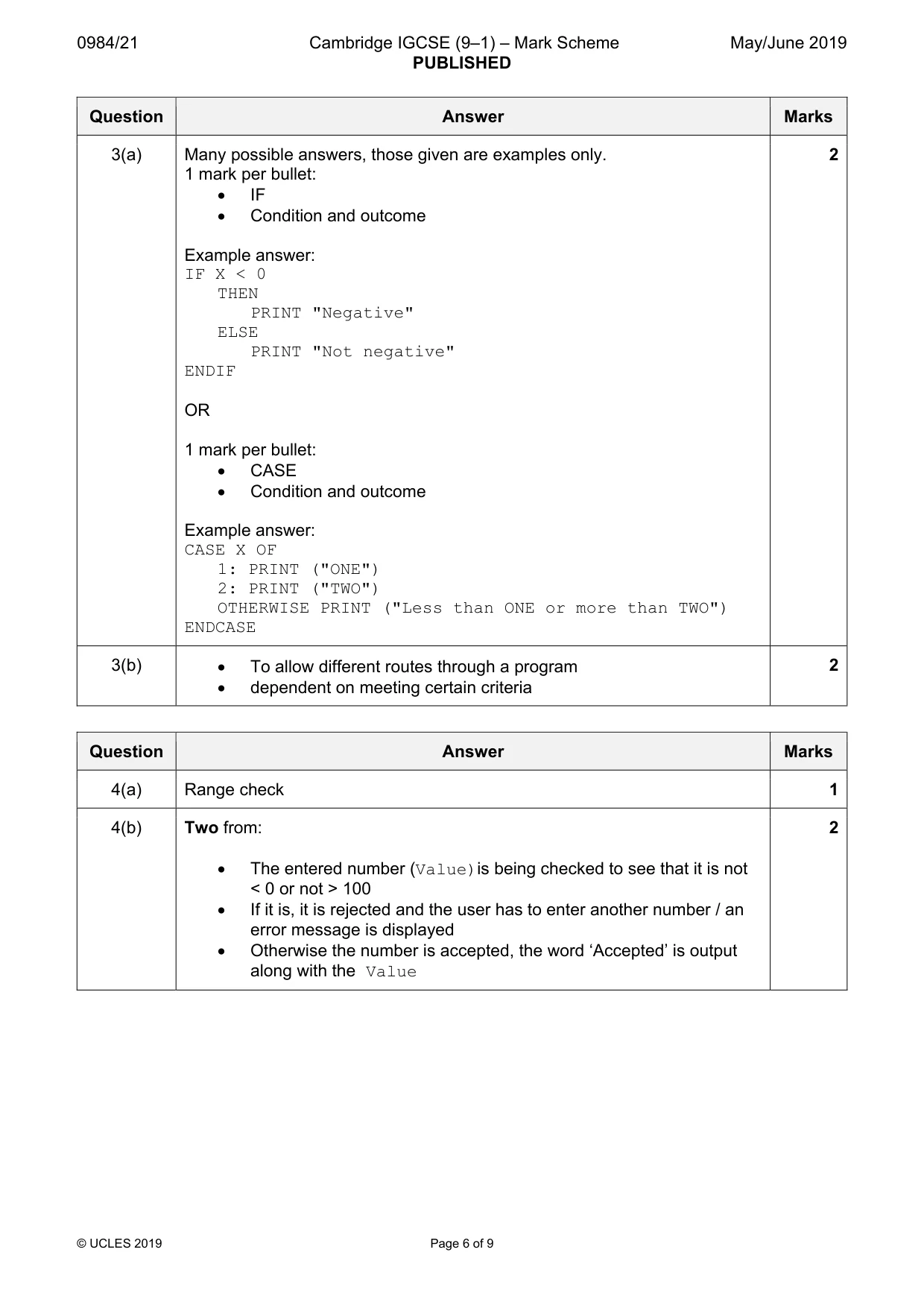

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 6 of 9 Question Answer Marks 3(a) Many possible answers, those given are examples only. 1 mark per bullet: • IF • Condition and outcome Example answer: IF X < 0 THEN PRINT "Negative" ELSE PRINT "Not negative" ENDIF OR 1 mark per bullet: • CASE • Condition and outcome Example answer: CASE X OF 1: PRINT ("ONE") 2: PRINT ("TWO") OTHERWISE PRINT ("Less than ONE or more than TWO") ENDCASE 2 3(b) • To allow different routes through a program • dependent on meeting certain criteria 2 Question Answer Marks 4(a) Range check 1 4(b) Two from: • The entered number (Value)is being checked to see that it is not < 0 or not > 100 • If it is, it is rejected and the user has to enter another number / an error message is displayed • Otherwise the number is accepted, the word ‘Accepted’ is output along with the Value 2

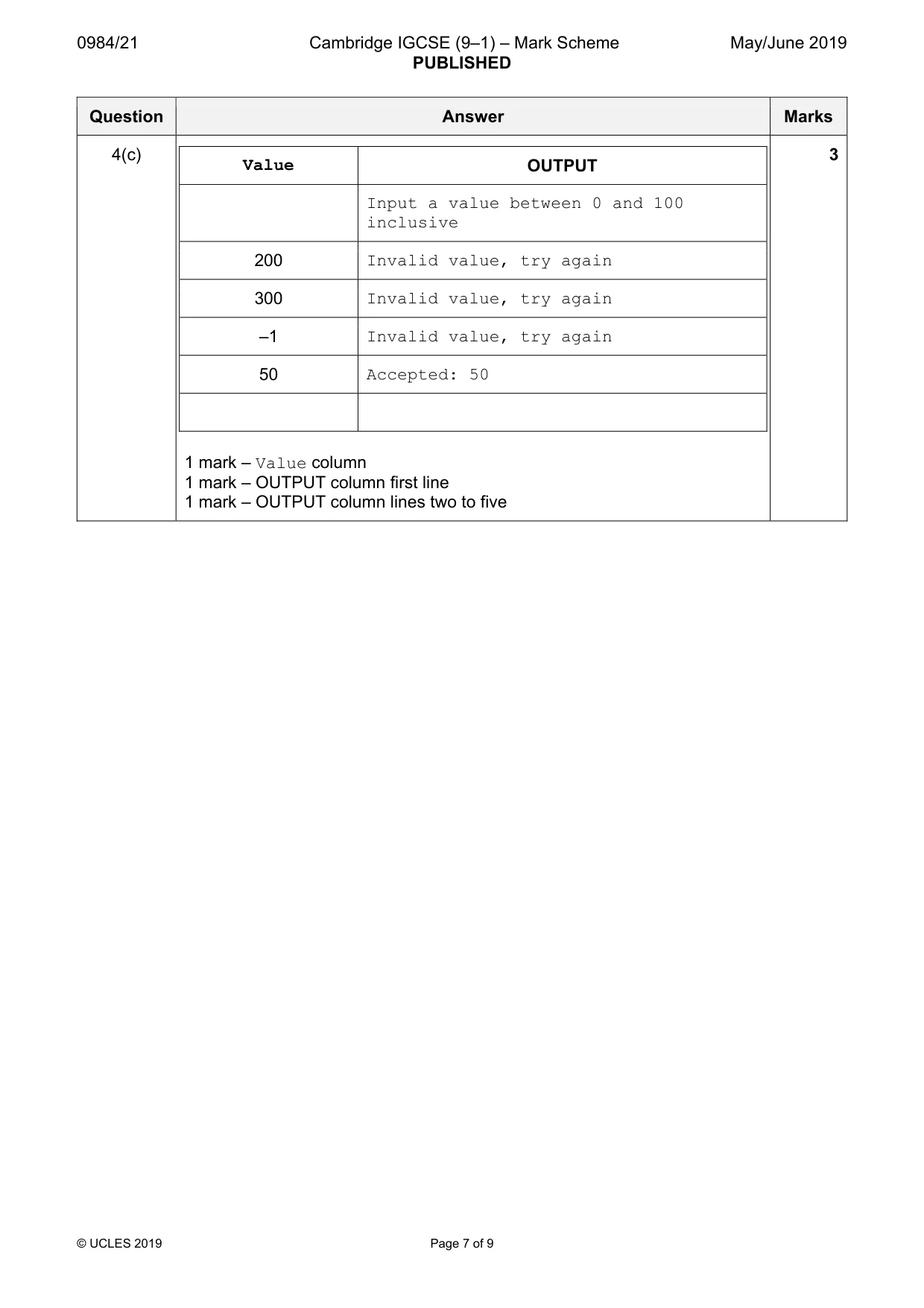

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 7 of 9 Question Answer Marks 4(c) Value OUTPUT Input a value between 0 and 100 inclusive 200 Invalid value, try again 300 Invalid value, try again –1 Invalid value, try again 50 Accepted: 50 1 mark – Value column 1 mark – OUTPUT column first line 1 mark – OUTPUT column lines two to five 3

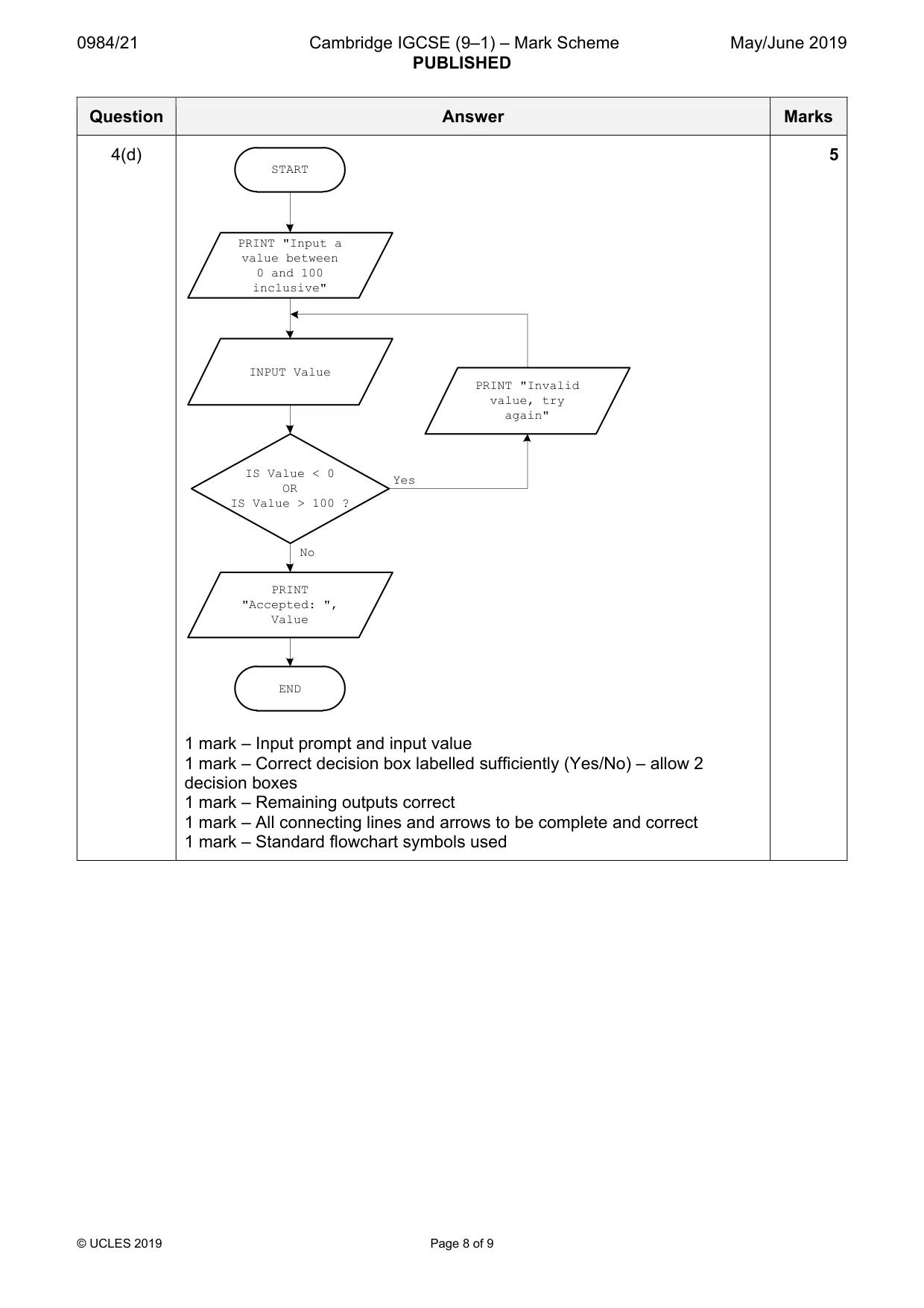

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 8 of 9 Question Answer Marks 4(d) START PRINT "Input a value between 0 and 100 inclusive" IS Value < 0 OR IS Value > 100 ? INPUT Value PRINT "Invalid value, try again" PRINT "Accepted: ", Value END Yes No 1 mark – Input prompt and input value 1 mark – Correct decision box labelled sufficiently (Yes/No) – allow 2 decision boxes 1 mark – Remaining outputs correct 1 mark – All connecting lines and arrows to be complete and correct 1 mark – Standard flowchart symbols used 5

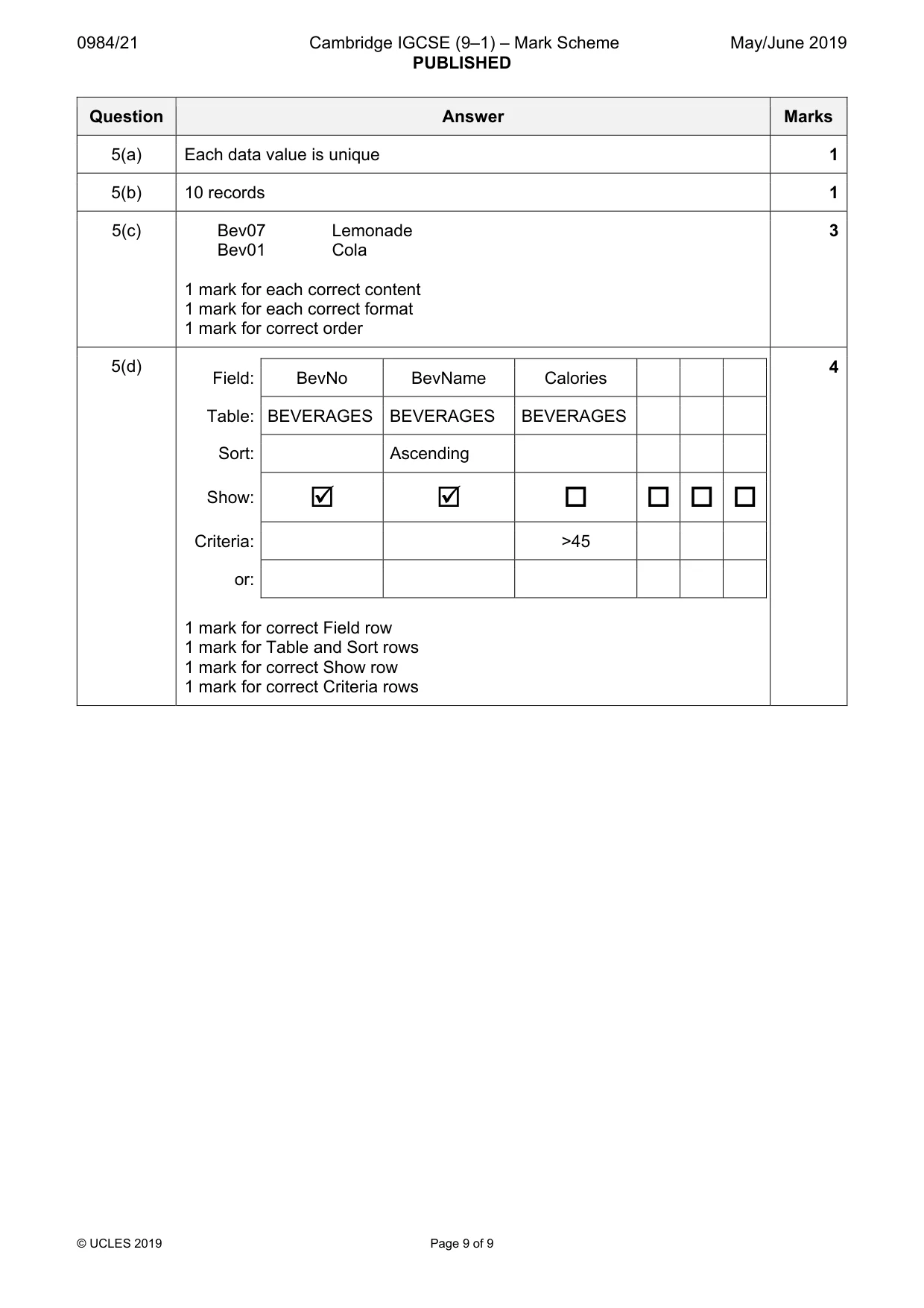

0984/21 Cambridge IGCSE (9–1) – Mark Scheme PUBLISHED May/June 2019 © UCLES 2019 Page 9 of 9 Question Answer Marks 5(a) Each data value is unique 1 5(b) 10 records 1 5(c) Bev07 Lemonade Bev01 Cola 1 mark for each correct content 1 mark for each correct format 1 mark for correct order 3 5(d) Field: BevNo BevName Calories Table: BEVERAGES BEVERAGES BEVERAGES Sort: Ascending Show: ; ; † † † † Criteria: >45 or: 1 mark for correct Field row 1 mark for Table and Sort rows 1 mark for correct Show row 1 mark for correct Criteria rows 4
