Cambridge A Level Mathematics 9709 — 2018 Oct/Nov Paper 4 · Variant 1

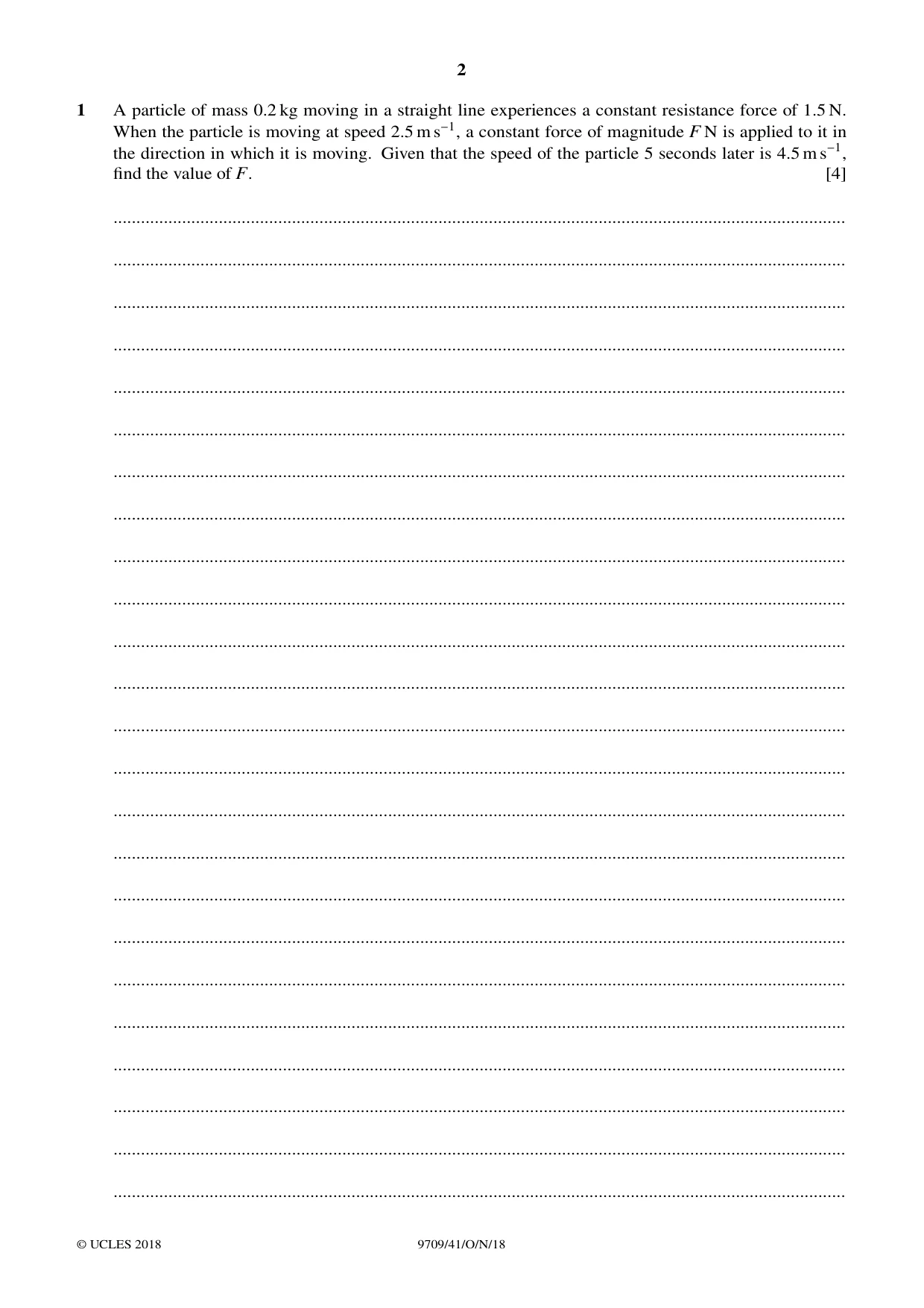

1 A particle of mass 0.2 kg moving in a straight line experiences a constant resistance force of 1.5 N. When the particle is moving at speed 2.5 m s−1, a constant force of magnitude F N is applied to it in the direction in which it is moving. Given that the speed of the particle 5 seconds later is 4.5 m s−1, find the value of F. [4] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

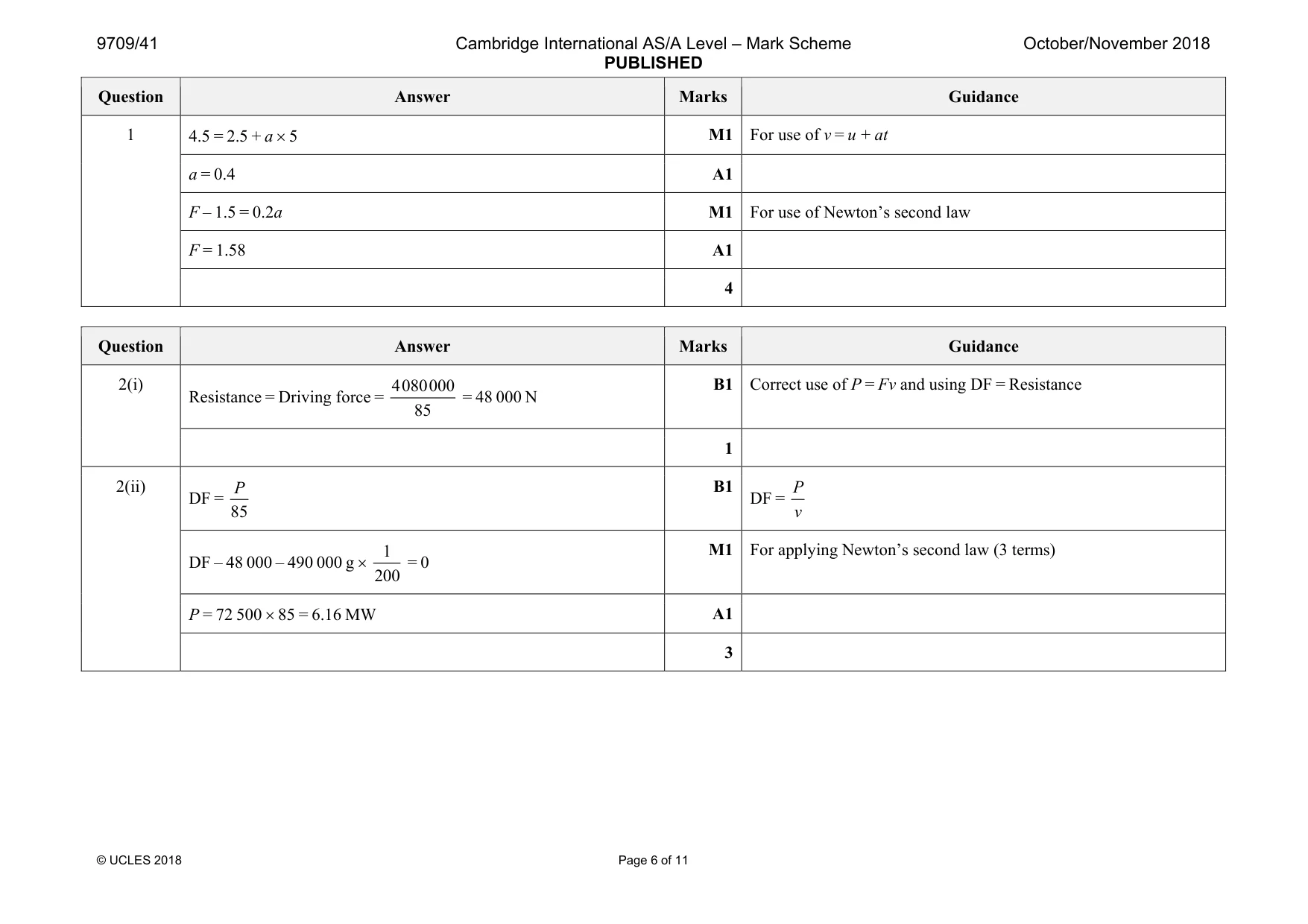

Mark scheme: 1 a = 0.4 A1 F – 1.5 = 0.2a M1 For use of Newton’s second law F = 1.58 A1 4

More questions on Kinematics of motion in a straight line

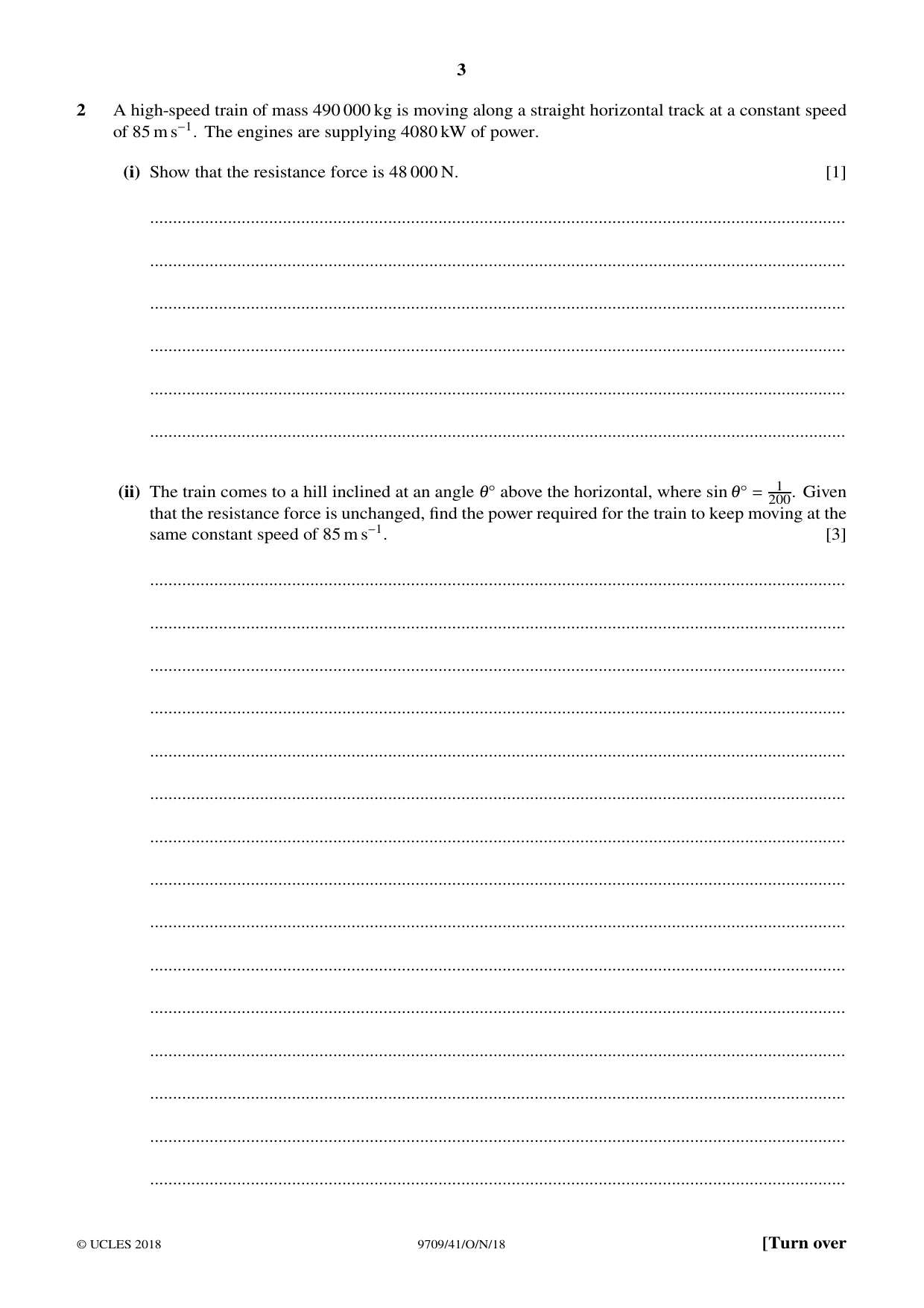

2 A high-speed train of mass 490 000 kg is moving along a straight horizontal track at a constant speed of 85 m s−1. The engines are supplying 4080 kW of power. (i) Show that the resistance force is 48 000 N. [1] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) The train comes to a hill inclined at an angle 1Å above the horizontal, where sin 1Å = 200.1 Given that the resistance force is unchanged, find the power required for the train to keep moving at the same constant speed of 85 m s−1. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 2(i) Resistance = Driving force = 4080000 85 = 48 000 N 1 2(ii) DF = 85 P B1 DF = P v DF – 48 000 – 490 000 g × 1 200 = 0 M1 For applying Newton’s second law (3 terms) P = 72 500 × 85 = 6.16 MW A1 3

More questions on Energy, work and power

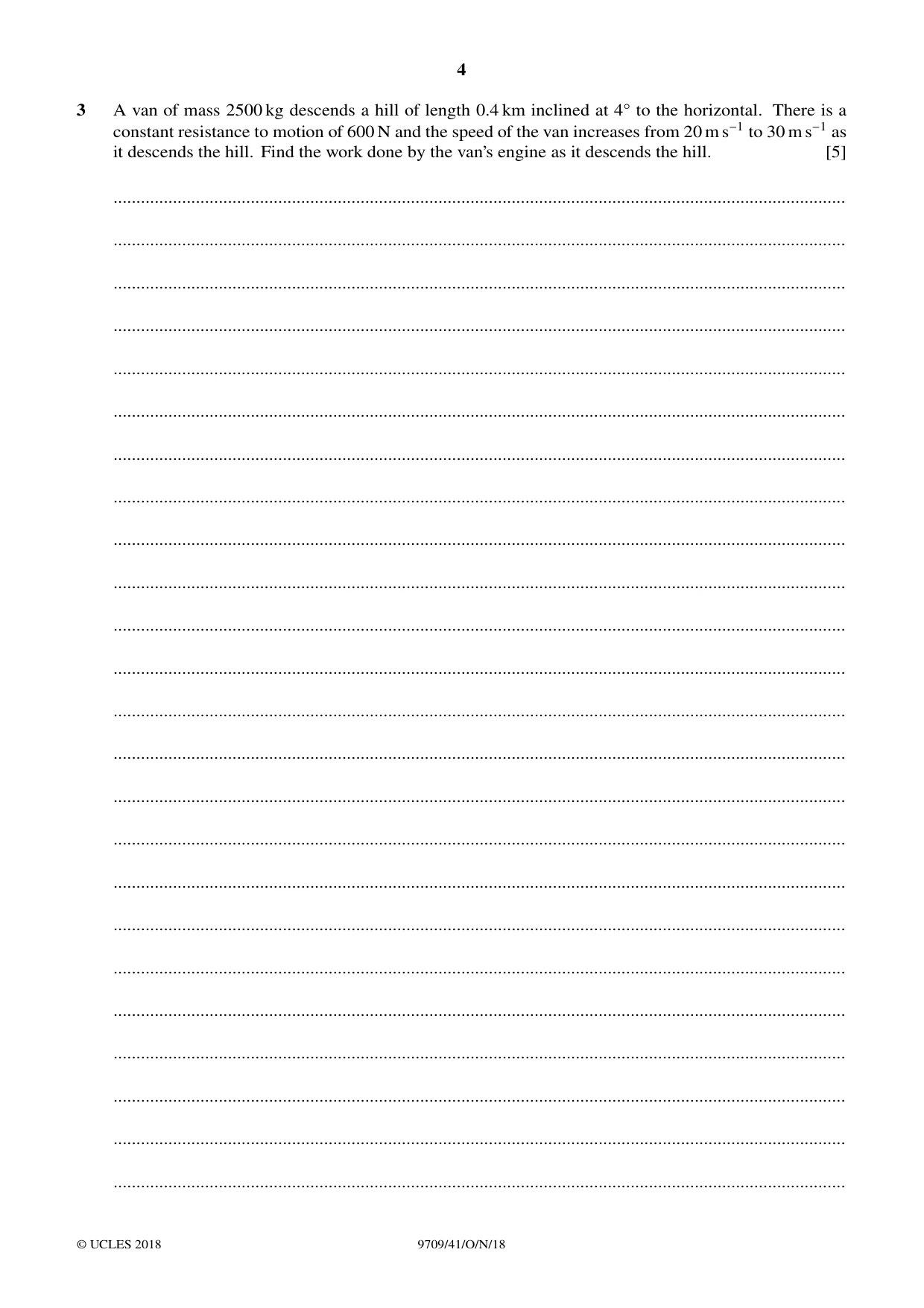

3 A van of mass 2500 kg descends a hill of length 0.4 km inclined at 4Å to the horizontal. There is a constant resistance to motion of 600 N and the speed of the van increases from 20 m s−1 to 30 m s−1 as it descends the hill. Find the work done by the van’s engine as it descends the hill. [5] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

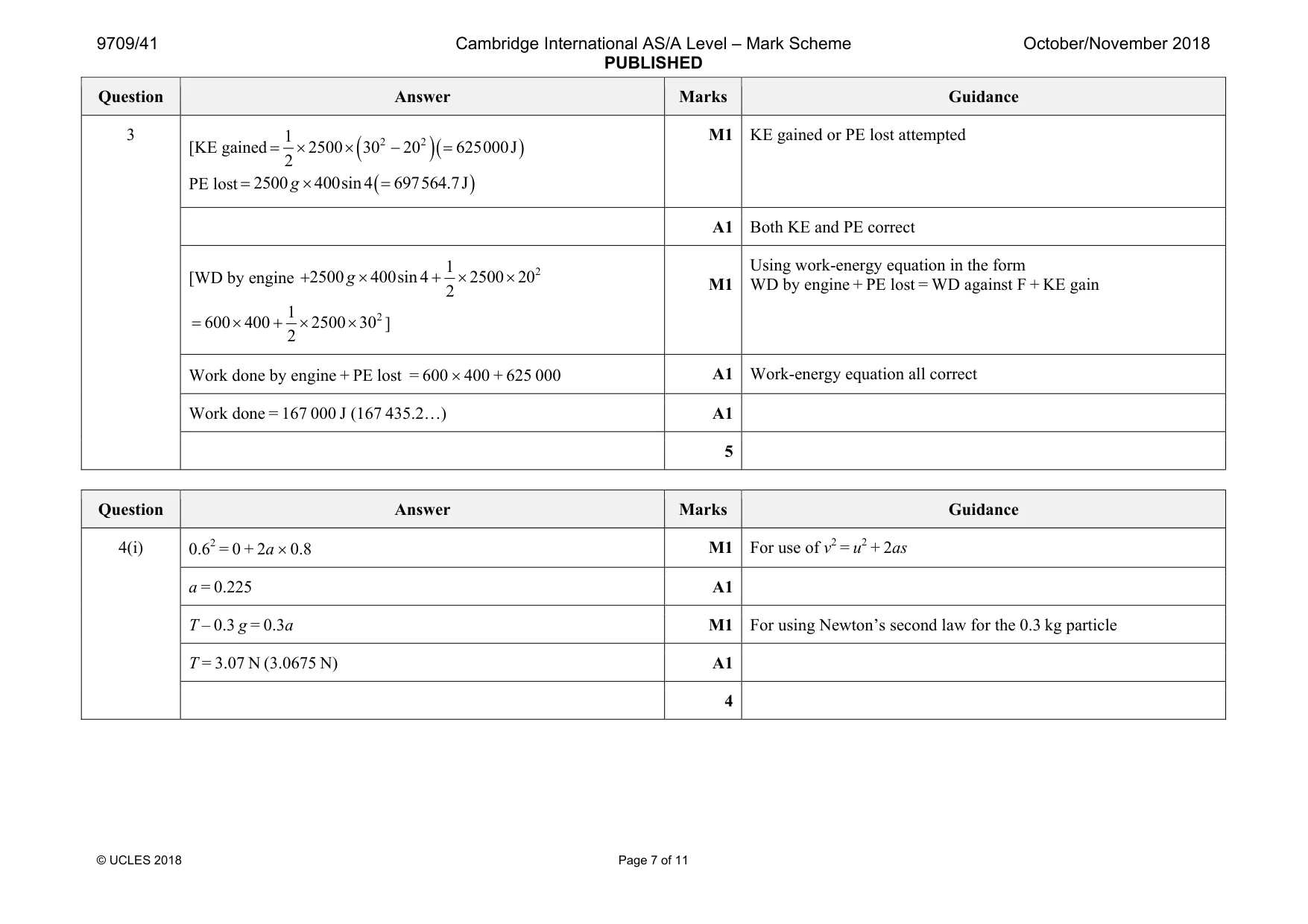

Mark scheme: 3 [KE gained ( )( ) 2 2 1 2500 30 20 625000J 2 = × × − = PE lost ( ) 2500 400sin4 697564.7J = × = g A1 Both KE and PE correct [WD by engine 2 1 2500 400sin 4 2500 20 2 + × + × × g 2 1 600 400 2500 30 2 = × + × × ] M1 Using work-energy equation in the form WD by engine + PE lost = WD against F + KE gain Work done by engine + PE lost = 600 × 400 + 625 000 A1 Work-energy equation all correct Work done = 167 000 J (167 435.2…) A1 5

More questions on Energy, work and power

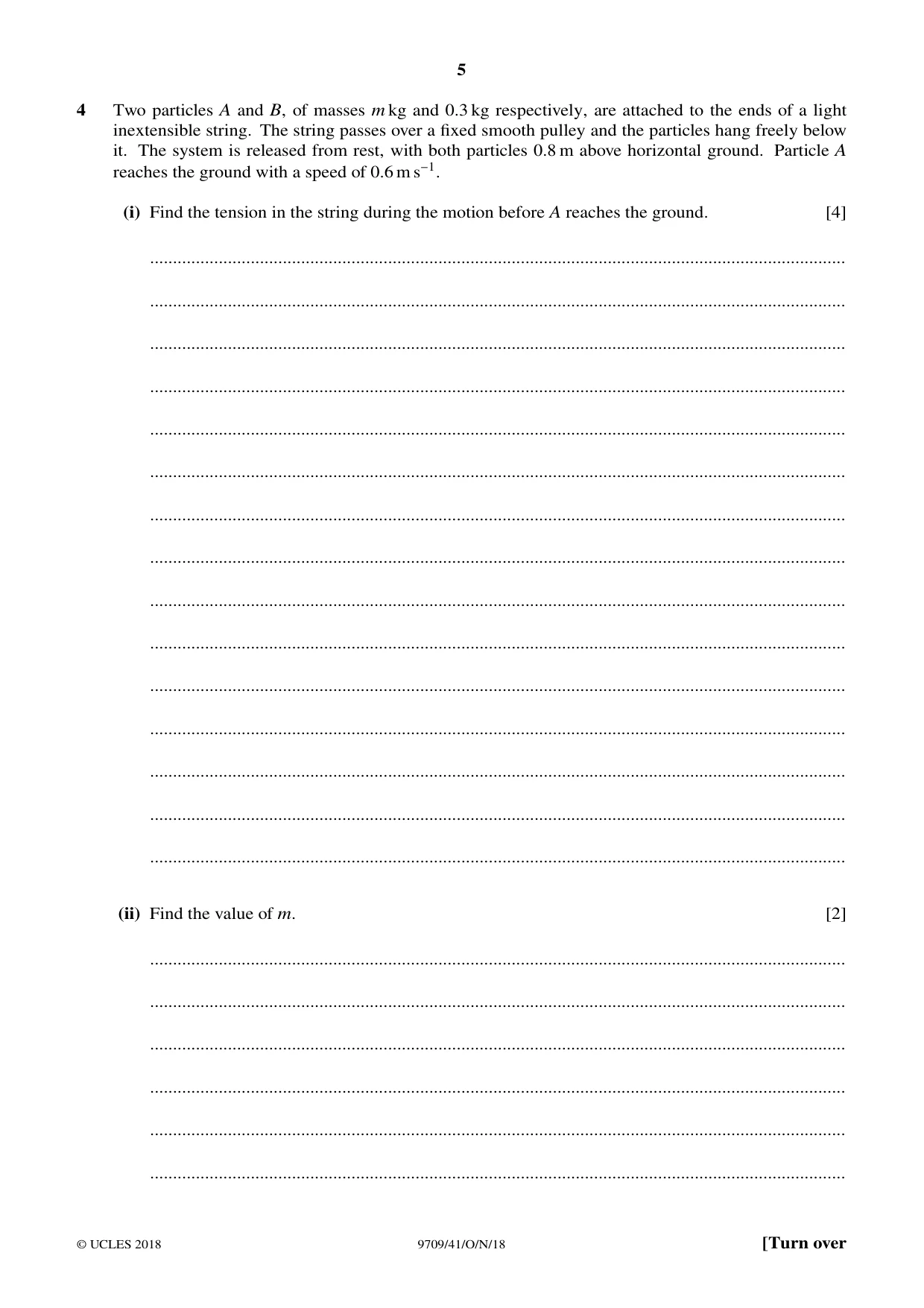

4 Two particles A and B, of masses m kg and 0.3 kg respectively, are attached to the ends of a light inextensible string. The string passes over a fixed smooth pulley and the particles hang freely below it. The system is released from rest, with both particles 0.8 m above horizontal ground. Particle A reaches the ground with a speed of 0.6 m s−1. (i) Find the tension in the string during the motion before A reaches the ground. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the value of m. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

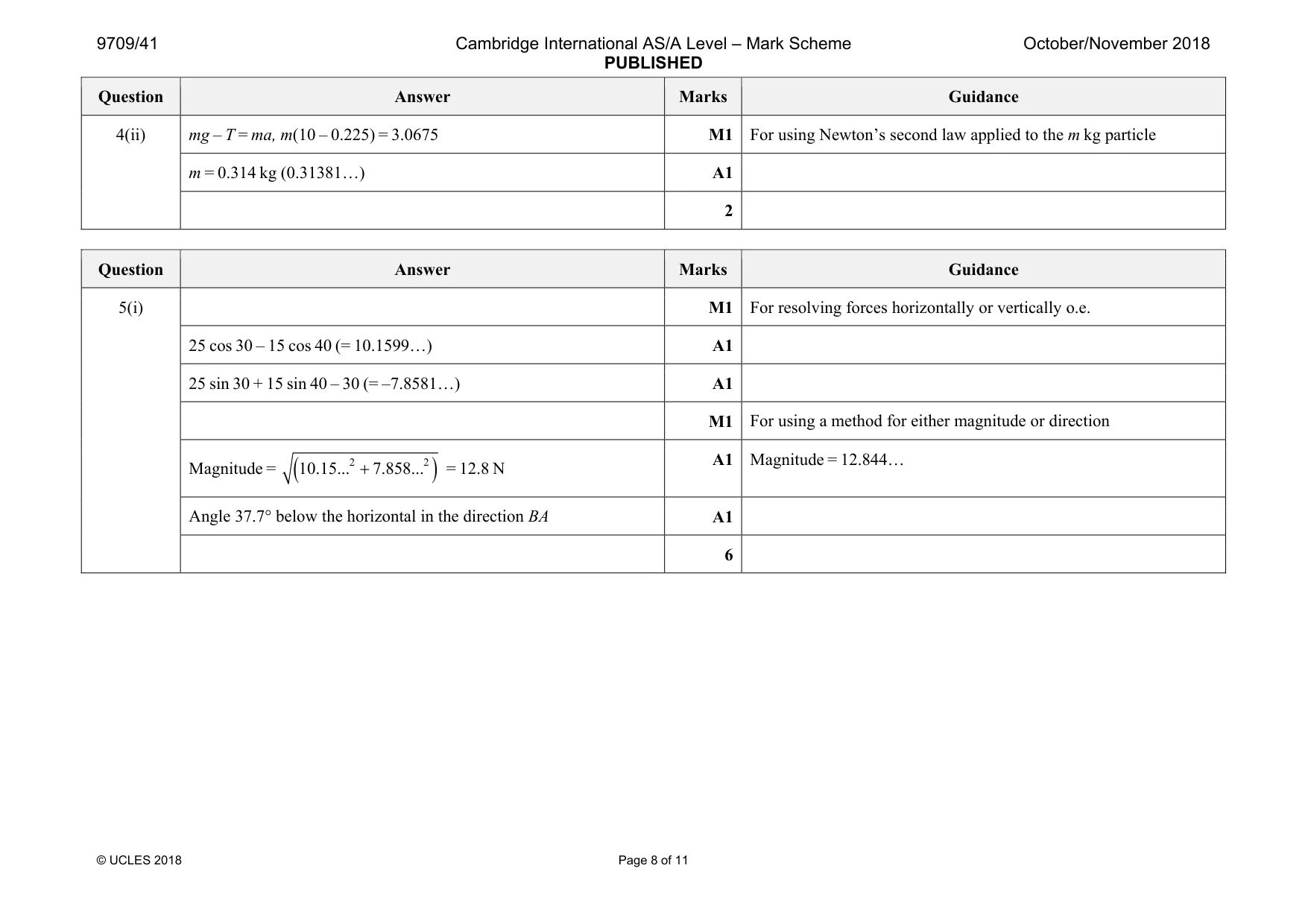

Mark scheme: 4(i) a = 0.225 A1 T – 0.3 g = 0.3a M1 For using Newton’s second law for the 0.3 kg particle T = 3.07 N (3.0675 N) A1 4 Question Answer Marks Guidance 4(ii) mg – T = ma, m(10 – 0.225) = 3.0675 M1 For using Newton’s second law applied to the m kg particle m = 0.314 kg (0.31381…) A1 2

More questions on Newton’s laws of motion

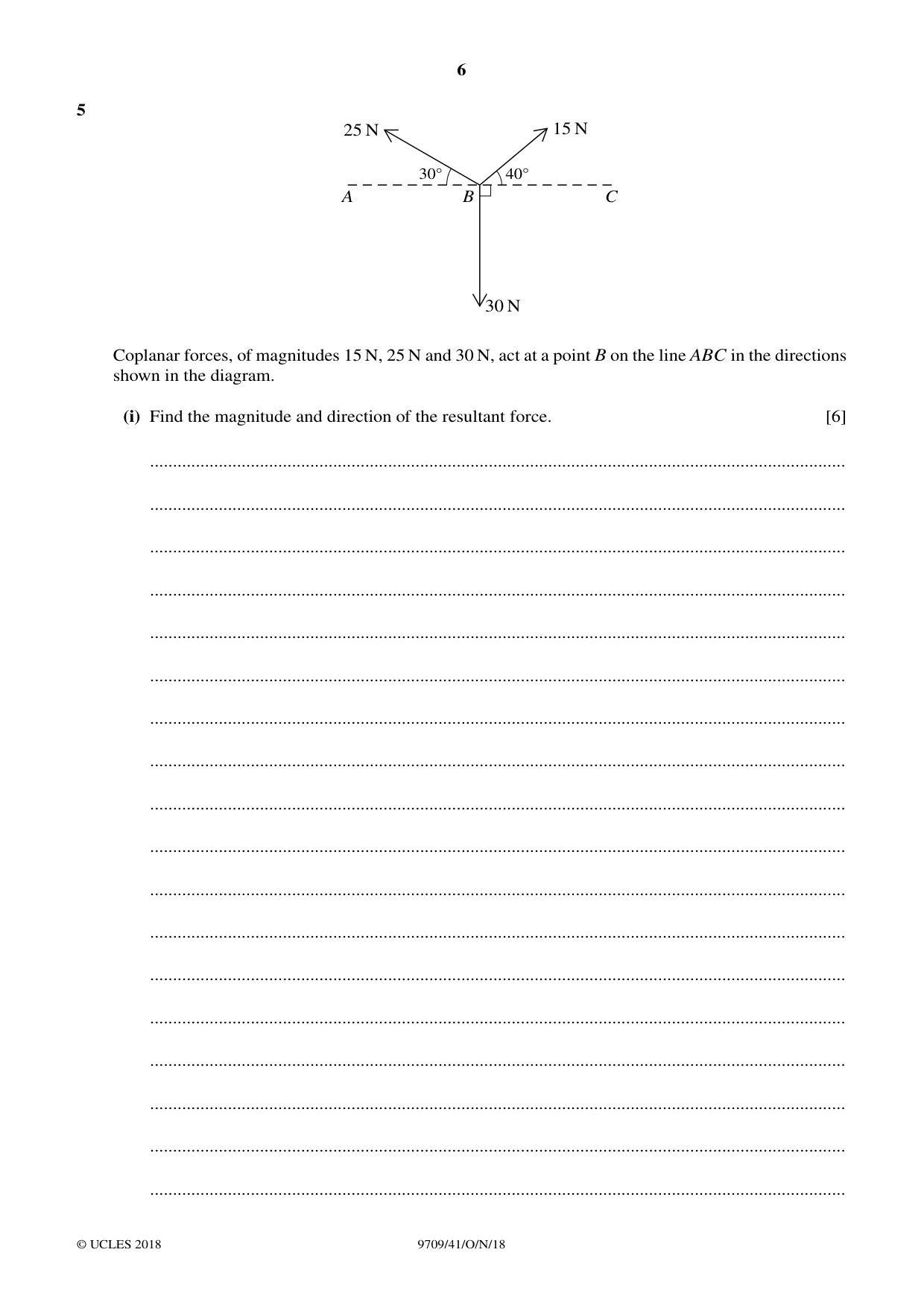

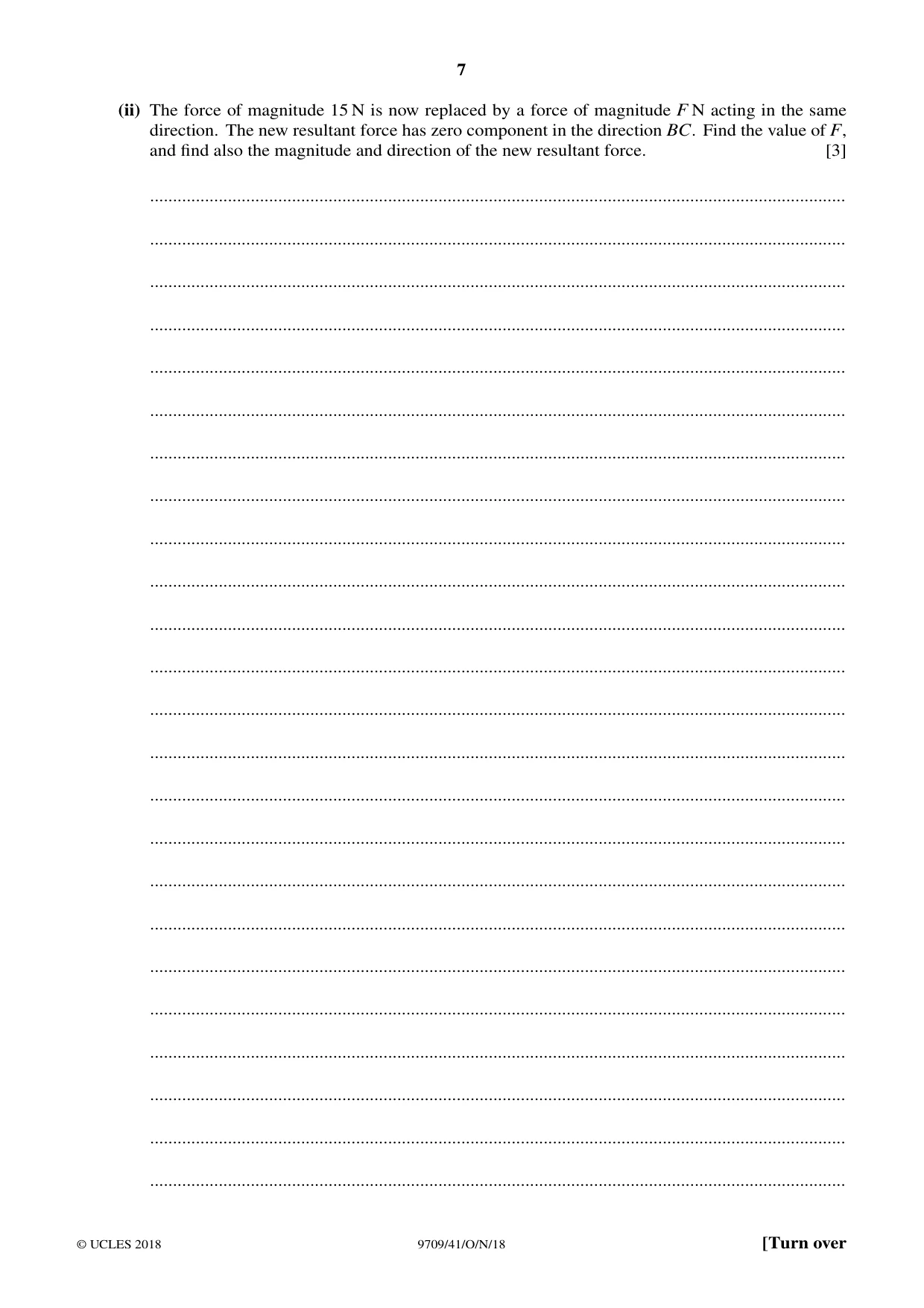

5 25 N 15 N 30Å 40Å A B C 30 N Coplanar forces, of magnitudes 15 N, 25 N and 30 N, act at a point B on the line ABC in the directions shown in the diagram. (i) Find the magnitude and direction of the resultant force. [6] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) The force of magnitude 15 N is now replaced by a force of magnitude F N acting in the same direction. The new resultant force has zero component in the direction BC. Find the value of F, and find also the magnitude and direction of the new resultant force. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

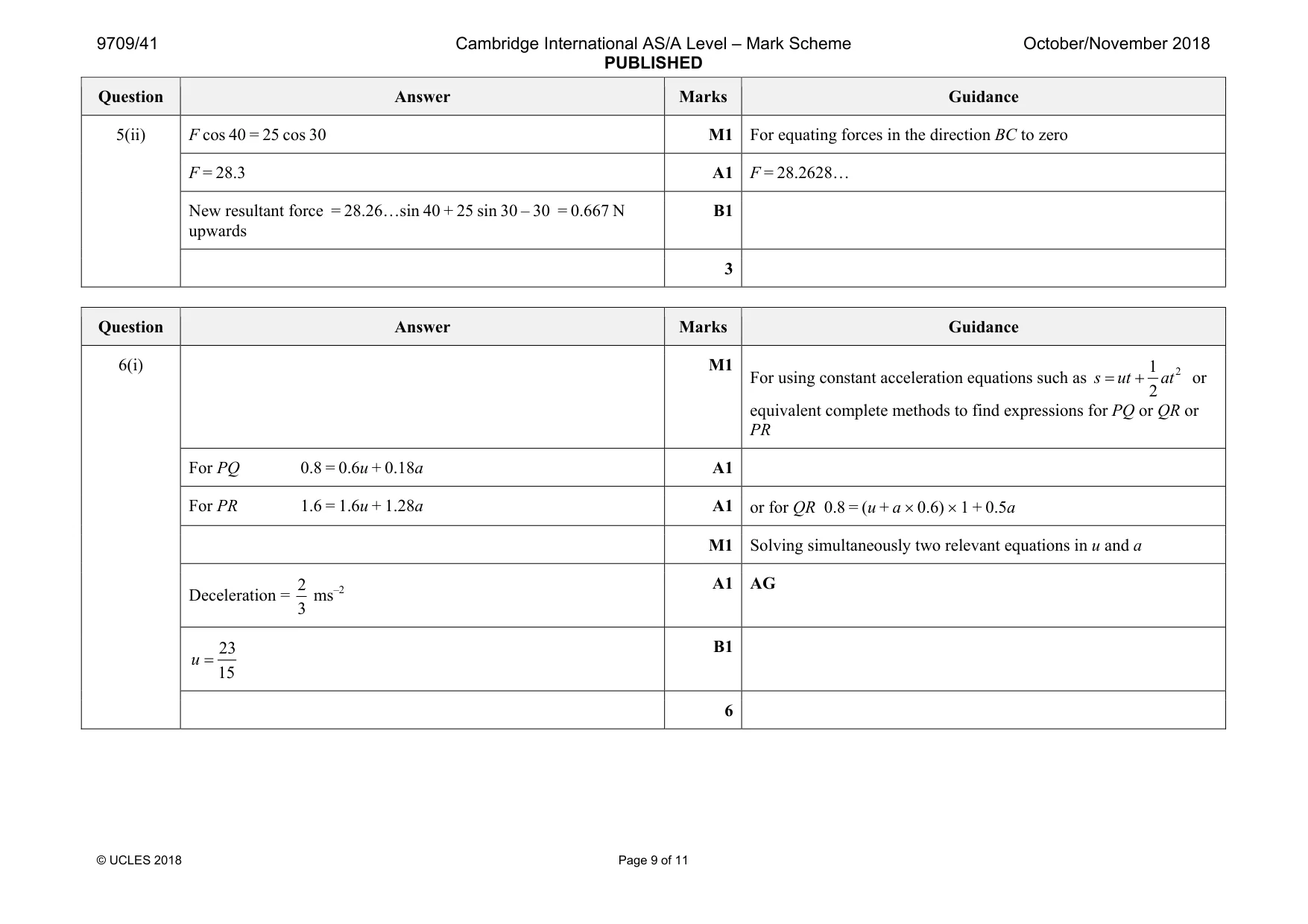

Mark scheme: 5(i) M1 For resolving forces horizontally or vertically o.e. 25 cos 30 – 15 cos 40 (= 10.1599…) A1 25 sin 30 + 15 sin 40 – 30 (= –7.8581…) A1 M1 For using a method for either magnitude or direction Magnitude = ( ) 2 2 10.15... 7.858... + = 12.8 N A1 Magnitude = 12.844… Angle 37.7° below the horizontal in the direction BA A1 6 Question Answer Marks Guidance 5(ii) F cos 40 = 25 cos 30 M1 For equating forces in the direction BC to zero F = 28.3 A1 F = 28.2628… New resultant force = 28.26…sin 40 + 25 sin 30 – 30 = 0.667 N upwards B1 3

More questions on Forces and equilibrium

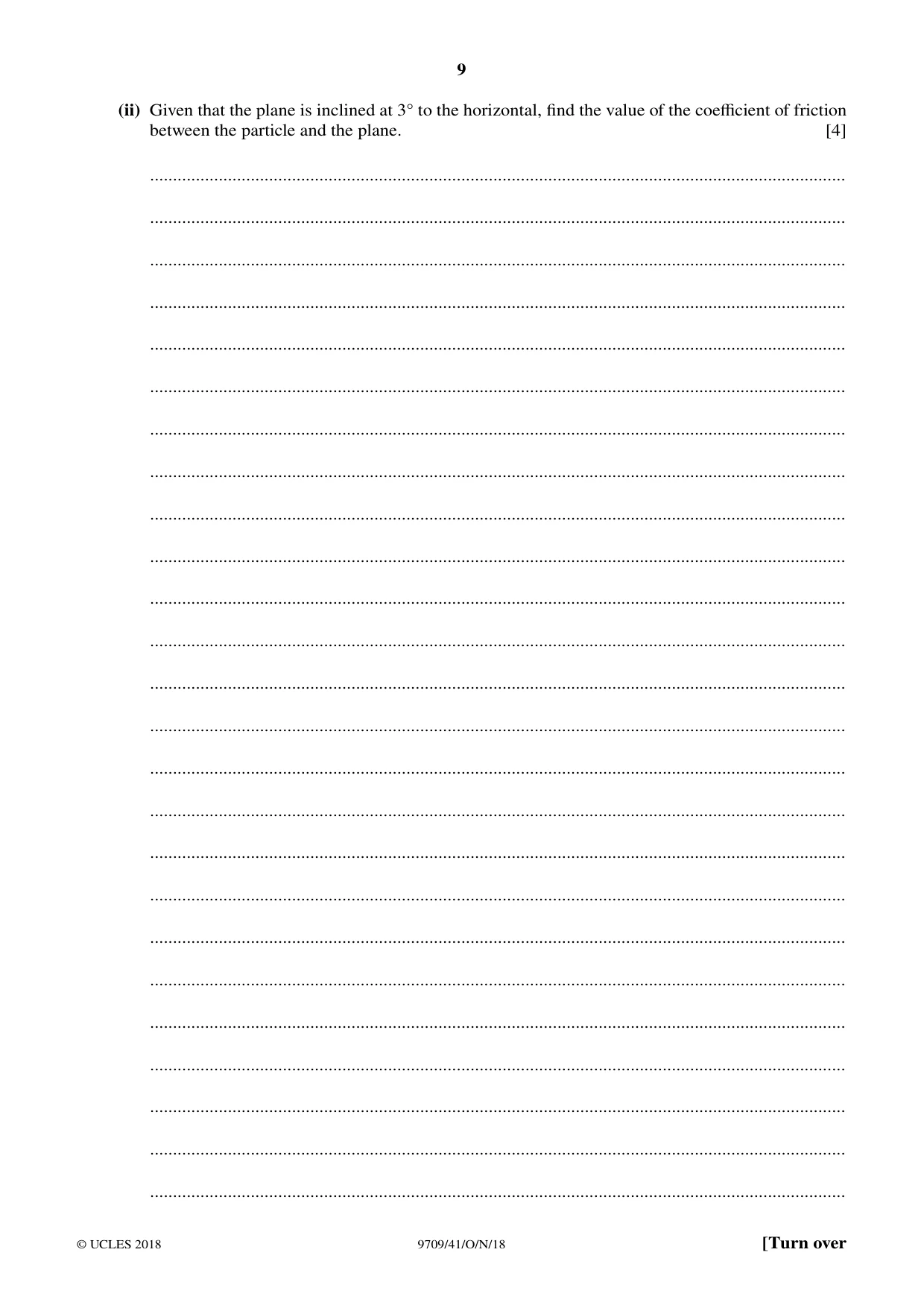

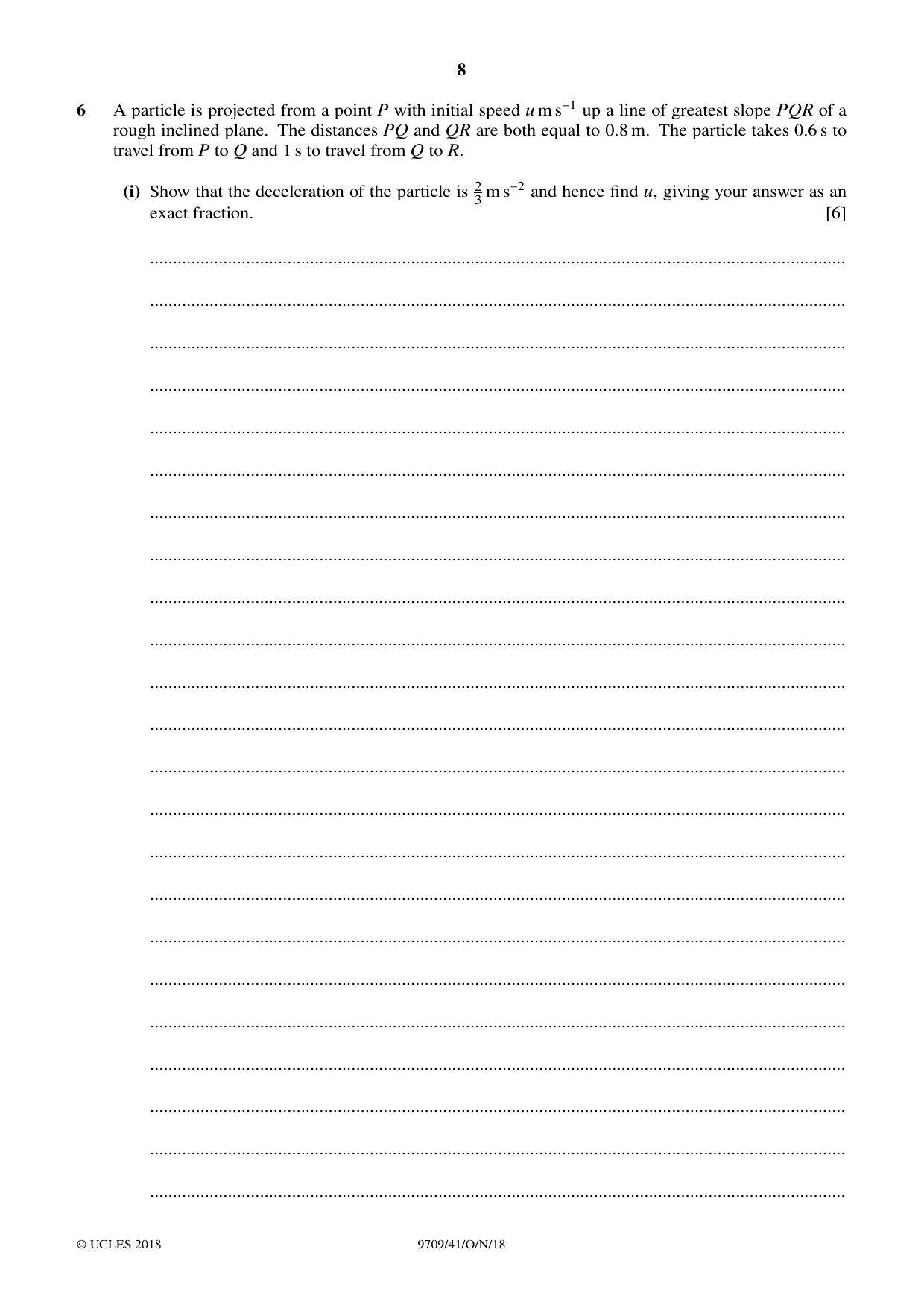

6 A particle is projected from a point P with initial speed u m s−1 up a line of greatest slope PQR of a rough inclined plane. The distances PQ and QR are both equal to 0.8 m. The particle takes 0.6 s to travel from P to Q and 1 s to travel from Q to R. (i) Show that the deceleration of the particle is 2 m s−2 and hence find u, giving your answer as an 3 exact fraction. [6] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Given that the plane is inclined at 3Å to the horizontal, find the value of the coefficient of friction between the particle and the plane. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

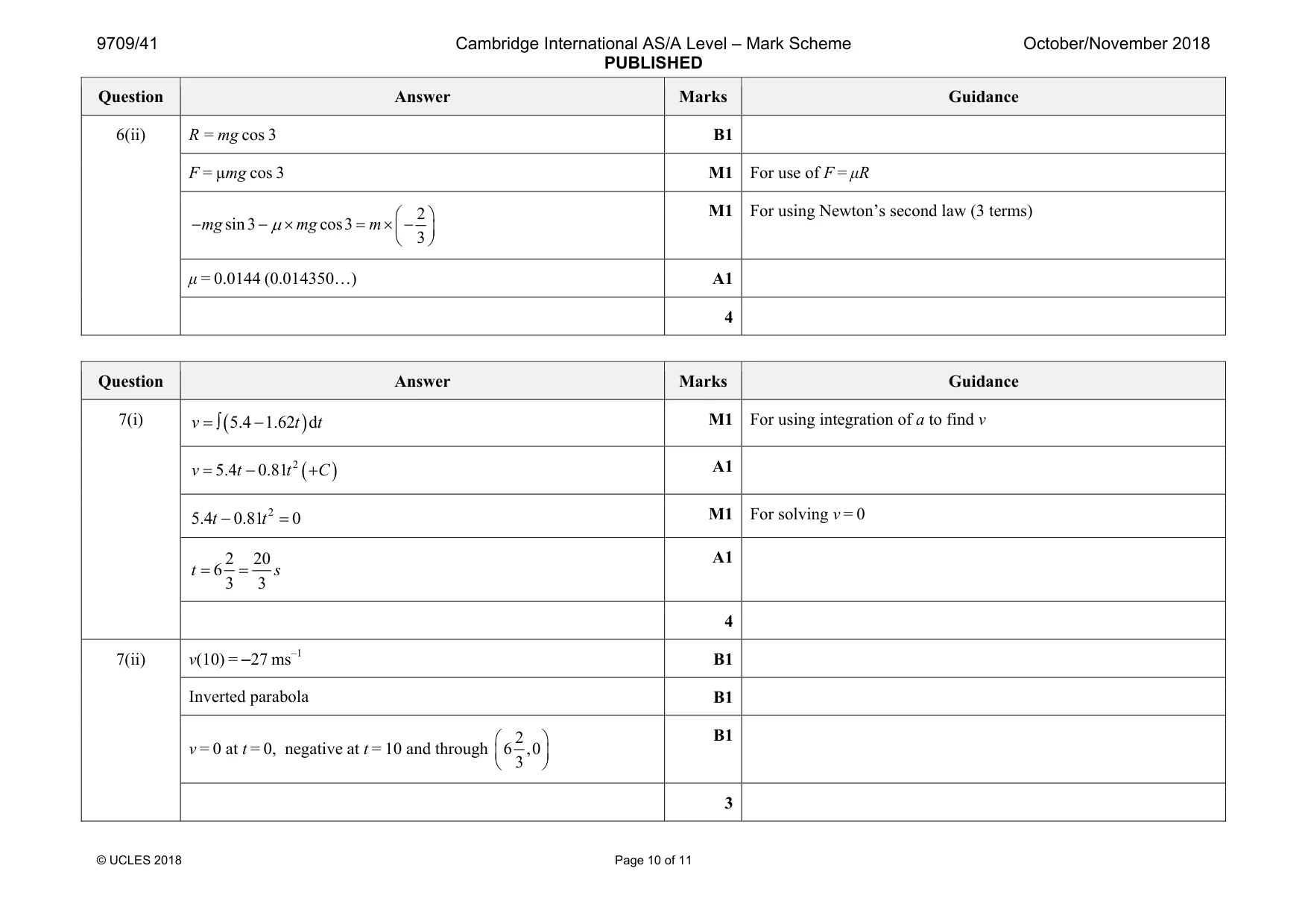

Mark scheme: 6(i) M1 For using constant acceleration equations such as 2 1 2 = + s ut at or equivalent complete methods to find expressions for PQ or QR or PR For PQ 0.8 = 0.6u + 0.18a A1 For PR 1.6 = 1.6u + 1.28a A1 or for QR 0.8 = (u + a × 0.6) × 1 + 0.5a M1 Solving simultaneously two relevant equations in u and a Deceleration = 2 3 ms–2 A1 AG 23 15 = u B1 6 Question Answer Marks Guidance 6(ii) R = mg cos 3 B1 F = µmg cos 3 M1 For use of F = µR 2 sin3 cos3 3 µ   − − × = × −     mg mg m M1 For using Newton’s second law (3 terms) µ = 0.0144 (0.014350…) A1 4

More questions on Kinematics of motion in a straight line

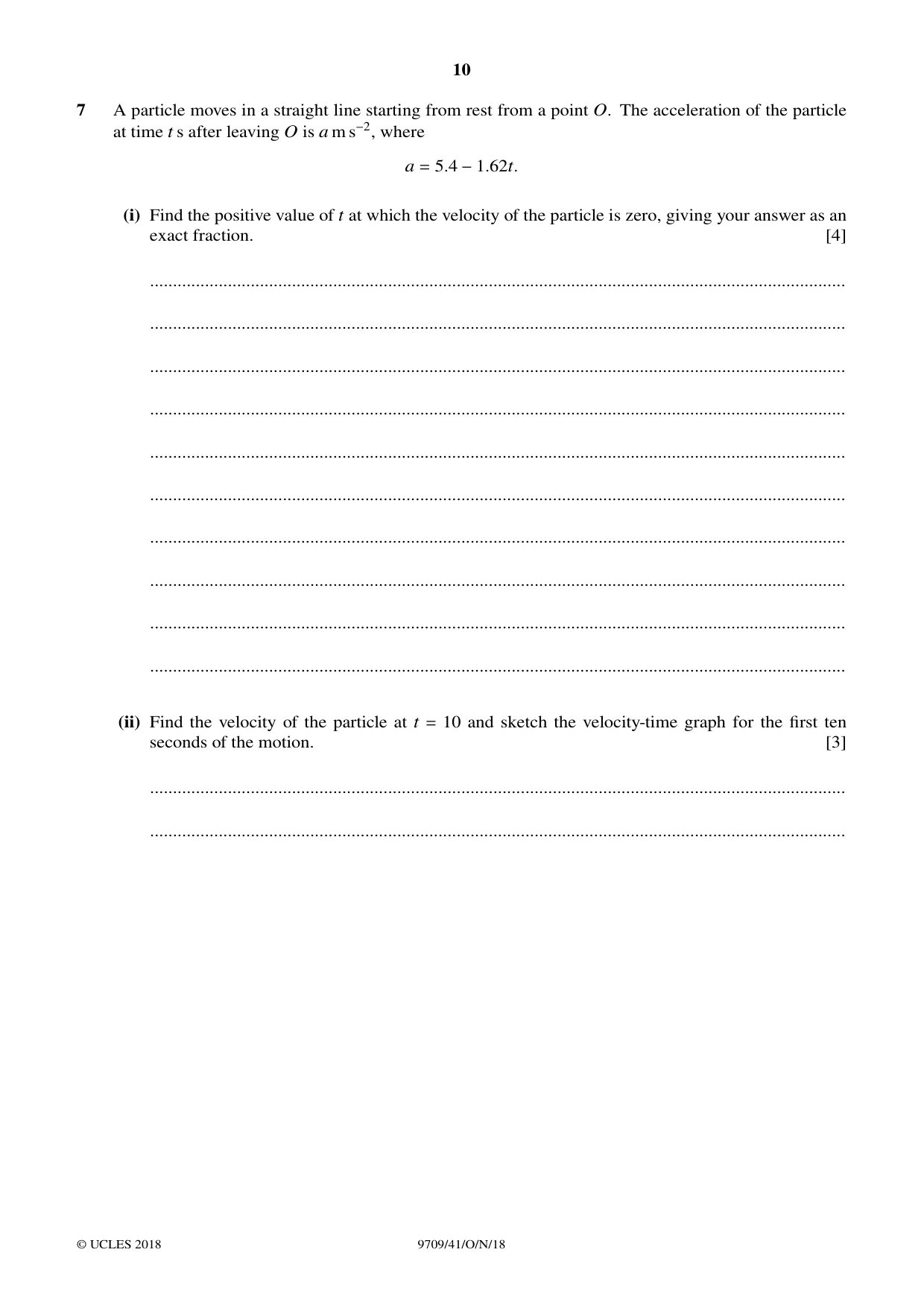

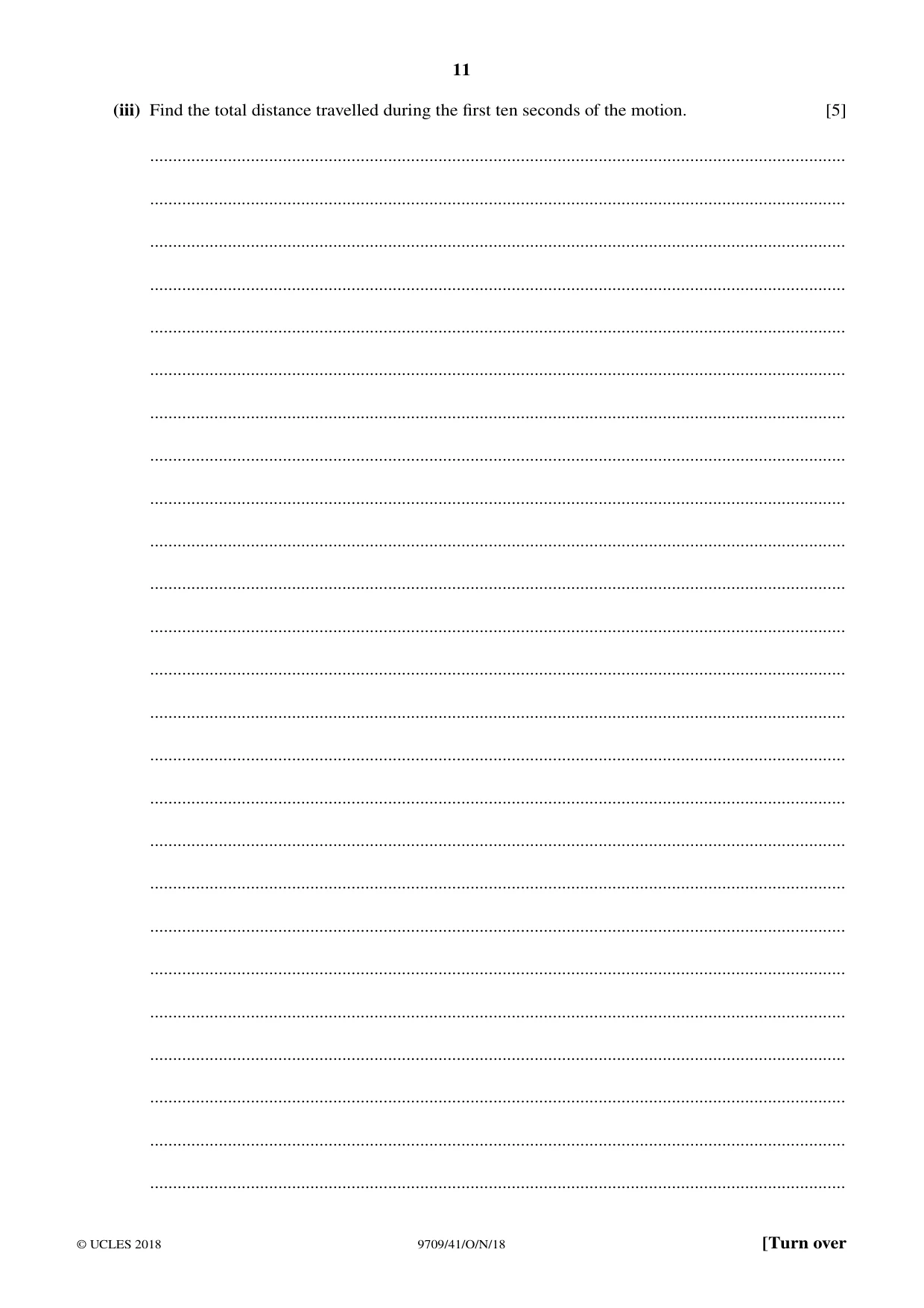

7 A particle moves in a straight line starting from rest from a point O. The acceleration of the particle at time t s after leaving O is a m s−2, where a = 5.4 −1.62t. (i) Find the positive value of t at which the velocity of the particle is zero, giving your answer as an exact fraction. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the velocity of the particle at t = 10 and sketch the velocity-time graph for the first ten seconds of the motion. [3] ........................................................................................................................................................ ........................................................................................................................................................ (iii) Find the total distance travelled during the first ten seconds of the motion. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

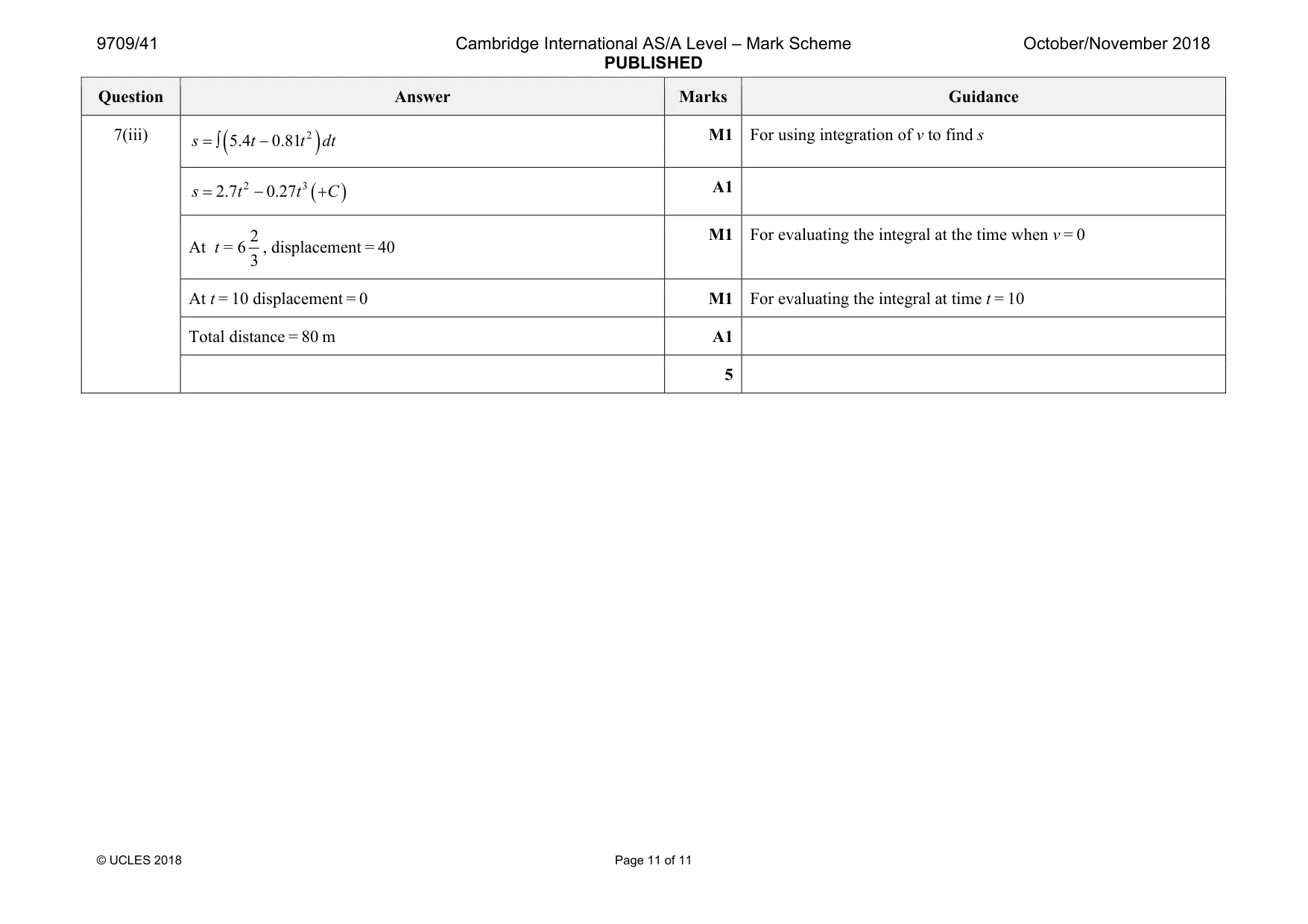

Mark scheme: 7(i) 5.4 1.62 d = ∫ − v t t ( ) 2 5.4 0.81 = − + v t t C A1 2 5.4 0.81 0 − = t t M1 For solving v = 0 2 20 6 3 3 = = t s A1 4 7(ii) v(10) = –27 ms–1 B1 Inverted parabola B1 v = 0 at t = 0, negative at t = 10 and through 2 6 ,0 3       B1 3 Question Answer Marks Guidance 7(iii) ( ) 2 5.4 0.81 = ∫ − s t t dt M1 For using integration of v to find s ( ) 2 3 2.7 0.27 = − + s t t C A1 At t = 6 2 3 , displacement = 40 M1 For evaluating the integral at the time when v = 0 At t = 10 displacement = 0 M1 For evaluating the integral at time t = 10 Total distance = 80 m A1 5
