Cambridge A Level Geography 9696 — 2023 Oct/Nov Paper 1 · Variant 1

9696/11/O/N/23 · 60 marks · ≈68 min

The question paper and its mark scheme, free to read here and free to download. This is Cambridge’s own paper, exactly as it was sat.

← All Geography papersWhat was in this paper?

Question paper4 pages

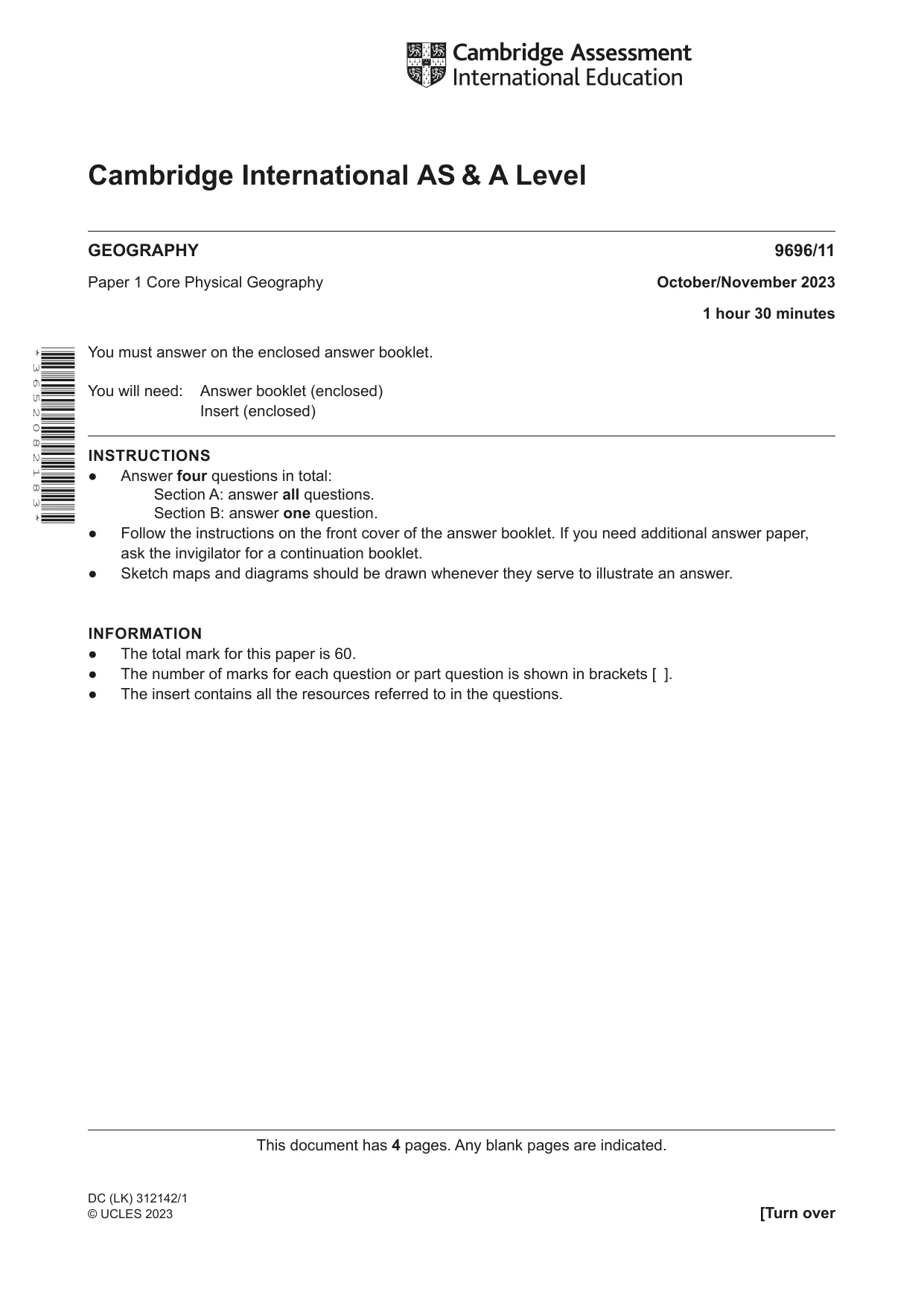

Cambridge A Level Geography 9696 2023 Oct/Nov Paper 1 · Variant 1 question paper, page 1 of 4
Page 1 of 4

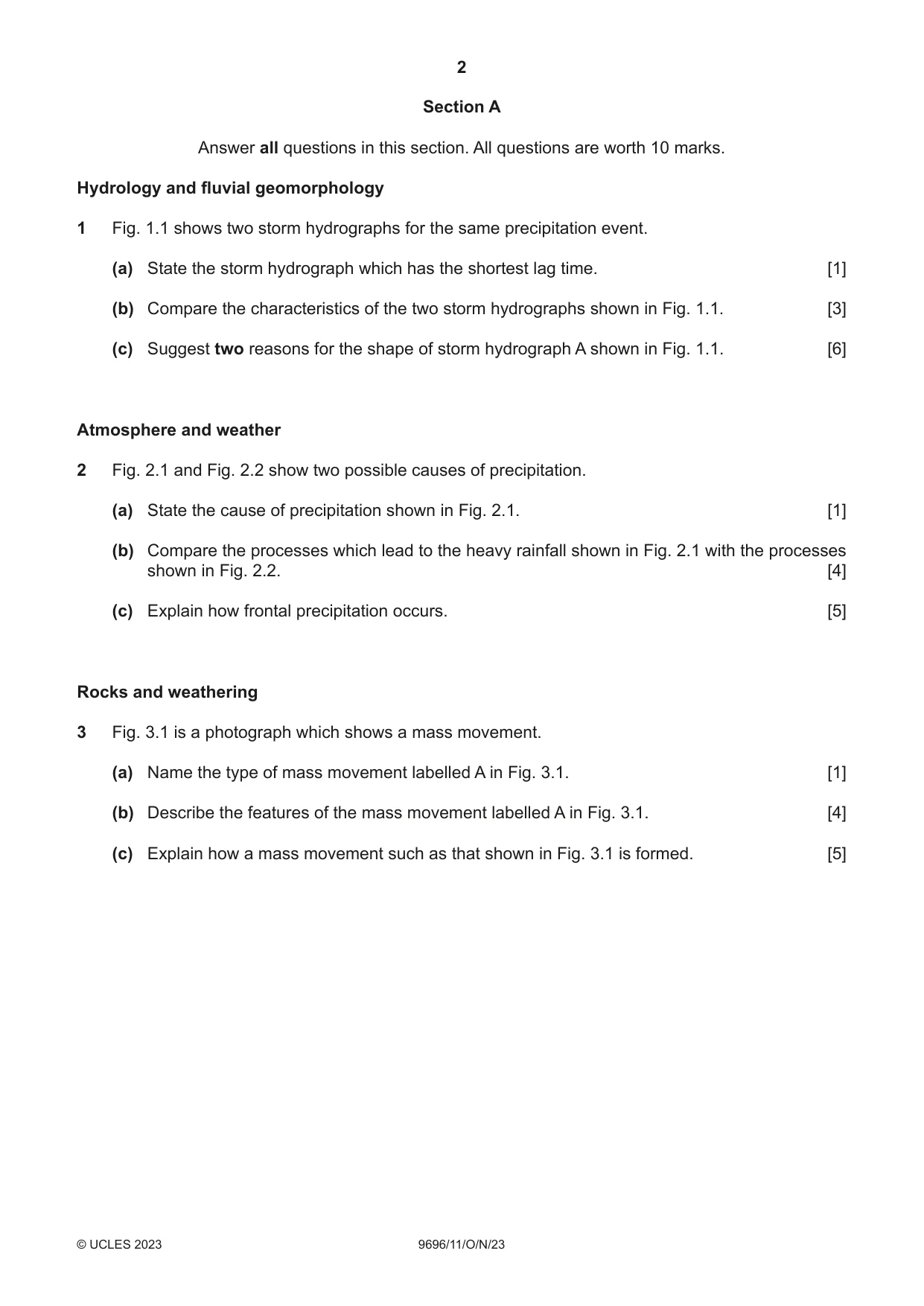

Cambridge A Level Geography 9696 2023 Oct/Nov Paper 1 · Variant 1 question paper, page 2 of 4
Page 2 of 4
Cambridge A Level Geography 9696 2023 Oct/Nov Paper 1 · Variant 1 question paper, page 3 of 4
Page 3 of 4
Cambridge A Level Geography 9696 2023 Oct/Nov Paper 1 · Variant 1 question paper, page 4 of 4
Page 4 of 4

Mark scheme16 pages

Answers below. Sit the paper first if you are practising.

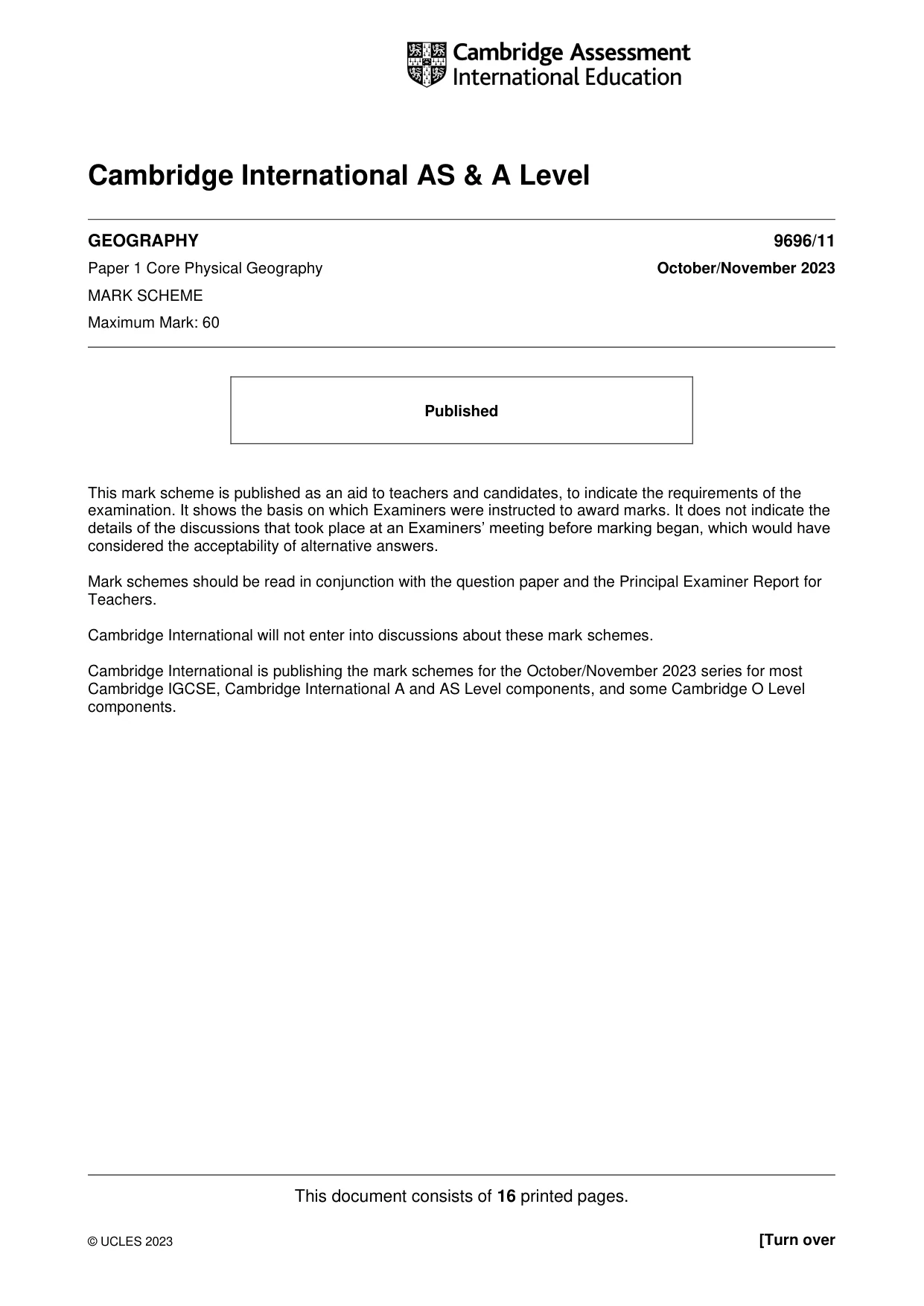

Mark scheme, page 1 of 16
Page 1 of 16

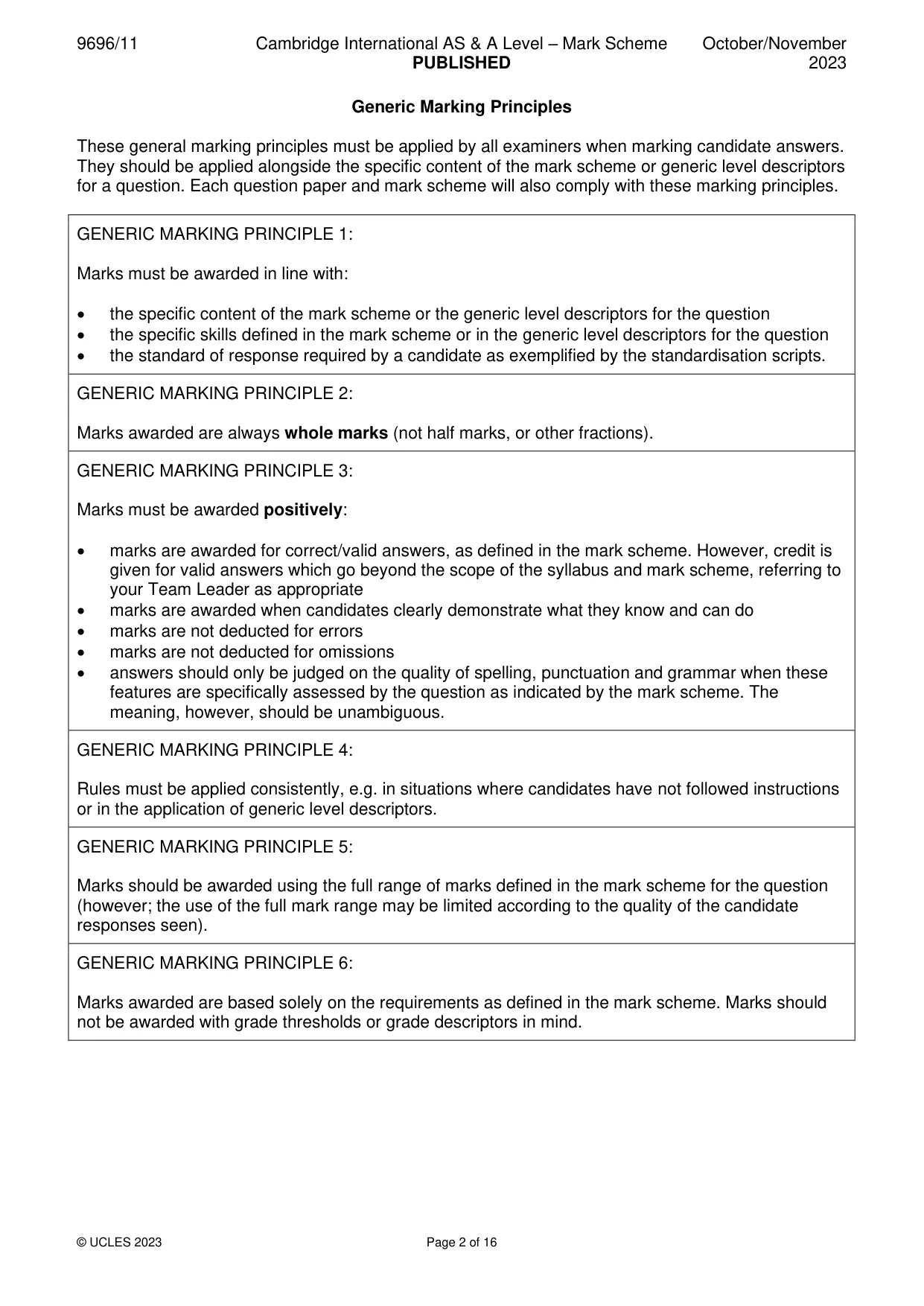

Mark scheme, page 2 of 16
Page 2 of 16
Mark scheme, page 3 of 16
Page 3 of 16

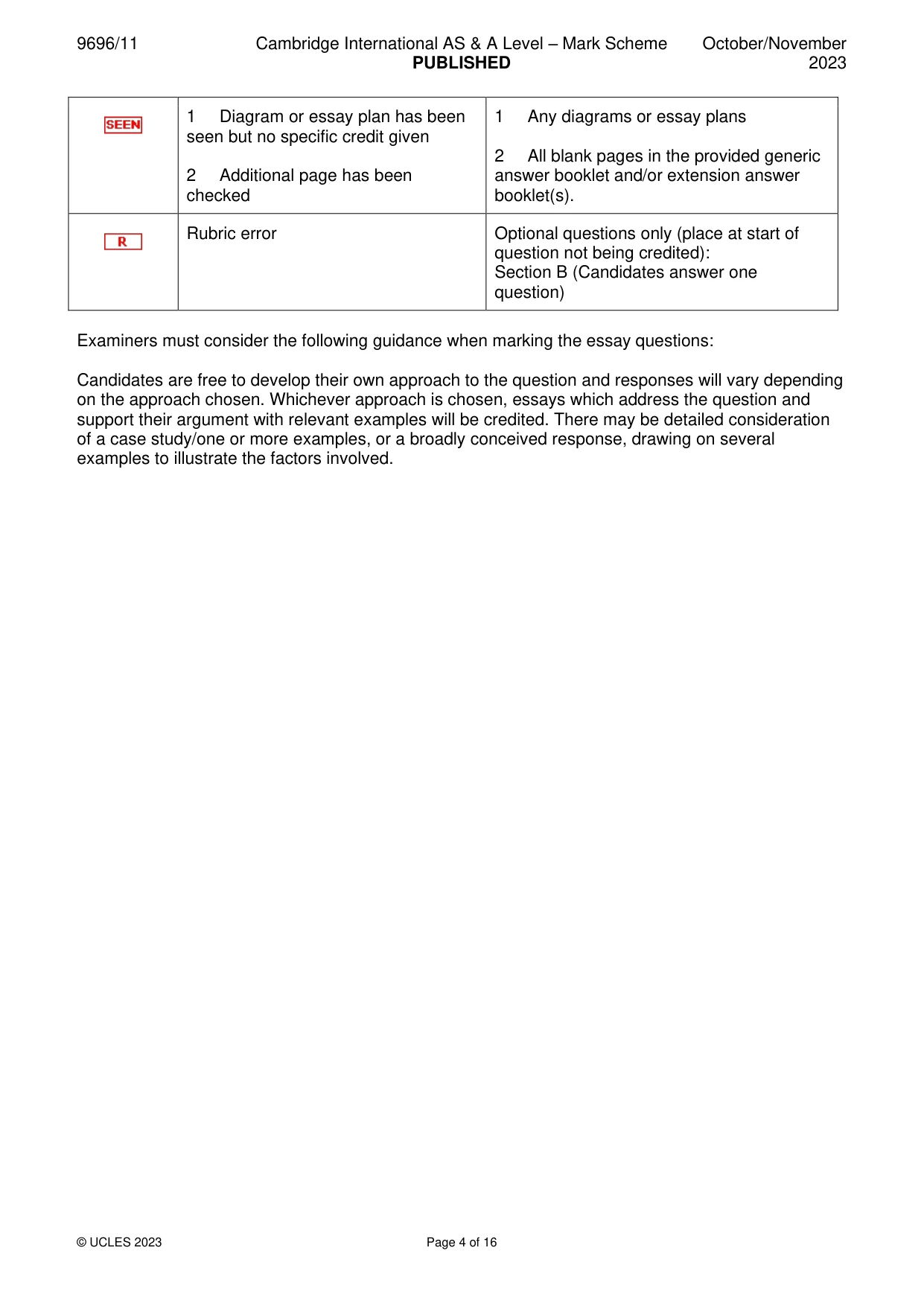

Mark scheme, page 4 of 16
Page 4 of 16

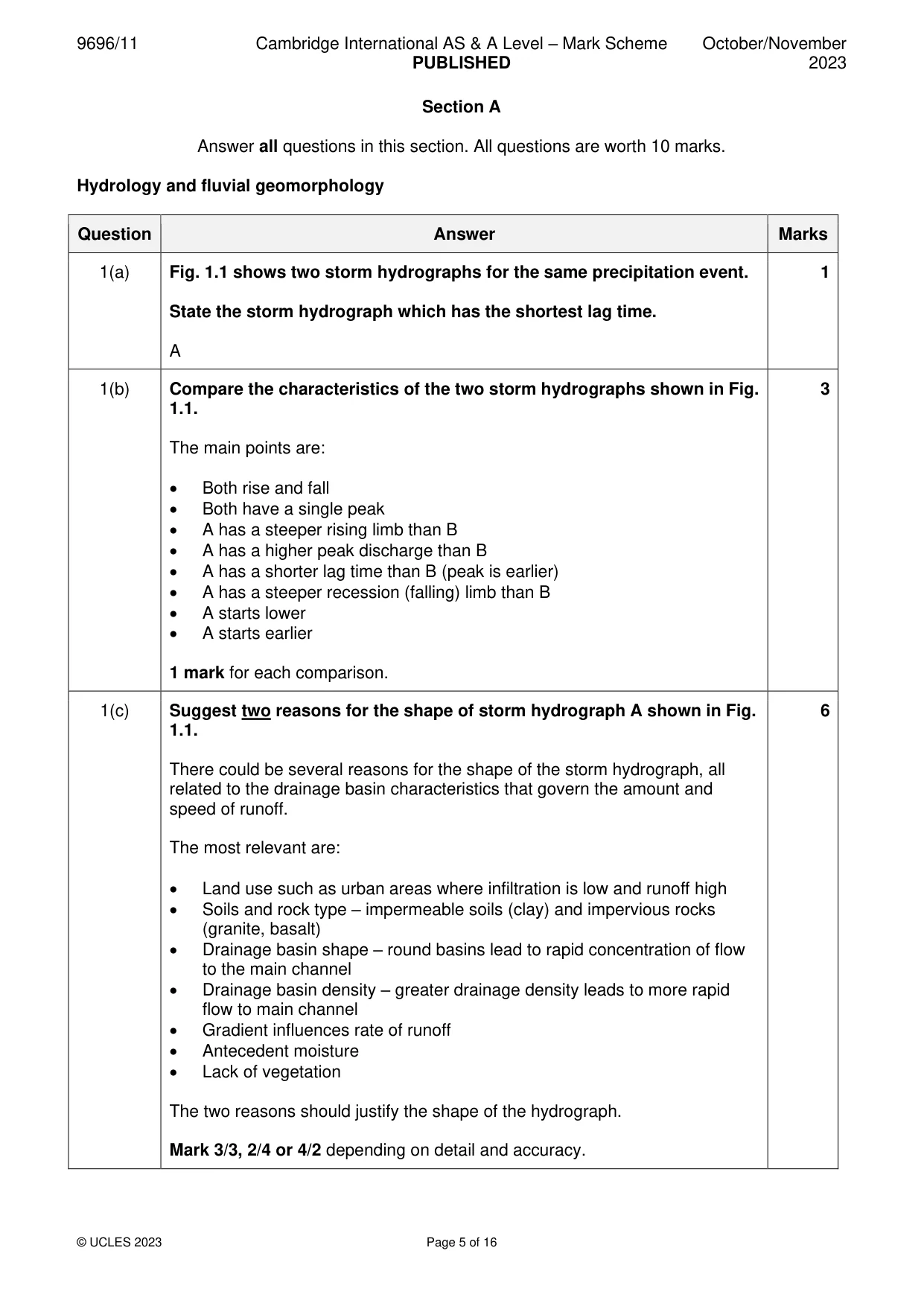

Mark scheme, page 5 of 16
Page 5 of 16

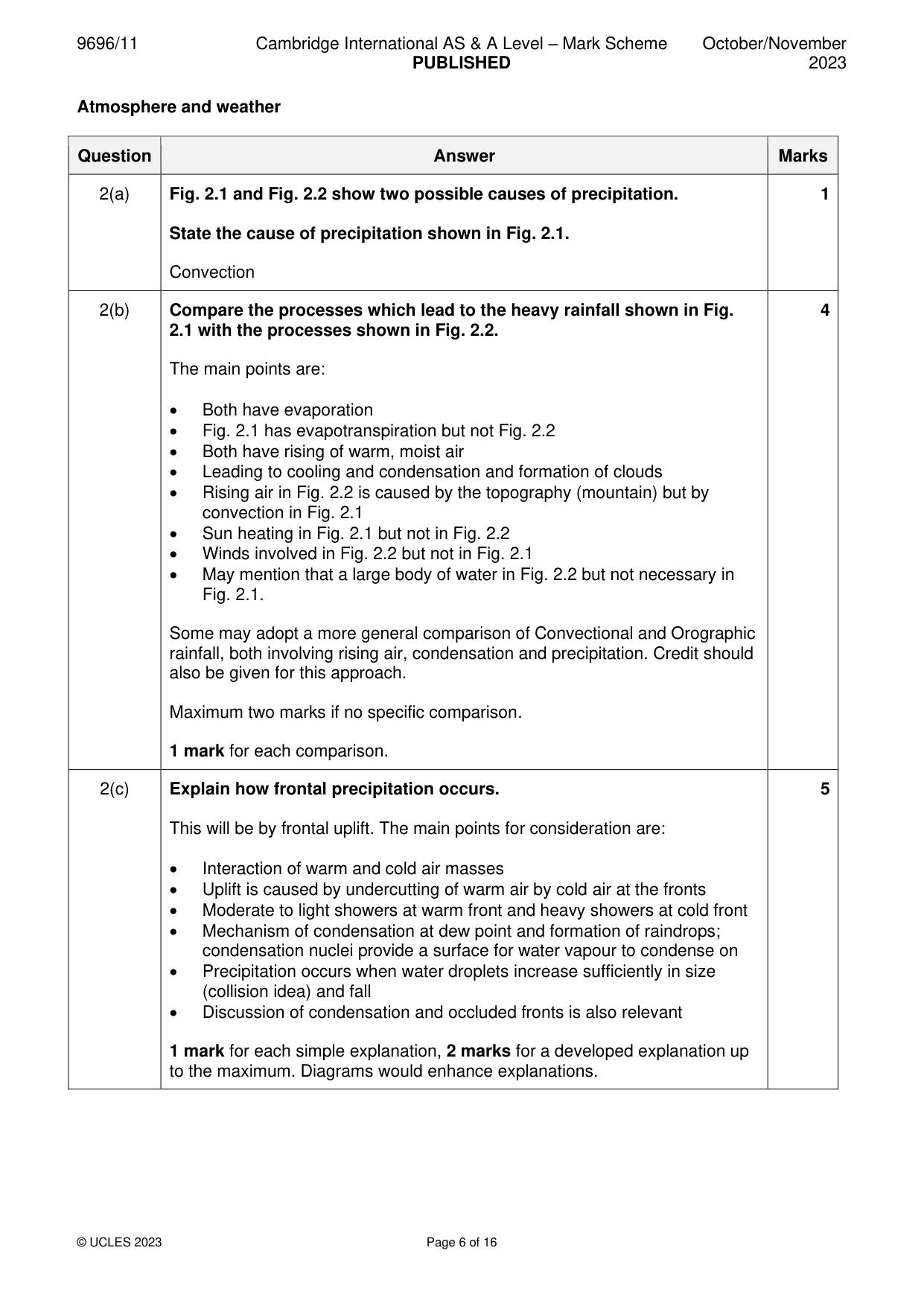

Mark scheme, page 6 of 16
Page 6 of 16
Mark scheme, page 7 of 16
Page 7 of 16

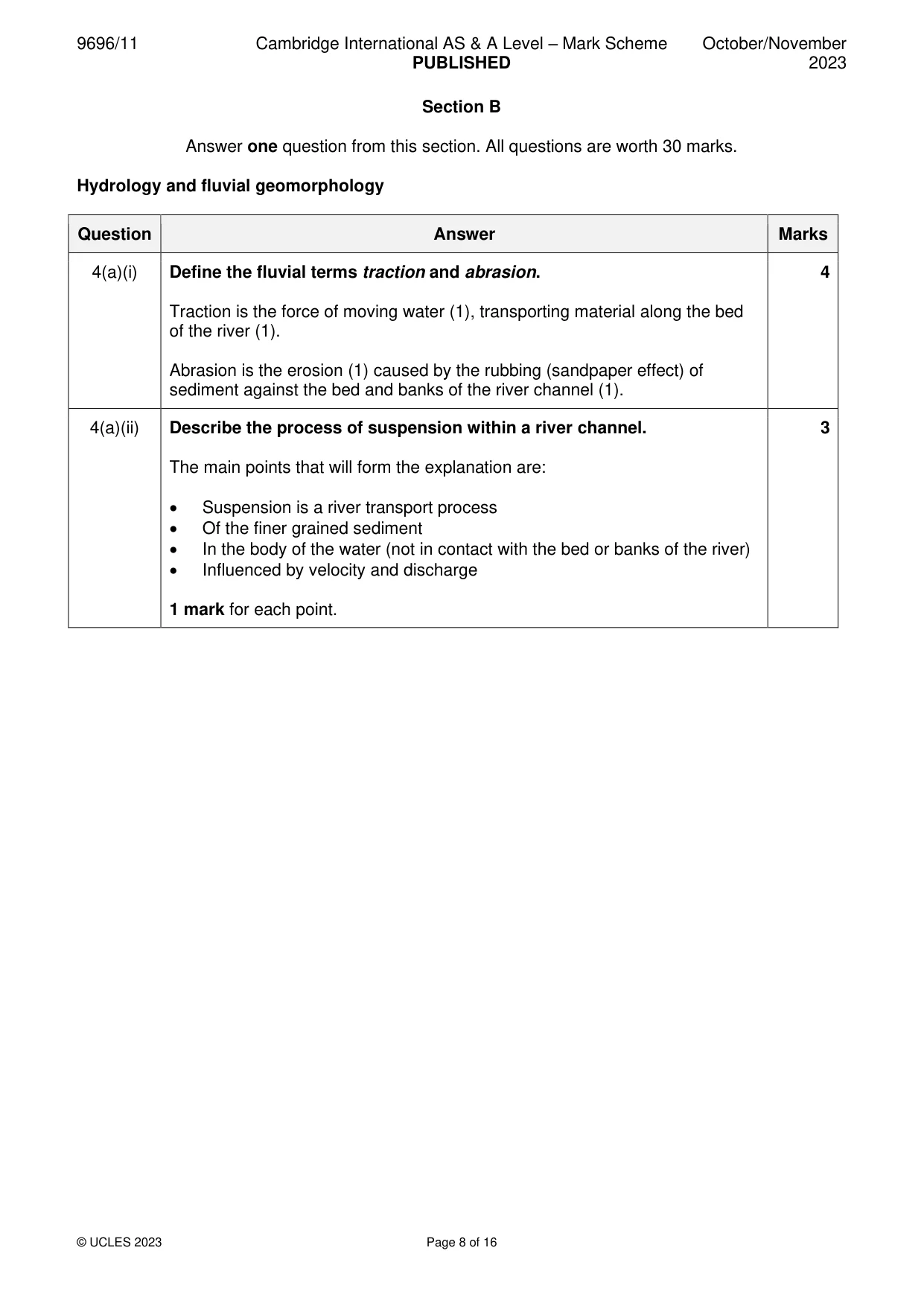

Mark scheme, page 8 of 16
Page 8 of 16
Mark scheme, page 9 of 16
Page 9 of 16

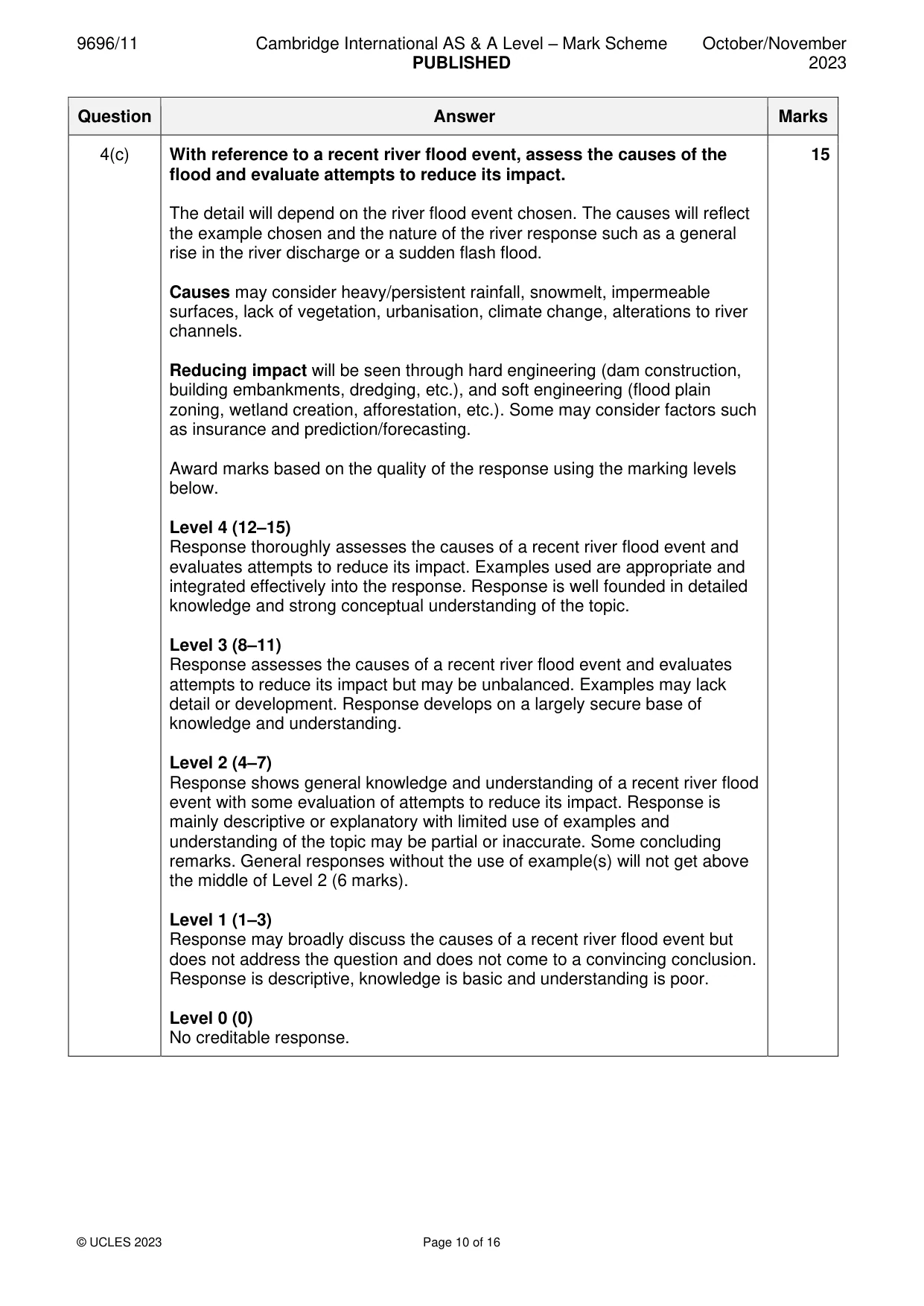

Mark scheme, page 10 of 16
Page 10 of 16
Mark scheme, page 11 of 16
Page 11 of 16

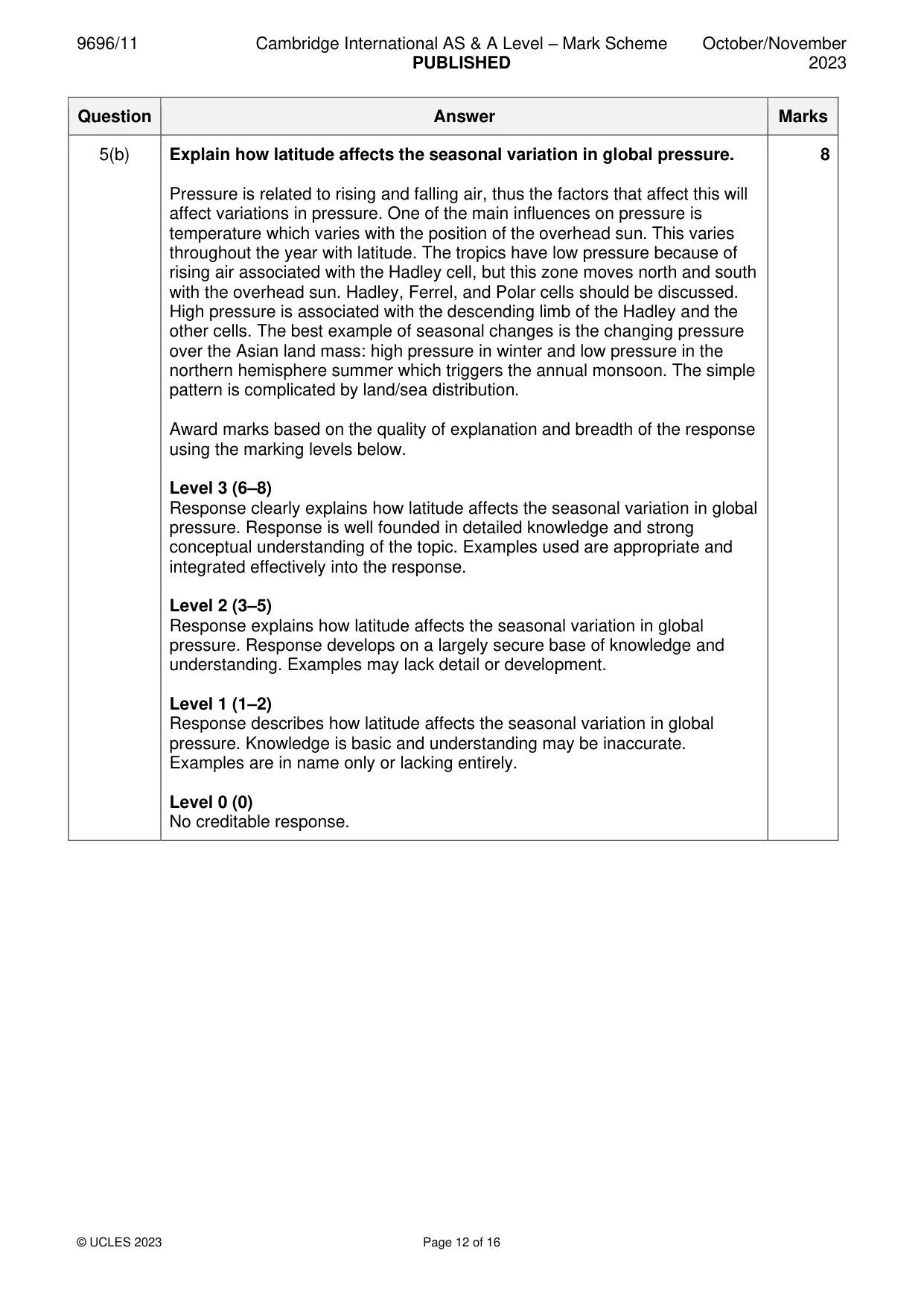

Mark scheme, page 12 of 16
Page 12 of 16

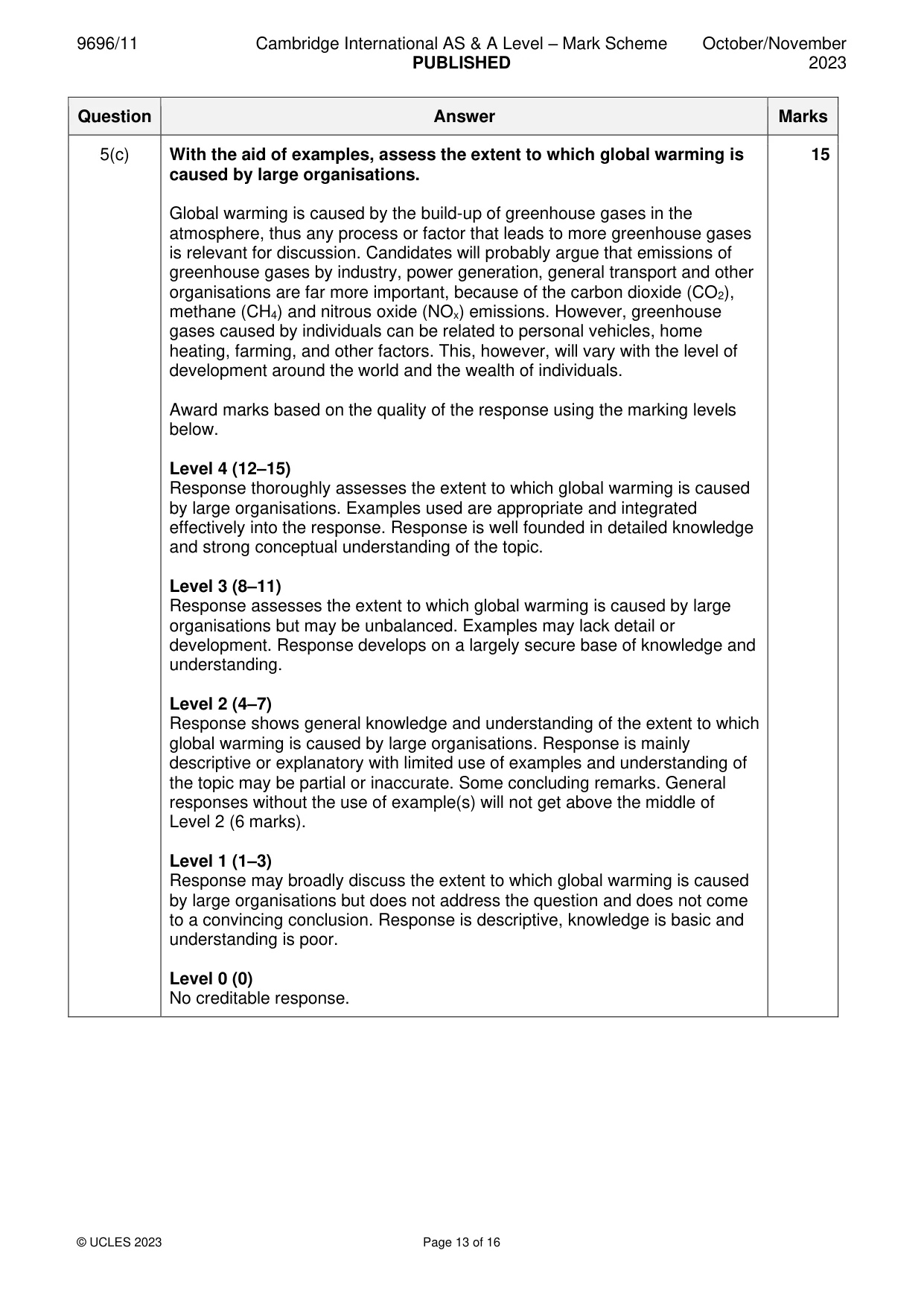

Mark scheme, page 13 of 16
Page 13 of 16

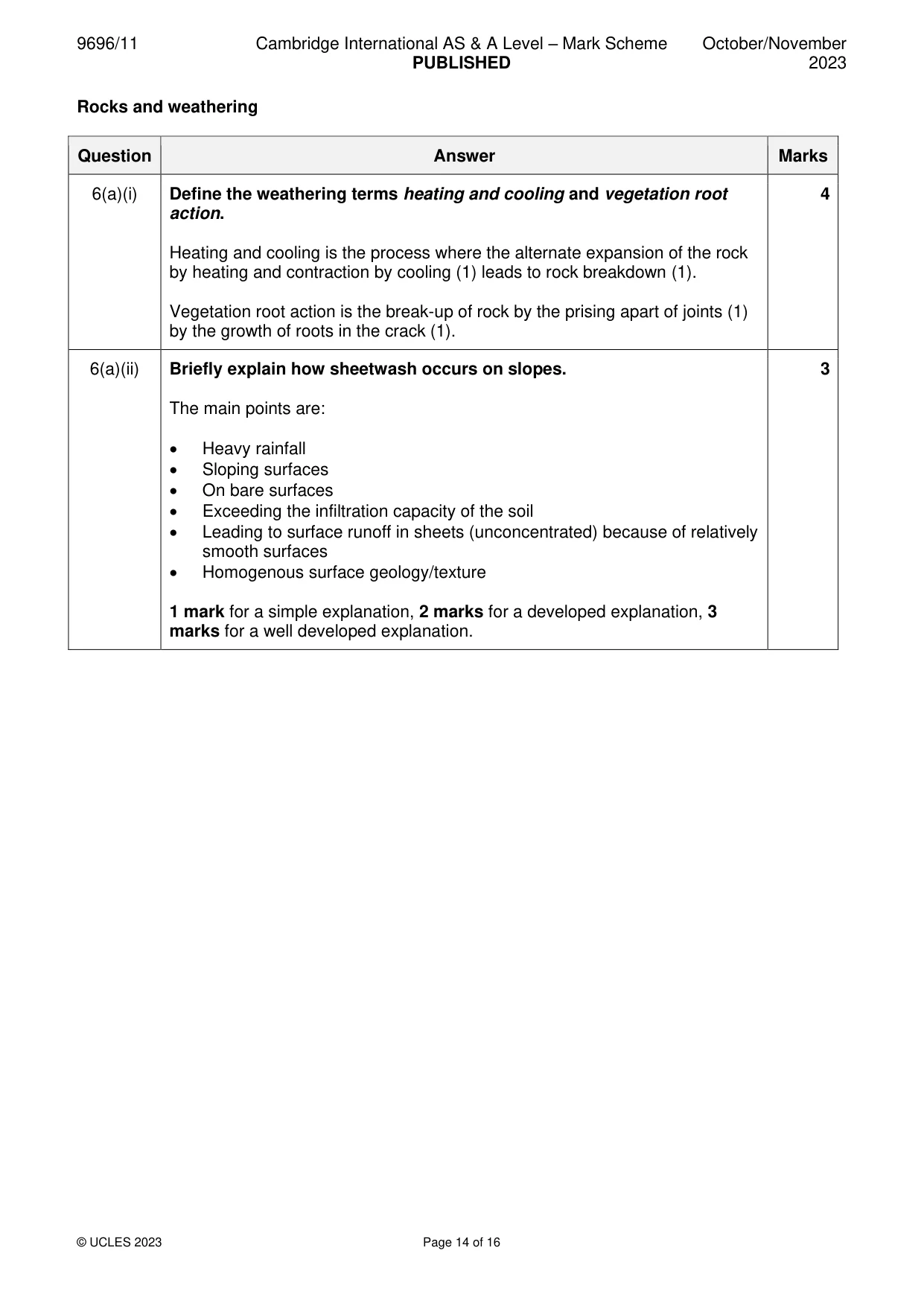

Mark scheme, page 14 of 16
Page 14 of 16
Mark scheme, page 15 of 16
Page 15 of 16
Mark scheme, page 16 of 16
Page 16 of 16

Paper as text

Question paper, page 1

This document has 4 pages. Any blank pages are indicated. [Turn over Cambridge International AS & A Level GEOGRAPHY 9696/11 Paper 1 Core Physical Geography October/November 2023 1 hour 30 minutes You must answer on the enclosed answer booklet. You will need: Answer booklet (enclosed) Insert (enclosed) INSTRUCTIONS ● Answer four questions in total: Section A: answer all questions. Section B: answer one question. ● Follow the instructions on the front cover of the answer booklet. If you need additional answer paper, ask the invigilator for a continuation booklet. ● Sketch maps and diagrams should be drawn whenever they serve to illustrate an answer. INFORMATION ● The total mark for this paper is 60. ● The number of marks for each question or part question is shown in brackets [ ]. ● The insert contains all the resources referred to in the questions. * 3 6 5 2 0 8 2 1 8 3 * DC (LK) 312142/1 © UCLES 2023

Question paper, page 2

2 9696/11/O/N/23 © UCLES 2023 Section A Answer all questions in this section. All questions are worth 10 marks. Hydrology and fluvial geomorphology 1 Fig. 1.1 shows two storm hydrographs for the same precipitation event. (a) State the storm hydrograph which has the shortest lag time. [1] (b) Compare the characteristics of the two storm hydrographs shown in Fig. 1.1. [3] (c) Suggest two reasons for the shape of storm hydrograph A shown in Fig. 1.1. [6] Atmosphere and weather 2 Fig. 2.1 and Fig. 2.2 show two possible causes of precipitation. (a) State the cause of precipitation shown in Fig. 2.1. [1] (b) Compare the processes which lead to the heavy rainfall shown in Fig. 2.1 with the processes shown in Fig. 2.2. [4] (c) Explain how frontal precipitation occurs. [5] Rocks and weathering 3 Fig. 3.1 is a photograph which shows a mass movement. (a) Name the type of mass movement labelled A in Fig. 3.1. [1] (b) Describe the features of the mass movement labelled A in Fig. 3.1. [4] (c) Explain how a mass movement such as that shown in Fig. 3.1 is formed. [5]

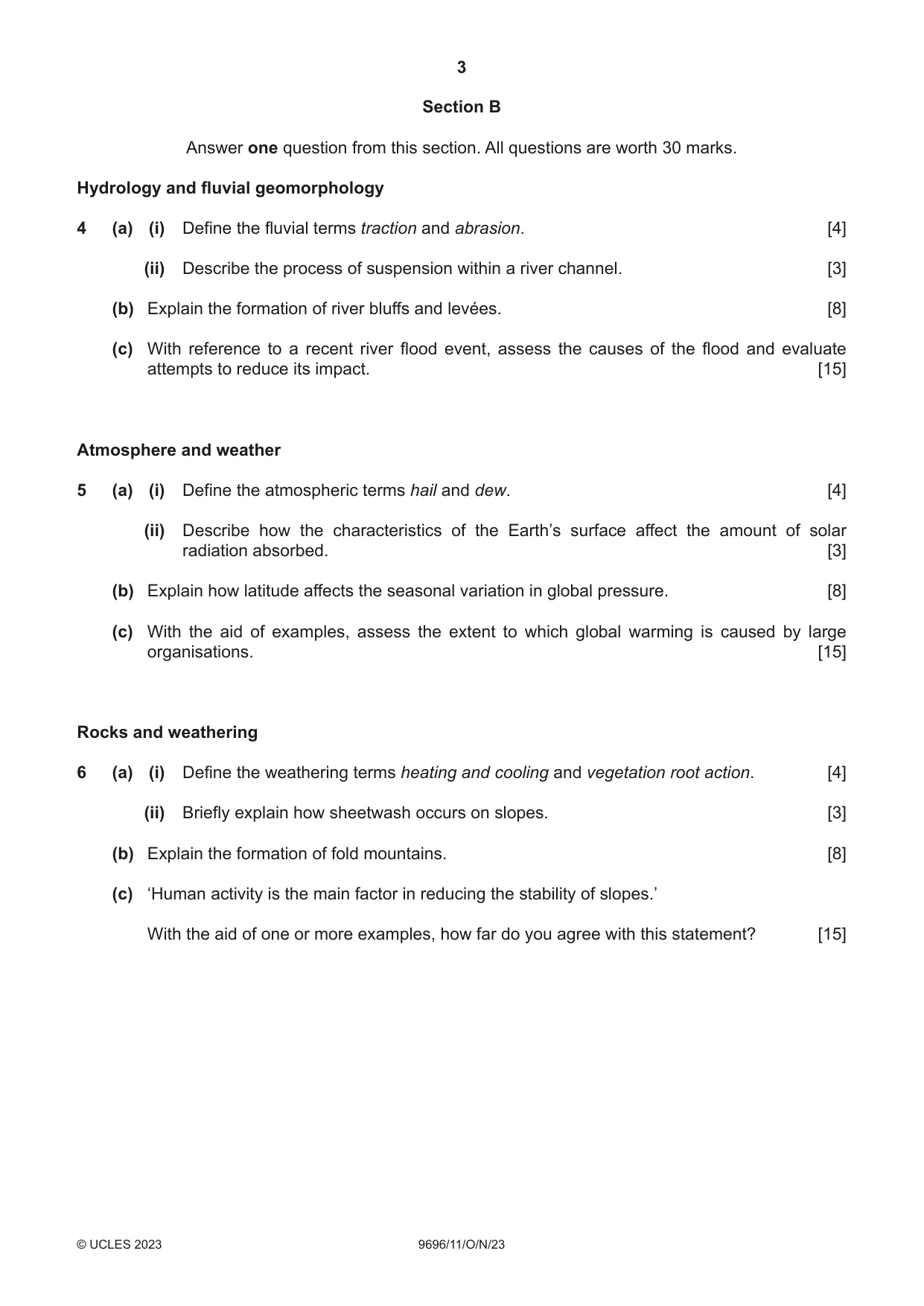

Question paper, page 3

3 9696/11/O/N/23 © UCLES 2023 Section B Answer one question from this section. All questions are worth 30 marks. Hydrology and fluvial geomorphology 4 (a) (i) Define the fluvial terms traction and abrasion. [4] (ii) Describe the process of suspension within a river channel. [3] (b) Explain the formation of river bluffs and levées. [8] (c) With reference to a recent river flood event, assess the causes of the flood and evaluate attempts to reduce its impact. [15] Atmosphere and weather 5 (a) (i) Define the atmospheric terms hail and dew. [4] (ii) Describe how the characteristics of the Earth’s surface affect the amount of solar radiation absorbed. [3] (b) Explain how latitude affects the seasonal variation in global pressure. [8] (c) With the aid of examples, assess the extent to which global warming is caused by large organisations. [15] Rocks and weathering 6 (a) (i) Define the weathering terms heating and cooling and vegetation root action. [4] (ii) Briefly explain how sheetwash occurs on slopes. [3] (b) Explain the formation of fold mountains. [8] (c) ‘Human activity is the main factor in reducing the stability of slopes.’ With the aid of one or more examples, how far do you agree with this statement? [15]

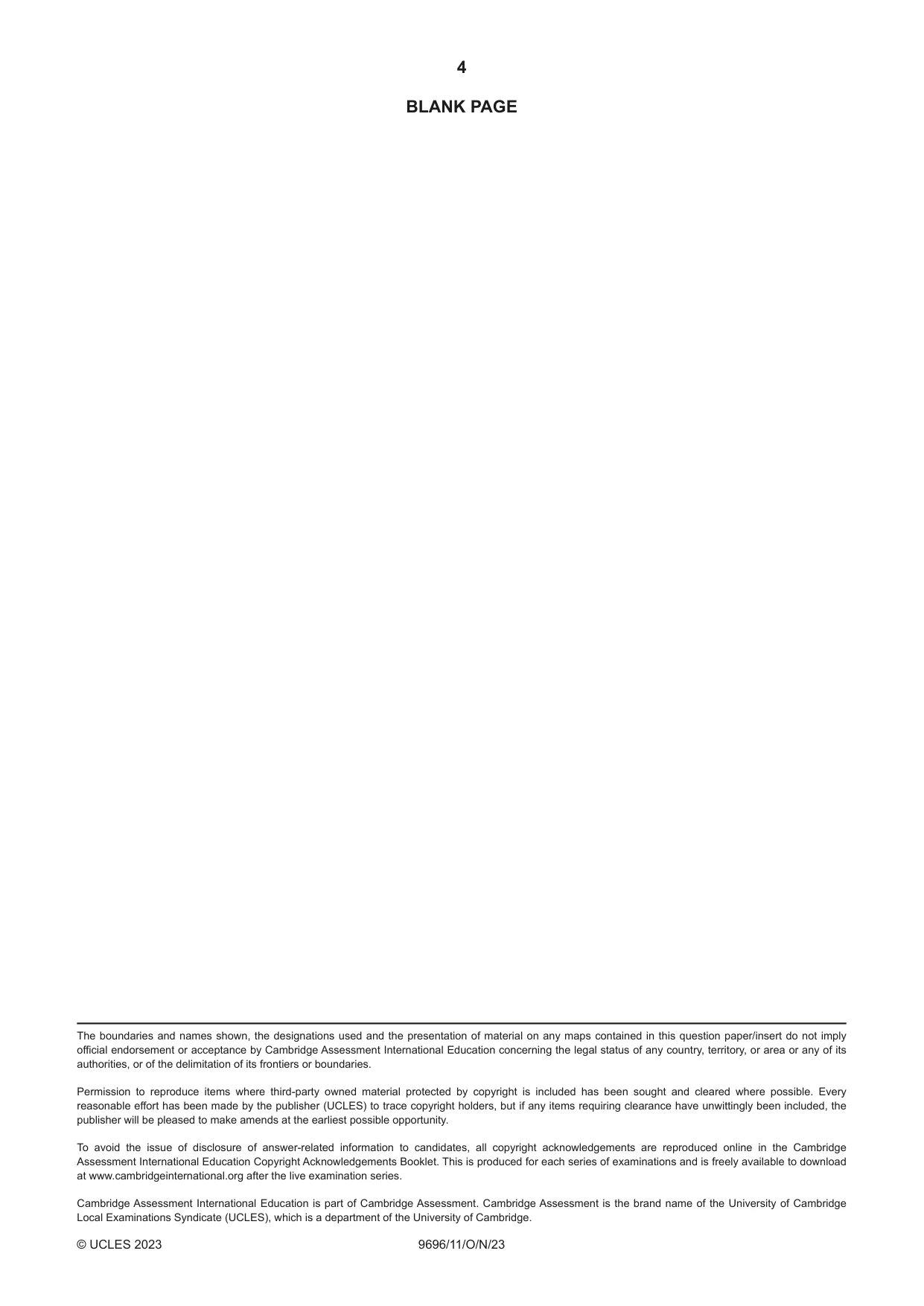

Question paper, page 4

4 9696/11/O/N/23 © UCLES 2023 The boundaries and names shown, the designations used and the presentation of material on any maps contained in this question paper/insert do not imply official endorsement or acceptance by Cambridge Assessment International Education concerning the legal status of any country, territory, or area or any of its authorities, or of the delimitation of its frontiers or boundaries. Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

Mark scheme, page 1

This document consists of 16 printed pages. © UCLES 2023 [Turn over Cambridge International AS & A Level GEOGRAPHY 9696/11 Paper 1 Core Physical Geography October/November 2023 MARK SCHEME Maximum Mark: 60 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2023 series for most Cambridge IGCSE, Cambridge International A and AS Level components, and some Cambridge O Level components.

Mark scheme, page 2

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 2 of 16 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

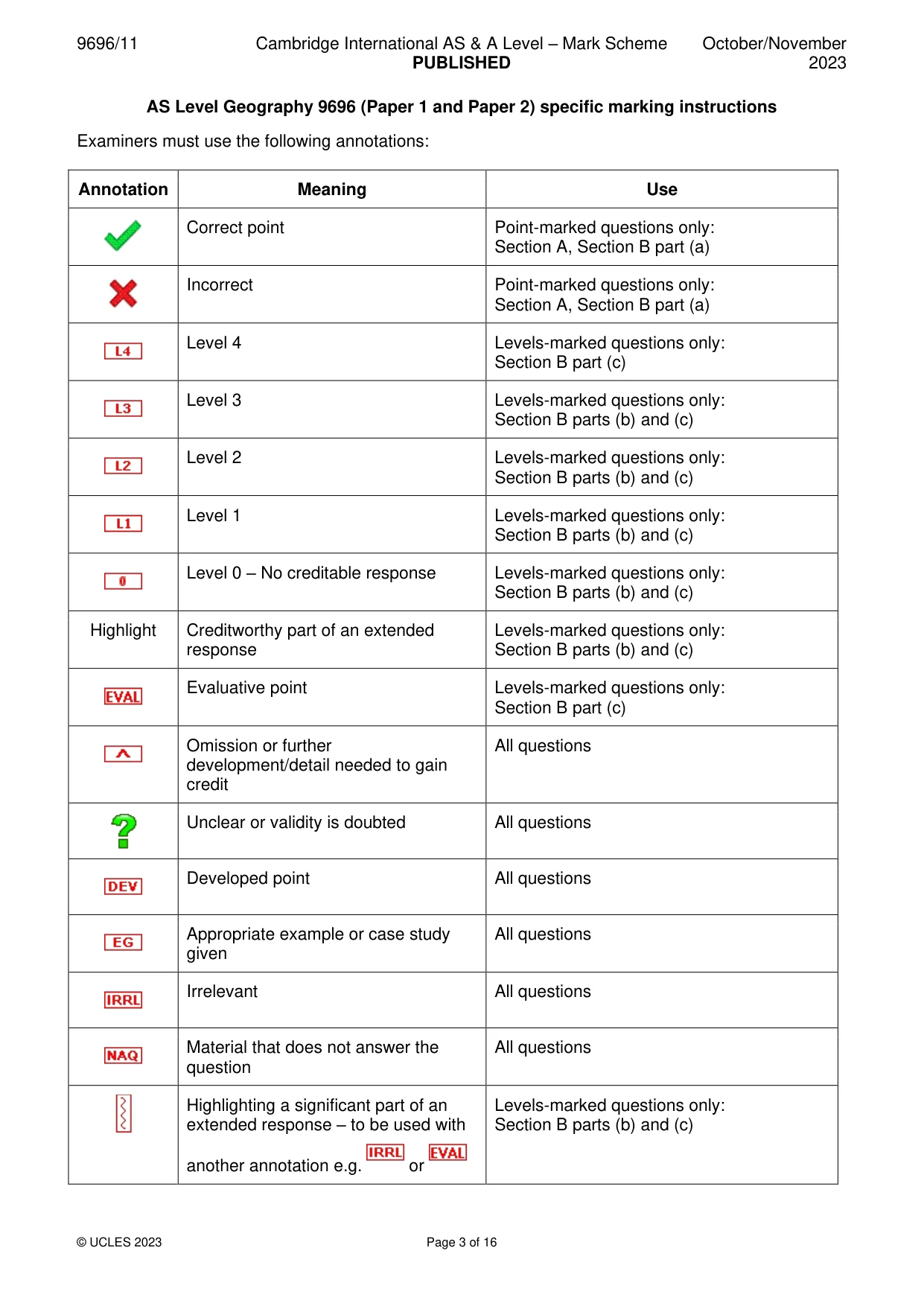

Mark scheme, page 3

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 3 of 16 AS Level Geography 9696 (Paper 1 and Paper 2) specific marking instructions Examiners must use the following annotations: Annotation Meaning Use Correct point Point-marked questions only: Section A, Section B part (a) Incorrect Point-marked questions only: Section A, Section B part (a) Level 4 Levels-marked questions only: Section B part (c) Level 3 Levels-marked questions only: Section B parts (b) and (c) Level 2 Levels-marked questions only: Section B parts (b) and (c) Level 1 Levels-marked questions only: Section B parts (b) and (c) Level 0 – No creditable response Levels-marked questions only: Section B parts (b) and (c) Highlight Creditworthy part of an extended response Levels-marked questions only: Section B parts (b) and (c) Evaluative point Levels-marked questions only: Section B part (c) Omission or further development/detail needed to gain credit All questions Unclear or validity is doubted All questions Developed point All questions Appropriate example or case study given All questions Irrelevant All questions Material that does not answer the question All questions Highlighting a significant part of an extended response – to be used with another annotation e.g. or Levels-marked questions only: Section B parts (b) and (c)

Mark scheme, page 4

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 4 of 16 1 Diagram or essay plan has been seen but no specific credit given 2 Additional page has been checked 1 Any diagrams or essay plans 2 All blank pages in the provided generic answer booklet and/or extension answer booklet(s). Rubric error Optional questions only (place at start of question not being credited): Section B (Candidates answer one question) Examiners must consider the following guidance when marking the essay questions: Candidates are free to develop their own approach to the question and responses will vary depending on the approach chosen. Whichever approach is chosen, essays which address the question and support their argument with relevant examples will be credited. There may be detailed consideration of a case study/one or more examples, or a broadly conceived response, drawing on several examples to illustrate the factors involved.

Mark scheme, page 5

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 5 of 16 Section A Answer all questions in this section. All questions are worth 10 marks. Hydrology and fluvial geomorphology Question Answer Marks 1(a) Fig. 1.1 shows two storm hydrographs for the same precipitation event. State the storm hydrograph which has the shortest lag time. A 1 1(b) Compare the characteristics of the two storm hydrographs shown in Fig. 1.1. The main points are: • Both rise and fall • Both have a single peak • A has a steeper rising limb than B • A has a higher peak discharge than B • A has a shorter lag time than B (peak is earlier) • A has a steeper recession (falling) limb than B • A starts lower • A starts earlier 1 mark for each comparison. 3 1(c) Suggest two reasons for the shape of storm hydrograph A shown in Fig. 1.1. There could be several reasons for the shape of the storm hydrograph, all related to the drainage basin characteristics that govern the amount and speed of runoff. The most relevant are: • Land use such as urban areas where infiltration is low and runoff high • Soils and rock type – impermeable soils (clay) and impervious rocks (granite, basalt) • Drainage basin shape – round basins lead to rapid concentration of flow to the main channel • Drainage basin density – greater drainage density leads to more rapid flow to main channel • Gradient influences rate of runoff • Antecedent moisture • Lack of vegetation The two reasons should justify the shape of the hydrograph. Mark 3/3, 2/4 or 4/2 depending on detail and accuracy. 6

Mark scheme, page 6

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 6 of 16 Atmosphere and weather Question Answer Marks 2(a) Fig. 2.1 and Fig. 2.2 show two possible causes of precipitation. State the cause of precipitation shown in Fig. 2.1. Convection 1 2(b) Compare the processes which lead to the heavy rainfall shown in Fig. 2.1 with the processes shown in Fig. 2.2. The main points are: • Both have evaporation • Fig. 2.1 has evapotranspiration but not Fig. 2.2 • Both have rising of warm, moist air • Leading to cooling and condensation and formation of clouds • Rising air in Fig. 2.2 is caused by the topography (mountain) but by convection in Fig. 2.1 • Sun heating in Fig. 2.1 but not in Fig. 2.2 • Winds involved in Fig. 2.2 but not in Fig. 2.1 • May mention that a large body of water in Fig. 2.2 but not necessary in Fig. 2.1. Some may adopt a more general comparison of Convectional and Orographic rainfall, both involving rising air, condensation and precipitation. Credit should also be given for this approach. Maximum two marks if no specific comparison. 1 mark for each comparison. 4 2(c) Explain how frontal precipitation occurs. This will be by frontal uplift. The main points for consideration are: • Interaction of warm and cold air masses • Uplift is caused by undercutting of warm air by cold air at the fronts • Moderate to light showers at warm front and heavy showers at cold front • Mechanism of condensation at dew point and formation of raindrops; condensation nuclei provide a surface for water vapour to condense on • Precipitation occurs when water droplets increase sufficiently in size (collision idea) and fall • Discussion of condensation and occluded fronts is also relevant 1 mark for each simple explanation, 2 marks for a developed explanation up to the maximum. Diagrams would enhance explanations. 5

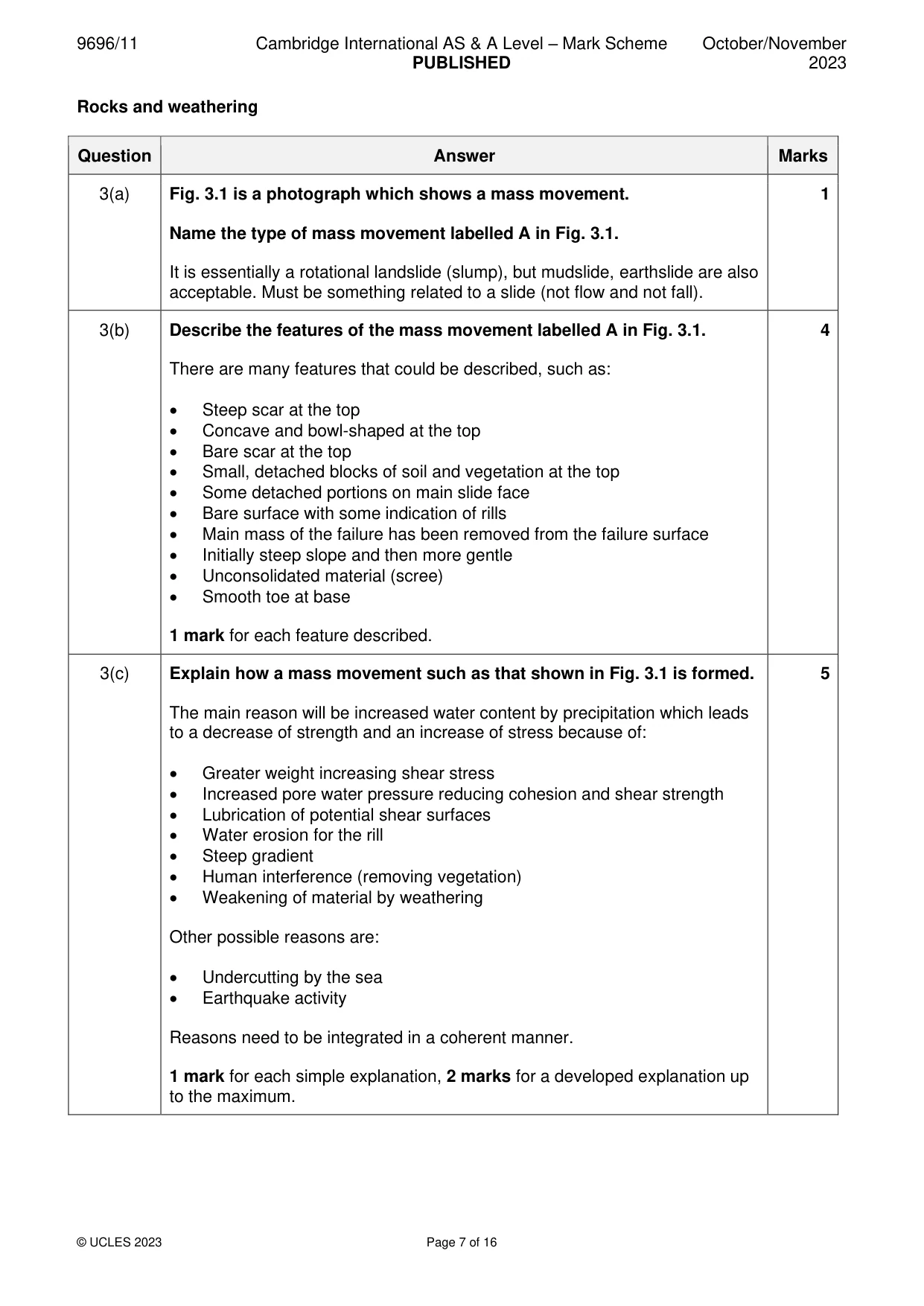

Mark scheme, page 7

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 7 of 16 Rocks and weathering Question Answer Marks 3(a) Fig. 3.1 is a photograph which shows a mass movement. Name the type of mass movement labelled A in Fig. 3.1. It is essentially a rotational landslide (slump), but mudslide, earthslide are also acceptable. Must be something related to a slide (not flow and not fall). 1 3(b) Describe the features of the mass movement labelled A in Fig. 3.1. There are many features that could be described, such as: • Steep scar at the top • Concave and bowl-shaped at the top • Bare scar at the top • Small, detached blocks of soil and vegetation at the top • Some detached portions on main slide face • Bare surface with some indication of rills • Main mass of the failure has been removed from the failure surface • Initially steep slope and then more gentle • Unconsolidated material (scree) • Smooth toe at base 1 mark for each feature described. 4 3(c) Explain how a mass movement such as that shown in Fig. 3.1 is formed. The main reason will be increased water content by precipitation which leads to a decrease of strength and an increase of stress because of: • Greater weight increasing shear stress • Increased pore water pressure reducing cohesion and shear strength • Lubrication of potential shear surfaces • Water erosion for the rill • Steep gradient • Human interference (removing vegetation) • Weakening of material by weathering Other possible reasons are: • Undercutting by the sea • Earthquake activity Reasons need to be integrated in a coherent manner. 1 mark for each simple explanation, 2 marks for a developed explanation up to the maximum. 5

Mark scheme, page 8

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 8 of 16 Section B Answer one question from this section. All questions are worth 30 marks. Hydrology and fluvial geomorphology Question Answer Marks 4(a)(i) Define the fluvial terms traction and abrasion. Traction is the force of moving water (1), transporting material along the bed of the river (1). Abrasion is the erosion (1) caused by the rubbing (sandpaper effect) of sediment against the bed and banks of the river channel (1). 4 4(a)(ii) Describe the process of suspension within a river channel. The main points that will form the explanation are: • Suspension is a river transport process • Of the finer grained sediment • In the body of the water (not in contact with the bed or banks of the river) • Influenced by velocity and discharge 1 mark for each point. 3

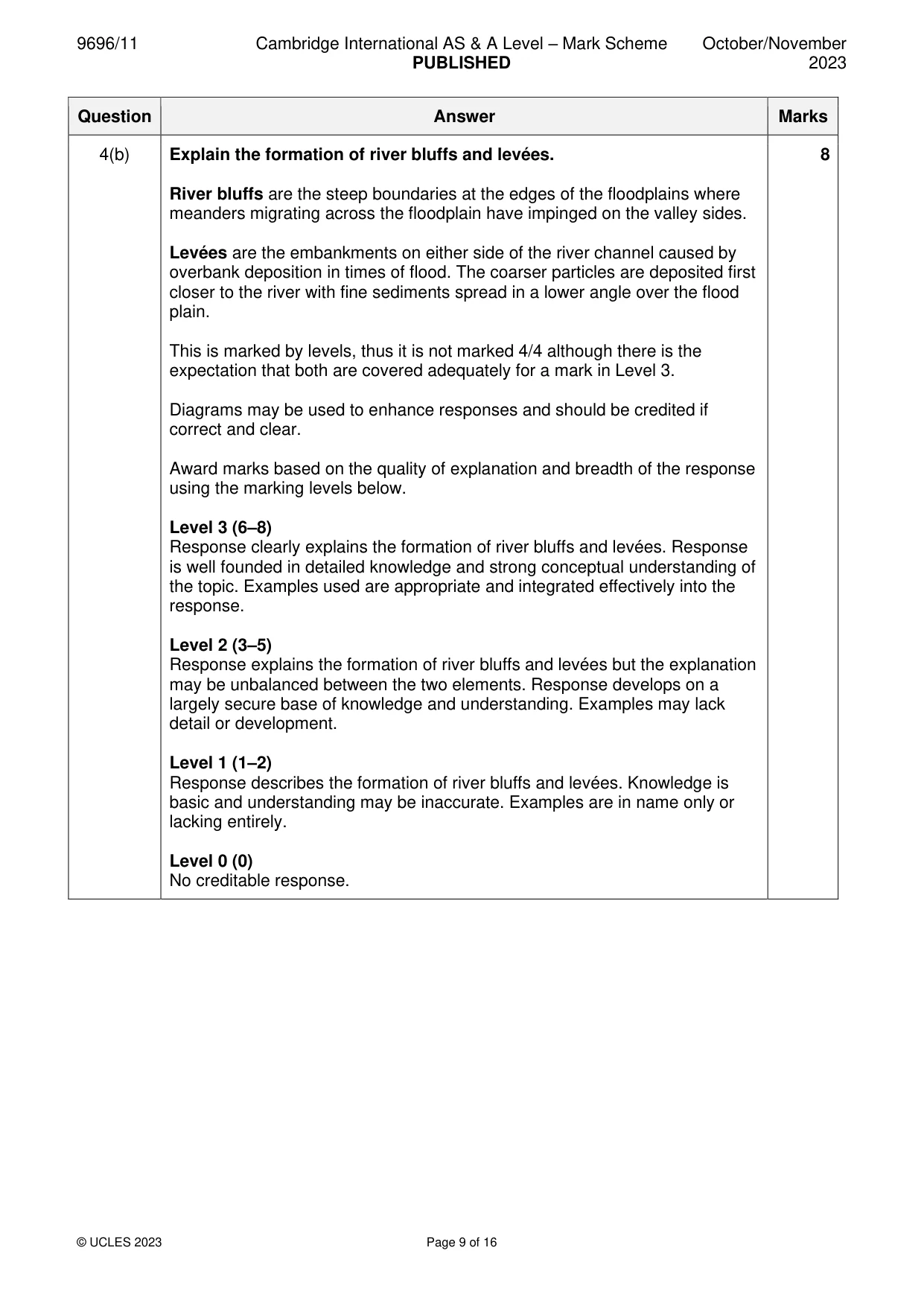

Mark scheme, page 9

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 9 of 16 Question Answer Marks 4(b) Explain the formation of river bluffs and levées. River bluffs are the steep boundaries at the edges of the floodplains where meanders migrating across the floodplain have impinged on the valley sides. Levées are the embankments on either side of the river channel caused by overbank deposition in times of flood. The coarser particles are deposited first closer to the river with fine sediments spread in a lower angle over the flood plain. This is marked by levels, thus it is not marked 4/4 although there is the expectation that both are covered adequately for a mark in Level 3. Diagrams may be used to enhance responses and should be credited if correct and clear. Award marks based on the quality of explanation and breadth of the response using the marking levels below. Level 3 (6–8) Response clearly explains the formation of river bluffs and levées. Response is well founded in detailed knowledge and strong conceptual understanding of the topic. Examples used are appropriate and integrated effectively into the response. Level 2 (3–5) Response explains the formation of river bluffs and levées but the explanation may be unbalanced between the two elements. Response develops on a largely secure base of knowledge and understanding. Examples may lack detail or development. Level 1 (1–2) Response describes the formation of river bluffs and levées. Knowledge is basic and understanding may be inaccurate. Examples are in name only or lacking entirely. Level 0 (0) No creditable response. 8

Mark scheme, page 10

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 10 of 16 Question Answer Marks 4(c) With reference to a recent river flood event, assess the causes of the flood and evaluate attempts to reduce its impact. The detail will depend on the river flood event chosen. The causes will reflect the example chosen and the nature of the river response such as a general rise in the river discharge or a sudden flash flood. Causes may consider heavy/persistent rainfall, snowmelt, impermeable surfaces, lack of vegetation, urbanisation, climate change, alterations to river channels. Reducing impact will be seen through hard engineering (dam construction, building embankments, dredging, etc.), and soft engineering (flood plain zoning, wetland creation, afforestation, etc.). Some may consider factors such as insurance and prediction/forecasting. Award marks based on the quality of the response using the marking levels below. Level 4 (12–15) Response thoroughly assesses the causes of a recent river flood event and evaluates attempts to reduce its impact. Examples used are appropriate and integrated effectively into the response. Response is well founded in detailed knowledge and strong conceptual understanding of the topic. Level 3 (8–11) Response assesses the causes of a recent river flood event and evaluates attempts to reduce its impact but may be unbalanced. Examples may lack detail or development. Response develops on a largely secure base of knowledge and understanding. Level 2 (4–7) Response shows general knowledge and understanding of a recent river flood event with some evaluation of attempts to reduce its impact. Response is mainly descriptive or explanatory with limited use of examples and understanding of the topic may be partial or inaccurate. Some concluding remarks. General responses without the use of example(s) will not get above the middle of Level 2 (6 marks). Level 1 (1–3) Response may broadly discuss the causes of a recent river flood event but does not address the question and does not come to a convincing conclusion. Response is descriptive, knowledge is basic and understanding is poor. Level 0 (0) No creditable response. 15

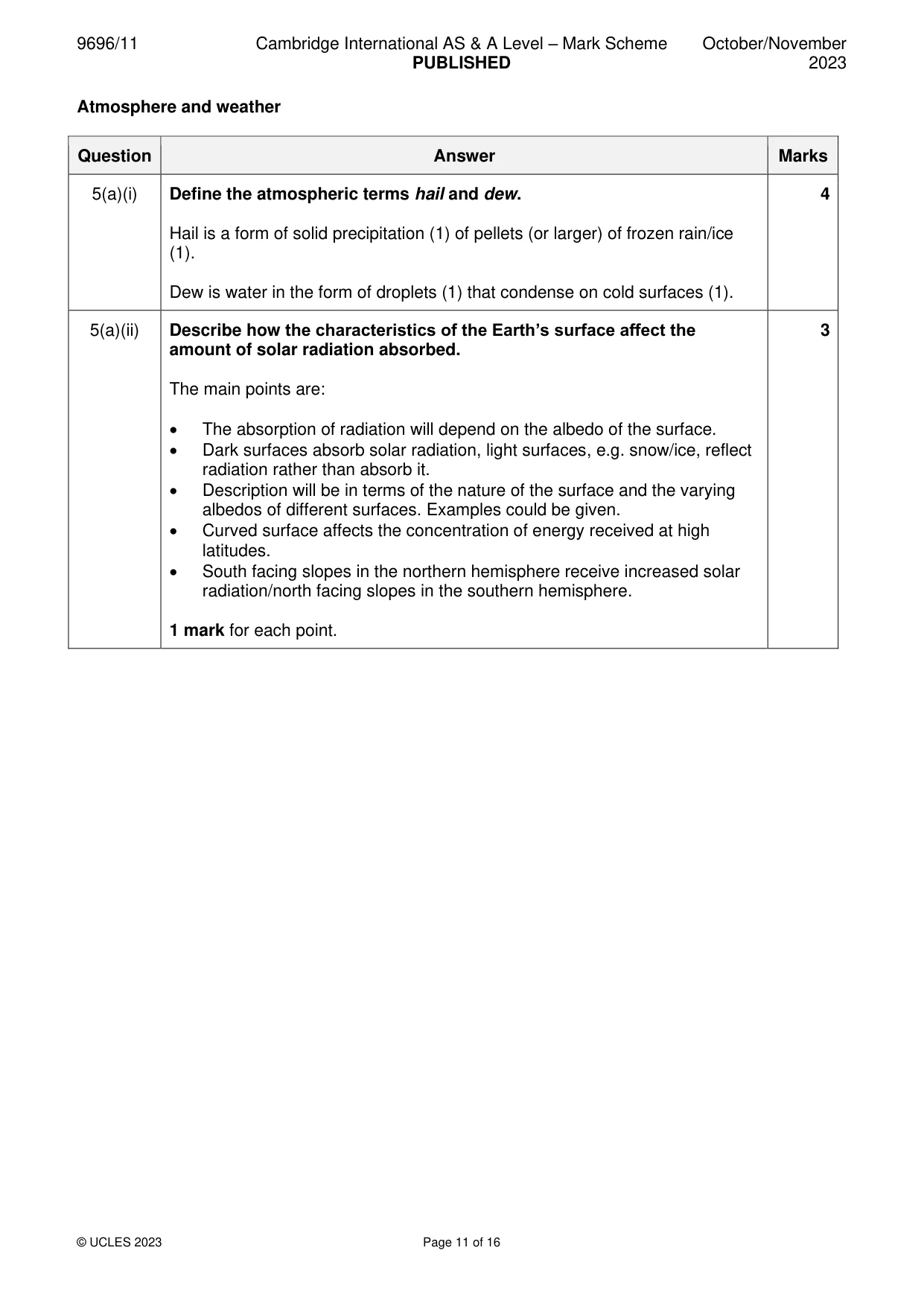

Mark scheme, page 11

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 11 of 16 Atmosphere and weather Question Answer Marks 5(a)(i) Define the atmospheric terms hail and dew. Hail is a form of solid precipitation (1) of pellets (or larger) of frozen rain/ice (1). Dew is water in the form of droplets (1) that condense on cold surfaces (1). 4 5(a)(ii) Describe how the characteristics of the Earth’s surface affect the amount of solar radiation absorbed. The main points are: • The absorption of radiation will depend on the albedo of the surface. • Dark surfaces absorb solar radiation, light surfaces, e.g. snow/ice, reflect radiation rather than absorb it. • Description will be in terms of the nature of the surface and the varying albedos of different surfaces. Examples could be given. • Curved surface affects the concentration of energy received at high latitudes. • South facing slopes in the northern hemisphere receive increased solar radiation/north facing slopes in the southern hemisphere. 1 mark for each point. 3

Mark scheme, page 12

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 12 of 16 Question Answer Marks 5(b) Explain how latitude affects the seasonal variation in global pressure. Pressure is related to rising and falling air, thus the factors that affect this will affect variations in pressure. One of the main influences on pressure is temperature which varies with the position of the overhead sun. This varies throughout the year with latitude. The tropics have low pressure because of rising air associated with the Hadley cell, but this zone moves north and south with the overhead sun. Hadley, Ferrel, and Polar cells should be discussed. High pressure is associated with the descending limb of the Hadley and the other cells. The best example of seasonal changes is the changing pressure over the Asian land mass: high pressure in winter and low pressure in the northern hemisphere summer which triggers the annual monsoon. The simple pattern is complicated by land/sea distribution. Award marks based on the quality of explanation and breadth of the response using the marking levels below. Level 3 (6–8) Response clearly explains how latitude affects the seasonal variation in global pressure. Response is well founded in detailed knowledge and strong conceptual understanding of the topic. Examples used are appropriate and integrated effectively into the response. Level 2 (3–5) Response explains how latitude affects the seasonal variation in global pressure. Response develops on a largely secure base of knowledge and understanding. Examples may lack detail or development. Level 1 (1–2) Response describes how latitude affects the seasonal variation in global pressure. Knowledge is basic and understanding may be inaccurate. Examples are in name only or lacking entirely. Level 0 (0) No creditable response. 8

Mark scheme, page 13

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 13 of 16 Question Answer Marks 5(c) With the aid of examples, assess the extent to which global warming is caused by large organisations. Global warming is caused by the build-up of greenhouse gases in the atmosphere, thus any process or factor that leads to more greenhouse gases is relevant for discussion. Candidates will probably argue that emissions of greenhouse gases by industry, power generation, general transport and other organisations are far more important, because of the carbon dioxide (CO2), methane (CH4) and nitrous oxide (NOx) emissions. However, greenhouse gases caused by individuals can be related to personal vehicles, home heating, farming, and other factors. This, however, will vary with the level of development around the world and the wealth of individuals. Award marks based on the quality of the response using the marking levels below. Level 4 (12–15) Response thoroughly assesses the extent to which global warming is caused by large organisations. Examples used are appropriate and integrated effectively into the response. Response is well founded in detailed knowledge and strong conceptual understanding of the topic. Level 3 (8–11) Response assesses the extent to which global warming is caused by large organisations but may be unbalanced. Examples may lack detail or development. Response develops on a largely secure base of knowledge and understanding. Level 2 (4–7) Response shows general knowledge and understanding of the extent to which global warming is caused by large organisations. Response is mainly descriptive or explanatory with limited use of examples and understanding of the topic may be partial or inaccurate. Some concluding remarks. General responses without the use of example(s) will not get above the middle of Level 2 (6 marks). Level 1 (1–3) Response may broadly discuss the extent to which global warming is caused by large organisations but does not address the question and does not come to a convincing conclusion. Response is descriptive, knowledge is basic and understanding is poor. Level 0 (0) No creditable response. 15

Mark scheme, page 14

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 14 of 16 Rocks and weathering Question Answer Marks 6(a)(i) Define the weathering terms heating and cooling and vegetation root action. Heating and cooling is the process where the alternate expansion of the rock by heating and contraction by cooling (1) leads to rock breakdown (1). Vegetation root action is the break-up of rock by the prising apart of joints (1) by the growth of roots in the crack (1). 4 6(a)(ii) Briefly explain how sheetwash occurs on slopes. The main points are: • Heavy rainfall • Sloping surfaces • On bare surfaces • Exceeding the infiltration capacity of the soil • Leading to surface runoff in sheets (unconcentrated) because of relatively smooth surfaces • Homogenous surface geology/texture 1 mark for a simple explanation, 2 marks for a developed explanation, 3 marks for a well developed explanation. 3

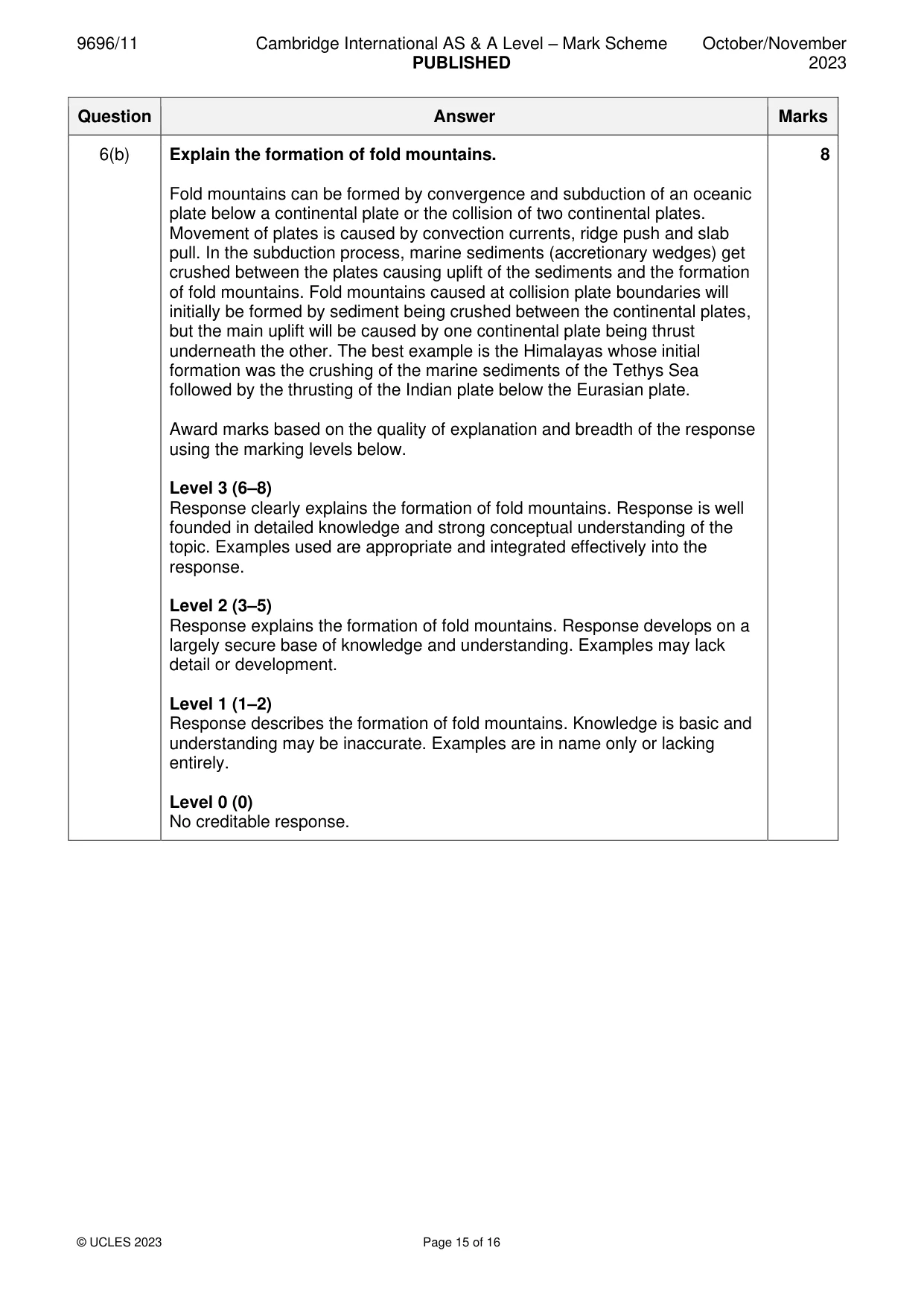

Mark scheme, page 15

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 15 of 16 Question Answer Marks 6(b) Explain the formation of fold mountains. Fold mountains can be formed by convergence and subduction of an oceanic plate below a continental plate or the collision of two continental plates. Movement of plates is caused by convection currents, ridge push and slab pull. In the subduction process, marine sediments (accretionary wedges) get crushed between the plates causing uplift of the sediments and the formation of fold mountains. Fold mountains caused at collision plate boundaries will initially be formed by sediment being crushed between the continental plates, but the main uplift will be caused by one continental plate being thrust underneath the other. The best example is the Himalayas whose initial formation was the crushing of the marine sediments of the Tethys Sea followed by the thrusting of the Indian plate below the Eurasian plate. Award marks based on the quality of explanation and breadth of the response using the marking levels below. Level 3 (6–8) Response clearly explains the formation of fold mountains. Response is well founded in detailed knowledge and strong conceptual understanding of the topic. Examples used are appropriate and integrated effectively into the response. Level 2 (3–5) Response explains the formation of fold mountains. Response develops on a largely secure base of knowledge and understanding. Examples may lack detail or development. Level 1 (1–2) Response describes the formation of fold mountains. Knowledge is basic and understanding may be inaccurate. Examples are in name only or lacking entirely. Level 0 (0) No creditable response. 8

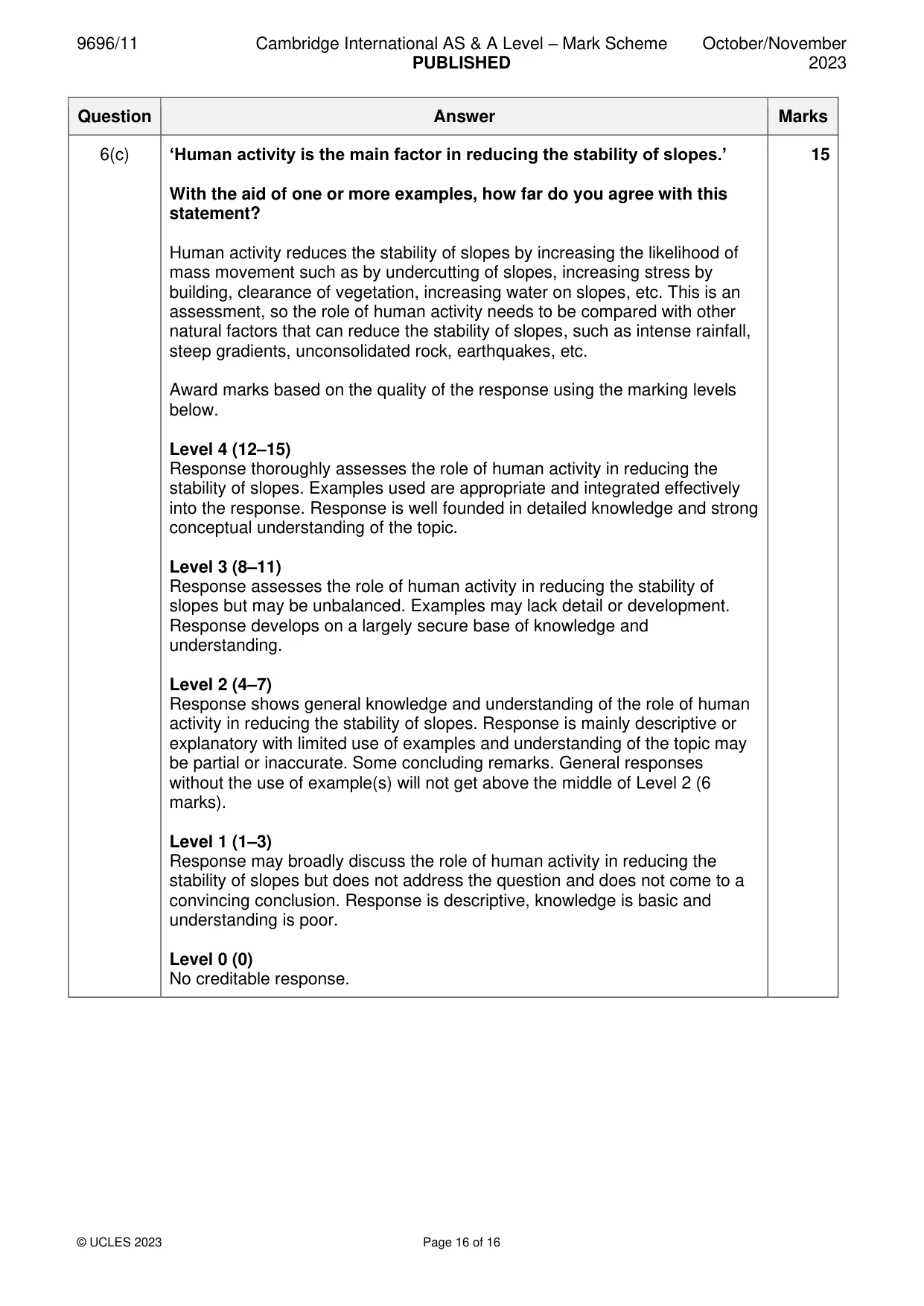

Mark scheme, page 16

9696/11 Cambridge International AS & A Level – Mark Scheme PUBLISHED October/November 2023 © UCLES 2023 Page 16 of 16 Question Answer Marks 6(c) ‘Human activity is the main factor in reducing the stability of slopes.’ With the aid of one or more examples, how far do you agree with this statement? Human activity reduces the stability of slopes by increasing the likelihood of mass movement such as by undercutting of slopes, increasing stress by building, clearance of vegetation, increasing water on slopes, etc. This is an assessment, so the role of human activity needs to be compared with other natural factors that can reduce the stability of slopes, such as intense rainfall, steep gradients, unconsolidated rock, earthquakes, etc. Award marks based on the quality of the response using the marking levels below. Level 4 (12–15) Response thoroughly assesses the role of human activity in reducing the stability of slopes. Examples used are appropriate and integrated effectively into the response. Response is well founded in detailed knowledge and strong conceptual understanding of the topic. Level 3 (8–11) Response assesses the role of human activity in reducing the stability of slopes but may be unbalanced. Examples may lack detail or development. Response develops on a largely secure base of knowledge and understanding. Level 2 (4–7) Response shows general knowledge and understanding of the role of human activity in reducing the stability of slopes. Response is mainly descriptive or explanatory with limited use of examples and understanding of the topic may be partial or inaccurate. Some concluding remarks. General responses without the use of example(s) will not get above the middle of Level 2 (6 marks). Level 1 (1–3) Response may broadly discuss the role of human activity in reducing the stability of slopes but does not address the question and does not come to a convincing conclusion. Response is descriptive, knowledge is basic and understanding is poor. Level 0 (0) No creditable response. 15

What you needed in this session

Cambridge’s own grade thresholds for 2023 Oct/Nov, Paper 1 · Variant 1. A higher threshold means an easier paper — the bar moves with how the cohort did.

A35/60
B31/60
C26/60
D22/60
E18/60
