Cambridge A Level Design and Technology 9705 — 2009 Oct/Nov Paper 1 · Variant 2

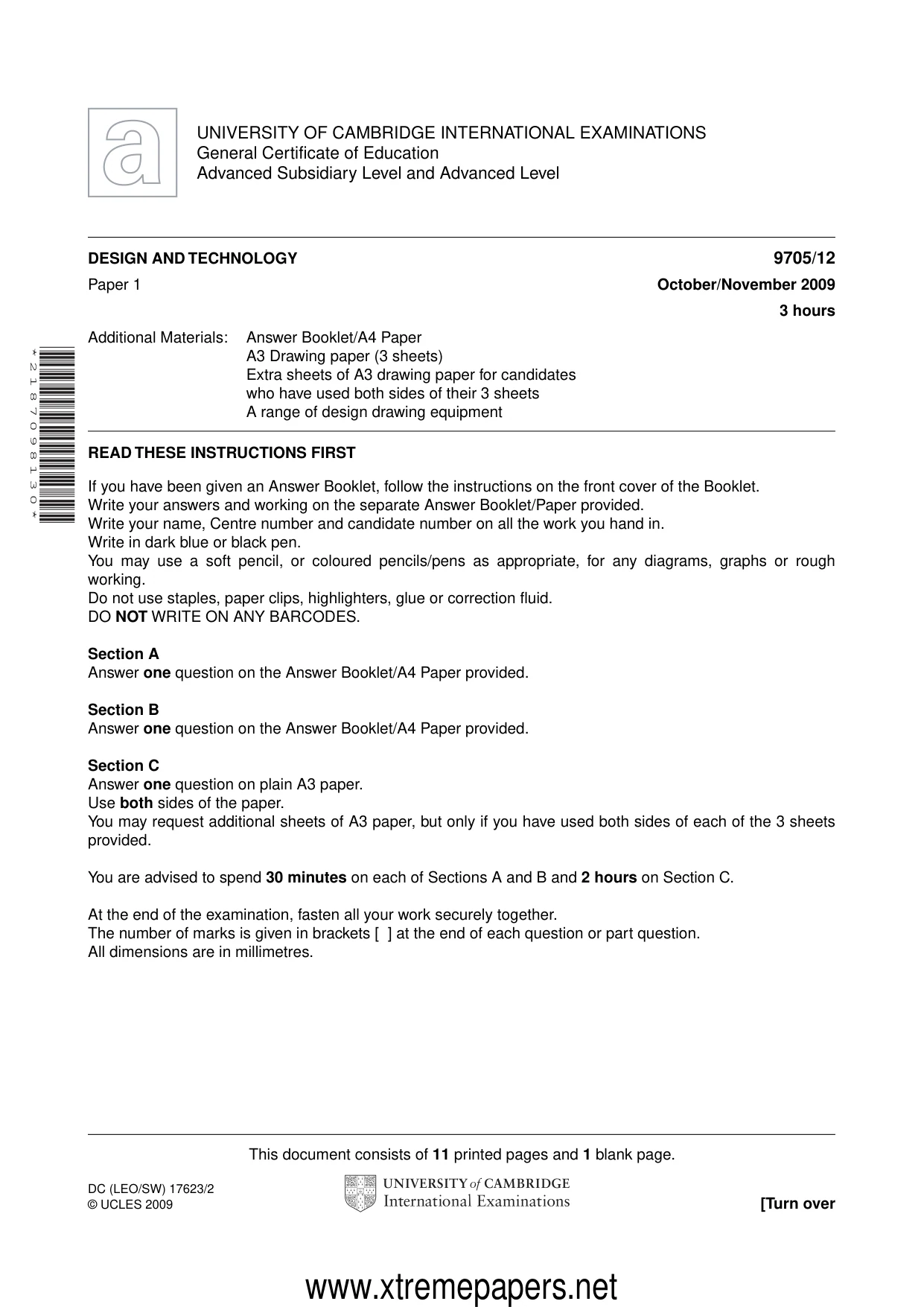

This document consists of 11 printed pages and 1 blank page. DC (LEO/SW) 17623/2 © UCLES 2009 [Turn over UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Subsidiary Level and Advanced Level READ THESE INSTRUCTIONS FIRST If you have been given an Answer Booklet, follow the instructions on the front cover of the Booklet. Write your answers and working on the separate Answer Booklet/Paper provided. Write your name, Centre number and candidate number on all the work you hand in. Write in dark blue or black pen. You may use a soft pencil, or coloured pencils/pens as appropriate, for any diagrams, graphs or rough working. Do not use staples, paper clips, highlighters, glue or correction fluid. DO NOT WRITE ON ANY BARCODES. Section A Answer one question on the Answer Booklet/A4 Paper provided. Section B Answer one question on the Answer Booklet/A4 Paper provided. Section C Answer one question on plain A3 paper. Use both sides of the paper. You may request additional sheets of A3 paper, but only if you have used both sides of each of the 3 sheets provided. You are advised to spend 30 minutes on each of Sections A and B and 2 hours on Section C. At the end of the examination, fasten all your work securely together. The number of marks is given in brackets [ ] at the end of each question or part question. All dimensions are in millimetres. * 2 1 8 7 0 9 8 1 3 0 * DESIGN AND TECHNOLOGY 9705/12 Paper 1 October/November 2009 3 hours Additional Materials: Answer Booklet/A4 Paper A3 Drawing paper (3 sheets) Extra sheets of A3 drawing paper for candidates who have used both sides of their 3 sheets A range of design drawing equipment www.xtremepapers.net

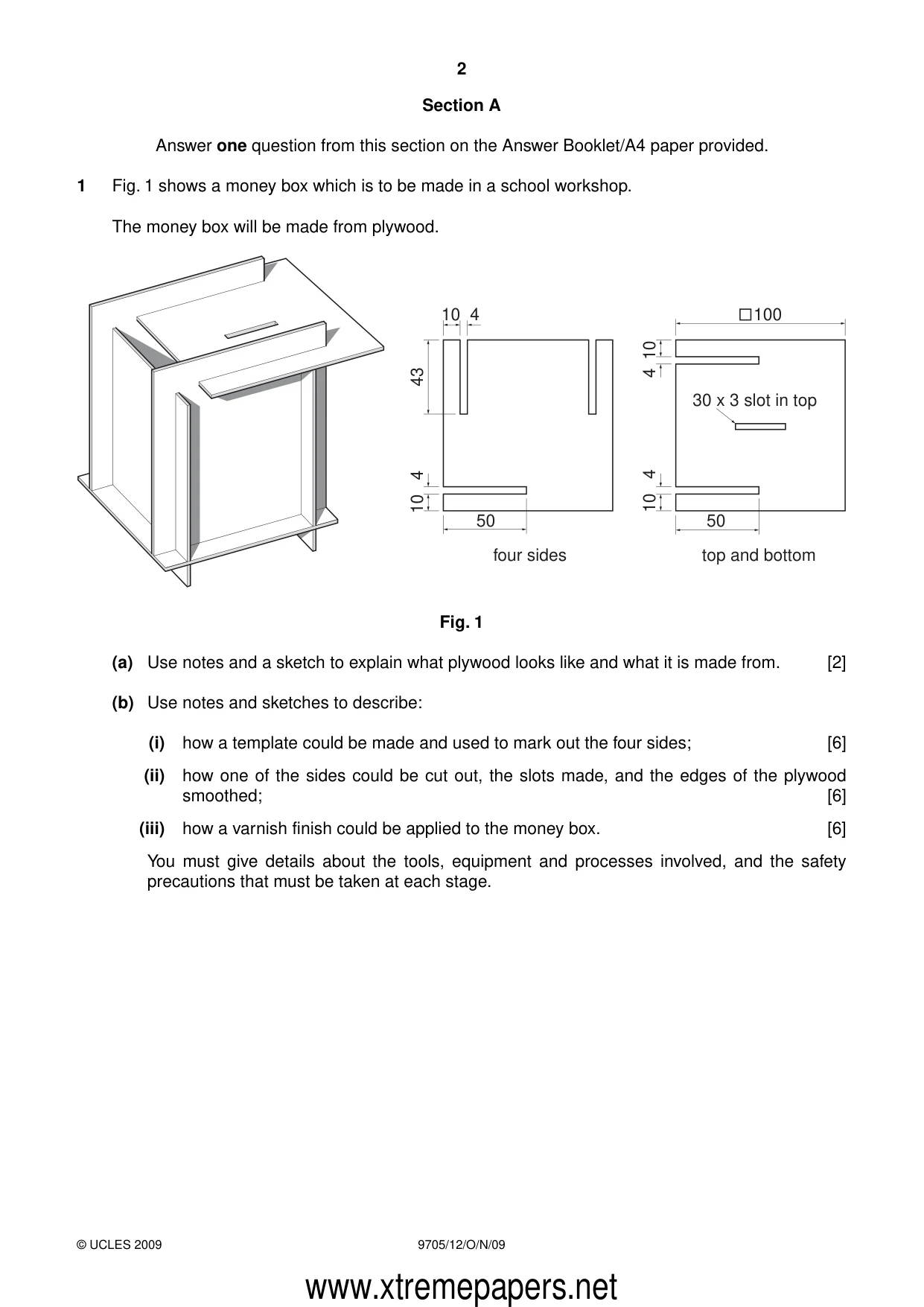

2 9705/12/O/N/09 © UCLES 2009 Section A Answer one question from this section on the Answer Booklet/A4 paper provided. 1 Fig. 1 shows a money box which is to be made in a school workshop. The money box will be made from plywood. 10 50 50 top and bottom four sides 30 x 3 slot in top 100 10 4 10 4 43 10 4 4 Fig. 1 (a) Use notes and a sketch to explain what plywood looks like and what it is made from. [2] (b) Use notes and sketches to describe: (i) how a template could be made and used to mark out the four sides; [6] (ii) how one of the sides could be cut out, the slots made, and the edges of the plywood smoothed; [6] (iii) how a varnish finish could be applied to the money box. [6] You must give details about the tools, equipment and processes involved, and the safety precautions that must be taken at each stage. www.xtremepapers.net

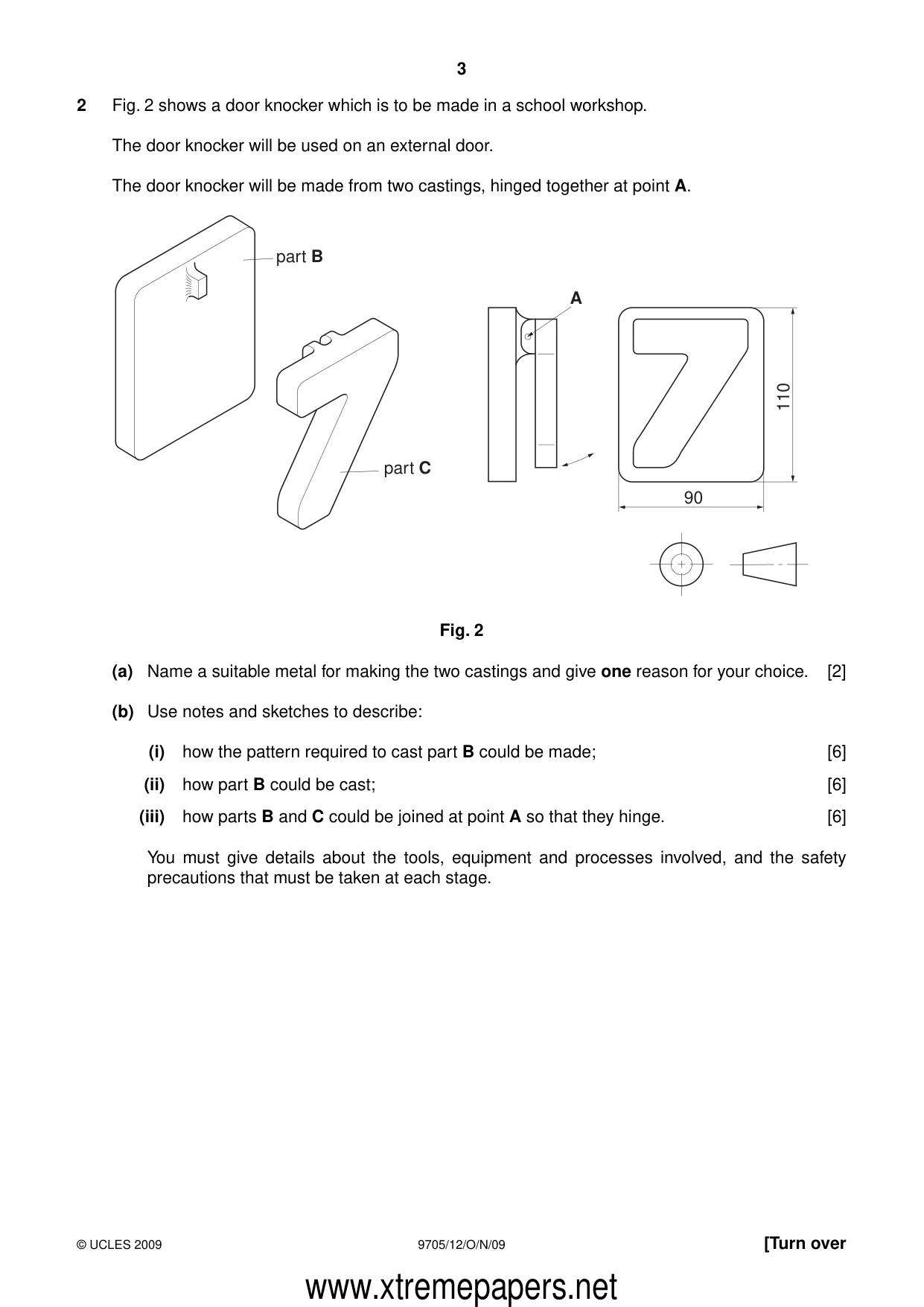

3 9705/12/O/N/09 © UCLES 2009 [Turn over 2 Fig. 2 shows a door knocker which is to be made in a school workshop. The door knocker will be used on an external door. The door knocker will be made from two castings, hinged together at point A. 90 110 A part C part B Fig. 2 (a) Name a suitable metal for making the two castings and give one reason for your choice. [2] (b) Use notes and sketches to describe: (i) how the pattern required to cast part B could be made; [6] (ii) how part B could be cast; [6] (iii) how parts B and C could be joined at point A so that they hinge. [6] You must give details about the tools, equipment and processes involved, and the safety precautions that must be taken at each stage. www.xtremepapers.net

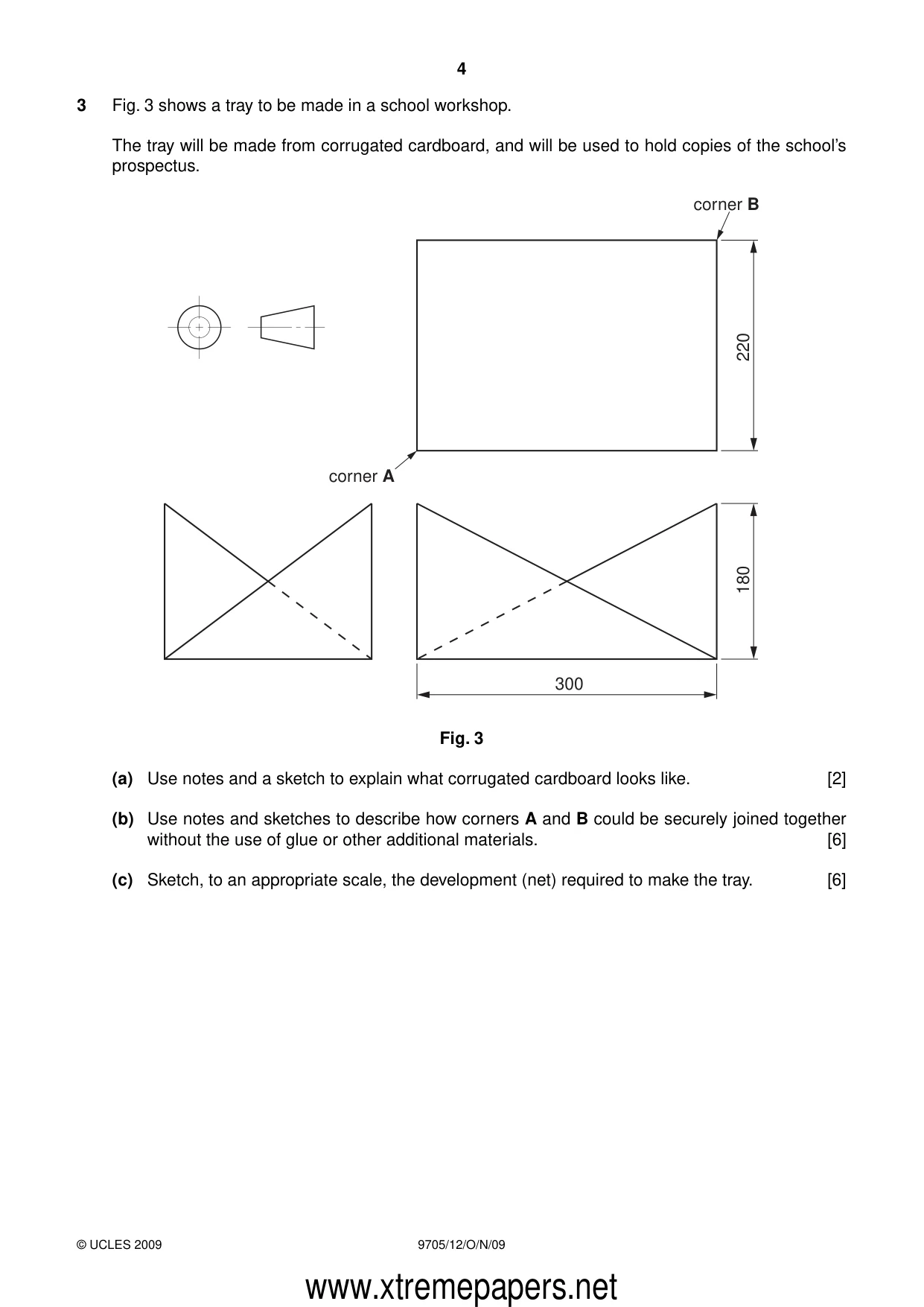

4 9705/12/O/N/09 © UCLES 2009 3 Fig. 3 shows a tray to be made in a school workshop. The tray will be made from corrugated cardboard, and will be used to hold copies of the school’s prospectus. 220 180 300 corner A corner B Fig. 3 (a) Use notes and a sketch to explain what corrugated cardboard looks like. [2] (b) Use notes and sketches to describe how corners A and B could be securely joined together without the use of glue or other additional materials. [6] (c) Sketch, to an appropriate scale, the development (net) required to make the tray. [6] www.xtremepapers.net

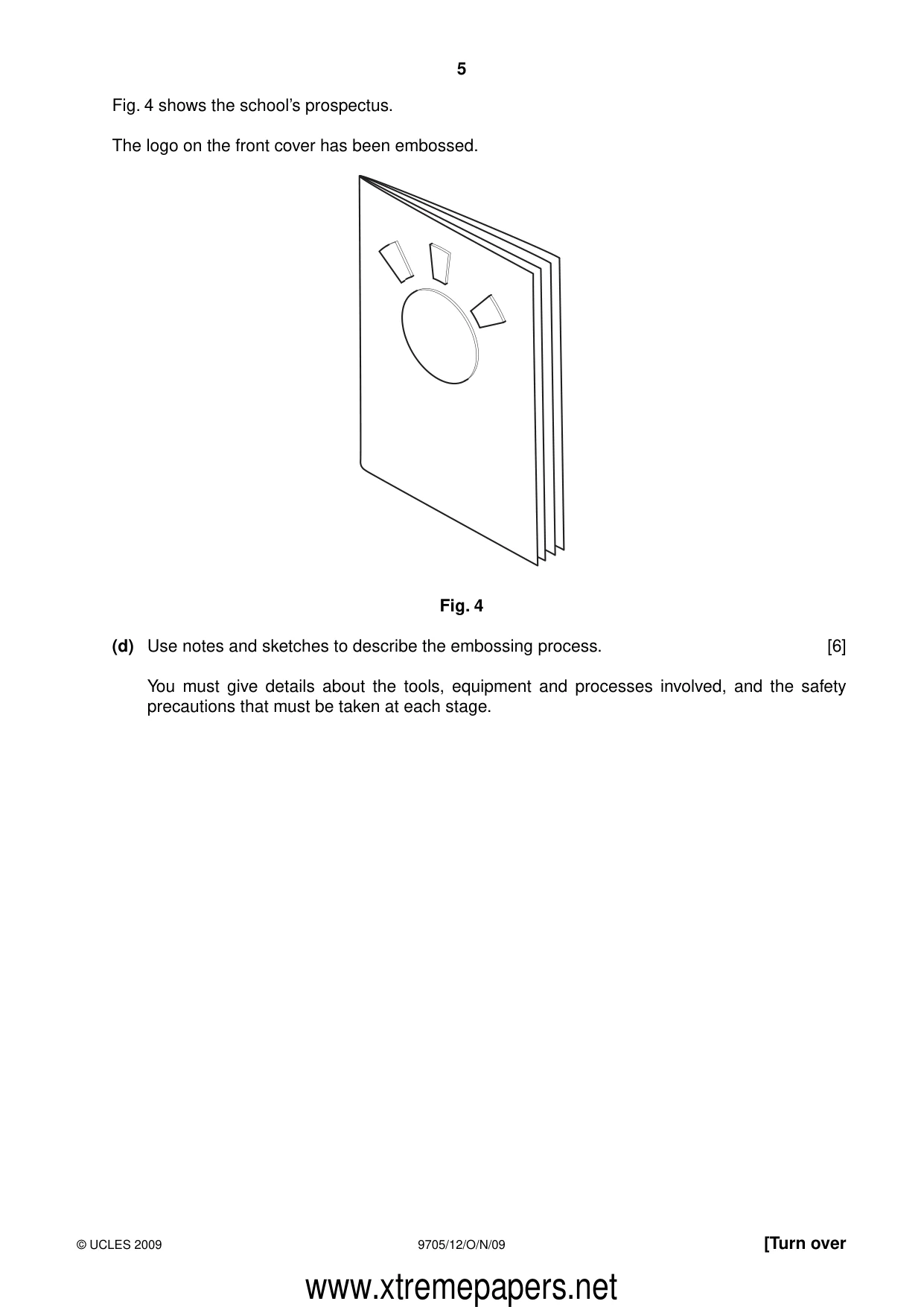

5 9705/12/O/N/09 © UCLES 2009 [Turn over Fig. 4 shows the school’s prospectus. The logo on the front cover has been embossed. Fig. 4 (d) Use notes and sketches to describe the embossing process. [6] You must give details about the tools, equipment and processes involved, and the safety precautions that must be taken at each stage. www.xtremepapers.net

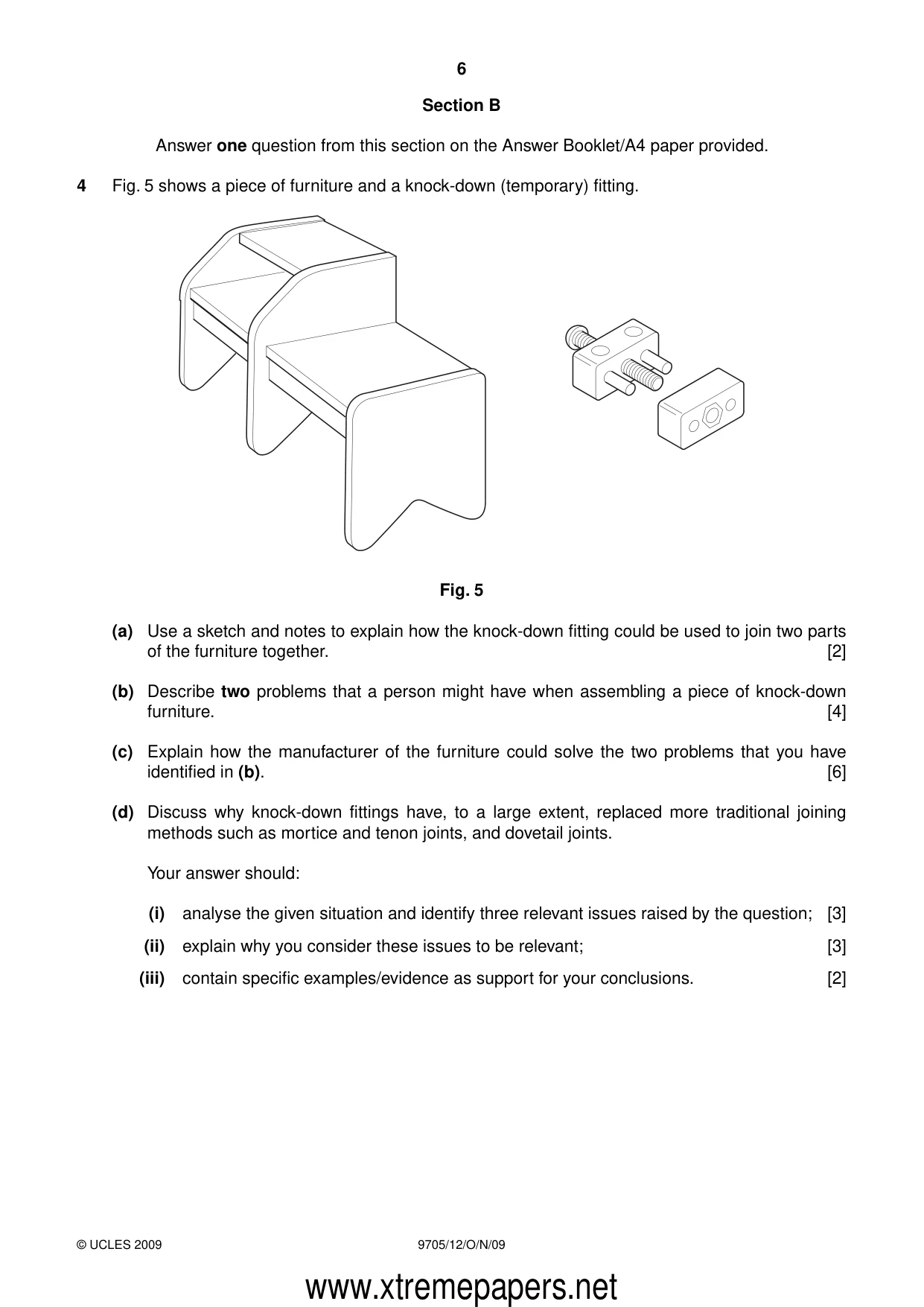

6 9705/12/O/N/09 © UCLES 2009 Section B Answer one question from this section on the Answer Booklet/A4 paper provided. 4 Fig. 5 shows a piece of furniture and a knock-down (temporary) fitting. Fig. 5 (a) Use a sketch and notes to explain how the knock-down fitting could be used to join two parts of the furniture together. [2] (b) Describe two problems that a person might have when assembling a piece of knock-down furniture. [4] (c) Explain how the manufacturer of the furniture could solve the two problems that you have identified in (b). [6] (d) Discuss why knock-down fittings have, to a large extent, replaced more traditional joining methods such as mortice and tenon joints, and dovetail joints. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question; [3] (ii) explain why you consider these issues to be relevant; [3] (iii) contain specific examples/evidence as support for your conclusions. [2] www.xtremepapers.net

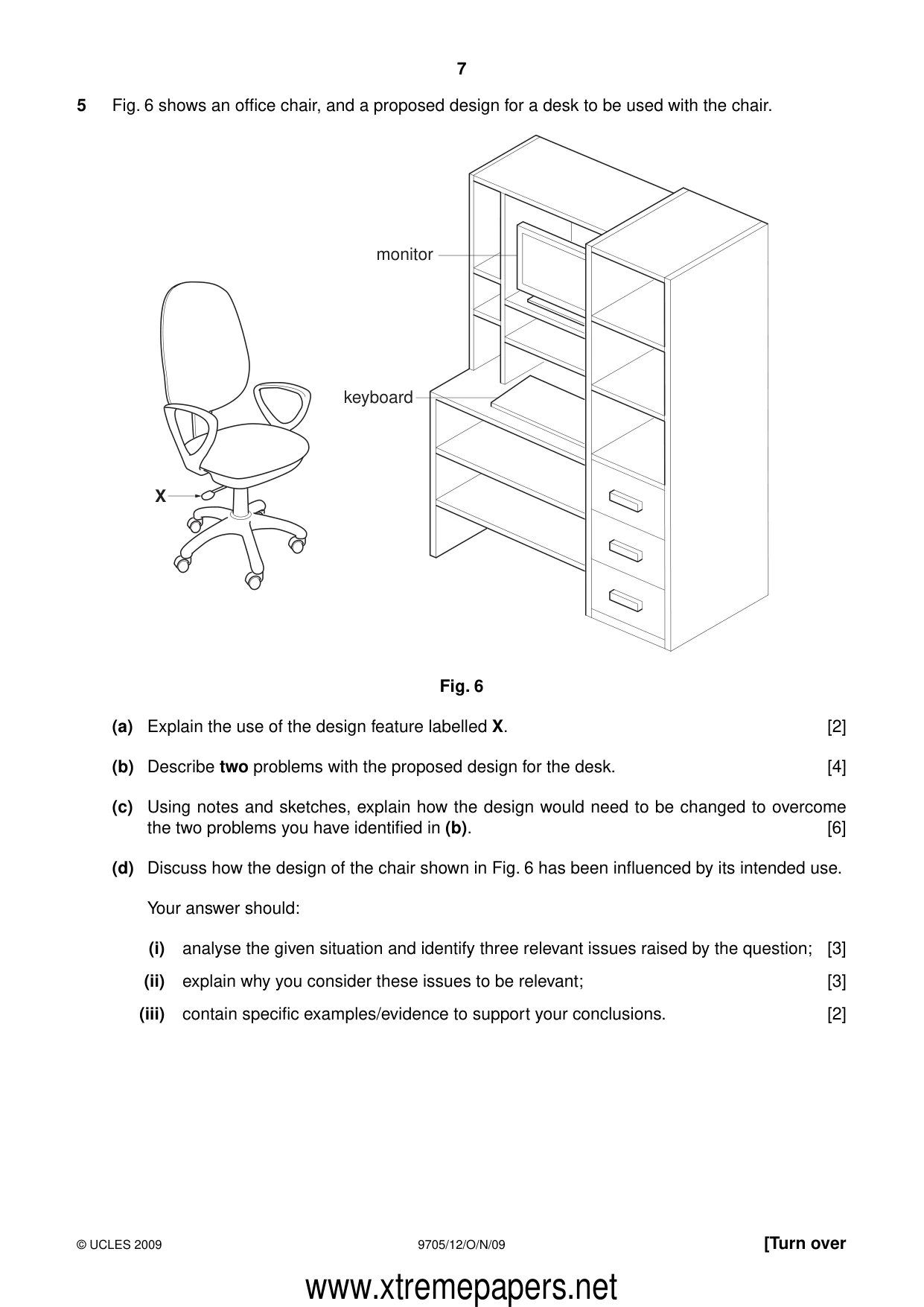

7 9705/12/O/N/09 © UCLES 2009 [Turn over 5 Fig. 6 shows an office chair, and a proposed design for a desk to be used with the chair. monitor keyboard X Fig. 6 (a) Explain the use of the design feature labelled X. [2] (b) Describe two problems with the proposed design for the desk. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems you have identified in (b). [6] (d) Discuss how the design of the chair shown in Fig. 6 has been influenced by its intended use. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question; [3] (ii) explain why you consider these issues to be relevant; [3] (iii) contain specific examples/evidence to support your conclusions. [2] www.xtremepapers.net

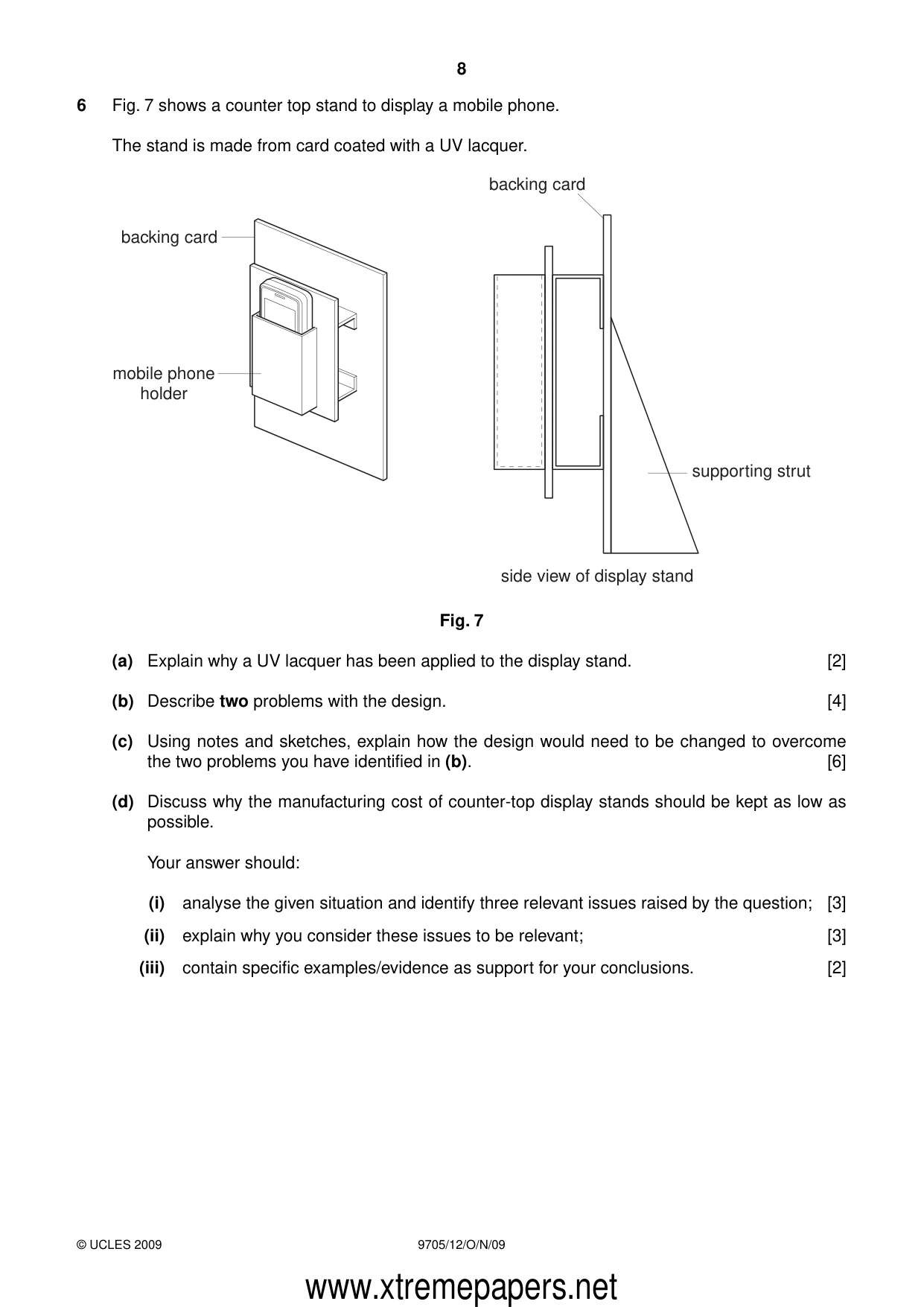

8 9705/12/O/N/09 © UCLES 2009 6 Fig. 7 shows a counter top stand to display a mobile phone. The stand is made from card coated with a UV lacquer. supporting strut side view of display stand backing card mobile phone holder backing card Fig. 7 (a) Explain why a UV lacquer has been applied to the display stand. [2] (b) Describe two problems with the design. [4] (c) Using notes and sketches, explain how the design would need to be changed to overcome the two problems you have identified in (b). [6] (d) Discuss why the manufacturing cost of counter-top display stands should be kept as low as possible. Your answer should: (i) analyse the given situation and identify three relevant issues raised by the question; [3] (ii) explain why you consider these issues to be relevant; [3] (iii) contain specific examples/evidence as support for your conclusions. [2] www.xtremepapers.net

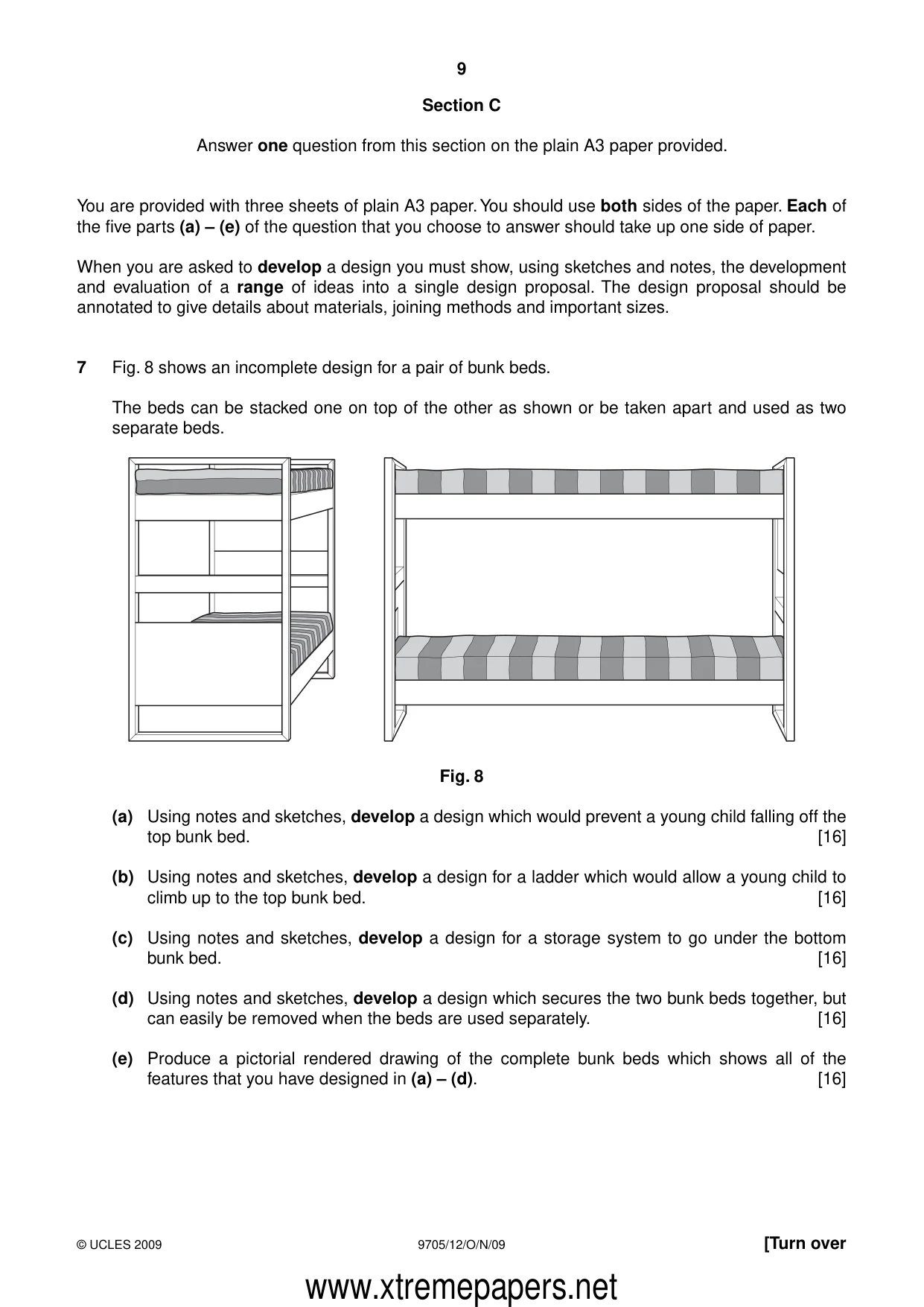

9 9705/12/O/N/09 © UCLES 2009 [Turn over Section C Answer one question from this section on the plain A3 paper provided. You are provided with three sheets of plain A3 paper. You should use both sides of the paper. Each of the five parts (a) – (e) of the question that you choose to answer should take up one side of paper. When you are asked to develop a design you must show, using sketches and notes, the development and evaluation of a range of ideas into a single design proposal. The design proposal should be annotated to give details about materials, joining methods and important sizes. 7 Fig. 8 shows an incomplete design for a pair of bunk beds. The beds can be stacked one on top of the other as shown or be taken apart and used as two separate beds. Fig. 8 (a) Using notes and sketches, develop a design which would prevent a young child falling off the top bunk bed. [16] (b) Using notes and sketches, develop a design for a ladder which would allow a young child to climb up to the top bunk bed. [16] (c) Using notes and sketches, develop a design for a storage system to go under the bottom bunk bed. [16] (d) Using notes and sketches, develop a design which secures the two bunk beds together, but can easily be removed when the beds are used separately. [16] (e) Produce a pictorial rendered drawing of the complete bunk beds which shows all of the features that you have designed in (a) – (d). [16] www.xtremepapers.net

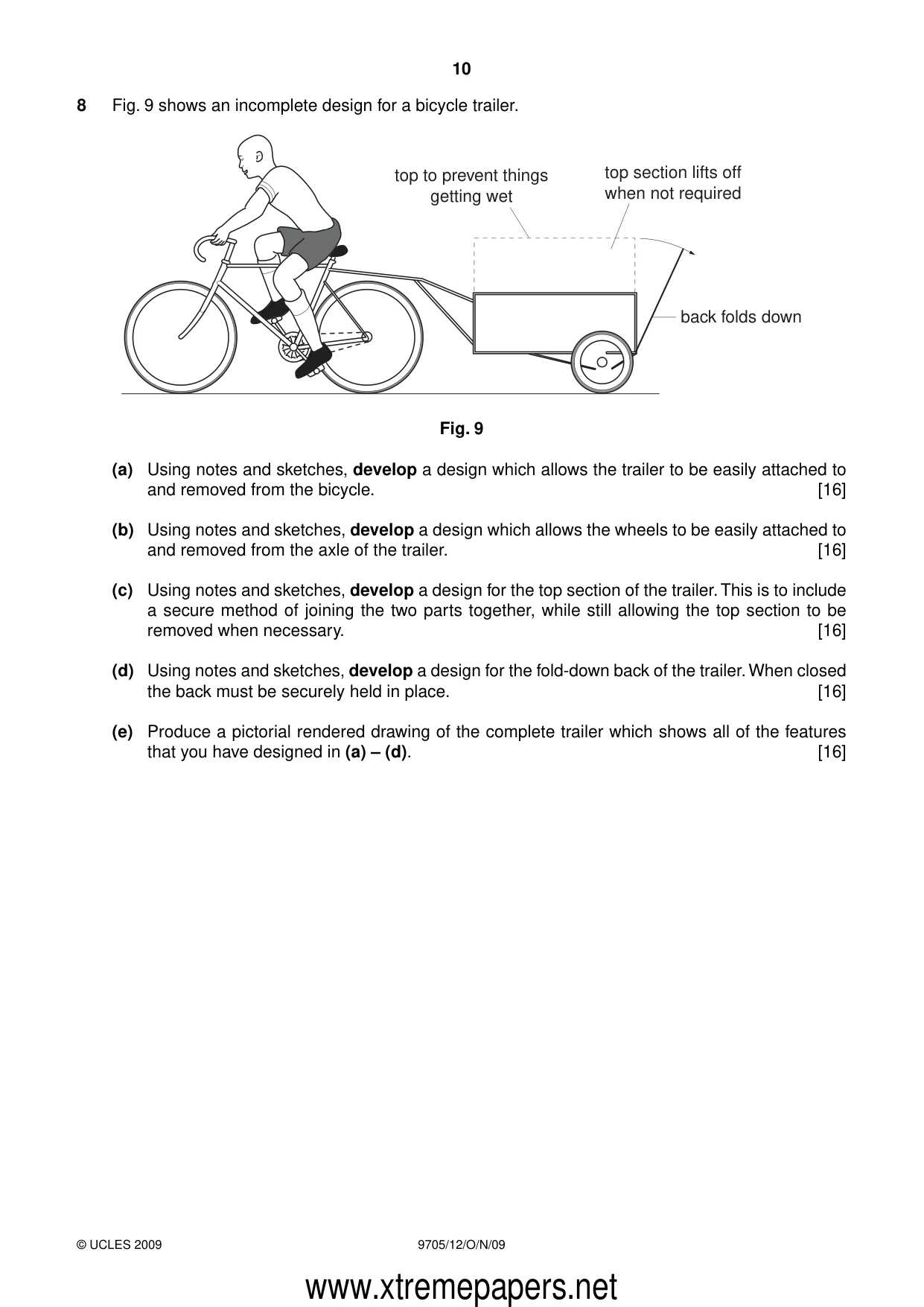

10 9705/12/O/N/09 © UCLES 2009 8 Fig. 9 shows an incomplete design for a bicycle trailer. top to prevent things getting wet top section lifts off when not required back folds down Fig. 9 (a) Using notes and sketches, develop a design which allows the trailer to be easily attached to and removed from the bicycle. [16] (b) Using notes and sketches, develop a design which allows the wheels to be easily attached to and removed from the axle of the trailer. [16] (c) Using notes and sketches, develop a design for the top section of the trailer. This is to include a secure method of joining the two parts together, while still allowing the top section to be removed when necessary. [16] (d) Using notes and sketches, develop a design for the fold-down back of the trailer. When closed the back must be securely held in place. [16] (e) Produce a pictorial rendered drawing of the complete trailer which shows all of the features that you have designed in (a) – (d). [16] www.xtremepapers.net

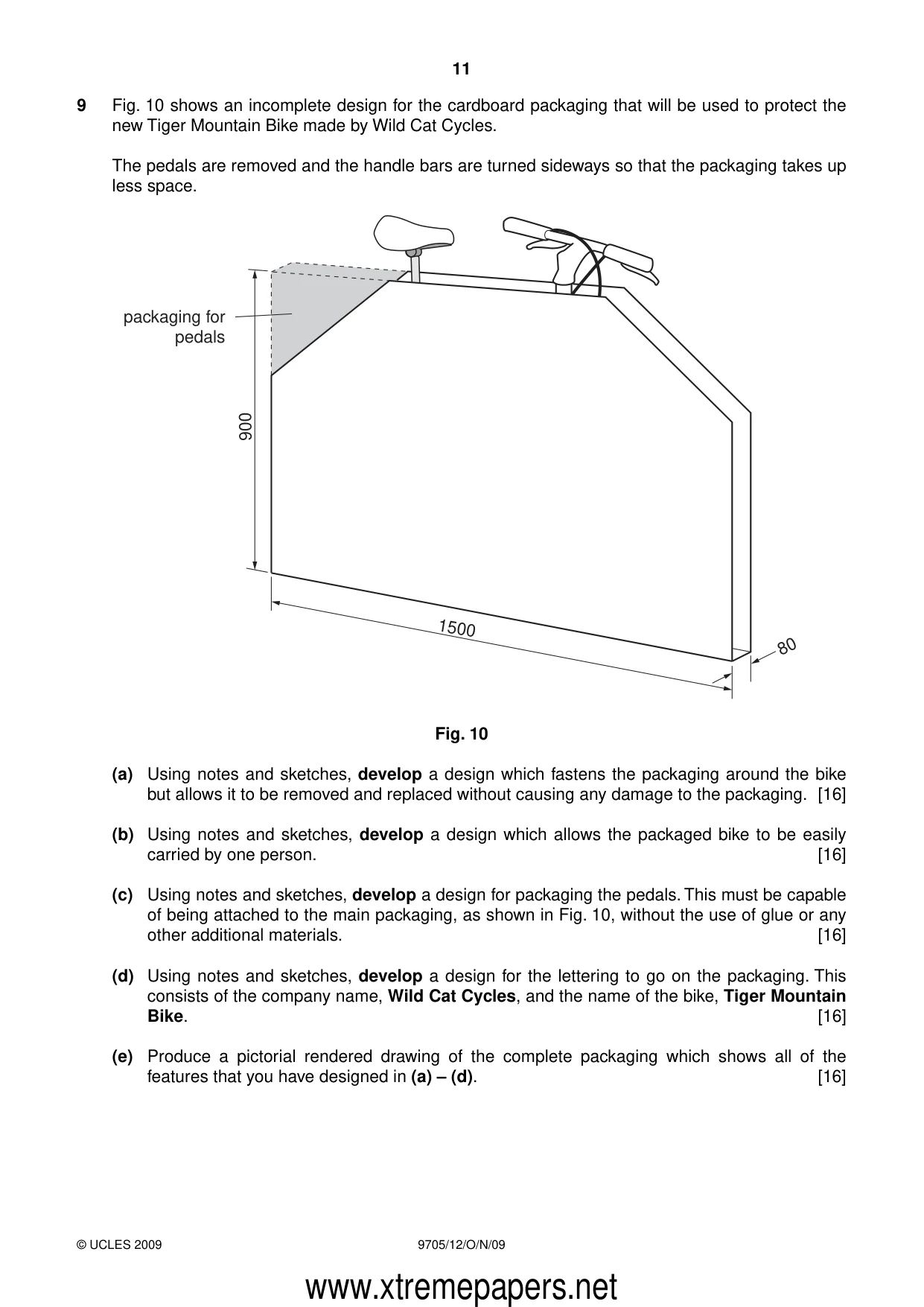

11 9705/12/O/N/09 © UCLES 2009 9 Fig. 10 shows an incomplete design for the cardboard packaging that will be used to protect the new Tiger Mountain Bike made by Wild Cat Cycles. The pedals are removed and the handle bars are turned sideways so that the packaging takes up less space. 1500 900 80 packaging for pedals Fig. 10 (a) Using notes and sketches, develop a design which fastens the packaging around the bike but allows it to be removed and replaced without causing any damage to the packaging. [16] (b) Using notes and sketches, develop a design which allows the packaged bike to be easily carried by one person. [16] (c) Using notes and sketches, develop a design for packaging the pedals. This must be capable of being attached to the main packaging, as shown in Fig. 10, without the use of glue or any other additional materials. [16] (d) Using notes and sketches, develop a design for the lettering to go on the packaging. This consists of the company name, Wild Cat Cycles, and the name of the bike, Tiger Mountain Bike. [16] (e) Produce a pictorial rendered drawing of the complete packaging which shows all of the features that you have designed in (a) – (d). [16] www.xtremepapers.net

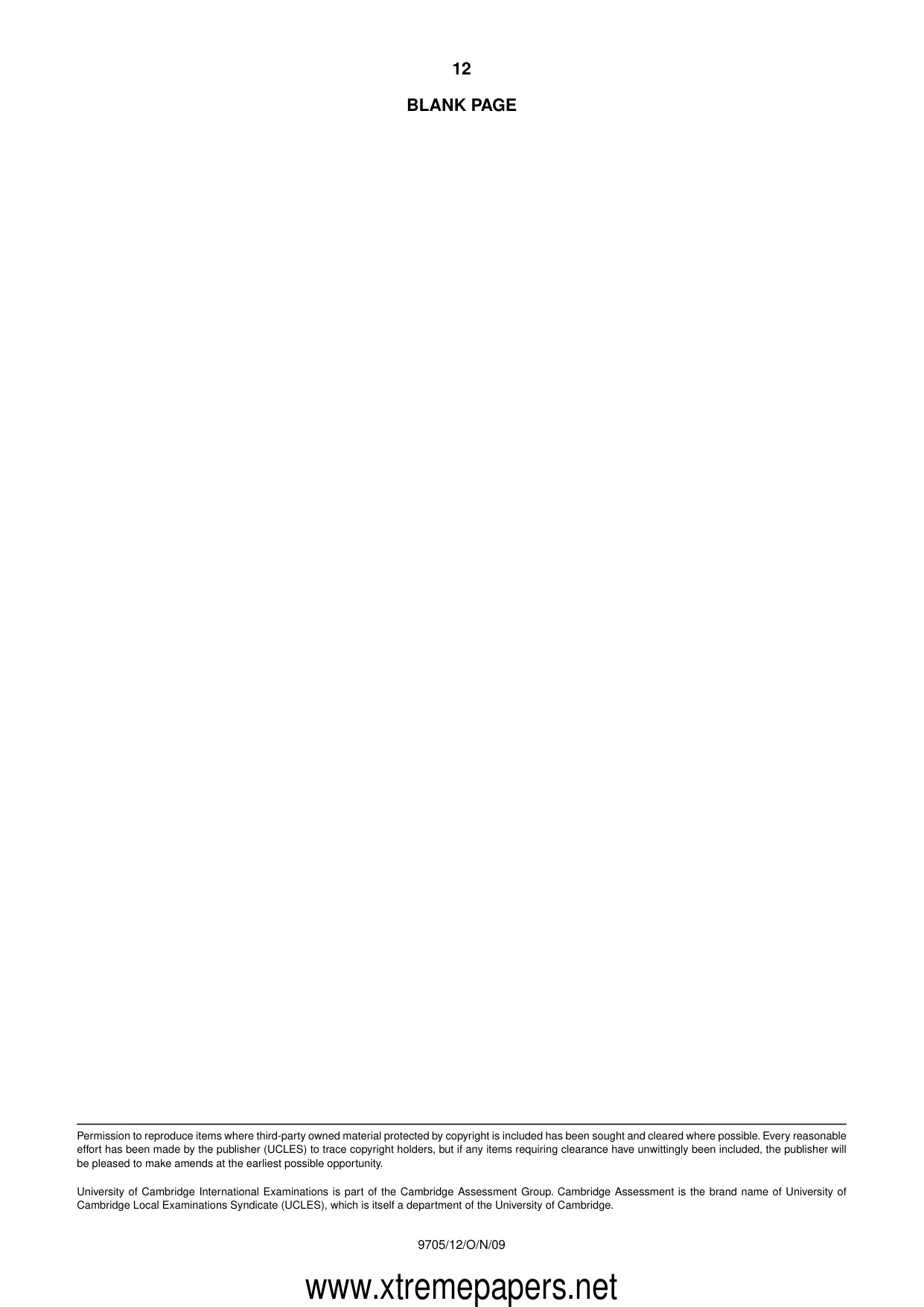

12 9705/12/O/N/09 BLANK PAGE Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. www.xtremepapers.net

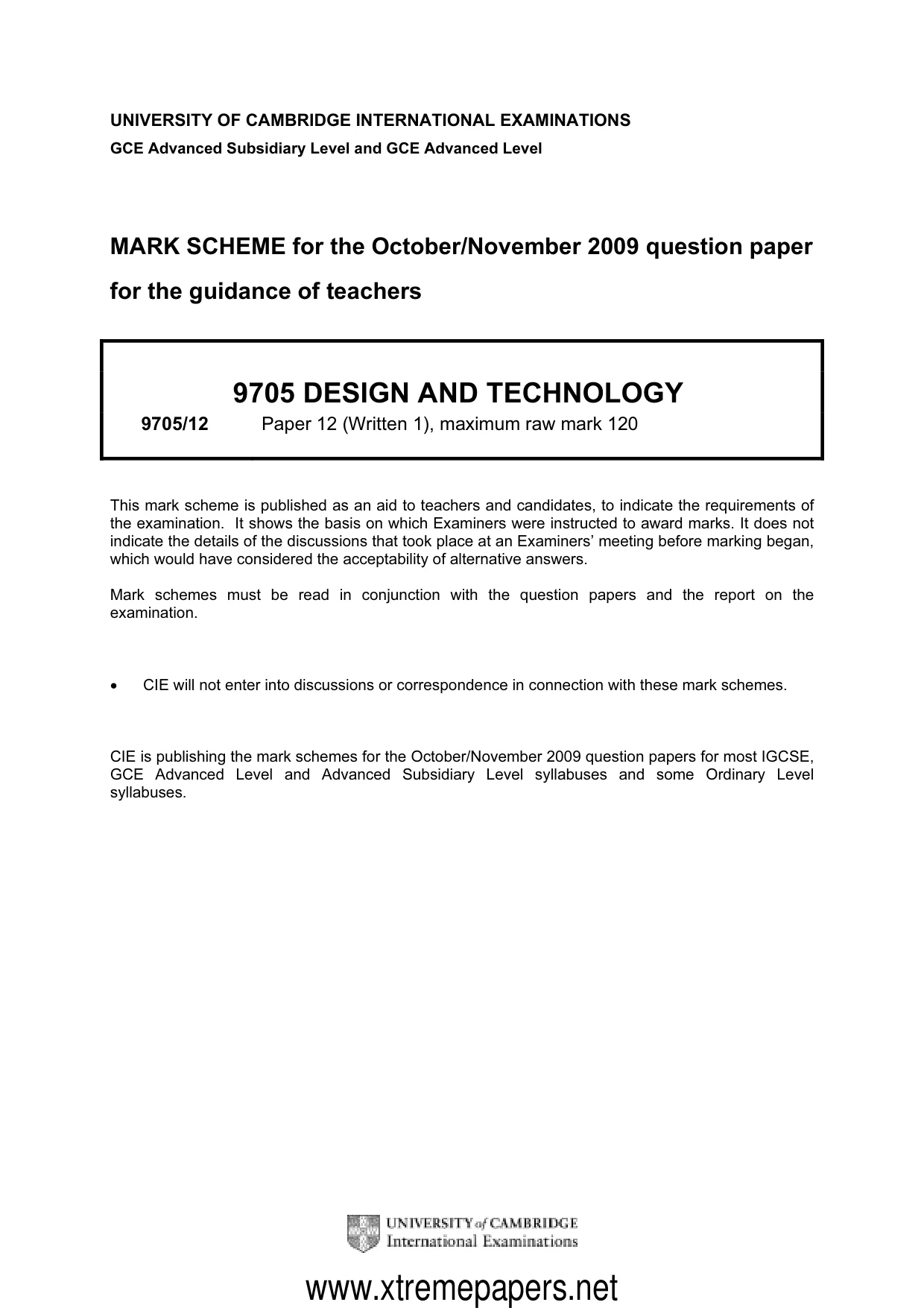

UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS GCE Advanced Subsidiary Level and GCE Advanced Level MARK SCHEME for the October/November 2009 question paper for the guidance of teachers 9705 DESIGN AND TECHNOLOGY 9705/12 Paper 12 (Written 1), maximum raw mark 120 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes must be read in conjunction with the question papers and the report on the examination. • CIE will not enter into discussions or correspondence in connection with these mark schemes. CIE is publishing the mark schemes for the October/November 2009 question papers for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses. www.xtremepapers.net

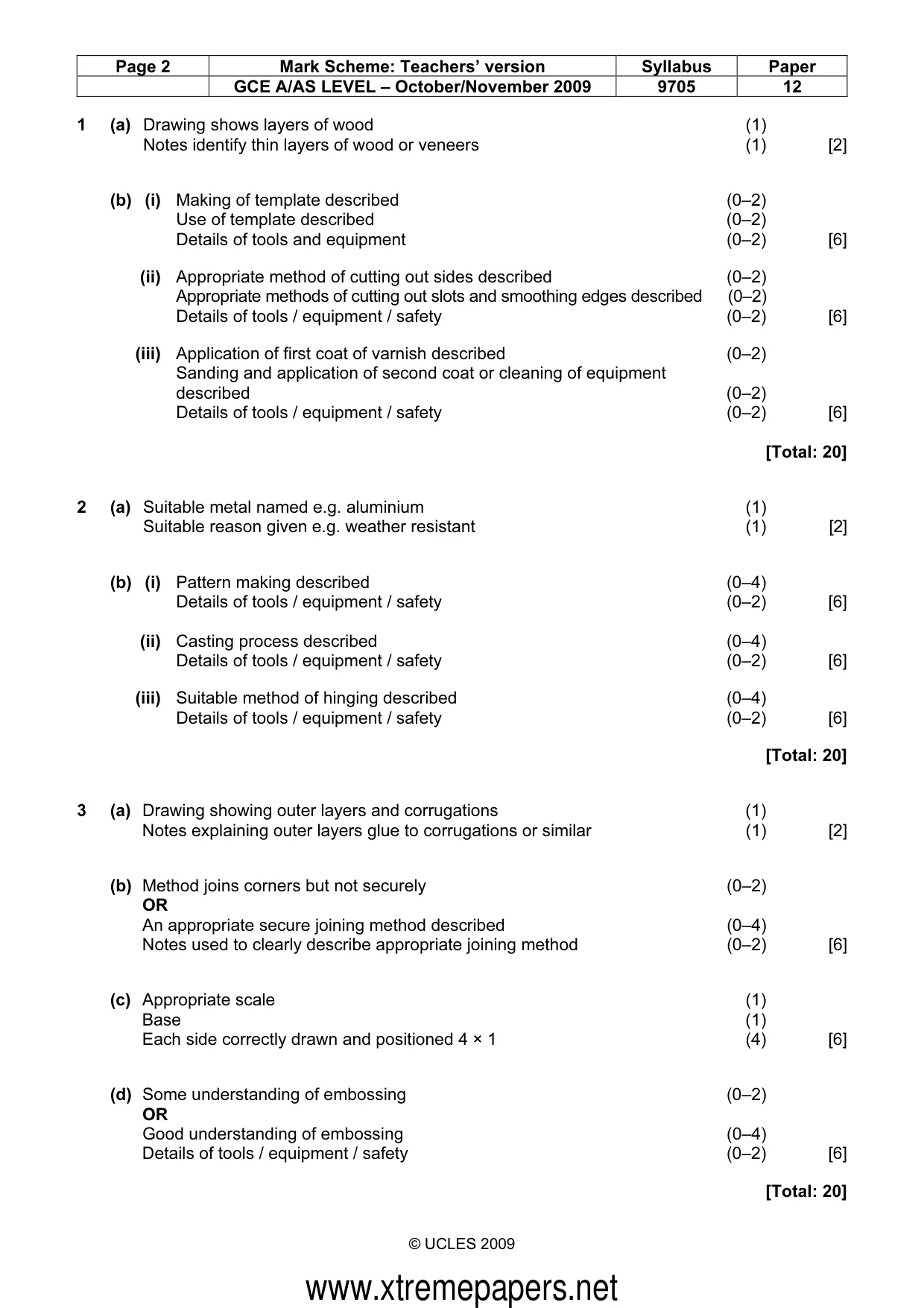

Page 2 Mark Scheme: Teachers’ version Syllabus Paper GCE A/AS LEVEL – October/November 2009 9705 12 © UCLES 2009 1 (a) Drawing shows layers of wood (1) Notes identify thin layers of wood or veneers (1) [2] (b) (i) Making of template described (0–2) Use of template described (0–2) Details of tools and equipment (0–2) [6] (ii) Appropriate method of cutting out sides described (0–2) Appropriate methods of cutting out slots and smoothing edges described (0–2) Details of tools / equipment / safety (0–2) [6] (iii) Application of first coat of varnish described (0–2) Sanding and application of second coat or cleaning of equipment described (0–2) Details of tools / equipment / safety (0–2) [6] [Total: 20] 2 (a) Suitable metal named e.g. aluminium (1) Suitable reason given e.g. weather resistant (1) [2] (b) (i) Pattern making described (0–4) Details of tools / equipment / safety (0–2) [6] (ii) Casting process described (0–4) Details of tools / equipment / safety (0–2) [6] (iii) Suitable method of hinging described (0–4) Details of tools / equipment / safety (0–2) [6] [Total: 20] 3 (a) Drawing showing outer layers and corrugations (1) Notes explaining outer layers glue to corrugations or similar (1) [2] (b) Method joins corners but not securely (0–2) OR An appropriate secure joining method described (0–4) Notes used to clearly describe appropriate joining method (0–2) [6] (c) Appropriate scale (1) Base (1) Each side correctly drawn and positioned 4 × 1 (4) [6] (d) Some understanding of embossing (0–2) OR Good understanding of embossing (0–4) Details of tools / equipment / safety (0–2) [6] [Total: 20] www.xtremepapers.net

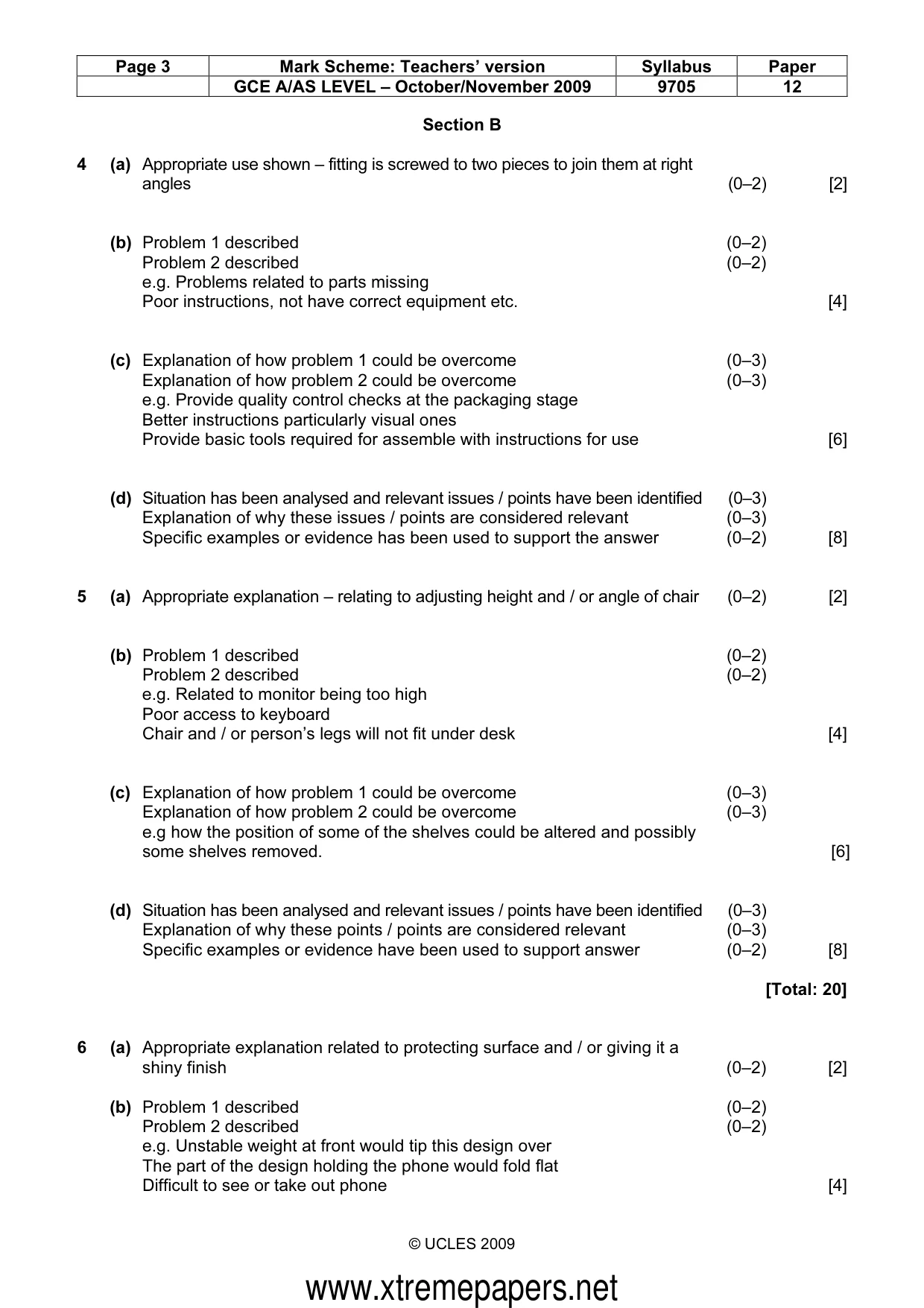

Page 3 Mark Scheme: Teachers’ version Syllabus Paper GCE A/AS LEVEL – October/November 2009 9705 12 © UCLES 2009 Section B 4 (a) Appropriate use shown – fitting is screwed to two pieces to join them at right angles (0–2) [2] (b) Problem 1 described (0–2) Problem 2 described (0–2) e.g. Problems related to parts missing Poor instructions, not have correct equipment etc. [4] (c) Explanation of how problem 1 could be overcome (0–3) Explanation of how problem 2 could be overcome (0–3) e.g. Provide quality control checks at the packaging stage Better instructions particularly visual ones Provide basic tools required for assemble with instructions for use [6] (d) Situation has been analysed and relevant issues / points have been identified (0–3) Explanation of why these issues / points are considered relevant (0–3) Specific examples or evidence has been used to support the answer (0–2) [8] 5 (a) Appropriate explanation – relating to adjusting height and / or angle of chair (0–2) [2] (b) Problem 1 described (0–2) Problem 2 described (0–2) e.g. Related to monitor being too high Poor access to keyboard Chair and / or person’s legs will not fit under desk [4] (c) Explanation of how problem 1 could be overcome (0–3) Explanation of how problem 2 could be overcome (0–3) e.g how the position of some of the shelves could be altered and possibly some shelves removed. [6] (d) Situation has been analysed and relevant issues / points have been identified (0–3) Explanation of why these points / points are considered relevant (0–3) Specific examples or evidence have been used to support answer (0–2) [8] [Total: 20] 6 (a) Appropriate explanation related to protecting surface and / or giving it a shiny finish (0–2) [2] (b) Problem 1 described (0–2) Problem 2 described (0–2) e.g. Unstable weight at front would tip this design over The part of the design holding the phone would fold flat Difficult to see or take out phone [4] www.xtremepapers.net

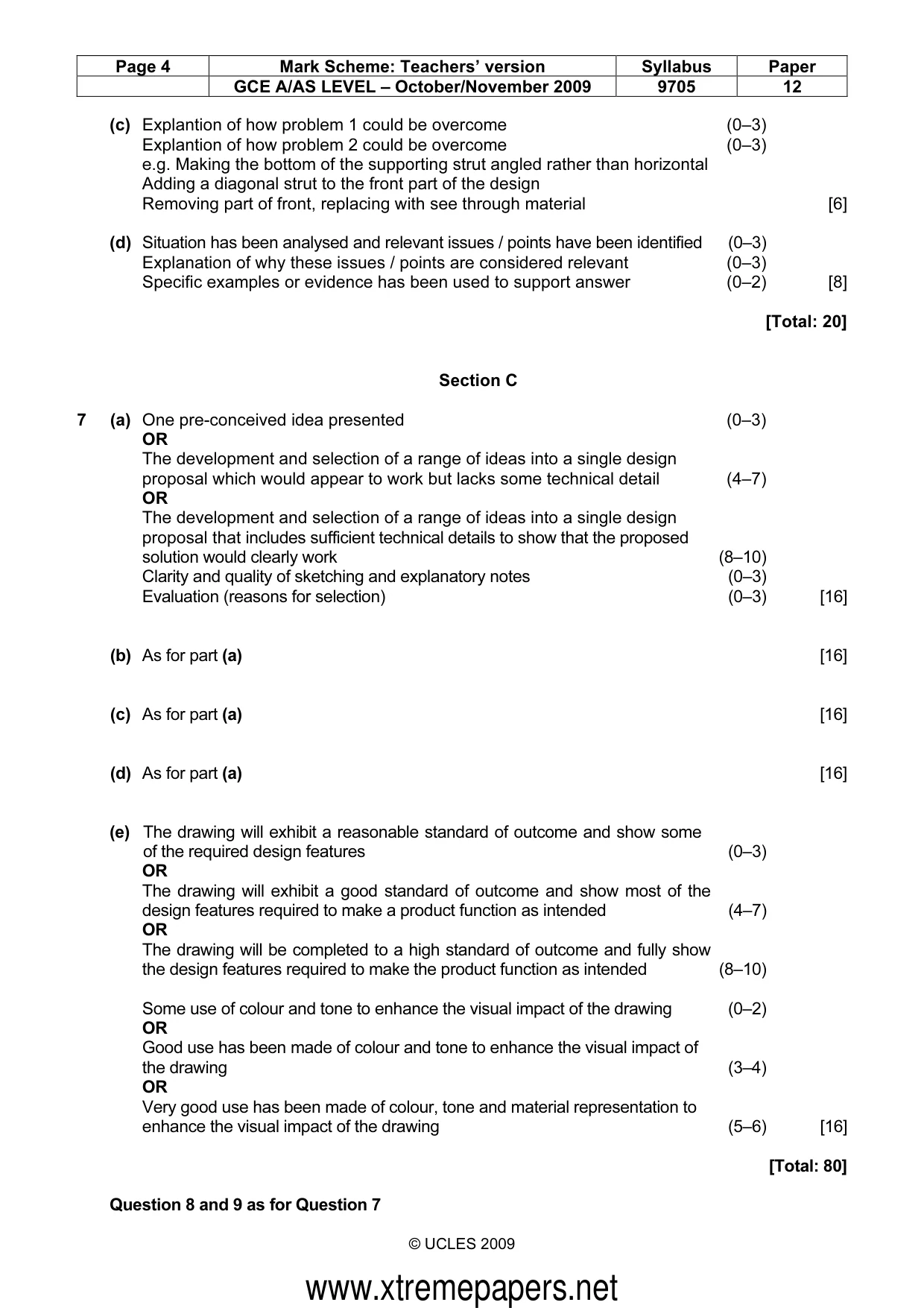

Page 4 Mark Scheme: Teachers’ version Syllabus Paper GCE A/AS LEVEL – October/November 2009 9705 12 © UCLES 2009 (c) Explantion of how problem 1 could be overcome (0–3) Explantion of how problem 2 could be overcome (0–3) e.g. Making the bottom of the supporting strut angled rather than horizontal Adding a diagonal strut to the front part of the design Removing part of front, replacing with see through material [6] (d) Situation has been analysed and relevant issues / points have been identified (0–3) Explanation of why these issues / points are considered relevant (0–3) Specific examples or evidence has been used to support answer (0–2) [8] [Total: 20] Section C 7 (a) One pre-conceived idea presented (0–3) OR The development and selection of a range of ideas into a single design proposal which would appear to work but lacks some technical detail (4–7) OR The development and selection of a range of ideas into a single design proposal that includes sufficient technical details to show that the proposed solution would clearly work (8–10) Clarity and quality of sketching and explanatory notes (0–3) Evaluation (reasons for selection) (0–3) [16] (b) As for part (a) [16] (c) As for part (a) [16] (d) As for part (a) [16] (e) The drawing will exhibit a reasonable standard of outcome and show some of the required design features (0–3) OR The drawing will exhibit a good standard of outcome and show most of the design features required to make a product function as intended (4–7) OR The drawing will be completed to a high standard of outcome and fully show the design features required to make the product function as intended (8–10) Some use of colour and tone to enhance the visual impact of the drawing (0–2) OR Good use has been made of colour and tone to enhance the visual impact of the drawing (3–4) OR Very good use has been made of colour, tone and material representation to enhance the visual impact of the drawing (5–6) [16] [Total: 80] Question 8 and 9 as for Question 7 www.xtremepapers.net
