Cambridge A Level Applied Information and Communication Technology 9713 — 2008 May/June Paper 3 · Variant 1

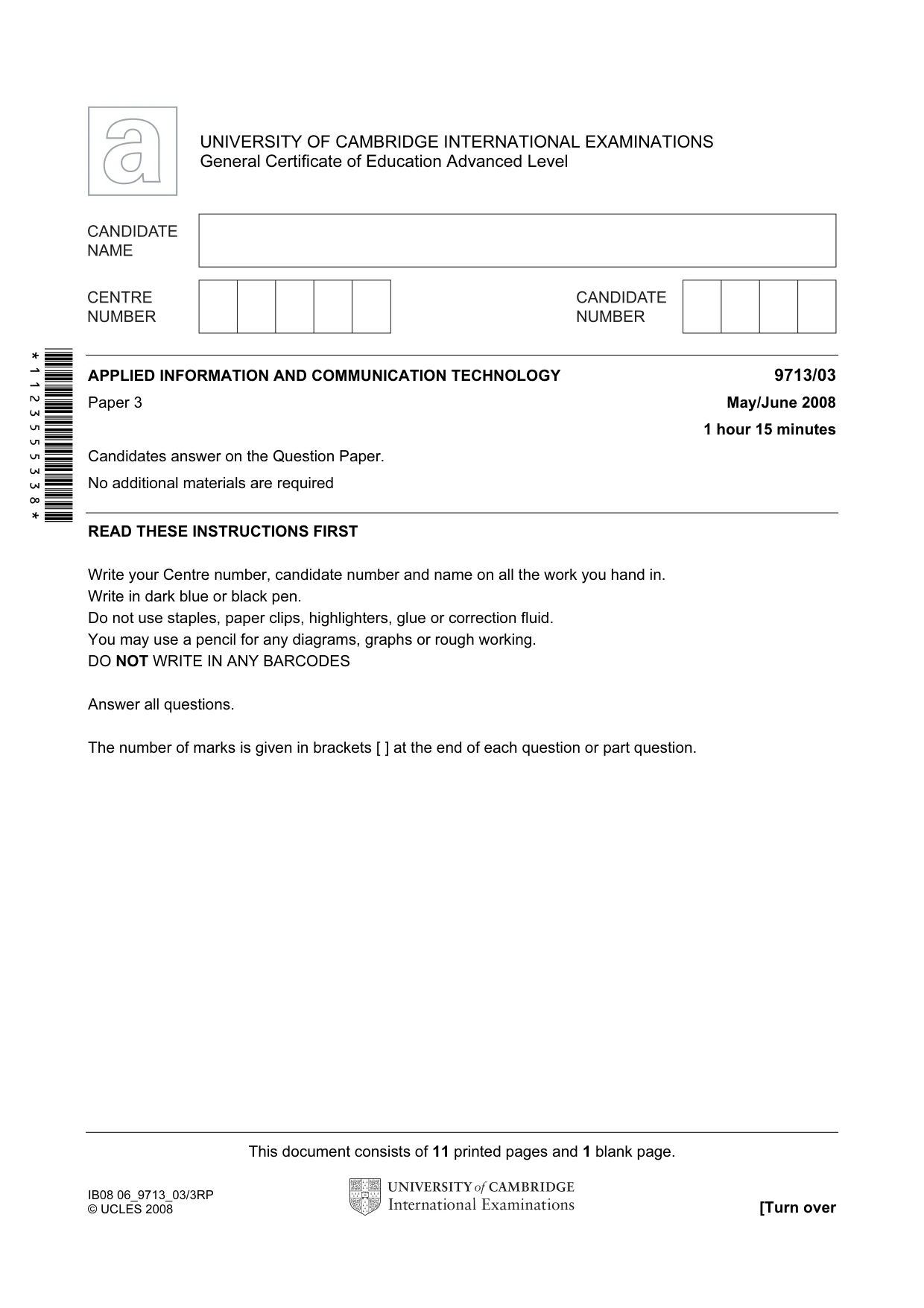

This document consists of 11 printed pages and 1 blank page. IB08 06_9713_03/3RP © UCLES 2008 [Turn over *1123555338* UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Level APPLIED INFORMATION AND COMMUNICATION TECHNOLOGY 9713/03 Paper 3 May/June 2008 1 hour 15 minutes Candidates answer on the Question Paper. No additional materials are required READ THESE INSTRUCTIONS FIRST Write your Centre number, candidate number and name on all the work you hand in. Write in dark blue or black pen. Do not use staples, paper clips, highlighters, glue or correction fluid. You may use a pencil for any diagrams, graphs or rough working. DO NOT WRITE IN ANY BARCODES Answer all questions. The number of marks is given in brackets [ ] at the end of each question or part question.

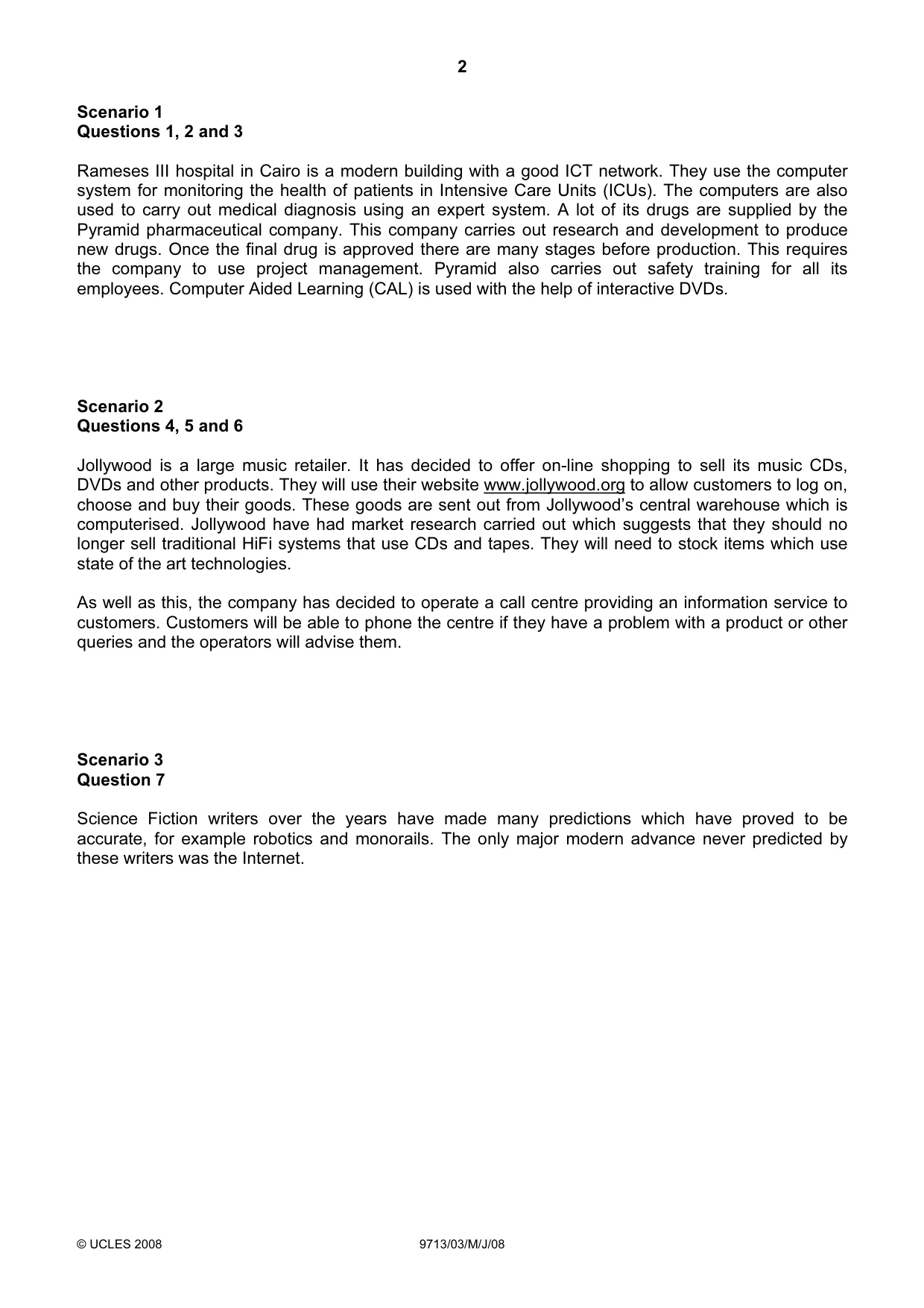

2 © UCLES 2008 9713/03/M/J/08 Scenario 1 Questions 1, 2 and 3 Rameses III hospital in Cairo is a modern building with a good ICT network. They use the computer system for monitoring the health of patients in Intensive Care Units (ICUs). The computers are also used to carry out medical diagnosis using an expert system. A lot of its drugs are supplied by the Pyramid pharmaceutical company. This company carries out research and development to produce new drugs. Once the final drug is approved there are many stages before production. This requires the company to use project management. Pyramid also carries out safety training for all its employees. Computer Aided Learning (CAL) is used with the help of interactive DVDs. Scenario 2 Questions 4, 5 and 6 Jollywood is a large music retailer. It has decided to offer on-line shopping to sell its music CDs, DVDs and other products. They will use their website www.jollywood.org to allow customers to log on, choose and buy their goods. These goods are sent out from Jollywood’s central warehouse which is computerised. Jollywood have had market research carried out which suggests that they should no longer sell traditional HiFi systems that use CDs and tapes. They will need to stock items which use state of the art technologies. As well as this, the company has decided to operate a call centre providing an information service to customers. Customers will be able to phone the centre if they have a problem with a product or other queries and the operators will advise them. Scenario 3 Question 7 Science Fiction writers over the years have made many predictions which have proved to be accurate, for example robotics and monorails. The only major modern advance never predicted by these writers was the Internet.

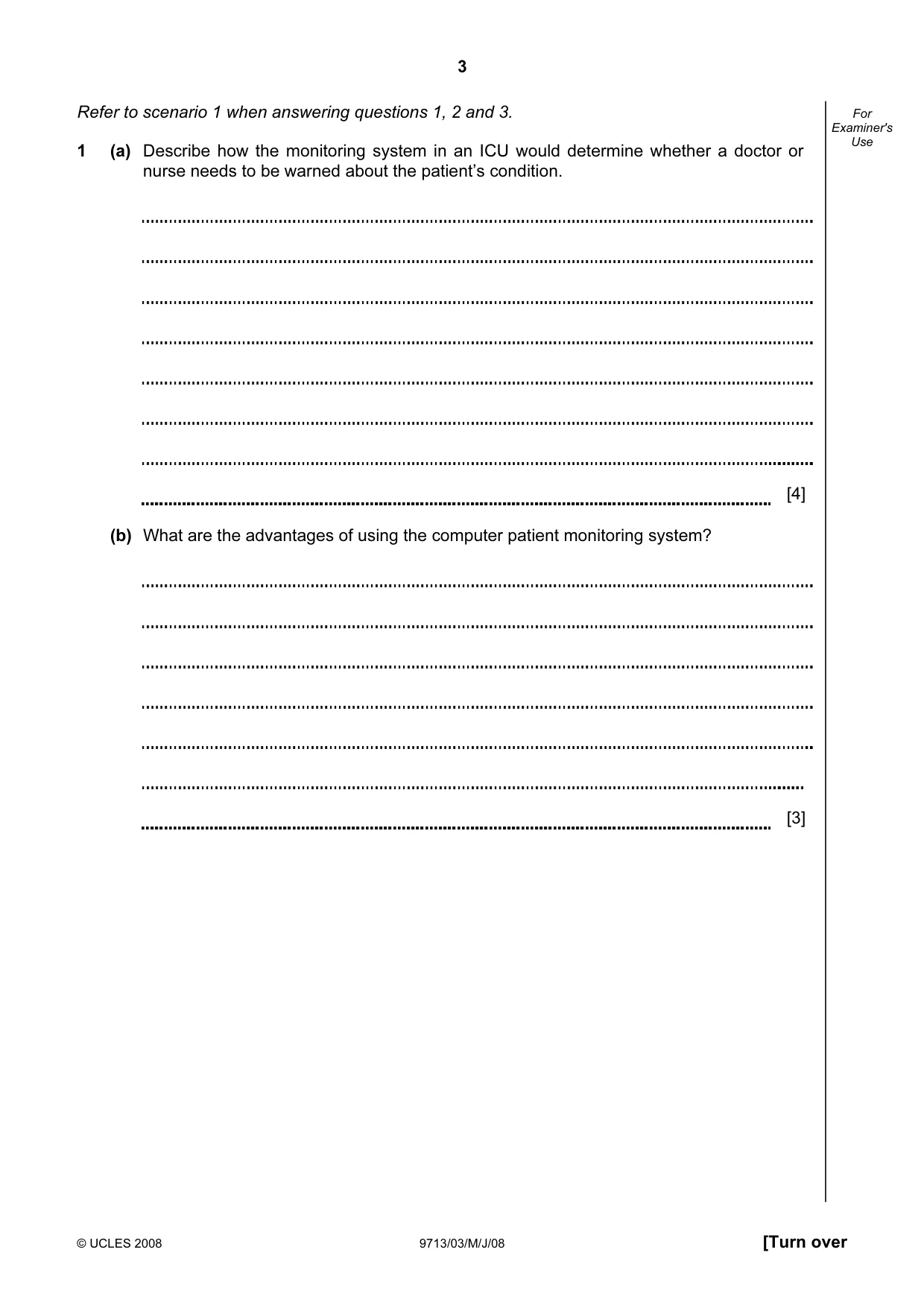

3 © UCLES 2008 9713/03/M/J/08 [Turn over For Examiner's Use Refer to scenario 1 when answering questions 1, 2 and 3. 1 (a) Describe how the monitoring system in an ICU would determine whether a doctor or nurse needs to be warned about the patient’s condition. [4] (b) What are the advantages of using the computer patient monitoring system? [3]

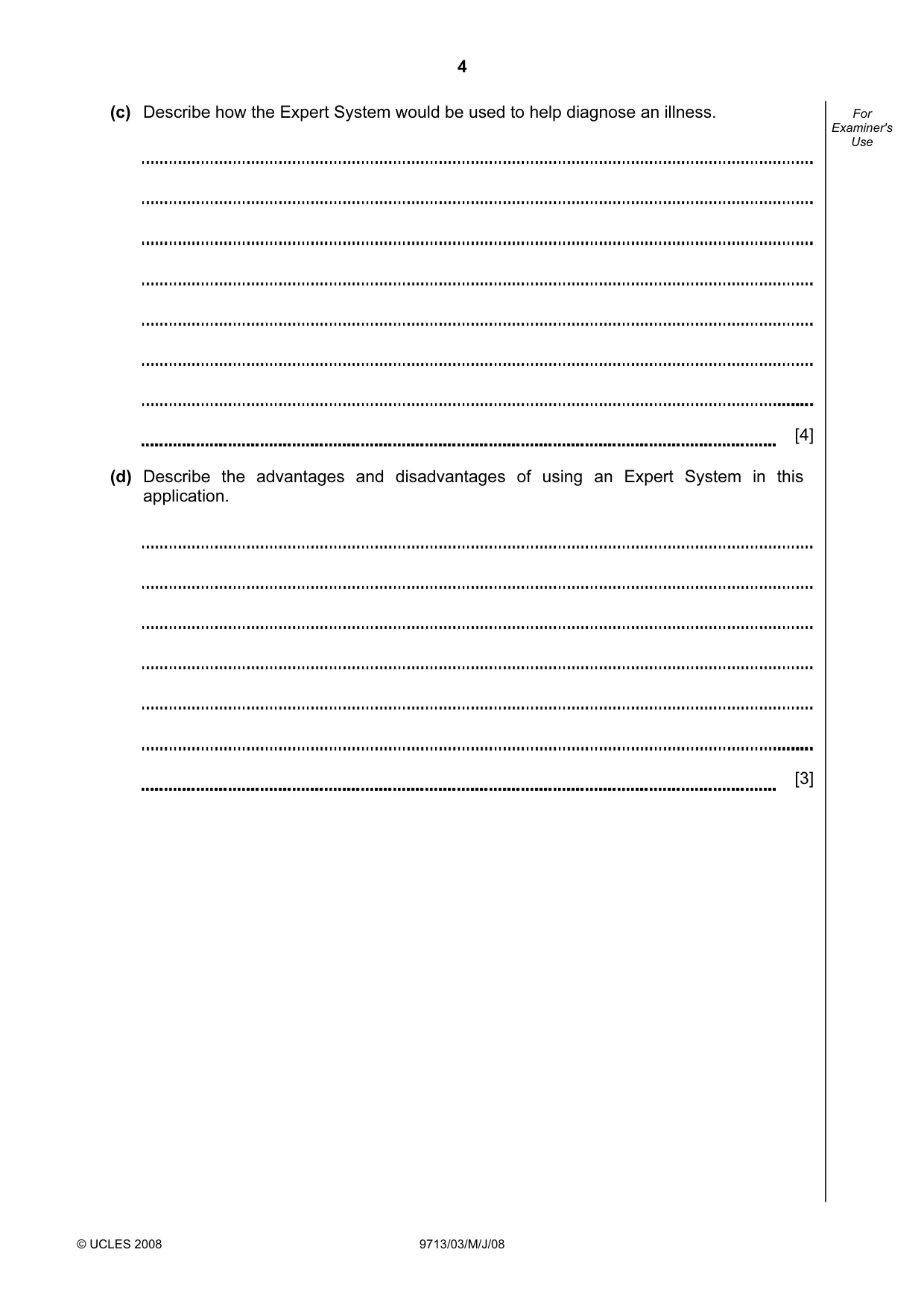

4 © UCLES 2008 9713/03/M/J/08 For Examiner's Use (c) Describe how the Expert System would be used to help diagnose an illness. [4] (d) Describe the advantages and disadvantages of using an Expert System in this application. [3]

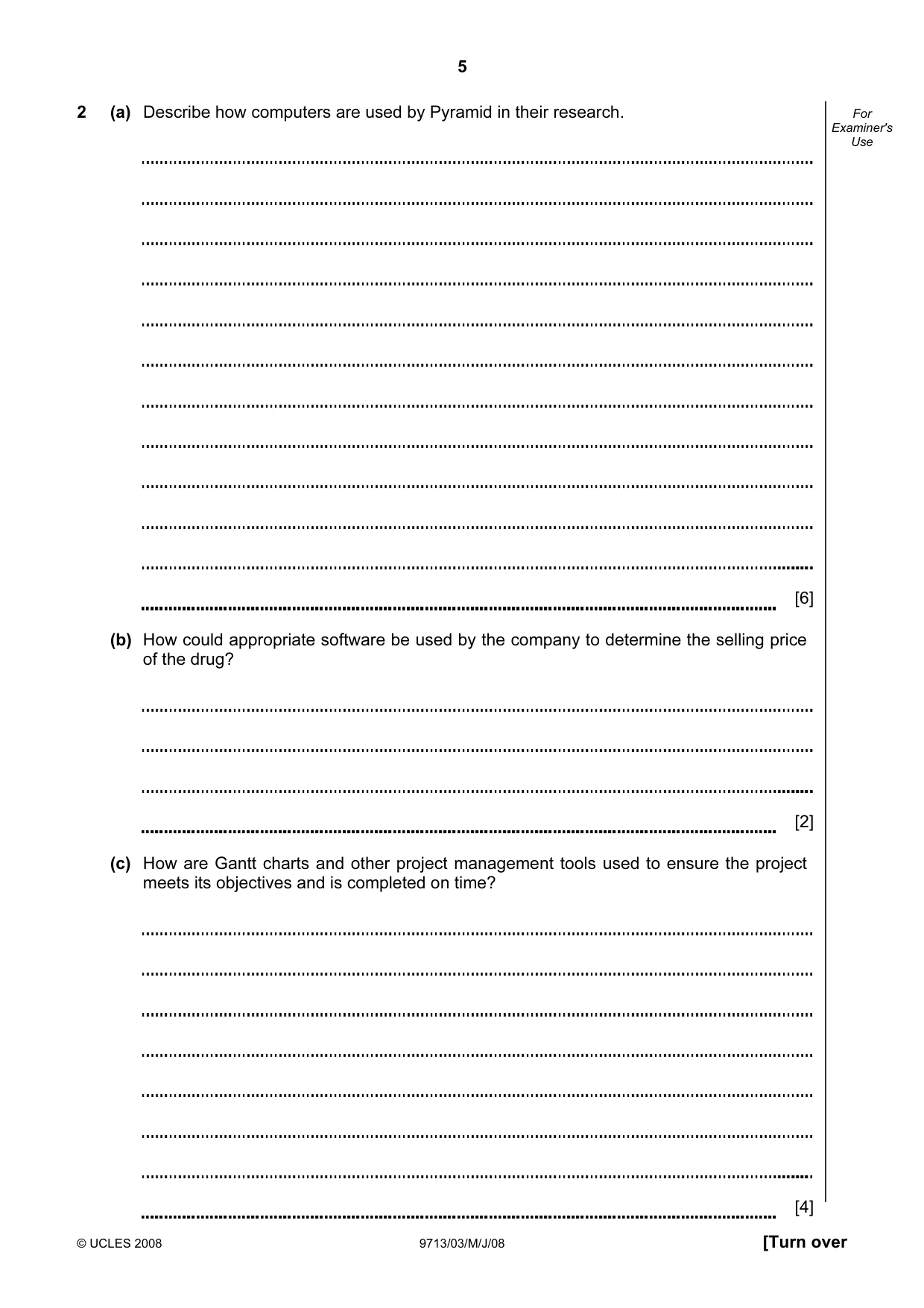

5 © UCLES 2008 9713/03/M/J/08 [Turn over For Examiner's Use 2 (a) Describe how computers are used by Pyramid in their research. [6] (b) How could appropriate software be used by the company to determine the selling price of the drug? [2] (c) How are Gantt charts and other project management tools used to ensure the project meets its objectives and is completed on time? [4]

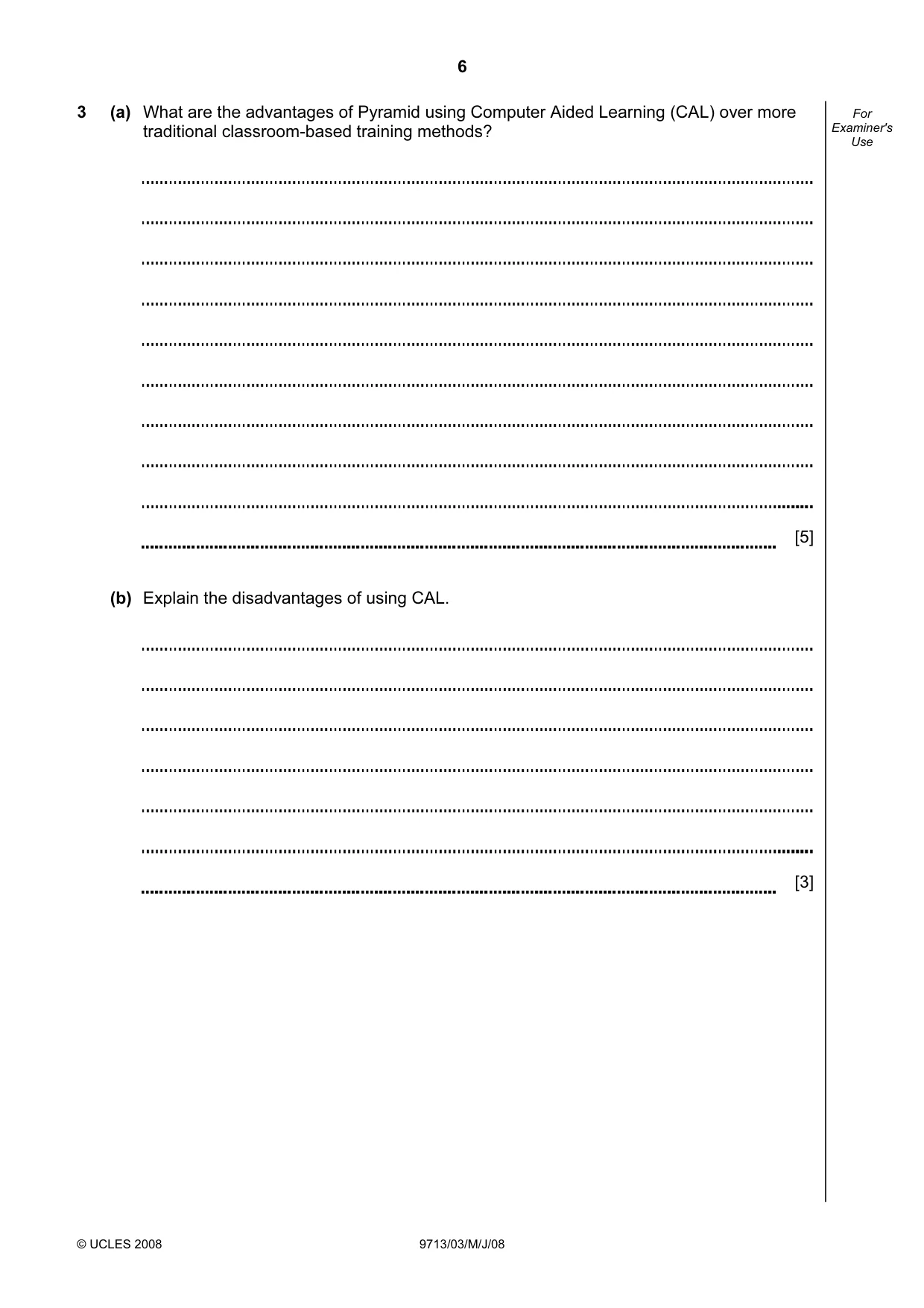

6 © UCLES 2008 9713/03/M/J/08 For Examiner's Use 3 (a) What are the advantages of Pyramid using Computer Aided Learning (CAL) over more traditional classroom-based training methods? [5] (b) Explain the disadvantages of using CAL. [3]

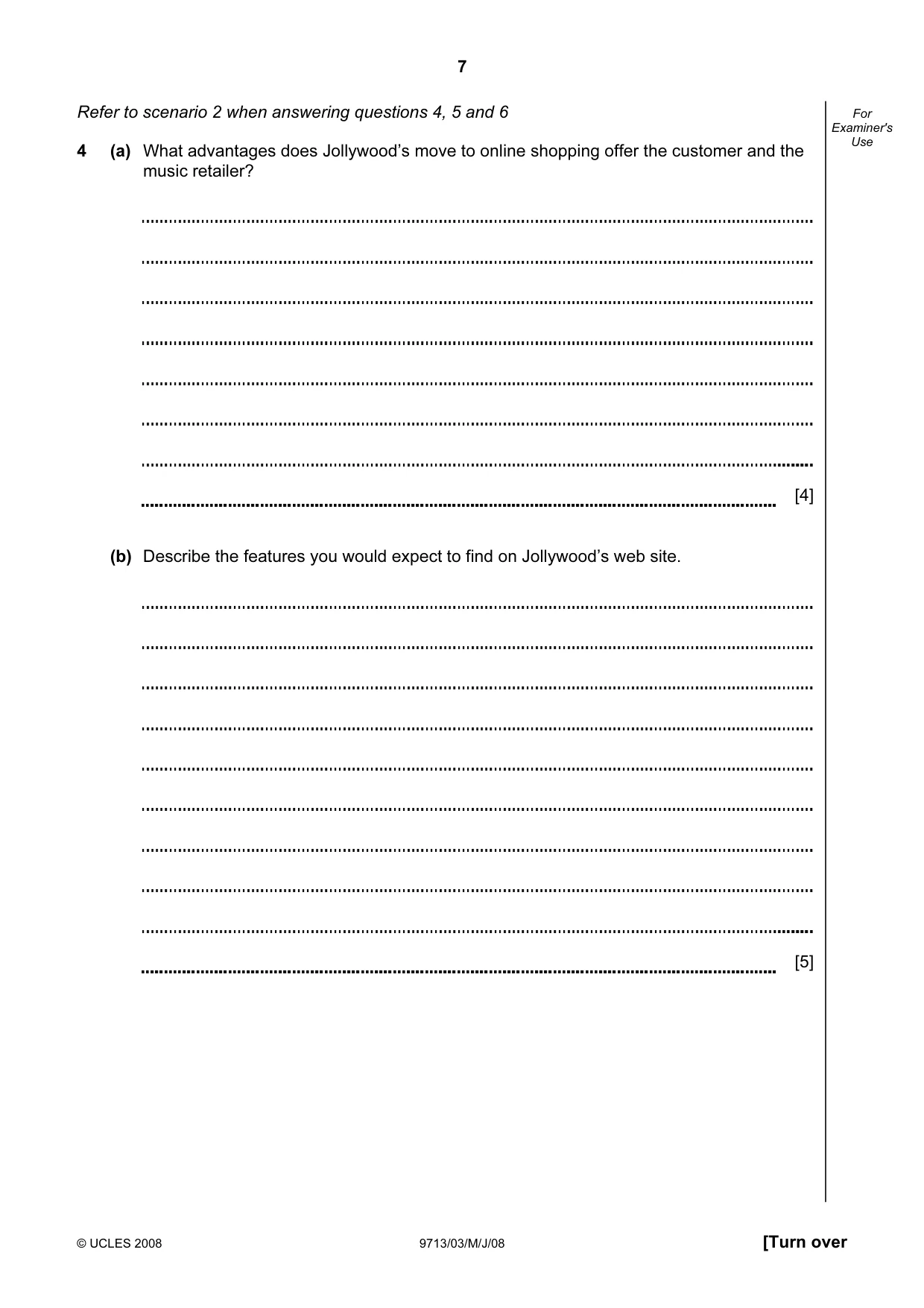

7 © UCLES 2008 9713/03/M/J/08 [Turn over For Examiner's Use Refer to scenario 2 when answering questions 4, 5 and 6 4 (a) What advantages does Jollywood’s move to online shopping offer the customer and the music retailer? [4] (b) Describe the features you would expect to find on Jollywood’s web site. [5]

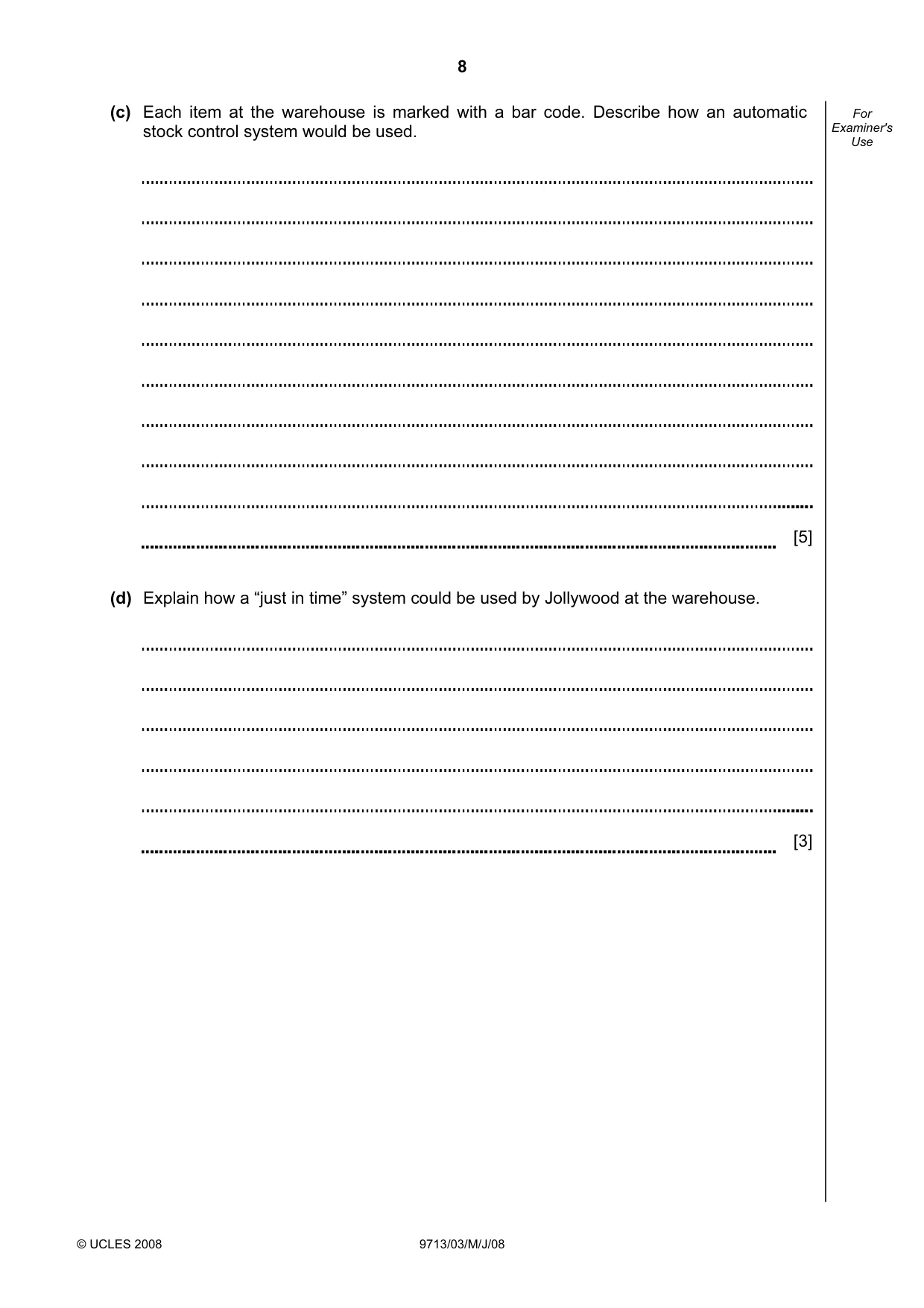

8 © UCLES 2008 9713/03/M/J/08 For Examiner's Use (c) Each item at the warehouse is marked with a bar code. Describe how an automatic stock control system would be used. [5] (d) Explain how a “just in time” system could be used by Jollywood at the warehouse. [3]

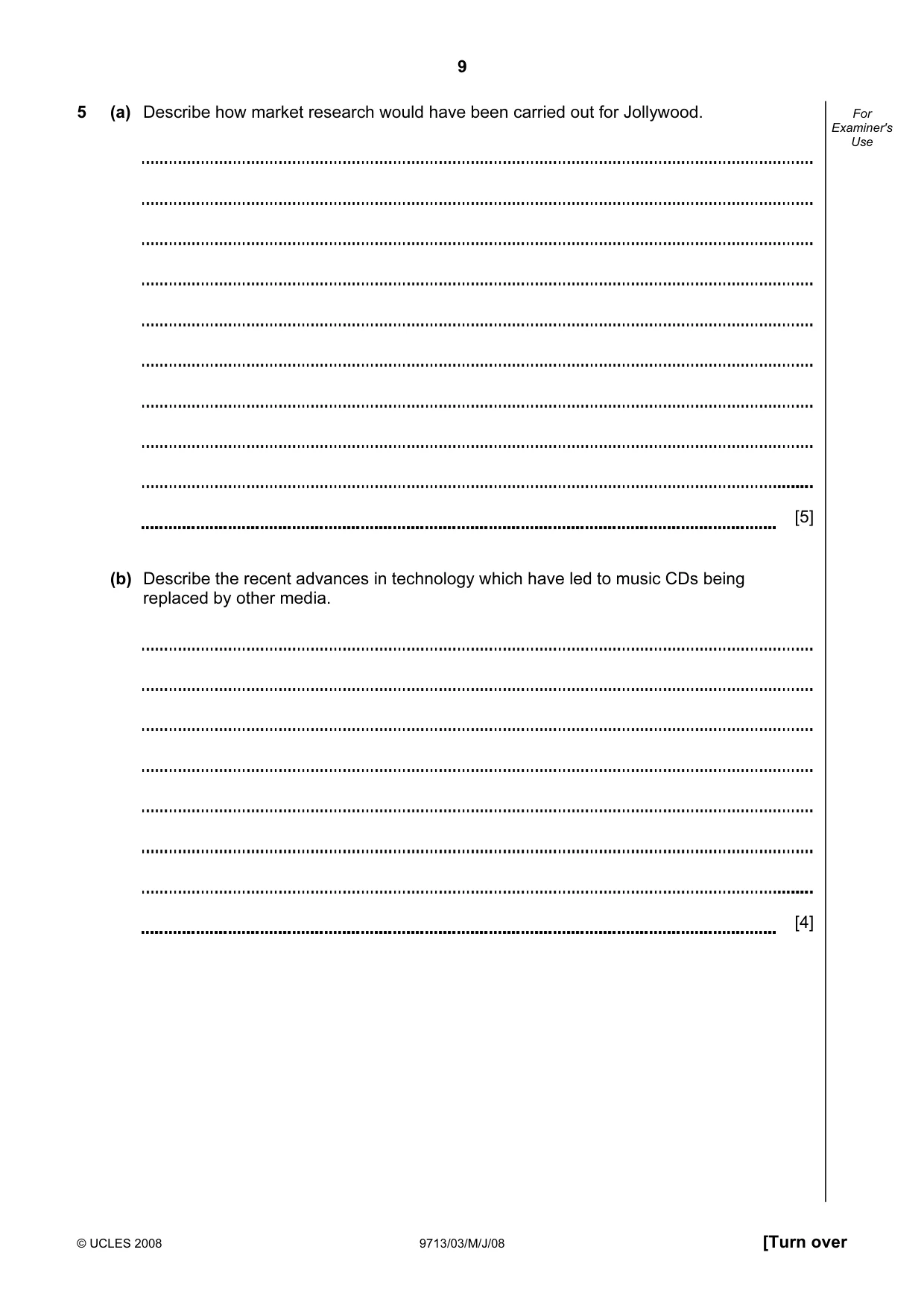

9 © UCLES 2008 9713/03/M/J/08 [Turn over For Examiner's Use 5 (a) Describe how market research would have been carried out for Jollywood. [5] (b) Describe the recent advances in technology which have led to music CDs being replaced by other media. [4]

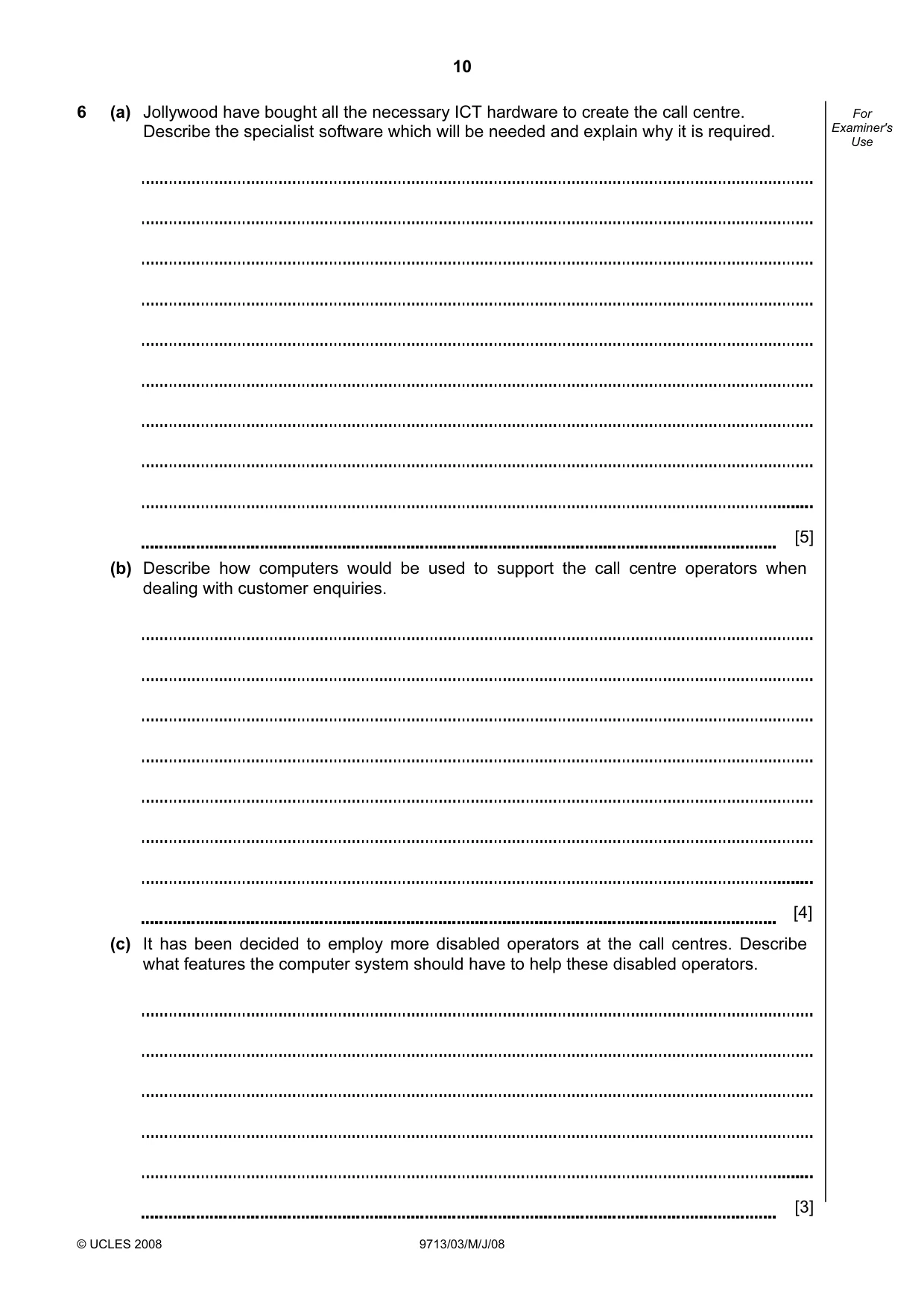

10 © UCLES 2008 9713/03/M/J/08 For Examiner's Use 6 (a) Jollywood have bought all the necessary ICT hardware to create the call centre. Describe the specialist software which will be needed and explain why it is required. [5] (b) Describe how computers would be used to support the call centre operators when dealing with customer enquiries. [4] (c) It has been decided to employ more disabled operators at the call centres. Describe what features the computer system should have to help these disabled operators. [3]

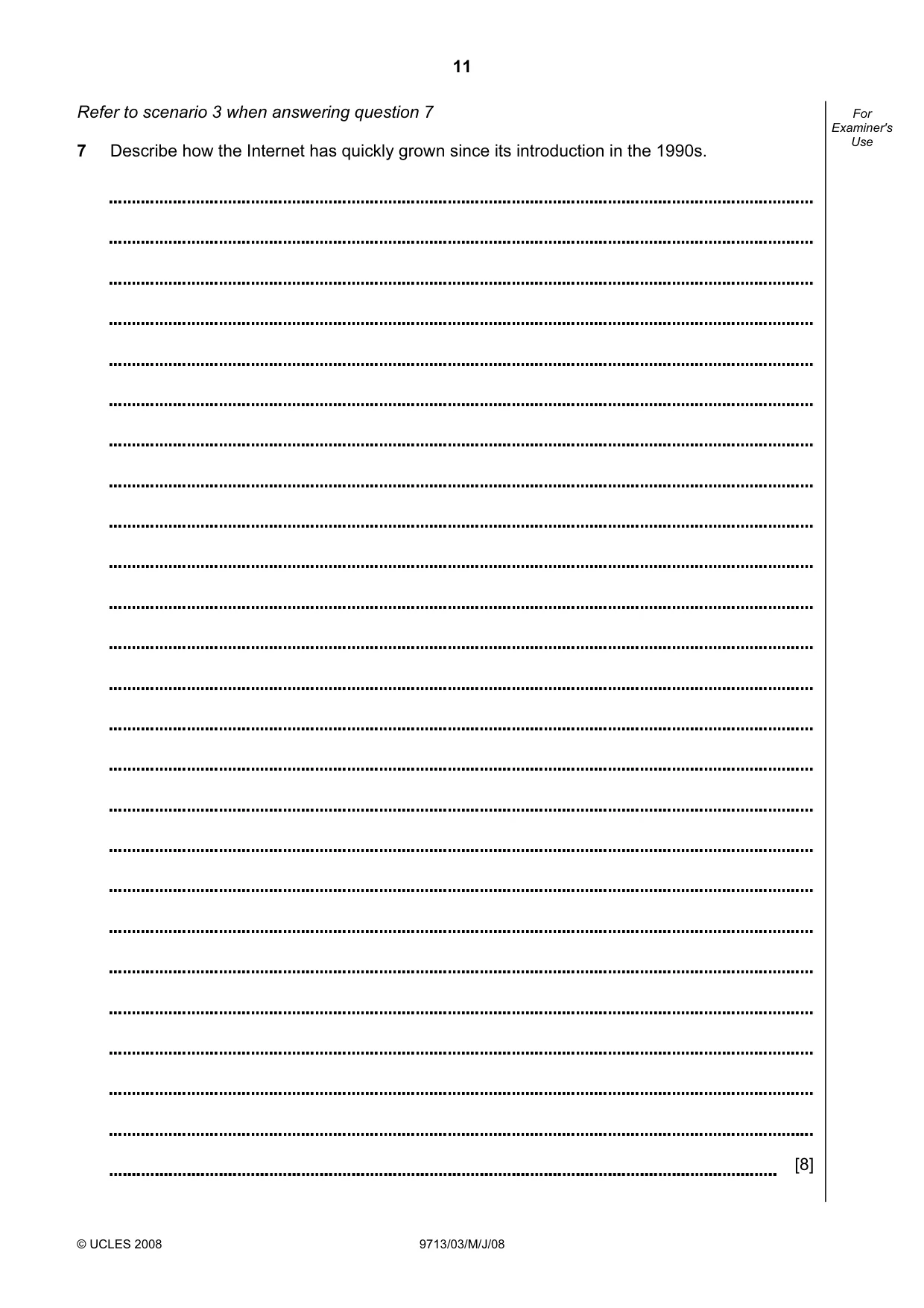

11 © UCLES 2008 9713/03/M/J/08 For Examiner's Use Refer to scenario 3 when answering question 7 7 Describe how the Internet has quickly grown since its introduction in the 1990s. [8]

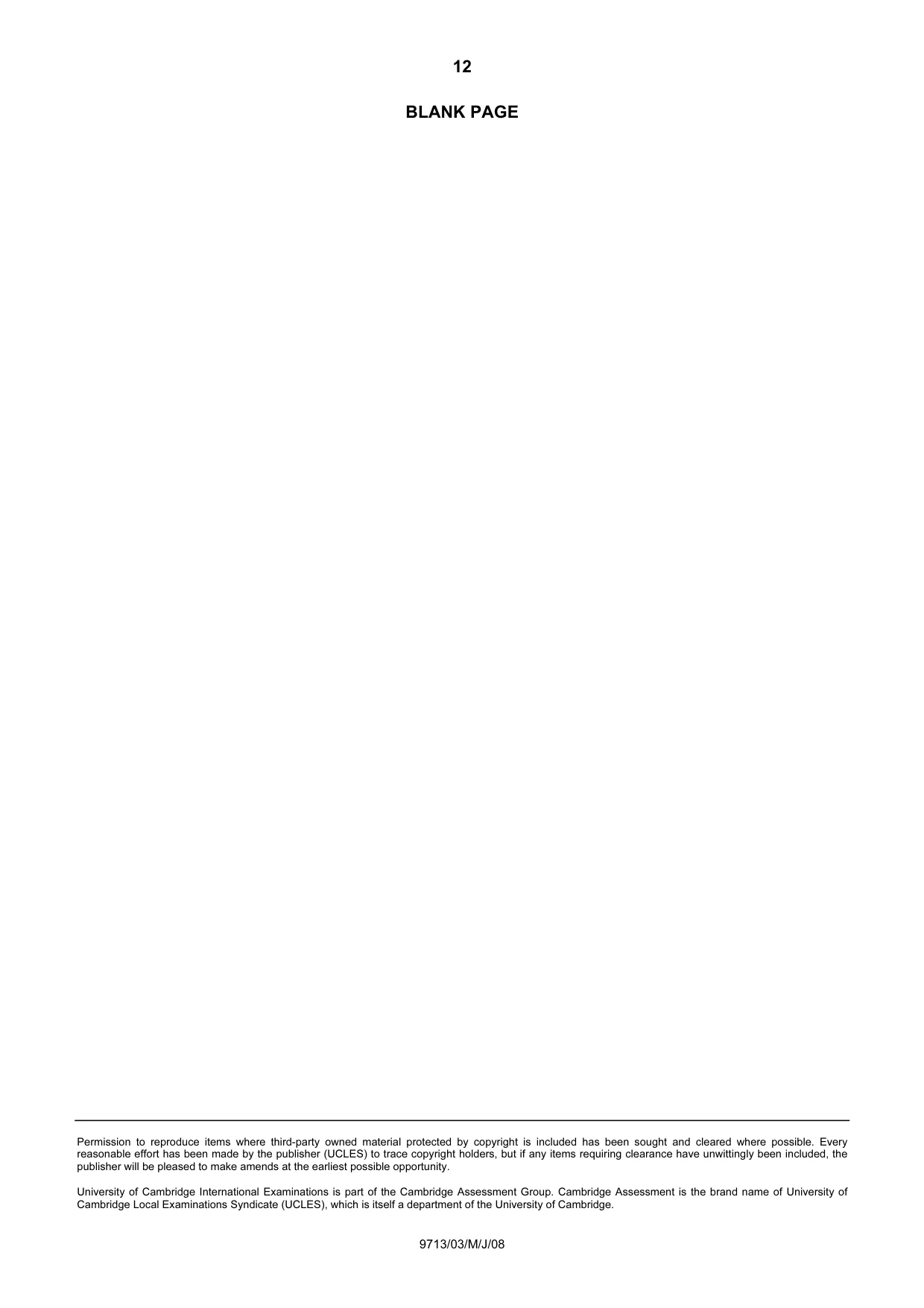

12 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. 9713/03/M/J/08 BLANK PAGE

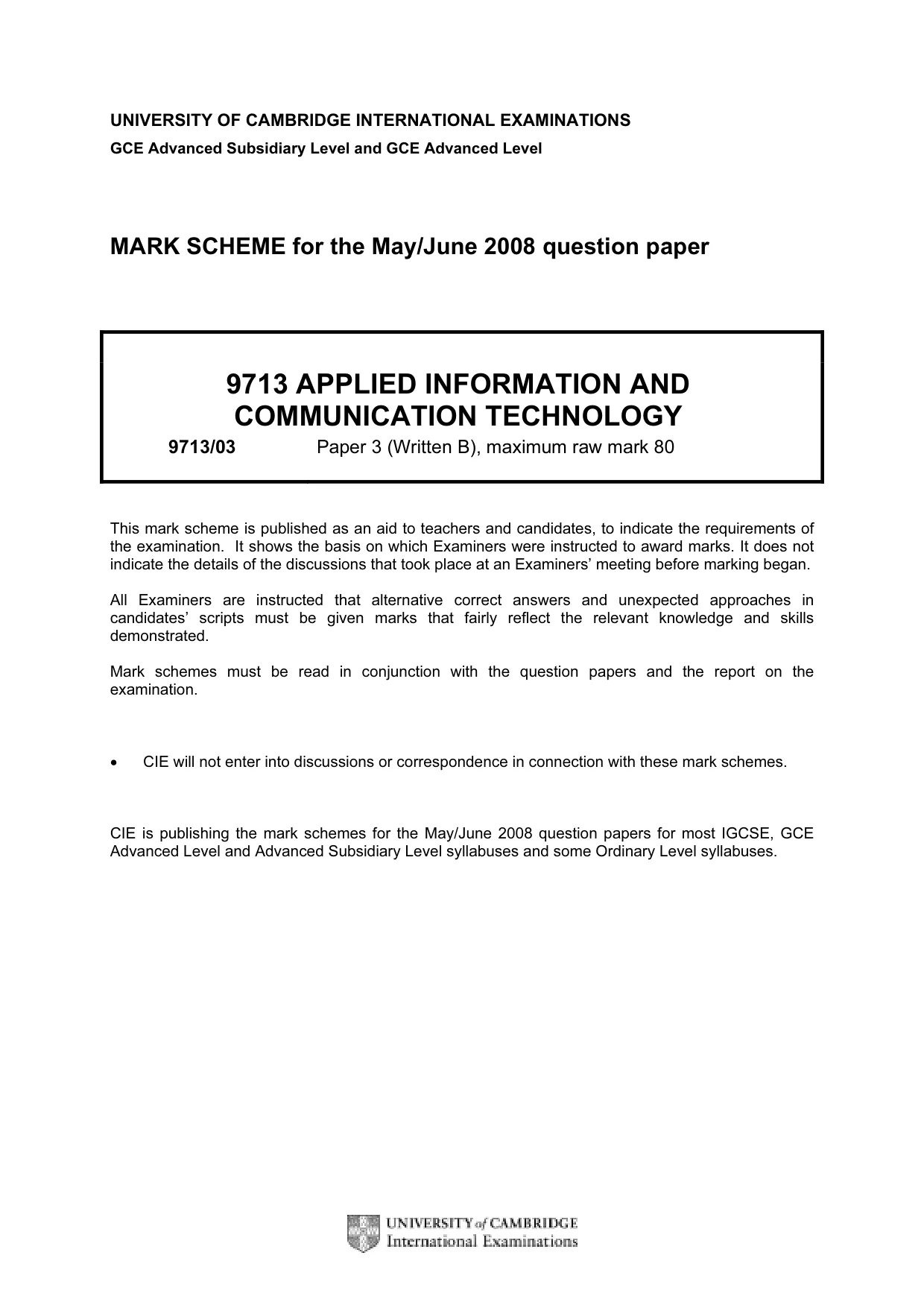

UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS GCE Advanced Subsidiary Level and GCE Advanced Level MARK SCHEME for the May/June 2008 question paper 9713 APPLIED INFORMATION AND COMMUNICATION TECHNOLOGY 9713/03 Paper 3 (Written B), maximum raw mark 80 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began. All Examiners are instructed that alternative correct answers and unexpected approaches in candidates’ scripts must be given marks that fairly reflect the relevant knowledge and skills demonstrated. Mark schemes must be read in conjunction with the question papers and the report on the examination. • CIE will not enter into discussions or correspondence in connection with these mark schemes. CIE is publishing the mark schemes for the May/June 2008 question papers for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses.

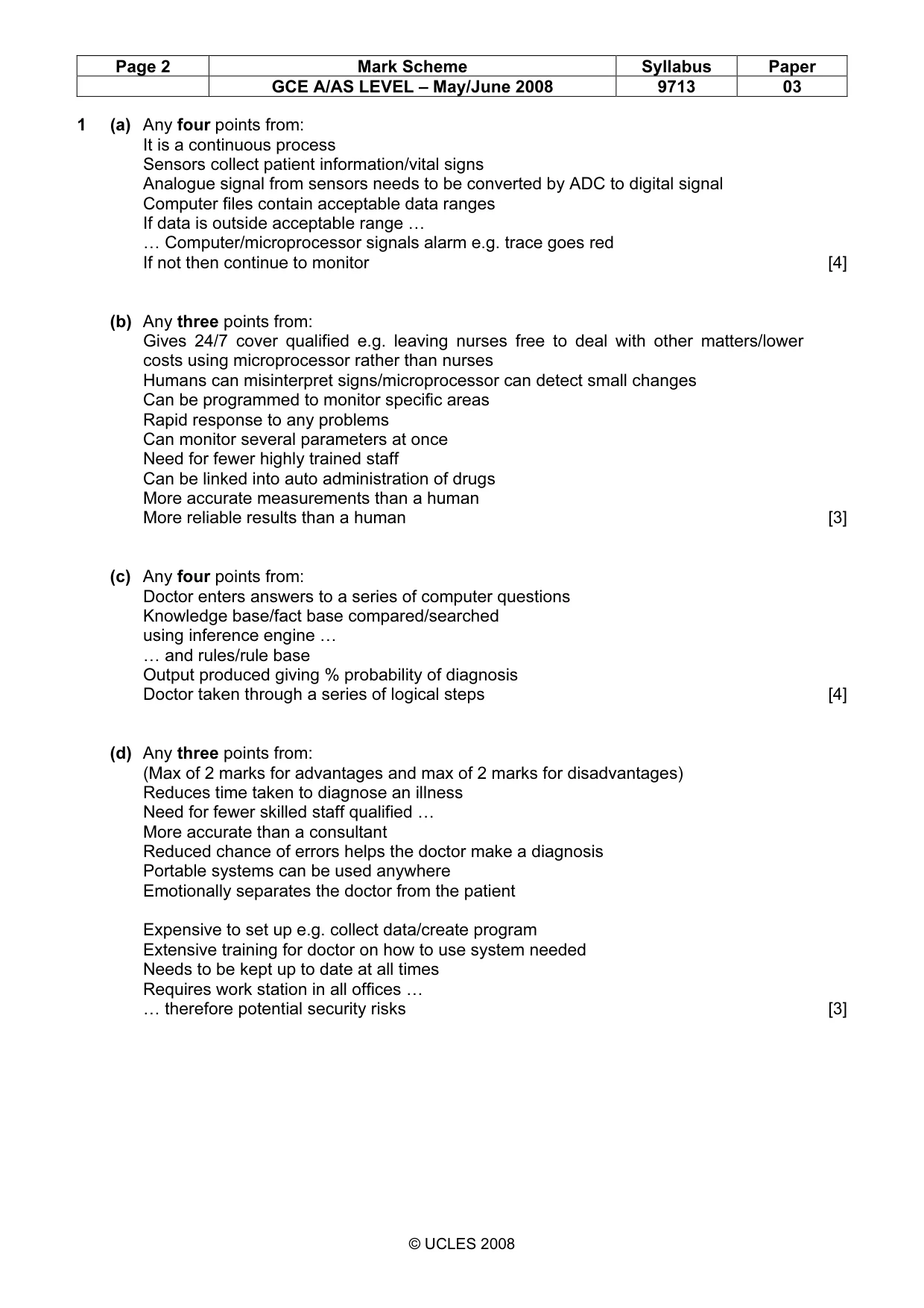

Page 2 Mark Scheme Syllabus Paper GCE A/AS LEVEL – May/June 2008 9713 03 © UCLES 2008 1 (a) Any four points from: It is a continuous process Sensors collect patient information/vital signs Analogue signal from sensors needs to be converted by ADC to digital signal Computer files contain acceptable data ranges If data is outside acceptable range … … Computer/microprocessor signals alarm e.g. trace goes red If not then continue to monitor [4] (b) Any three points from: Gives 24/7 cover qualified e.g. leaving nurses free to deal with other matters/lower costs using microprocessor rather than nurses Humans can misinterpret signs/microprocessor can detect small changes Can be programmed to monitor specific areas Rapid response to any problems Can monitor several parameters at once Need for fewer highly trained staff Can be linked into auto administration of drugs More accurate measurements than a human More reliable results than a human [3] (c) Any four points from: Doctor enters answers to a series of computer questions Knowledge base/fact base compared/searched using inference engine … … and rules/rule base Output produced giving % probability of diagnosis Doctor taken through a series of logical steps [4] (d) Any three points from: (Max of 2 marks for advantages and max of 2 marks for disadvantages) Reduces time taken to diagnose an illness Need for fewer skilled staff qualified … More accurate than a consultant Reduced chance of errors helps the doctor make a diagnosis Portable systems can be used anywhere Emotionally separates the doctor from the patient Expensive to set up e.g. collect data/create program Extensive training for doctor on how to use system needed Needs to be kept up to date at all times Requires work station in all offices … … therefore potential security risks [3]

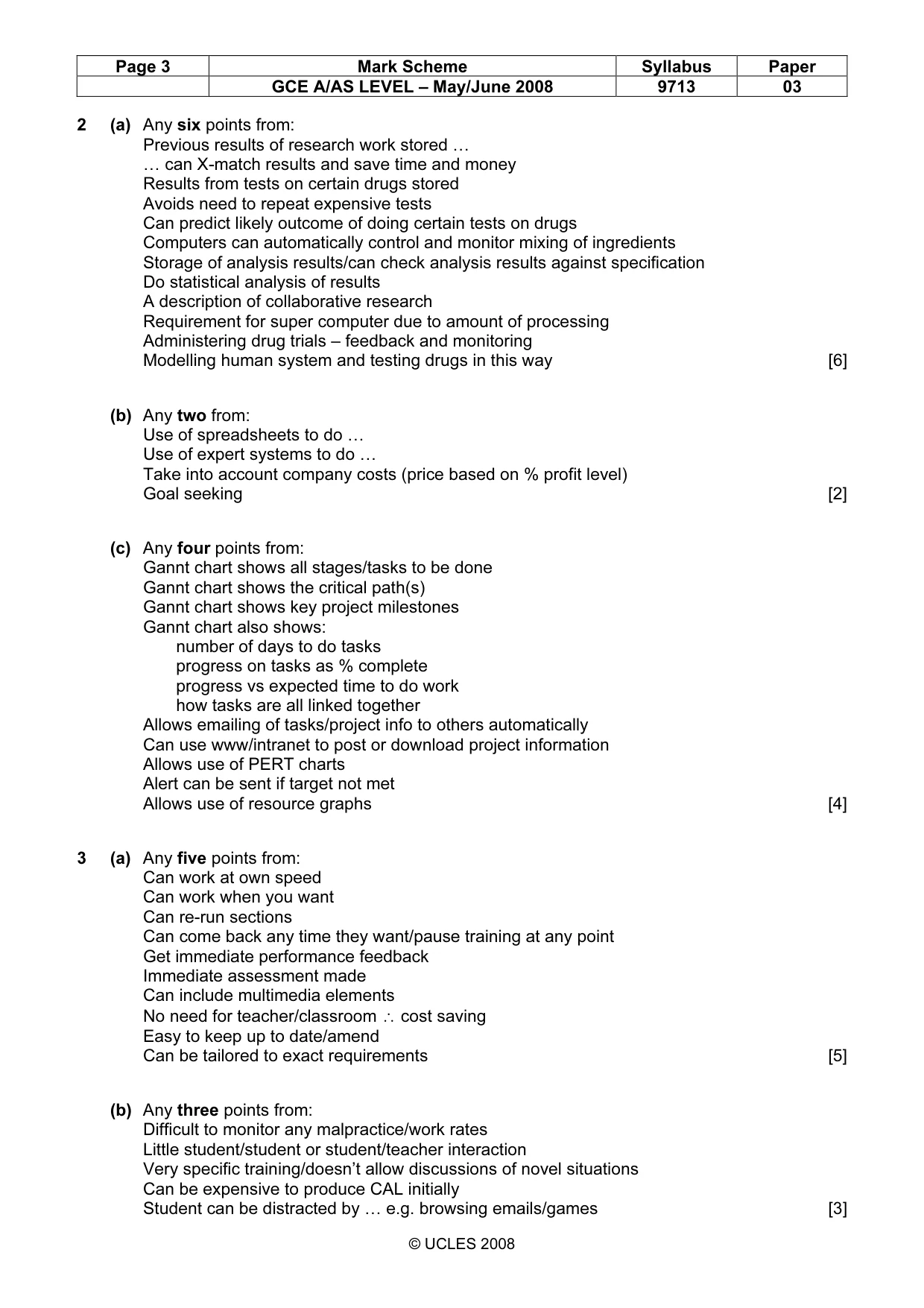

Page 3 Mark Scheme Syllabus Paper GCE A/AS LEVEL – May/June 2008 9713 03 © UCLES 2008 2 (a) Any six points from: Previous results of research work stored … … can X-match results and save time and money Results from tests on certain drugs stored Avoids need to repeat expensive tests Can predict likely outcome of doing certain tests on drugs Computers can automatically control and monitor mixing of ingredients Storage of analysis results/can check analysis results against specification Do statistical analysis of results A description of collaborative research Requirement for super computer due to amount of processing Administering drug trials – feedback and monitoring Modelling human system and testing drugs in this way [6] (b) Any two from: Use of spreadsheets to do … Use of expert systems to do … Take into account company costs (price based on % profit level) Goal seeking [2] (c) Any four points from: Gannt chart shows all stages/tasks to be done Gannt chart shows the critical path(s) Gannt chart shows key project milestones Gannt chart also shows: number of days to do tasks progress on tasks as % complete progress vs expected time to do work how tasks are all linked together Allows emailing of tasks/project info to others automatically Can use www/intranet to post or download project information Allows use of PERT charts Alert can be sent if target not met Allows use of resource graphs [4] 3 (a) Any five points from: Can work at own speed Can work when you want Can re-run sections Can come back any time they want/pause training at any point Get immediate performance feedback Immediate assessment made Can include multimedia elements No need for teacher/classroom ∴ cost saving Easy to keep up to date/amend Can be tailored to exact requirements [5] (b) Any three points from: Difficult to monitor any malpractice/work rates Little student/student or student/teacher interaction Very specific training/doesn’t allow discussions of novel situations Can be expensive to produce CAL initially Student can be distracted by … e.g. browsing emails/games [3]

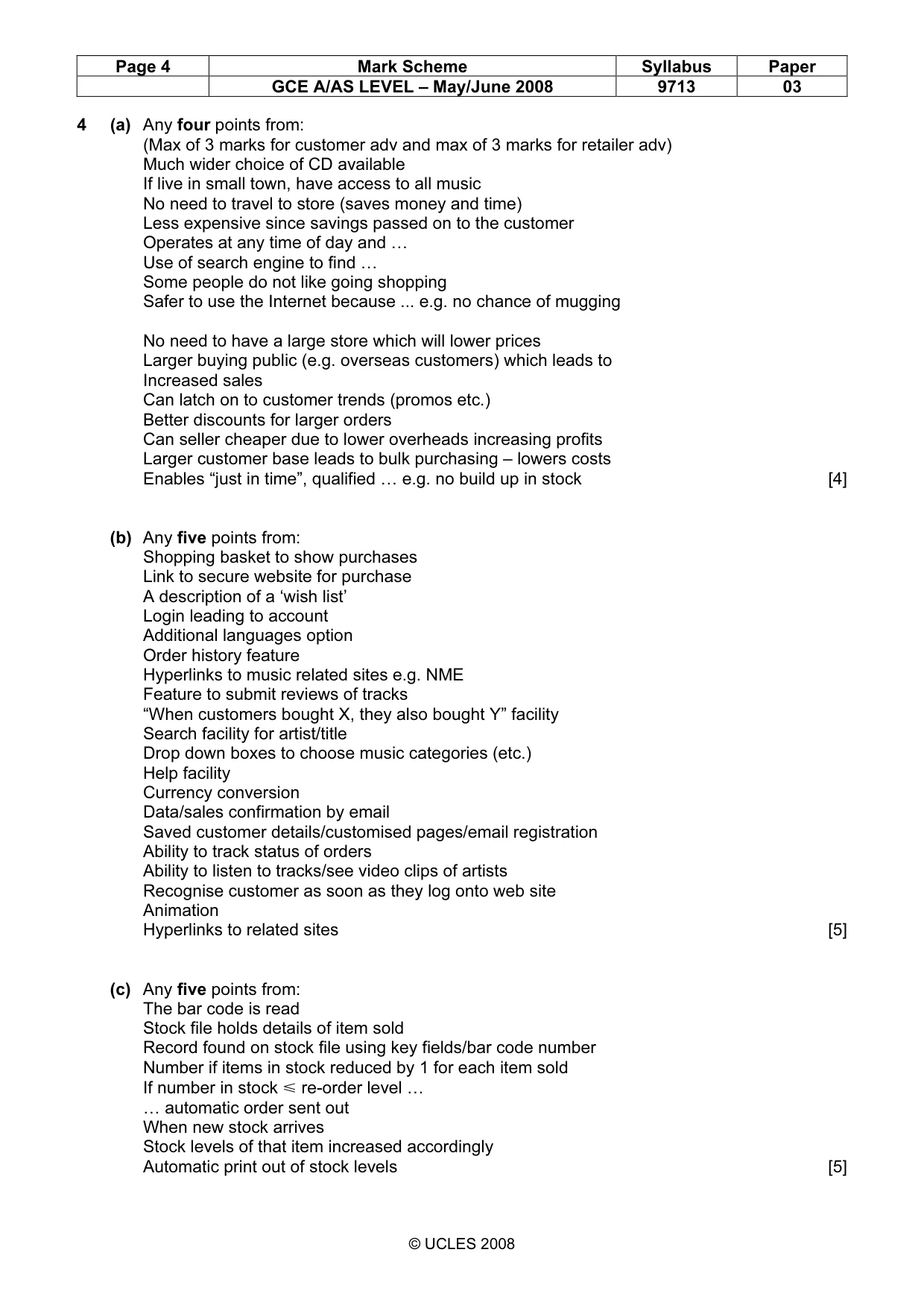

Page 4 Mark Scheme Syllabus Paper GCE A/AS LEVEL – May/June 2008 9713 03 © UCLES 2008 4 (a) Any four points from: (Max of 3 marks for customer adv and max of 3 marks for retailer adv) Much wider choice of CD available If live in small town, have access to all music No need to travel to store (saves money and time) Less expensive since savings passed on to the customer Operates at any time of day and … Use of search engine to find … Some people do not like going shopping Safer to use the Internet because ... e.g. no chance of mugging No need to have a large store which will lower prices Larger buying public (e.g. overseas customers) which leads to Increased sales Can latch on to customer trends (promos etc.) Better discounts for larger orders Can seller cheaper due to lower overheads increasing profits Larger customer base leads to bulk purchasing – lowers costs Enables “just in time”, qualified … e.g. no build up in stock [4] (b) Any five points from: Shopping basket to show purchases Link to secure website for purchase A description of a ‘wish list’ Login leading to account Additional languages option Order history feature Hyperlinks to music related sites e.g. NME Feature to submit reviews of tracks “When customers bought X, they also bought Y” facility Search facility for artist/title Drop down boxes to choose music categories (etc.) Help facility Currency conversion Data/sales confirmation by email Saved customer details/customised pages/email registration Ability to track status of orders Ability to listen to tracks/see video clips of artists Recognise customer as soon as they log onto web site Animation Hyperlinks to related sites [5] (c) Any five points from: The bar code is read Stock file holds details of item sold Record found on stock file using key fields/bar code number Number if items in stock reduced by 1 for each item sold If number in stock Y re-order level … … automatic order sent out When new stock arrives Stock levels of that item increased accordingly Automatic print out of stock levels [5]

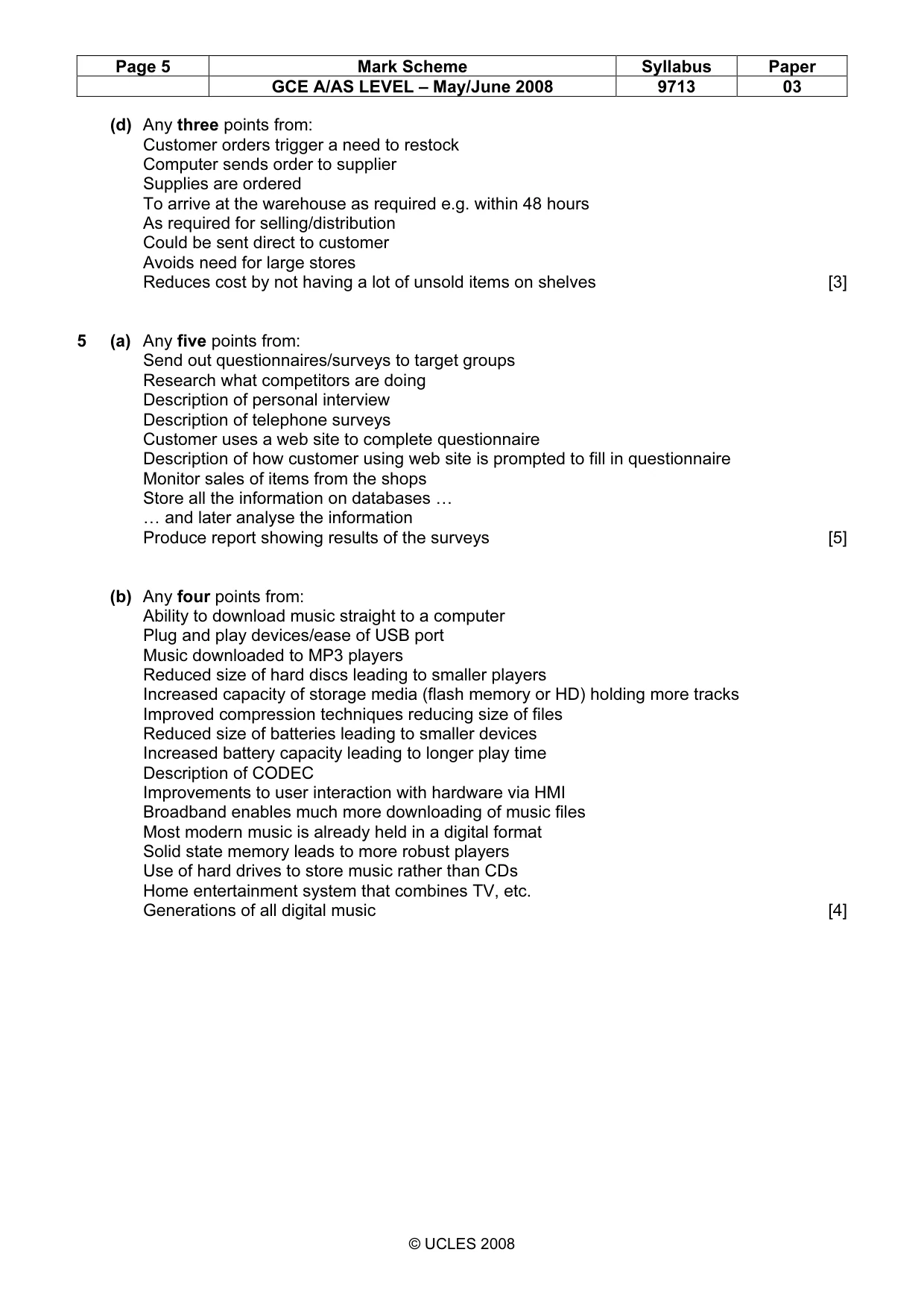

Page 5 Mark Scheme Syllabus Paper GCE A/AS LEVEL – May/June 2008 9713 03 © UCLES 2008 (d) Any three points from: Customer orders trigger a need to restock Computer sends order to supplier Supplies are ordered To arrive at the warehouse as required e.g. within 48 hours As required for selling/distribution Could be sent direct to customer Avoids need for large stores Reduces cost by not having a lot of unsold items on shelves [3] 5 (a) Any five points from: Send out questionnaires/surveys to target groups Research what competitors are doing Description of personal interview Description of telephone surveys Customer uses a web site to complete questionnaire Description of how customer using web site is prompted to fill in questionnaire Monitor sales of items from the shops Store all the information on databases … … and later analyse the information Produce report showing results of the surveys [5] (b) Any four points from: Ability to download music straight to a computer Plug and play devices/ease of USB port Music downloaded to MP3 players Reduced size of hard discs leading to smaller players Increased capacity of storage media (flash memory or HD) holding more tracks Improved compression techniques reducing size of files Reduced size of batteries leading to smaller devices Increased battery capacity leading to longer play time Description of CODEC Improvements to user interaction with hardware via HMI Broadband enables much more downloading of music files Most modern music is already held in a digital format Solid state memory leads to more robust players Use of hard drives to store music rather than CDs Home entertainment system that combines TV, etc. Generations of all digital music [4]

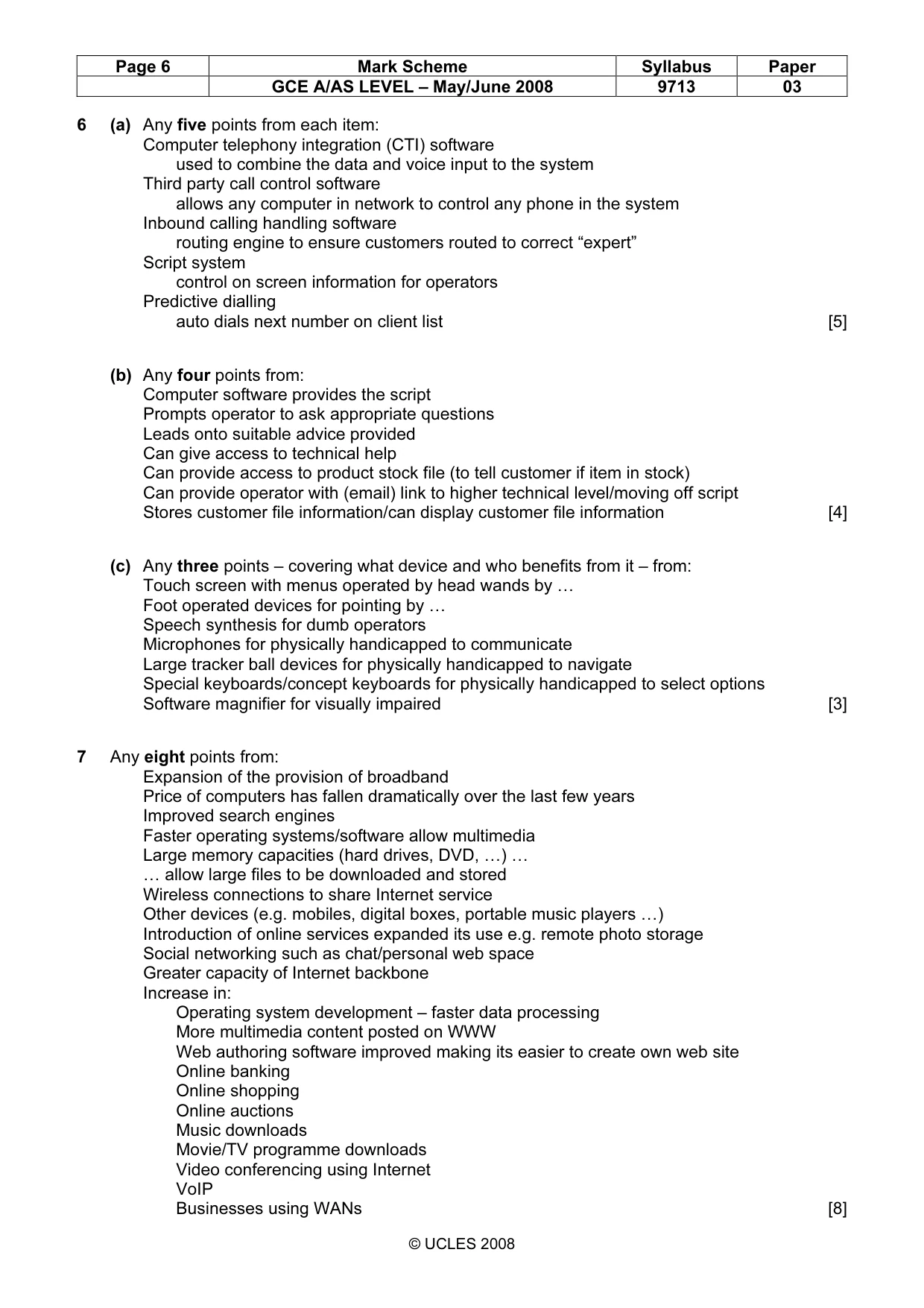

Page 6 Mark Scheme Syllabus Paper GCE A/AS LEVEL – May/June 2008 9713 03 © UCLES 2008 6 (a) Any five points from each item: Computer telephony integration (CTI) software used to combine the data and voice input to the system Third party call control software allows any computer in network to control any phone in the system Inbound calling handling software routing engine to ensure customers routed to correct “expert” Script system control on screen information for operators Predictive dialling auto dials next number on client list [5] (b) Any four points from: Computer software provides the script Prompts operator to ask appropriate questions Leads onto suitable advice provided Can give access to technical help Can provide access to product stock file (to tell customer if item in stock) Can provide operator with (email) link to higher technical level/moving off script Stores customer file information/can display customer file information [4] (c) Any three points – covering what device and who benefits from it – from: Touch screen with menus operated by head wands by … Foot operated devices for pointing by … Speech synthesis for dumb operators Microphones for physically handicapped to communicate Large tracker ball devices for physically handicapped to navigate Special keyboards/concept keyboards for physically handicapped to select options Software magnifier for visually impaired [3] 7 Any eight points from: Expansion of the provision of broadband Price of computers has fallen dramatically over the last few years Improved search engines Faster operating systems/software allow multimedia Large memory capacities (hard drives, DVD, …) … … allow large files to be downloaded and stored Wireless connections to share Internet service Other devices (e.g. mobiles, digital boxes, portable music players …) Introduction of online services expanded its use e.g. remote photo storage Social networking such as chat/personal web space Greater capacity of Internet backbone Increase in: Operating system development – faster data processing More multimedia content posted on WWW Web authoring software improved making its easier to create own web site Online banking Online shopping Online auctions Music downloads Movie/TV programme downloads Video conferencing using Internet VoIP Businesses using WANs [8]
