Cambridge IGCSE Physics 0625 — 2006 May/June Paper 5 · Variant 1
0625/51/M/J/06 · 40 marks · ≈45 min
The question paper and its mark scheme, free to read here and free to download. This is Cambridge’s own paper, exactly as it was sat.
Question paper8 pages








Mark scheme3 pages
Answers below. Sit the paper first if you are practising.



Paper as text

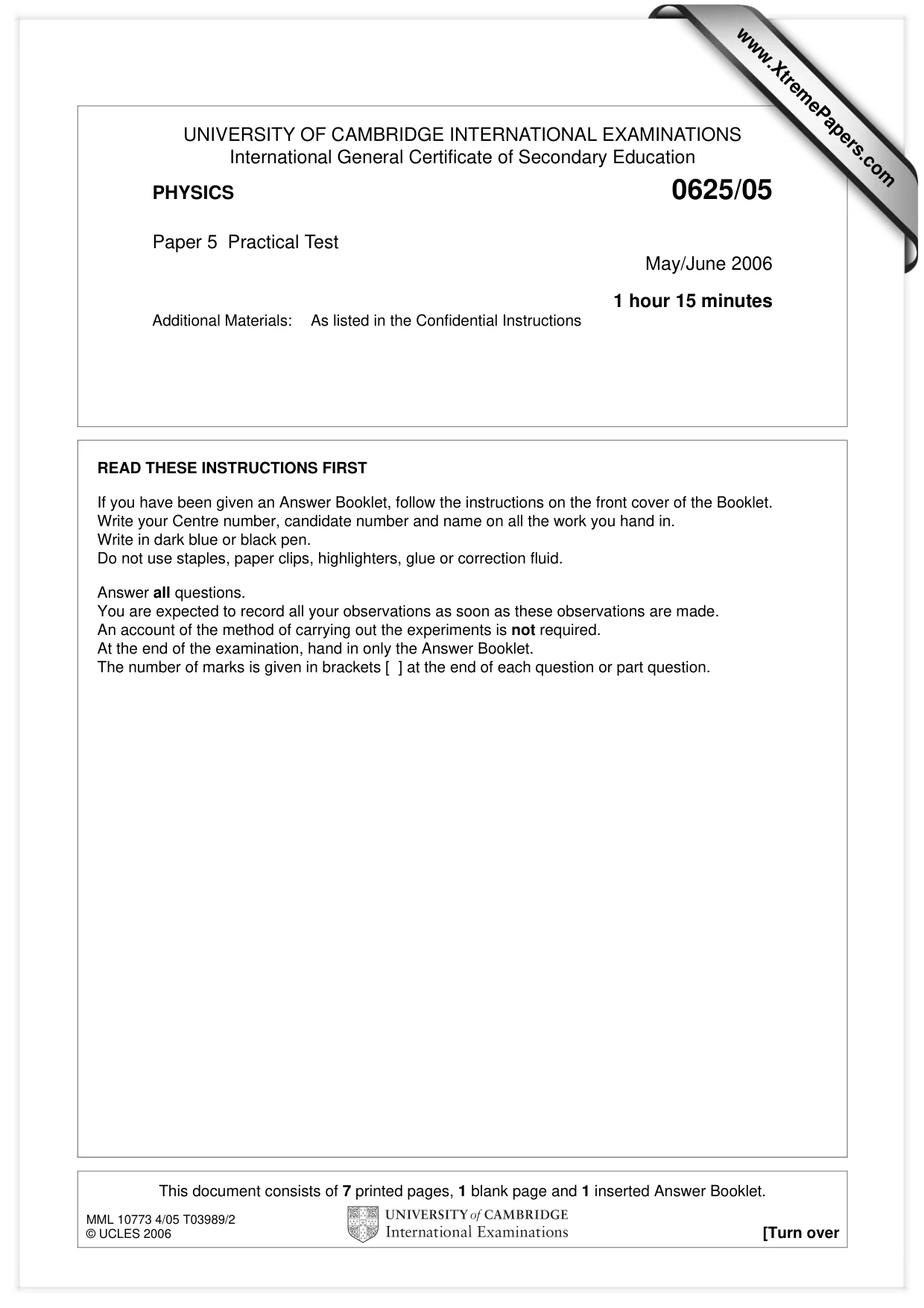

Question paper, page 1
This document consists of 7 printed pages, 1 blank page and 1 inserted Answer Booklet. MML 10773 4/05 T03989/2 © UCLES 2006 [Turn over UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education PHYSICS 0625/05 Paper 5 Practical Test May/June 2006 1 hour 15 minutes Additional Materials: As listed in the Confidential Instructions READ THESE INSTRUCTIONS FIRST If you have been given an Answer Booklet, follow the instructions on the front cover of the Booklet. Write your Centre number, candidate number and name on all the work you hand in. Write in dark blue or black pen. Do not use staples, paper clips, highlighters, glue or correction fluid. Answer all questions. You are expected to record all your observations as soon as these observations are made. An account of the method of carrying out the experiments is not required. At the end of the examination, hand in only the Answer Booklet. The number of marks is given in brackets [ ] at the end of each question or part question. www.XtremePapers.com

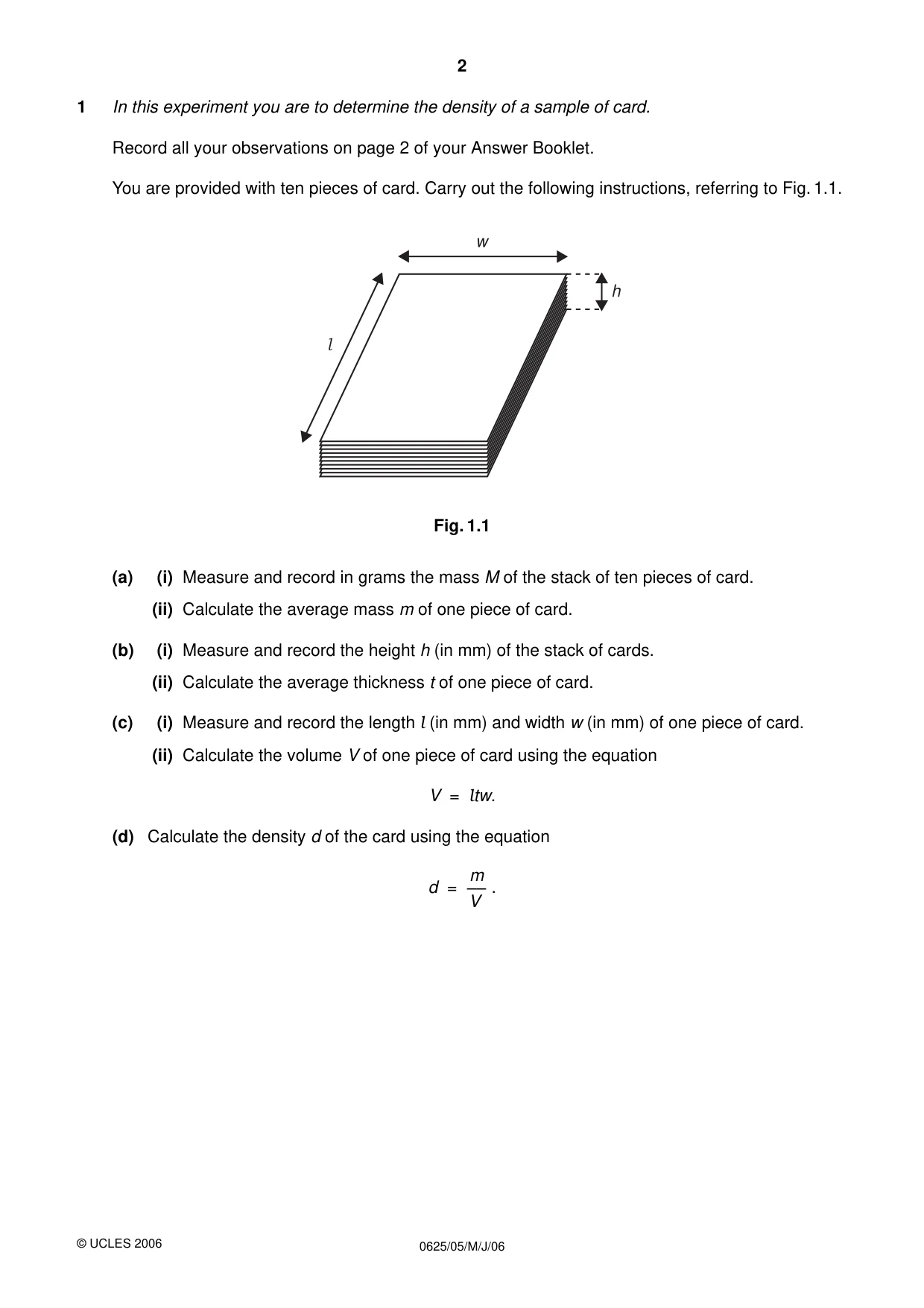

Question paper, page 2
1 In this experiment you are to determine the density of a sample of card. Record all your observations on page 2 of your Answer Booklet. You are provided with ten pieces of card. Carry out the following instructions, referring to Fig. 1.1. Fig. 1.1 (a) (i) Measure and record in grams the mass M of the stack of ten pieces of card. (ii) Calculate the average mass m of one piece of card. (b) (i) Measure and record the height h (in mm) of the stack of cards. (ii) Calculate the average thickness t of one piece of card. (c) (i) Measure and record the length l (in mm) and width w (in mm) of one piece of card. (ii) Calculate the volume V of one piece of card using the equation V = ltw. (d) Calculate the density d of the card using the equation d = . m –– V l w h 2 0625/05/M/J/06 © UCLES 2006

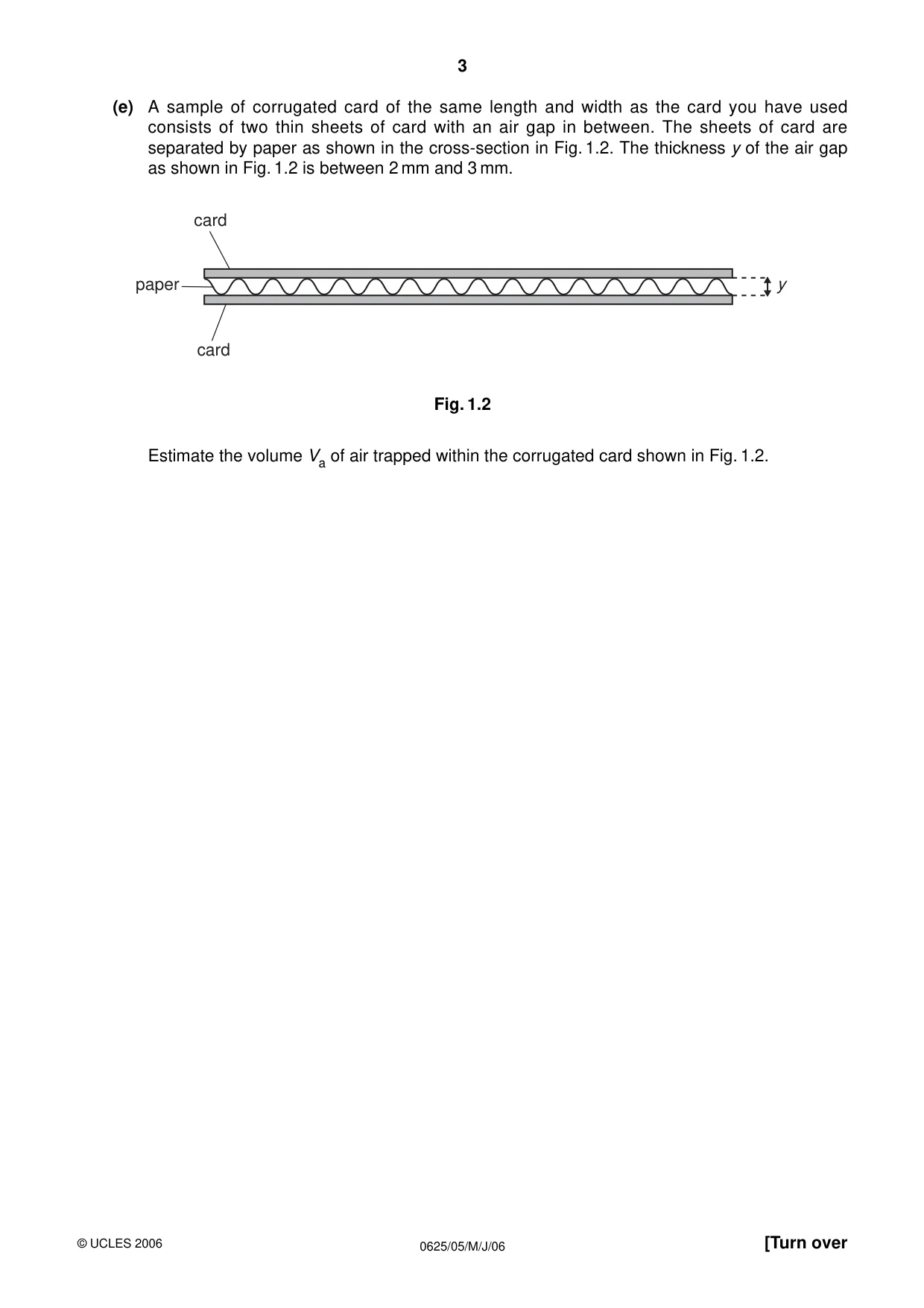

Question paper, page 3
(e) A sample of corrugated card of the same length and width as the card you have used consists of two thin sheets of card with an air gap in between. The sheets of card are separated by paper as shown in the cross-section in Fig. 1.2. The thickness y of the air gap as shown in Fig. 1.2 is between 2 mm and 3 mm. Fig. 1.2 Estimate the volume Va of air trapped within the corrugated card shown in Fig. 1.2. card paper card y 3 0625/05/M/J/06 [Turn over © UCLES 2006

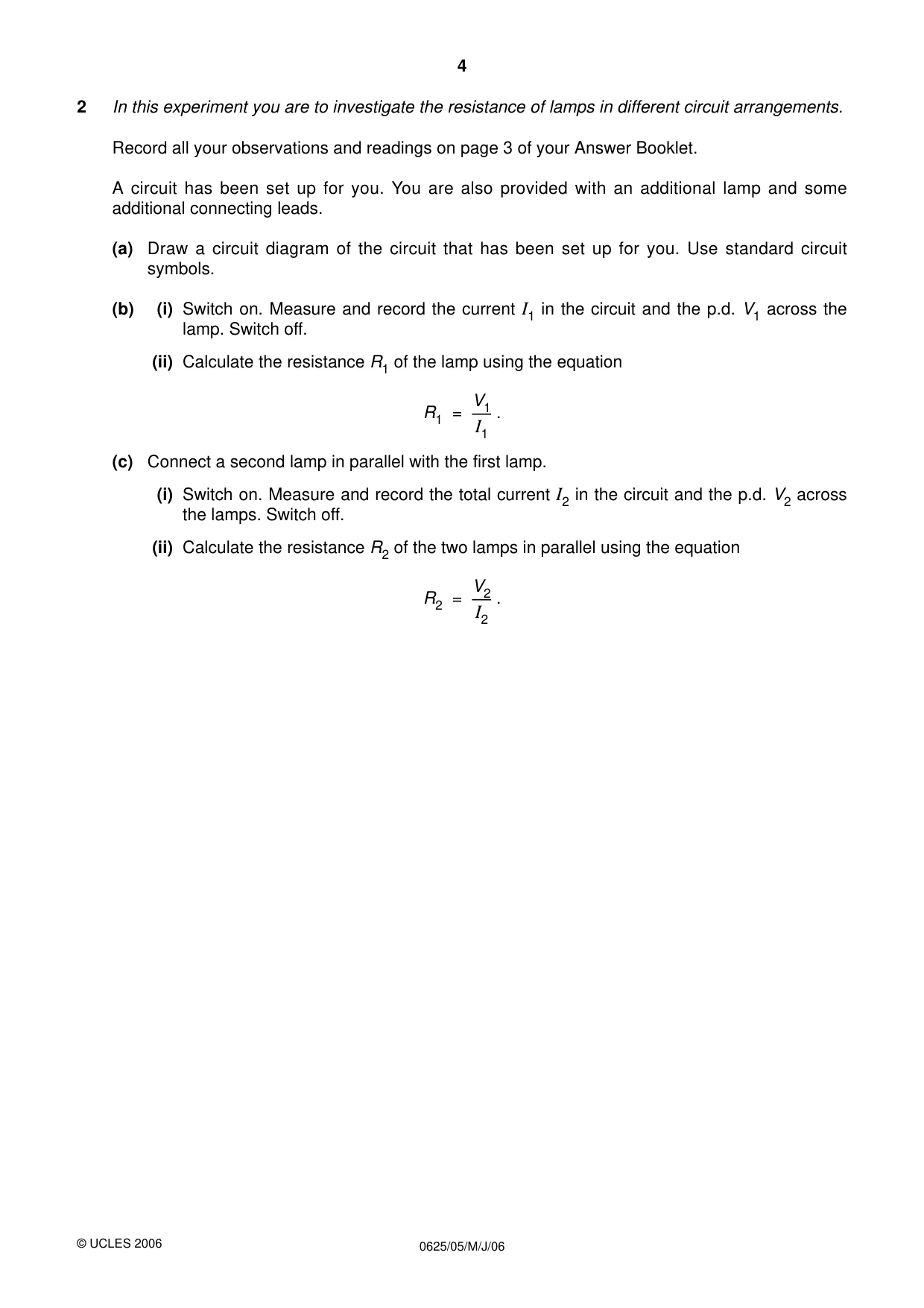

Question paper, page 4
2 In this experiment you are to investigate the resistance of lamps in different circuit arrangements. Record all your observations and readings on page 3 of your Answer Booklet. A circuit has been set up for you. You are also provided with an additional lamp and some additional connecting leads. (a) Draw a circuit diagram of the circuit that has been set up for you. Use standard circuit symbols. (b) (i) Switch on. Measure and record the current I1 in the circuit and the p.d. V1 across the lamp. Switch off. (ii) Calculate the resistance R1 of the lamp using the equation R1 = . (c) Connect a second lamp in parallel with the first lamp. (i) Switch on. Measure and record the total current I2 in the circuit and the p.d. V2 across the lamps. Switch off. (ii) Calculate the resistance R2 of the two lamps in parallel using the equation R2 = . V2 –– I2 V1 –– I1 4 0625/05/M/J/06 © UCLES 2006

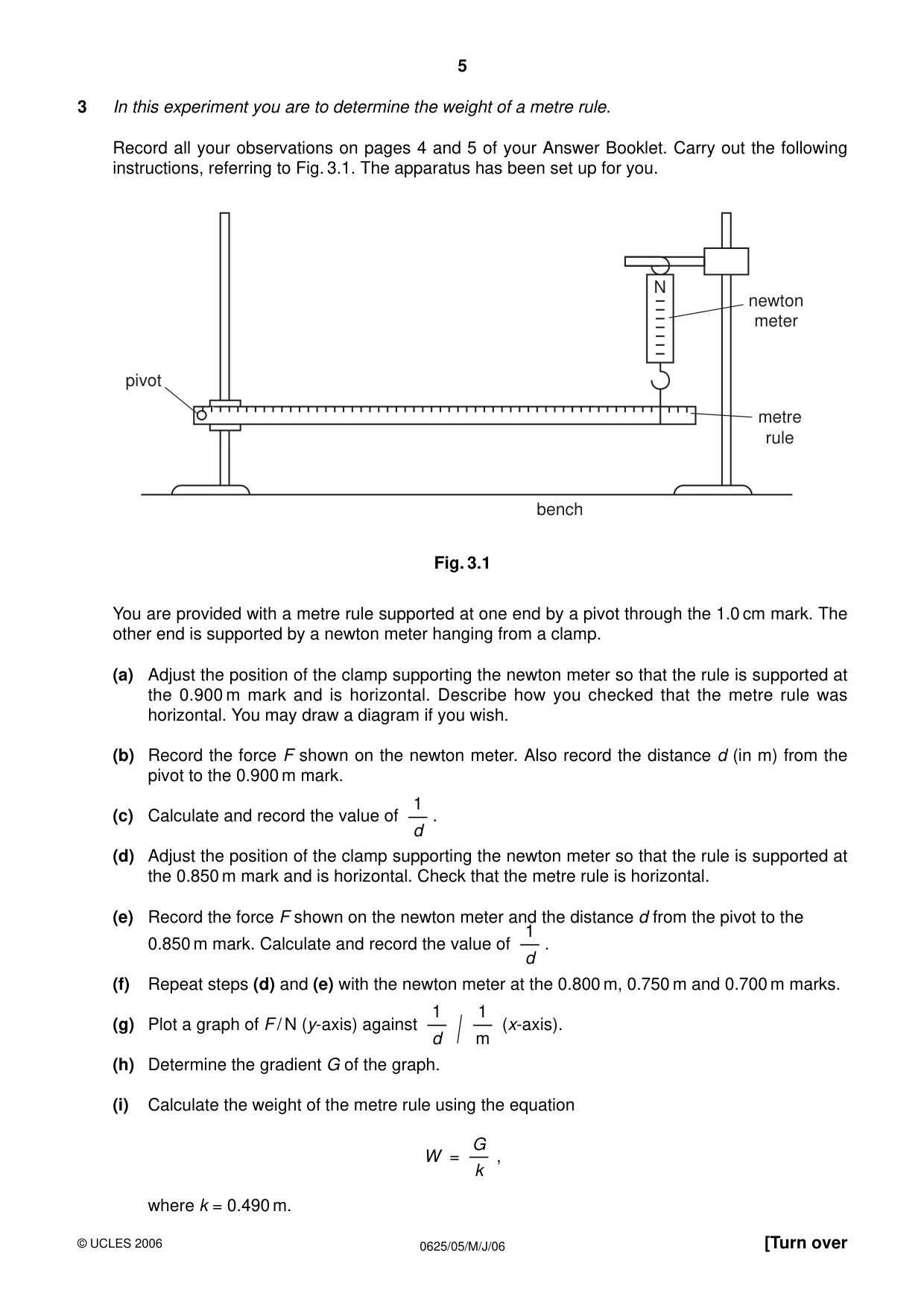

Question paper, page 5
3 In this experiment you are to determine the weight of a metre rule. Record all your observations on pages 4 and 5 of your Answer Booklet. Carry out the following instructions, referring to Fig. 3.1. The apparatus has been set up for you. Fig. 3.1 You are provided with a metre rule supported at one end by a pivot through the 1.0 cm mark. The other end is supported by a newton meter hanging from a clamp. (a) Adjust the position of the clamp supporting the newton meter so that the rule is supported at the 0.900 m mark and is horizontal. Describe how you checked that the metre rule was horizontal. You may draw a diagram if you wish. (b) Record the force F shown on the newton meter. Also record the distance d (in m) from the pivot to the 0.900 m mark. (c) Calculate and record the value of . (d) Adjust the position of the clamp supporting the newton meter so that the rule is supported at the 0.850 m mark and is horizontal. Check that the metre rule is horizontal. (e) Record the force F shown on the newton meter and the distance d from the pivot to the 0.850 m mark. Calculate and record the value of . (f) Repeat steps (d) and (e) with the newton meter at the 0.800 m, 0.750 m and 0.700 m marks. (g) Plot a graph of F / N (y-axis) against (x-axis). (h) Determine the gradient G of the graph. (i) Calculate the weight of the metre rule using the equation W = , where k = 0.490 m. G –– k 1 –– m / 1 –– d 1 –– d 1 –– d N pivot bench newton meter metre rule 5 0625/05/M/J/06 [Turn over © UCLES 2006

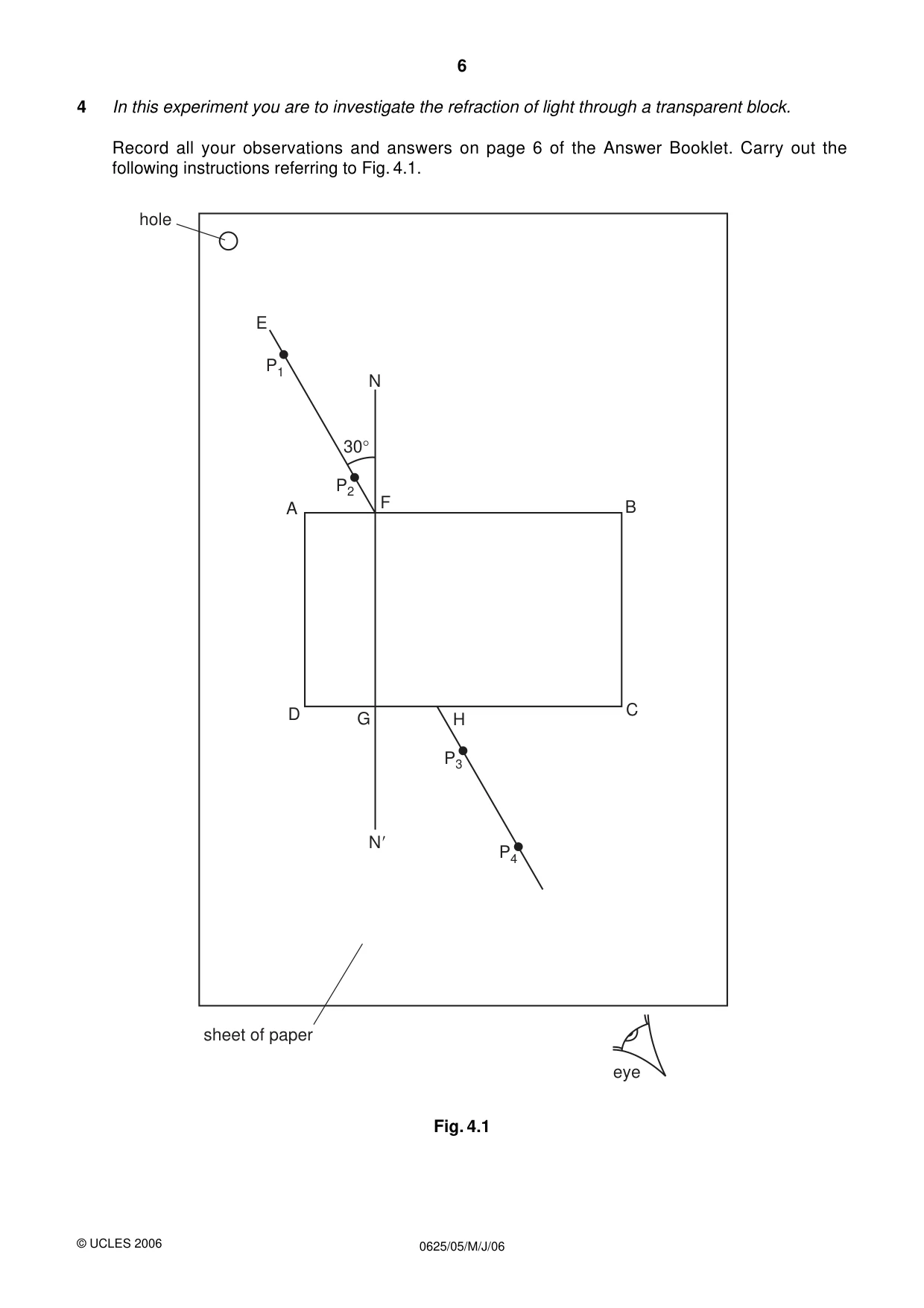

Question paper, page 6
4 In this experiment you are to investigate the refraction of light through a transparent block. Record all your observations and answers on page 6 of the Answer Booklet. Carry out the following instructions referring to Fig. 4.1. Fig. 4.1 30° P1 P2 P3 P4 A B C D E F G H N N eye hole sheet of paper 6 0625/05/M/J/06 © UCLES 2006

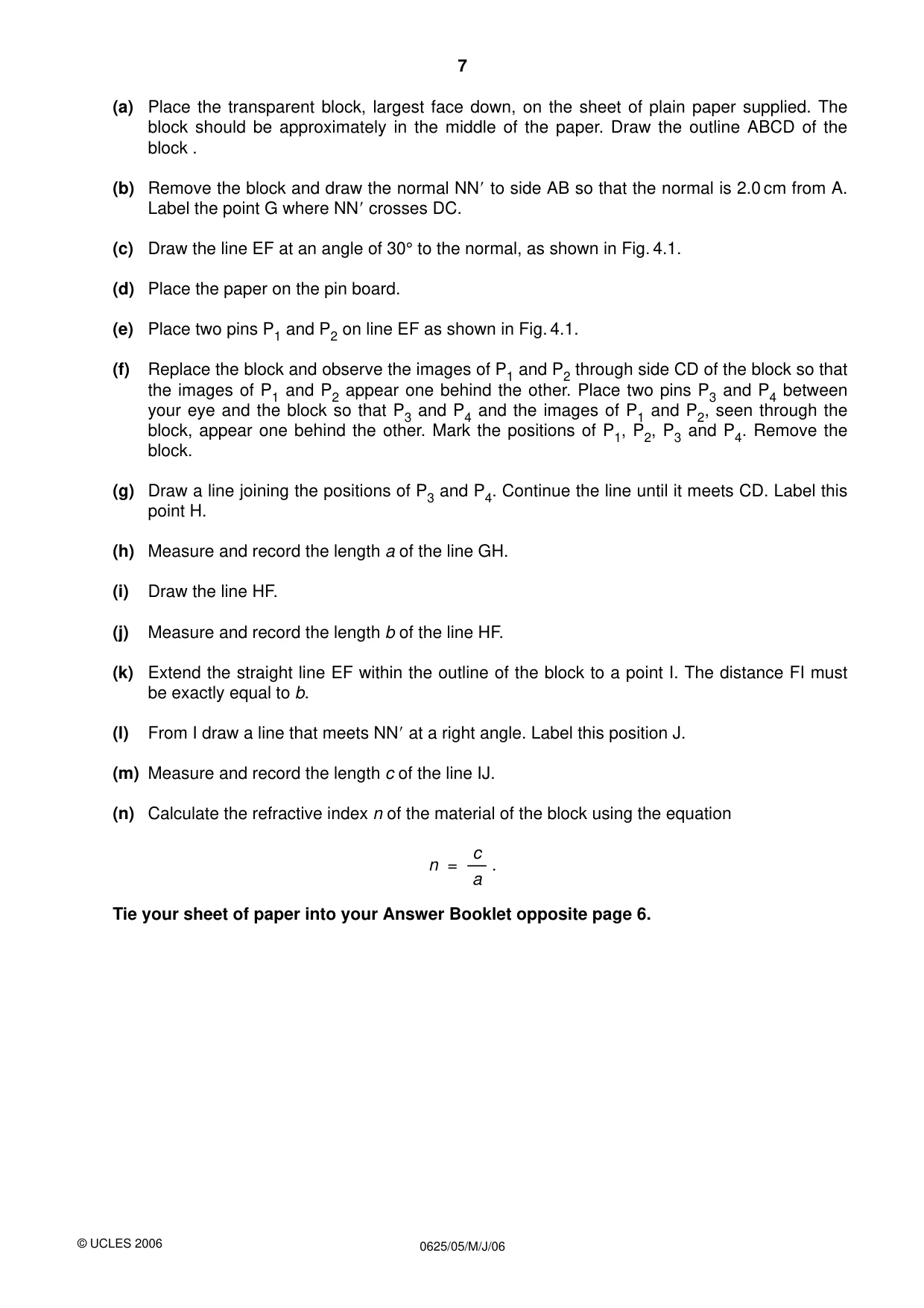

Question paper, page 7
(a) Place the transparent block, largest face down, on the sheet of plain paper supplied. The block should be approximately in the middle of the paper. Draw the outline ABCD of the block . (b) Remove the block and draw the normal NN to side AB so that the normal is 2.0 cm from A. Label the point G where NN crosses DC. (c) Draw the line EF at an angle of 30° to the normal, as shown in Fig. 4.1. (d) Place the paper on the pin board. (e) Place two pins P1 and P2 on line EF as shown in Fig. 4.1. (f) Replace the block and observe the images of P1 and P2 through side CD of the block so that the images of P1 and P2 appear one behind the other. Place two pins P3 and P4 between your eye and the block so that P3 and P4 and the images of P1 and P2, seen through the block, appear one behind the other. Mark the positions of P1, P2, P3 and P4. Remove the block. (g) Draw a line joining the positions of P3 and P4. Continue the line until it meets CD. Label this point H. (h) Measure and record the length a of the line GH. (i) Draw the line HF. (j) Measure and record the length b of the line HF. (k) Extend the straight line EF within the outline of the block to a point I. The distance FI must be exactly equal to b. (l) From I draw a line that meets NN at a right angle. Label this position J. (m) Measure and record the length c of the line IJ. (n) Calculate the refractive index n of the material of the block using the equation n = . Tie your sheet of paper into your Answer Booklet opposite page 6. c –– a 7 0625/05/M/J/06 © UCLES 2006

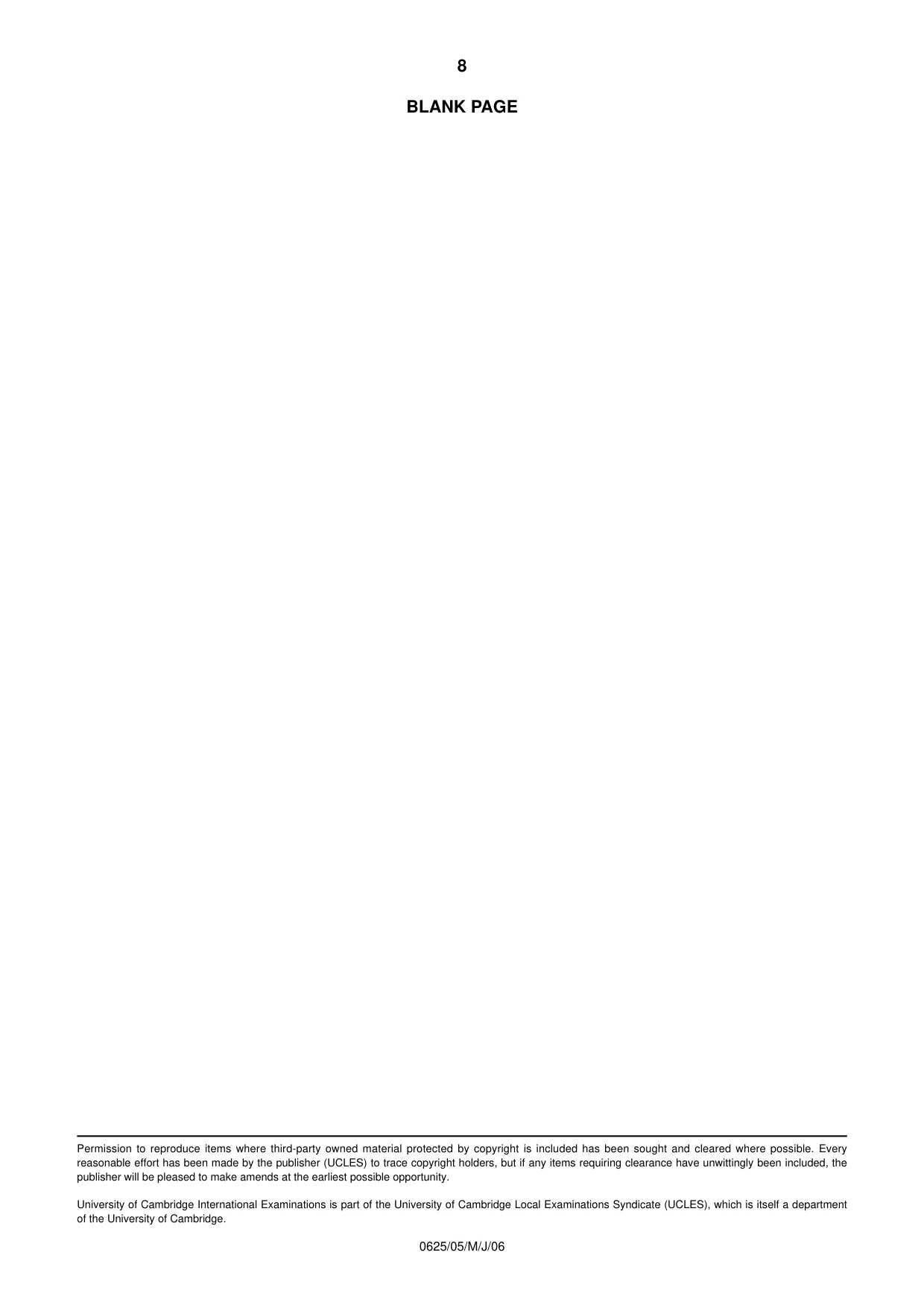

Question paper, page 8
8 0625/05/M/J/06 BLANK PAGE Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge.

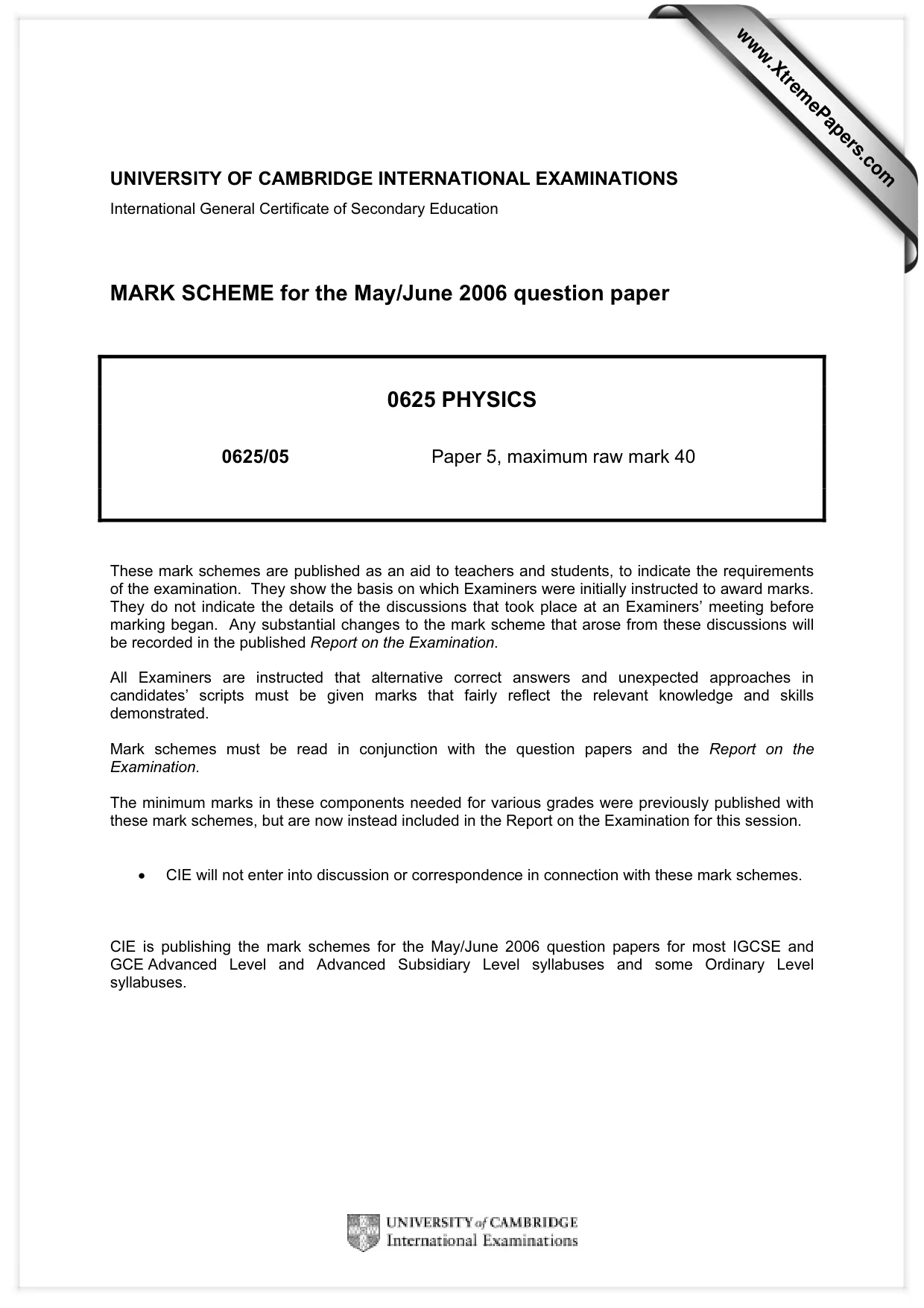

Mark scheme, page 1
UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education MARK SCHEME for the May/June 2006 question paper 0625 PHYSICS 0625/05 Paper 5, maximum raw mark 40 These mark schemes are published as an aid to teachers and students, to indicate the requirements of the examination. They show the basis on which Examiners were initially instructed to award marks. They do not indicate the details of the discussions that took place at an Examiners’ meeting before marking began. Any substantial changes to the mark scheme that arose from these discussions will be recorded in the published Report on the Examination. All Examiners are instructed that alternative correct answers and unexpected approaches in candidates’ scripts must be given marks that fairly reflect the relevant knowledge and skills demonstrated. Mark schemes must be read in conjunction with the question papers and the Report on the Examination. The minimum marks in these components needed for various grades were previously published with these mark schemes, but are now instead included in the Report on the Examination for this session. • CIE will not enter into discussion or correspondence in connection with these mark schemes. CIE is publishing the mark schemes for the May/June 2006 question papers for most IGCSE and GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses. www.XtremePapers.com

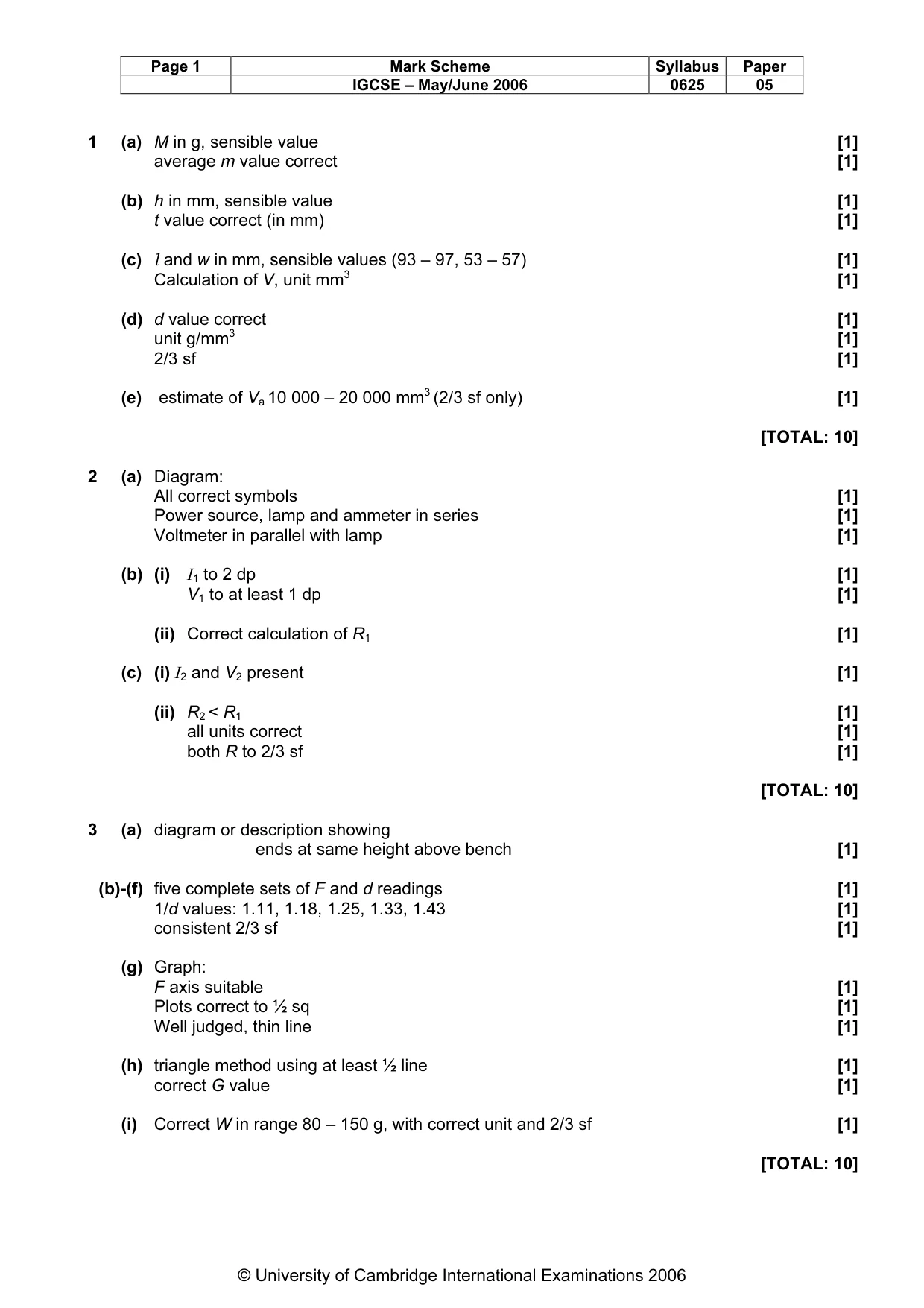

Mark scheme, page 2
Page 1 Mark Scheme Syllabus Paper IGCSE – May/June 2006 0625 05 © University of Cambridge International Examinations 2006 1 (a) M in g, sensible value [1] average m value correct [1] (b) h in mm, sensible value [1] t value correct (in mm) [1] (c) l and w in mm, sensible values (93 – 97, 53 – 57) [1] Calculation of V, unit mm3 [1] (d) d value correct [1] unit g/mm3 [1] 2/3 sf [1] (e) estimate of Va 10 000 – 20 000 mm3 (2/3 sf only) [1] [TOTAL: 10] 2 (a) Diagram: All correct symbols [1] Power source, lamp and ammeter in series [1] Voltmeter in parallel with lamp [1] (b) (i) I1 to 2 dp [1] V1 to at least 1 dp [1] (ii) Correct calculation of R1 [1] (c) (i) I2 and V2 present [1] (ii) R2 < R1 [1] all units correct [1] both R to 2/3 sf [1] [TOTAL: 10] 3 (a) diagram or description showing ends at same height above bench [1] (b)-(f) five complete sets of F and d readings [1] 1/d values: 1.11, 1.18, 1.25, 1.33, 1.43 [1] consistent 2/3 sf [1] (g) Graph: F axis suitable [1] Plots correct to ½ sq [1] Well judged, thin line [1] (h) triangle method using at least ½ line [1] correct G value [1] (i) Correct W in range 80 – 150 g, with correct unit and 2/3 sf [1] [TOTAL: 10]

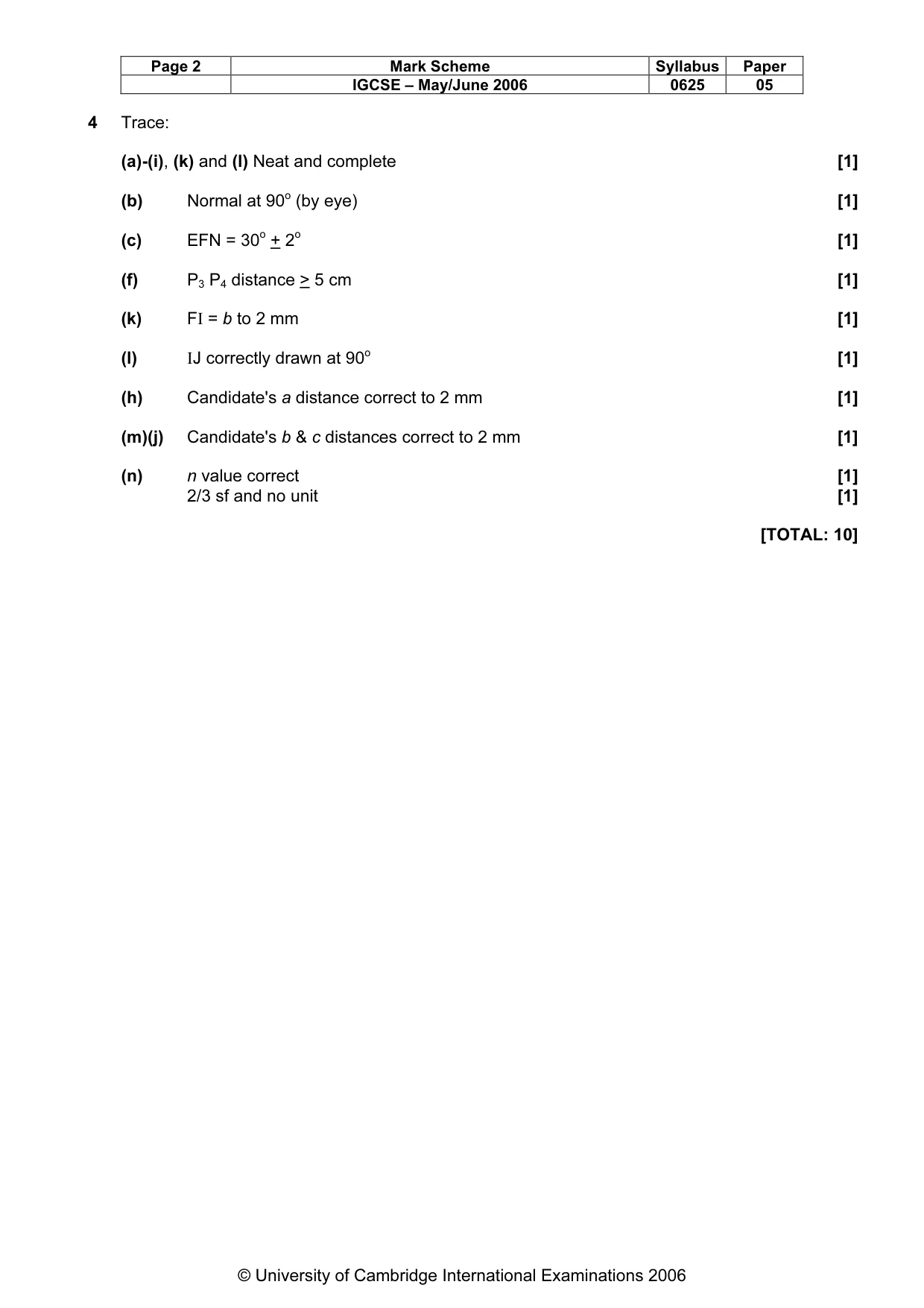

Mark scheme, page 3
Page 2 Mark Scheme Syllabus Paper IGCSE – May/June 2006 0625 05 © University of Cambridge International Examinations 2006 4 Trace: (a)-(i), (k) and (l) Neat and complete [1] (b) Normal at 90o (by eye) [1] (c) EFN = 30o + 2o [1] (f) P3 P4 distance > 5 cm [1] (k) FI = b to 2 mm [1] (l) IJ correctly drawn at 90o [1] (h) Candidate's a distance correct to 2 mm [1] (m)(j) Candidate's b & c distances correct to 2 mm [1] (n) n value correct [1] 2/3 sf and no unit [1] [TOTAL: 10]
