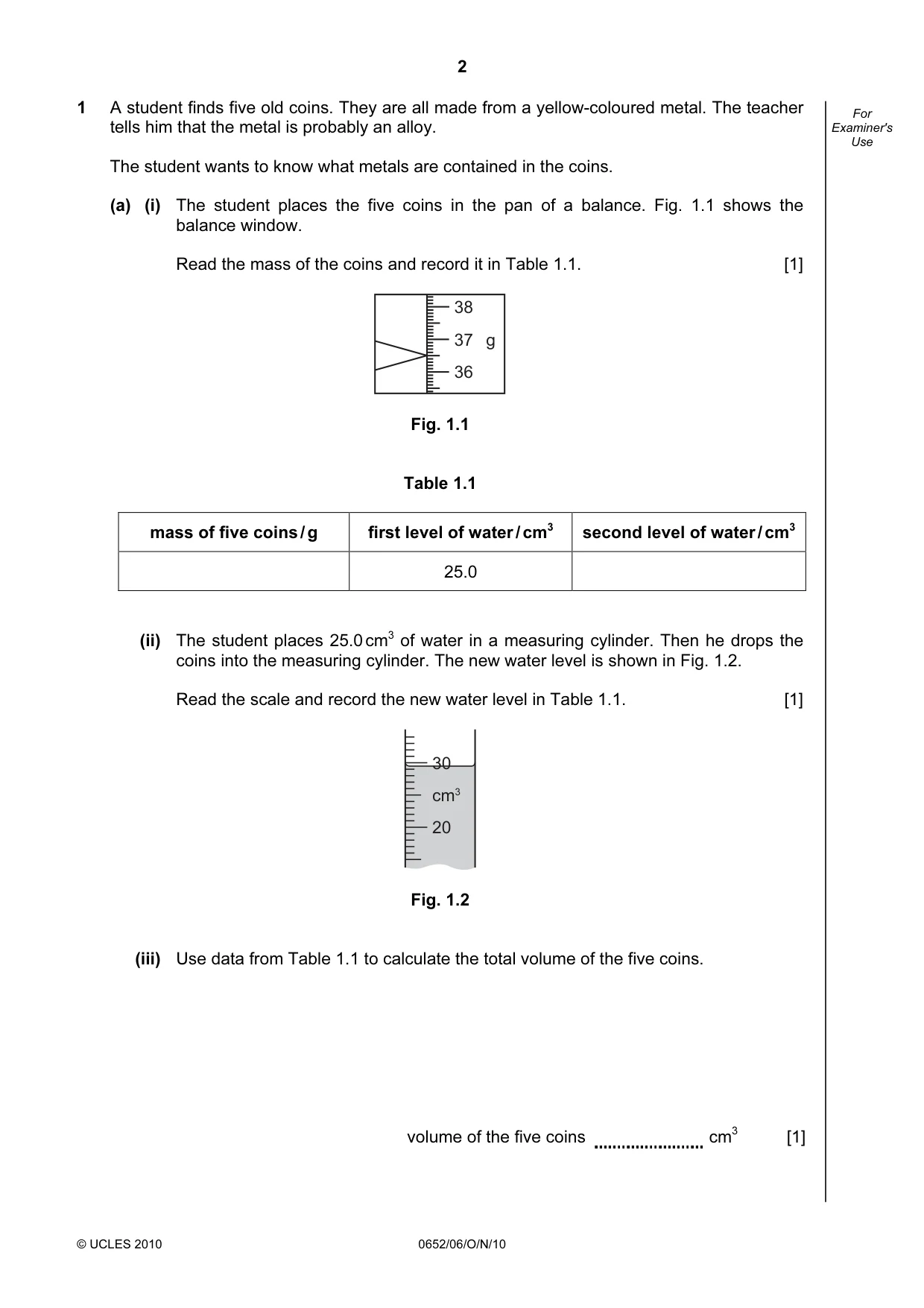

2 © UCLES 2010 0652/06/O/N/10 For Examiner's Use 1 A student finds five old coins. They are all made from a yellow-coloured metal. The teacher tells him that the metal is probably an alloy. The student wants to know what metals are contained in the coins. (a) (i) The student places the five coins in the pan of a balance. Fig. 1.1 shows the balance window. Read the mass of the coins and record it in Table 1.1. [1] 38 37 36 g Fig. 1.1 Table 1.1 mass of five coins / g first level of water / cm3 second level of water / cm3 25.0 (ii) The student places 25.0 cm3 of water in a measuring cylinder. Then he drops the coins into the measuring cylinder. The new water level is shown in Fig. 1.2. Read the scale and record the new water level in Table 1.1. [1] 30 cm3 20 Fig. 1.2 (iii) Use data from Table 1.1 to calculate the total volume of the five coins. volume of the five coins cm3 [1]

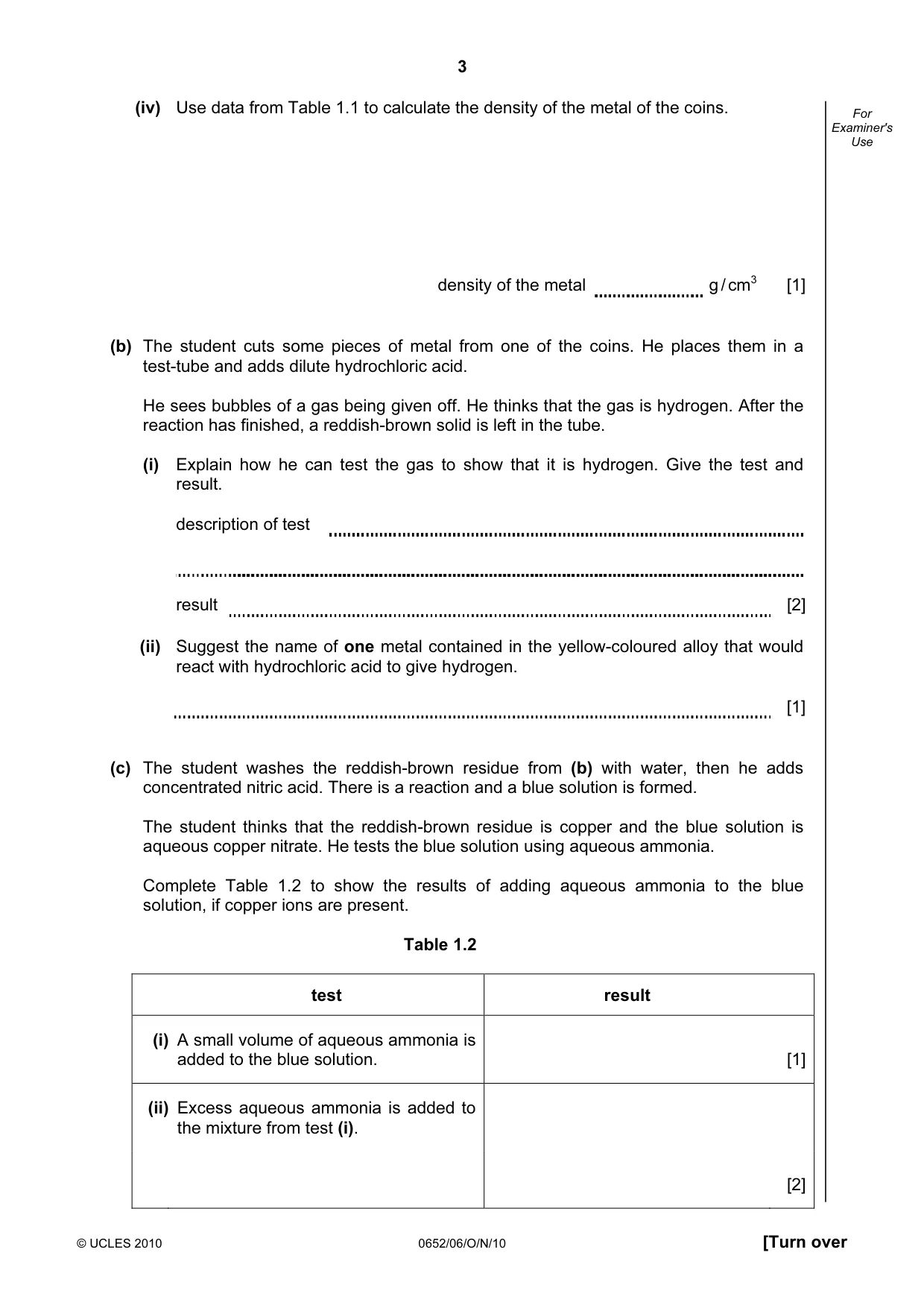

3 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use (iv) Use data from Table 1.1 to calculate the density of the metal of the coins. density of the metal g / cm3 [1] (b) The student cuts some pieces of metal from one of the coins. He places them in a test-tube and adds dilute hydrochloric acid. He sees bubbles of a gas being given off. He thinks that the gas is hydrogen. After the reaction has finished, a reddish-brown solid is left in the tube. (i) Explain how he can test the gas to show that it is hydrogen. Give the test and result. description of test result [2] (ii) Suggest the name of one metal contained in the yellow-coloured alloy that would react with hydrochloric acid to give hydrogen. [1] (c) The student washes the reddish-brown residue from (b) with water, then he adds concentrated nitric acid. There is a reaction and a blue solution is formed. The student thinks that the reddish-brown residue is copper and the blue solution is aqueous copper nitrate. He tests the blue solution using aqueous ammonia. Complete Table 1.2 to show the results of adding aqueous ammonia to the blue solution, if copper ions are present. Table 1.2 test result (i) A small volume of aqueous ammonia is added to the blue solution. [1] (ii) Excess aqueous ammonia is added to the mixture from test (i). [2]

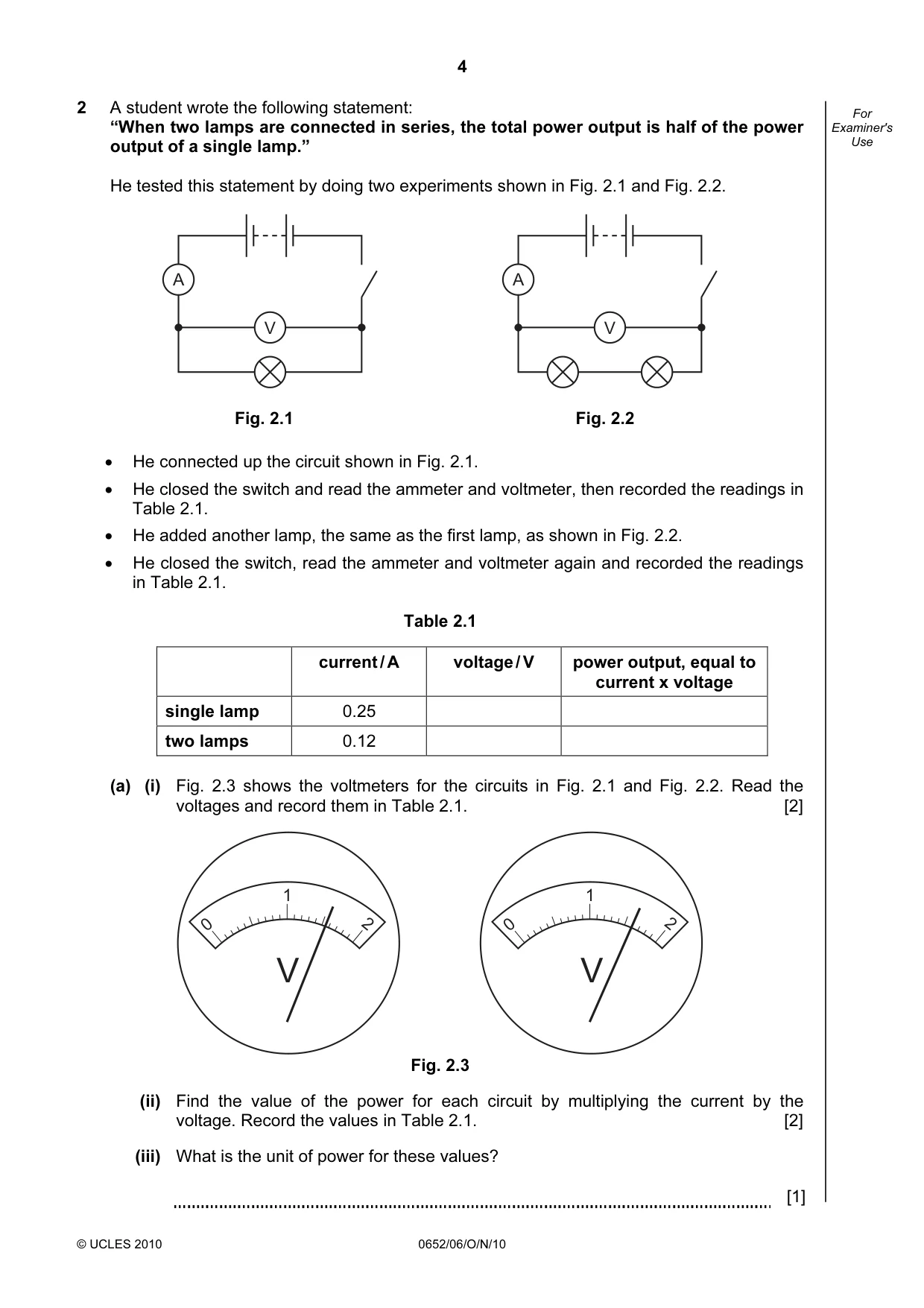

4 © UCLES 2010 0652/06/O/N/10 For Examiner's Use 2 A student wrote the following statement: “When two lamps are connected in series, the total power output is half of the power output of a single lamp.” He tested this statement by doing two experiments shown in Fig. 2.1 and Fig. 2.2. V A V A Fig. 2.1 Fig. 2.2 • He connected up the circuit shown in Fig. 2.1. • He closed the switch and read the ammeter and voltmeter, then recorded the readings in Table 2.1. • He added another lamp, the same as the first lamp, as shown in Fig. 2.2. • He closed the switch, read the ammeter and voltmeter again and recorded the readings in Table 2.1. Table 2.1 current / A voltage / V power output, equal to current x voltage single lamp 0.25 two lamps 0.12 (a) (i) Fig. 2.3 shows the voltmeters for the circuits in Fig. 2.1 and Fig. 2.2. Read the voltages and record them in Table 2.1. [2] 1 2 0 1 2 0 V V Fig. 2.3 (ii) Find the value of the power for each circuit by multiplying the current by the voltage. Record the values in Table 2.1. [2] (iii) What is the unit of power for these values? [1]

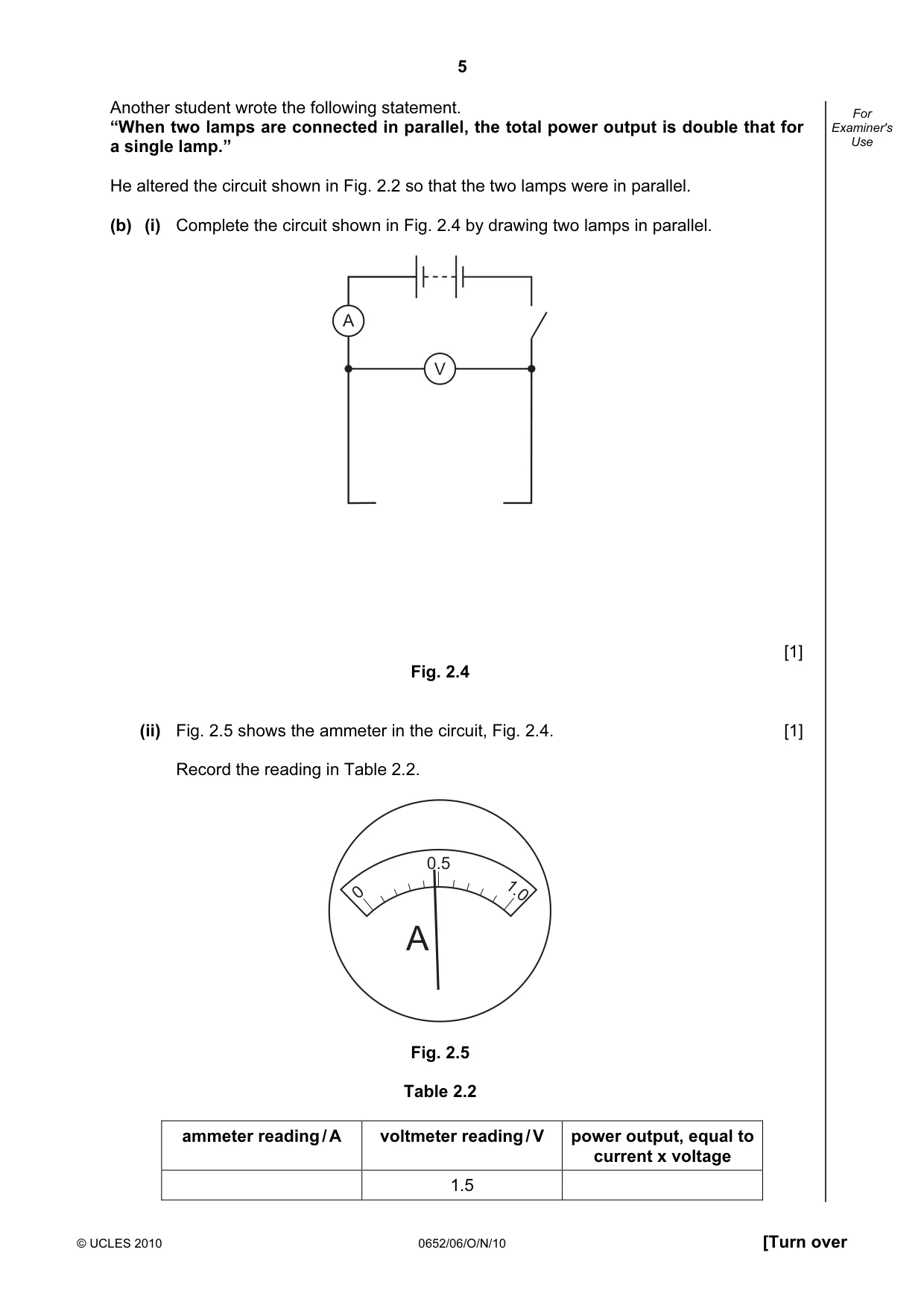

5 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use Another student wrote the following statement. “When two lamps are connected in parallel, the total power output is double that for a single lamp.” He altered the circuit shown in Fig. 2.2 so that the two lamps were in parallel. (b) (i) Complete the circuit shown in Fig. 2.4 by drawing two lamps in parallel. V A [1] Fig. 2.4 (ii) Fig. 2.5 shows the ammeter in the circuit, Fig. 2.4. [1] Record the reading in Table 2.2. 0.5 1.0 0 A Fig. 2.5 Table 2.2 ammeter reading / A voltmeter reading / V power output, equal to current x voltage 1.5

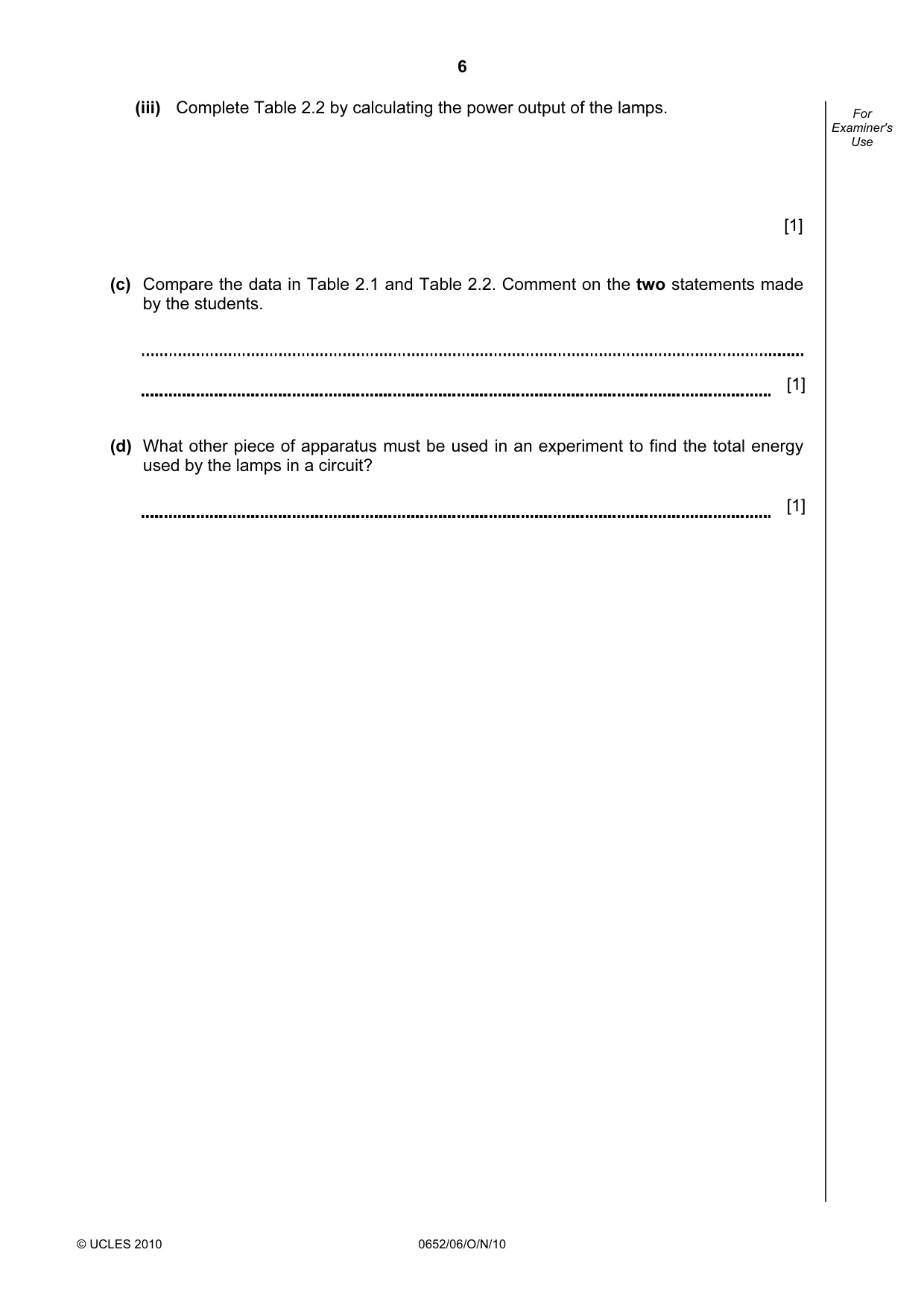

6 © UCLES 2010 0652/06/O/N/10 For Examiner's Use (iii) Complete Table 2.2 by calculating the power output of the lamps. [1] (c) Compare the data in Table 2.1 and Table 2.2. Comment on the two statements made by the students. [1] (d) What other piece of apparatus must be used in an experiment to find the total energy used by the lamps in a circuit? [1]

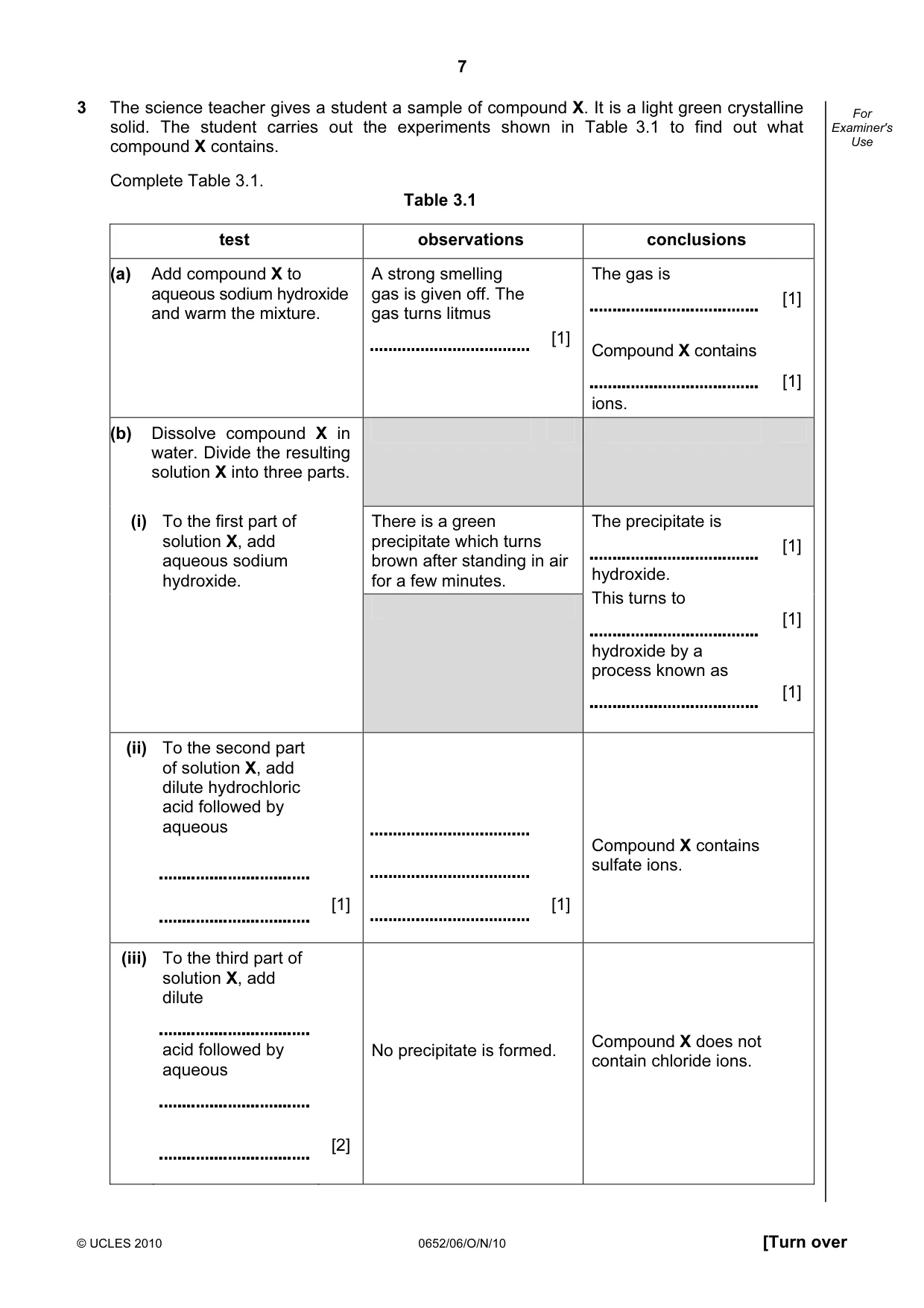

7 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use 3 The science teacher gives a student a sample of compound X. It is a light green crystalline solid. The student carries out the experiments shown in Table 3.1 to find out what compound X contains. Complete Table 3.1. Table 3.1 test observations conclusions (a) Add compound X to aqueous sodium hydroxide and warm the mixture. A strong smelling gas is given off. The gas turns litmus [1] The gas is Compound X contains ions. [1] [1] (b) Dissolve compound X in water. Divide the resulting solution X into three parts. There is a green precipitate which turns brown after standing in air for a few minutes. (i) To the first part of solution X, add aqueous sodium hydroxide. The precipitate is hydroxide. This turns to hydroxide by a process known as [1] [1] [1] (ii) To the second part of solution X, add dilute hydrochloric acid followed by aqueous [1] [1] Compound X contains sulfate ions. (iii) To the third part of solution X, add dilute acid followed by aqueous [2] No precipitate is formed. Compound X does not contain chloride ions.

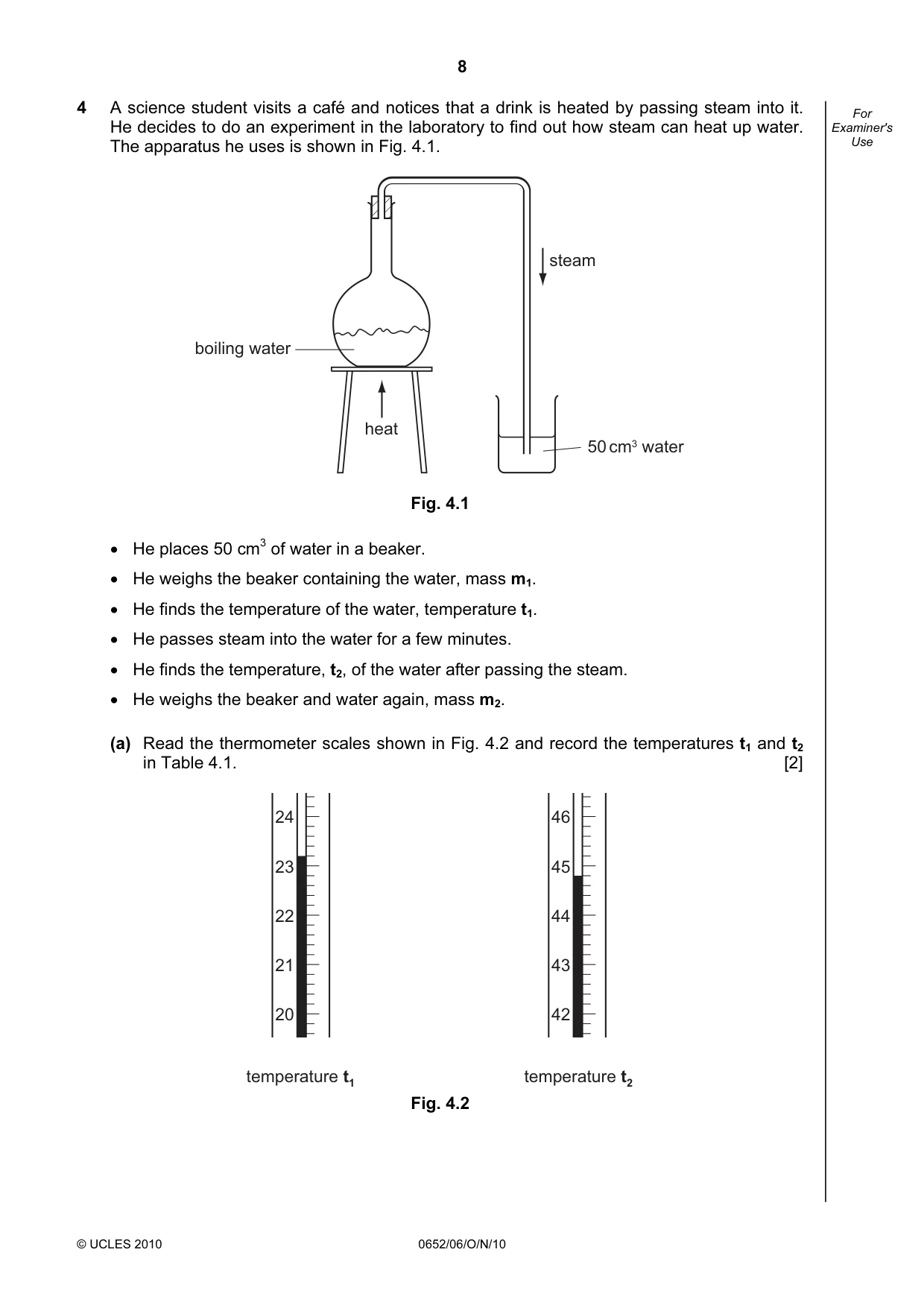

8 © UCLES 2010 0652/06/O/N/10 For Examiner's Use 4 A science student visits a café and notices that a drink is heated by passing steam into it. He decides to do an experiment in the laboratory to find out how steam can heat up water. The apparatus he uses is shown in Fig. 4.1. heat 50 cm3 water steam boiling water Fig. 4.1 • He places 50 cm3 of water in a beaker. • He weighs the beaker containing the water, mass m1. • He finds the temperature of the water, temperature t1. • He passes steam into the water for a few minutes. • He finds the temperature, t2, of the water after passing the steam. • He weighs the beaker and water again, mass m2. (a) Read the thermometer scales shown in Fig. 4.2 and record the temperatures t1 and t2 in Table 4.1. [2] 24 23 22 21 20 46 45 44 43 42 temperature t1 temperature t2 Fig. 4.2

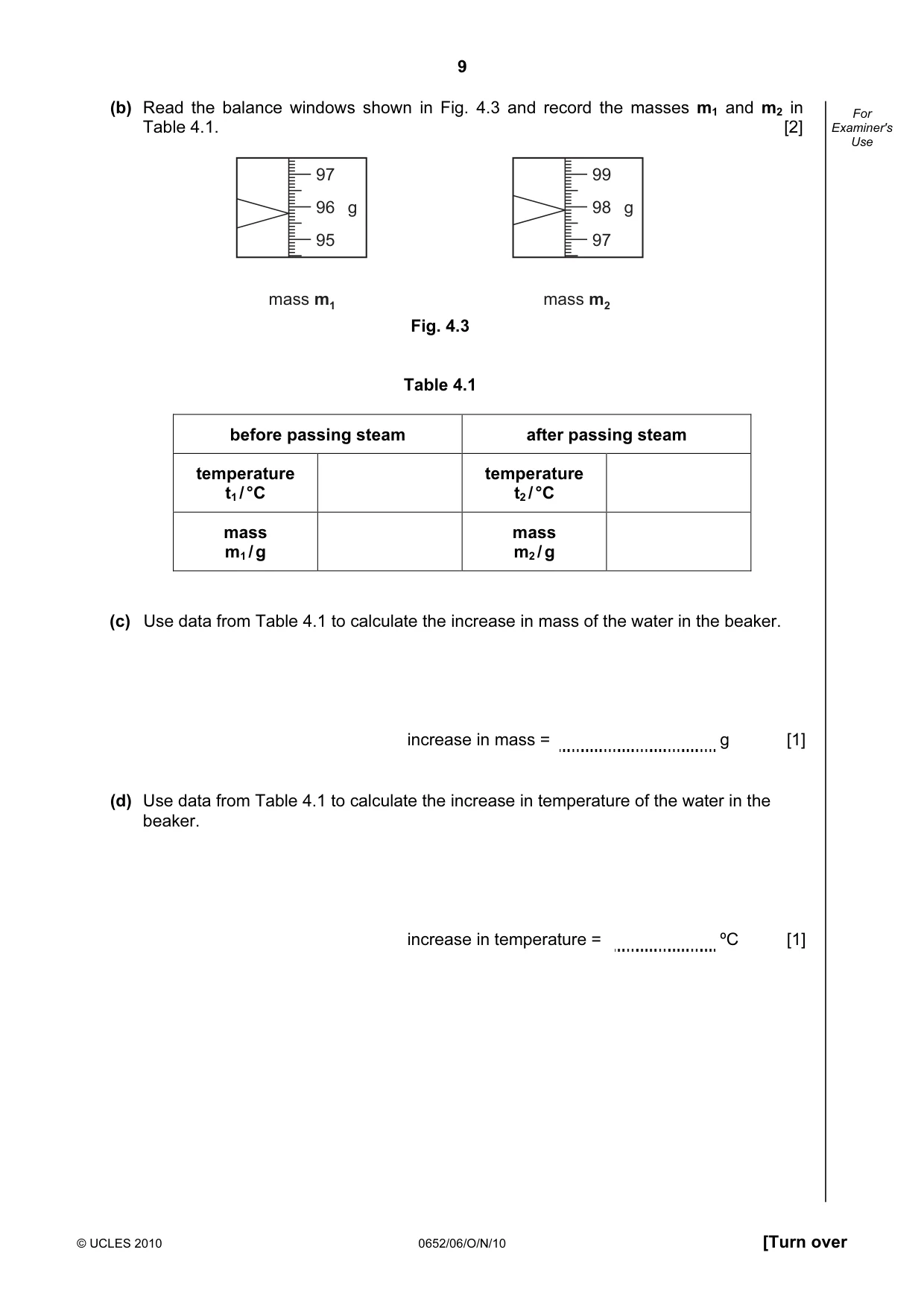

9 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use (b) Read the balance windows shown in Fig. 4.3 and record the masses m1 and m2 in Table 4.1. [2] 97 96 95 g 99 98 97 g mass m1 mass m2 Fig. 4.3 Table 4.1 before passing steam after passing steam temperature t1 / °C temperature t2 / °C mass m1 / g mass m2 / g (c) Use data from Table 4.1 to calculate the increase in mass of the water in the beaker. increase in mass = g [1] (d) Use data from Table 4.1 to calculate the increase in temperature of the water in the beaker. increase in temperature = ºC [1]

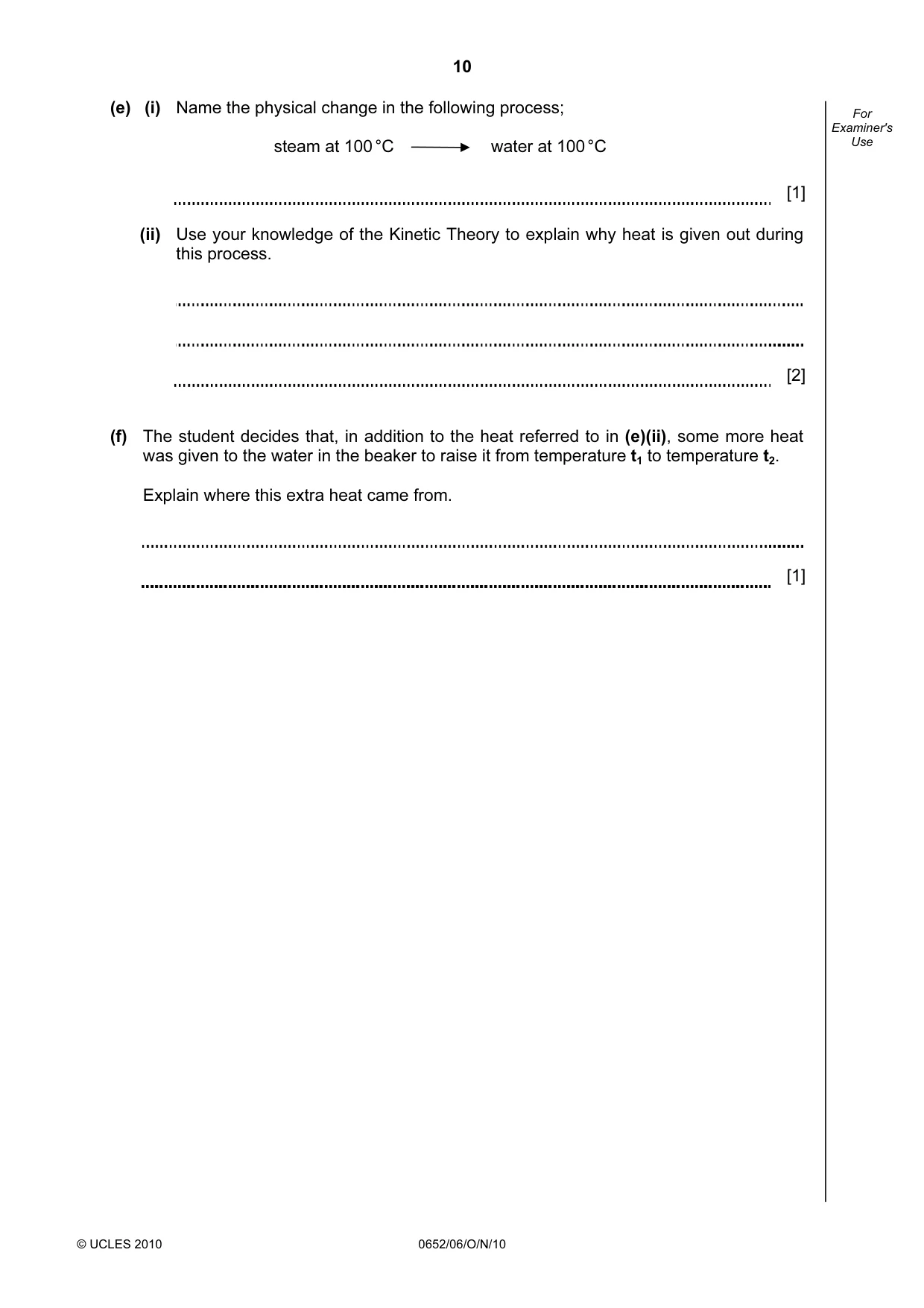

10 © UCLES 2010 0652/06/O/N/10 For Examiner's Use (e) (i) Name the physical change in the following process; steam at 100 °C water at 100 °C [1] (ii) Use your knowledge of the Kinetic Theory to explain why heat is given out during this process. [2] (f) The student decides that, in addition to the heat referred to in (e)(ii), some more heat was given to the water in the beaker to raise it from temperature t1 to temperature t2. Explain where this extra heat came from. [1]

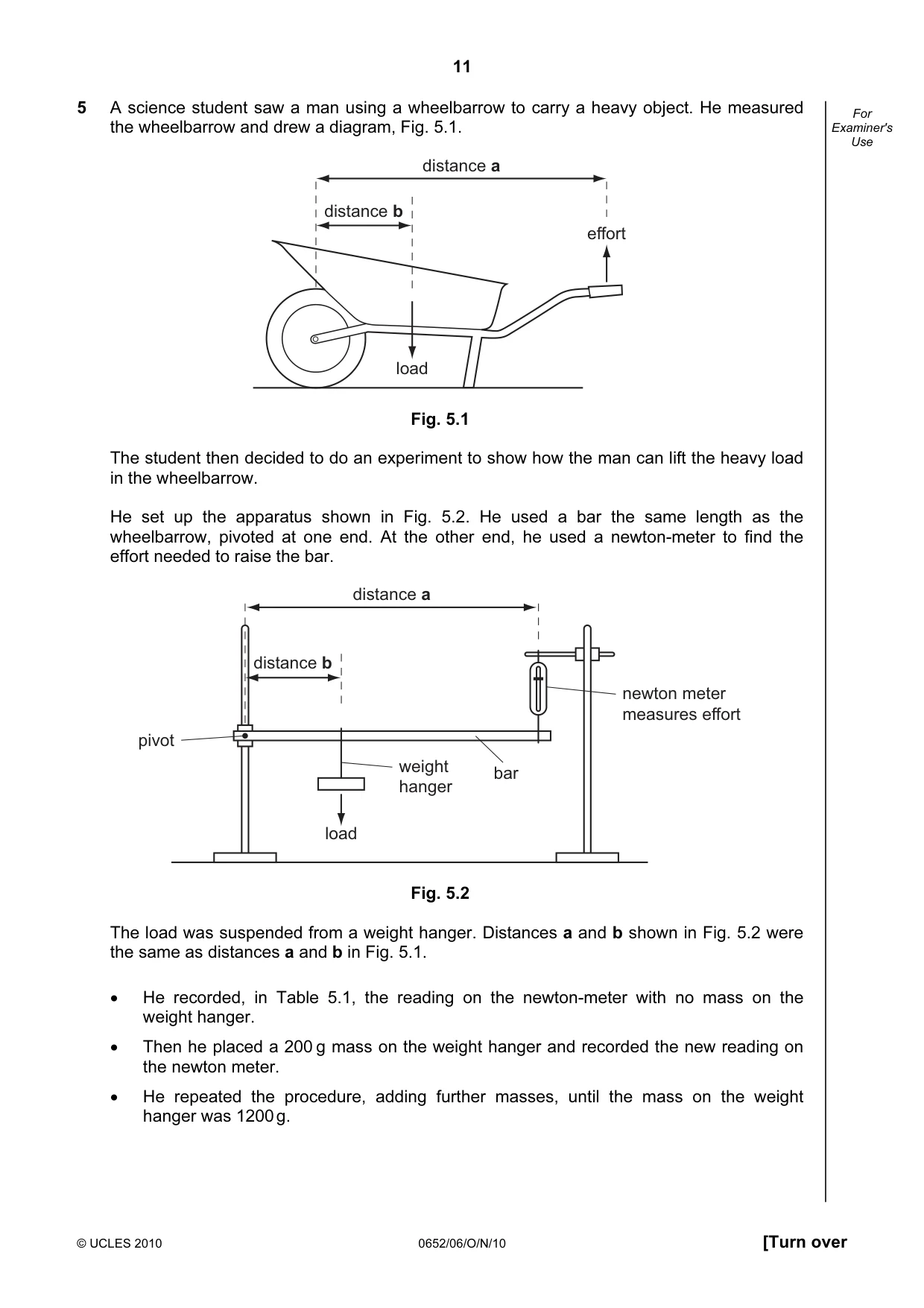

11 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use 5 A science student saw a man using a wheelbarrow to carry a heavy object. He measured the wheelbarrow and drew a diagram, Fig. 5.1. effort load distance b distance a Fig. 5.1 The student then decided to do an experiment to show how the man can lift the heavy load in the wheelbarrow. He set up the apparatus shown in Fig. 5.2. He used a bar the same length as the wheelbarrow, pivoted at one end. At the other end, he used a newton-meter to find the effort needed to raise the bar. distance b distance a load pivot weight hanger bar newton meter measures effort Fig. 5.2 The load was suspended from a weight hanger. Distances a and b shown in Fig. 5.2 were the same as distances a and b in Fig. 5.1. • He recorded, in Table 5.1, the reading on the newton-meter with no mass on the weight hanger. • Then he placed a 200 g mass on the weight hanger and recorded the new reading on the newton meter. • He repeated the procedure, adding further masses, until the mass on the weight hanger was 1200 g.

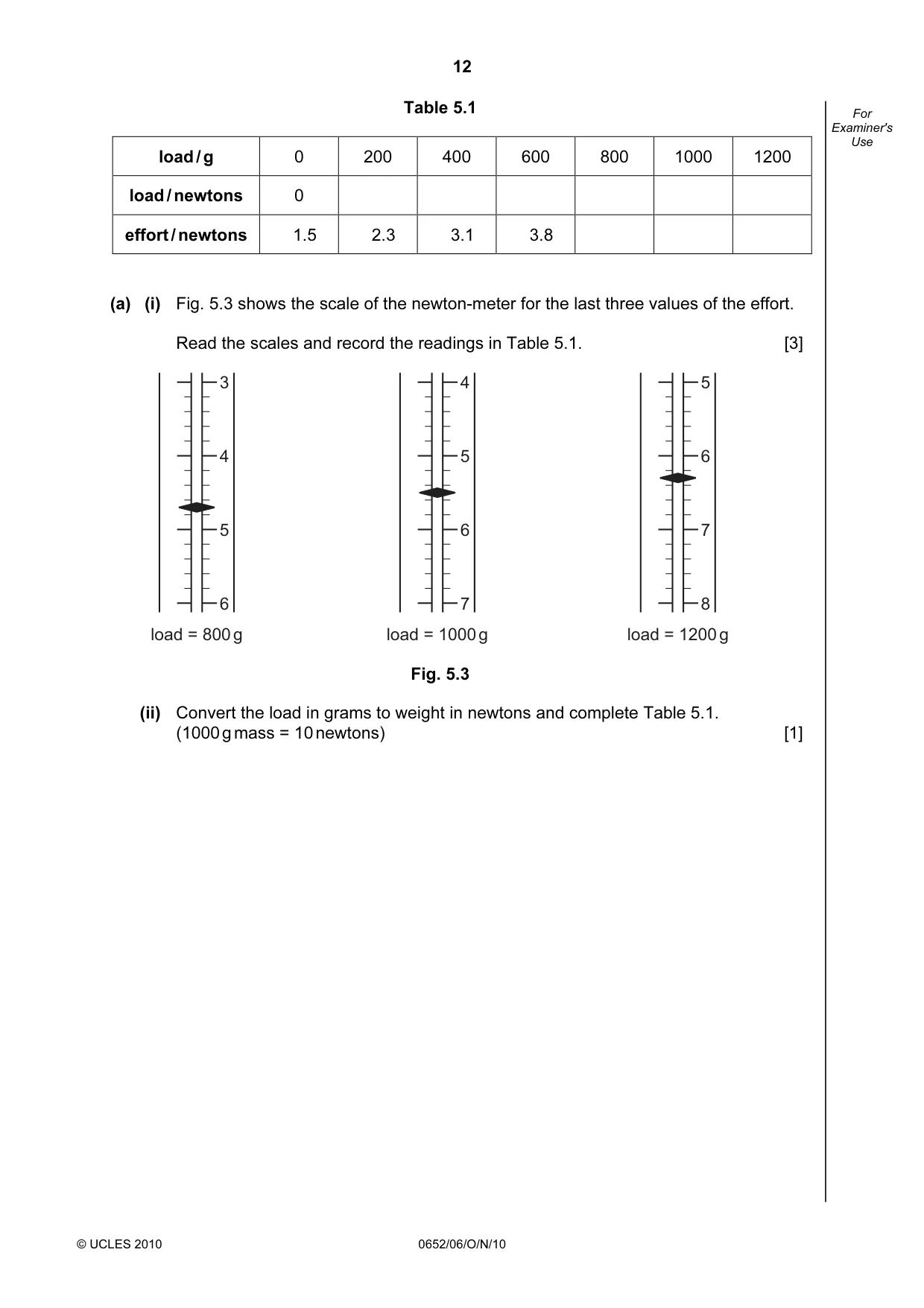

12 © UCLES 2010 0652/06/O/N/10 For Examiner's Use Table 5.1 load / g 0 200 400 600 800 1000 1200 load / newtons 0 effort / newtons 1.5 2.3 3.1 3.8 (a) (i) Fig. 5.3 shows the scale of the newton-meter for the last three values of the effort. Read the scales and record the readings in Table 5.1. [3] 3 4 5 6 load = 800 g 4 5 6 7 load = 1000 g 5 6 7 8 load = 1200 g Fig. 5.3 (ii) Convert the load in grams to weight in newtons and complete Table 5.1. (1000 g mass = 10 newtons) [1]

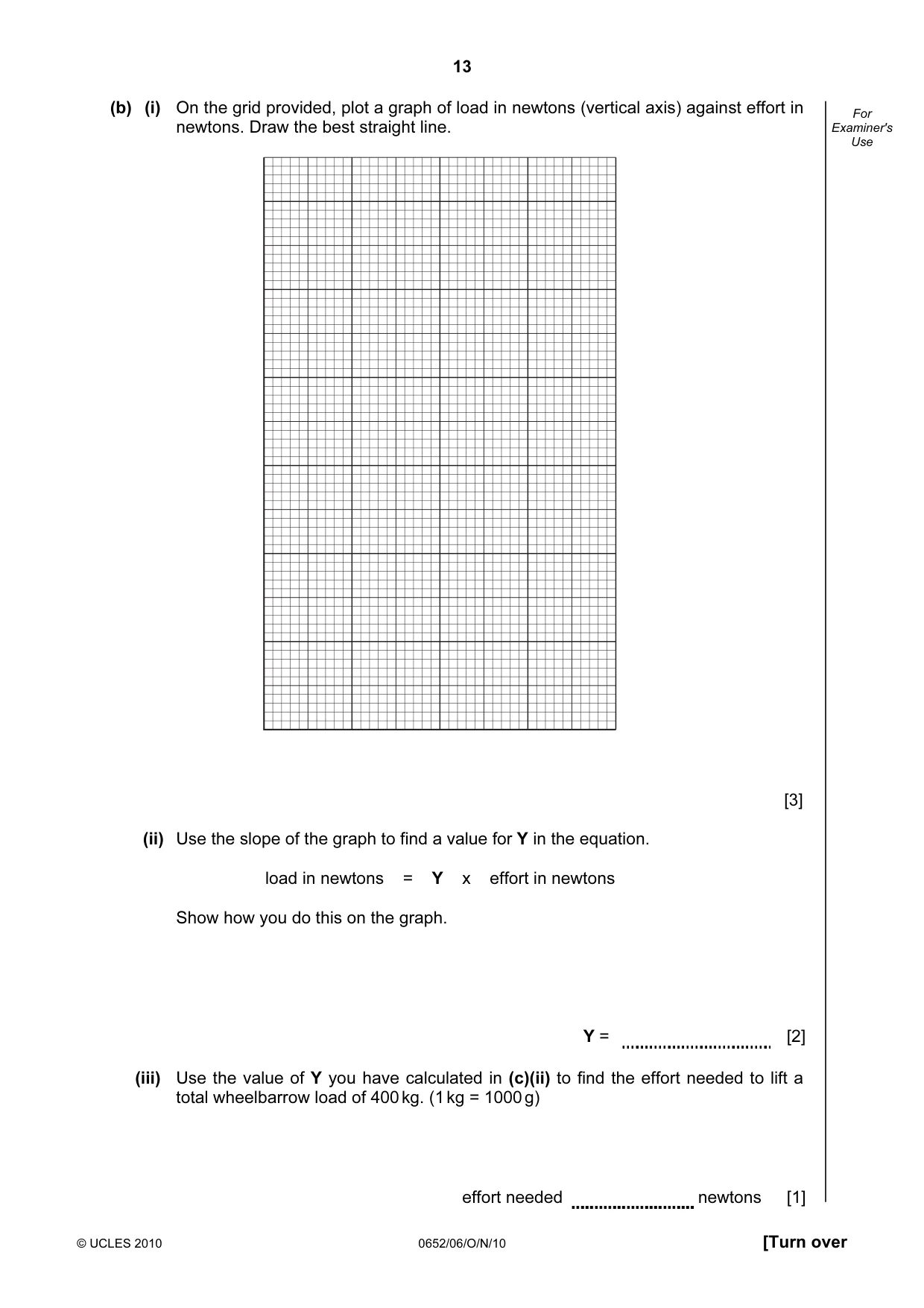

13 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use (b) (i) On the grid provided, plot a graph of load in newtons (vertical axis) against effort in newtons. Draw the best straight line. [3] (ii) Use the slope of the graph to find a value for Y in the equation. load in newtons = Y x effort in newtons Show how you do this on the graph. Y = [2] (iii) Use the value of Y you have calculated in (c)(ii) to find the effort needed to lift a total wheelbarrow load of 400 kg. (1 kg = 1000 g) effort needed newtons [1]

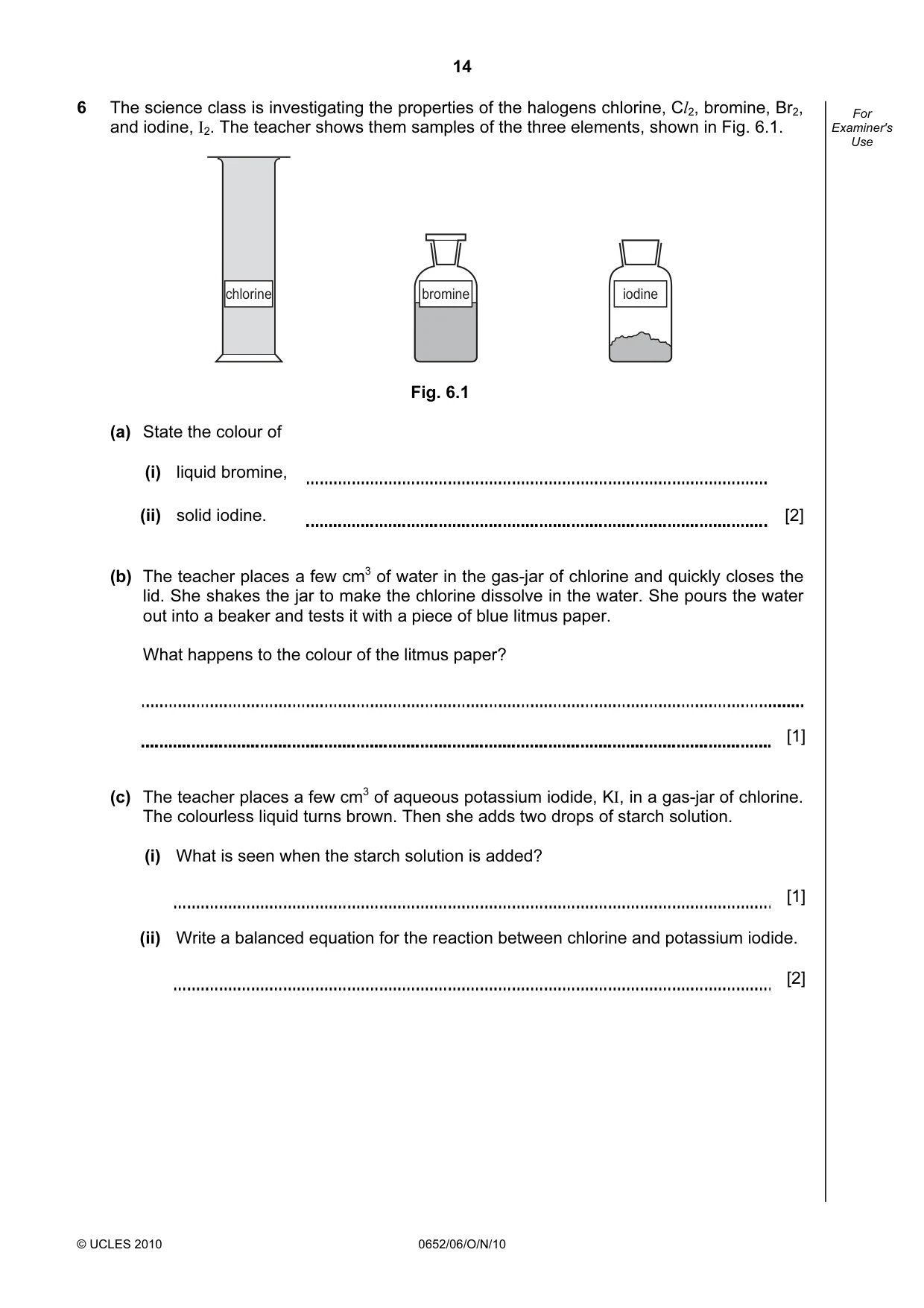

14 © UCLES 2010 0652/06/O/N/10 For Examiner's Use 6 The science class is investigating the properties of the halogens chlorine, Cl2, bromine, Br2, and iodine, I2. The teacher shows them samples of the three elements, shown in Fig. 6.1. bromine chlorine iodine Fig. 6.1 (a) State the colour of (i) liquid bromine, (ii) solid iodine. [2] (b) The teacher places a few cm3 of water in the gas-jar of chlorine and quickly closes the lid. She shakes the jar to make the chlorine dissolve in the water. She pours the water out into a beaker and tests it with a piece of blue litmus paper. What happens to the colour of the litmus paper? [1] (c) The teacher places a few cm3 of aqueous potassium iodide, KI, in a gas-jar of chlorine. The colourless liquid turns brown. Then she adds two drops of starch solution. (i) What is seen when the starch solution is added? [1] (ii) Write a balanced equation for the reaction between chlorine and potassium iodide. [2]

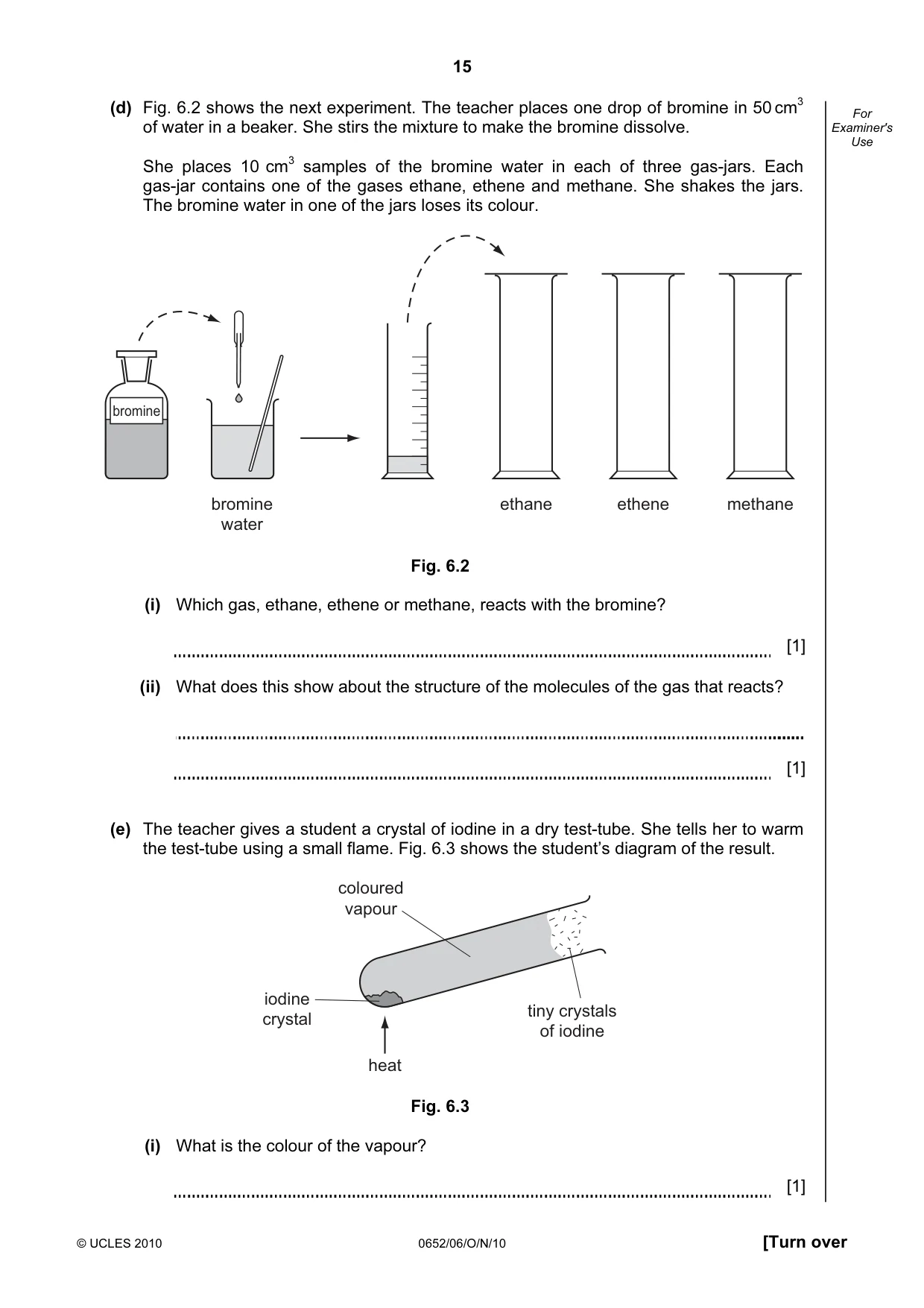

15 © UCLES 2010 0652/06/O/N/10 [Turn over For Examiner's Use (d) Fig. 6.2 shows the next experiment. The teacher places one drop of bromine in 50 cm3 of water in a beaker. She stirs the mixture to make the bromine dissolve. She places 10 cm3 samples of the bromine water in each of three gas-jars. Each gas-jar contains one of the gases ethane, ethene and methane. She shakes the jars. The bromine water in one of the jars loses its colour. bromine ethane bromine water ethene methane Fig. 6.2 (i) Which gas, ethane, ethene or methane, reacts with the bromine? [1] (ii) What does this show about the structure of the molecules of the gas that reacts? [1] (e) The teacher gives a student a crystal of iodine in a dry test-tube. She tells her to warm the test-tube using a small flame. Fig. 6.3 shows the student’s diagram of the result. heat iodine crystal coloured vapour tiny crystals of iodine Fig. 6.3 (i) What is the colour of the vapour? [1]

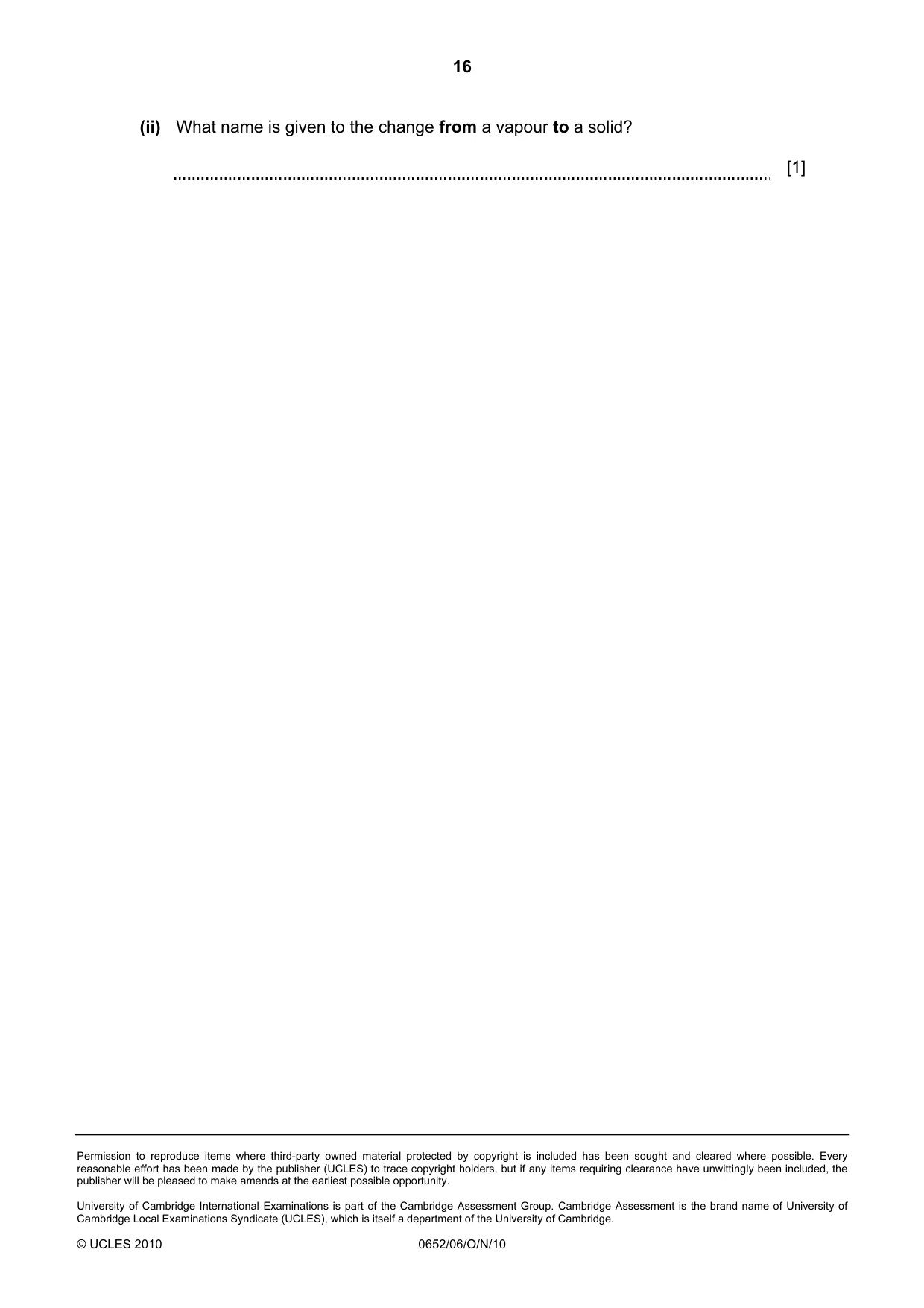

16 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. University of Cambridge International Examinations is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of University of Cambridge Local Examinations Syndicate (UCLES), which is itself a department of the University of Cambridge. © UCLES 2010 0652/06/O/N/10 (ii) What name is given to the change from a vapour to a solid? [1]

UNIVERSITY OF CAMBRIDGE INTERNATIONAL EXAMINATIONS International General Certificate of Secondary Education MARK SCHEME for the October/November 2010 question paper for the guidance of teachers 0652 PHYSICAL SCIENCE 0652/06 Paper 6 (Alternative to Practical), maximum raw mark 60 This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes must be read in conjunction with the question papers and the report on the examination. • CIE will not enter into discussions or correspondence in connection with these mark schemes. CIE is publishing the mark schemes for the October/November 2010 question papers for most IGCSE, GCE Advanced Level and Advanced Subsidiary Level syllabuses and some Ordinary Level syllabuses.

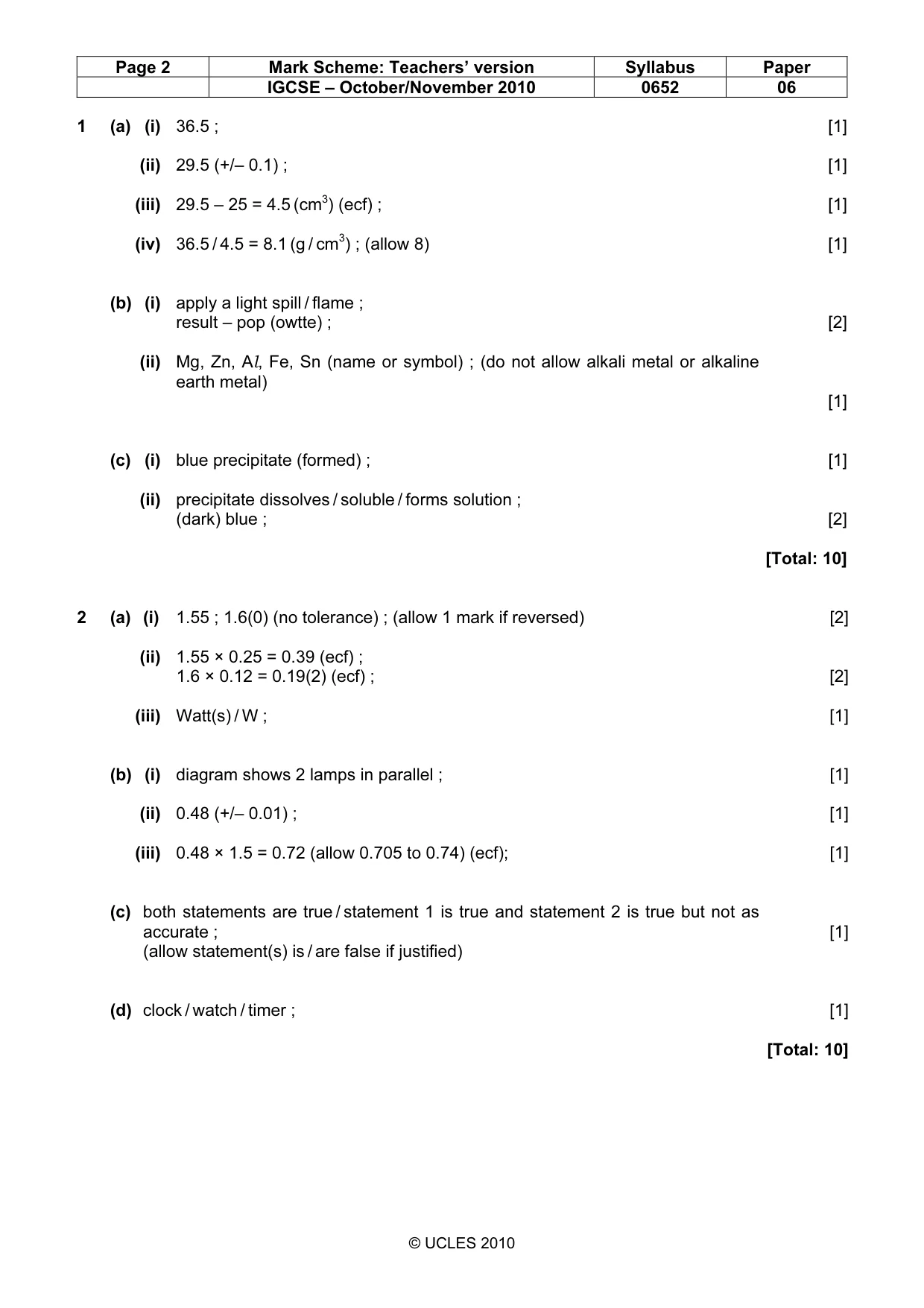

Page 2 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2010 0652 06 © UCLES 2010 1 (a) (i) 36.5 ; [1] (ii) 29.5 (+/– 0.1) ; [1] (iii) 29.5 – 25 = 4.5 (cm3) (ecf) ; [1] (iv) 36.5 / 4.5 = 8.1 (g / cm3) ; (allow 8) [1] (b) (i) apply a light spill / flame ; result – pop (owtte) ; [2] (ii) Mg, Zn, Al, Fe, Sn (name or symbol) ; (do not allow alkali metal or alkaline earth metal) [1] (c) (i) blue precipitate (formed) ; [1] (ii) precipitate dissolves / soluble / forms solution ; (dark) blue ; [2] [Total: 10] 2 (a) (i) 1.55 ; 1.6(0) (no tolerance) ; (allow 1 mark if reversed) [2] (ii) 1.55 × 0.25 = 0.39 (ecf) ; 1.6 × 0.12 = 0.19(2) (ecf) ; [2] (iii) Watt(s) / W ; [1] (b) (i) diagram shows 2 lamps in parallel ; [1] (ii) 0.48 (+/– 0.01) ; [1] (iii) 0.48 × 1.5 = 0.72 (allow 0.705 to 0.74) (ecf); [1] (c) both statements are true / statement 1 is true and statement 2 is true but not as accurate ; [1] (allow statement(s) is / are false if justified) (d) clock / watch / timer ; [1] [Total: 10]

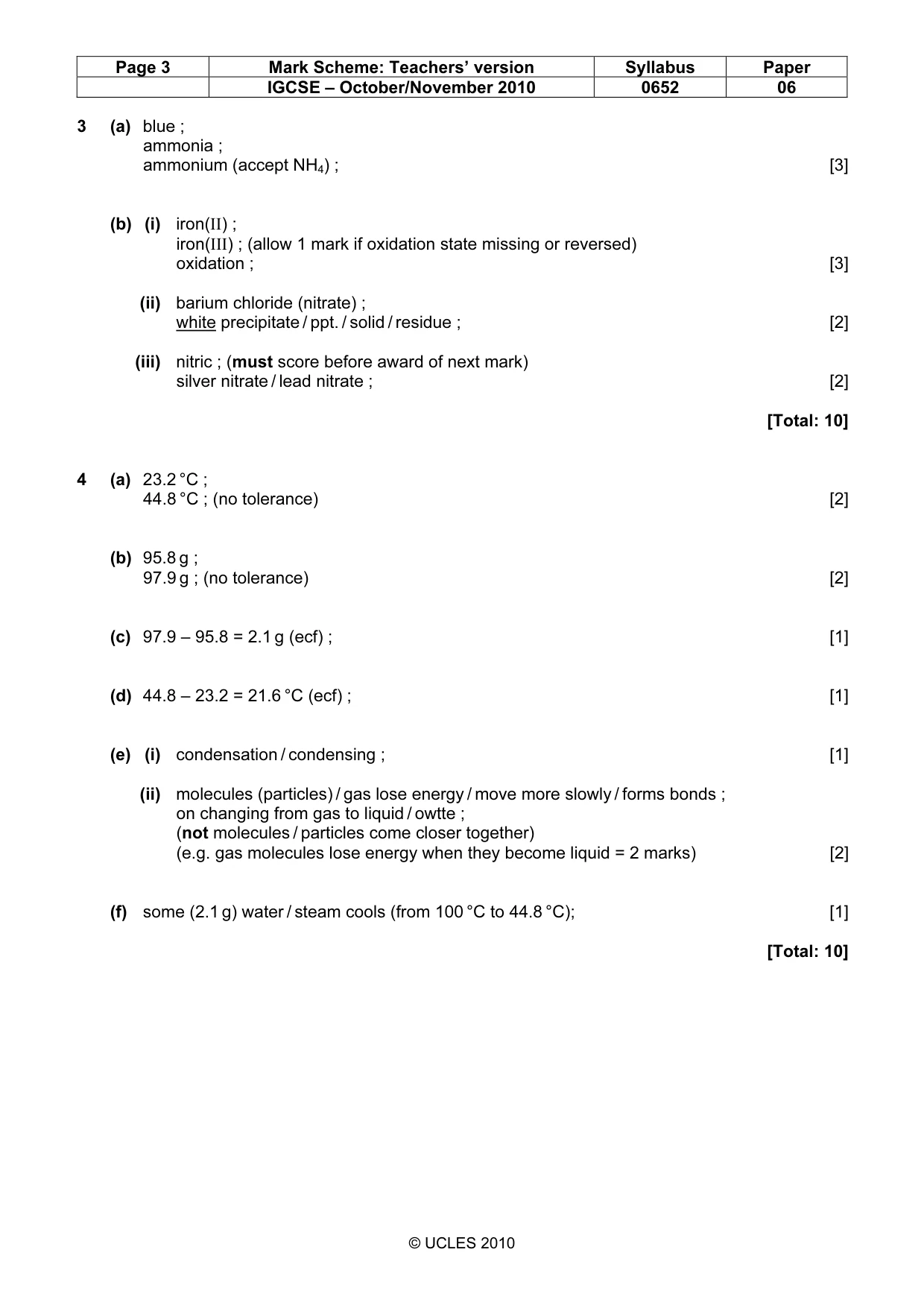

Page 3 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2010 0652 06 © UCLES 2010 3 (a) blue ; ammonia ; ammonium (accept NH4) ; [3] (b) (i) iron(II) ; iron(III) ; (allow 1 mark if oxidation state missing or reversed) oxidation ; [3] (ii) barium chloride (nitrate) ; white precipitate / ppt. / solid / residue ; [2] (iii) nitric ; (must score before award of next mark) silver nitrate / lead nitrate ; [2] [Total: 10] 4 (a) 23.2 °C ; 44.8 °C ; (no tolerance) [2] (b) 95.8 g ; 97.9 g ; (no tolerance) [2] (c) 97.9 – 95.8 = 2.1 g (ecf) ; [1] (d) 44.8 – 23.2 = 21.6 °C (ecf) ; [1] (e) (i) condensation / condensing ; [1] (ii) molecules (particles) / gas lose energy / move more slowly / forms bonds ; on changing from gas to liquid / owtte ; (not molecules / particles come closer together) (e.g. gas molecules lose energy when they become liquid = 2 marks) [2] (f) some (2.1 g) water / steam cools (from 100 °C to 44.8 °C); [1] [Total: 10]

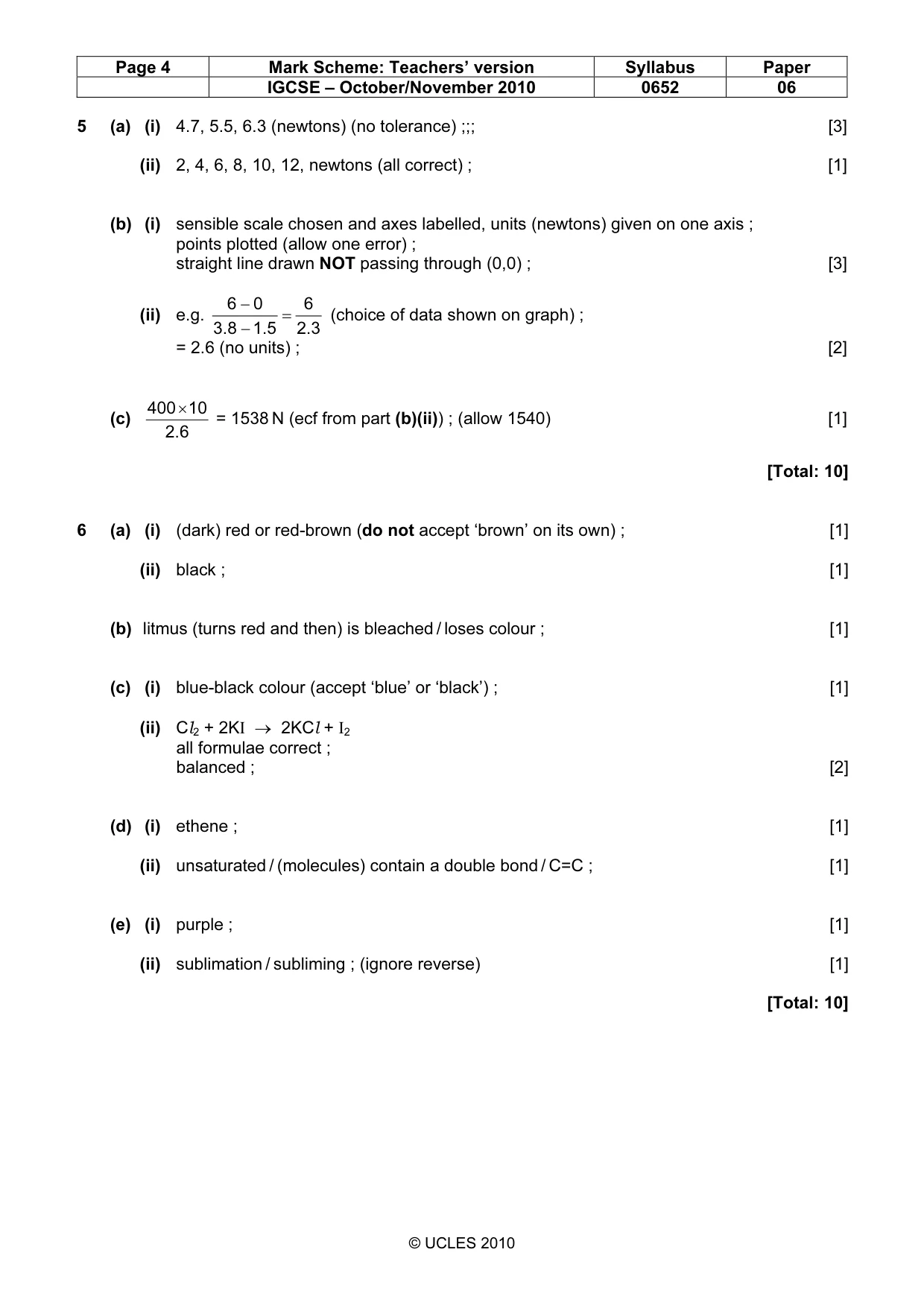

Page 4 Mark Scheme: Teachers’ version Syllabus Paper IGCSE – October/November 2010 0652 06 © UCLES 2010 5 (a) (i) 4.7, 5.5, 6.3 (newtons) (no tolerance) ;;; [3] (ii) 2, 4, 6, 8, 10, 12, newtons (all correct) ; [1] (b) (i) sensible scale chosen and axes labelled, units (newtons) given on one axis ; points plotted (allow one error) ; straight line drawn NOT passing through (0,0) ; [3] (ii) e.g. 2.3 6 1.5 3.8 0 6 = − − (choice of data shown on graph) ; = 2.6 (no units) ; [2] (c) 2.6 10 400× = 1538 N (ecf from part (b)(ii)) ; (allow 1540) [1] [Total: 10] 6 (a) (i) (dark) red or red-brown (do not accept ‘brown’ on its own) ; [1] (ii) black ; [1] (b) litmus (turns red and then) is bleached / loses colour ; [1] (c) (i) blue-black colour (accept ‘blue’ or ‘black’) ; [1] (ii) Cl2 + 2KI → 2KCl + I2 all formulae correct ; balanced ; [2] (d) (i) ethene ; [1] (ii) unsaturated / (molecules) contain a double bond / C=C ; [1] (e) (i) purple ; [1] (ii) sublimation / subliming ; (ignore reverse) [1] [Total: 10]
