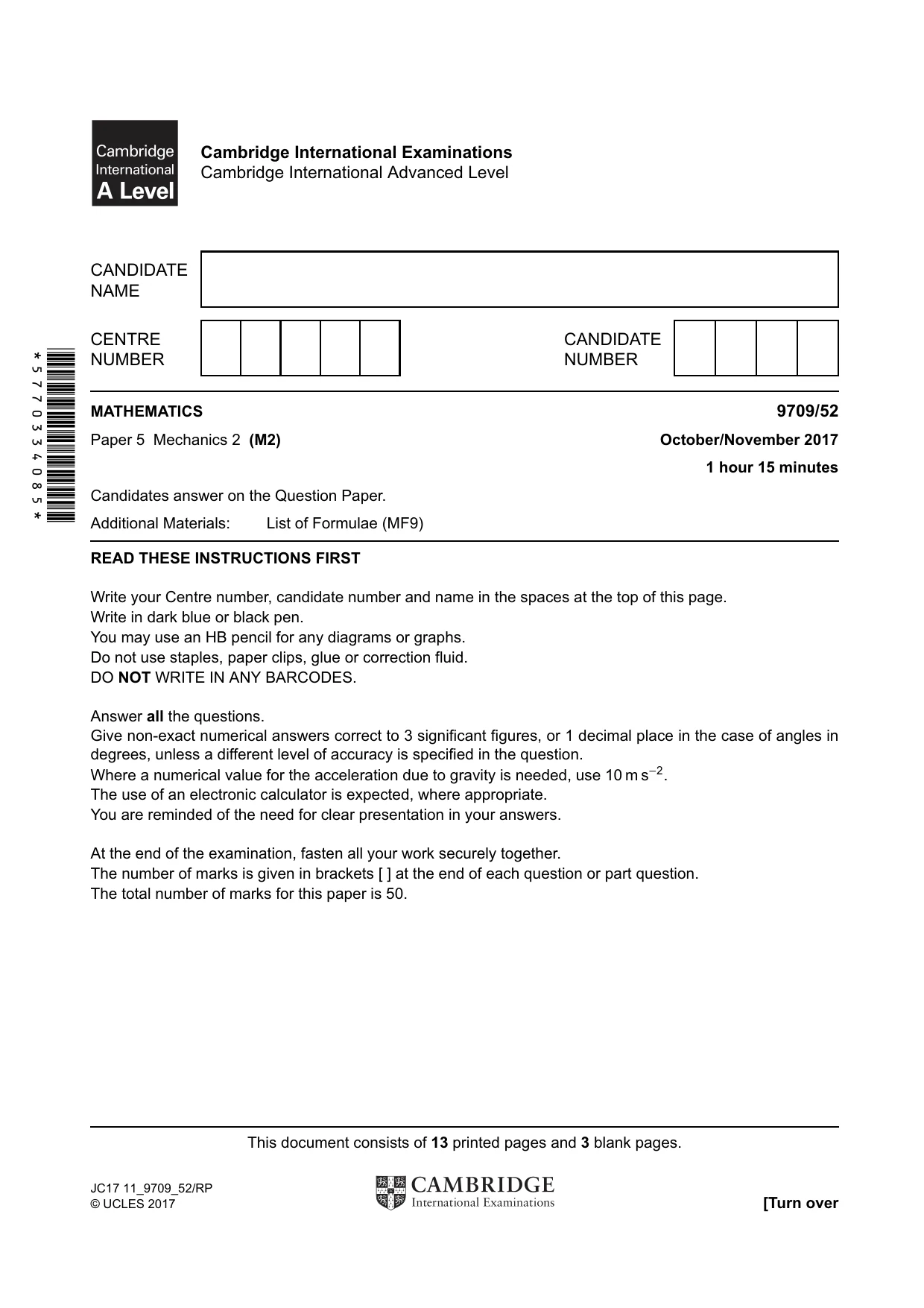

Cambridge A Level Mathematics 9709 — 2017 Oct/Nov Paper 5 · Variant 2

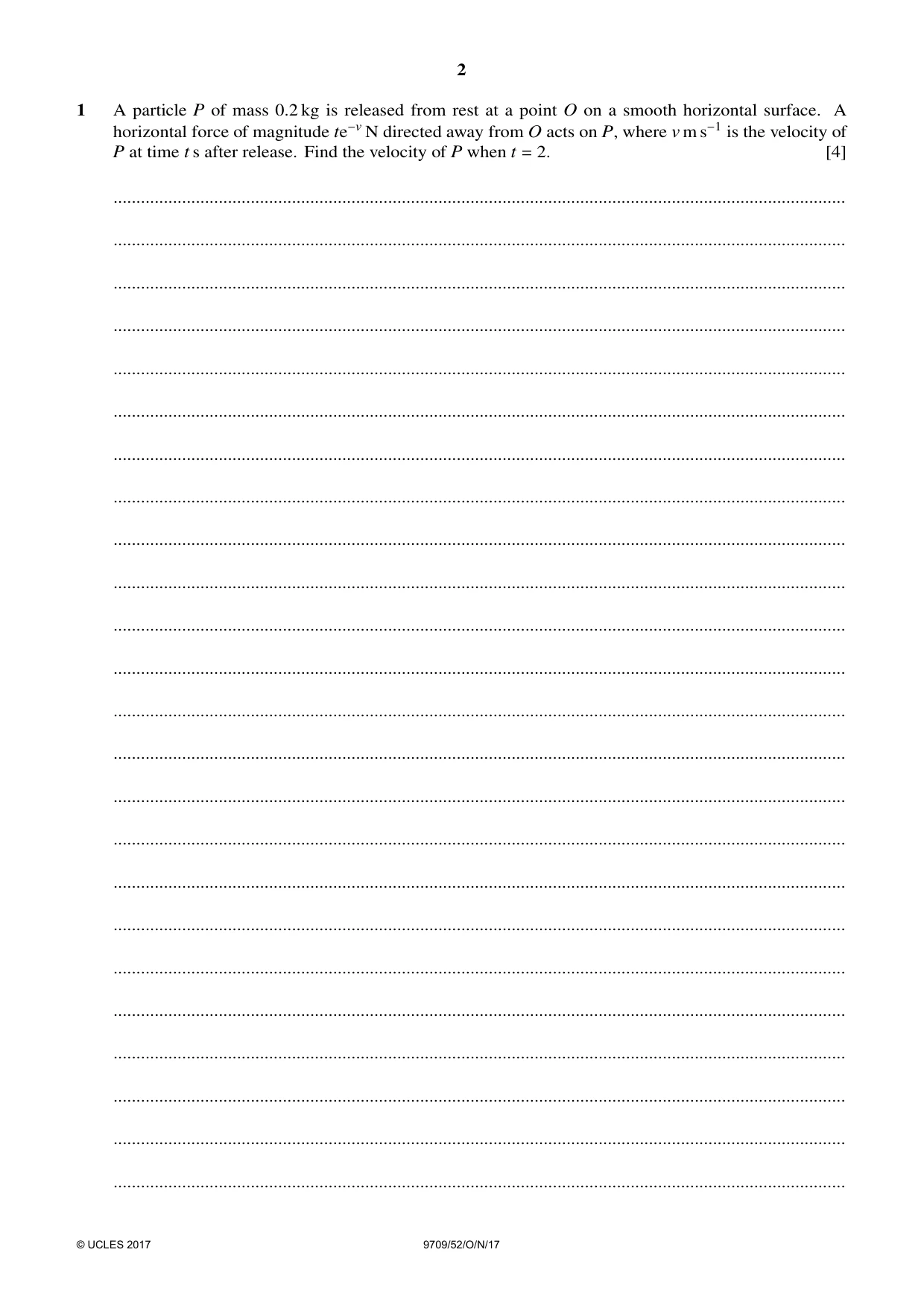

1 A particle P of mass 0.2 kg is released from rest at a point O on a smooth horizontal surface. A horizontal force of magnitude te−v N directed away from O acts on P, where v m s−1 is the velocity of P at time t s after release. Find the velocity of P when t = 2. [4] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

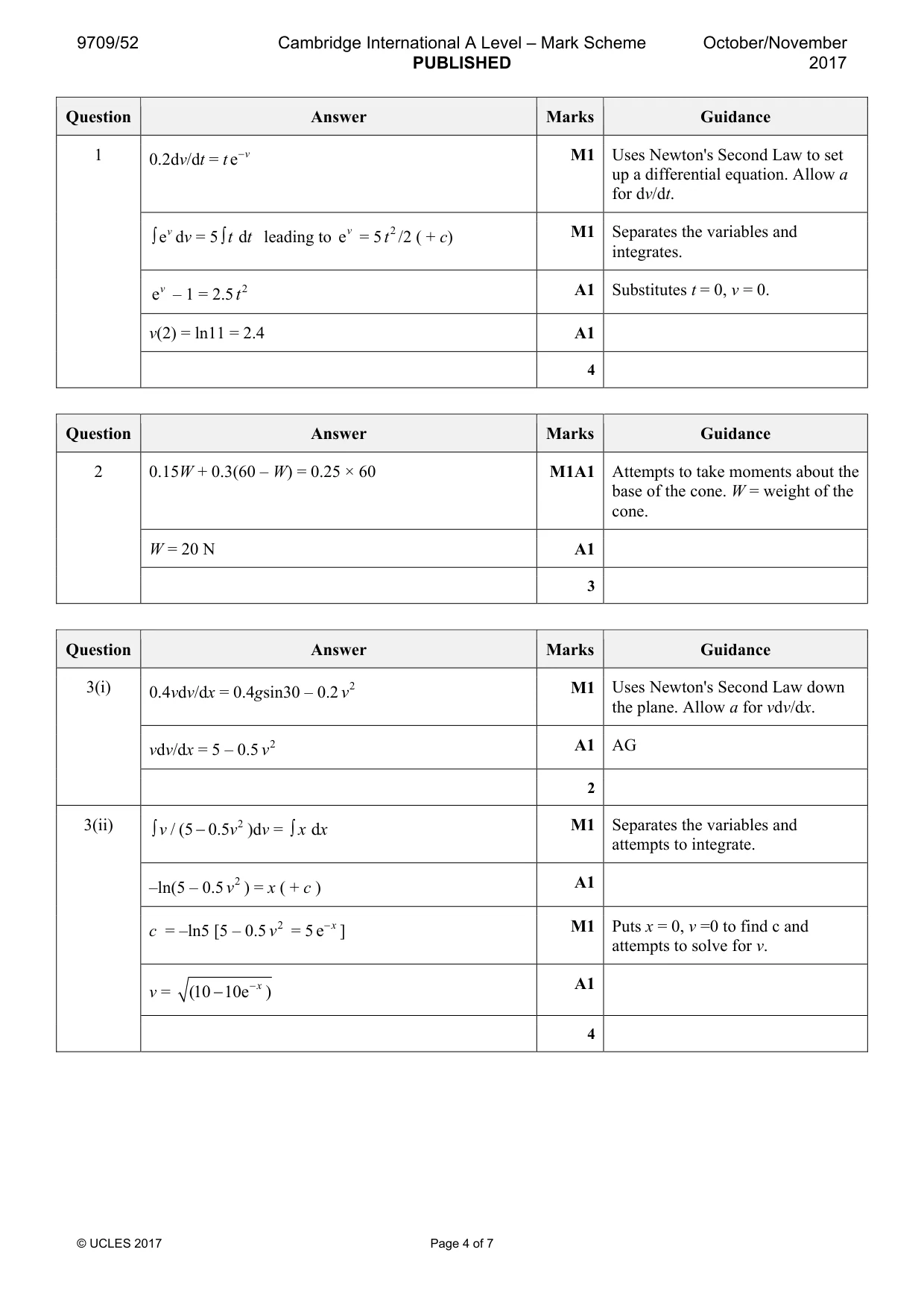

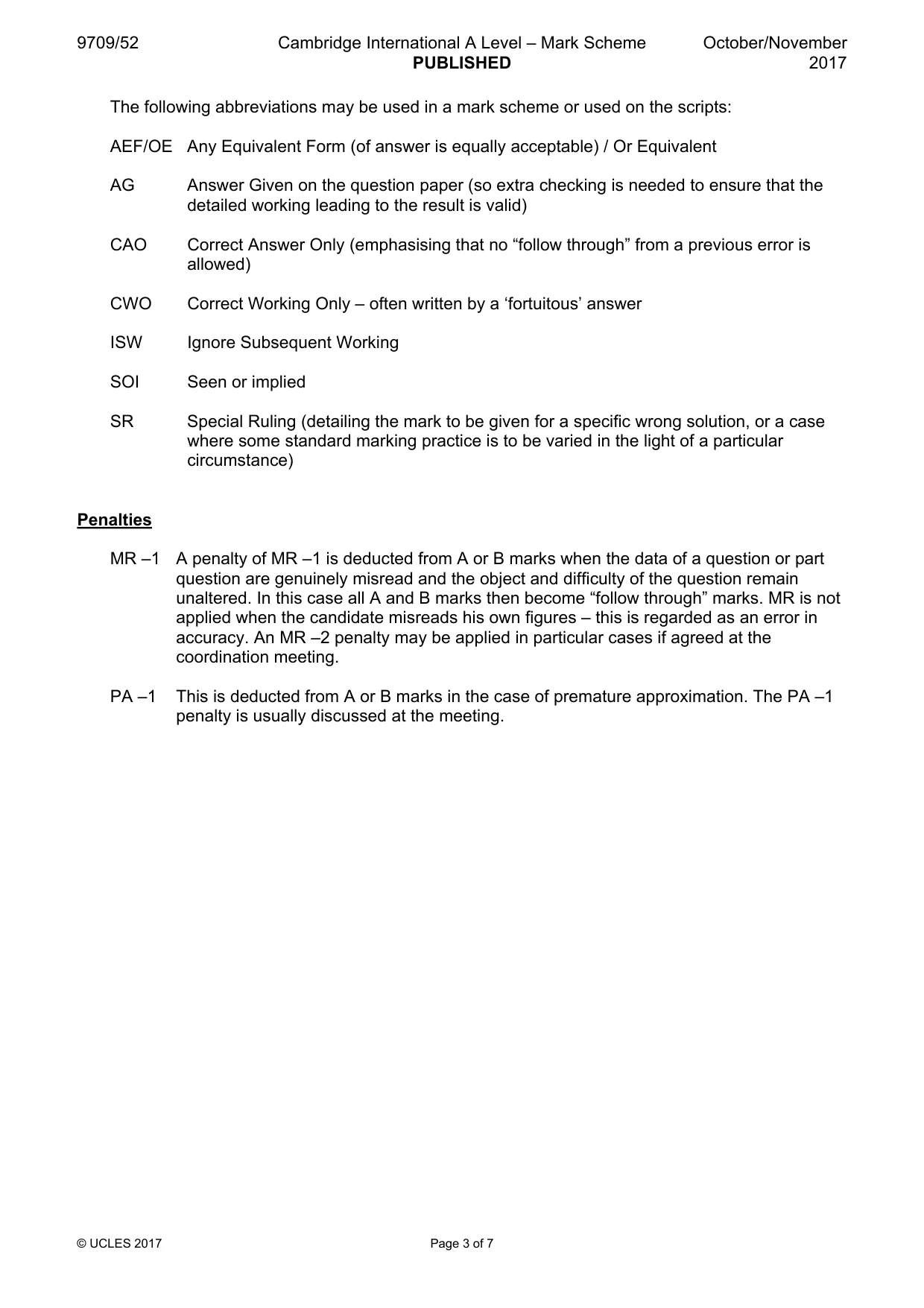

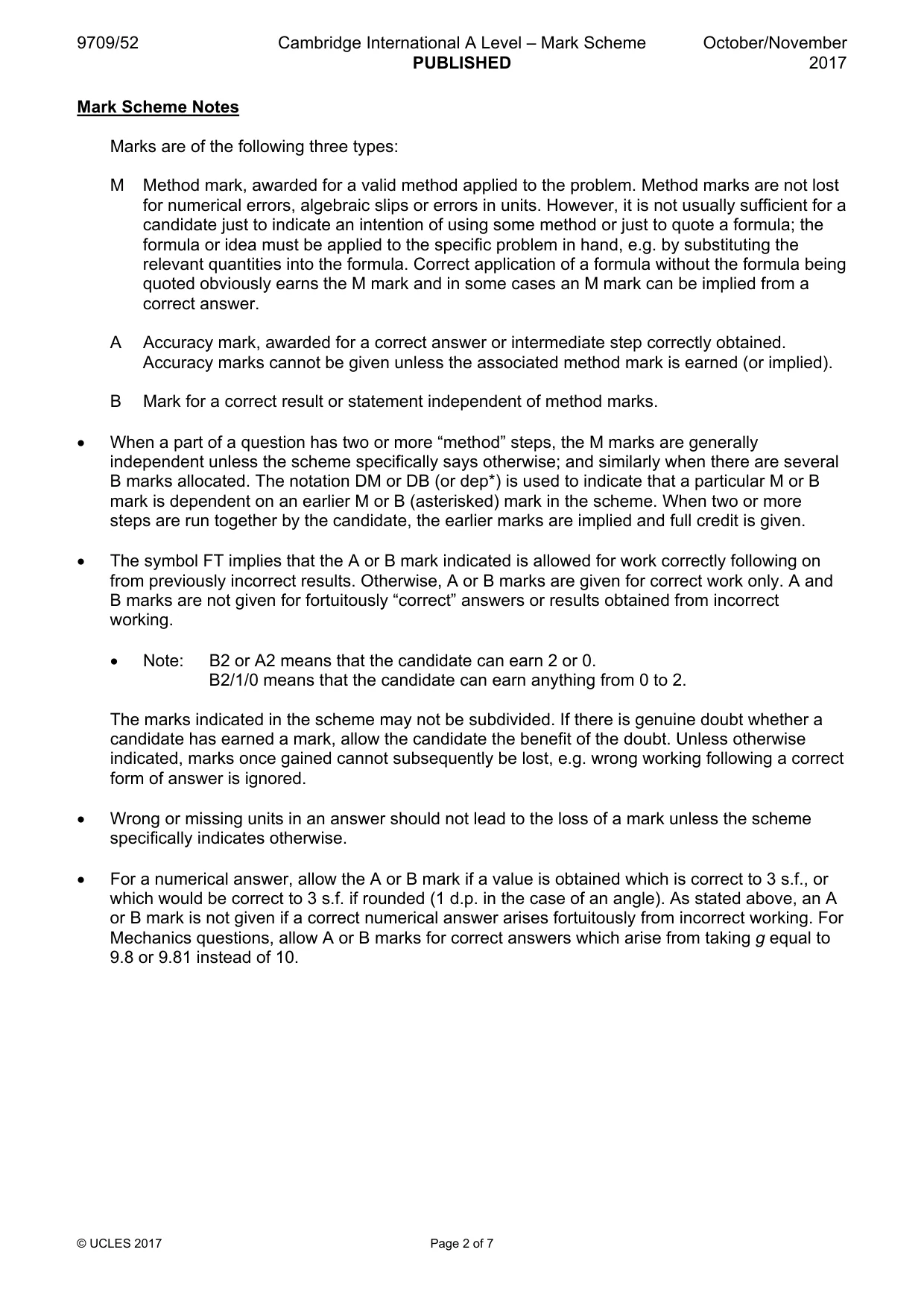

Mark scheme: Question Answer Marks Guidance 1 M1 Uses Newton's Second Law to set 0.2dv/dt = te−v up a differential equation. Allow a for dv/dt. ∫ e v dv = 5 ∫t dt leading to ev = 5 2t /2 ( + c) M1 Separates the variables and integrates. ev – 1 = 2.5 2t A1 Substitutes t = 0, v = 0. v(2) = ln11 = 2.4 A1 4

More questions on Kinematics of motion in a straight line

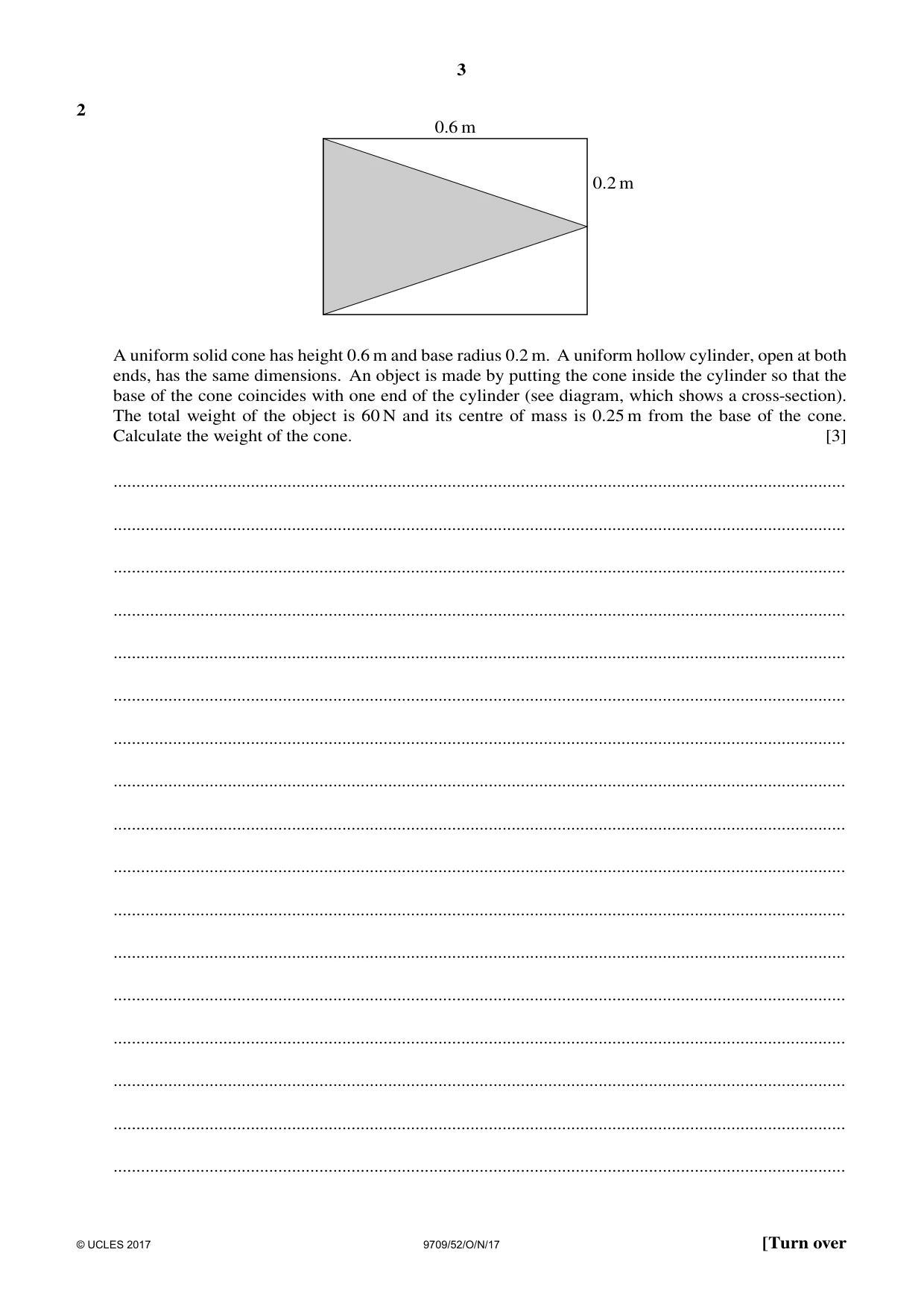

2 0.6 m 0.2 m A uniform solid cone has height 0.6 m and base radius 0.2 m. A uniform hollow cylinder, open at both ends, has the same dimensions. An object is made by putting the cone inside the cylinder so that the base of the cone coincides with one end of the cylinder (see diagram, which shows a cross-section). The total weight of the object is 60 N and its centre of mass is 0.25 m from the base of the cone. Calculate the weight of the cone. [3] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

Mark scheme: 2 0.15W + 0.3(60 – W) = 0.25 × 60 M1A1 Attempts to take moments about the base of the cone. W = weight of the cone. W = 20 N A1 3

More questions on Forces and equilibrium

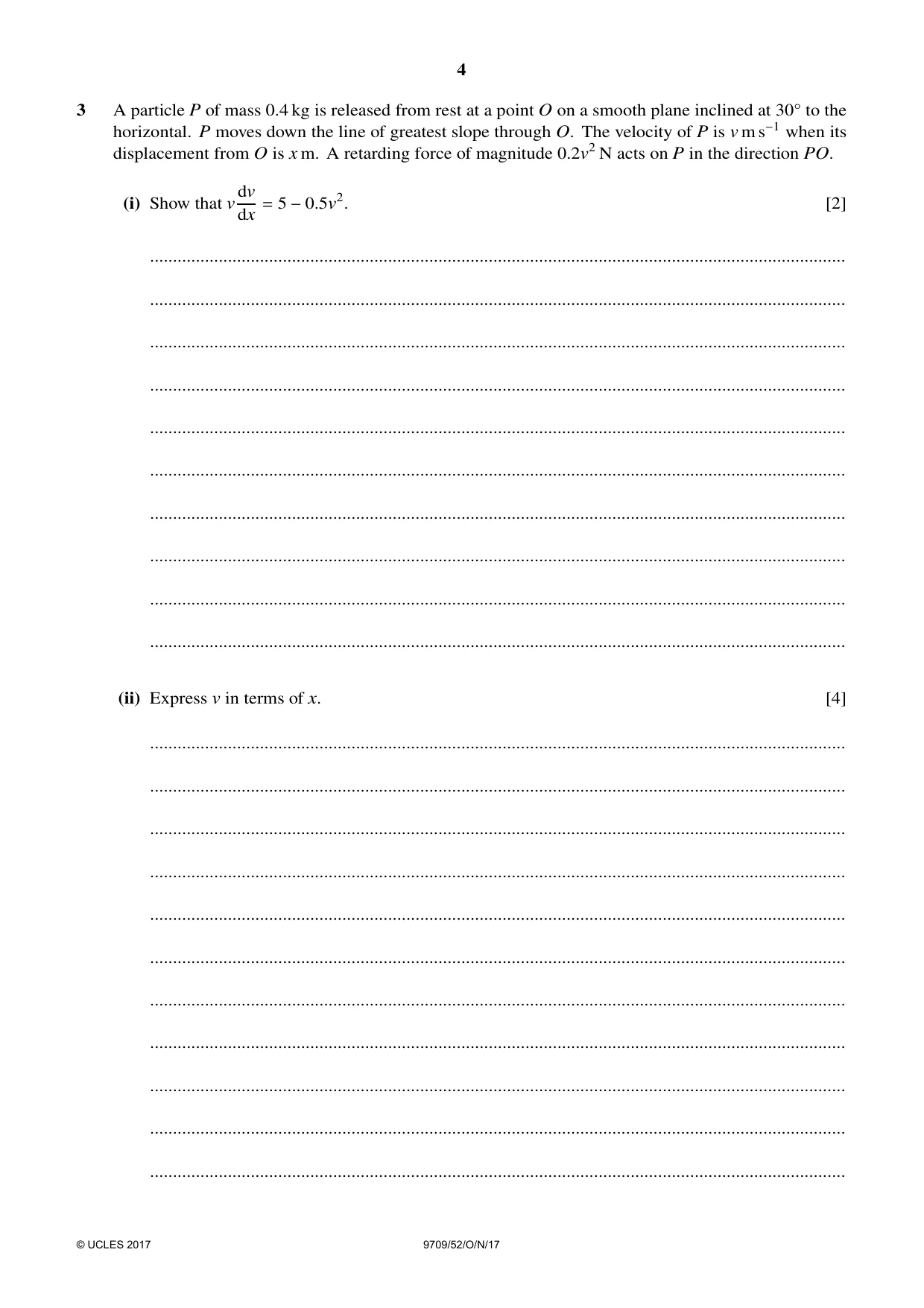

3 A particle P of mass 0.4 kg is released from rest at a point O on a smooth plane inclined at 30Å to the horizontal. P moves down the line of greatest slope through O. The velocity of P is v m s−1 when its displacement from O is x m. A retarding force of magnitude 0.2v2 N acts on P in the direction PO. (i) Show that vdv = 5 −0.5v2. [2] dx ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Express v in terms of x. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 3(i) 0.4vdv/dx = 0.4gsin30 – 0.2 v 2 M1 Uses Newton's Second Law down the plane. Allow a for vdv/dx. vdv/dx = 5 – 0.5 2v A1 AG 2 3(ii) ∫ v / (5 − 0.5v 2 )dv = ∫x dx M1 Separates the variables and attempts to integrate. –ln(5 – 0.5 v 2 ) = x ( + c ) A1 c = –ln5 [5 – 0.5 v 2 = 5 e−x ] M1 Puts x = 0, v =0 to find c and attempts to solve for v. − x A1 v = (10 − 10e ) 4

More questions on Kinematics of motion in a straight line

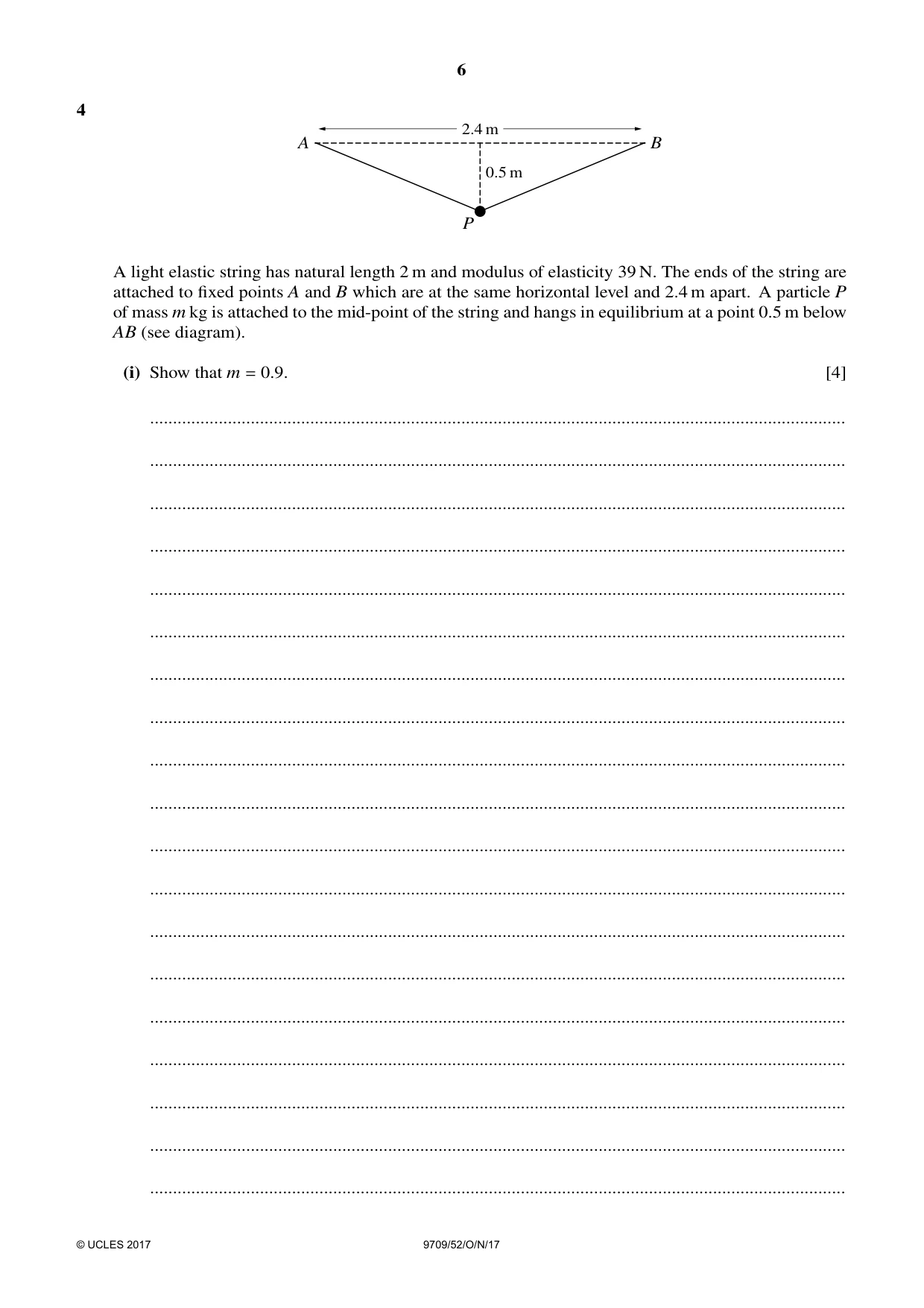

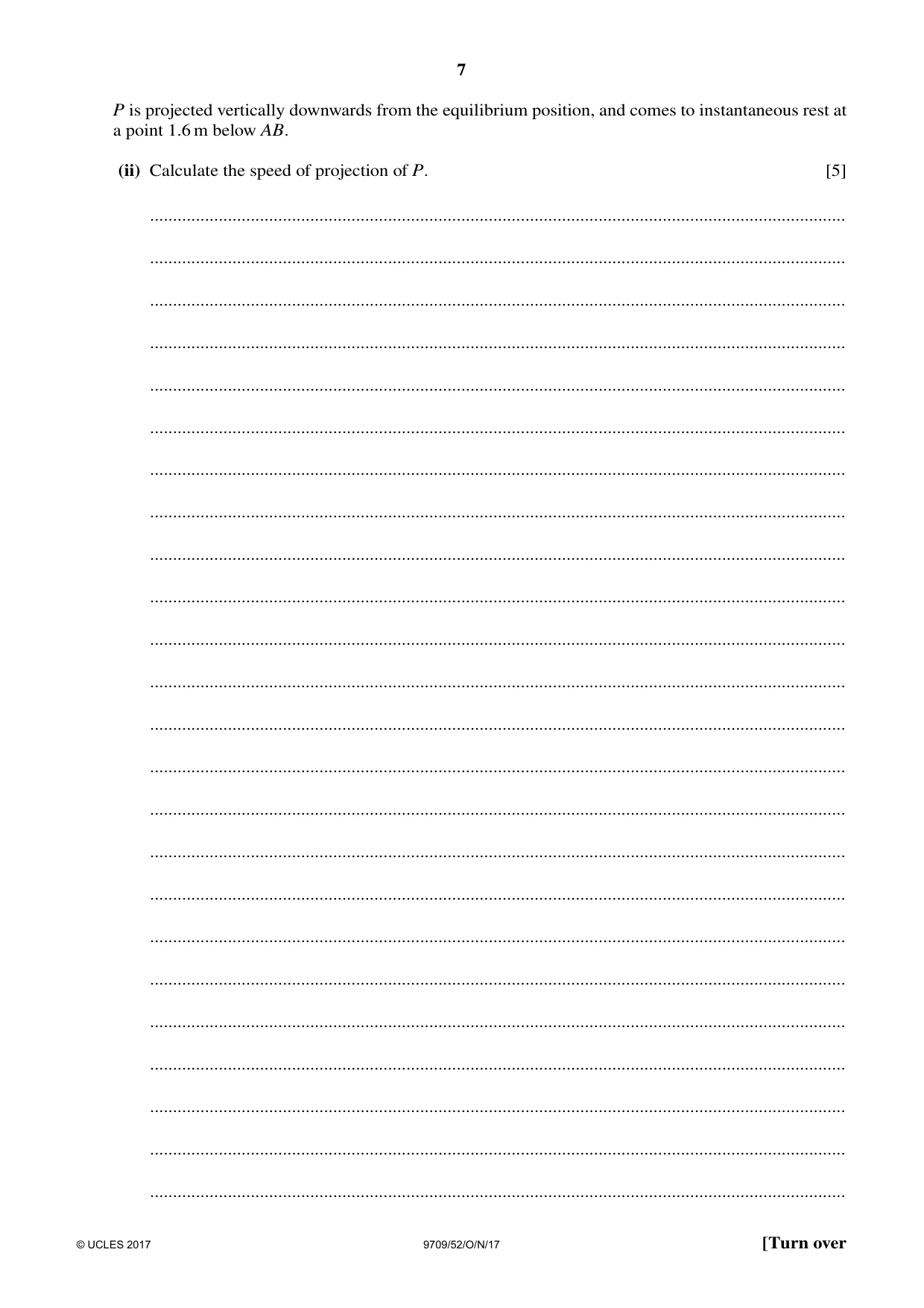

4 2.4 m A B 0.5 m P A light elastic string has natural length 2 m and modulus of elasticity 39 N. The ends of the string are attached to fixed points A and B which are at the same horizontal level and 2.4 m apart. A particle P of mass m kg is attached to the mid-point of the string and hangs in equilibrium at a point 0.5 m below AB (see diagram). (i) Show that m = 0.9. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ P is projected vertically downwards from the equilibrium position, and comes to instantaneous rest at a point 1.6 m below AB. (ii) Calculate the speed of projection of P. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

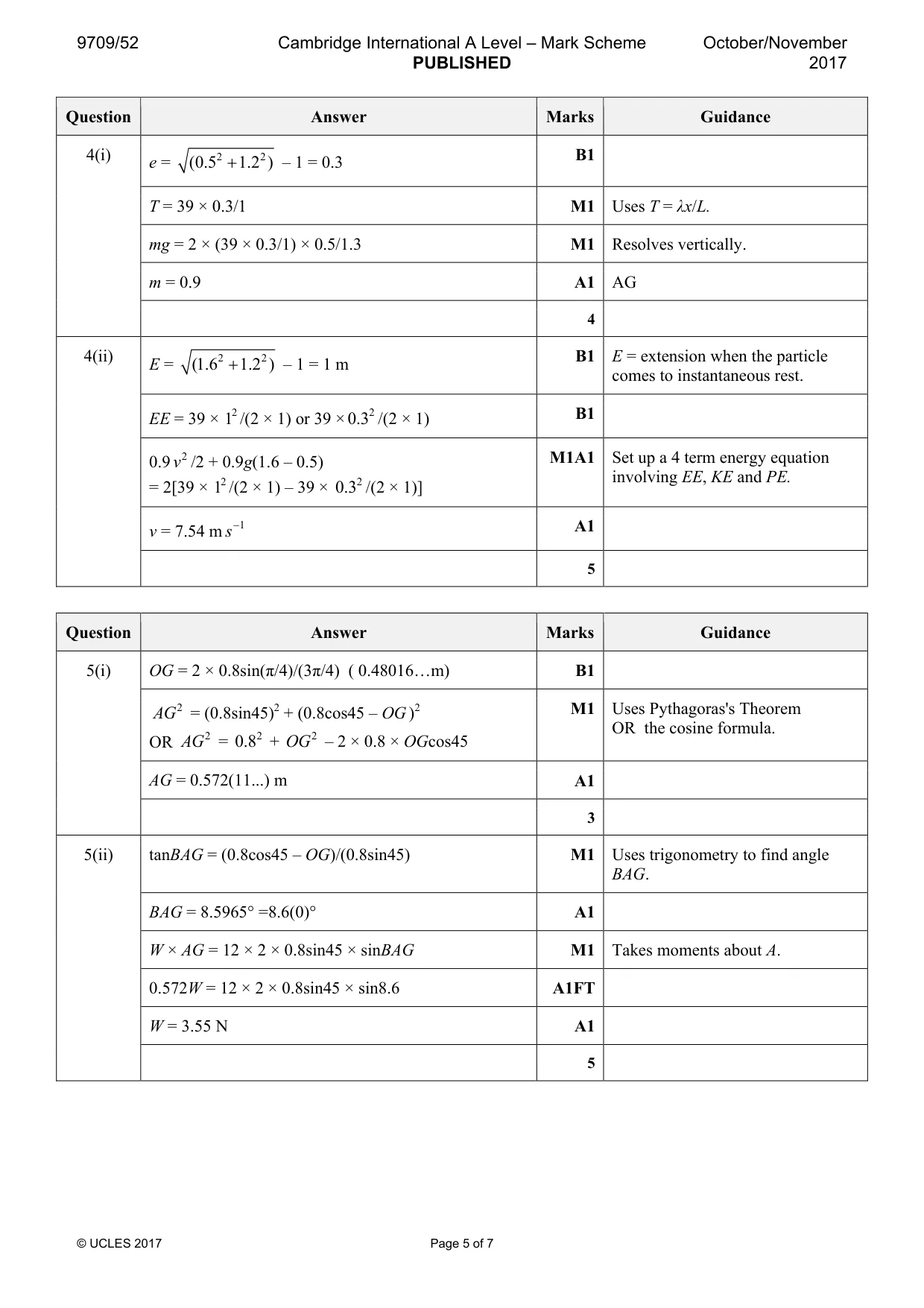

Mark scheme: 4(i) 2 2 B1 e = (0.5 + 1.2 ) – 1 = 0.3 T = 39 × 0.3/1 M1 Uses T = λx/L. mg = 2 × (39 × 0.3/1) × 0.5/1.3 M1 Resolves vertically. m = 0.9 A1 AG 4 4(ii) 2 2 B1 E = extension when the particle E = (1.6 + 1.2 ) – 1 = 1 m comes to instantaneous rest. EE = 39 × 21 /(2 × 1) or 39 × 0.32 /(2 × 1) B1 0.9 v 2 /2 + 0.9g(1.6 – 0.5) M1A1 Set up a 4 term energy equation 2 involving EE, KE and PE. = 2[39 × 21 /(2 × 1) – 39 × 0.3 /(2 × 1)] v = 7.54 m −s1 A1 5

More questions on Energy, work and power

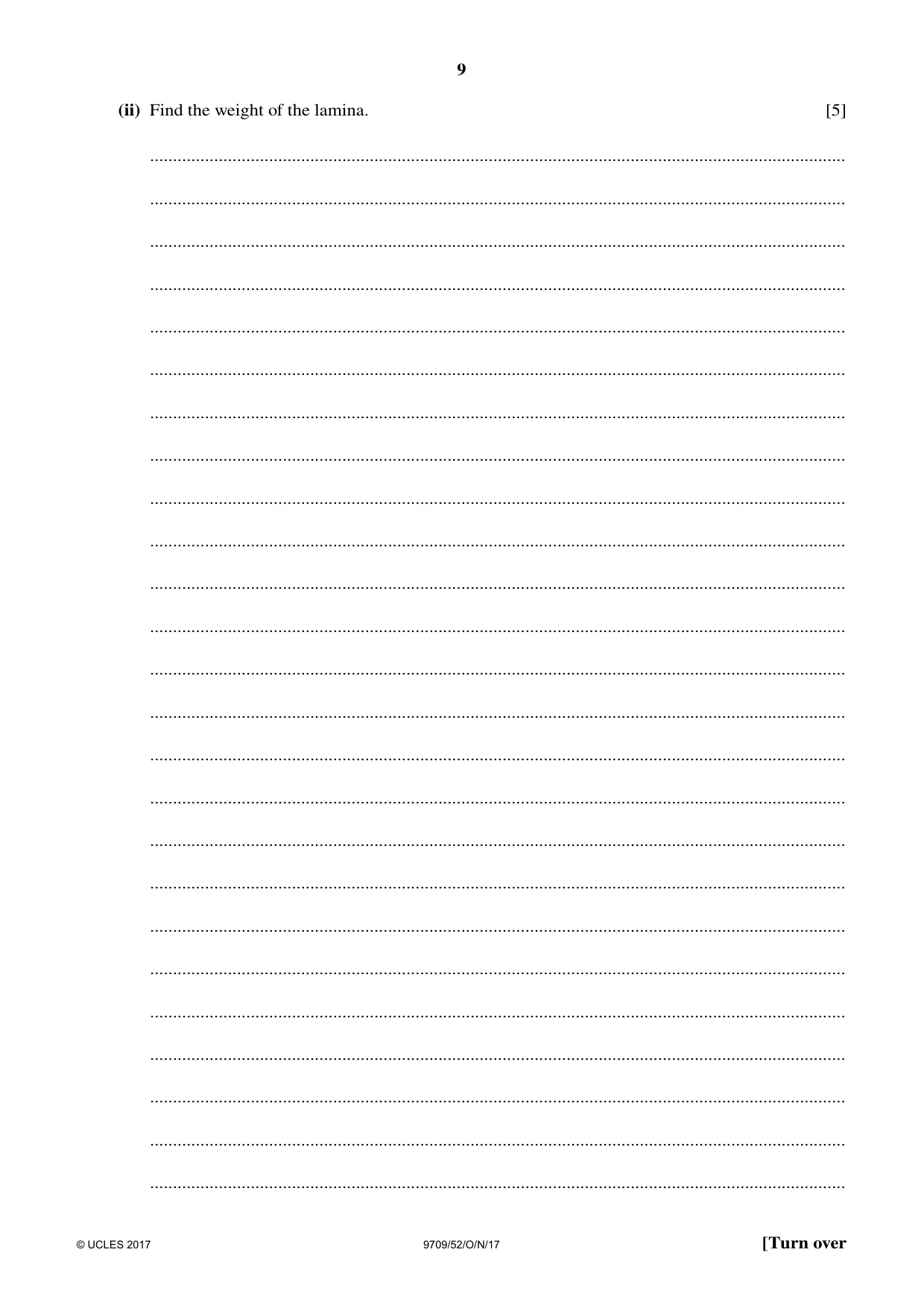

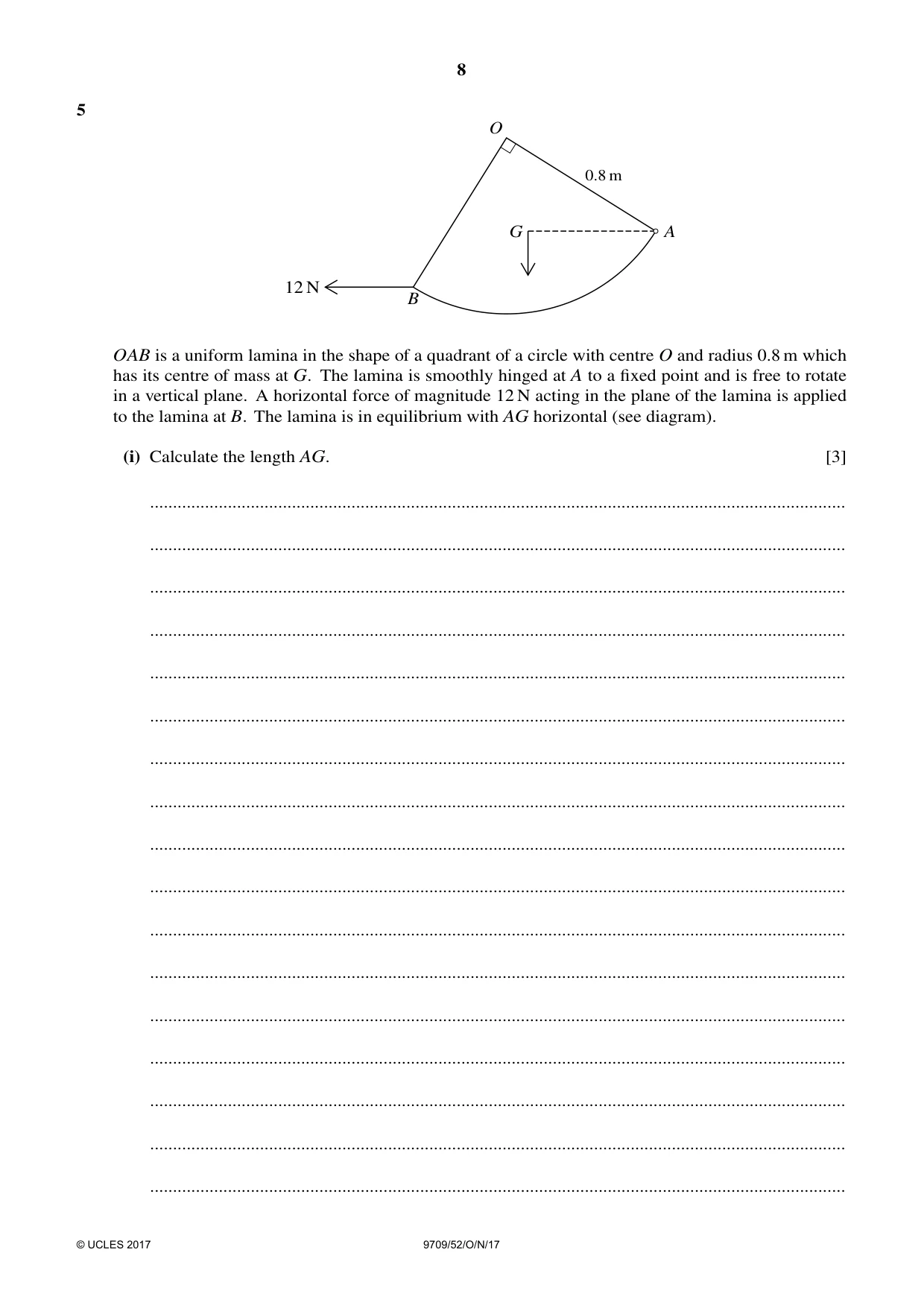

5 O 0.8 m G A 12 N B OAB is a uniform lamina in the shape of a quadrant of a circle with centre O and radius 0.8 m which has its centre of mass at G. The lamina is smoothly hinged at A to a fixed point and is free to rotate in a vertical plane. A horizontal force of magnitude 12 N acting in the plane of the lamina is applied to the lamina at B. The lamina is in equilibrium with AG horizontal (see diagram). (i) Calculate the length AG. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the weight of the lamina. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 5(i) OG = 2 × 0.8sin(π/4)/(3π/4) ( 0.48016…m) B1 AG 2 = (0.8sin45)2 + (0.8cos45 – OG 2) M1 Uses Pythagoras's Theorem 2 2 2 OR the cosine formula. OR AG = 0.8 + OG – 2 × 0.8 × OGcos45 AG = 0.572(11...) m A1 3 5(ii) tanBAG = (0.8cos45 – OG)/(0.8sin45) M1 Uses trigonometry to find angle BAG. BAG = 8.5965° =8.6(0)° A1 W × AG = 12 × 2 × 0.8sin45 × sinBAG M1 Takes moments about A. 0.572W = 12 × 2 × 0.8sin45 × sin8.6 A1FT W = 3.55 N A1 5

More questions on Forces and equilibrium

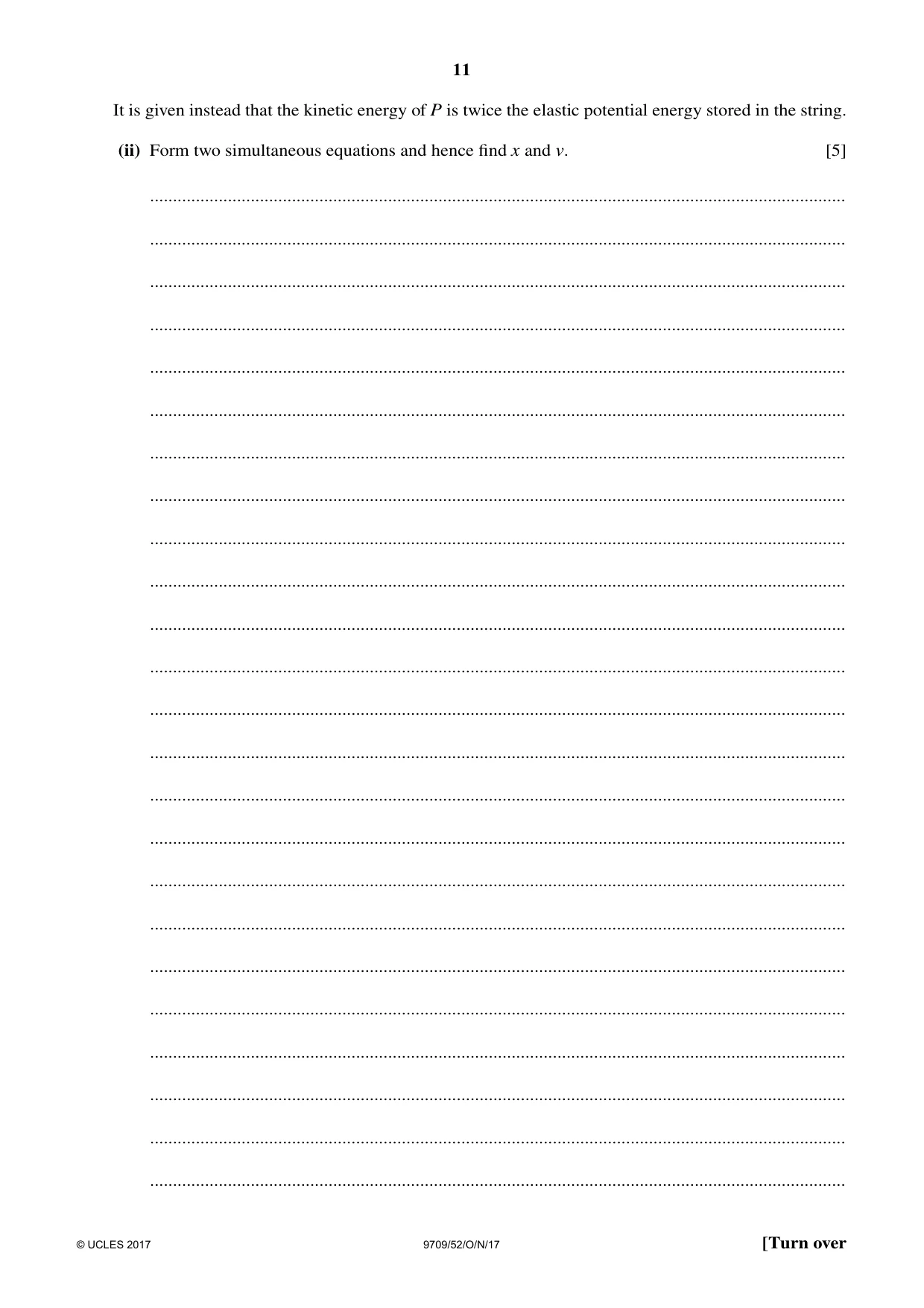

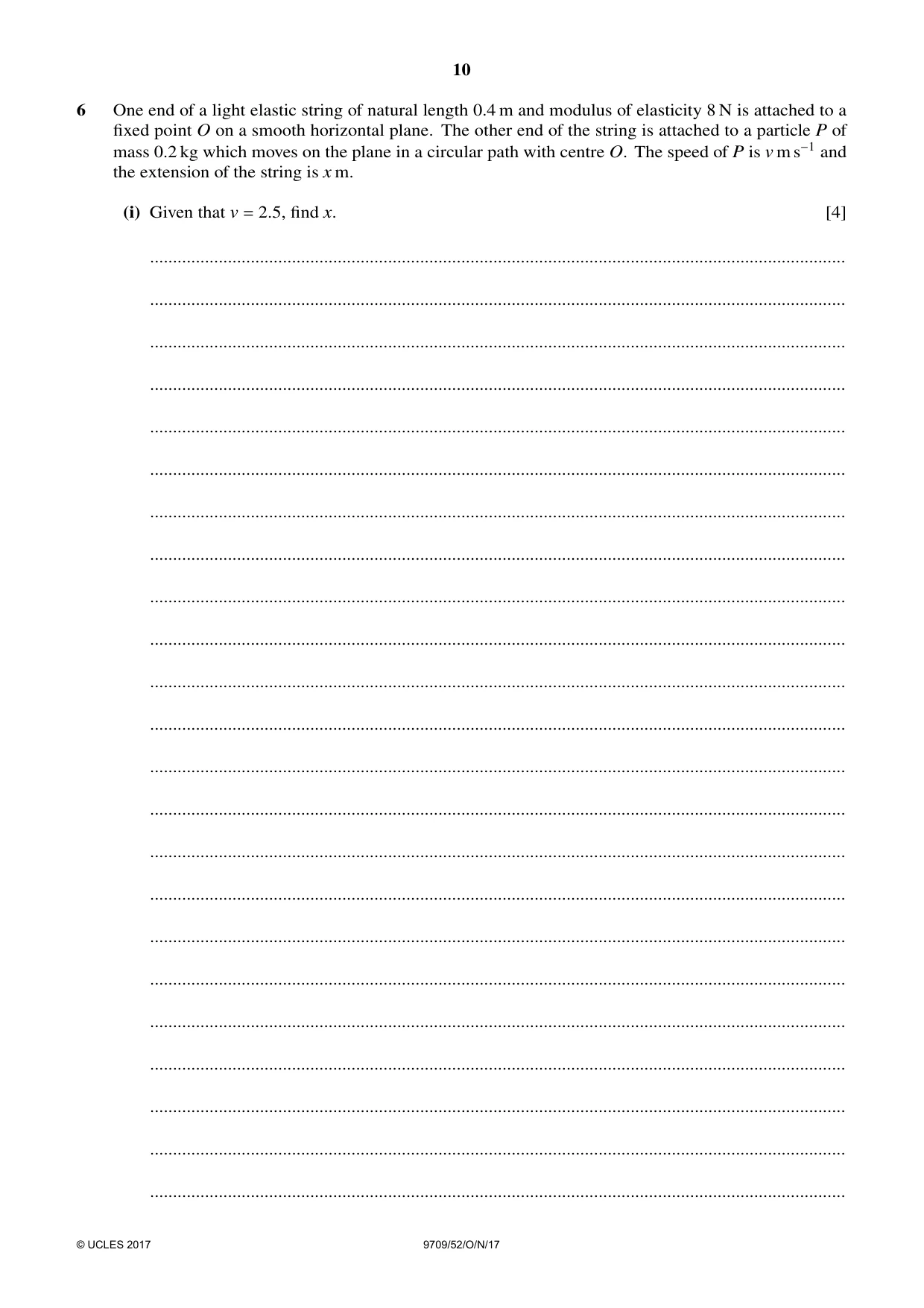

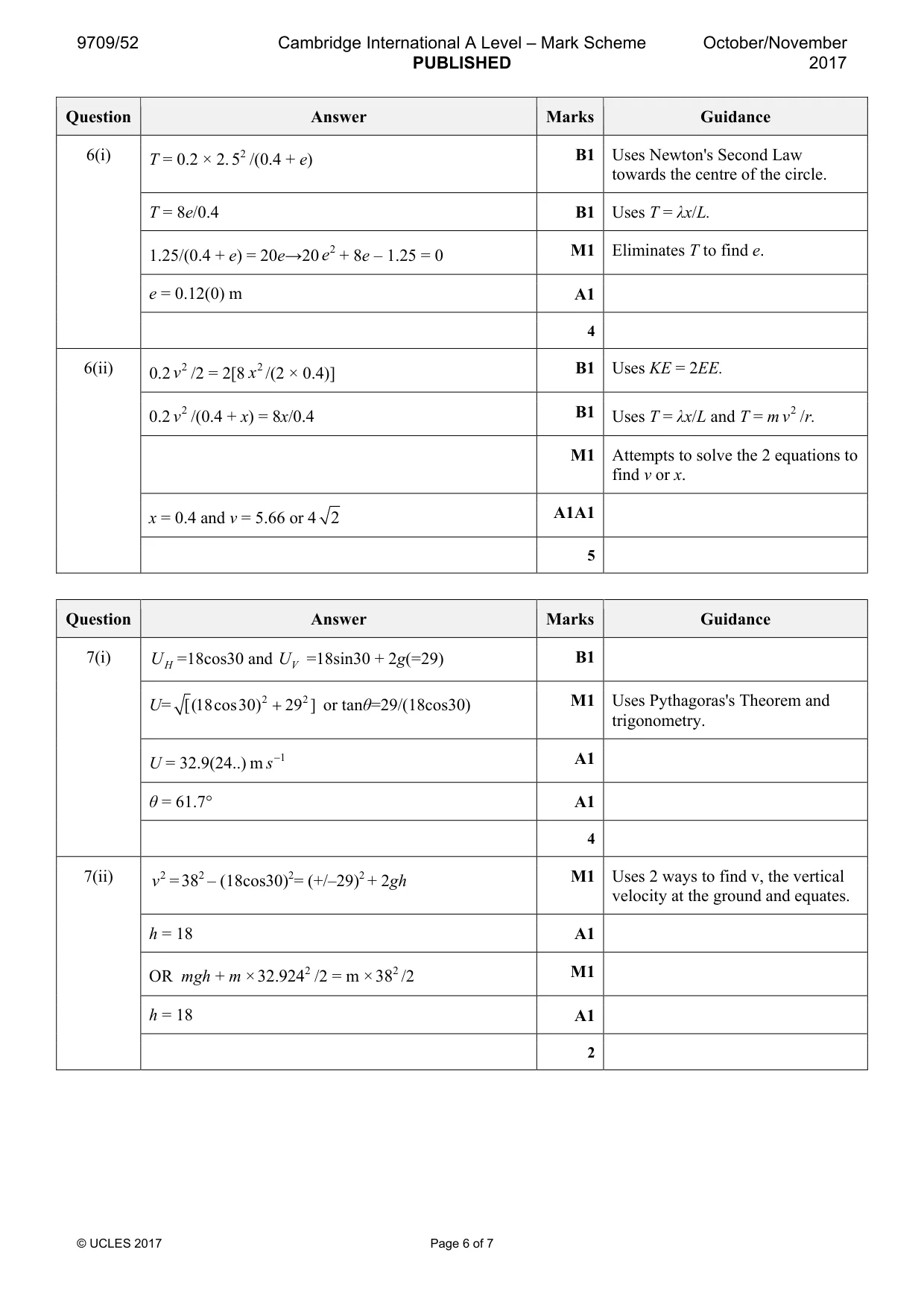

6 One end of a light elastic string of natural length 0.4 m and modulus of elasticity 8 N is attached to a fixed point O on a smooth horizontal plane. The other end of the string is attached to a particle P of mass 0.2 kg which moves on the plane in a circular path with centre O. The speed of P is v m s−1 and the extension of the string is x m. (i) Given that v = 2.5, find x. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ It is given instead that the kinetic energy of P is twice the elastic potential energy stored in the string. (ii) Form two simultaneous equations and hence find x and v. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 6(i) T = 0.2 × 2. 5 2 /(0.4 + e) B1 Uses Newton's Second Law towards the centre of the circle. T = 8e/0.4 B1 Uses T = λx/L. 1.25/(0.4 + e) = 20e→20 2e + 8e – 1.25 = 0 M1 Eliminates T to find e. e = 0.12(0) m A1 4 6(ii) 0.2 v 2 /2 = 2[8 x 2 /(2 × 0.4)] B1 Uses KE = 2EE. 0.2 v 2 /(0.4 + x) = 8x/0.4 B1 Uses T = λx/L and T = m v 2 /r. M1 Attempts to solve the 2 equations to find v or x. x = 0.4 and v = 5.66 or 4 2 A1A1 5

More questions on Energy, work and power

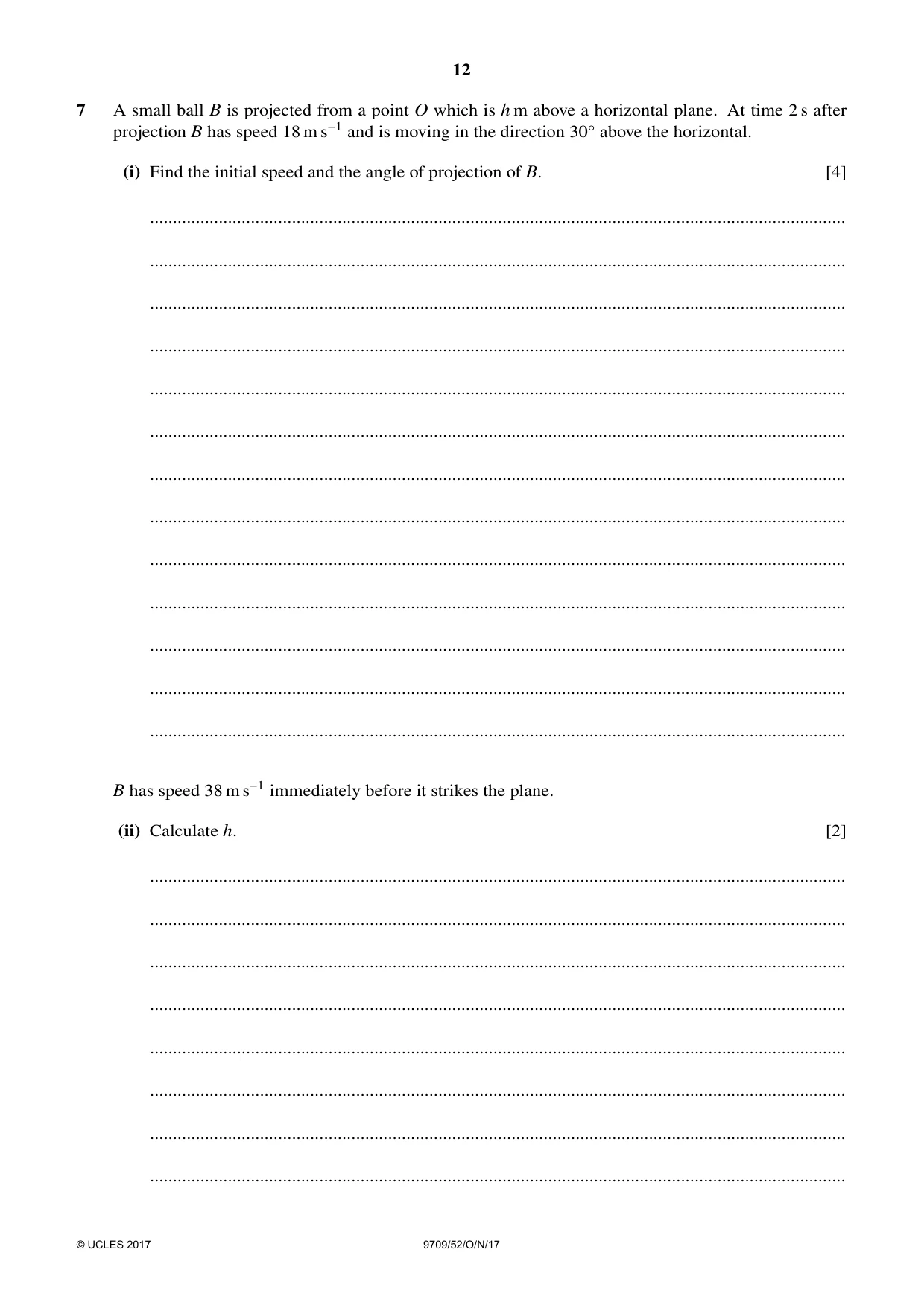

7 A small ball B is projected from a point O which is h m above a horizontal plane. At time 2 s after projection B has speed 18 m s−1 and is moving in the direction 30Å above the horizontal. (i) Find the initial speed and the angle of projection of B. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ B has speed 38 m s−1 immediately before it strikes the plane. (ii) Calculate h. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ B bounces when it strikes the plane, and leaves the plane with speed 20 m s−1 but with its horizontal component of velocity unchanged. (iii) Find the total time which elapses between the initial projection of B and the instant when it strikes the plane for the second time. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

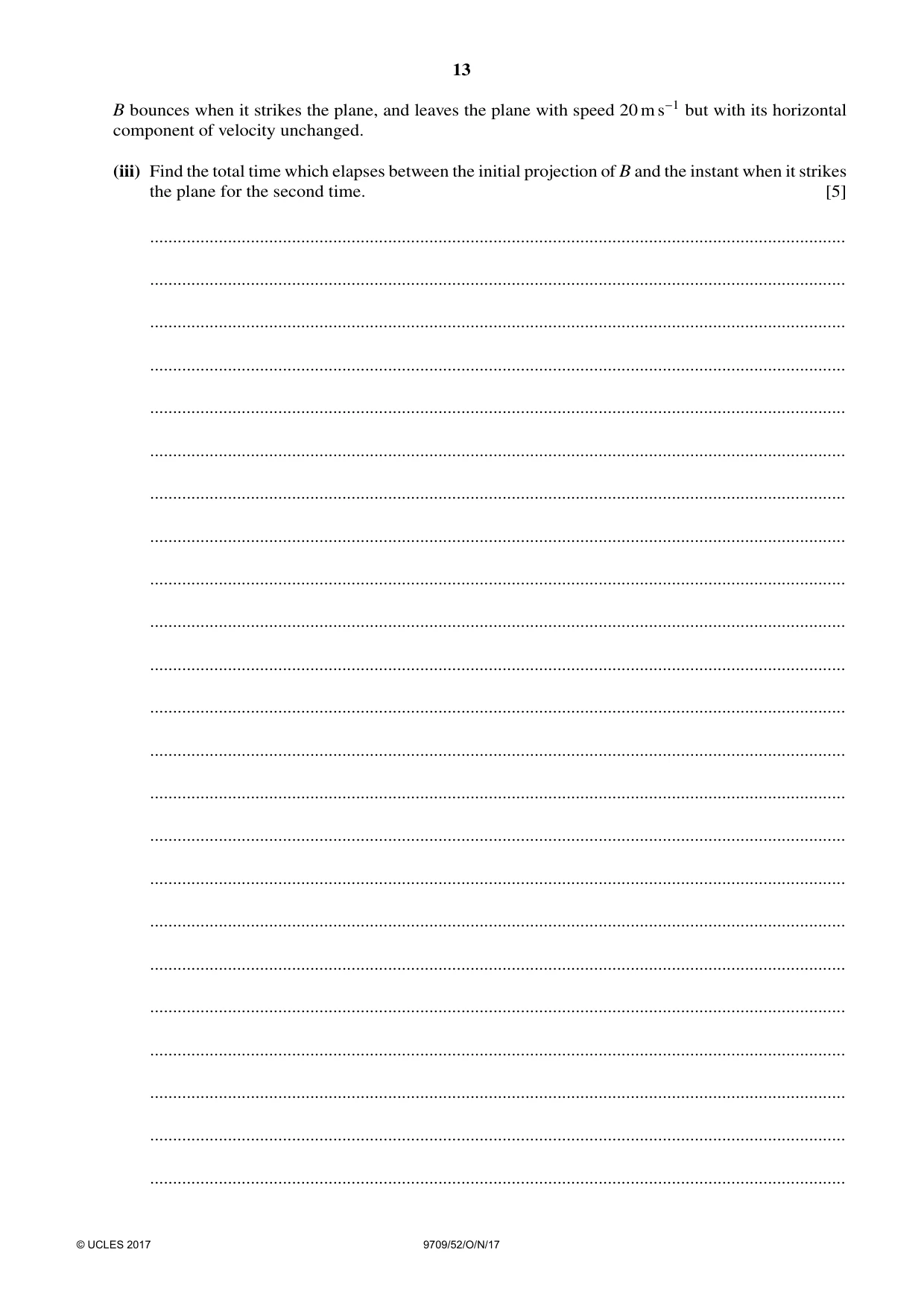

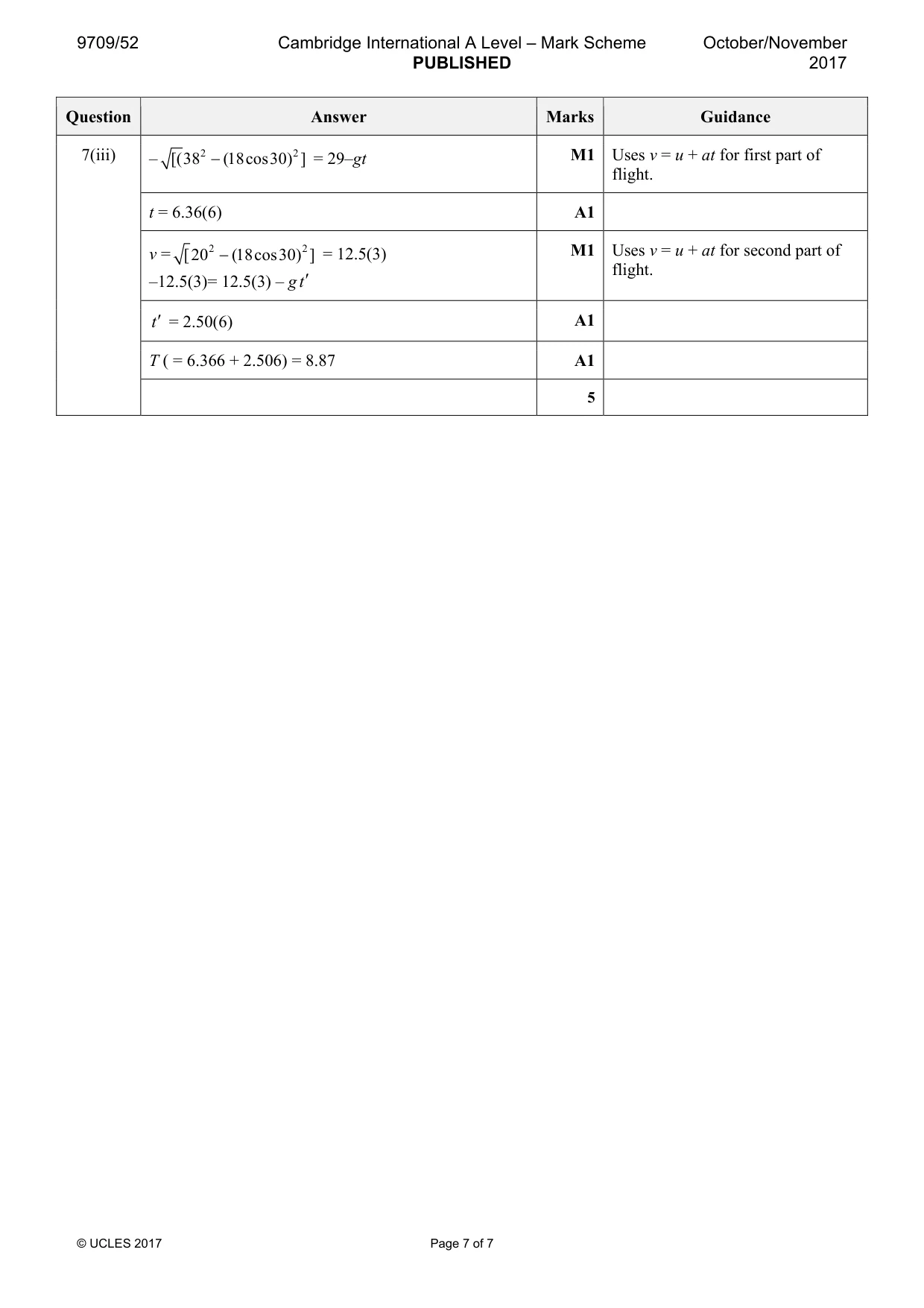

Mark scheme: 7(i) U H =18cos30 and U V =18sin30 + 2g(=29) B1 U= [(18cos30) 2 + 29 2 ] or tanθ=29/(18cos30) M1 Uses Pythagoras's Theorem and trigonometry. U = 32.9(24..) m −s1 A1 θ = 61.7° A1 4 7(ii) v 2 = 38 2 – (18cos30)2= (+/–29)2 + 2gh M1 Uses 2 ways to find v, the vertical velocity at the ground and equates. h = 18 A1 OR mgh + m × 32.924 2 /2 = m × 38 2 /2 M1 h = 18 A1 2 7(iii) – [( 38 2 − (18cos3 0) 2 ] = 29–gt M1 Uses v = u + at for first part of flight. t = 6.36(6) A1 v = [ 2 0 2 − (18cos3 0) 2 ] = 12.5(3) M1 Uses v = u + at for second part of flight. –12.5(3)= 12.5(3) – g ′t ′t = 2.50(6) A1 T ( = 6.366 + 2.506) = 8.87 A1 5
