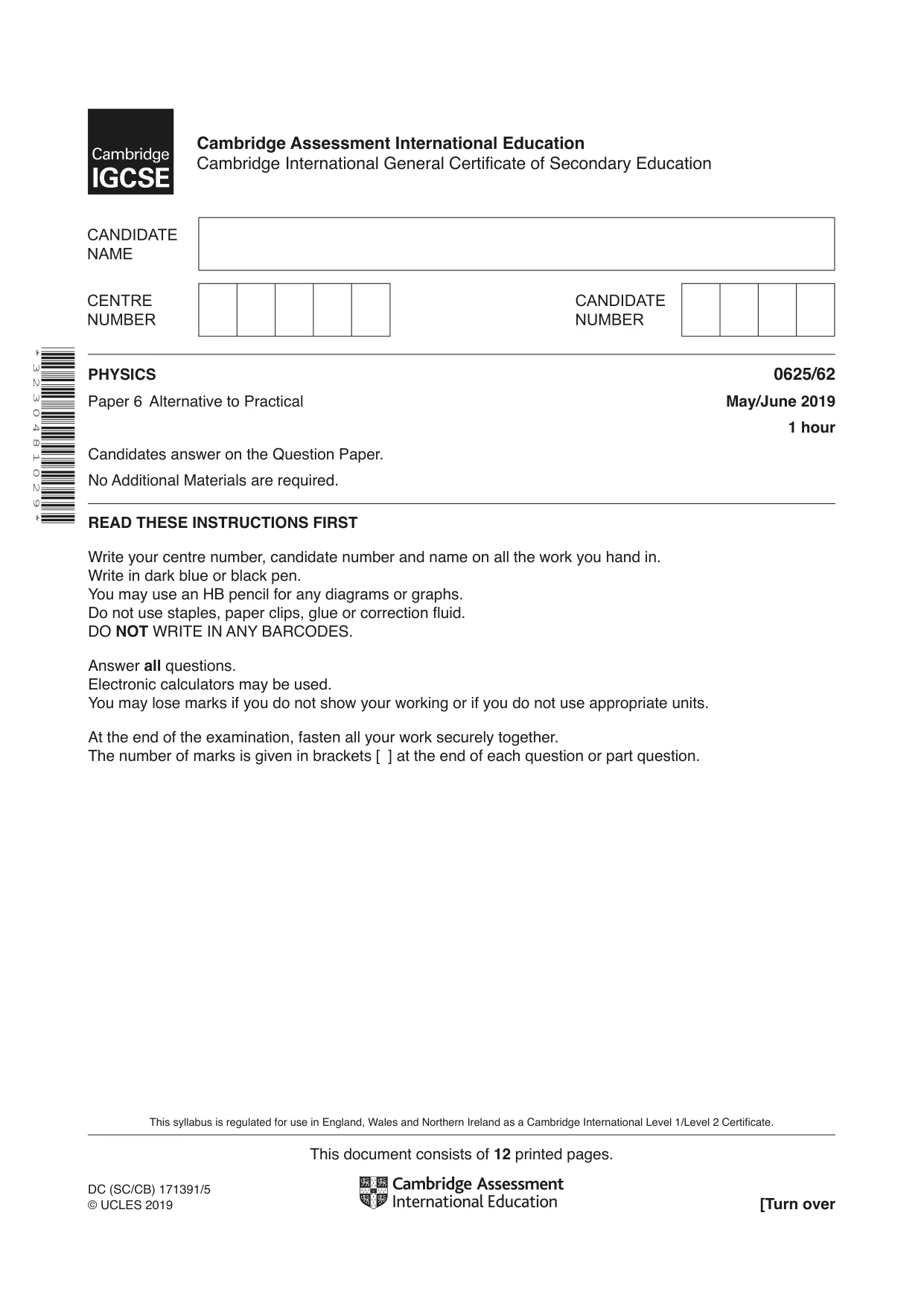

Cambridge IGCSE Physics 0625 — 2019 May/June Paper 6 · Variant 2

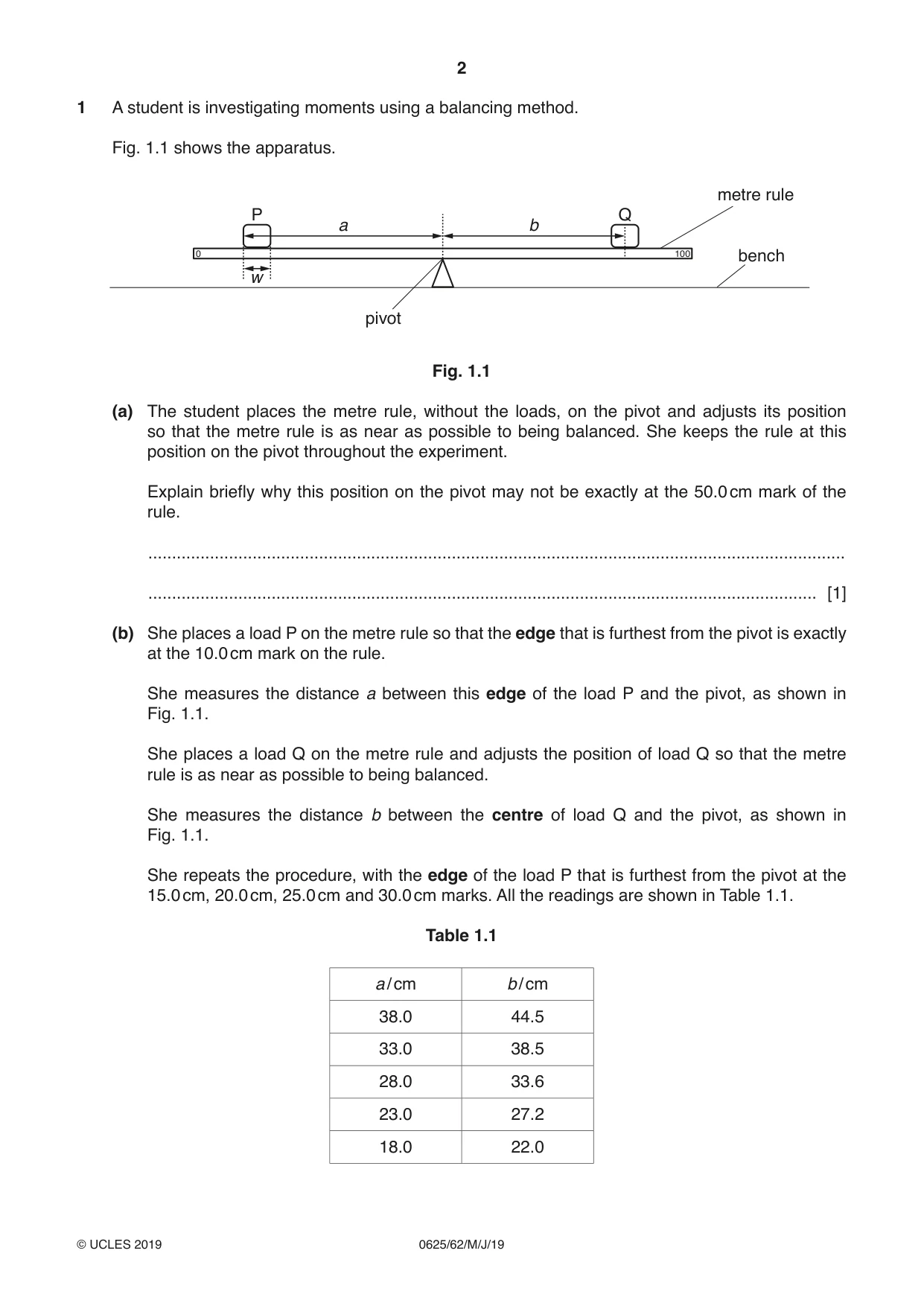

1 A student is investigating moments using a balancing method. Fig. 1.1 shows the apparatus. metre rule P Q a b 0 100 bench w pivot Fig. 1.1 (a) The student places the metre rule, without the loads, on the pivot and adjusts its position so that the metre rule is as near as possible to being balanced. She keeps the rule at this position on the pivot throughout the experiment. Explain briefly why this position on the pivot may not be exactly at the 50.0 cm mark of the rule. ................................................................................................................................................... ............................................................................................................................................. [1] (b) She places a load P on the metre rule so that the edge that is furthest from the pivot is exactly at the 10.0 cm mark on the rule. She measures the distance a between this edge of the load P and the pivot, as shown in Fig. 1.1. She places a load Q on the metre rule and adjusts the position of load Q so that the metre rule is as near as possible to being balanced. She measures the distance b between the centre of load Q and the pivot, as shown in Fig. 1.1. She repeats the procedure, with the edge of the load P that is furthest from the pivot at the 15.0 cm, 20.0 cm, 25.0 cm and 30.0 cm marks. All the readings are shown in Table 1.1. Table 1.1 a / cm b / cm 38.0 44.5 33.0 38.5 28.0 33.6 23.0 27.2 18.0 22.0 Plot a graph of a / cm (y-axis) against b / cm (x-axis). Start both axes at the origin (0,0). [4] (c) Determine the gradient G of the graph. Show clearly on the graph how you obtained the necessary information. G = ........................................................ [2] (d) Determine the intercept C on the x-axis of the graph. This is the value of b when a = 0. C = ........................................................ [1] (e) On Fig. 1.2, measure the width w of the load P. P w Fig. 1.2 w = ........................................................ [1] (f) Another student suggests that the value of the intercept C should be equal to half the width w of the load P. State whether the results support the suggestion. Justify your answer by reference to the results. statement .................................................................................................................................. justification ................................................................................................................................ ................................................................................................................................................... [2] (g) Suggest one practical reason why it is difficult to obtain accurate values for a and for b. ................................................................................................................................................... ............................................................................................................................................. [1] [Total: 12]

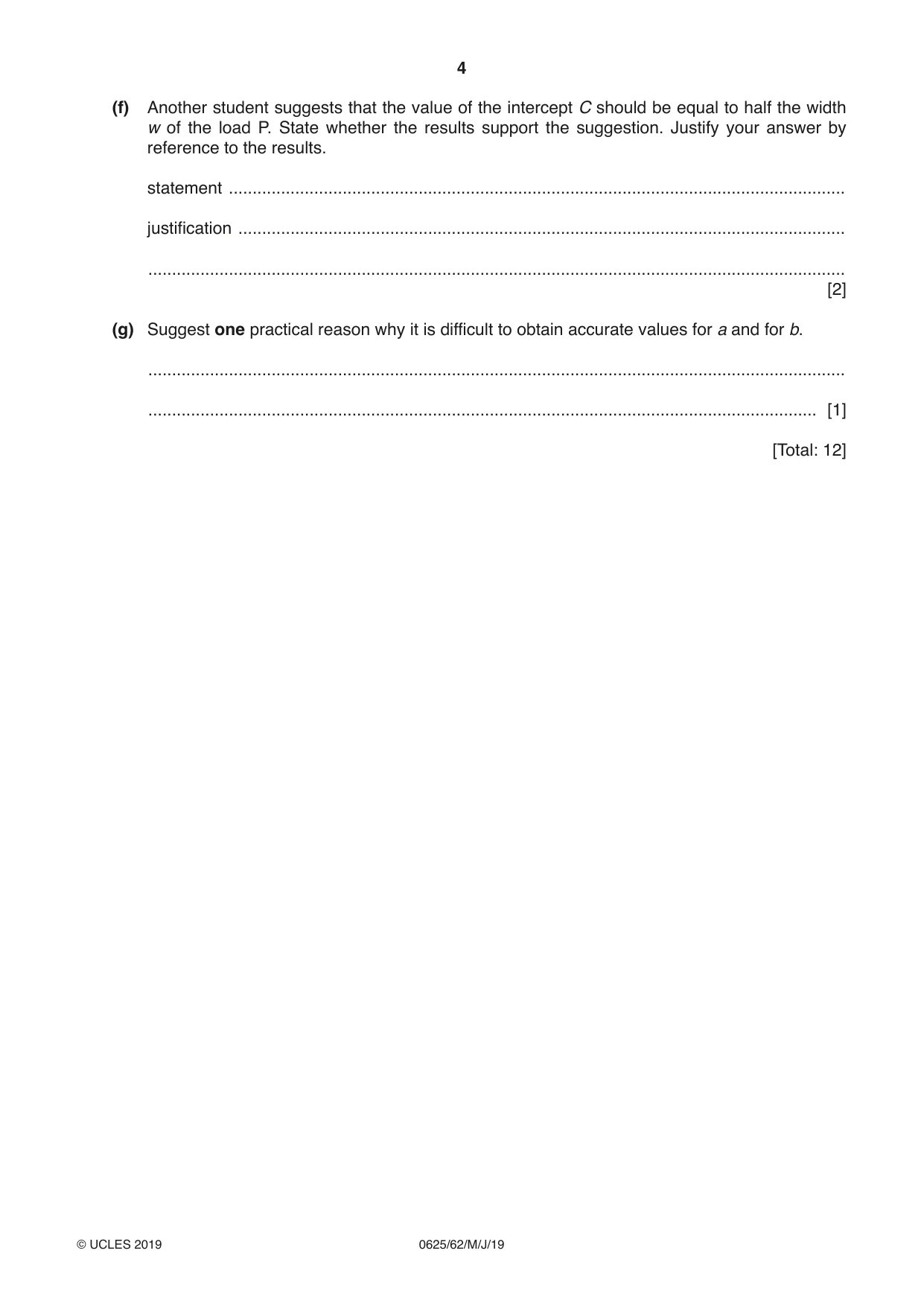

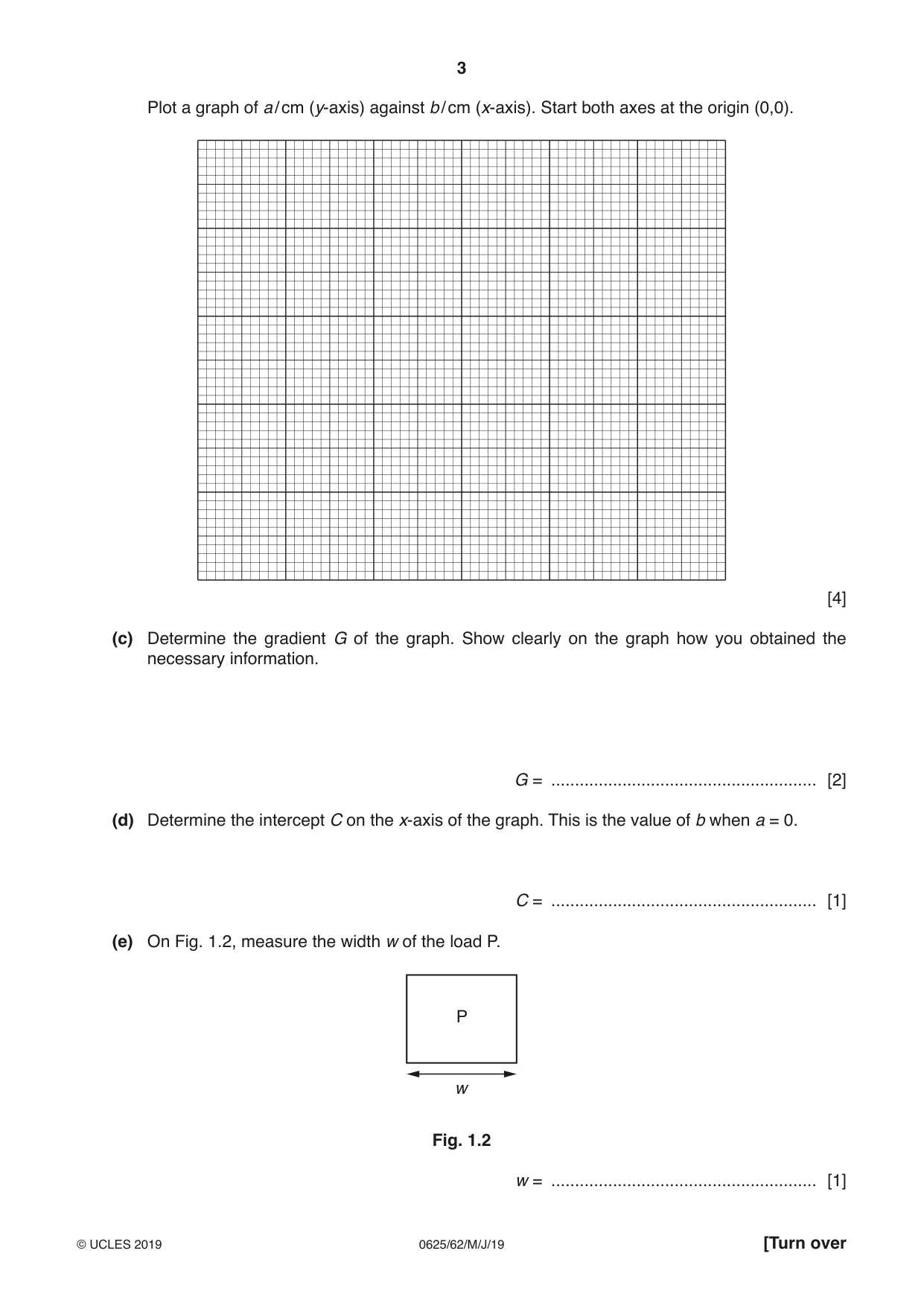

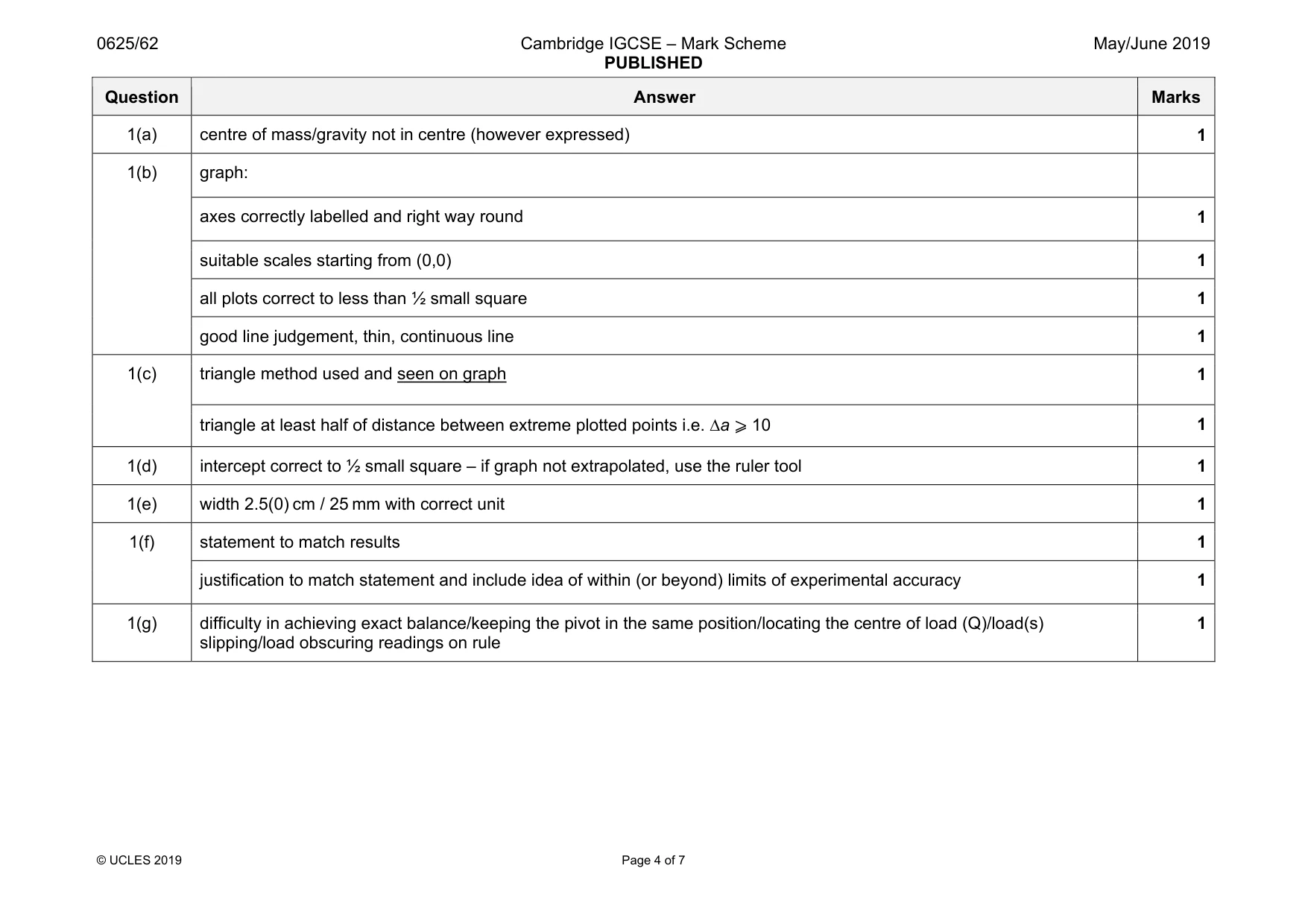

Mark scheme: 1(a) centre of mass/gravity not in centre (however expressed) 1 1(b) graph: axes correctly labelled and right way round 1 suitable scales starting from (0,0) 1 all plots correct to less than ½ small square 1 good line judgement, thin, continuous line 1 1(c) triangle method used and seen on graph 1 triangle at least half of distance between extreme plotted points i.e. ∆a ⩾ 10 1 1(d) intercept correct to ½ small square – if graph not extrapolated, use the ruler tool 1 1(e) width 2.5(0) cm / 25 mm with correct unit 1 1(f) statement to match results 1 justification to match statement and include idea of within (or beyond) limits of experimental accuracy 1 1(g) difficulty in achieving exact balance/keeping the pivot in the same position/locating the centre of load (Q)/load(s) slipping/load obscuring readings on rule 1

More questions on Forces

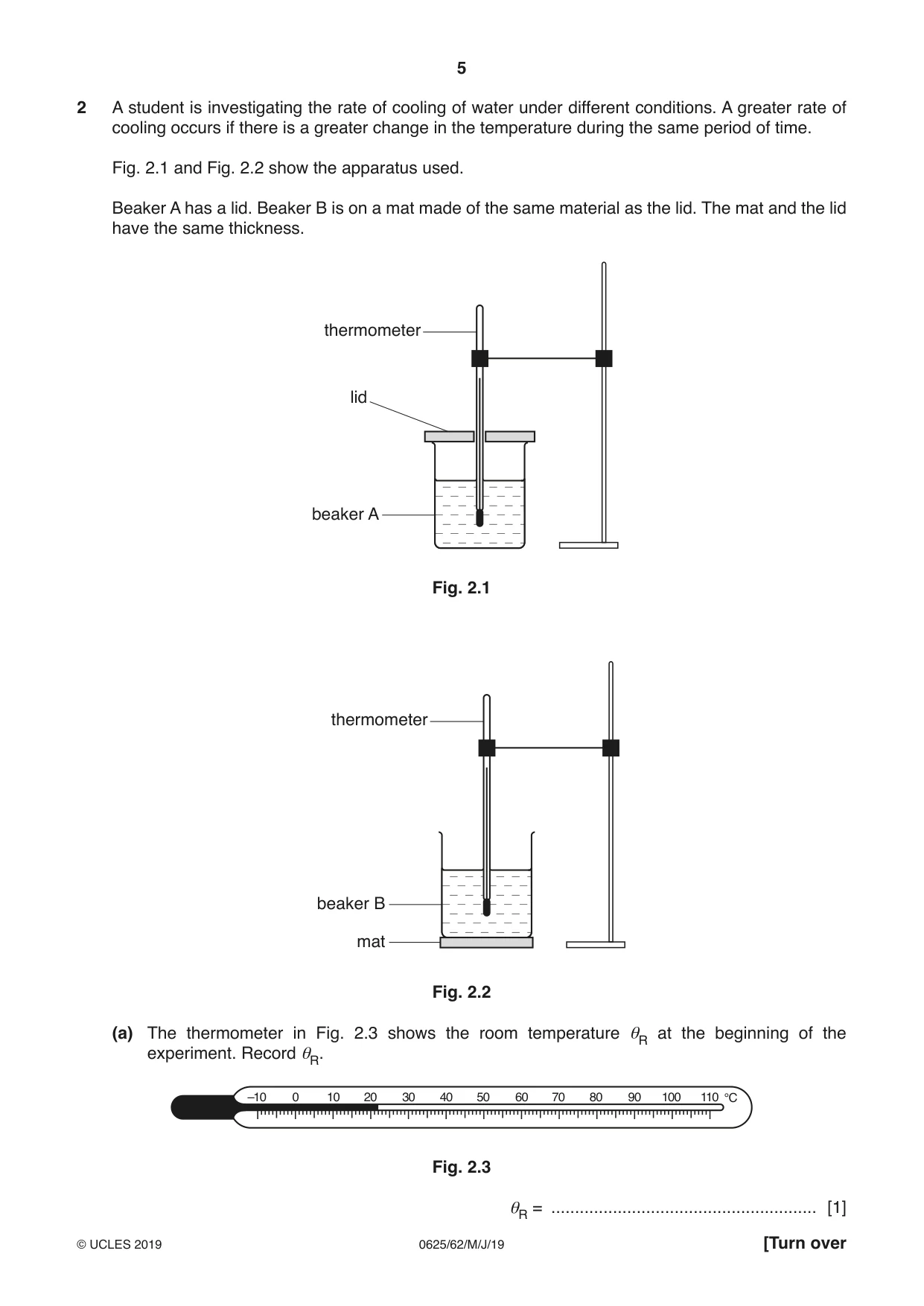

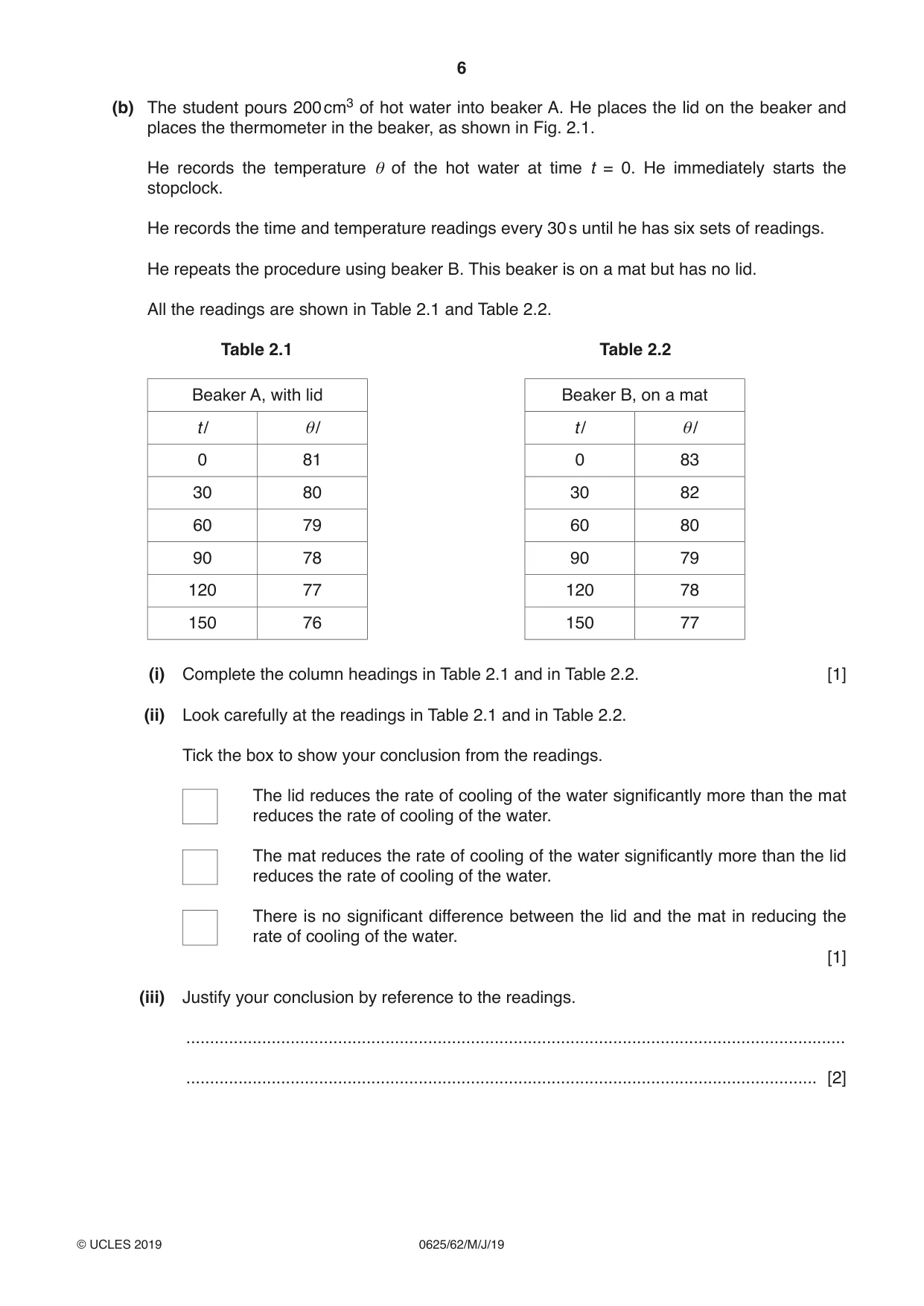

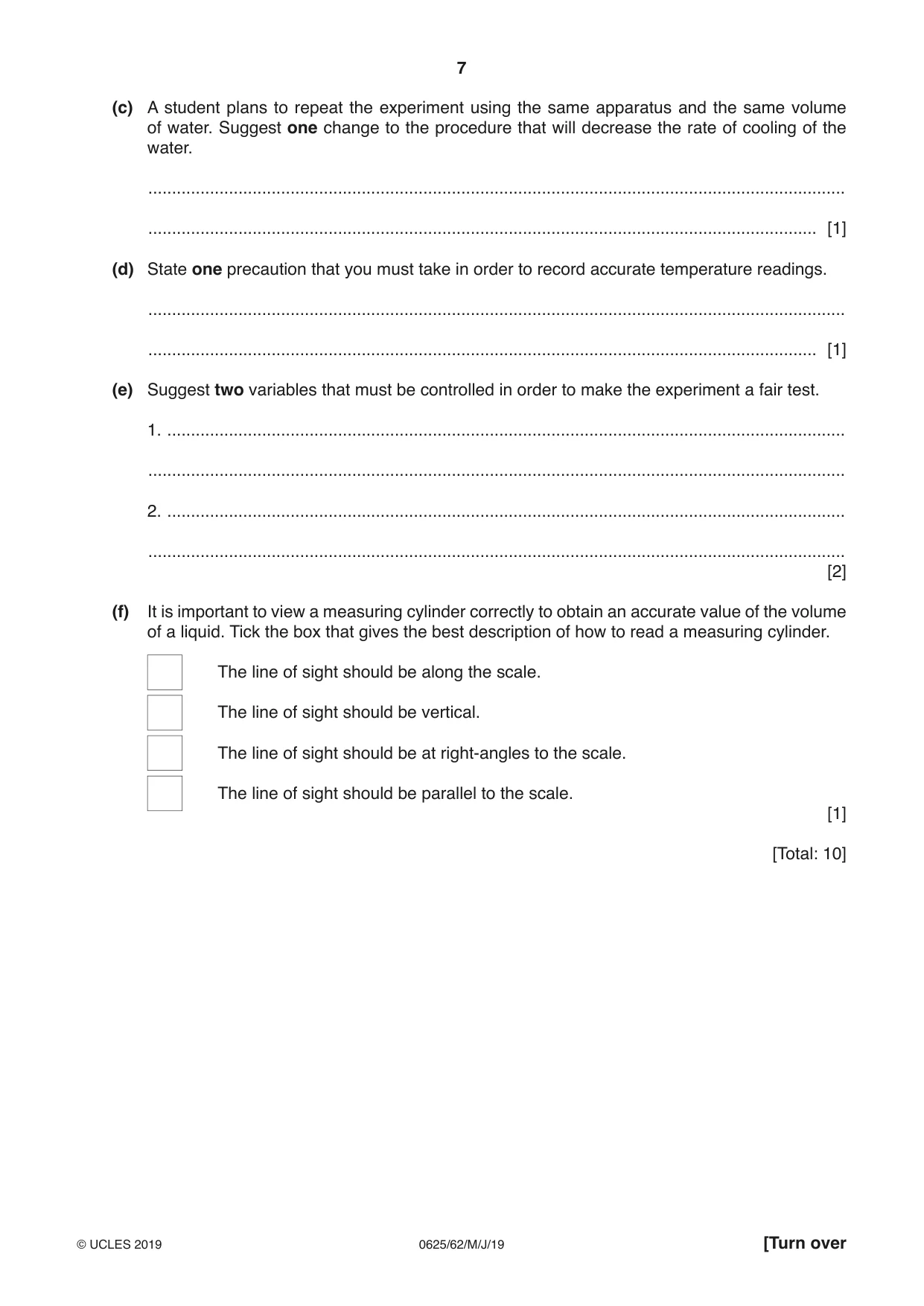

2 A student is investigating the rate of cooling of water under different conditions. A greater rate of cooling occurs if there is a greater change in the temperature during the same period of time. Fig. 2.1 and Fig. 2.2 show the apparatus used. Beaker A has a lid. Beaker B is on a mat made of the same material as the lid. The mat and the lid have the same thickness. thermometer lid beaker A Fig. 2.1 thermometer beaker B mat Fig. 2.2 (a) The thermometer in Fig. 2.3 shows the room temperature θR at the beginning of the experiment. Record θR. –10 0 10 20 30 40 50 60 70 80 90 100 110 °C Fig. 2.3 θR = ........................................................ [1] (b) The student pours 200 cm3 of hot water into beaker A. He places the lid on the beaker and places the thermometer in the beaker, as shown in Fig. 2.1. He records the temperature θ of the hot water at time t = 0. He immediately starts the stopclock. He records the time and temperature readings every 30 s until he has six sets of readings. He repeats the procedure using beaker B. This beaker is on a mat but has no lid. All the readings are shown in Table 2.1 and Table 2.2. Table 2.1 Table 2.2 Beaker A, with lid Beaker B, on a mat t / θ/ t / θ/ 0 81 0 83 30 80 30 82 60 79 60 80 90 78 90 79 120 77 120 78 150 76 150 77 (i) Complete the column headings in Table 2.1 and in Table 2.2. [1] (ii) Look carefully at the readings in Table 2.1 and in Table 2.2. Tick the box to show your conclusion from the readings. The lid reduces the rate of cooling of the water significantly more than the mat reduces the rate of cooling of the water. The mat reduces the rate of cooling of the water significantly more than the lid reduces the rate of cooling of the water. There is no significant difference between the lid and the mat in reducing the rate of cooling of the water. [1] (iii) Justify your conclusion by reference to the readings. ........................................................................................................................................... ..................................................................................................................................... [2] (c) A student plans to repeat the experiment using the same apparatus and the same volume of water. Suggest one change to the procedure that will decrease the rate of cooling of the water. ................................................................................................................................................... ............................................................................................................................................. [1] (d) State one precaution that you must take in order to record accurate temperature readings. ................................................................................................................................................... ............................................................................................................................................. [1] (e) Suggest two variables that must be controlled in order to make the experiment a fair test. 1. ............................................................................................................................................... ................................................................................................................................................... 2. ............................................................................................................................................... ................................................................................................................................................... [2] (f) It is important to view a measuring cylinder correctly to obtain an accurate value of the volume of a liquid. Tick the box that gives the best description of how to read a measuring cylinder. The line of sight should be along the scale. The line of sight should be vertical. The line of sight should be at right-angles to the scale. The line of sight should be parallel to the scale. [1] [Total: 10]

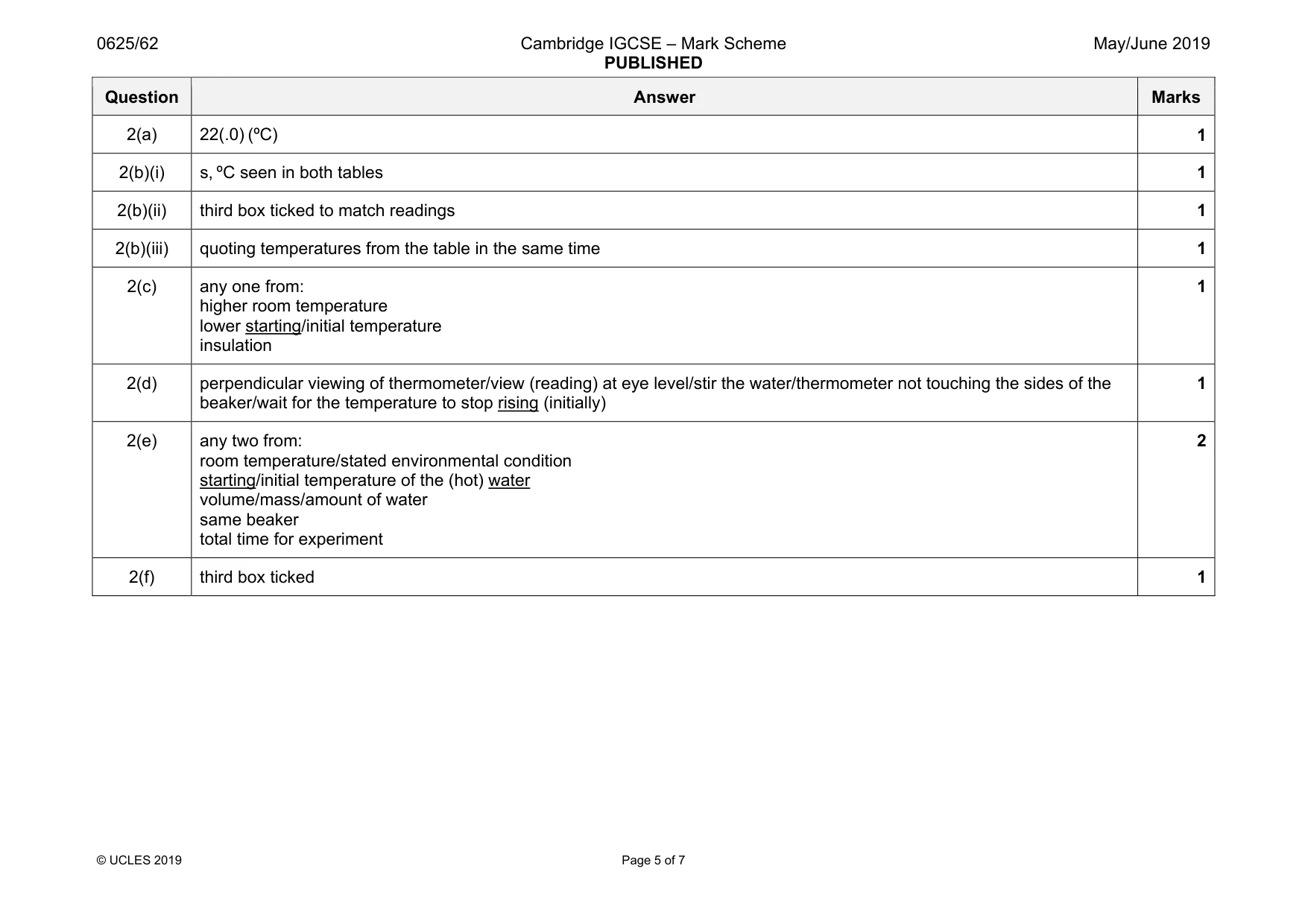

Mark scheme: 2(a) 22(.0) (ºC) 1 2(b)(i) s, ºC seen in both tables 1 2(b)(ii) third box ticked to match readings 1 2(b)(iii) quoting temperatures from the table in the same time 1 2(c) any one from: higher room temperature lower starting/initial temperature insulation 1 2(d) perpendicular viewing of thermometer/view (reading) at eye level/stir the water/thermometer not touching the sides of the beaker/wait for the temperature to stop rising (initially) 1 2(e) any two from: room temperature/stated environmental condition starting/initial temperature of the (hot) water volume/mass/amount of water same beaker total time for experiment 2 2(f) third box ticked 1

More questions on Transfer of thermal energy

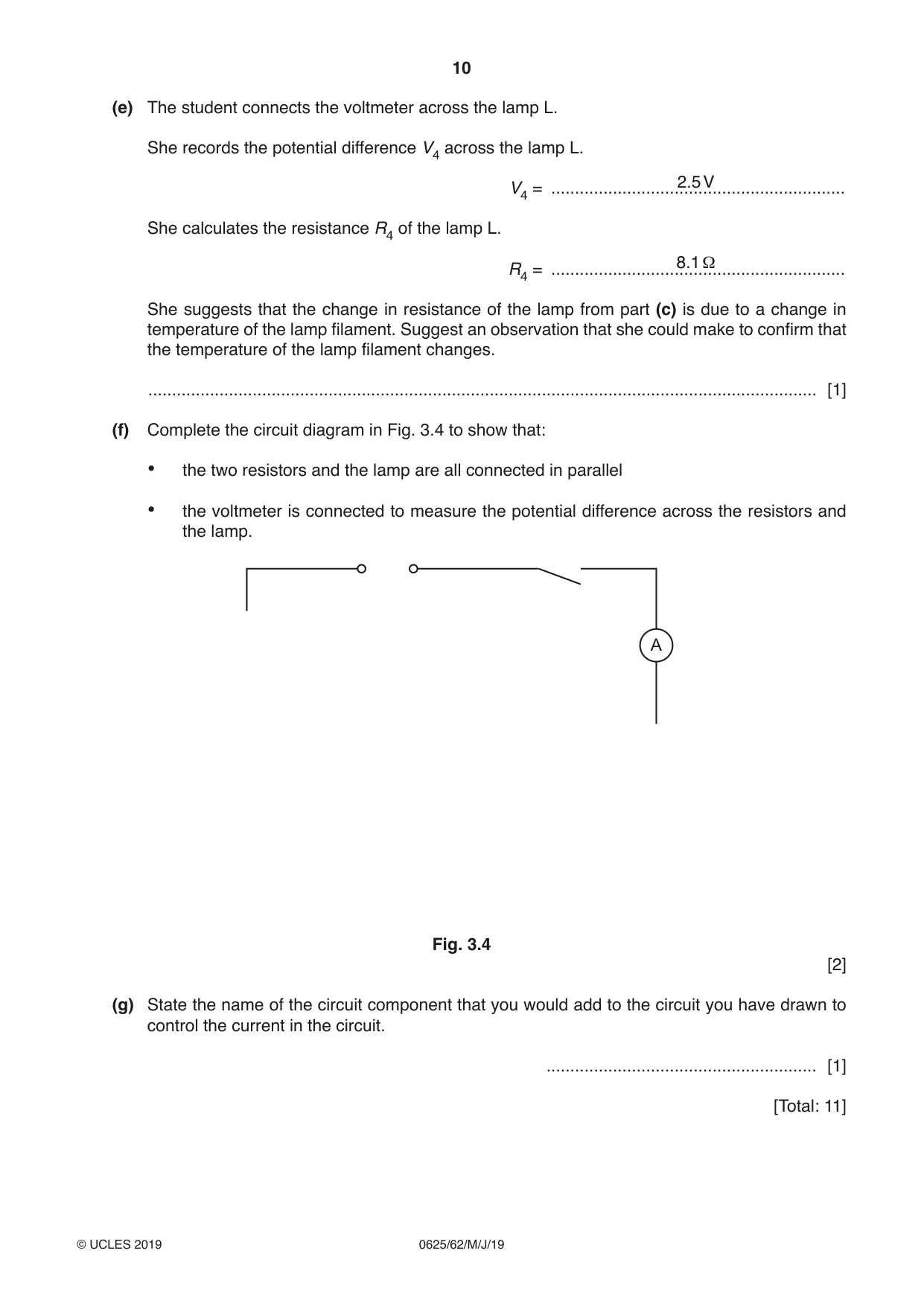

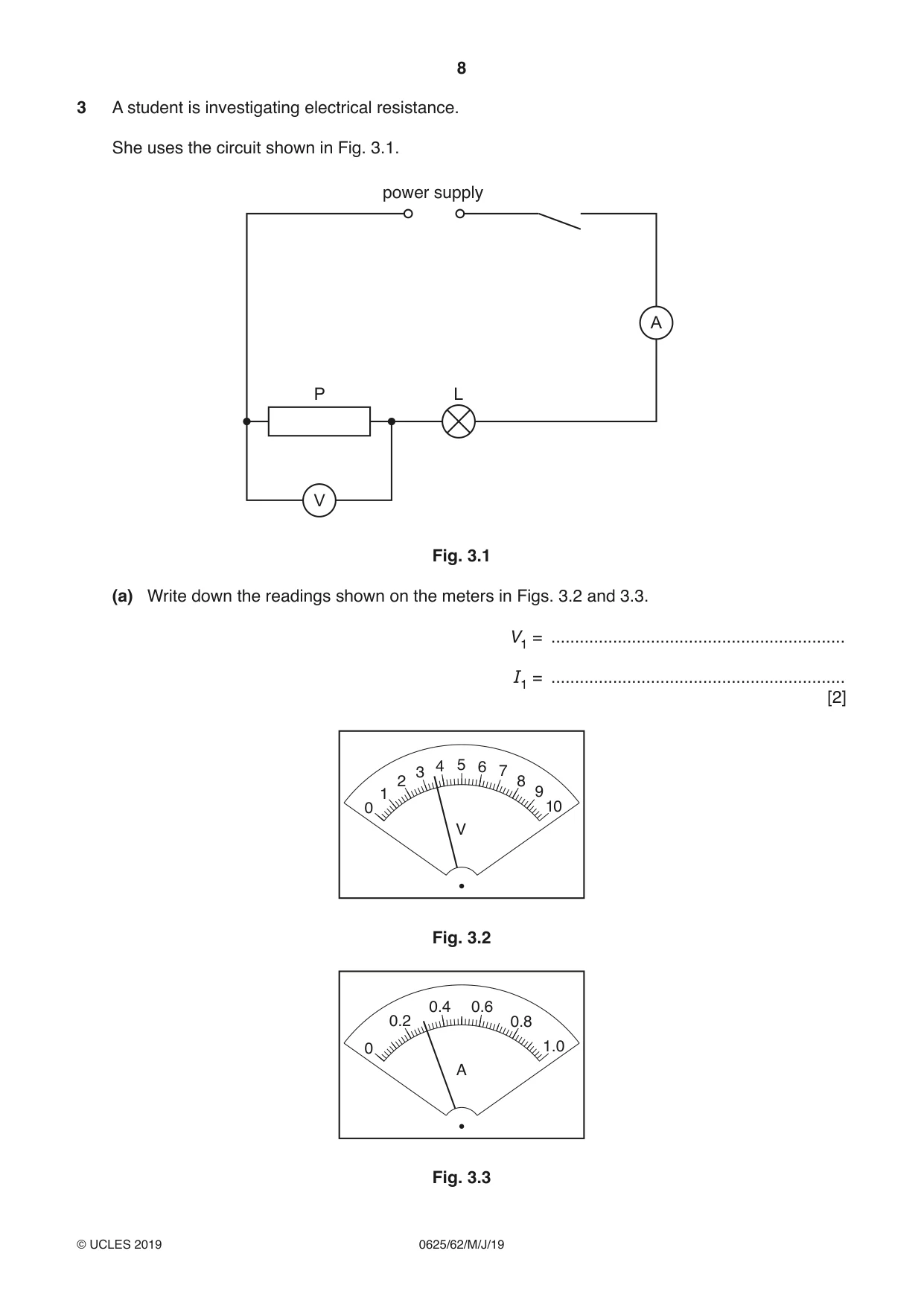

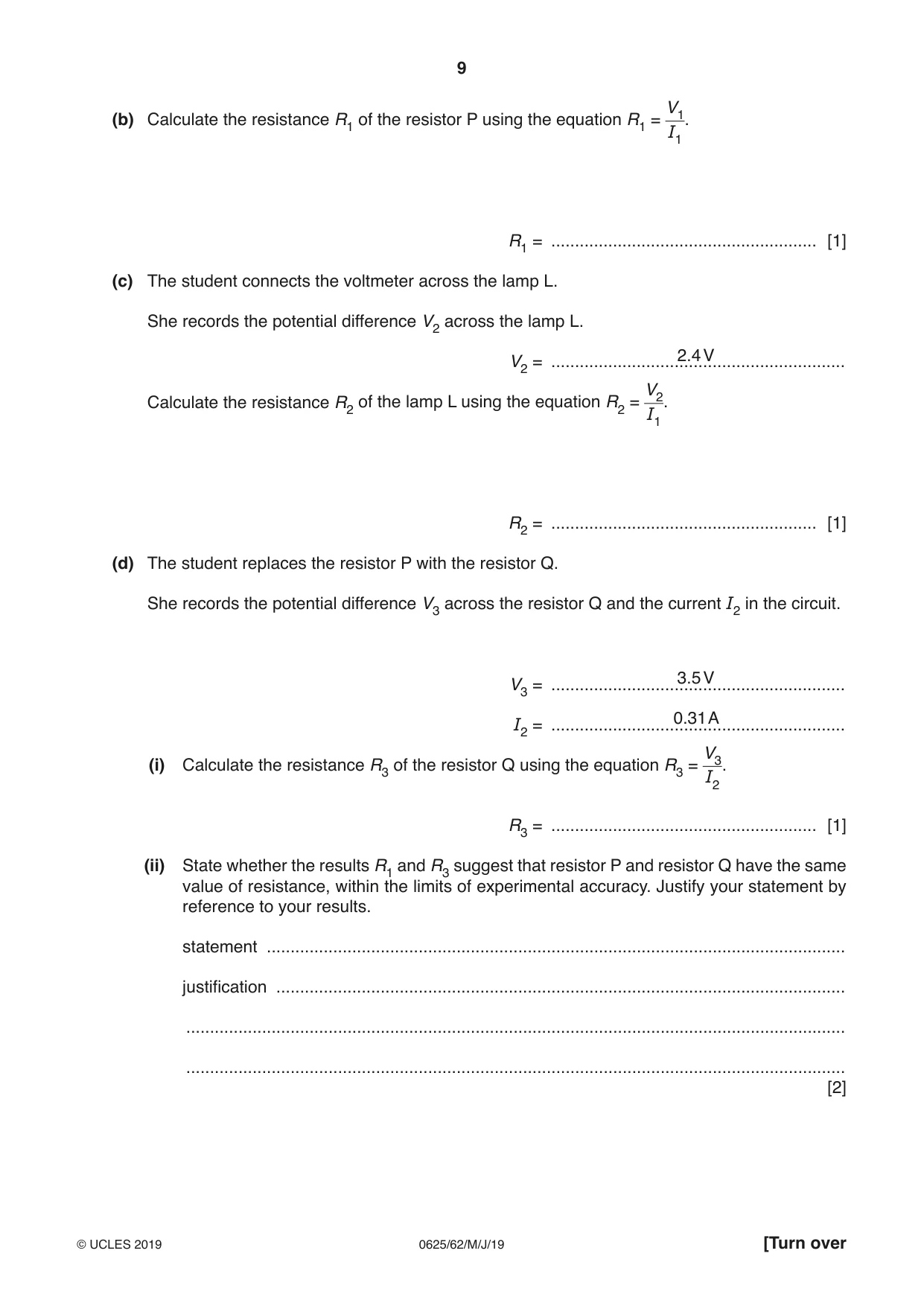

3 A student is investigating electrical resistance. She uses the circuit shown in Fig. 3.1. power supply A P L V Fig. 3.1 (a) Write down the readings shown on the meters in Figs. 3.2 and 3.3. V1 = .............................................................. I1 = .............................................................. [2] 4 5 6 7 3 2 8 1 9 0 10 V Fig. 3.2 0.4 0.6 0.2 0.8 0 1.0 A Fig. 3.3 V1(b) Calculate the resistance R1 of the resistor P using the equation R1 = . I1 R1 = ........................................................ [1] (c) The student connects the voltmeter across the lamp L. She records the potential difference V2 across the lamp L. 2.4 V V2 = .............................................................. V2 Calculate the resistance R2 of the lamp L using the equation R2 = . I1 R2 = ........................................................ [1] (d) The student replaces the resistor P with the resistor Q. She records the potential difference V3 across the resistor Q and the current I2 in the circuit. 3.5 V V3 = .............................................................. 0.31 A I2 = .............................................................. V3 (i) Calculate the resistance R3 of the resistor Q using the equation R3 = . I2 R3 = ........................................................ [1] (ii) State whether the results R1 and R3 suggest that resistor P and resistor Q have the same value of resistance, within the limits of experimental accuracy. Justify your statement by reference to your results. statement .......................................................................................................................... justification ........................................................................................................................ ........................................................................................................................................... ........................................................................................................................................... [2] (e) The student connects the voltmeter across the lamp L. She records the potential difference V4 across the lamp L. 2.5 V V4 = .............................................................. She calculates the resistance R4 of the lamp L. 8.1 Ω R4 = .............................................................. She suggests that the change in resistance of the lamp from part (c) is due to a change in temperature of the lamp filament. Suggest an observation that she could make to confirm that the temperature of the lamp filament changes. ............................................................................................................................................. [1] (f) Complete the circuit diagram in Fig. 3.4 to show that: • the two resistors and the lamp are all connected in parallel • the voltmeter is connected to measure the potential difference across the resistors and the lamp. A Fig. 3.4 [2] (g) State the name of the circuit component that you would add to the circuit you have drawn to control the current in the circuit. ......................................................... [1] [Total: 11]

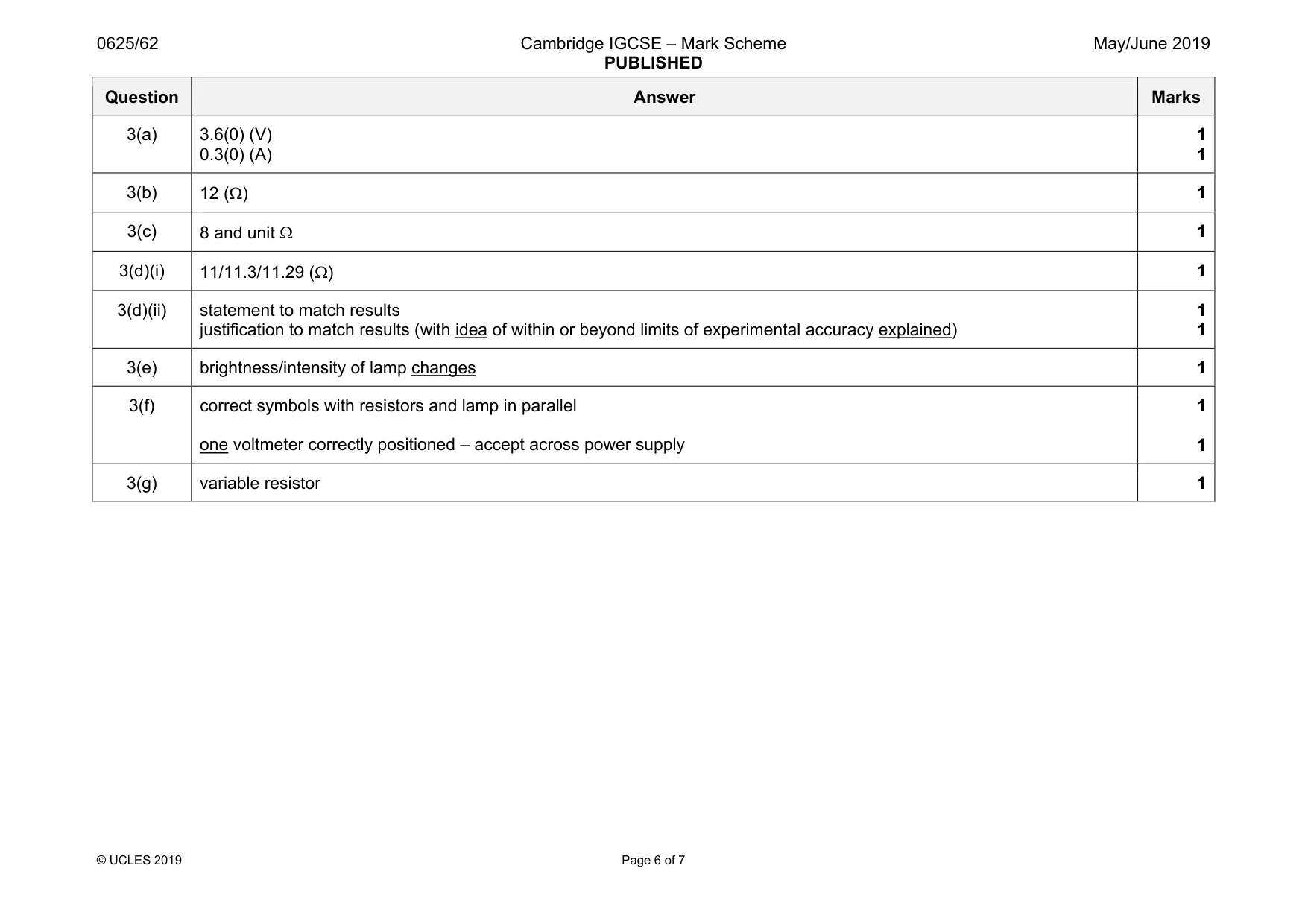

Mark scheme: 3(a) 3.6(0) (V) 0.3(0) (A) 1 1 3(b) 12 (Ω) 1 3(c) 8 and unit Ω 1 3(d)(i) 11/11.3/11.29 (Ω) 1 3(d)(ii) statement to match results justification to match results (with idea of within or beyond limits of experimental accuracy explained) 1 1 3(e) brightness/intensity of lamp changes 1 3(f) correct symbols with resistors and lamp in parallel one voltmeter correctly positioned – accept across power supply 1 1 3(g) variable resistor 1

More questions on Electric circuits

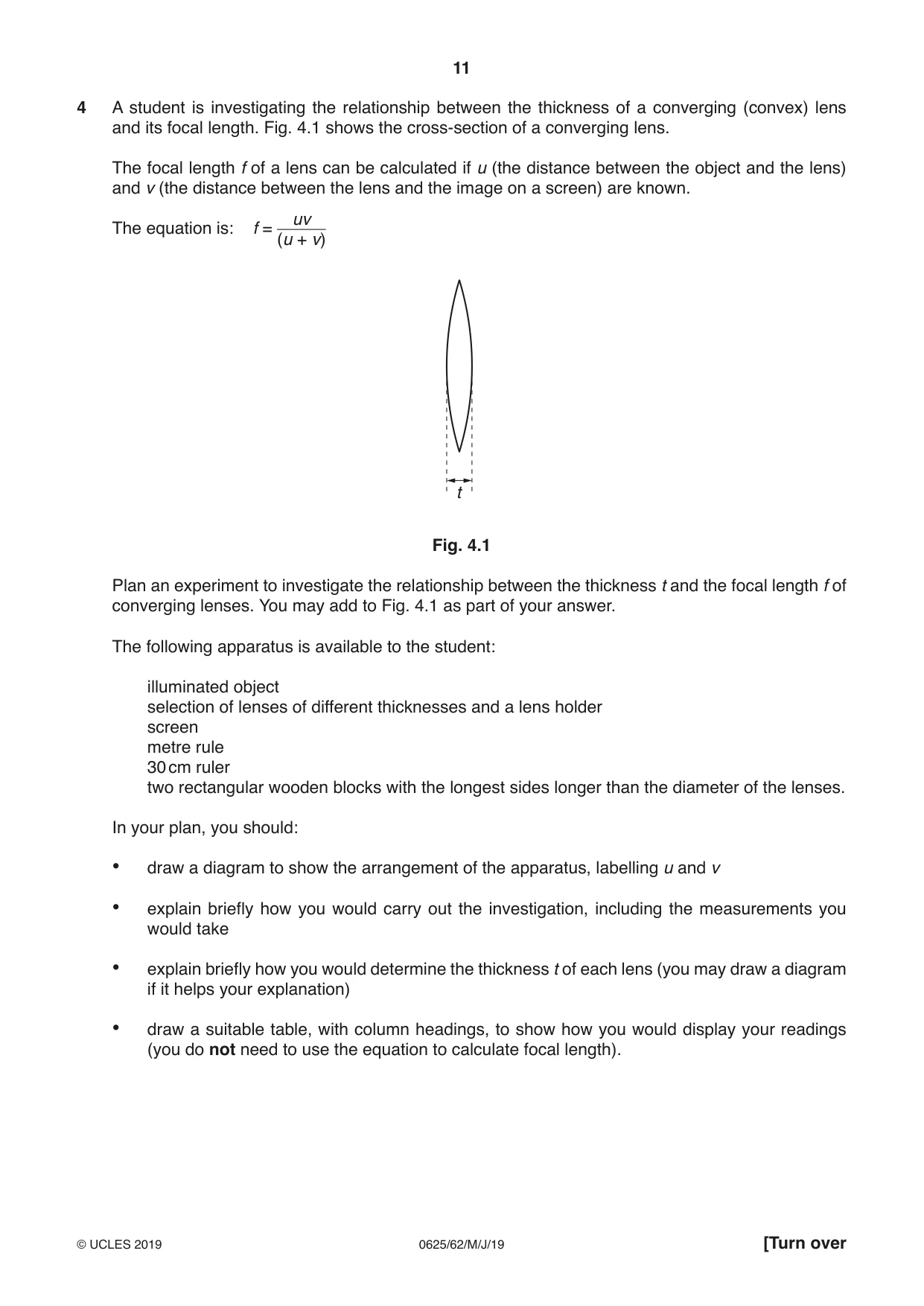

4 A student is investigating the relationship between the thickness of a converging (convex) lens and its focal length. Fig. 4.1 shows the cross-section of a converging lens. The focal length f of a lens can be calculated if u (the distance between the object and the lens) and v (the distance between the lens and the image on a screen) are known. uv The equation is: f = (u + v) t Fig. 4.1 Plan an experiment to investigate the relationship between the thickness t and the focal length f of converging lenses. You may add to Fig. 4.1 as part of your answer. The following apparatus is available to the student: illuminated object selection of lenses of different thicknesses and a lens holder screen metre rule 30 cm ruler two rectangular wooden blocks with the longest sides longer than the diameter of the lenses. In your plan, you should: • draw a diagram to show the arrangement of the apparatus, labelling u and v • explain briefly how you would carry out the investigation, including the measurements you would take • explain briefly how you would determine the thickness t of each lens (you may draw a diagram if it helps your explanation) • draw a suitable table, with column headings, to show how you would display your readings (you do not need to use the equation to calculate focal length). .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [7] [Total: 7]

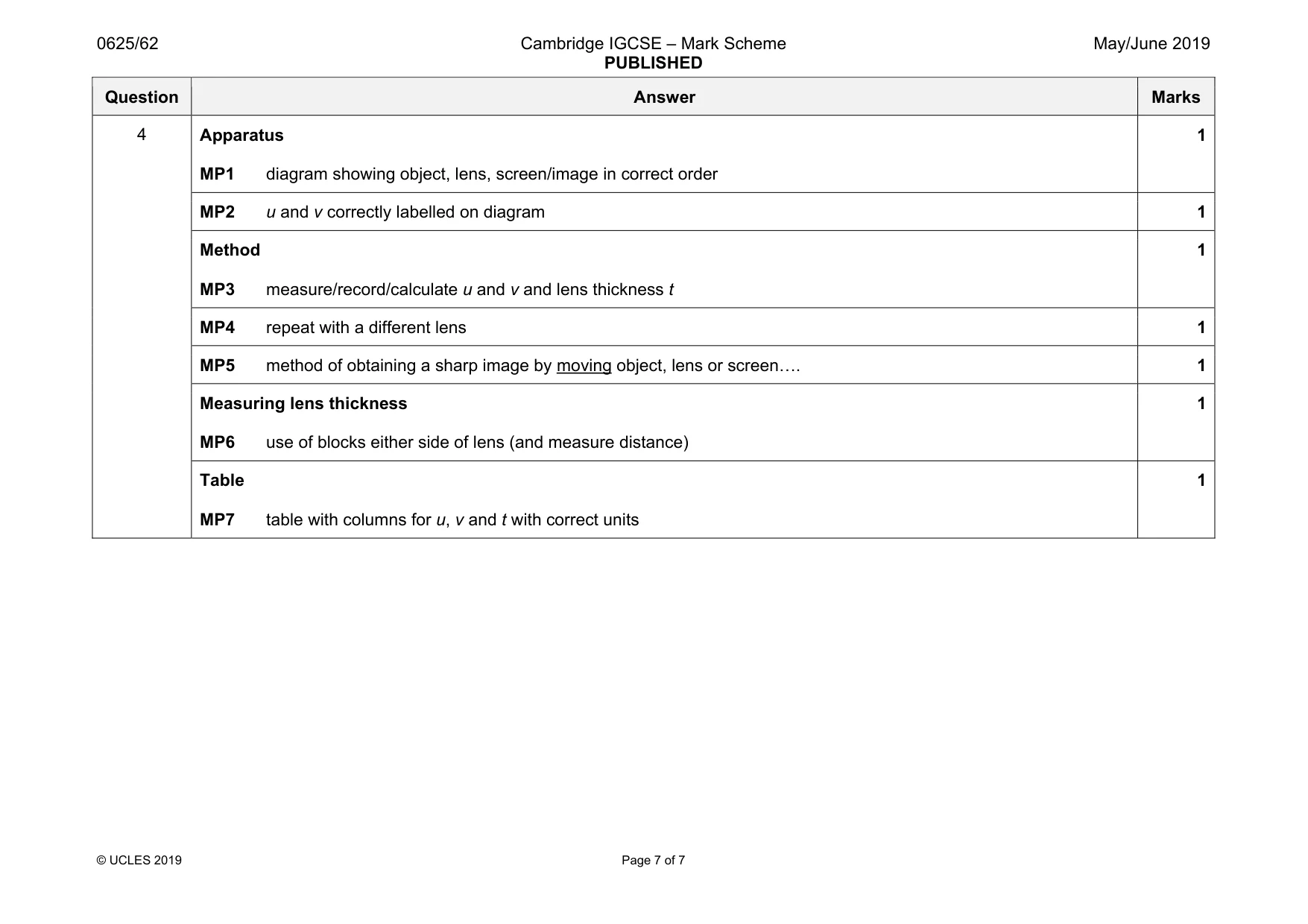

Mark scheme: 4 Apparatus MP1 diagram showing object, lens, screen/image in correct order 1 MP2 u and v correctly labelled on diagram 1 Method MP3 measure/record/calculate u and v and lens thickness t 1 MP4 repeat with a different lens 1 MP5 method of obtaining a sharp image by moving object, lens or screen«. 1 Measuring lens thickness MP6 use of blocks either side of lens (and measure distance) 1 Table MP7 table with columns for u, v and t with correct units 1

More questions on Light
