Cambridge IGCSE Mathematics - International 0607 — 2021 Oct/Nov Paper 1 · Variant 1

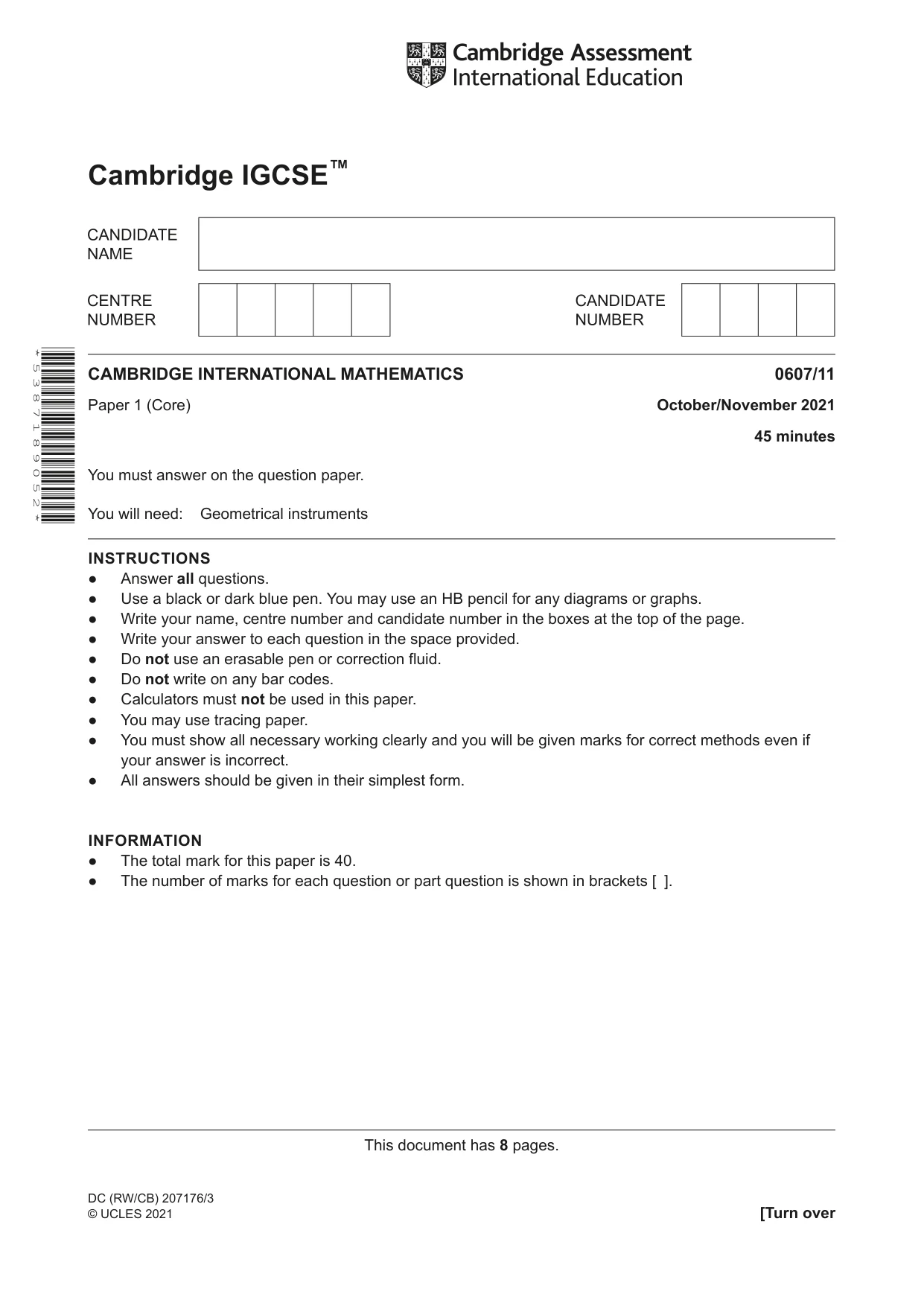

This document has 8 pages. DC (RW/CB) 207176/3 © UCLES 2021 [Turn over * 5 3 8 7 1 8 9 0 5 2 * CAMBRIDGE INTERNATIONAL MATHEMATICS 0607/11 Paper 1 (Core) October/November 2021 45 minutes You must answer on the question paper. You will need: Geometrical instruments INSTRUCTIONS ● Answer all questions. ● Use a black or dark blue pen. You may use an HB pencil for any diagrams or graphs. ● Write your name, centre number and candidate number in the boxes at the top of the page. ● Write your answer to each question in the space provided. ● Do not use an erasable pen or correction fluid. ● Do not write on any bar codes. ● Calculators must not be used in this paper. ● You may use tracing paper. ● You must show all necessary working clearly and you will be given marks for correct methods even if your answer is incorrect. ● All answers should be given in their simplest form. INFORMATION ● The total mark for this paper is 40. ● The number of marks for each question or part question is shown in brackets [ ]. Cambridge IGCSE™

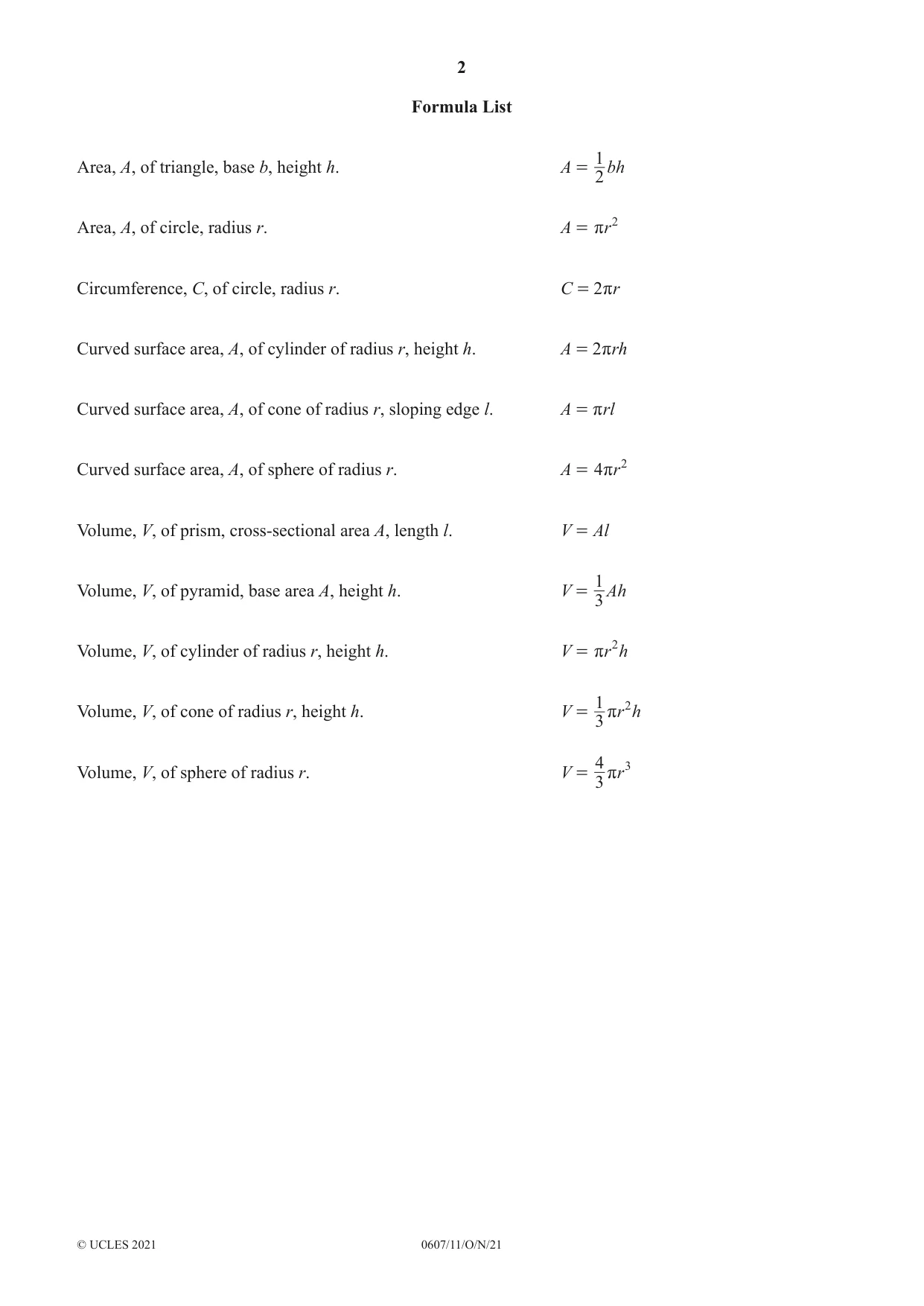

2 0607/11/O/N/21 © UCLES 2021 Formula List Area, A, of triangle, base b, height h. A = bh 2 1 Area, A, of circle, radius r. A = r2 r Circumference, C, of circle, radius r. C = 2rr Curved surface area, A, of cylinder of radius r, height h. A = 2rrh Curved surface area, A, of cone of radius r, sloping edge l. A = rrl Curved surface area, A, of sphere of radius r. A = r 4 2 r Volume, V, of prism, cross-sectional area A, length l. V = Al Volume, V, of pyramid, base area A, height h. V = Ah 3 1 Volume, V, of cylinder of radius r, height h. V = r h 2 r Volume, V, of cone of radius r, height h. V = r h 3 1 2 r Volume, V, of sphere of radius r. V = r 3 4 3 r

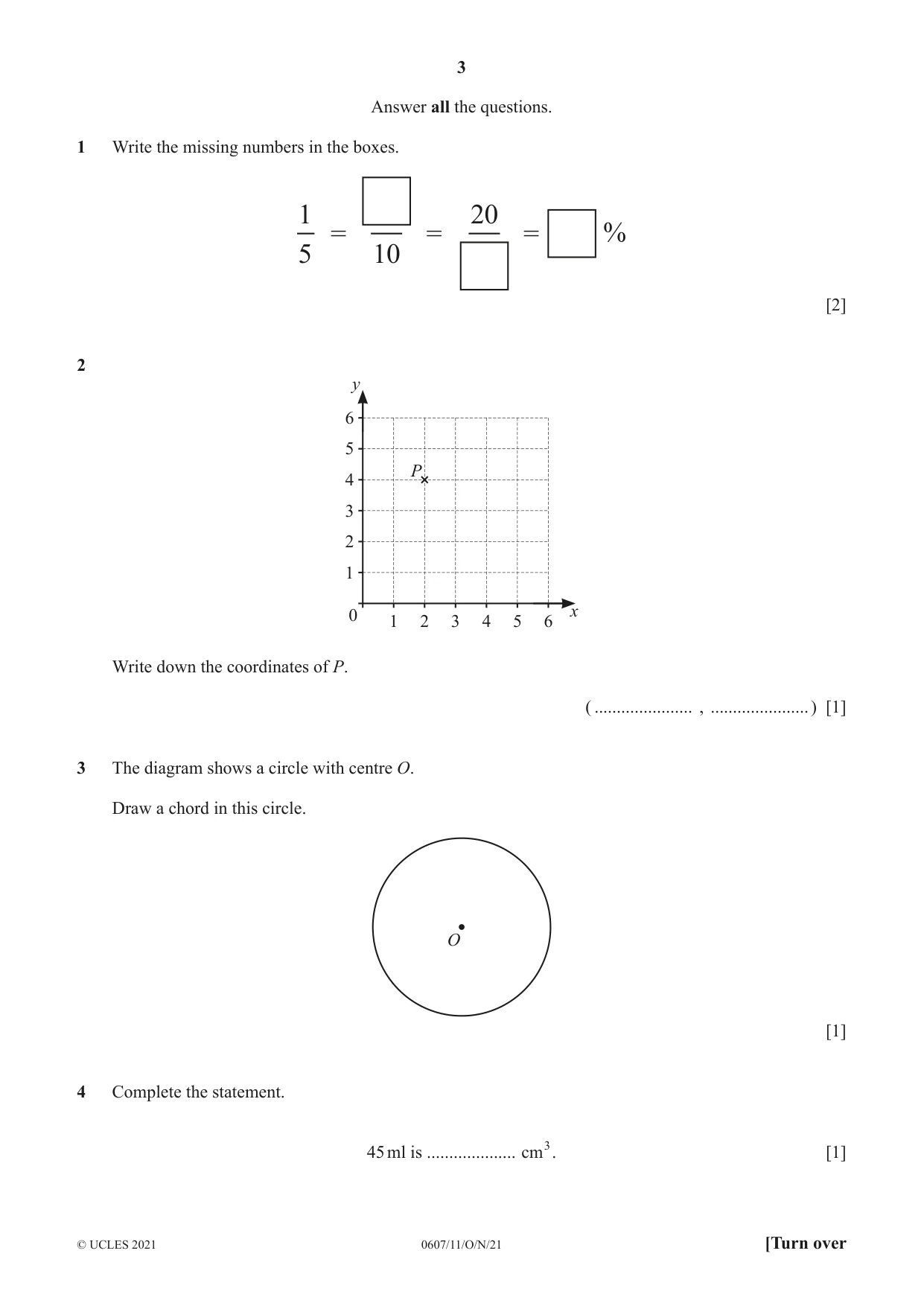

3 0607/11/O/N/21 © UCLES 2021 [Turn over Answer all the questions. 1 Write the missing numbers in the boxes. 1 20 5 = 10 = % = [2] 2 0 1 2 3 4 5 6 x P 3 4 5 2 6 1 y Write down the coordinates of P. ( … , … ) [1] 3 The diagram shows a circle with centre O. Draw a chord in this circle. O [1] 4 Complete the statement. 45 ml is … cm3. [1]

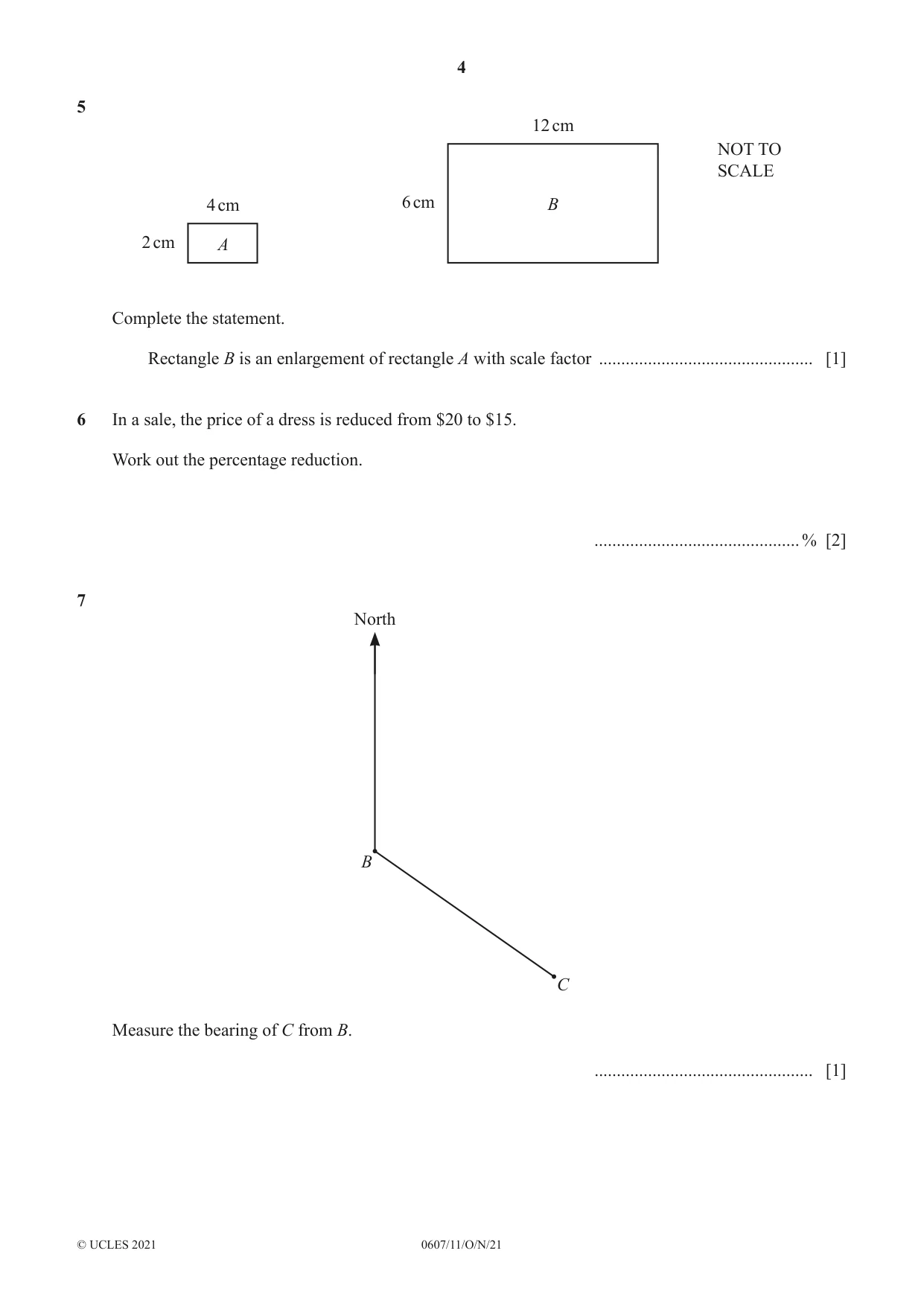

4 0607/11/O/N/21 © UCLES 2021 5 A B 4 cm 12 cm NOT TO SCALE 2 cm 6 cm Complete the statement. Rectangle B is an enlargement of rectangle A with scale factor … [1] 6 In a sale, the price of a dress is reduced from $20 to $15. Work out the percentage reduction. …% [2] 7 North B C Measure the bearing of C from B. … [1]

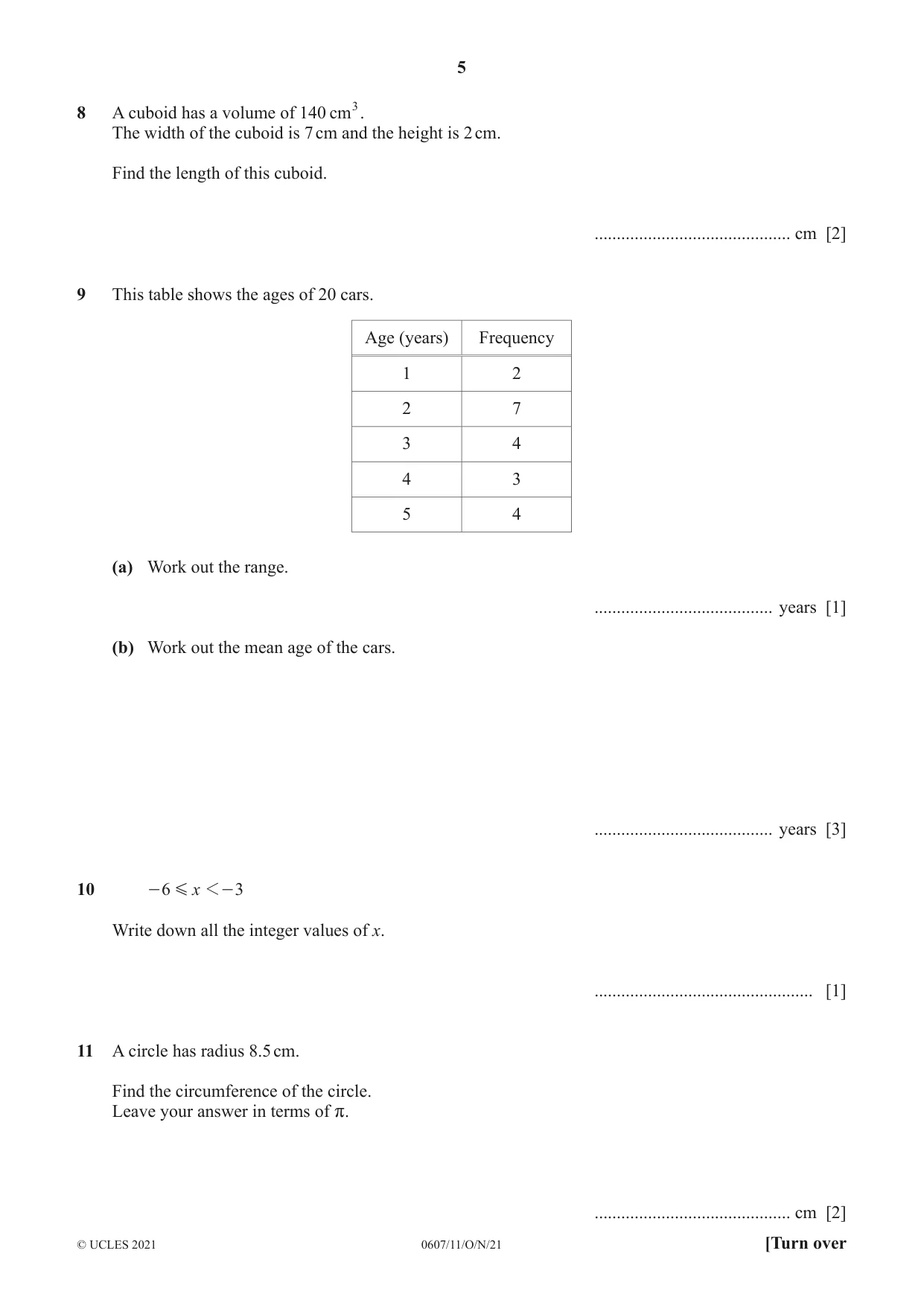

5 0607/11/O/N/21 © UCLES 2021 [Turn over 8 A cuboid has a volume of 140 cm3. The width of the cuboid is 7 cm and the height is 2 cm. Find the length of this cuboid. … cm [2] 9 This table shows the ages of 20 cars. Age (years) Frequency 1 2 2 7 3 4 4 3 5 4 (a) Work out the range. … years [1] (b) Work out the mean age of the cars. … years [3] 10 x 6 3 1 G - - Write down all the integer values of x. … [1] 11 A circle has radius 8.5 cm. Find the circumference of the circle. Leave your answer in terms of r. … cm [2]

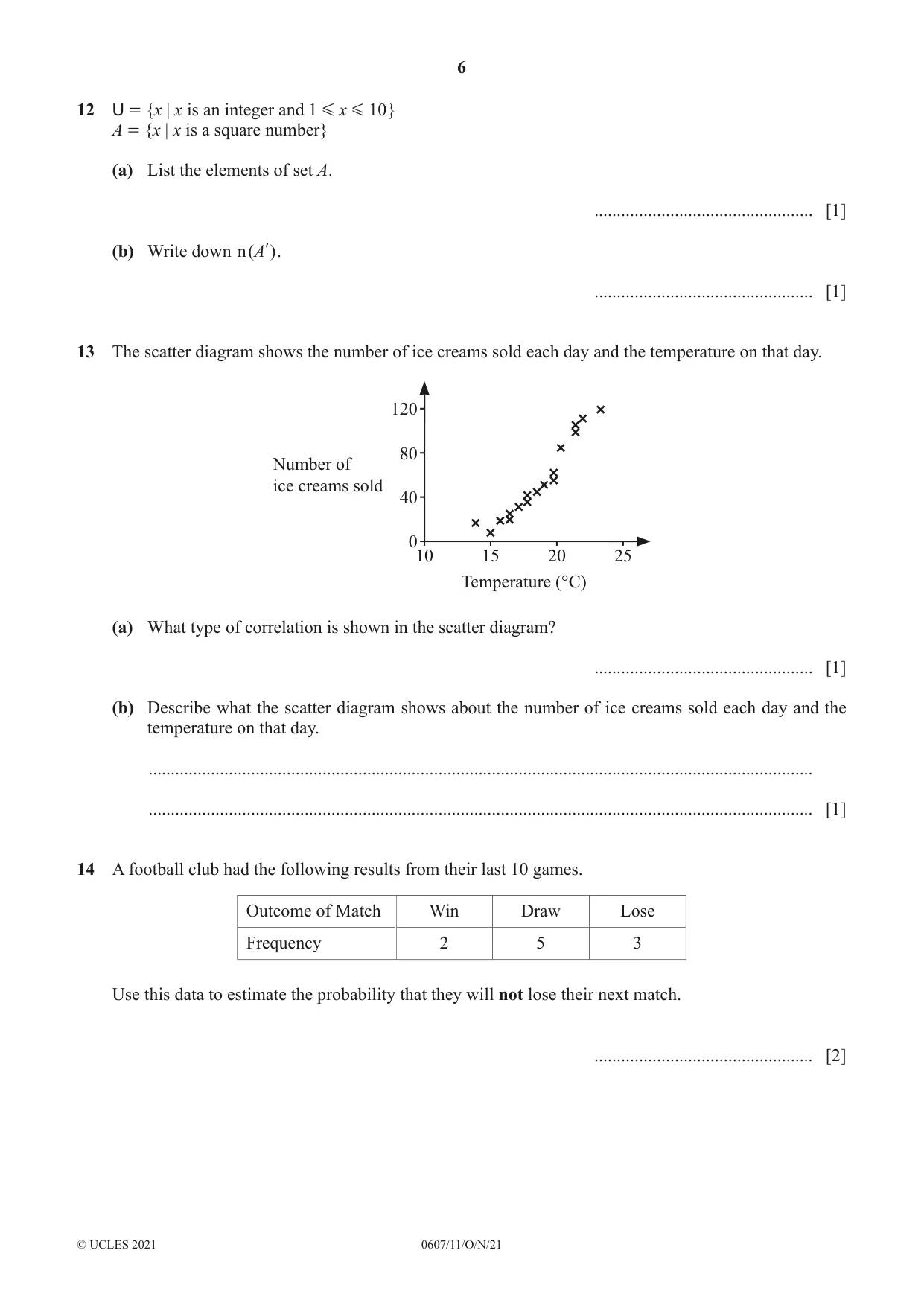

6 0607/11/O/N/21 © UCLES 2021 12 U = {x | x is an integer and x 1 10 G G } A = {x | x is a square number} (a) List the elements of set A. … [1] (b) Write down ( ) n Al . … [1] 13 The scatter diagram shows the number of ice creams sold each day and the temperature on that day. Number of ice creams sold Temperature (°C) 10 0 40 80 120 15 20 25 (a) What type of correlation is shown in the scatter diagram? … [1] (b) Describe what the scatter diagram shows about the number of ice creams sold each day and the temperature on that day. … … [1] 14 A football club had the following results from their last 10 games. Outcome of Match Win Draw Lose Frequency 2 5 3 Use this data to estimate the probability that they will not lose their next match. … [2]

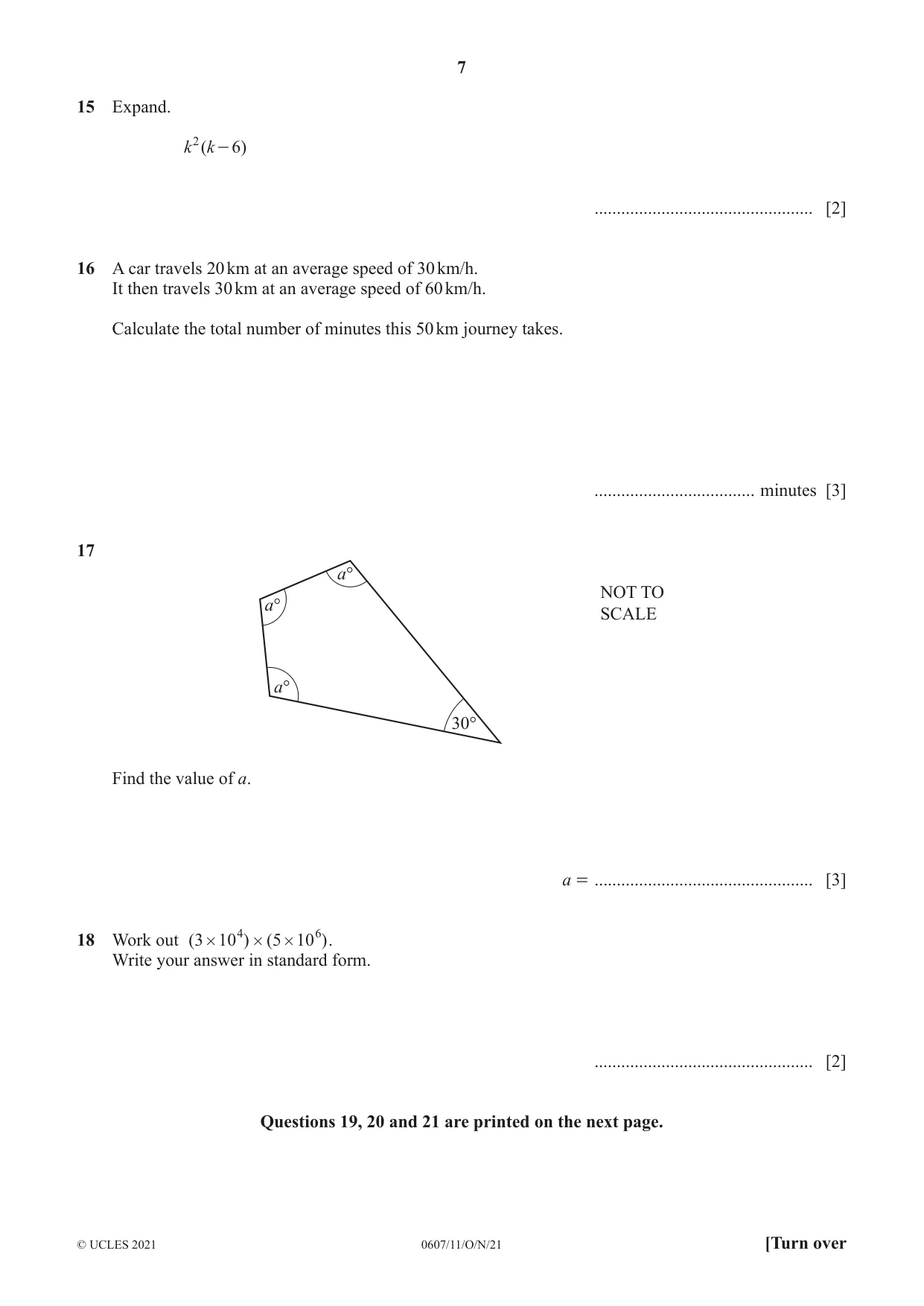

7 0607/11/O/N/21 © UCLES 2021 [Turn over 15 Expand. ( ) k k 6 2 - … [2] 16 A car travels 20 km at an average speed of 30 km/h. It then travels 30 km at an average speed of 60 km/h. Calculate the total number of minutes this 50 km journey takes. … minutes [3] 17 NOT TO SCALE 30° a° a° a° Find the value of a. a = … [3] 18 Work out ( ) ( ) 3 10 5 10 4 6 # # # . Write your answer in standard form. … [2] Questions 19, 20 and 21 are printed on the next page.

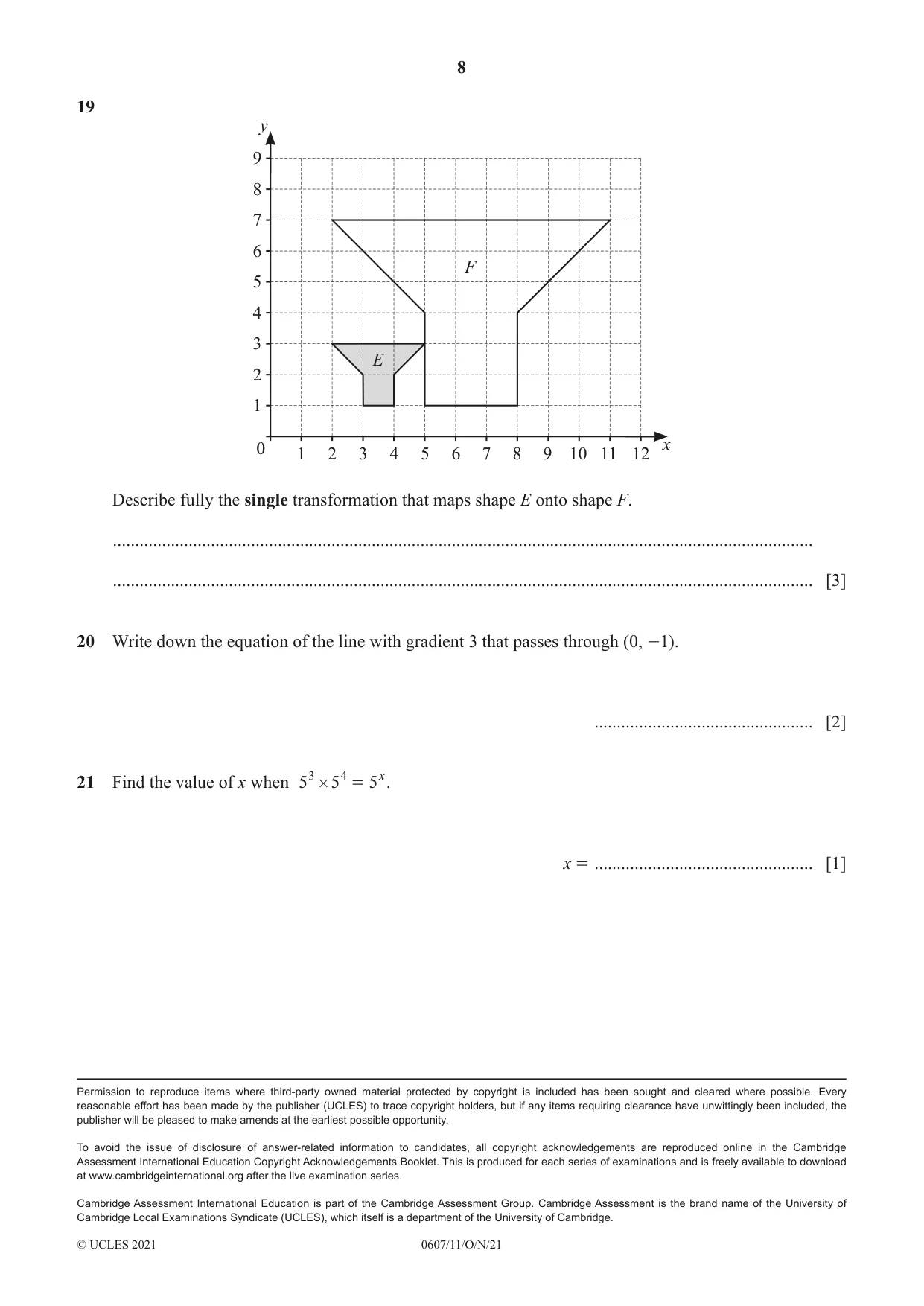

8 0607/11/O/N/21 © UCLES 2021 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of the Cambridge Assessment Group. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which itself is a department of the University of Cambridge. 19 0 1 2 3 4 5 6 x 7 8 9 E F 3 4 5 2 6 7 8 9 10 11 12 1 y Describe fully the single transformation that maps shape E onto shape F. … … [3] 20 Write down the equation of the line with gradient 3 that passes through (0, 1 - ). … [2] 21 Find the value of x when 5 5 5x 3 4 # = . x = … [1]

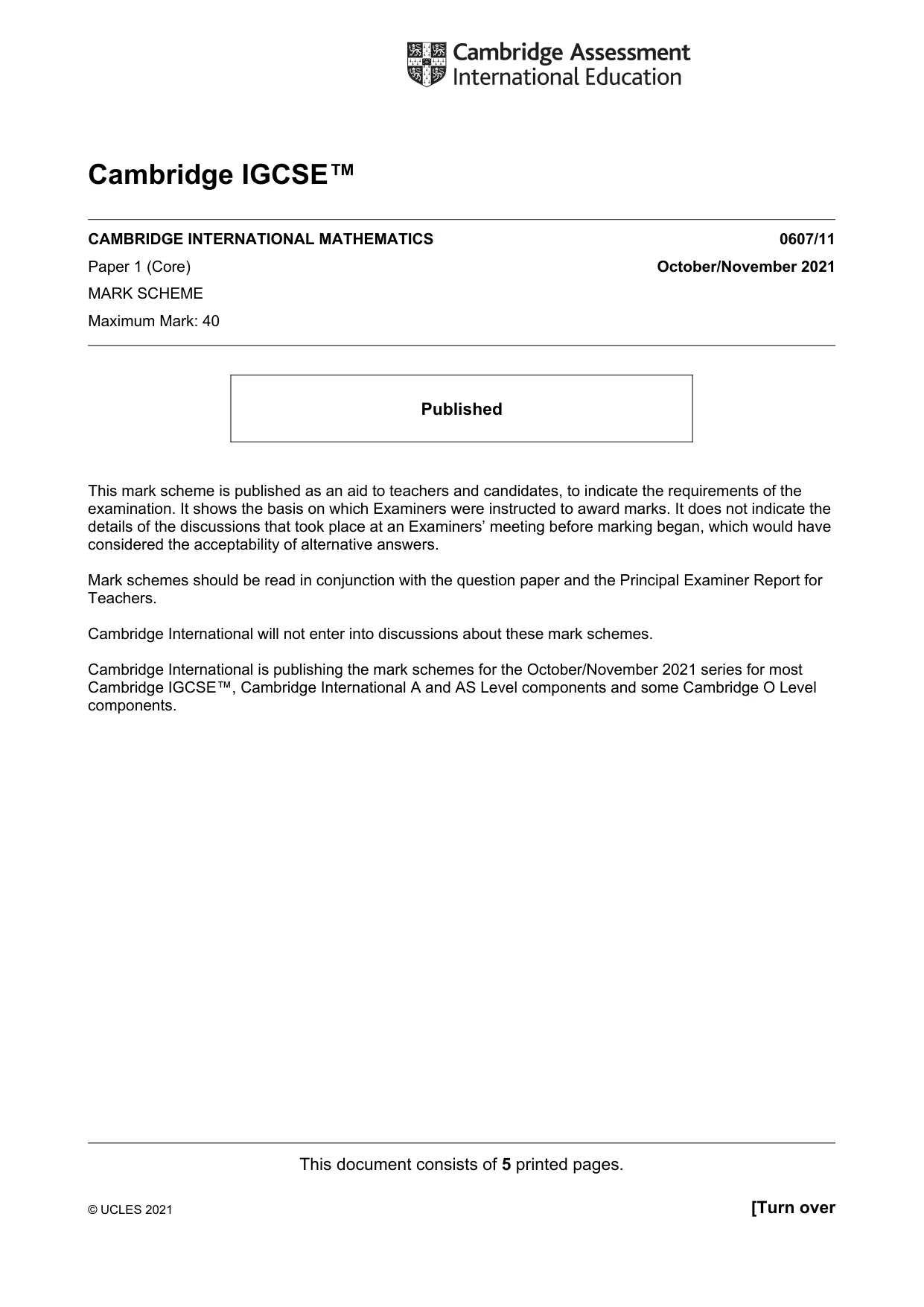

This document consists of 5 printed pages. © UCLES 2021 [Turn over Cambridge IGCSE™ CAMBRIDGE INTERNATIONAL MATHEMATICS 0607/11 Paper 1 (Core) October/November 2021 MARK SCHEME Maximum Mark: 40 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2021 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

0607/11 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2021 © UCLES 2021 Page 2 of 5 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

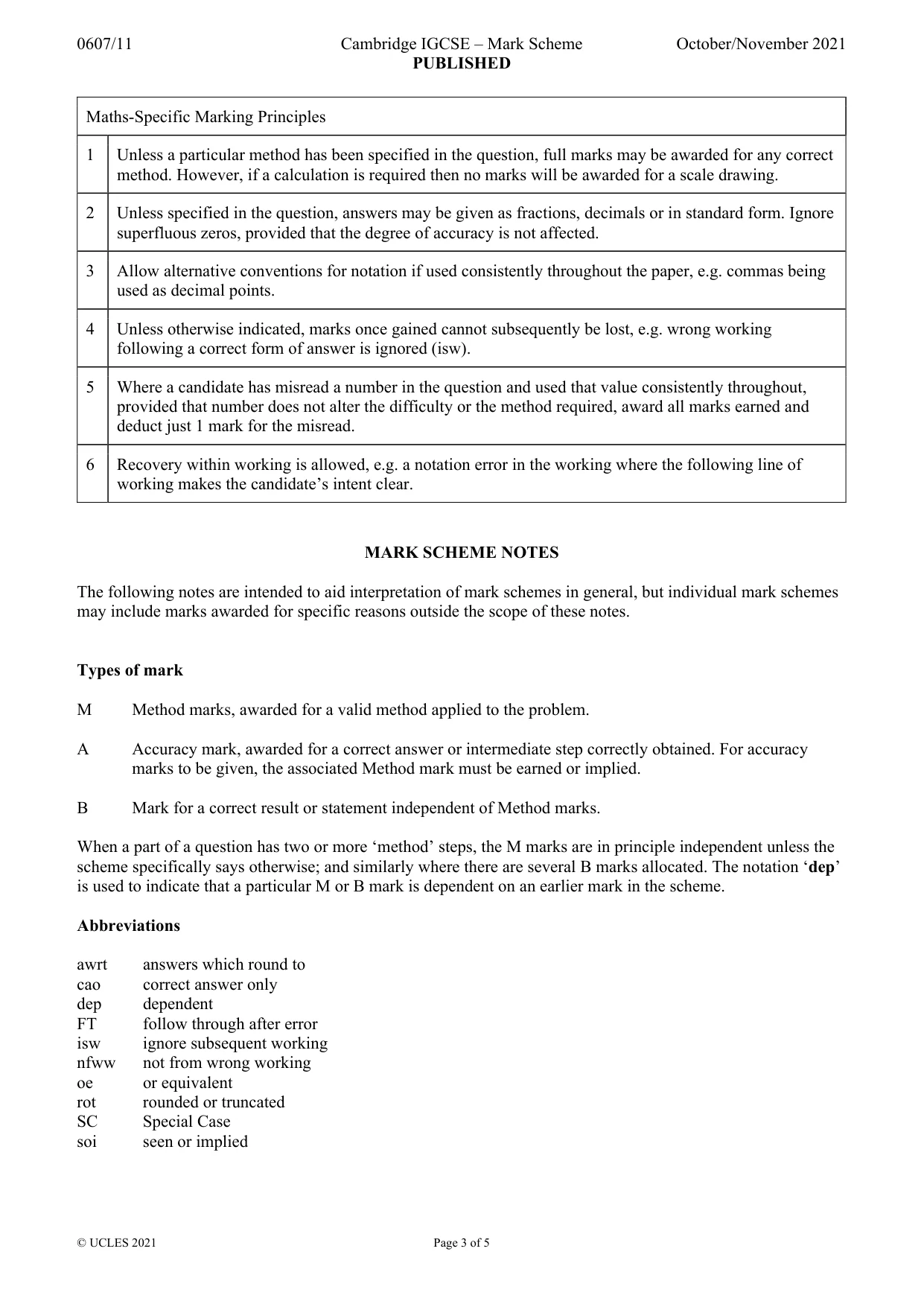

0607/11 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2021 © UCLES 2021 Page 3 of 5 Maths-Specific Marking Principles 1 Unless a particular method has been specified in the question, full marks may be awarded for any correct method. However, if a calculation is required then no marks will be awarded for a scale drawing. 2 Unless specified in the question, answers may be given as fractions, decimals or in standard form. Ignore superfluous zeros, provided that the degree of accuracy is not affected. 3 Allow alternative conventions for notation if used consistently throughout the paper, e.g. commas being used as decimal points. 4 Unless otherwise indicated, marks once gained cannot subsequently be lost, e.g. wrong working following a correct form of answer is ignored (isw). 5 Where a candidate has misread a number in the question and used that value consistently throughout, provided that number does not alter the difficulty or the method required, award all marks earned and deduct just 1 mark for the misread. 6 Recovery within working is allowed, e.g. a notation error in the working where the following line of working makes the candidate’s intent clear. MARK SCHEME NOTES The following notes are intended to aid interpretation of mark schemes in general, but individual mark schemes may include marks awarded for specific reasons outside the scope of these notes. Types of mark M Method marks, awarded for a valid method applied to the problem. A Accuracy mark, awarded for a correct answer or intermediate step correctly obtained. For accuracy marks to be given, the associated Method mark must be earned or implied. B Mark for a correct result or statement independent of Method marks. When a part of a question has two or more ‘method’ steps, the M marks are in principle independent unless the scheme specifically says otherwise; and similarly where there are several B marks allocated. The notation ‘dep’ is used to indicate that a particular M or B mark is dependent on an earlier mark in the scheme. Abbreviations awrt answers which round to cao correct answer only dep dependent FT follow through after error isw ignore subsequent working nfww not from wrong working oe or equivalent rot rounded or truncated SC Special Case soi seen or implied

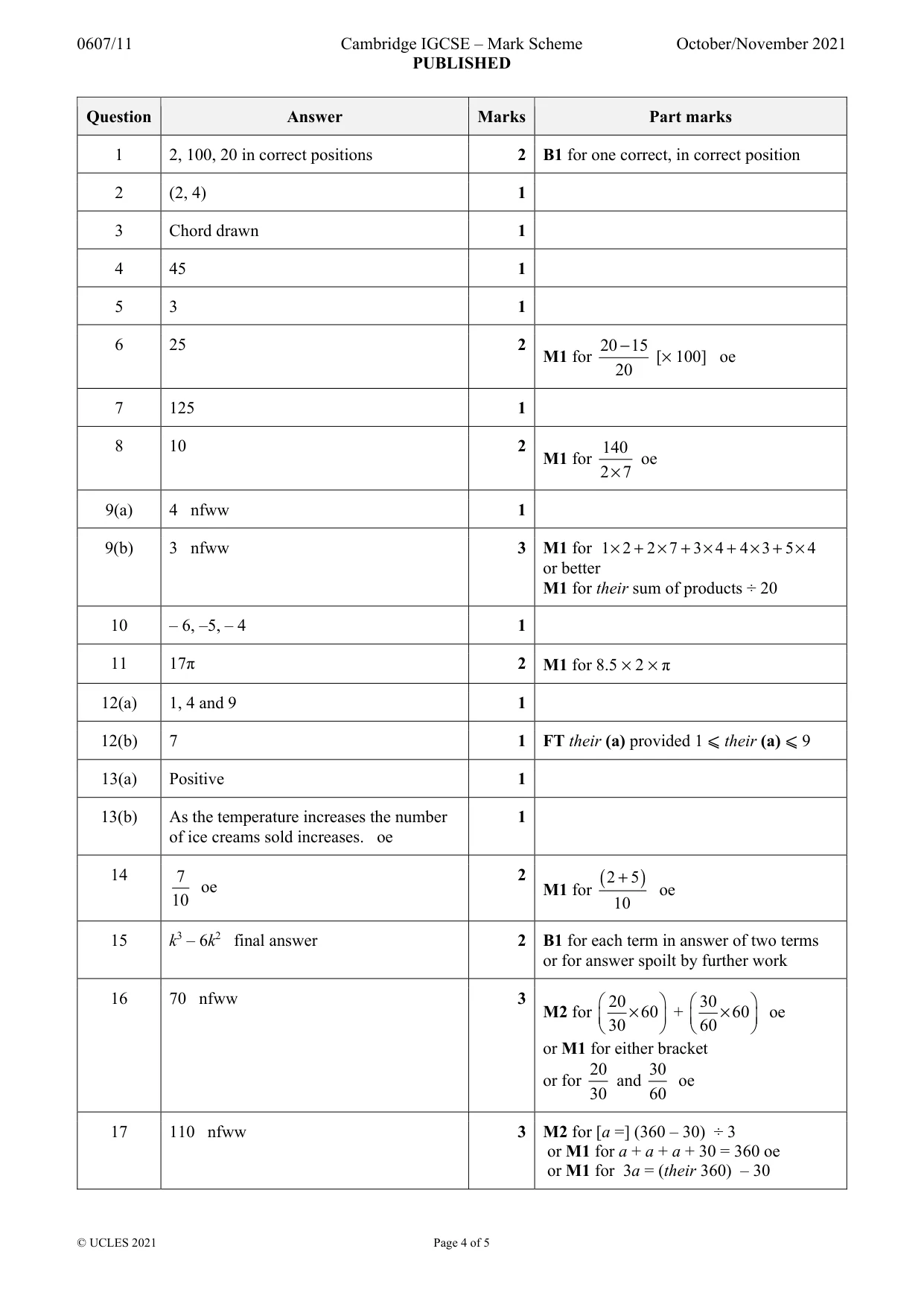

0607/11 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2021 © UCLES 2021 Page 4 of 5 Question Answer Marks Part marks 1 2, 100, 20 in correct positions 2 B1 for one correct, in correct position 2 (2, 4) 1 3 Chord drawn 1 4 45 1 5 3 1 6 25 2 M1 for 20 15 20 − [× 100] oe 7 125 1 8 10 2 M1 for 140 2 7 × oe 9(a) 4 nfww 1 9(b) 3 nfww 3 M1 for 1 2 2 7 3 4 4 3 5 4 × + × + × + × + × or better M1 for their sum of products ÷ 20 10 – 6, –5, – 4 1 11 17π 2 M1 for 8.5 × 2 × π 12(a) 1, 4 and 9 1 12(b) 7 1 FT their (a) provided 1 ⩽ their (a) ⩽ 9 13(a) Positive 1 13(b) As the temperature increases the number of ice creams sold increases. oe 1 14 7 10 oe 2 M1 for ( ) 2 5 10 + oe 15 k3 – 6k2 final answer 2 B1 for each term in answer of two terms or for answer spoilt by further work 16 70 nfww 3 M2 for 20 60 30   ×     + 30 60 60   ×     oe or M1 for either bracket or for 20 30 and 30 60 oe 17 110 nfww 3 M2 for [a =] (360 – 30) ÷ 3 or M1 for a + a + a + 30 = 360 oe or M1 for 3a = (their 360) – 30

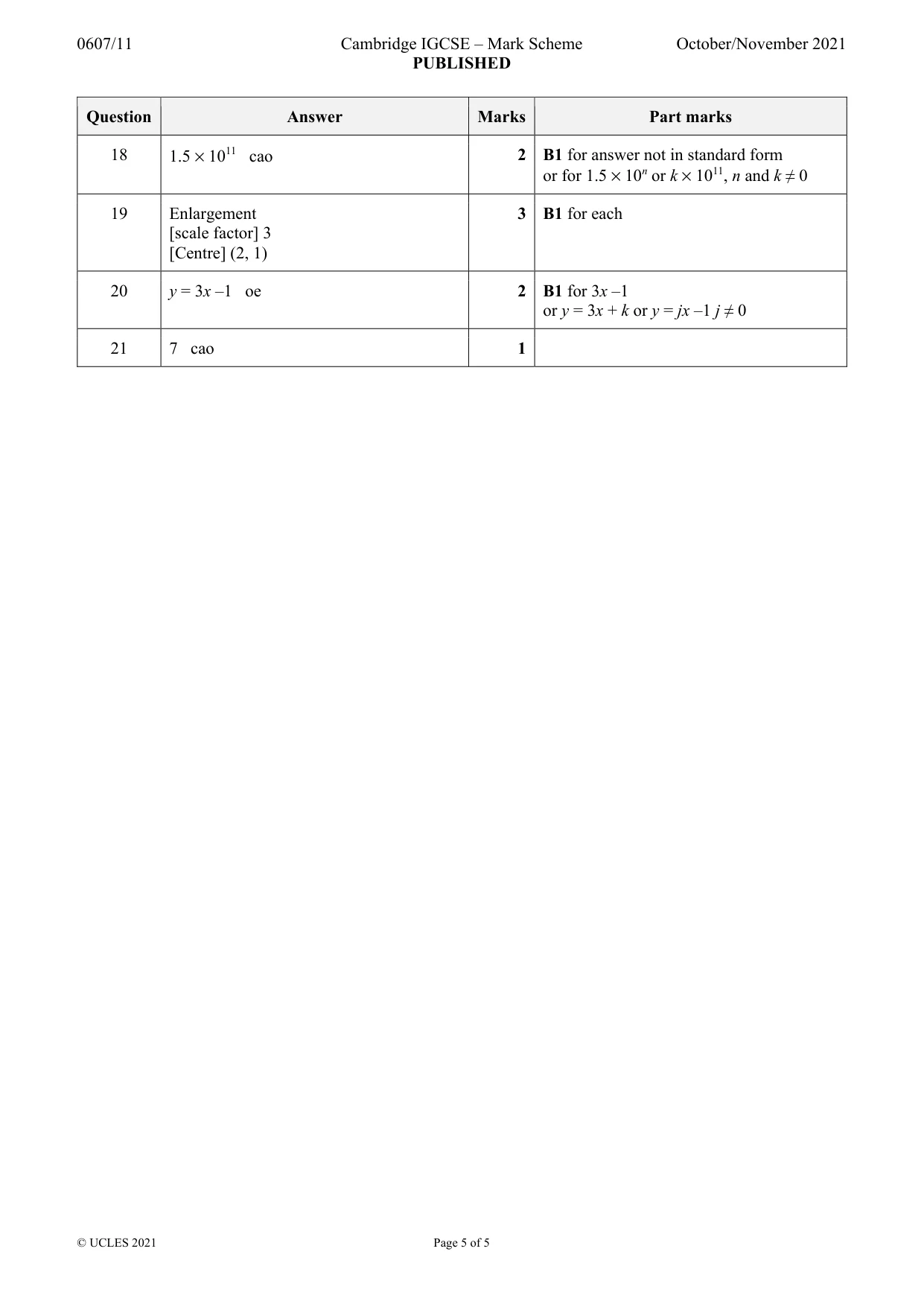

0607/11 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2021 © UCLES 2021 Page 5 of 5 Question Answer Marks Part marks 18 1.5 × 1011 cao 2 B1 for answer not in standard form or for 1.5 × 10n or k × 1011, n and k ≠ 0 19 Enlargement [scale factor] 3 [Centre] (2, 1) 3 B1 for each 20 y = 3x ‒1 oe 2 B1 for 3x ‒1 or y = 3x + k or y = jx ‒1 j ≠ 0 21 7 cao 1
