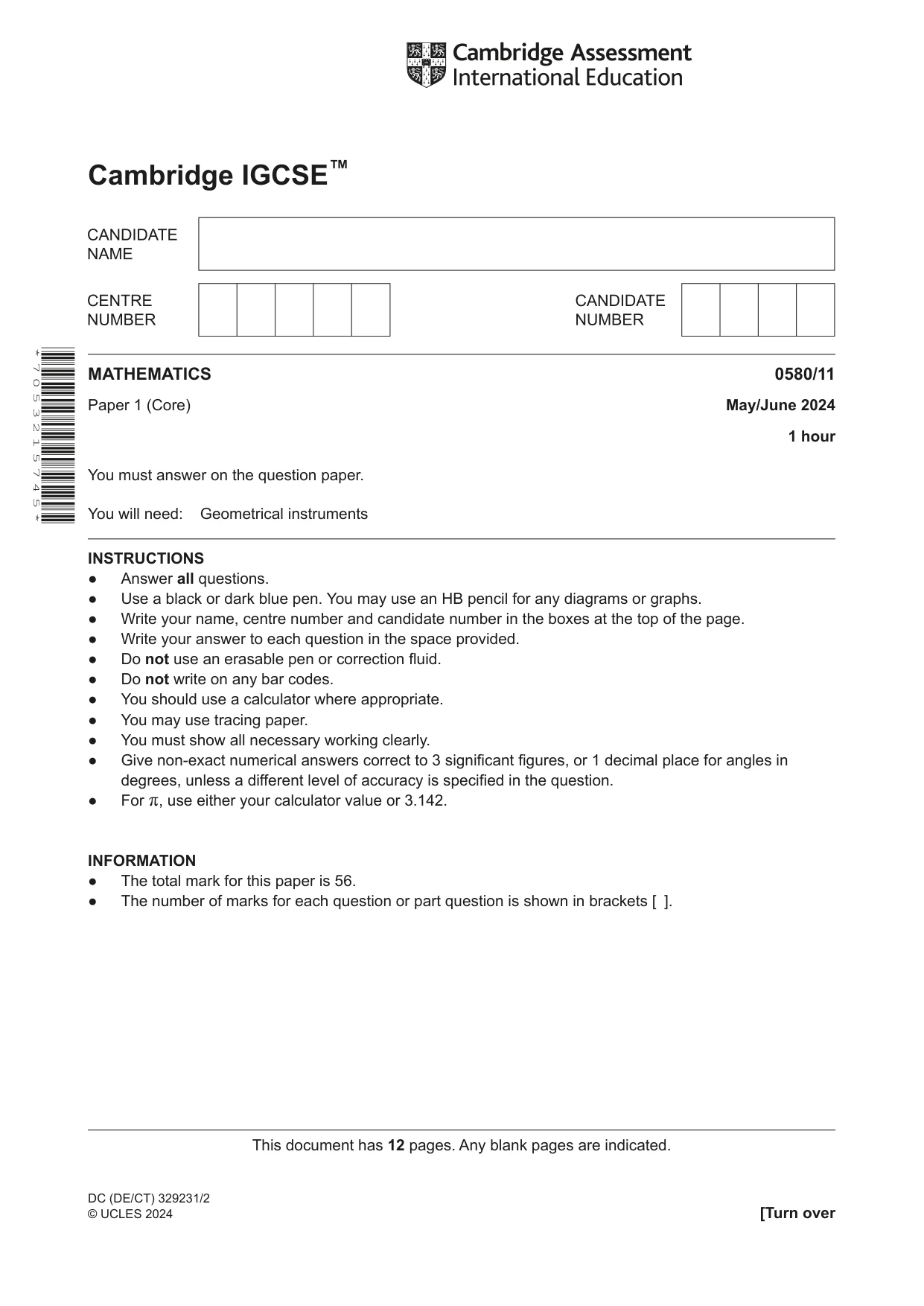

Cambridge IGCSE Mathematics 0580 — 2024 May/June Paper 1 · Variant 1

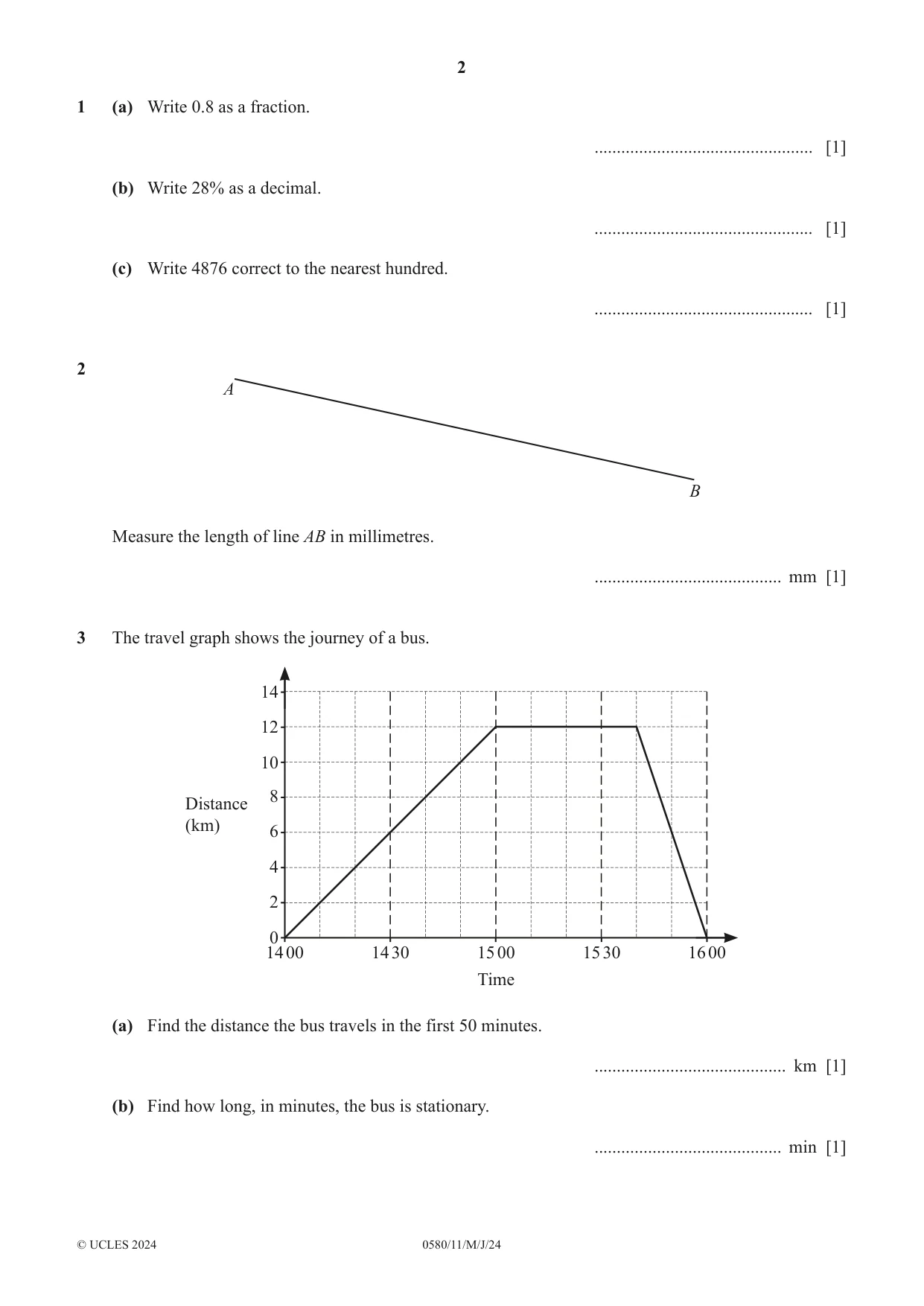

1 (a) Write 0.8 as a fraction. ................................................. [1] (b) Write 28% as a decimal. ................................................. [1] (c) Write 4876 correct to the nearest hundred. ................................................. [1]

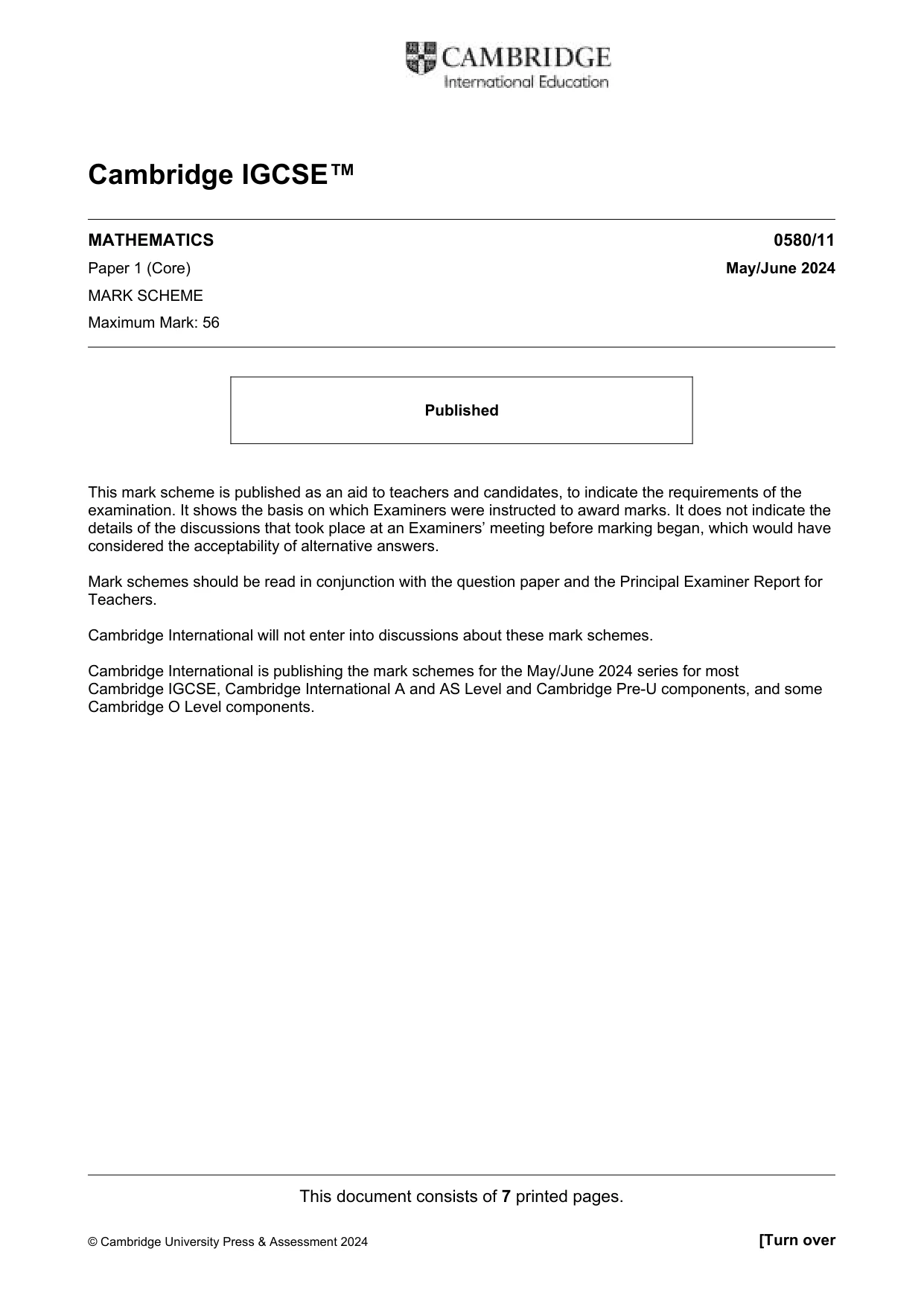

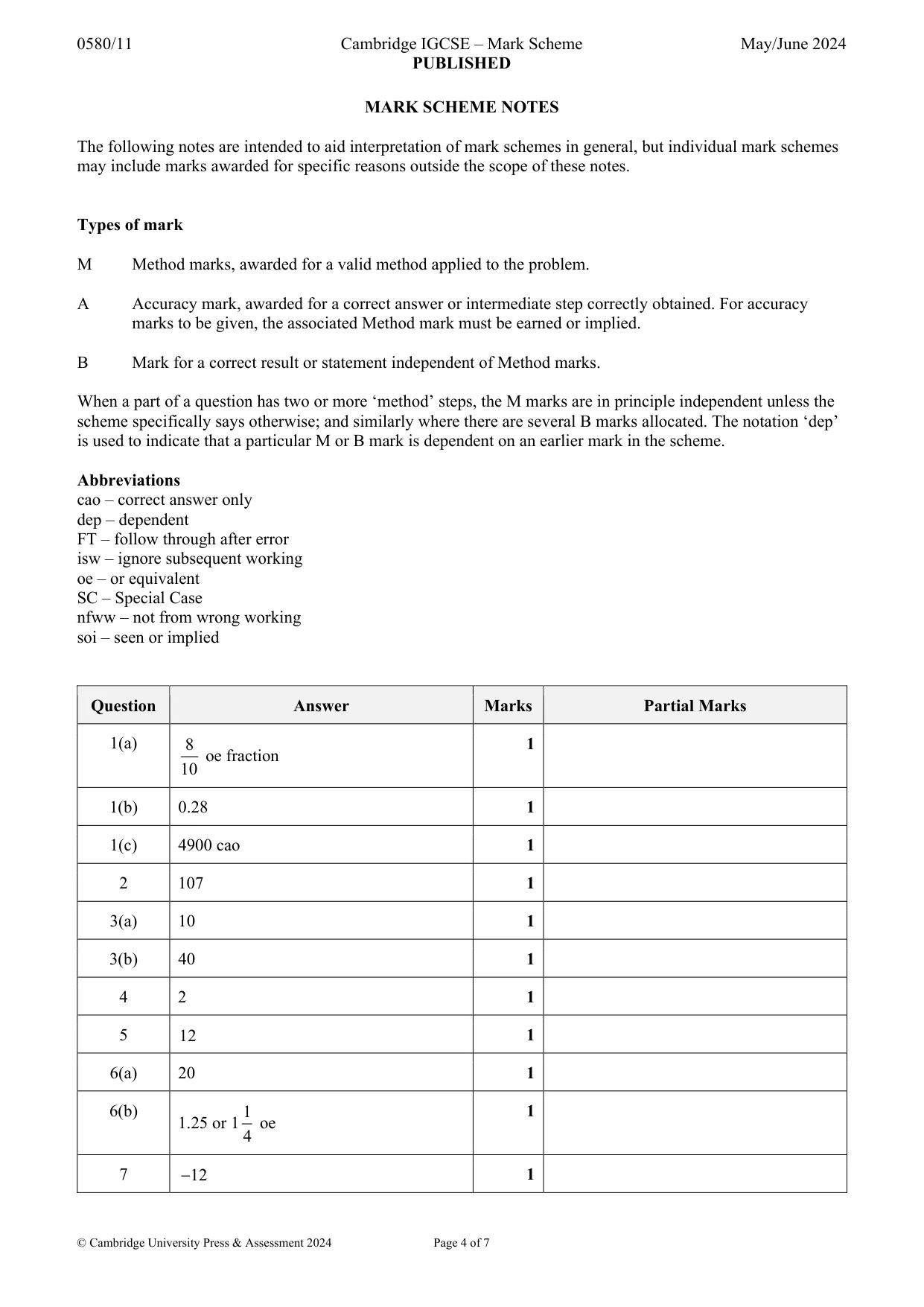

Mark scheme: Question Answer Marks Partial Marks 1(a) 8 1 oe fraction 10 1(b) 0.28 1 1(c) 4900 cao 1

More questions on Fractions, decimals and percentages

2 A B Measure the length of line AB in millimetres. .......................................... mm [1]

Mark scheme: 2 107 1

More questions on Units of measure

3 The travel graph shows the journey of a bus. 14 12 10 8 Distance (km) 6 4 2 0 14 00 14 30 15 00 15 30 16 00 Time (a) Find the distance the bus travels in the first 50 minutes. ........................................... km [1] (b) Find how long, in minutes, the bus is stationary. .......................................... min [1]

Mark scheme: 3(a) 10 1 3(b) 40 1

More questions on Time

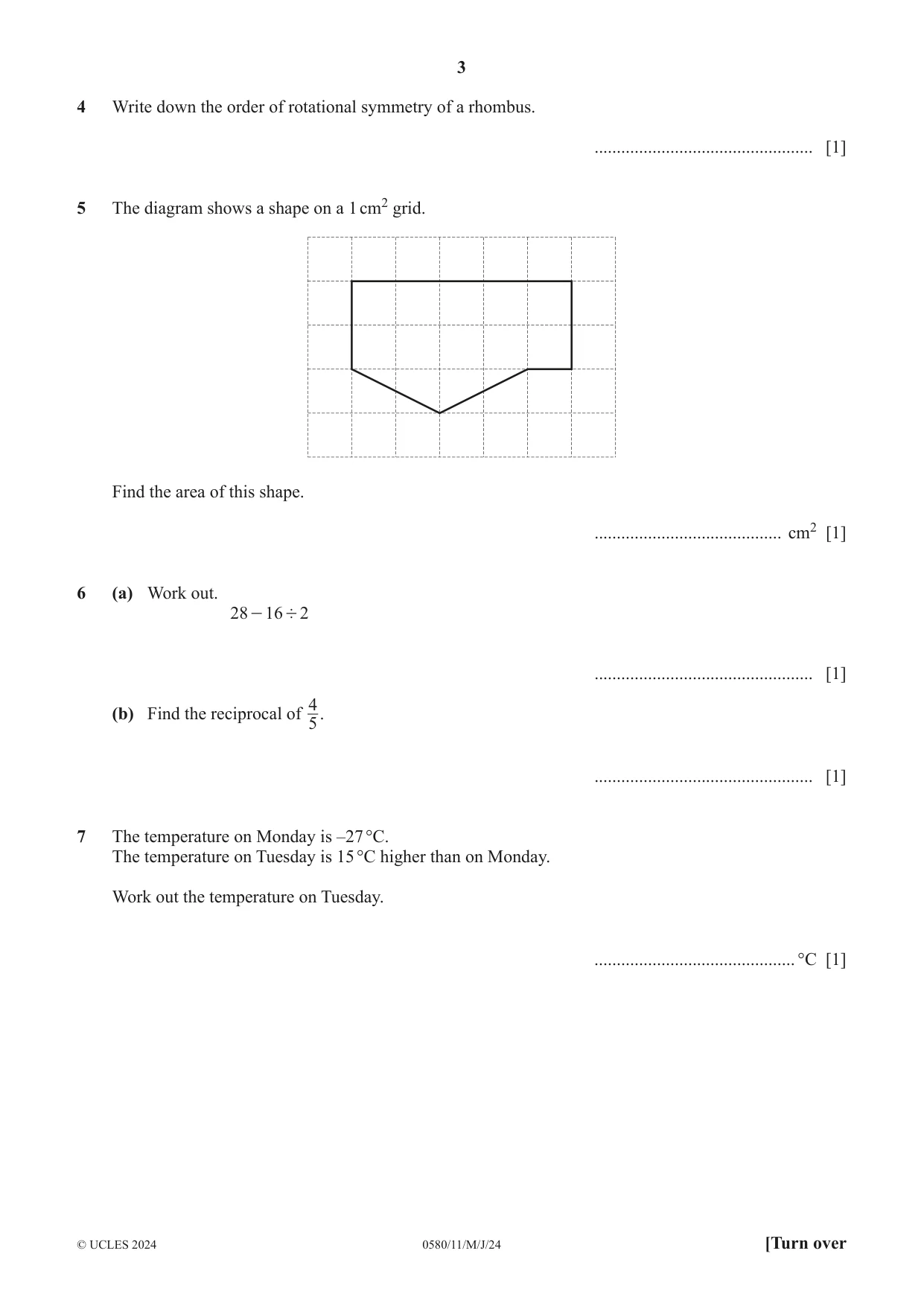

4 Write down the order of rotational symmetry of a rhombus. ................................................. [1]

Mark scheme: 4 2 1

More questions on Symmetry

5 The diagram shows a shape on a 1 cm2 grid. Find the area of this shape. .......................................... cm2 [1]

Mark scheme: 5 12 1

More questions on Area and perimeter

6 (a) Work out. 28 - 16 ' 2 ................................................. [1] (b) Find the reciprocal of 4. 5 ................................................. [1]

Mark scheme: 6(a) 20 1 6(b) 1 1 1.25 or 1 oe 4

More questions on The four operations

7 The temperature on Monday is –27 °C. The temperature on Tuesday is 15 °C higher than on Monday. Work out the temperature on Tuesday. ............................................. °C [1]

Mark scheme: 7 12 1

More questions on The four operations

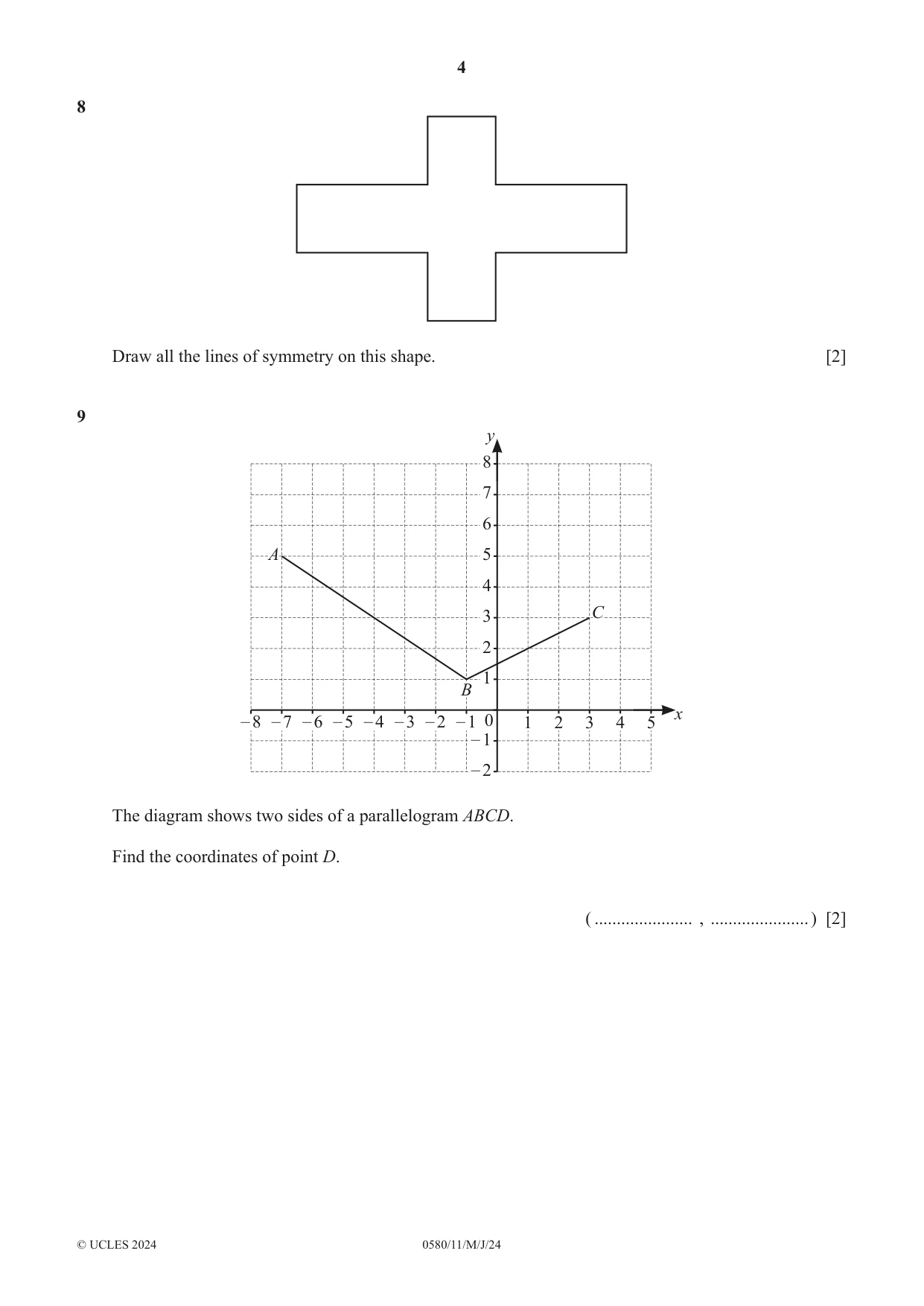

8 Draw all the lines of symmetry on this shape. [2]

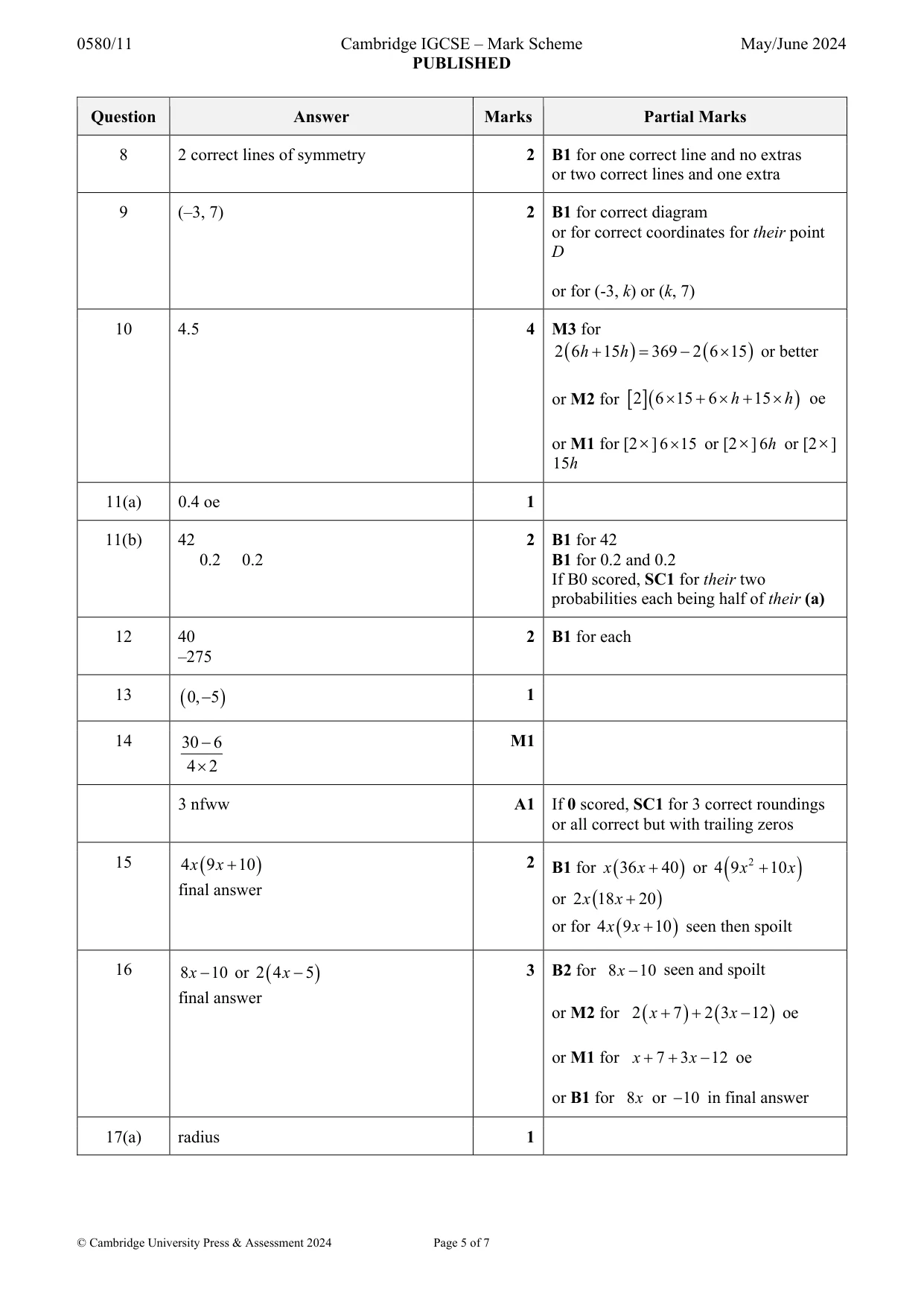

Mark scheme: 8 2 correct lines of symmetry 2 B1 for one correct line and no extras or two correct lines and one extra

More questions on Symmetry

9 y 8 7 6 A 5 4 3 C 2 1 B x – 8 – 7 – 6 – 5 – 4 – 3 – 2 – 1 0 1 2 3 4 5 – 1 – 2 The diagram shows two sides of a parallelogram ABCD. Find the coordinates of point D. ( ...................... , ...................... ) [2]

Mark scheme: 9 (–3, 7) 2 B1 for correct diagram or for correct coordinates for their point D or for (-3, k) or (k, 7)

More questions on Coordinates

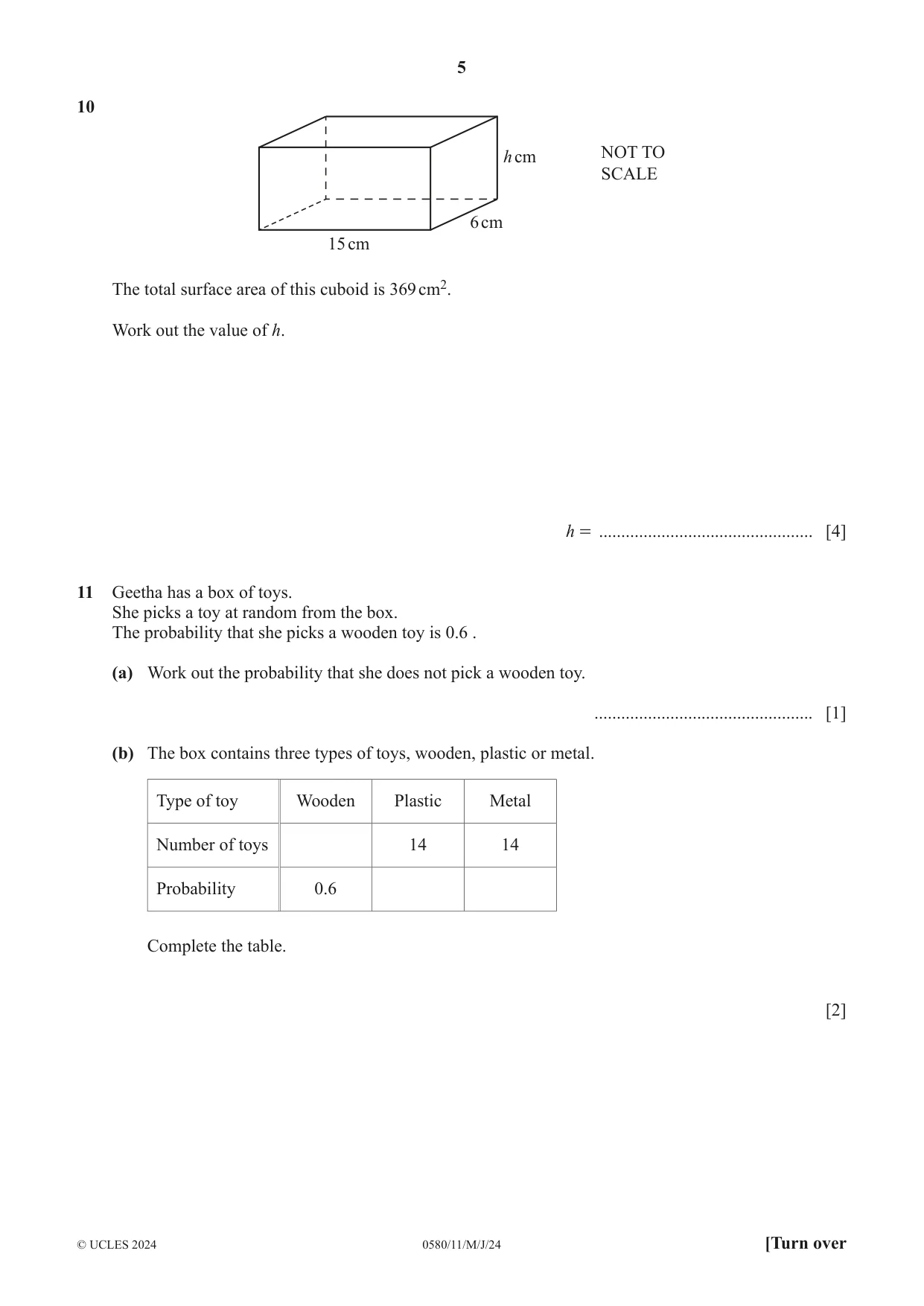

10 h cm NOT TO SCALE 6 cm 15 cm The total surface area of this cuboid is 369 cm2. Work out the value of h. h = ................................................ [4]

Mark scheme: 10 4.5 4 M3 for 2  6 h  15 h   369  2  6  15  or better or M2 for 2 6  15  6  h  15  h  oe or M1 for [2] 6  15 or [2] 6h or [2] 15h

More questions on Surface area and volume

11 Geetha has a box of toys. She picks a toy at random from the box. The probability that she picks a wooden toy is 0.6 . (a) Work out the probability that she does not pick a wooden toy. ................................................. [1] (b) The box contains three types of toys, wooden, plastic or metal. Type of toy Wooden Plastic Metal Number of toys 14 14 Probability 0.6 Complete the table. [2]

Mark scheme: 11(a) 0.4 oe 1 11(b) 42 2 B1 for 42 0.2 0.2 B1 for 0.2 and 0.2 If B0 scored, SC1 for their two probabilities each being half of their (a)

More questions on Introduction to probability

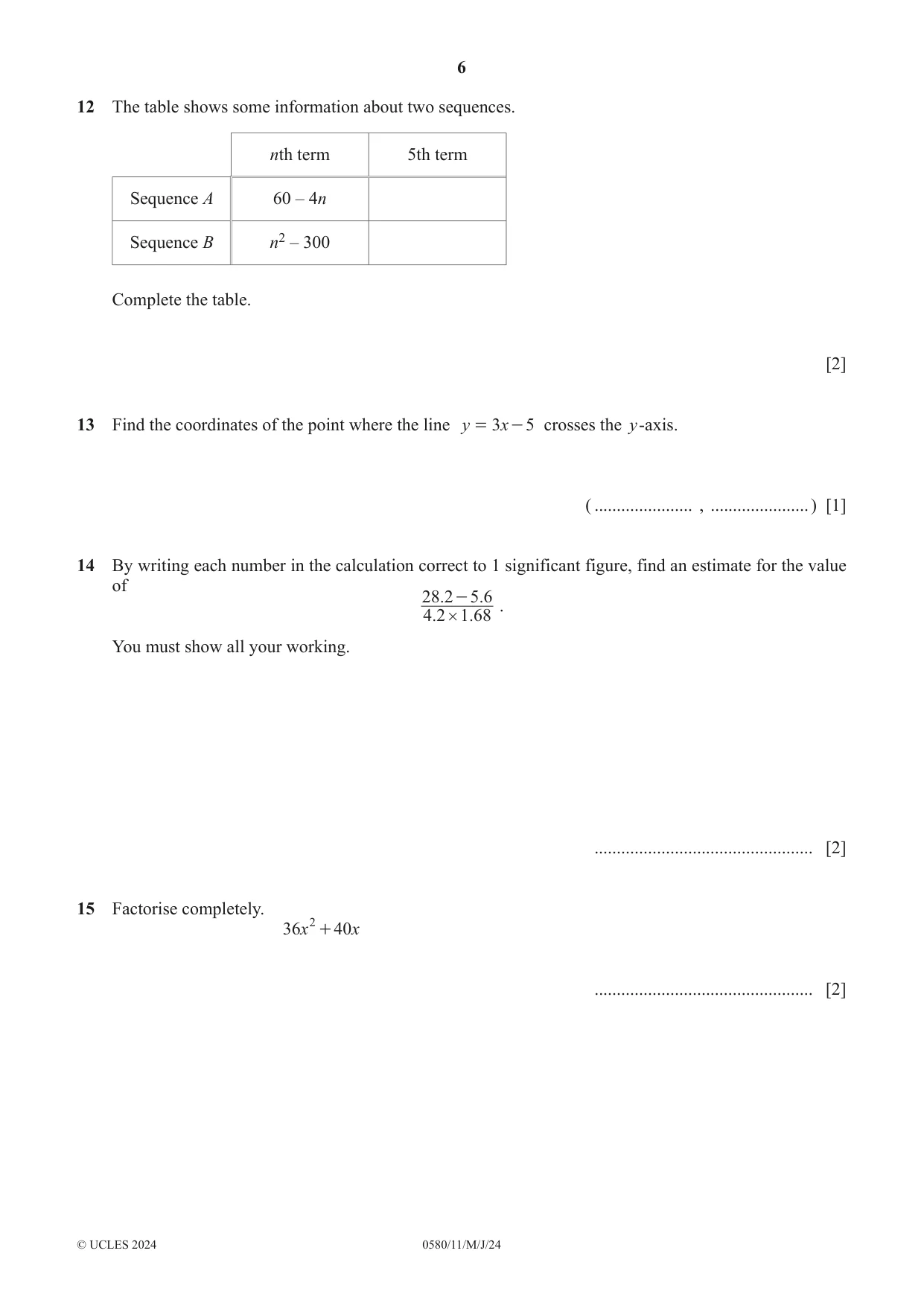

12 The table shows some information about two sequences. nth term 5th term Sequence A 60 – 4n Sequence B n2 – 300 Complete the table. [2]

Mark scheme: 12 40 2 B1 for each –275

More questions on Sequences

13 Find the coordinates of the point where the line y = 3x - 5 crosses the y-axis. ( ...................... , ...................... ) [1]

Mark scheme: 13  0, 5  1

More questions on Coordinates

14 By writing each number in the calculation correct to 1 significant figure, find an estimate for the value of 28. 2 - 5. 6 . 4.2 # 1.68 You must show all your working. ................................................. [2]

Mark scheme: 14 30  6 M1 4  2 3 nfww A1 If 0 scored, SC1 for 3 correct roundings or all correct but with trailing zeros

More questions on Estimation

15 Factorise completely. 36x 2 + 40x ................................................. [2]

Mark scheme: 9 x 2  10 x15 4 x  9 x  10  2 B1 for x  36 x  40  or 4   final answer or 2 x 18 x  20  or for 4 x  9 x  10  seen then spoilt

More questions on Algebraic manipulation

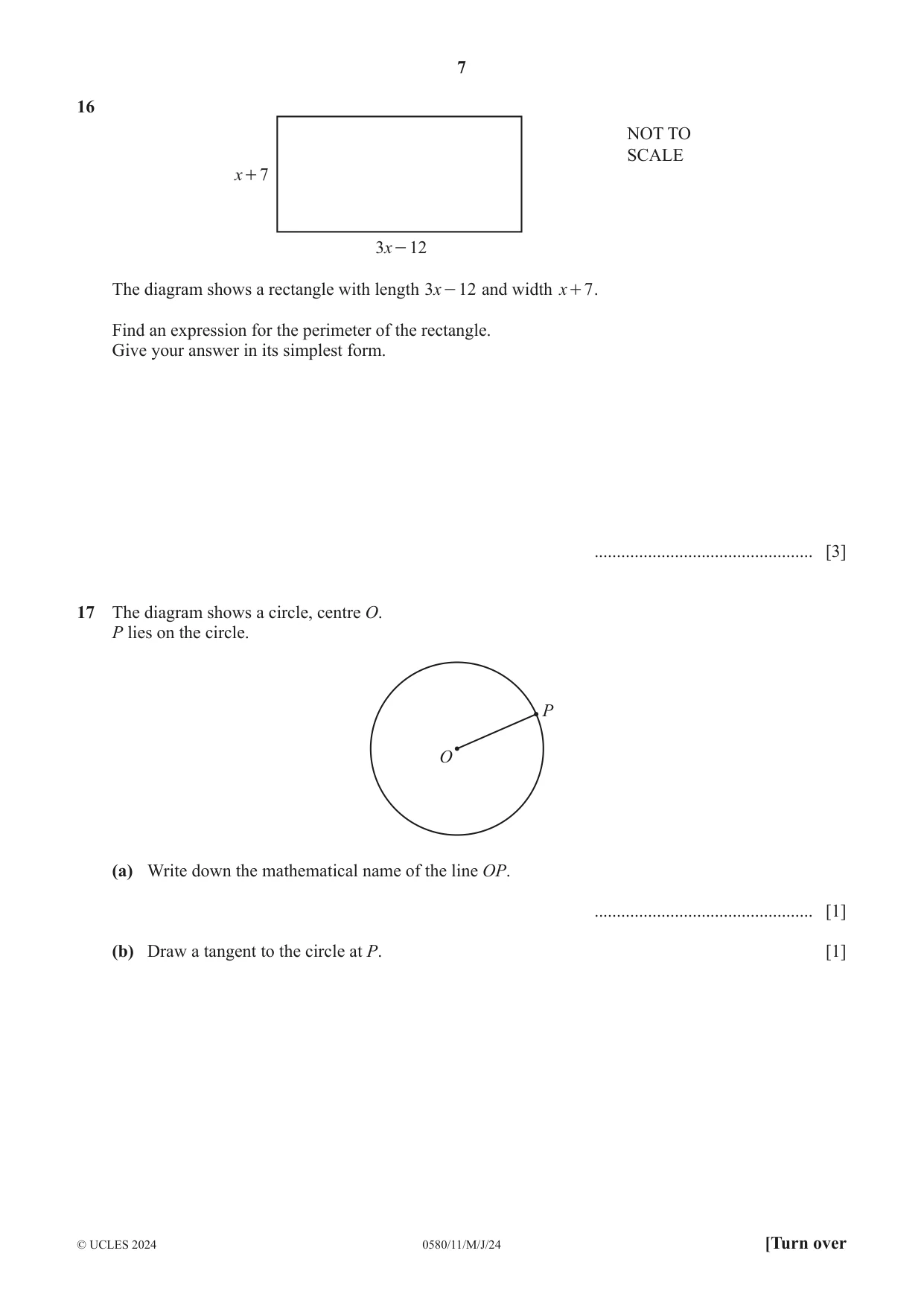

16 NOT TO SCALE x + 7 3x - 12 The diagram shows a rectangle with length 3x - 12 and width x + 7 . Find an expression for the perimeter of the rectangle. Give your answer in its simplest form. ................................................. [3]

Mark scheme: 16 8 x  10 or 2  4 x  5  3 B2 for 8 x  10 seen and spoilt final answer or M2 for 2  x  7   2  3 x  12  oe or M1 for x  7  3 x  12 oe or B1 for 8 x or  10 in final answer

More questions on Area and perimeter

17 The diagram shows a circle, centre O. P lies on the circle. P O (a) Write down the mathematical name of the line OP. ................................................. [1] (b) Draw a tangent to the circle at P. [1]

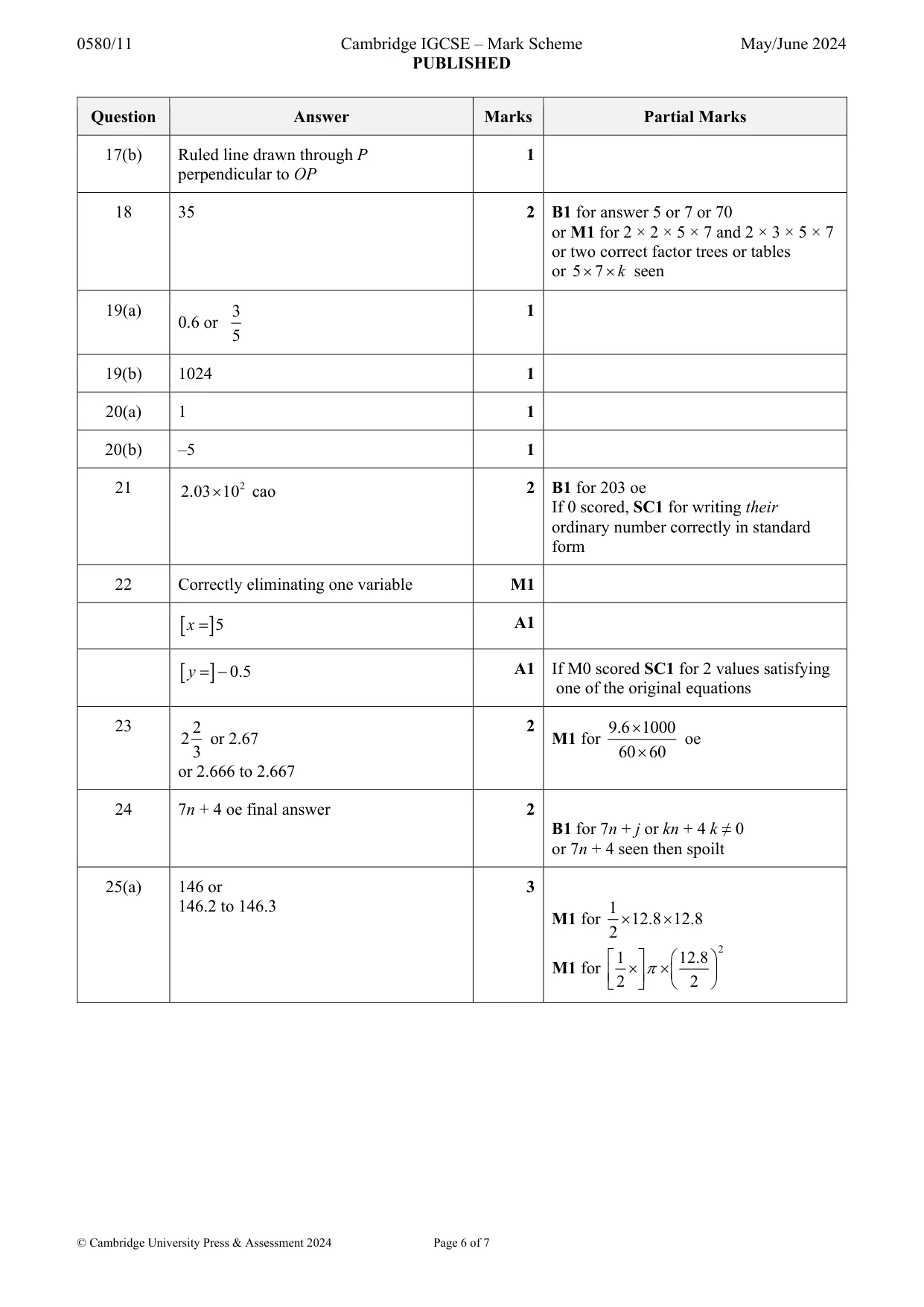

Mark scheme: 17(a) radius 1 17(b) Ruled line drawn through P 1 perpendicular to OP

More questions on Circles, arcs and sectors

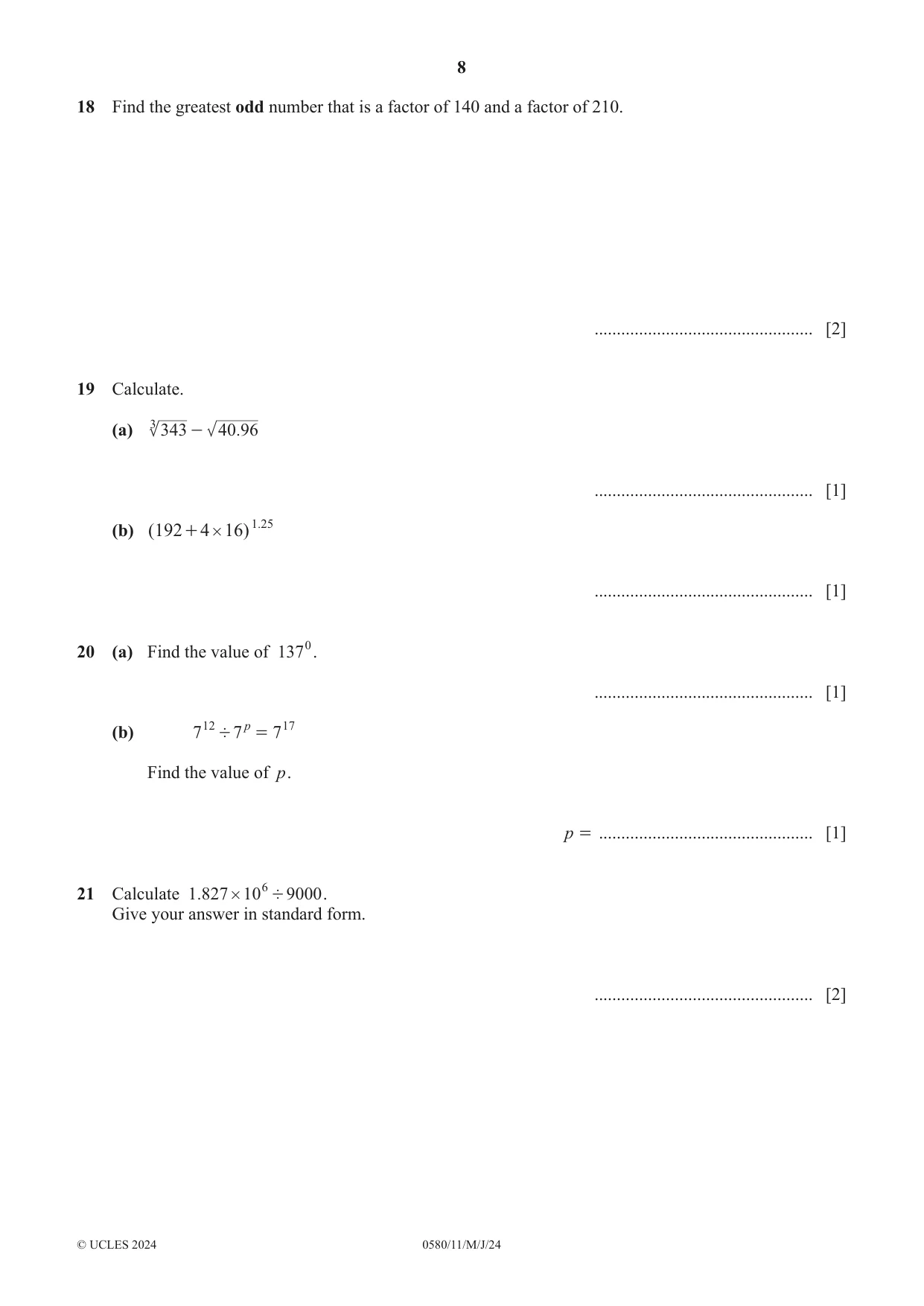

18 Find the greatest odd number that is a factor of 140 and a factor of 210. ................................................. [2]

Mark scheme: 18 35 2 B1 for answer 5 or 7 or 70 or M1 for 2 × 2 × 5 × 7 and 2 × 3 × 5 × 7 or two correct factor trees or tables or 5  7 k seen

More questions on Types of number

19 Calculate. (a) 3 343 - 40.96 ................................................. [1] (b) (192 + 4 # 16 ) .125 ................................................. [1]

Mark scheme: 19(a) 3 1 0.6 or 5 19(b) 1024 1

More questions on Powers and roots

21 Calculate .1827 # 10 6 ' 9000 . Give your answer in standard form. ................................................. [2]

Mark scheme: 21 2.03  10 2 cao 2 B1 for 203 oe If 0 scored, SC1 for writing their ordinary number correctly in standard form

More questions on Standard form

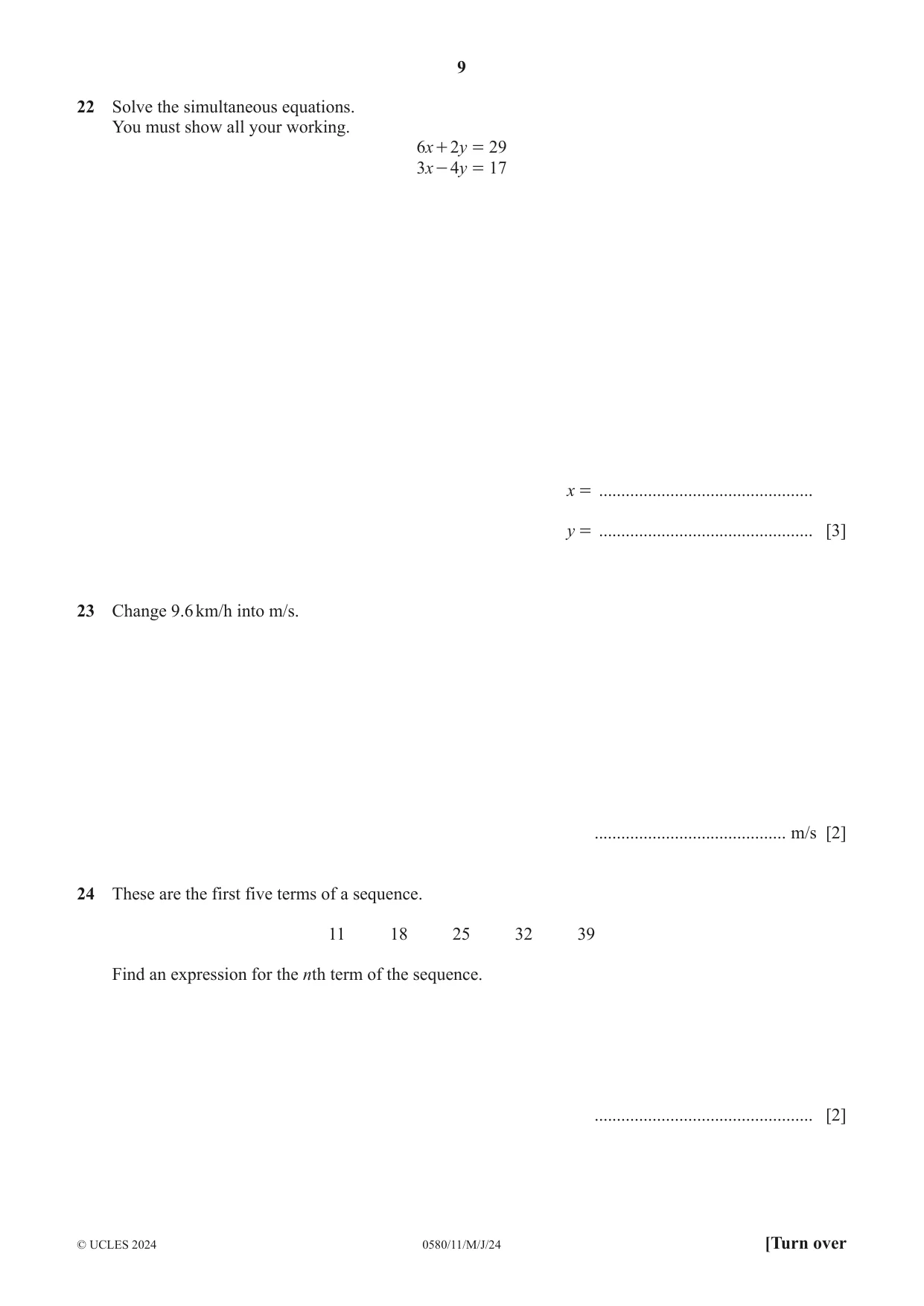

22 Solve the simultaneous equations. You must show all your working. 6x + 2y = 29 3x - 4y = 17 x = ................................................ y = ................................................ [3]

Mark scheme: 22 Correctly eliminating one variable M1  x  5 A1  y  0.5 A1 If M0 scored SC1 for 2 values satisfying one of the original equations

More questions on Equations

23 Change 9.6 km/h into m/s. ........................................... m/s [2]

Mark scheme: 23 2 2 9.6  1000 2 or 2.67 M1 for oe 3 60  60 or 2.666 to 2.667

More questions on Rates

24 These are the first five terms of a sequence. 11 18 25 32 39 Find an expression for the nth term of the sequence. ................................................. [2]

Mark scheme: 24 7n + 4 oe final answer 2 B1 for 7n + j or kn + 4 k ≠ 0 or 7n + 4 seen then spoilt

More questions on Sequences

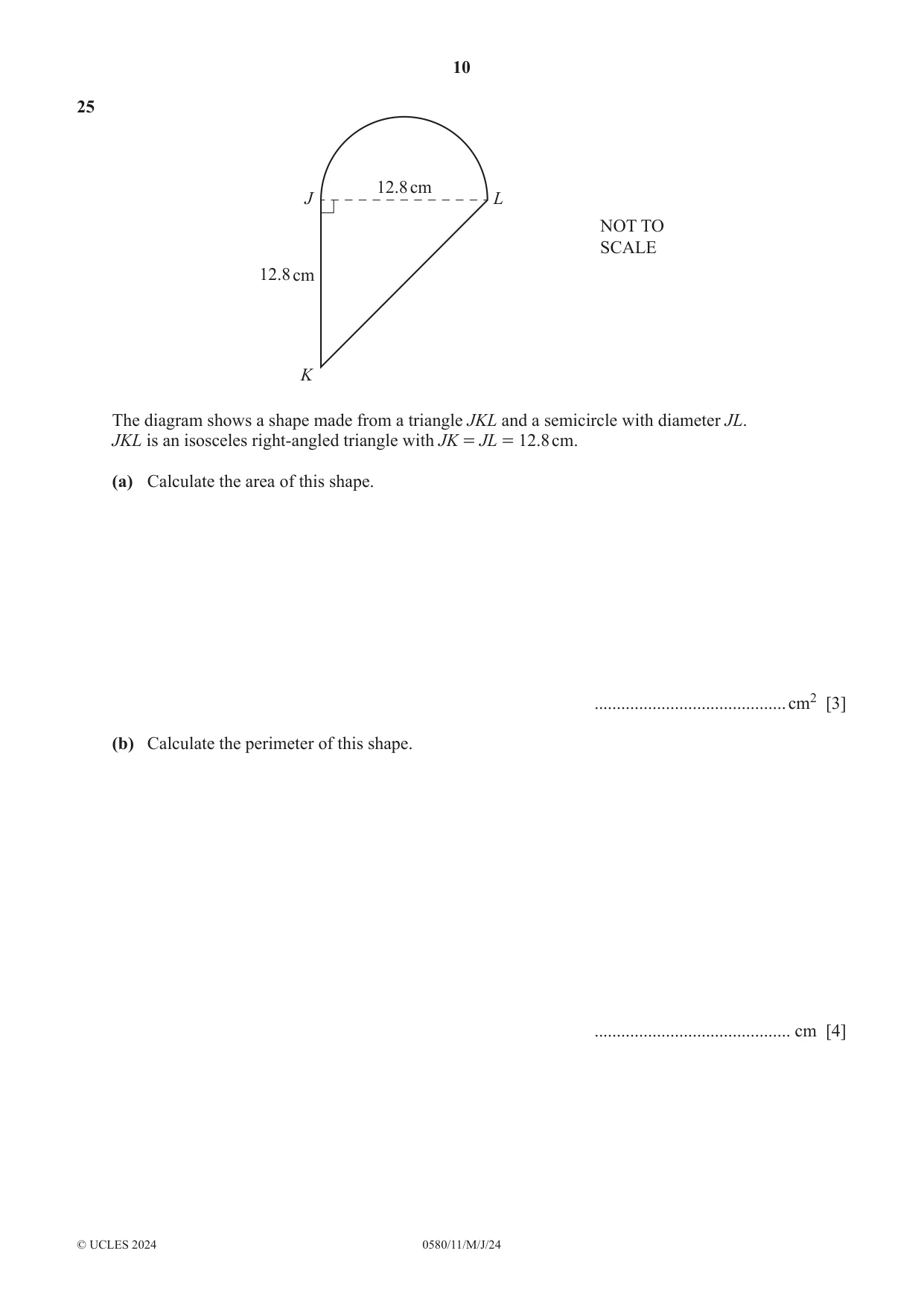

25 12.8 cm J L NOT TO SCALE 12.8 cm K The diagram shows a shape made from a triangle JKL and a semicircle with diameter JL. JKL is an isosceles right-angled triangle with JK = JL = 12.8 cm. (a) Calculate the area of this shape. ........................................... cm2 [3] (b) Calculate the perimeter of this shape. ............................................ cm [4]

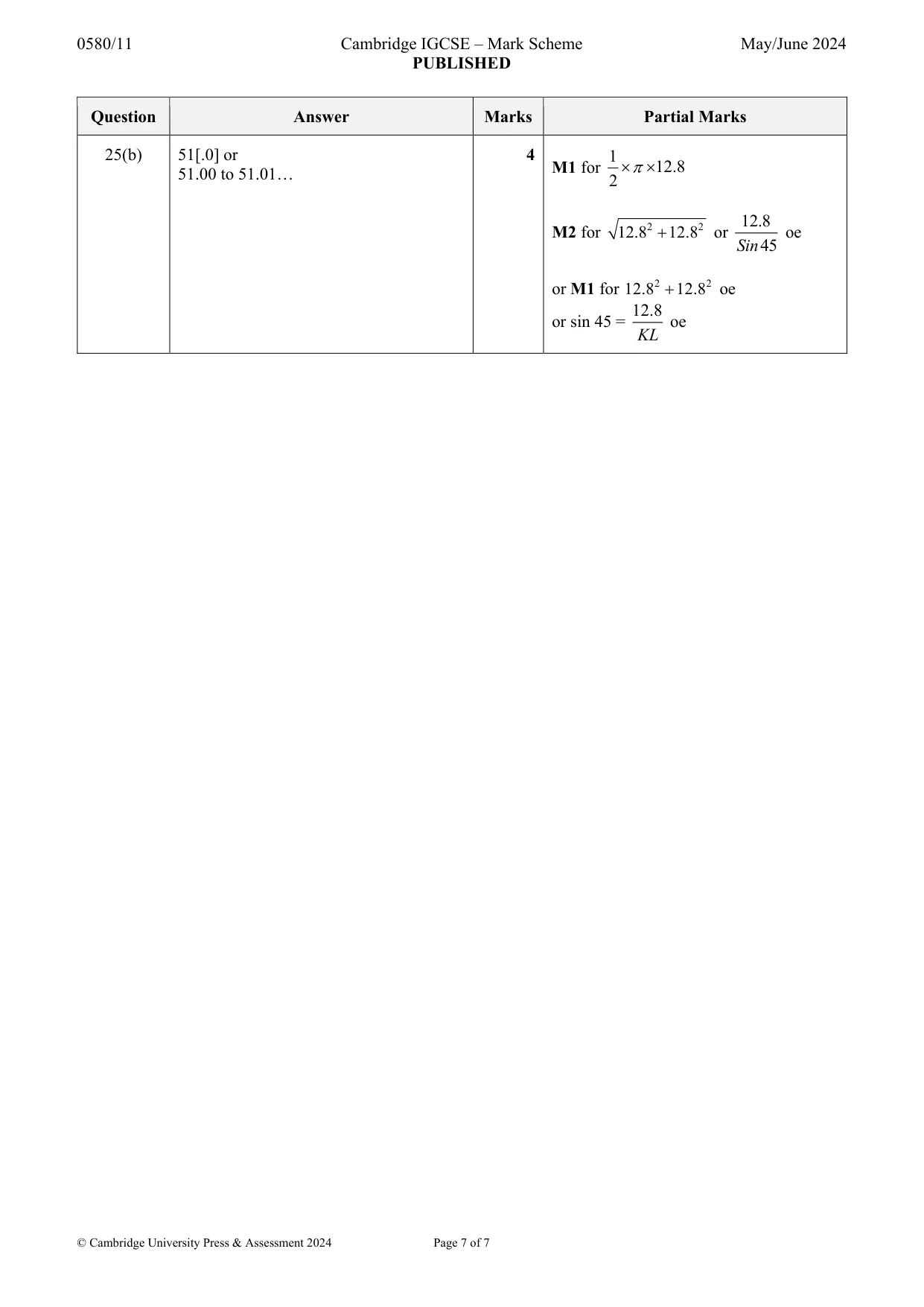

Mark scheme: 25(a) 146 or 3 146.2 to 146.3 1 M1 for  12.8  12.8 2  1   12.8  2 M1 for       2   2  25(b) 51[.0] or 4 1 M1 for  12.8 51.00 to 51.01… 2 2 2 12.8 M2 for 12.8  12.8 or oe Sin 45 or M1 for 12.8 2  12.8 2 oe 12.8 or sin 45 = oe KL
