Cambridge IGCSE Design and Technology 0445 — 2022 Oct/Nov Paper 1 · Variant 2

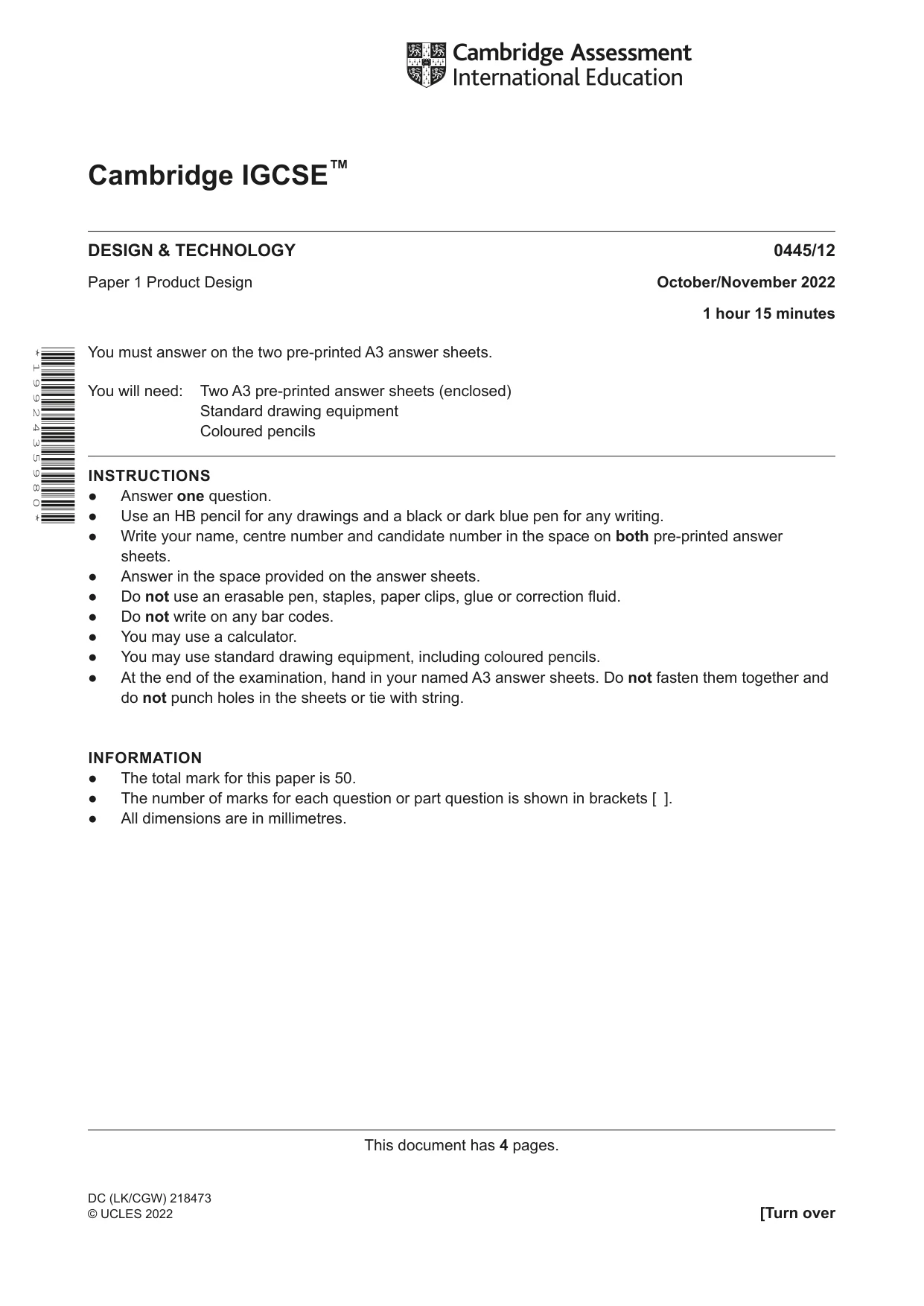

This document has 4 pages. [Turn over Cambridge IGCSE™ DC (LK/CGW) 218473 © UCLES 2022 DESIGN & TECHNOLOGY 0445/12 Paper 1 Product Design October/November 2022 1 hour 15 minutes You must answer on the two pre-printed A3 answer sheets. You will need: Two A3 pre-printed answer sheets (enclosed) Standard drawing equipment Coloured pencils INSTRUCTIONS ● Answer one question. ● Use an HB pencil for any drawings and a black or dark blue pen for any writing. ● Write your name, centre number and candidate number in the space on both pre-printed answer sheets. ● Answer in the space provided on the answer sheets. ● Do not use an erasable pen, staples, paper clips, glue or correction fluid. ● Do not write on any bar codes. ● You may use a calculator. ● You may use standard drawing equipment, including coloured pencils. ● At the end of the examination, hand in your named A3 answer sheets. Do not fasten them together and do not punch holes in the sheets or tie with string. INFORMATION ● The total mark for this paper is 50. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 1 9 9 2 4 3 5 9 8 0 *

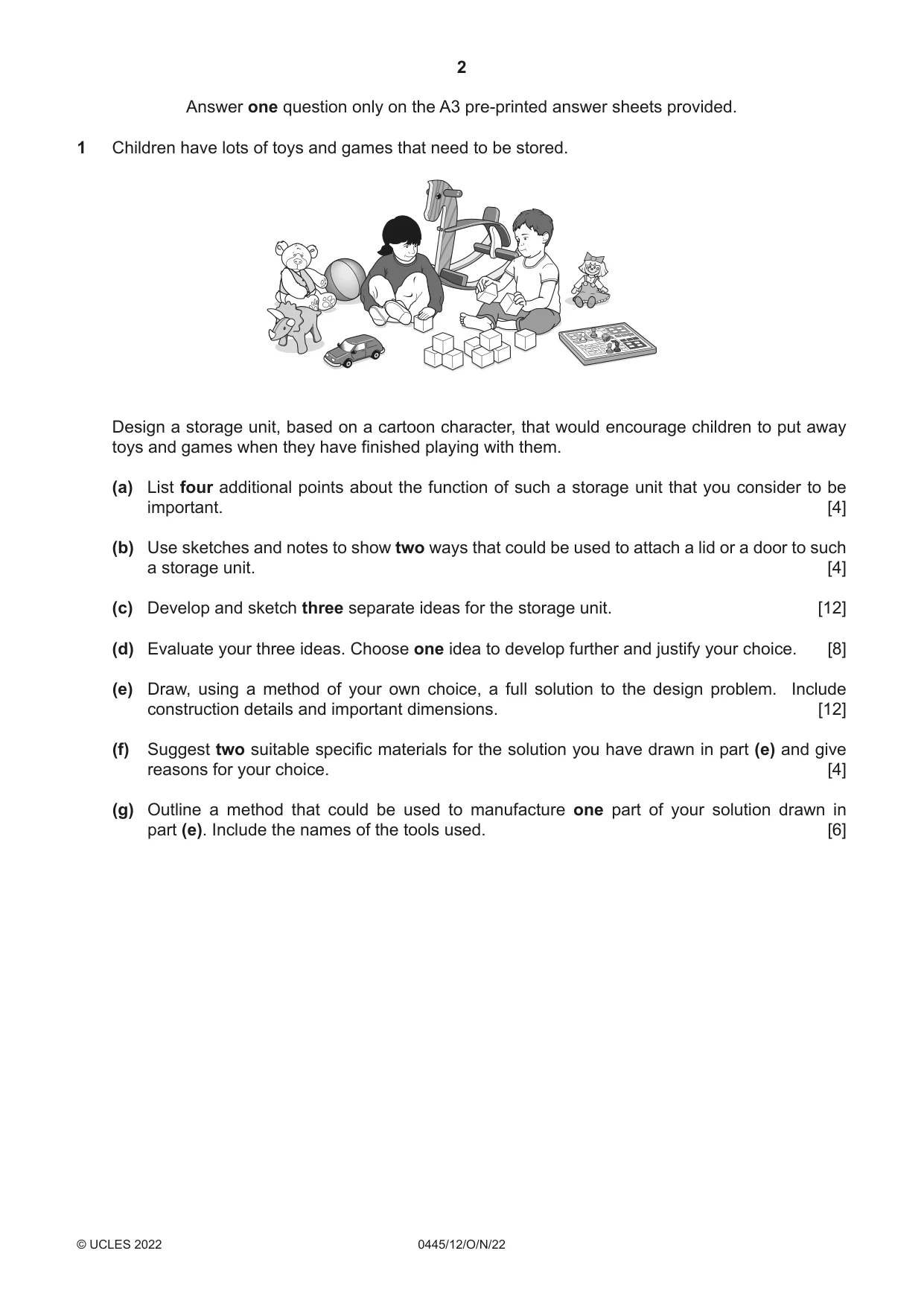

2 0445/12/O/N/22 © UCLES 2022 Answer one question only on the A3 pre-printed answer sheets provided. 1 Children have lots of toys and games that need to be stored. Design a storage unit, based on a cartoon character, that would encourage children to put away toys and games when they have finished playing with them. (a) List four additional points about the function of such a storage unit that you consider to be important. [4] (b) Use sketches and notes to show two ways that could be used to attach a lid or a door to such a storage unit. [4] (c) Develop and sketch three separate ideas for the storage unit. [12] (d) Evaluate your three ideas. Choose one idea to develop further and justify your choice. [8] (e) Draw, using a method of your own choice, a full solution to the design problem. Include construction details and important dimensions. [12] (f) Suggest two suitable specific materials for the solution you have drawn in part (e) and give reasons for your choice. [4] (g) Outline a method that could be used to manufacture one part of your solution drawn in part (e). Include the names of the tools used. [6]

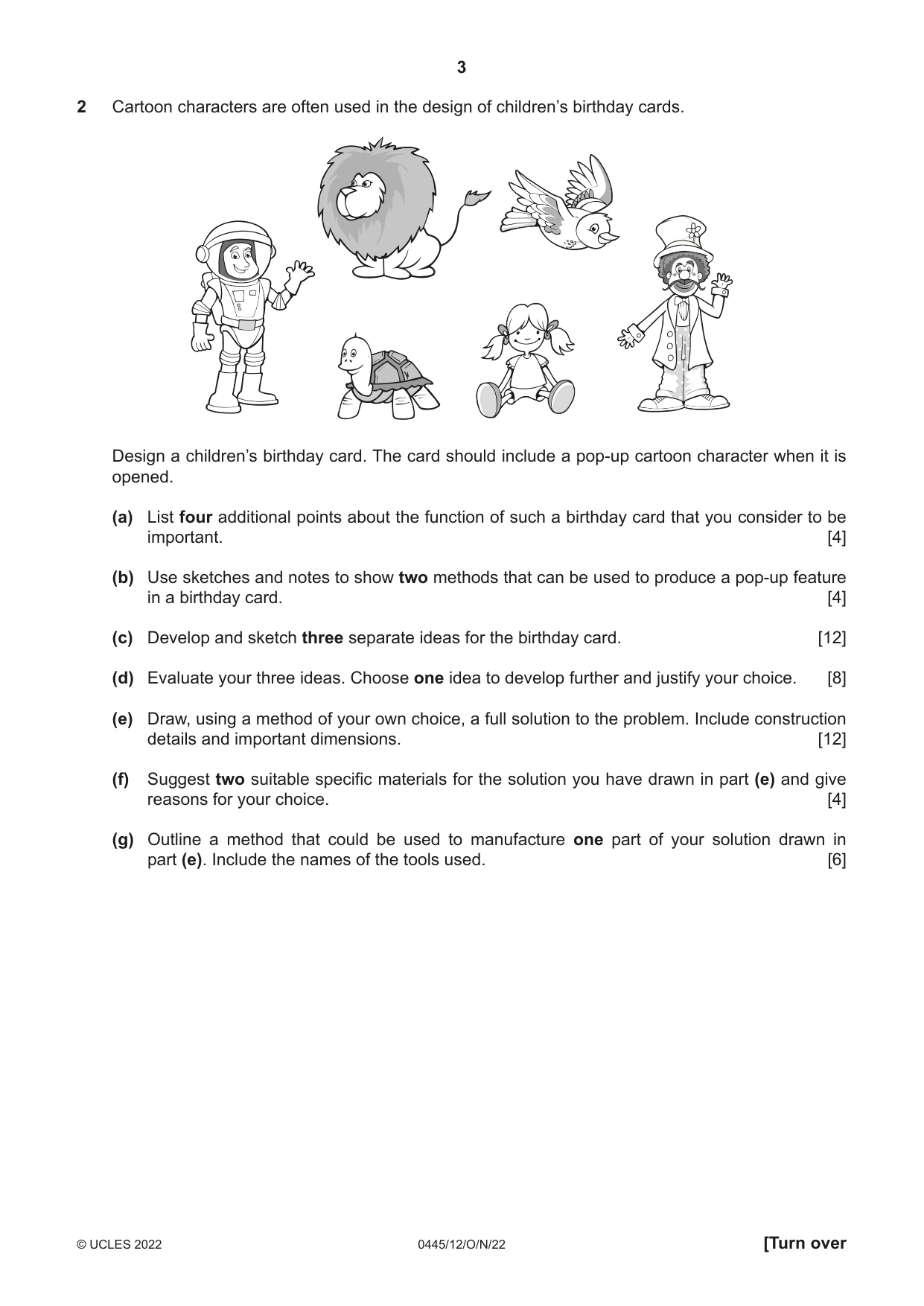

3 0445/12/O/N/22 © UCLES 2022 [Turn over 2 Cartoon characters are often used in the design of children’s birthday cards. Design a children’s birthday card. The card should include a pop-up cartoon character when it is opened. (a) List four additional points about the function of such a birthday card that you consider to be important. [4] (b) Use sketches and notes to show two methods that can be used to produce a pop-up feature in a birthday card. [4] (c) Develop and sketch three separate ideas for the birthday card. [12] (d) Evaluate your three ideas. Choose one idea to develop further and justify your choice. [8] (e) Draw, using a method of your own choice, a full solution to the problem. Include construction details and important dimensions. [12] (f) Suggest two suitable specific materials for the solution you have drawn in part (e) and give reasons for your choice. [4] (g) Outline a method that could be used to manufacture one part of your solution drawn in part (e). Include the names of the tools used. [6]

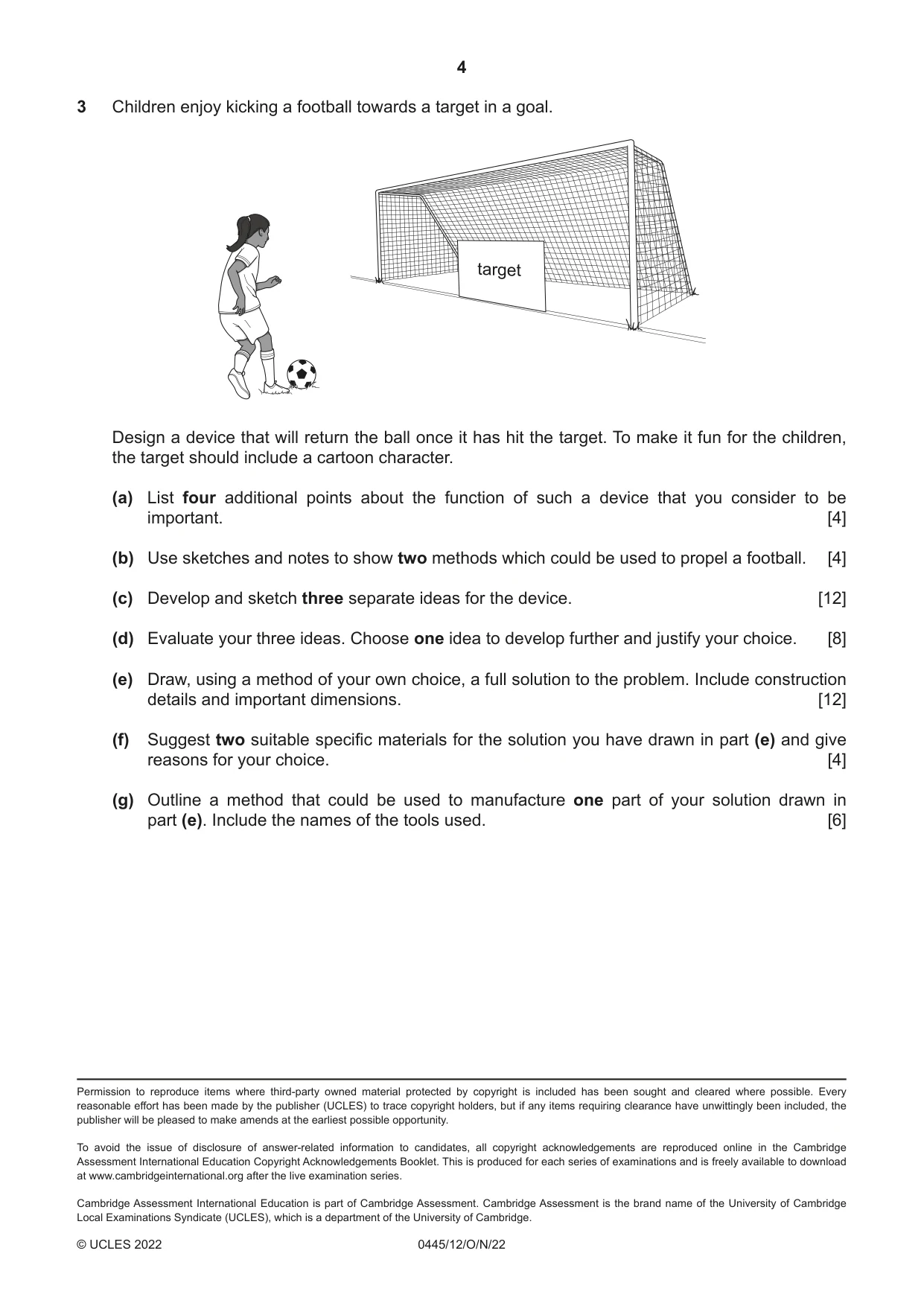

4 0445/12/O/N/22 © UCLES 2022 Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. 3 Children enjoy kicking a football towards a target in a goal. target Design a device that will return the ball once it has hit the target. To make it fun for the children, the target should include a cartoon character. (a) List four additional points about the function of such a device that you consider to be important. [4] (b) Use sketches and notes to show two methods which could be used to propel a football. [4] (c) Develop and sketch three separate ideas for the device. [12] (d) Evaluate your three ideas. Choose one idea to develop further and justify your choice. [8] (e) Draw, using a method of your own choice, a full solution to the problem. Include construction details and important dimensions. [12] (f) Suggest two suitable specific materials for the solution you have drawn in part (e) and give reasons for your choice. [4] (g) Outline a method that could be used to manufacture one part of your solution drawn in part (e). Include the names of the tools used. [6]

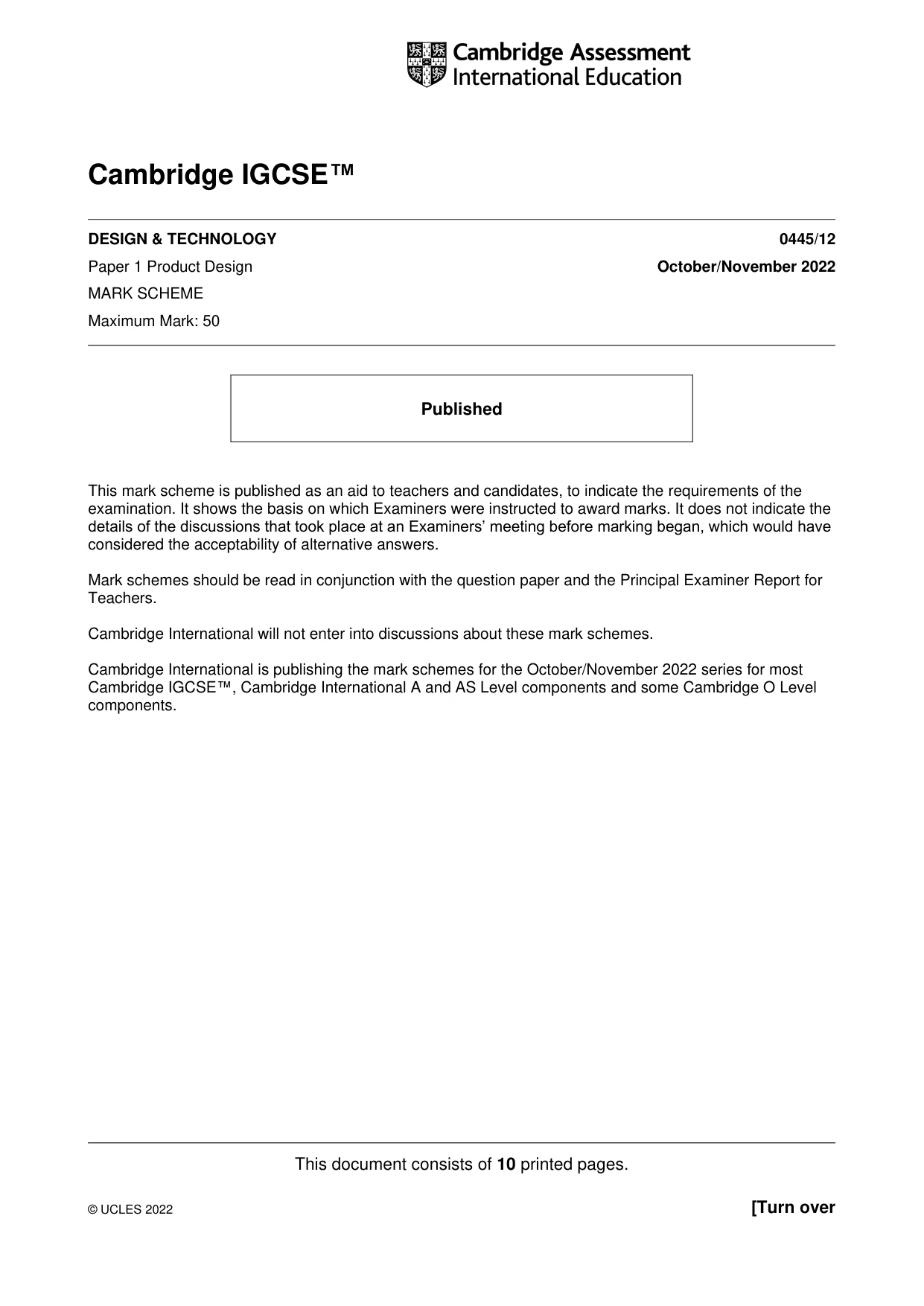

This document consists of 10 printed pages. © UCLES 2022 [Turn over Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/12 Paper 1 Product Design October/November 2022 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the October/November 2022 series for most Cambridge IGCSE™, Cambridge International A and AS Level components and some Cambridge O Level components.

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 2 of 10 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with: • the specific content of the mark scheme or the generic level descriptors for the question • the specific skills defined in the mark scheme or in the generic level descriptors for the question • the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively: • marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate • marks are awarded when candidates clearly demonstrate what they know and can do • marks are not deducted for errors • marks are not deducted for omissions • answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

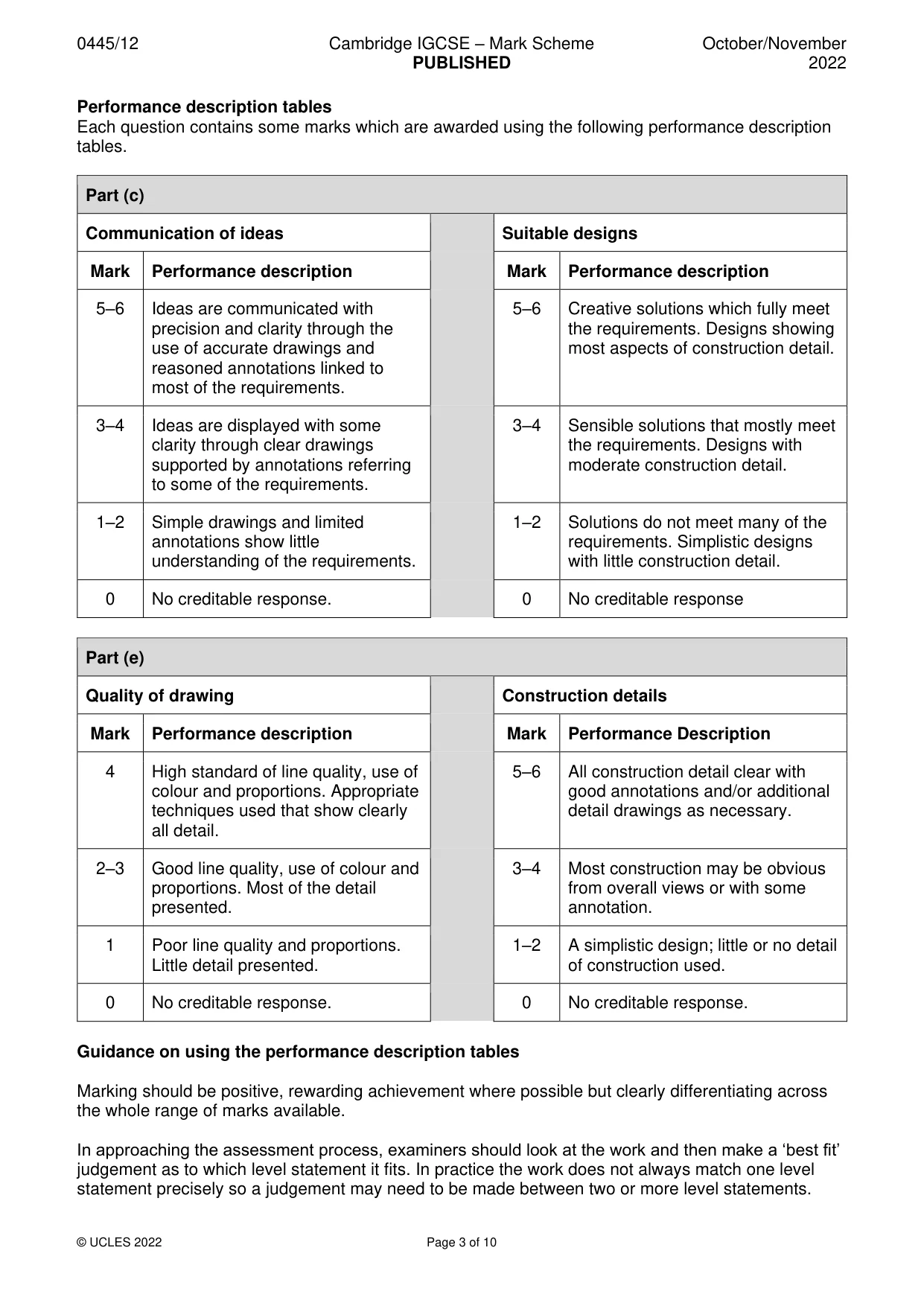

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 3 of 10 Performance description tables Each question contains some marks which are awarded using the following performance description tables. Part (c) Communication of ideas Suitable designs Mark Performance description Mark Performance description 5–6 Ideas are communicated with precision and clarity through the use of accurate drawings and reasoned annotations linked to most of the requirements. 5–6 Creative solutions which fully meet the requirements. Designs showing most aspects of construction detail. 3–4 Ideas are displayed with some clarity through clear drawings supported by annotations referring to some of the requirements. 3–4 Sensible solutions that mostly meet the requirements. Designs with moderate construction detail. 1–2 Simple drawings and limited annotations show little understanding of the requirements. 1–2 Solutions do not meet many of the requirements. Simplistic designs with little construction detail. 0 No creditable response. 0 No creditable response Part (e) Quality of drawing Construction details Mark Performance description Mark Performance Description 4 High standard of line quality, use of colour and proportions. Appropriate techniques used that show clearly all detail. 5–6 All construction detail clear with good annotations and/or additional detail drawings as necessary. 2–3 Good line quality, use of colour and proportions. Most of the detail presented. 3–4 Most construction may be obvious from overall views or with some annotation. 1 Poor line quality and proportions. Little detail presented. 1–2 A simplistic design; little or no detail of construction used. 0 No creditable response. 0 No creditable response. Guidance on using the performance description tables Marking should be positive, rewarding achievement where possible but clearly differentiating across the whole range of marks available. In approaching the assessment process, examiners should look at the work and then make a ‘best fit’ judgement as to which level statement it fits. In practice the work does not always match one level statement precisely so a judgement may need to be made between two or more level statements.

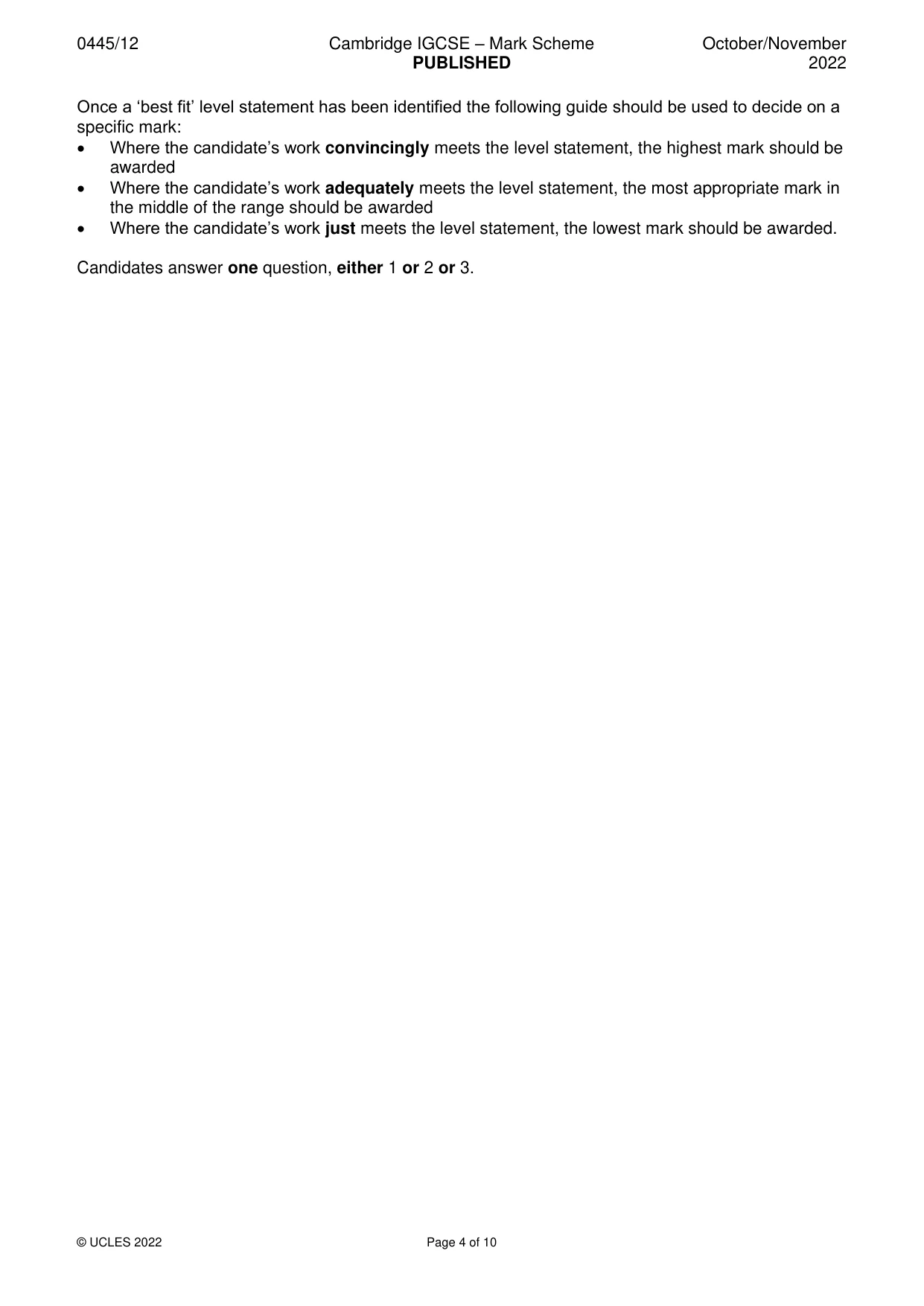

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 4 of 10 Once a ‘best fit’ level statement has been identified the following guide should be used to decide on a specific mark: • Where the candidate’s work convincingly meets the level statement, the highest mark should be awarded • Where the candidate’s work adequately meets the level statement, the most appropriate mark in the middle of the range should be awarded • Where the candidate’s work just meets the level statement, the lowest mark should be awarded. Candidates answer one question, either 1 or 2 or 3.

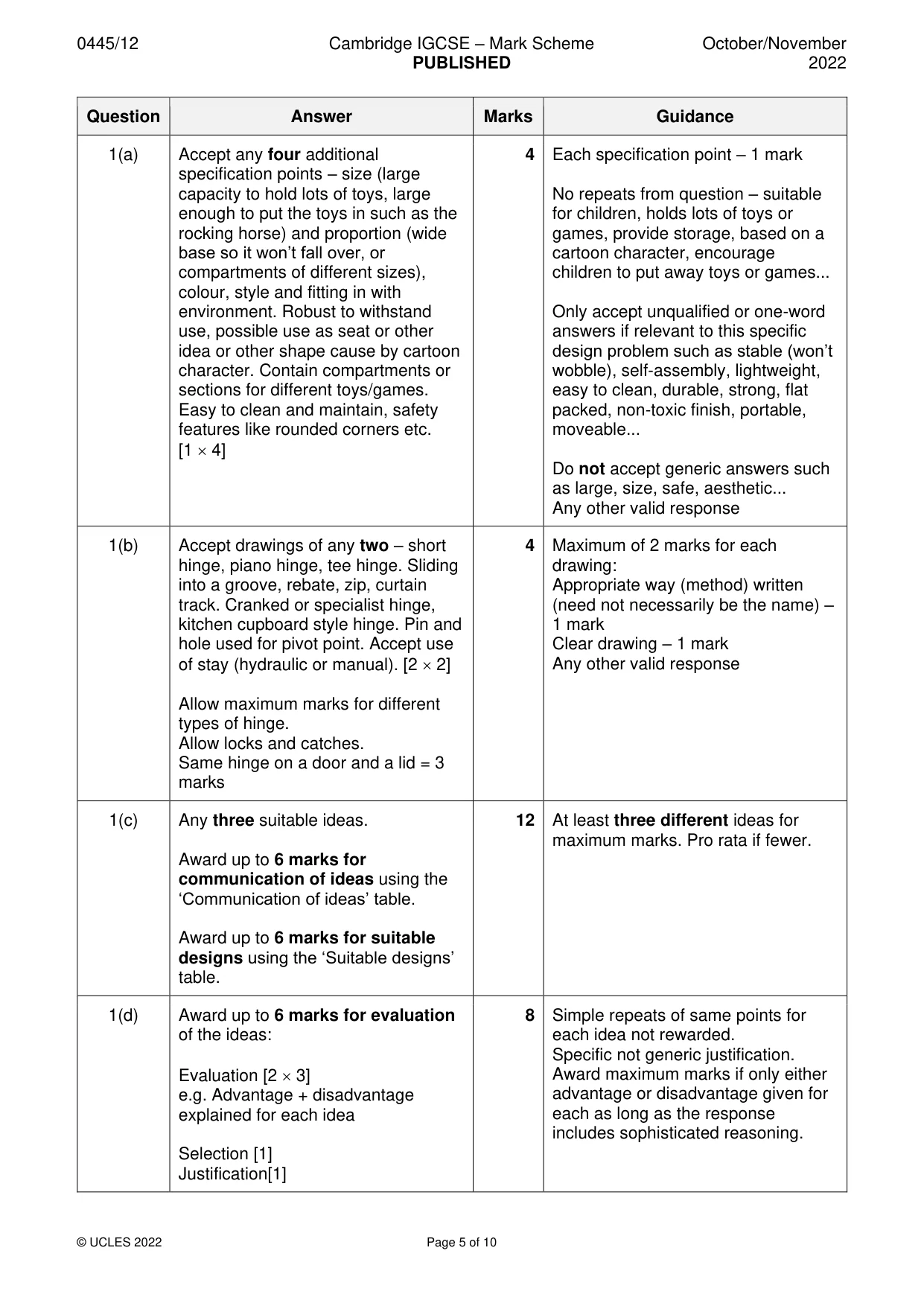

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 5 of 10 Question Answer Marks Guidance 1(a) Accept any four additional specification points – size (large capacity to hold lots of toys, large enough to put the toys in such as the rocking horse) and proportion (wide base so it won’t fall over, or compartments of different sizes), colour, style and fitting in with environment. Robust to withstand use, possible use as seat or other idea or other shape cause by cartoon character. Contain compartments or sections for different toys/games. Easy to clean and maintain, safety features like rounded corners etc. [1  4] 4 Each specification point – 1 mark No repeats from question – suitable for children, holds lots of toys or games, provide storage, based on a cartoon character, encourage children to put away toys or games... Only accept unqualified or one-word answers if relevant to this specific design problem such as stable (won’t wobble), self-assembly, lightweight, easy to clean, durable, strong, flat packed, non-toxic finish, portable, moveable... Do not accept generic answers such as large, size, safe, aesthetic... Any other valid response 1(b) Accept drawings of any two – short hinge, piano hinge, tee hinge. Sliding into a groove, rebate, zip, curtain track. Cranked or specialist hinge, kitchen cupboard style hinge. Pin and hole used for pivot point. Accept use of stay (hydraulic or manual). [2  2] Allow maximum marks for different types of hinge. Allow locks and catches. Same hinge on a door and a lid = 3 marks 4 Maximum of 2 marks for each drawing: Appropriate way (method) written (need not necessarily be the name) – 1 mark Clear drawing – 1 mark Any other valid response 1(c) Any three suitable ideas. Award up to 6 marks for communication of ideas using the ‘Communication of ideas’ table. Award up to 6 marks for suitable designs using the ‘Suitable designs’ table. 12 At least three different ideas for maximum marks. Pro rata if fewer. 1(d) Award up to 6 marks for evaluation of the ideas: Evaluation [2  3] e.g. Advantage + disadvantage explained for each idea Selection [1] Justification[1] 8 Simple repeats of same points for each idea not rewarded. Specific not generic justification. Award maximum marks if only either advantage or disadvantage given for each as long as the response includes sophisticated reasoning.

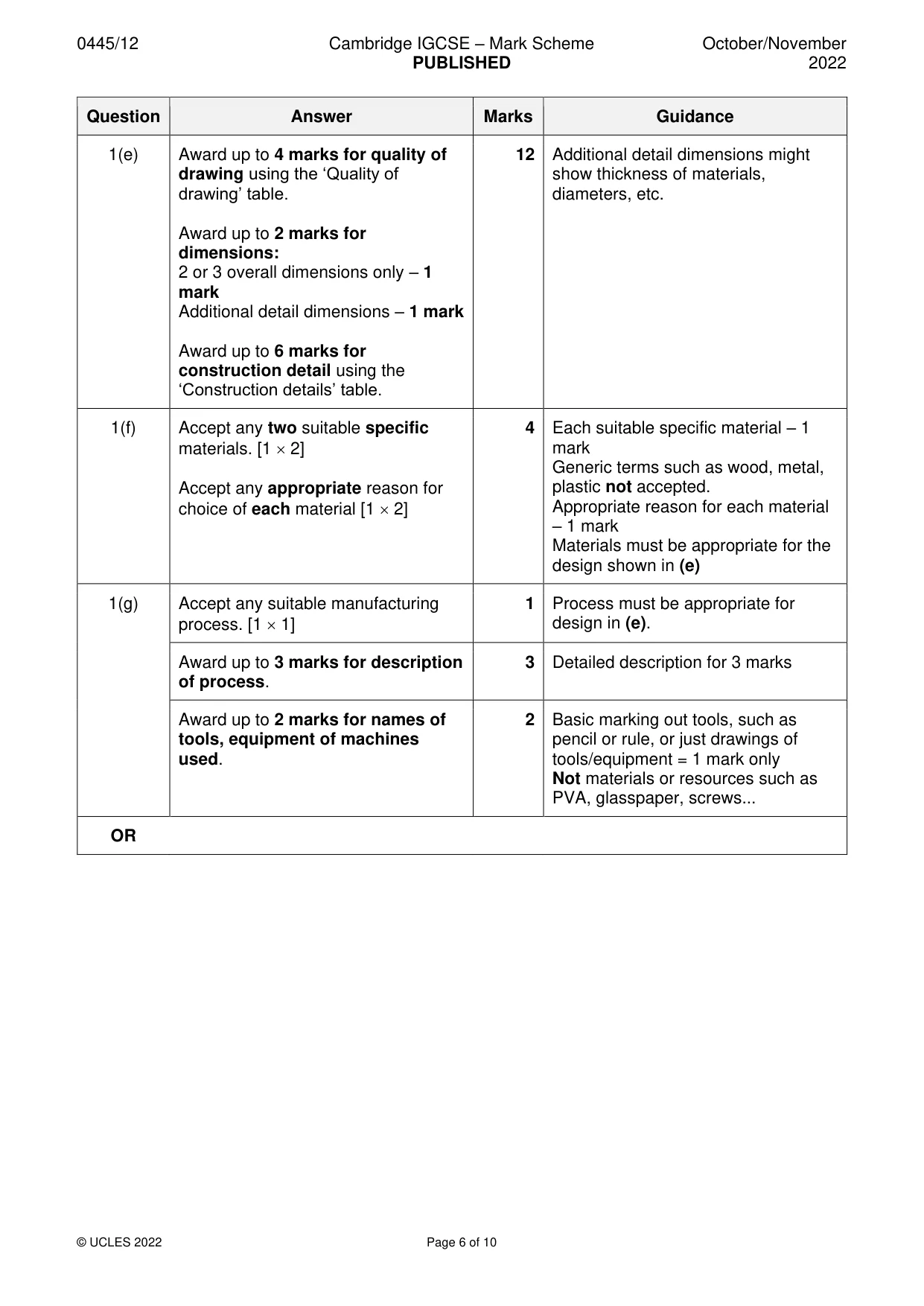

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 6 of 10 Question Answer Marks Guidance 1(e) Award up to 4 marks for quality of drawing using the ‘Quality of drawing’ table. Award up to 2 marks for dimensions: 2 or 3 overall dimensions only – 1 mark Additional detail dimensions – 1 mark Award up to 6 marks for construction detail using the ‘Construction details’ table. 12 Additional detail dimensions might show thickness of materials, diameters, etc. 1(f) Accept any two suitable specific materials. [1  2] Accept any appropriate reason for choice of each material [1  2] 4 Each suitable specific material – 1 mark Generic terms such as wood, metal, plastic not accepted. Appropriate reason for each material – 1 mark Materials must be appropriate for the design shown in (e) 1(g) Accept any suitable manufacturing process. [1  1] 1 Process must be appropriate for design in (e). Award up to 3 marks for description of process. 3 Detailed description for 3 marks Award up to 2 marks for names of tools, equipment of machines used. 2 Basic marking out tools, such as pencil or rule, or just drawings of tools/equipment = 1 mark only Not materials or resources such as PVA, glasspaper, screws... OR

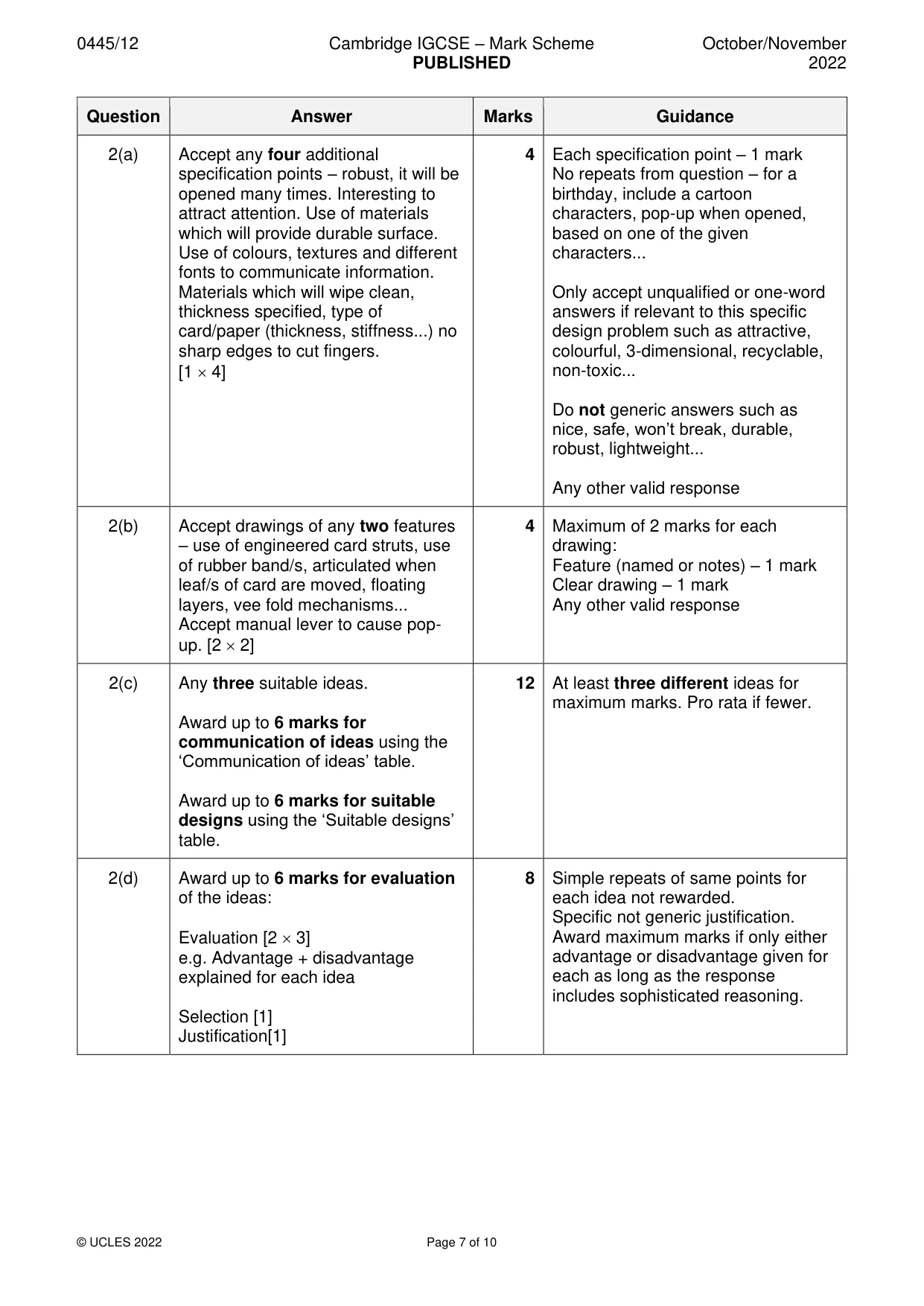

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 7 of 10 Question Answer Marks Guidance 2(a) Accept any four additional specification points – robust, it will be opened many times. Interesting to attract attention. Use of materials which will provide durable surface. Use of colours, textures and different fonts to communicate information. Materials which will wipe clean, thickness specified, type of card/paper (thickness, stiffness...) no sharp edges to cut fingers. [1  4] 4 Each specification point – 1 mark No repeats from question – for a birthday, include a cartoon characters, pop-up when opened, based on one of the given characters... Only accept unqualified or one-word answers if relevant to this specific design problem such as attractive, colourful, 3-dimensional, recyclable, non-toxic... Do not generic answers such as nice, safe, won’t break, durable, robust, lightweight... Any other valid response 2(b) Accept drawings of any two features – use of engineered card struts, use of rubber band/s, articulated when leaf/s of card are moved, floating layers, vee fold mechanisms... Accept manual lever to cause pop- up. [2  2] 4 Maximum of 2 marks for each drawing: Feature (named or notes) – 1 mark Clear drawing – 1 mark Any other valid response 2(c) Any three suitable ideas. Award up to 6 marks for communication of ideas using the ‘Communication of ideas’ table. Award up to 6 marks for suitable designs using the ‘Suitable designs’ table. 12 At least three different ideas for maximum marks. Pro rata if fewer. 2(d) Award up to 6 marks for evaluation of the ideas: Evaluation [2  3] e.g. Advantage + disadvantage explained for each idea Selection [1] Justification[1] 8 Simple repeats of same points for each idea not rewarded. Specific not generic justification. Award maximum marks if only either advantage or disadvantage given for each as long as the response includes sophisticated reasoning.

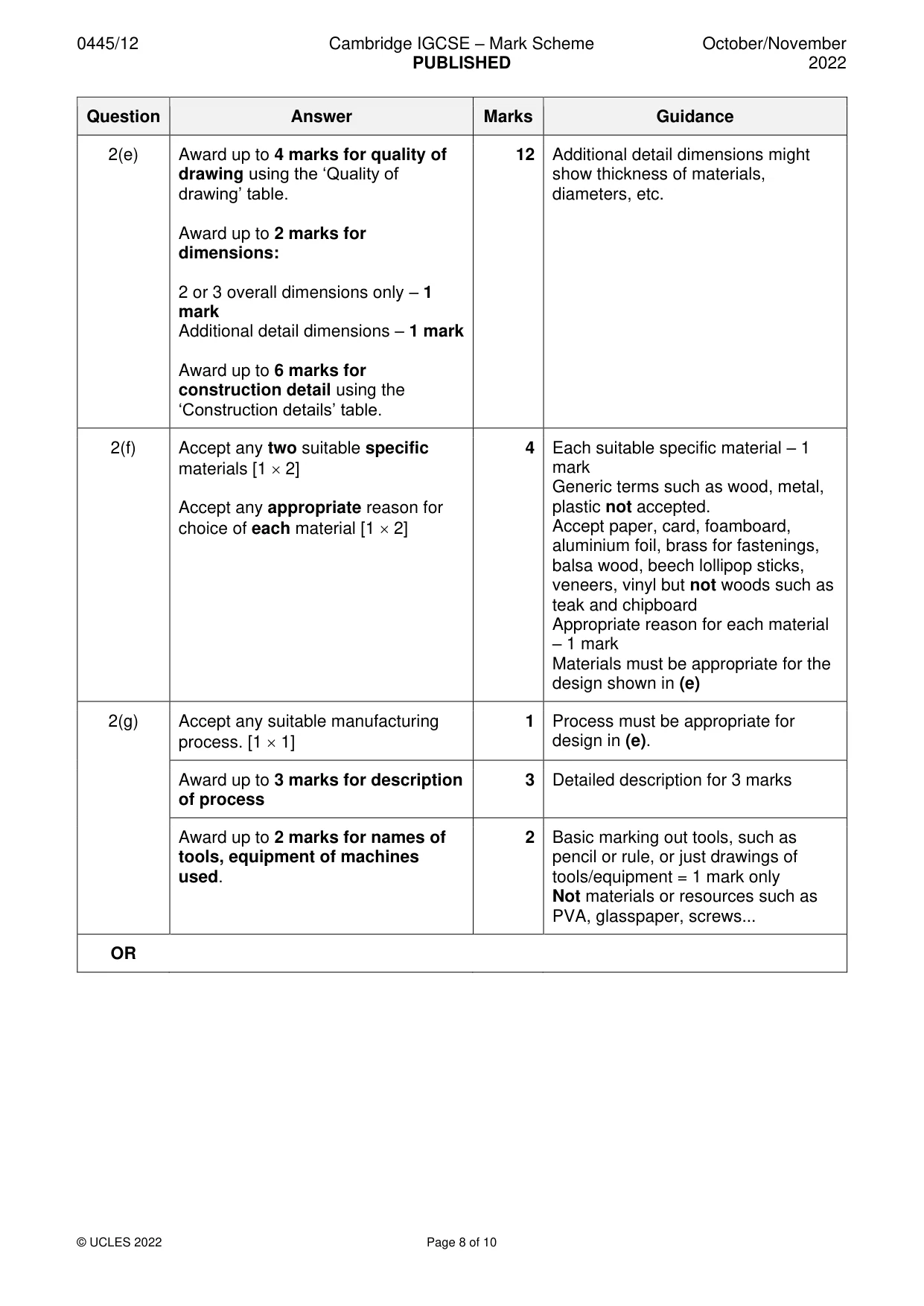

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 8 of 10 Question Answer Marks Guidance 2(e) Award up to 4 marks for quality of drawing using the ‘Quality of drawing’ table. Award up to 2 marks for dimensions: 2 or 3 overall dimensions only – 1 mark Additional detail dimensions – 1 mark Award up to 6 marks for construction detail using the ‘Construction details’ table. 12 Additional detail dimensions might show thickness of materials, diameters, etc. 2(f) Accept any two suitable specific materials [1  2] Accept any appropriate reason for choice of each material [1  2] 4 Each suitable specific material – 1 mark Generic terms such as wood, metal, plastic not accepted. Accept paper, card, foamboard, aluminium foil, brass for fastenings, balsa wood, beech lollipop sticks, veneers, vinyl but not woods such as teak and chipboard Appropriate reason for each material – 1 mark Materials must be appropriate for the design shown in (e) 2(g) Accept any suitable manufacturing process. [1  1] 1 Process must be appropriate for design in (e). Award up to 3 marks for description of process 3 Detailed description for 3 marks Award up to 2 marks for names of tools, equipment of machines used. 2 Basic marking out tools, such as pencil or rule, or just drawings of tools/equipment = 1 mark only Not materials or resources such as PVA, glasspaper, screws... OR

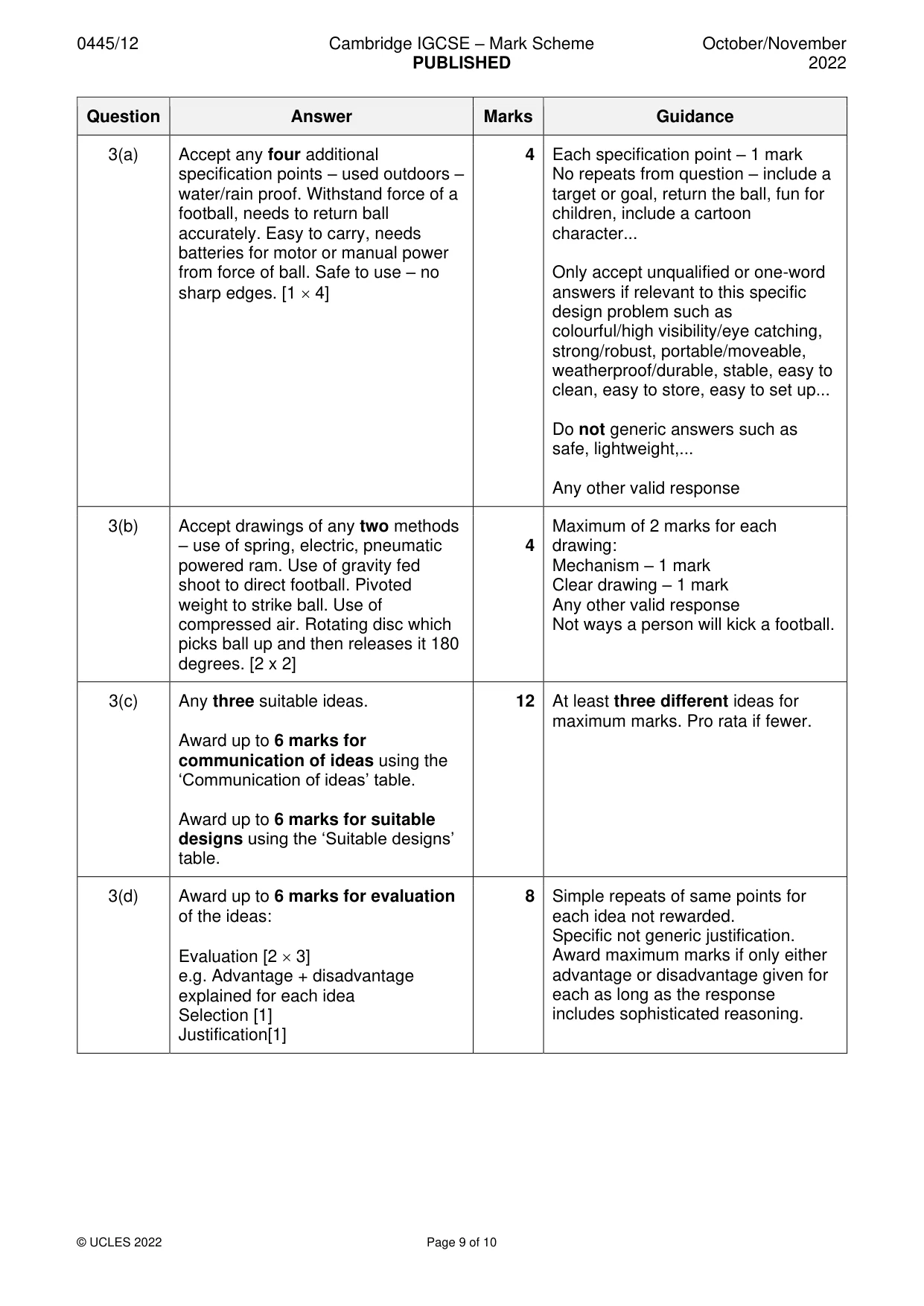

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 9 of 10 Question Answer Marks Guidance 3(a) Accept any four additional specification points – used outdoors – water/rain proof. Withstand force of a football, needs to return ball accurately. Easy to carry, needs batteries for motor or manual power from force of ball. Safe to use – no sharp edges. [1  4] 4 Each specification point – 1 mark No repeats from question – include a target or goal, return the ball, fun for children, include a cartoon character... Only accept unqualified or one-word answers if relevant to this specific design problem such as colourful/high visibility/eye catching, strong/robust, portable/moveable, weatherproof/durable, stable, easy to clean, easy to store, easy to set up... Do not generic answers such as safe, lightweight,... Any other valid response 3(b) Accept drawings of any two methods – use of spring, electric, pneumatic powered ram. Use of gravity fed shoot to direct football. Pivoted weight to strike ball. Use of compressed air. Rotating disc which picks ball up and then releases it 180 degrees. [2 x 2] 4 Maximum of 2 marks for each drawing: Mechanism – 1 mark Clear drawing – 1 mark Any other valid response Not ways a person will kick a football. 3(c) Any three suitable ideas. Award up to 6 marks for communication of ideas using the ‘Communication of ideas’ table. Award up to 6 marks for suitable designs using the ‘Suitable designs’ table. 12 At least three different ideas for maximum marks. Pro rata if fewer. 3(d) Award up to 6 marks for evaluation of the ideas: Evaluation [2  3] e.g. Advantage + disadvantage explained for each idea Selection [1] Justification[1] 8 Simple repeats of same points for each idea not rewarded. Specific not generic justification. Award maximum marks if only either advantage or disadvantage given for each as long as the response includes sophisticated reasoning.

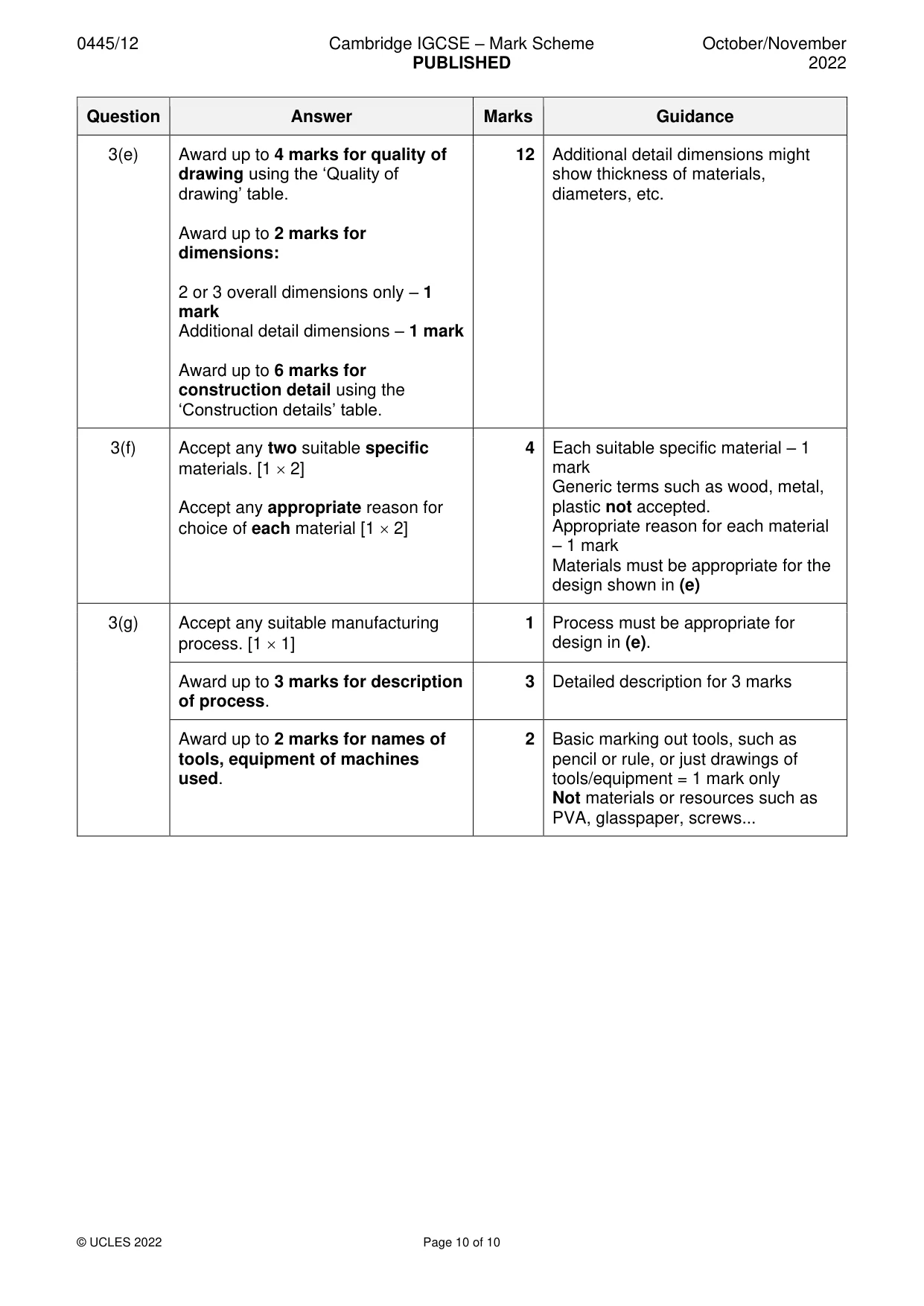

0445/12 Cambridge IGCSE – Mark Scheme PUBLISHED October/November 2022 © UCLES 2022 Page 10 of 10 Question Answer Marks Guidance 3(e) Award up to 4 marks for quality of drawing using the ‘Quality of drawing’ table. Award up to 2 marks for dimensions: 2 or 3 overall dimensions only – 1 mark Additional detail dimensions – 1 mark Award up to 6 marks for construction detail using the ‘Construction details’ table. 12 Additional detail dimensions might show thickness of materials, diameters, etc. 3(f) Accept any two suitable specific materials. [1  2] Accept any appropriate reason for choice of each material [1  2] 4 Each suitable specific material – 1 mark Generic terms such as wood, metal, plastic not accepted. Appropriate reason for each material – 1 mark Materials must be appropriate for the design shown in (e) 3(g) Accept any suitable manufacturing process. [1  1] 1 Process must be appropriate for design in (e). Award up to 3 marks for description of process. 3 Detailed description for 3 marks Award up to 2 marks for names of tools, equipment of machines used. 2 Basic marking out tools, such as pencil or rule, or just drawings of tools/equipment = 1 mark only Not materials or resources such as PVA, glasspaper, screws...
