Cambridge IGCSE Design and Technology 0445 — 2022 May/June Paper 5 · Variant 1

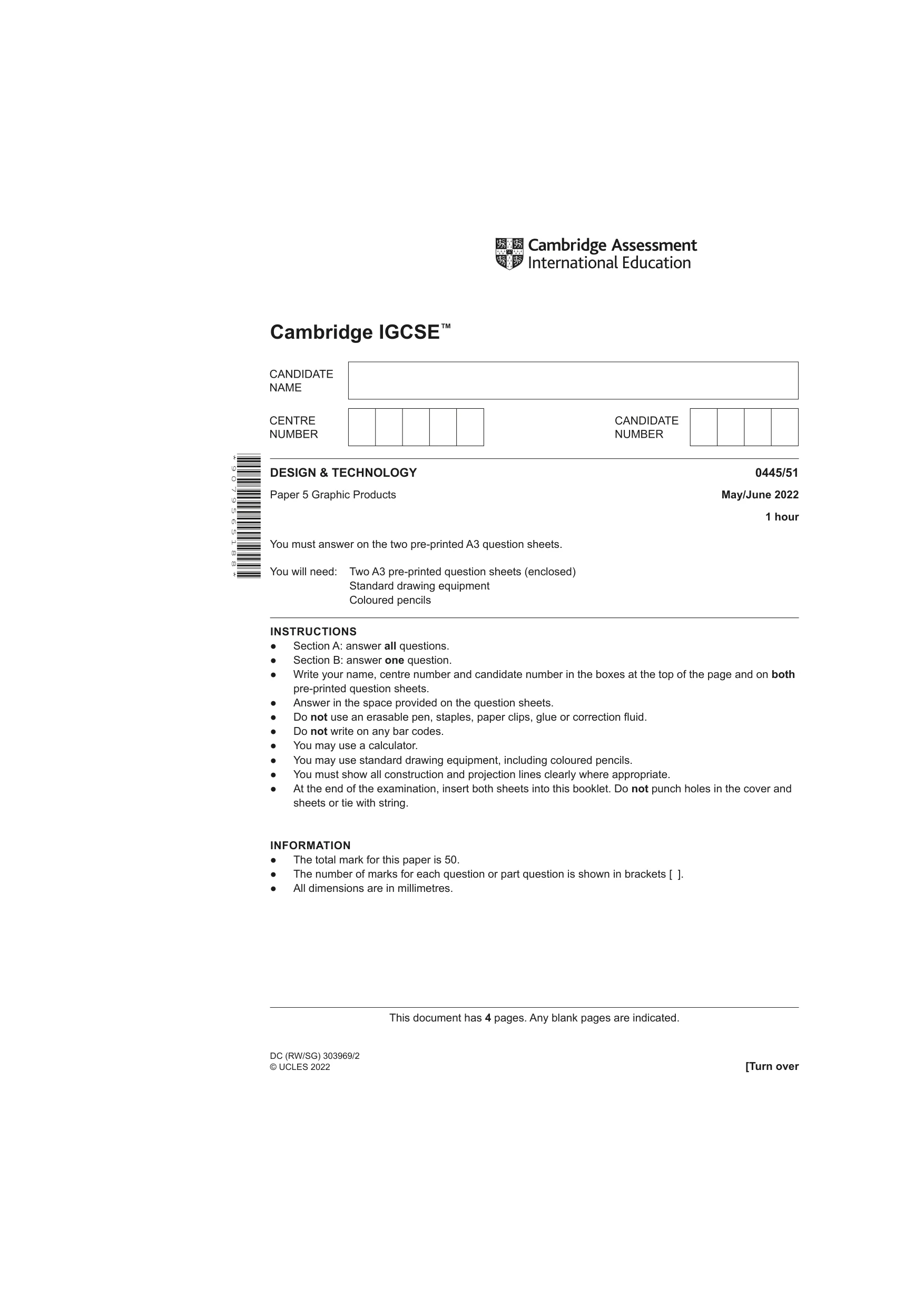

Cambridge IGCSE™ DESIGN & TECHNOLOGY 0445/51 Paper 5 Graphic Products May/June 2022 1 hour You must answer on the two pre-printed A3 question sheets. You will need: Two A3 pre-printed question sheets (enclosed) Standard drawing equipment Coloured pencils INSTRUCTIONS ● Section A: answer all questions. ● Section B: answer one question. ● Write your name, centre number and candidate number in the boxes at the top of the page and on both pre-printed question sheets. ● Answer in the space provided on the question sheets. ● Do not use an erasable pen, staples, paper clips, glue or correction fluid. ● Do not write on any bar codes. ● You may use a calculator. ● You may use standard drawing equipment, including coloured pencils. ● You must show all construction and projection lines clearly where appropriate. ● At the end of the examination, insert both sheets into this booklet. Do not punch holes in the cover and sheets or tie with string. INFORMATION ● The total mark for this paper is 50. ● The number of marks for each question or part question is shown in brackets [ ]. ● All dimensions are in millimetres. * 9 0 7 9 5 6 5 1 8 8 * This document has 4 pages. Any blank pages are indicated. DC (RW/SG) 303969/2 © UCLES 2022 [Turn over

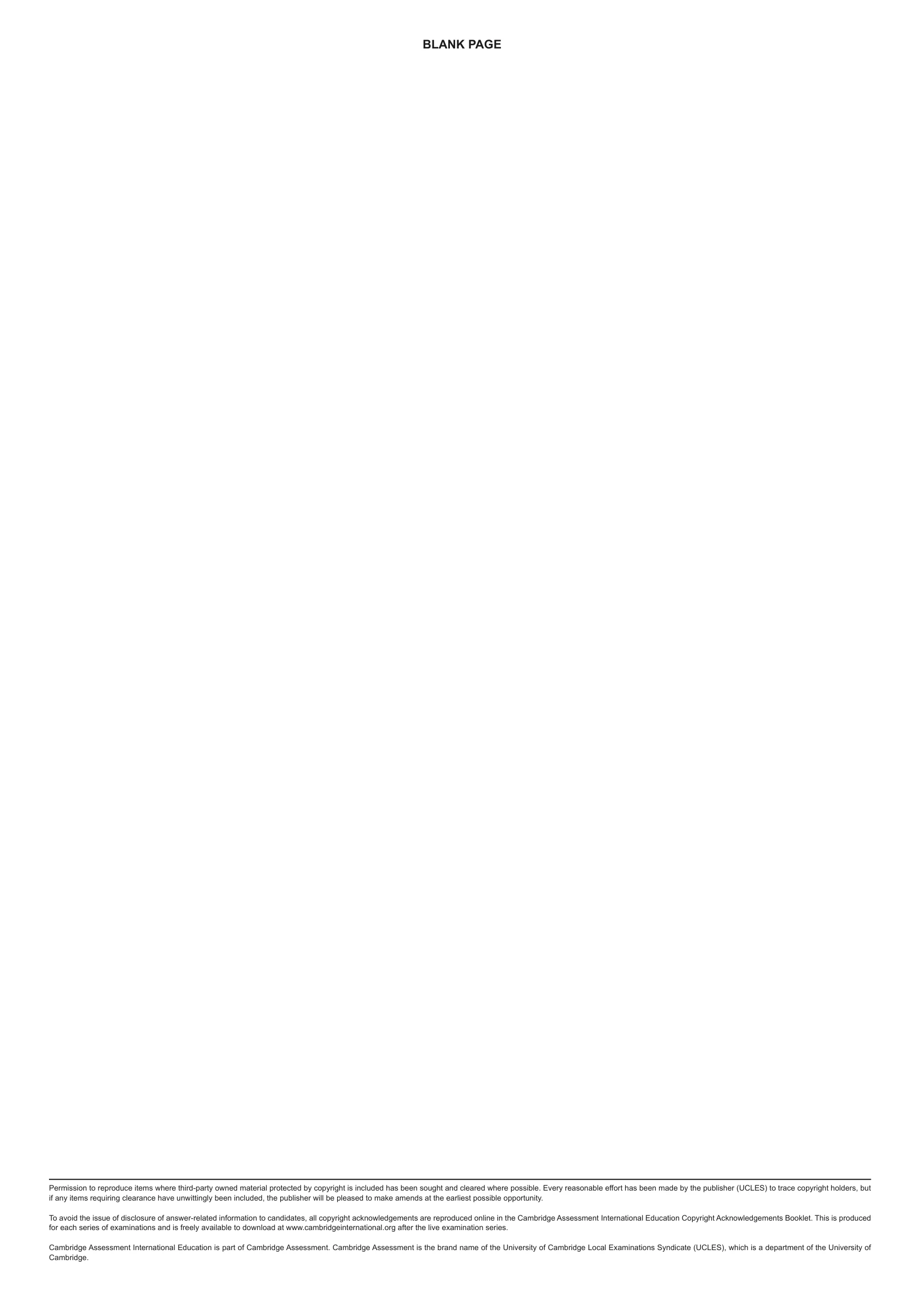

Permission to reproduce items where third-party owned material protected by copyright is included has been sought and cleared where possible. Every reasonable effort has been made by the publisher (UCLES) to trace copyright holders, but if any items requiring clearance have unwittingly been included, the publisher will be pleased to make amends at the earliest possible opportunity. To avoid the issue of disclosure of answer-related information to candidates, all copyright acknowledgements are reproduced online in the Cambridge Assessment International Education Copyright Acknowledgements Booklet. This is produced for each series of examinations and is freely available to download at www.cambridgeinternational.org after the live examination series. Cambridge Assessment International Education is part of Cambridge Assessment. Cambridge Assessment is the brand name of the University of Cambridge Local Examinations Syndicate (UCLES), which is a department of the University of Cambridge. BLANK PAGE

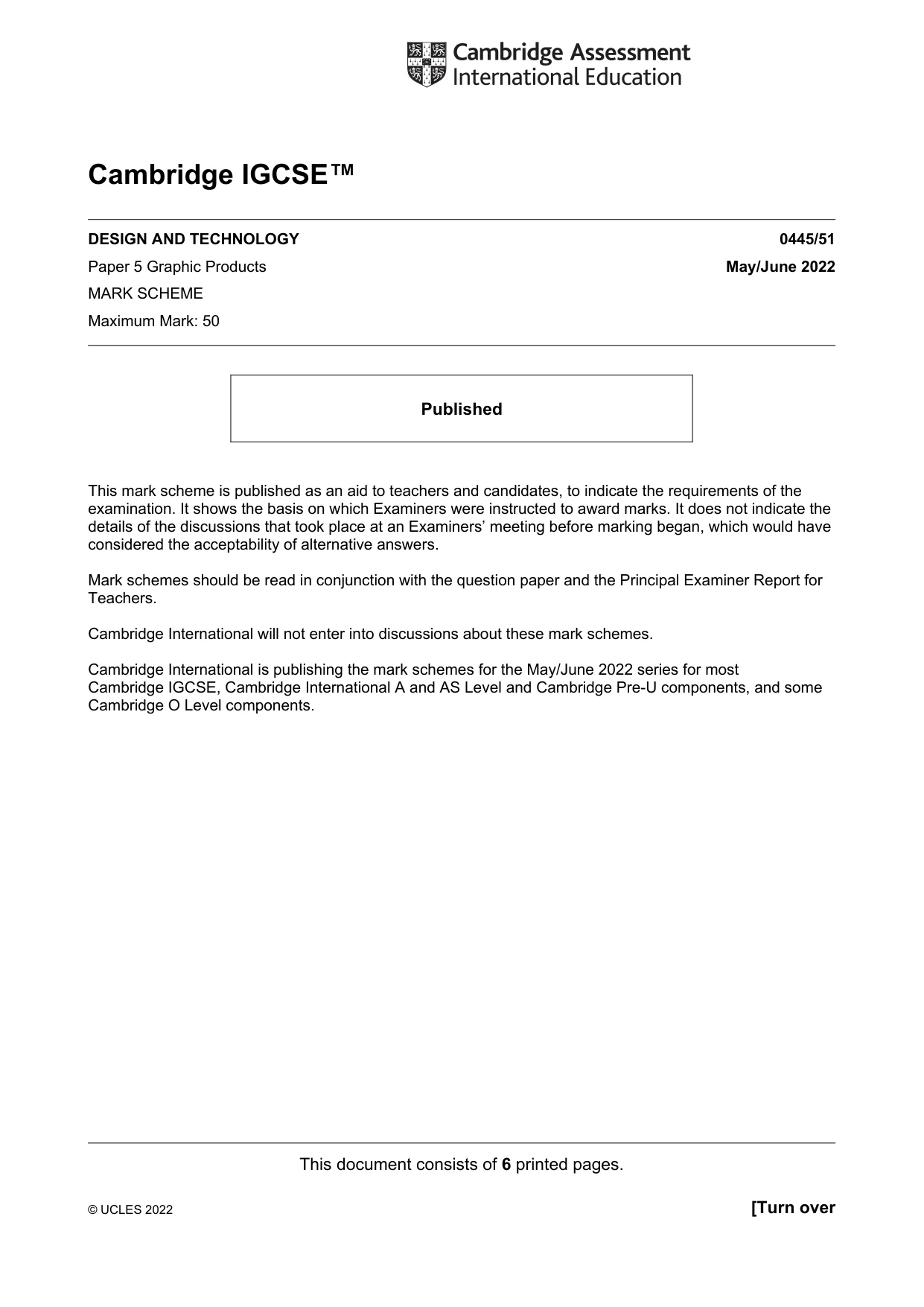

This document consists of 6 printed pages. © UCLES 2022 [Turn over Cambridge IGCSE™ DESIGN AND TECHNOLOGY 0445/51 Paper 5 Graphic Products May/June 2022 MARK SCHEME Maximum Mark: 50 Published This mark scheme is published as an aid to teachers and candidates, to indicate the requirements of the examination. It shows the basis on which Examiners were instructed to award marks. It does not indicate the details of the discussions that took place at an Examiners’ meeting before marking began, which would have considered the acceptability of alternative answers. Mark schemes should be read in conjunction with the question paper and the Principal Examiner Report for Teachers. Cambridge International will not enter into discussions about these mark schemes. Cambridge International is publishing the mark schemes for the May/June 2022 series for most Cambridge IGCSE, Cambridge International A and AS Level and Cambridge Pre-U components, and some Cambridge O Level components.

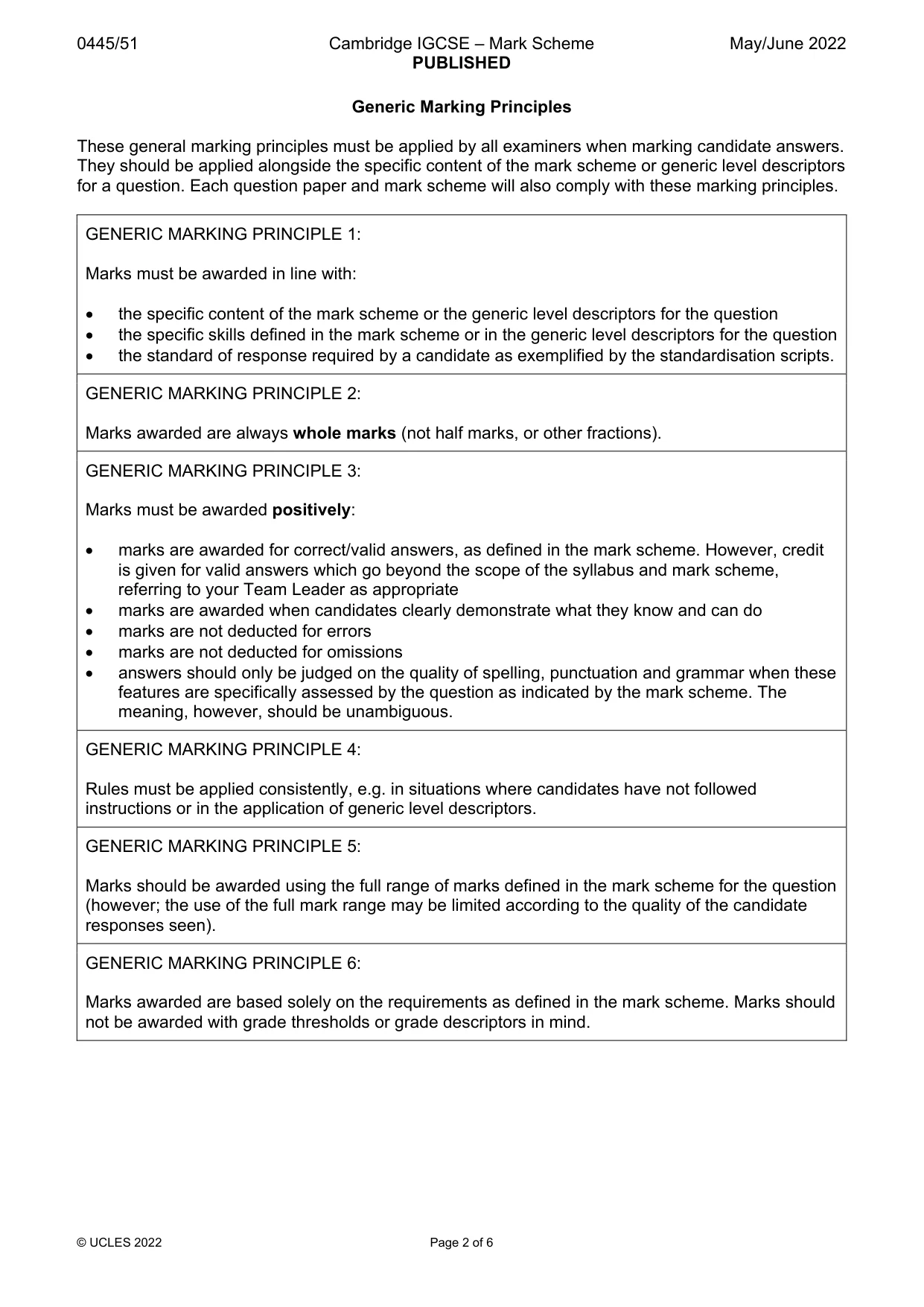

0445/51 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 2 of 6 Generic Marking Principles These general marking principles must be applied by all examiners when marking candidate answers. They should be applied alongside the specific content of the mark scheme or generic level descriptors for a question. Each question paper and mark scheme will also comply with these marking principles. GENERIC MARKING PRINCIPLE 1: Marks must be awarded in line with:  the specific content of the mark scheme or the generic level descriptors for the question  the specific skills defined in the mark scheme or in the generic level descriptors for the question  the standard of response required by a candidate as exemplified by the standardisation scripts. GENERIC MARKING PRINCIPLE 2: Marks awarded are always whole marks (not half marks, or other fractions). GENERIC MARKING PRINCIPLE 3: Marks must be awarded positively:  marks are awarded for correct/valid answers, as defined in the mark scheme. However, credit is given for valid answers which go beyond the scope of the syllabus and mark scheme, referring to your Team Leader as appropriate  marks are awarded when candidates clearly demonstrate what they know and can do  marks are not deducted for errors  marks are not deducted for omissions  answers should only be judged on the quality of spelling, punctuation and grammar when these features are specifically assessed by the question as indicated by the mark scheme. The meaning, however, should be unambiguous. GENERIC MARKING PRINCIPLE 4: Rules must be applied consistently, e.g. in situations where candidates have not followed instructions or in the application of generic level descriptors. GENERIC MARKING PRINCIPLE 5: Marks should be awarded using the full range of marks defined in the mark scheme for the question (however; the use of the full mark range may be limited according to the quality of the candidate responses seen). GENERIC MARKING PRINCIPLE 6: Marks awarded are based solely on the requirements as defined in the mark scheme. Marks should not be awarded with grade thresholds or grade descriptors in mind.

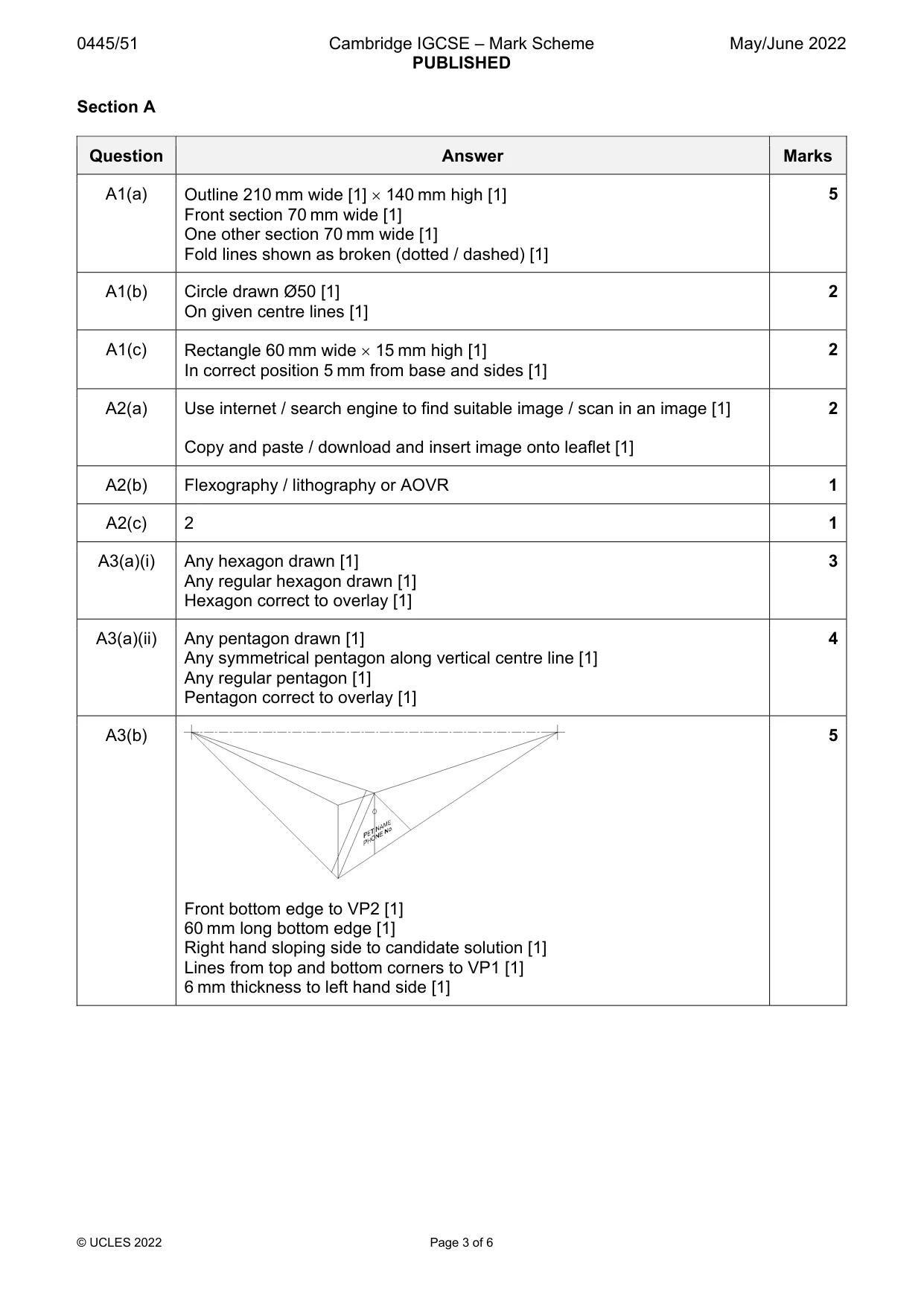

0445/51 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 3 of 6 Section A Question Answer Marks A1(a) Outline 210 mm wide [1]  140 mm high [1] Front section 70 mm wide [1] One other section 70 mm wide [1] Fold lines shown as broken (dotted / dashed) [1] 5 A1(b) Circle drawn Ø50 [1] On given centre lines [1] 2 A1(c) Rectangle 60 mm wide  15 mm high [1] In correct position 5 mm from base and sides [1] 2 A2(a) Use internet / search engine to find suitable image / scan in an image [1] Copy and paste / download and insert image onto leaflet [1] 2 A2(b) Flexography / lithography or AOVR 1 A2(c) 2 1 A3(a)(i) Any hexagon drawn [1] Any regular hexagon drawn [1] Hexagon correct to overlay [1] 3 A3(a)(ii) Any pentagon drawn [1] Any symmetrical pentagon along vertical centre line [1] Any regular pentagon [1] Pentagon correct to overlay [1] 4 A3(b) Front bottom edge to VP2 [1] 60 mm long bottom edge [1] Right hand sloping side to candidate solution [1] Lines from top and bottom corners to VP1 [1] 6 mm thickness to left hand side [1] 5

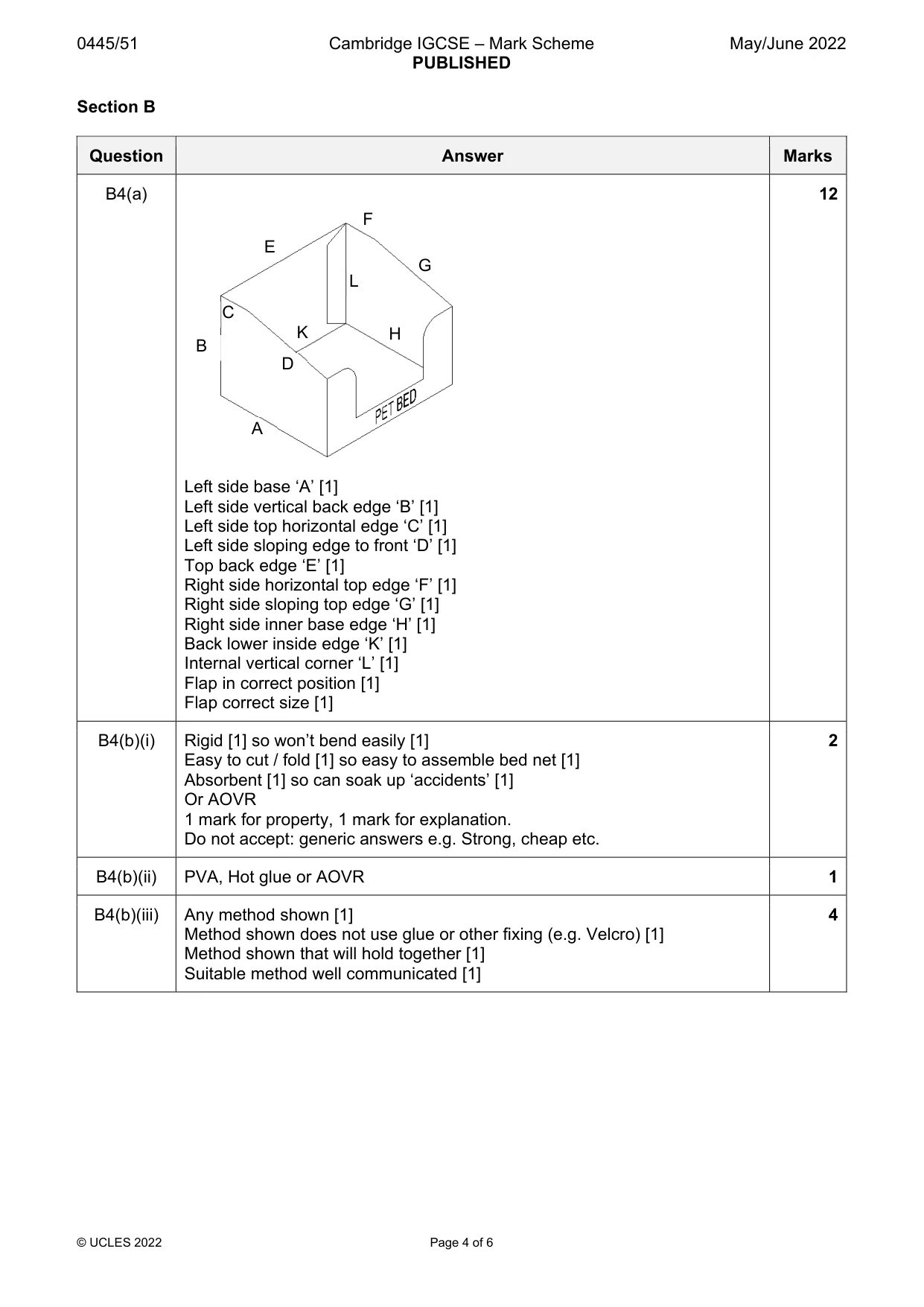

0445/51 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 4 of 6 Section B Question Answer Marks B4(a) Left side base ‘A’ [1] Left side vertical back edge ‘B’ [1] Left side top horizontal edge ‘C’ [1] Left side sloping edge to front ‘D’ [1] Top back edge ‘E’ [1] Right side horizontal top edge ‘F’ [1] Right side sloping top edge ‘G’ [1] Right side inner base edge ‘H’ [1] Back lower inside edge ‘K’ [1] Internal vertical corner ‘L’ [1] Flap in correct position [1] Flap correct size [1] 12 B4(b)(i) Rigid [1] so won’t bend easily [1] Easy to cut / fold [1] so easy to assemble bed net [1] Absorbent [1] so can soak up ‘accidents’ [1] Or AOVR 1 mark for property, 1 mark for explanation. Do not accept: generic answers e.g. Strong, cheap etc. 2 B4(b)(ii) PVA, Hot glue or AOVR 1 B4(b)(iii) Any method shown [1] Method shown does not use glue or other fixing (e.g. Velcro) [1] Method shown that will hold together [1] Suitable method well communicated [1] 4 A B C D E F G K H L

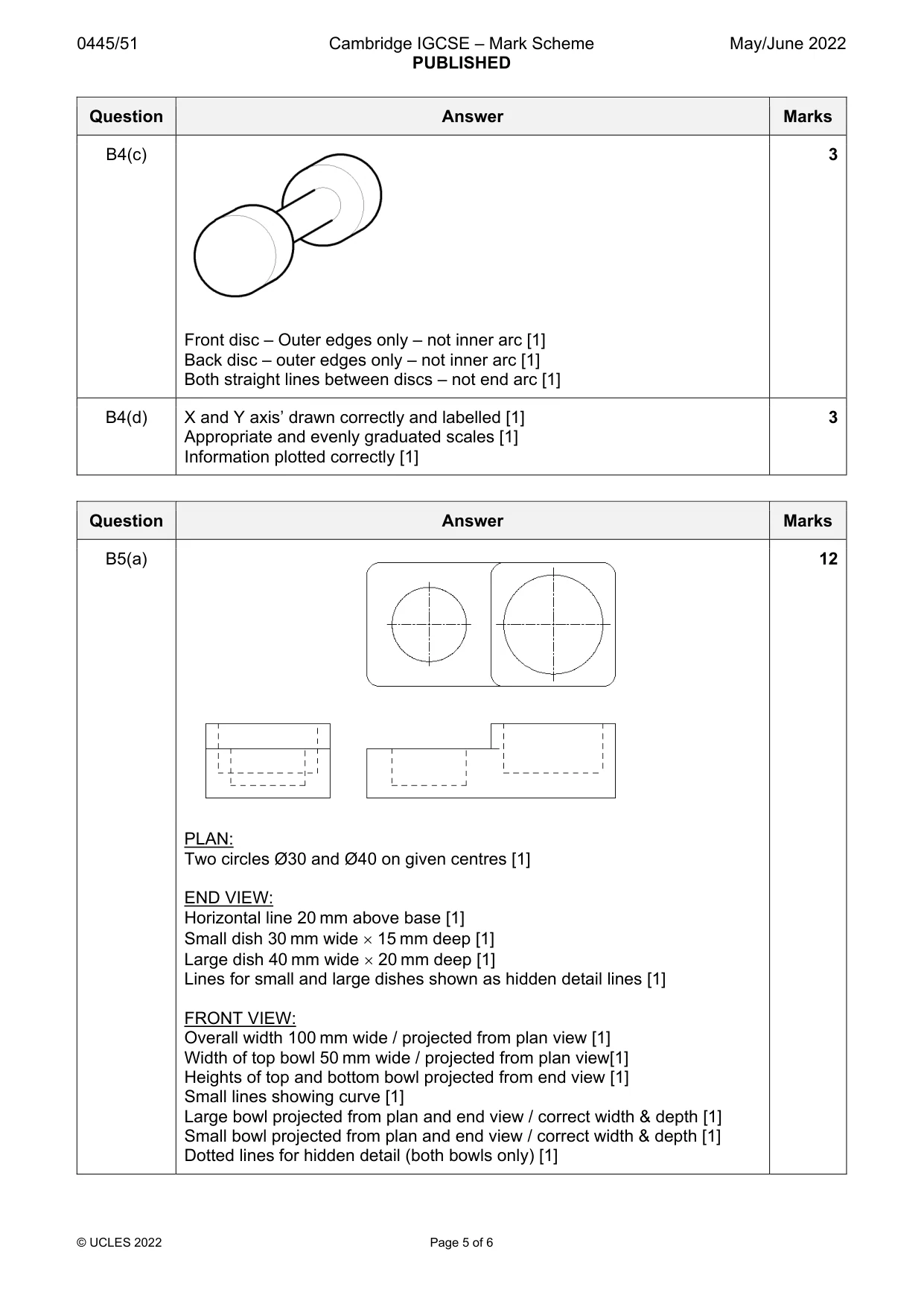

0445/51 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 5 of 6 Question Answer Marks B4(c) Front disc – Outer edges only – not inner arc [1] Back disc – outer edges only – not inner arc [1] Both straight lines between discs – not end arc [1] 3 B4(d) X and Y axis’ drawn correctly and labelled [1] Appropriate and evenly graduated scales [1] Information plotted correctly [1] 3 Question Answer Marks B5(a) PLAN: Two circles Ø30 and Ø40 on given centres [1] END VIEW: Horizontal line 20 mm above base [1] Small dish 30 mm wide  15 mm deep [1] Large dish 40 mm wide  20 mm deep [1] Lines for small and large dishes shown as hidden detail lines [1] FRONT VIEW: Overall width 100 mm wide / projected from plan view [1] Width of top bowl 50 mm wide / projected from plan view[1] Heights of top and bottom bowl projected from end view [1] Small lines showing curve [1] Large bowl projected from plan and end view / correct width & depth [1] Small bowl projected from plan and end view / correct width & depth [1] Dotted lines for hidden detail (both bowls only) [1] 12

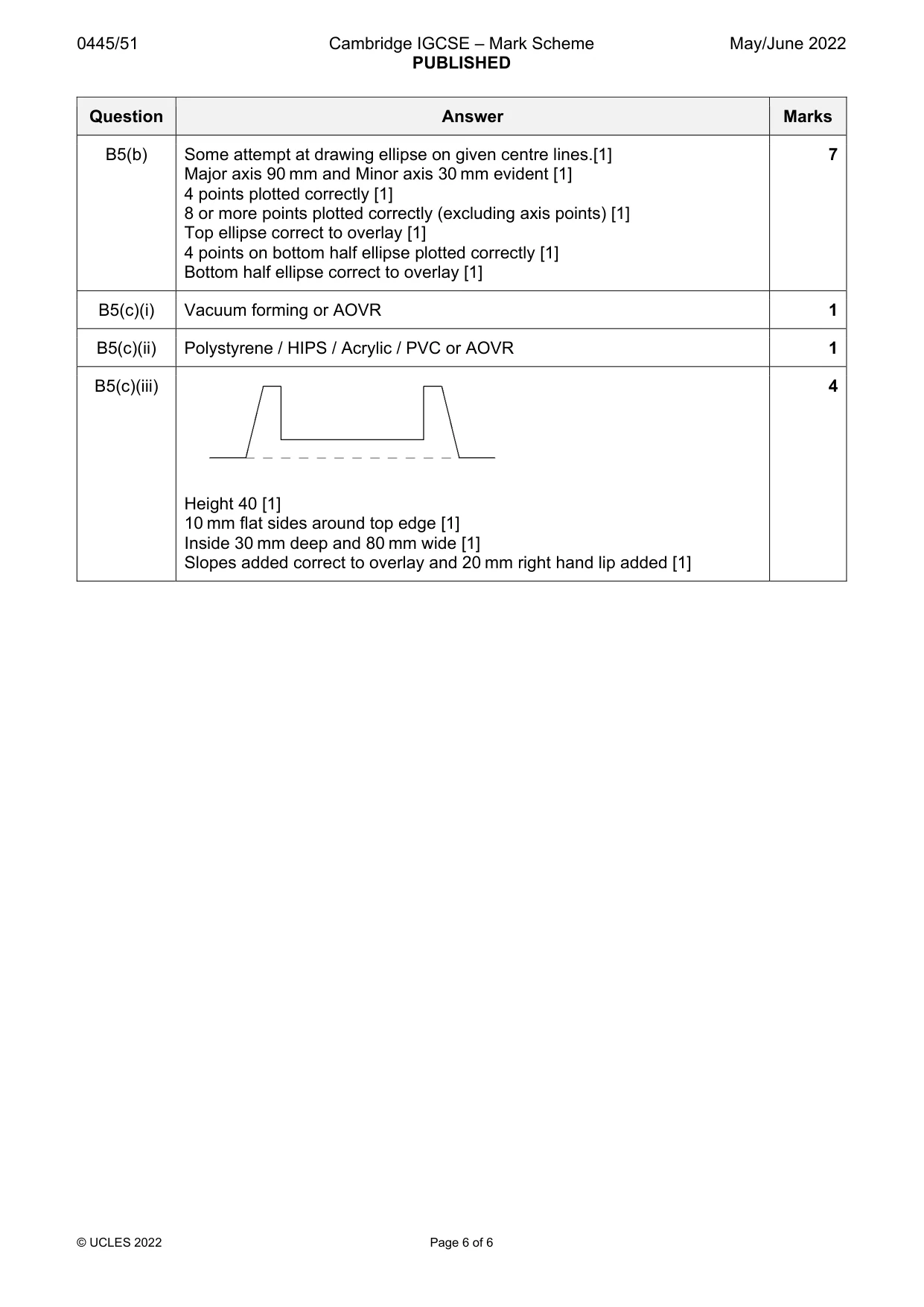

0445/51 Cambridge IGCSE – Mark Scheme PUBLISHED May/June 2022 © UCLES 2022 Page 6 of 6 Question Answer Marks B5(b) Some attempt at drawing ellipse on given centre lines.[1] Major axis 90 mm and Minor axis 30 mm evident [1] 4 points plotted correctly [1] 8 or more points plotted correctly (excluding axis points) [1] Top ellipse correct to overlay [1] 4 points on bottom half ellipse plotted correctly [1] Bottom half ellipse correct to overlay [1] 7 B5(c)(i) Vacuum forming or AOVR 1 B5(c)(ii) Polystyrene / HIPS / Acrylic / PVC or AOVR 1 B5(c)(iii) Height 40 [1] 10 mm flat sides around top edge [1] Inside 30 mm deep and 80 mm wide [1] Slopes added correct to overlay and 20 mm right hand lip added [1] 4
