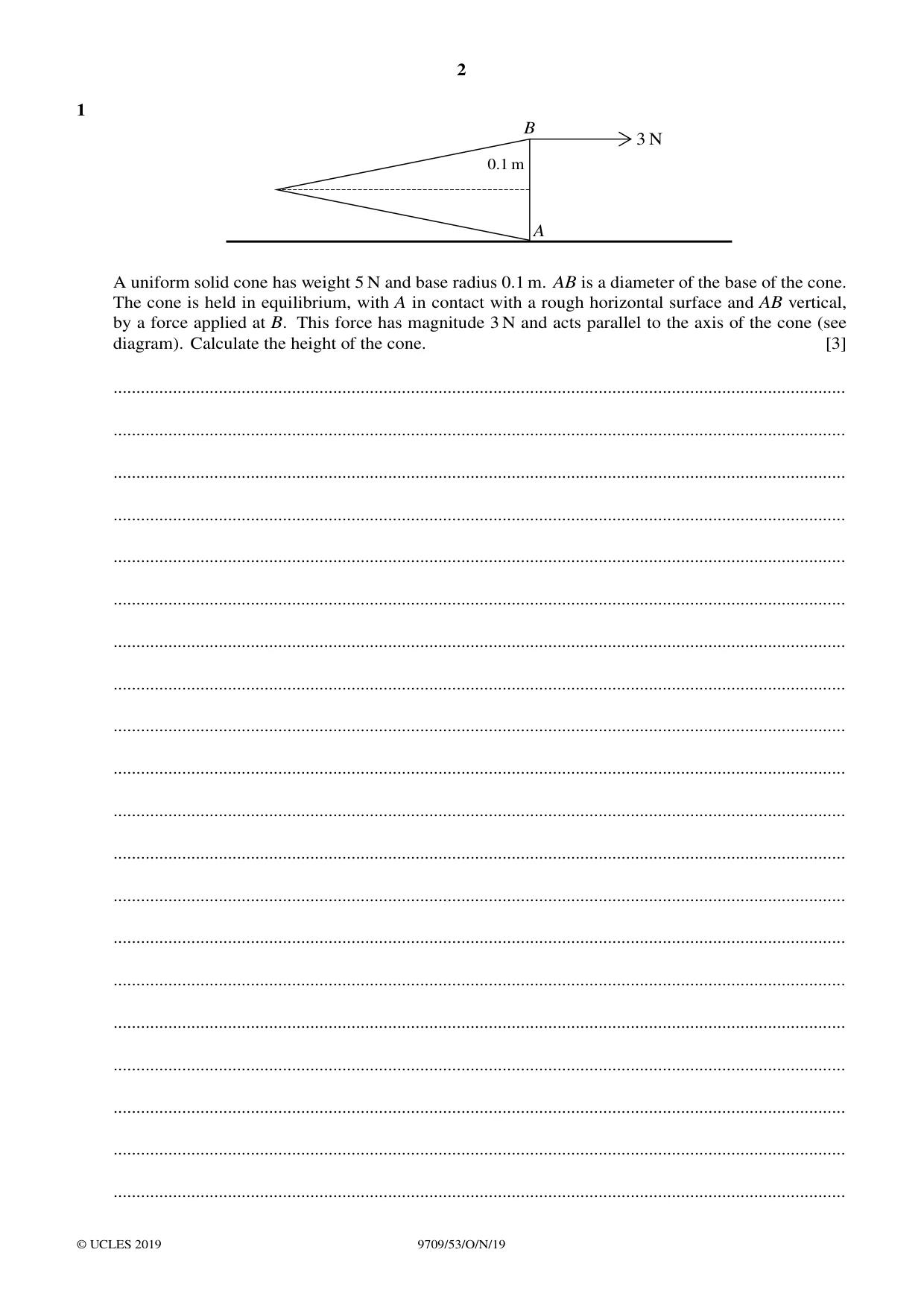

1 B 3 N 0.1 m A A uniform solid cone has weight 5 N and base radius 0.1 m. AB is a diameter of the base of the cone. The cone is held in equilibrium, with A in contact with a rough horizontal surface and AB vertical, by a force applied at B. This force has magnitude 3 N and acts parallel to the axis of the cone (see diagram). Calculate the height of the cone. [3] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

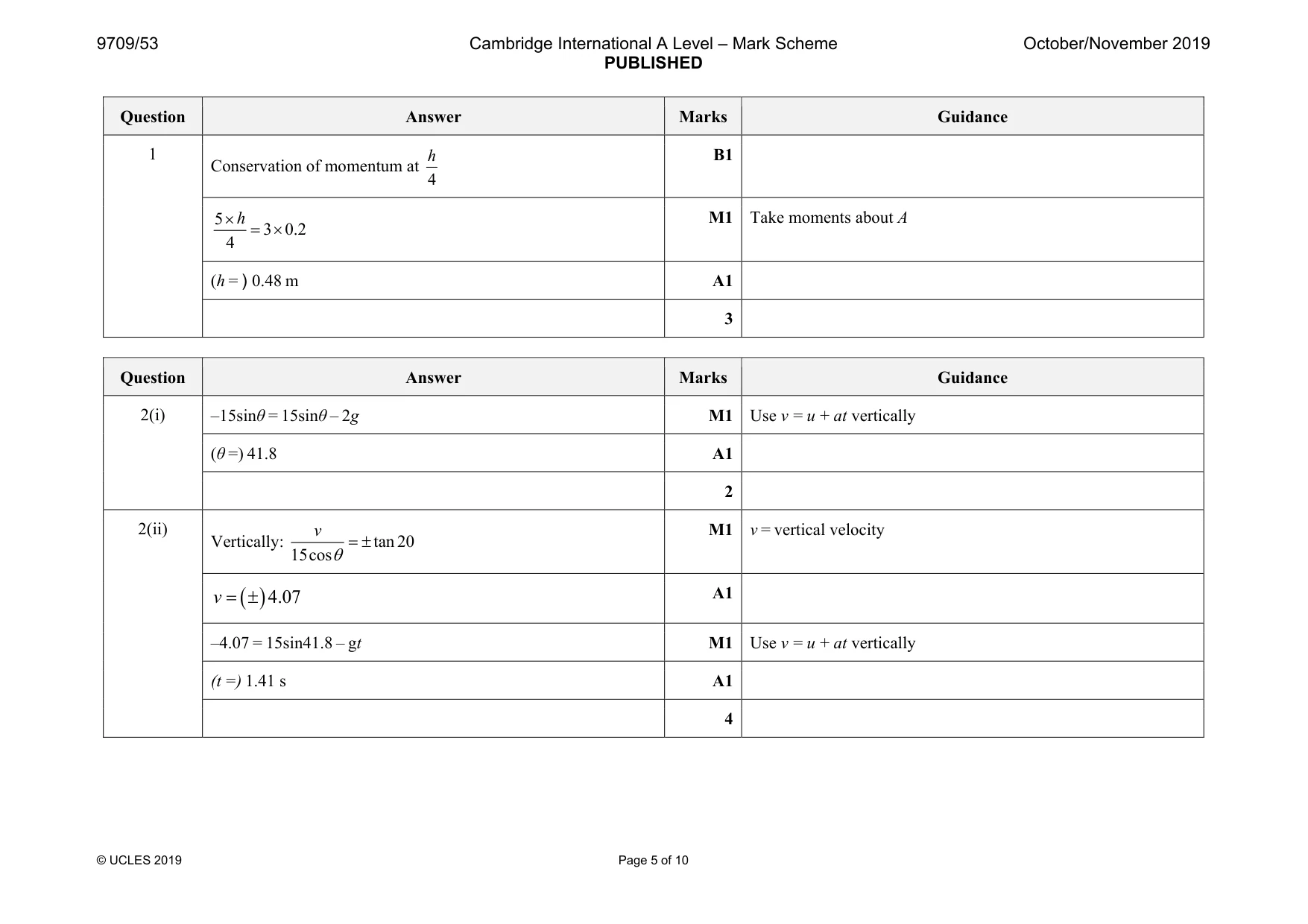

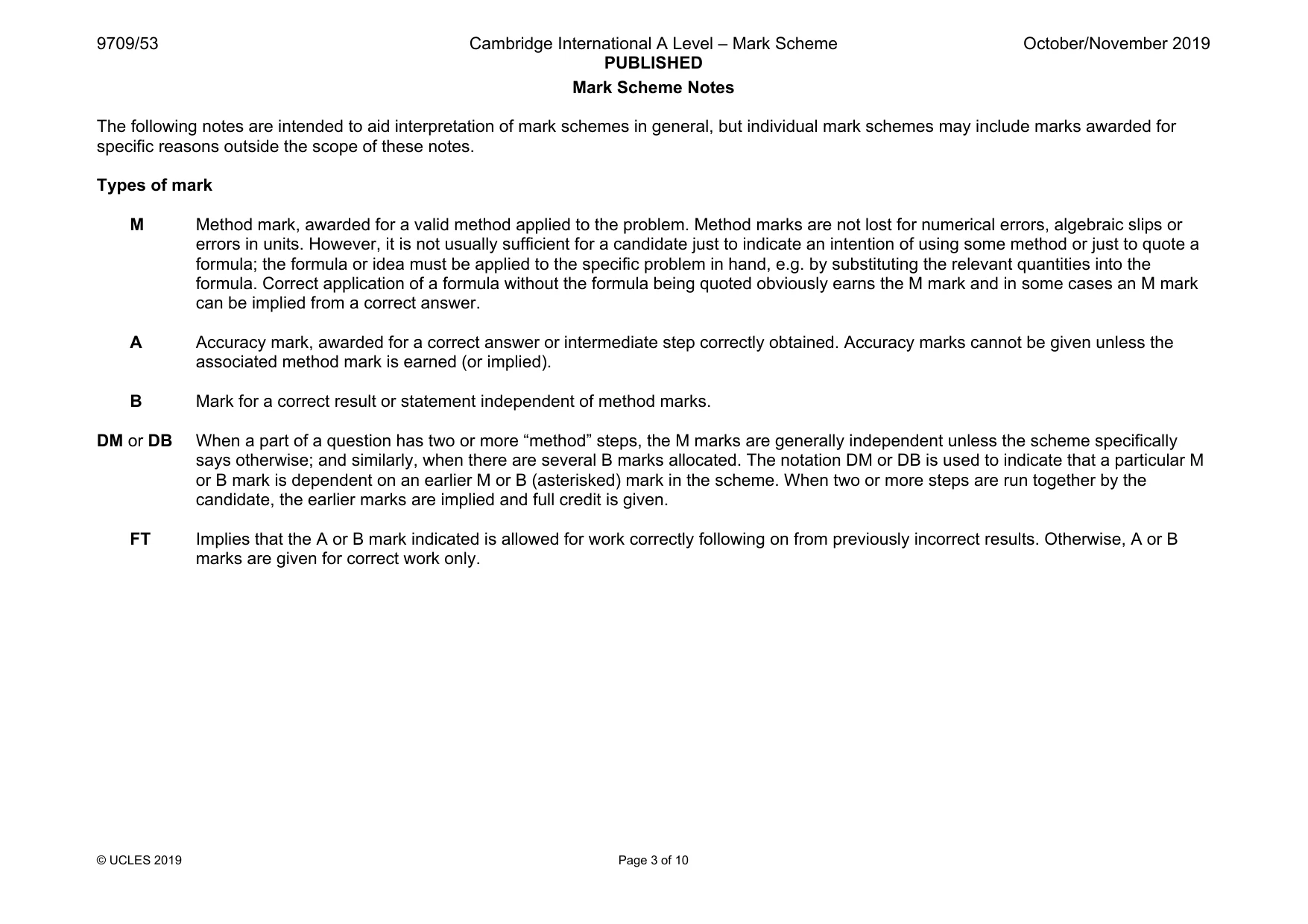

Mark scheme: 1 Conservation of momentum at 4 h 5 3 0.2 4 × = × h M1 Take moments about A (h = ) 0.48 m A1 3

More questions on Forces and equilibrium

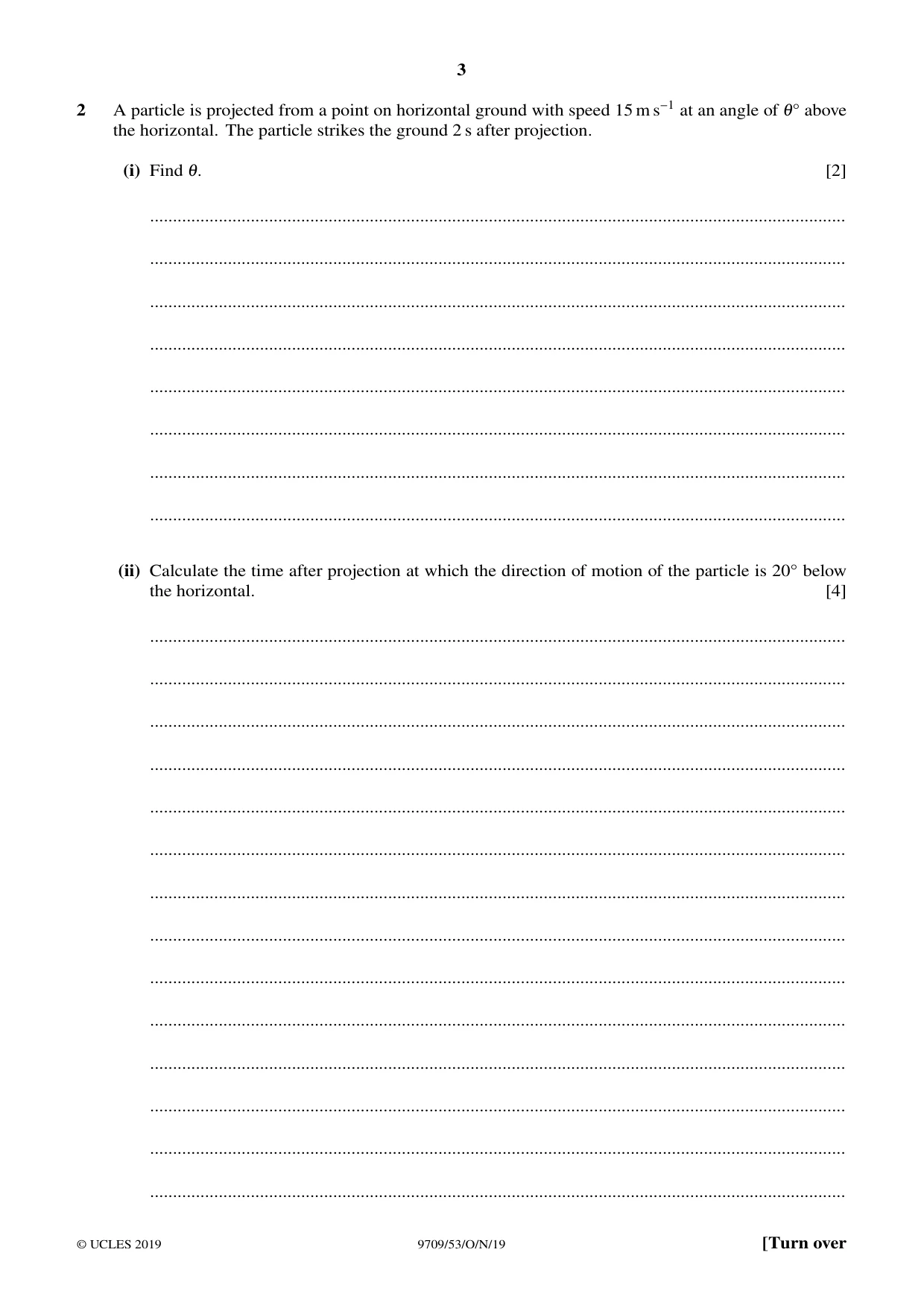

2 A particle is projected from a point on horizontal ground with speed 15 m s−1 at an angle of 1Å above the horizontal. The particle strikes the ground 2 s after projection. (i) Find 1. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Calculate the time after projection at which the direction of motion of the particle is 20Å below the horizontal. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 2(i) (θ =) 41.8 A1 2 2(ii) Vertically: tan 20 15cosθ = ± v M1 v = vertical velocity ( )4.07 v = ± A1 –4.07 = 15sin41.8 – gt M1 Use v = u + at vertically (t =) 1.41 s A1 4

More questions on Kinematics of motion in a straight line

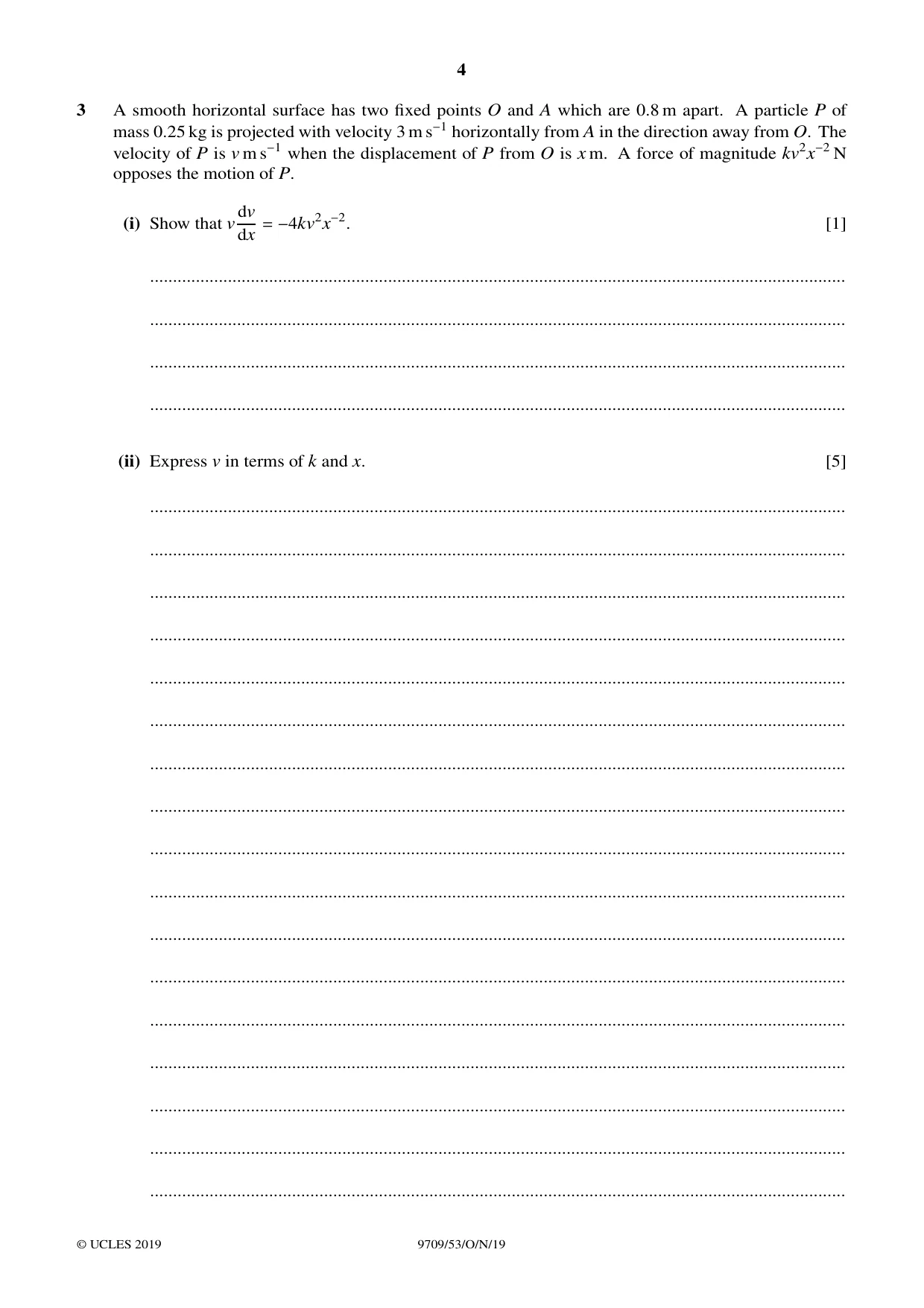

3 A smooth horizontal surface has two fixed points O and A which are 0.8 m apart. A particle P of mass 0.25 kg is projected with velocity 3 m s−1 horizontally from A in the direction away from O. The velocity of P is v m s−1 when the displacement of P from O is x m. A force of magnitude kv2x−2 N opposes the motion of P. (i) Show that vdv = −4kv2x−2. [1] dx ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Express v in terms of k and x. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

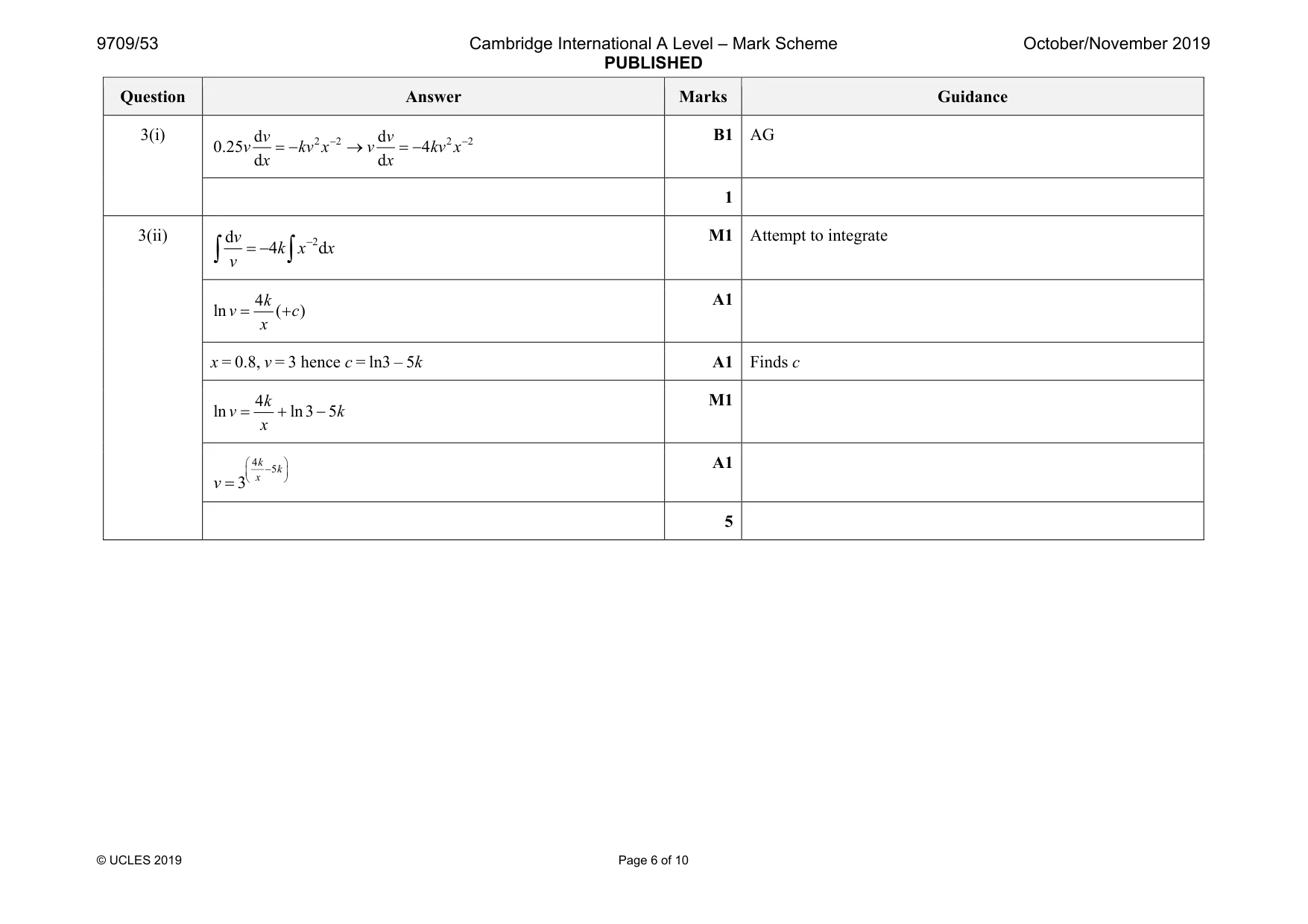

Mark scheme: 3(i) 2 2 2 2 d d 0.25 4 d d − − = − → = − v v v kv x v kv x x x 1 3(ii) 2 d 4 d − = − ∫ ∫ v k x x v M1 Attempt to integrate 4 ln ( ) = + k v c x A1 x = 0.8, v = 3 hence c = ln3 – 5k A1 Finds c 4 ln ln3 5 = + − k v k x M1 4 5 3   −     = k k x v A1 5

More questions on Logarithmic and exponential functions

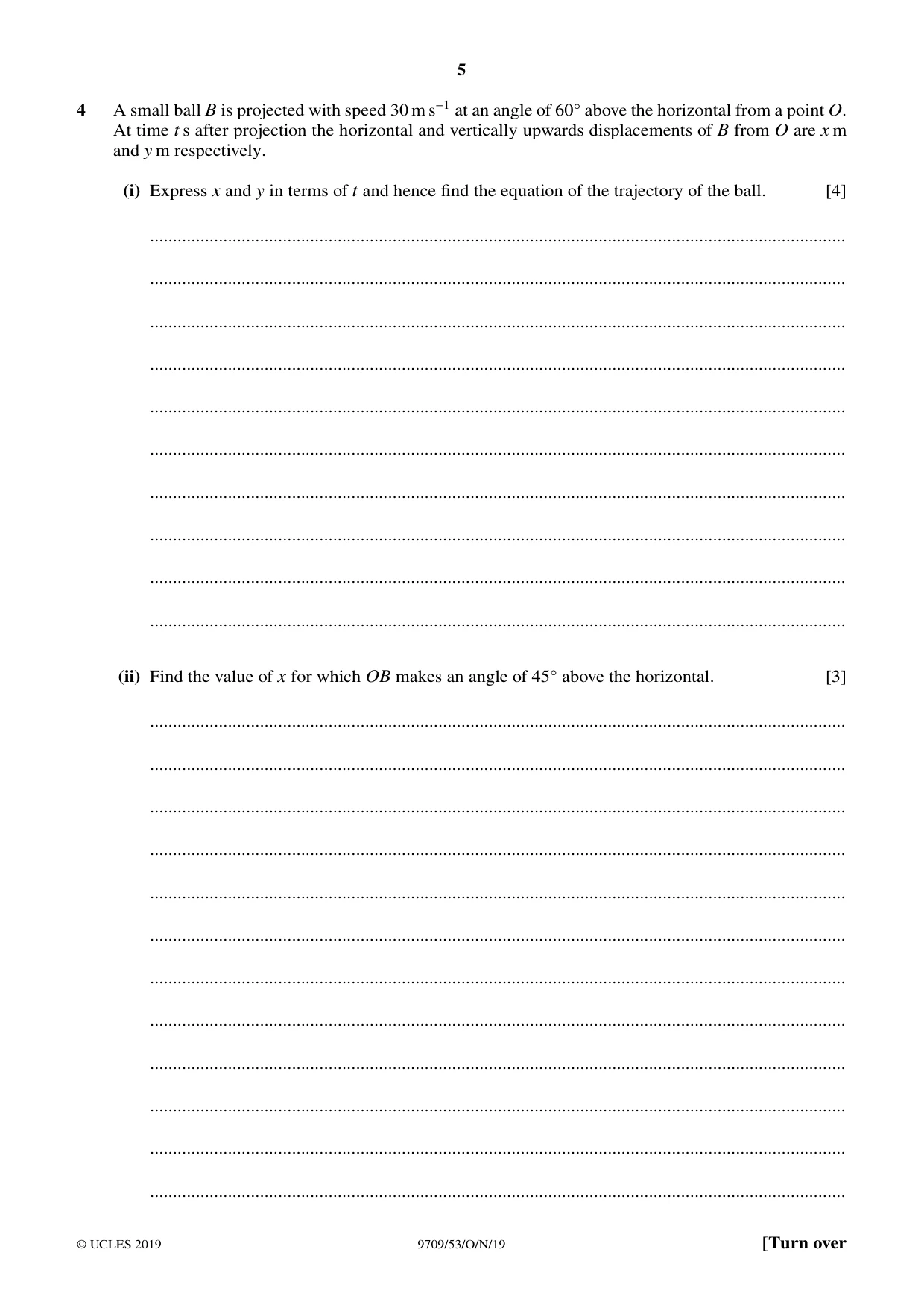

4 A small ball B is projected with speed 30 m s−1 at an angle of 60Å above the horizontal from a point O. At time t s after projection the horizontal and vertically upwards displacements of B from O are x m and y m respectively. (i) Express x and y in terms of t and hence find the equation of the trajectory of the ball. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the value of x for which OB makes an angle of 45Å above the horizontal. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

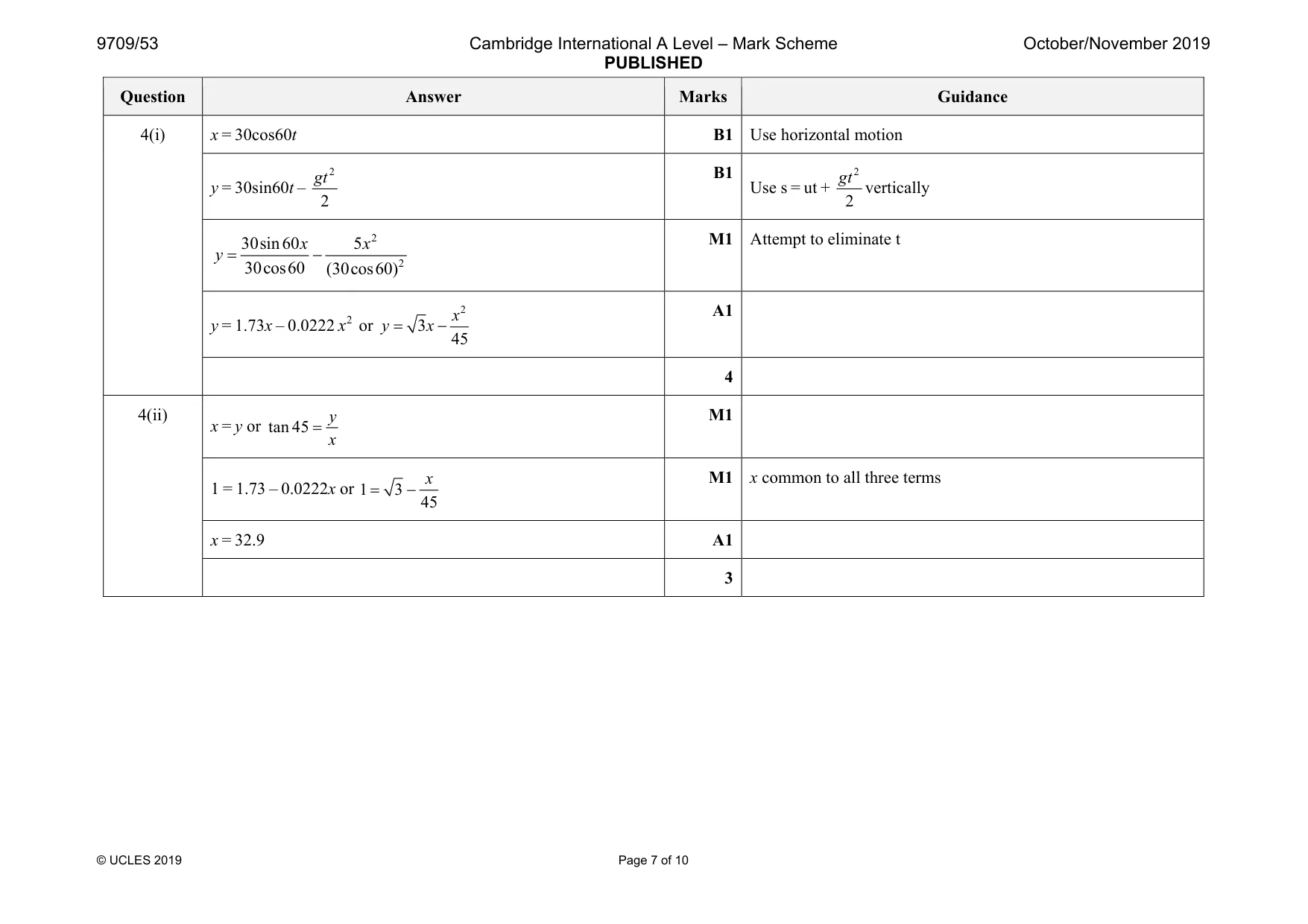

Mark scheme: 4(i) B1 Use horizontal motion y = 30sin60t – 2 2 gt B1 Use s = ut + 2 2 gt vertically 2 2 30sin60 5 30cos60 (30cos60) = − x x y M1 Attempt to eliminate t y = 1.73x – 0.0222 2x or 2 3 45 = −x y x A1 4 4(ii) x = y or tan 45 = y x M1 1 = 1.73 – 0.0222x or 1 3 45 = −x M1 x common to all three terms x = 32.9 A1 3

More questions on Trigonometry

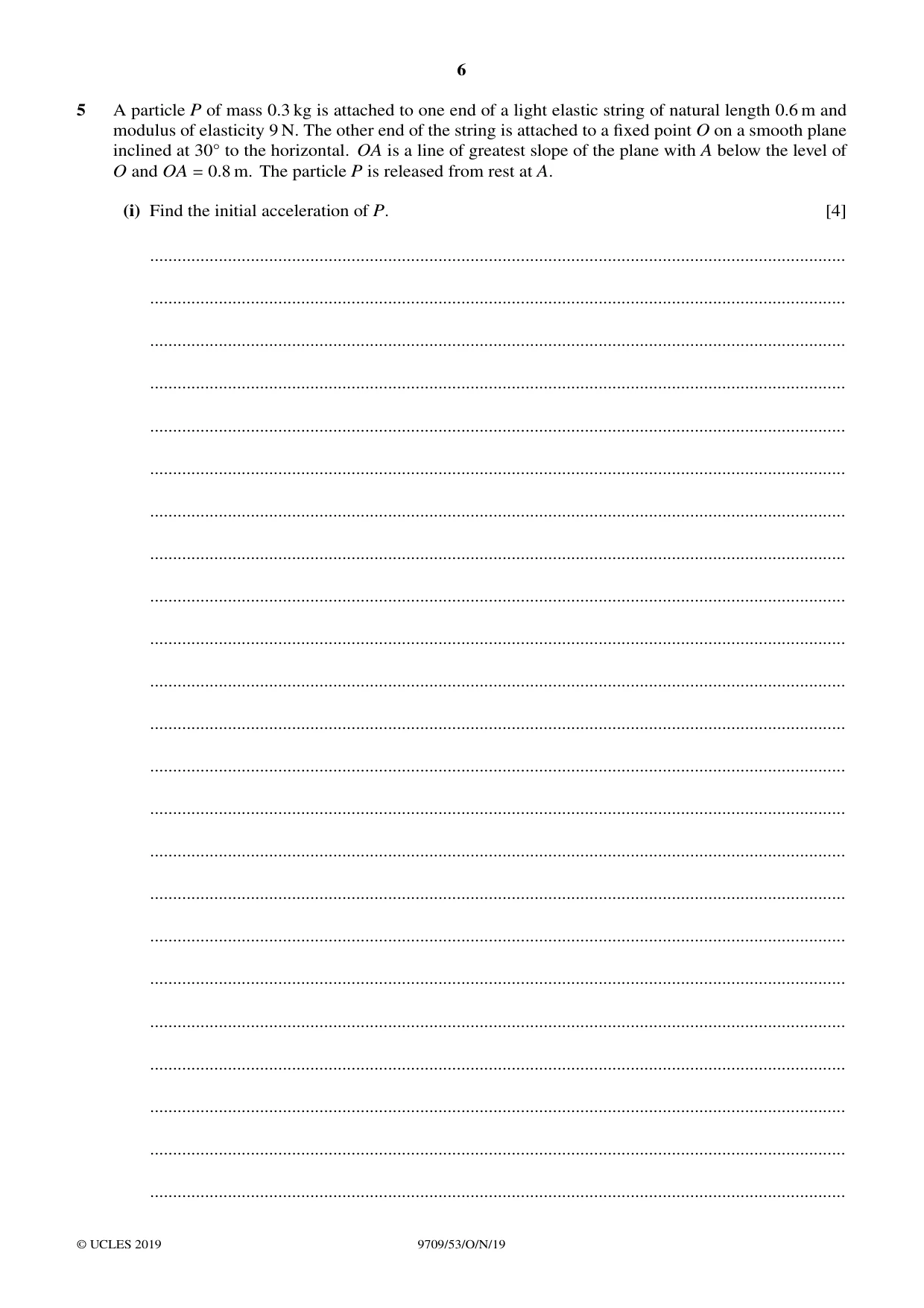

5 A particle P of mass 0.3 kg is attached to one end of a light elastic string of natural length 0.6 m and modulus of elasticity 9 N. The other end of the string is attached to a fixed point O on a smooth plane inclined at 30Å to the horizontal. OA is a line of greatest slope of the plane with A below the level of O and OA = 0.8 m. The particle P is released from rest at A. (i) Find the initial acceleration of P. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the greatest speed of P. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

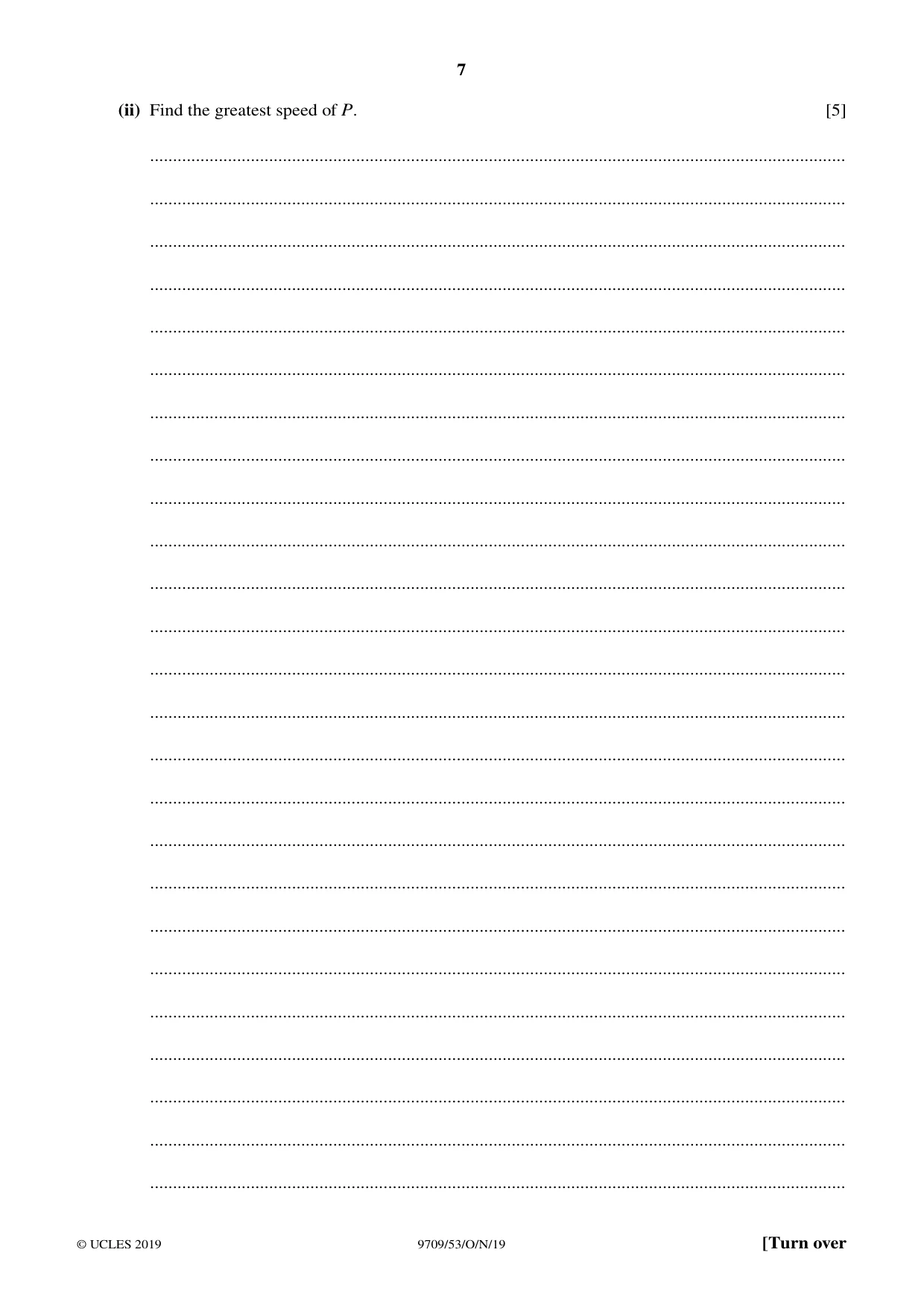

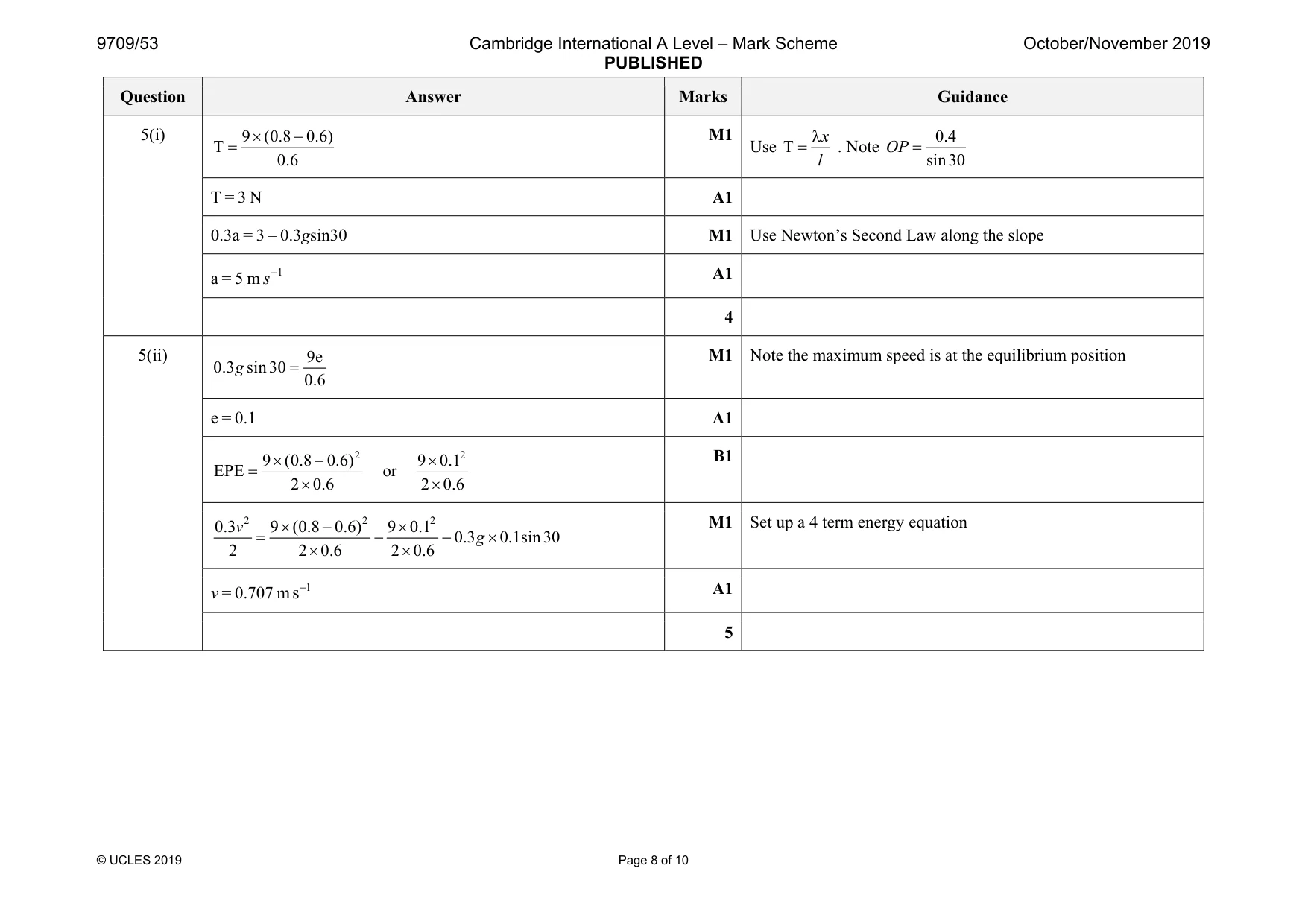

Mark scheme: 5(i) 9 (0.8 0.6) T 0.6 = M1 Use T = x l . Note 0.4 sin30 = OP T = 3 N A1 0.3a = 3 – 0.3gsin30 M1 Use Newton’s Second Law along the slope a = 5 m 1 −s A1 4 5(ii) 9e 0.3 sin30 0.6 = g M1 Note the maximum speed is at the equilibrium position e = 0.1 A1 2 2 9 (0.8 0.6) 9 EPE or 2 0.6 2 0.6 × − ×0.1 = × × B1 2 2 2 0.3 9 (0.8 0.6) 9 0.1 0.3 0.1sin30 2 2 0.6 2 0.6 × − × = − − × × × v g M1 Set up a 4 term energy equation v = 0.707 m 1 s− A1 5

More questions on Energy, work and power

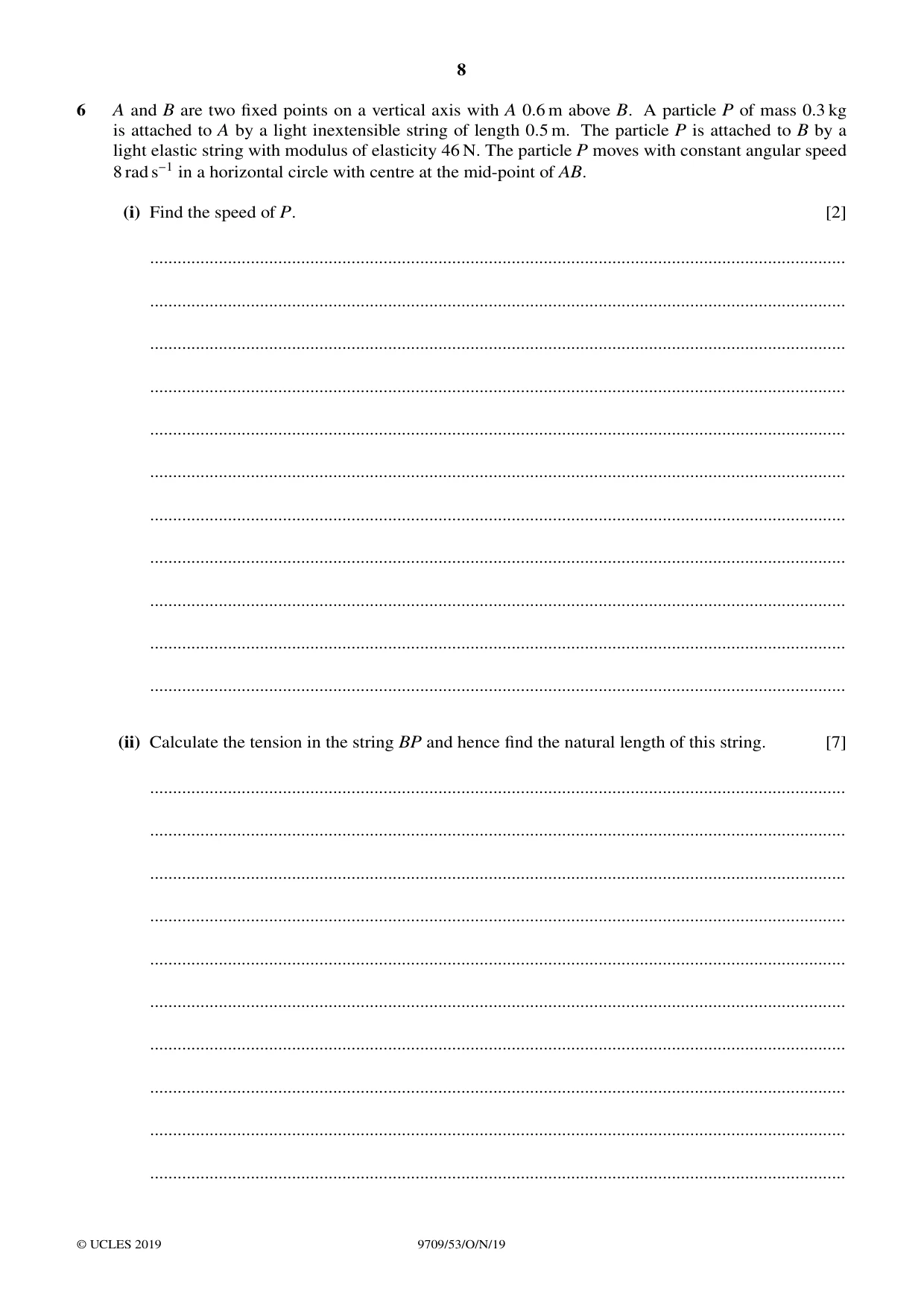

6 A and B are two fixed points on a vertical axis with A 0.6 m above B. A particle P of mass 0.3 kg is attached to A by a light inextensible string of length 0.5 m. The particle P is attached to B by a light elastic string with modulus of elasticity 46 N. The particle P moves with constant angular speed 8 rad s−1 in a horizontal circle with centre at the mid-point of AB. (i) Find the speed of P. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Calculate the tension in the string BP and hence find the natural length of this string. [7] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

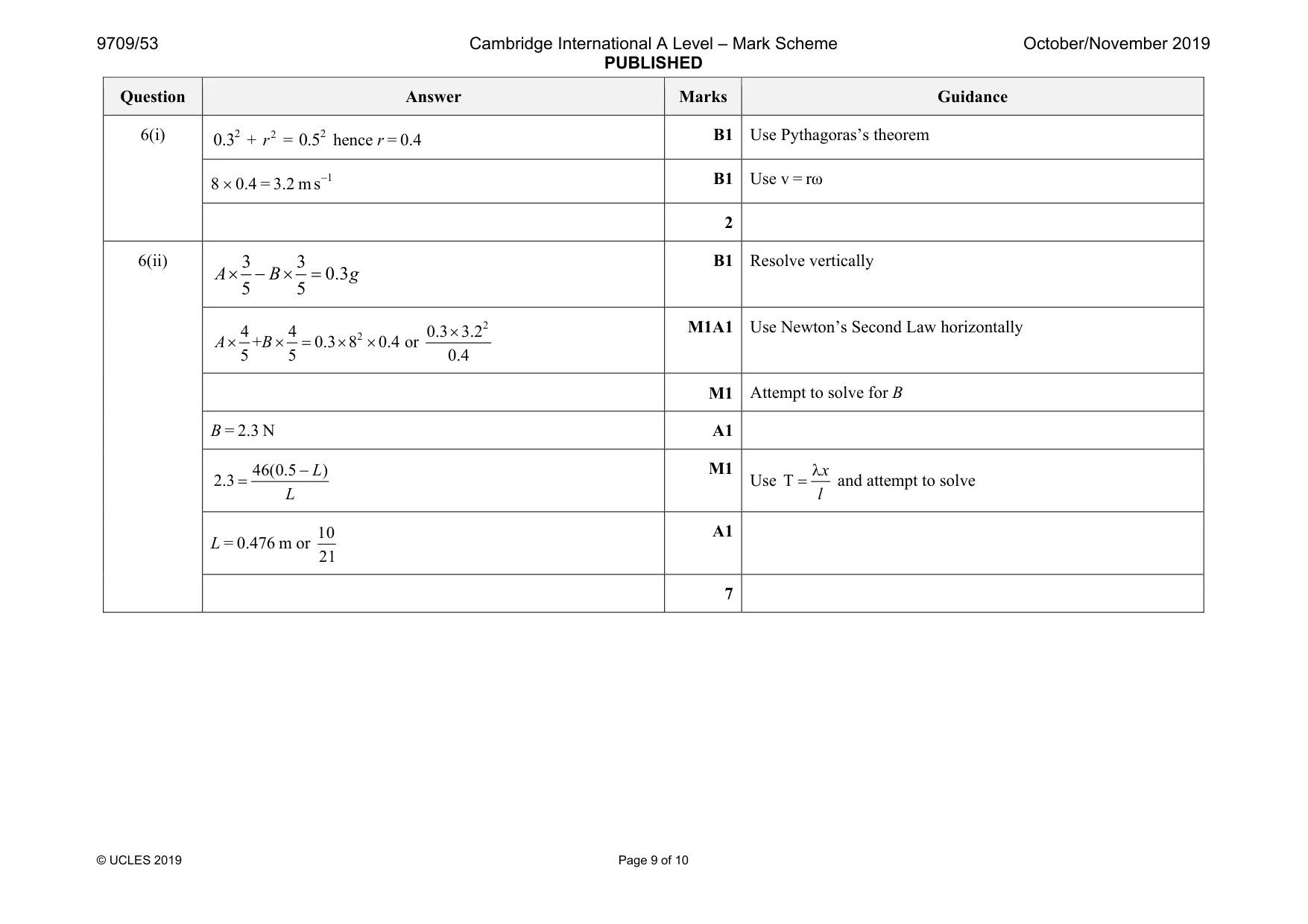

Mark scheme: 6(i) 2 0.3 + 2r = 2 0.5 hence r = 0.4 8 × 0.4 = 3.2 m 1 s− B1 Use v = rω 2 6(ii) 3 3 0.3 5 5 A B g × − × = B1 Resolve vertically 2 2 4 4 0.3 + 0.3 8 0.4 or 5 5 0.4 ×3.2 × × = × × A B M1A1 Use Newton’s Second Law horizontally M1 Attempt to solve for B B = 2.3 N A1 46(0.5 ) 2.3 − = L L M1 Use T λ = x l and attempt to solve L = 0.476 m or 10 21 A1 7

More questions on Forces and equilibrium

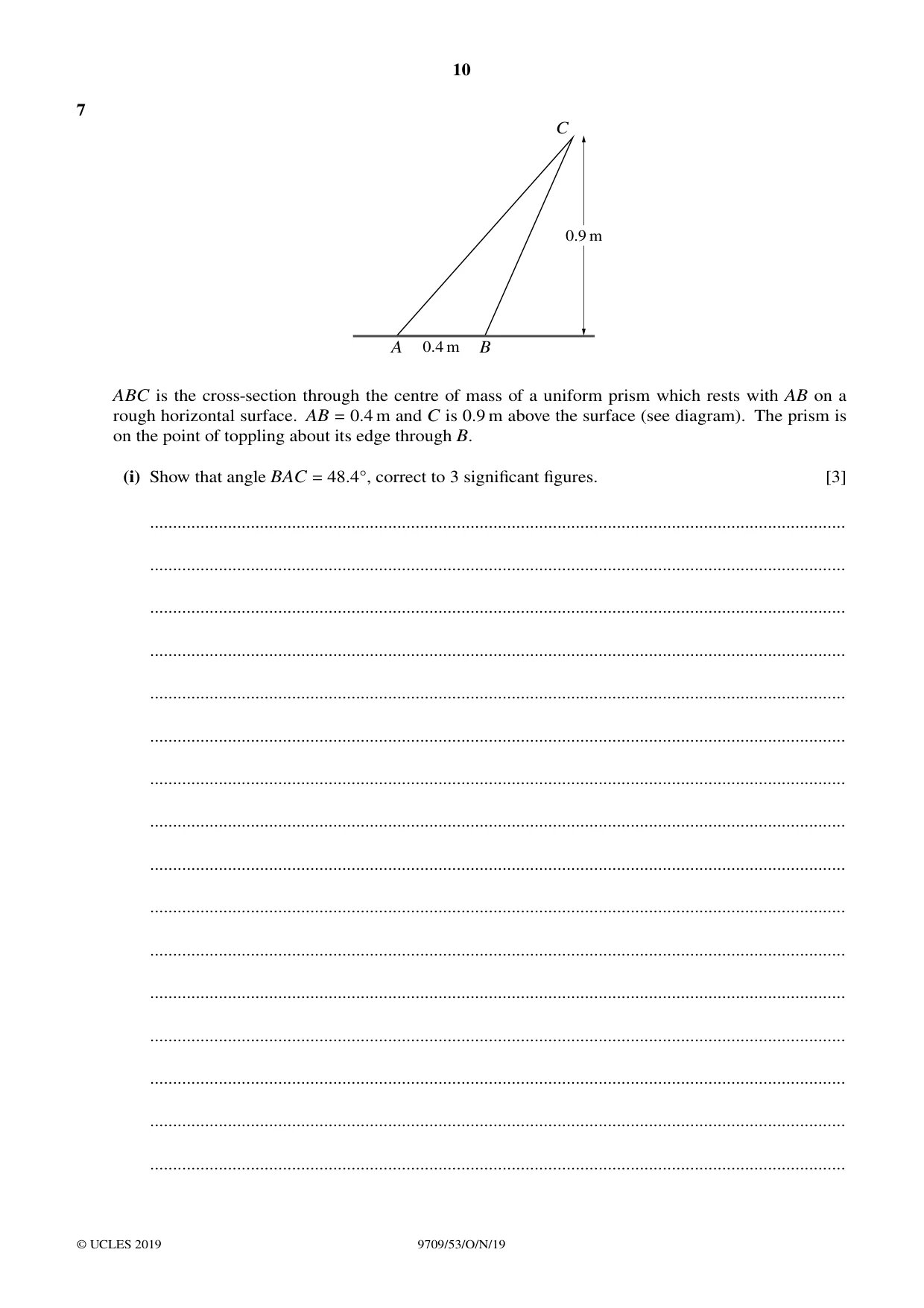

7 C 0.9 m A 0.4 m B ABC is the cross-section through the centre of mass of a uniform prism which rests with AB on a rough horizontal surface. AB = 0.4 m and C is 0.9 m above the surface (see diagram). The prism is on the point of toppling about its edge through B. (i) Show that angle BAC = 48.4Å, correct to 3 significant figures. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ A force of magnitude 18 N acting in the plane of the cross-section and perpendicular to AC is now applied to the prism at C. The prism is on the point of rotating about its edge through A. (ii) Calculate the weight of the prism. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (iii) Given also that the prism is on the point of slipping, calculate the coefficient of friction between the prism and the surface. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ Additional Page If you use the following lined page to complete the answer(s) to any question(s), the question number(s) must be clearly shown. ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................

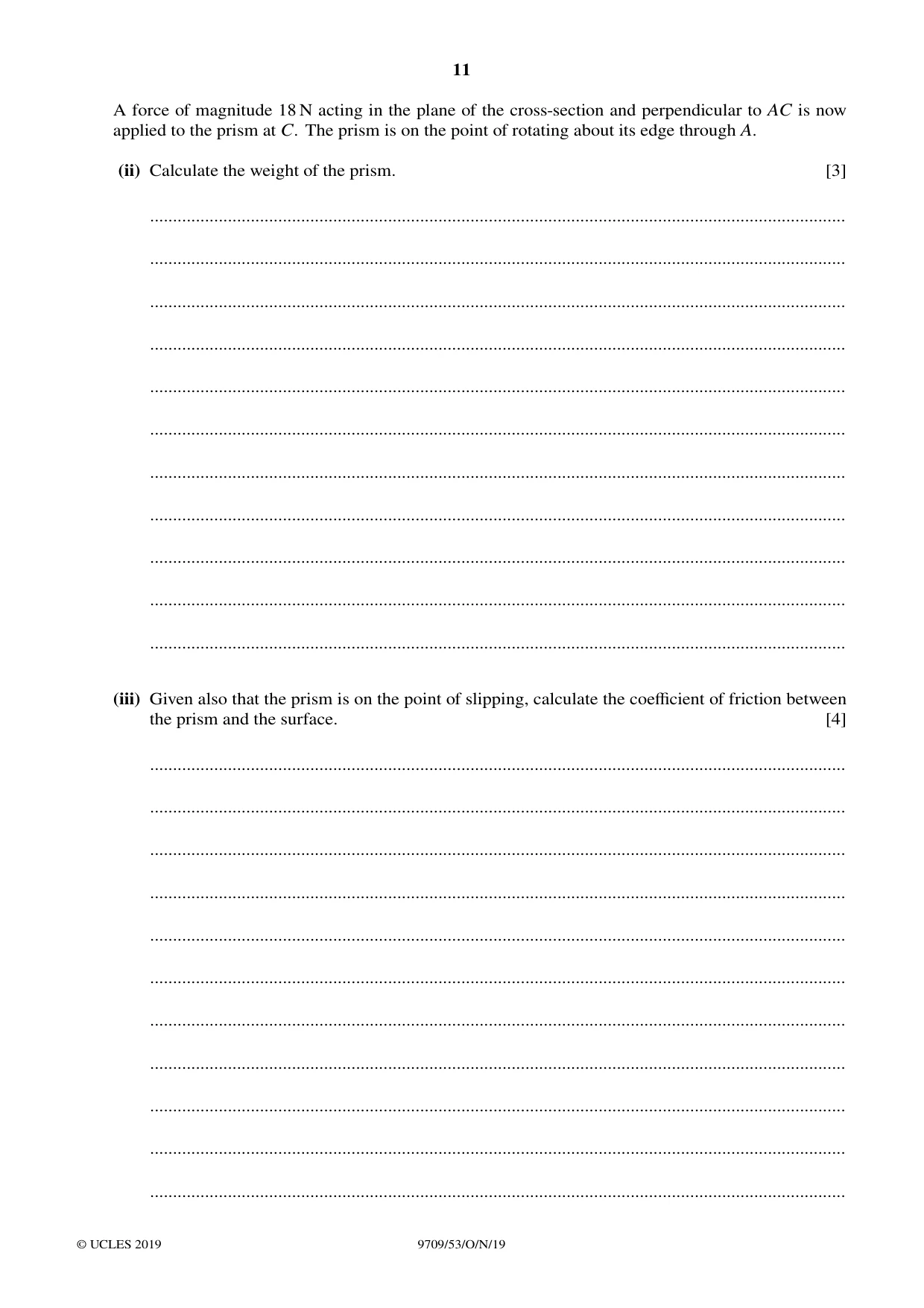

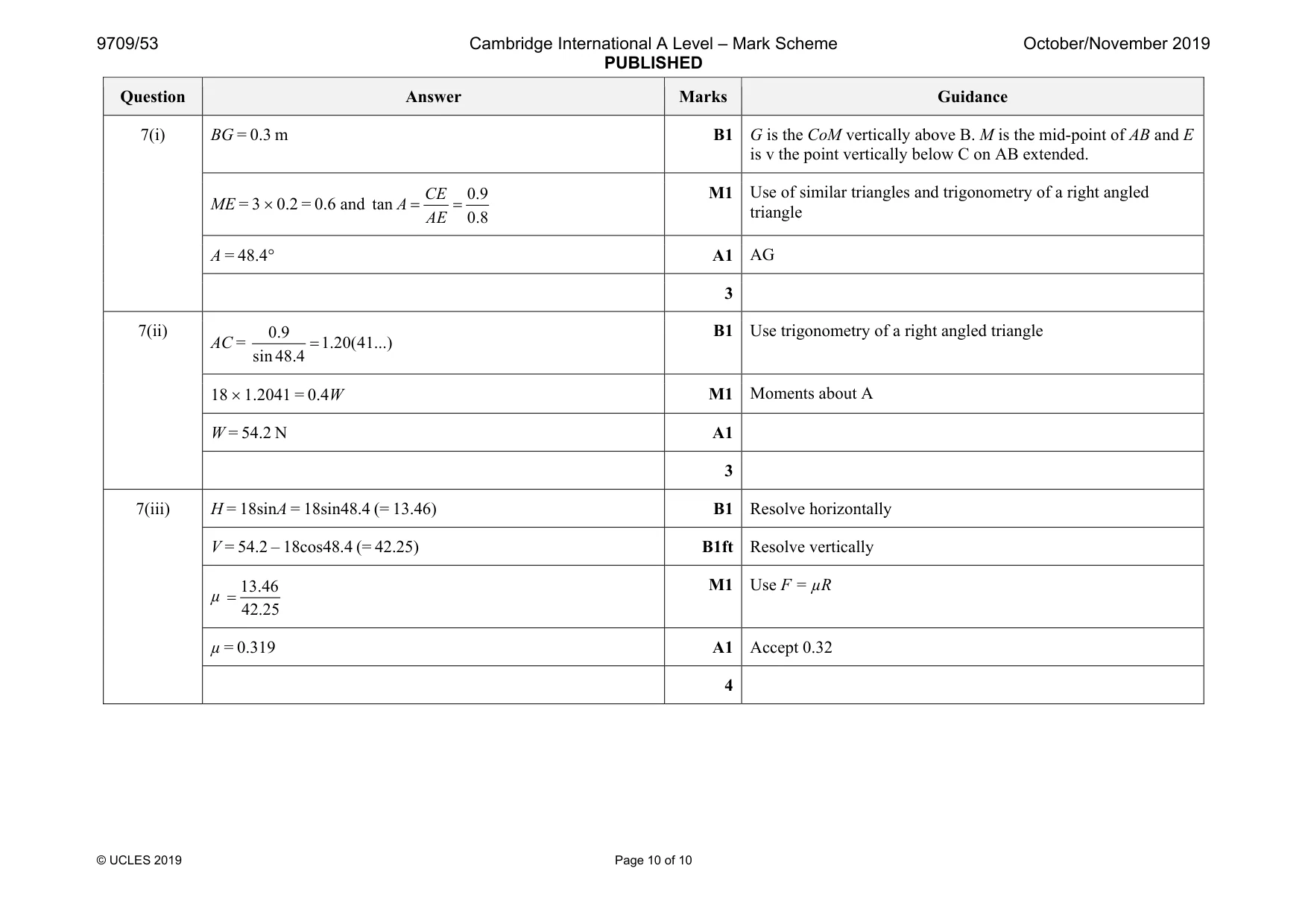

Mark scheme: 7(i) B1 G is the CoM vertically above B. M is the mid-point of AB and E is v the point vertically below C on AB extended. ME = 3 × 0.2 = 0.6 and 0.9 tan 0.8 = = CE A AE M1 Use of similar triangles and trigonometry of a right angled triangle A = 48.4° A1 AG 3 7(ii) AC = 0.9 1.20(41...) sin 48.4 = B1 Use trigonometry of a right angled triangle 18 × 1.2041 = 0.4W M1 Moments about A W = 54.2 N A1 3 7(iii) H = 18sinA = 18sin48.4 (= 13.46) B1 Resolve horizontally V = 54.2 – 18cos48.4 (= 42.25) B1ft Resolve vertically µ 13.46 42.25 = M1 Use F = µR µ = 0.319 A1 Accept 0.32 4

More questions on Forces and equilibrium
