Cambridge A Level Mathematics 9709 — 2018 Oct/Nov Paper 5 · Variant 1

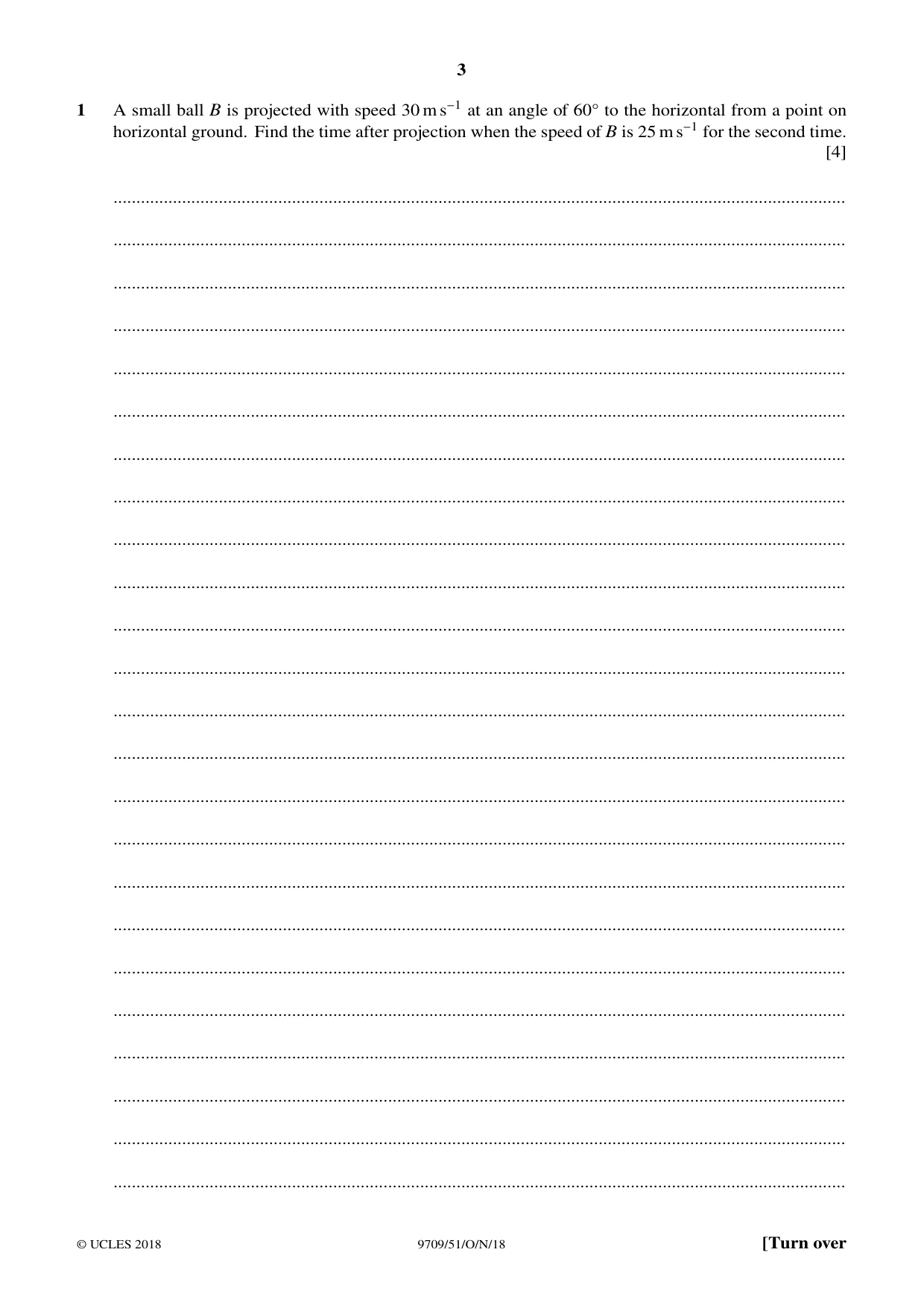

1 A small ball B is projected with speed 30 m s−1 at an angle of 60° to the horizontal from a point on horizontal ground. Find the time after projection when the speed of B is 25 m s−1 for the second time. [4] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

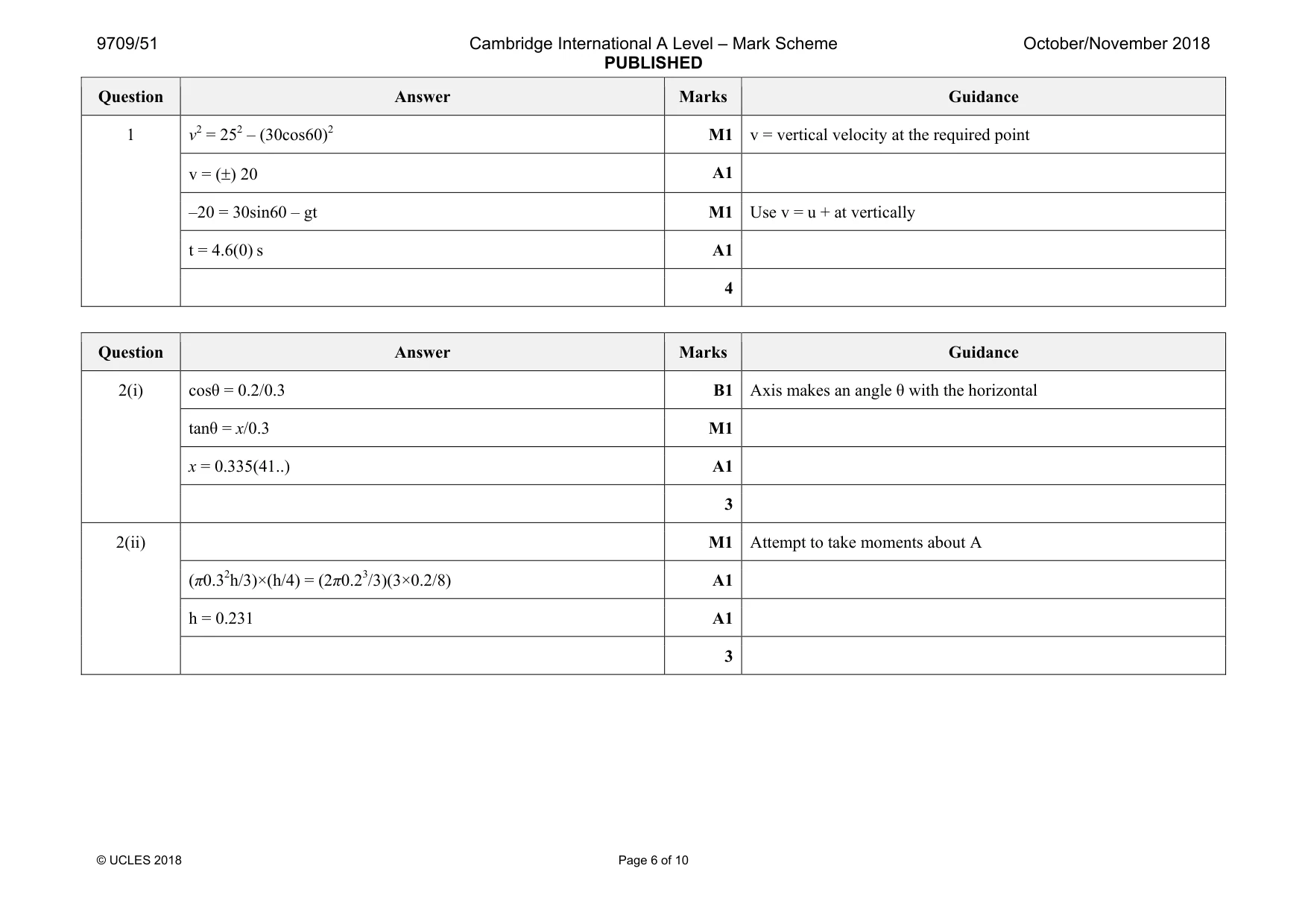

Mark scheme: 1 M1 v = vertical velocity at the required point v = (±) 20 A1 –20 = 30sin60 – gt M1 Use v = u + at vertically t = 4.6(0) s A1 4

More questions on Kinematics of motion in a straight line

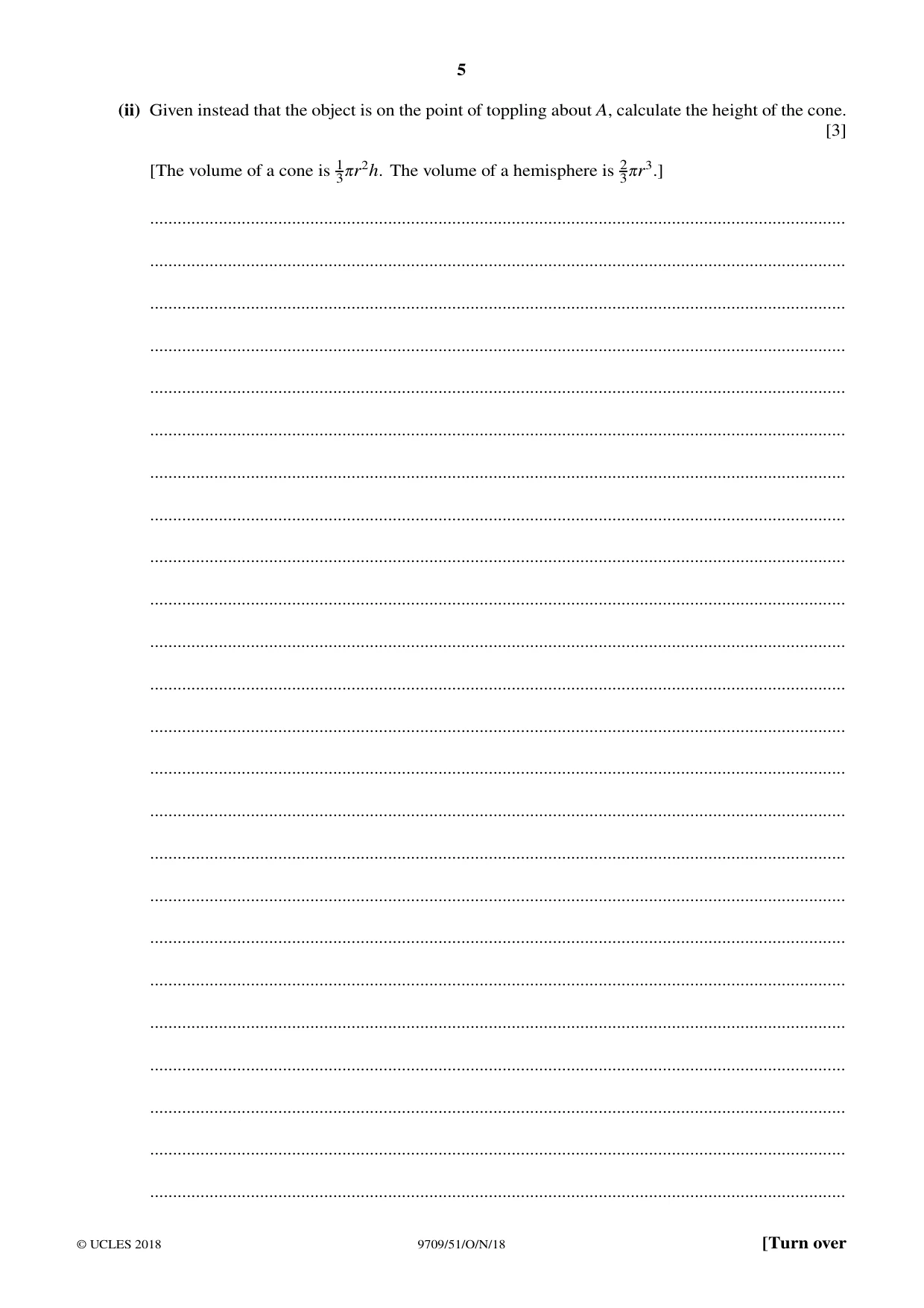

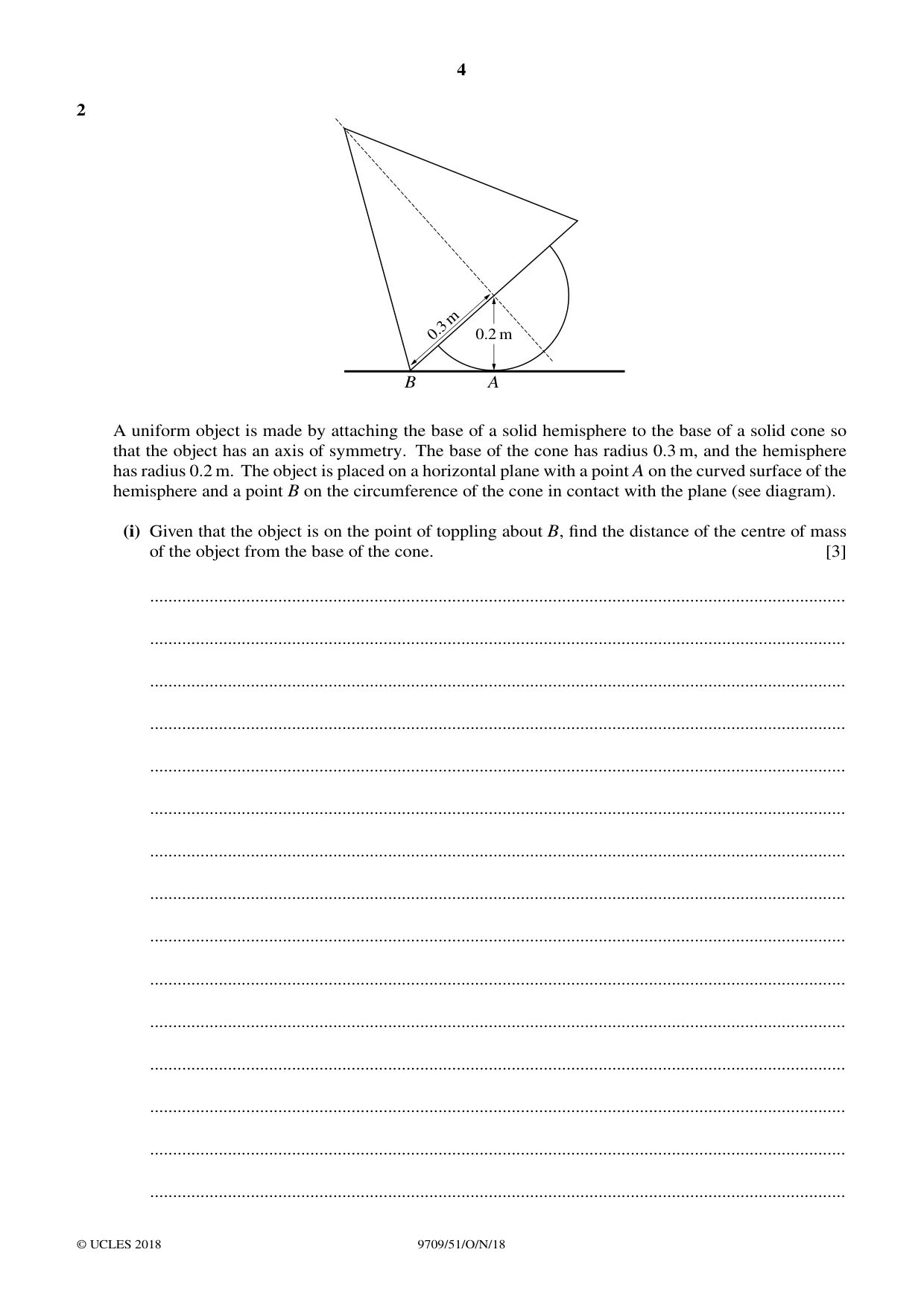

2 m 0.3 0.2 m B A A uniform object is made by attaching the base of a solid hemisphere to the base of a solid cone so that the object has an axis of symmetry. The base of the cone has radius 0.3 m, and the hemisphere has radius 0.2 m. The object is placed on a horizontal plane with a point A on the curved surface of the hemisphere and a point B on the circumference of the cone in contact with the plane (see diagram). (i) Given that the object is on the point of toppling about B, find the distance of the centre of mass of the object from the base of the cone. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Given instead that the object is on the point of toppling about A, calculate the height of the cone. [3] [The volume of a cone is 30r2h.1 The volume of a hemisphere is 30r3.]2 ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 2(i) cosθ = 0.2/0.3 B1 Axis makes an angle θ with the horizontal tanθ = x/0.3 M1 x = 0.335(41..) A1 3 2(ii) M1 Attempt to take moments about A (π0.32h/3)×(h/4) = (2π0.23/3)(3×0.2/8) A1 h = 0.231 A1 3

More questions on Forces and equilibrium

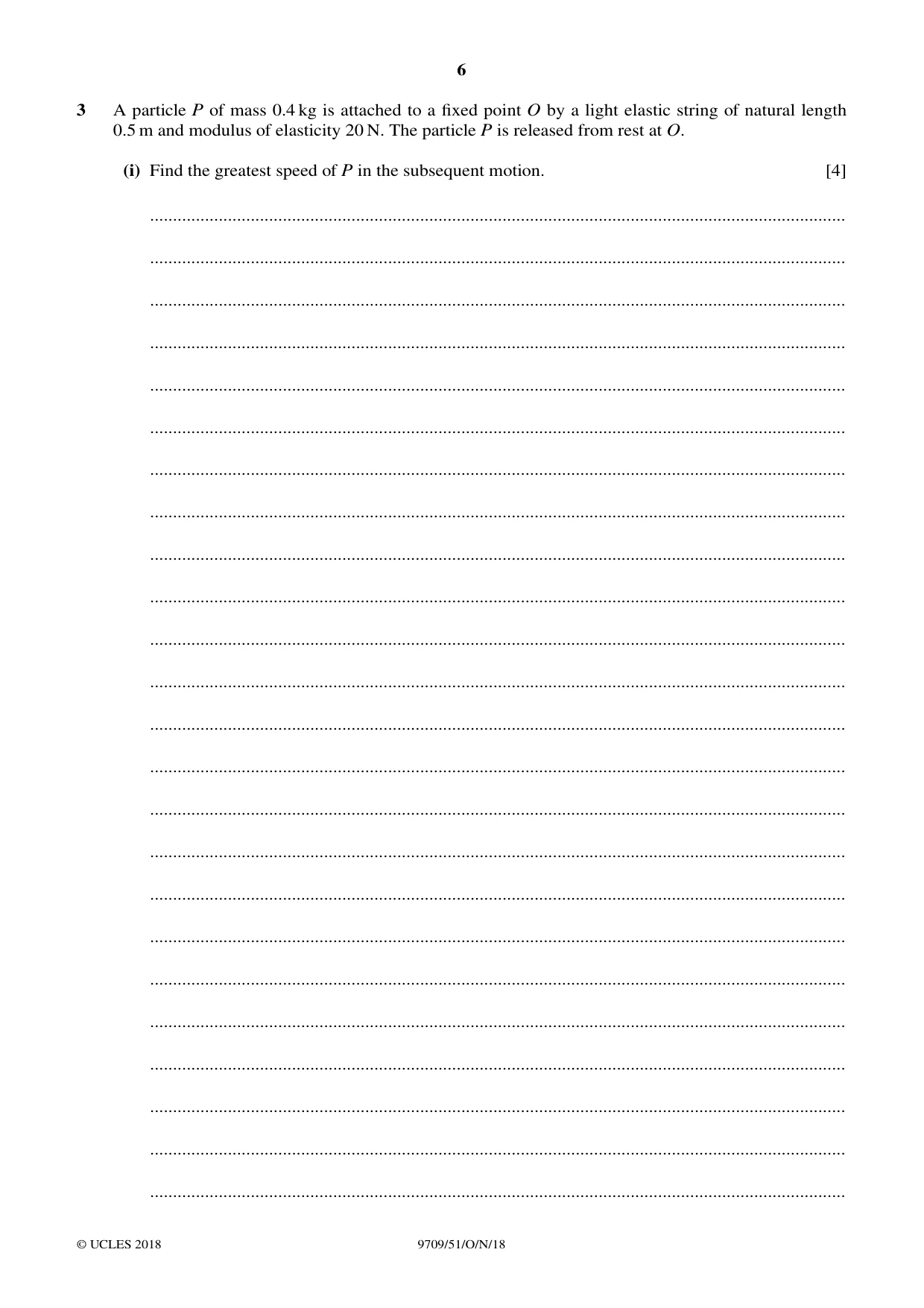

3 A particle P of mass 0.4 kg is attached to a fixed point O by a light elastic string of natural length 0.5 m and modulus of elasticity 20 N. The particle P is released from rest at O. (i) Find the greatest speed of P in the subsequent motion. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the distance below O of the point at which P comes to instantaneous rest. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

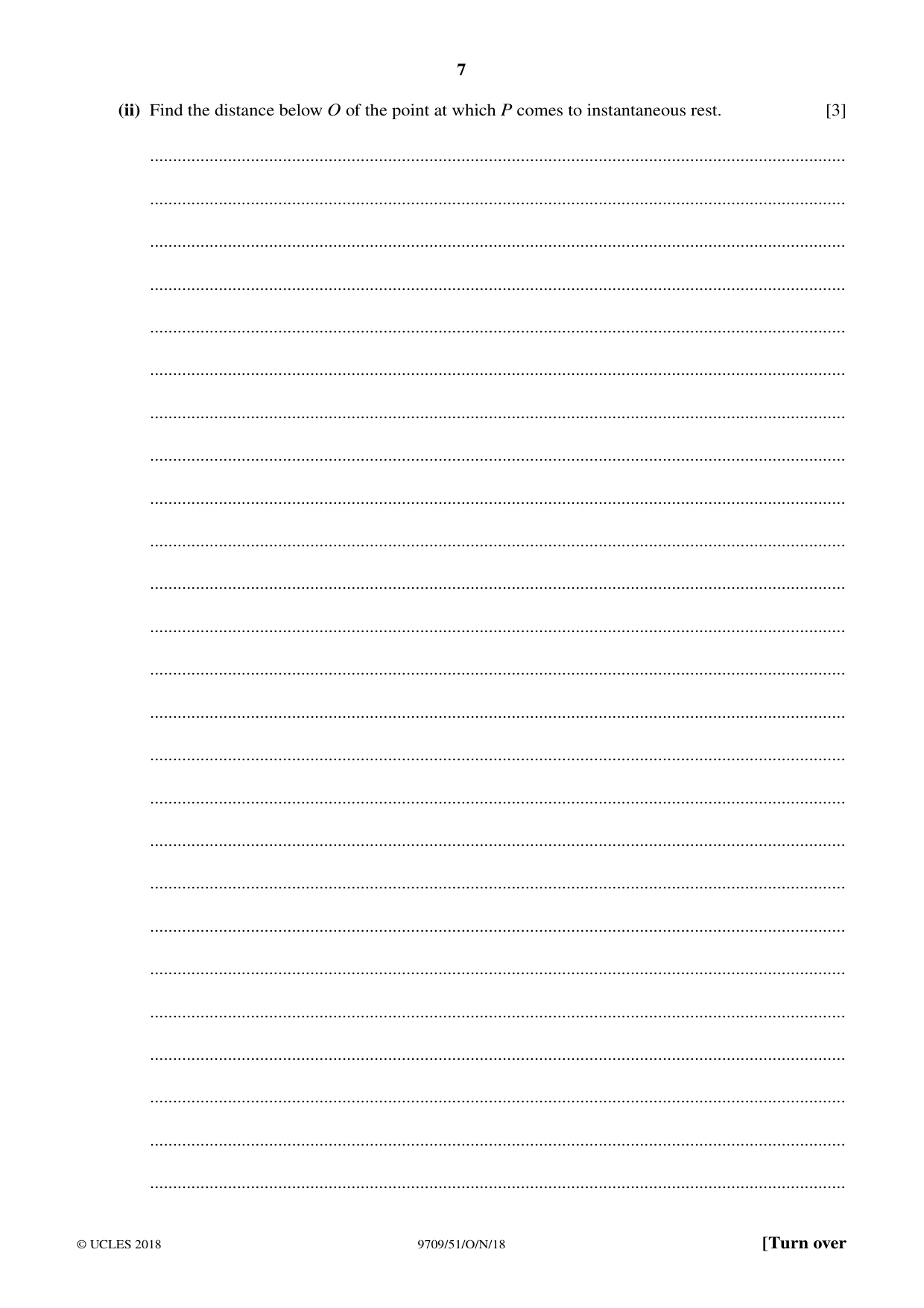

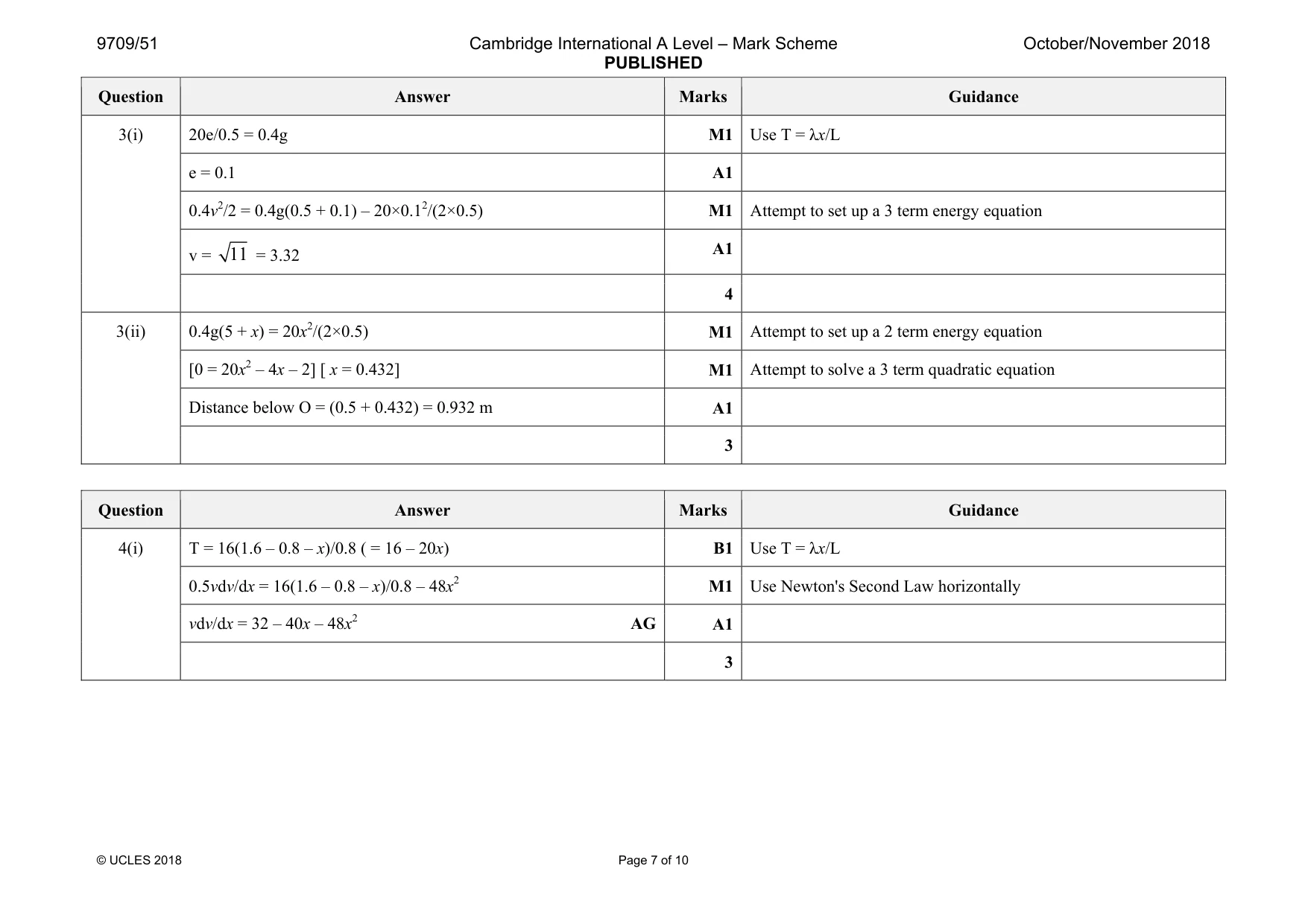

Mark scheme: 3(i) 20e/0.5 = 0.4g M1 Use T = λx/L e = 0.1 A1 0.4v2/2 = 0.4g(0.5 + 0.1) – 20×0.12/(2×0.5) M1 Attempt to set up a 3 term energy equation v = 11 = 3.32 A1 4 3(ii) 0.4g(5 + x) = 20x2/(2×0.5) M1 Attempt to set up a 2 term energy equation [0 = 20x2 – 4x – 2] [ x = 0.432] M1 Attempt to solve a 3 term quadratic equation Distance below O = (0.5 + 0.432) = 0.932 m A1 3

More questions on Energy, work and power

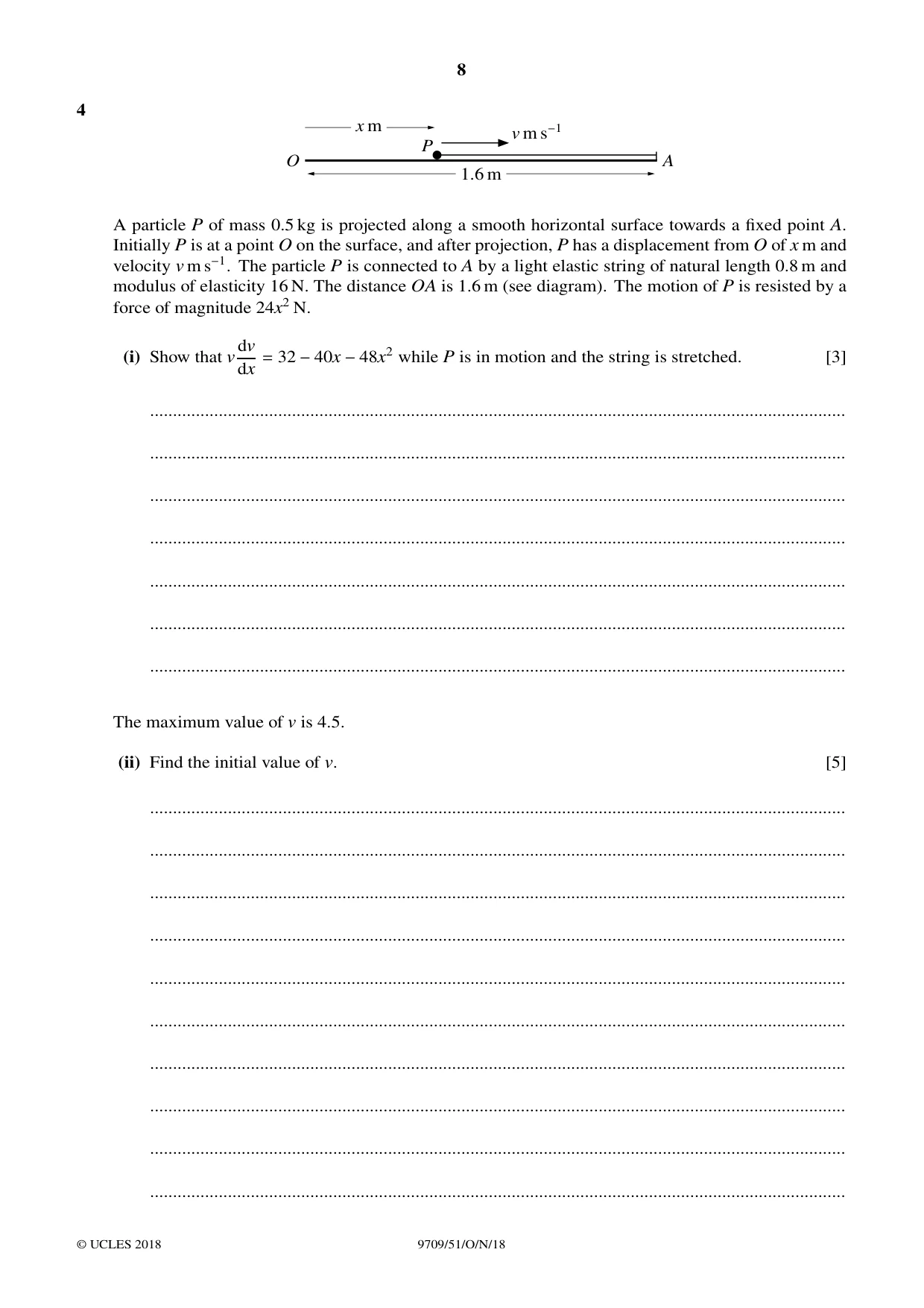

4 x m v m s−1 P O A 1.6 m A particle P of mass 0.5 kg is projected along a smooth horizontal surface towards a fixed point A. Initially P is at a point O on the surface, and after projection, P has a displacement from O of x m and velocity v m s−1. The particle P is connected to A by a light elastic string of natural length 0.8 m and modulus of elasticity 16 N. The distance OA is 1.6 m (see diagram). The motion of P is resisted by a force of magnitude 24x2 N. (i) Show that vdv = 32 −40x −48x2 while P is in motion and the string is stretched. [3] dx ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The maximum value of v is 4.5. (ii) Find the initial value of v. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

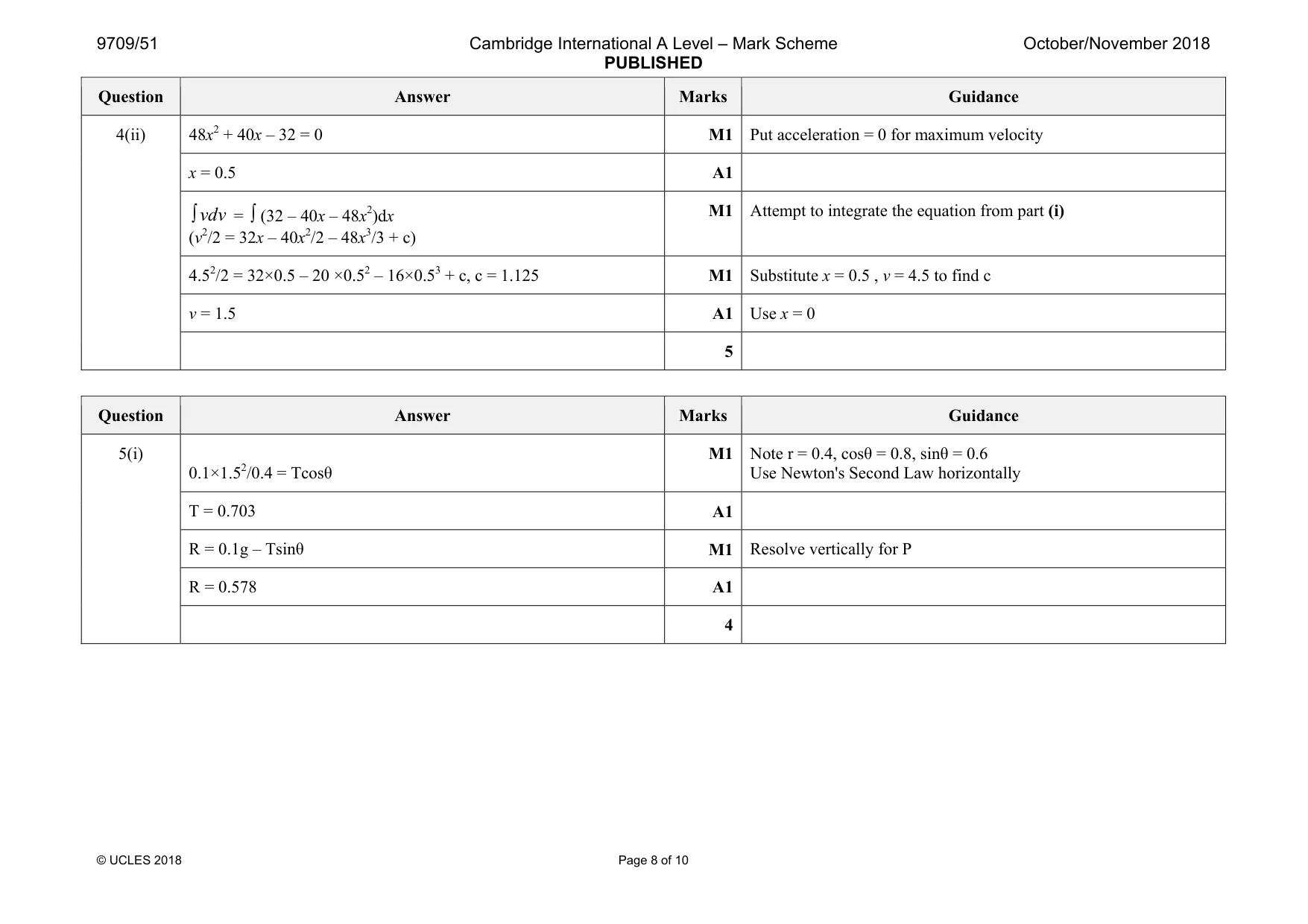

Mark scheme: 4(i) T = 16(1.6 – 0.8 – x)/0.8 ( = 16 – 20x) B1 Use T = λx/L 0.5vdv/dx = 16(1.6 – 0.8 – x)/0.8 – 48x2 M1 Use Newton's Second Law horizontally vdv/dx = 32 – 40x – 48x2 AG A1 3 Question Answer Marks Guidance 4(ii) 48x2 + 40x – 32 = 0 M1 Put acceleration = 0 for maximum velocity x = 0.5 A1 vdv ∫ = ∫(32 – 40x – 48x2)dx (v2/2 = 32x – 40x2/2 – 48x3/3 + c) M1 Attempt to integrate the equation from part (i) 4.52/2 = 32×0.5 – 20 ×0.52 – 16×0.53 + c, c = 1.125 M1 Substitute x = 0.5 , v = 4.5 to find c v = 1.5 A1 Use x = 0 5

More questions on Kinematics of motion in a straight line

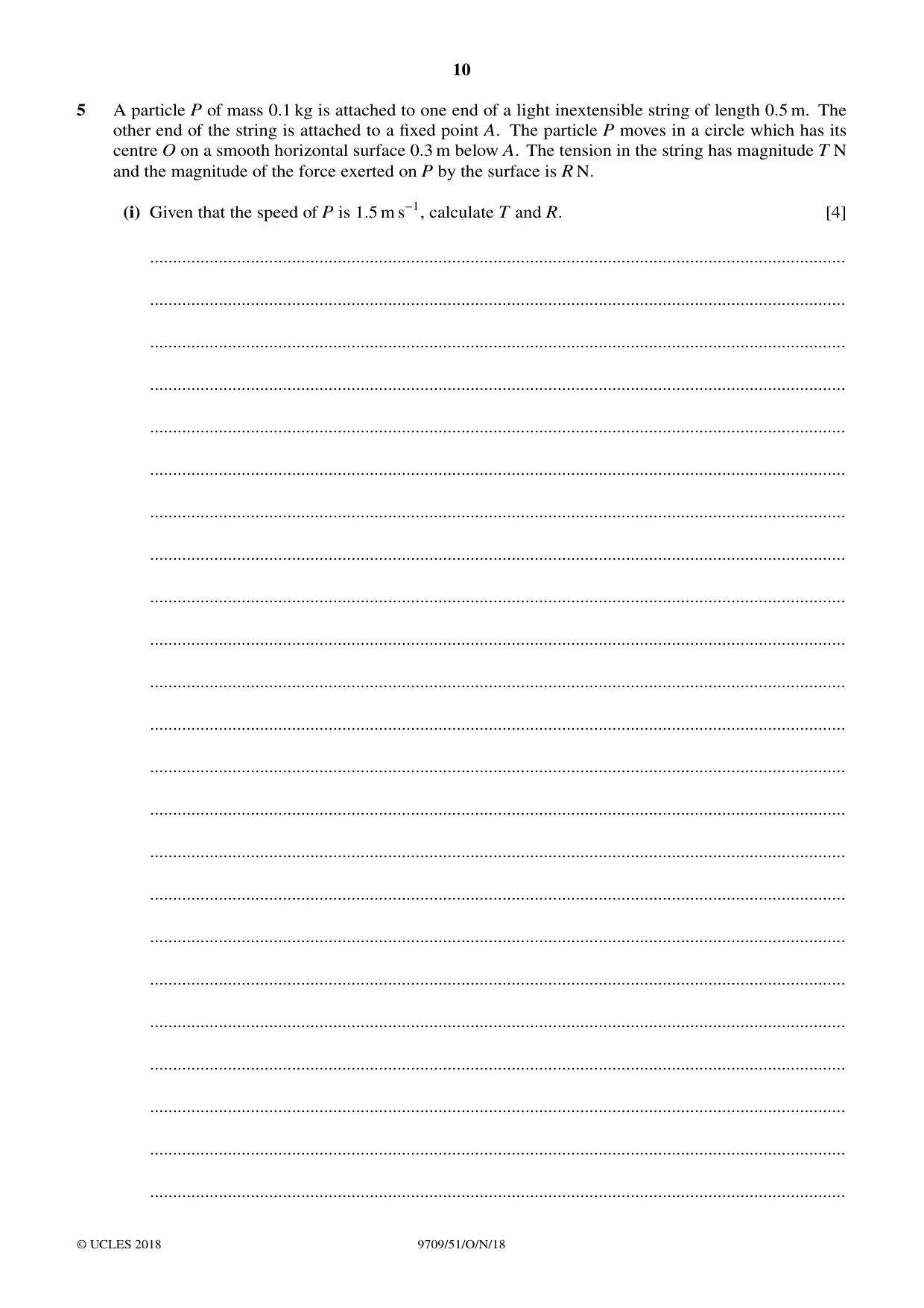

5 A particle P of mass 0.1 kg is attached to one end of a light inextensible string of length 0.5 m. The other end of the string is attached to a fixed point A. The particle P moves in a circle which has its centre O on a smooth horizontal surface 0.3 m below A. The tension in the string has magnitude T N and the magnitude of the force exerted on P by the surface is R N. (i) Given that the speed of P is 1.5 m s−1, calculate T and R. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Given instead that T = R, calculate the angular speed of P. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

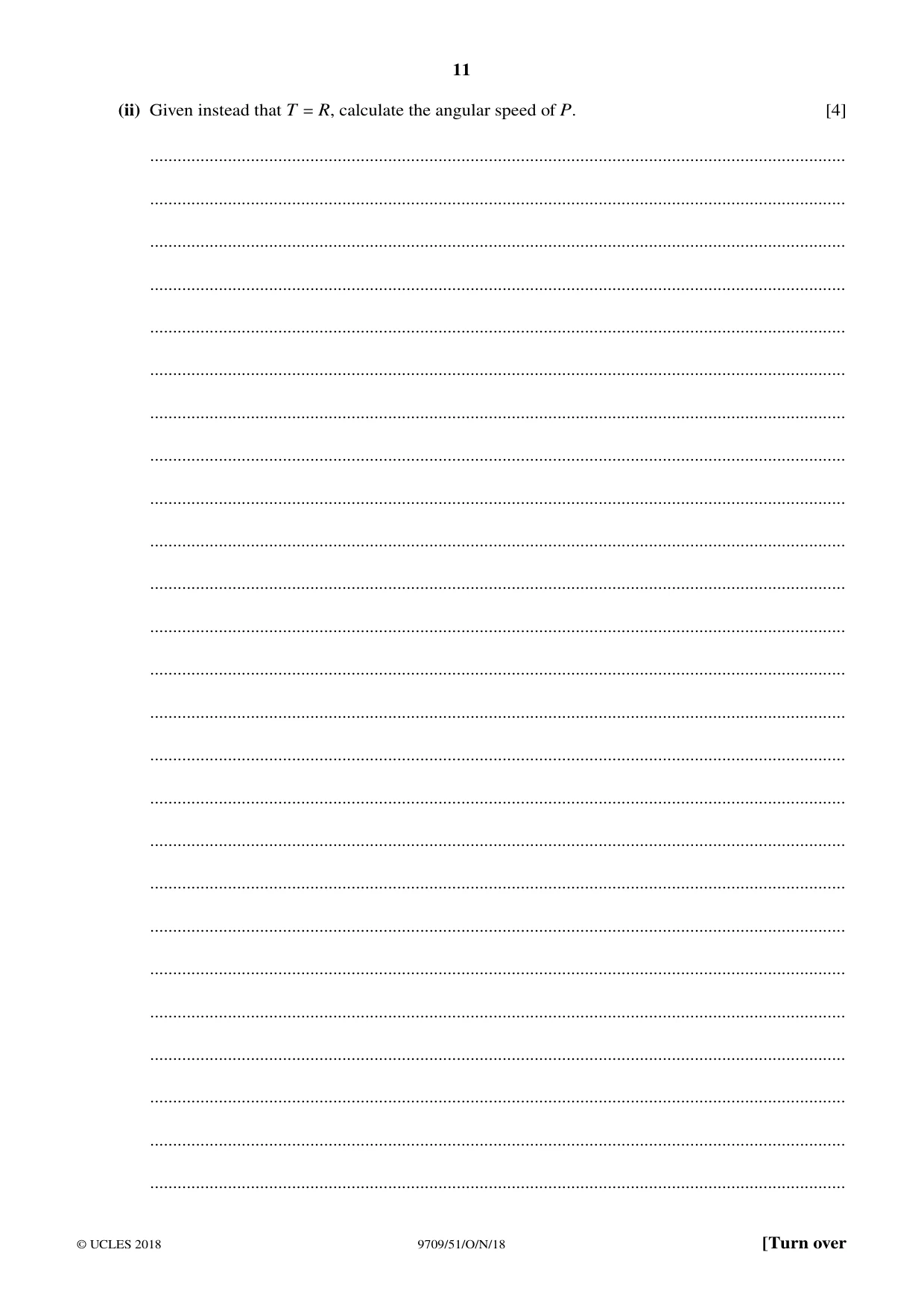

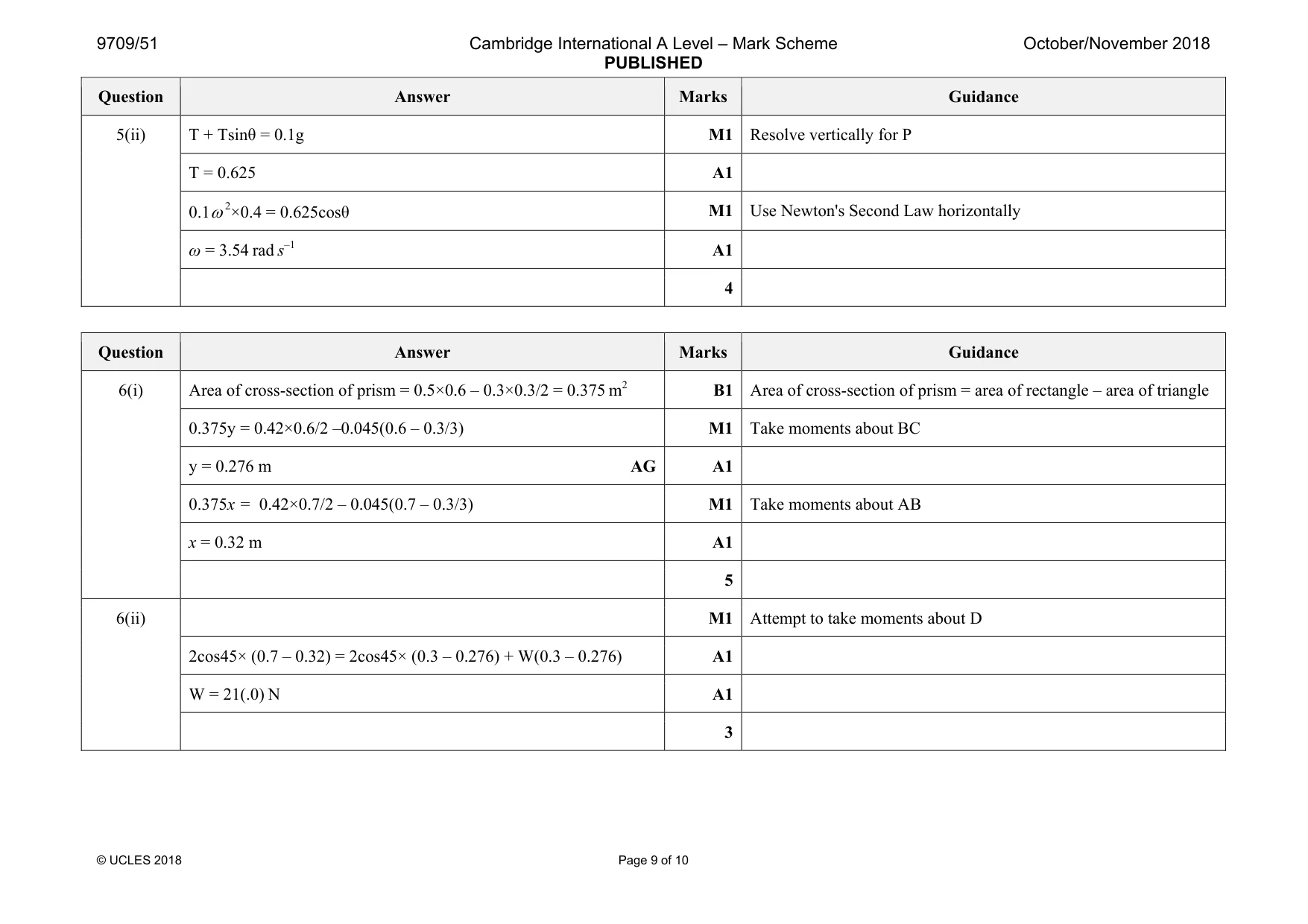

Mark scheme: 5(i) 0.1×1.52/0.4 = Tcosθ M1 Note r = 0.4, cosθ = 0.8, sinθ = 0.6 Use Newton's Second Law horizontally T = 0.703 A1 R = 0.1g – Tsinθ M1 Resolve vertically for P R = 0.578 A1 4 Question Answer Marks Guidance 5(ii) T + Tsinθ = 0.1g M1 Resolve vertically for P T = 0.625 A1 0.1ω 2×0.4 = 0.625cosθ M1 Use Newton's Second Law horizontally ω = 3.54 rad s–1 A1 4

More questions on Forces and equilibrium

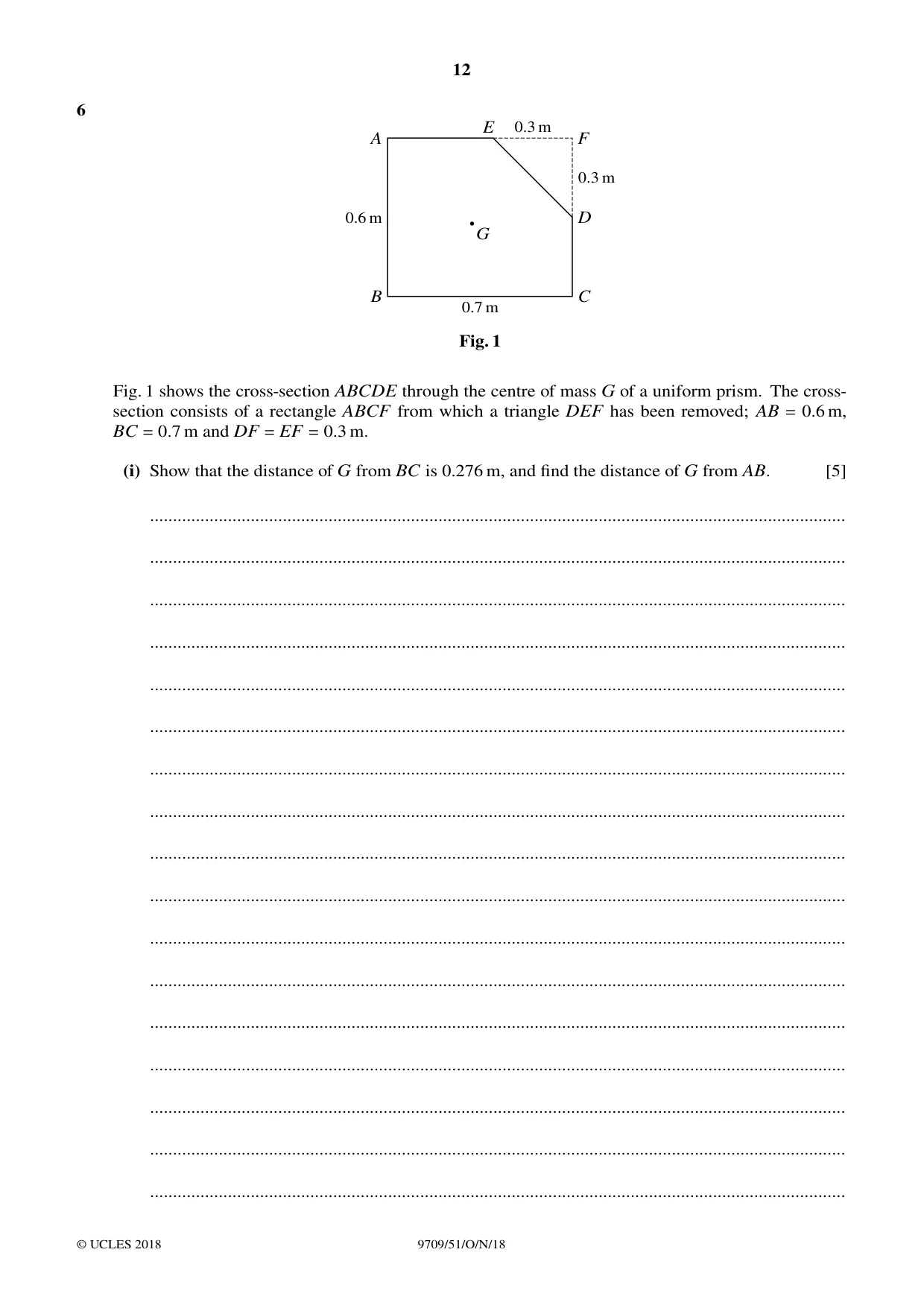

6 E 0.3 m A F 0.3 m 0.6 m D G B C 0.7 m Fig. 1 Fig. 1 shows the cross-section ABCDE through the centre of mass G of a uniform prism. The cross- section consists of a rectangle ABCF from which a triangle DEF has been removed; AB = 0.6 m, BC = 0.7 m and DF = EF = 0.3 m. (i) Show that the distance of G from BC is 0.276 m, and find the distance of G from AB. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ B A G E 2 N C D Fig. 2 The prism is placed with CD on a rough horizontal surface. A force of magnitude 2 N acting in the plane of the cross-section is applied to the prism. The line of action of the force passes through G and is perpendicular to DE (see Fig. 2). The prism is on the point of toppling about the edge through D. (ii) Calculate the weight of the prism. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

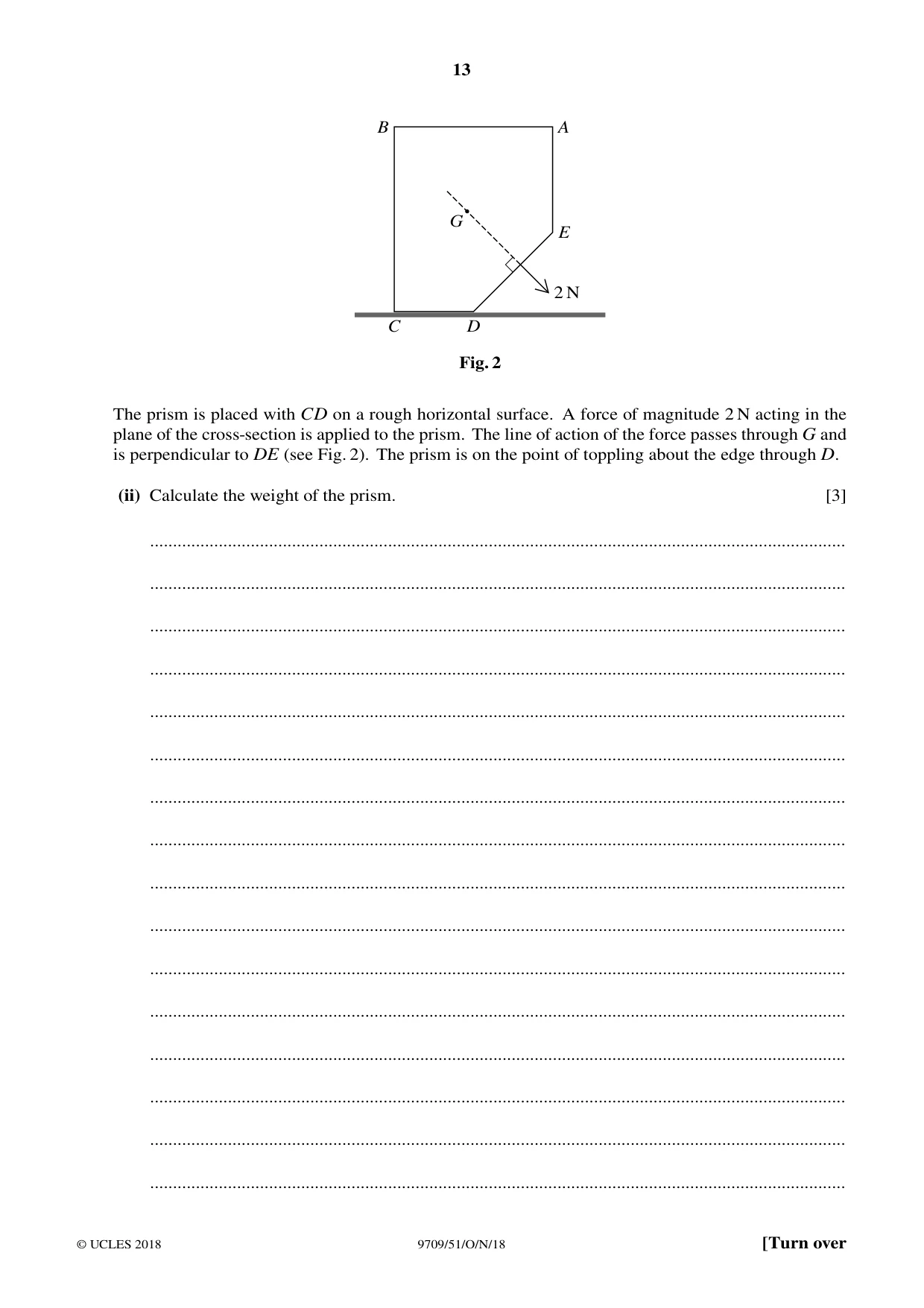

Mark scheme: 6(i) 0.375y = 0.42×0.6/2 –0.045(0.6 – 0.3/3) M1 Take moments about BC y = 0.276 m AG A1 0.375x = 0.42×0.7/2 – 0.045(0.7 – 0.3/3) M1 Take moments about AB x = 0.32 m A1 5 6(ii) M1 Attempt to take moments about D 2cos45× (0.7 – 0.32) = 2cos45× (0.3 – 0.276) + W(0.3 – 0.276) A1 W = 21(.0) N A1 3

More questions on Forces and equilibrium

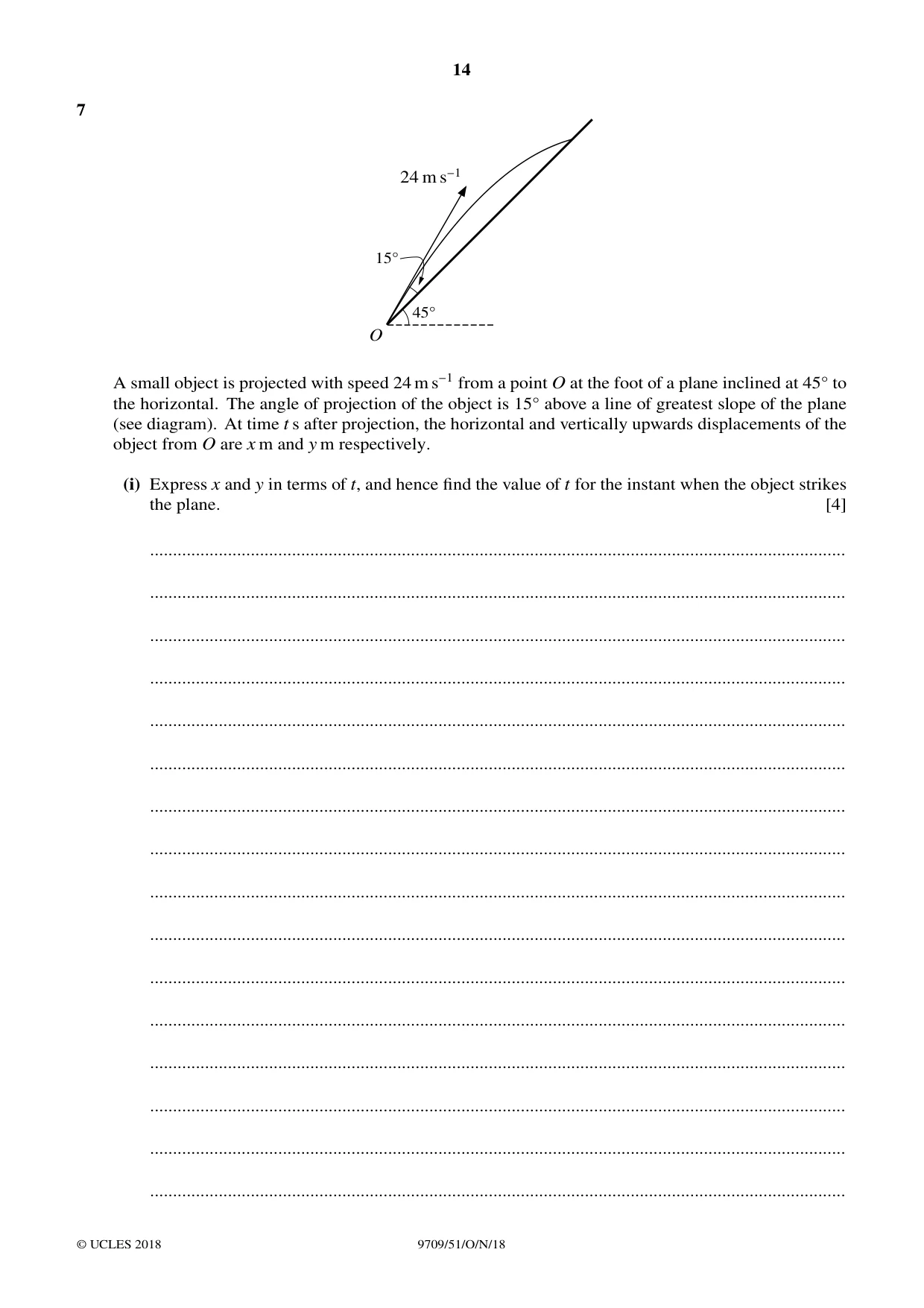

7 24 m s−1 15Å 45Å O A small object is projected with speed 24 m s−1 from a point O at the foot of a plane inclined at 45° to the horizontal. The angle of projection of the object is 15° above a line of greatest slope of the plane (see diagram). At time t s after projection, the horizontal and vertically upwards displacements of the object from O are x m and y m respectively. (i) Express x and y in terms of t, and hence find the value of t for the instant when the object strikes the plane. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Express the vertical height of the object above the plane in terms of t and hence find the greatest vertical height of the object above the plane. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ Additional Page If you use the following lined page to complete the answer(s) to any question(s), the question number(s) must be clearly shown. ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................

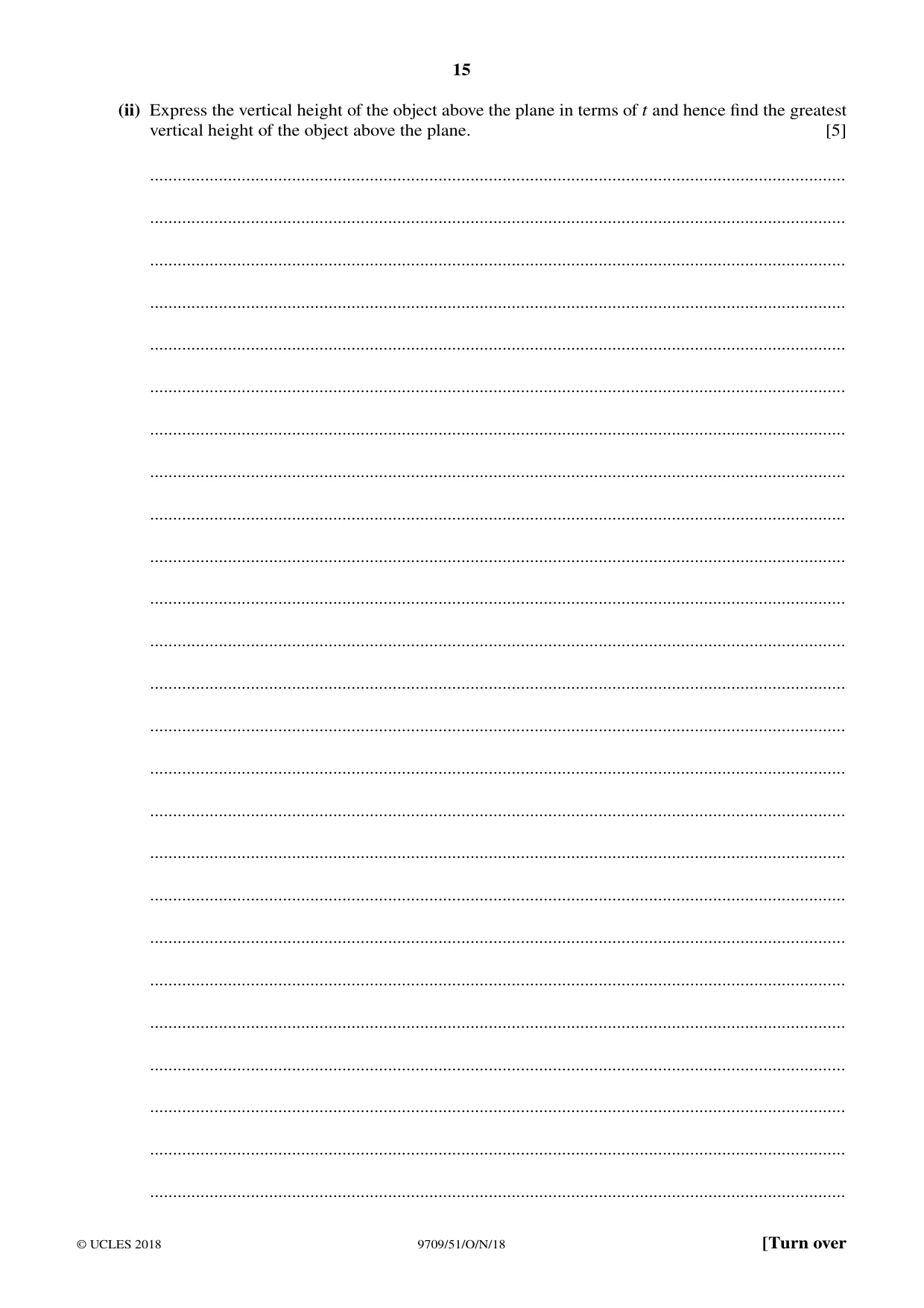

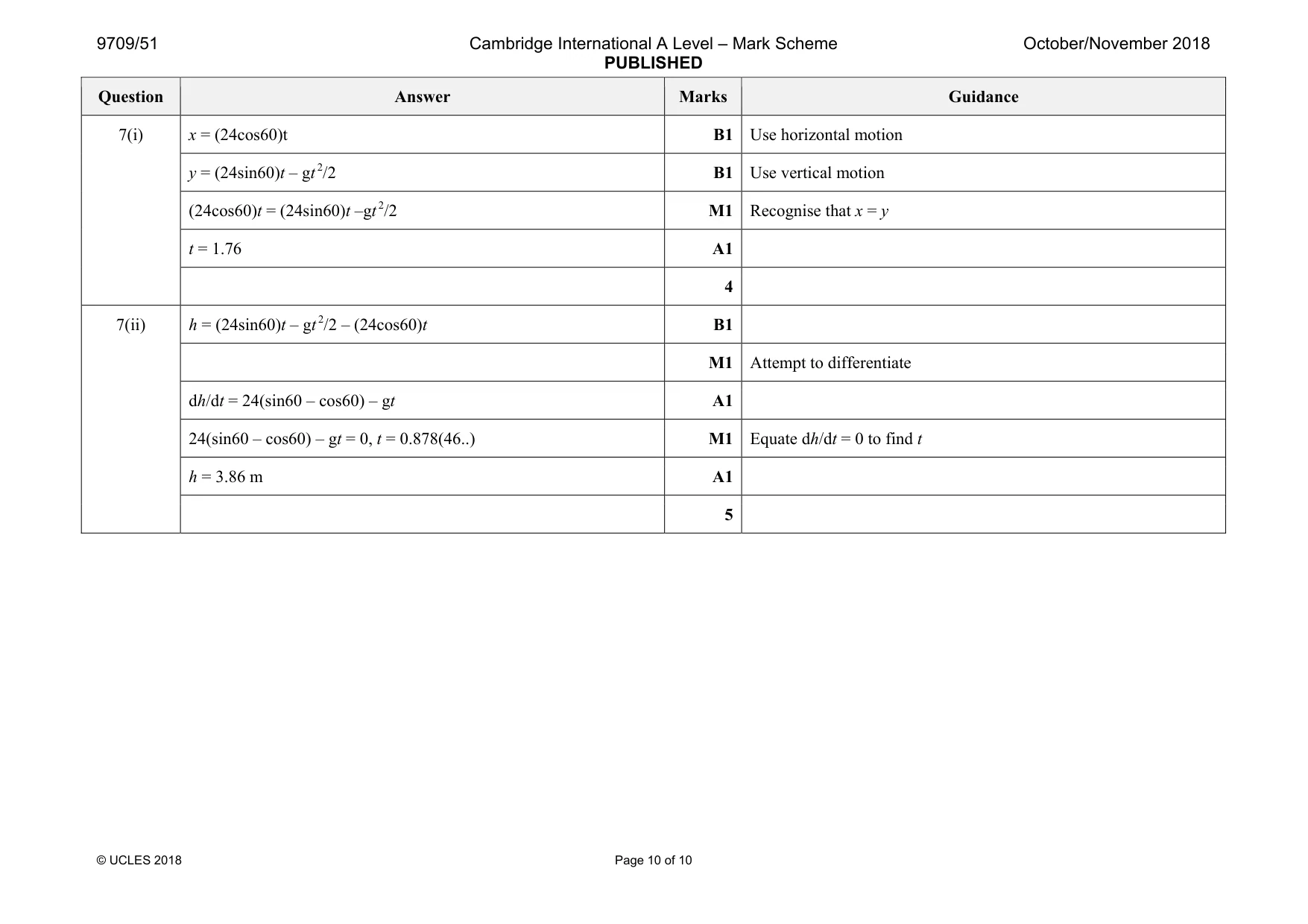

Mark scheme: 7(i) x = (24cos60)t B1 Use horizontal motion y = (24sin60)t – gt 2/2 B1 Use vertical motion (24cos60)t = (24sin60)t –gt 2/2 M1 Recognise that x = y t = 1.76 A1 4 7(ii) h = (24sin60)t – gt 2/2 – (24cos60)t B1 M1 Attempt to differentiate dh/dt = 24(sin60 – cos60) – gt A1 24(sin60 – cos60) – gt = 0, t = 0.878(46..) M1 Equate dh/dt = 0 to find t h = 3.86 m A1 5
