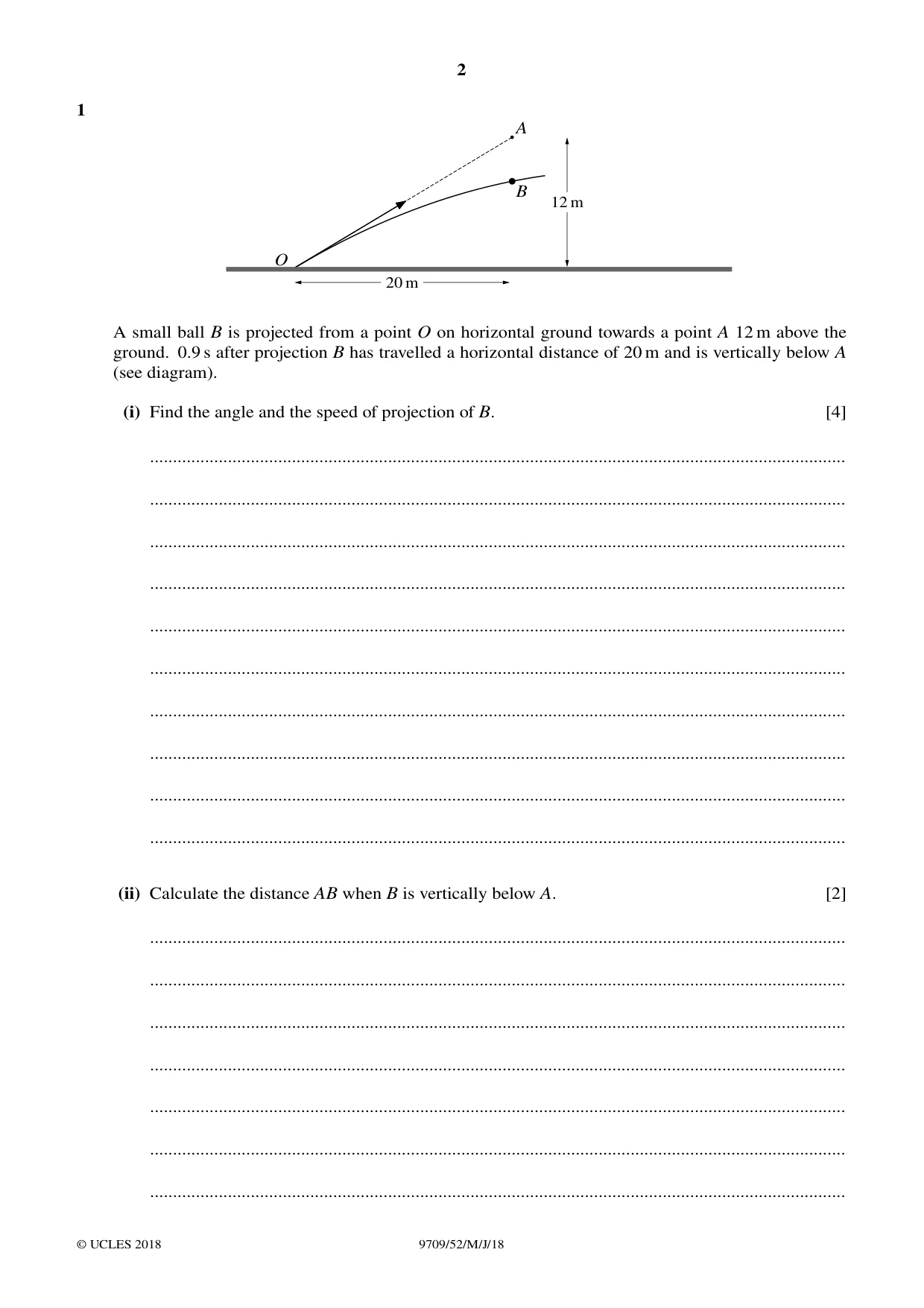

1 A B 12 m O 20 m A small ball B is projected from a point O on horizontal ground towards a point A 12 m above the ground. 0.9 s after projection B has travelled a horizontal distance of 20 m and is vertically below A (see diagram). (i) Find the angle and the speed of projection of B. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Calculate the distance AB when B is vertically below A. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

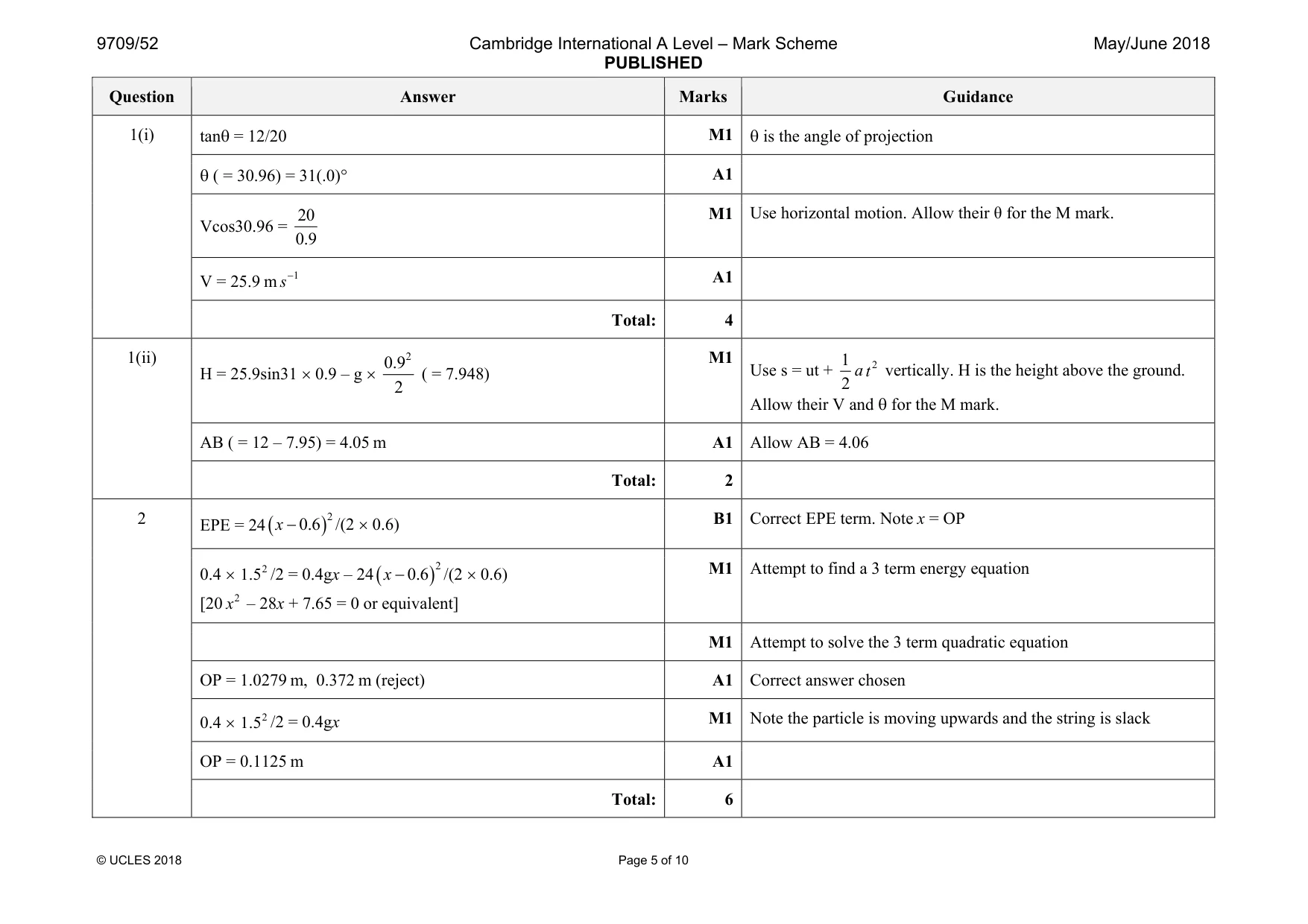

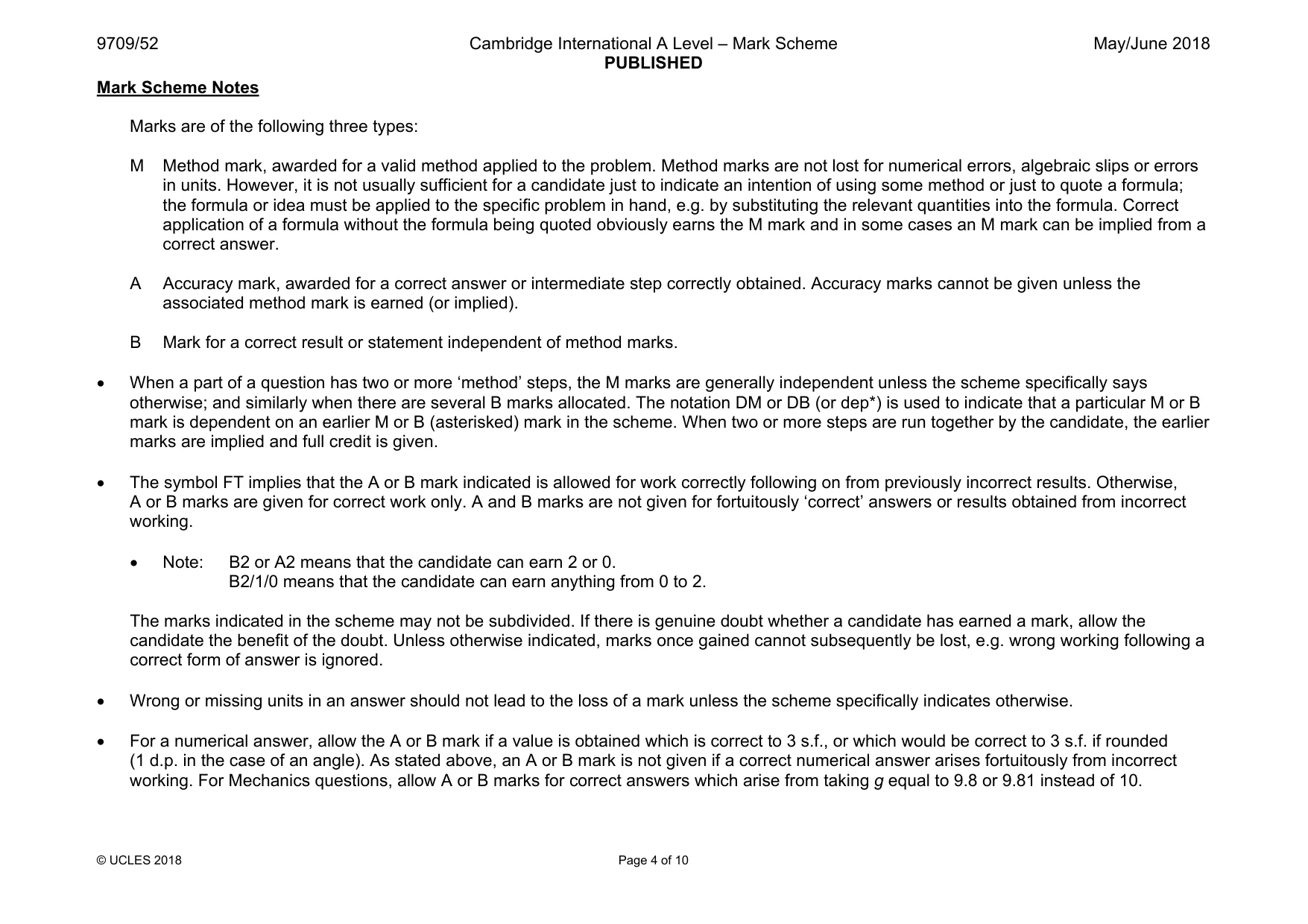

Mark scheme: 1(i) θ ( = 30.96) = 31(.0)° A1 Vcos30.96 = 20 0.9 M1 Use horizontal motion. Allow their θ for the M mark. V = 25.9 m 1 −s A1 Total: 4 1(ii) H = 25.9sin31 × 0.9 – g × 2 0.9 2 ( = 7.948) M1 Use s = ut + 1 2 a 2t vertically. H is the height above the ground. Allow their V and θ for the M mark. AB ( = 12 – 7.95) = 4.05 m A1 Allow AB = 4.06 Total: 2 EPE = 24( ) B1 Correct EPE term. Note x = OP

More questions on Kinematics of motion in a straight line

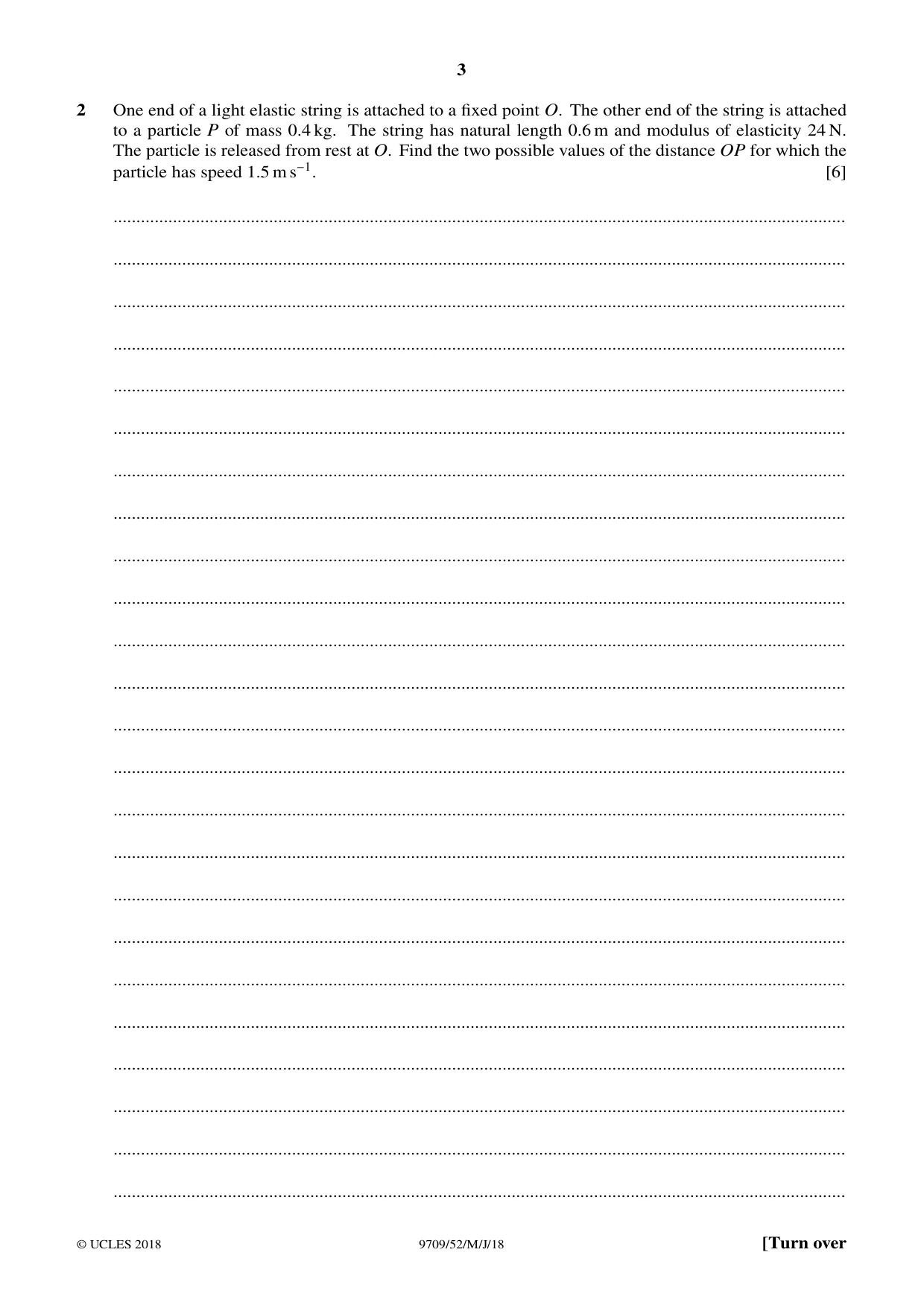

2 One end of a light elastic string is attached to a fixed point O. The other end of the string is attached to a particle P of mass 0.4 kg. The string has natural length 0.6 m and modulus of elasticity 24 N. The particle is released from rest at O. Find the two possible values of the distance OP for which the particle has speed 1.5 m s−1. [6] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

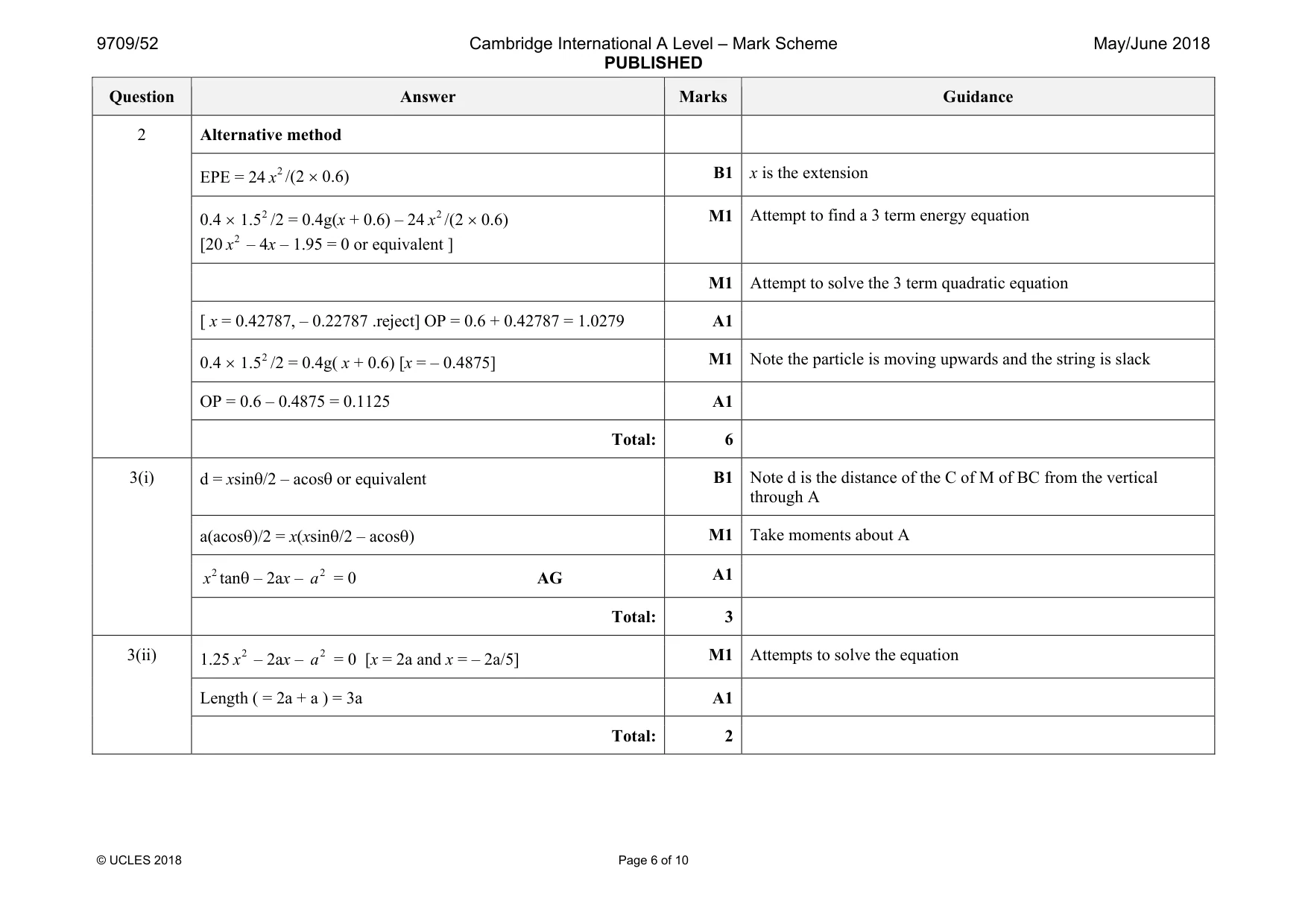

Mark scheme: 2 2 0.6 − x /(2 × 0.6) 0.4 × 2 1.5 /2 = 0.4gx – 24( ) 2 0.6 − x /(2 × 0.6) [20 2 x – 28x + 7.65 = 0 or equivalent] M1 Attempt to find a 3 term energy equation M1 Attempt to solve the 3 term quadratic equation OP = 1.0279 m, 0.372 m (reject) A1 Correct answer chosen 0.4 × 2 1.5 /2 = 0.4gx M1 Note the particle is moving upwards and the string is slack OP = 0.1125 m A1 Total: 6 Question Answer Marks Guidance 2 Alternative method EPE = 24 2 x /(2 × 0.6) B1 x is the extension 0.4 × 2 1.5 /2 = 0.4g(x + 0.6) – 24 2 x /(2 × 0.6) [20 2 x – 4x – 1.95 = 0 or equivalent ] M1 Attempt to find a 3 term energy equation M1 Attempt to solve the 3 term quadratic equation [ x = 0.42787, – 0.22787 .reject] OP = 0.6 + 0.42787 = 1.0279 A1 0.4 × 2 1.5 /2 = 0.4g( x + 0.6) [x = – 0.4875] M1 Note the particle is moving upwards and the string is slack OP = 0.6 – 0.4875 = 0.1125 A1 Total: 6 d = xsinθ/2 – acosθ or equivalent

More questions on Energy, work and power

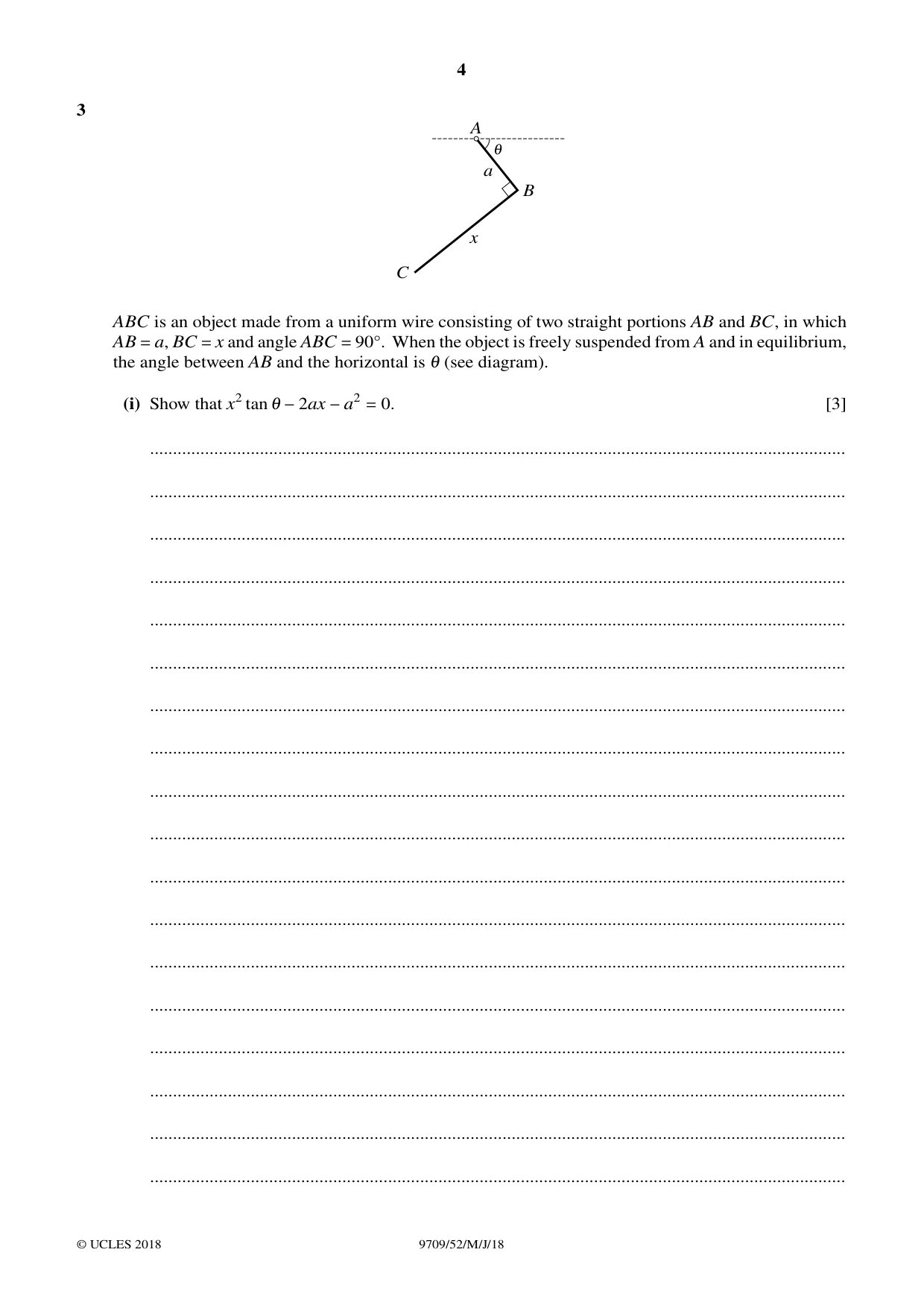

3 A 1 a B x C ABC is an object made from a uniform wire consisting of two straight portions AB and BC, in which AB = a, BC = x and angle ABC = 90Å. When the object is freely suspended from A and in equilibrium, the angle between AB and the horizontal is 1 (see diagram). (i) Show that x2 tan 1 −2ax −a2 = 0. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Given that tan 1 = 1.25, calculate the length of the wire in terms of a. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

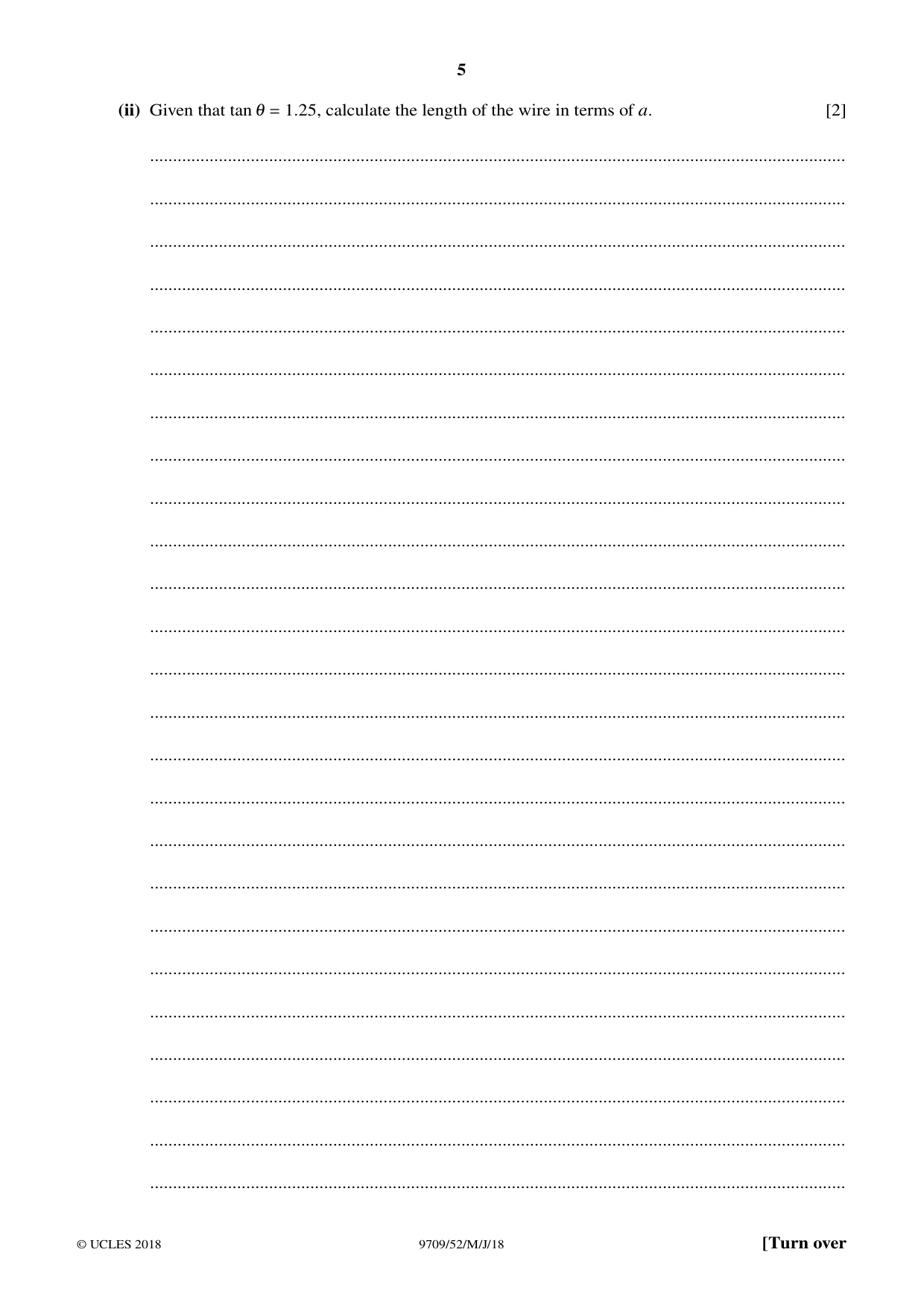

Mark scheme: 3(i) B1 Note d is the distance of the C of M of BC from the vertical through A a(acosθ)/2 = x(xsinθ/2 – acosθ) M1 Take moments about A 2 x tanθ – 2ax – 2 a = 0 AG A1 Total: 3 3(ii) 1.25 2 x – 2ax – 2 a = 0 [x = 2a and x = – 2a/5] M1 Attempts to solve the equation Length ( = 2a + a ) = 3a A1 Total: 2

More questions on Trigonometry

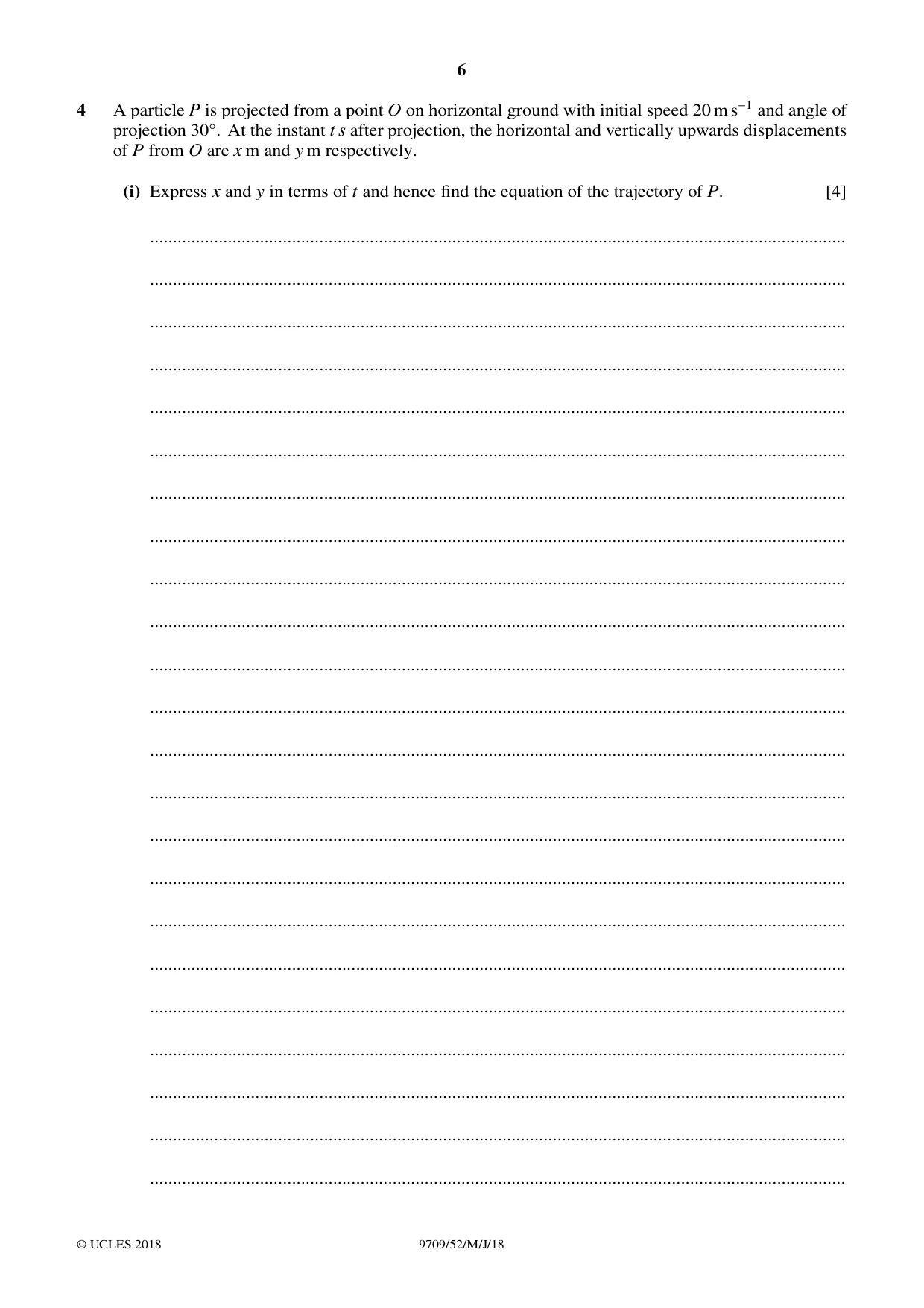

4 A particle P is projected from a point O on horizontal ground with initial speed 20 m s−1 and angle of projection 30°. At the instant t s after projection, the horizontal and vertically upwards displacements of P from O are x m and y m respectively. (i) Express x and y in terms of t and hence find the equation of the trajectory of P. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ P is at the same height above the ground at two points which are a horizontal distance apart of 15 m. (ii) Calculate this height. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

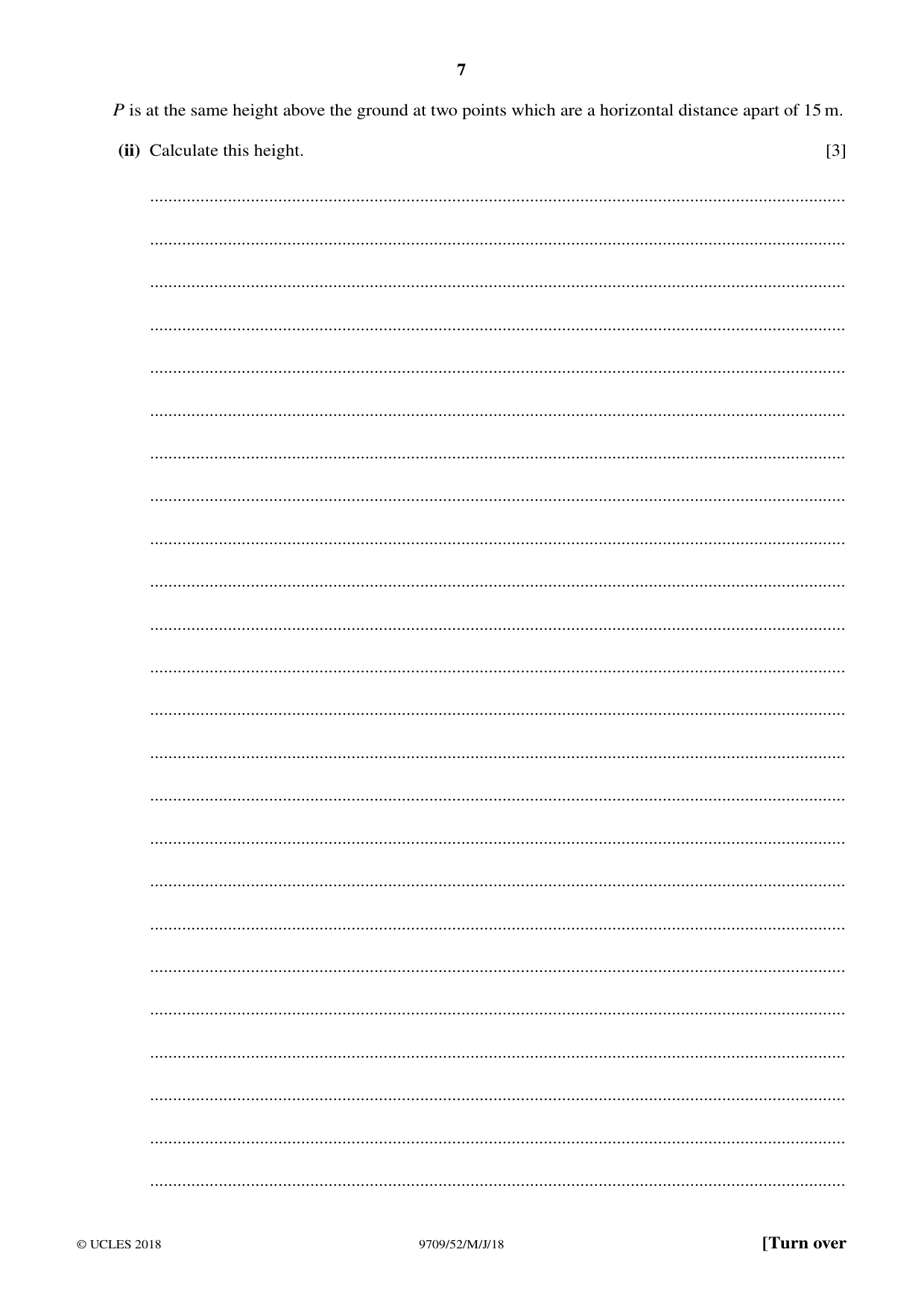

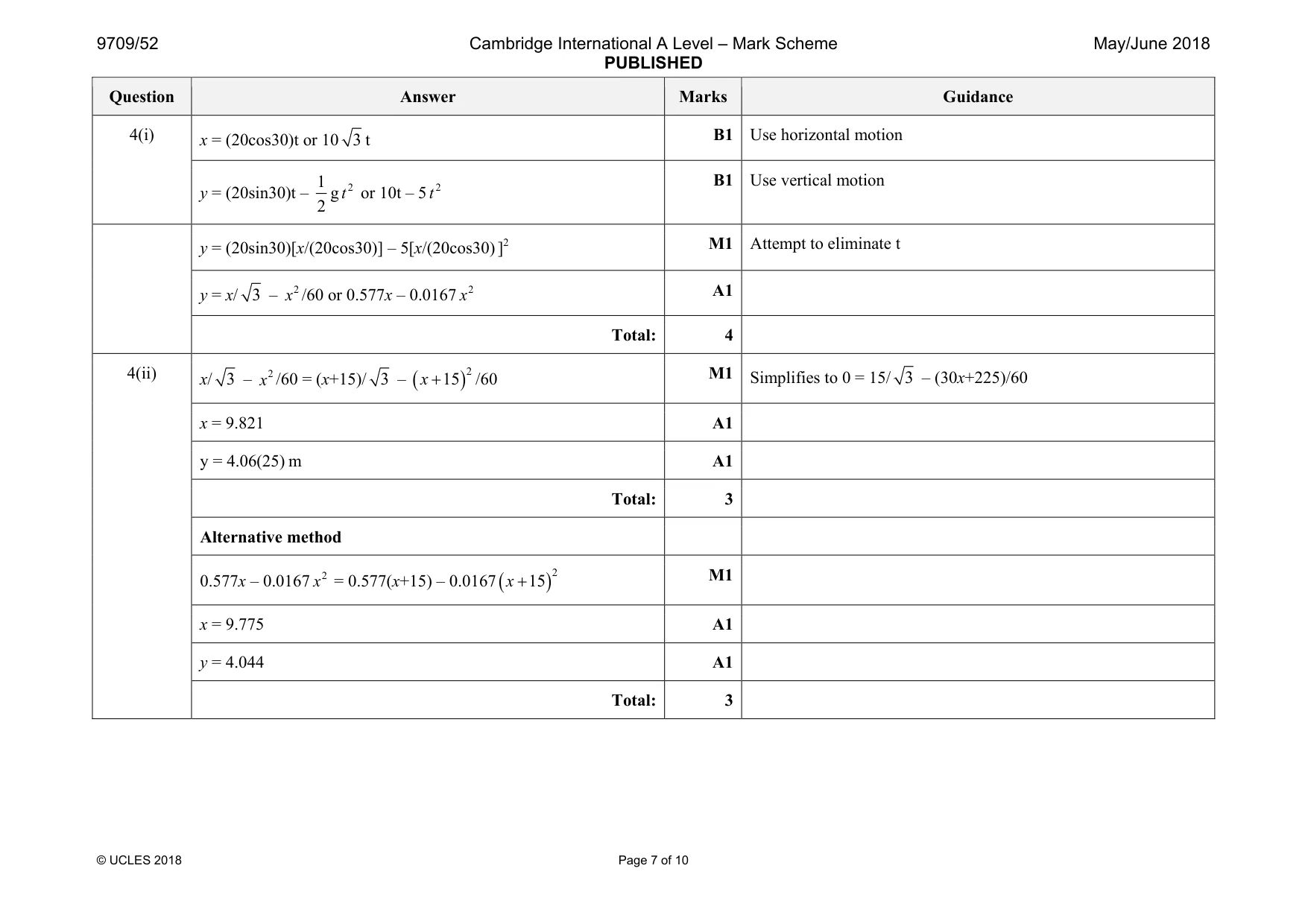

Mark scheme: 4(i) x = (20cos30)t or 10 3 t y = (20sin30)t – 1 2 g 2t or 10t – 5 2t B1 Use vertical motion y = (20sin30)[x/(20cos30)] – 5[x/(20cos30) 2] M1 Attempt to eliminate t y = x/ 3 – 2 x /60 or 0.577x – 0.0167 2 x A1 Total: 4 4(ii) x/ 3 – 2 x /60 = (x+15)/ 3 – ( ) 2 15 + x /60 M1 Simplifies to 0 = 15/ 3 – (30x+225)/60 x = 9.821 A1 y = 4.06(25) m A1 Total: 3 Alternative method 0.577x – 0.0167 2 x = 0.577(x+15) – 0.0167( ) 2 15 + x M1 x = 9.775 A1 y = 4.044 A1 Total: 3

More questions on Functions

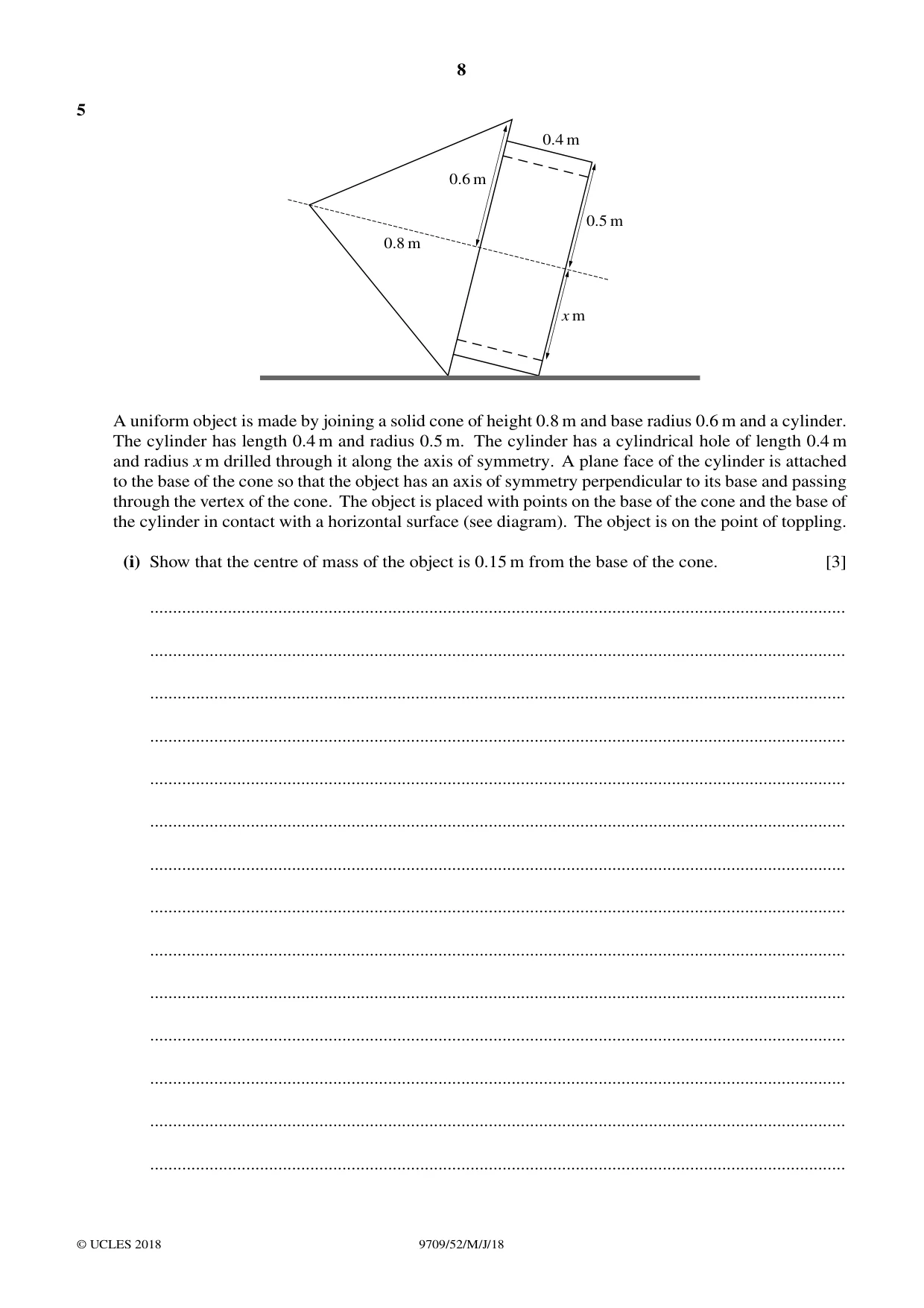

5 0.4 m 0.6 m 0.5 m 0.8 m x m A uniform object is made by joining a solid cone of height 0.8 m and base radius 0.6 m and a cylinder. The cylinder has length 0.4 m and radius 0.5 m. The cylinder has a cylindrical hole of length 0.4 m and radius x m drilled through it along the axis of symmetry. A plane face of the cylinder is attached to the base of the cone so that the object has an axis of symmetry perpendicular to its base and passing through the vertex of the cone. The object is placed with points on the base of the cone and the base of the cylinder in contact with a horizontal surface (see diagram). The object is on the point of toppling. (i) Show that the centre of mass of the object is 0.15 m from the base of the cone. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find x. [4] [The volume of a cone is 30r2h.]1 ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

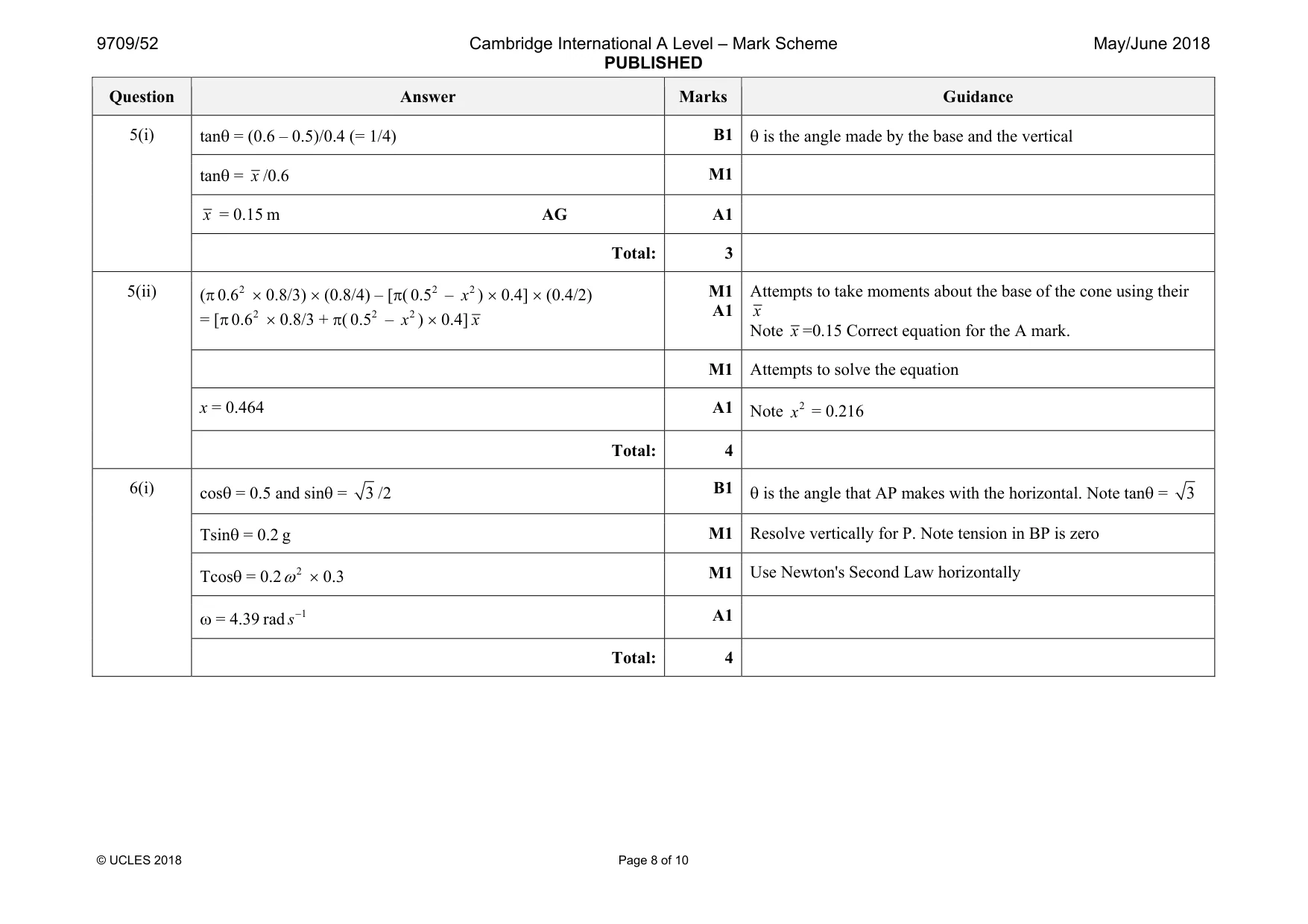

Mark scheme: 5(i) tanθ = x /0.6 M1 x = 0.15 m AG A1 Total: 3 5(ii) (π 2 0.6 × 0.8/3) × (0.8/4) – [π( 2 0.5 – 2 x ) × 0.4] × (0.4/2) = [π 2 0.6 × 0.8/3 + π( 2 0.5 – 2 x ) × 0.4] x M1 A1 Attempts to take moments about the base of the cone using their x Note x =0.15 Correct equation for the A mark. M1 Attempts to solve the equation x = 0.464 A1 Note 2 x = 0.216 Total: 4

More questions on Energy, work and power

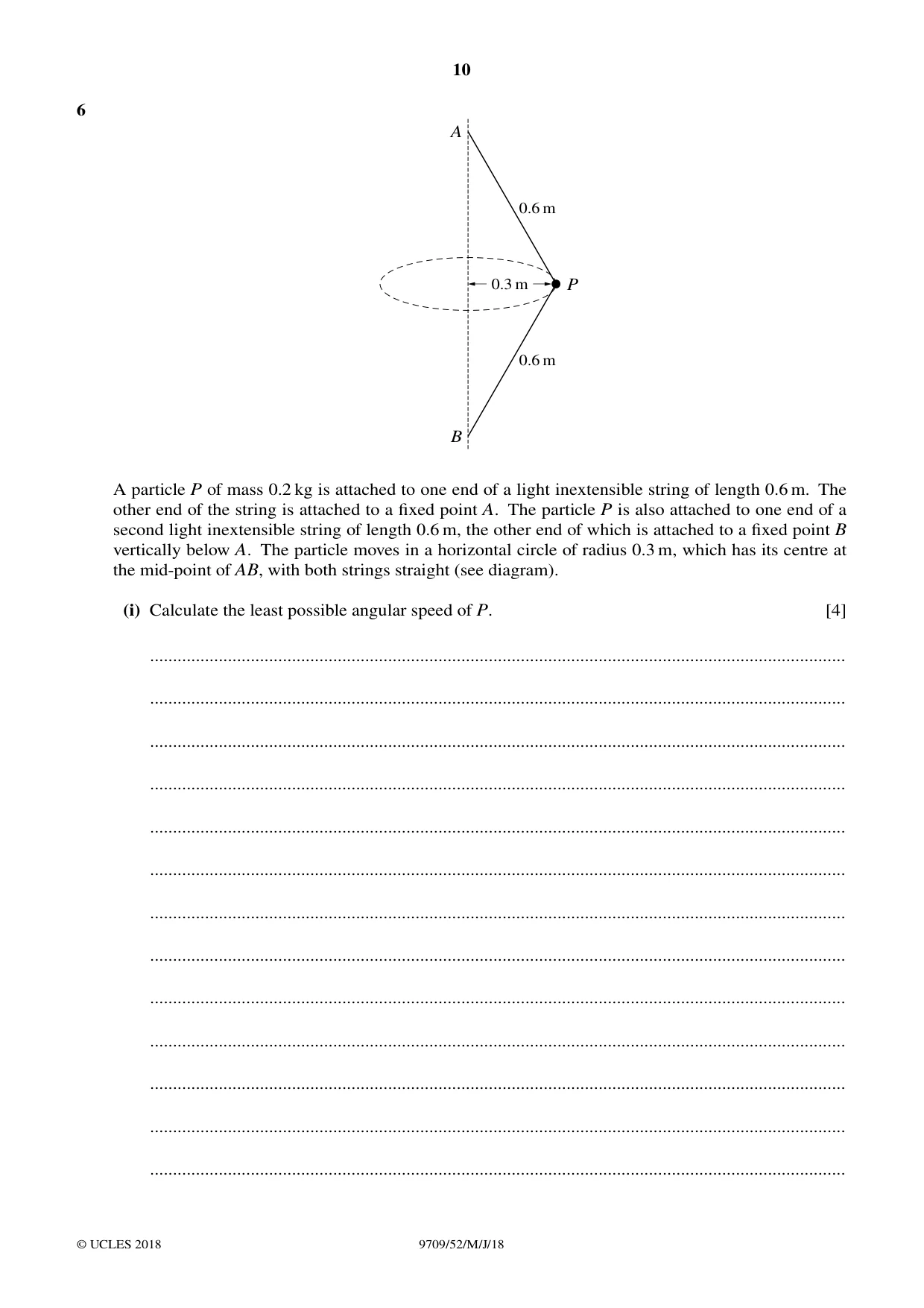

6 A 0.6 m 0.3 m P 0.6 m B A particle P of mass 0.2 kg is attached to one end of a light inextensible string of length 0.6 m. The other end of the string is attached to a fixed point A. The particle P is also attached to one end of a second light inextensible string of length 0.6 m, the other end of which is attached to a fixed point B vertically below A. The particle moves in a horizontal circle of radius 0.3 m, which has its centre at the mid-point of AB, with both strings straight (see diagram). (i) Calculate the least possible angular speed of P. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The string AP will break if its tension exceeds 8 N. The string BP will break if its tension exceeds 5 N. (ii) Find the greatest possible speed of P. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 6(i) cosθ = 0.5 and sinθ = 3 /2 B1 θ is the angle that AP makes with the horizontal. Note tanθ = 3 Tsinθ = 0.2 g M1 Resolve vertically for P. Note tension in BP is zero Tcosθ = 0.2 2 ω × 0.3 M1 Use Newton's Second Law horizontally ω = 4.39 rad 1 −s A1 Total: 4 Question Answer Marks Guidance 6(ii) A T sinθ = 0.2 g + B T sinθ M1 Resolve vertically for P A T sinθ = 0.2 g + 5sinθ M1 Use B T = 5 A T = 7.309 A1 5cosθ + 7.309cosθ = 0.2 2 v /0.3 M1 Use Newton's Second Law horizontally v = 3.04 m 1 −s A1 Total: 5

More questions on Kinematics of motion in a straight line

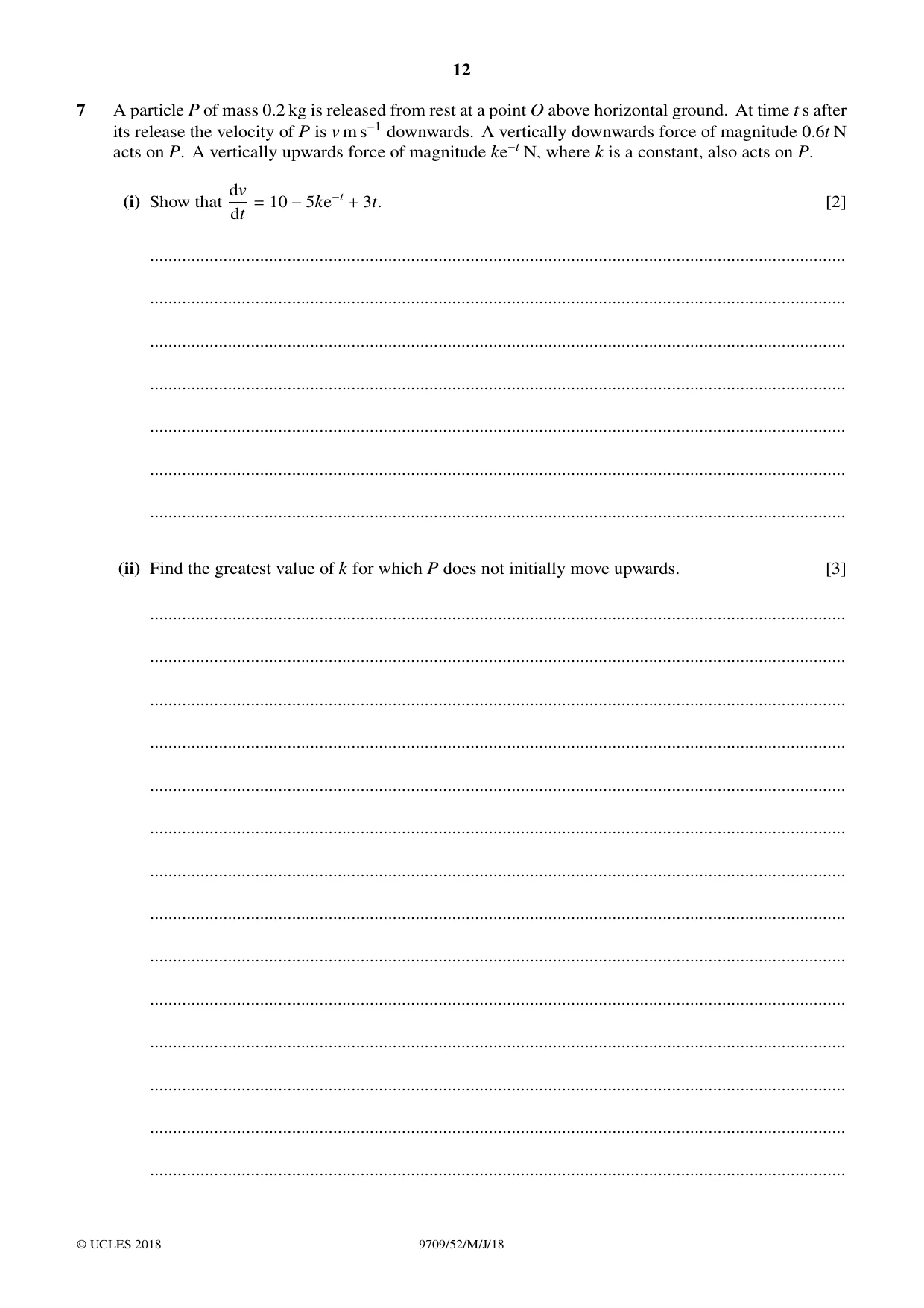

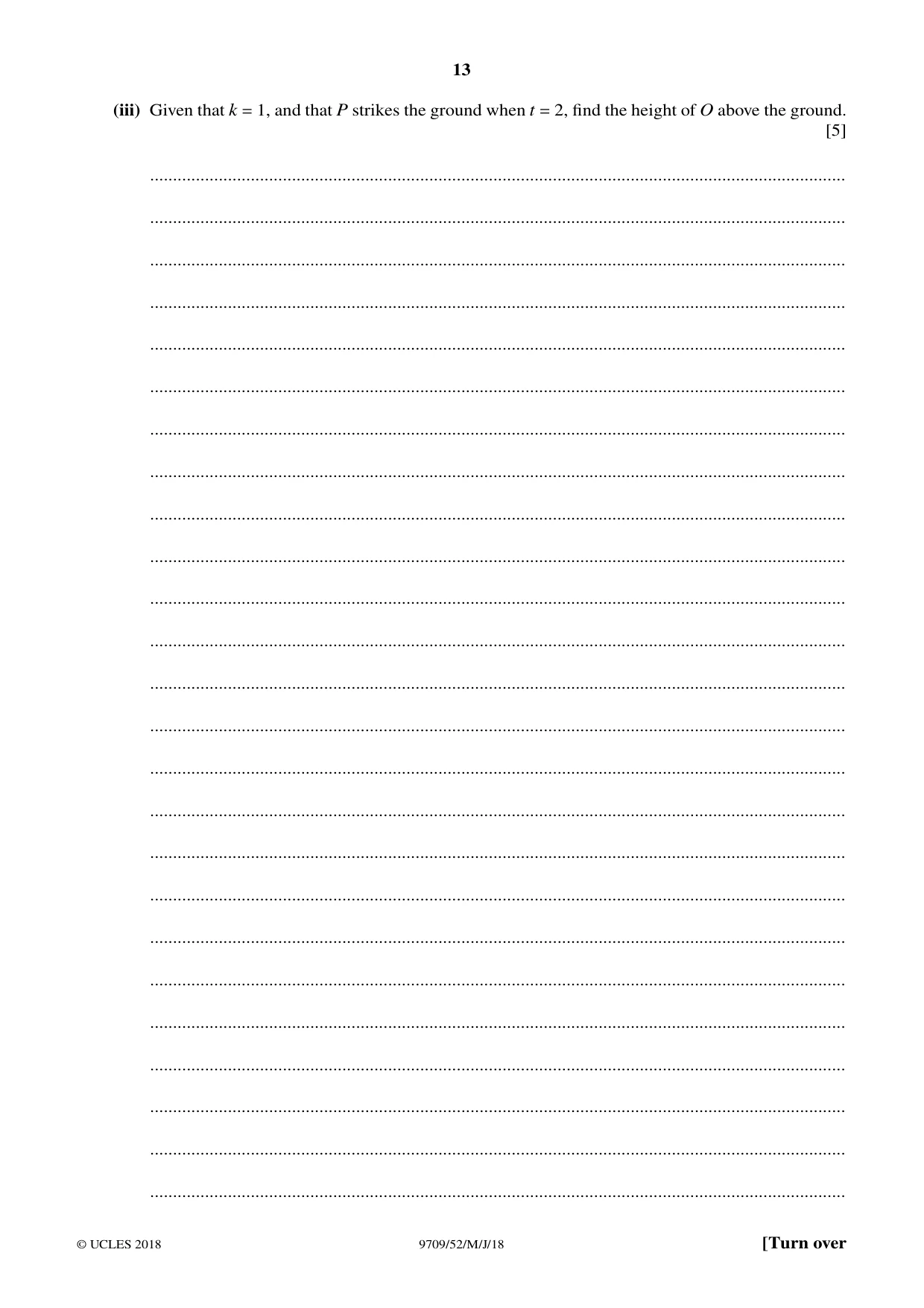

7 A particle P of mass 0.2 kg is released from rest at a point O above horizontal ground. At time t s after its release the velocity of P is v m s−1 downwards. A vertically downwards force of magnitude 0.6t N acts on P. A vertically upwards force of magnitude ke−t N, where k is a constant, also acts on P. dv (i) Show that = 10 −5ke−t + 3t. [2] dt ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the greatest value of k for which P does not initially move upwards. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (iii) Given that k = 1, and that P strikes the ground when t = 2, find the height of O above the ground. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ Additional Page If you use the following lined page to complete the answer(s) to any question(s), the question number(s) must be clearly shown. ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................ ........................................................................................................................................................................

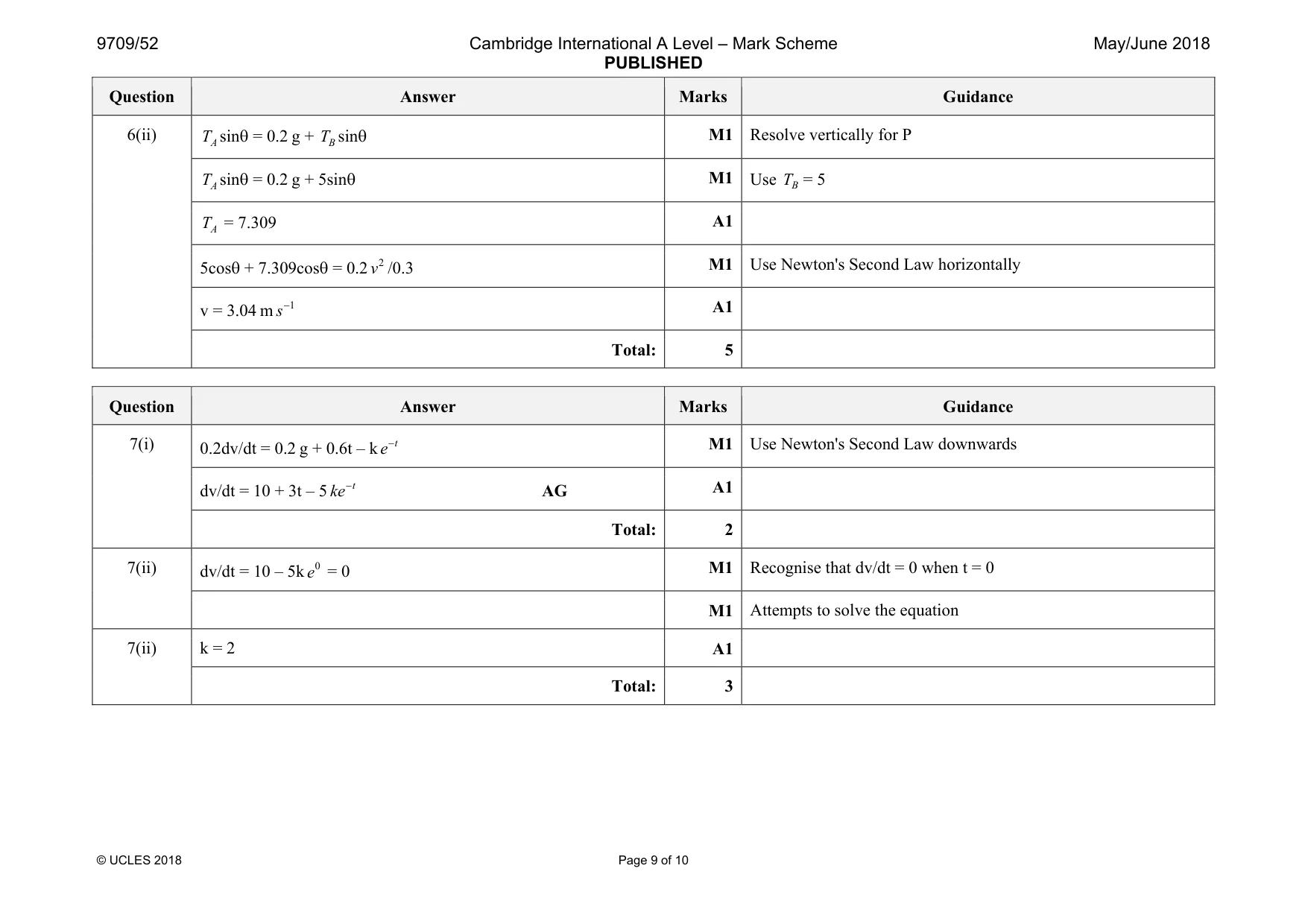

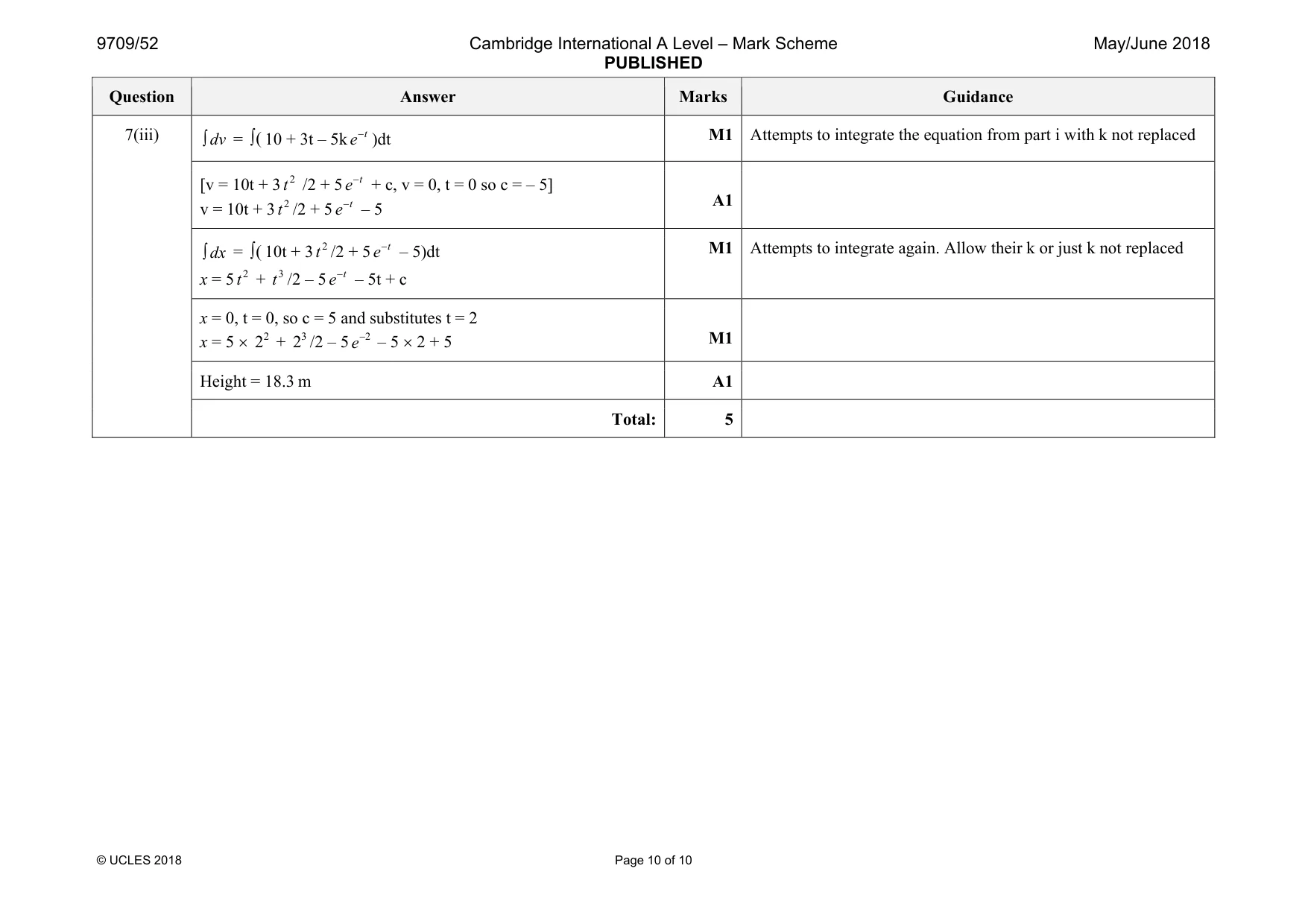

Mark scheme: 7(i) 0.2dv/dt = 0.2 g + 0.6t – k −t e dv/dt = 10 + 3t – 5 −t ke AG A1 Total: 2 7(ii) dv/dt = 10 – 5k 0e = 0 M1 Recognise that dv/dt = 0 when t = 0 M1 Attempts to solve the equation 7(ii) k = 2 A1 Total: 3 Question Answer Marks Guidance 7(iii) ∫dv = (∫10 + 3t – 5k −t e )dt M1 Attempts to integrate the equation from part i with k not replaced [v = 10t + 3 2t /2 + 5 −t e + c, v = 0, t = 0 so c = – 5] v = 10t + 3 2t /2 + 5 −t e – 5 A1 ∫dx = (∫10t + 3 2t /2 + 5 −t e – 5)dt x = 5 2t + 3t /2 – 5 −t e – 5t + c M1 Attempts to integrate again. Allow their k or just k not replaced x = 0, t = 0, so c = 5 and substitutes t = 2 x = 5 × 2 2 + 3 2 /2 – 5 2 − e – 5 × 2 + 5 M1 Height = 18.3 m A1 Total: 5
