Cambridge A Level Mathematics 9709 — 2017 May/June Paper 5 · Variant 2

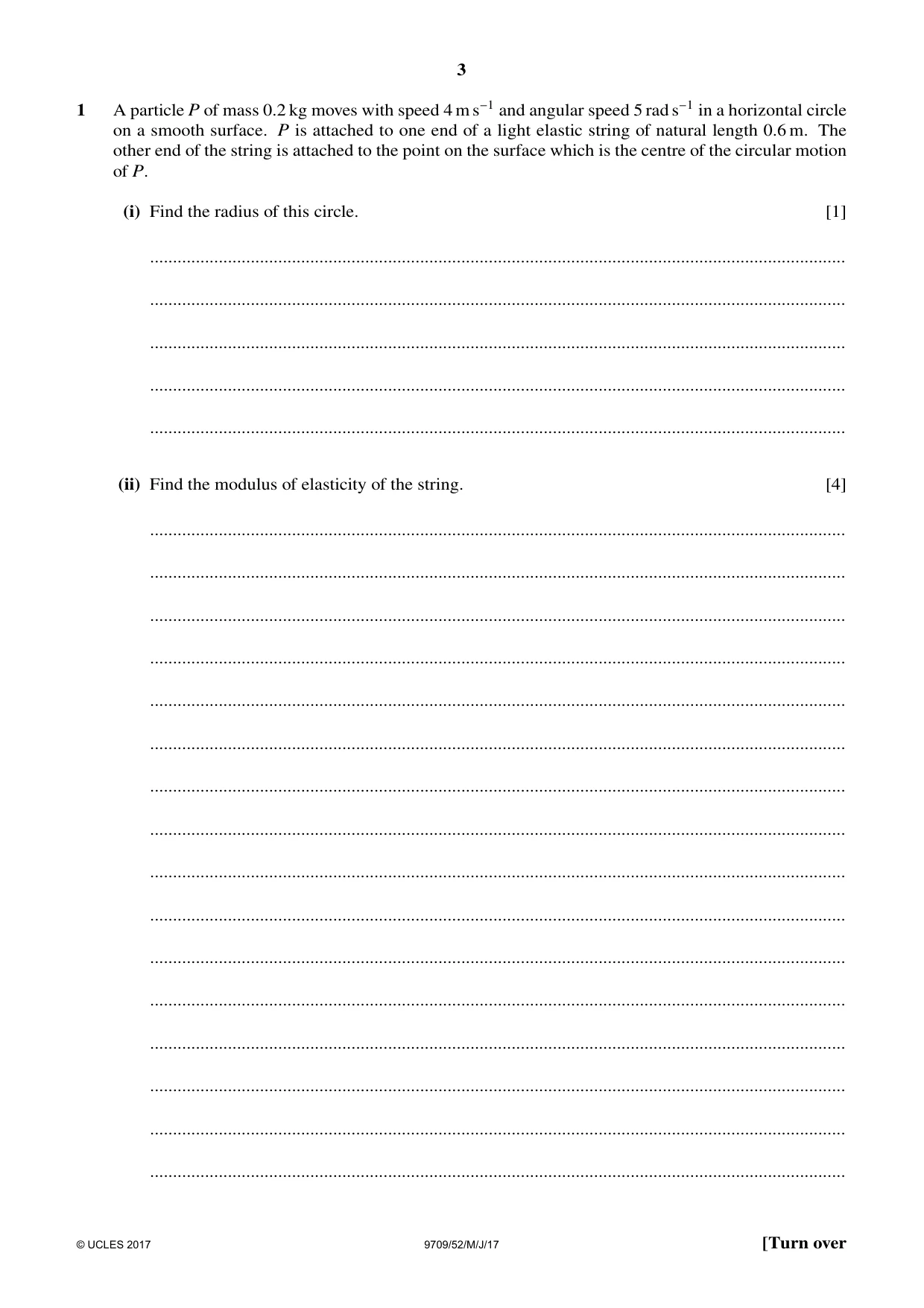

1 A particle P of mass 0.2 kg moves with speed 4 m s−1 and angular speed 5 rad s−1 in a horizontal circle on a smooth surface. P is attached to one end of a light elastic string of natural length 0.6 m. The other end of the string is attached to the point on the surface which is the centre of the circular motion of P. (i) Find the radius of this circle. [1] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the modulus of elasticity of the string. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

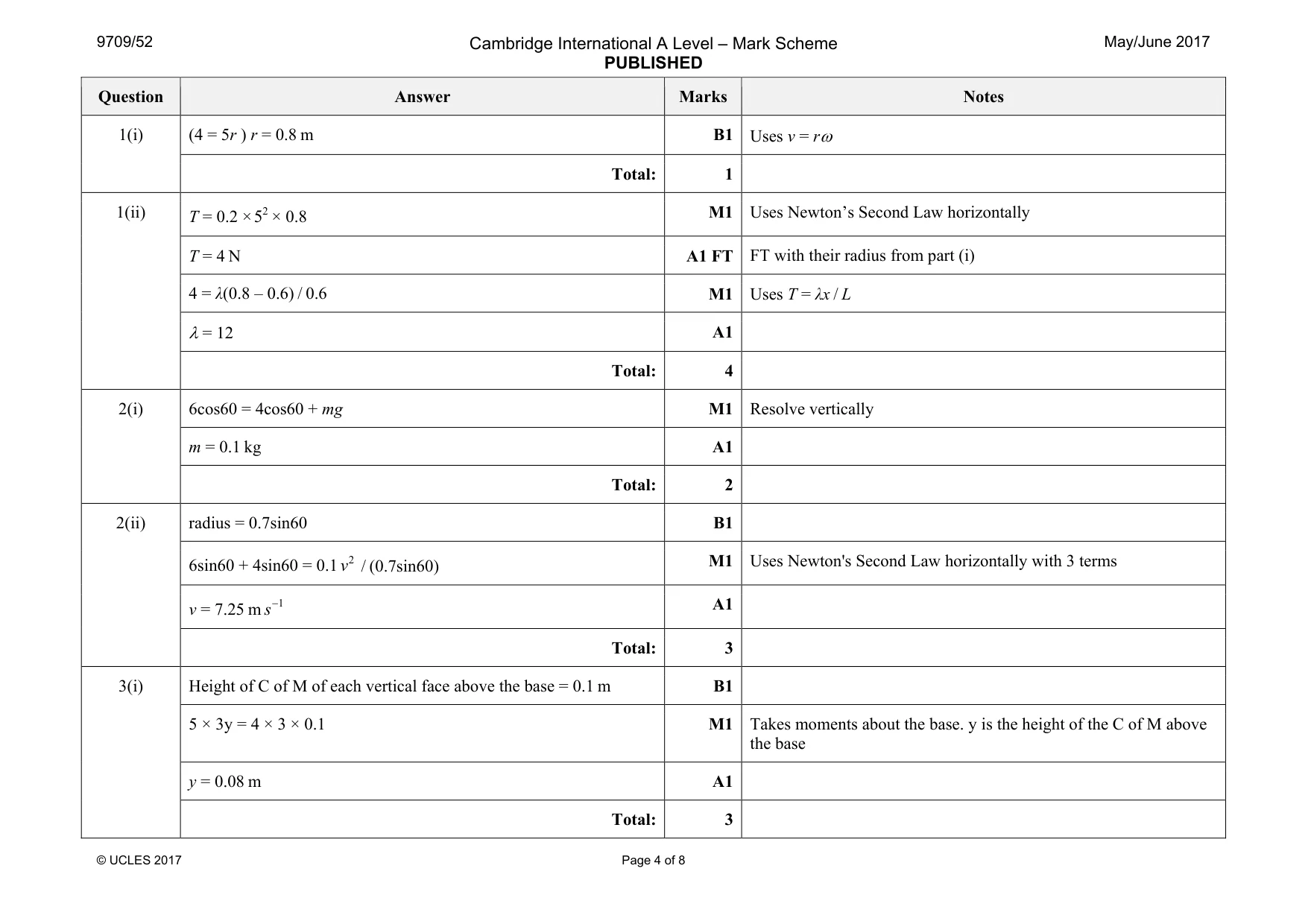

Mark scheme: 1(i) Total: 1 1(ii) T = 0.2 × 2 5 × 0.8 M1 Uses Newton’s Second Law horizontally T = 4 N A1 FT FT with their radius from part (i) 4 = λ(0.8 – 0.6) / 0.6 M1 Uses T = λx / L λ = 12 A1 Total: 4

More questions on Newton’s laws of motion

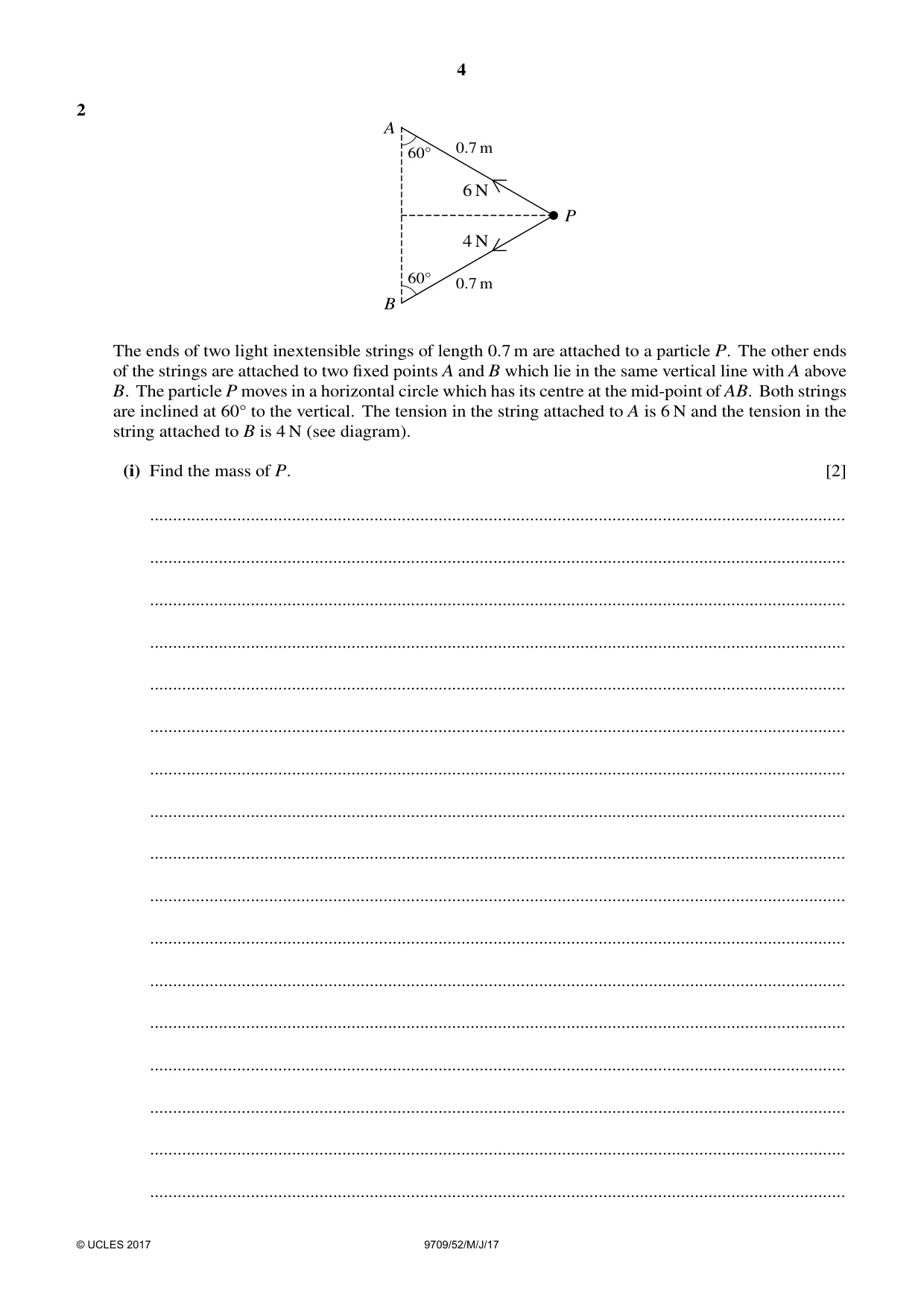

2 A 0.7 m 60Å 6 N P 4 N 60Å 0.7 m B The ends of two light inextensible strings of length 0.7 m are attached to a particle P. The other ends of the strings are attached to two fixed points A and B which lie in the same vertical line with A above B. The particle P moves in a horizontal circle which has its centre at the mid-point of AB. Both strings are inclined at 60Å to the vertical. The tension in the string attached to A is 6 N and the tension in the string attached to B is 4 N (see diagram). (i) Find the mass of P. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Calculate the speed of P. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 2(i) 6cos60 = 4cos60 + mg M1 Resolve vertically m = 0.1 kg A1 Total: 2 2(ii) radius = 0.7sin60 B1 6sin60 + 4sin60 = 0.1 2v / (0.7sin60) M1 Uses Newton's Second Law horizontally with 3 terms v = 7.25 m 1 s− A1 Total: 3 Height of C of M of each vertical face above the base = 0.1 m

More questions on Kinematics of motion in a straight line

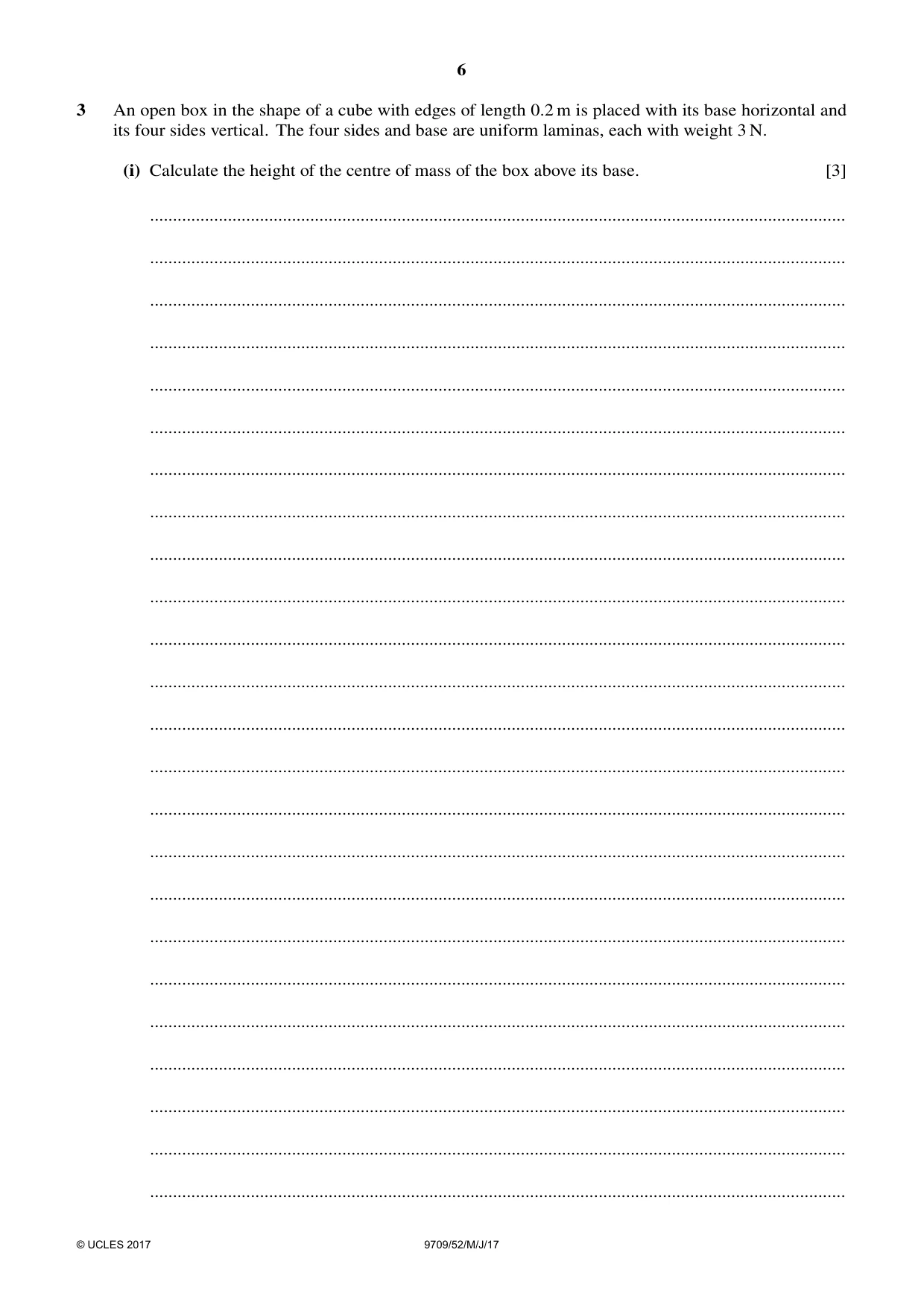

3 An open box in the shape of a cube with edges of length 0.2 m is placed with its base horizontal and its four sides vertical. The four sides and base are uniform laminas, each with weight 3 N. (i) Calculate the height of the centre of mass of the box above its base. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The box is now fitted with a thin uniform square lid of weight 3 N and with edges of length 0.2 m. The lid is attached to the box by a hinge of length 0.2 m and weight 2 N. The lid of the box is held partly open. (ii) Find the angle which the lid makes with the horizontal when the centre of mass of the box (including the lid and hinge) is 0.12 m above the base of the box. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

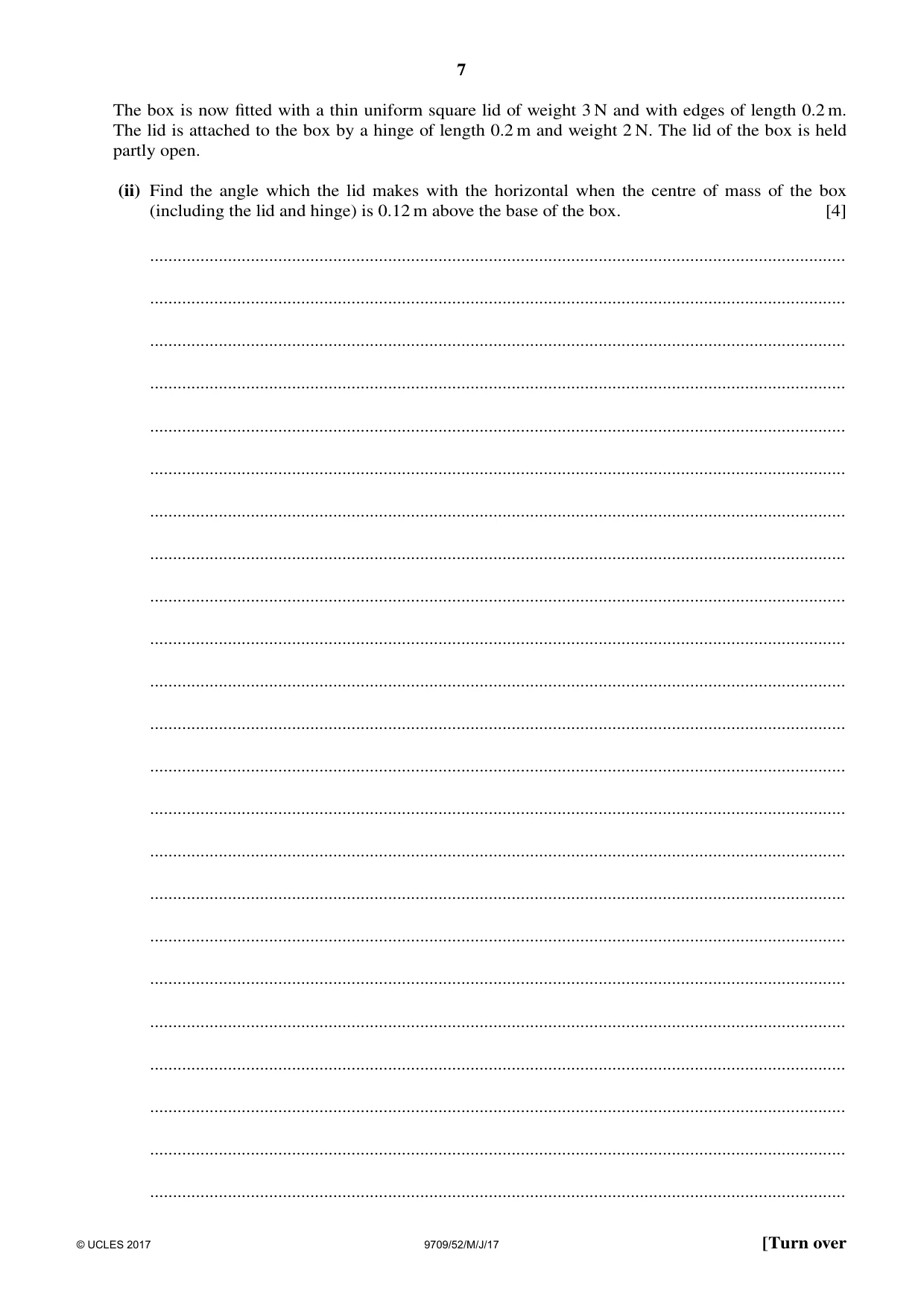

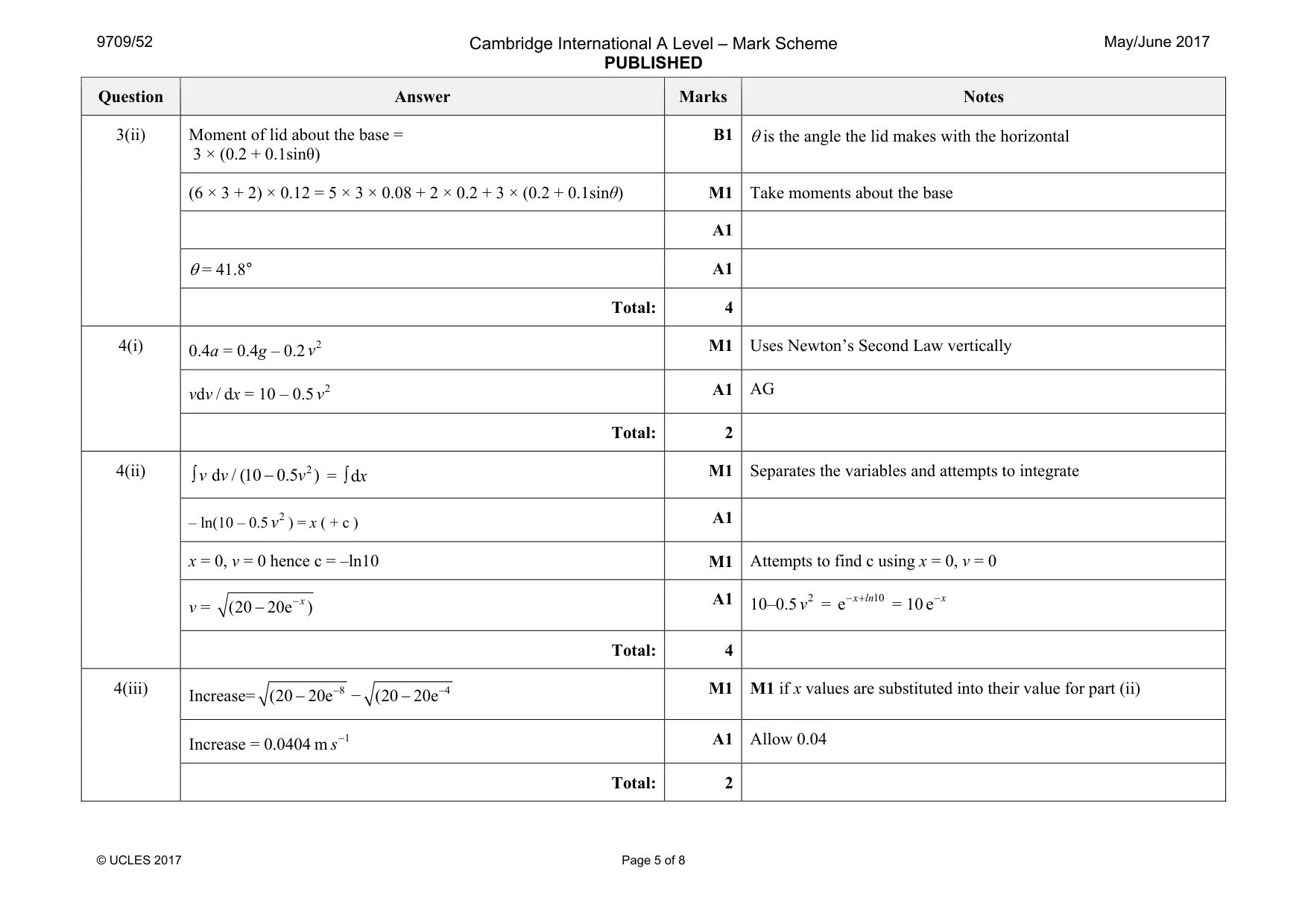

Mark scheme: 3(i) B1 5 × 3y = 4 × 3 × 0.1 M1 Takes moments about the base. y is the height of the C of M above the base y = 0.08 m A1 Total: 3 Question Answer Marks Notes 3(ii) Moment of lid about the base = 3 × (0.2 + 0.1sinθ) B1 θ is the angle the lid makes with the horizontal (6 × 3 + 2) × 0.12 = 5 × 3 × 0.08 + 2 × 0.2 + 3 × (0.2 + 0.1sinθ) M1 Take moments about the base A1 θ = 41.8° A1 Total: 4 M1 Uses Newton’s Second Law vertically

More questions on Forces and equilibrium

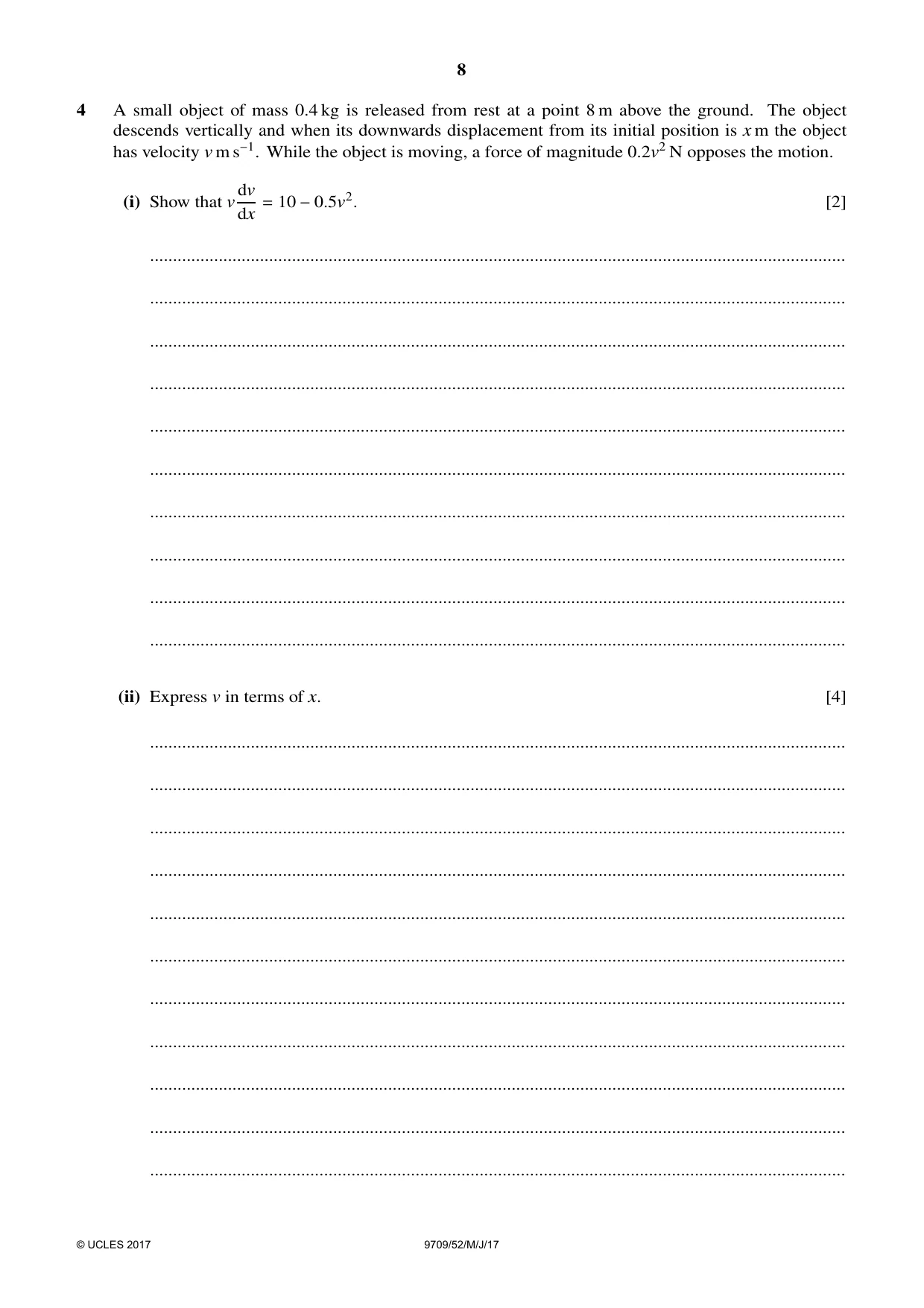

4 A small object of mass 0.4 kg is released from rest at a point 8 m above the ground. The object descends vertically and when its downwards displacement from its initial position is x m the object has velocity v m s−1. While the object is moving, a force of magnitude 0.2v2 N opposes the motion. (i) Show that vdv = 10 −0.5v2. [2] dx ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Express v in terms of x. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (iii) Find the increase in the value of v during the final 4 m of the descent of the object. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 4(i) 0.4a = 0.4g – 0.2 2v vdv / dx = 10 – 0.5 2v A1 AG Total: 2 4(ii) 2 d / (10 0. ) 5 v v v ∫ − = dx ∫ M1 Separates the variables and attempts to integrate – ln(10 – 0.5 2v ) = x ( + c ) A1 x = 0, v = 0 hence c = –ln10 M1 Attempts to find c using x = 0, v = 0 v = (20 20 ) e x − − A1 10–0.5 2v = 10 e x ln −+ = 10 e x − Total: 4 4(iii) Increase= 8 (20 20e− − − 4 (20 20e− − M1 M1 if x values are substituted into their value for part (ii) Increase = 0.0404 m 1 s− A1 Allow 0.04 Total: 2

More questions on Kinematics of motion in a straight line

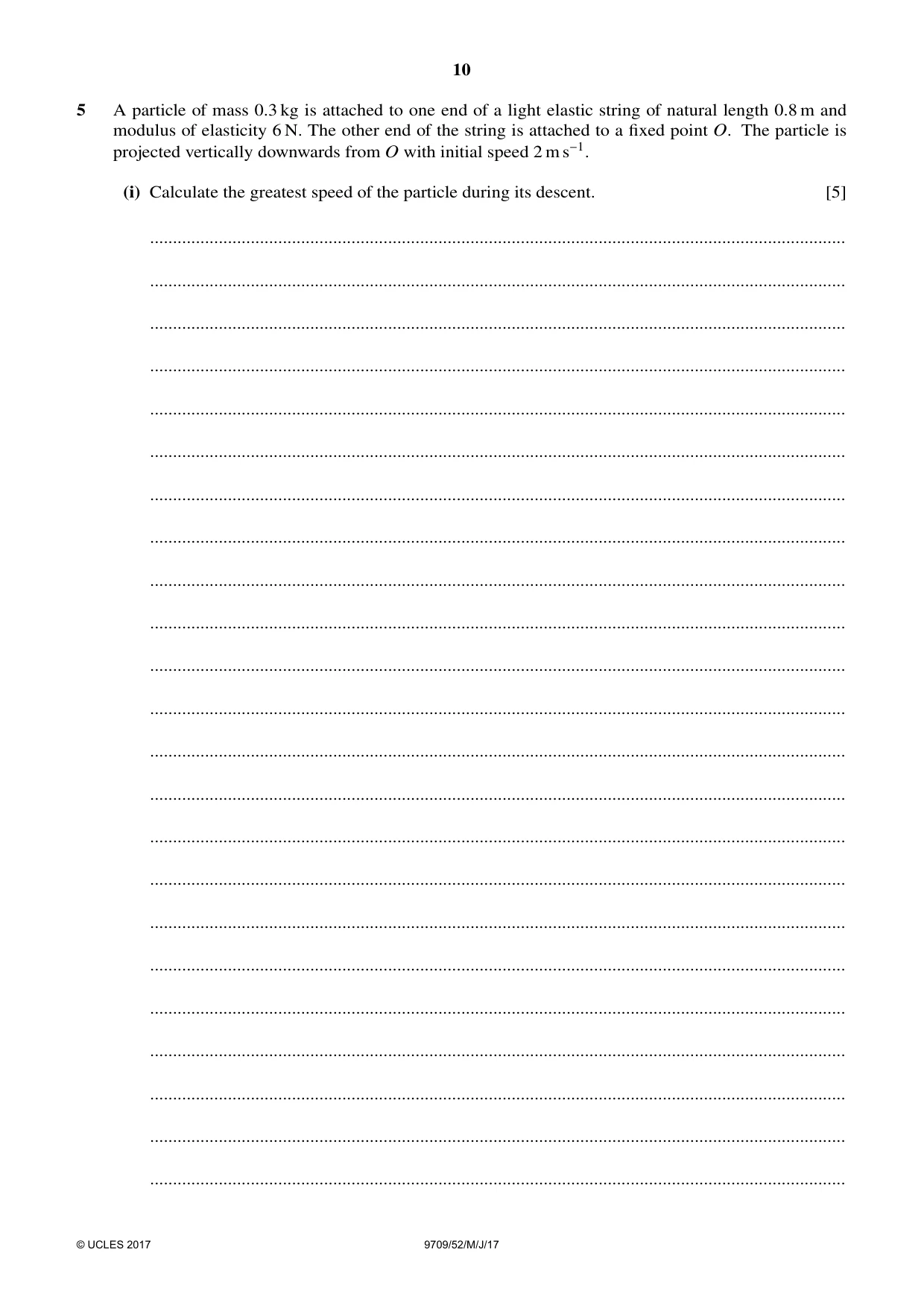

5 A particle of mass 0.3 kg is attached to one end of a light elastic string of natural length 0.8 m and modulus of elasticity 6 N. The other end of the string is attached to a fixed point O. The particle is projected vertically downwards from O with initial speed 2 m s−1. (i) Calculate the greatest speed of the particle during its descent. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find the greatest distance of the particle below O. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

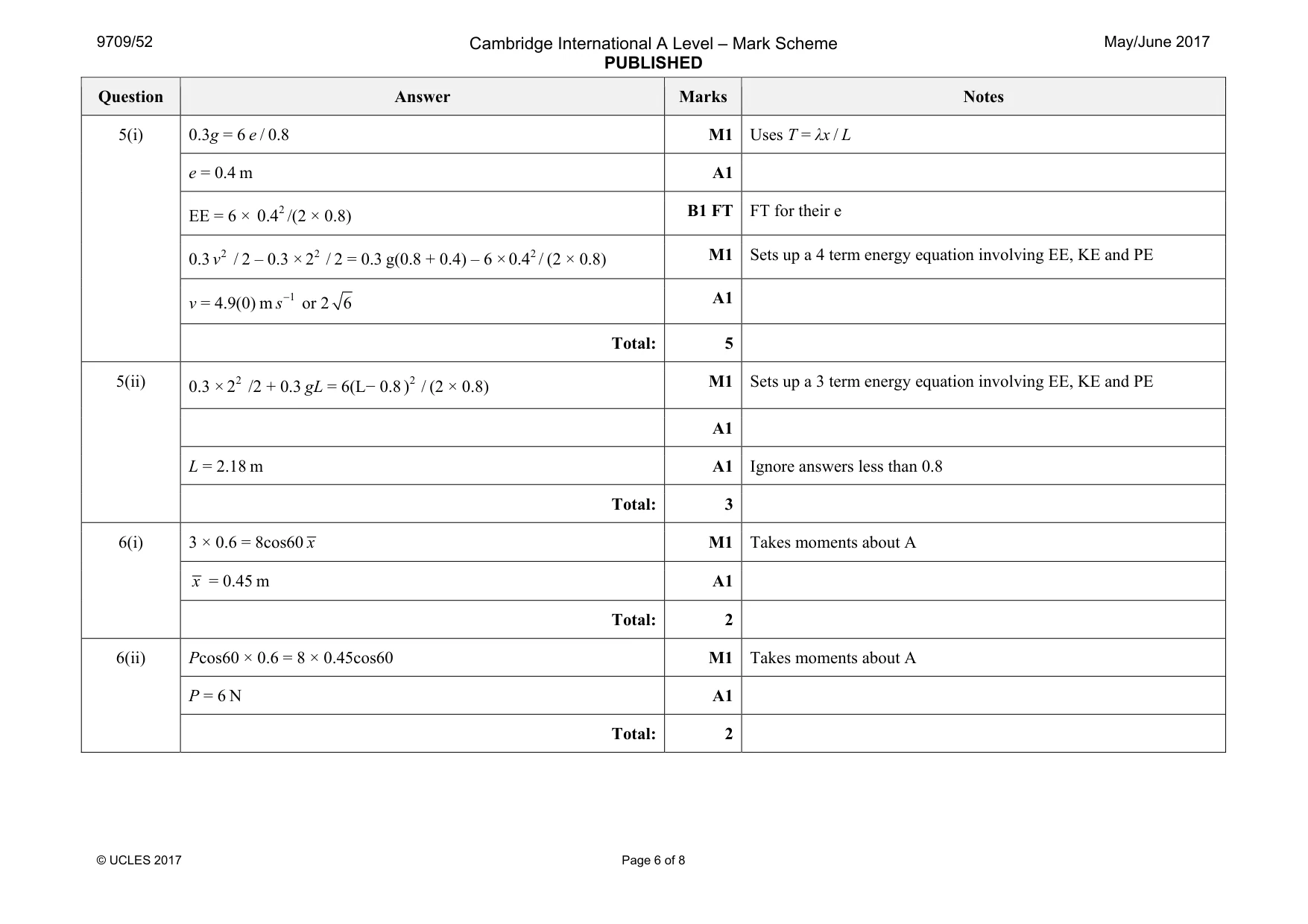

Mark scheme: 5(i) e = 0.4 m A1 EE = 6 × 2 0.4 /(2 × 0.8) B1 FT FT for their e 0.3 2v / 2 – 0.3 × 2 2 / 2 = 0.3 g(0.8 + 0.4) – 6 × 2 0.4 / (2 × 0.8) M1 Sets up a 4 term energy equation involving EE, KE and PE v = 4.9(0) m 1 s− or 2 6 A1 Total: 5 5(ii) 0.3 × 2 2 /2 + 0.3 gL = 6(L− 0.8 2) / (2 × 0.8) M1 Sets up a 3 term energy equation involving EE, KE and PE A1 L = 2.18 m A1 Ignore answers less than 0.8 Total: 3 M1 Takes moments about A

More questions on Kinematics of motion in a straight line

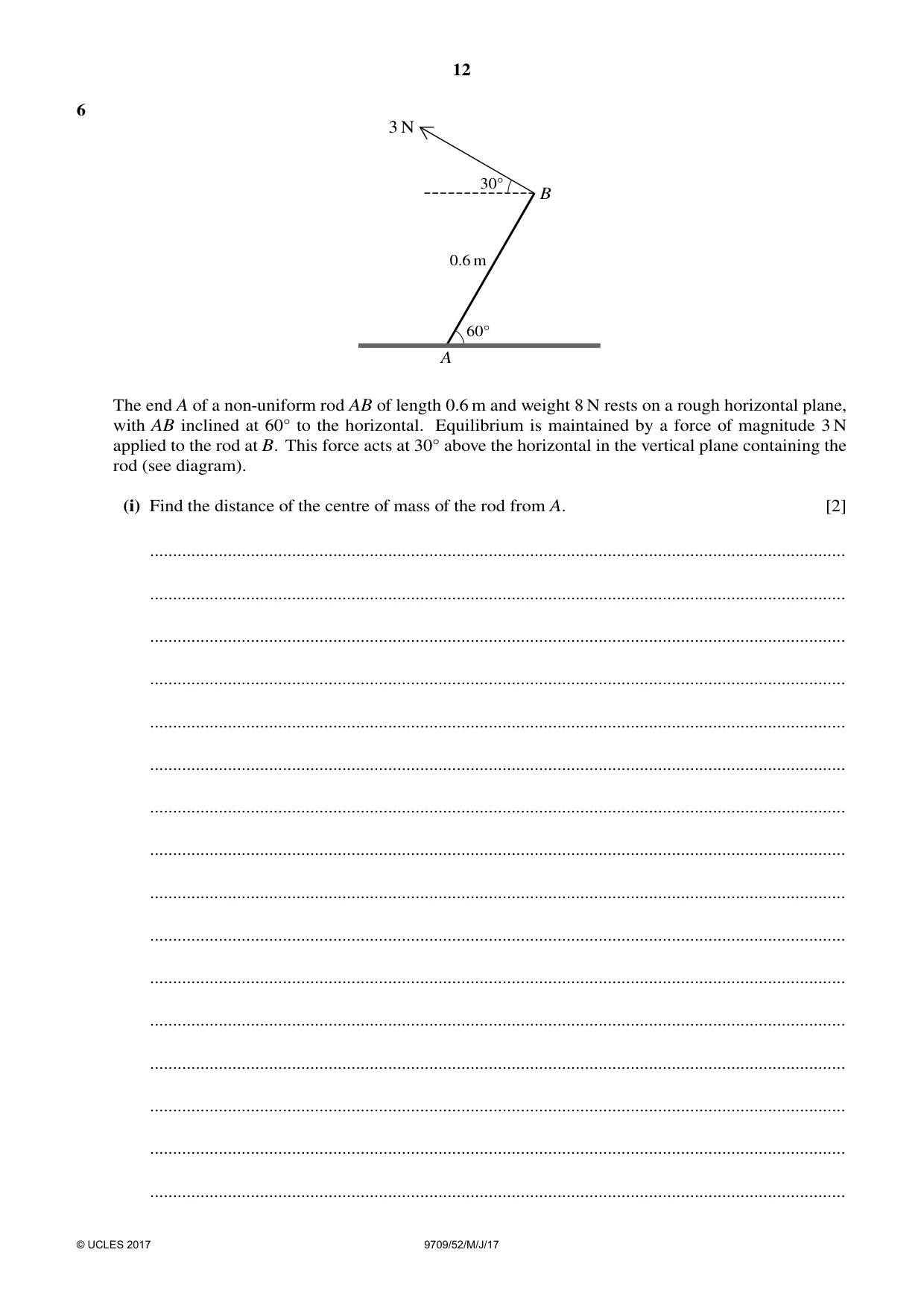

6 3 N 30Å B 0.6 m 60Å A The end A of a non-uniform rod AB of length 0.6 m and weight 8 N rests on a rough horizontal plane, with AB inclined at 60Å to the horizontal. Equilibrium is maintained by a force of magnitude 3 N applied to the rod at B. This force acts at 30Å above the horizontal in the vertical plane containing the rod (see diagram). (i) Find the distance of the centre of mass of the rod from A. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The 3 N force is removed, and the rod is held in equilibrium by a force of magnitude P N applied at B, acting in the vertical plane containing the rod, at an angle of 30Å below the horizontal. (ii) Calculate P. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ In one of the two situations described, the rod AB is in limiting equilibrium. (iii) Find the coefficient of friction at A. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

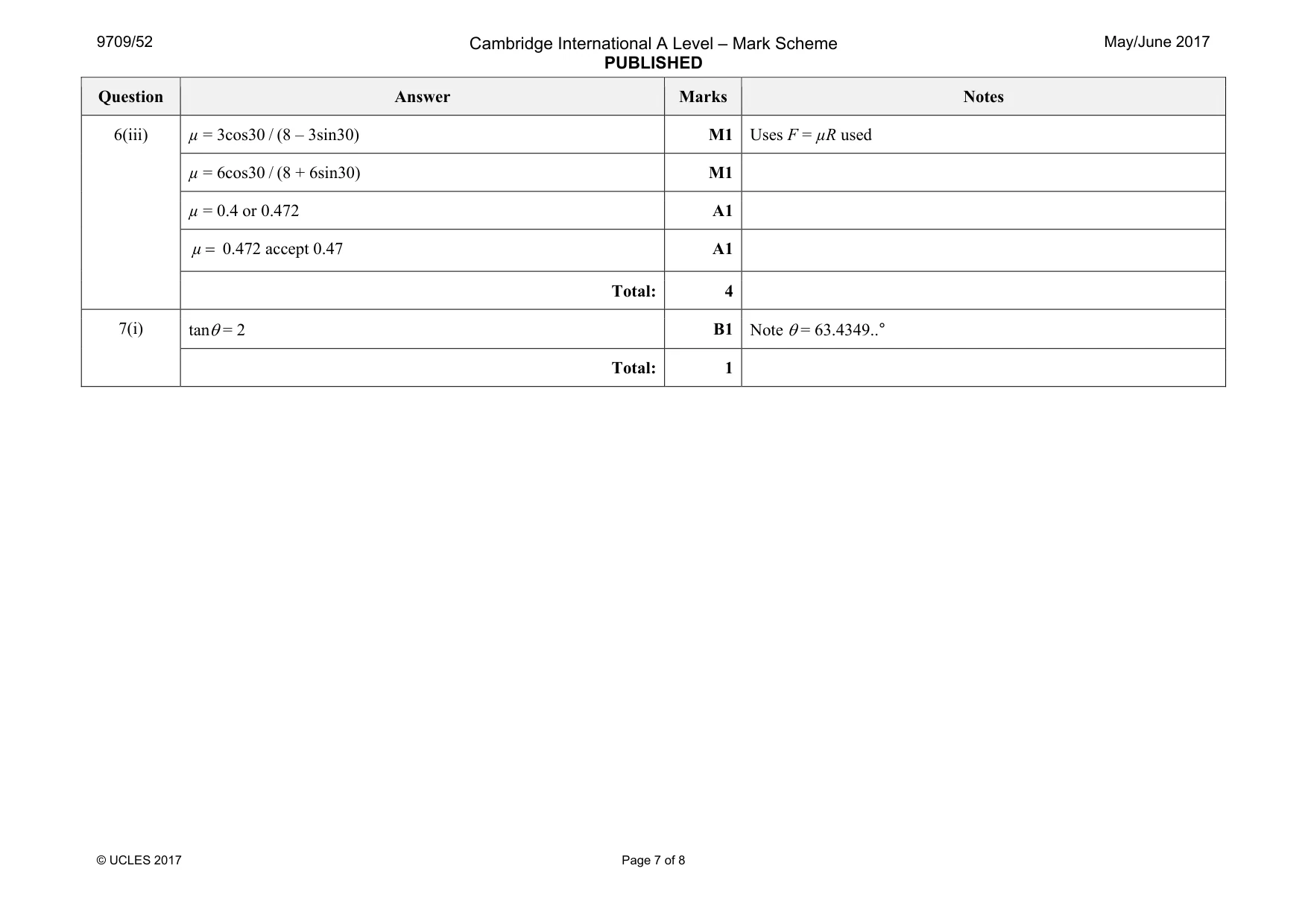

Mark scheme: 6(i) 3 × 0.6 = 8cos60 x x = 0.45 m A1 Total: 2 6(ii) Pcos60 × 0.6 = 8 × 0.45cos60 M1 Takes moments about A P = 6 N A1 Total: 2 Question Answer Marks Notes 6(iii) µ = 3cos30 / (8 – 3sin30) M1 Uses F = µR used µ = 6cos30 / (8 + 6sin30) M1 µ = 0.4 or 0.472 A1 µ = 0.472 accept 0.47 A1 Total: 4 tanθ = 2 B1 Note θ = 63.4349..°

More questions on Forces and equilibrium

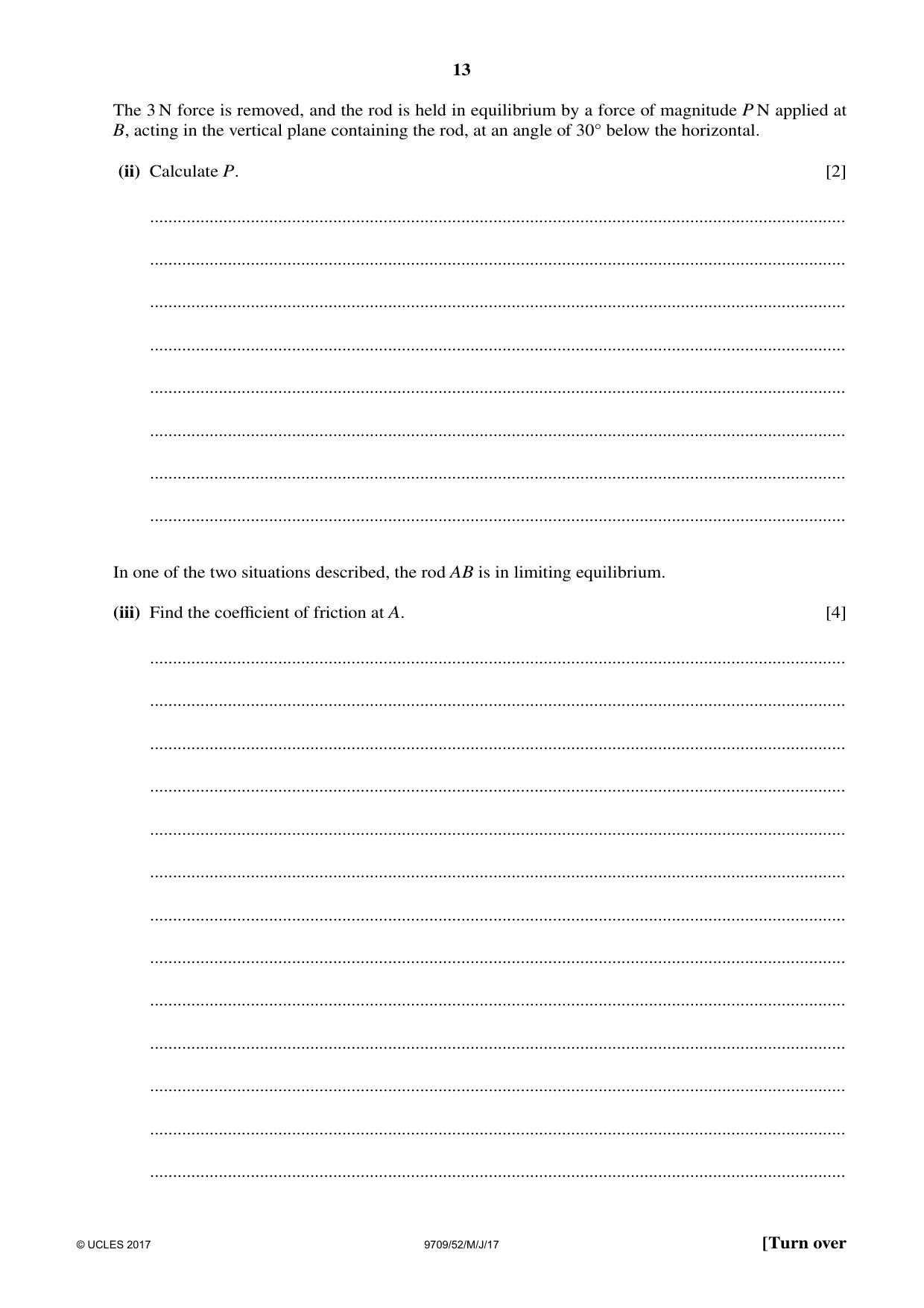

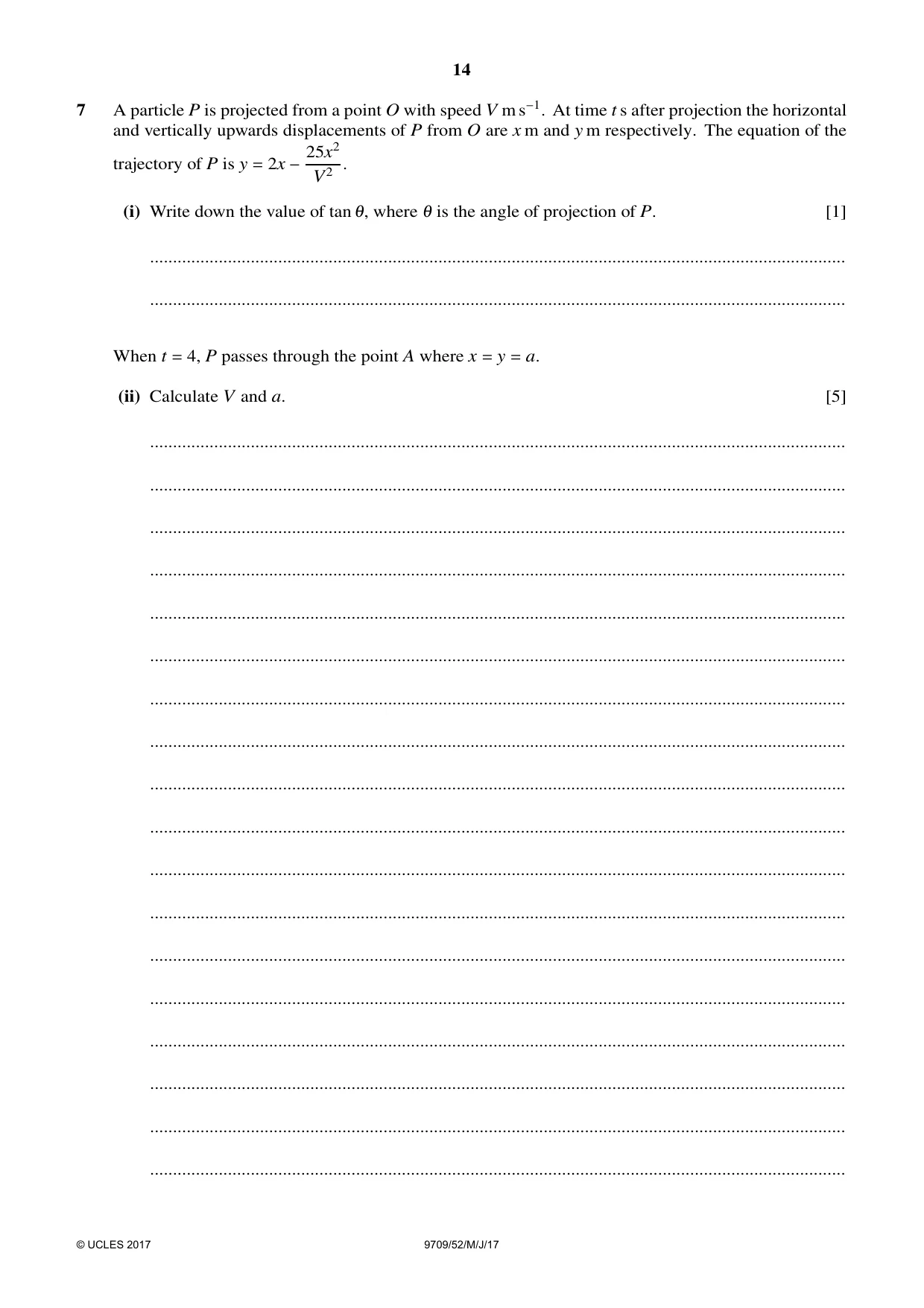

7 A particle P is projected from a point O with speed V m s−1. At time t s after projection the horizontal and vertically upwards displacements of P from O are x m and y m respectively. The equation of the trajectory of P is y = 2x −25x2 . V2 (i) Write down the value of tan 1, where 1 is the angle of projection of P. [1] ........................................................................................................................................................ ........................................................................................................................................................ When t = 4, P passes through the point A where x = y = a. (ii) Calculate V and a. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (iii) Find the direction of motion of P when it passes through A. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

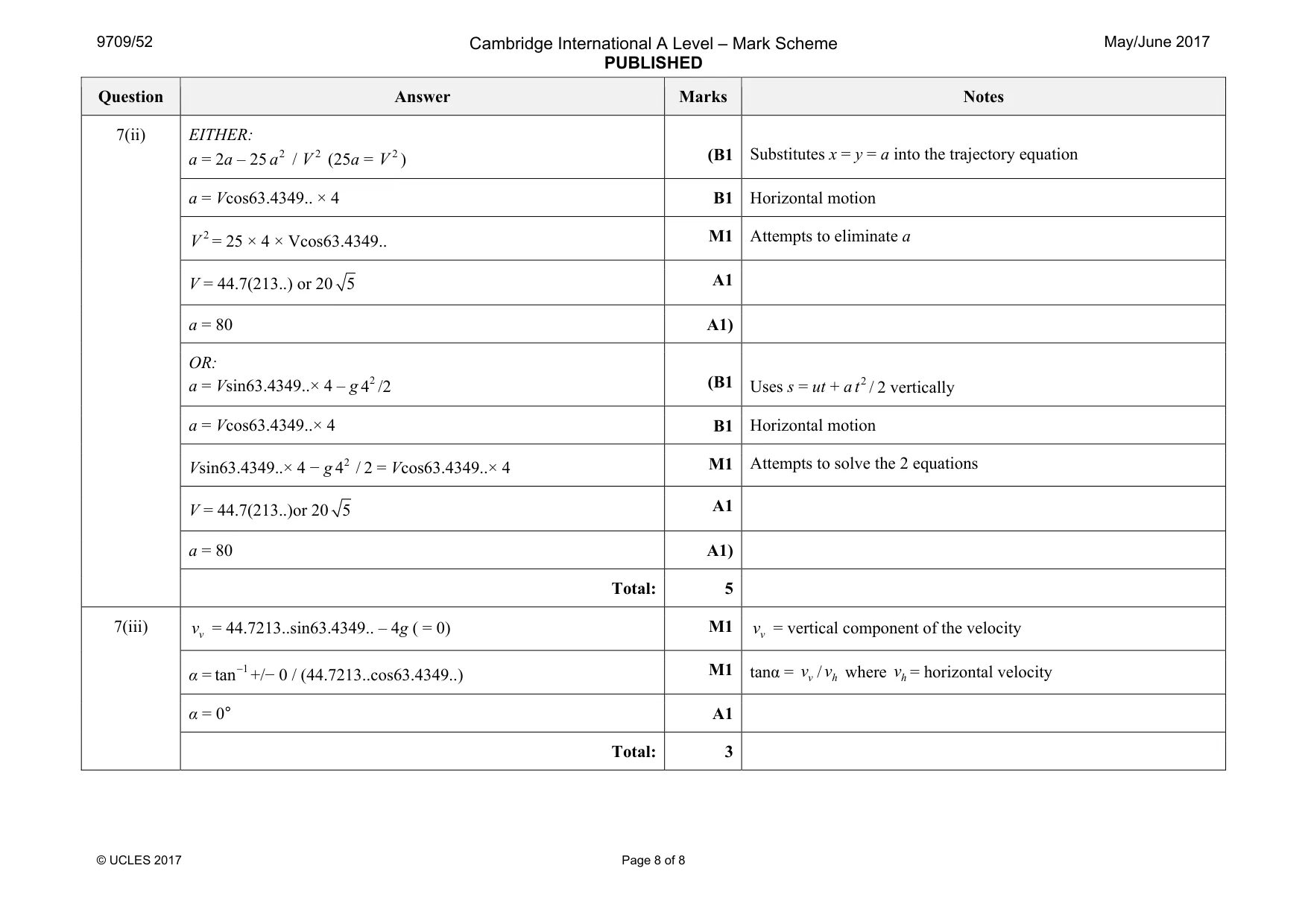

Mark scheme: 7(i) Total: 1 Question Answer Marks Notes 7(ii) EITHER: a = 2a – 25 2 a / 2 V (25a = 2 V ) (B1 Substitutes x = y = a into the trajectory equation a = Vcos63.4349.. × 4 B1 Horizontal motion 2 V = 25 × 4 × Vcos63.4349.. M1 Attempts to eliminate a V = 44.7(213..) or 20 5 A1 a = 80 A1) OR: a = Vsin63.4349..× 4 – g 2 4 /2 (B1 Uses s = ut + a 2t / 2 vertically a = Vcos63.4349..× 4 B1 Horizontal motion Vsin63.4349..× 4 − g 2 4 / 2 = Vcos63.4349..× 4 M1 Attempts to solve the 2 equations V = 44.7(213..)or 20 5 A1 a = 80 A1) Total: 5 7(iii) vv = 44.7213..sin63.4349.. – 4g ( = 0) M1 vv = vertical component of the velocity α = 1 tan−+/− 0 / (44.7213..cos63.4349..) M1 tanα = vv / hv where hv = horizontal velocity α = 0° A1 Total: 3
