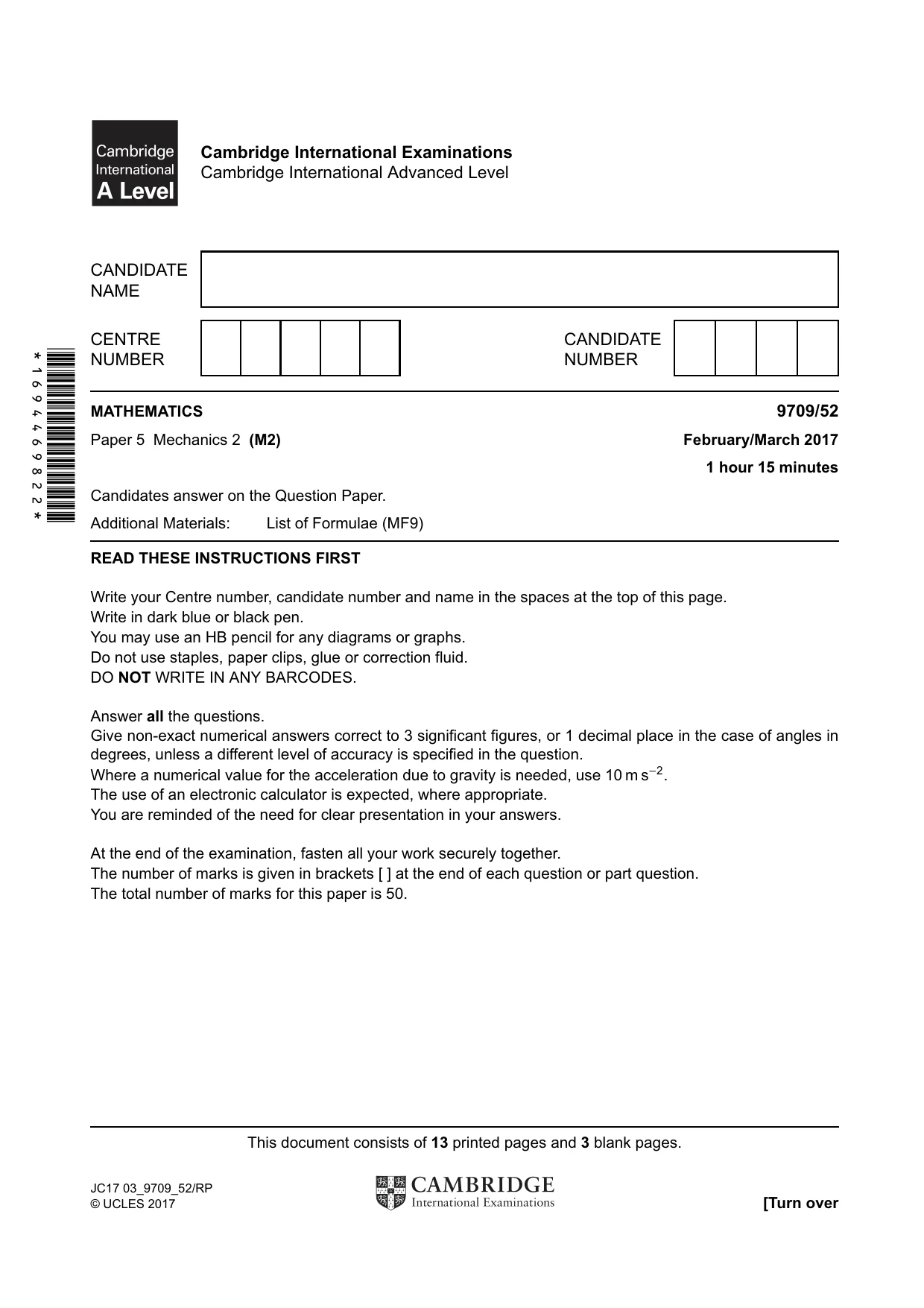

Cambridge A Level Mathematics 9709 — 2017 Feb/March Paper 5 · Variant 2

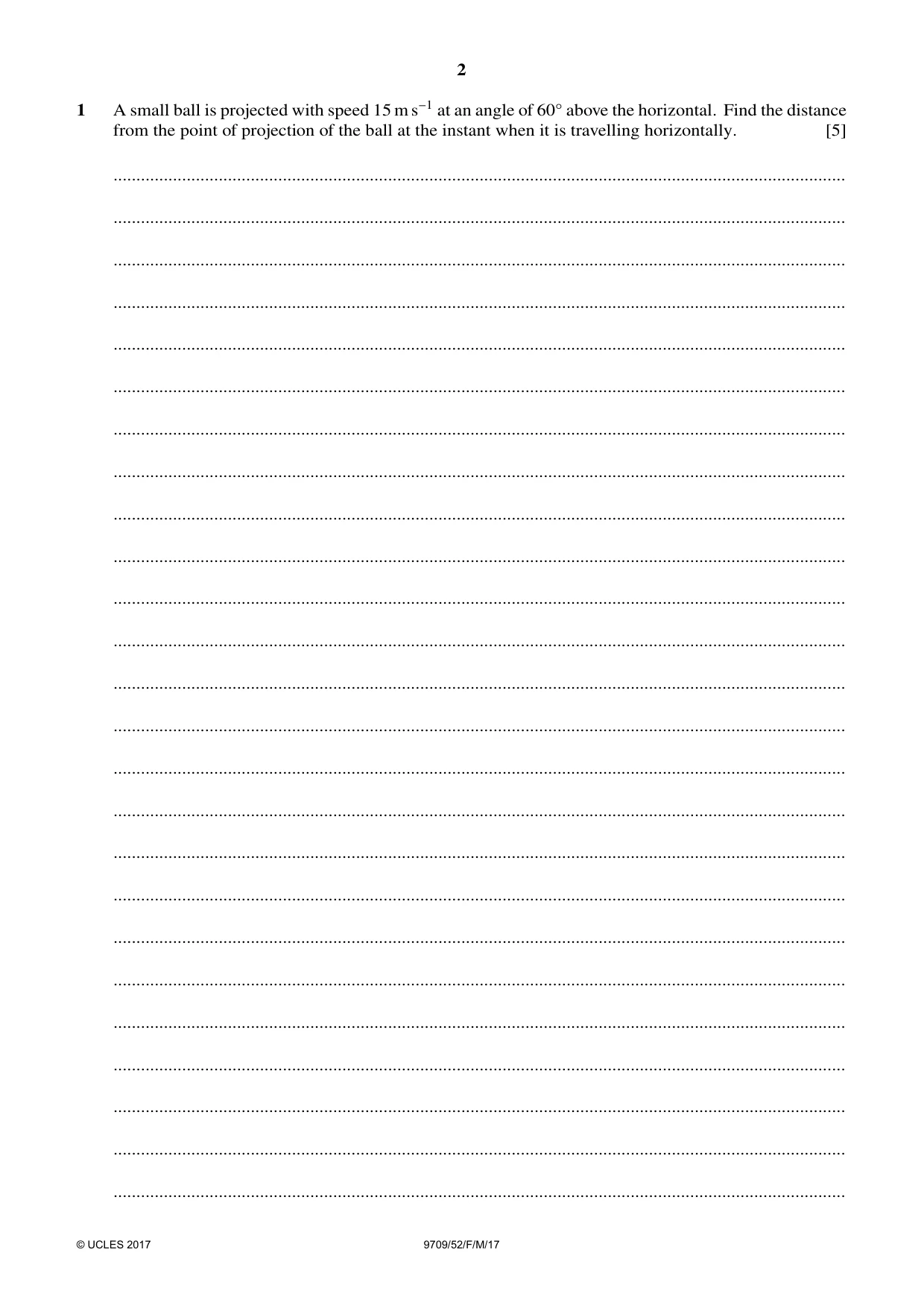

1 A small ball is projected with speed 15 m s−1 at an angle of 60Å above the horizontal. Find the distance from the point of projection of the ball at the instant when it is travelling horizontally. [5] ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................ ................................................................................................................................................................

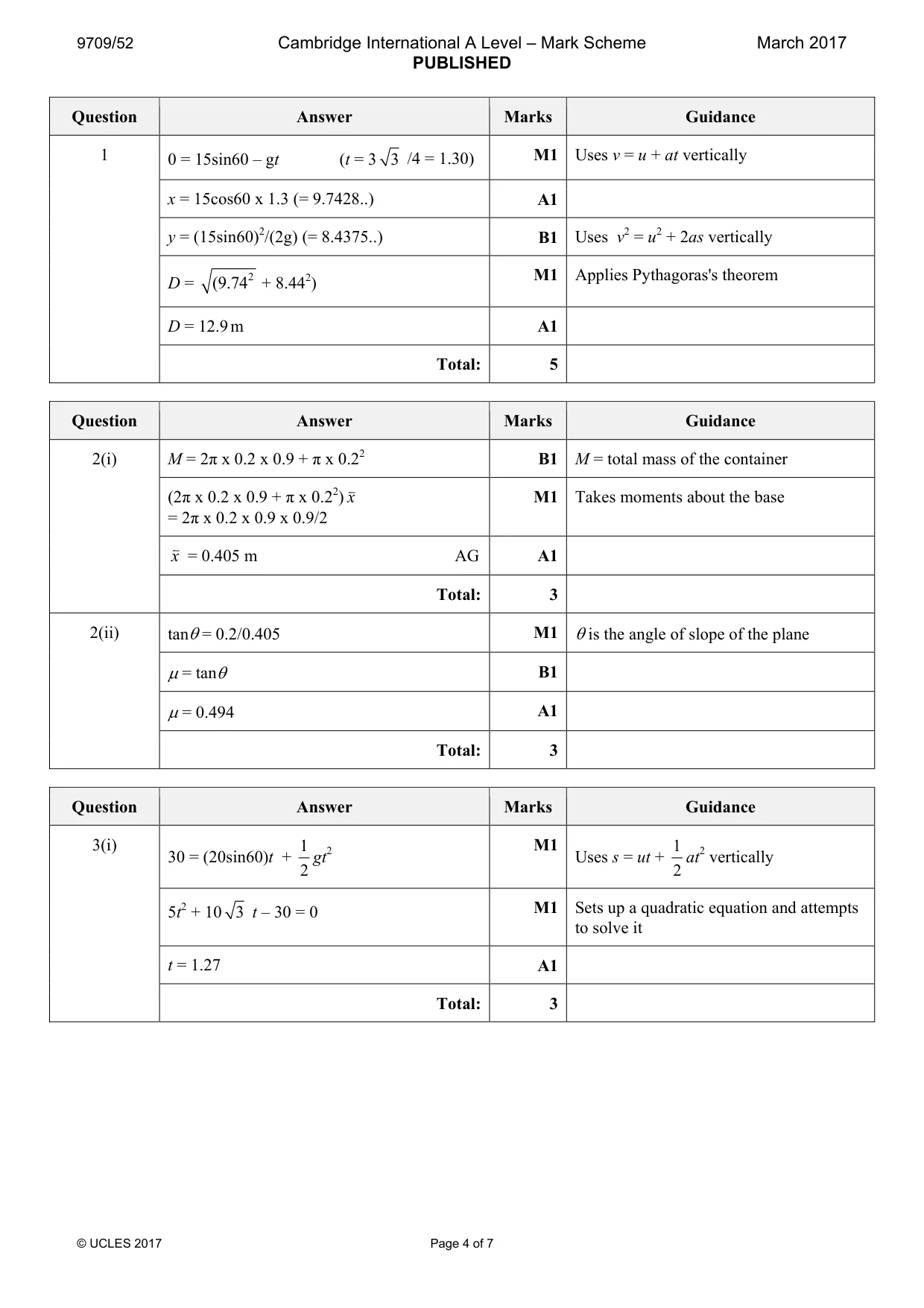

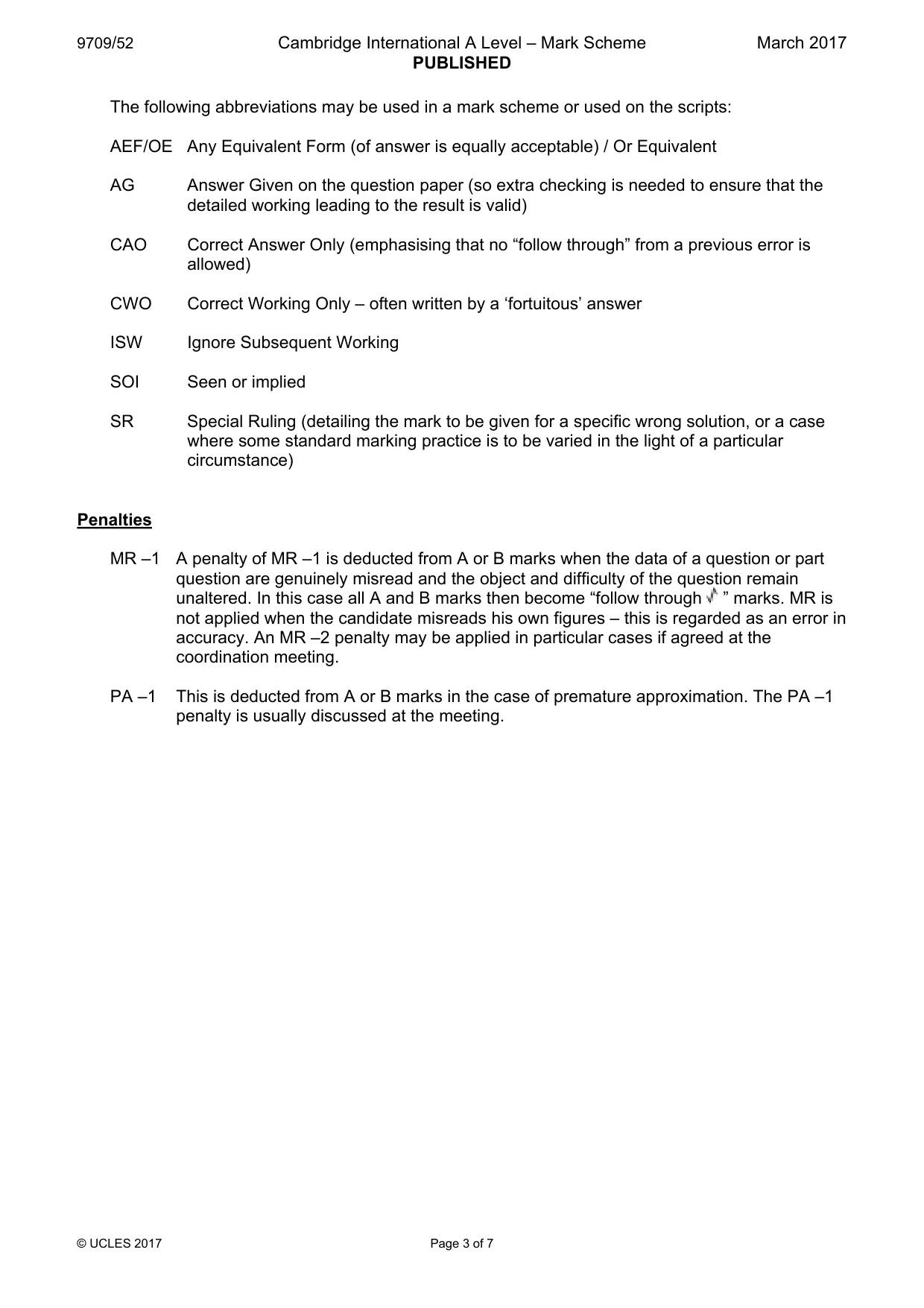

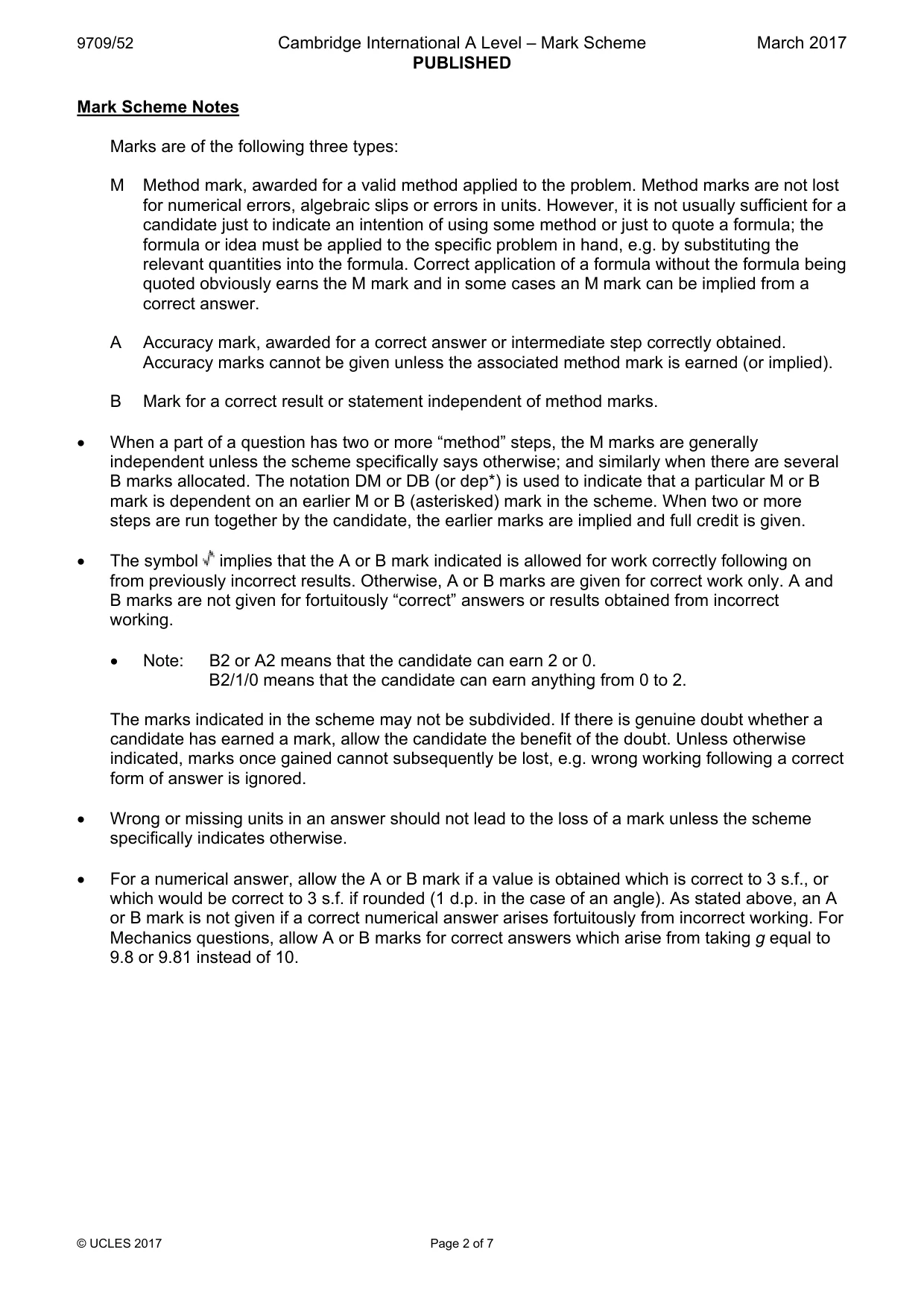

Mark scheme: Question Answer Marks Guidance 1 0 = 15sin60 – gt (t = 3 3 /4 = 1.30) M1 Uses v = u + at vertically x = 15cos60 x 1.3 (= 9.7428..) A1 y = (15sin60)2/(2g) (= 8.4375..) B1 Uses v2 = u2 + 2as vertically 2 M1 Applies Pythagoras's theorem D = (9.74 + 8.442) D = 12.9 m A1 Total: 5

More questions on Kinematics of motion in a straight line

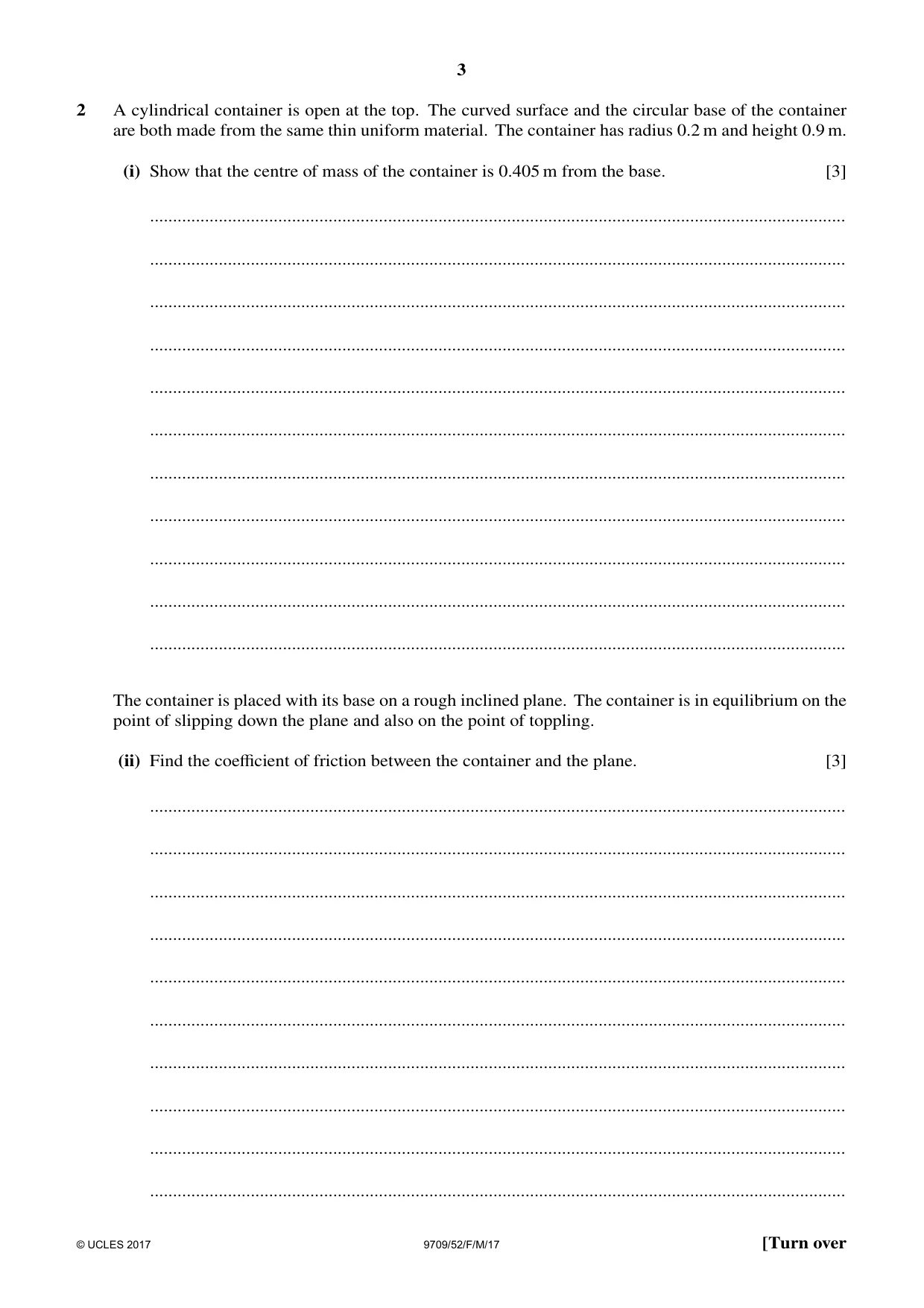

2 A cylindrical container is open at the top. The curved surface and the circular base of the container are both made from the same thin uniform material. The container has radius 0.2 m and height 0.9 m. (i) Show that the centre of mass of the container is 0.405 m from the base. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The container is placed with its base on a rough inclined plane. The container is in equilibrium on the point of slipping down the plane and also on the point of toppling. (ii) Find the coefficient of friction between the container and the plane. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 2(i) M = 2π x 0.2 x 0.9 + π x 0.22 B1 M = total mass of the container (2π x 0.2 x 0.9 + π x 0.22) Lx M1 Takes moments about the base = 2π x 0.2 x 0.9 x 0.9/2 Lx = 0.405 m AG A1 Total: 3 2(ii) tanθ= 0.2/0.405 M1 θis the angle of slope of the plane µ= tanθ B1 µ= 0.494 A1 Total: 3

More questions on Forces and equilibrium

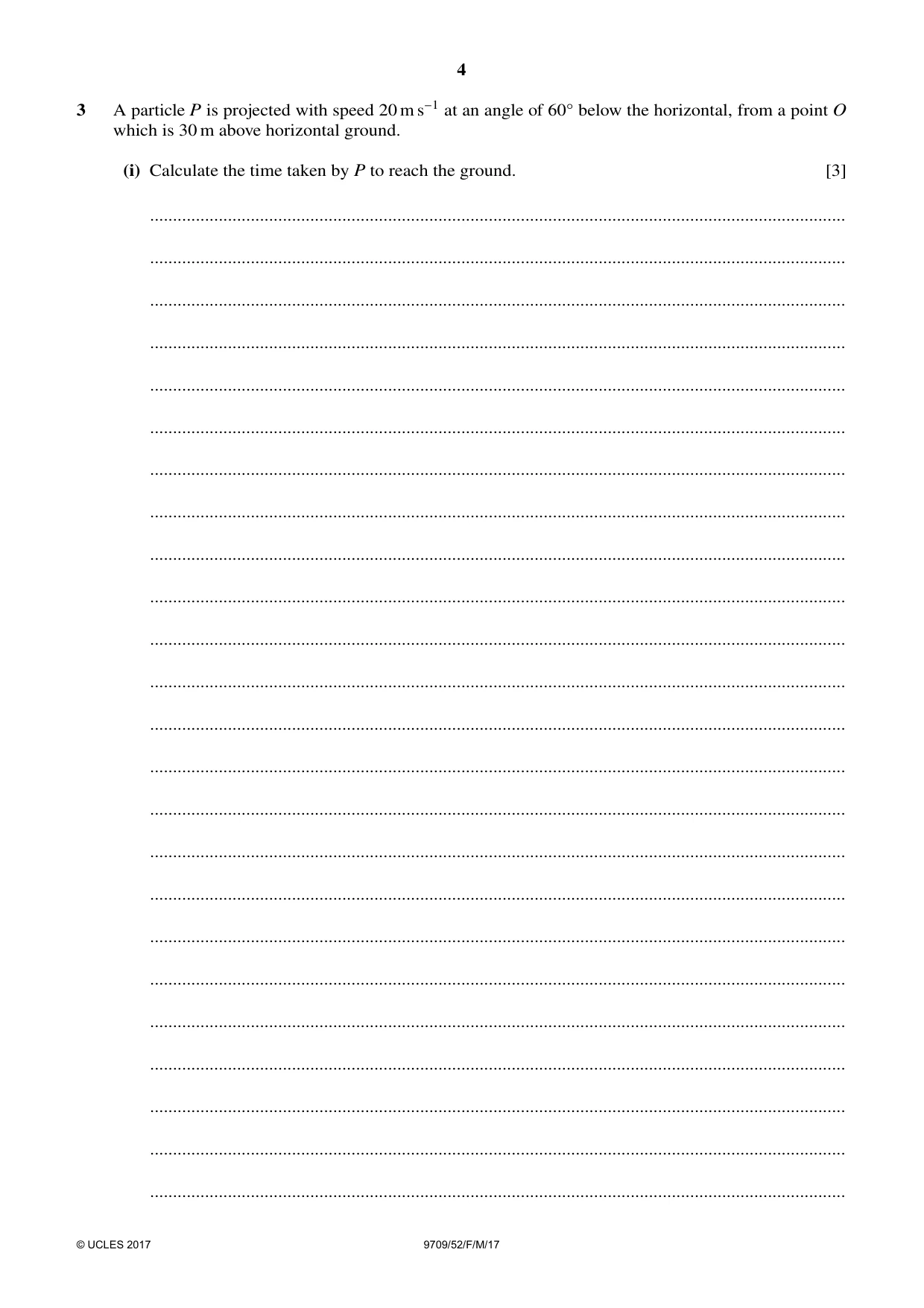

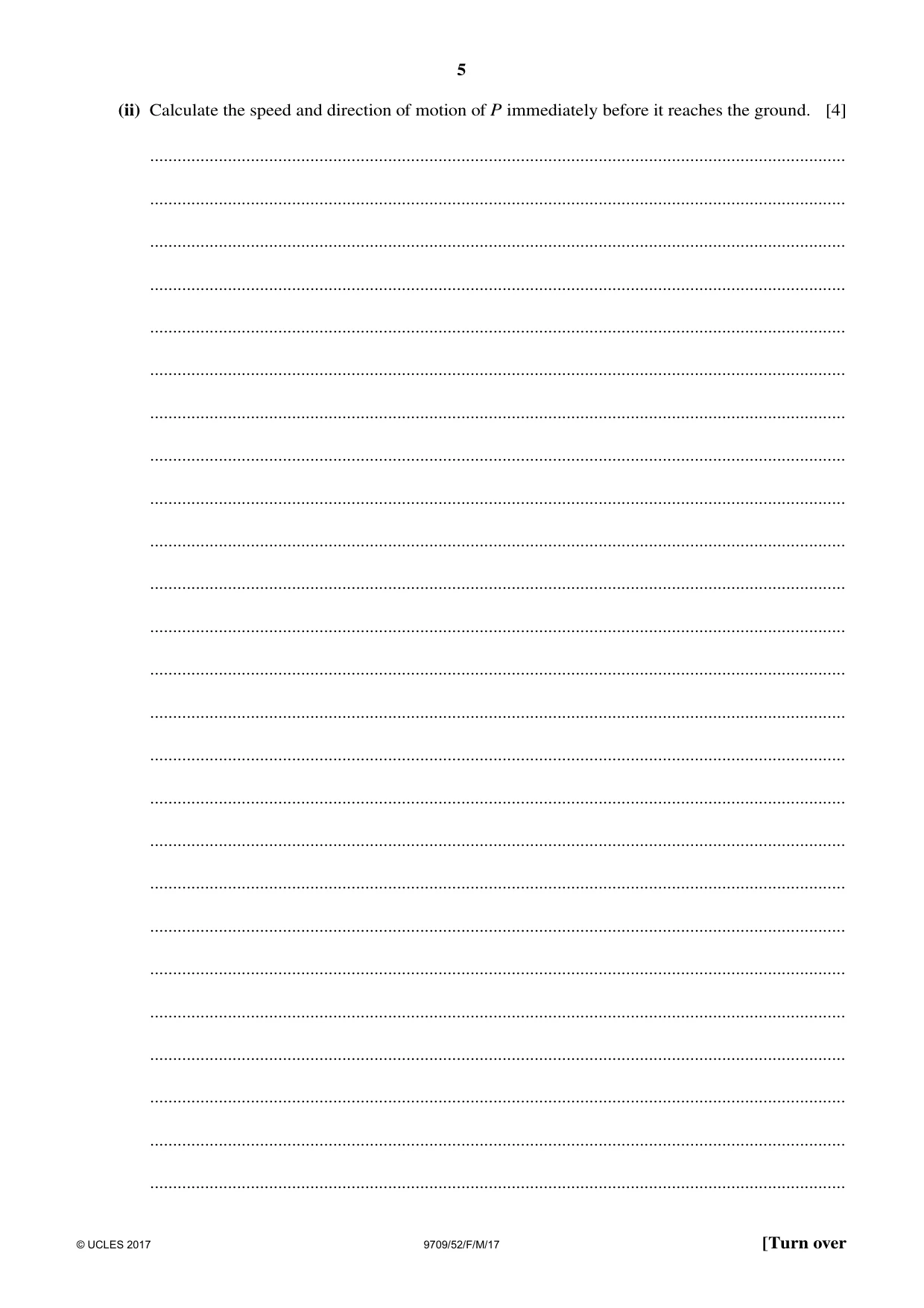

3 A particle P is projected with speed 20 m s−1 at an angle of 60Å below the horizontal, from a point O which is 30 m above horizontal ground. (i) Calculate the time taken by P to reach the ground. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Calculate the speed and direction of motion of P immediately before it reaches the ground. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 3(i) 1 M1 1 30 = (20sin60)t + gt2 Uses s = ut + at2 vertically 2 2 5t2 + 10 3 t – 30 = 0 M1 Sets up a quadratic equation and attempts to solve it t = 1.27 A1 Total: 3 3(ii) v2 = (20sin60)2 + 2g x 30 (hence v = 30) B1 Uses v2 = u2 + 2as vertically V = 30 2 + (20cos60)2 or M1 tanθ= 30/(20cos60) V = 31.6 ms –1 A1 θ= 71.6° with the horizontal A1 Or 18.4° with the downward vertical Total: 4

More questions on Kinematics of motion in a straight line

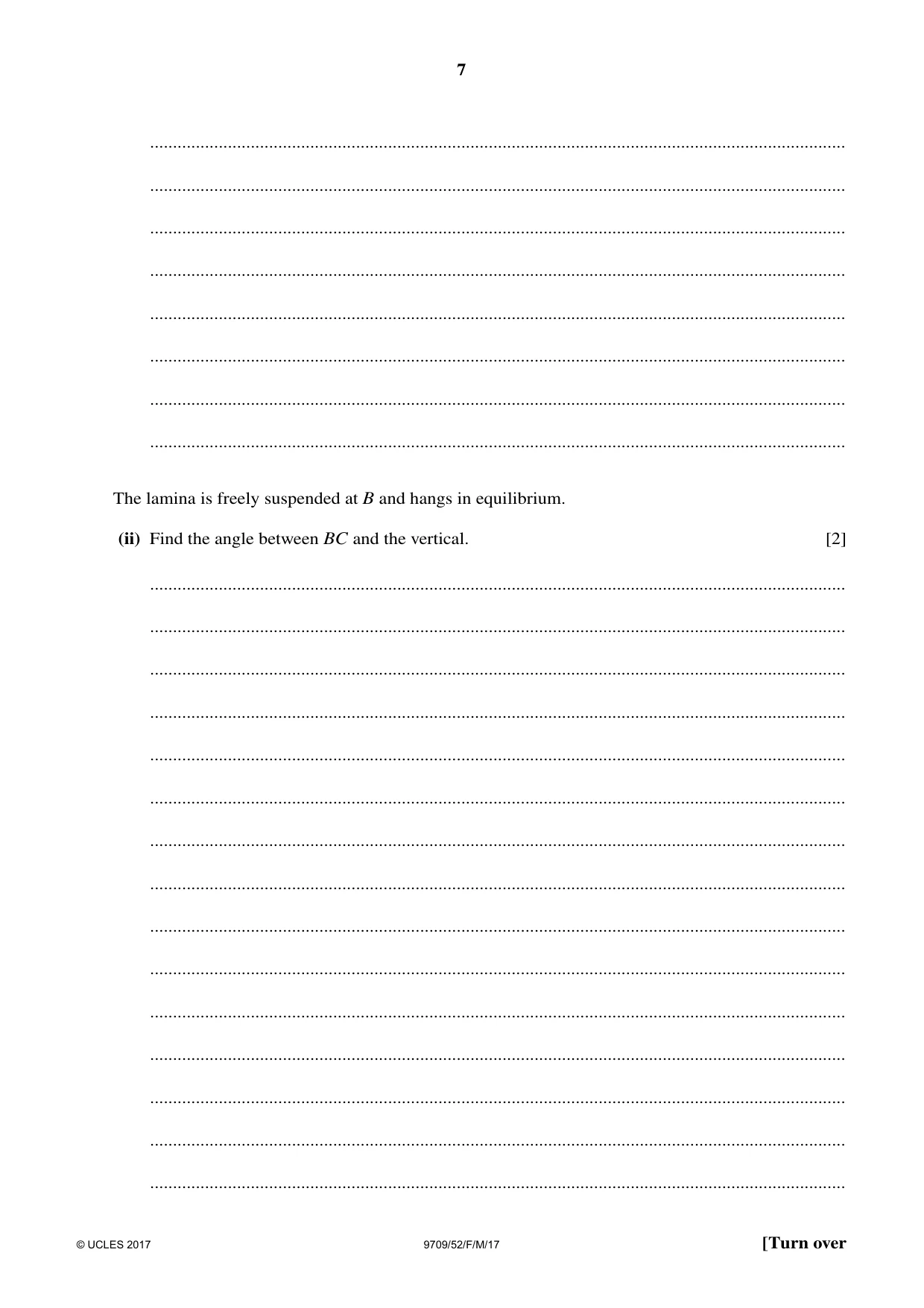

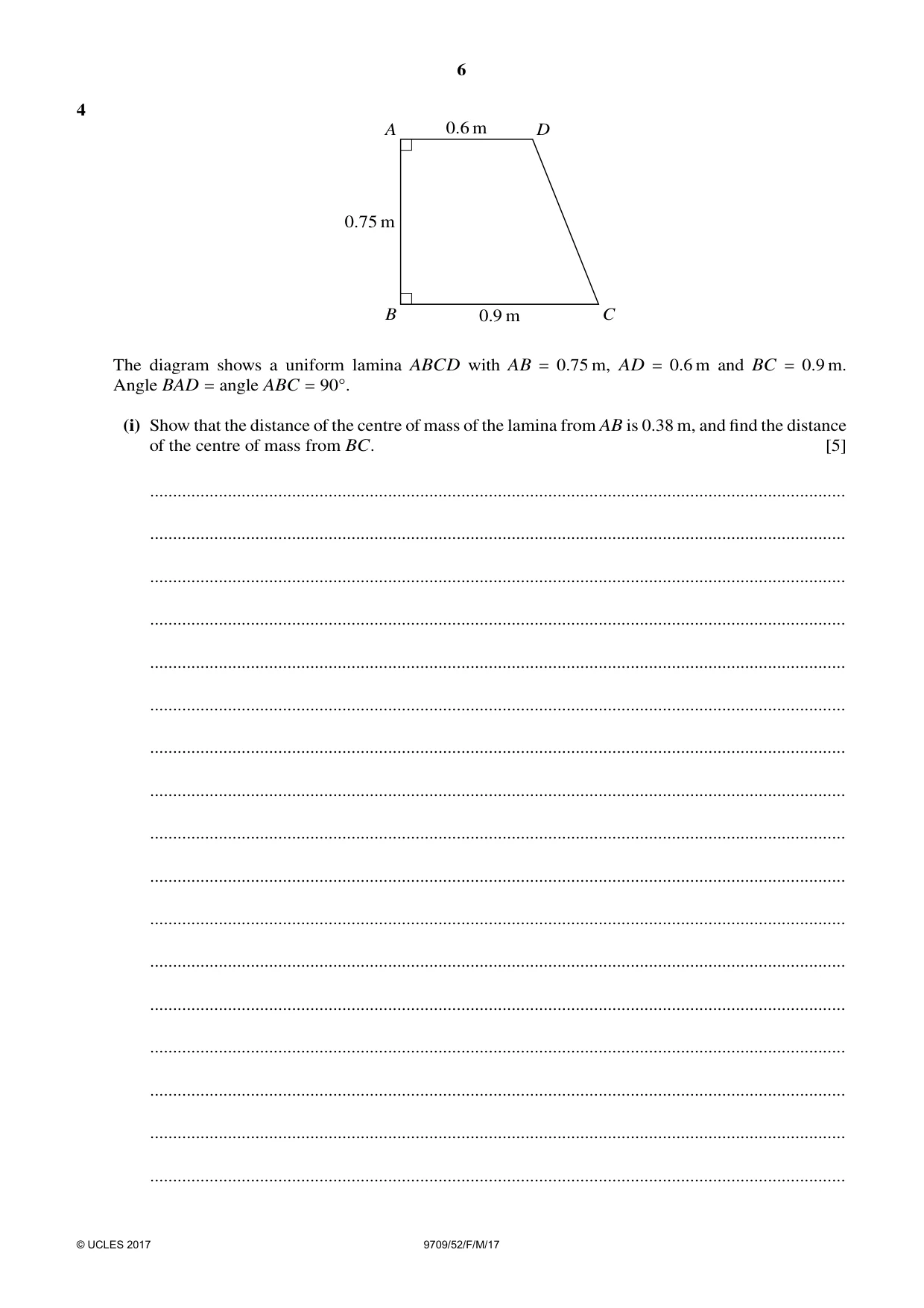

4 A 0.6 m D 0.75 m B 0.9 m C The diagram shows a uniform lamina ABCD with AB = 0.75 m, AD = 0.6 m and BC = 0.9 m. Angle BAD = angle ABC = 90Å. (i) Show that the distance of the centre of mass of the lamina from AB is 0.38 m, and find the distance of the centre of mass from BC. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ The lamina is freely suspended at B and hangs in equilibrium. (ii) Find the angle between BC and the vertical. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

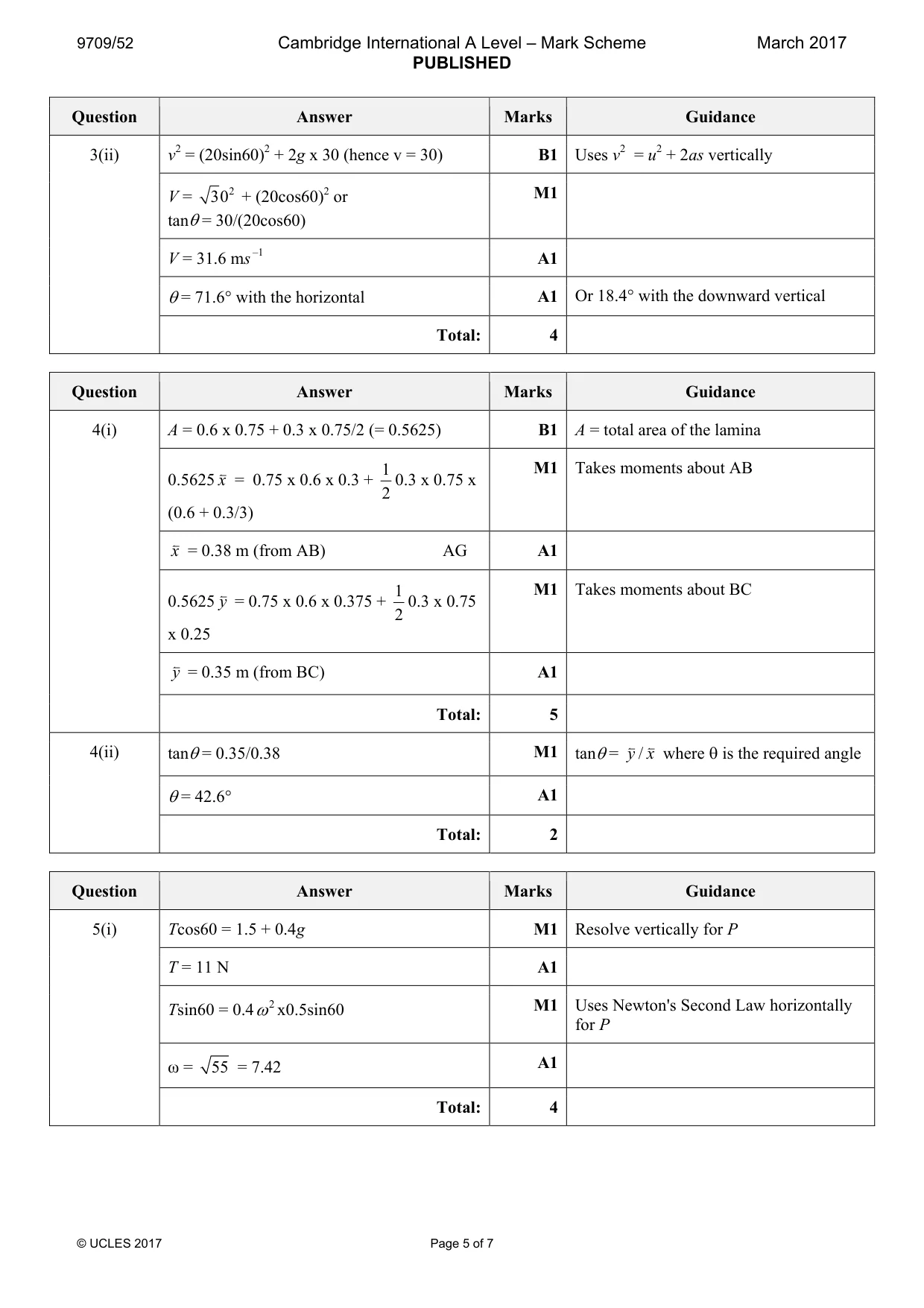

Mark scheme: 4(i) A = 0.6 x 0.75 + 0.3 x 0.75/2 (= 0.5625) B1 A = total area of the lamina 0.5625 Lx = 0.75 x 0.6 x 0.3 + 1 0.3 x 0.75 x M1 Takes moments about AB 2 (0.6 + 0.3/3) Lx = 0.38 m (from AB) AG A1 0.5625 Ly = 0.75 x 0.6 x 0.375 + 1 0.3 x 0.75 M1 Takes moments about BC 2 x 0.25 Ly = 0.35 m (from BC) A1 Total: 5 4(ii) tanθ= 0.35/0.38 M1 tanθ= Ly / Lx where θ is the required angle θ= 42.6° A1 Total: 2

More questions on Forces and equilibrium

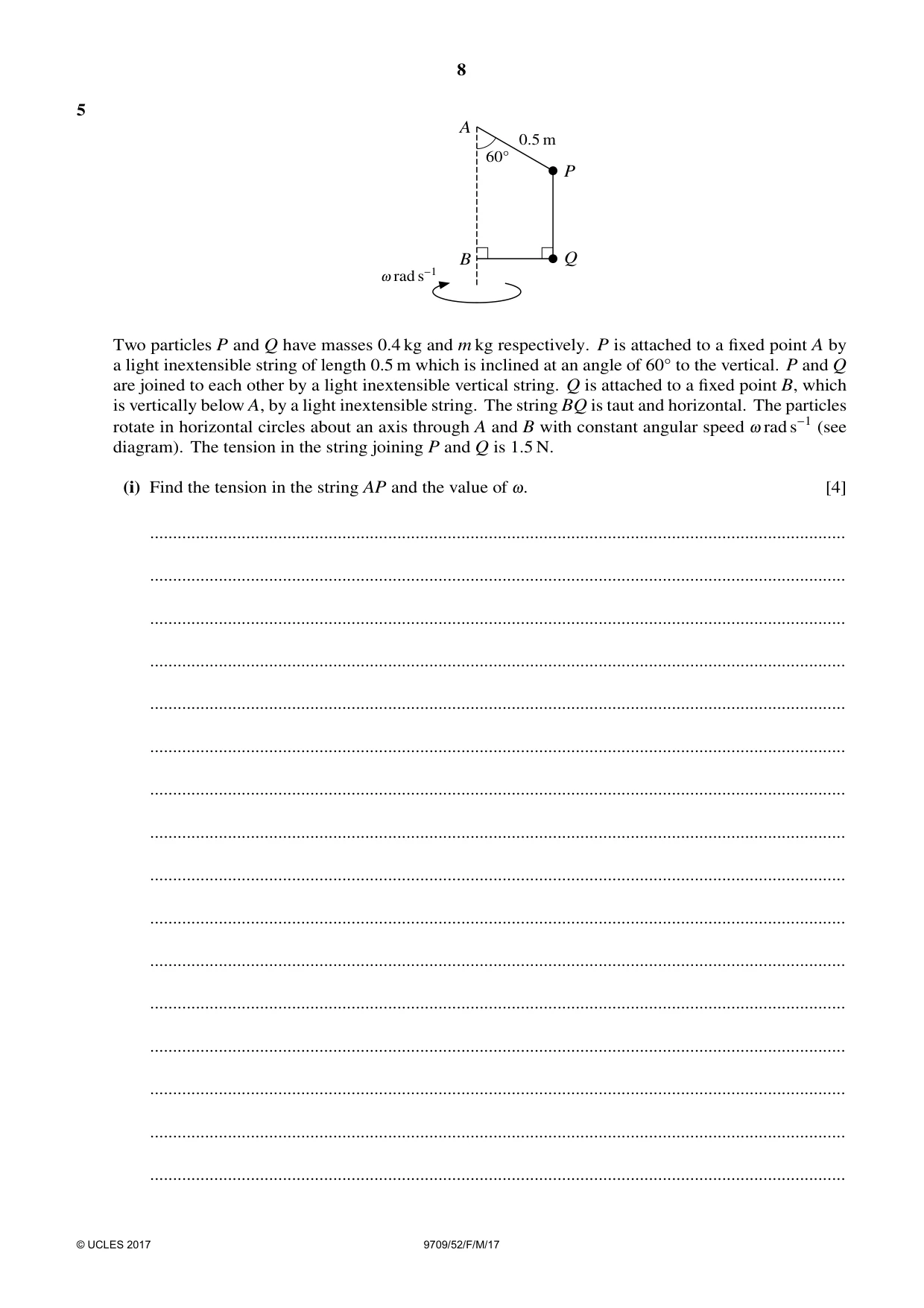

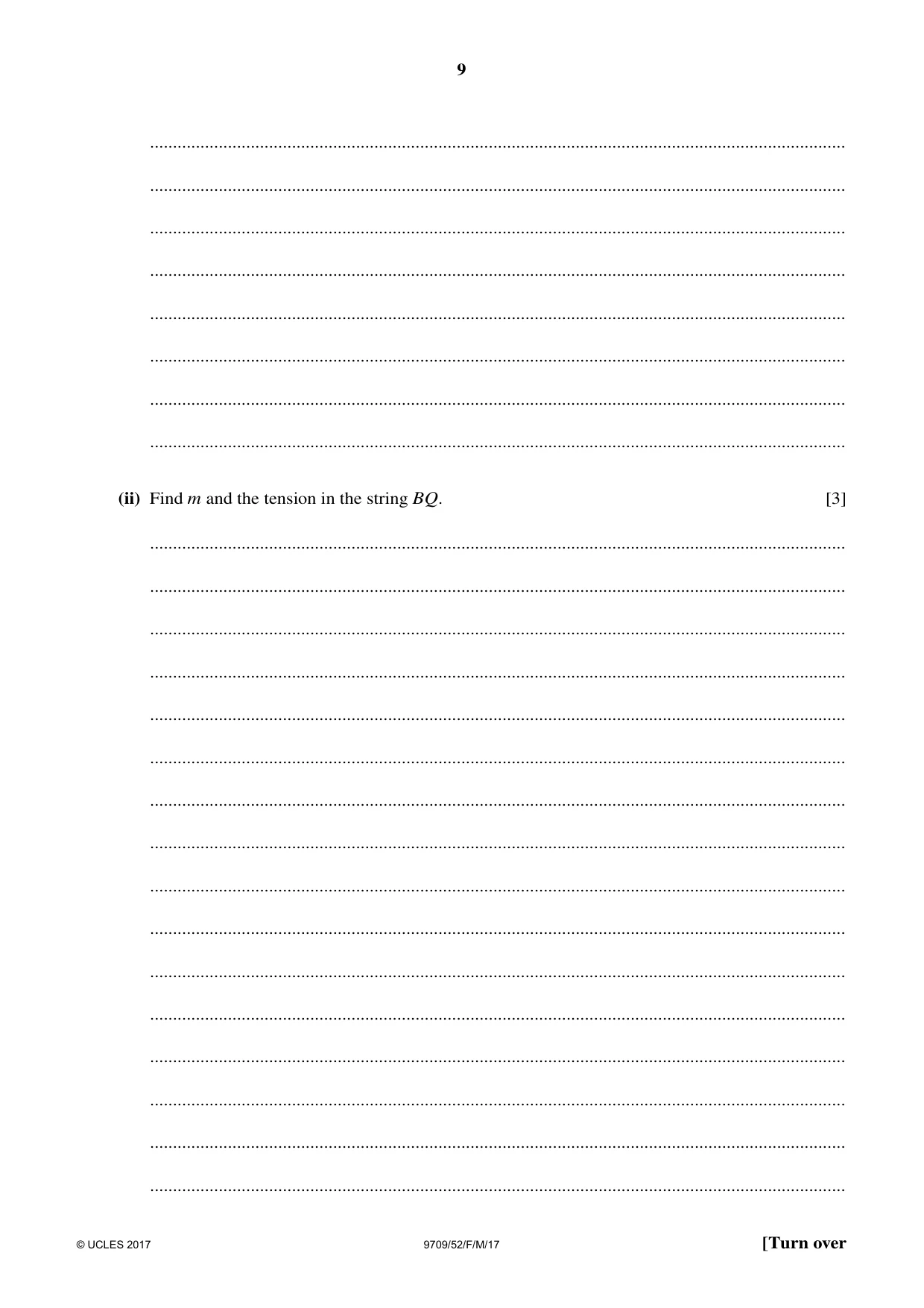

5 A 0.5 m 60Å P B Q 7 rad s−1 Two particles P and Q have masses 0.4 kg and m kg respectively. P is attached to a fixed point A by a light inextensible string of length 0.5 m which is inclined at an angle of 60Å to the vertical. P and Q are joined to each other by a light inextensible vertical string. Q is attached to a fixed point B, which is vertically below A, by a light inextensible string. The string BQ is taut and horizontal. The particles rotate in horizontal circles about an axis through A and B with constant angular speed 7 rad s−1 (see diagram). The tension in the string joining P and Q is 1.5 N. (i) Find the tension in the string AP and the value of 7. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ (ii) Find m and the tension in the string BQ. [3] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

Mark scheme: 5(i) Tcos60 = 1.5 + 0.4g M1 Resolve vertically for P T = 11 N A1 2 M1 Uses Newton's Second Law horizontally Tsin60 = 0.4 ω x0.5sin60 for P ω = 55 = 7.42 A1 Total: 4 5(ii) m = 0.15 (from mg = 1.5) B1 Resolves vertically for Q T * = 0.15 x 7.422 x 0.5sin60 M1 Uses Newton's Second Law horizontally for Q T * = 3.57 N A1 Total: 3

More questions on Forces and equilibrium

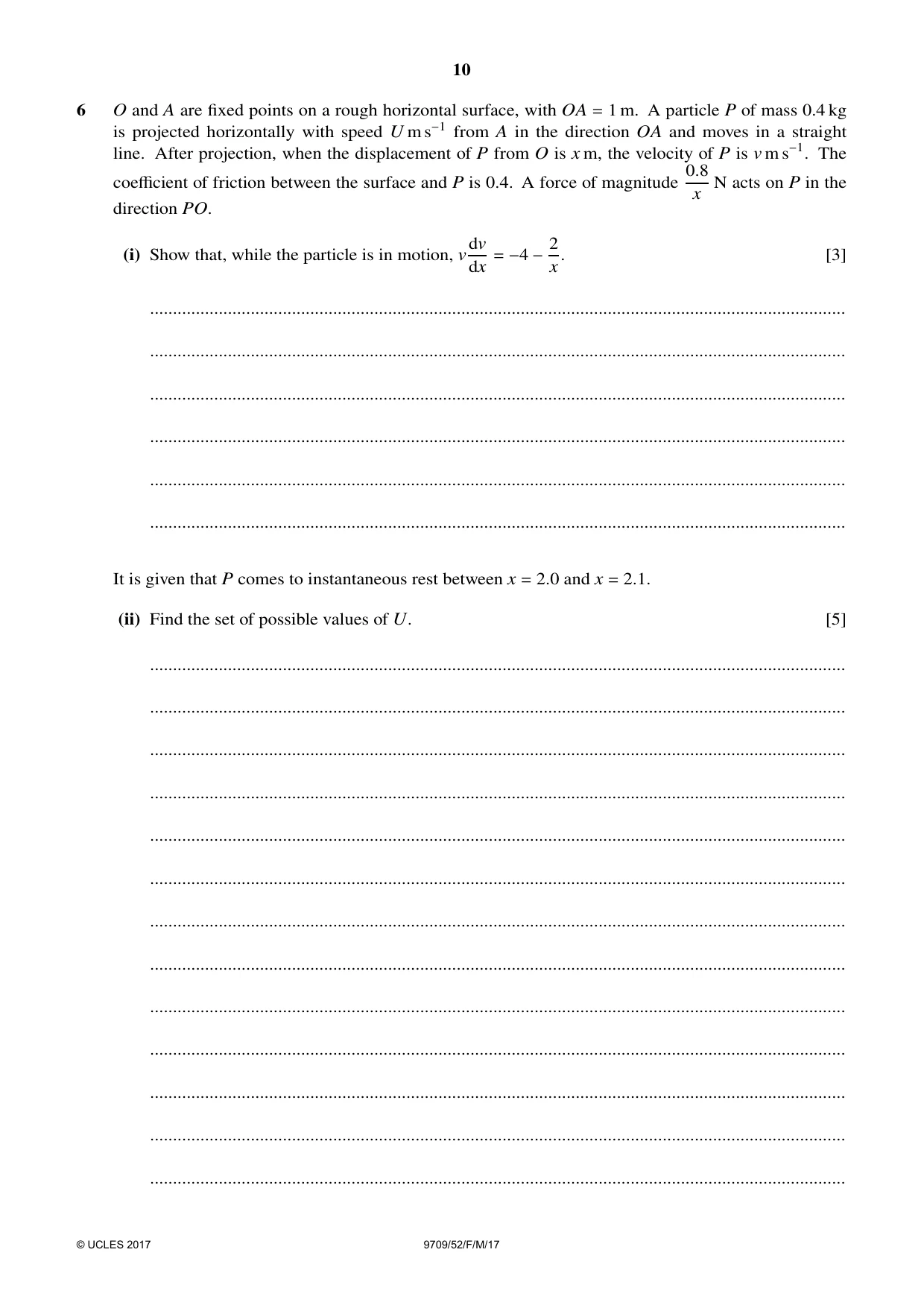

6 O and A are fixed points on a rough horizontal surface, with OA = 1 m. A particle P of mass 0.4 kg is projected horizontally with speed U m s−1 from A in the direction OA and moves in a straight line. After projection, when the displacement of P from O is x m, the velocity of P is v m s−1. The 0.8 coefficient of friction between the surface and P is 0.4. A force of magnitude N acts on P in the x direction PO. (i) Show that, while the particle is in motion, vdv = −4 −2 [3] dx x. ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ It is given that P comes to instantaneous rest between x = 2.0 and x = 2.1. (ii) Find the set of possible values of U. [5] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

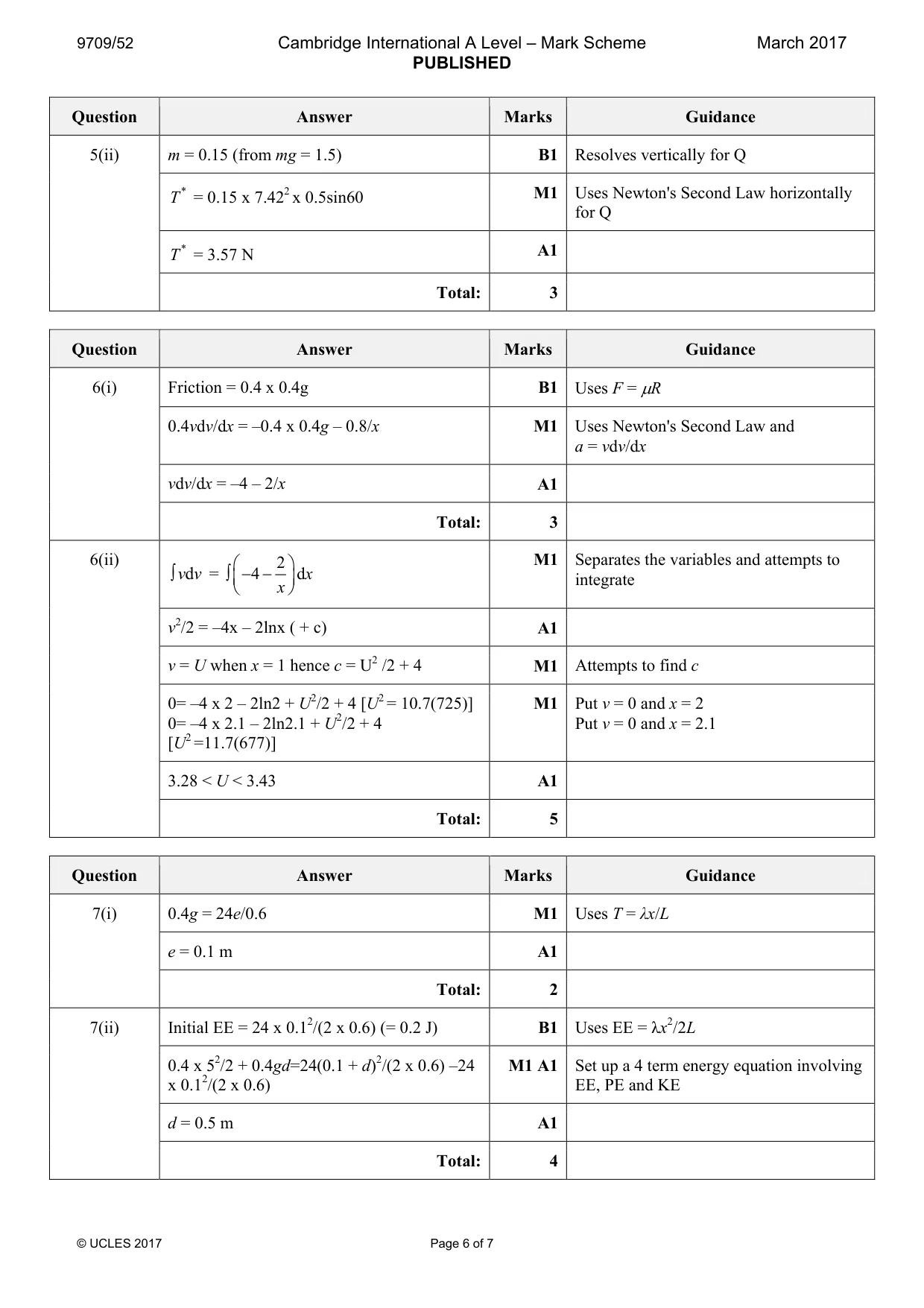

Mark scheme: 6(i) Friction = 0.4 x 0.4g B1 Uses F = µR 0.4vdv/dx = –0.4 x 0.4g – 0.8/x M1 Uses Newton's Second Law and a = vdv/dx vdv/dx = –4 – 2/x A1 Total: 3 6(ii)  2  M1 Separates the variables and attempts to ∫vdv = ∫−− 4  d x integrate  x  v2/2 = –4x – 2lnx ( + c) A1 v = U when x = 1 hence c = U2 /2 + 4 M1 Attempts to find c 0= –4 x 2 – 2ln2 + U2/2 + 4 [U2 = 10.7(725)] M1 Put v = 0 and x = 2 0= –4 x 2.1 – 2ln2.1 + U2/2 + 4 Put v = 0 and x = 2.1 [U2 =11.7(677)] 3.28 ˂ U ˂ 3.43 A1 Total: 5

More questions on Newton’s laws of motion

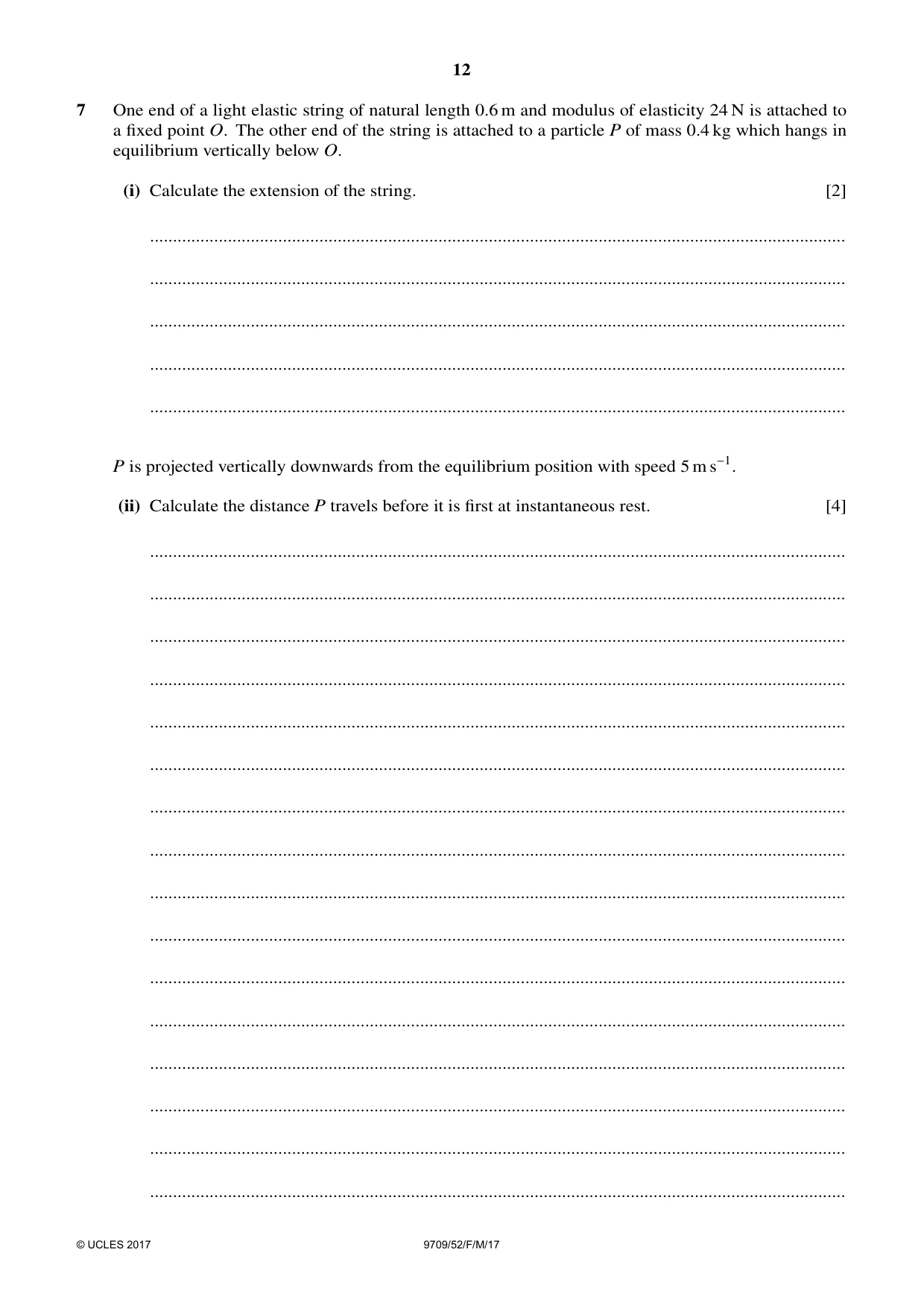

7 One end of a light elastic string of natural length 0.6 m and modulus of elasticity 24 N is attached to a fixed point O. The other end of the string is attached to a particle P of mass 0.4 kg which hangs in equilibrium vertically below O. (i) Calculate the extension of the string. [2] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ P is projected vertically downwards from the equilibrium position with speed 5 m s−1. (ii) Calculate the distance P travels before it is first at instantaneous rest. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ When P is first at instantaneous rest a stationary particle of mass 0.4 kg becomes attached to P. (iii) Find the greatest speed of the combined particle in the subsequent motion. [4] ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................ ........................................................................................................................................................

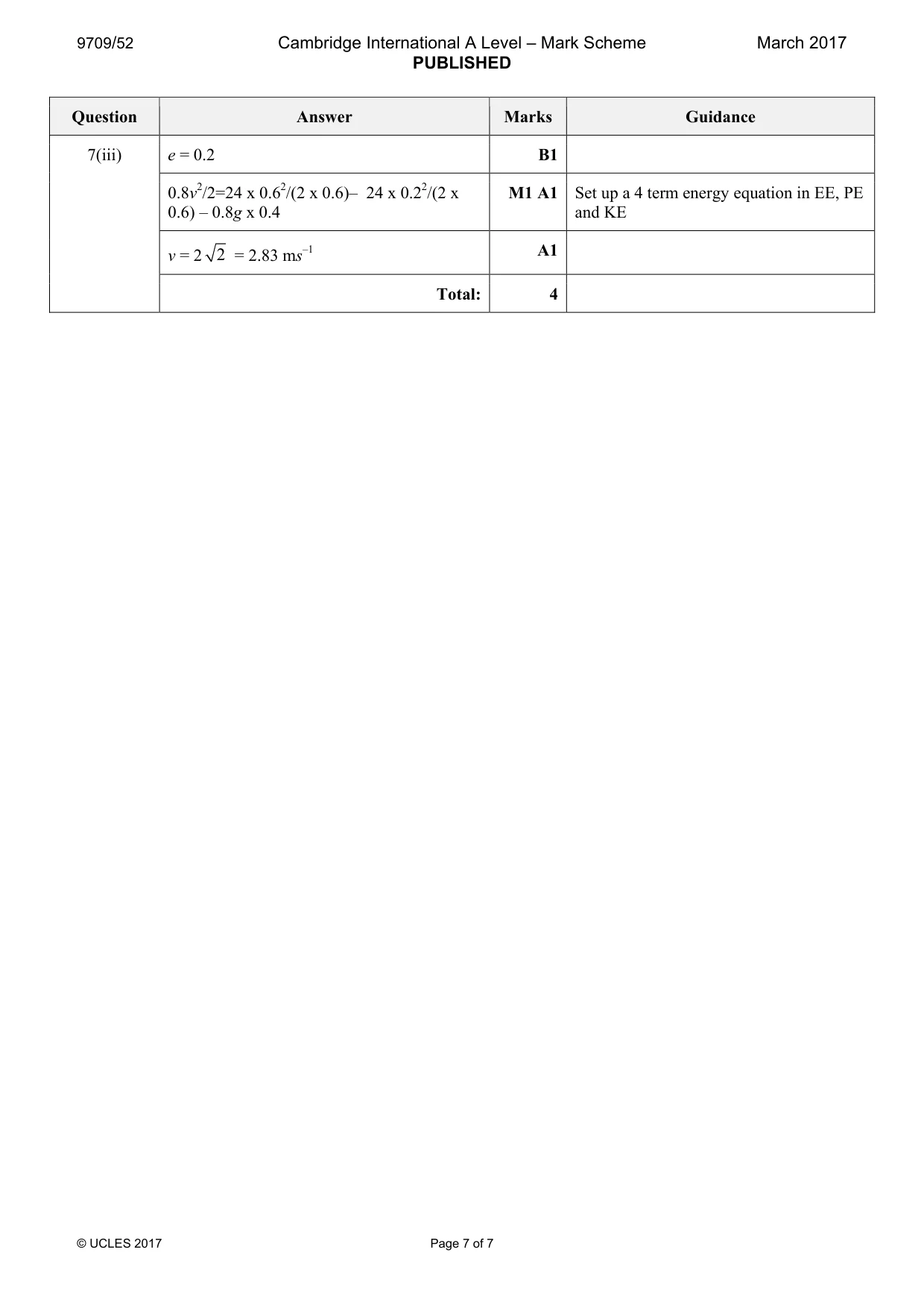

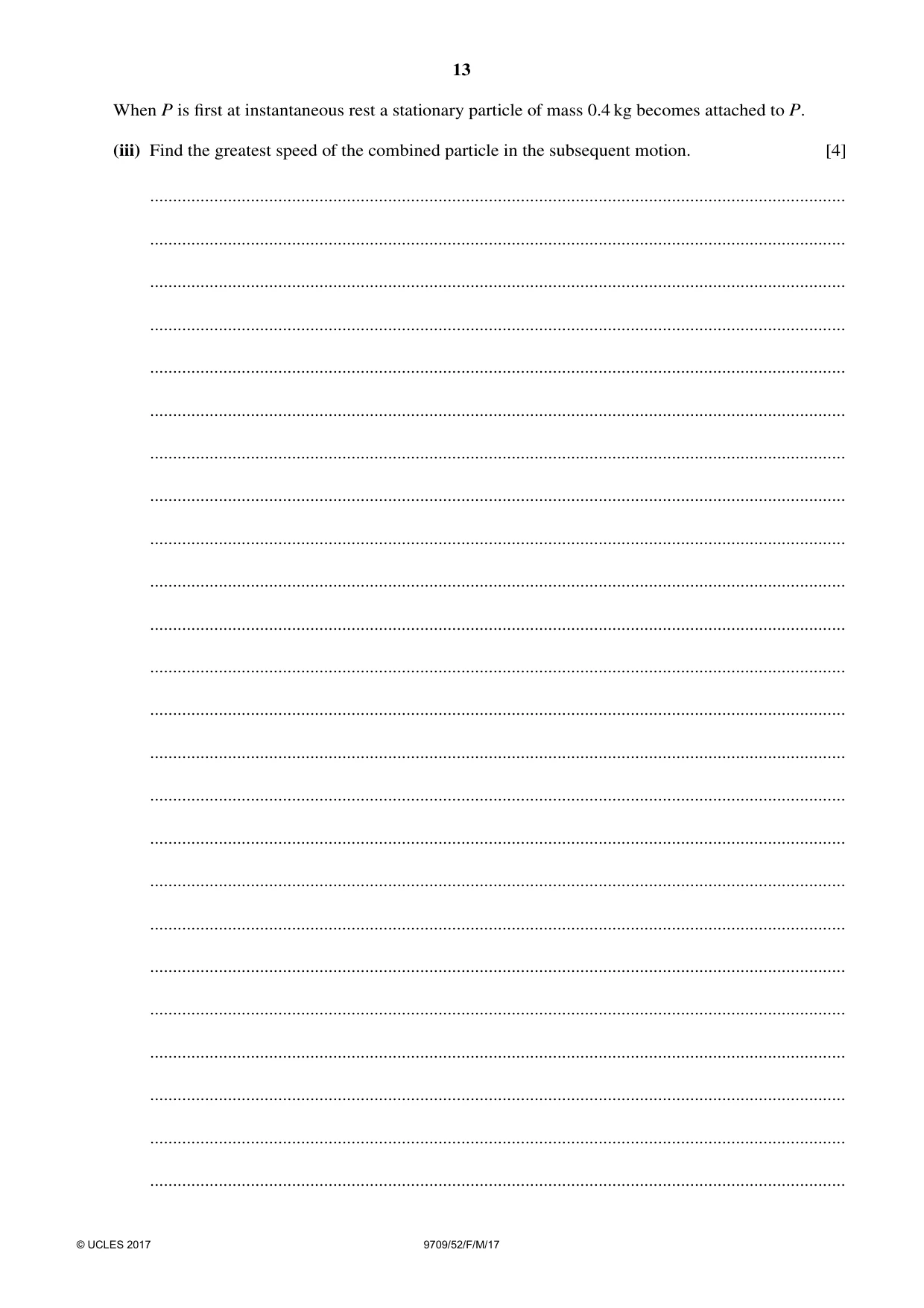

Mark scheme: 7(i) 0.4g = 24e/0.6 M1 Uses T = λx/L e = 0.1 m A1 Total: 2 7(ii) Initial EE = 24 x 0.12/(2 x 0.6) (= 0.2 J) B1 Uses EE = λx2/2L 0.4 x 52/2 + 0.4gd=24(0.1 + d)2/(2 x 0.6) –24 M1 A1 Set up a 4 term energy equation involving x 0.12/(2 x 0.6) EE, PE and KE d = 0.5 m A1 Total: 4 7(iii) e = 0.2 B1 0.8v2/2=24 x 0.62/(2 x 0.6)– 24 x 0.22/(2 x M1 A1 Set up a 4 term energy equation in EE, PE 0.6) – 0.8g x 0.4 and KE v = 2 2 = 2.83 ms–1 A1 Total: 4
