Cambridge A Level Mathematics 9709 — 2002 Oct/Nov Paper 5 · Variant 1

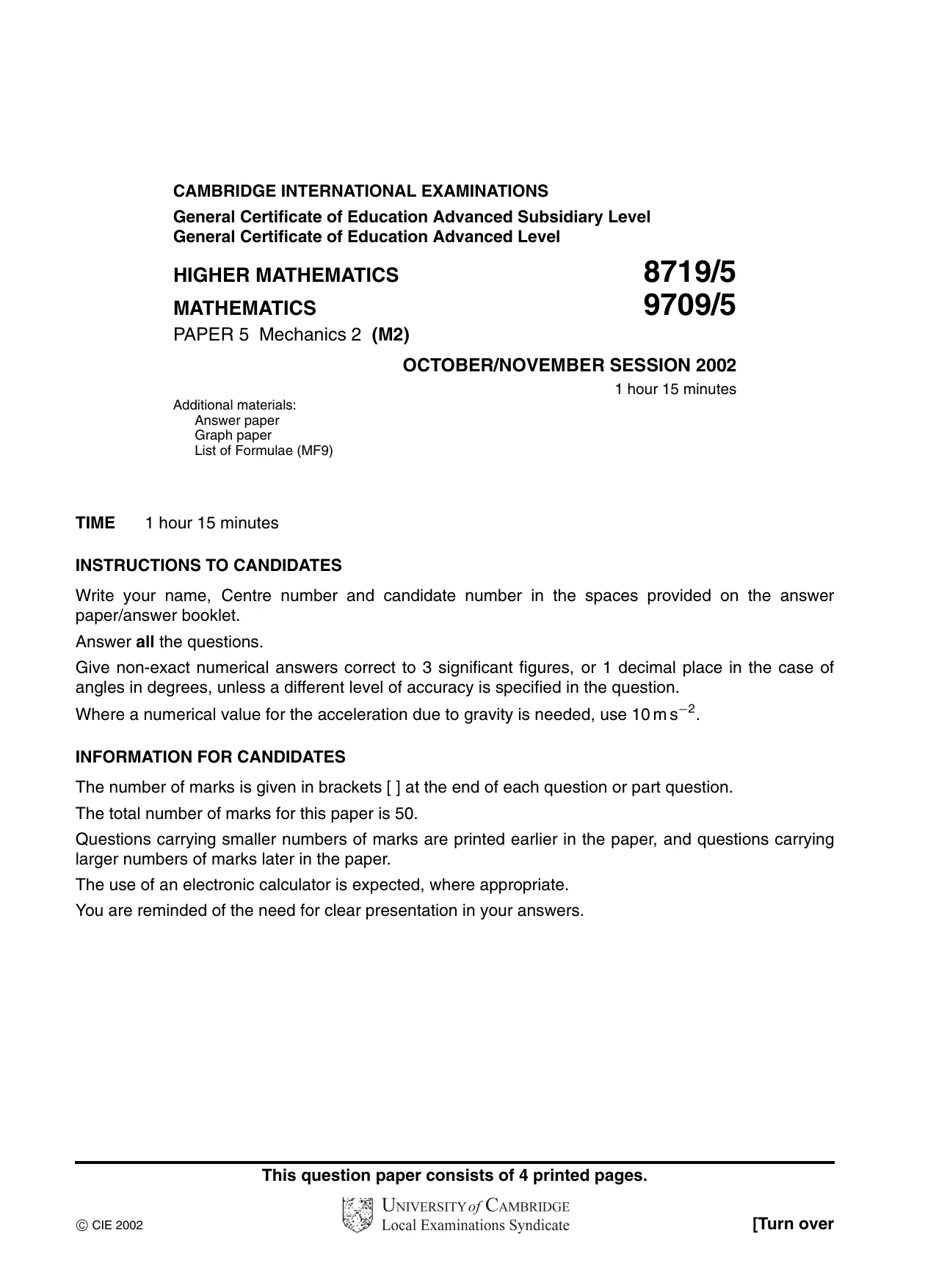

CAMBRIDGE INTERNATIONAL EXAMINATIONS General Certificate of Education Advanced Subsidiary Level General Certificate of Education Advanced Level HIGHER MATHEMATICS MATHEMATICS 8719/5 9709/5 PAPER 5 Mechanics 2 (M2) OCTOBER/NOVEMBER SESSION 2002 1 hour 15 minutes Additional materials: Answer paper Graph paper List of Formulae (MF9) TIME 1 hour 15 minutes INSTRUCTIONS TO CANDIDATES Write your name, Centre number and candidate number in the spaces provided on the answer paper/answer booklet. Answer all the questions. Give non-exact numerical answers correct to 3 significant figures, or 1 decimal place in the case of angles in degrees, unless a different level of accuracy is specified in the question. Where a numerical value for the acceleration due to gravity is needed, use 10 m s
2. INFORMATION FOR CANDIDATES The number of marks is given in brackets [ ] at the end of each question or part question. The total number of marks for this paper is 50. Questions carrying smaller numbers of marks are printed earlier in the paper, and questions carrying larger numbers of marks later in the paper. The use of an electronic calculator is expected, where appropriate. You are reminded of the need for clear presentation in your answers. This question paper consists of 4 printed pages. CIE 2002 [Turn over

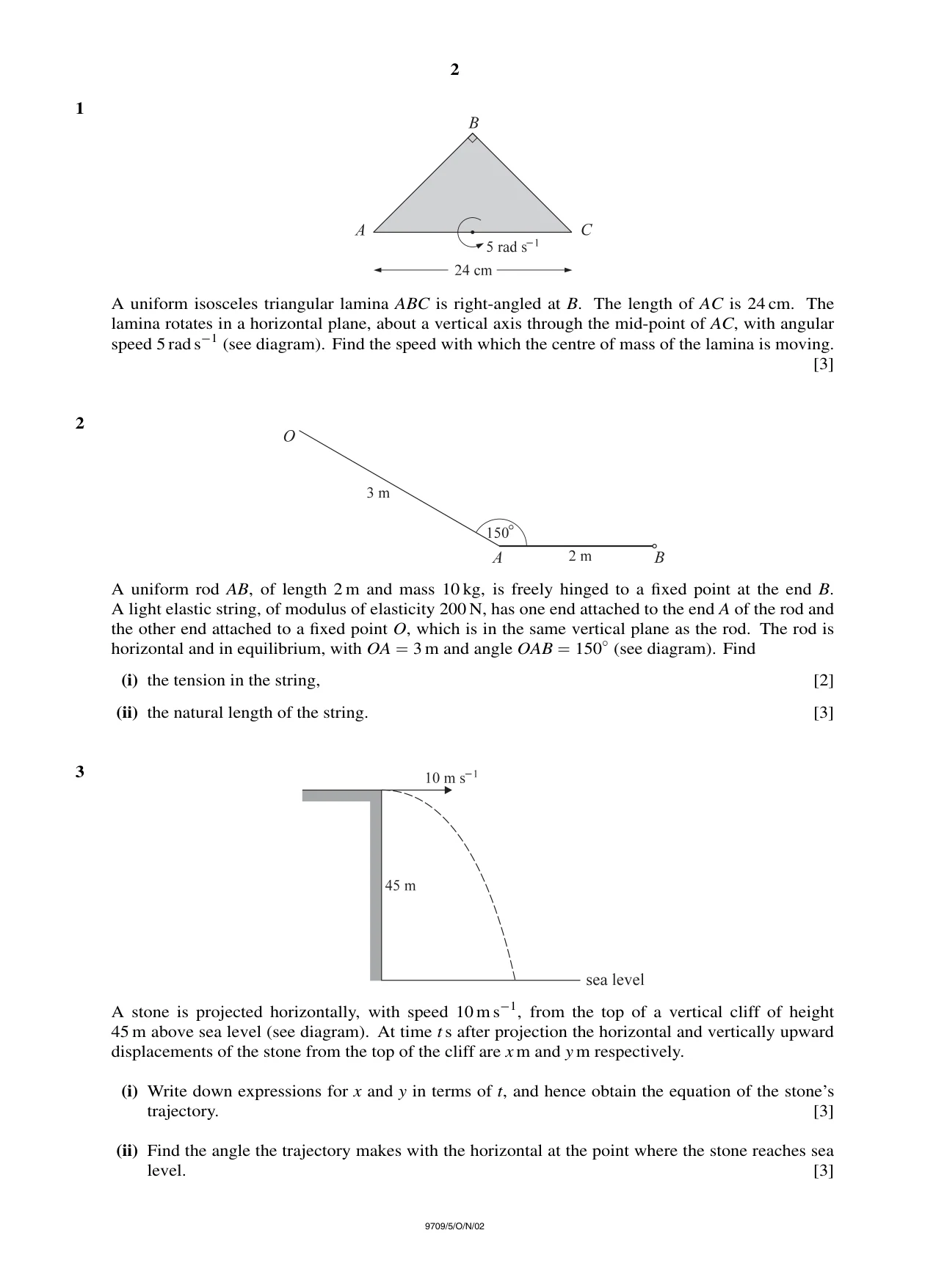

2 1 A uniform isosceles triangular lamina ABC is right-angled at B. The length of AC is 24 cm. The lamina rotates in a horizontal plane, about a vertical axis through the mid-point of AC, with angular speed 5 rad s
1 (see diagram). Find the speed with which the centre of mass of the lamina is moving. [3] 2 A uniform rod AB, of length 2 m and mass 10 kg, is freely hinged to a fixed point at the end B. A light elastic string, of modulus of elasticity 200 N, has one end attached to the end A of the rod and the other end attached to a fixed point O, which is in the same vertical plane as the rod. The rod is horizontal and in equilibrium, with OA
3 m and angle OAB
150 Æ (see diagram). Find (i) the tension in the string, [2] (ii) the natural length of the string. [3] 3 A stone is projected horizontally, with speed 10 m s
1, from the top of a vertical cliff of height 45 m above sea level (see diagram). At time t s after projection the horizontal and vertically upward displacements of the stone from the top of the cliff are x m and y m respectively. (i) Write down expressions for x and y in terms of t, and hence obtain the equation of the stone’s trajectory. [3] (ii) Find the angle the trajectory makes with the horizontal at the point where the stone reaches sea level. [3] 9709/5/O/N/02

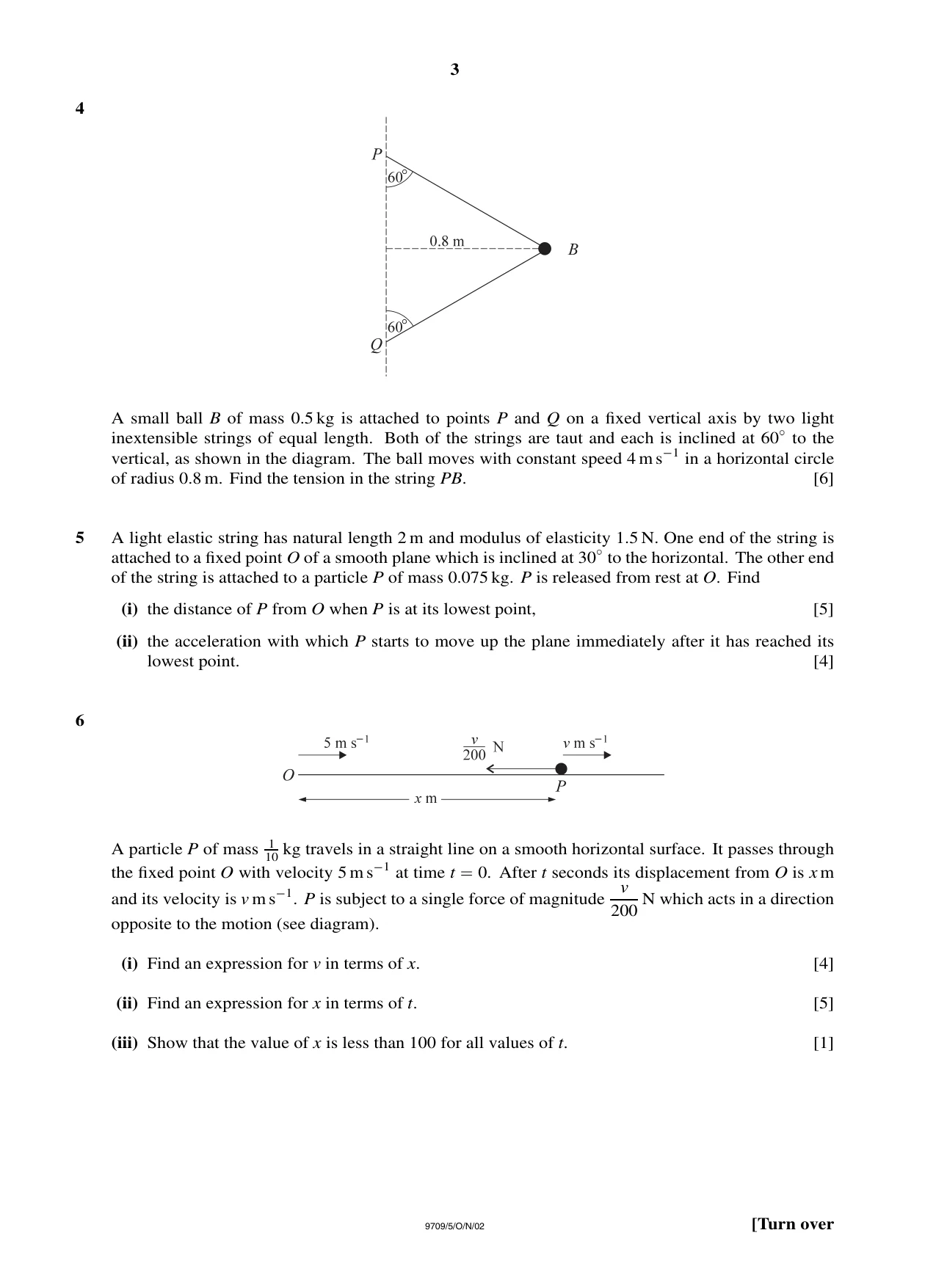

3 4 A small ball B of mass 0.5 kg is attached to points P and Q on a fixed vertical axis by two light inextensible strings of equal length. Both of the strings are taut and each is inclined at 60 Æ to the vertical, as shown in the diagram. The ball moves with constant speed 4 m s
1 in a horizontal circle of radius 0.8 m. Find the tension in the string PB. [6] 5 A light elastic string has natural length 2 m and modulus of elasticity 1.5 N. One end of the string is attached to a fixed point O of a smooth plane which is inclined at 30 Æ to the horizontal. The other end of the string is attached to a particle P of mass 0.075 kg. P is released from rest at O. Find (i) the distance of P from O when P is at its lowest point, [5] (ii) the acceleration with which P starts to move up the plane immediately after it has reached its lowest point. [4] 6 A particle P of mass 1 10 kg travels in a straight line on a smooth horizontal surface. It passes through the fixed point O with velocity 5 m s
1 at time t
0. After t seconds its displacement from O is x m and its velocity is v m s
1. P is subject to a single force of magnitude v 200 N which acts in a direction opposite to the motion (see diagram). (i) Find an expression for v in terms of x. [4] (ii) Find an expression for x in terms of t. [5] (iii) Show that the value of x is less than 100 for all values of t. [1] 9709/5/O/N/02 [Turn over

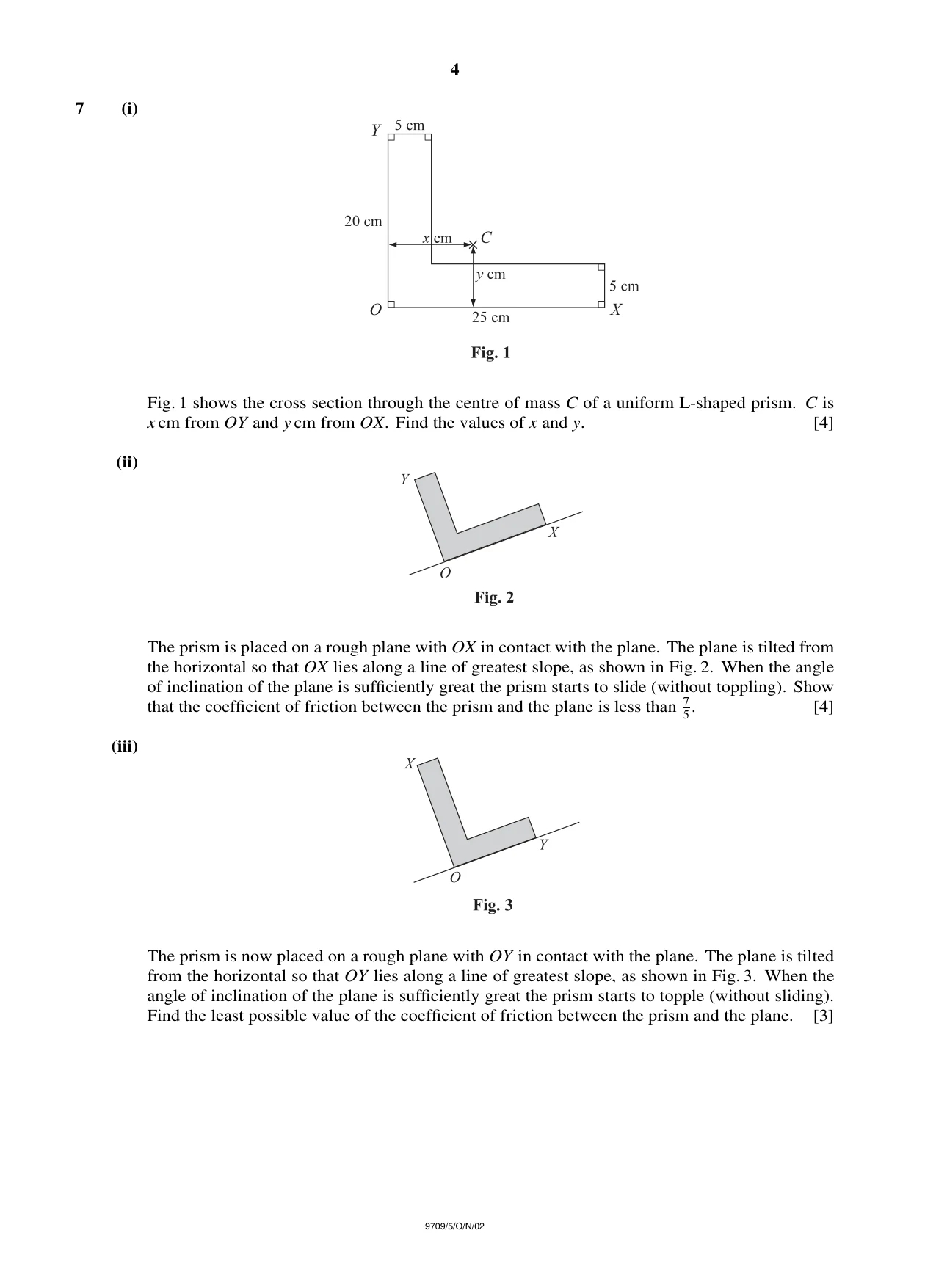

4 7 (i) Fig. 1 shows the cross section through the centre of mass C of a uniform L-shaped prism. C is x cm from OY and y cm from OX. Find the values of x and y. [4] (ii) The prism is placed on a rough plane with OX in contact with the plane. The plane is tilted from the horizontal so that OX lies along a line of greatest slope, as shown in Fig. 2. When the angle of inclination of the plane is sufficiently great the prism starts to slide (without toppling). Show that the coefficient of friction between the prism and the plane is less than 7 5. [4] (iii) The prism is now placed on a rough plane with OY in contact with the plane. The plane is tilted from the horizontal so that OY lies along a line of greatest slope, as shown in Fig. 3. When the angle of inclination of the plane is sufficiently great the prism starts to topple (without sliding). Find the least possible value of the coefficient of friction between the prism and the plane. [3] 9709/5/O/N/02

CAMBRIDGE INTERNATIONAL EXAMINATIONS NOVEMBER 2002 GCE Advanced Level GCE Advanced Subsidiary Level UNIvERSITY of CAMBRIDGE Local Examinations Syndicate

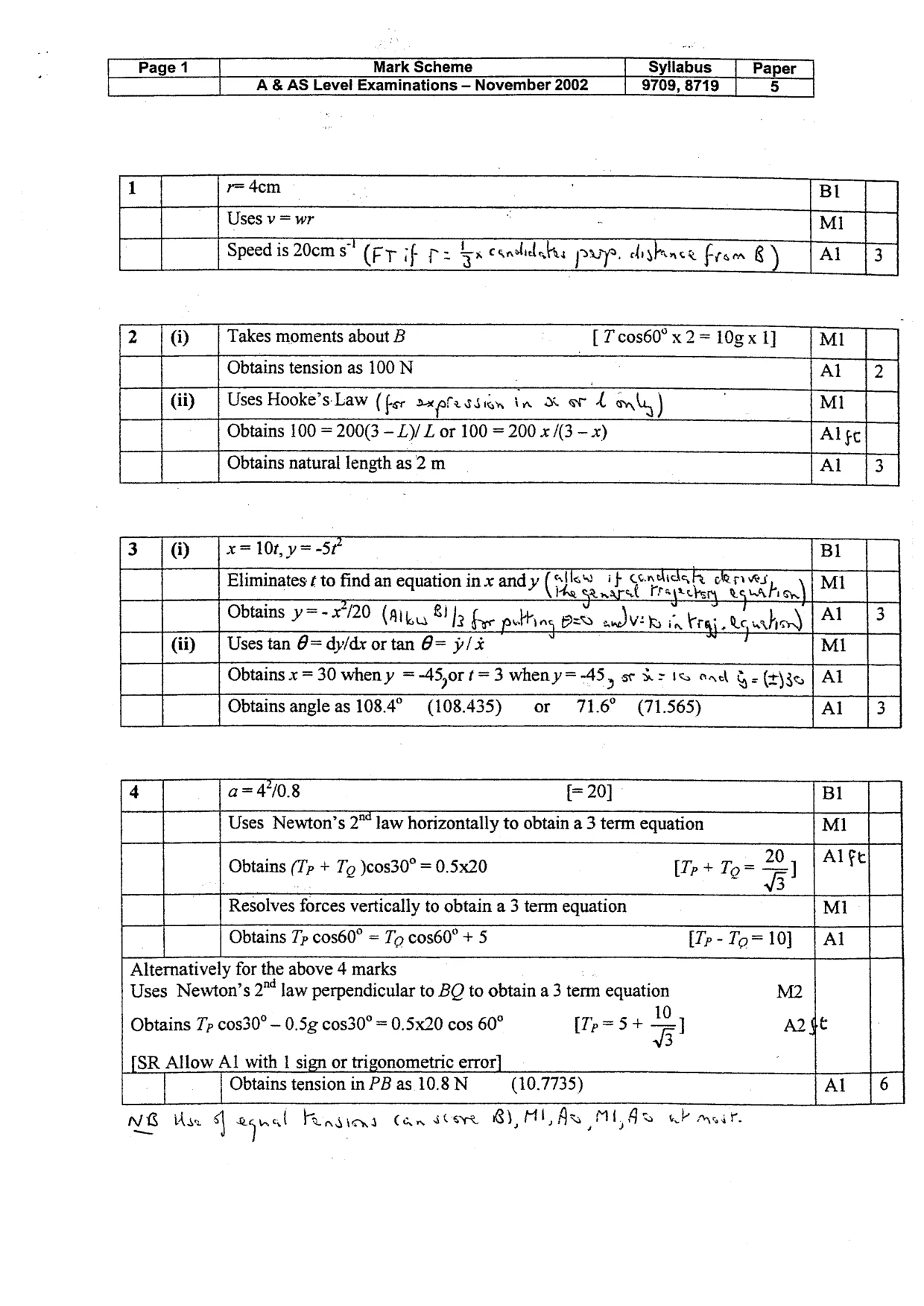

Page 1 Mark Scheme [_ Syllabus [| Paper | A&AS Level Examinations — November 2002 [_ 9709, 8719 5 | 1 r= 4cm Bl Uses v = wr - M1 a Speed is 20cm s™ (Fr if P= oe cqnlid alas pyp: dhyPance Fron 8 ) Al [3 2 |@ Takes moments about B [ Tcos60° x 2= 10¢x 1] MI Obtains tension as 100 N Al |2 (ii) | Uses Hooke’s: Law (ter dxpfession in 3 oF 4 on hy ) M1 Obtains 100 = 200(3 — Z)/ L or 100 = 200 x (3 — x) Al fc Obtains natural length as 2 m Al 3 | 3 1@ |x=l0,y=-5" [BI | Eliminates ¢ to find an equation in x and y (Hee wtet Pcie a iy ox) Mi Obtains y=->'/20 (aii, 8), bor potting Bes sn VERS iin Keg aXe when) Al [3 (ii) | Uses tan O= dy/dx or tan O= y/i ‘ MI 7 Obtains x = 30 when y = -45,or = 3 when y= -45, st X= 1% oad &- (t)30 | Al Obtains angle as 108.4" (108.435) or 71.6° (71.565) Al 3 4 a=47/0.8 {= 20] BI Uses Newton’s 2™ law horizontally to obtain a 3 term equation Mi | Obtains (Tp + Tg )cos30° = 0.5x20 [Tp + To= a Alfe Resolves forces vertically to obtain a 3 term equation MI | Obtains 7p cos60° = Ty cos60° + 5 [%p-To=10) | Al | | Alternatively for the above 4 marks Uses Newton’s 2™ law perpendicular to BQ to obtain a 3 term equation M2 Obtains 7p cos30° — 0.5g¢ cos30° = 0.5x20 cos 60° [Tp=5+ # A2 GE | [SR Allow Al with | sign or trigonometric error] | Obtains tension in PB as 10.8 N (10.7735) Al 6 NB Us tonsil Reasias Can ston @) ALAS MLAs 6b moar

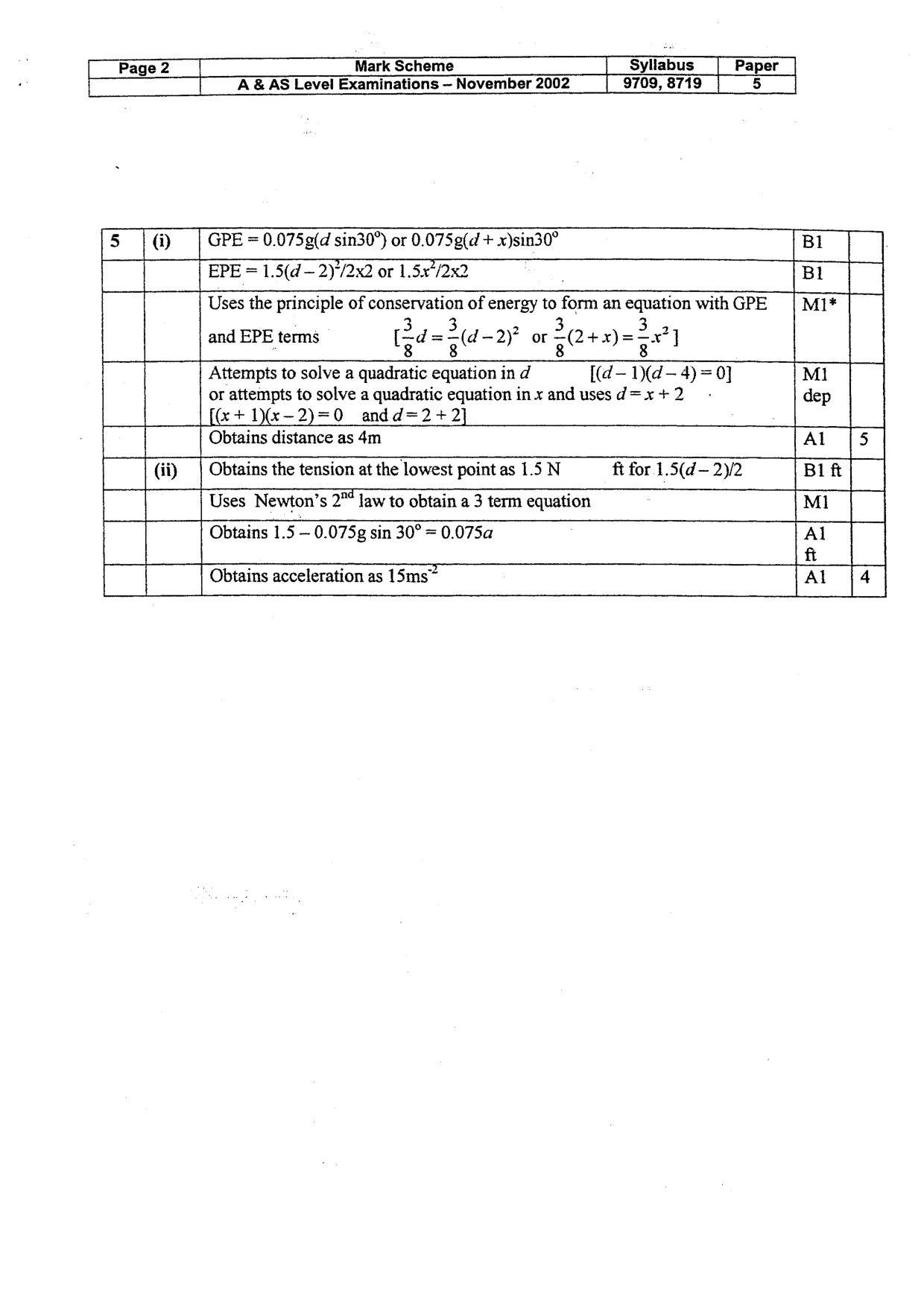

Mark Scheme Syllabus | Paper Page 2 A &AS Level Examinations — November 2002 [_9709, 8719 [| 5 5 |(@ | GPE=0.075g(d sin30°) or 0.075g(d + x)sin30° Bl EPE = 1.5(d — 2)'/2x2 or 1.57/22 j Bl Uses the principle of conservation of energy to form an equation with GPE Mi* 3,3 23 35 d EPE t 2d =i(d-2F or [Q4+x)=22? an lerms GB 3! )° or 3! x) al ] |. Attempts to solve a quadratic equation in d [(d@- 1)(d- 4) =0] MI or attempts to solve a quadratic equation inxandusesd=x+2 - dep _{f(x+ D@-2)=0 andd=2+2) Obtains distance as 4m Al [5 (ii) | Obtains the tension at the lowest point as 1.5 N ft for 1.5(d-2y/2 Bl ft Uses Newton’s 2™ Jaw to obtain a 3 term equation M1 Obtains 1.5 — 0.075g sin 30° = 0.075a Al ft Obtains acceleration as 15ms” Al |4

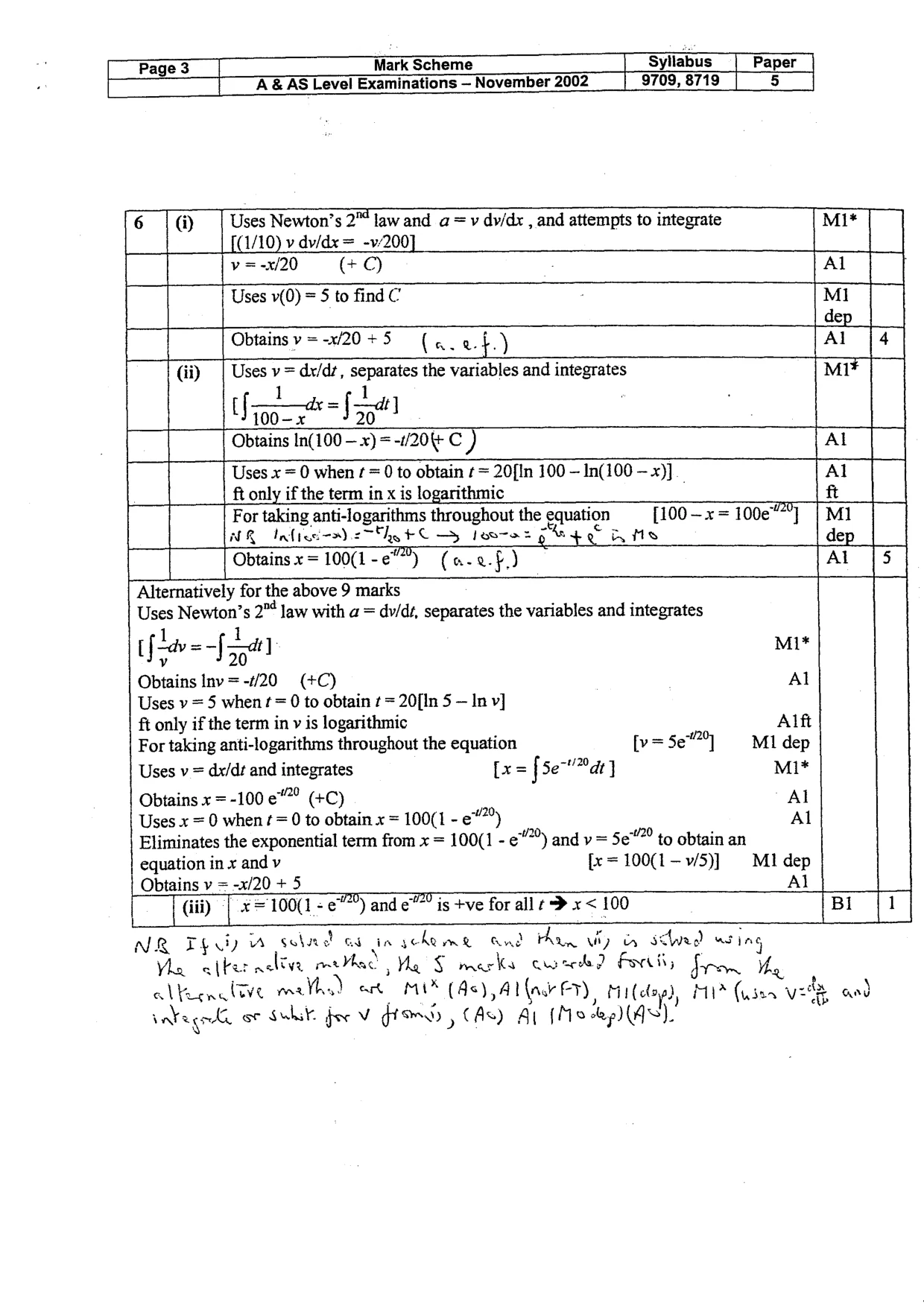

Page 3 Mark Scheme T_ Syllabus Paper A & AS Level Examinations — November 2002 [__ 9709, 8719 5 6 | (i) Uses Newton’s 2™ law and a = v dv/dx , and attempts to integrate (1/10) v dv/dx = -v/200]_ Mi* | | v = -x/20 Oo Al | | Uses v(0) = 5 to find C 1 1 ime = Sa5 a dep Obtainsv=-1/20+5 (4. vf.) Al 14 (ii) | Uses v = dx/dt, separates the variables and integrates Mi* Obtains In(100 — x)=-1/20 C ) Uses x = 0 when f = 0 to obtain f= 20{In 100 —In(100 —x)] L ft only if the term in x is logarithmic For taking anti-logarithms throughout the equation [100 —x = 100e""} NR Inlicc-az~thy tC Sy leores ge EE AMS ft Mi dep Obtains x= 100(1-e"”) (a-e.F.) Al [5 Alternatively for the above 9 marks Uses Newton’s 2™ law with a = dv/df, separates the variables and integrates 1, fl * (fag Mi Obtains Inv=-#/20 (+C) Al Uses v = 5 when t= 0 to obtain ¢ = 20[In 5 — In v] ft only if the term in v is logarithmic Alft For taking anti-logarithms throughout the equation [v= Se") M1 dep Uses v = de/d? and integrates [x= [sear] Mi* Obtains x =-100 e“”° (+C) Al Uses x = 0 when f= 0 to obtain x = 100(1 - e””°) Al Eliminates the exponential term from x = 100(1 - e””) and v= 5e™° to obtain an equation in x and v [x= 100(1-v/5)] Ml dep Obtains v = -x/20 + 5 Al | (iii) | x= 100(1 =e") and e™™ is +ve for all ¢ > x < 100 Bi R Th iy W solved ab in yoke me Ours ae Wy ty Swed wing NR Thai Vad A K es ? Aye) 4 Vhe alber activ mYhad Ya S marks cur? Aci, fron he a lfeena live mala) ox mi (4s), At {ach ET) Fil (dap), A (uses vite, aod inka gr, ot Sulit foe Vv FO , CAS) AL (Moby) (4s).

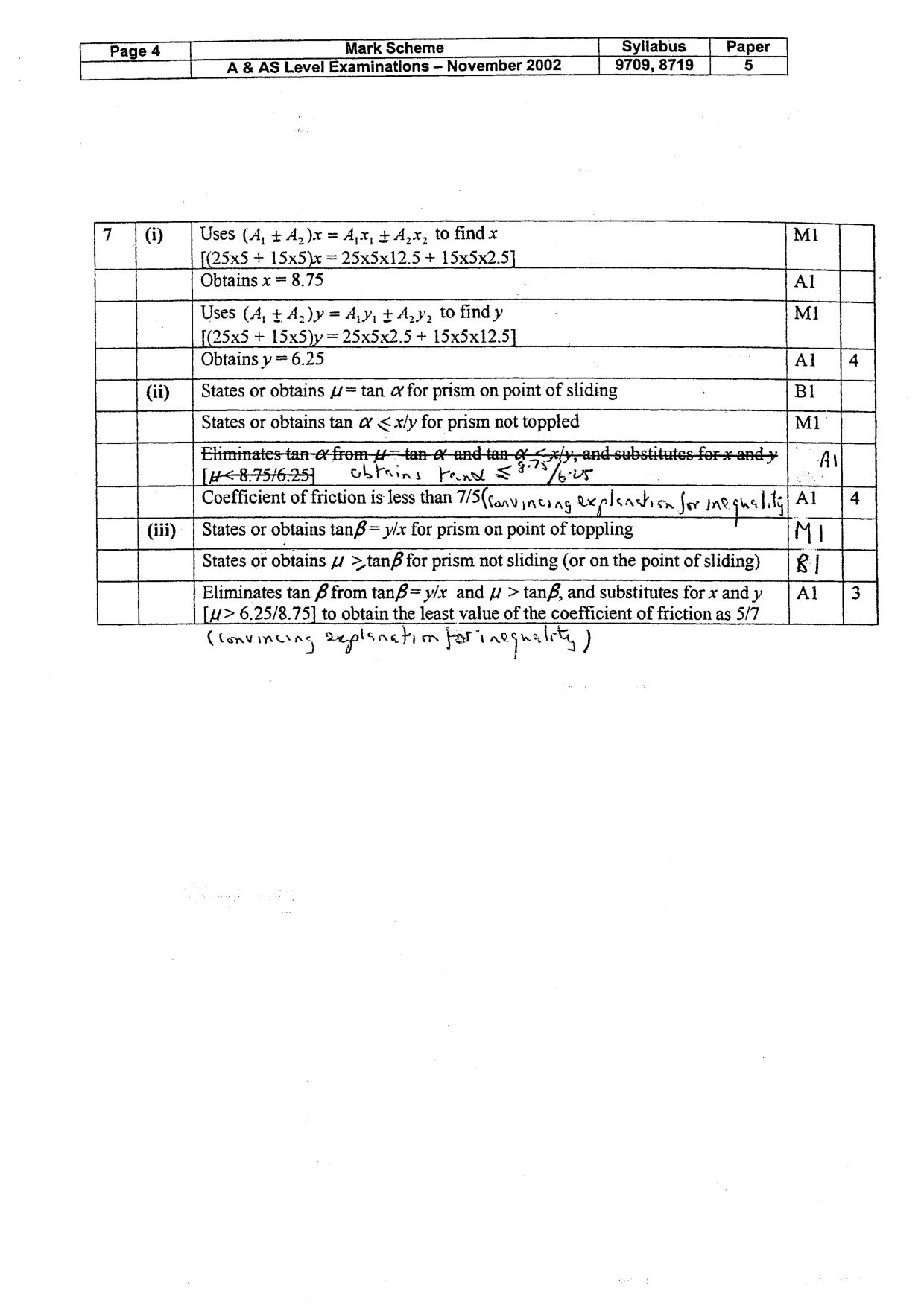

Page 4 Mark Scheme Syllabus | Paper A & AS Level Examinations — November 2002 9709, 8719 | 5 7 |W Uses (A, + A,)x = A,X, + A,X, to find x MI [(25x5 + 15x5)x = 25x5x12.5 + 15x5x2.5] Obtains x = 8.75 Al Uses (4, + A,)y = 4, + Az ¥, tO find y Mi [(25x5 + 15x5)y = 25x5x2.5 + 15x5x12.5] Obtains y = 6.25 Al {4 (ii) | States or obtains = tan & for prism on point of sliding BI i States or obtains tan & <.x/y for prism not toppled MI | | 1516: ob being ws: ; Al Coefficient of friction is less than 7/5((any jncing axpleash on fav int ie lig] AL [4 (iii) | States or obtains tan = y/x for prism on point of toppling N | States or obtains 4 > tan for prism not sliding (or on the point of sliding) R] Eliminates tan £ from tan8=y/x and yu > tan§, and substitutes forx andy |All |3 [u> 6.25/8.75] to obtain the least value of the coefficient of friction as 5/7 (Csny mons saplonchi mn for aegnaley )
