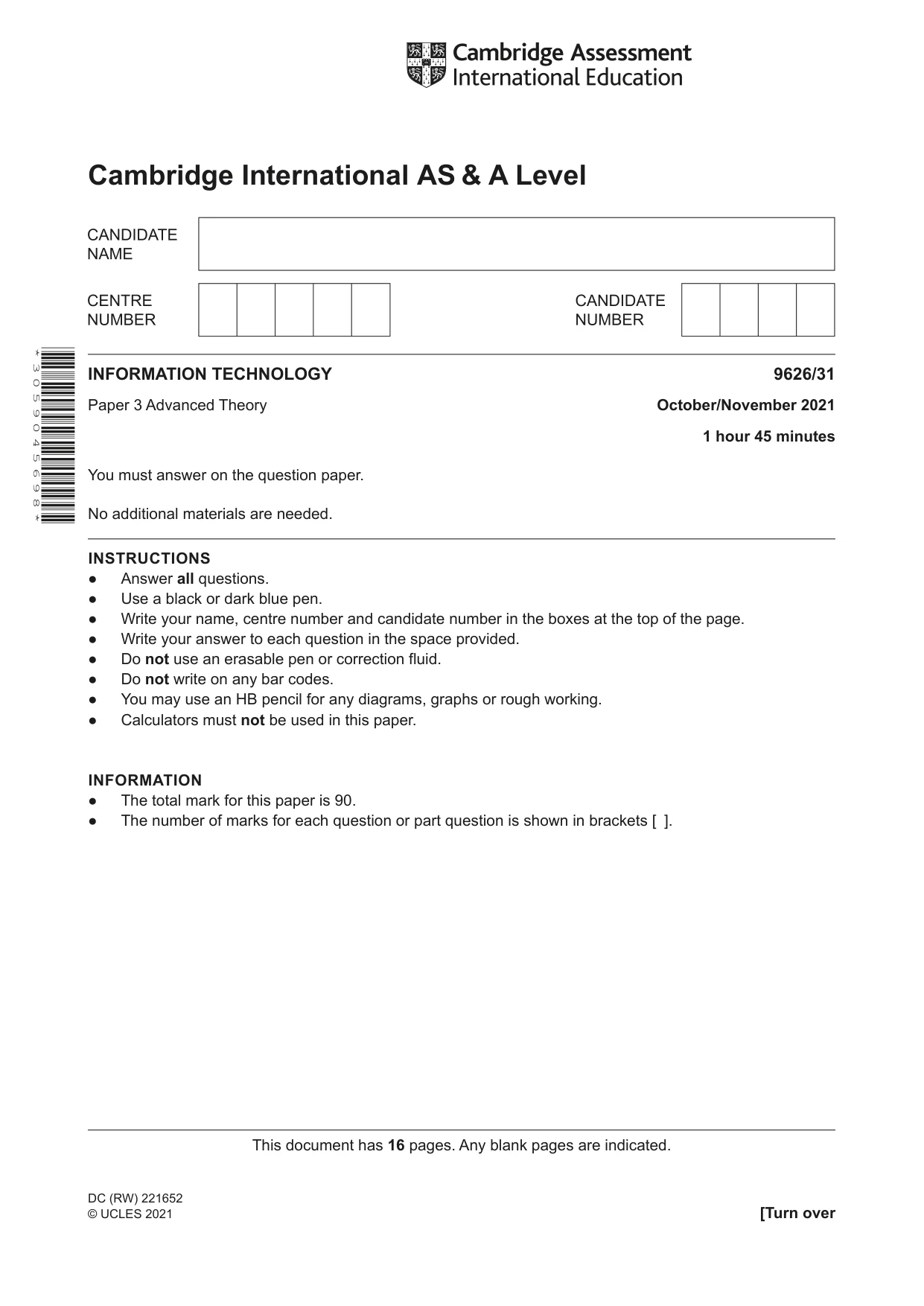

Cambridge A Level Information Technology (from 2017) 9626 — 2021 Oct/Nov Paper 3 · Variant 1

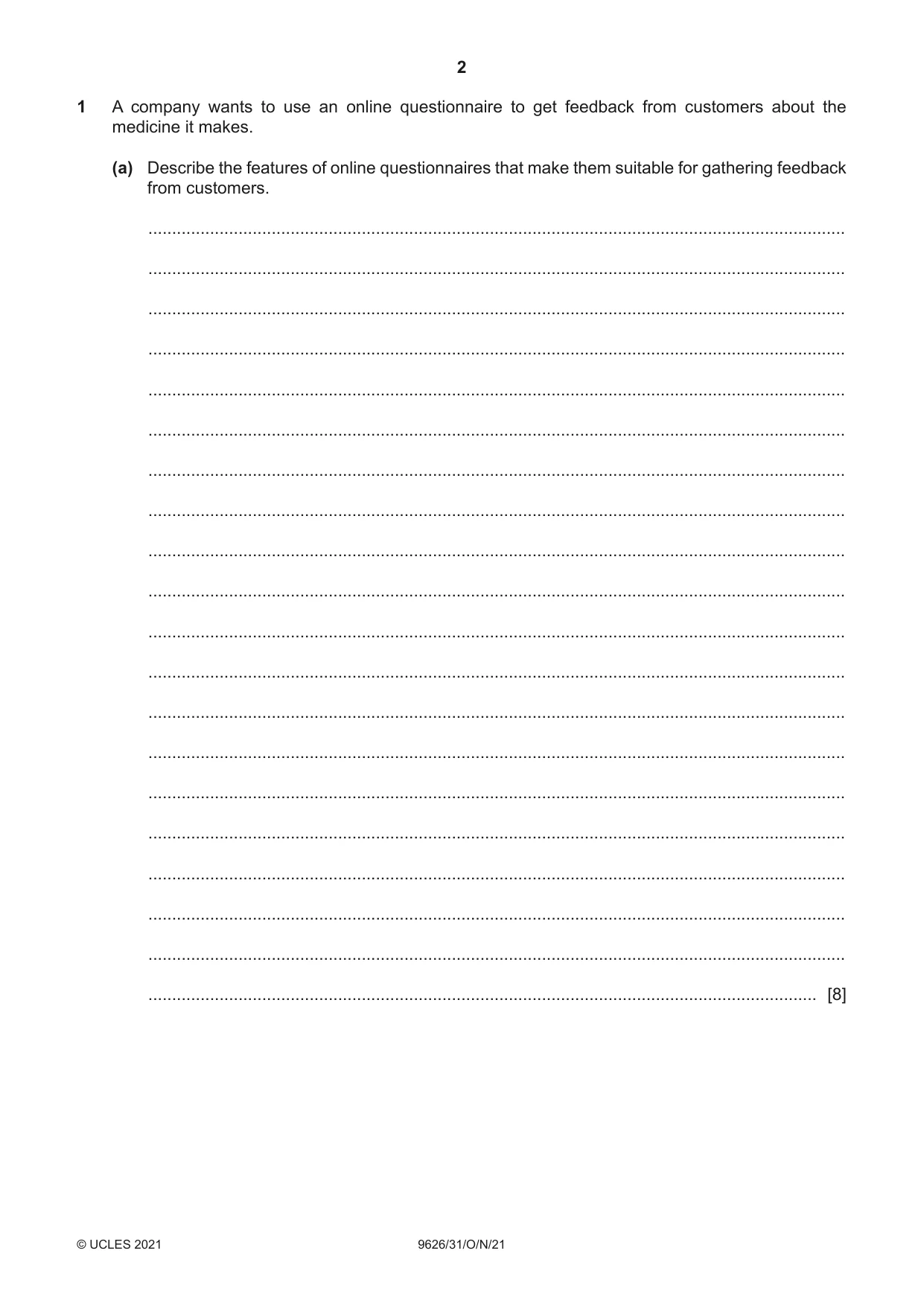

1 A company wants to use an online questionnaire to get feedback from customers about the medicine it makes. (a) Describe the features of online questionnaires that make them suitable for gathering feedback from customers. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [8] (b) Describe two drawbacks of using online questionnaires to gather feedback. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [2]

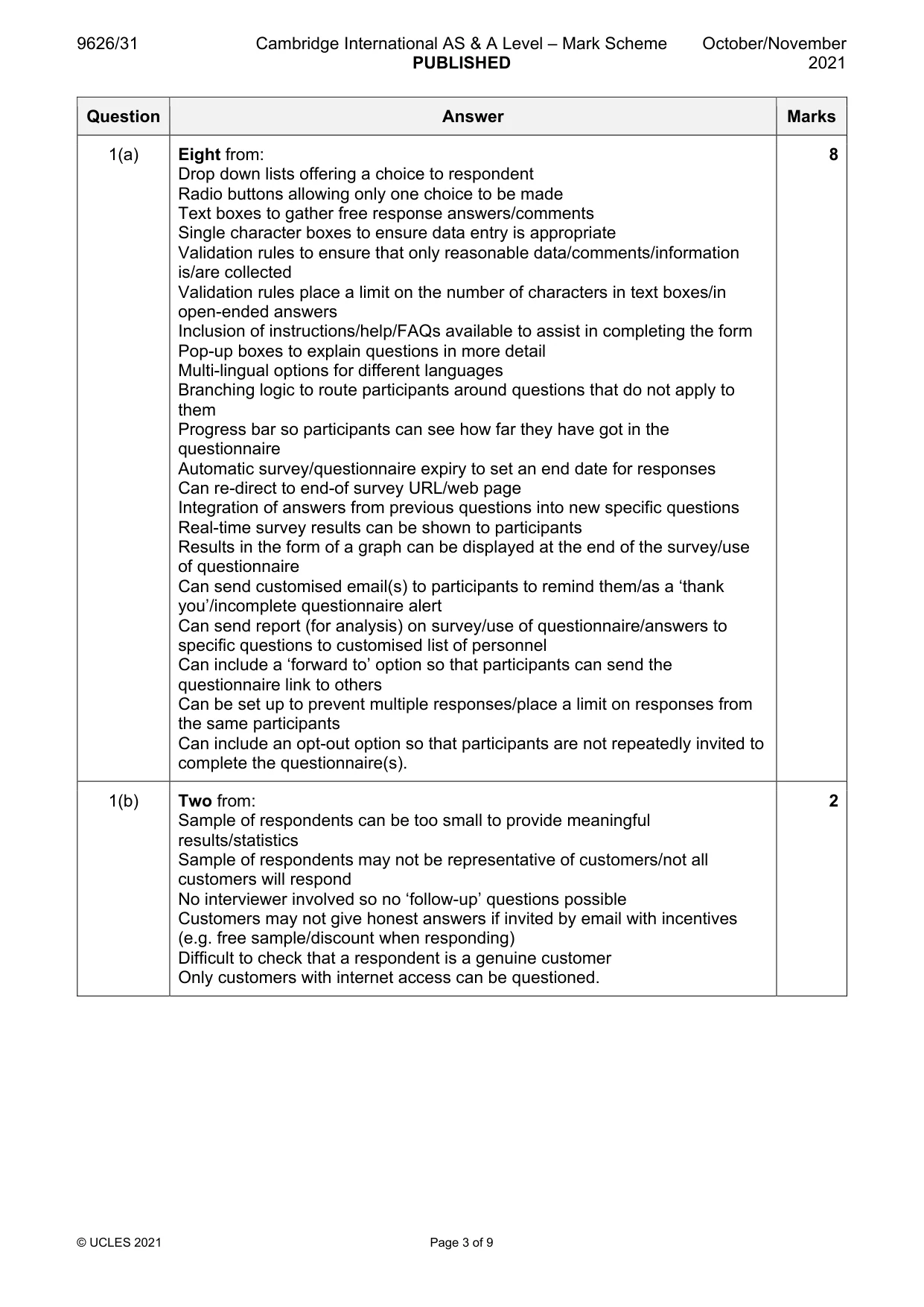

Mark scheme: Question Answer Marks 1(a) Eight from: 8 Drop down lists offering a choice to respondent Radio buttons allowing only one choice to be made Text boxes to gather free response answers/comments Single character boxes to ensure data entry is appropriate Validation rules to ensure that only reasonable data/comments/information is/are collected Validation rules place a limit on the number of characters in text boxes/in open-ended answers Inclusion of instructions/help/FAQs available to assist in completing the form Pop-up boxes to explain questions in more detail Multi-lingual options for different languages Branching logic to route participants around questions that do not apply to them Progress bar so participants can see how far they have got in the questionnaire Automatic survey/questionnaire expiry to set an end date for responses Can re-direct to end-of survey URL/web page Integration of answers from previous questions into new specific questions Real-time survey results can be shown to participants Results in the form of a graph can be displayed at the end of the survey/use of questionnaire Can send customised email(s) to participants to remind them/as a ‘thank you’/incomplete questionnaire alert Can send report (for analysis) on survey/use of questionnaire/answers to specific questions to customised list of personnel Can include a ‘forward to’ option so that participants can send the questionnaire link to others Can be set up to prevent multiple responses/place a limit on responses from the same participants Can include an opt-out option so that participants are not repeatedly invited to complete the questionnaire(s). 1(b) Two from: 2 Sample of respondents can be too small to provide meaningful results/statistics Sample of respondents may not be representative of customers/not all customers will respond No interviewer involved so no ‘follow-up’ questions possible Customers may not give honest answers if invited by email with incentives (e.g. free sample/discount when responding) Difficult to check that a respondent is a genuine customer Only customers with internet access can be questioned.

More questions on Analysis

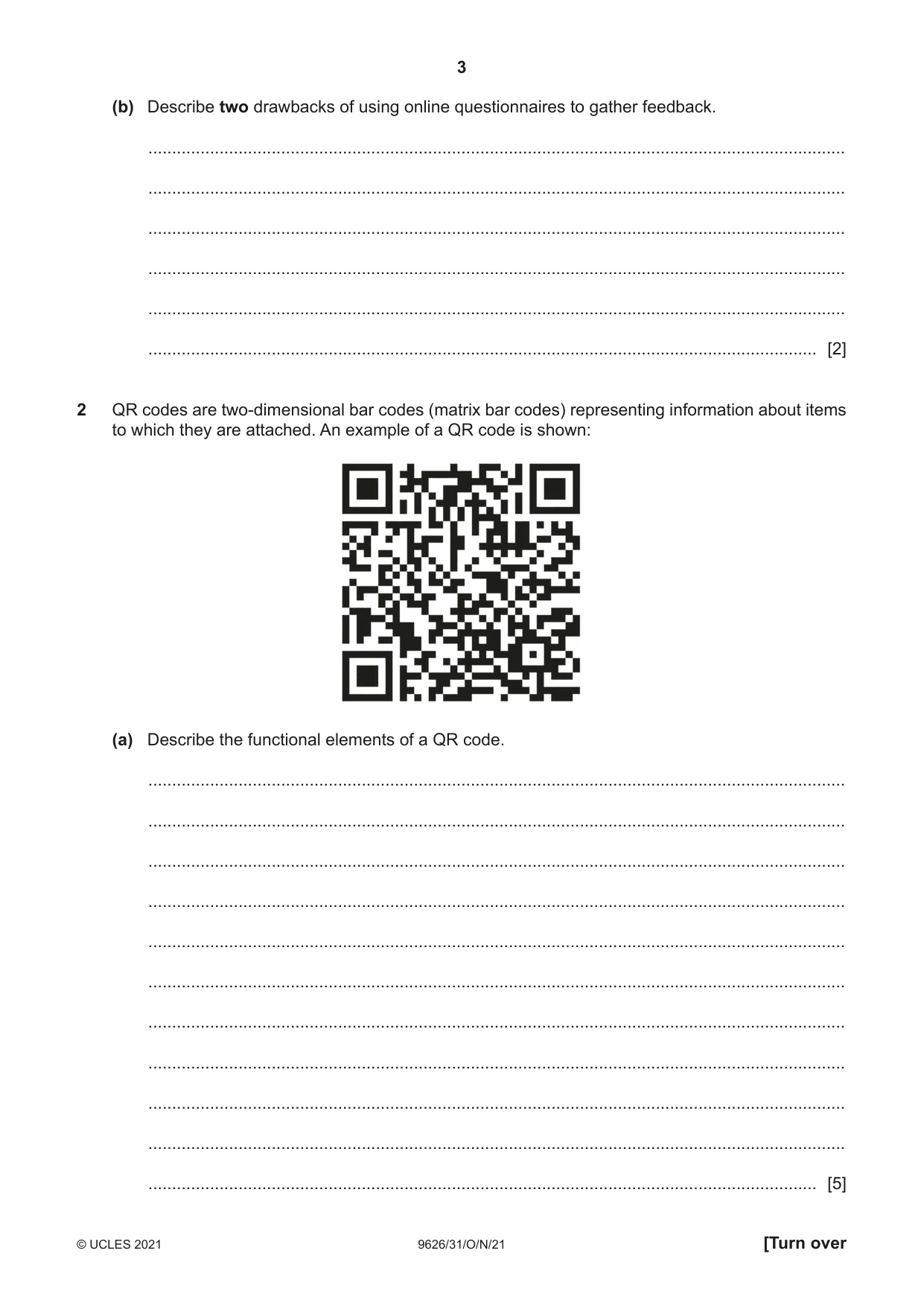

2 QR codes are two-dimensional bar codes (matrix bar codes) representing information about items to which they are attached. An example of a QR code is shown: (a) Describe the functional elements of a QR code. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [5] (b) Explain why damaged QR codes may still be read while damaged one-dimensional bar codes often cannot be read. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [3]

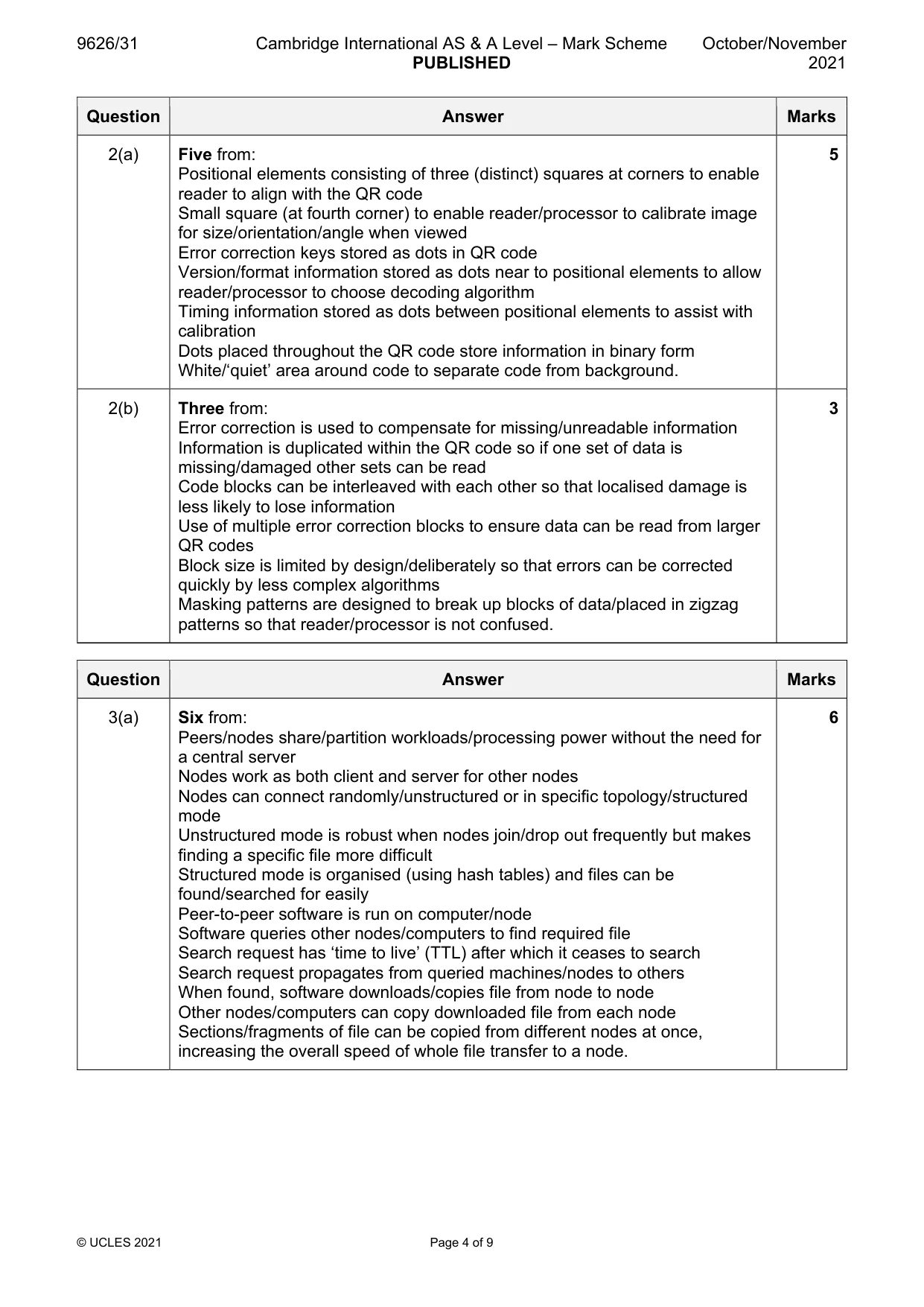

Mark scheme: 2(a) Five from: 5 Positional elements consisting of three (distinct) squares at corners to enable reader to align with the QR code Small square (at fourth corner) to enable reader/processor to calibrate image for size/orientation/angle when viewed Error correction keys stored as dots in QR code Version/format information stored as dots near to positional elements to allow reader/processor to choose decoding algorithm Timing information stored as dots between positional elements to assist with calibration Dots placed throughout the QR code store information in binary form White/‘quiet’ area around code to separate code from background. 2(b) Three from: 3 Error correction is used to compensate for missing/unreadable information Information is duplicated within the QR code so if one set of data is missing/damaged other sets can be read Code blocks can be interleaved with each other so that localised damage is less likely to lose information Use of multiple error correction blocks to ensure data can be read from larger QR codes Block size is limited by design/deliberately so that errors can be corrected quickly by less complex algorithms Masking patterns are designed to break up blocks of data/placed in zigzag patterns so that reader/processor is not confused.

More questions on New and emerging technologies

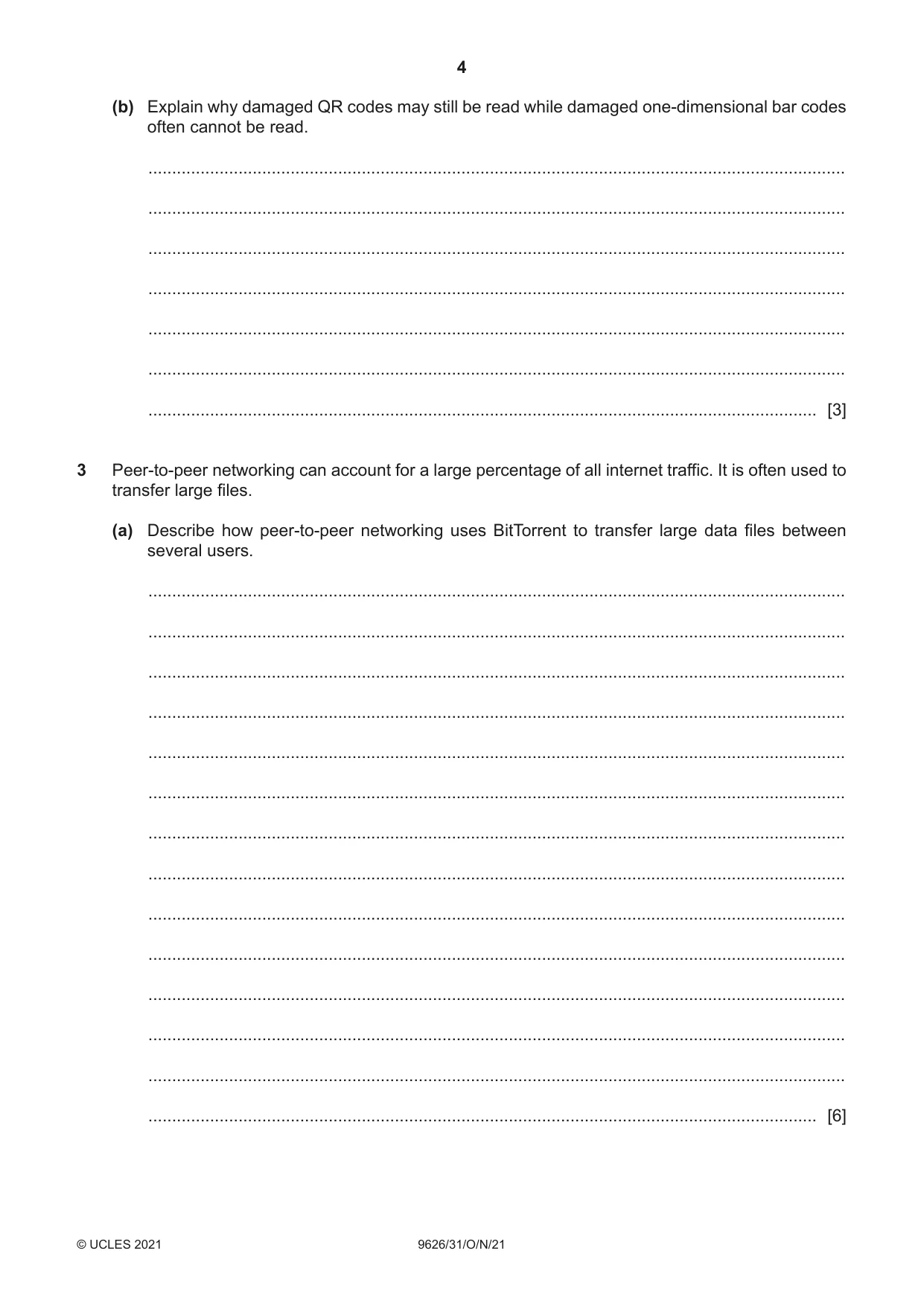

3 Peer-to-peer networking can account for a large percentage of all internet traffic. It is often used to transfer large files. (a) Describe how peer-to-peer networking uses BitTorrent to transfer large data files between several users. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [6] (b) Describe how the use of BitTorrent for peer-to-peer networking can cause security issues to arise. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [6]

Mark scheme: 3(a) Six from: 6 Peers/nodes share/partition workloads/processing power without the need for a central server Nodes work as both client and server for other nodes Nodes can connect randomly/unstructured or in specific topology/structured mode Unstructured mode is robust when nodes join/drop out frequently but makes finding a specific file more difficult Structured mode is organised (using hash tables) and files can be found/searched for easily Peer-to-peer software is run on computer/node Software queries other nodes/computers to find required file Search request has ‘time to live’ (TTL) after which it ceases to search Search request propagates from queried machines/nodes to others When found, software downloads/copies file from node to node Other nodes/computers can copy downloaded file from each node Sections/fragments of file can be copied from different nodes at once, increasing the overall speed of whole file transfer to a node. 3(b) Six from: 6 Nodes are more susceptible to remote attack/intrusion IP address of users is clearly visible to others so (much) easier for hackers/malicious users to target Knowledge of IP address can be used to steal user data/files/information resulting in fraud/identity theft/blackmail Malicious code can deliberately falsify routing tables of nodes Answers/replies to requests can contain malicious code/malware Downloaded files can contain/be malware as true source is unknown/not verified Authors of transferred files may be/are unknown so transferred software may not be as advertised/contain trojans/malware that send data back to author Sections of downloaded files can be replaced with malware Downloaded Bit Torrent files often stored by default in folder along with other user data exposing the data to others Can inadvertently expose other areas of storage to others leading to unintentional access to data/session can be left open unintentionally Bit Torrent traffic is not encrypted by default/if no VPN is used and UDP and TCP ports are used by Bit Torrent, may be subject to monitoring by ISP so user data may be stored for all to see/read Bit Torrent transfers are monitored/shared by others who may have malicious intent Many Bit Torrent transfers are of copyrighted material which may give rise to legal issues.

More questions on Networks

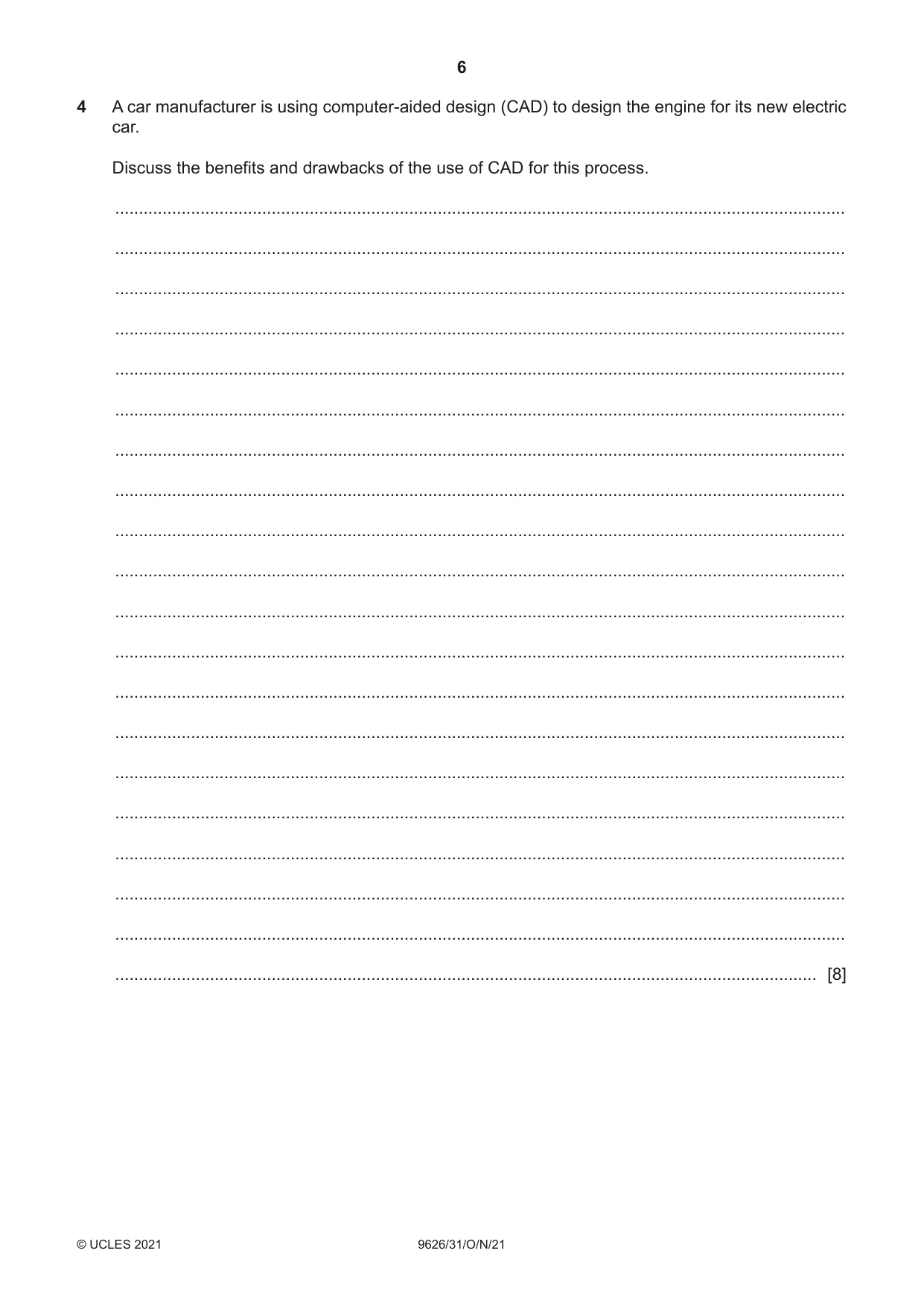

4 A car manufacturer is using computer-aided design (CAD) to design the engine for its new electric car. Discuss the benefits and drawbacks of the use of CAD for this process. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [8]

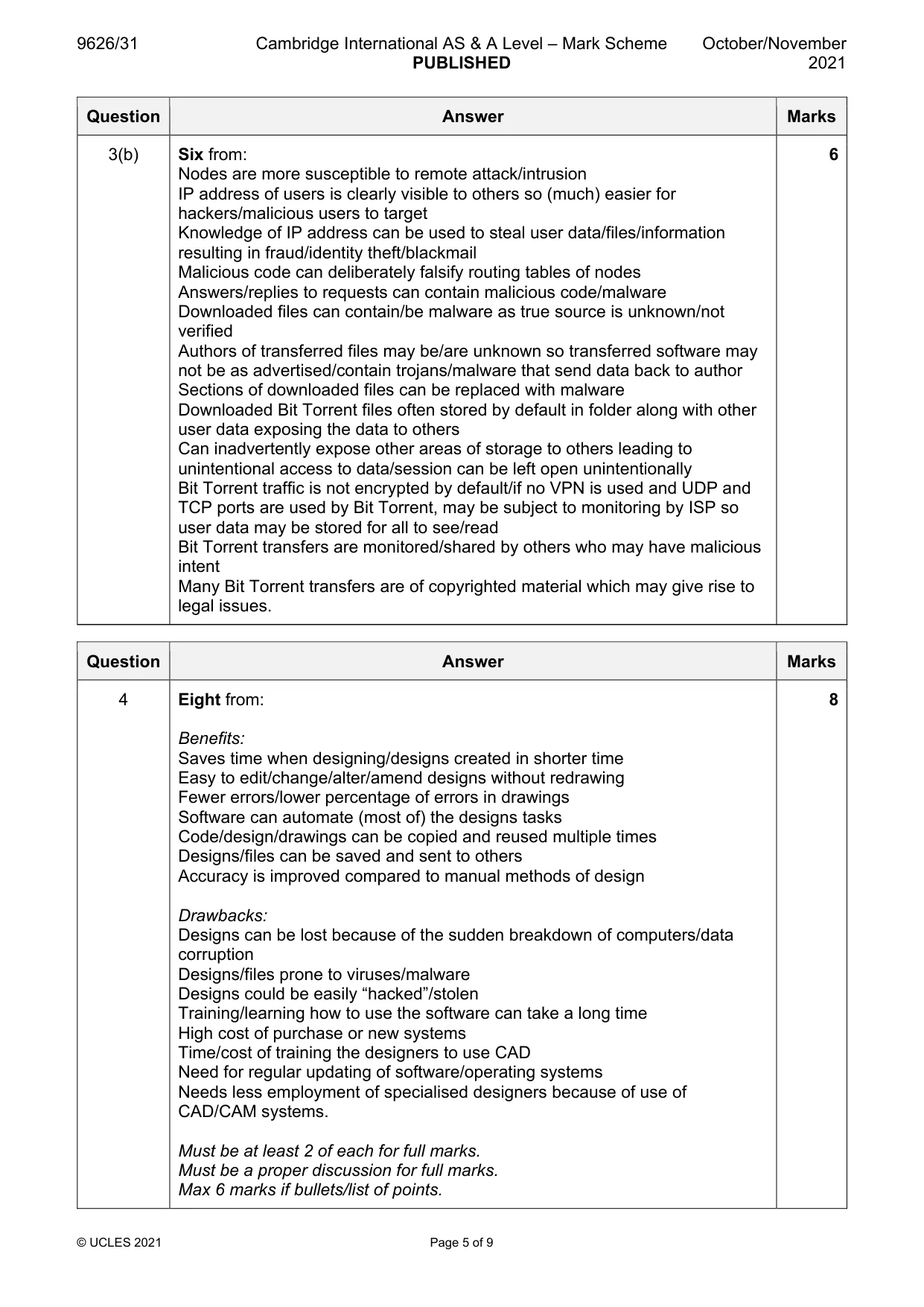

Mark scheme: 4 Eight from: 8 Benefits: Saves time when designing/designs created in shorter time Easy to edit/change/alter/amend designs without redrawing Fewer errors/lower percentage of errors in drawings Software can automate (most of) the designs tasks Code/design/drawings can be copied and reused multiple times Designs/files can be saved and sent to others Accuracy is improved compared to manual methods of design Drawbacks: Designs can be lost because of the sudden breakdown of computers/data corruption Designs/files prone to viruses/malware Designs could be easily “hacked”/stolen Training/learning how to use the software can take a long time High cost of purchase or new systems Time/cost of training the designers to use CAD Need for regular updating of software/operating systems Needs less employment of specialised designers because of use of CAD/CAM systems. Must be at least 2 of each for full marks. Must be a proper discussion for full marks. Max 6 marks if bullets/list of points.

More questions on Design

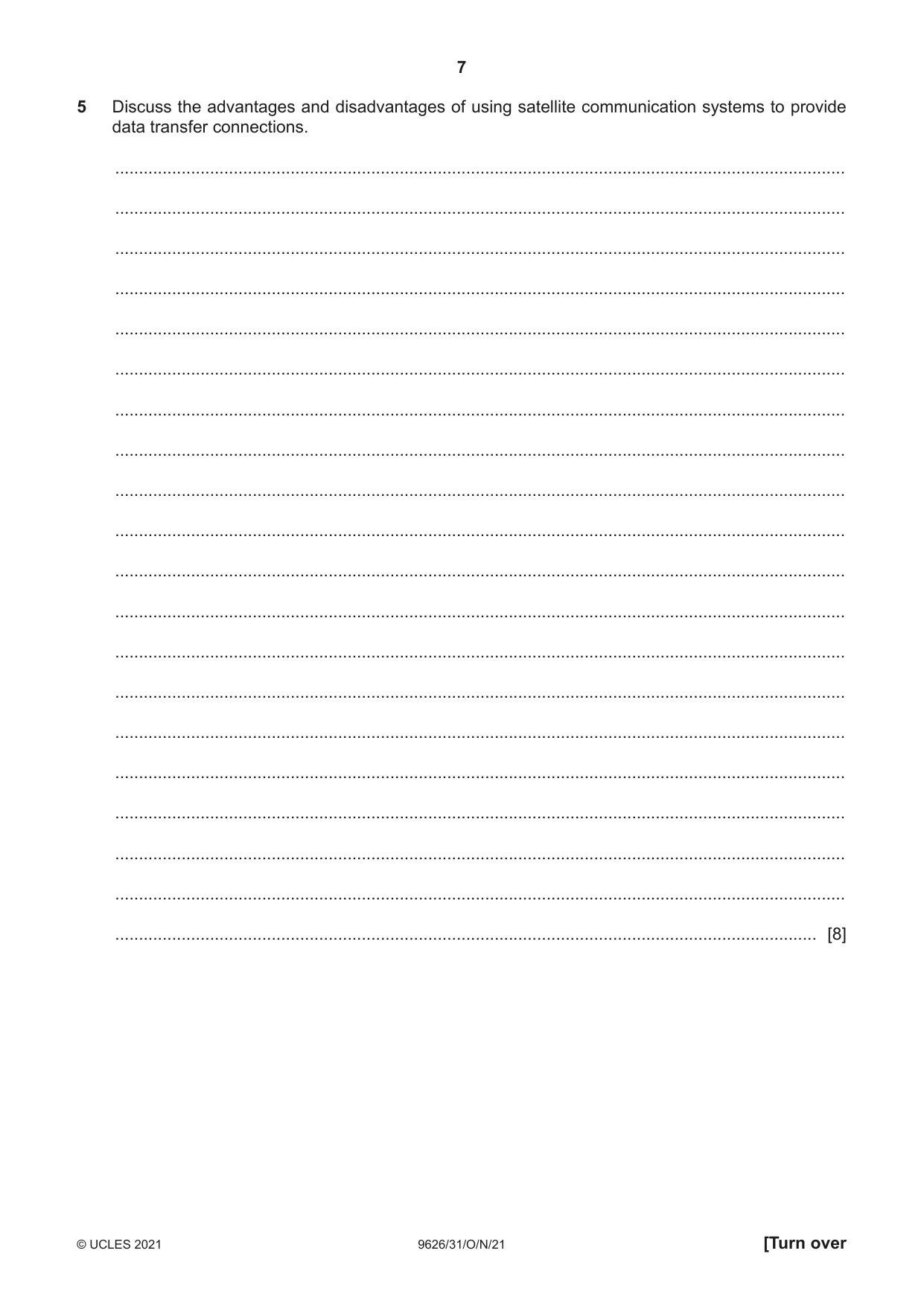

5 Discuss the advantages and disadvantages of using satellite communication systems to provide data transfer connections. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [8]

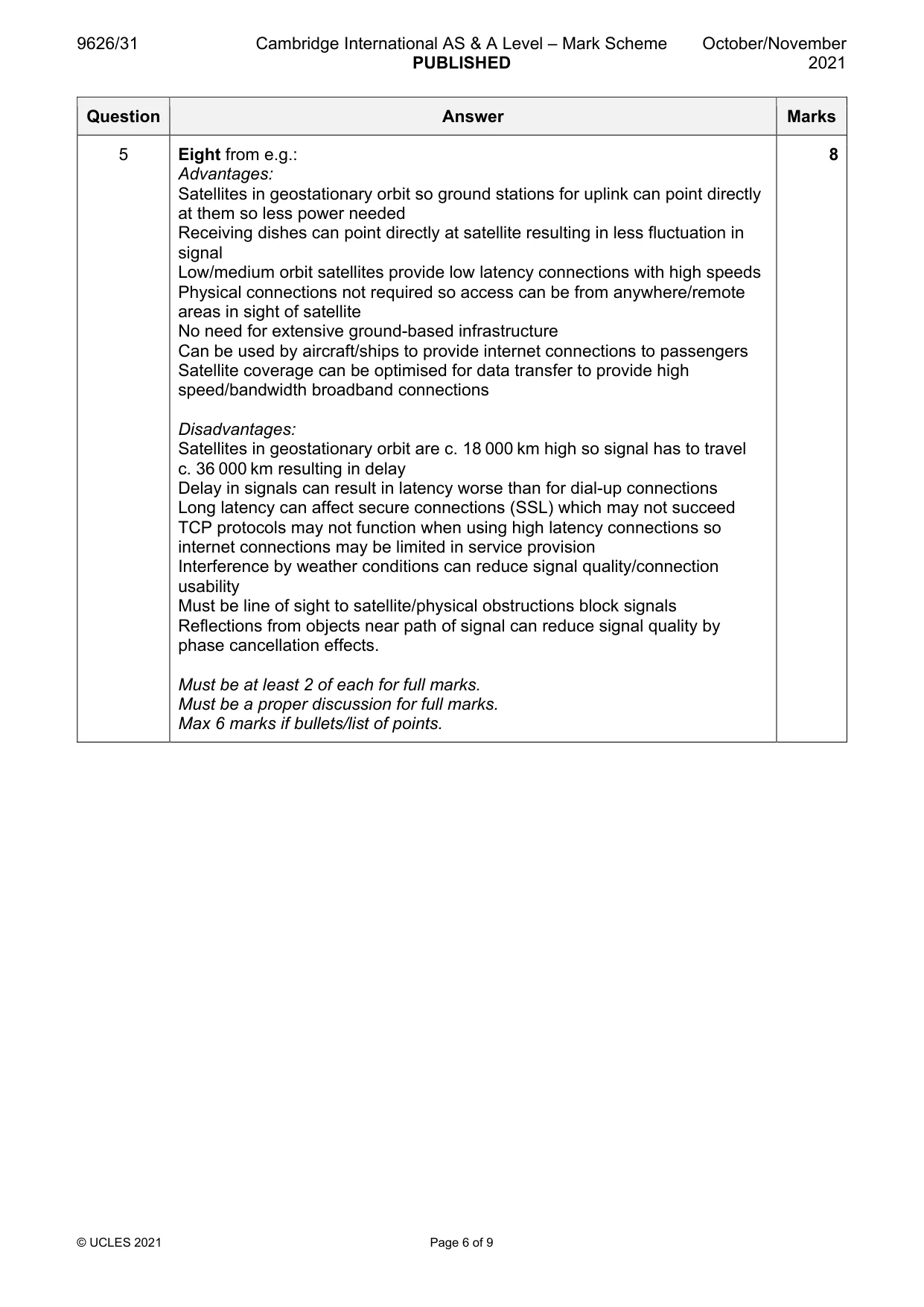

Mark scheme: 5 Eight from e.g.: 8 Advantages: Satellites in geostationary orbit so ground stations for uplink can point directly at them so less power needed Receiving dishes can point directly at satellite resulting in less fluctuation in signal Low/medium orbit satellites provide low latency connections with high speeds Physical connections not required so access can be from anywhere/remote areas in sight of satellite No need for extensive ground-based infrastructure Can be used by aircraft/ships to provide internet connections to passengers Satellite coverage can be optimised for data transfer to provide high speed/bandwidth broadband connections Disadvantages: Satellites in geostationary orbit are c. 18 000 km high so signal has to travel c. 36 000 km resulting in delay Delay in signals can result in latency worse than for dial-up connections Long latency can affect secure connections (SSL) which may not succeed TCP protocols may not function when using high latency connections so internet connections may be limited in service provision Interference by weather conditions can reduce signal quality/connection usability Must be line of sight to satellite/physical obstructions block signals Reflections from objects near path of signal can reduce signal quality by phase cancellation effects. Must be at least 2 of each for full marks. Must be a proper discussion for full marks. Max 6 marks if bullets/list of points.

More questions on Mobile communication systems

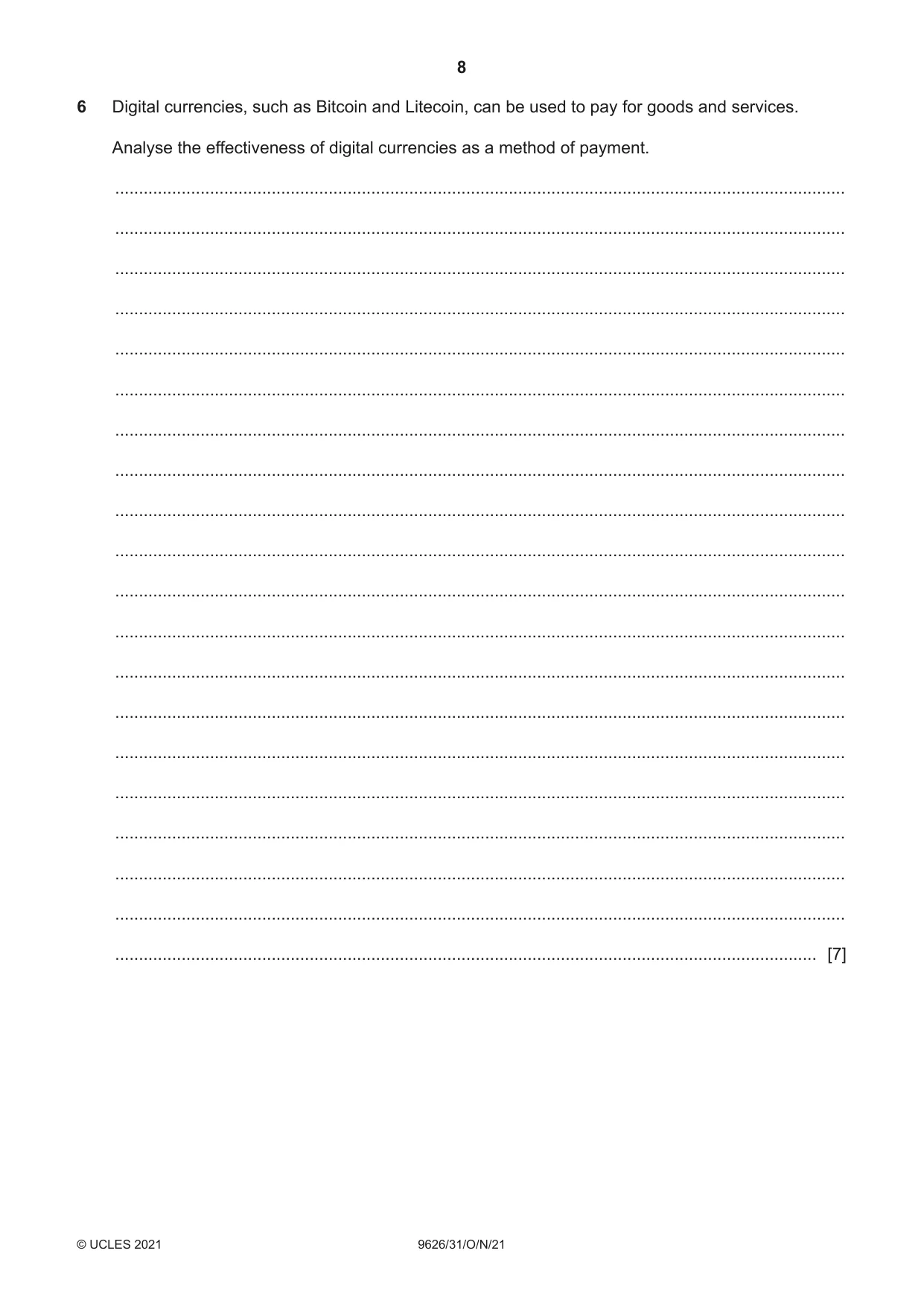

6 Digital currencies, such as Bitcoin and Litecoin, can be used to pay for goods and services. Analyse the effectiveness of digital currencies as a method of payment. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [7]

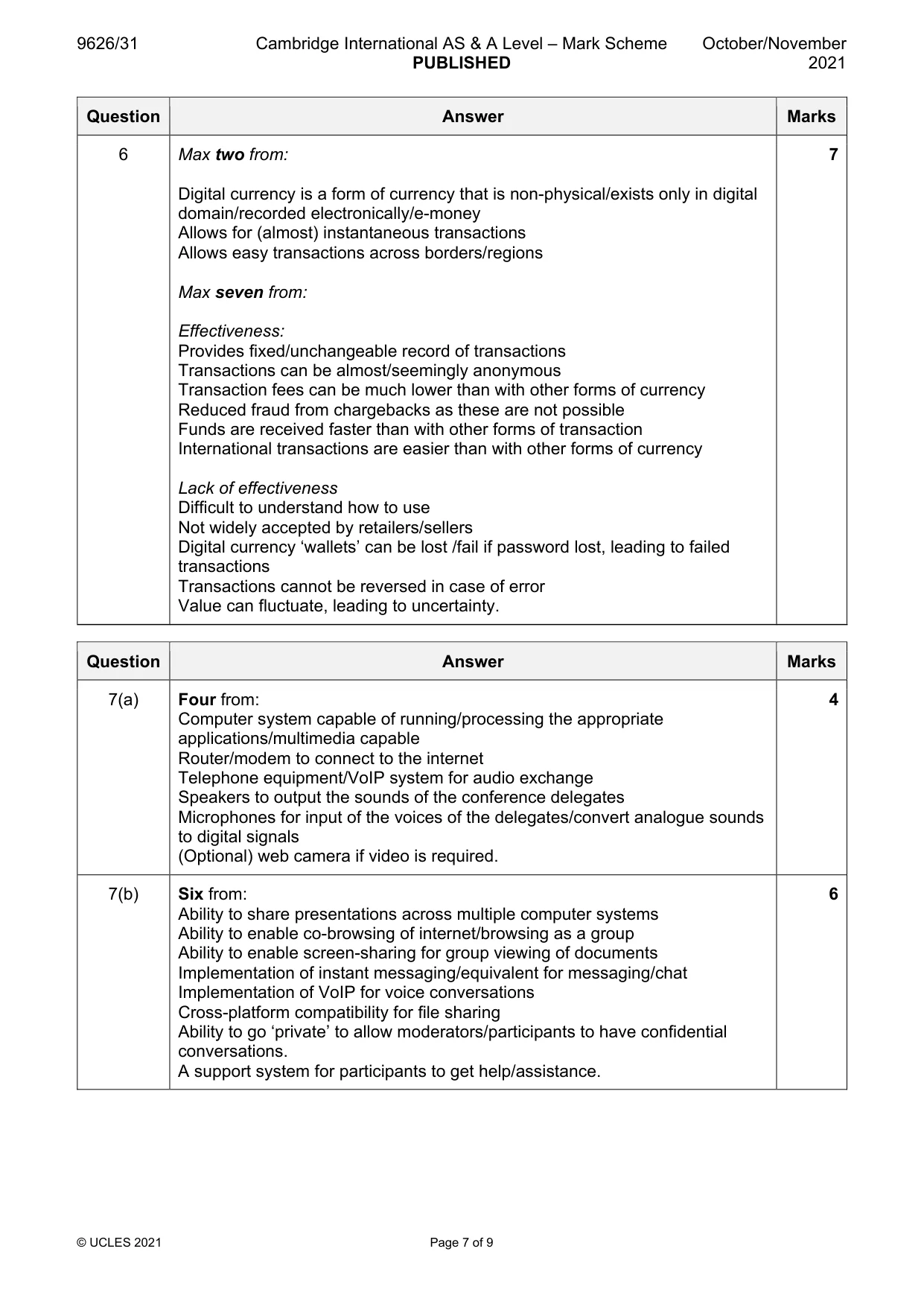

Mark scheme: 6 Max two from: 7 Digital currency is a form of currency that is non-physical/exists only in digital domain/recorded electronically/e-money Allows for (almost) instantaneous transactions Allows easy transactions across borders/regions Max seven from: Effectiveness: Provides fixed/unchangeable record of transactions Transactions can be almost/seemingly anonymous Transaction fees can be much lower than with other forms of currency Reduced fraud from chargebacks as these are not possible Funds are received faster than with other forms of transaction International transactions are easier than with other forms of currency Lack of effectiveness Difficult to understand how to use Not widely accepted by retailers/sellers Digital currency ‘wallets’ can be lost /fail if password lost, leading to failed transactions Transactions cannot be reversed in case of error Value can fluctuate, leading to uncertainty.

More questions on Digital currencies

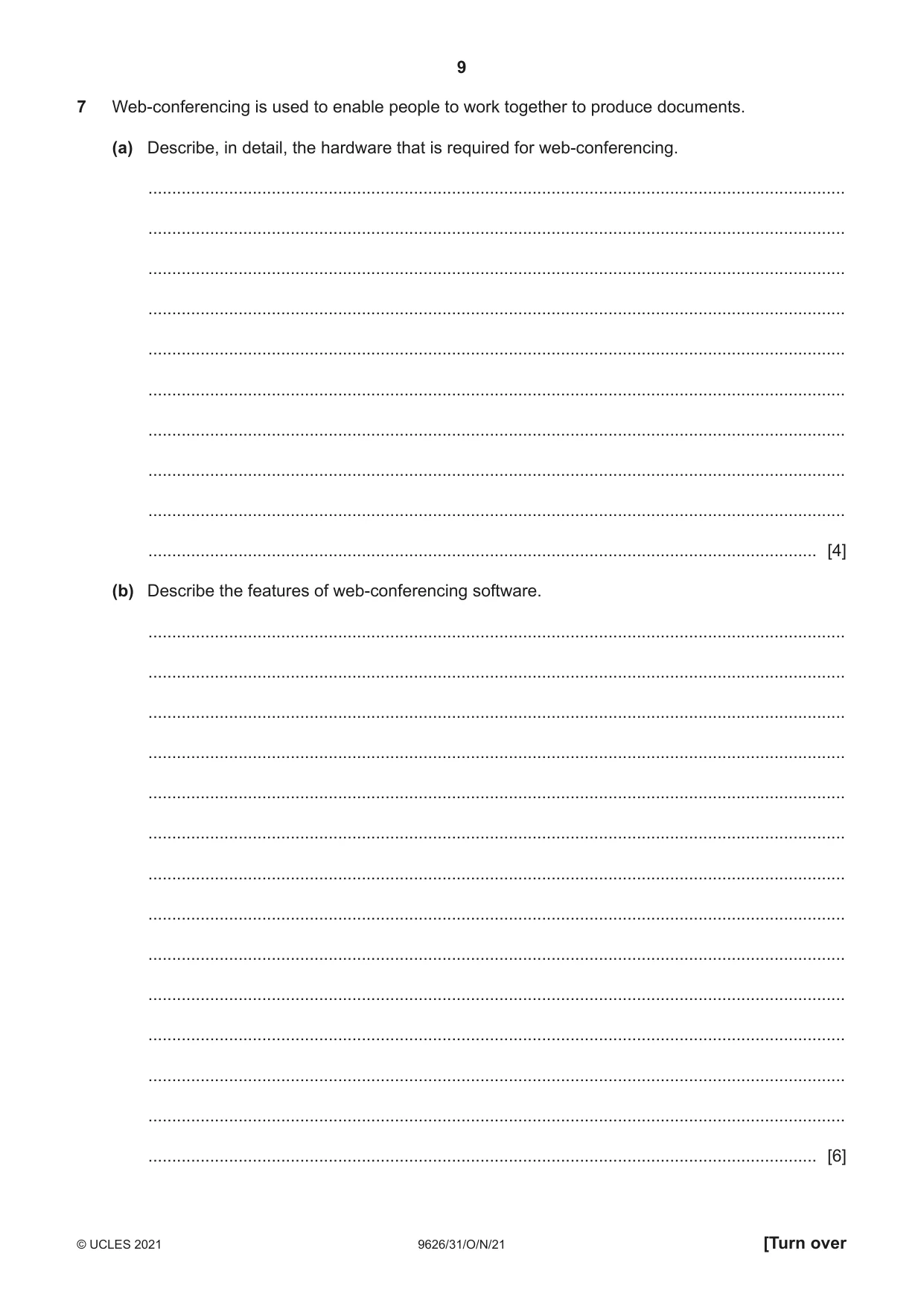

7 Web-conferencing is used to enable people to work together to produce documents. (a) Describe, in detail, the hardware that is required for web-conferencing. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [4] (b) Describe the features of web-conferencing software. ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ................................................................................................................................................... ............................................................................................................................................. [6]

Mark scheme: 7(a) Four from: 4 Computer system capable of running/processing the appropriate applications/multimedia capable Router/modem to connect to the internet Telephone equipment/VoIP system for audio exchange Speakers to output the sounds of the conference delegates Microphones for input of the voices of the delegates/convert analogue sounds to digital signals (Optional) web camera if video is required. 7(b) Six from: 6 Ability to share presentations across multiple computer systems Ability to enable co-browsing of internet/browsing as a group Ability to enable screen-sharing for group viewing of documents Implementation of instant messaging/equivalent for messaging/chat Implementation of VoIP for voice conversations Cross-platform compatibility for file sharing Ability to go ‘private’ to allow moderators/participants to have confidential conversations. A support system for participants to get help/assistance.

More questions on Components in a network

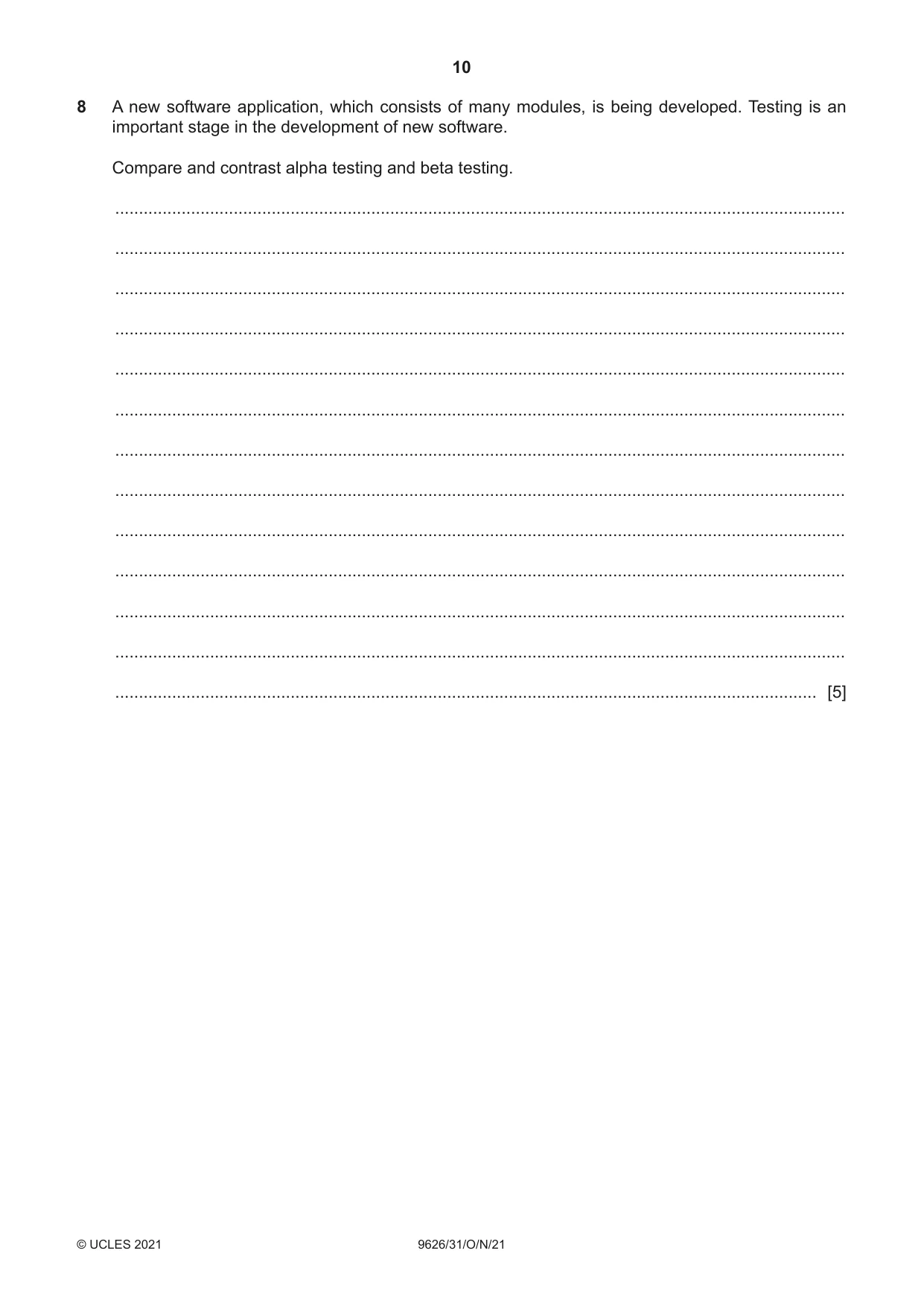

8 A new software application, which consists of many modules, is being developed. Testing is an important stage in the development of new software. Compare and contrast alpha testing and beta testing. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [5]

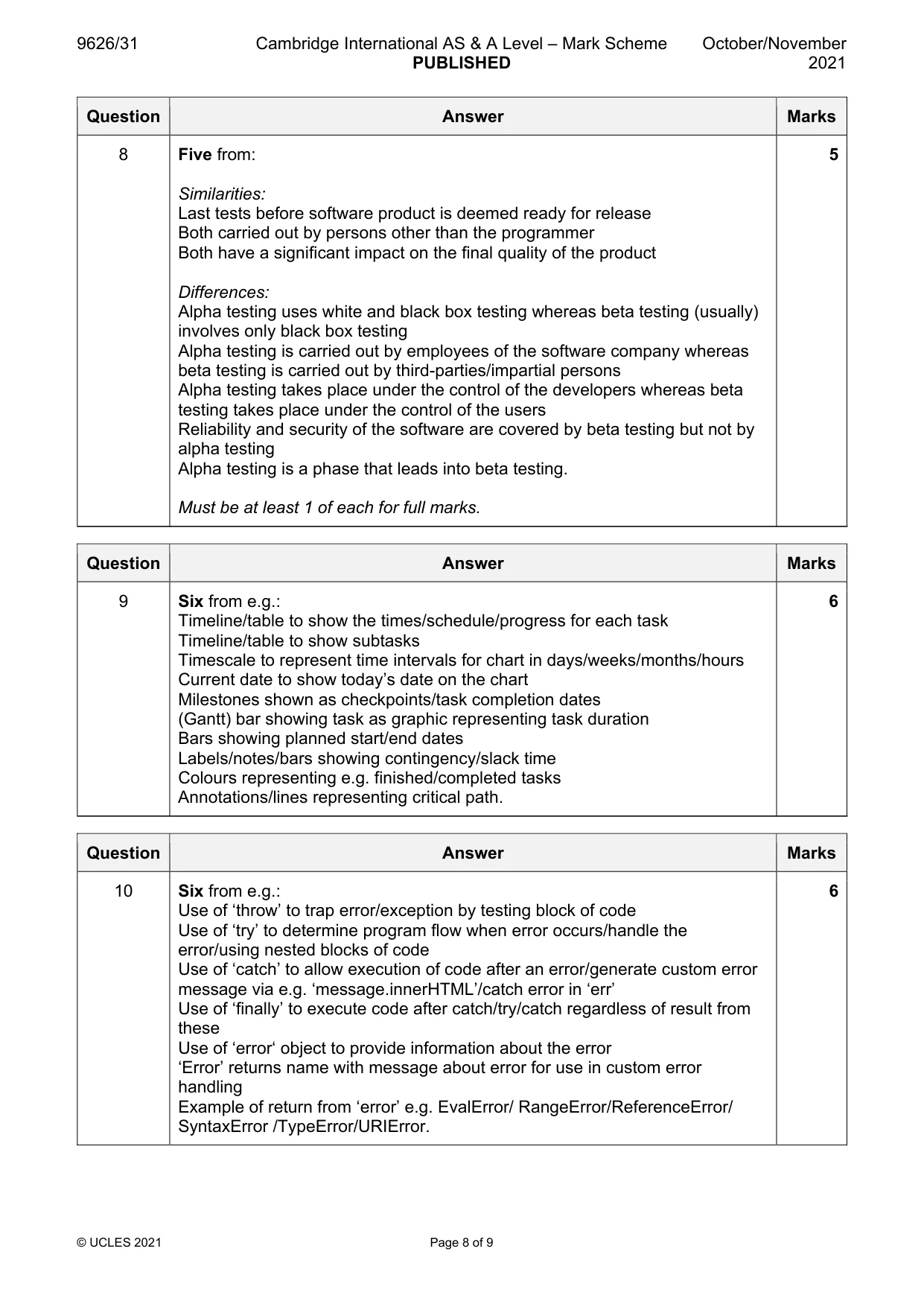

Mark scheme: 8 Five from: 5 Similarities: Last tests before software product is deemed ready for release Both carried out by persons other than the programmer Both have a significant impact on the final quality of the product Differences: Alpha testing uses white and black box testing whereas beta testing (usually) involves only black box testing Alpha testing is carried out by employees of the software company whereas beta testing is carried out by third-parties/impartial persons Alpha testing takes place under the control of the developers whereas beta testing takes place under the control of the users Reliability and security of the software are covered by beta testing but not by alpha testing Alpha testing is a phase that leads into beta testing. Must be at least 1 of each for full marks.

More questions on Development and testing

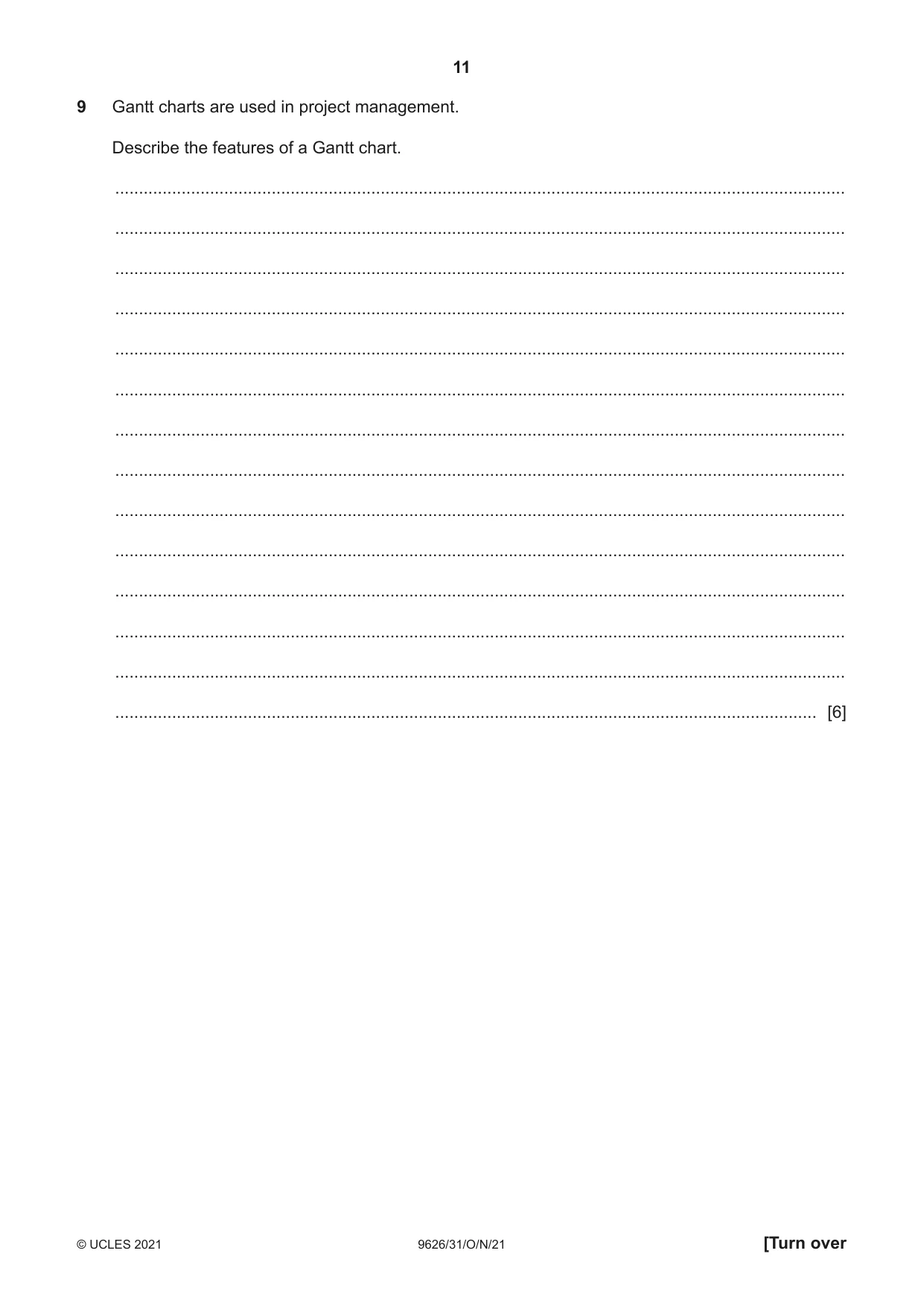

9 Gantt charts are used in project management. Describe the features of a Gantt chart. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [6]

Mark scheme: 9 Six from e.g.: 6 Timeline/table to show the times/schedule/progress for each task Timeline/table to show subtasks Timescale to represent time intervals for chart in days/weeks/months/hours Current date to show today’s date on the chart Milestones shown as checkpoints/task completion dates (Gantt) bar showing task as graphic representing task duration Bars showing planned start/end dates Labels/notes/bars showing contingency/slack time Colours representing e.g. finished/completed tasks Annotations/lines representing critical path.

More questions on Tools and techniques for project management tasks

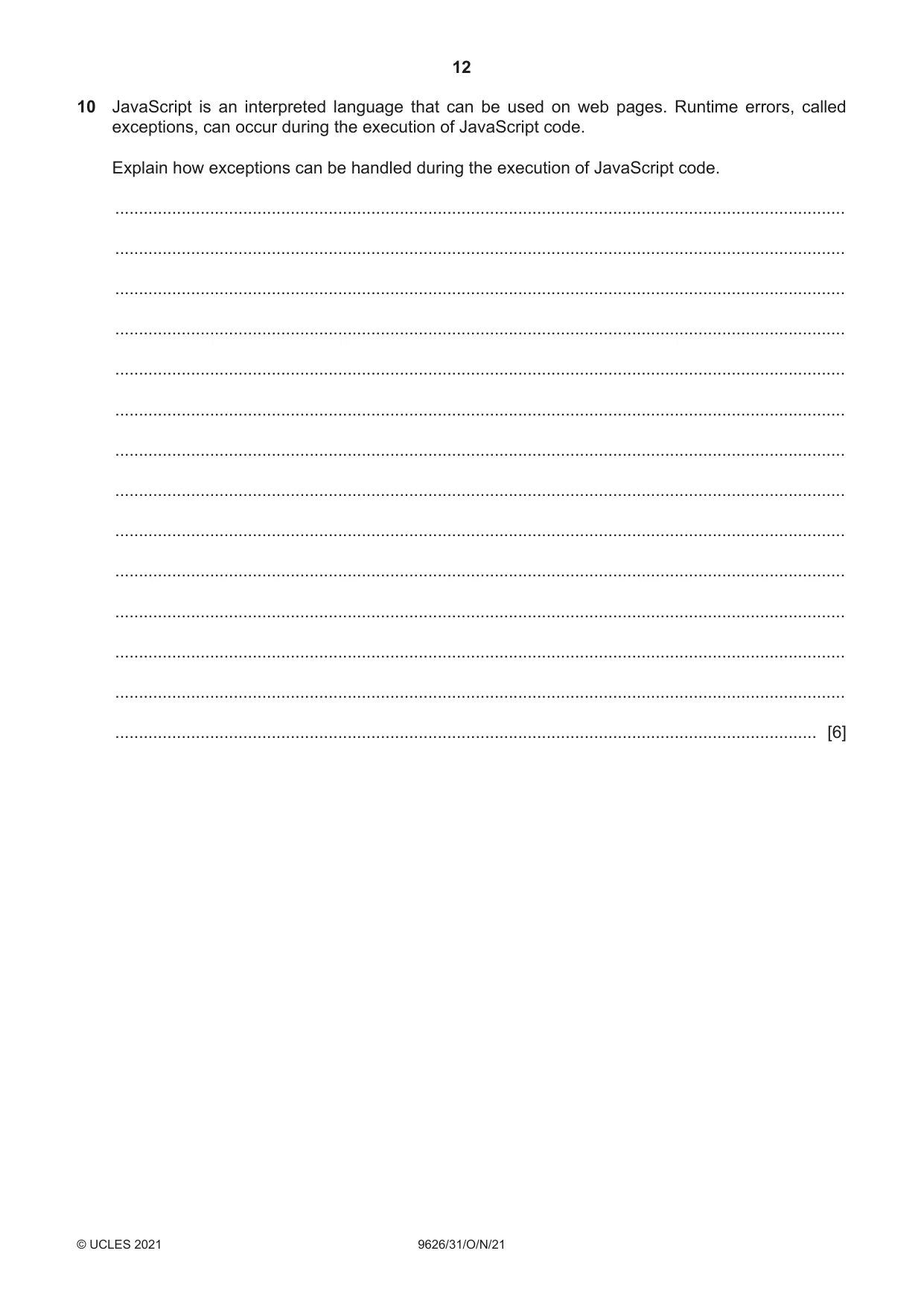

10 JavaScript is an interpreted language that can be used on web pages. Runtime errors, called exceptions, can occur during the execution of JavaScript code. Explain how exceptions can be handled during the execution of JavaScript code. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [6]

Mark scheme: 10 Six from e.g.: 6 Use of ‘throw’ to trap error/exception by testing block of code Use of ‘try’ to determine program flow when error occurs/handle the error/using nested blocks of code Use of ‘catch’ to allow execution of code after an error/generate custom error message via e.g. ‘message.innerHTML’/catch error in ‘err’ Use of ‘finally’ to execute code after catch/try/catch regardless of result from these Use of ‘error‘ object to provide information about the error ‘Error’ returns name with message about error for use in custom error handling Example of return from ‘error’ e.g. EvalError/ RangeError/ReferenceError/ SyntaxError /TypeError/URIError.

More questions on Programming for the web

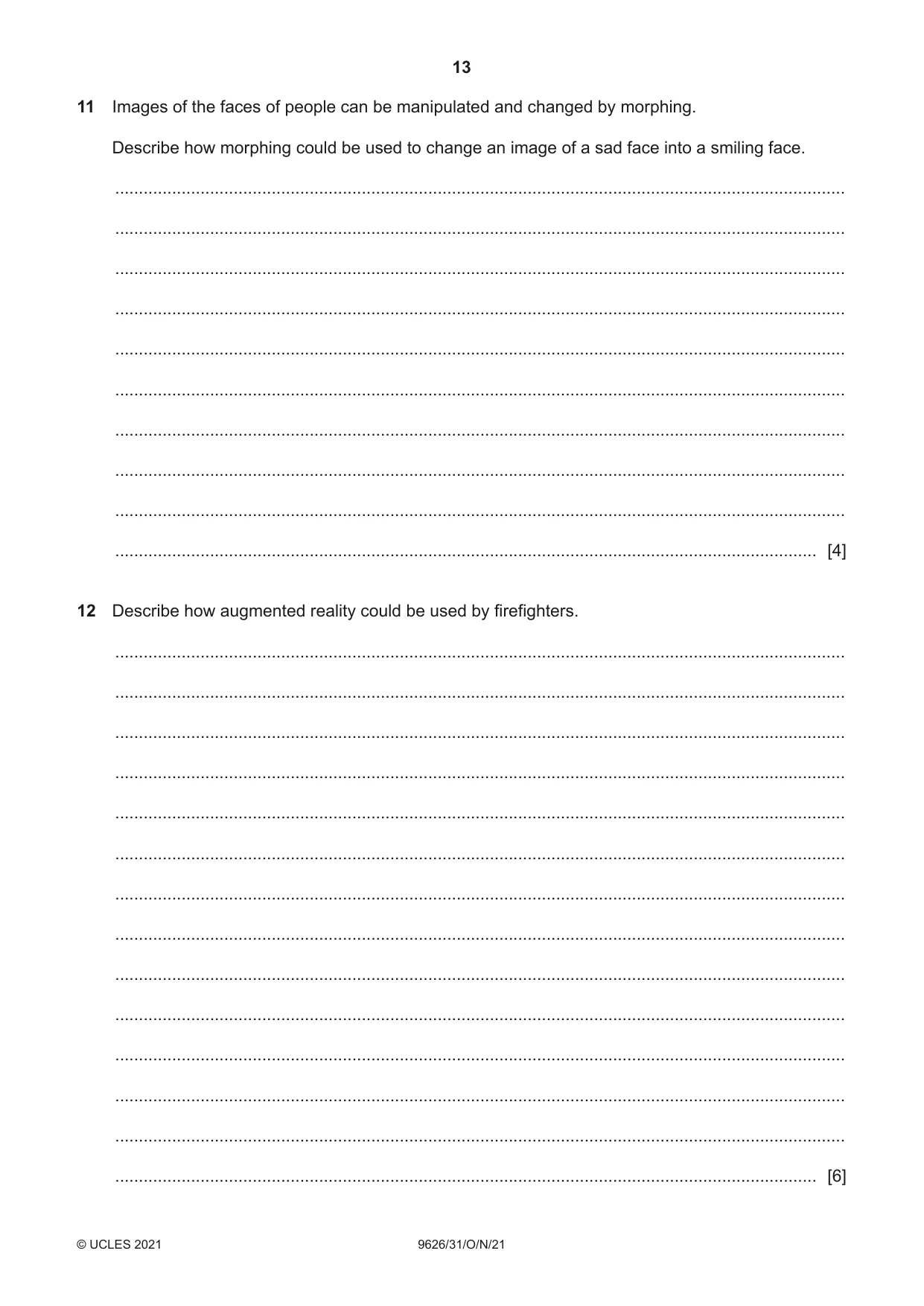

11 Images of the faces of people can be manipulated and changed by morphing. Describe how morphing could be used to change an image of a sad face into a smiling face. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [4]

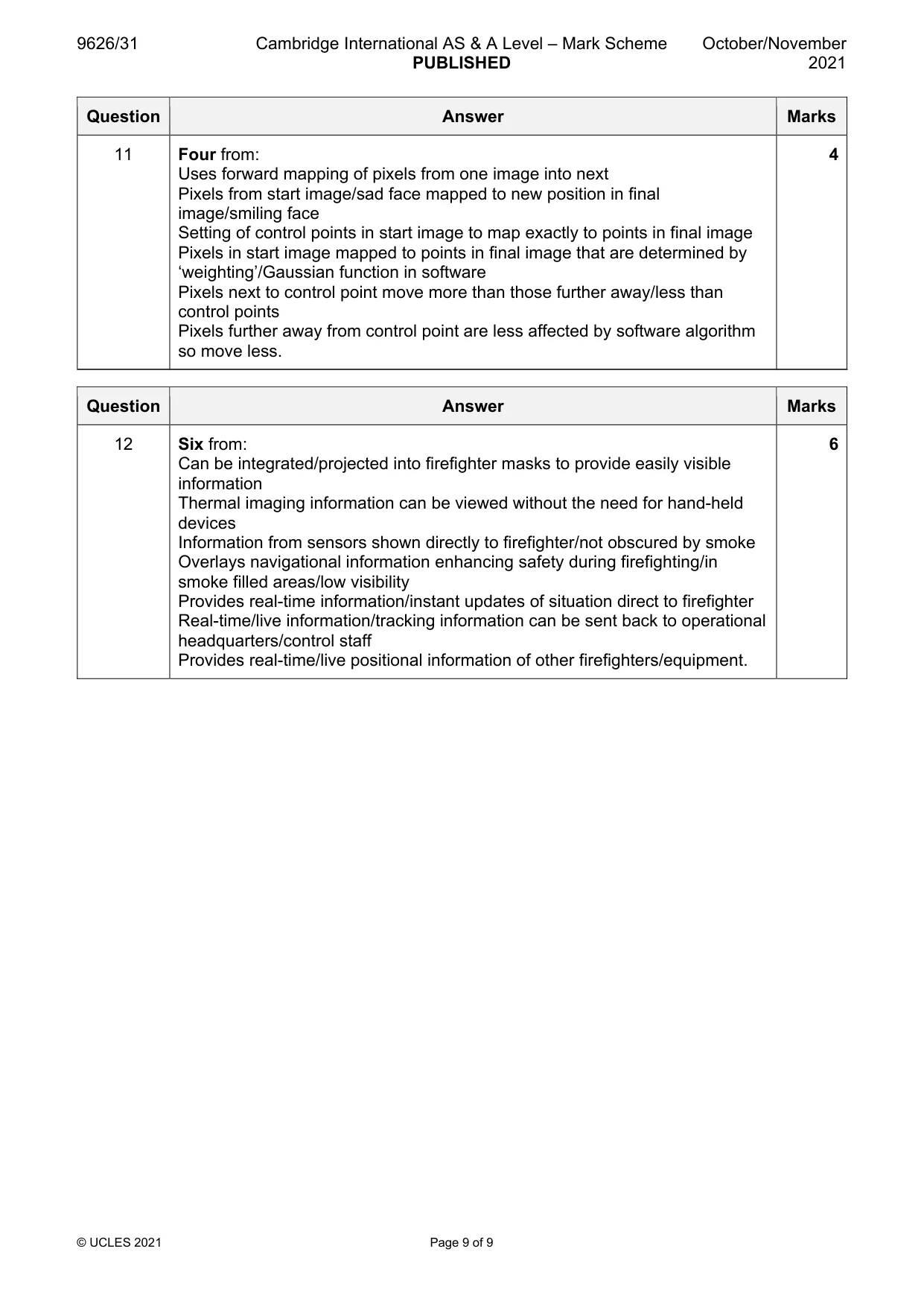

Mark scheme: 11 Four from: 4 Uses forward mapping of pixels from one image into next Pixels from start image/sad face mapped to new position in final image/smiling face Setting of control points in start image to map exactly to points in final image Pixels in start image mapped to points in final image that are determined by ‘weighting’/Gaussian function in software Pixels next to control point move more than those further away/less than control points Pixels further away from control point are less affected by software algorithm so move less.

More questions on Common graphics skills

12 Describe how augmented reality could be used by firefighters. .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .......................................................................................................................................................... .................................................................................................................................................... [6]

Mark scheme: 12 Six from: 6 Can be integrated/projected into firefighter masks to provide easily visible information Thermal imaging information can be viewed without the need for hand-held devices Information from sensors shown directly to firefighter/not obscured by smoke Overlays navigational information enhancing safety during firefighting/in smoke filled areas/low visibility Provides real-time information/instant updates of situation direct to firefighter Real-time/live information/tracking information can be sent back to operational headquarters/control staff Provides real-time/live positional information of other firefighters/equipment.
